Introduction SY-6IBM

Chapter 1

INTRODUCTION

The SY-6IBM AGP/PCI Motherboard is a high-performance Slot 1
processor supported Micro-ATX form-factor system board. SY-6IBM
uses the 82440 BX Chipset technology and supports Slot 1
processors. This Motherboard is fully compatible with industry
standards and adds many technical enhancements.

1-1 KEY FEATURES

Ø Supports Intel Pentium® III processor (450-550MHz), Pentium® II

processor (233-450MHz) & Celeron processor (266-433MHz)

Ø Easy CPU settings in BIOS with the “SOYO COMBO Setup”.
Ø 3D YAMAHA YMF740 Audio
Ø ATI Rage 128 Graphics/Multimedia accelerator with 8MB Video

memory on board

Ø Auto-detect CPU voltage
Ø PC98, APM, ACPI, Ultra DMA/33
Ø Power-on by modem or alarm
Ø Supports Wake-On-LAN (WOL)
Ø Supports Power-On by PS/2 Keyboard
Ø 3 x 32-bit bus mastering PCI slots

Ø 1 x 16-bit ISA slot
Ø 2 x USB ports
Ø 1 x IrDA port
Ø Supports multiple-boot function
Ø ATX power connector

Ø Power failure resume

2

Introduction SY-6IBM

SY-6IBM PLATFORM FEATURES

Board Size 4-layer PCB, 24.4x22.0cm (9.6” x 8.7”), Micro-ATX

Form Factor

Slot1 Slot 1 for Pentium® III, Pentium® II & Celeron

Processor

Ø Supports the following processors

u 100MHz FSB

Pentium® II 350/400/450 MHz
Pentium® III 450/500/550 MHz

u 66MHz FSB

Pentium® II 233/266/300/333 MHz
Celeron 300A/333/366/400/433 MHz
Celeron 266/300 MHz

Ø Supports both boxed and non-boxed type of CPUs
Ø Includes a CPU mount kit with retention clip
Ø Features Auto-detection of CPU voltage

Chipset 82440 BX AGP/PCI Set
Audio Onboard YAMAHA YMF740 Onboard
AGP Onboard ATI RAGE 128 Graphics/Multimedia Accelerator
ATX Power 20-pin Male Connector
CPUFAN 3-pin CPU Cooling Fan Connector
Memory DIMM Bank (DIMM1~3)

Ø Three strips of 168-pin Unbuffered or Registered

SDRAM DIMM

Ø Supports 8/16/32/64/128/256MB DIMM modules in

each bank

Ø Provides up to 768 MBytes of main memory

BIOS System BIOS built-in, Award BIOS

Ø APM, ACPI and "Plug-and-Play" function
Ø Supports multiple-boot function
Ø Onboard FLASH memory for easy upgrade
Ø Y2K Compliant

Bus Controller Compliant with version 2.1 PCI specifications
PCI Slots 3 x 32-bit Bus Mastering Slots
ISA Slots 1 x 16-bit ISA Slots

3

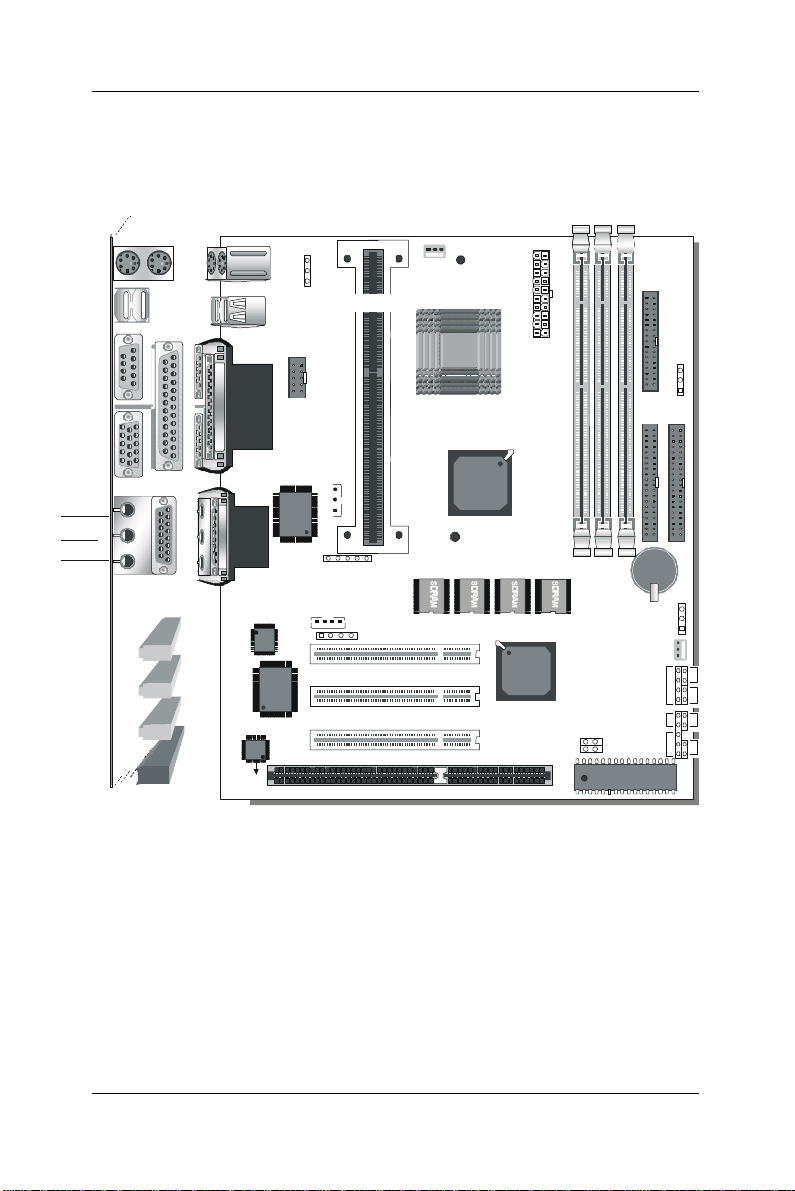

Introduction SY-6IBM

IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports

Ø IDE1: Primary IDE Device Connector
Ø IDE2: Secondary IDE Device Connector
Ø Supports Ultra DMA/33

COM2 1 x 9-pin RS-232 Serial Connector
FDC 1 Floppy Disk Drive (FDD) Port

(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)

IR1 5-pin Serial Infrared Device Header
Keylock 5-pin KeyLock Header
Reset 2-pin Reset Switch Header
Speaker 4-pin PC Speaker Header
TB_LED 2-pin Turbo LED Header
HDD_LED 2-pin IDE Device LED Header
PWRBT ATX Power On/Off Switch 2-pin Header
J4, J5 2 x CD Line-in 4-pin Headers
JP1 Power-On by PS/2 Keyboard Jumper
JP3 AGP operating speed Select Jumper
JP5 CMOS Clear Jumper
JP8 Power Button Enable Jumper
JP10 External Suspend Button Header
JP44 WOL (Wake-On-LAN) 3-pin Header

SY-6IBM BACK-PANEL FEATURES

PRT 1 x Onboard 25-pin Female Parallel Printer Port
COM1 1 x Onboard RS-232 Serial Port
PS/2 KB 1 x Onboard PS/2 Keyboard Connector
PS/2 Mouse 1 x Onboard PS/2 Mouse Connector
USB1, USB2 2 x Onboard USB
VGA 1 x Onboard 15-pin VGA Port
JOYSTICK 1 x Onboard 15-pin Joystick Port
LINE-OUT 1 x Onboard Line-out Audio Stereo Jack
LINE-IN 1 x Onboard Line-in Audio Stereo Jack
MIC JACK 1 x Onboard Microphone Stereo Jack

(Universal Serial Bus)

4

Connectors

Introduction SY-6IBM

1-2 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules
while unpacking:

Ø Before handling the Motherboard, ground yourself by grasping

an unpainted portion of the system's metal chassis.

Ø Remove the Motherboard from its anti-static packaging. Hold

the Motherboard by the edges and avoid touching its
components.

Ø Check the Motherboard for damage. If any chip appears loose,

press carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the Motherboard in dry or air-conditioned
environment.

To protect your equipment from electrostatic discharge, take the
following precautions:

Ø Do not remove the anti-static packaging until you are ready to

install.

Ø Ground yourself before removing any system component from

its protective anti-static packaging. (To ground yourself, grasp
the expansion slot covers or other unpainted portions of the
computer chassis.)

Ø Frequently ground yourself while working or use a grounding

strap.

Ø Handle the Motherboard by its edges and avoid touching its

components.

5

Hardware Setup SY-6IBM

Chapter 2

HARDWARE SETUP

Congratulations on your purchase of SY-6IBM Motherboard. You
are about to install and connect your new Motherboard.

Note: Do not unpack the Motherboard from its protective anti­static packaging until you have made the following preparations.

2-1 PREPARATIONS

Gather and prepare all the following hardware equipment to
complete the installation successfully:

1. Slot 1 processor with built-in CPU cooling fan (boxed type).
Note: This Motherboard supports non-boxed type CPUs. The

heavier CPU cooling fan requires the installation of a CPU
support stand included in the Motherboard package.

2. DIMM memory module

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. Keyboard

6. Pointing Device (PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Frequently Asked Questions:

l Do I need to install a VGA card?
l Do I also need to install a sound card?

The answer is NO to both questions above, since, for your
convenience, the SY-6IBM Motherboard already features one built­in VGA port and three built-in audio-stereo ports (Line-out, Line-in,
Microphone).

l What kind of speaker can connect to "Line-out" port?

This Motherboard requires a speaker with built-in amplifier to
generate proper output sound volume.

6

Hardware Setup SY-6IBM

2-2 UNPACKING THE MOTHERBOARD

When unpacking the Motherboard, check for the following items:

Ø The SY-6IBM 82440 BX AGP/PCI Motherboard
Ø The Quick Start Guide *
Ø The Installation CD-ROM *
Ø One IDE Device Flat Cable
Ø One Floppy Disk Drive Flat Cable
Ø Serial port flat cable with a 9-pin connector bracket

* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.

Warning: Do not unpack the Motherboard from its anti­static packaging until you are ready to install it.

Like most electronic equipment, your Motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the Motherboard carefully, holding it by the edges.
You are now ready to start the installation.

7

Hardware Setup SY-6IBM

2-3 INSTALLATION GUIDE

We will now begin the installation of the Motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.

Warning: Turn off the power to the Motherboard, system chassis,
and peripheral devices before performing any work on the
Motherboard or system.

BEGIN THE INSTALLATION

Step 1. CPU Installation

Your SY-6IBM Motherboard comes with a CPU retention set kit. The
retention set is used to hold the processor attached to the Slot 1
CPU connector on the Motherboard.

Follow these instructions to install your Slot 1 processor correctly.

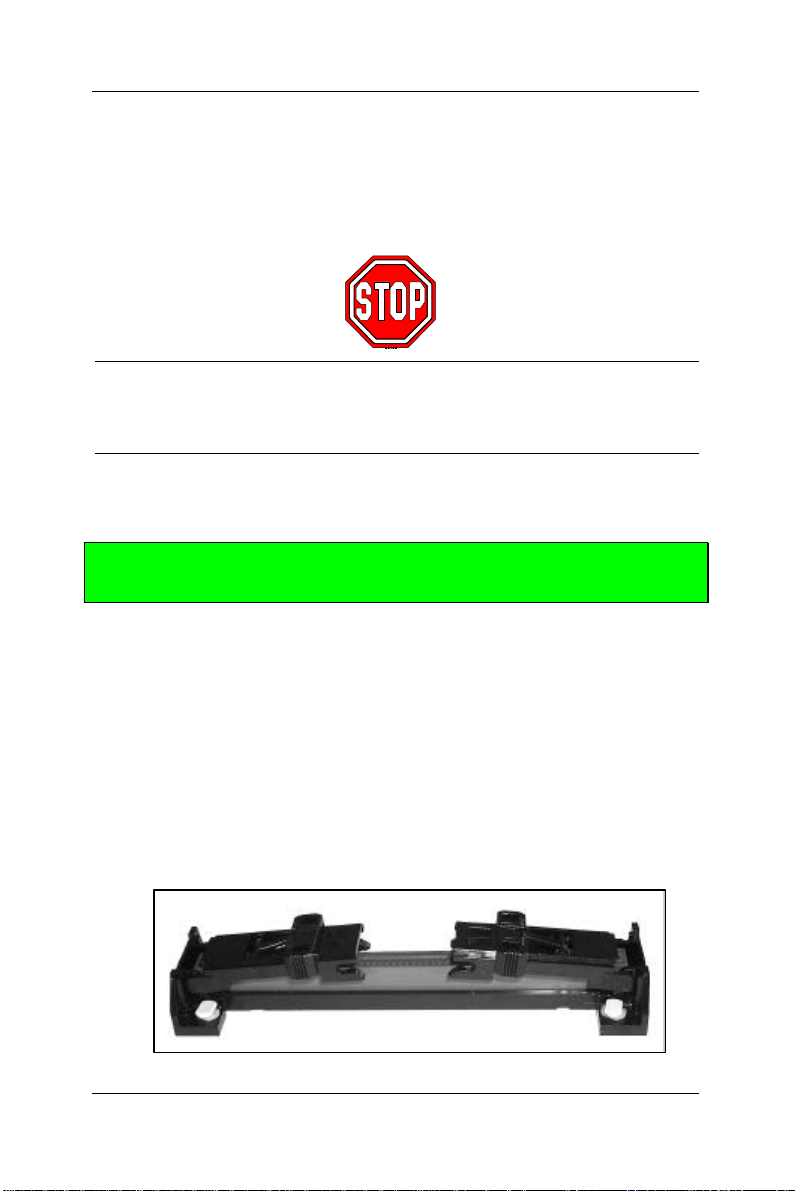

Ø Retention Module

8

Hardware Setup SY-6IBM

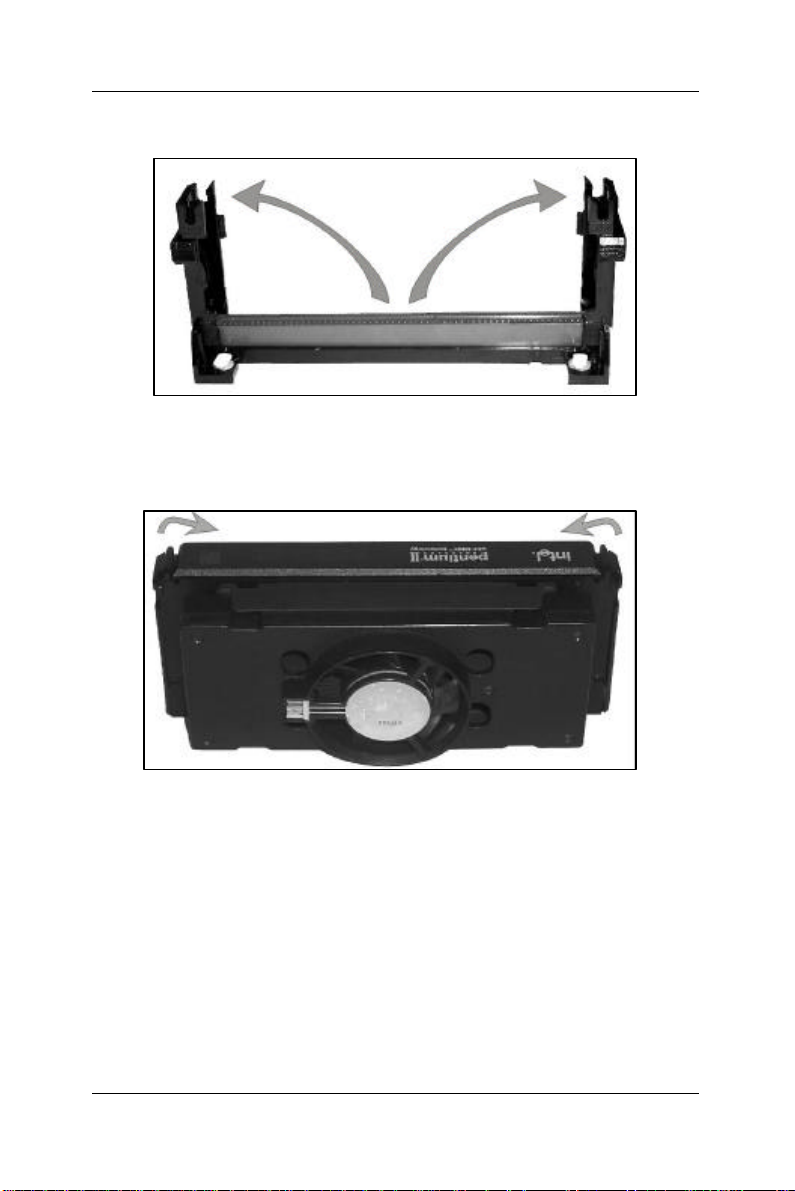

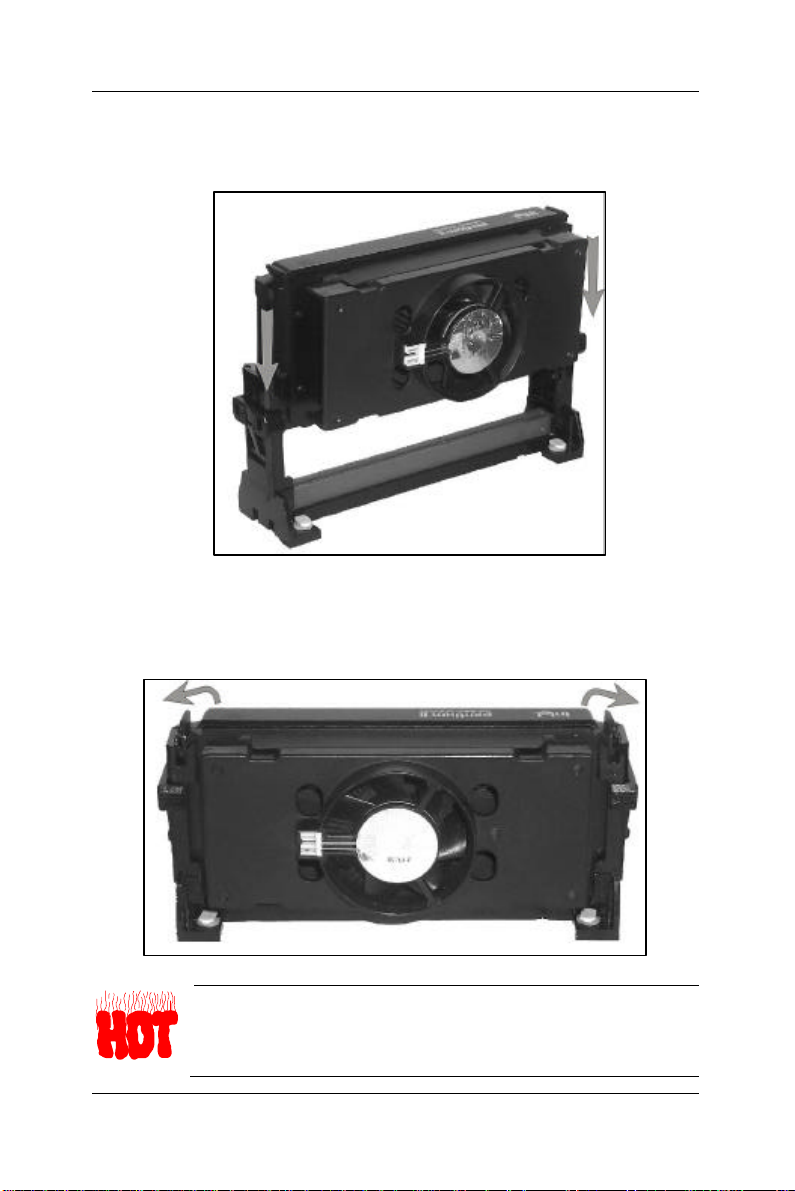

1. Open the two sides by folding them up.

2. Push the locks on top of the CPU inward.

9

Hardware Setup SY-6IBM

3. Insert the CPU into the retention module. The CPU fits in the

CPU slot in only ONE way, do not try to force it in.

4. After completely inserting the CPU, push the two locks on top

of the CPU outward. Now your CPU is ready for use.

To remove the CPU, press the two notches on top of the CPU
inward. Now press the two slides on the retention module down

and remove the CPU.

10

Hardware Setup SY-6IBM

Note: Installing a heat sink and cooling fan on top of your
CPU is necessary for proper heat dissipation. Failing to
install these items may result in overheating and possible
burn-out of your CPU.

Step 2. CPU Fan Installation

Your Slot 1 processor kit comes with a cooling fan. Mount the fan on
the processor according to the instructions provided by the
manufacturer. The fan is a key component that will ensure system
stability. The fan prevents overheating, therefore prolonging the life
of your CPU.

Note: Remember to connect the fan to the appropriate power
source.

11

Hardware Setup SY-6IBM

DIMM 3

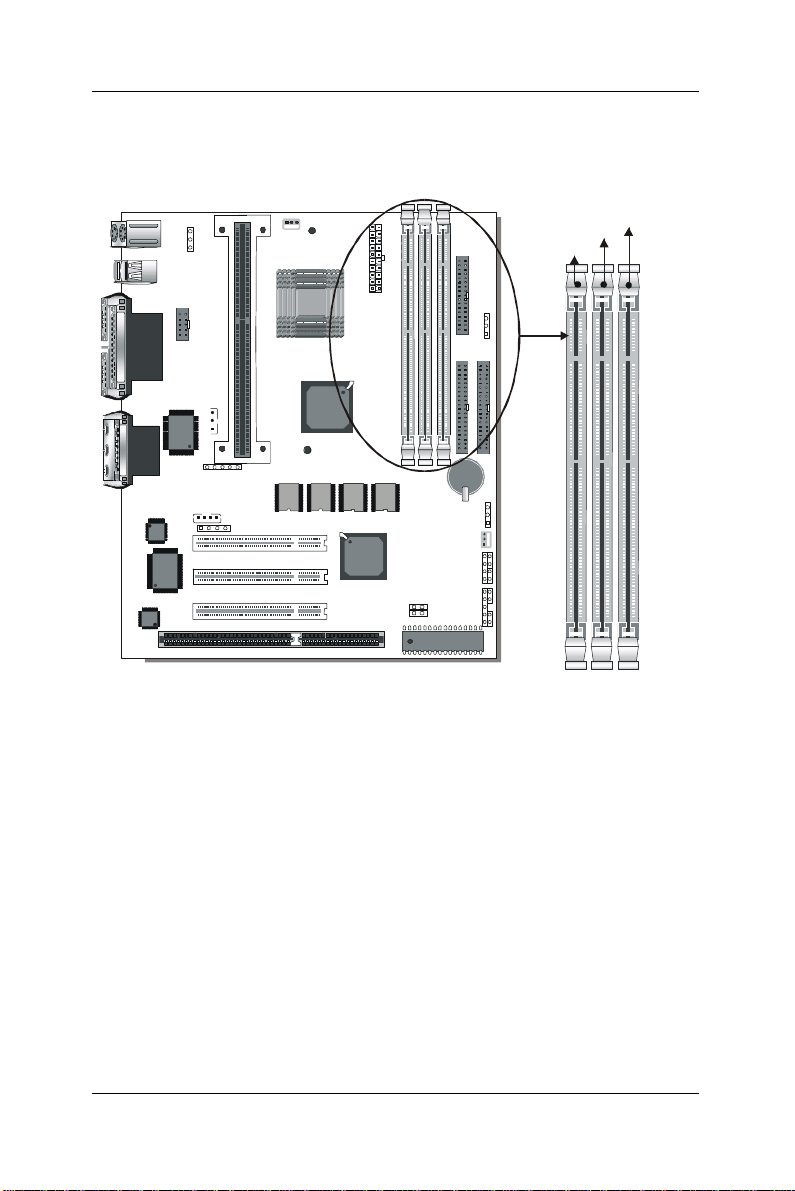

Step 3. SDRAM Memory Module Installation

This Motherboard features 3 x DIMM Banks for 168-pin 3.3V
unbuffered or Registered DIMM modules.

DIMM 2

DIMM 1

his motherboard features 3 x DIMM Banks for 168-pin 3.3V
unbuffered and registered DIMM modules, providing support for up
to 768MB of main memory using DIMM modules from 8MB to
256MB. For 66MHz front side bus CPUs use 12ns or faster memory;
for 100MHz front side bus CPUs use 8ns (100MHz, PC100
compliant) memory.

W83781D

12

Hardware Setup SY-6IBM

Memory Configuration Table

Number of Memory Modules DIMM 1 DIMM 2 DIMM 3

1
2
3

RAM Type

Memory Module Size (MB)

st

1

st

1

st

1

nd

2

nd

2

3

SDRAM

8/16/32/64/128/256 Mbytes

rd

Note: (1) 256 MB memory modules only available on PC
registered DIMM.

(2) Always install memory modules in the order

prescribed in this table.

(3) Do not install unbuffered and registered memory

modules together.

Important: It is of prime importance that you install DIMM modules
as outlined in the table above in order to preserve signal integrity on
100MHz front side bus systems.

Step 4. IDE Device Installation (HDD, CD-ROM)

This Motherboard offers two primary and secondary IDE device
connectors (IDE1, IDE2.) It can support up to four high-speed HDD
or CD-ROM.

Connect one side of the 40-pin flat cable to the IDE device (HDD or
CD-ROM) and plug the other end to the primary (IDE1) or secondary
(IDE2) directionally keyed IDE connector on the Motherboard.
This Motherboard can support up to four HDDs.

13

Hardware Setup SY-6IBM

Step 5. Floppy Drive Installation

The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,

1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard

supports a 3-mode (720KB/1.2MB/1.44MB) floppy commonly used
in Japan.
Connect one side of the 34-pin flat cable to the floppy drive and plug
the other end to the floppy drive connector on the Motherboard.
This Motherboard can support up to 2 floppy drives.

14

Hardware Setup SY-6IBM

Reset

PWRBT

Speaker

Keylock

Turbo

HDD LED

_

_

+

+

Step 6. Front Panel Connections

LED

Power
LED

W83781D

Plug the computer case's front panel devices to the corresponding
headers on the Motherboard.

1. Power LED & KeyLock

Plug the Power LED cable into the 5-pin Keylock header.
Some systems may feature a KeyLock function with a front panel
switch for enabling or disabling the keyboard. Connect the KeyLock
switch to the 5-pin Keylock header on the Motherboard.
Please install according to the following pin assignment: pin 1,3 are
for Power LED and pin 4,5 are for Keylock.

2. Reset

Plug the Reset push-button cable into the 2-pin Reset header on the
Motherboard. Pushing the Reset button on the front panel will cause
the system to restart the boot-up sequence.

15

Hardware Setup SY-6IBM

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker
header on the Motherboard.

4. Turbo LED

Connecting the 2-pin Turbo LED cable to the corresponding Turbo
LED header will cause the LED to light whenever the system is in
Turbo mode.
The manufacturer has permanently set this Motherboard in Turbo
mode due to most hardware and software compliance to turbo
mode.

5. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE
LED header on the Motherboard. This will cause the LED to lighten
when an IDE (HDD, CD-ROM) device is active.

6. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT header for
turning On or Off your ATX power supply.

16

Hardware Setup SY-6IBM

COM 1

USB 2

PS/2 KB

Connector

Game Port

MIC JACK

Step 7. Back Panel Connections

All external devices such as the keyboard, printer, PS/2 mouse,
modem, USB, monitor, joystick and audio devices (speakers/
headphones, microphone and CD/cassette player) can be plugged
directly onto the Motherboard back panel.
Only after you have fixed and locked the Motherboard to the
computer case can you start connecting the external peripheral
devices.

When connecting an external device, use the following figure to
locate and identify which back panel connector to plug the device to.

PS/2 Mouse

Connector

USB 1

PRT

VGA

LINE-OUT

LINE-IN

W83781D

1. Onboard Serial Port COM1

External peripherals that use serial transmission scheme include:

- serial mouse,

- and modem.

17

Hardware Setup SY-6IBM

Plug the serial device cables directly into the COM1 9-pin male
connector located at the rear panel of the Motherboard.

2. Parallel Port PRT

This parallel port is used to connect the printer or other parallel
devices.
Plug the parallel device cable into the 25-pin female connector
located at the rear panel of the Motherboard.

3. PS/2 Keyboard

Plug the keyboard jack directly into the 6-pin female PS/2 keyboard
connector located at the rear panel of the Motherboard.

4. PS/2 Mouse

Similarly, plug the mouse jack directly into the 6-pin female PS/2
mouse connector.

5. Universal Serial Bus USB1/USB2

This Motherboard provides two USB ports for your additional
devices. Plug the USB device jack into the available USB connector
USB1 or USB2.

- USB devices under Win98 are allowed.

- With Win95, use the flow UHCI V1.1 specifications.

6. VGA monitor connector

Plug the monitor cable into the 15-pin female VGA connector
located at the real panel of the motherboard.

7. Onboard Joystick port/audio

This Motherboard provides Joystick port and audio.

- Attach the joystick cable to the 15-pin JOYSTICK port at the

rear panel of you motherboard.

- This Motherboard features three built-in audio-stereo ports

(labeled line-in, line-out, and mic jack) convenient to directly
plug-in all your external audio devices.

18

Hardware Setup SY-6IBM

COM 2

Other Connections

1. Serial Port COM 2

In addition to the onboard serial connector COM1 located at the rear
panel, your Motherboard comes with a second serial port COM2
equipped with a flat cable and external connector.
The Motherboard package includes one serial port flat cable with a
9-pin connector.

Plug the 9-pin end of the flat cable into the COM2 serial connector
on the Motherboard, as shown in the figure below, then fix the
external 9-pin connector to the rear panel of the computer case.
Then plug your serial device cable directly into this 9-pin male
connector located at the back of your computer.

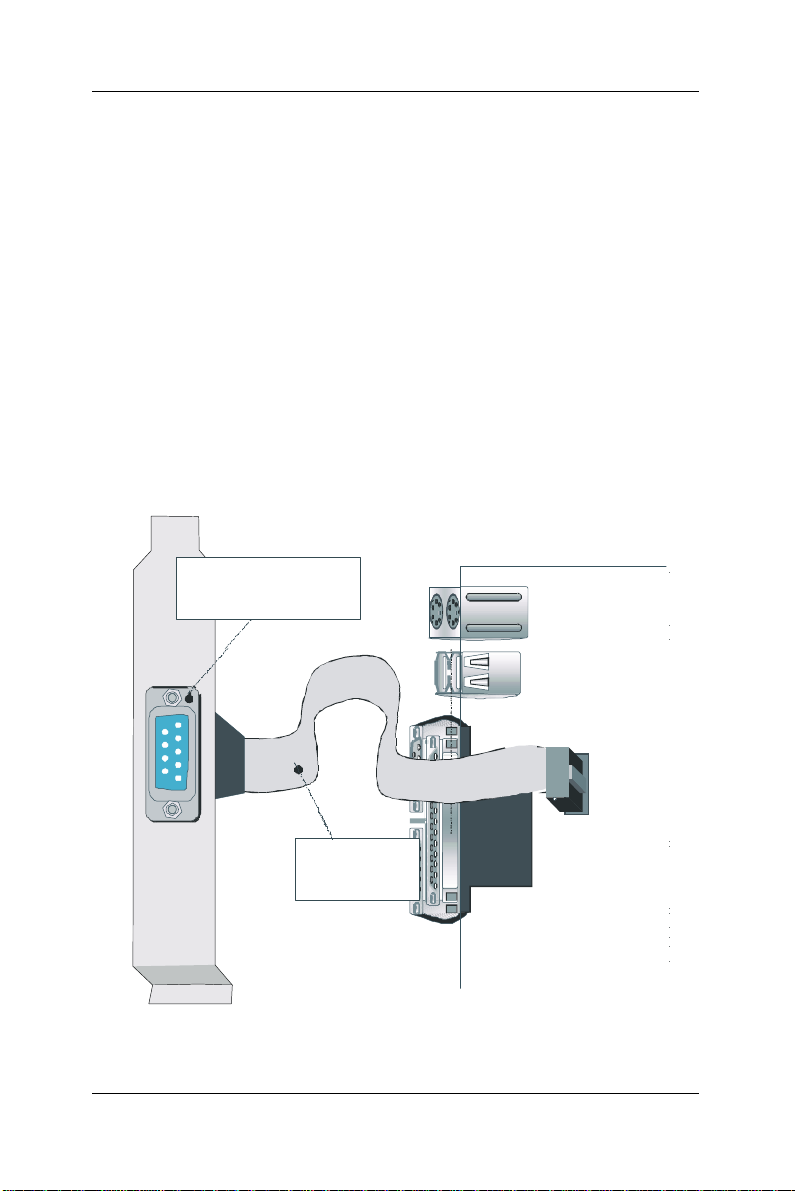

9-pin male external

serial connector

9-pin serial

flat cable

19

Hardware Setup SY-6IBM

Wake-On-LAN

JP44 Pin Assignment

1

2

3

2

3

4

5

VCC

IRTX

Infrared (IR1) Header

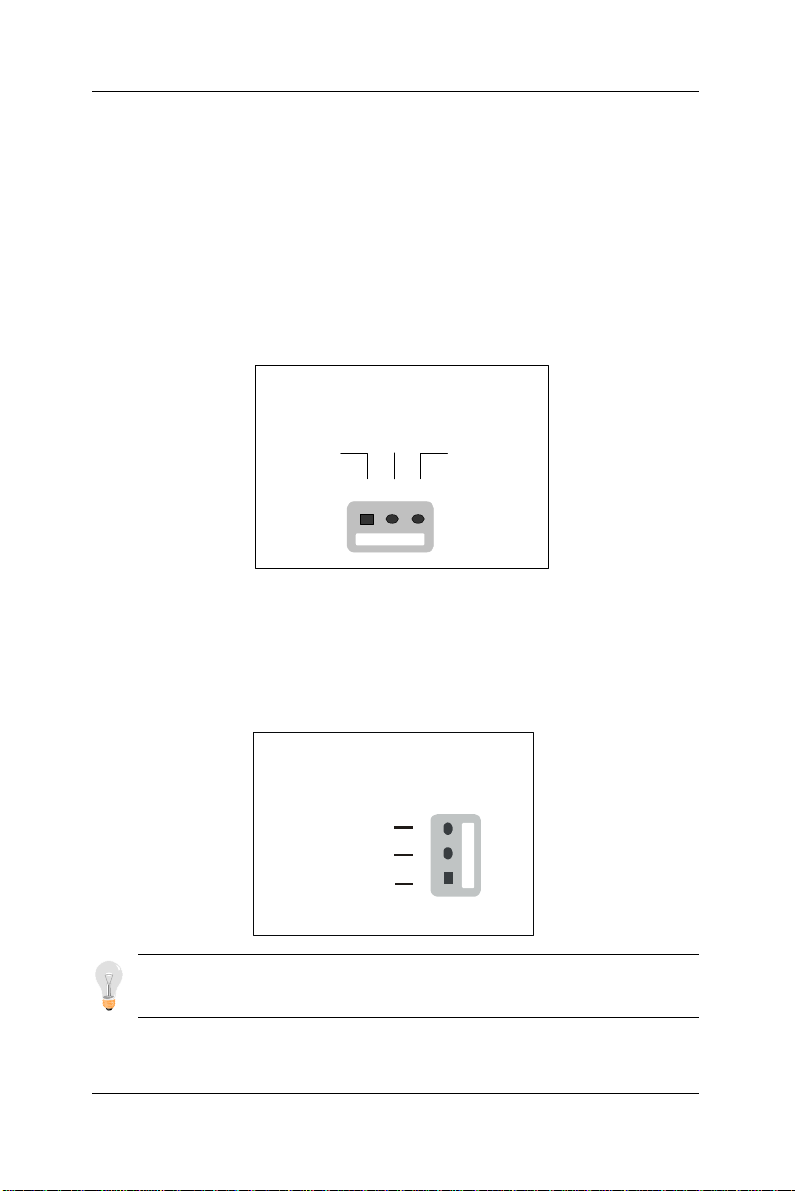

2. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the
Wake-On-LAN (WOL) function to the JP44 header on the
Motherboard. This WOL function lets users wake up the connected
computer through the LAN card.
Please install according to the following pin assignment:

MP - Wake-up

GND

5VSB

3. Infrared (IR)

Plug the 5-pin infrared device cable to the IR header. This will
enable the infrared transfer function. This Motherboard meets both
the ASKIR and HPSIR specifications.
Please install according to the following pin assignment:

IR1 Pin Assignment

1

IRRX

20

GND

Hardware Setup SY-6IBM

J5

J4

CD Line-in :

4. CD Line-in (J4,J5)

This Motherboard provides two CD-Line in connectors. Please
connect the 4-pin audio cable from your CD-ROM drive to either
CDIN1 or CDIN2. (It fits in only one, depending on the cable that
came with your CD-ROM drive)
Please install according to the following pin assignment:

J4,J5

Right

1

Right

1 2 3 4

GND

GND

Left

GND

3

2

GND

4

Left

5. Other Display Cards

Insert other types of VGA cards into the PCI or ISA expansion slots
according to card specifications.

21

Hardware Setup SY-6IBM

Chassis Cooling Fan

CHAFAN Pin Assignment

1

2

3

GND

12V

Step 8. Cooling Fan Installation

1. CPU Cooling Fan

After you have seated the CPU properly on the processor, attach the
3-pin fan cable to the CPUFAN connector on the Motherboard. The
fan will stop when the system enters into Suspend Mode. (Suspend
mode can be enabled from the BIOS Setup Utility, [POWER
MANAGEMENT] menu.)
To avoid damage to the system, install according to the following pin
assignment:

CPU Cooling Fan

CPUFAN Pin Assignment

GND 12V SENSOR

1 2 3

2. Chassis Cooling Fan

Some chassis also feature a cooling fan. This Motherboard features
a CHAFAN connector to provide 12V power to the chassis fan.
Connect the cable from the chassis fan to the CHAFAN 3-pin
connector. Install according to the following pin assignment:

SENSOR

Note: CPUFAN must be installed for this Motherboard,
CHAFAN is optional.

22

Hardware Setup SY-6IBM

ATX Power

Step 9. ATX Power Supply

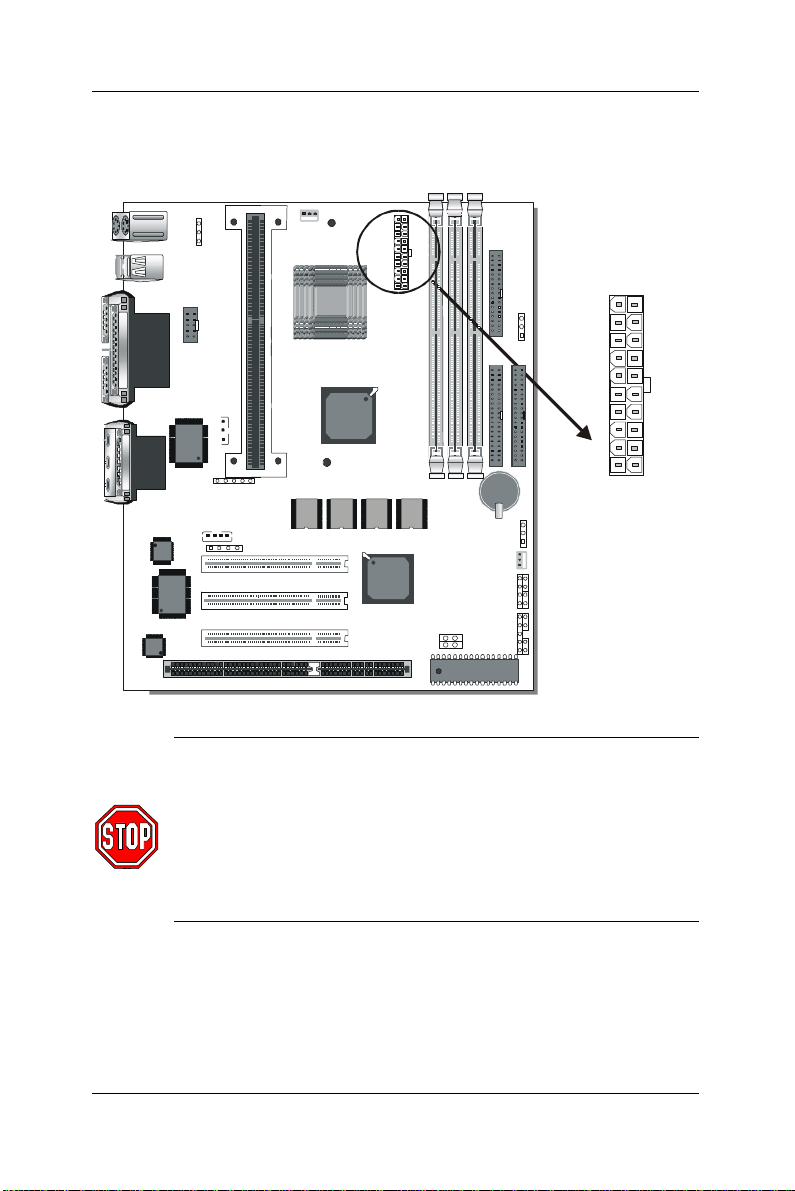

Plug the connector from the power directly into the 20-pin male ATX
PW connector on the Motherboard, as shown in the following figure.

W83781D

Warning: Follow these precautions to preserve your
Motherboard from any remnant currents when connecting
to ATX power supply:

Turn off the power supply and unplug the power cord
of the ATX power supply before connecting to ATX PW
connector.

The Motherboard requires a power supply with at least 200 Watts
and a "power good" signal. Make sure the ATX power supply can
take at least 720 mA* load on the 5V Standby lead (5VSB) to meet
the standard ATX specification.

23

Hardware Setup SY-6IBM

* Note: If you use the Wake-On-LAN (WOL) function, make
sure the ATX power supply can support at least 720 mAmp on
the 5V Standby lead (5VSB).

Please install the ATX power according to the following pin
assignment:

ATX Power

12V

5VSB

PW-0K

GND

5V

GND

5V

GND

3.3V

3.3V

5V
5V

-5V
GND

Ø Pay special care to the directionality.

GND
GND
PS-ON
GND

-12V

3.3V

24

Hardware Setup SY-6IBM

2

1

3

2

1

3

2

1

321

3

Step 10. Power-On by PS/2 Keyboard Jumper (JP1)

You can choose to enable the Power-On by PS/2 Keyboard function
by shorting pin 2-3 on jumper JP1, otherwise, short pin 1-2 to
disable this function.

Support Power-

On

Disable Enable

by Keyboard

JP1 Setting

Disable Power­On by PS/2
Keyboard
function
(short pin 1-2)

Enable Power­On by PS/2
Keyboard
function
(short pin 2-3)

Note: When using the Power-On by PS/2 Keyboard function, please
make sure the ATX power supply can take at least 720mA load on
the 5V Standby lead (5VSB) to meet the standard ATX specification.

Step 11. Set JP3 for power up FSB clock and AGP

bus clock.

JP3 is used to adjust AGP bus clock frequency depending on the
value of the front side bus (FSB) clock, also the setting of the JP3
determines the power up FSB clock which will remain effective until
the BIOS set the FSB clock to the CMOS setting.

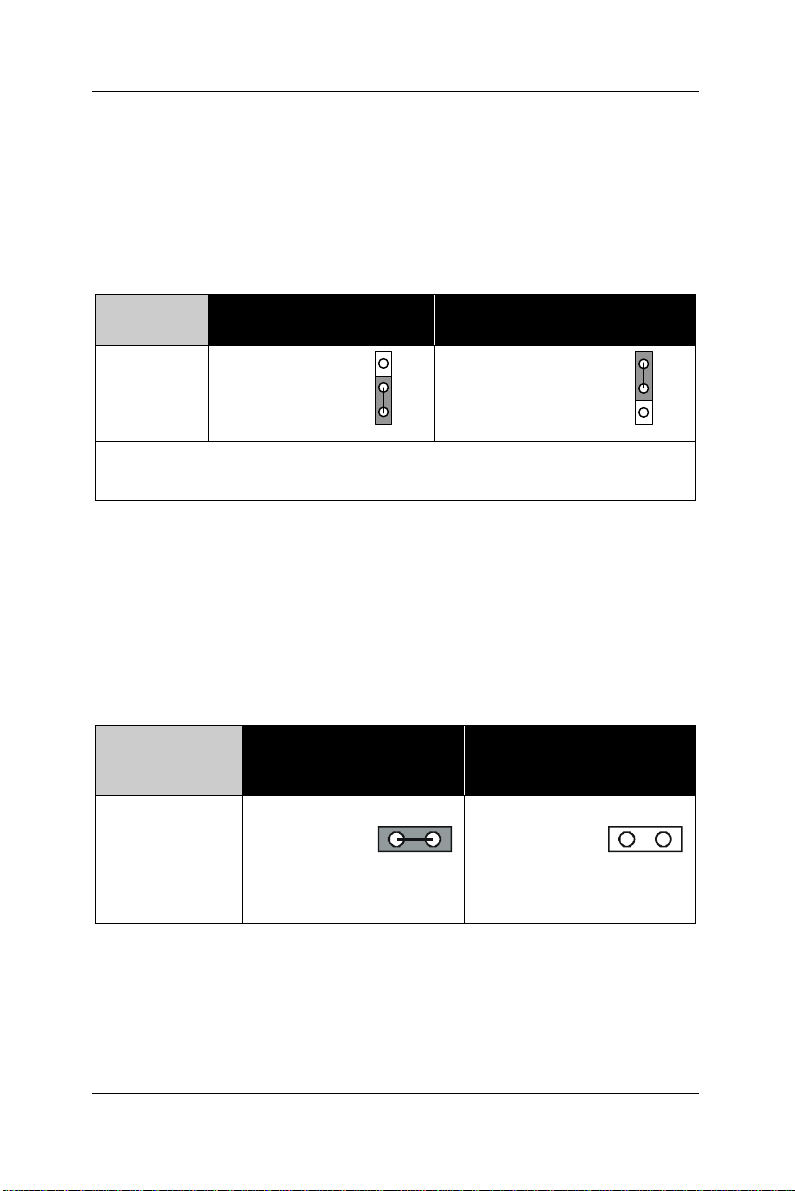

JP3 Setting

Power up FSB

Clock

AGP Clock

66MHz 100MHz

AGP Clock =

FSB Clock ÷ 1

AGP Clock =

FSB Clock ÷ 1.5

Note: The specification of maximum AGP bus Clock

frequency is 66.6MHz.

∗

Set JP3 to pin 1-2 short when you use a FSB 100MHz CPU.

∗

Set JP3 to pin 2-3 short when you use a FSB 66MHz CPU.

∗

Set JP3 to pin 1-2 short when you use a FSB 66MHz but want

to over-clock the FSB clock to 100MHz via the BIOS setting.

25

Hardware Setup SY-6IBM

2

1

3

2

1

3

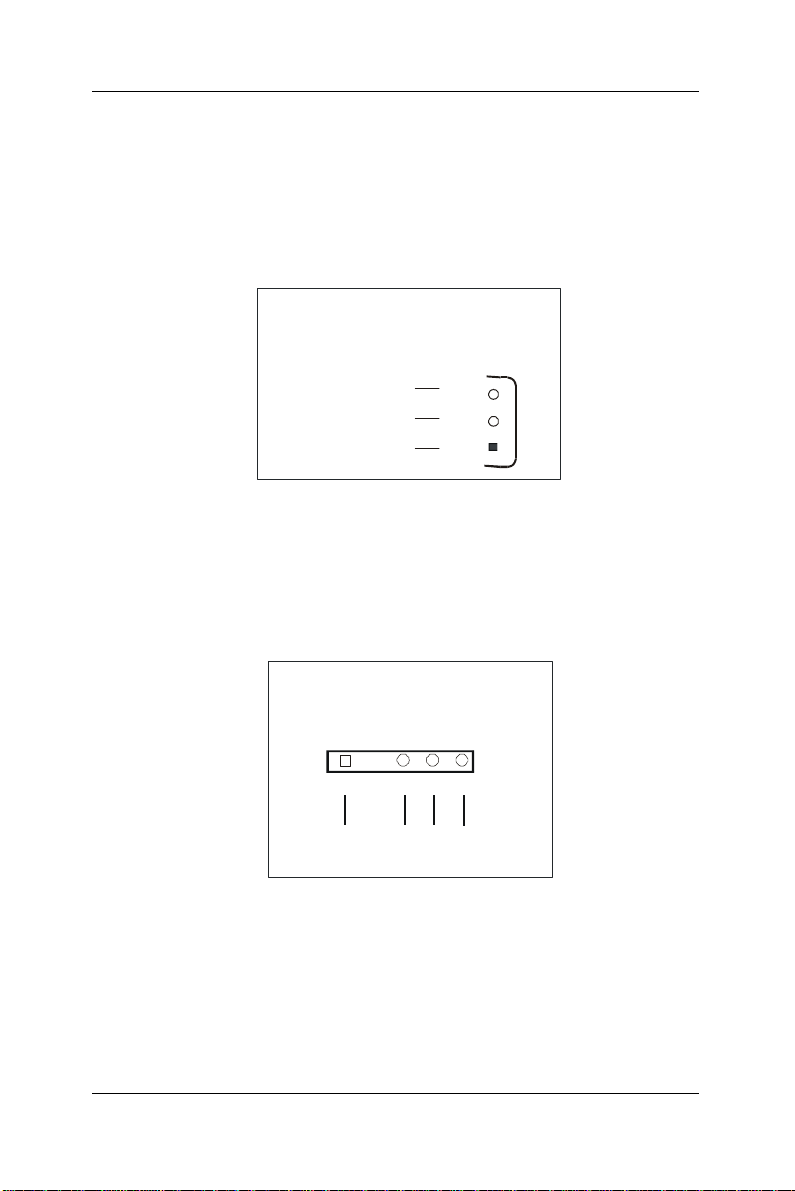

Step 12. CMOS Clearing (JP5)

After you have turned off your computer, clear the CMOS memory
by momentarily shorting pins 2-3 on jumper JP5, for a few seconds.
Then restore JP5 to the initial 1-2 jumper setting in order to recover
and retain the default settings.
Jumper JP5 can be easily identified by its white colored cap.

CMOS

Clearing

JP5

Setting

Retain CMOS Data Clear CMOS Data

Short pin 1-2 to
retain the new
CMOS settings.

Short pin 2-3 for

at least 5 seconds

to clear the CMOS.

Note: You must unplug the ATX power cable from the ATX power
connector when performing the CMOS Clear operation.

Step 13. Power Button Enable (JP8)

Your system can be power on by either pressing a power button or
typing in a password, which can be set in the BIOS SOYO COMBO
Setup. To avoid being unable to power up the system due to of
forgetting the password, you can place a jumper cap to short JP8.
This will always enable the Power Button.

Power Button

Enable

JP8 Setting

Power Button always

enabled

Short pin to
always enable
the Power
Button.

Power Button

according to BIOS

setting

Open pin for a
Power Button
function
according to the
BIOS setting.

26

Hardware Setup SY-6IBM

Step 14. External Suspend Button (JP10)

Some cases come with a suspend button, insert the plug into JP10.
In addition to through this button, the system can also enter the
suspend mode through your OS.

Note: Suspend mode only functions if your Power Management

mode is APM. Make sure that the BIOS setting for Power
Management is APM. Windows 98 can be installed with ACPI Power
Management (default is APM), in this case suspend mode will not
function either.

Step 15. Power On

You have now completed the hardware installation of your
Motherboard successfully.

1. Turn the power on

2. To enter the BIOS Setup Utility, press the <DEL> key while the

system is performing the diagnostic checks,

Note: If you have failed to enter the BIOS, wait until the boot
up sequence is completed. Then push the RESET button and
press <DEL> key again at the beginning of boot-up, during
diagnostic checks.

27

Hardware Setup SY-6IBM

Repeat this operation until you get the following screen.

3. The BIOS Setup screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

SOYO COMBO SETUP
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc

: Quit

F10

: Save & Exit Setup

Time, Date, Hard Disk Type…

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

Step 16. Quick BIOS Setup

This Motherboard does not use any hardware jumpers to set the
CPU frequency. Instead, CPU settings are software configurable
with the BIOS [SOYO COMBO SETUP]. The [SOYO COMBO
SETUP] menu combines the main parameters that you need to
configure, all in one menu, for a quick setup in BIOS.
After the hardware installation is complete, turn the power switch on,
then press the <DEL> key during the system diagnostic checks to
enter the Award BIOS Setup program. The CMOS SETUP UTILITY
will display on screen. Follow these steps to configure the CPU
settings.

1. Select [LOAD SETUP DEFAULT]

Select the “LOAD SETUP DEFAULT” menu and type “Y” at the
prompt to load the BIOS optimal setup.

2. Select [STANDARD CMOS SETUP]

Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to

28

Hardware Setup SY-6IBM

“Auto”.

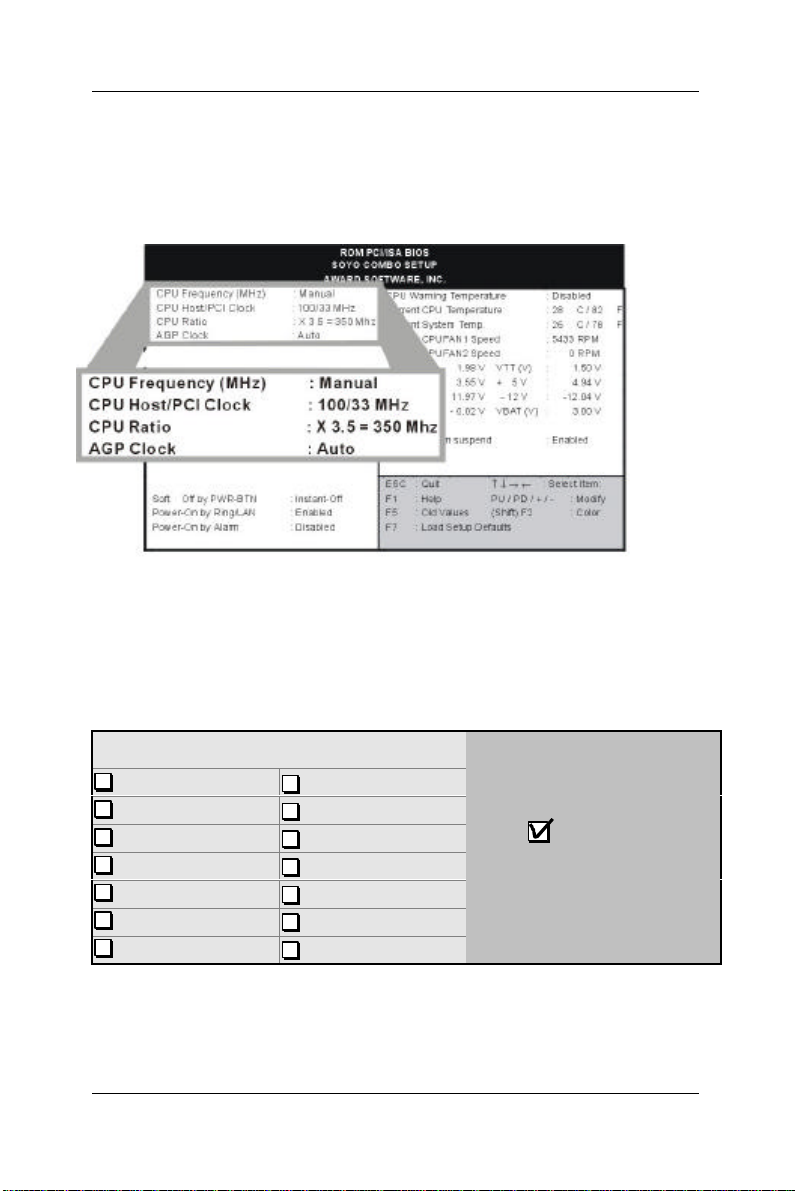

3. Select [SOYO COMBO SETUP]

Move the cursor to the [CPU Speed] field to set the CPU working
frequency, as shown in the following display.

Available [CPU Speed] settings on your SY-6IBM Motherboard are
detailed in the following table. If you set this field to [Manual], you
are then required to fill in the next two consecutive fields: (1) the
CPU Ratio, and (2) the CPU Frequency.

CPU Frequency

233MHz (66 x 3.5) 350MHz (100 x 3.5)
266MHz (66 x 4.0) 400MHz (100 x 4.0)
300MHz (66 x 4.5) 450MHz (100 x 4.5)
333MHz (66 x 5.0) 500MHz (100 x 5.0)
366MHz (66 x 5.5) 550MHz (100 x 5.5)

400MHz (66 x 6.0) 600MHz (100 x 6.0)
433MHz (66 x 6.5)

Select the working frequency of
your Pentium® III, Pentium® II,
Celeron processor among
these preset values.

Note: Mark the checkbox
that corresponds to the working
frequency of your Pentium® III,
Pentium® II, Celeron
processor in case the CMOS
configuration should be lost.

4. Select [SAVE & EXIT SETUP]

Press <Enter> to save the new configuration to the CMOS memory,
and continue the boot sequence.

29

Hardware Setup SY-6IBM

Troubleshooting at First Start

l What should I do if the Motherboard refuses to start?
The 350MHz setting is used as default so whenever the BIOS

settings are erased or reset, the board will be able to boot up.
If the CPU speed was set too high and the Motherboard refuses to
start up, you can always load the default values by pressing the [Ins]
key during boot up.

Step 17. Power Off

There are two possible ways to turn off the system:

1. Use the Shutdown command in the Start Menu of Windows

95/98 to turn off your computer.

2. Press the mechanical power-button and hold down for over 4

seconds, to shutdown the computer. If you press the power­button for less than 4 seconds, then your system will enter into

Suspend Mode.

You are now ready to configure your system with the BIOS setup
program. Go to Chapter 3: BIOS SETUP

30

BIOS Setup Utility SY-6IBM

Chapter 3

BIOS SETUP UTILITY

This Motherboard's BIOS setup program uses the ROM PCI/ISA
BIOS program from Award Software Inc.
To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the

Award BIOS Setup Utility.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

SOYO COMBO SETUP
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc

: Quit

F10

: Save & Exit Setup

Time, Date, Hard Disk Type…

↑ ↓ → ←

(Shift) F2

: Select Item
: Change Color

Selecting items

l Use the arrow keys to move between items and select fields.
l From the Main Menu press arrow keys to enter the selected

submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected

fields. Some fields let you enter values directly.

31

BIOS Setup Utility SY-6IBM

Esc

F10

(Shift) F2

Esc

F10

(Shift) F2

Hot Keys: Function keys give you access to a group of commands
throughout the BIOS utility.

Function Command Description

F1

Shift F2

F5

F6
F7

F10

[Esc]

Help Gives the list of options available for each item.
Color Change the color of the display window.
Old values Restore the old values. These are the values that the user

started the current session with.

Load BIOS

Loads all options with the BIOS Setup default values.
Defaults
Load Setup

Loads all options with the Power-On default values.
Defaults
Save & Exit

Saves your changes and reboots the system.
Setup
Quit Lets you return at anytime and from any location to the

Main Menu.

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to
save data to CMOS and exit the setup utility. This option saves all
your changes and causes the system to reboot.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

: Quit
: Save & Exit Setup

AWARD SOFTWARE, INC.

SAVE to CMOS and EXIT (Y/N)? _

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item
: Change Color

Type [Y] to save the changes
and exit or [N] to return to
the Main Menu and keep
current values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to
abandon all data and exit setup, therefore ignoring all your changes.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

: Quit
: Save & Exit Setup

AWARD SOFTWARE, INC.

Quit Without Saving (Y/N)? _

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item
: Change Color

Type [Y] to abandon changes
and exit or [N] to return to
the Main Menu and keep
current values.

32

BIOS Setup Utility SY-6IBM

3-1 SOYO COMBO SETUP

This Motherboard does not use any hardware jumpers to set the
CPU frequency. Instead, CPU settings are software configurable
with the BIOS [SOYO COMBO SETUP].

After the hardware installation is complete, turn the power switch on,
then press the <DEL> key during the system diagnostic checks to
enter the Award BIOS Setup program. The CMOS SETUP UTILITY
will display on screen. Then, select the [SOYO COMBO SETUP]
option from the main menu and press the <Enter> key.

ROM PCI/ISA BIOS

SOYO COMBO SETUP

AWARD SOFTWARE, INC.

CPU Frequency (MHz) : Manual CPU Warning Temperature : Disabled
CPU Host/PCI Clock : 100/33 MHz Current CPU Temperature : 28 C / 82 F
CPU Ratio : X 3.5 = 350MHz Current System Temp. : 26 C / 78 F

Current CPUFAN1 Speed : 5433 RPM
Current CPUFAN2 Speed : 0 RPM

CPU L2 Cache ECC Checking : Enabled Vcore : 1.98 V VTT (V) : 1.50 V

3.3 (V) : 3.55 V + 5 (V) : 4.94 V
Boot Sequence : A,C,SCSI +12 (V) : 11.97 V -12 (V) : -12.04 V
Quick Power On Self Test : Enabled - 5 (V) : - 0.02 V

POWER ON Function : BUTTON ONLY CPUFAN Off In Suspend : Enabled
KB Power ON Password : Enter
Hot Key Power ON : Ctrl-F1
Power Button : Enabled ESC : Quit
Soft – Off by PWR-BTTN : Instant-Off F1 : Help PU / PD / + / - : Modify
Power-On by Ring/LAN : Enabled F5 : Old Values (Shift) F2 : Color
Resume by Alarm : Disabled F7 : Load Setup Defaults

↑ ↓ → ←

: Select Item:

The [SOYO COMBO SETUP] menu combines the main parameters
that you need to configure, all in one menu, for a quick setup in
BIOS.

33

BIOS Setup Utility SY-6IBM
3-1.1 Quick CPU Frequency Setup

Quick CPU

Setting Description Note

Frequency Setup
CPU Frequency

Manual
233MHz (66 x 3.5)
266MHz (66 x 4)
300MHz (66 x 4.5)
333MHz (66 x 5)
366MHz (66 x 5.5)
400MHz (66 x 6)
433MHz (66 x 6.5)
466MHz (66 x 7)
350MHz (100 x 3.5)
400MHz (100 x 4)
450MHz (100 x 4.5)
550MHz (100 x 5.5)
600MHz (100 x 6)
650MHz (100 x 6.5)

If [CPU Frequency] field is set to [Manual]

CPU Host/PCI
Clock

66/33 MHz 105/35 MHz
75/37 MHz 110/36 MHz
83/41 MHz 115/38 MHz
100/33 MHz 120/40 MHz
103/34 MHz 124/31 MHz
112/37 MHz 133/33 MHz
124/41 MHz 140/35 MHz

133/44 MHz 150/37 MHz

If [CPU Frequency] field is set to [Manual]

CPU Ratio

After you have selected the host clock, choose the
right multiplier for the CPU. Options are: [2, 2.5, 3.,

3.5, 4, 4.5, 5, 5.5,6,6.5,7.0,7.5,8.0]. The CPU
frequency is then defined as [host clock
freq.]x[multiplier], and should the working frequency
of your Pentium® III, Pentium® II & Celeron
processor.

Select the working
frequency of your Slot 1
processor among these
preset values.
Note: Setting this field to
[Manual] requires you to
fill in the next two
consecutive fields: (1) the
CPU Host/PCI Clock, and
(2) the CPU Ratio.

Select the host clock of your
Slot 1 processor among
these values.
Note: For the ZX
chipset, 66 and 100 MHz
host clock frequencies
are acceptable.
However, the system
stability is not
guaranteed for other
frequencies due to the

limitations of this chipset.

34

BIOS Setup Utility SY-6IBM
3-1.2 L2 Cache Memory

Setting Description Note

CPU L2 Cache ECC
Checking

3-1.3 System Boot Control Settings
System Boot

Control Settings
Boot Sequence

Quick Power On
Self Test

Disabled
Enabled This option activates

the CPU L2 cache ECC
checking function.

Setting Description Note

A, C, SCSI
C, A, SCSI
C, CD-ROM, A
CD-ROM, C, A
D, A, SCSI
E, A, SCSI
F, A, SCSI
SCSI, A, C
SCSI, C, A
C only
LS/ZIP, C

Disabled
Enabled Provides a fast POTS at

Choose the boot
sequence adapted to
your needs, for example:

l [A, C, SCSI] means

the BIOS will look for an
operating system first in
drive A, then in drive C,
and eventually in SCSI
device.

boot-up.

Default

Default

Power Management
PM Events Setting Description Note

POWER ON
Function

BUTTON-ONLY Disables the Wake-Up by

Keyboard function.
KB Power ON
Password

Hot Key You can wake-up the system

Enables you to wake-up the

system by entering a

password at the keyboard.

by pressing the key

combination of your choice

(Ctrl-F1~F12).

35

Default

BIOS Setup Utility SY-6IBM
Power Management (Conintued)

PM Events Setting Description Note

If [POWER ON Function] is set to [KB Power ON Password]

KB Power ON
Password
Power
button

If [POWER ON Function] is set to [Hot Key]

KB Power ON
Password

Enter (your
password)
Disabled Set to disable the system can

Enabled Set to enable the system can

Ctrl-F1~F12 Choose the key combination that will

Set the password that will wake-up

your system.

only wake up through the
password (In case the
password has been forgotten,
use JP8 to clear the password,
see page 26)

Default
wake up through the password
and the power button.

wake-up the system. [Ctrl-F1 to Ctrl­F12]

Soft-Off by
PWR-BTTN

Power-On by
Ring/LAN

Resume by
Alarm

Instant-off Default
Delay 4 Sec. Turns off the system power 4

seconds after pushing the
power button.

Disabled Default
Enabled The system will self-power on

me when the modem is
ringing.

Disabled The system ignores the alarm. Default
Enabled Set alarm to power on the

system by the date (1-31) or
time (hh:mm:ss). If the date is
set to [0], the system will self­power on by alarm everyday
at the set time.

36

BIOS Setup Utility SY-6IBM
3-1.4 CPU Device Monitoring

CPU Device
Monitoring

Setting Description Note

CPU Warning
Temperature

Current CPU
Temperature

Current System
Temp.

Current
CPUFAN1 Speed

Current
CHAFAN2 Speed

Vcore, VTT, 3.3V,
+12V, -5V, +5V,

-12V

Disabled Default
Enabled Set CPU temperature from

50°C to 70°C. The CPU will
slow down when CPU
temperature goes beyond
the preset value. The CPU
will continue to run slow
until the temperature
returns back within the safe
range.

°C/°F

°C/°F

°C/°F

°C/°F

Show the current status of
CPU temperature.

Show the current status of
the system temperature.

Show the current status of
CPU Fan

Show the current status of
the chassis Fan

Show the current voltage
status.

V

CPUFAN Off In
Suspend

Disabled Disables the PM timer.
Enabled Switches off the CPU Fan

when the system enters
Suspend Mode.

37

Default

BIOS Setup Utility SY-6IBM

3-2 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu
and press [Enter] key.

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Date (mm:dd:yy)
Time (hh:mm:ss)

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master
Primary Slave
Secondary Master
Secondary Slave

Drive A : 1.44M, 3.5 in.
Drive B : None
Floppy 3 Mode Support : Disabled

Video : EGA/VGA
Halt On : All Errors

EscF1: Quit

: Help

: Fri, July 31 1998
: 11 : 30 : 33

: AUTO
: None
: None
: None

↑ ↓ → ←

(Shift) F2

0

0

0

0

0

0

0

0

: Select Item
: Change Color

0
0
0
0

Extended Memory:

0
0
0
0

Base Memory:

Other Memory:

Total Memory: 4096K

PU/PD/+/-F3: Modify

0
0
0
0

: Toggle Calendar

640K

3328K

128K

0

AUTO

0

- - - -

0

- - - -

0

- - - -

This screen allows you to modify the basic CMOS settings.
After you have completed the changes, press [Esc] key to return to
the Main Menu.

3-2.1 Date & Time

Display Setting Please Note

Date

mm/dd/yyyy Type the current date You can also the

PUp/PDn keys to
toggle

Time

hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed
as 15:15:00

38

BIOS Setup Utility SY-6IBM
3-2.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already
installed.

Primary

Setting Description Note
(Secondary)
Master & Slave

Type

Auto BIOS detects hard disk type

automatically.

User User defines the type of hard

disk.

None

Mode

Auto BIOS detects hard disk mode

automatically.
Normal Normal IDE hard disk <528MB
LBA Enhanced IDE hard disk >528MB
Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or
mode, ask your hard disk provider or previous user for details.

3-2.3 Floppy Drives

Floppy

Setting Description Note

Drives

Drives A & B

360KB, 5.25 in.

1.2MB, 5.25 in.
720KB, 3.5 in.

1.44MB, 3.5 in. Default

2.88MB, 3.5 in.

None Not installed

Default

Default

Floppy 3-Mode
Support

Disabled Default
Drive A

Drive B
Both

Supports 3-mode
floppy diskette:
740KB/1.2MB/

1.44MB on
selected disk drive.

Special disk
drive commonly
used in Japan

39

BIOS Setup Utility SY-6IBM
3-2.4 Video

Select the video mode: EGA/VGA (Default), CGA 40, CGA 80,
Mono (Monochrome).

3-2.5 Halt On

When the BIOS detects system errors, this function will stop the
system. Select which type of error will cause the system halt: All
Errors (Default), No Errors, All But Diskette, All But Keyboard, All
But Disk/Key.

40

BIOS Setup Utility SY-6IBM

3-3 BIOS FEATURES SETUP

Select the [BIOS FEATURES SETUP] option from the Main Menu
and press [Enter] key.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Anti - Virus Protection : Enabled Assign IRQ For VGA : Enabled

CPU Internal Cache : Enabled HDD S.M.A.R.T. capability : Disabled
External Cache : Enabled

Swap Floppy Drive : Disabled C8000-CBFFF Shadow : Disabled
Report No FDD For WIN 95 : Yes CC000-CFFF Shadow : Disabled

Boot Up NumLock Status : On D4000-D7FFF Shadow : Disabled
Security Option : Setup D8000-DBFFF Shadow : Disabled
PCI/VGA Palette Snoop : Disabled DC000-DFFFF Shadow : Disabled
OS Select For DRAM > 64 MB : Non-OS2

Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec) : 6
Typematic Delay (Msec) : 250 ESC : Quit

Video BIOS Shadow : Enabled

D000-D3FFF Shadow : Disabled

↑ ↓ → ←

F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift) F2 : Color
F7 : Load Setup Defaults

: Select Item

After you have completed the changes, press [Esc] key and follow
the instructions on your screen to save your settings or exit without
saving.

41

BIOS Setup Utility SY-6IBM
3-3.1 Virus Warning

Setting Description Note
Anti - Virus
Protection

3-3.2 Cache Memory Options

CPU Internal Cache

Disabled

Enabled If set to enabled, the

Paragon Anti-Virus. Function
will scan your boot drive for
boot virusses. If a boot virus
is detected, the BIOS will
display a warning message.

Setting Description Note

Disabled
Enabled Enables the CPU's

internal cache.

Default

Default

External Cache

Disabled

Enabled Enables the external

3-3.3 Floppy Driver Settings

Floppy Driver
Settings

Swap Floppy
Drive

Report No
FDD For WIN
95

Setting Description Note

Disabled Default
Enabled Changes the sequence of A

and B drives.

Yes Windows will release IRQ line

6 (normally used by the Floppy
Disk Drive) after you disable
your on-board FDD and set
this field to [Yes].

No Windows will reserve INT 6 for

your FDD, whether it is
disabled or not.

Default

memory.

42

BIOS Setup Utility SY-6IBM
3-3.4 Other Control Options

Other Control
Options

Setting Description Note

Boot Up
NumLock
Status

3-3.5 Security Option

Use this feature to prevent unauthorized system boot-up or use of
BIOS Setup. The following table describes the security settings.

Security Option

3-3.6 Other Control Options
Other Control

Options
PCI/VGA
Palette Snoop

On Puts numeric keypad in

NumLock mode at boot-up.

Off Puts numeric keypad in arrow

key mode at boot-up.

Setting Description

System Each time the system is booted, the

password prompt appears.

Setup If a password is set, the password

prompt only appears when you attempt
to enter the BIOS Setup program.

Setting Description Note

Disabled Default
Enabled
The color of the monitor may be altered
when using an MPEG card. Enable this
option to restore the monitor's normal
color.

Default

OS Select for
DRAM>64MB

OS2 When using an OS2 operating

system.

Non-OS2 When using another,

non-OS2 operating system.

43

Default

BIOS Setup Utility SY-6IBM
3-3.7 Typematic Settings

Typematic Settings Setting Description Note
Typematic

Rate Setting

Disabled Default
Enabled Enables to adjust the

keystroke repeat rate.

The following [Typematic Rate] and [Typematic Delay] fields are
active only if [Typematic Rate Setting] is set to [Enabled]

Typematic Rate

Typematic Delay

6 (Char/sec)
8 (Char/sec)
10 (Char/sec)
12 (Char/sec)
15 (Char/sec)
20 (Char/sec)
24 (Char/sec)
30 (Char/sec)

250 (msec)
500 (msec)
750 (msec)
1000 (msec)

Choose the rate at
which a character is
repeated when holding
down a key.

Choose how long after
you press a key down
the character begins
repeating.

Default

Default

3-3.8 Other Control Options
Other Control

Setting Description Note

Options
Assign IRQ

For VGA

Disabled
Enabled Use this default setting. Default

HDD
S.M.A.R.T.
capability

Disabled
Enabled Enable this field when your

HDD supports the S.M.A.R.T.
function.
Consult your HDD provider for
details.

44

BIOS Setup Utility SY-6IBM
Other Control Options

Other Control
Options

Setting Description Note

Video or
Adapter BIOS
Shadow

Disabled
Enabled
The BIOS is shadowed in a 16K segment if
it is enabled and if it has BIOS present.
These 16 segments can be shadowed
from ROM to RAM. BIOS shadow copies
BIOS code from slower ROM to faster
RAM. BIOS can then execute from RAM.

Default

45

BIOS Setup Utility SY-6IBM

3-4 CHIPSET FEATURES SETUP

Caution: Change these settings only if you are
already familiar with the Chipset.

The [CHIPSET FEATURES SETUP] option changes the values of
the chipset registers. These registers control the system options in
the computer.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

CHIPSET FEATURES SETUP

Auto Configuration : Enabled Passive Release : Enabled
SDRAM RAS-to CAS Delay : 3 Delayed Transaction : Disabled
SDRAM RAS Precharge Time : 3
SDRAM CAS latency Time : 3 AGP Aperture Size : 64
SDRAM Precharge Control : Disabled
DRAM Data Integrity Mode : Non- ECC Spread Spectrum : Disabled

System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
Video RAM Cacheable : Disabled

8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1

Memory Hole At 15M –16M : Disabled F1 : Help PU/PD/+/- : Modify

ESC : Quit

F5 : Old Values (Shift) F2 : Color
F7 : Load Setup Defaults

↑ ↓ → ←

: Select Item

After you have completed the changes, press [Esc] and follow the
instructions on your screen to save your settings or exit without
saving.
The following table describes each field in the CHIPSET
FEATURES SETUP Menu and how to configure each parameter.

46

BIOS Setup Utility SY-6IBM
3-4.1 CHIPSET FEATURES SETUP

CHIPSET
FEATURES

Setting Description Note

Auto
Configuration

SDRAM RAS-to­CAS Delay

SDRAM RAS
Precharge Time

SDRAM Cache
Latency Time

SDRAM Precharge
Control

DRAM Data
Integrity Mode

System BIOS
Cacheable

Disabled
Enabled It is strongly recommended

to enable this option so that
the system automatically
sets all chipset feature
options on the left panel of
the screen (except for cache
update & BIOS cacheable).

3

Use the default setting Default

2
3

Use the default setting Default

2

3 Use the default setting Default

Disabled

Enabled

Non-ECC Default
ECC

Disabled
Enabled The ROM area F0000H-

Use the default setting Default

Choose according to the
DRAM type you have.

FFFFFH is cacheable.

Default

Default

Video BIOS
Cacheable

Video RAM
Cacheable

8 BIT I/O
Recovery Time

Disabled
Enabled The video BIOS C0000H-

C7FFFH is cacheable.

Disabled Default
Enabled The ROM area A0000-

BFFFF is cacheable.

1 Use the default setting Default

47

Default

BIOS Setup Utility SY-6IBM

CHIPSET FEATURES SETUP (Continued)
CHIPSET

FEATURES
16 BIT I/O

Recovery Time
Memory Hole At

15M-16M

Passive Release
Delayed

Transaction
AGP Aperture

Size

Spread Spectrum

Setting Description Note

1 Use the default setting Default

Disabled Default
Enabled Some interface cards will

map their ROM address to
this area. If this occurs,
select [Enabled] in this field.

Enabled Use the default setting Default

Enabled Use the default setting Default

64

4-256MB

Disabled Default
Enabled When using Spread

AGP could use the DRAM
as its video RAM. Choose
the DRAM size that you
wish to allocate as video
RAM.

Spectrum Modulated 1.5%
or 6% for FCC or DOC
testing.

Default

48

BIOS Setup Utility SY-6IBM

3-5 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power
saving functions.

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI function : Enabled ** Reload Global Timer Events **
PM Control by APM : Yes
Video Off Method : V/H SYNC+Blank IRQ [3-7, 9-15], NMI : Disabled
Video Off After : Standby Primary IDE 0 : Disabled
MODEM Use IRQ : 3 Primary IDE1 : Disabled

Power Management : User Define Secondary IDE1 : Disabled
Doze Mode : Disable Floppy Disk : Disabled
Standby Mode : Disable Serial Port : Enabled
Suspend Mode : Disable Parallel Port : Disabled
HDD Power Down : Disabled

PCI/VGA Act-Monitor : Disabled
IRQ 8 Break Suspend : Disabled

Secondary IDE 0 : Disabled

ESC : Quit ↑ ↓ → ← : Select Item
F1 : Help PU/PD/+/- : Modify
F5 : Old Values (Shift) F2 : Color
F7 : Load Setup Defaults

After you have completed the Power Management Setup, press
[Esc] to return to the Main Menu.

49

BIOS Setup Utility SY-6IBM
3-5.1 Power Management Controls

Power
Management
Controls

Setting Description Note

ACPI
function

PM Control
by APM

Video Off
Method

Video Off
After

MODEM Use
IRQ

Disabled Default
Enabled ACPI (Advanced

Configuration Power
Management Interface)

Yes To use Advanced Power

Management (APM) you
must run [power.exe] under
DOS V6.0 or later version.

No
V/H

Sync+Blank
Blank screen
DPMS
Supported

Standby
Suspend
Doze

3 Default

3-11, NA

Selects the method by which
the monitor is blanked.

Choose the PM mode you
want video to go off after the
mode is being active.

Assigns an IRQ# to the
modem device.

Default

Default

50

BIOS Setup Utility SY-6IBM
3-5.2 PM Timers

PM Timers Setting Description Note
Power

Management

User Define Lets you define the HDD and

system power down times.

Default

Disable Disables the Green PC

Features.

Doze
timer

Standby
timer

Suspend
timer

HDD
power down

Min Saving 1 Hour 1 Hour 1 Hour 15 Min
Max Saving 1 Min 1 Min 1 Min 1 Min

The following [Doze Mode] field may be configured only if [Power
Management] is set to [User Define]

Doze Mode

Disable Default
1Min­1Hour

When the set time has
elapsed, BIOS sends a
command to the system to

System clock
drops to
33MHz.

enter Doze Mode.

The following [Standby Mode] field may be configured only if [Power
Management] is set to [User Define]

Standby
Mode

Disable Default
1Min­1Hour

When the set time has
elapsed, BIOS sends a
command to the system to
enter Standby Mode.

The following [Suspend Mode] field may be configured only if
[Power Management] is set to [User Define]

Suspend
Mode

HDD Power
Down

Disable Default
1Min­1Hour

In Suspend mode, the
CPU stops completely (no
instructions are executed.)

Only an SL­Enhanced (or
SMI) CPU can
enter this mode.

Disabled Default
1-15Min When the set time has

elapsed, BIOS sends a
command to the HDD to
power down. This turns off
the HDD motor.

Some older
model HDDs
may not support
this advanced
function.

51

BIOS Setup Utility SY-6IBM
3-5.3 PM Events

PM Events Setting Description Note
PCI/VGA Act-

Monitor

IRQ 8 Break
Suspend

3-5.4 Reload Global Timer Events
Power Down

& Resume
Events

IRQ [3-7,9­15], NMI

IDE0, IDE1

Ø Primary
Ø Secondary

Floppy Disk
Serial Port
Parallel Port

Disabled Default
Enabled Enables the power

management timers when a
[no activity] event is detected.

Disabled Default
Enabled Alarm function is active.

Setting Description Note

Disabled
Enabled The system monitors these

elements for activity. The
system will resume if [IRQ
activity] is detected.

Disabled Default
Enabled Enables the PM timers when

[No Activity Event] is detected.

Disabled Default
Enabled Enables the PM timers when

[No Activity Event] is detected.

Default

52

BIOS Setup Utility SY-6IBM

3-6 PNP/PCI CONFIGURATION SETUP

This option sets the Motherboard's PCI Slots.

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

YAMAHA Sound Chip : Enabled Slot 1/AGP Use IRQ No. : Auto
Resources Controlled By : Manual Slot 2 Use IRQ No. : Auto

Slot 3 Use IRQ No. : Auto
IRQ - 3 assigned to : Legacy ISA
IRQ - 4 assigned to : Legacy ISA
IRQ - 5 assigned to : Legacy ISA Used MEM base addr : N/A
IRQ - 7 assigned to : PCI/ISA PnP
IRQ - 9 assigned to : PCI/ISA PnP
IRQ - 10 assigned to : PCI/ISA PnP Assign IRQ For USB : Enabled
IRQ - 11 assigned to : PCI/ISA PnP
IRQ – 12 assigned to : PCI/ISA PnP PNP OS Installed : No
IRQ - 14 assigned to : PCI/ISA PnP Reset Configuration Data : Disabled
IRQ - 15 assigned to : PCI/ISA PnP

DMA - 0 assigned to : PCI/ISA PnP
DMA - 1 assigned to : PCI/ISA PnP ESC : Quit ↑ ↓ → ← : Select Item
DMA - 3 assigned to : PCI/ISA PnP F1 : Help PU/PD/+/- : Modify
DMA - 5 assigned to : PCI/ISA PnP F5 : Old Values (Shift) F2 : Color
DMA - 6 assigned to : PCI/ISA PnP F7 : Load Setup Defaults
DMA - 7 assigned to : PCI/ISA PnP

Note: Starred (*) items will disappear when the [Resources
Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc]
and follow the instructions on your screen to save your settings or
exit without saving.

53

BIOS Setup Utility SY-6IBM
3-6.1 YAMAHA Sound Chip Control Settings

Setting Description Note

YAMAHA Sound
Chip

Disabled
Enabled Use the default setting Default

3-6.2 PNP/PCI Configuration Controls
PNP/PCI

Setting Description Note

Controls
Resources

Controlled By

Manual BIOS does not manage PCI/ISA

PnP card IRQ assignment.
Requires to assign IRQ-# and DMA-# to PCI
or ISA PnP manually.
IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _
DMA-0,1,3,5,6,7 assigned to: _
Auto The Plug-and-Play BIOS

Recommended

auto manages PCI/ISA

PnP card IRQ assignment

automatically.

3-6.3 PNP/PCI Configuration Setup
PNP/PCI

Setting Description Note

Setup

If [Resources Controlled By] is set to [Manual]

IRQ-# and
DMA-#
assigned to:

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to
PCI/ISA PnP card.

Legacy ISA Choose IRQ-# and

DMA-# assigned to
Legacy ISA card.

Under this item the user can assign an IRQ to a PCI slot. However, there
under some conditions the IRQ will not be assigned as selected under this
item:

1. IRQs 0, 1, 2, 6, 8, 13 can NOT be assigned, because they are fixed.

2. IRQs 5, 9, 10, 11 are available

3. IRQs 3,4,7,12,14 and 15 will only be assigned if they are free. See the
table below on how to free them:

IRQ-3,4,5,7,9,10,
11,12,14,15

DMA-0,1,3,5,6,7
IRQ-3,4,5,7,9,10,

11,12,14,15
DMA-0,1,3,5,6,7

54

BIOS Setup Utility SY-6IBM

PNP/PCI Configuration Setup (Continued)
PNP/PCI

Setting Description Note

Setup

Interrupt
Line
IRQ 15 IRQ 15: PCI / ISA PnP On-Chip Secondary PCI IDE: disabled
IRQ 14 IRQ 14: PCI / ISA PnP On-Chip Primary PCI IDE: disabled

IRQ 12 IRQ 12: PCI / ISA PnP

IRQ 7 IRQ 7: PCI / ISA PnP Onboard parallel port: disabled
IRQ 4 IRQ 4: PCI / ISA PnP Onboard Serial port 1: disabled
IRQ 3 IRQ 3: PCI / ISA PnP Onboard Serial port 2: disabled

4. Your OS may reassign another interrupt to a PCI slot after BIOS passes

Slot 1/2/3/4

How to set the BIOS to release the IRQ to the PnP Interrupt pool:
PnP / PCI configuration Integrated Peripherals

Interrupt 12 will be released by the PnP
BIOS automatically if the PS/2 Mouse
Port is not used.

control to the OS, especially if you use Windows 95, 98 or NT.

Auto Default

Use IRQ NO.
Used MEM

base addr

Memory
length

8K,16K,32K,64K.
(Please ask your card
provider for the exactly
memory length of this
add-on card.)

Assign IRQ
For USB

Enabled BIOS will assign IRQ for

USB port.

Disabled BIOS won’ t assign IRQ

for USB port.

PnP OS
Installed

Yes Set this field to [Yes] if

you are running
Windows 95, which is
PnP compatible.

No If the OS you are

running does not
support PnP
configuration.

3-6.4 PNP/PCI Configuration Controls
PNP/PCI

Setting Description Note

Controls

55

This item
appears only
when the
[Based MEM
base addr] set
to I/O address.

Default

Default
(If there is any
doubt, set this
field to [No])

BIOS Setup Utility SY-6IBM

Reset
Configuration
Data

Disabled Retain PnP configuration

data in BIOS.

Enabled Reset PnP configuration

Default

data in BIOS.

3-7 LOAD SETUP DEFAULTS

Select the [LOAD SETUP DEFAULTS] option from the Main Menu to
load the system values you have previously saved. This option is
recommended if you need to reset the system setup and to retrieve
the old values.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

SOYO COMBO SETUP
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP

Load SETUP Defaults (Y/N)? _

POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

Esc

: Quit

F10

: Save & Exit Setup

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise
[N] to return to the Main Menu and keep current values.

AWARD SOFTWARE, INC.

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←
(Shift) F2

Time, Date, Hard Disk Type…

: Select Item
: Change Color

Warning: If you run into any problem after changing the
BIOS configuration, please load the SETUP DEFAULTS for
stable performance.

56

BIOS Setup Utility SY-6IBM

3-8 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already
familiar with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of
the chipset registers. These registers control the system options in
the computer.

The following screen shows setup default settings.

ROM PCI/ISA BIOS

INTEGRATED PWEIPHERALS

AWARD SOFTWARD, INC.

IDE HDD Block Mode : Enabled Onboard Serial Port 1 : 3F8/IRQ4
IDE Primary Master PIO : Auto Onboard Serial Port 2 : 2F8/IRQ3
IDE Primary Slave PIO : Auto UART Mode Select : Normal
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto
IDE Primary Master UDMA : Auto
IDE Primary Slave UDMA : Auto Onboard Parallel Port : 378/IRQ7
IDE Secondary Master UNMA : Auto Parallel Port Mode : SPP
IDE Secondary Slave UDMA : Auto
On-Chip Primary PCI IDE : Enabled
On-Chip Secondary PCI IDE : Enabled PWRON After PWR-Fail : Off

USB Keyboard Support : Disabled

Init Display First : PCI Slot

ESC : Quit ↑ ↓ → ← : Select Item

Onboard FDC Controller : Enabled F1 : Help PU/PD/+/- : Modify

F5 : Old Values (Shift) F2 : Color
F7 : Load Setup Defaults

The following tables describe each field in the INTEGRATED
PERIPHERALS Menu and provide instructions on how to configure
the IDE controls, FDC controls, and the onboard serial and parallel
ports.

57

BIOS Setup Utility SY-6IBM

Ø

3-8.1 IDE Device Controls
IDE Controls Setting Description Note

IDE HDD Block Mode

Disabled
Enabled Invokes multi-sector

Default
transfer instead of one
sector per transfer. Not
all HDDs support this
function.

IDE

Ø Primary Master PIO
Ø Primary Slave PIO
Ø Secondary Master PIO

Secondary Slave PIO

mode 0-4 0 is the slowest speed

4 is the fastest speed

Auto For better performance

and stability, we
suggest you use the

Default

Auto setting to set the
HDD control timing.

IDE

Ø Primary Master UDMA
Ø Primary Slave UDMA
Ø Secondary Master UDMA
Ø Secondary Slave UDMA

On-Chip PCI IDE

Ø Primary
Ø Secondary

Disabled

Auto Select Auto to enable

Default
Ultra DMA Mode
support.

Disabled Turn off the on-board

IDE

Enabled Use the on-board IDE Default

3-8.2 Keyboard Controls
Keyboard Controls Setting Description Note

USB Keyboard Support

Init Display First

Disabled Turn off the on-board

Default

IDE

Enabled Use a USB keyboard
PCI Slot Default

AGP

Choose which card –
AGP Display card or
PCI VGA card – to
initialize first.

58

BIOS Setup Utility SY-6IBM
3-8.3 FDC Controls

FDC Controls Setting Description Note
Onboard FDC

controller

3-8.4 Onboard Serial Ports
Onboard Serial

Ports
Onboard UART 1

Onboard UART 2

UART Mode Select

If [UART Mode Select] is set to [IrDA]/[ASKIR]

RxD, TxD Active

Disabled Turn off the on-board

floppy controller

Enabled Use the on-board

floppy controller

Setting Description Note

Disabled
3F8/IRQ4 Default

2F8/IRQ3 Default
3E8/IRQ4

2E8/IRQ3
Auto

Normal Default
IrDA
ASKIR

Hi, Hi, Lo, Lo,
Lo, Hi, Hi, Lo

Choose serial port 1 &
2's I/O address.
Do not set port 1 & 2 to
the same address
except for Disabled or
Auto.

The second serial port
offers these InfraRed
interface modes.

This item allows you to
determine the active of
RxD, TxD.

Default

(port 1)

(port 2)

IR Transmission
Delay

Enabled Default
Disabled

Check with your IR-device
provider for exact setting.

59

BIOS Setup Utility SY-6IBM

If [Parallel Port Mode] is set to [ECP] mode

If [Parallel Port Mode] is set to [EPP] mode

3-8.5 Onboard Parallel Ports
Onboard Parallel

Setting Description Note

Ports
Parallel Port Mode

ECP Mode use
DMA

EPP Mode Select

PWRON After
PWR-Fail

ECP/EPP Default
SPP
ECP

The mode depends on your
external device that
connects to this port.

EPP/SPP

3 Choose DMA3 Default
1 Choose DMA1

EPP 1.9 Select EPP port type 1.9
EPP 1.7 Select EPP port type 1.7 Default

On The system will switch on

when power comes back
after a power failure.

Off The system will remain off

Default

when power comes back

after a power failure.
Former­sts

The system will return to

the state it was in before

the power failure when

power returns. (i.e: If the

system was on, it will

switch on again, if it was

off, it will remain off)

60

BIOS Setup Utility SY-6IBM
3-8.6 MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

LPT1
COM1
COM2

Warning: If a default I/O address conflicts with other I/O
cards such as sound card, you must change one of the I/O
addresses to remedy to this address conflict. (I/O addresses
can be adjusted from the BIOS Setup Utility)

378H 7 ECP/EPP
3F8H 4
2F8H 3

3-9 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the
[BIOS FEATURES SETUP] section, the password prevents access
to the system or the setup program by unauthorized users. Follow
this procedure to set a new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and
press [Enter]. Select the [Security Options] item and set the
field to:

a. [System]: The password is required every time the system

is booted. This means only a person who knows the
password can use this computer.

b. [Setup]: The password is required only when you attempt

to enter the BIOS Setup program.

61

BIOS Setup Utility SY-6IBM

Enter Password:

Password Disabled!!

Confirm Password:

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and
press [Enter]. The following prompt appear:

Warning: If you forget or lose the password, the only way
to access the system is to set jumper JP5 to clear the
CMOS RAM. All setup information is lost and you must run
the BIOS setup program again.

Note: If you do not wish to use the password function,
press [Enter] directly and the following message appears:

3. Enter your new password and press [Enter]. The following
message appears, prompting to confirm the new password:

4. Re-enter your password and then press [Enter] to exit to the
Main Menu.

62

BIOS Setup Utility SY-6IBM

F10

(Shift) F2

↔

Type the Password
Press:

password, press

to exit

Type the Password

Press <Enter> without

After you confirm the password,

This diagram outlines the password selection procedure:

and Press: <Enter>

↔

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP

Enter Password:

POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION

Confirm Password:

LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

Esc

: Quit
: Save & Exit Setup

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Enter Password:

∗∗∗∗∗

∗∗∗∗∗

After you confirm the

press <Esc> to exit

Time, Date, Hard Disk Type…

ROM PCI/ISA BIOS

Press:

entering the password

Without entering password

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD

Password Disabled!!

IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←

°

: Select Item
: Change Color

3-10 USER PASSWORD

When the user password option is on, you are not allowed to change
any setting in the [CMOS SETUP UTILITY] except for changing the
user's password.

The password setting procedure is similar to that for the
[SUPERVISOR PASSWORD] (Refer to section 3-9).

63

BIOS Setup Utility SY-6IBM

3-11 IDE HDD AUTO DETECTION

This Main Menu function automatically detects the hard disk type
and configures the STANDARD CMOS SETUP accordingly.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master :

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
2(Y) 1707 827 64 0 3308 63 LBA
1 1707 3309 16 65535 3308 63 NORMAL
3 1707 827 64 65535 3308 63 LARGE

Note: Some Oses( SCO-UNIX Before v5.0) must use “NORMAL” for installation

Select Primary Master Option (N=Skip) : N

ESC : Skip

Note: This function is only valid for IDE type of hard disk drives.

64

3D PnP Audio Onboard SY-6IBM

Chapter 4

3D PnP AUDIO ONBOARD

4-1 ONBOARD JOYSTICK PORT

A joystick, in computer graphics, is a lever with at least two degrees
of freedom used as an input device. The joystick is normally used as
a locator in at least a 2-D plane.
The joystick device is most widely used in video games applications.
Attach the joystick cable to the 15-pin JOYSTICK port at the rear
panel of your Motherboard.

4-2 ONBOARD AUDIO

This Motherboard features three built-in audio-stereo ports (labeled
line-in, line-out, and mic jack) convenient to directly plug-in all your
external audio devices. Your SY-6IBM Motherboard is making use of
the YAMAHA YMF740 sound chipset technology and applications
programs.

Note: Please refer to Chapter 5- YAMAHA Sound Driver Installation
for a detailed procedure on how to install the audio driver depending
on the particular environment (Win NT 3.5/4.0, Win 95/98) installed
on your system.

4-2.1 Connecting your Audio Devices

You can connect audio devices to the following ports:

l headphones or pre-amplified speakers to the "line-out" port;
l a line-in device such as CD/Cassette player to the "line-in" port;
l a microphone to the "mic" port.

65

3D PnP Audio Onboard SY-6IBM

MIC JACK

LINE-INLINE-OUT

Audio-Stereo Jack

MIC JACK

LINE-INLINE-OUT

4-2.2 Connecting Speakers

You can connect external speakers to the "Line-out" port on your
SY-6IBM Motherboard.

LINE-INLINE-OUT

MIC JACK

(Amplified Speakers)

Note: This Motherboard requires a speaker with built-in amplifier

(Amplified Speaker) to generate proper output sound volume.

66

3D PnP Audio Onboard SY-6IBM
Using the YAMAHA™ YMF-740 Audio Driver

To access the YAMAHA™ Sound Mixer audio driver controls, follow
these steps:

1. Open the Windows 95/98 [Start] menu.

2. Select [Programs], [Accessories], and [Multimedia] path.

3. Find and click the [Volume Control] option to run the
application.

The audio control panel of the YAMAHA™ sound driver will appear.
The audio mixer gives control of the sound inputs of all audio
devices. You can adjust the internal volume and balance of each
individual audio device. Also, this audio mixer lets you apply wave
sound effects.

Important: The [Playback] volume controls the master
output sound volume of your system. Depending on the
speaker you use you will need to adjust both the volume
control on the speaker itself and the audio volume control
menu under Windows 95/98 to get the proper sound output.

67

Drivers Installation SY-6IBM

Chapter 5

DRIVERS INSTALLATION

Your SY-6IBM Motherboard comes with a CD-ROM labeled "SOYO
CD." The SOYO CD contains the user's manual file for your new
Motherboard, the drivers software available for installation, and a
database in HTML format with information on SOYO Motherboards
and other products.

The SOYO CD Start Up Program automatically detects which SOYO
Motherboard you own and displays the corresponding model name.

Step 1. Insert the SOYO CD into the CD-ROM drive

The SOYO CD will auto-run, and the SOYO CD Start Up Menu will
display as shown below.

68

Drivers Installation SY-6IBM

Step 2. Install Drivers

Click the Install Drivers button to display the list of drivers software
that can be installed with your Motherboard. The Start Up program
displays the drivers available for the particular model of
Motherboard you own. We recommend that you only install those
drivers.

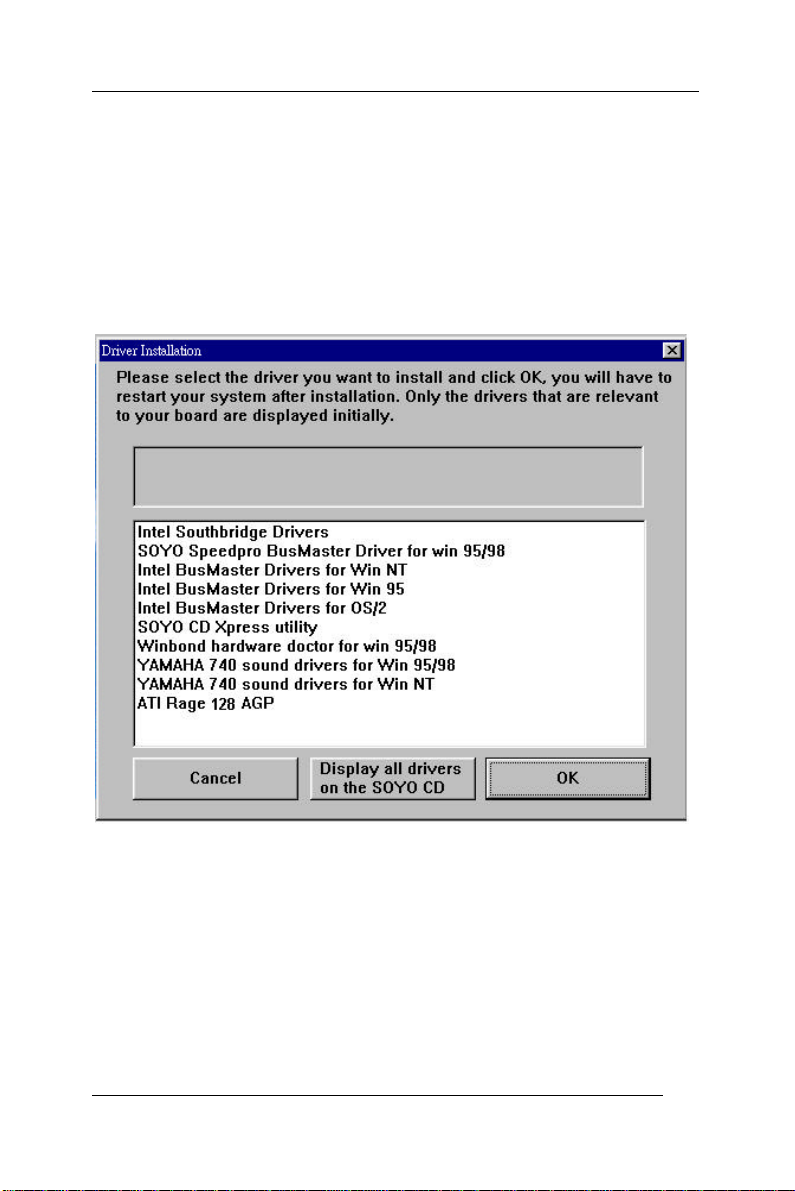

The following drivers are available for Windows 95

(Driver Installation Menu)

69

Drivers Installation SY-6IBM

The following drivers are available for Windows 98

(Driver Installation Menu)

A short description of all available drivers follows:

Ø Intel Southbridge Drivers
Because Windows 95 does not recognize the Southbridge of the
newer Intel chipsets (TX, BX, ZX etc) this utility has to be run, it will
update the necessary Windows files. (Only for Windows 95)

Ø SOYO SpeedPro Busmaster Driver for Win 95/98
Without the busmaster drivers the CPU will need to be involved
every time data is read from or written to the Harddisk. The
busmaster drivers make use of DMA (Direct Memory Access) to
relieve the CPU of this burden, thus speeding up the system.

The SOYO SpeedPro driver makes use of an advanced caching
algorithm, which gives it an advantage over other busmaster drivers.

70

Drivers Installation SY-6IBM

Ø Intel Busmaster Drivers for Windows 95
Ø Intel Busmaster Drivers for Win NT
Ø Intel Busmaster Drivers for OS/2

These are the official busmaster drivers as supplied by Intel.

Note: Do NEVER install two types of busmaster drivers on

your system, this will lead to conflicts and system instability.
Therefore, if you install the SOYO SpeedPro Busmaster
driver you can NOT install the Intel Busmaster drivers.
Before installing a new busmaster driver first UNINSTALL the
old busmaster driver.

Ø SOYO CD Xpress Utility
This utility will enhance your CD-ROM Drive data-thoughput by
using space on the Harddisk as cache. This way application
programs can access data faster. This utility is suitable for Windows
95/98.

Ø Winbond hardware doctor for Windows xx
Your motherboard comes with a hardware monitoring IC. By
installing this utility Temperature, Fan speed and Voltages can be
monitored. It is also possible to set alarms when current system
values exceed or fall below pre-set values.

Because the Hardware monitor comes with default monitoring
settings that may not be appropriate to the configuration of the
actual system, it is possible that the user will have to change some
of these settings.

l Core voltage
The core voltage differs between generations of Intel CPUs, if the
Hardware monitor gives a warning, the settings for the safe range of
the core voltage has to be adjusted. This can be done by simply
clicking and dragging the upper and lower limit bars.

71

Drivers Installation SY-6IBM

For example:
Newer Slot 1 CPUs have a core voltage of 2.0V. Therefore, set the
CPU Vcore limits to 1.8V and 2.2V. For 2.8V core voltage CPUs the
limits would be 2.6V and 3.0V.

l Fan speed
The Hardware monitor can keep track of three fans. If the user does
not use all fans, the fans that are not in use should be disabled in the
Hardware monitor program, otherwise the Hardware monitor will
give an alarm. If this happens, make sure to disable monitoring for
that fan.

Ø YAMAHA 740 Sound Drivers for Win95/98 and Win NT
With this application program the user can make use of the on board
sound chip. Before installing the YAMHA 740 Sound Drivers, you
MUST first install the YAMAHA 740 drivers for Windows 9x or NT.

72

Drivers Installation SY-6IBM

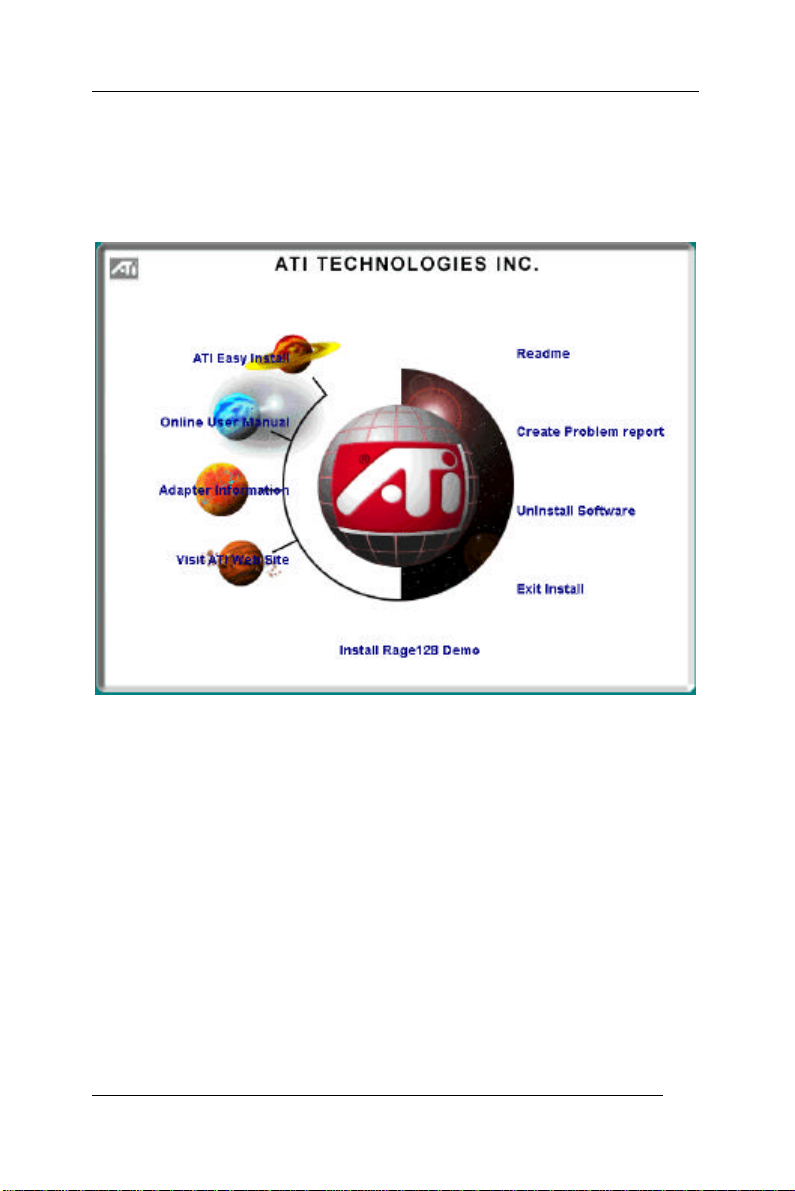

Ø ATI Rage 128 AGP
Select this Item and click OK to start up the ATI Rage 128 AGP
driver screen. Follow the instructions on the screen to install the
drivers and/or application programs you need.

However, to display the list of all drivers software available with
SOYO Motherboards, click the Display all drivers on the SOYO CD
button. Please make sure to install only the drivers adapted to your
system, or otherwise this cause system malfunctions.

73

Drivers Installation SY-6IBM

Step 3. Select which driver you want to install and

click OK

Notice 1: Once you have selected a driver, the system will
automatically exit the SOYO CD to begin the driver installation
program. When the installation is complete, most drivers require to
restart your system before they can become active.

Notice 2: You may click Cancel to abort the driver installation and
return to the main menu.

Notice 3: Once you have selected a driver, the system will
automatically exit the SOYO CD to begin the driver installation
program. When the installation is complete, most drivers require you
to restart your system before they can become active.

74

Drivers Installation SY-6IBM

75
