Soyo SY-6BB User Manual

SY-6BB

Mainboard

**************************************

Pentium® II processor (66&100MHz) supported

82440 BX AGP Set Mainboard

AT Form Factor

**************************************

User's Guide

&

Technical Reference

SOYO™

i

FC

About This Guide

This User's Guide is for assisting system manufacturers and end users in setting up
and installing the mainboard. Information in this guide has been carefully checked for
reliability; however, no guarantee is given as to the correctness of the contents. The
information in this document is subject to change without notice.

Copyright Notice

Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.

Trademarks

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.

Disclaimer

Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.

SY-6BB

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.

Product Rights

Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".

Tested To Comply

Edition: Aug.1998
Version 1.1
6BB SERIAL

C

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

100%

RECYCLED PAPER

Table of Contents

ii

SY-6BB

Table of Contents

SY-6BB MOTHERBOARD LAYOUT........................................................ 1

MOTHERBOARD FEATURES.................................................................2

DEFAULT SETTINGS..............................................................................3

QUICK INSTALLATION GUIDE...............................................................4

CHAPTER 1 INTRODUCTION ............................................................24

1-1 KEY FEATURES.............................................................24

1-2 UNPACKING THE MOTHERBOARD...............................26

1-3 HANDLING THE MOTHERBOARD.................................26

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS ............27

CHAPTER 2 HARDWARE SETUP......................................................28

2-1 CMOS CLEAR JUMPER JP5..........................................28

2-2 POWER-ON BY KEYBOARD FUNCTION JUMPER JP5029

2-3 AUTO DETECT CPU VOLTAGE......................................29

2-4 CPU TYPE CONFIGURATION........................................ 30

2-5 MEMORY CONFIGURATION ......................................... 32

2-6 MULTI I/O ADDRESSES.................................................33

2-7 MAKING CONNECTIONS...............................................33

CHAPTER 3 BIOS SETUP UTILITY.................................................... 34

3-1 STANDARD CMOS SETUP............................................36

3-2 BIOS FEATURES SETUP............................................... 39

3-3 CHIPSET FEATURES SETUP ........................................44

3-4 POWER MANAGEMENT SETUP....................................49

3-5 PNP/PCI CONFIGURATION SETUP...............................53

3-6 LOAD SETUP DEFAULTS ..............................................56

3-7 LOAD BIOS DEFAULTS .................................................56

3-8 INTEGRATED PERIPHERALS........................................57

3-9 SUPERVISOR PASSWORD ........................................... 62

3-10 USER PASSWORD........................................................63

3-11 IDE HDD AUTO DETECTION.........................................64

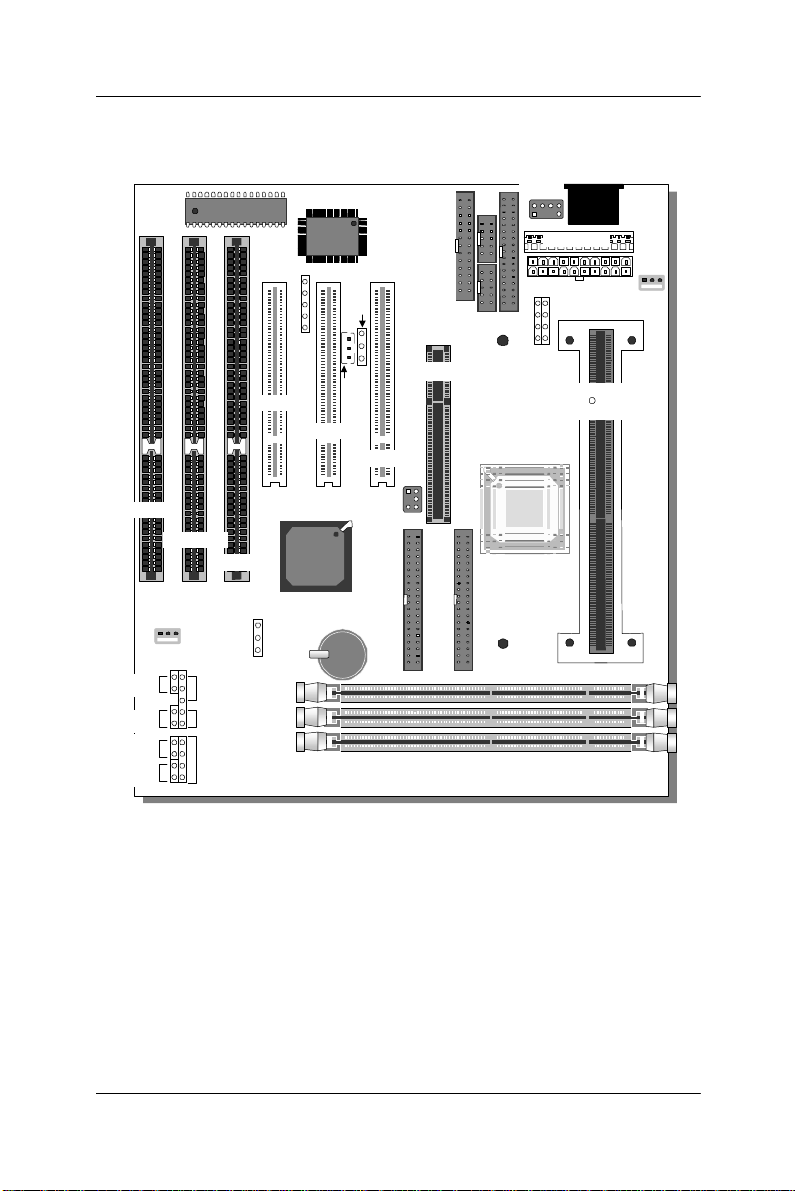

Motherboard Layout

1

CPUFAN

PCI Slot #1

PCI Slot #2

PCI Slot #3

ISA Slot #1

Slot 1 for

Pentium Processor

1

4

5

8

USB

SY-6BB MOTHERBOARD LAYOUT

Flash BIOS

ITE8671

PS/2 Mouse

11

Connector

1

SY-6BB

KB

Connector

AT Power

1

JP50

1

5

IR1

3

JP44

WOL

Header

ISA Slot #3

ISA Slot #2

CMOS Clear

Jumper

1

CHAFAN

Reset

PWRBT

Turbo

HDD LED

_

LED

+

Power
LED

Keylock

Speaker

JP5

1

3

DIMM 1
DIMM 2
DIMM 3

3V Lithium
Battery

SB-LINK

(PC-PCI)

Intel

82371 EB

PRT 1

COM 1

COM 2

AGP Slot

TM

1

1

IDE 1IDE 2

ATX Power

1

FDC

R

II

Intel

82443 BX

Motherboard Features

2

SY-6BB

MOTHERBOARD FEATURES

Board Size 4-layer PCB, 22.x25. cm, AT Form Factor
Slot 1 Slot 1 for Pentium® II Processor; supports:

Ø Pentium® II Processors up to 100 MHz host bus frequency

(233-550MHz)

Ø Auto detection of CPU voltage

Chipset 82440 BX AGP Set
AT Power 12-pin Male Connector
ATX Power 20-pin Male Connector
Memory DIMM Bank 1~3

Ø 168-pin Unbuffered SDRAM DIMM Module
Ø Support 8~128MB DIMM in each Bank
Ø Supports ECC configuration

BIOS System BIOS built-in, Award BIOS

Ø "Plug-and-Play" function

PCI Slots (3x) 3 x 32-bit Bus Mastering Slots
AGP Slot (1x) 1 x 32-bit AGP Slot
ISA Slots (3x) 3 x 16-bit ISA Slots
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports

Ø IDE1: Primary IDE Device Connector
Ø IDE2: Secondary IDE Device Connector

FDC 1 Floppy Disk Drive (FDD) Port

(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)

IR1 5-pin Infrared Device Connector
PRT1 1 x 26-pin Female Parallel Printer Port
COM1, COM2 2 x RS-232 Serial Ports
KB 1 x PS/2 Keyboard Connector

Motherboard Features

3

SY-6BB

MOTHERBOARD FEATURES (CONTINUED)

PS/2 Mouse 1 x PS/2 Mouse Connector
USB1, USB2 2 x USB (Universal Serial Bus) Connectors
Keylock 5-pin KeyLock Connector
Reset 2-pin Reset Switch Connector
Speaker 4-pin PC Speaker Connector
TB_LED 2-pin Turbo LED Connector
HDD_LED 2-pin IDE Device LED Connector
JP5 CMOS Clear Jumper
JP44 WOL (Wake-On-LAN) 3-pin Connector
JP50 Power-On by Keyboard Function Jumper
SBLINK PCI Audio Card Connector

DEFAULT SETTINGS

CPU Pentium® II 233/350 MHz Processor
CPU Voltage Auto Detect CPU Voltage
2 IDE Ports PCI E-IDE Ports
1 Parallel Port LPT1: EPP/ECP Printer Port

Ø LPT1: I/O Address 378H, IRQ 7, Status ECP+EPP

2 Serial Ports COM1 & COM2: 2 x RS-232 high-speed

UARTs (w/ 16550 FIFO)

Ø COM1: I/O Address 3F8H, IRQ 4
Ø COM2: I/O Address 2F8H, IRQ 3

2 USB Ports 2 Onboard USB (Universal Serial Bus) Ports
PS/2 Mouse
Dual AT or ATX Power Supply

Installation Guide

4

SY-6BB

INSTALLATION GUIDE

Congratulations on your purchase of SY-6BB Motherboard. You
are about to install and connect your motherboard.

Note: Do not unpack the motherboard from its protective
anti-static packaging until you have made the following
preparations.

PREPARATIONS

Gather and prepare all the hardware equipment to complete the
installation successfully:

1. Pentium® II processor with built-in CPU cooling fan (boxed
type).

Note: This motherboard supports non-boxed type CPUs. The
heavier CPU cooling fan requires the installation of a CPU
support stand included in this motherboard package.

2. DRAM module

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. Keyboard

6. Pointing Device (PS/2 mouse)

7. VGA Card

8. Sound Card (optional)

9. Speaker(s) (optional)

10. Disk Drives: HDD, CD-ROM, Floppy drive…

11. External Peripherals: Printer, Plotter, and Modem (optional)

12. Internet Card (optional)

Installation Guide

5

SY-6BB

UNPACKING THE MOTHERBOARD

Like most electronic equipment, your motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the motherboard carefully, holding it by the edges.
You are now ready to start the installation.

INSTALLATION GUIDE

We will now begin the installation of the motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.

Step 1. CPU Installation

Your SY-6BB motherboard comes with a CPU retention set kit. The
retention set is used to hold the Pentium® II processor attached to
the Slot 1 CPU connector on the motherboard.

Follow these instructions to install your Pentium® II processor
correctly.

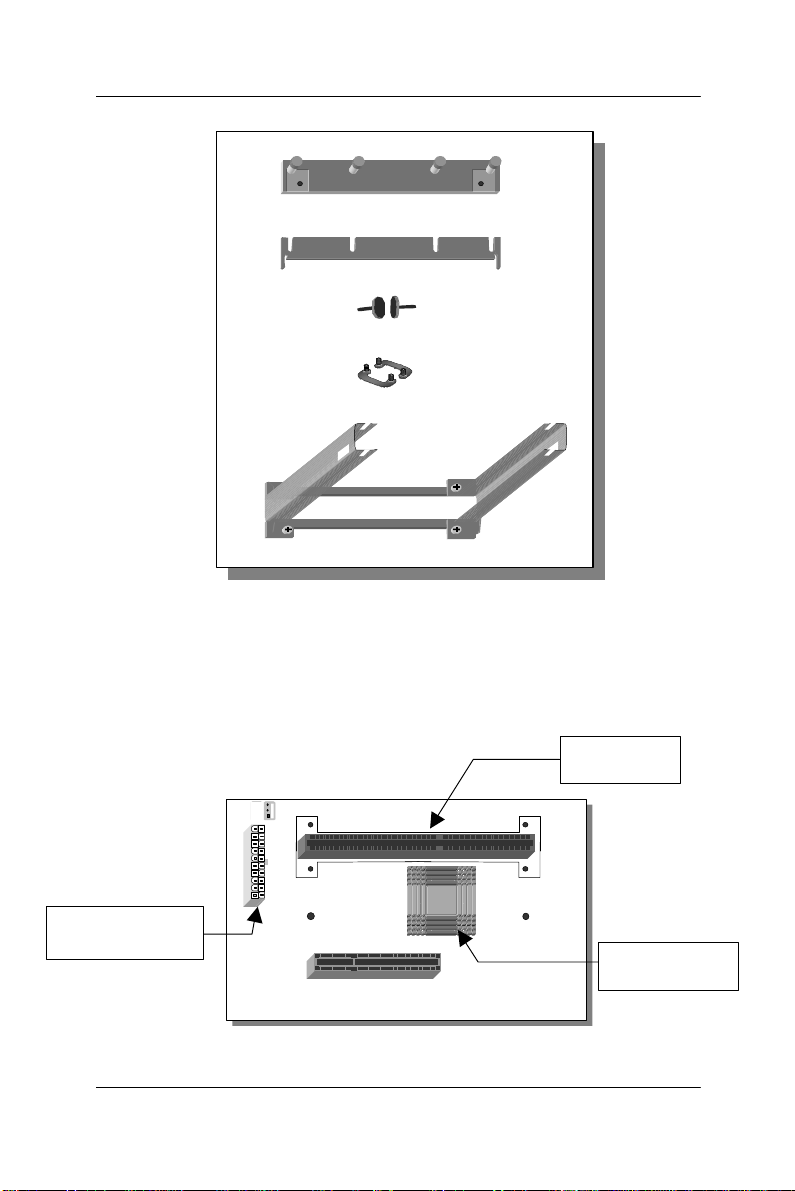

1. Unpack the Retention Set Kit

Gather the following items included in the retention set kit, as shown
in the following figure:

Ø Supporting Base
Ø Support Clip
Ø Latches (x2)
Ø Screws (x2) used to set the retention clip
Ø Retention Clip

Installation Guide

6

Supporting Base

Support Clip

Latches (x2)

Screws (x2)

Retention Clip

SY-6BB

2. Position the Motherboard

Locate Slot 1 on the motherboard and position the board in the
direction as shown in the following figure:

Slot 1

ATX Power

Heat Sink

Installation Guide

7

3. Insert the Screws

Install the two pairs of screws used to set the retention clip in the two
pairs of holes at both ends of Slot 1. Insert the screws from below
the motherboard upward, as shown in the figure below.

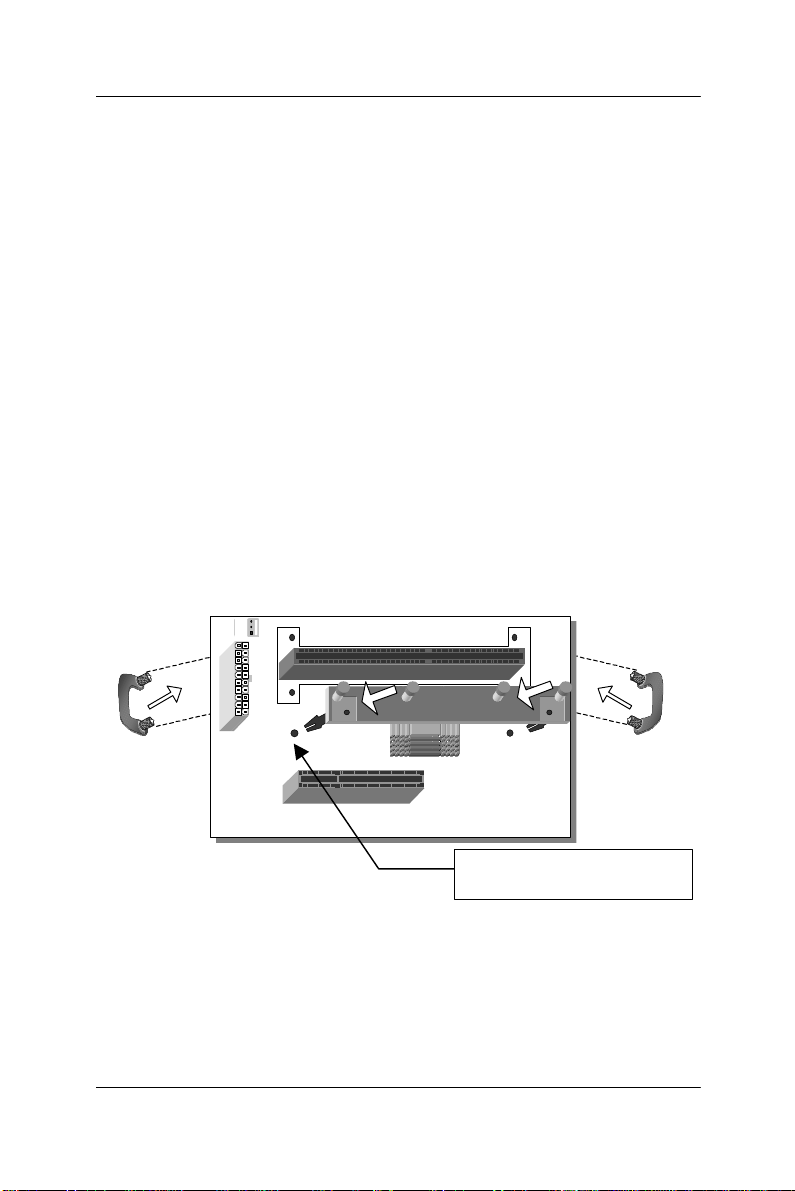

4. Install the Supporting Base

Insert the supporting base into the two holes adjacent to the two
sets of screws previously installed.

Pay special attention to the directionality provided by the larger
pinhole on the AGP port side. Do not apply excessive force when
inserting the supporting base. If the supporting base does not go in,
check the orientation with the following figure and position the
supporting base so as to match the larger pinhole.

SY-6BB

Larger Pinhole

Installation Guide

8

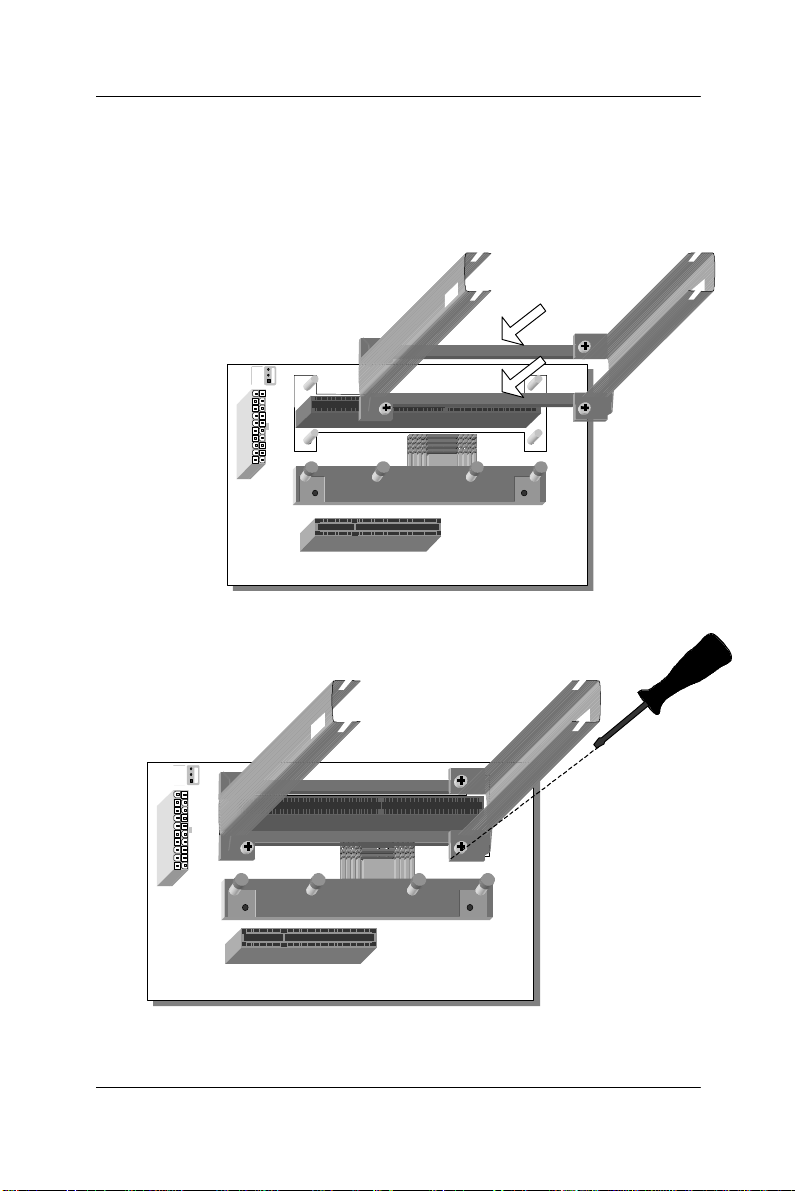

5. Install the Retention Clip

Set the retention clip centered on Slot 1 and right on top of the two
sets of screws along side Slot 1, as shown in the following figure.
Then tighten the four screws on the retention clip.

SY-6BB

Installation Guide

9

6. Install the CPU

Insert the CPU into the retention clip and lock the two latches on the
sides of the CPU to secure the Pentium® II processor in place, as
shown in the following figures.

SY-6BB

Installation Guide

10

7. Install the Support Clip

Insert the support clip on the supporting base so that the CPU heat
sink can seat on top of the supporting base, as shown in the
following figure.

8. Insert the Latches

Insert the two latches in the corresponding pinholes on the
supporting base and then turn them 90 degrees to secure the CPU,
as shown in the following figure.

SY-6BB

Installation Guide

11

Step 2. CPU Fan Installation

Your Pentium® II processor kit comes with a cooling fan. Mount the
fan on the processor according to the instructions provided by the
manufacturer. The fan is a key component that will ensure system
stability. The fan prevents overheating, therefore prolonging the life
of your CPU.

Note: Remember to connect the fan to the appropriate power
source.

Step 3. CPU Frequency Setting

This motherboard does not use any jumpers to set the CPU
frequency, CPU settings are changed through the BIOS. Refer to
Chapter 2 Hardware Setup and Chapter 3 BIOS Setup Utility for
details on how to set the Pentium® II processor frequency.

Step 4. DRAM Module Installation

This motherboard supports DIMM banks from 8 to 128 MB.

SY-6BB

Note: Always install the memory module DIMM bank 3 first,
then install additional memory modules in DIMM banks of
decreasing order (3à2à1). Refer to the memory
configuration table in Chapter 2.

Refer to Chapter 2 Hardware Setup for details on how to install
memory modules in DIMM banks.

Step 5. IDE Device Installation (HDD, CD-ROM)

This motherboard offers two primary and secondary IDE device
connectors (IDE1, IDE2.) It can support up to four high-speed HDD
or CD-ROM.

Installation Guide

12

_

+

Connect one side of the 40-pin flat cable to the IDE device (HDD or
CD-ROM) and plug the other end to the primary [IDE1] or secondary
[IDE2] directionally keyed IDE connector on the motherboard.
This motherboard can support up to four HDDs.

Step 6. Floppy Drive Installation

The system supports 5 possible floppy drive types: 720 KB, 1.25 MB,

1.44 MB, 2.88 MB, and LS-120. In addition, this motherboard

supports a 3-mode (720KB/1.25MB/1.44MB) floppy commonly used
in Japan.
Connect one side of the 34-pin flat cable to the floppy drive and plug
the other end to the floppy drive connector labeled [FDC] on the
motherboard.
This motherboard can support up to 2 floppy drives.

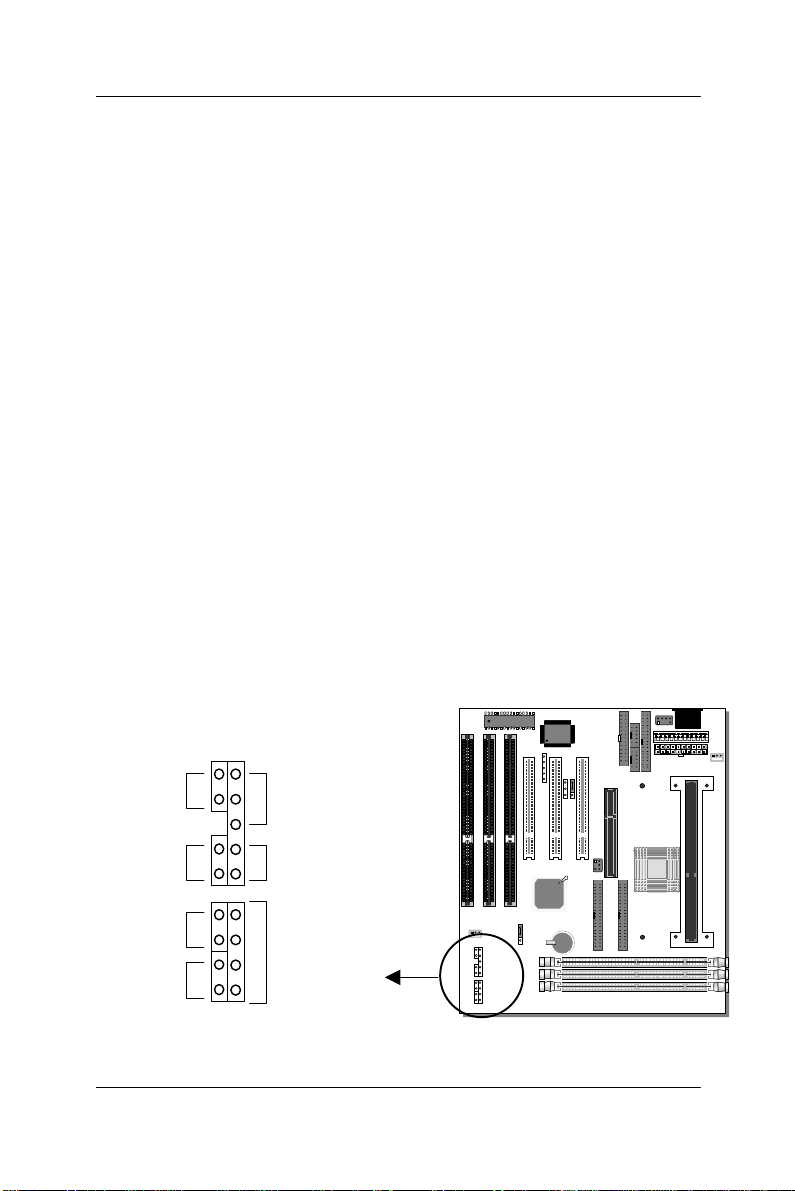

Step 7. Front Panel Connections

SY-6BB

Reset

PWRBT

Turbo

LED

HDD LED

Power
LED

Keylock

Speaker

Installation Guide

13

Plug the computer case's front panel devices to the corresponding
connectors on the motherboard.

1. Power LED & KeyLock

Plug the Power LED cable into the 5-pin Keylock connector.
Some systems may feature a KeyLock function with a front panel
switch for enabling or disabling the keyboard. Connect the KeyLock
switch to the 5-pin Keylock connector on the motherboard.
Please install according to the following pin assignment: pin 1,3 are
for Power LED and pin 4,5 are for Keylock.

2. Reset

Plug the Reset push-button cable into the 2-pin Reset connector on
the motherboard. Pushing the Reset button on the front panel will
cause the system to restart the boot-up sequence.

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker
connector on the motherboard.

SY-6BB

4. Turbo LED

Connecting the 2-pin Turbo LED cable to the corresponding Turbo
LED connector will cause the LED to light whenever the system is in
Turbo mode. The manufacturer has permanently set this
motherboard in Turbo mode due to most hardware and software
compliance to turbo mode.

5. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE
LED connector on the motherboard. This will cause the LED to
lighten when an IDE (HDD, CD-ROM) device is active.

Installation Guide

14

Connector

SY-6BB

6. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT connector for
turning On or Off your ATX power supply.

Step 8. External Peripherals Connections

External devices such as the keyboard, printer, PS/2 mouse,
modem, USB can be connected to the motherboard. Normally, you
can not plug your devices directly onto the motherboard, except for
the keyboard that plugs directly into the back panel KB connector.
For other serial (PRT1) and parallel devices (COM1, COM2), first
install the external connectors that come with your motherboard on
the computer case, then plug the other end of the flat cable to their
respective connectors.
Only after you have fixed and locked the motherboard and external
connectors to the computer case can you start connecting the
external peripheral devices.

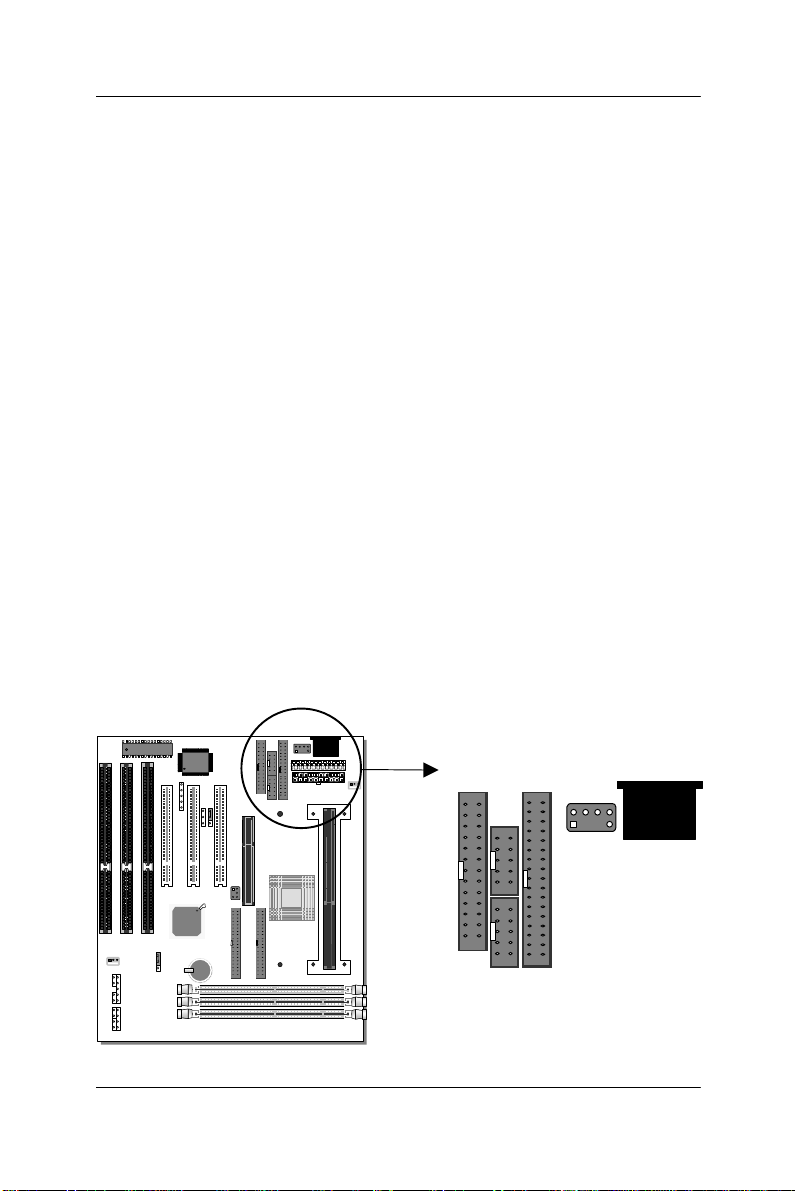

When connecting an external device, use the following figure to
locate and identify which back panel connector to plug the device or
flat cable to.

PRT 1

1 1

1

COM 1
COM 2

FDC

PS/2 Mouse

KB

Connector

Installation Guide

15

Connector

SY-6BB

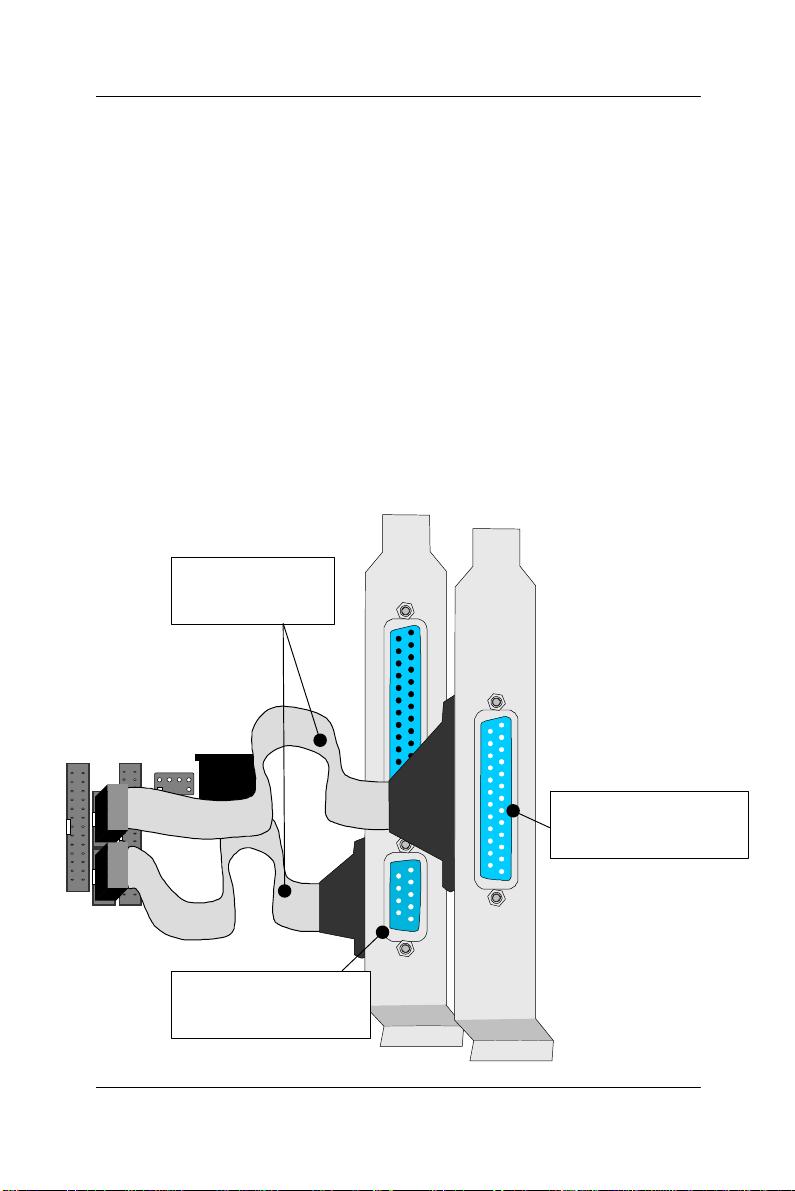

1. Serial Ports COM1/COM2

External peripherals that use serial transmission scheme include
serial mouse and modem.
Your motherboard comes with two types of serial connectors with
flat cables:

Ø one 9-pin male external connector with 9-pin flat cable
Ø one 25-pin male external connector with 9-pin flat cable

Plug the 9-pin end of the flat cable into the COM1 or COM2 serial
connector on the motherboard, as shown in the figure below, then fix
the external 9-pin or 25-pin connector to the rear panel of the
computer case. Then plug your serial device cable directly into the
9-pin or 25-pin male connector located at the back of your computer.

9-pin serial

flat cables (2x)

1 1

1

COM 1
COM 2

FDC

PS/2 Mouse

KB

Connector

9-pin male external

serial connector

25-pin male external

serial connector

Installation Guide

16

SY-6BB

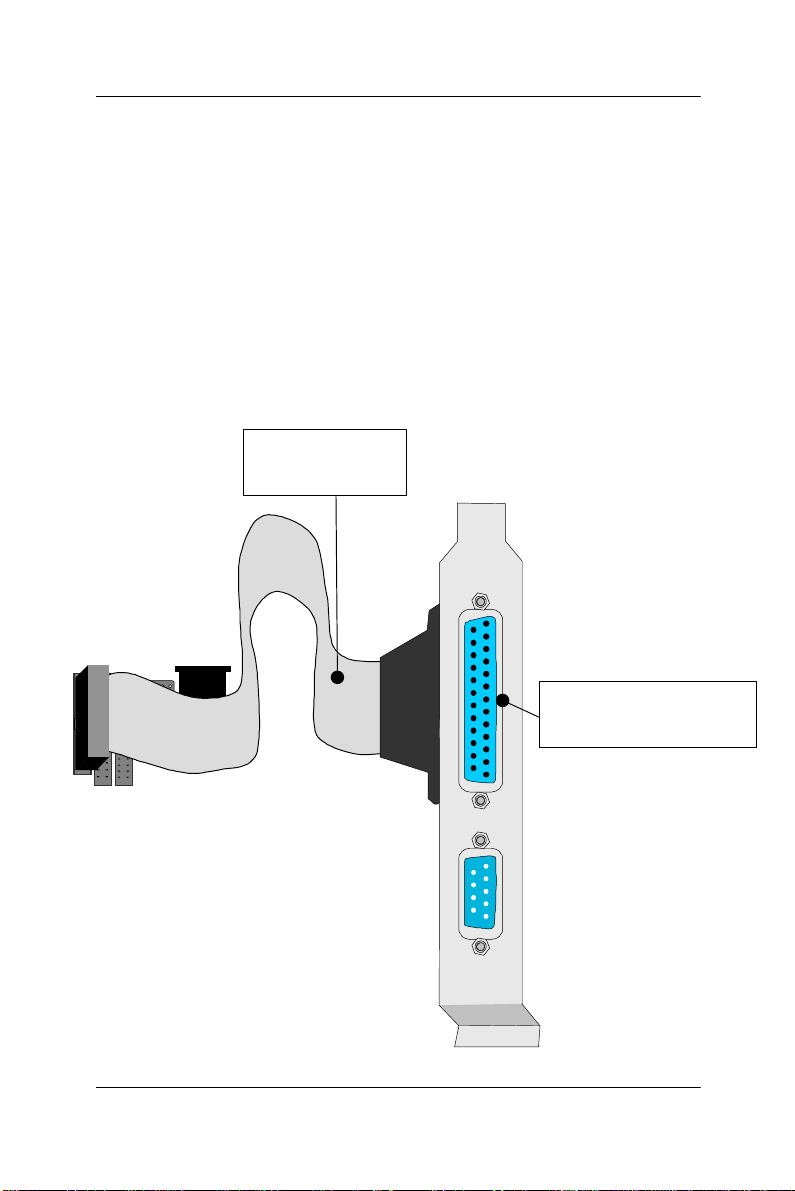

2. Parallel Port PRT1

This parallel port is used to connect the printer or other parallel
devices.
Your motherboard comes with one 25-pin female external parallel
connector with 25-pin flat cable.
Plug the 25-pin end of the flat cable into the PRT1 parallel connector
on the motherboard, as shown in the figure below, then fix the
external 25-pin connector to the rear panel of the computer case.
Then plug your parallel device cable directly into the 25-pin female
connector located at the back of your computer.

25-pin parallel

flat cable

PRT 1

1 1

1

COM 1
COM 2

FDC

PS/2 Mouse
Connector

KB

Connector

25-pin female external

parallel connector

Installation Guide

17

USB

SY-6BB

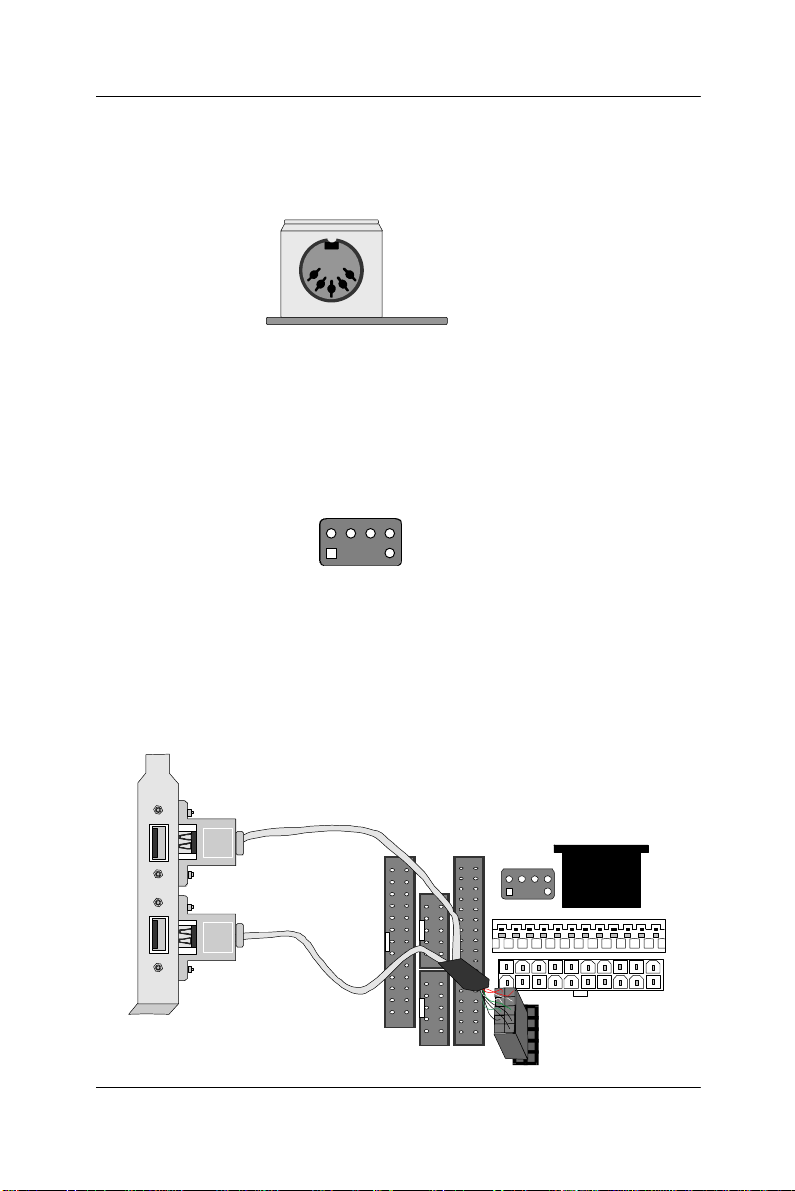

PS/2 Keyboard

Plug the keyboard jack directly into the 6-pin female PS/2 keyboard
connector located at the rear panel of the motherboard.

PS/2 Keyboard
Connector

PS/2 Mouse

Attach the mouse cable to the 6-pin male PS/2 mouse connector on
the motherboard to enable PS/2 mouse function.

PS/2 Mouse
Connector

Universal Serial Bus (USB)

This mainboard provides a dual-row 10-pin header (one pin is empty)
to support two USB ports for your additional devices. Attach the
USB cable (Optional) to this header as shown in the diagram below.
The USB cable has two USB ports mounted on a bracket.

Installation Guide

18

5

432

1

321

SY-6BB

Step 9. Other Connections

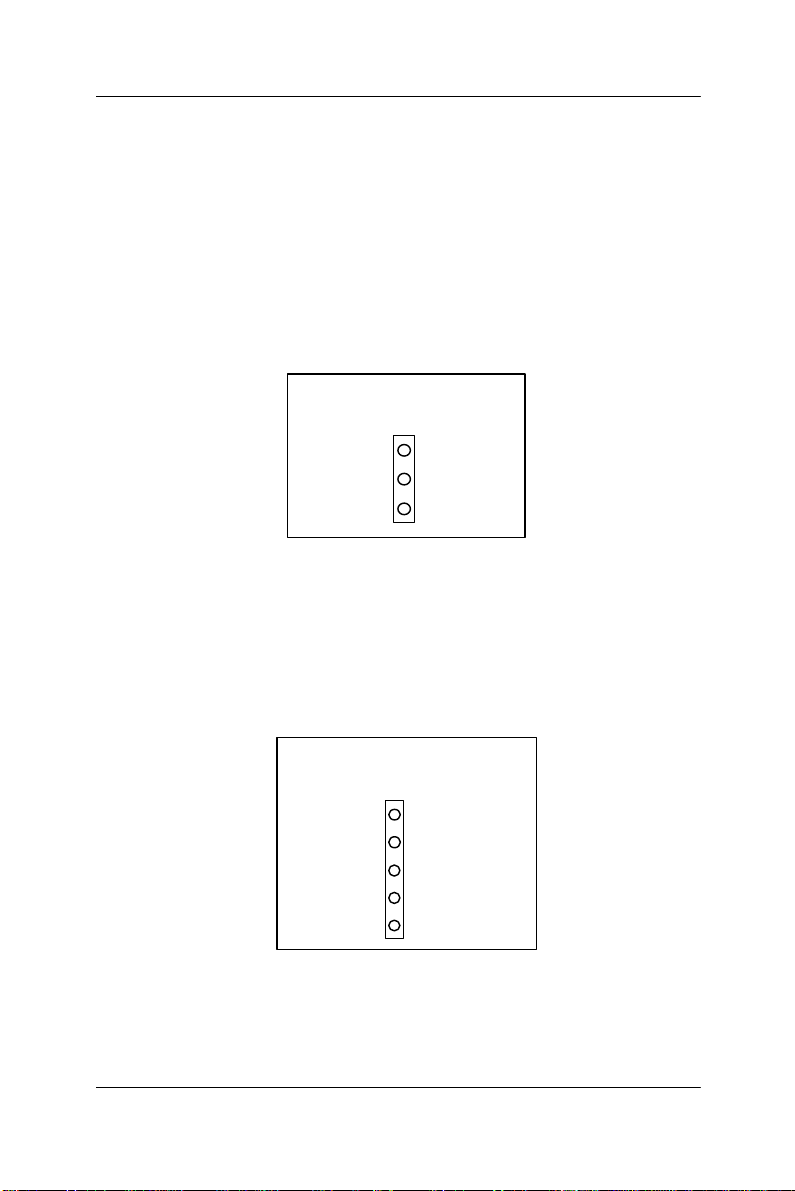

1. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the
Wake-On-LAN (WOL) function to the JP44 connector on the
motherboard. This WOL function lets users wake up the connected
computer through the LAN card.
Please install according to the following pin assignment:

Wake-On-LAN

JP44 Pin Assignment

5V
GND
SENSOR

2. Infrared (IR)

Plug the 5-pin infrared device cable to the IR connector. This will
enable the infrared transfer function. This motherboard meets both
the ASKIR and HPSIR specifications.
Please install according to the following pin assignment:

IR Connector

IR1 Pin Assignment

VCC
Empty
IRRX
GND
IRTX

Installation Guide

19

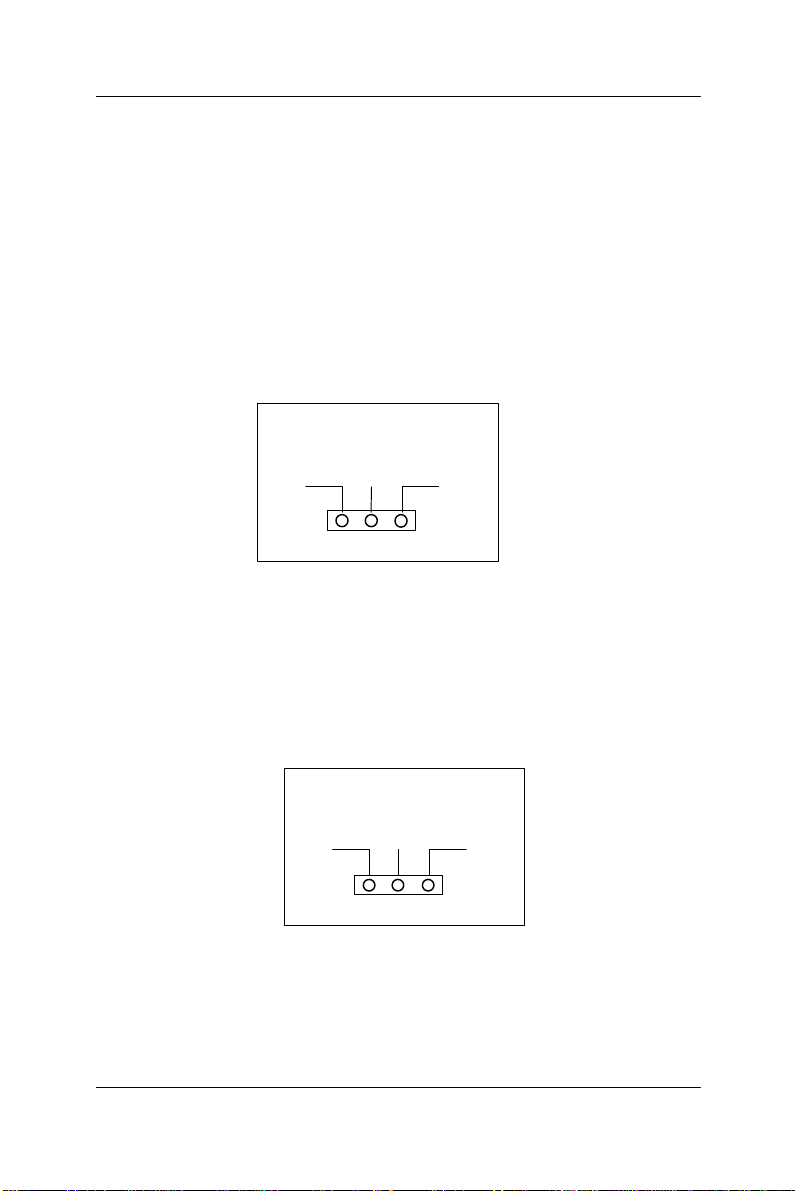

321

CPU Cooling FAN

CPUFAN Pin Assignment

321

GND

SENSOR

12V

SY-6BB

Step 10. Cooling Fan Installation

1. CPU Cooling Fan

After you have seated the CPU properly on the processor, attach the
3-pin fan cable to the CPUFAN connector on the motherboard. The
fan will stop when the system enters into Suspend Mode. (Suspend
mode can be enabled from the BIOS Setup Utility.)
To avoid damage to the system, install according to the following pin
assignment:

2. Chassis Cooling Fan

Some chassis also feature a cooling fan. This motherboard features
a CHAFAN connector to provide 12V power to the chassis fan.
Connect the cable from the chassis fan to the CHAFAN 3-pin
connector. Install according to the following pin assignment:

The chassis fan will stop when the system enters into Suspend
Mode. (Suspend mode can be enabled from the BIOS Setup Utility.)

Chassis Cooling FAN

CHAFAN Pin Assignment

GND SENSOR

12V

Installation Guide

20

Step 11. AGP VGA Card

Insert the AGP VGA card into the AGP slot. Then connect the
monitor information cable to the AGP card back plane external
connector.
Follow the manufacturer's instructions to perform the AGP VGA
drivers installation.

Other Display Cards: Insert other types of VGA cards into the PCI
or ISA expansion slots according to card specifications.

Step 12. PCI Audio Card

Some soundcards require a DMA channel. Attach the 5-pin cable
from the PCI Audio card to the SB-LINK™ connector on the
motherboard. The SB-LINK™ will forward requests for legacy DMA
channel to the PCI Bus.

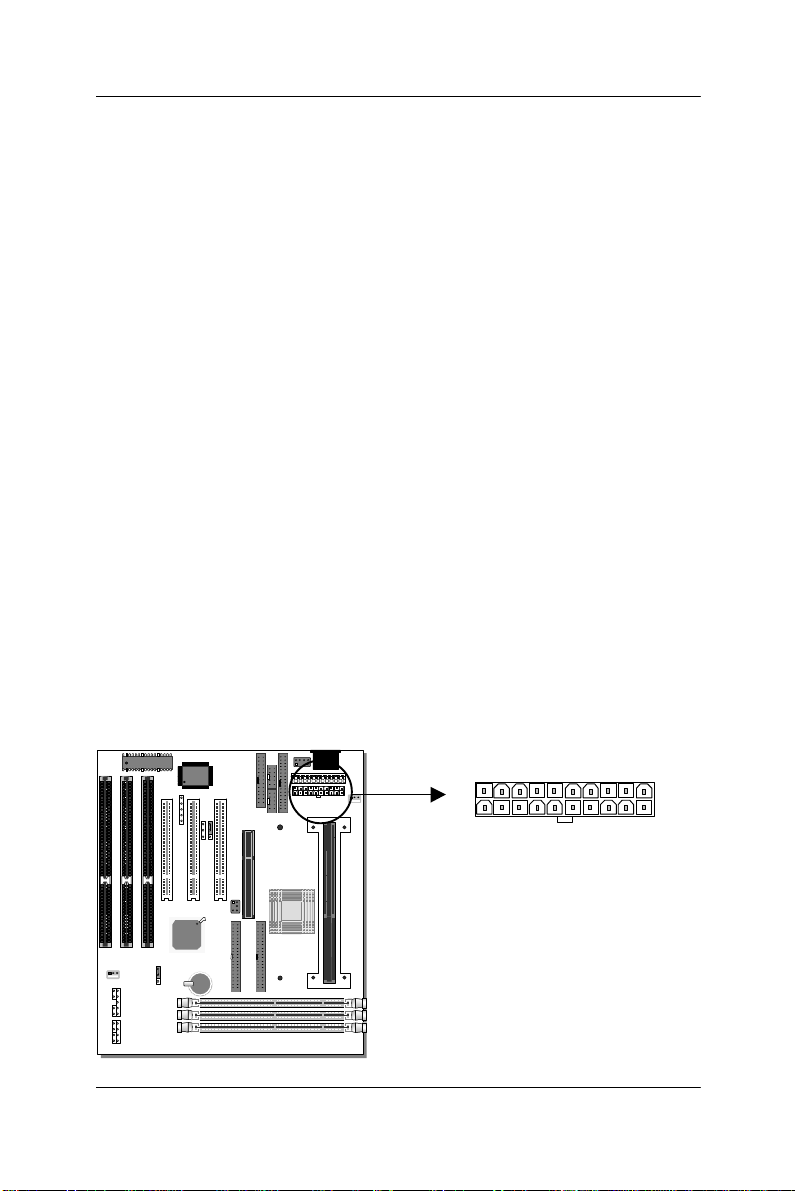

Step 13. ATX Power Supply

If you are using ATX power, plug the connector from the power
source directly into the 20-pin male ATX PW connector on the
motherboard, as shown in the following figure.

SY-6BB

ATX Power

Installation Guide

21

SY-6BB

Warning: Follow these precautions to preserve your motherboard
from any remnant currents when connecting to ATX power supply:

Turn off the power supply and unplug the power cord
of the ATX power supply before connecting to ATX PW
connector.

This motherboard requires a power supply with at least 200 Watts
and a "power good" signal. Make sure the ATX power supply can
take at least 10mAmp load on the 5V Standby lead (5VSB) to meet
the standard ATX specification.

Note on KB Wake-Up Function Power Requirements: If you
are using the KB Wake-Up Function with 5VSB, make sure
your power supply can provide 100mAmp or higher current.

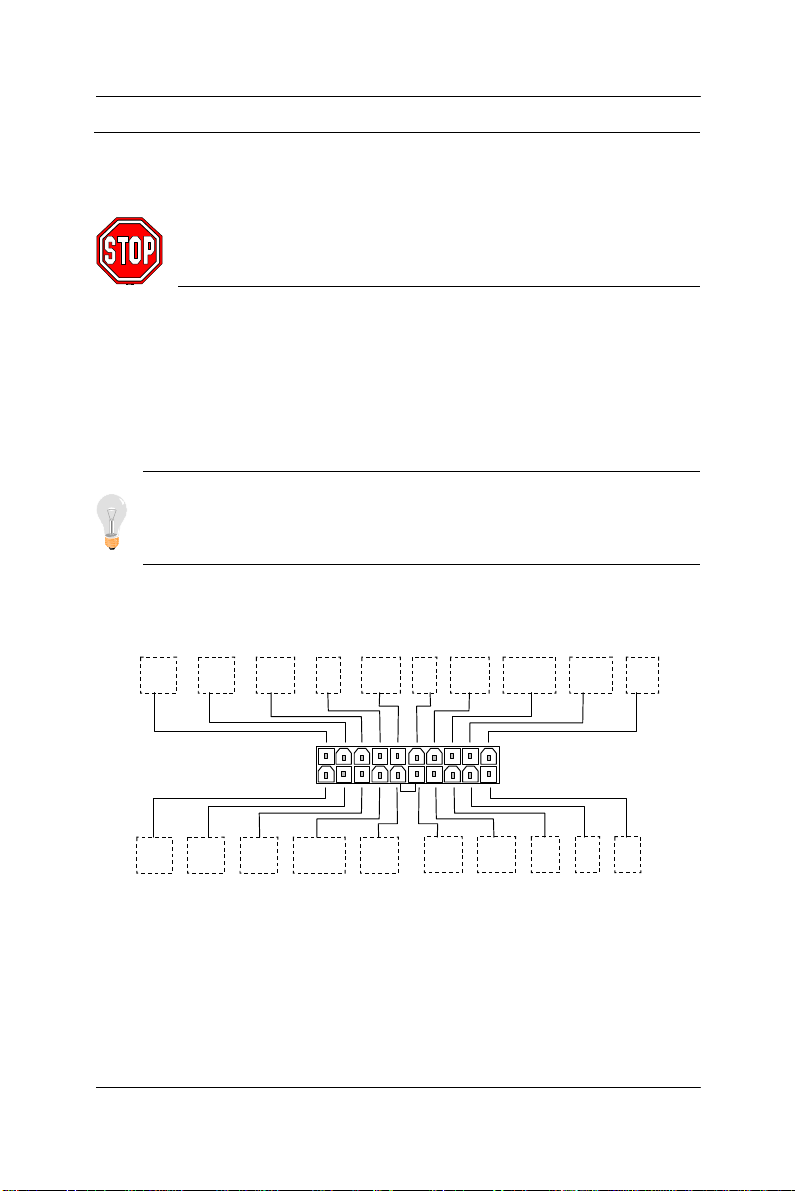

Install the ATX power according to the following pin assignment:

3.3V 3.3V GND 5V GND 5V GND PW-0K 5VSB 12V

3.3V -12V GND PS-ON GND

GND GND -5V 5V 5V

ATX Power

Ø Pay special care to the directionality.
Ø Make sure pin 1 is in its position.

Installation Guide

22

Step 14. AT Power Supply

If you are using AT power, plug the dual 6-pin headers from the
power directly into the 12-pin male AT Power connector on the
motherboard. Make sure the black leads of the 6-pin AT power
headers are in the center.

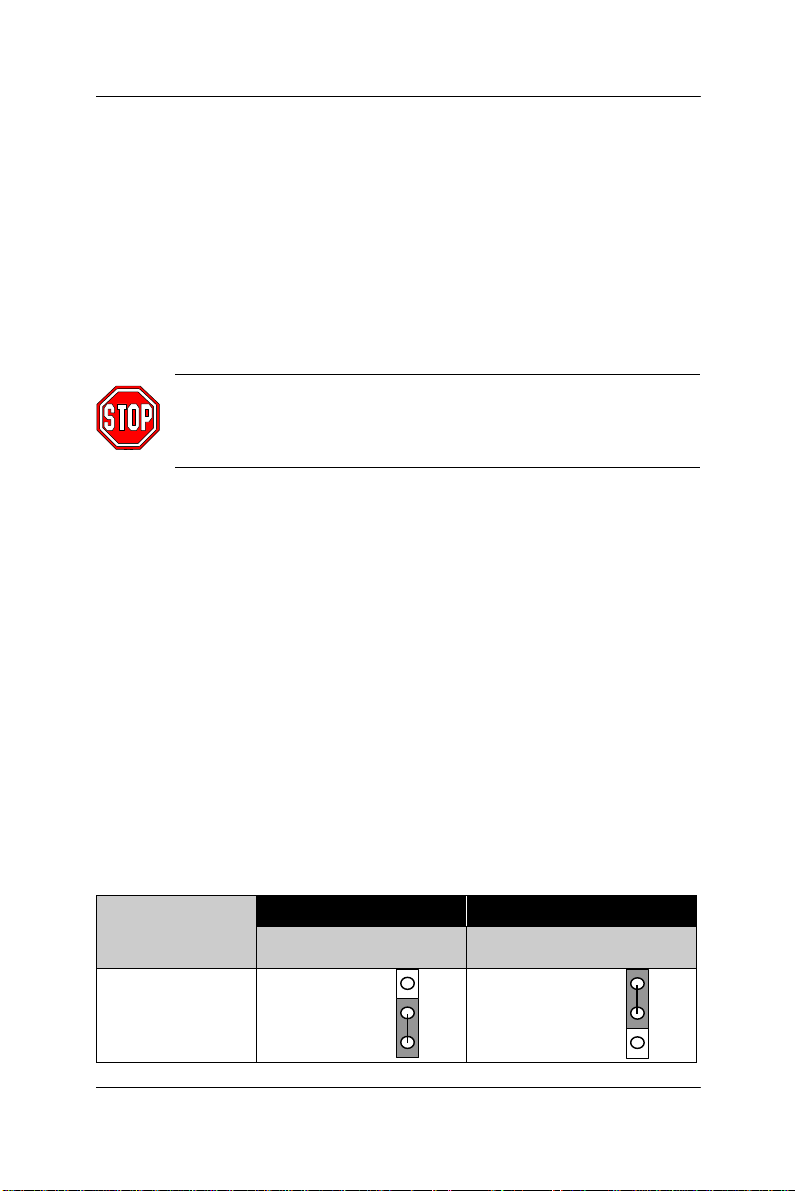

Step 15. CMOS Clearing (JP5)

After you have turned off your computer, clear the CMOS memory
by momentarily shorting pins 2-3 on jumper JP5, for a few seconds.
Then restore JP5 to the initial 1-2 jumper setting in order to recover
and retain the default settings.
Reset your computer now.

Step 16. Power-On by Keyboard Function (JP50)

This function allows users to wake up the computer through the
keyboard. To enable the Power-On by Keyboard Function, set JP50
to the 2-3 jumper setting. Shorting pin 1-2 on jumper JP50 will
disable the Power-On by Keyboard Function.

SY-6BB

Installation Guide

23

SY-6BB

Step 17. Power On

You have now completed the hardware installation of your
motherboard successfully.

1. Turn the power on

2. When the system is performing the diagnostic checks, press the

DEL key to enter the BIOS Setup Utility.

Note: If you have failed to enter the BIOS, wait until the boot
up sequence is completed. Then push the RESET button and
press DEL again at the beginning of boot-up, during
diagnostic checks.

Repeat this operation until you get the following screen.

3. The BIOS Setup screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

Esc

: Quit

F10

: Save & Exit Setup

AWARD SOFTWARE, INC.

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←
(Shift) F2

Time, Date, Hard Disk Type…

: Select Item
: Change Color

You are now ready to configure your system with the BIOS setup
program. Go to Chapter 3: BIOS SETUP

Or continue to Chapter1: INTRODUCTION and Chapter2:
HARDWARE SETUP for more information about your SY-6BB
Motherboard.

Introduction

24

SY-6BB

Chapter 1

INTRODUCTION

The SY-6BB AGP Set motherboard is a high-performance
Pentium® II processor supported AT form-factor system board. SY-
6BB uses the 82440 BX Chipset technology and supports Pentium
II series processors. This motherboard is fully compatible with
industry standards and adds many technical enhancements.

1-1 KEY FEATURES

l CPU

Ø Supports Intel Pentium® II processors featuring speeds of

233-550 MHz

Ø Features Slot 1 for Pentium® II processor support
Ø Supports both boxed and non-boxed type of CPUs.
Ø Includes a CPU mount kit with retention clip
Ø Also includes a CPU Fan support stand used for heavier

non-boxed type CPUs

®

l DRAM Controller

Ø Supports 3 strips of 168-pin SDRAM unbeffured DIMM.

3 x 168-pin DIMM banks support 8/16/32/64/128 MB
unbuffered DIMM modules

Ø Memory configuration:

u System memory: 8MB to 384MB
u Maximum of 384MB with SDRAM

Introduction

25

l BUS Controller

Ø Compliant with v2.1 PCI specifications
Ø Features 3 x 32-bit PCI slots:

u 3 x Bus Mastering PCI Slots
Ø Features 3 x 16-bit ISA slots
Ø Features 1 x 32-bit AGP slot
Ø Provides on-board USB (Universal Serial Bus) port

l Peripheral Controller

Ø System BIOS with Plug-and-Play function
Ø Onboard features:

u PCI Bus Mastering IDE controller
u Floppy controller

Ø Onboard supports:

u 2 x high-speed UARTs (with 16550 FIFO) serial ports
u 1 x ECP/EPP/SPP multi-mode parallel printer port

u 1 x PS/2 mouse port
Ø Onboard FLASH Memory for BIOS easy upgrade
Ø Onboard IR function

SY-6BB

Introduction

26

SY-6BB

1-2 UNPACKING THE MOTHERBOARD

When unpacking the motherboard, check for the following items:

Ø The SY-6BB 82440 BX AGP Set Motherboard
Ø This Quick Start Guide
Ø The Installation CD-ROM
Ø The CPU Retention Set
Ø One IDE Device Flat Cable
Ø One Floppy Disk Drive Flat Cable
Ø One 25-pin external serial connector with 9-pin flat cable
Ø One dual 25-pin parallel with 25-pin flat cable and 9-pin serial

with 9-pin flat cable external connector

*If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.

Warning: Do not unpack the motherboard from its anti­static packaging until you are ready to install it.

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your motherboard, follow these simple rules
while unpacking:

Ø Before handling the motherboard, ground yourself by

grasping an unpainted portion of the system's metal chassis.

Ø Remove the motherboard from its anti-static packaging. Hold

the motherboard by the edges and avoid touching its
components.

Ø Check the motherboard for damage. If any chip appears loose,

press carefully to seat it firmly in its socket.

Warning: Do not apply power if the motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.

Introduction

27

SY-6BB

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the mainboard in dry or air-conditioned
environment.

To protect your equipment from electrostatic discharge, take the
following precautions:

Ø Do not remove the anti-static packaging until you are ready

to install.

Ø Ground yourself before removing any system component

from its protective anti-static packaging. (To ground yourself,
grasp the expansion slot covers or other unpainted portions
of the computer chassis.)

Ø Frequently ground yourself while working or use a

grounding strap.

Ø Handle the motherboard by its edges and avoid touching

its components.

Hardware Setup

28

321

321

SY-6BB

Chapter 2

HARDWARE SETUP

In addition to the Installation Guide, this section is designed to help
you configure the motherboard hardware and to provide
complementary knowledge of the hardware. (This chapter is
designed for Normal edition motherboard use only.)

Warning: Turn off the power to the motherboard, system
chassis, and peripheral devices before performing any
work on the motherboard or system.

After you install the motherboard:

1. Set the CMOS clear jumper

2. Install memory

3. Make case connections

Refer to this chapter whenever you upgrade or reconfigure your
system.

2-1 CMOS Clear Jumper JP5

Clear the CMOS memory by momentarily shorting pin 2-3 on jumper
JP5, and then by shorting pin 1-2 to retain new settings. This jumper
can be easily identified by its white color cap.

CMOS Clearing

JP5 Setting

Momentarily
short pin 2-3 to
clear the
CMOS

Step 1 Step 2

Clear CMOS Data

Short pin 1-2 to
retain new settings

Retain CMOS Data

(Default)

Hardware Setup

29

321

321

SY-6BB

2-2 Power-On by Keyboard Function Jumper JP50

Enable the Wake-Up by Keyboard function by Shorting pin 2-3 on
jumper JP50, otherwise, short pin 1-2 to disable this function.
Jumper JP50 can be easily identified by its red color cap.

Support Wake-Up

by Keyboard
JP50 Setting

5VSB supports
Wake-up by
Keyboard

Enable Disable

VCC does not
support Wake-up
by Keyboard

2-3 Auto Detect CPU Voltage

Note: You do not need to set any jumpers since this
motherboard auto detects the Pentium® II processor
voltage.

This motherboard is designed to automatically detect the CPU
voltage. Therefore, it is not necessary to set any jumpers on the
motherboard.

Hardware Setup

30

SY-6BB

2-4 CPU Type Configuration

This motherboard does not use any jumpers to set the CPU
frequency, CPU settings are changed through the BIOS Setup
Utility.

Enter the BIOS Setup Utility [CHIPSET FEATURES SETUP] section
and configure the CPU frequency settings to match the working
frequency of your Pentium® II processor. Follow these steps to
configure the CPU settings:

Step 1. Press the [Delete] key during boot up. In BIOS select the

[CHIPSET FEATURES SETUP] menu.

Step 2. Note the working frequency of your Pentium® II processor

that should be clearly marked on the CPU cover.

Step 3. In [CHIPSET FEATURES SETUP], move the cursor to the

CPU Speed field.

Step 4. Configure the CPU Speed field in BIOS by selecting the

CPU frequency that matches the working frequency your
processor, as shown in the following figure.

Hardware Setup

31

CPU Settings in BIOS

CHIPSET FEATURES SETUP

Auto Configuration
SDRAM CAS latency Time
DRAM Data Integrity Mode
System BIOS Cacheable
Video BIOS Cacheable
Video RAM Cacheable
8 Bit I/O Recovery Time
16 Bit I/O Recovery Time
Memory Hole At 15M-16M
Passive Release
Delay Transaction
AGP Aperture Size (MB)
Spread Spectrum Modulated

ROM PCI/ISA BIOS

AWARD SOFTWARE, INC.

: Enabled
: 3
: Non-ECC
: Disabled
: Disabled
: Disabled
: 1
: 1
: Disabled
: Enabled
: Enabled
: 64
: Disabled

CPU Speed : 133MHz (66 x 2)

CPU Warning Temperature
Current CPU Temperature
Current System Temp.
Current CPUFAN Speed
Current PWRFAN Speed
Current CHSFAN Speed
VID(V)

3.3(V)
+12(V)

-5(V)

: 2.78 V
: 3.31 V
: 11.84V
: -4.88V

VTT(V)
+5 (V)

-12 (V)

: Disabled
: 29°C/84°F
: 24°C/75°F
: 6553 RPM
: 6553 RPM
: 6553 RPM
: 1.50V
: 4.97V
: -11.45V

SY-6BB

ESC

: Quit

F1

: Help

F5

: Old Values

F6F7: Load BIOS Defaults

: Load Setup Defaults

←

↑ ↓ →
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

The 133/200MHz setting is used as default so whenever the BIOS
settings are erased or reset the board will be able to boot up.
However, there is no Pentium® II processor of that frequency.

If the CPU frequency was set too high and the motherboard refuses
to start up, you can always load the default values by pressing the
[Ins] key during boot up.

Hardware Setup

32

SY-6BB

2-5 MEMORY CONFIGURATION

This motherboard features 3 x DIMM Banks for 168-pin 3.3V
unbuffered DIMM modules

Your board comes with four DIMM sockets, providing support for up
to 384MB of main memory using DIMM modules from 8MB to
128MB. For 66MHz host bus CPUs use 12ns or faster DIMM
modules; for 100MHz host bus CPUs use 8ns modules.

Memory configuration Table

Number of

Memory

Modules

1 1
2 2
3 3

Note: It is of prime importance that you install DIMM modules
as outlined in the table above in order to preserve signal integrity on
100MHz host bus systems.

DIMM 1 DIMM 2 DIMM 3

rst

nd

rd

nd

2

rst

1

rst

1

Hardware Setup

33

2-6 MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

SY-6BB

LPT1
COM1
COM2

Warning: If a default I/O address conflicts with other I/O
cards such as sound card, you must change one of the I/O
addresses to remedy to this address conflict. (I/O addresses
can be adjusted from the BIOS Setup Utility)

Sound Card Installation Notice

Some sound cards have a default IRQ setting for IRQ7. This may
conflict with LPT1 printing functions. If this occurs, avoid using the
sound card at the same time you print.

378H 7 ECP/EPP
3F8H 4
2F8H 3

2-7 MAKING CONNECTIONS

For making case connections, attach the motherboard to case
devices by plugging flat cables and device cables to the connectors
on the motherboard.

Connect the motherboard to external peripheral devices such as
PS/2 keyboard, parallel printer, PS/2 mouse… via the external
connectors that come with your motherboard.

(Refer to the "Quick Installation Guide" for directions on how to
make connections to the motherboard.)

BIOS Setup Utility

34

SY-6BB

Chapter 3

BIOS SETUP UTILITY

This motherboard's BIOS setup program uses the ROM PCI/ISA
BIOS program from Award Software Inc.
To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the Award
BIOS Setup Utility.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc

: Quit

F10

: Save & Exit Setup

Time, Date, Hard Disk Type…

↑ ↓ → ←
(Shift) F2

: Select Item
: Change Color

Selecting items

l Use the arrow keys to move between items and select fields.
l From the Main Menu press arrow keys to enter the selected

submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected

fields. Some fields let you enter values directly.

BIOS Setup Utility

35

Esc

F10

(Shift) F2

Esc

F10

(Shift) F2

SY-6BB

Hot Keys: Function keys give you access to a group of commands

throughout the BIOS utility.

Function Command Description

F1

Shift F2

F5
F6
F7

F10

[Esc]

Help Gives the list of options available for each item.
Color Change the color of the display window.
Old values Restore the old values. These are the values that

the user started the current session with.
Load BIOS
Defaults
Load Setup

Loads all options with the BIOS Setup default

values.

Loads all options with the Power-On default values.
Defaults
Save & Exit

Saves your changes and reboots the system.
Setup
Quit Lets you return at anytime and from any location to

the Main Menu.

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to
save data to CMOS and exit the setup utility. This option saves all
your changes and causes the system to reboot.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

: Quit
: Save & Exit Setup

AWARD SOFTWARE, INC.

SAVE to CMOS and EXIT (Y/N)? _

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item
: Change Color

Type [Y] to save the
changes and exit or [N] to
return to the Main Menu
and keep current values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to
abandon all data and exit setup, therefore ignoring all your changes.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

: Quit
: Save & Exit Setup

AWARD SOFTWARE, INC.

Quit Without Saving (Y/N)? _

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item
: Change Color

Type [Y] to abandon
changes and exit or [N] to
return to the Main Menu
and keep current values.

BIOS Setup Utility

36

SY-6BB

3-1 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu
and press [Enter] key.

ROM PCI/ISA BIOS
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.

Date (mm:dd:yy)
Time (hh:mm:ss)

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master
Primary Slave
Secondary Master
Secondary Slave

Drive A : 1.44M, 3.5 in.
Drive B : None
Floppy 3 Mode Support : Disabled

Video : EGA/VGA
Halt On : All Errors

EscF1: Quit

: Help

: Fri, Feb 1 1995
: 7 : 30 : 33

: AUTO
: None
: None
: None

↑ ↓ → ←

(Shift) F2

0

0

0

0

0

0

0

0

: Select Item
: Change Color

0
0
0
0

Extended Memory:

0
0
0
0

Base Memory:

Other Memory:

Total Memory: 4096K

PU/PD/+/-F3: Modify

0
0
0
0

: Toggle Calendar

640K

3328K

128K

0

AUTO

0

- - - -

0

- - - -

0

- - - -

This screen allows you to modify the basic CMOS settings.
After you have completed the changes, press [Esc] key to return to
the Main Menu.

3-1.1 Date & Time

Display Setting Please Note

Date
Time

mm/dd/yy Type the current date
hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed as
15:15:00

BIOS Setup Utility

37

SY-6BB

3-1.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already
installed.

Primary

Setting Description Note
(Secondary)
Master & Slave

Type

Auto BIOS detects hard disk type

automatically.
1-45 Selects standard hard disk type.
User User defines the type of hard

disk.

Mode

Auto BIOS detects hard disk mode

automatically.
Normal Normal IDE hard disk <528MB
LBA Enhanced IDE hard disk >528MB
Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or
mode, ask your hard disk provider or previous user for details.

3-1.3 Floppy Drives
Floppy Drives Setting Description Note

Drives A & B

360KB, 5 1/4 in.

1.2MB, 5 1/4 in.
720KB, 3 1/2 in.

1.44MB, 3 1/2 in. Default

2.88MB, 3 1/2 in.
None Not installed

Default

Default

Floppy 3-Mode
Support

Disabled Default
Enabled

Supports 3-mode
floppy diskette:
740KB/1.25MB/1.
44MB

Special disk
drive commonly
used in Japan

BIOS Setup Utility

38

3-1.4 Video

Select the video mode: EGA/VGA (Default), CGA 40×25, CGA
80×25, Mono (Monochrome).

3-1.5 Halt On

When the BIOS detects system errors, this function will stop the
system. Select which type of error will cause the system halt: All
Errors (Default), No Errors, All But Diskette, All But Keyboard, All
But Disk/Key.

SY-6BB

BIOS Setup Utility

39

SY-6BB

3-2 BIOS FEATURES SETUP

Select the [BIOS FEATURES SETUP] option from the Main Menu
and press [Enter] key.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

Virus Warning
CPU Internal Cache
External Cache
CPU L2 Cache ECC Checking
Quick Power On Self Test
Boot Sequence
Swap Floppy Drive
Boot Up NumLock Status
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
PCI/VGA Palette Snoop
Assign IRQ For VGA
OS Select for DRAM >64MB
HDD S.M.A.R.T. capability
Report No FDD For WIN 95

AWARD SOFTWARE, INC.

: Disabled
: Enabled
: Enabled
: Enabled
: Enabled
: A, C, SCSI
: Disabled
: On
: Disabled
: 6
: 250
: Setup
: Disabled
: Disabled
: Non-OS2
: Disabled
: No

Video BIOS Shadow
C8000-CBFFF Shadow
CC000-CFFFF Shadow
D0000-D3FFF Shadow
D4000-D7FFF Shadow
D8000-DBFFF Shadow
DC000-DFFFF Shadow

ESC

: Quit

F1

: Help

F5

: Old Values

F6F7: Load BIOS Defaults

: Load Setup Defaults

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Enabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled

: Select Item
: Modify
: Color

After you have completed the changes, press [Esc] key and follow
the instructions on your screen to save your settings or exit without
saving.

BIOS Setup Utility

40

3-2.1 Virus Warning

Setting Description Note

Virus Warning

3-2.2 Cache Memory Options

CPU Internal Cache

Disabled Default
Enabled Enable this option to protect

the boot sectors and
partition tables of your hard
disk. Any attempt to write to
them will the system to halt
and display a warning
message.

Setting Description Note

Disabled
Enabled Enables the CPU's

SY-6BB

Default

internal cache.

External Cache

CPU L2 Cache ECC
Checking

Disabled
Enabled Enables the external

memory.

Disabled
Enabled This option activates

the CPU L2 cache ECC
checking function.

Default

Default

BIOS Setup Utility

41

3-2.3 System Boot Control Settings
System Boot

Control Settings

Setting Description Note

SY-6BB

Quick Power On
Self Test

Boot Sequence

Swap Floppy
Drive

Boot Up
NumLock Status

Disabled
Enabled Provides a fast POTS at

boot-up.

A, C, SCSI
C, A, SCSI
C, CD-ROM, A
CD-ROM, C, A
D, A, SCSI
E, A, SCSI
F, A, SCSI
SCSI, A, C
SCSI, C, A
C only
LS/ZIP, C

Disabled Default
Enabled Changes the sequence

On Puts numeric keypad in

Off Puts numeric keypad in

Choose the boot
sequence adapted to
your needs, for example:
l [A, C, SCSI] means

the BIOS will look for an
operating system first in
drive A, then in drive C,
and eventually in SCSI
device.

of A and B drives.

NumLock mode at boot­up.

arrow key mode at boot­up.

Default

Default

BIOS Setup Utility

42

3-2.4 Typematic Settings
Typematic

Settings

Setting Description Note

SY-6BB

Typematic
Rate Setting

Typematic Rate

Typematic Delay

3-2.5 Security Option

Use this feature to prevent unauthorized system boot-up or use of
BIOS Setup. The following table describes the security settings.

Security Option

Disabled Default
Enabled Enable to adjust the

keystroke repeat rate.

Char / sec Choose the rate a

character keeps
repeating.

Msec Choose how long after

you press a key down the
character begins
repeating.

Setting Description

System Each time the system is booted, the

password prompt appears.

Setup If a password is set, the password

prompt only appears when you attempt
to enter the BIOS Setup program.

3-2.6 Other Control Options
Other Control

Options
PCI/VGA

Palette Snoop

Setting Description Note

Disabled Default
Enabled The color of the monitor may

be altered when using an
MPEG card. Enable this
option to restore the
monitor's normal color.

BIOS Setup Utility

43

Other Control Options (continued)
Other Control

Options

Setting Description Note

SY-6BB

Assign IRQ
For VGA

OS Select for
DRAM>64MB

HDD
S.M.A.R.T.
capability

Report No
FDD For WIN
95

Video or
Adapter BIOS
Shadow

Disabled Default
Enabled When using a video card

that requies an IRQ.

OS2 When using an OS2

operating system.

Non-OS2 When using another,

non-OS2 operating system.

Disabled Default
Enabled Enable this field when your

HDD supports the
S.M.A.R.T. function.
Consult your HDD provider
for details.

Yes Windows will release IRQ

line 6 (normally used by the
Floppy Disk Drive) after you
disable your on-board FDD
and set this field to [Yes].

No Windows will reserve INT 6

for your FDD, whether it is
disabled or not.

Disabled
Enabled
The BIOS is shadowed in a 16K segment
if it is enabled and if it has BIOS present.
These 16 segments can be shadowed
from ROM to RAM. BIOS shadow copies
BIOS code from slower ROM to faster
RAM.
BIOS can then execute from RAM.

Default

Default

Default

BIOS Setup Utility

44

SY-6BB

3-3 CHIPSET FEATURES SETUP

Caution: Change these settings only if you are already
familiar with the Chipset.

The [CHIPSET FEATURES SETUP] option changes the values of
the chipset registers. These registers control the system options in
the computer.

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

Auto Configuration
SDRAM CAS latency Time
DRAM Data Integrity Mode
System BIOS Cacheable
Video BIOS Cacheable
Video RAM Cacheable
8 Bit I/O Recovery Time
16 Bit I/O Recovery Time
Memory Hole At 15M-16M
Passive Release
Delay Transaction
AGP Aperture Size (MB)
Spread Spectrum Modulated

AWARD SOFTWARE, INC.

: Enabled
: 3
: Non-ECC
: Disabled
: Disabled
: Disabled
: 1
: 1
: Disabled
: Enabled
: Enabled
: 64
: Disabled

CPU Speed : Manual
CPU Host Clock Select : 66 MHz
CPU Ratio :
CPU Warning Temperature
Current CPU Temperature
Current System Temp.
Current CPUFAN Speed
Current CHSFAN Speed
VID(V)

3.3(V)
+12(V)

-5(V)

: 2.78 V
: 3.31 V
: 11.84V
: -4.88V

VTT(V)
+5 (V)

-12 (V)

: Disabled
: 29°C/84°F
: 24°C/75°F
: 6553 RPM
: 6553 RPM
: 1.50V
: 4.97V
: -11.45V

ESC

: Quit

F1

: Help

F5

: Old Values

F6F7: Load BIOS Defaults

: Load Setup Defaults

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

After you have completed the changes, press [Esc] and follow the
instructions on your screen to save your settings or exit without
saving.
The following table describes each field in the CHIPSET
FEATURES SETUP Menu and how to configure each parameter.

BIOS Setup Utility

45

CHIPSET FEATURES SETUP

SY-6BB

CHIPSET
FEATURES

Auto
Configuration

SDRAM Cache
Latency Time

DRAM Data
Integrity Mode

System BIOS
Cacheable

Video BIOS
Cacheable

Video RAM
Cacheable

Setting Description Note

Enabled It is strongly recommended

to enable this option so that
the system automatically
sets all options on the left
panel of the screen (except
for cache update & BIOS
cacheable).

3 Use the default setting Default

Non-ECC Default
ECC

Disabled Default
Enabled The ROM area F0000H-

Disabled Default
Enabled The video BIOS C0000H-

Disabled Default
Enabled The ROM area A0000-

Choose according to the
DRAM type you have.

FFFFFH is cacheable.

C7FFFH is cacheable.

BFFFF is cacheable.

Default

8 BIT I/O
Recovery Time

16 BIT I/O
Recovery Time

Memory Hole At
15M-16M

1 Use the default setting Default

1 Use the default setting Default

Disabled Default
Enabled Some interface cards will

map their ROM address to
this area. If this occurs,
select [Enabled] in this field.

BIOS Setup Utility

46

CHIPSET FEATURES SETUP (Continued)

SY-6BB

CHIPSET
FEATURES

Passive Release
Delayed

Transaction
AGP Aperture

Size

Spread Spectrum
Modulated

CPU Speed

Setting Description Note

Enabled Use the default setting Default

Enabled Use the default setting Default

4MB­256MB

Disabled Default
Enabled When using Spread

Manual
133MHz (66 x 2)
166MHz (66 x 2.5)
200MHz (66 x 3)
233MHz (66 x 3.5)
266MHz (66 x 4)
300MHz (66 x 4.5)
333MHz (66 x 5)
350MHz (100 x 3.5)
400MHz (100 x 4)
450MHz (100 x 4.5)
500MHz (100 x 5)
550MHz (100 x 5.5)

AGP could use the DRAM
as its video RAM. Choose
the DRAM size that you
wish to allocate as video
RAM.

Spectrum Modulated 1.5%
or 6% for FCC or DOC
testing.

Select the working
frequency of your
Pentium® II processor
among these preset
values.
Note: Setting this field to
[Manual] requires you to
fill in the next two
consecutive fields: (1) the
CPU Host Clock
Frequency, and (2) the
CPU Ratio.

BIOS Setup Utility

47

CHIPSET FEATURES SETUP (Continued)

SY-6BB

CHIPSET
FEATURES

If [CPU Speed] is set to [Manual]

CPU Host Clock
Select

If [CPU Speed] is set to [Manual]

CPU Ratio

CPU Warning
Temperature

Setting Description Note

66 MHz
68 MHz
75 MHz
83 MHz
100 MHz
103 MHz
112 MHz

After you have selected the host clock, choose
the right multiplier for the CPU. Options are: [2,

2.5, 3., 3.5, 4, 4.5, 5]. The CPU frequency is
then defined as [host clock freq.]x[multiplier],
and should the working frequency of your
Pentium® II processor.

Disabled Default
Enabled Set CPU temperature from

Select the host clock of your
Pentium® II processor among these
values.
Note: For the BX chipset, 66 and
100 MHz host clock frequencies are
acceptable. However, the system
stability is not guaranteed for other
frequencies due to the limitations of
this chipset.

50°C to 70°C. The CPU will
slow down when CPU
temperature goes beyond
the preset value. The CPU
will continue to run slow
until the temperature
returns back within the safe
range.

Current System
Temp.

Current CPU
Temperature

°C/°F

°C/°F

Show the current status of
the system temperature.

Show the current status of
CPU temperature.

BIOS Setup Utility

48

CHIPSET FEATURES SETUP (Continued)

SY-6BB

CHIPSET
FEATURES

Current CPUFAN
Speed

Current CHSFAN
Speed

VID, VTT, 3.3V,
+12V, -5V, +5V,

-12V

Setting Description Note

°C/°F

°C/°F

Show the current status of
CPU Fan

Show the current status of
CHS Fan

Show the current voltage
status.

V

BIOS Setup Utility

49

SY-6BB

3-4 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power
saving functions.

ROM PCI/ISA BIOS

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

ACPI function
Power Management
PM Control by APM
Video Off Method
Video Off After
MODEM Use IRQ

Doze Mode
Standby Mode
Suspend Mode
HDD Power Down

VGA Active Monitor
Soft-Off by PWR-BTTN
CPUFAN Off In Suspend
Resume by Ring
Resume by Alarm

: Disabled
: User Define
: Yes
: V/H SYNC+Blank
: Standby
: 3

: Disabled
: Disabled
: Disabled
: Disabled

: Enabled
: Instant-Off
: Enabled
: Disabled
: Disabled

** Reload Global Timer Events **
IRQ [3-7,9-15], NMI
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
Floppy Disk
Serial Port
Parallel Port

ESC

: Quit

F1

: Help

F5

: Old Values

F6F7: Load BIOS Defaults

: Load Setup Defaults

: Enabled
: Disabled
: Disabled
: Disabled
: Disabled
: Disabled
: Enabled
: Disabled

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

IRQ 8 Break Suspend

: Disabled

After you have completed the Power Management Setup, press
[Esc] to return to the Main Menu.

BIOS Setup Utility

50

3-4.1 Power Management Controls
Power

Setting Description Note
Management
Controls

SY-6BB

ACPI
function

Power
Management

PM Control
by APM

Video Off
Method

Video Off
After

Disabled Default

Enabled ACPI (Advanced

Configuration Power
Management Interface)

User Define Lets you define the HDD and

Default

system power down times.

Disabled Disables the Green PC

Features.

Doze
timer

Standby
timer

Suspend
timer

HDD
power down

Min Saving 1 Hour 1 Hour 1 Hour 15 Min

Max Saving 1 Min 1 Min 1 Min 1 Min

Yes To use Advanced Power

Default
Management (APM) you
must run [power.exe] under
DOS V6.0 or later version.

No
V/H

Default

Sync+Blank
Blank screen
DPMS

Standby
Suspend
Doze

Choose the PM mode you
want video to go off after the
mode is being active.

MODEM
Use IRQ

3 Default

BIOS Setup Utility

51

3-4.2 PM Timers
PM Timers Setting Description Note

SY-6BB

Doze Mode

Disabled Default
1Min­1Hour

When the set time has
elapsed, BIOS sends a
command to the system to

System clock
drops to
33MHz.

enter Doze Mode.

Standby
Mode

Disabled Default
1Min-

1Hour

When the set time has
elapsed, BIOS sends a
command to the system to
enter Standby Mode.

Suspend
Mode

HDD Power
Down

Disabled Default
1Min­1Hour

In Suspend mode, the
CPU stops completely (no
instructions are executed.)

Only an SL­Enhanced (or
SMI) CPU can
enter this mode.

Disabled Default
1-15Min When the set time has

elapsed, BIOS sends a
command to the HDD to
power down. This turns off
the HDD motor.

Some older
model HDDs
may not support
this advanced
function.

3-4.3 PM Events
PM Events Setting Description Note

VGA Active
Monitor

Soft-Off by
PWR-BTTN

Disabled
Enabled Enables the power

Default
management timers when a
[no activity] event is detected.

Instant-off Default
Delay 4 Sec. Turns off the system power 4

seconds after pushing the
power button.

BIOS Setup Utility

52

PM Events (continued)
PM Events Setting Description Note

SY-6BB

CPUFAN Off
In Suspend

Resume by
Ring

Resume by
Alarm

IRQ 8 Break
Suspend

3-4.4 Reload Global Timer Events
Power Down

& Resume
Events

Disabled Disables the PM timer.
Enabled Switches off the CPU Fan

when the system enters
Suspend Mode.

Disabled Default
Enabled The system will resume active

when the modem is ringing.
(This function only works when
the computer is powered on.)

Disabled The system ignores the alarm. Default
Enabled Set alarm to wake up the

system by the date (1-31) or
time (hh:mm:ss). If the date is
set to [0], the system will wake
up by the alarm everyday.

Disabled Default
Enabled Alarm function is active.

Setting Description Note

Default

IRQ [3-7,9­15], NMI

IDE0, IDE1

Ø Primary

Ø Secondary

Floppy Disk
Serial Port
Parallel Port

Disabled
Enabled The system monitors these

elements for activity. The
system will resume if [IRQ
activity] is detected.

Disabled Default
Enabled Enables the PM timers when

[No Activity Event] is detected.

Disabled Default
Enabled Enables the PM timers when

[No Activity Event] is detected.

Default

BIOS Setup Utility

53

3-5 PNP/PCI CONFIGURATION SETUP

This option sets the motherboard's PCI Slots.

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

PnP OS Installed
Resources Controlled By

Reset Configuration Data

: No
: Manual

: Disabled

Used MEM base addr

Assign IRQ For USB

SY-6BB

: N/A

: Enabled

IRQ-3
IRQ-4
IRQ-5
IRQ-7
IRQ-9
IRQ-10
IRQ-11
IRQ-12
IRQ-14
IRQ-15
DMA-0
DMA-1
DMA-3
DMA-5
DMA-6
DMA-7

assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to
assigned to

: Legacy ISA*
: Legacy ISA*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*
: PCI/ISA PnP*

ESC

: Quit

F1

: Help

F5

: Old Values

F6F7: Load BIOS Defaults

: Load Setup Defaults

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

Note: Starred (*) items will disappear when the [Resources
Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc]
and follow the instructions on your screen to save your settings or
exit without saving.

BIOS Setup Utility

54

3-5.1 PNP/PCI Configuration Controls
PNP/PCI

Setting Description Note

Controls

SY-6BB

PnP OS
Installed

Resources
Controlled By

Reset
Configuration
Data

Yes Set this field to [Yes] if

you are running
Windows 95, which is
PnP compatible.

No If the OS you are

running does not
support PnP
configuration.

Default

(If there is any
doubt, set this
field to [No])

Manual BIOS does not manage PCI/ISA

PnP card IRQ assignment.
Requires to assign IRQ-# and DMA-# to PCI
or ISA PnP manually.
IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _
DMA-0,1,3,5,6,7 assigned to: _
Auto BIOS auto manages

Recommended

PCI/ISA PnP card IRQ

assignment

automatically.
Disabled Retain PnP

Default
configuration data in
BIOS.

Enabled Reset PnP

Default
configuration data in
BIOS.

BIOS Setup Utility

55

3-5.2 PNP/PCI Configuration Setup
PNP/PCI

Setting Description Note

Setup

If [Resources Controlled By] is set to [Manual]

IRQ-# and
DMA-#
assigned to:

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to
PCI/ISA PnP card.

Legacy ISA Choose IRQ-# and

DMA-# assigned to
Legacy ISA card.

SY-6BB

IRQ-3,4,5,7,9,10,

11,12,14,15

DMA-0,1,3,5,6,7

IRQ-3,4,5,7,9,10,

11,12,14,15

DMA-0,1,3,5,6,7

Used MEM
base addr

Assign IRQ
For USB

N/A Default
I/O address C800,CC00,D000,D

400,D800,DC00.
(Asking card
provider for the
exactly I/O address
of this add-on card.)

Enabled BIOS will assign IRQ

Use this function

only when

problems occur

while using

some certain

add-on cards.

Default

for USB port.

Disabled BIOS won’ t assign

IRQ for USB port.

BIOS Setup Utility

56

SY-6BB

3-6 LOAD SETUP DEFAULTS

Select the [LOAD SETUP DEFAULTS] option from the Main Menu to
load the system values you have previously saved. This option is
recommended if you need to reset the system setup and to retrieve
the old values.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP

Load SETUP Defaults (Y/N)? _

PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

Esc

: Quit

F10

: Save & Exit Setup

AWARD SOFTWARE, INC.

Time, Date, Hard Disk Type…

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←
(Shift) F2

: Select Item
: Change Color

Type [Y] to use the Setup
Defaults followed by [Enter]
or otherwise [N] to return to
the Main Menu and keep
current values.

3-7 LOAD BIOS DEFAULTS

Select the [LOAD BIOS DEFAULTS] option from the Main Menu to
load the system default values. BIOS Defaults values are adjusted
to yield high performance.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

Esc

: Quit

F10

: Save & Exit Setup

AWARD SOFTWARE, INC.

Load BIOS Defaults (Y/N)? _

Time, Date, Hard Disk Type…

Warning: If you run into any problems after loading BIOS
DEFAULTS, please load the SETUP DEFAULTS for stable
performance.

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←

: Select Item

(Shift) F2

: Change Color

Type [Y] to use the Setup
Defaults followed by [Enter]
or otherwise [N] to return to
the Main Menu and keep
current values.

BIOS Setup Utility

57

SY-6BB

3-8 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already
familiar with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of
the chipset registers. These registers control the system options in
the computer.

The following screen shows default settings.

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
On-Chip Primary PCI IDE
On-Chip Secondary PCI IDE
USB Keyboard Support
Init AGP Display First
POWER ON Function :
KB Power ON Password
Hot Key Power ON
KBC Input Clock
Onboard PDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
UR2 Mode
UR2 Duplex Mode

: Enabled
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Auto
: Enabled
: Enabled
: Disabled
: Disabled

: Enter
: Ctrl-F1
: 12MHz
: Enabled
: 3F8/IRQ4
: 2F8/IRQ3
: Normal
: Half

Onboard Parallel Port
Parallel Port Mode
ECP Mode Use DMA

ESC

: Quit

F1

: Help

F5

: Old Values

F6F7: Load BIOS Defaults

: Load Setup Defaults

: 378/IRQ7
: ECP+EPP
: 3

↑ ↓ → ←
PU/PD/+/­ (Shift) F2

: Select Item
: Modify
: Color

The following tables describe each field in the INTEGRATED
PERIPHERALS Menu and provide instructions on how to configure
the IDE controls, FDC controls, and the onboard serial and parallel
ports.

BIOS Setup Utility

58

SY-6BB

3-8.1 IDE Device Controls
IDE Controls Setting Description Note

IDE HDD Block Mode

IDE

Ø Primary Master PIO
Ø Primary Slave PIO
Ø Secondary Master PIO

Ø Secondary Slave PIO

IDE

Ø Primary Master UDMA

Ø Primary Slave UDMA

Ø Secondary Master UDMA

Ø Secondary Slave UDMA

On-Chip PCI IDE

Ø Primary
Ø Secondary

Disabled
Enabled Invokes multi-sector

Default
transfer instead of one
sector per transfer. Not
all HDDs support this
function.

mode
0-4
Auto For better performance

0 is the slowest speed
4 is the fastest speed

Default
and stability, we
suggest you use the
Auto setting to set the
HDD control timing.

Disabled
Auto When Auto is selected,

Default
it supports Ultra DMA
Mode.

Disabled Turn off the on-board

IDE

Enabled Use the on-board IDE Default

BIOS Setup Utility

59

3-8.2 Keyboard Controls
Keyboard

Controls

Setting Description Note

SY-6BB

USB Keyboard
Support

Init AGP Display
First

POWER ON
Function

If [POWER ON Function] is set to [KB Power ON Password]

KB Power ON
Password

If [POWER ON Function] is set to [Hot Key]

KB Power ON
Password

Disabled Turn off the on-board

IDE

Enabled Use a USB keyboard
Disabled Default

Enabled If you choose to

initialize the AGP
Display card first,
instead of the PCI VGA
card.

BUTTON ONLY Disables the Wake-Up

by Keyboard function.
KB Power ON
Password

Hot Key You can wake-up the

Enter (your
password)

Ctrl-F1~F12 Choose the key combination

Enables you to wake-up

the system by entering

a password at the

keyboard.

system by pressing the

key combination of your

choice (Ctrl-F1~F12).

Set the password that will wake-

up your system.

that will wake-up the system.

[Ctrl-F1 to Ctrl-F12]

Default

Default

KBC Input Clock

12 MHz Controls the frequency

of the clock signal of the

keyboard.

Set this value to 8MHz if

experience problems

with your keyboard.

Default

BIOS Setup Utility

60

SY-6BB

3-8.3 FDC Controls
FDC Controls Setting Description Note

Onboard FDC controller

Disabled Turn off the on-board

floppy controller

Enabled Use the on-board

floppy controller

3-8.4 Onboard Serial Ports
Onboard Serial

Setting Description Note

Ports
Onboard PORT 1

Onboard PORT 2

UR2 Mode

Disabled
3F8/IRQ4 Default
2F8/IRQ3 Default
3E8/IRQ4
2E8/IRQ3

Choose serial port 1 & 2's
I/O address.
Do not set port 1 & 2 to
the same address except
for Disabled.

Standard Supports a Standard

serial infrared IrDA.
IrDA 1.0
ASKIR Supports a Sharp

serial interface format.
FIR Fast Infrared Interface

If [UR2 Mode] is set to [IrDA 1.0]/[ASKIR]/[FIR]

UR2 Duplex Mode

Half Default
Duplex

Choose [Half] or

[Duplex] to set UR2 in

half duplex mode or

full duplex mode

respectively. Refer to

your IR device

specifications to select

the suitable mode.

Default

Default

BIOS Setup Utility

61

If [Parallel Port Mode] is set to [ECP] mode

3-8.5 Onboard Parallel Ports
Onboard Parallel

Ports

Setting Description Note

SY-6BB

Onboard Parallel
Port

Parallel Port Mode

ECP Mode use DMA

Disabled
378/IRQ7 Default
3BC/IRQ7
278/IRQ5

ECP+EPP Default
SPP
ECP
EPP

3 Choose DMA3 Default
1 Choose DMA1

Choose the printer I/O

address.

The mode depends on

your external device

that connects to this

port.

BIOS Setup Utility

62

SY-6BB

3-9 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the
[BIOS FEATURES SETUP] section, the password prevents access
to the system or the setup program by unauthorized users. Follow
this procedure to set a new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and
press [Enter]. Select the [Security Options] item and set the
field to:

a. [System]: The password is required every time the system

is booted. This means only a person who knows the
password can use this computer.

b. [Setup]: The password is required only when you attempt

to enter the BIOS Setup program.

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and
press [Enter]. The following prompt appear:

Enter Password:

Warning: If you forget or lose the password, the only way
to access the system is to set jumper JP5 to clear the
CMOS RAM. All setup information is lost and you must run
the BIOS setup program again.

Note: If you do not wish to use the password function,
press [Enter] directly and the following message appears:

Password Disabled!!

BIOS Setup Utility

63

↔

Type the Password
Press:

password, press

to exit

Type the Password

Press <Enter> without

After you confirm the password,

SY-6BB

3. Enter your new password and press [Enter]. The following
message appears, prompting to confirm the new password:

4. Re-enter your password and then press [Enter] to exit to the
Main Menu.

This diagram outlines the password selection procedure:

and Press: <Enter>

↔

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP

Enter Password: ∗∗∗∗∗ Password Disabled!!

POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION

Confirm Password: ∗∗∗∗∗

LOAD SETUP DEFAULTS
LOAD BIOS DEFAULTS

Esc

: Quit

F10

: Save & Exit Setup

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Enter Password:

After you confirm the

press <Esc> to exit

Time, Date, Hard Disk Type…

Press:

entering the password

Without entering password

INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

↑ ↓ → ←

(Shift) F2

°

: Select Item
: Change Color

3-10 USER PASSWORD

When the user password option is on, you are not allowed to change
any setting in the [CMOS SETUP UTILITY] except for changing the
user's password.

The password setting procedure is similar to that for the
[SUPERVISOR PASSWORD] (Refer to section 3-9).

BIOS Setup Utility

64

SY-6BB

3-11 IDE HDD AUTO DETECTION

This Main Menu function automatically detects the hard disk type
and configures the STANDARD CMOS SETUP accordingly.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Primary Master
Primary Slave
Secondary Master
Secondary Slave

Note: This function is only valid for IDE type of hard disk drives.

: AUTO
: None
: None
: None

0

0
0
0
0

0

0

0

0

0

0

0

Do you accept this drive C (Y/N)? _

ESC :

Skip

0

0

0

0

0

0

0

0

0
0
0
0

AUTO

- - - -

- - - -

- - - -

BIOS Setup Utility

SY-6BB
