Soyo SY-5TS5 User Manual

Pentium

82430 HX / P54C PCI Mainboard
User’s Guide &

Technical Reference

5TS0/S2/S5

®

™

About This Guide

This UserÕs Guide is for assisting system manufacturers and end users in setting
up and installing the mainboard. Information in this guide has been carefully
checked for reliability; however, no guarantee is given as to the correctness of the
contents. The information in this document is subject to change without notice.

Copyright Notice

Copyright 1996, Soyo Computer Inc. All rights reserved. This manual is
copyrighted by Soyo Computer Inc. You may not reproduce, transmit, transcribe,
store in a retrieval system, or translate into any language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise,
any part of this publication without express written permission of Soyo Computer
Inc.

Trademarks

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the
property of their owners.

Disclaimer

Soyo Computer Inc. makes no representations or warranties regarding the
contents of this manual. We reserve the right to revise the manual or make
changes in the specifications of the product described within it at any time
without notice and without obligation to notify any person of such revision or
change. The information contained in this manual is provided for general use by
our customers. Our customers should be aware that the personal computer field is
the subject of many patents. Our customers should ensure that they take
appropriate action so that their use of our products does not infringe upon any
patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of
third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013

.

Product Rights

Product mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks
or copyrights of their respective companies.

If you need any further information, please come to our home page on
internet. The address is Òhttp://www.soyo.com.twÓ.

Edition: August 1996
Version 2.0
5TS0/S2/S5 SERIAL

Table of Contents

Chapter 1: Introduction .................................................... 1

Key Features ................................................................................. 1

VGA Chips Features ..................................................................... 2

High-Performance Integrated Graphics/Video Accelerator (S3

Trio 64V+)............................................................................... 2

Advanced Playback Capabilities ............................................. 2

S3 Scenic Highway Interface (H/W MPEG)........................... 2

High non-Interlaced Screen Resolution Support ..................... 2

High-Performance Memory Interface ..................................... 2

Unpacking the Mainboard............................................................. 4

Electrostatic Discharge Precautions.............................................. 4

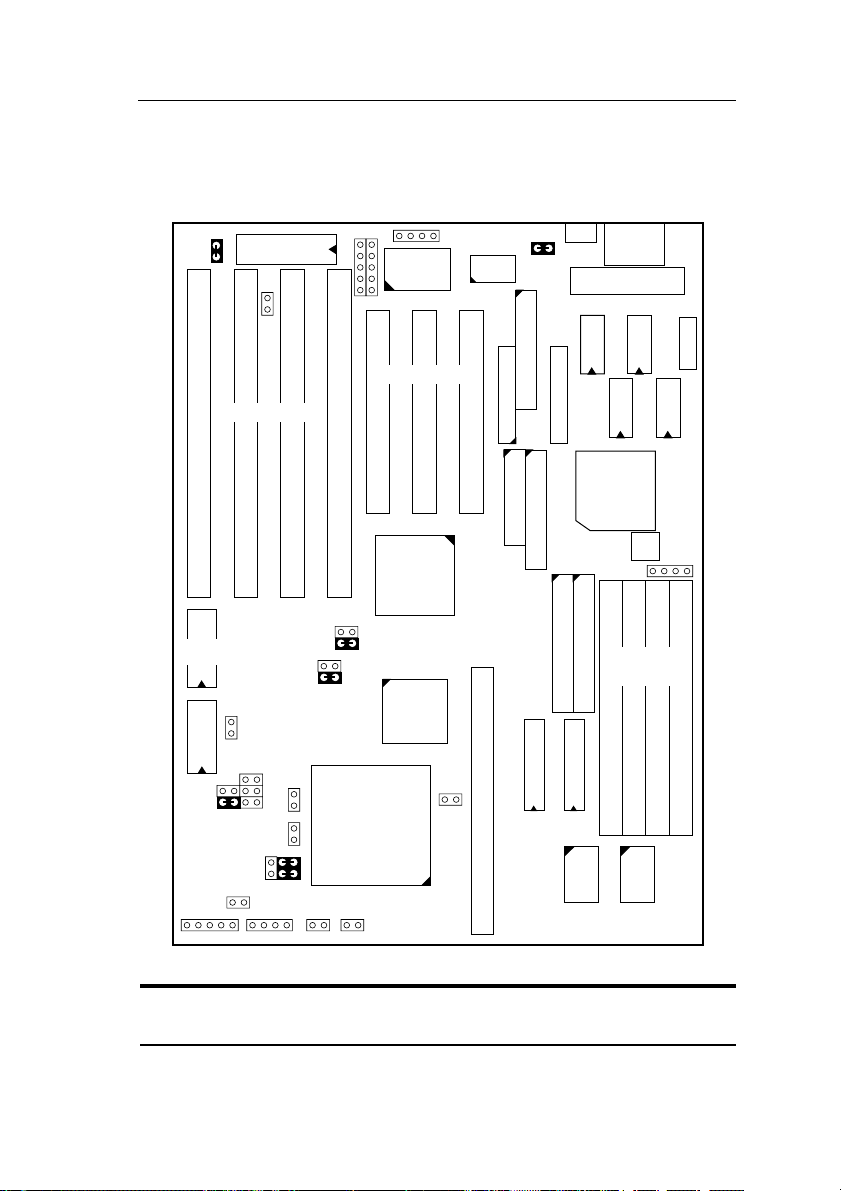

Mainboard Layout w/ Default Settings ......................................... 5

Chapter 2: Hardware Setup .............................................. 7

Jumpers ......................................................................................... 7

Factory Set Jumpers ................................................................ 7

JP3: Display Type ................................................................... 7

JP10: Sleep Switch Connector Enable/Disable ....................... 7

JP32, JP33: Bus Fraction Core/Bus Ratio Select .................... 8

JP5: CMOS Clear Jumper ....................................................... 8

J4: VRM (Voltage Regulator Module) Socket (Reserved) ..... 9

JPS2: PS/2 Mouse Function Jumper ....................................... 9

COM/VGA/LINE Adapter............................................................ 9

DB1 Ð VGA Cable Connector ............................................... 10

JACK1 Ð Line Out Connector ............................................... 10

J1 Ð COM1 Connector........................................................... 10

JP2 Ð COM2 Connector......................................................... 10

J2* Ð Line Out Mainboard End Connector ........................... 10

CPU Type Configuration ............................................................ 11

Step 1: Frequency Setting..................................................... 11

Pentium Ð 75*/90*/100* CPU Settings (1.5 x clock)....... 11

Pentium Ð 100*/120*/133* CPU Settings (2.0 x clock)... 12

Pentium Ð 150* CPU Settings (2.5 x clock) ..................... 13

Pentium Ð 180*/200* CPU Settings (3.0 x clock)............ 13

Step 2: CPU Single/Dual Voltage Setting............................ 14

Single Voltage CPU Setting ............................................. 14

Dual Voltage CPU Setting................................................ 14

Memory Configuration ............................................................... 15

Cache Configuration ................................................................... 16

Cache Size and RAM Locations ........................................... 16

256K Pipelined Burst Cache Configuration ..................... 16

512K Pipelined Burst Cache Configuration ..................... 17

Multi I/O Port Addresses ............................................................ 17

Connectors .................................................................................. 18

J1 Ð Keyboard Connector ...................................................... 18

PW1 Ð Power Supply Connectors ......................................... 18

J17 Ð Keylock & Power LED Connector .............................. 18

J18 Ð Speaker Connector ....................................................... 18

J19 Ð Hardware Reset Control............................................... 18

J2 Ð PS/2 Mouse Connector .................................................. 19

J22 Ð Turbo LED Connector ................................................. 19

IDE1/IDE2 Ð On-board Primary/Secondary IDE HDD

Connectors ............................................................................. 19

J11 Ð HDD LED Connectors ................................................. 19

COM/VGA/LINE Connectors............................................... 19

FDC1 Connector ................................................................... 19

P1 Ð Parallel Port Connector ................................................. 19

J3 Ð Pipelined Burst SRAM Module Slot ............................. 19

J6, U22 Ð Universal Serial Bus Connector (Optional) .......... 20

MPEG Connector Ð MPEG Daughter Board Connector

(Optional) .............................................................................. 20

TT Connector Ð TV Tuner/Feature Connector (Optional) .... 20

Line Out Ð Line Out Connector............................................. 20

Line Out Cable ...................................................................... 20

IR Ð Infra Red Connector (Optional)..................................... 20

Chapter 3: BIOS Setup.................................................... 21

Standard CMOS Setup ................................................................ 22

BIOS Features Setup ................................................................... 23

Chipset Features Setup................................................................ 26

Power Management Setup .......................................................... 29

PNP/PCI Configuration Setup .................................................... 31

Load Setup Defaults.................................................................... 32

Load BIOS Defaults.................................................................... 32

Integrated Peripherals ................................................................. 33

Supervisor Password ................................................................... 35

User Password ............................................................................. 36

IDE HDD Auto Detection ........................................................... 37

Chapter 4: Drivers Installation Guide ........................... 38

IDE BUS Master Installation Guide ........................................... 38

MS-DOS/WINDOW/WFW .................................................. 38

WINDOWS NT3.5 ................................................................ 38

WINDOWS 95 ...................................................................... 39

NOVELL 3.X&4.X ............................................................... 39

SCO UNIX ............................................................................ 39

SCO UNIX 5.0 ...................................................................... 40

OS/2 2.0 and WARP 3.X....................................................... 41

1 Introduction

The 82430 HX/P54C PCI mainboard is a high-performance system board
that supports Intel P54CX family CPUs. You can install 256K to 512K
of external cache memory on the mainboard. The mainboard is fully
compatible with industry standards, and adds many technical
enhancements.

Key Features

¥ Supports P54CX family CPUs running at 75 ~ 200 MHz speeds,

Cyrix 6X86 CPUs running at P120+/P133+/P150+/P166+, and
AMD 5k86/K5 CPUs.

¥ Supports Dual voltage processor (optional)
¥ Supports SOCKET 7 &VRM for upgrade (optional)

¥ Integrated Second Level (L2) Cache Controller

Ñ Write Back Cache Modes and Direct Mapped Organization
Ñ On-board 256K/512K Pipeline Burst SRAMs Cache and

upgrade slot supports

¥ Integrated DRAM Controller

Ñ Supports 50/60/70ns Fast Page Mode (both symmetrical and

asymmetrical addressing) and EDO DRAM (72-pin SIMM)
Ñ On-board memory configurations from 4 to 256 Mbytes
Ñ Supports Error Checking and Correction (ECC) and Parity

Check (Optional)

¥ On-board supports 11 Tag bit (cacheable range up to 512MB)
¥ Supports Pentium / P54C SMM Mode and CPU Stop Clock
¥ Supports ÒTable-FreeÓ DRAM configuration
¥ Supports Universal Serial Bus Ñ USB (Optional)

¥ Compliant to PCI specifications v2.1

¥ Three 32-bit PCI slots (Masters) and Four ISA slots, 4-layer PCB
¥ System BIOS built-in NCR306 SCSI Card BIOS and ÒPlug and

PlayÓ function

¥ On-board built-in PCI Master IDE controller and floppy controller
¥ On-board supports for two high speed UARTS (w/i 16550 FIFO),

Multimode parallel port for SPP/EPP/ECP modes, PS/2 mouse
function, and IR function

¥ On-board supports FLASH Memory for easy upgrade BIOS
¥ Easy installation of Triones EIDE/ATAPI CD-ROM Bus Master

Drivers

¥ Onboard supports VGA, MPEG, and TV Tuner Function

(Optional).

2 Introduction

VGA Chips Features

High-Performance Integrated Graphics/Video Accelerator
(S3 Trio 64V+)

¥ High-performance DRAM-based 64-bit graphics engine

¥ Integrated 24-bit RAMDAC with 135MHz output pixel rate and

programmable dual-clock synthesizer

¥ Unique S3 Streams Processor for hardware-assisted video playback

Advanced Playback Capabilities

¥ High-quality hardware-assisted video playback (up to 1024x768x16

bits/pixel)

¥ Support for India, Cinepak, and software accelerated MPEG-1 video

playback

S3 Scenic Highway Interface (H/W MPEG)

¥ Philips SAA7110/SAA7111 video digitizers

¥ S3 Scenic/MX2 MPEG-1 audio/video decoder, C-Cube CL-480

MPEG-1 decoder

High non-Interlaced Screen Resolution Support

¥ 1280x1024x256 clods at 75Hz refresh

¥ 1024x768x64K colors at 75Hz refresh

¥ 800x600x16.7M colors at 75Hz refresh

High-Performance Memory Interface

¥ 64-bit DRAM memory interface

¥ Supports standard fast page mode and EDO DRAMs (60MHz) and

1-cycle EDO DRAMs (50MHz)

Introduction 3

Table 1Ð1. Trio 64V+ Video Resolutions

Resolution 1MB DRAM 2MBs DRAM

640x480x16

640x480x256

640x480x64K

800x600x16

800x600x256

800x600x64K

1024x768x16

1024x768x256

1024x768x64K

1152x864x256

1280x1024x16

1280x1024x256

1600x1200x16
(IL)

1600x1200x256
(IL)

✓✓
✓✓
✓✓
✓✓
✓✓
✓✓
✓✓
✓✓

✓
✓✓
✓✓

✓
✓✓

✓

Note: (IL) meansthat only the interlaced mode monitor can reach that

kind of resolutions.

4 Introduction

Unpacking the Mainboard

The mainboard package contains:

¥ The 82430FX / P54C Mainboard
¥ This User's Guide
¥ One Triones IDE/ATAPI CD-ROM Bus Master Drivers Diskette

Note: Do not unpack the mainboard until you are ready to install it.

Follow the precautions below while unpacking the mainboard.

1. Before handling the mainboard, ground yourself by grasping an
unpainted portion of the systemÕs metal chassis.

2. Remove the mainboard from its anti-static packaging and place it on
a grounded surface, component side up.

3. Check the mainboard for damage. If any chip appears loose, press
carefully to seat it firmly in its socket.

Do not apply power if the mainboard appears damaged. If there is
damage to the board contact your dealer immediately.

Electrostatic Discharge Precautions

Make sure you ground yourself before handling the mainboard or other
system components. Electrostatic discharge can easily damage the
components. Note that you must take special precaution when handling
the mainboard in dry or air-conditioned environments.

Take these precautions to protect your equipment from electrostatic
discharge:

¥ Do not remove the anti-static packaging until you are ready to install

the mainboard and other system components.

¥ Ground yourself before removing any system component from its

protective anti-static packaging. To ground yourself grasp the
expansion slot covers or other unpainted portions of the computer
chassis.

¥ Frequently ground yourself while working, or use a grounding strap.

¥ Handle the mainboard by the edges and avoid touching its

components.

Introduction 5

Mainboard Layout w/ Default Settings

17

18

18

12

16

7

21

22

8

15

14

3

5

3

6

4

1

13

20

11

10

20

20 20

19

21

9

21

2

2

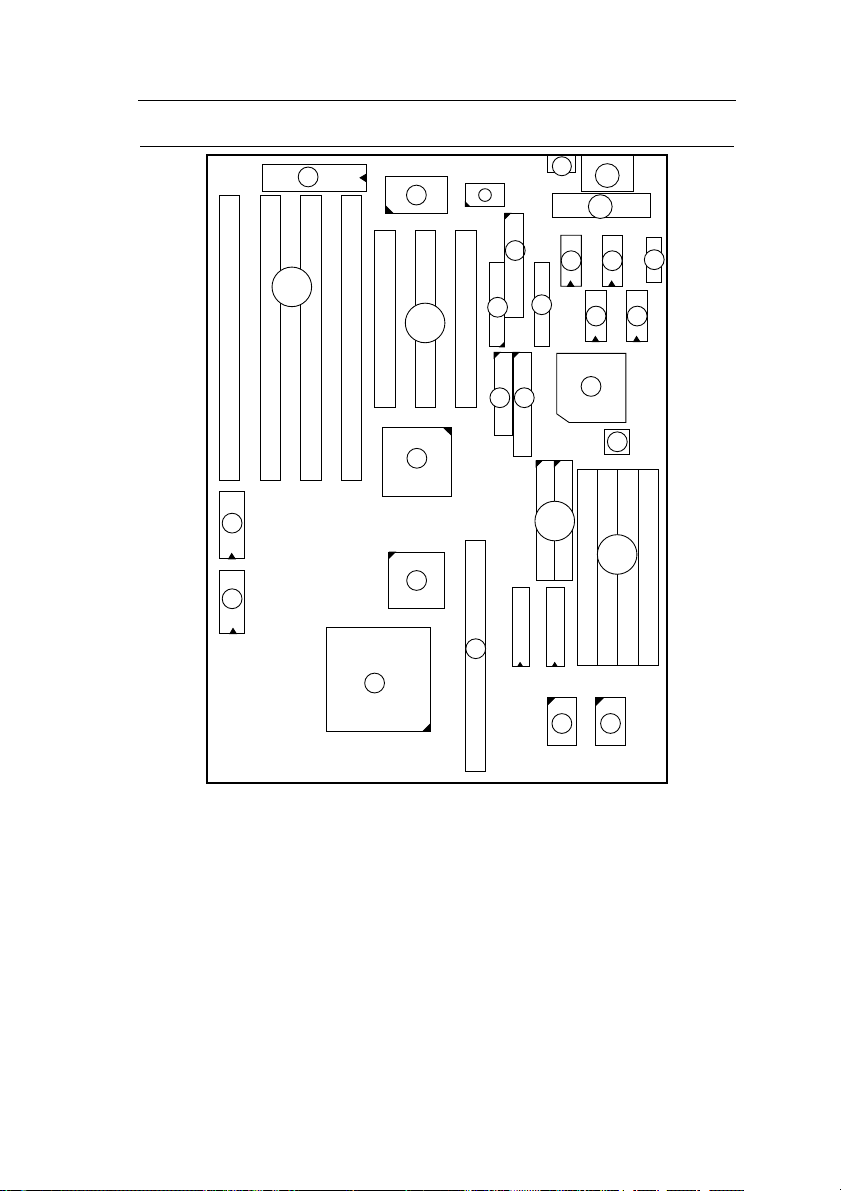

Figure 1Ð1. Mainboard Layout

1. P54C/6x86 in ZIF socket 7 12. PS/2 Mouse Connector

2. Pipelined Burst SRAM 13. IDE1/IDE2 Connector

3. 82430 HX Chipset 14. Floppy Connector

4. Pipelined Burst SRAM Module

Slot

5. PnP FLASH BIOS 16. COM1/COM2/VGA/LINE

6. Real Time Clock (RTC) 17. Keyboard BIOS

7. ISA Slots 18. Super I/O Chipset

8. PCI Slots 19. S3 VGA Chips

9. SIMM Memory Bank 20. EDO DRAM (for Video)

10. 5V DC Power Connector 21. MPEG Connector (Optional)

11. Keyboard Connector 22. TV Tuner/Feature Connector

15. Parallel Port Connector

Connector

(Optional)

6 Introduction

Default settings are as follows: Pentium 100MHz CPU, 256K W/B
Pipelined Burst cache, Address Pipeline Enabled, On-board Local
Bus IDE Enabled, FDC Enabled, 2 high speed UARTS Enabled (w/
16550 FIFO), 1 EPP/ECP port (ECP + EPP mode).

JP3

KB BIOS

JPS2

ISA SLOT

J6 J8

USB

1

Super I/O

CHIP

PCI SLOT

IR

Super I/O

CHIP

TT CON

J2

JP2

COM/VGA/LINE CON

PW1

256K16–40

MPEG CON

J1

256K16–40

256K16–40

MPEG CON

256K16–40

#4

#3 #2 #1

FLASH

BIOS

JP5

RTC

JP24
JP26
JP29

JP27
JP30

JP32 JP33

JP36

TB LED

J22

Keylock SPK

11

J18J17 J19

JP10
JP35

JP12
JP13

1
4

Reset

586

CPU

Family

HDD LED

JP11

#1#2#3

82371 SB

82439 HX

JP31

P1

FDC1

IDE2

S3/765

Line Out

IDE1

MPEG

CON

DRAM

J3

16Kx8 TAG

Pipelined Burst SRAM Module Slot

BANK

16Kx8 TAG

#4 #3#2

P.B. SRAM

32k x 32

32k x 32

P.B. SRAM

Figure 1Ð2. Mainboard Default Setting

Important: Make sure the system is well ventilated to prevent

overheating and ensure system stability.

#1

2 Hardware Setup

This chapter explains how to configure the mainboardÕs hardware. After
you install the mainboard, you can set jumpers, install memory on the
mainboard, and make case connections. Refer to this chapter whenever
you upgrade or reconfigure your system.

CAUTION: Turn off power to the mainboard, system chassis, and

peripheral devices before performing any work on the

mainboard or system.

Jumpers

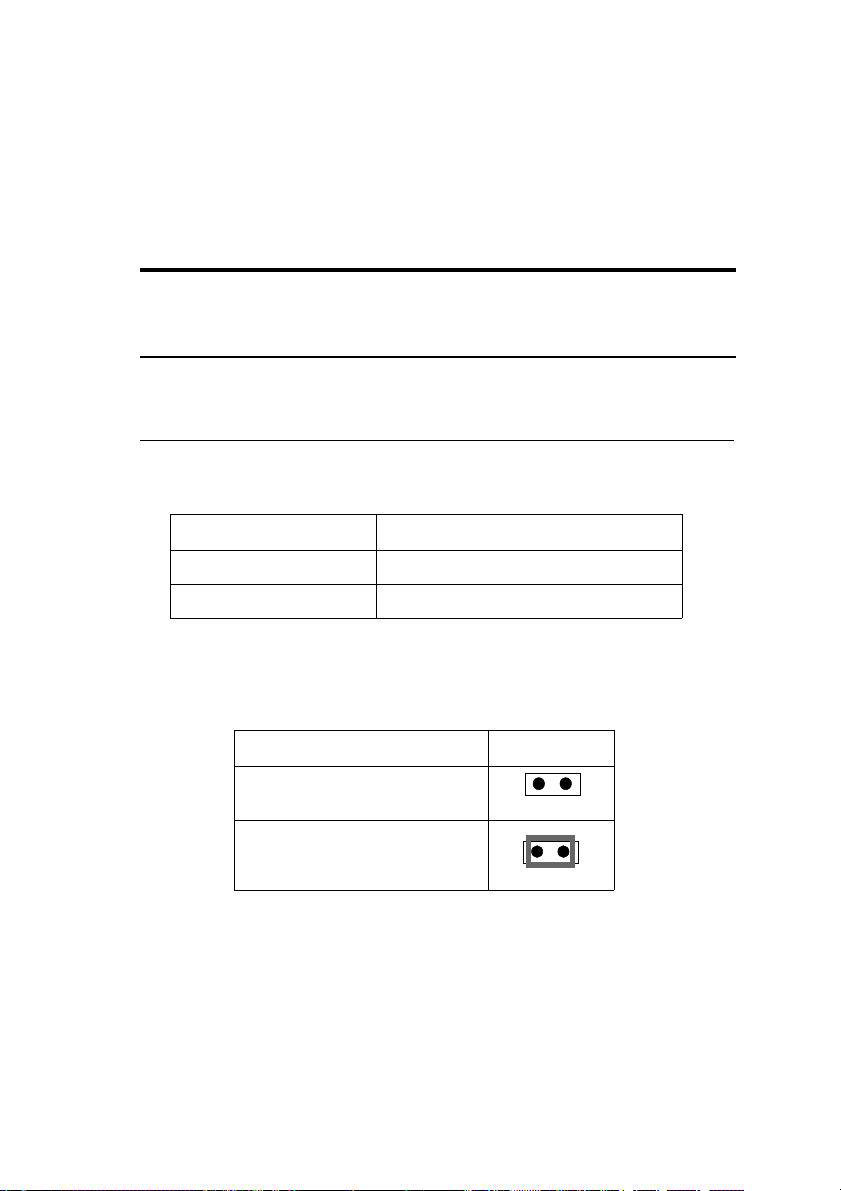

Factory Set Jumpers

The following jumpers are set at the factory as below.

Jumpers Factory settings

JP1, JP14, JP15, JP34 Factory fixed at 2Ð3

JP2, JP35 Factory setting at short

JP3: Display Type

Set JP3 to configure the mainboard for use with either a color or
monochrome monitor.

Monitor Type JP3

Monochrome

1 2

EGA/VGA

(default)

1 2

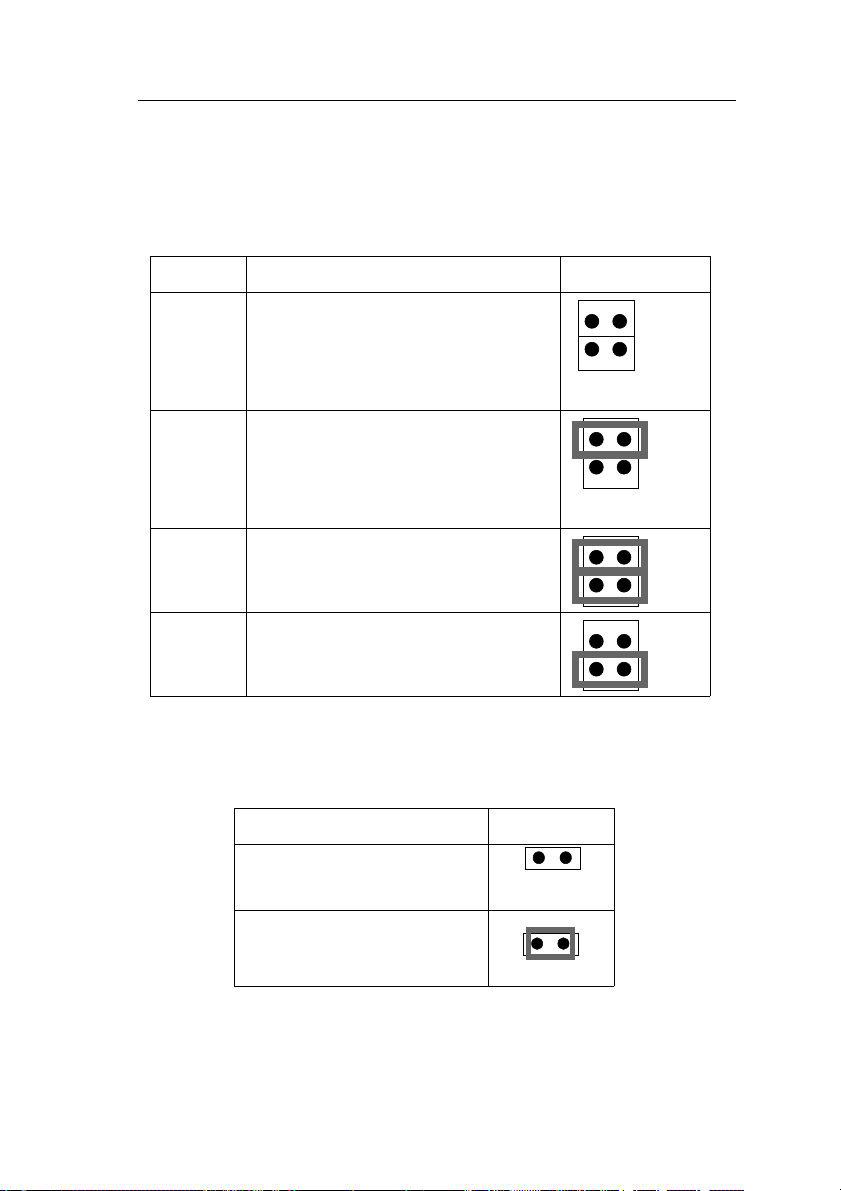

JP10: Sleep Switch Connector Enable/Disable

Toggle this jumper to force the system into power saving (Green) mode.
Any hardware IRQ signal makes the system wakeups.

8 Hardware Setup

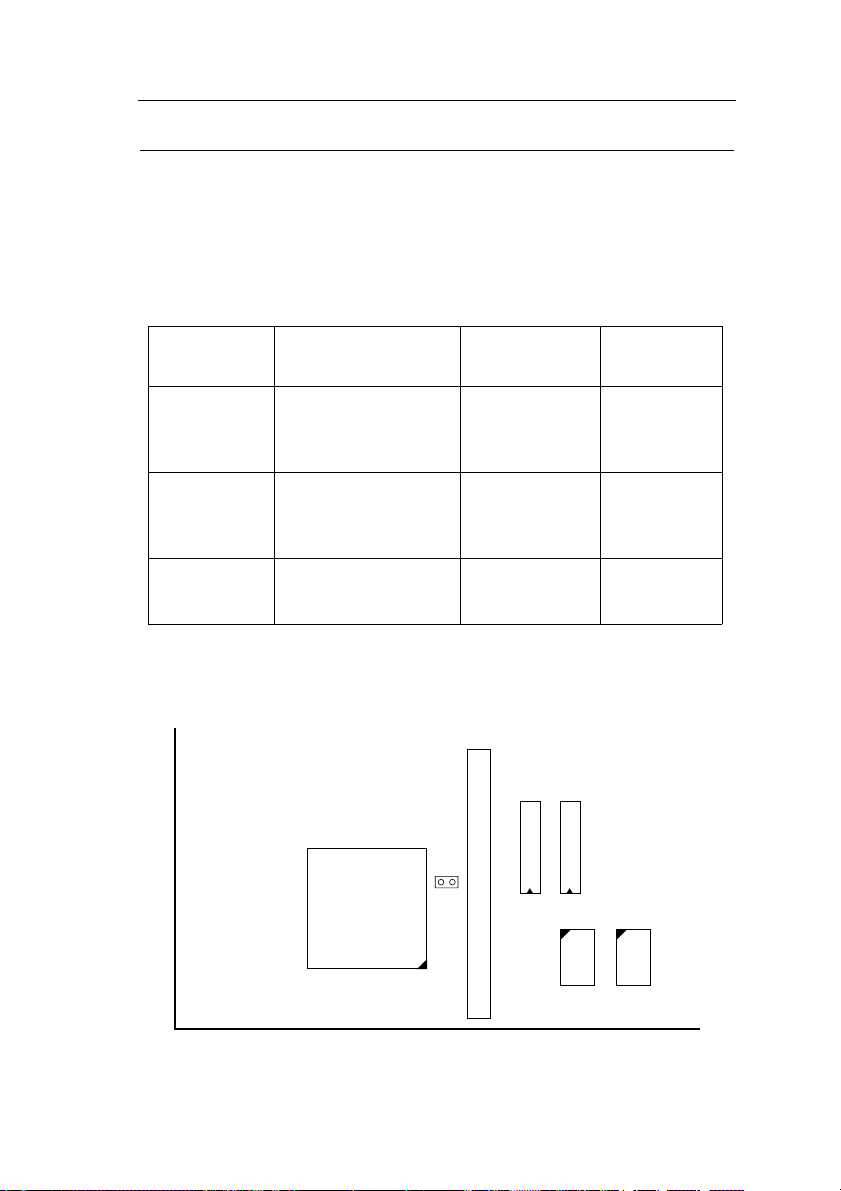

JP32, JP33: Bus Fraction Core/Bus Ratio Select

Set this jumper according to your CPU clock.

Note: For Pentium X / Y MHz, X stands for CPU core clock, Y stands

for bus clock.

Ratio P54CX Family JP32, JP33

3/2

(Default)

Pentium Ð 75, 90, 100MHz
AMD 5k86 (SSA5) Ð P75, P90,

JP32
JP33

P100MHz
AMD 5k86 (K5) Ð P120, P133MHz

2/1 Pentium Ð 120, 133MHz

Cyrix Ð P120+, P133+, P150+,

JP32
JP33

P166+ MHz
AMD 5k86 (K5) Ð P150, P166MHz

5/2 Pentium Ð 150, 166MHz

JP32
JP33

3/1 Pentium Ð 180, 200MHz

JP32
JP33

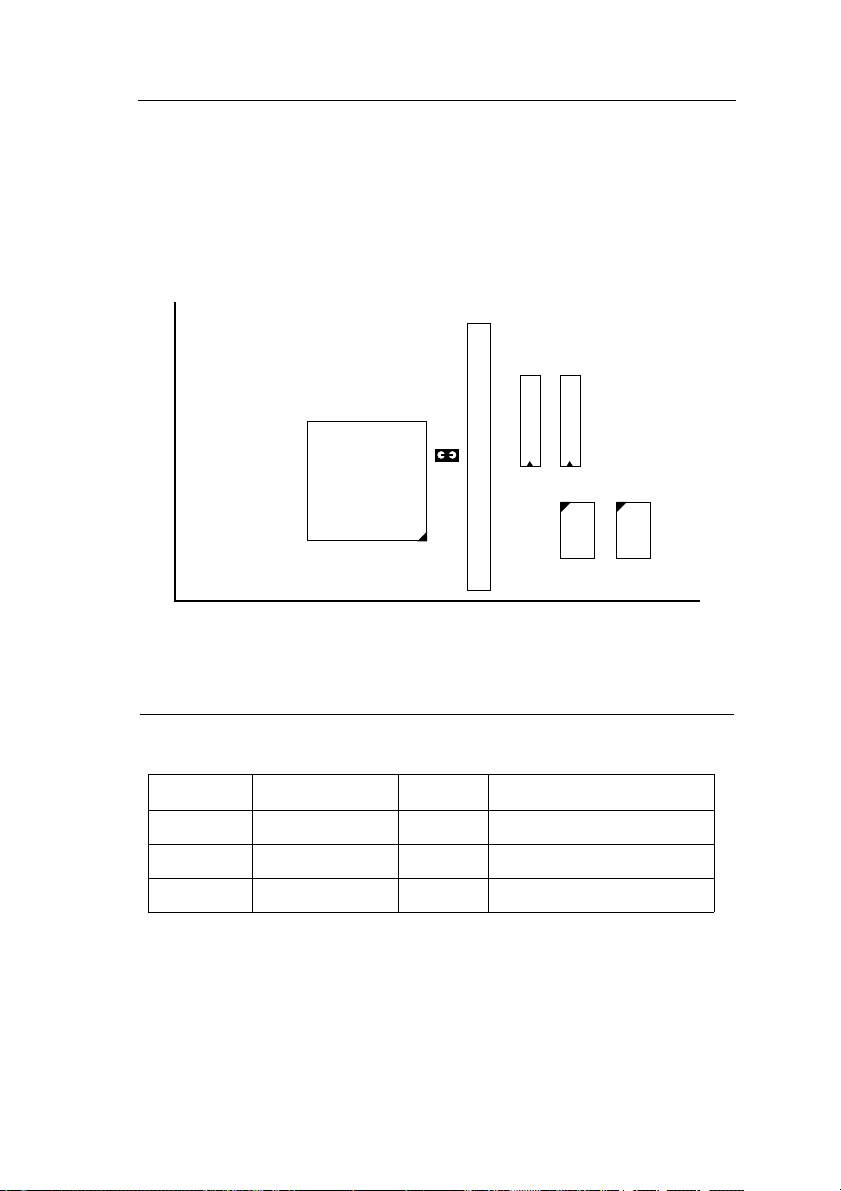

JP5: CMOS Clear Jumper

Clear the CMOS memory by momentarily shorting this jumper; then
open the jumper to retain new settings.

CMOS Setting JP5

Retain CMOS data

(default)

Clear CMOS data

1 2

1 2

Hardware Setup 9

J4: VRM (Voltage Regulator Module) Socket (Reserved)

VRM socket is dedicated for 2.5V CPU to use. It converts 3.3V to 2.5V
for the advance high speed P54CX.

JPS2: PS/2 Mouse Function Jumper

Set PS/2 mouse function enabled or disabled.

PS/2 Mouse Function JPS2

Disabled

(default)

1 2

Enabled

1 2

Note: The IRQ12 is dedicated to PS/2 mouse when choose enabled of

PS/2 Mouse Function.

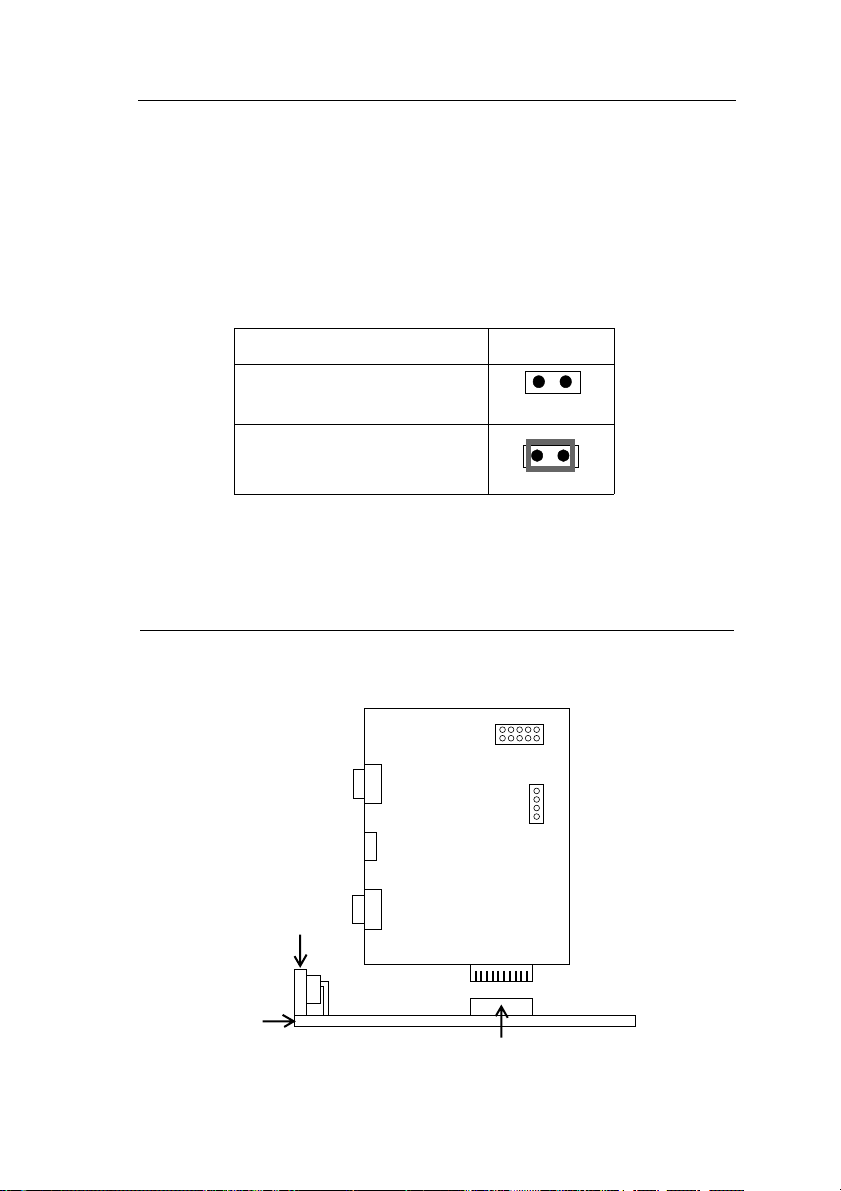

COM/VGA/LINE Adapter

Attach COM/VGA/LINE adapter to the mainboard as the figure showing
below to enable COM1/COM2/VGA/LINE OUT function.

M/B

KB Port

DB1

JACK1

J1

JP2

J2

JP1

COM/VGA/LINE CON.

10 Hardware Setup

Function of every connector on the COM/VGA/LINE adapter is
described below:

DB1 – VGA Cable Connector

Attach the cable of VGA monitor to this connector.

JACK1 – Line Out Connector

Attach Line-In cable of the external speaker system device to this jack.

J1 – COM1 Connector

Attach COM1 cable to this connector.

JP2 – COM2 Connector

Attach COM2 cable to this connector (this cable is provided by the
mainboard manufacture.)

J2* – Line Out Mainboard End Connector

Attach 4-pins linking cable to this connector. The other end of this cable
is connected to JP9 of the mainboard (this cable is provided by the
mainboard manufacture.)

Note: Use this cable only when your hardware MPEG is installed.

Check with your mainboard supplier for more MPEG information.

Hardware Setup 11

CPU Type Configuration

Set the mainboardÕs CPU jumpers JP12, JP13, JP32, and JP33 according
to CPU type as described below, and then set JP27, JP30 for the proper
voltage of the CPU.

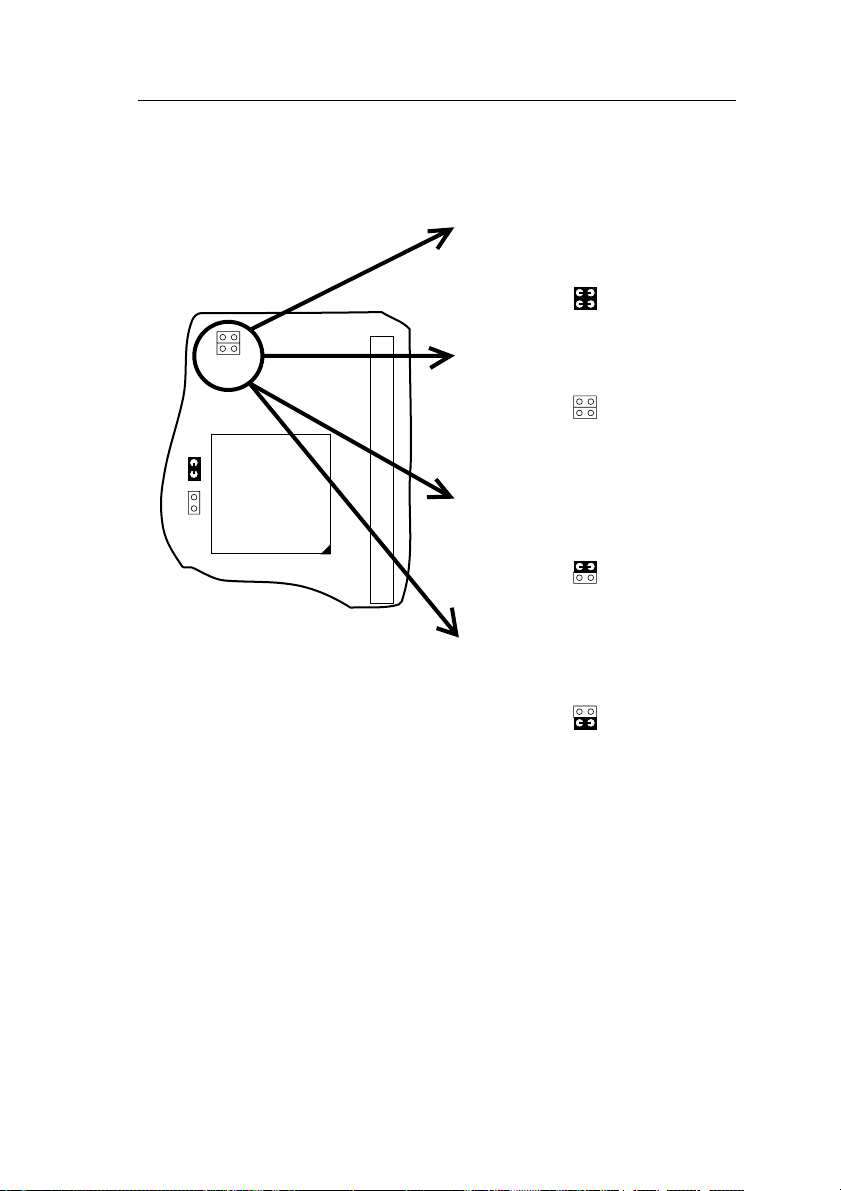

❑ Step 1: Frequency Setting

Pentium – 75*/90*/100* CPU Settings (1.5 x clock)
AMD K5 – PR75/PR90/PR100/PR120/PR133 Settings (1.5 x clock)

Pentium (P54CX) – 75*/50 MHz
AMD K5 (SSA5) – PR75/50 MHz
(Red Caps)

JP12
JP13

AMD 5k86 (SSA5) – P90/55 MHz
AMD 5k86 (K5) – P100/55 MHz
(Red Caps)

JP12
JP13

Pentium (P54CX) – 90*/60 MHz
AMD K5 (SSA5) – PR90/60 MHz
AMD K5 – PR120/60 MHz
(Red Caps)

JP12
JP13

Pentium (P54CX) – 100*/66 MHz
AMD K5 (SSA5) – PR100/66 MHz
AMD K5 – PR133/66 MHz
(Red Caps)

JP12
JP13

JP32 JP33

JP12
JP13

Pipelined Burst SRAM Module Slot

586

CPU

Family

Figure 2Ð1Ð1. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

12 Hardware Setup

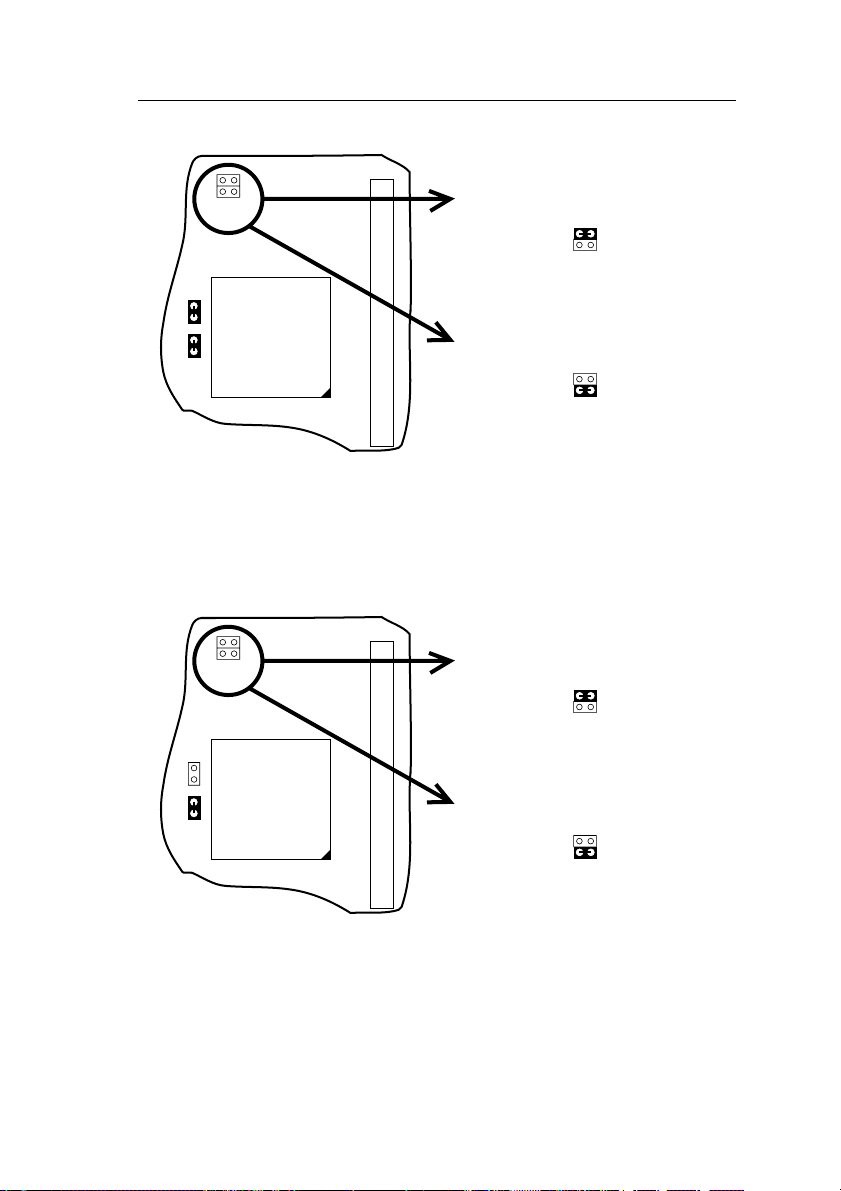

Pentium – 100*/120*/133* CPU Settings (2.0 x clock)
Cyrix 6x86 – P120+/P133+/P150+/P166+ CPU Settings (2.0 x clock)
AMD K5 – PR150/PR166 CPU Settings (2.0 x clock)

Pentium (P54CX) – 100*/50 MHz
Cyrix 6x86 – P120+/50 MHz
(Red Caps)

JP12
JP13

Cyrix 6x86 – P133+/55 MHz
(Red Caps)

JP12
JP13

Pentium (P54CX) – 120*/60 MHz
Cyrix 6x86 – P150+/60 MHz
AMD K5 – PR150/60 MHz

JP32 JP33

JP12
JP13

Pipelined Burst SRAM Module Slot

586

CPU

Family

(Red Caps)

JP12
JP13

Pentium (P54CX) – 133*/66 MHz
Cyrix 6x86 – P166+/66 MHz
AMD K5 – PR166/66 MHz
(Red Caps)

JP12
JP13

Figure 2Ð1Ð2. CPU Jumper Settings

Note: 1. You must equip the CPU with a fan and heat sink for system

stability.

2. Cyrix 6x86 Ð P166+ has to be matched with 60ns DRAMs.

Hardware Setup 13

Pentium – 150* CPU Settings (2.5 x clock)

Pentium (P54CX) – 150*/60 MHz
(Red Caps)

JP12
JP13

Pentium (P54CX) – 166*/66 MHz
(Red Caps)

JP12
JP13

JP32 JP33

JP12
JP13

Pipelined Burst SRAM Module Slot

586

CPU

Family

Figure 2Ð1Ð3. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

Pentium – 180*/200* CPU Settings (3.0 x clock)

Pentium (P54CX) – 180*/60 MHz
(Red Caps)

JP12
JP13

JP32 JP33

JP12
JP13

Pipelined Burst SRAM Module Slot

586

CPU

Family

Pentium (P54CX) – 200*/66 MHz
(Red Caps)

JP12
JP13

Figure 2Ð1Ð4. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

14 Hardware Setup

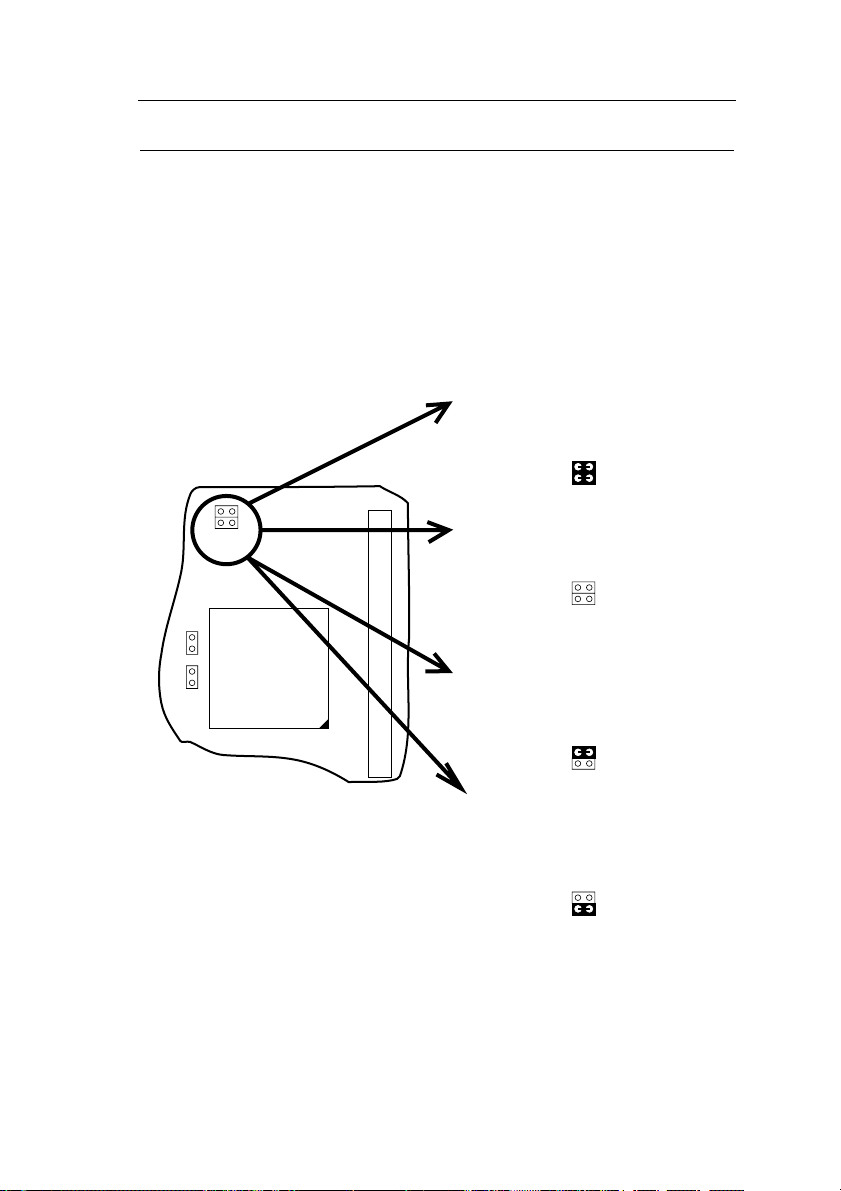

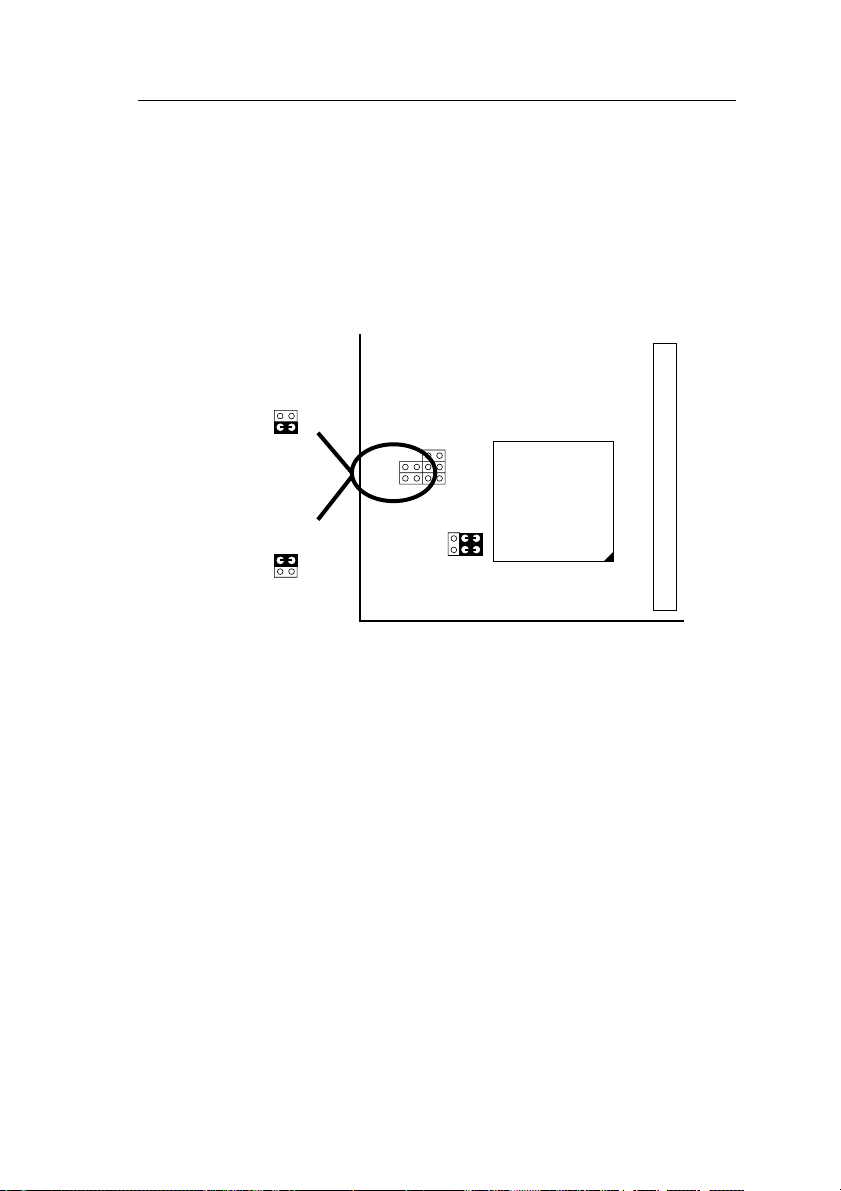

❑ Step 2: CPU Single/Dual Voltage Setting

Single Voltage CPU Setting

Signal voltage CPUs use the same voltage for VIO and VCore and has
been used traditionally. The CPUs which fall into this category are Intel
P54CX, AMD-K5-PRxxxBx, AMD-K5-PRxxxCx, AMD-K5-PRxxxFx,
and Cyrix 6x86. Refer to the following figure to set these CPUsÕ
voltage:

3.3V CPU

JP27
JP30

JP27
JP30

JP24
JP26
JP29

586

Pipelined Burst SRAM Module Slot

CPU

3.45V ~ 3.6V CPU

JP27
JP30

JP36

Family

1
4

Figure 2Ð2Ð1. Single Voltage CPU

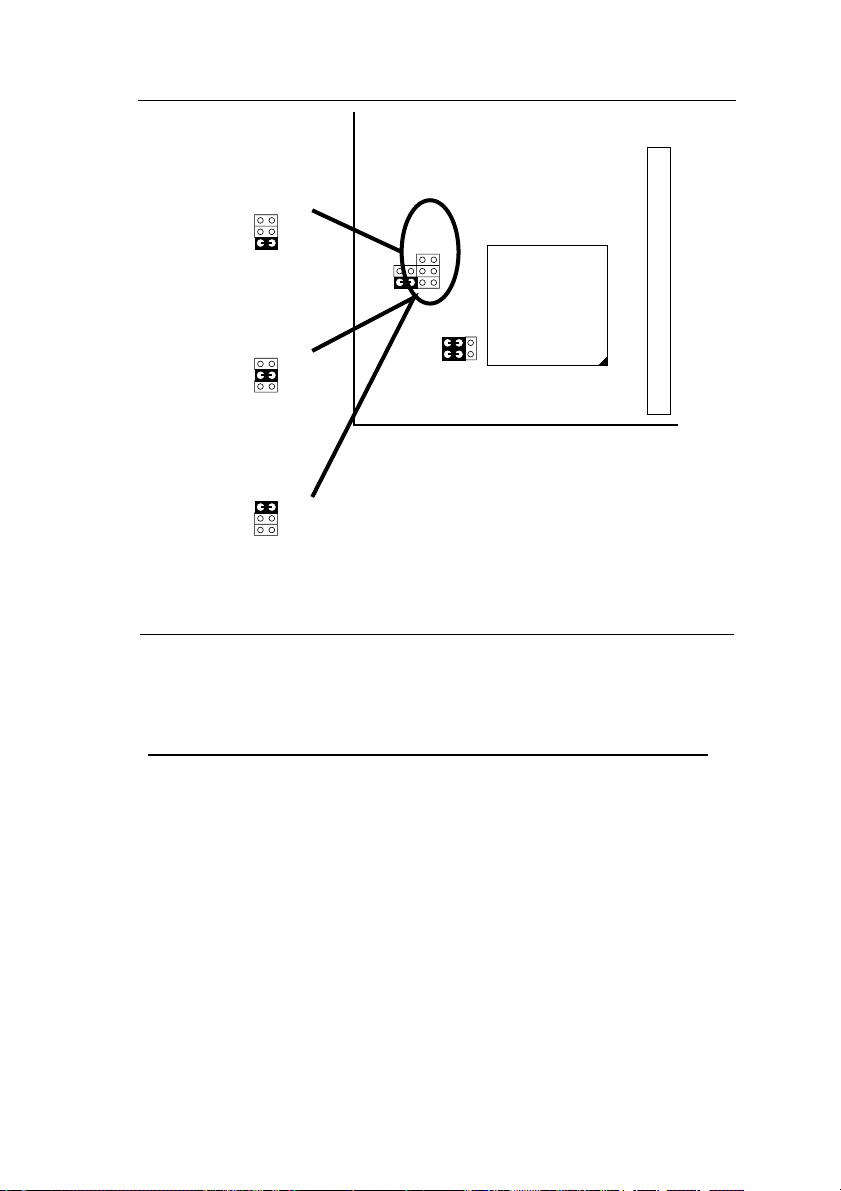

Dual Voltage CPU Setting (Optional)

Dual voltage CPUs are designed to use different voltage for VIO and
VCore and they include Intel P55CX, AMD-K5-PRxxxHx, AMD-K5­PRxxxJx, AMD-K5-PRxxxKx, AMD K6, Cyrix 6x86L, and Cyrix M2.
Refer to the following figure to set these CPUsÕ voltage:

Hardware Setup 15

2.5V CPU

JP24
JP26
JP29

2.7V ~ 2.8V CPU

JP24
JP26
JP29

JP27
JP30

JP24
JP26
JP29

JP36

586

CPU

Family

1
4

Pipelined Burst SRAM Module Slot

2.9V CPU

JP24
JP26
JP29

Figure 2Ð2Ð2. Dual Voltage CPU

Memory Configuration

The mainboard supports eight banks of 72-pin SIMM or EDO DRAM
(with or without parity). The mainboard requires SIMM of at least 70ns

access time.

Single-side SIMM Double-side SIMM

4MB = 1MB x 36(32) 2MB = 512K x 36(32)

16MB = 4MB x 36(32) 8MB = 2MB x 36(32)

64MB = 16MB x 36(32) 32MB = 8MB x 36(32)

The mainboard supports from 4 to 256 Mbytes with no other restrictions
on memory configurations. You can install DRAM in any combination
without having to rely on a memory configuration table. Memory
configuration is thus ÒTable-FreeÓ in any bank.

Note: You must install two strips of SIMM modules to complete a bank.

16 Hardware Setup

Cache Configuration

The mainboard has a write-back caching scheme. You can configure the
mainboardÕs cache by installing cache chips in the sockets noted below
and then set jumpers JP31 to set the mainboard for the type of SRAM
installed. See Figures 2Ð3Ð1~2Ð3Ð2 for cache configurations.

Cache Size and RAM Locations

Cache Size Cache RAM TAG RAM

256KB 32K x32, 2 pcs

(or 256K module)

16K x 8

on U27, U28

on U31, U32 (or J3)

Upgrade to

512KB

32K x 32, 2pcs +

256K module

16K x 8

on U27, U28

on U31, U32, and J3

Onboard

512KB

64K x 32, 2pcs

on U31, U32

16K x 8

on U27, U28

256K Pipelined Burst Cache Configuration

1. Leave JP31 opened when you have 256K Pipelined Burst SRAM
CHIPs onboard.

Cacheable

Range

512 MB

512 MB

512 KB

Pipelined Burst SRAM Module Slot

TAG

TAG

586

CPU

Family

JP31

P.B. SRAM

32k x 32

P.B. SRAM

32k x 32

Figure 2Ð3Ð1. 256K Pipelined Burst Cache Configuration

Hardware Setup 17

Upgrade to 512KB/Onboard 512KB Pipelined Burst Cache Configuration

1. Insert Jumper into JP31 when you have 512K Pipelined Burst SRAM
CHIPs onboard or 256K SRAM CHIPs and 256K Pipelined Burst
SRAM module.

2. Due to the various design, contact the supplier for 256KB Pipelined
Burst SRAM module when you want to upgrade to 512K cache on
your motherboard.

Pipelined Burst SRAM Module Slot

TAG

TAG

586

CPU

Family

JP31

P.B. SRAM

32k x 32

P.B. SRAM

32k x 32

Figure 2Ð3Ð2. 512K Pipelined Burst Cache Configuration

Multi I/O Port Addresses

Default settings for multi-I/O port addresses are shown in the table
below.

Port I/O Address IRQ Status

LPT1* 378H 7 ECP + EPP

COM1 3F8H 4

COM2 2F8H 3

* If default I/O port addresses conflict with other I/O cards (e.g. sound

cards or I/O cards), you must adjust one of the I/O addresses to avoid
address conflict. (You can adjust these I/O addresses from the BIOS.

Note: Some sound cards have a default IRQ setting for IRQ7, which may

conflict with printing functions. If this occurs do not use sound

card functions at the same time you print.

18 Hardware Setup

Connectors

Attach the mainboard to case devices, or an external battery, via
connectors on the mainboard. Refer to Figure 1-1 for connector locations
and connector pin positions.

J1 – Keyboard Connector

A five-pin female DIN keyboard connector is located at the rear of the
board. Plug the keyboard jack into this connector.

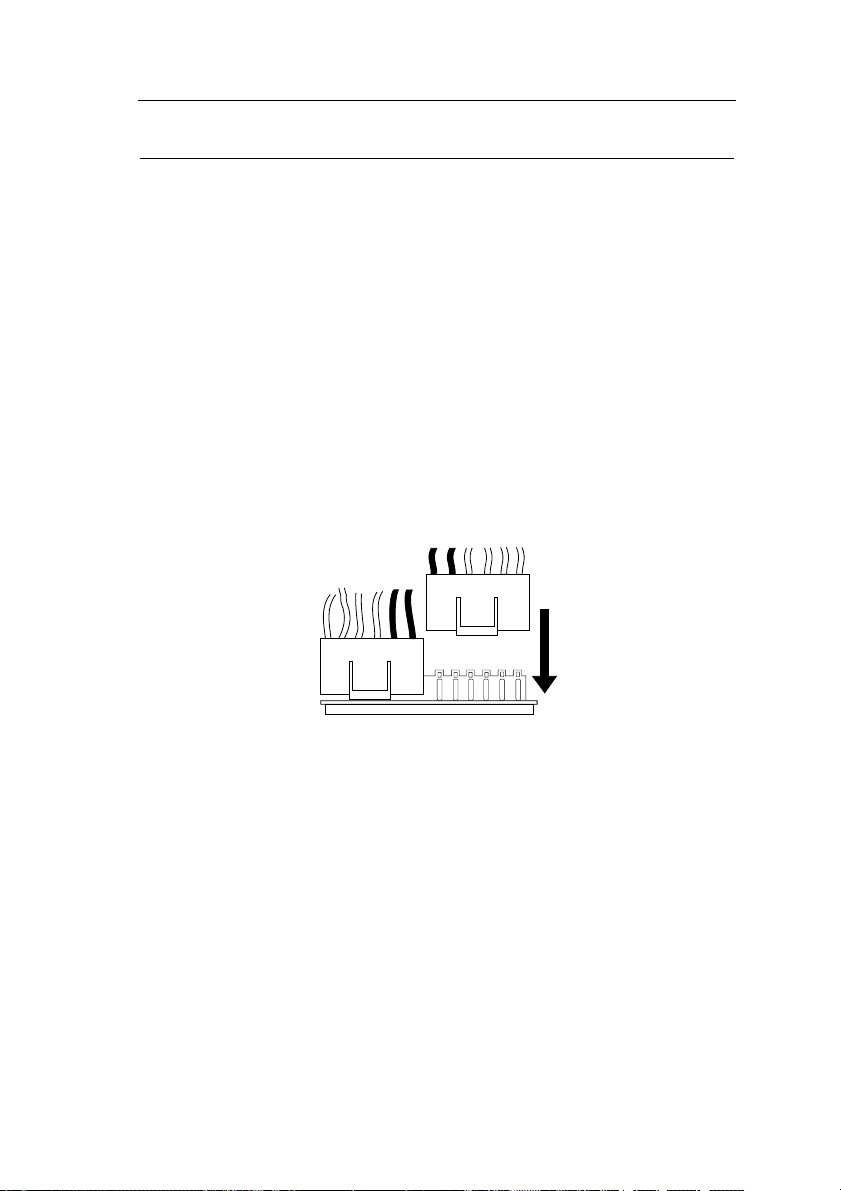

PW1 – Power Supply Connectors

The mainboard requires a power supply with at least 200 watts and a
Òpower goodÓ signal. PW1 has two six-pin male header connectors. Plug
the dual connectors from the power directly onto the board connector
while making sure the black leads are in the center.

J17 – Keylock & Power LED Connector

J17 is a connector for a lock that may be installed on the system case for
enabling or disabling the keyboard. J17 also attaches to the caseÕs Power
LED. (Pin 1Ð2 for power LED, pin3Ð5 for keylock.)

J18 – Speaker Connector

Attach the system speaker to connector J18.

J19 – Hardware Reset Control

Attach the Reset switch to J19. Closing the Reset switch restarts the
system.

Hardware Setup 19

J2 – PS/2 Mouse Connector

Attach PS/2 mouse cable to this connector.

J22 – Turbo LED Connector

Attach the turbo LED to J22. The LED lights when the system is in
Turbo mode.

IDE1/IDE2 – On-board Primary/Secondary IDE HDD
Connectors

Attach on-board hard disk drives to these connectors.

J11 – HDD LED Connectors

Attach on-board hard disk drive LEDs to this connector. The LED lights
when an HDD is active.

COM/VGA/LINE Connectors

Attach COM1/COM2/VGA/LINE OUT adapter to these connectors.

FDC1 Connector

Attach floppy cable to this connector.

P1 – Parallel Port Connector

Attach parallel port cable to this connector.

J3 – Pipelined Burst SRAM Module Slot

Contact your supplier for Pipelined Burst SRAM upgrade module to
upgrade your on-board cache SRAM up to 512KB. Make sure JP31 is
set for the right size when you upgrade your cache SRAM.

20 Hardware Setup

J6, U22 – Universal Serial Bus Connector (Optional)

Attach USB cable to these connectors for external USB device.

MPEG Connector – MPEG Daughter Board Connector
(Optional)

You could attach H/W MPEG Daughter Board to perform the H/W
MPEG function. Due to the various design, contact your dealer for the
H/W MPEG function.

TT Connector – TV Tuner/Feature Connector (Optional)

Attach TV Tuner/Feature Connector cable to this connector to enable the
TV Tuner/Feature Connector function.

Line Out – Line Out Connector

Linking one end of the line out cable to this connector and the other end
to COM/VGA/LINE adapter to enable line out function.

Line Out Cable

If you have S3 MPEG Daughter Board attached, you will need a Line
Out Cable to enable the Line Out function. Please contact the M/B
manufacture for the Line Out cable.)

IR – Infra Red Connector (Optional)

Attach Infra Red device cable to this connector to enable the infrared
transfer function.

3 BIOS Setup

The mainboardÕs BIOS setup program is the ROM PCI/ISA BIOS from
Award Software Inc. Enter the Award BIOS programÕs Main Menu as
follows:

1. Turn on or reboot the system. After a series of diagnostic checks, you
are asked to press DEL to enter Setup.

2. Press the <DEL> key to enter the Award BIOS program and the main
screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PCI & ONBOARD I/O SETUP

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

Esc : Quit ↑ ↓ → ← : Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color

Time, Date, Hard Disk Type...

3. Choose an option and press <Enter>. Modify the system parameters
to reflect the options installed in the system. (See the following
sections.)

4. Press <ESC> at anytime to return to the Main Menu.

5. In the Main Menu, choose ÒSAVE AND EXIT SETUPÓ to save your
changes and reboot the system. Choosing ÒEXIT WITHOUT
SAVINGÓ ignores your changes and exits the program.

The Main Menu options of the Award BIOS are described in the sections
that follow.

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

22 Drivers Installation Guide

Standard CMOS Setup

Run the Standard CMOS Setup as follows.

1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu. A screen
appears.

Date (mm:dd:yy) : Fri, Feb 1 1995
Time (hh:mm:ss) : 7 : 30 : 33

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : None 0 0 0 0 0 0 ----

Primary Slave : None 0 0 0 0 0 0 ---­Secondary Master : None 0 0 0 0 0 0 ---­Secondary Slave : None 0 0 0 0 0 0 ----

Drive A : 1.44M, 3.5 in.
Drive B : None

Video : EGA/VGA
Halt On : All Errors

Esc : Quit ↑ ↓ → ← : Select Item PU/PD/+/– : Modify
F11 : Help (Shift) F2 : Change Color F3 : Toggle Calendar

2. Use arrow keys to move between items and select values. Modify
selected fields using PgUp/PgDn/+/Ð keys. Some fields let you enter
values directly.

Date (mm/dd/yy) Type the current date.

Time (hh:mm:ss) Type the current time.

Primary
(Secondary)
Master & Slave

Drive A & B Choose 360KB , 5 1/4 in.,

Video Choose Monochrome,

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Base Memory: 640K

Extended Memory: 3328K

Other Memory: 128K

Total Memory: 4096K

Choose from the standard hard disk types 1 to

46. Type 47 is user definable. If a hard disk is
not installed choose ÒNot installed.Ó (default)

1.2MB , 5 1/4 in.,
720KB , 3 1/2 in.,

1.4M , 3 1/2 in.(default),

2.88 MB, 3 1/2 in. or
Not installed

Color 40x25,
VGA/EGA (default),
Color 80x25

3. When you finish, press the <ESC> key to return to the Main Menu.

Drivers Installation Guide 23

BIOS Features Setup

Run the BIOS Features Setup as follows.

1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a
screen with a list of items appears. (The screen below shows the
BIOS default settings.)

CPU Internal Cache : Enabled
External Cache : Enabled
Quick Power on Self Test : Enabled
Boot Sequence : A,C
Swap Floppy Drive : Disabled
Boot Up NumLock Status : On
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec): 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select for DRAM >64MB : Non-OS2

2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/Ð keys. <F> keys
are explained below:

<F1>: ÒHelpÓ gives options available for each item.

Shift <F2>: Change color.

<F5>: Get the old values. These values are the values with
which the user started the current session.

<F6>: Load all options with the BIOS Setup default values.

<F7>: Load all options with the Power-On default values.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Video BIOS Shadow : Enabled
C8000-CBFFF Shadow : Disabled
CC000-CFFFF Shadow : Disabled
D0000-D3FFF Shadow : Disabled
D4000-D7FFF Shadow : Disabled
D8000-DBFFF Shadow : Disabled
DC000-DFFFF Shadow : Disabled

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of screen items follows:

CPU Internal
Cache

This option enables/disables the CPUÕs internal
cache. (The Default setting is Enabled.)

External Cache This option enables/disables the external cache

memory. (The Default setting is Enabled.)

Quick Power

Enabled provides a fast POST at boot-up .

On Self Test

24 Drivers Installation Guide

Boot Sequence The default setting attempts to first boot from drive

A: and then from hard disk C:. You can reverse this
sequence with ÒC: A:Ó, but then drive A: cannot boot
directly.

Swap Floppy
Drive

Boot Up Num
Lock Status

Gate A20
Option

Typematic Rate
Setting

Typematic Rate
(Chars/Sec)

Typematic
Delay (Msec)

Security Option Choose Setup or System. Use this feature to prevent

Enabled changes the sequence of the A: and B:
drives. (The Default setting is Disabled.)

Choose On or Off. On puts numeric keypad in Num
Lock mode at boot-up. Off puts this keypad in arrow
key mode at boot-up.

Choose Fast (default) o Normal. Fast allows RAM
accesses above 1MB using the fast gate A20 line.

Enable this option to adjust the keystroke repeat rate.

Choose the rate a character keeps repeating.

Choose how long after you press a key that a
character begins repeating.

unauthorized system boot-up or use of BIOS Setup.

ÒSystemÓ Ð Each time the system is booted the
password prompt appears.

ÒSetupÓÐ If a password is set, the password prompt
only appears if you attempt to enter the Setup
program.

PCI/VGA
Palette Snoop

Enabled: The color of the monitor may be incorrect

if uses with MPEG card. Enable this
option to make the monitor normal.

Disabled: Default setting.

Drivers Installation Guide 25

OS Select for
DRAM >64MB

Video or
Adapter BIOS
Shadow

3. After you have finished with the BIOS Features Setup program, press
the <ESC> key and follow the screen instructions to save or
disregard your settings.

OS2: Choosing this when you are using OS/2

operation system.

Non-OS/2: Choosing this when you are using no-

OS/2 operation system.

BIOS shadow copies BIOS code from slower ROM
to faster RAM. BIOS can then execute from RAM.
These 16K segments can be shadowed from ROM to
RAM. BIOS is shadowed in a 16K segment if it is
enabled and it has BIOS present.

26 Drivers Installation Guide

Chipset Features Setup

The Chipset Features Setup option changes the values of the chipset
registers. These registers control system options in the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Chipset Features Setup as follows.

1. Choose ÒCHIPSET FEATURES SETUPÓ from the Main Menu and
the following screen appears. (The screen below shows default
settings.)

Auto Configuration : Enabled
DRAM Timing : 70 ns
DRAM RAS# Precharge Time : 4
DRAM R/W Leadoff Timing : 7/6
Fast RAS# To CAS# Delay : 3
DRAM Read Burst Timing : x333/x444
DRAM Write Burts Timing : x333
Turbo Read Leadoff : Disabled
DRAM Speculative Leadoff : Disabled
Turn-Around Insertion : Disabled
ISA Clock : PCICLK/4

System BIOS Cacheable : Disabled
Video BIOS Cacheable : DIsabled
8 Bit I/O Recovery Time : 3
16 Bit I/O Recovery Time : 2
Memory Hole At 15M-16M : Disabled
Peer Concurrency : Enabled
Chipset Special Features : Enabled
DRAM ECC/PARITY Select : Parity

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Memory Parity/ECC Check : Auto
Single Bit Error Report : Enabled
L2 Cache cacheable Size : 512MB

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows:

Auto Configuration Enable this option (strongly

recommended) and the system
automatically sets all options on the left
side of the screen (except cache update
mode & BIOS cacheable).

If this option is Enabled you must boot
from Turbo mode.

Drivers Installation Guide 27

DRAM Timing Choose the right speed to fit your

DRAMÕs spec. 82430HX chipset supports
50, 60, and 70ns DRAM timing.

DRAM RAS Precharge
Time

DRAM R/W Leadoff
Timing

DRAM RAS to CAS
Delay

DRAM Read Burst
Timing

DRAM Write Burst
Timing

Turbo Read Leadoff Use the default setting.

DRAM Speculative
Leadoff

Turn-Around Insertion Use the default setting.

ISA Clock Use BIOS default setting or choose:

Use the default setting.

Use the default setting.

Use the default setting.

Use the default setting.

Use the default setting.

Use the default setting.

/4: for 60, 66MHz CPU Bus Frequency

/3: for 50, 55MHz CPU Bus Frequency.

System BIOS Cacheable Disabled: The ROM area F0000H-

FFFFFH is not cached.

Enabled: The ROM area F0000H-

FFFFFH is cacheable if cache
controller is enabled.

28 Drivers Installation Guide

Video BIOS Cacheable Disabled: The video BIOS C0000H-

C7FFFH is not cached.

Enabled: The video BIOS C0000H-

C7FFFH is cacheable if cache
controller is enabled.

8Bit I/O Recovery Time Use the default setting.

16Bit I/O Recovery
Time

Memory Hole At 15M­16M

Peer Concurrency Use the default setting.

Chipset Special Features Use the default setting.

DRAM ECC/PARITY
Select

Memory Parity/ECC
Check

Single Bit Error Report Enabled: System will report DRAM error

L2 Cache Cacheable
Size

Use the default setting.

Choose Enabled or Disabled (default).
Some interface cards will map their ROM
address to this area. If this occurs, you
should select Enabled, otherwise use
Disabled.

Choose ECC or Parity (default) according
the type of DRAM you have.

Auto: Active memory checking

automatically.

Enabled: Enable memory checking.

Disabled: Disable memory checking.

to CPU.

Disabled: System will not report DRAM

error to CPU.

Use the default setting.

3. After you have finished with the Chipset Features Setup, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.

Drivers Installation Guide 29

Power Management Setup

The Power Management Setup option sets the systemÕs power saving
functions.
Run the Power Management Setup as follows.

1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu
and a screen with a list of items appears.

Power Management : Disabled
PM Control by APM : No
Video Off Method : V/H SYNC+Blank

Doze Mode : Disabled
Standby Mode : Disabled
Suspend Mode : Disabled
HDD Power Down : Disabled

** Wake Up Events In Doze & Standby **
IRQ3 (Wake-Up Event) : ON
IRQ4 (Wake-Up Event) : ON
IRQ8 (Wake-Up Event) : ON
IRQ12 (Wake-Up Event) : ON

2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/- keys.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

POWER MANAGEMENT SETUP

** Power Down & Resume Events **
IRQ 3 (COM 2) : ON
IRQ 4 (COM 1) : ON
IRQ 5 (LPT 2) : ON
IRQ 6 (Floppy Disk) : OFF
IRQ 7 (LPT 1) : ON
IRQ 8 (RTC Alarm) : OFF
IRQ 9 (IRQ2 Redir) : ON
IRQ 10 (Reserved) : ON
IRQ 11 (Reserved) : ON
IRQ 12 (PS/2 mouse) : ON
IRQ 13 (Coprocessor) : ON
IRQ 14 (Hard Disk) : ON
IRQ 15 (Reserved) : ON

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of selected screen items follows:

Power
Management

Options are as follows:
User Define LetÕs you define the HDD and

system power down times.

Disabled Disables the Green PC Features.
Min Saving Doze timer = 1 Hour

Standby timer = 1 Hour
Suspend timer = 1 Hour
HDD Power Down = 15 Min

Max Saving Doze timer = 1 Min

Standby timer = 1 Min
Suspend timer = 1 Min
HDD Power Down = 1 Min

30 Drivers Installation Guide

PM Control by
APM

Video Off Method Choose V/H Sync+Blank (default), Blank

Doze Mode When the set time has elapsed, the BIOS sends a

Standby Mode The default is Disabled. Time is adjustable from

Suspend Mode The default is Disabled. Only an SL-Enhanced

HDD Power Down When the set time has elapsed, the BIOS sends a

Choose Yes or No (default). APM stands for
Advanced Power Management. To use APM,
you must run Òpower.exeÓ under DOS v6.0 or
later version.

screen, or DPMS for the selected PM mode.

command to the system to enter doze mode
(system clock drops to 33MHz). Time is
adjustable from 1 Min to 1 Hour.

1 Min to 1 Hour.

(or SMI) CPU can enter this mode. Time is
adjustable from 1 Min to 1 Hour. Under Suspend
mode, the CPU stops completely (no instructions
are executed.)

command to the HDD to power down, which
turns off the motor. Time is adjustable from 1 to
15 minutes. The default setting is Disabled.
Some older model HDDs may not support this
advanced function.

IRQx (Wake-Up
Events)

Power Down
Activities

3. After you have finished with the Power Management Setup, press the
<ESC> key to return to the Main Menu.

The BIOS monitors these items for activity. If
activity occurs from the Enabled item the system
wakes up.

The BIOS monitors these items for no activity. If
no activity occurs from the Enabled item the
system will enter power saving mode
(Doze/Standby/Suspend/ HDD Power Down
mode) .

Drivers Installation Guide 31

PNP/PCI Configuration Setup

This option sets the mainboardÕs PCI Slots. Run this option as follows:

1. Choose ÒPNP/PCI CONFIGURATION SETUPÓ from the Main
Menu and the following screen appears. (The screen below shows
default settings.)

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Resources Controlled By : Manual
Reset Configuration Data : Disabled

IRQ-3 assigned to : Legacy ISA*
IRQ-4 assigned to : Legacy ISA*
IRQ-5 assigned to : PCI/ISA PnP*
IRQ-7 assigned to : Legacy ISA*
IRQ-9 assigned to : PCI/ISA PnP*
IRQ-10 assigned to : PCI/ISA PnP*
IRQ-11 assigned to : PCI/ISA PnP*
IRQ-12 assigned to : PCI/ISA PnP*
IRQ-14 assigned to : Legacy ISA*
IRQ-15 assigned to : Legacy ISA*
DMA-0 assigned to : PCI/ISA PnP*
DMA-1 assigned to : PCI/ISA PnP*
DMA-3 assigned to : PCI/ISA PnP*
DMA-5 assigned to : PCI/ISA PnP*
DMA-6 assigned to : PCI/ISA PnP*
DMA-7 assigned to : PCI/ISA PnP*

*: These items will disappear when Resource Controlled. is Auto.

2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.

PCI IRQ Actived By : Level
PCI IDE IRQ Map To : PCI-AUTO
Primary IDE INT# : A
Secondary IDE INT# : B

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of screen items follows:

Resources
Controlled By

Manual: BIOS doesnÕt manage PCI/ISA PnP

card (i.e., IRQ) automatically.

Auto: BIOS auto manage PCI and ISA PnP

card (recommended).

Reset
Configuration
Data

Disabled: Retain PnP configuration data in

BIOS.

Enabled: Reset PnP configuration data in BIOS.

32 Drivers Installation Guide

IRQX and
DMAX assigned
to

PCI IRQ
Activated By

PCI IDE IRQ
Map To

Primary IDE
INT#

Secondary IDE
INT#

3. After you have finished with the PCI Slot Configuration, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.

Choose PCI/ISA PnP or Legacy ISA. If the first
item is set to Manual, you could choose IRQX
and DMAX assigned to PCI/ISA PnP card or ISA
card.

PCI/ISA PnP: BIOS auto assigns IRQ/DMA to

the device.

Legacy ISA: User assigns IRQ/DMA to the

device.

Choose Edge or Level. Most PCI trigger signals
are Level. This setting must match the PCI card.

Select PCI-AUTO, ISA, or assign a PCI SLOT
number (depending on which slot the PCI IDE is
inserted). The default setting is PCI-AUTO. If
PCI-AUTO does not work, then assign an
individual PCI SLOT number.

Choose INTA#, INTB#, INTC#, or INTD#. The
default setting is INTA#.

Choose INTA#, INTB#, INTC#, or INTD#. The
default setting is INTB#.

Load Setup Defaults

This item loads the system values you have previously saved. Choose
this item and the following message appears:

ÒLoad SETUP Defaults (Y/N)? NÓ

To use the SETUP defaults, change the prompt to ÒYÓ and press
<Enter>.

Note: The SETUP Defaults are optimized for the most stabilized

performance.

Drivers Installation Guide 33

Load BIOS Defaults

Choose this item and the following message appears:

ÒLoad BIOS Defaults (Y/N)?NÓ

To use the BIOS defaults, change the prompt to ÒYÓ and press <Enter>.

Note: BIOS DEFAULTS values are adjusted for high performance. If

you run into any problems after loading BIOS DEFAULTS, please

load the SETUP DEFAULTS for the stable performance.

Integrated Peripherals

The Integrated Peripherals option changes the values of the chipset
registers. These registers control system options in the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Integrated Peripherals as follows.

1. Choose ÒIntegrated PeripheralsÓ from the Main Menu and the

following screen appears. (The screen below shows default
settings.â

IDE HDD Block Mode : Enabled
PCI Slot IDE 2nd Channel : Enabled
On-Chip Primary PCI IDE: Enabled
On-Chip Secondary PCI IDE: Enabled
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto

Onboard FDD Controller : Enabled
Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2 : 2F8/IRQ3
UART 2 Mode : Standard
Onboard Parallel Port : 378H/IRQ7
Onboard Parallel MODE : ECP/EPP
ECP Mode Use DMA : 3
Paralel Port EPP Type : EPP1.7

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values.

Modify selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows:

34 Drivers Installation Guide

IDE HDD Block Mode Choose Enabled (default) or Disabled.

Enabled invokes multi-sector transfer
instead of one sector per transfer. Not all
HDDs support this function.

PCI Slot IDE 2nd
Channel

On-chip Primary/
Secondary PCI IDE

IDE Primary Master PIO

IDE Primary Slave PIO

IDE Secondary Master
PIO

IDE Secondary Slave
PIO

Onboard FDC Controller Enabled: Use the on-board floppy

Onboard Serial Port 1

Onboard Serial Port 2

Choose Enabled (default) or Disabled.
When Enabled is set, IRQ15 is dedicated
for secondary IDE use. When Disabled is
set, IRQ15 is released for other devices.

Enabled: Use the on-board IDE (default)
Disabled: Turn off the on-board IDE

Choose Auto (default) or mode 0~4.
Mode 0 is the slowest speed, and HDD
mode 4 is the fastest speed. For better
performance and stability, we suggest you
use the Auto setting to set the HDD
control timing.

controller (default).

Disabled: Turn off the on-board floppy

controller.

Choose serial port 1 & 2Õs I/O address.
Do no set port 1 & 2 to the same value
except for Disabled.

UART 2 Mode

COM 1/3F8H | COM3/3E8H
COM 2/2F8H | COM4/2E8H
(default) |

Standard: Use standard UART mode

(default).

ASK IR:Use UART with ASKIR

function.

Drivers Installation Guide 35

Onboard Parallel Port Choose the printer I/O address:

378H/IRQ7 (default), 3BCH/IRQ7,
278H/IRQ5

Onboard Printer Mode Choose ECP + EPP (default), SPP or EPP,

ECP mode. The mode depends on your
external device that connects to this port.

ECP Mode DMA Select Choose DMA3 (default) or DMA1. This

setting only works when the Onboard
Printer Mode is set at the ECP mode.

Parallel Port EPP Type

Choose EPP specification Ver. 1.7
(default) or 1.9.

36 Drivers Installation Guide

Supervisor Password

Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS
FEATURES SETUPÓ, this Main Menu item lets you configure the
system so that a password is required every time the system boots or an
attempt is made to enter the Setup program. Change the password as
follows:

1. Choose ÒSUPERVISOR PASSWORDÓ in the Main Menu and press
<Enter>. The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.

(If you do not wish to use the password function, you can just press
<Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears
prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main
Menu.

5. You have the right to change any changeable settings in the ÒCMOS
SETUP UTILITY.Ó

Important: If you forget or lose the password, the only way to access

the system is to set jumper JP5 to clear the CMOS RAM.
All setup information is lost and you must run the BIOS
setup program again.

Drivers Installation Guide 37

User Password

Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS
FEATURES SETUPÓ, this Main Menu item lets you configure the
system so that a password is required every time the system boots or an
attempt is made to enter the Setup program. Change the password as
follows:

1. Choose ÒUSER PASSWORDÓ in the Main Menu and press <Enter>.
The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.

(If you do not wish to use the password function, you can just press
<Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears
prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main
Menu.

5. You are not allowed to change any setting in ÒCMOS SETUP
UTILITYÓ except change userÕs password.

Important: If you forget or lose the password, the only way to access

the system is to set jumper JP5 to clear the CMOS RAM.

All setup information is lost and you must run the BIOS

setup program again.

38 Drivers Installation Guide

IDE HDD Auto Detection

This Main Menu item automatically detects the hard disk type and
configures the STANDARD CMOS SETUP accordingly.

Note: This function is only valid for IDE hard disks.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : None 0 0 0 0 0 0 ----

Primary Slave : None 0 0 0 0 0 0 ---­Secondary Master : None 0 0 0 0 0 0 ---­Secondary Slave : None 0 0 0 0 0 0 ----

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Do you accept this drive C (Y/N)? N

ESC : Skip

4 Drivers Installation Guide

IDE BUS Master Installation Guide

MS-DOS/WINDOW/WFW

1) You should install CD-ROM in secondary channel in Windows

(WFW).

2) Change the current directory to a: or b:.

3) Under DOS command line prompt, run the SETUP directly.

After entering the setup utility, just follow the instructions of the setup.

WINDOWS NT3.5

1) From the Program Manager, double click on ÒWindows NT SetupÓ

in the Main group.

2) Select ÒOptions/Add/Remove SCSI Adapters...Ó.

3) Click on Add.

4) The ÒSelect SCSI Adapter OptionÓ dialog will appear; select ÒOther

(Requires a disk from a hardware manufacturer)Ó from the
ÒAdapter:Ó list box.

5) Next, the ÒInsert DisketteÓ dialog box will appear; insert the Triones

PIIX/PIIX3 Bus Master EIDE/ATAPI Driver disk into Drive A: and
type in Òa:\winnt35Ó and <Return>.

6) Next, the ÒSelect OEM OptionÓ dialog box will appear; select

ÒPIIX/PIIX3 Bus Master EIDE/ATAPIÓ and click ÒOKÓ.

7) Next, the ÒSelect SCSI Adapter OptionÓ dialog box will appear;

click on the ÒInstallÓ button in the dialog box. If installation is
successful, the ÒSCSI Adapter SetupÓ dialog box will reappear, and
ÒPIIX/PIIX3 Bus Master EIDE/ATAPIÓ will be listed. That means
the driver is installed.

8) Reboot your system to load the driver.

40 Drivers Installation Guide

WINDOWS 95

1) Close any running applications.

2) Insert the floppy disk into drive A:.

3) Open ÒMy ComputerÓ, double click ÒDrive A:Ó.

4) Double click ÒWin95Ó.

5) Double click the Setup program.

6) Then just follow the instruction.

NOVELL 3.X&4.X

1) Copy the driver TRIN4X.DSK or TRIN312.DSK to the subdirectory

which holds the file SERVER.EXE.

2) Boot up the file server.

3) On the system console and on the command prompt state, type in:

load TRIN4X.DSK <Enter> or load TRIN312.DSK <Enter>

You can also include the above command line into the start up file
STARTUP.NCF to load the driver automatically.

SCO UNIX

1) Install SCO UNIX 3.2.x or SCO Open Desktop 3.x using the default

SCO IDE driver.

2) Reboot your SCO UNIX system

3) Insert Triones supplied diskette into the 3.5 inch floppy drive of

your system. Use doscp command to copy the file TRISCO.TAR to
your /tmp directory. for example, if you are using floppy drive A,
type: doscp a:/scounix/trisco.tar/tmp/trisco.tar

Drivers Installation Guide 41

4) From root directory, type the following commands:

mkdir/inst
cd /inst
tar xvf /tmp/trisco.tar.

(Note: there is a period at the end of the last command.)

5) Now, insert a blank diskette into the floppy drive A and type:

tar cvf /dev/<your floppy drive A device name>.

(Note: there is a period at the end of the last command.)

Your floppy drive A device name could be:

¥ rfd096ds15,5.25 DSHD
¥ rfd0135ds18 3.5 DSHD
¥ rfd048ds9 5.25 DSDD
¥ rfd0135ds9 3.5 DSDD

Now you have already made an installation diskette for the device
driver.

Start the installation by typing: custom.

6) Select the ÒInstallÓ operation and then follow the guided steps.

When prompted ÒDo you want to set the device configuration (y/n)Ó,
answer ÒnÓ.

7) Reboot your SCO UNIX system.

SCO UNIX 5.0

1) Install SCO UNIX 5.0 using the default SCO IDE driver.

2) Reboot your SCO UNIX system

3) Insert Triones supplied diskette into the 3.5 inch floppy drive of

your system. Use doscp command to copy the file TRISCO.TAR to
your /tmp directory. for example, if you are using floppy drive A,
type: doscp a:/scounix/trisco5.tar/tmp/trisco5.tar

42 Drivers Installation Guide

4) From root directory, type the following commands:

mkdir/inst
cd /inst
tar xvf /tmp/trisco.tar.

(Note: there is a period at the end of the last command.)

5) Install the driver by typing:

./install

6) Reboot your SCO UNIX system..

OS/2 2.0 and WARP 3.X

1) Copy TRIOS2.ADD from the floppy diskette to your hard disk

under the OS2 directory (i.e., C:\OS2).

2) Edit C:\CONFIG.SYS to replace BASEDEV=IBM1S506.ADD

with BASEDEV=TRIOS2.ADD

3) Reboot the system.

Note: For more information (like parameter settings, driver de-

installation, etc.), please refer to the README.TXT file on the

diskette.
