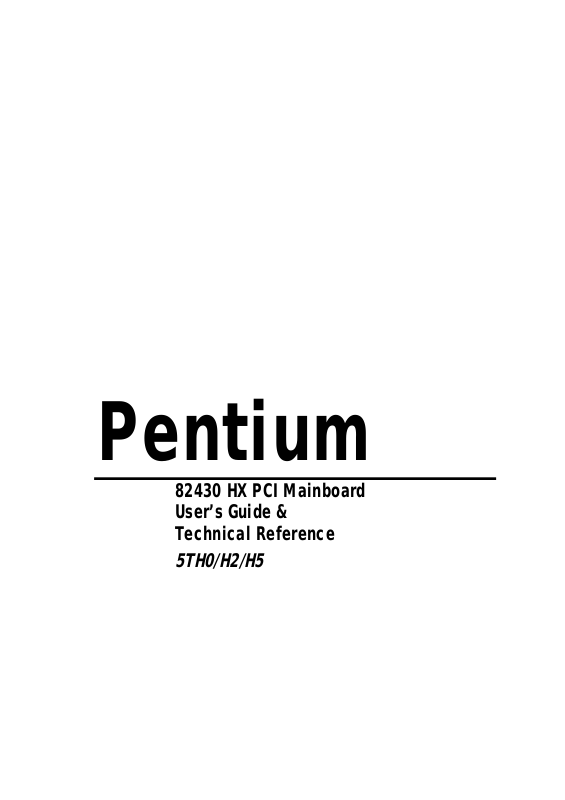

Soyo SY-5TH User Manual

Pentium

82430 HX PCI Mainboard
User’s Guide &

Technical Reference

5TH0/H2/H5

ii

®

™

About This Guide

This UserÕs Guide is for assisting system manufacturers and end users in setting
up and installing the mainboard. Information in this guide has been carefully
checked for reliability; however, no guarantee is given as to the correctness of the
contents. The information in this document is subject to change without notice.

Copyright Notice

Copyright 1996, Soyo Computer Inc. All rights reserved. This manual is
copyrighted by Soyo Computer Inc. You may not reproduce, transmit, transcribe,
store in a retrieval system, or translate into any language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise,
any part of this publication without express written permission of Soyo Computer
Inc.

Trademarks

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the
property of their owners.

Disclaimer

Soyo Computer Inc. makes no representations or warranties regarding the
contents of this manual. We reserve the right to revise the manual or make
changes in the specifications of the product described within it at any time
without notice and without obligation to notify any person of such revision or
change. The information contained in this manual is provided for general use by
our customers. Our customers should be aware that the personal computer field is
the subject of many patents. Our customers should ensure that they take
appropriate action so that their use of our products does not infringe upon any
patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of
third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions set
forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013

.

Product Rights

Product mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks
or copyrights of their respective companies.

If you need any further information, please come to our home page on
internet. The address is Òhttp://www.soyo.com.twÓ.

Edition: August 1996
Version 1.0
5TH0/H2/H5 SERIAL

Table of Contents

Chapter 1: Introduction .................................................... 1

Key Features ................................................................................. 1

Unpacking the Mainboard............................................................. 2

Electrostatic Discharge Precautions.............................................. 2

Mainboard Layout w/ Default Settings ......................................... 3

Chapter 2: Hardware Setup .............................................. 5

Jumpers ......................................................................................... 5

JP3: Display Type ................................................................... 5

JP5: CMOS Clear Jumper ....................................................... 6

JPS2: PS/2 Mouse Function Jumper ....................................... 6

CPU Type Configuration .............................................................. 7

Step 1: Frequency Setting....................................................... 7

Pentium Ð 75/90/100 CPU Settings (1.5 x clock)............. 7

Pentium Ð 100/120/133 CPU Settings (2.0 x clock)......... 8

Pentium Ð 150/166 CPU Settings (2.5 x clock)................ 8

Pentium Ð 180/200 CPU Settings (3.0 x clock)................ 9

Step 2: CPU Single/Dual Voltage Setting.............................. 9

Single Voltage CPU Setting ............................................. 9

Dual Voltage CPU Setting.............................................. 10

Memory Configuration ............................................................... 10

Cache Configuration ................................................................... 10

Cache Size and RAM Locations ........................................... 11

Multi I/O Port Addresses ............................................................ 11

Connectors .................................................................................. 12

COM1/COM2 Connectors..................................................... 12

JP40 Ð CE Test Jumper Pin ................................................... 12

FDC Connector ..................................................................... 12

J19 Ð Hardware Reset Control............................................... 12

J24 Ð HDD LED Connectors ................................................. 12

IDE1/IDE2 Ð On-board Primary/Secondary IDE HDD

Connectors ............................................................................. 12

J5 Ð IR Connector.................................................................. 12

J17 Ð Keylock & Power LED Connector .............................. 13

Keyboard Connector ............................................................. 13

J3 Ð PS/2 Mouse, PS/2 Keyboard Connector ........................ 13

PW Ð Power Supply Connectors ........................................... 13

PRT Ð Parallel Port Connector .............................................. 13

J23: Sleep Switch Connector Enable/Disable ....................... 14

J18 Ð Speaker Connector ....................................................... 14

J4, J6 Ð Universal Serial bus Connector (Optional) .............. 14

J22 Ð Turbo LED Connector ................................................. 14

Chapter 3: BIOS Setup.................................................... 15

Standard CMOS Setup ................................................................ 16

BIOS Features Setup ................................................................... 17

Chipset Features Setup................................................................ 20

Power Management Setup .......................................................... 23

PNP/PCI Configuration Setup .................................................... 25

Load Setup Defaults.................................................................... 26

Load BIOS Defaults.................................................................... 27

Integrated Peripherals ................................................................. 27

Supervisor Password ................................................................... 30

User Password ............................................................................. 31

IDE HDD Auto Detection ........................................................... 32

Chapter 4: Drivers Installation Guide ........................... 33

IDE BUS Master Installation Guide ........................................... 33

MS-DOS/WINDOW/WFW .................................................. 33

WINDOWS NT3.5 ................................................................ 33

WINDOWS 95 ...................................................................... 34

NOVELL 3.X&4.X ............................................................... 34

SCO UNIX ............................................................................ 34

SCO UNIX 5.0 ...................................................................... 35

OS/2 2.0 and WARP 3.X....................................................... 36

1 Introduction

The 82430 HX PCI mainboard is a high-performance Dual-processor
system board that supports P54CX/P55CX family CPUs. You can order
256K or 512K of external cache memory on the mainboard. The
mainboard is fully compatible with industry standards, and adds many
technical enhancements.

Key Features

¥ CPU

Ñ Supports Dual P54CX/P55CX family CPUs running at 75 ~ 200

MHz speeds

Ñ Supports two SOCKET 7 for upgrade

Ñ Supports P54CX/P55CX SMM Mode and CPU Stop Clock

¥ L2 Cache Controller

Ñ Write Back Cache Modes and Direct Mapped Organization
Ñ On-board 256K/512K Pipeline Burst SRAMs Cache

¥ DRAM Controller

Ñ Supports Fast-Page Mode, and EDO DRAM (both symmetrical

and asymmetrical addressing)
Ñ On-board memory configurations from 4 to 256 Mbytes
Ñ Supports ÒTable-FreeÓ DRAM configuration in any SIMM

bank

¥ BUS Controller

Ñ Compliant to PCI specifications v2.1
Ñ Four 32-bit PCI slots (Masters) and Four ISA slots, 4-layer PCB

Ñ Supports Universal Serial Bus Ñ USB (Optional)

¥ Peripheral Controller

Ñ System BIOS built-in NCR306 SCSI Card BIOS and ÒPlug and

PlayÓ function

Ñ On-board built-in PCI Master IDE controller and floppy

controller

Ñ On-board supports for two high speed UARTS (w/i 16550 FIFO),

one ECP/EPP/SPP compatible parallel port, one PS/2 mouse port,
and IR function

Ñ On-board supports FLASH Memory for easy upgrade BIOS
Ñ Easy installation of Triones EIDE/ATAPI CD-ROM Bus

Master Drivers

2 Introduction

Unpacking the Mainboard

The mainboard package contains:

¥ The 82430HX Mainboard
¥ This User's Guide
¥ One IDE Bus Master driver and three audio drivers diskettes

Note: Do not unpack the mainboard until you are ready to install it.

Follow the precautions below while unpacking the mainboard.

1. Before handling the mainboard, ground yourself by grasping an
unpainted portion of the systemÕs metal chassis.

2. Remove the mainboard from its anti-static packaging and place it on a
grounded surface, component side up.

3. Check the mainboard for damage. If any chip appears loose, press
carefully to seat it firmly in its socket.

Do not apply power if the mainboard appears damaged. If there is
damage to the board contact your dealer immediately.

Electrostatic Discharge Precautions

Make sure you ground yourself before handling the mainboard or other
system components. Electrostatic discharge can easily damage the
components. Note that you must take special precaution when handling
the mainboard in dry or air-conditioned environments.

Take these precautions to protect your equipment from electrostatic
discharge:

¥ Do not remove the anti-static packaging until you are ready to install

the mainboard and other system components.

¥ Ground yourself before removing any system component from its

protective anti-static packaging. To ground yourself grasp the
expansion slot covers or other unpainted portions of the computer
chassis.

¥ Frequently ground yourself while working, or use a grounding strap.

¥ Handle the mainboard by the edges and avoid touching its

components.

Introduction 3

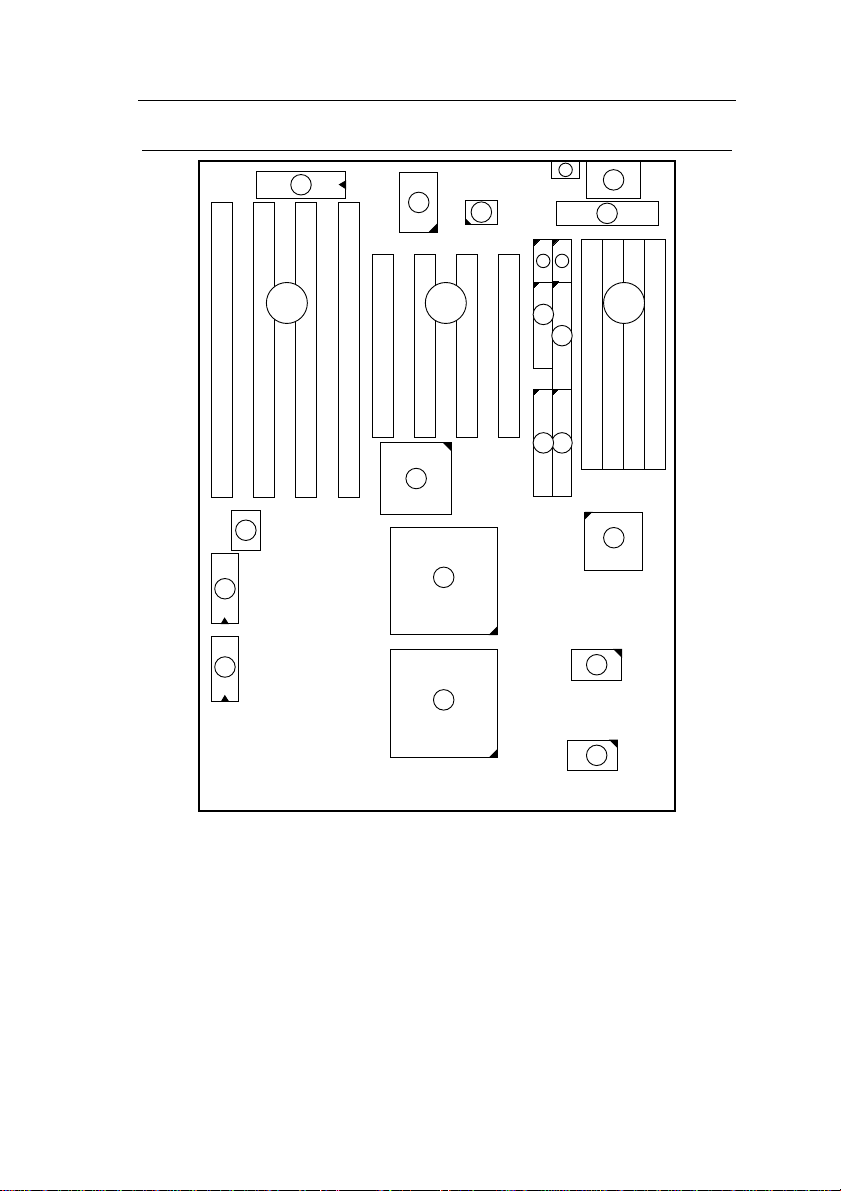

Mainboard Layout w/ Default Settings

7

18

18

14 14

17

16

15

8 9 10

2

4

5

6

1

1

13

11

1212

2

3

3

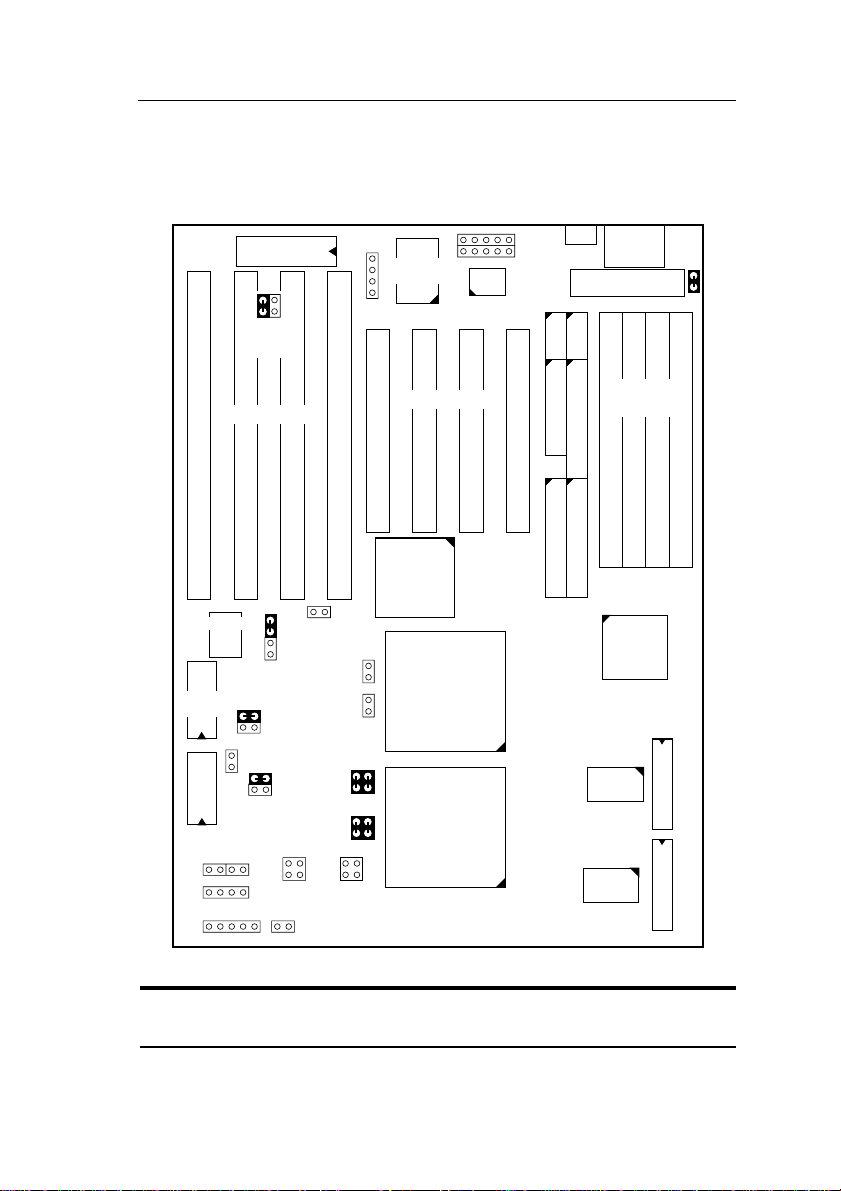

Figure 1Ð1. Mainboard Layout

1. P54C in ZIF socket 7 10. SIMM Bank

2. 82430 HX Chipset 11. Floppy Connector

3. Pipelined Burst SRAM 12. IDE1/IDE2 Connector

4. Dual CPU Controller 13. Parallel Port Connector

5. PnP FLASH BIOS 14. COM1/COM2 Connector

6. Real Time Clock (RTC) 15. AT Power Connector

7. Keyboard BIOS 16. KB Connector

8. ISA Slots 17. PS/2 Connector

9. PCI Slots 18. Super I/O chip

4 Introduction

Default settings are as follows: Pentium 100MHz CPU, 256K
Pipelined Burst cache, On-board PCI E-IDE Enabled, 2 high speed
UARTS Enabled (w/ 16550 FIFO), and 1 EPP/ECP port (ECP + EPP
mode).

KB BIOS

JPS2

JP3

ISA SLOT

IR

J5

Super I/O

Chip

PCI SLOT

J3

COM1

FDC1

KB

Conn.

PW

DRAM

BANK

J4
J6

CHIP

USB

1

I/O

COM2

PRT

JP40

#1#2

IDE2

IDE1

#1 #2 #3

82439 HX

#4

82093AA

#3 #2 #1

JP11

JP10

#3#4

82371 SB

J23

JP13 JP14

586

FLASH

BIOS

JP5

RTC

J18

Keylock

ResetIDELED

1

SPK

1

J24 J19

J17 J7

JP30
JP31

JP29
JP28

JP42

TB LED

JP44

JP41

JP43

1
2

CPU

Family

1
2

586

1
2

CPU

Family

1
2

P.B. SRAM

32k x 32

P.B. SRAM

32k x 32

Figure 1Ð2. Mainboard Default Setting

Important: Make sure the system is well ventilated to prevent

overheating and ensure system stability.

#4

16Kx8 TAG

16Kx8 TAG

2 Hardware Setup

This chapter explains how to configure the mainboardÕs hardware. After
you install the mainboard, you can set jumpers, install memory on the
mainboard, and make case connections. Refer to this chapter whenever
you upgrade or reconfigure your system.

CAUTION: Turn off power to the mainboard, system chassis, and

peripheral devices before performing any work on the

mainboard or system.

Jumpers

JP3: Display Type

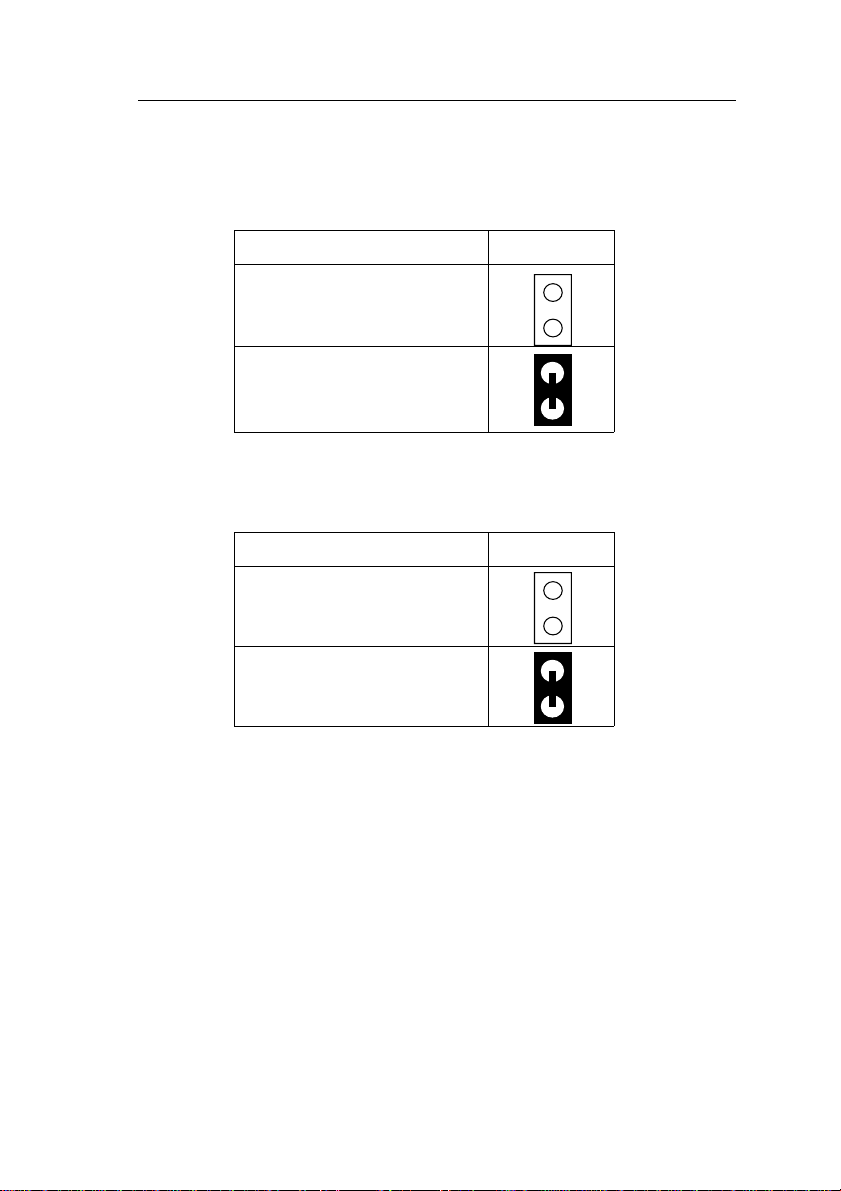

Set JP3 to configure the mainboard for use with either a color or
monochrome monitor.

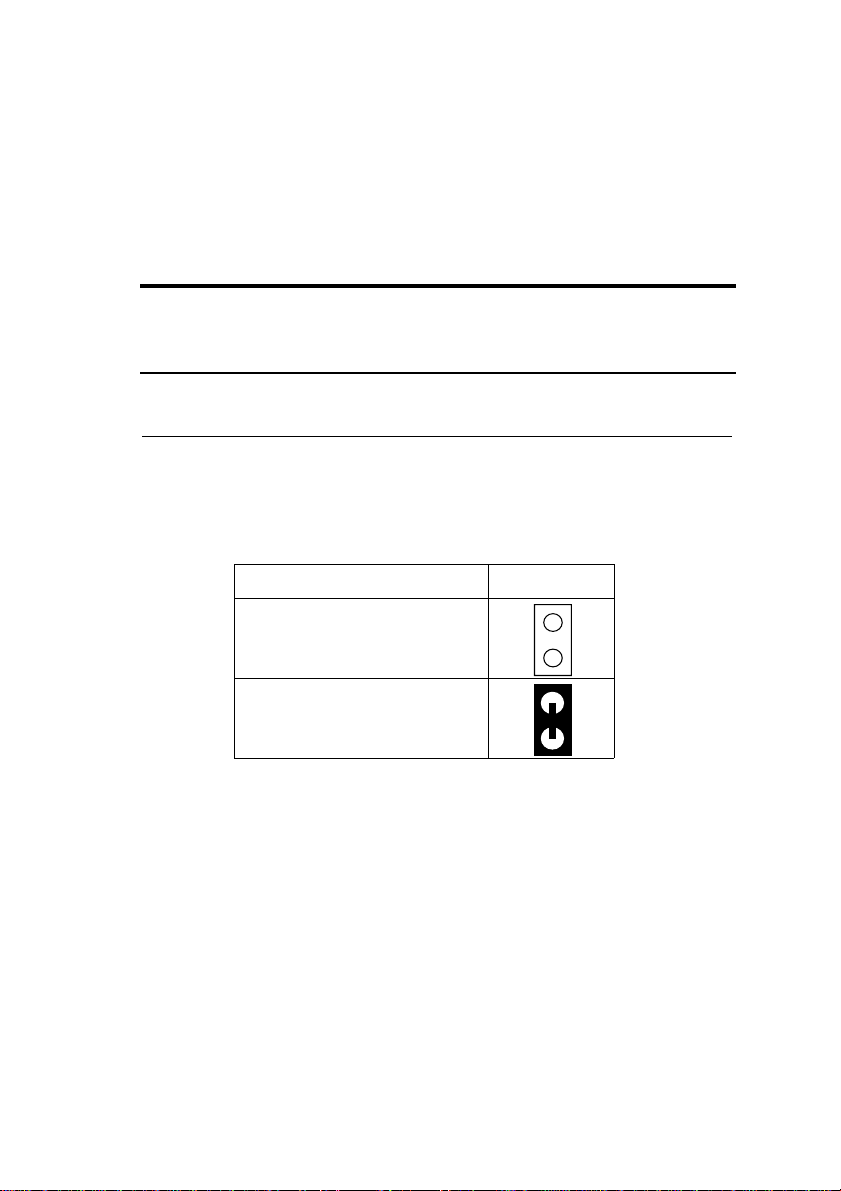

Monitor Type JP3

Monochrome

EGA/VGA

(default)

6 Hardware Setup

JP5: CMOS Clear Jumper

Clear the CMOS memory by momentarily shorting this jumper; then
open the jumper to retain new settings.

CMOS Setting JP5

Retain CMOS data

(default)

Clear CMOS data

JPS2: PS/2 Mouse Function Jumper

Set PS/2 mouse function enabled or disabled.

PS/2 Mouse Function JPS2

Disabled

(default)

Enabled

Note: The IRQ12 is dedicated to the PS/2 mouse when choosing enabled

of PS/2 Mouse Function.

Hardware Setup 7

CPU Type Configuration

This section shows you how to configure your CPU step by step. Note
that you need to check the CPU voltage before installation. If you want
to use both CPUs, remember that you can only install the same type,
voltage, and frequency CPUs in.

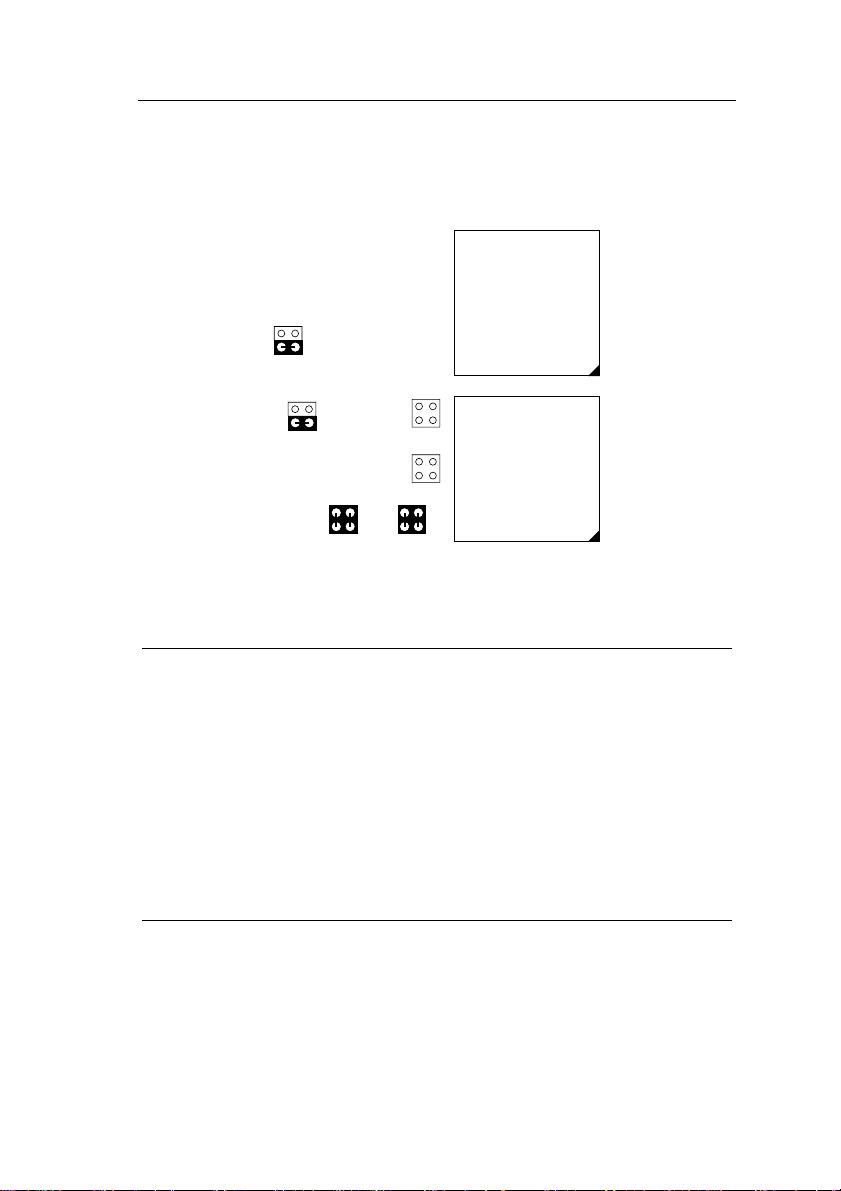

❑ Step 1: Frequency Setting

Pentium – 75/90/100 CPU Settings (1.5 x clock)

Pentium – 75/50 MHz

JP11
JP10

Pentium – 90/60 MHz

JP11

JP11

JP10

JP13 JP14

586

CPU

Family

JP10

Pentium – 100/66 MHz

JP11
JP10

586

CPU

Family

Figure 2Ð1Ð1. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

8 Hardware Setup

Pentium – 100/120/133 CPU Settings (2.0 x clock)

Pentium – 100/50 MHz

JP11
JP10

Pentium – 120/60 MHz

JP11

JP11

JP10

JP13 JP14

586

CPU

Family

JP10

Pentium – 133/66 MHz

JP11
JP10

586

CPU

Family

Figure 2Ð1Ð2. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

Pentium – 150/166 CPU Settings (2.5 x clock)

JP11

JP10

Pentium – 150/60 MHz

JP11

JP13 JP14

586

CPU

Family

JP10

Pentium – 166/66 MHz

JP11
JP10

586

CPU

Family

Figure 2Ð1Ð3. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

Hardware Setup 9

Pentium – 180/200 CPU Settings (3.0 x clock)

JP11

JP10

Pentium – 180/60 MHz

JP11

JP13 JP14

586

CPU

Family

JP10

Pentium – 200/66 MHz

JP11
JP10

586

CPU

Family

Figure 2Ð1Ð4. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

❑ Step 2: CPU Single/Dual Voltage Setting

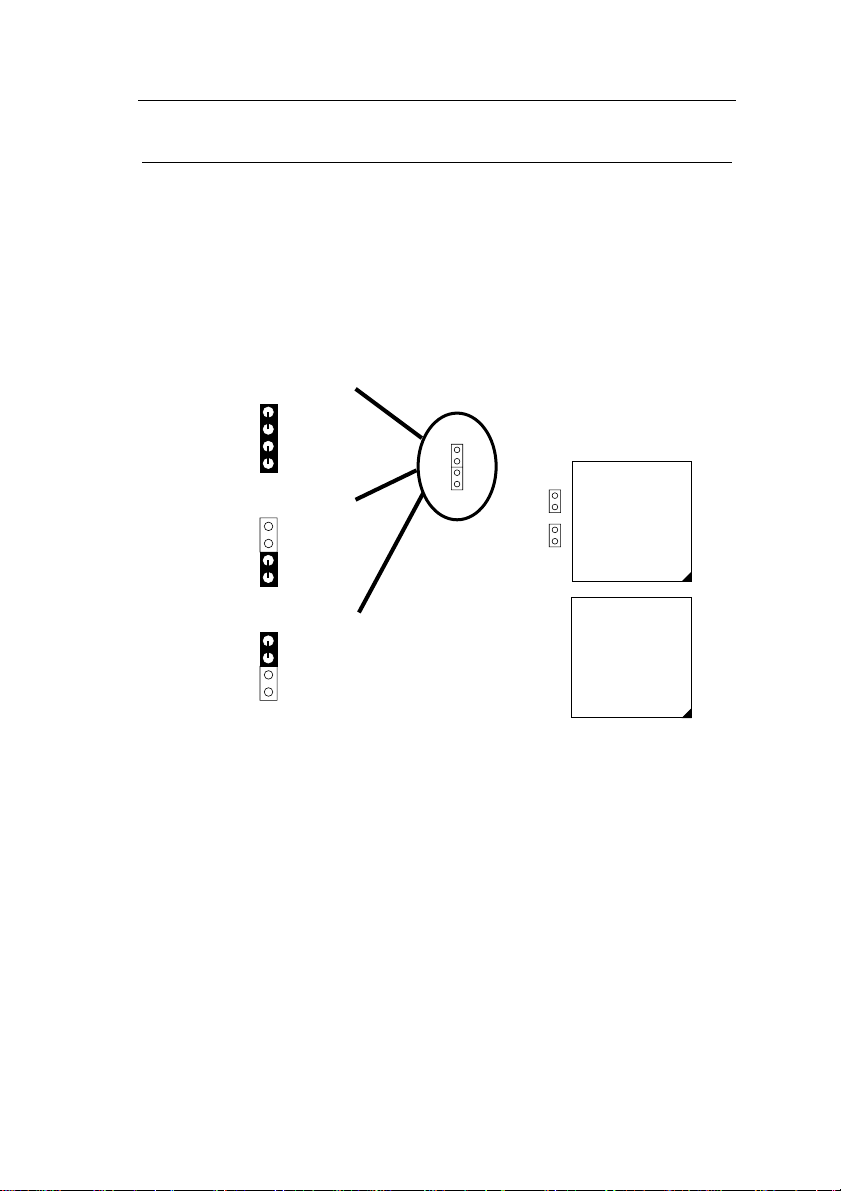

Single Voltage CPU Setting

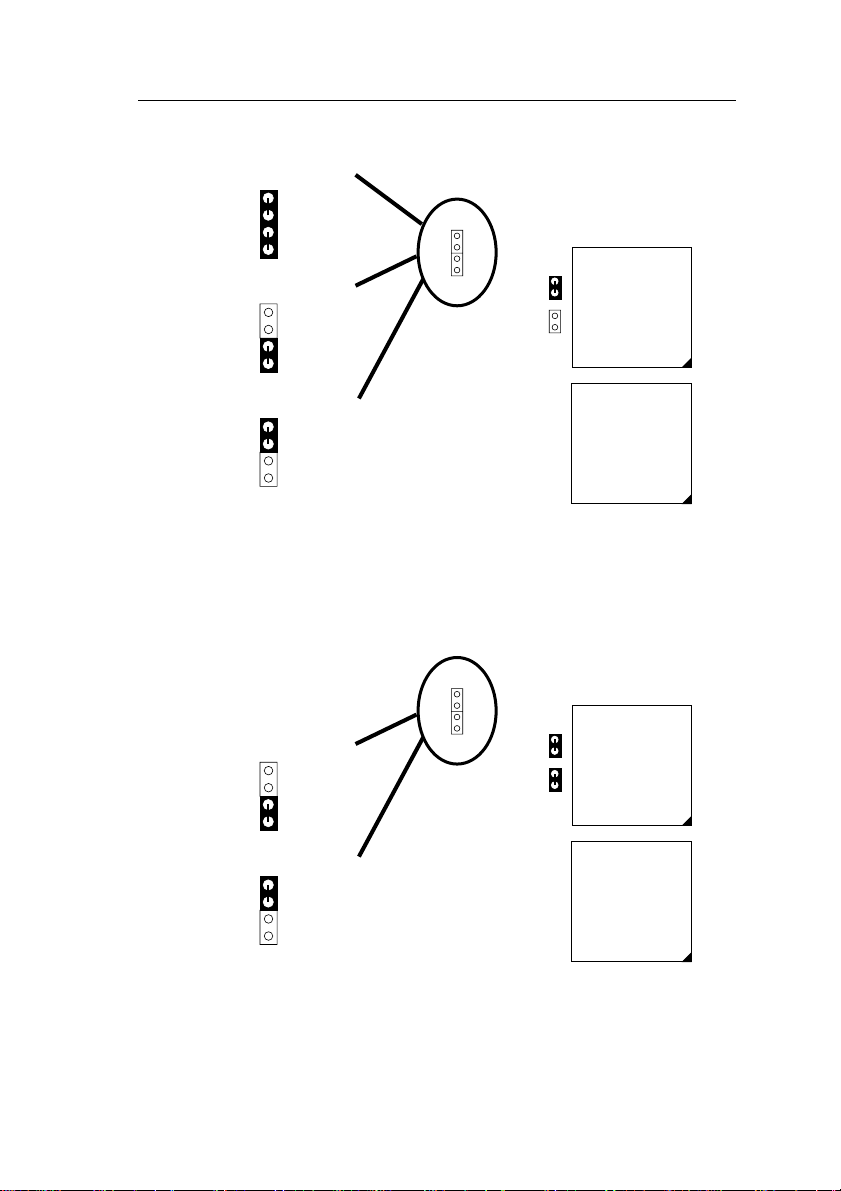

Signal voltage CPUs use the same voltage for VIO and VCore and has
been used traditionally. The CPUs which fall into this category are Intel
P54CX. Refer to the following figures to set these CPUsÕ voltage:

586

CPU

JP30
JP31

JP29
JP28

JP42

JP44

JP41

JP43

1
2

1
2

Family

1
2

1
2

586

CPU

Family

Figure 2Ð2Ð1. Single Voltage 3.3V CPU

10 Hardware Setup

Dual Voltage CPU Setting

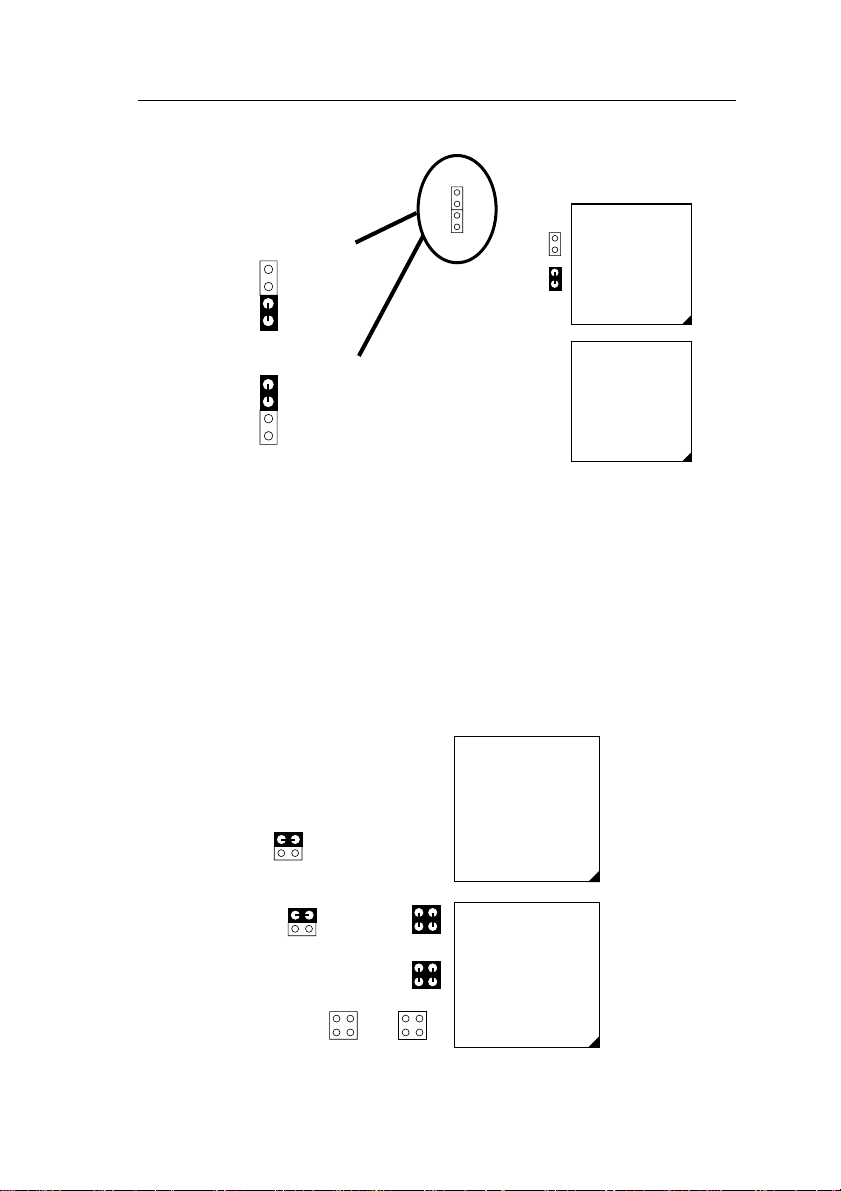

Dual voltage CPUs are designed to use different voltage for VIO and
VCore and they include Intel P55CX. Refer to the following figures to
set these CPUsÕ voltage:

586

CPU

JP30
JP31

JP29
JP28

JP44

JP41

JP43JP42

1
2

1
2

Family

1
2

1
2

586

CPU

Family

Figure 2Ð2Ð2. Intel P55CX (VIO = 3.3V, VCore = 2.8V)

Memory Configuration

The mainboard supports two banks of 72-pin SIMM, EDO DRAM.
The mainboard requires SIMM of at least 70ns access time.

The mainboard supports from 4 to 256 Mbytes with no other restrictions
on memory configurations. You can install SIMM in any combination
without having to rely on a memory configuration table. Memory
configuration is thus ÒTable-FreeÓ in any SIMM bank. You must install
two strips of SIMM modules to complete a bank.

Cache Configuration

The mainboard has a write-back caching scheme. You can order 256KB
or 512KB Level 2 Pipelined Burst cache onboard to improve the system
performance.

Hardware Setup 11

Cache Size and RAM Locations

Cache Size Cache RAM TAG RAM

256KB 32K x32, 2 pcs

on U10, U11

512KB 64K x 32, 2pcs

on U10, U11

16K x 8

on U8, U9

16K x 8

on U8, U9

Cacheable

Range

512 MB

512 MB

Multi I/O Port Addresses

Default settings for multi-I/O port addresses are shown in the table
below.

Port I/O Address IRQ Status

LPT1* 378H 7 ECP + EPP

COM1 3F8H 4

COM2 2F8H 3

* If default I/O port addresses conflict with other I/O cards (e.g. sound

cards or I/O cards), you must adjust one of the I/O addresses to avoid
address conflict. (You can adjust these I/O addresses from the BIOS.

Note: Some sound cards have a default IRQ setting for IRQ7, which may

conflict with printing functions. If this occurs do not use sound
card functions at the same time you print.

12 Hardware Setup

Connectors

Attach the mainboard to case devices, or an external battery, via
connectors on the mainboard. Refer to Figure 1-1 for connector locations
and connector pin positions.

COM1/COM2 Connectors

Attach COM1/COM2 device cable to these connectors.

JP40 – CE Test Jumper Pin

This connector is reserved for the CE test. If you have some problems
during the CE test, unplug the jumper pin and try again.

FDC Connector

Attach floppy cable to this connector.

J19 – Hardware Reset Control

Attach the Reset switch to J19. Closing the Reset switch restarts the
system.

J24 – IDE LED Connectors

Attach on-board hard disk drive LEDs to this connector. The LED lights
when an HDD is active.

IDE1/IDE2 – On-board Primary/Secondary IDE HDD
Connectors

Attach on-board hard disk drives to these connectors.

J5 – IR Connector

Attach a 4-pin infrared device cable to this connector for enabling the
infrared transfer function. This mainboard meets the specification of
ASKIAR and HPSIR.

Hardware Setup 13

J17 – Keylock & Power LED Connector

J17 is a connector for a lock that may be installed on the system case for
enabling or disabling the keyboard. J17 also attaches to the caseÕs Power
LED. (Pin 1, 3 for power LED, pin 4, 5 for keylock.)

KB Conn – Keyboard Connector

A five-pin female DIN keyboard connector is located at the rear of the
board. Plug the keyboard jack into this connector.

J3 – PS/2 Mouse Connector

Attach PS/2 mouse cable to this connector for enabling the mouse
function. And also, you need to enable the PS/2 mouse function by
putting the jumper cap on JPS2 jumper.

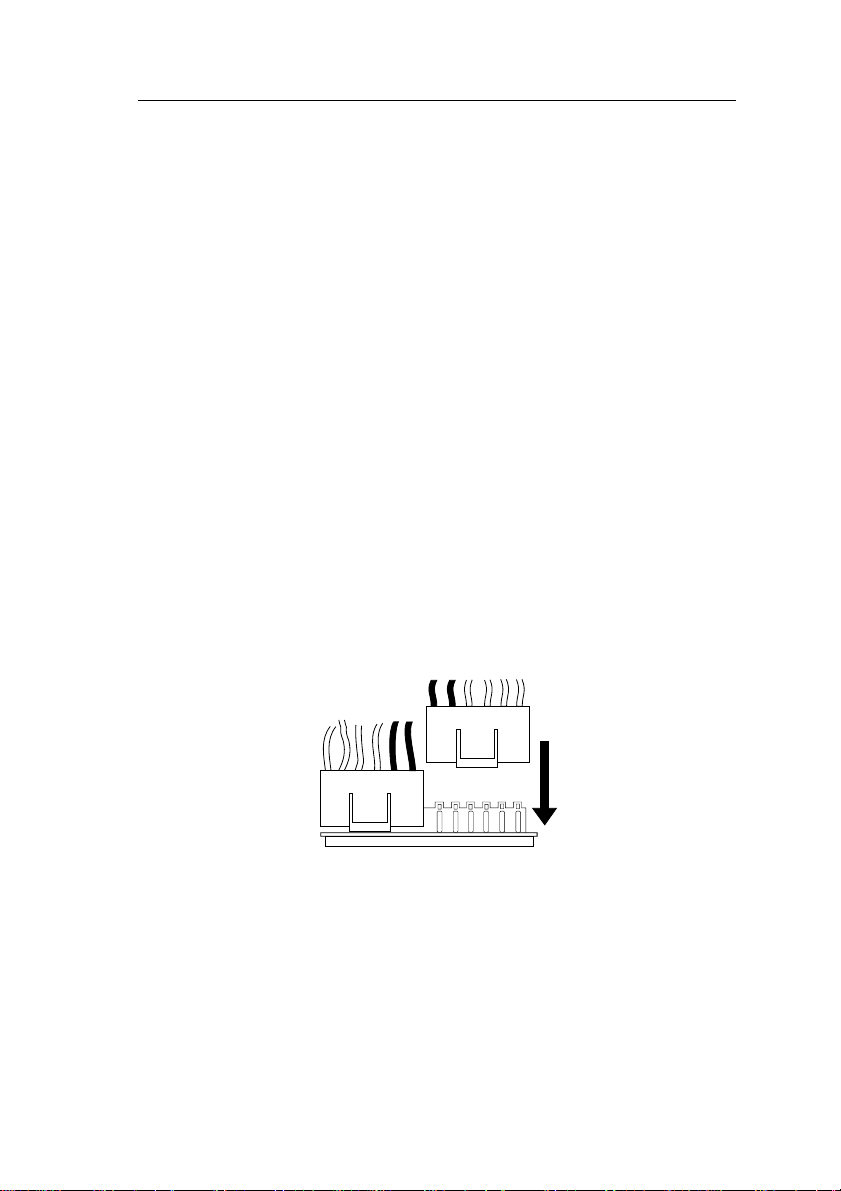

PW – Power Supply Connectors

The mainboard requires a power supply with at least 200 watts and a
Òpower goodÓ signal. PW has two six-pin male header connectors. Plug
the dual connectors from the power directly onto the board connector
while making sure the black leads are in the center.

PRT – Parallel Port Connector

Attach parallel port cable to this connector.

14 Hardware Setup

J23: Sleep Switch Connector Enable/Disable

Toggle this jumper to force the system into power saving (Green) mode.
Any hardware IRQ signal makes the system wakeup.

J18 – Speaker Connector

Attach the system speaker to connector J18.

J22 – Turbo LED Connector

Attach the turbo LED to J22. The LED lights when the system is in
Turbo mode.

J4, J6 – Universal Serial bus Connector (Optional)

Attach USB cable to these connectors for external USB device.

3 BIOS Setup

The mainboardÕs BIOS setup program is the ROM PCI/ISA BIOS from
Award Software Inc. Enter the Award BIOS programÕs Main Menu as
follows:

1. Turn on or reboot the system. After a series of diagnostic checks, you
are asked to press DEL to enter Setup.

2. Press the <DEL> key to enter the Award BIOS program and the main
screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PCI & ONBOARD I/O SETUP

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

Esc : Quit ↑ ↓ → ← : Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color

Time, Date, Hard Disk Type...

3. Choose an option and press <Enter>. Modify the system parameters
to reflect the options installed in the system. (See the following
sections.)

4. Press <ESC> at anytime to return to the Main Menu.

5. In the Main Menu, choose ÒSAVE AND EXIT SETUPÓ to save your
changes and reboot the system. Choosing ÒEXIT WITHOUT
SAVINGÓ ignores your changes and exits the program.

The Main Menu options of the Award BIOS are described in the sections
that follow.

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

16 BIOS Setup

Standard CMOS Setup

Run the Standard CMOS Setup as follows.

1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu. A screen
appears.

Date (mm:dd:yy) : Fri, Feb 1 1995
Time (hh:mm:ss) : 7 : 30 : 33

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : None 0 0 0 0 0 0 ----

Primary Slave : None 0 0 0 0 0 0 ---­Secondary Master : None 0 0 0 0 0 0 ---­Secondary Slave : None 0 0 0 0 0 0 ----

Drive A : 1.44M, 3.5 in.
Drive B : None

Video : EGA/VGA
Halt On : All Errors

Esc : Quit ↑ ↓ → ← : Select Item PU/PD/+/– : Modify
F11 : Help (Shift) F2 : Change Color F3 : Toggle Calendar

2. Use arrow keys to move between items and select values. Modify
selected fields using PgUp/PgDn/+/Ð keys. Some fields let you enter
values directly.

Date (mm/dd/yy) Type the current date.

Time (hh:mm:ss) Type the current time.

Primary
(Secondary)
Master & Slave

Drive A & B Choose 360KB , 5 1/4 in.,

Video Choose Monochrome,

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Base Memory: 640K

Extended Memory: 3328K

Other Memory: 128K

Total Memory: 4096K

Choose from the standard hard disk types 1 to

46. Type 47 is user definable. If a hard disk is
not installed choose ÒNot installed.Ó (default)

1.2MB , 5 1/4 in.,
720KB , 3 1/2 in.,

1.44M , 3 1/2 in.(default),

2.88 MB, 3 1/2 in. or
Not installed

Color 40x25,
VGA/EGA (default),
Color 80x25

3. When you finish, press the <ESC> key to return to the Main Menu.

BIOS Setup 17

BIOS Features Setup

Run the BIOS Features Setup as follows.

1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a
screen with a list of items appears. (The screen below shows the
BIOS default settings.)

CPU Internal Cache : Enabled
External Cache : Enabled
Quick Power on Self Test : Enabled
Boot Sequence : A,C
Swap Floppy Drive : Disabled
Boot Up NumLock Status : On
Gate A20 Option : Fast
Typematic Rate Setting : Disabled
Typematic Rate (Chars/Sec): 6
Typematic Delay (Msec) : 250
Security Option : Setup
PCI/VGA Palette Snoop : Disabled
OS Select for DRAM >64MB : Non-OS2

2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/Ð keys. <F> keys
are explained below:

<F1>: ÒHelpÓ gives options available for each item.

Shift <F2>: Change color.

<F5>: Get the old values. These values are the values with
which the user started the current session.

<F6>: Load all options with the BIOS Setup default values.

<F7>: Load all options with the Power-On default values.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Video BIOS Shadow : Enabled
C8000-CBFFF Shadow : Disabled
CC000-CFFFF Shadow : Disabled
D0000-D3FFF Shadow : Disabled
D4000-D7FFF Shadow : Disabled
D8000-DBFFF Shadow : Disabled
DC000-DFFFF Shadow : Disabled

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of screen items follows:

CPU Internal
Cache

This option enables/disables the CPUÕs internal
cache. (The Default setting is Enabled.)

External Cache This option enables/disables the external cache

memory. (The Default setting is Enabled.)

Quick Power

Enabled provides a fast POST at boot-up .

On Self Test

18 BIOS Setup

Boot Sequence The default setting attempts to first boot from drive

A:, drive C, or CD-ROM. You can reverse this
sequence with ÒC: A:Ó, but then drive A: cannot boot
directly. (It depends on the specifications of CD­ROM or CD-ROM drivers to boot from CD-ROM.)

Swap Floppy
Drive

Boot Up Num
Lock Status

Gate A20
Option

Typematic Rate
Setting

Typematic Rate
(Chars/Sec)

Typematic
Delay (Msec)

Security Option Choose Setup or System. Use this feature to prevent

Enabled changes the sequence of the A: and B:
drives. (The Default setting is Disabled.)

Choose On or Off. On puts numeric keypad in Num
Lock mode at boot-up. Off puts this keypad in arrow
key mode at boot-up.

Choose Fast (default) o Normal. Fast allows RAM
accesses above 1MB using the fast gate A20 line.

Enable this option to adjust the keystroke repeat rate.

Choose the rate a character keeps repeating.

Choose how long after you press a key that a
character begins repeating.

unauthorized system boot-up or use of BIOS Setup.

ÒSystemÓ Ð Each time the system is booted the
password prompt appears.

ÒSetupÓÐ If a password is set, the password prompt
only appears if you attempt to enter the Setup
program.

PCI/VGA
Palette Snoop

OS Select for
DRAM >64MB

Enabled: The color of the monitor may be incorrect

if uses with MPEG card. Enable this
option to make the monitor normal.

Disabled: Default setting.

OS2: Choosing this when you are using OS/2

operation system.

Non-OS/2: Choosing this when you are using no-

OS/2 operation system.

BIOS Setup 19

Video or
Adapter BIOS
Shadow

3. After you have finished with the BIOS Features Setup program, press
the <ESC> key and follow the screen instructions to save or disregard
your settings.

BIOS shadow copies BIOS code from slower ROM
to faster RAM. BIOS can then execute from RAM.
These 16K segments can be shadowed from ROM to
RAM. BIOS is shadowed in a 16K segment if it is
enabled and it has BIOS present.

20 BIOS Setup

Chipset Features Setup

The Chipset Features Setup option changes the values of the
chipset registers. These registers control system options in
the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Chipset Features Setup as follows.

1. Choose ÒCHIPSET FEATURES SETUPÓ from the Main Menu and
the following screen appears. (The screen below shows default
settings.)

Auto Configuration : Enabled
DRAM Timing : 70 ns
DRAM RAS# Precharge Time : 4
DRAM R/W Leadoff Timing : 6
Fast RAS# To CAS# Delay : 3
DRAM Read Burst Timing : x333x444
DRAM Write Burts Timing : x333
Fast MA to RAS# Delay CLK: 1
Fast EDO Path Select : Enabled
Refresh RAS# Assertion : 5 CLKS
ISA Bus CLock : PCICLK/4

System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Peer Concurrency : Enabled
Early NA Control : Enabled

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows:

Auto Configuration Enable this option (strongly

recommended) and the system
automatically sets all options on the left
side of the screen (except cache update
mode & BIOS cacheable).

If this option is Enabled you must boot
from Turbo mode.

BIOS Setup 21

DRAM Timing Choose the right speed to fit your

DRAMÕs spec.

DRAM RAS Precharge
Time

DRAM R/W Leadoff
Timing

DRAM RAS to CAS
Delay

DRAM Read Burst
Timing

DRAM Write Burst
Timing

Fast MA to RAS# Delay
CLK

Fast EDO Path Select Use the default setting.

Refresh RAS# Assertion Use the default setting.

ISA Bus Clock Use BIOS default setting or choose:

System BIOS Cacheable Disabled: The ROM area F0000H-

Use the default setting.

Use the default setting.

Use the default setting.

Use the default setting.

Use the default setting.

Use the default setting.

/4: for 60, 66MHz CPU Bus Frequency

/3: for 50, 55MHz CPU Bus Frequency.

FFFFFH is not cached.

Enabled: The ROM area F0000H-

FFFFFH is cacheable if cache
controller is enabled.

Video BIOS Cacheable Disabled: The video BIOS C0000H-

C7FFFH is not cached.

Enabled: The video BIOS C0000H-

C7FFFH is cacheable if cache
controller is enabled.

8Bit I/O Recovery Time Use the default setting.

22 BIOS Setup

16Bit I/O Recovery
Time

Memory Hole At 15M­16M

Peer Concurrency Use the default setting.

Early NA Control Use the default setting.

3. After you have finished with the Chipset Features Setup, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.

Use the default setting.

Choose Enabled or Disabled (default).
Some interface cards will map their ROM
address to this area. If this occurs, you
should select Enabled, otherwise use
Disabled.

BIOS Setup 23

Power Management Setup

The Power Management Setup option sets the systemÕs power saving
functions.

Run the Power Management Setup as follows.

1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu
and a screen with a list of items appears.

Power Management : Disabled
PM Control by APM : No
Video Off Method : V/H SYNC+Blank

Doze Mode : Disabled
Standby Mode : Disabled
Suspend Mode : Disabled
HDD Power Down : Disabled

** Wake Up Events In Doze & Standby **
IRQ3 (Wake-Up Event) : ON
IRQ4 (Wake-Up Event) : ON
IRQ8 (Wake-Up Event) : ON
IRQ12 (Wake-Up Event) : ON

2. Use the arrow keys to move between items and to select values.
Modify the selected fields using the PgUp/PgDn/+/- keys.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

POWER MANAGEMENT SETUP

** Power Down & Resume Events **
IRQ 3 (COM 2) : ON
IRQ 4 (COM 1) : ON
IRQ 5 (LPT 2) : ON
IRQ 6 (Floppy Disk) : OFF
IRQ 7 (LPT 1) : ON
IRQ 8 (RTC Alarm) : OFF
IRQ 9 (IRQ2 Redir) : ON
IRQ 10 (Reserved) : ON
IRQ 11 (Reserved) : ON
IRQ 12 (PS/2 mouse) : ON
IRQ 13 (Coprocessor) : ON
IRQ 14 (Hard Disk) : ON
IRQ 15 (Reserved) : ON

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

A short description of selected screen items follows:

Power
Management

Options are as follows:
User Define LetÕs you define the HDD and

system power down times.

Disabled Disables the Green PC Features.
Min Saving Doze timer = 1 Hour

Standby timer = 1 Hour
Suspend timer = 1 Hour
HDD Power Down = 15 Min

Max Saving Doze timer = 1 Min

Standby timer = 1 Min
Suspend timer = 1 Min
HDD Power Down = 1 Min

24 BIOS Setup

PM Control by
APM

Video Off Method Choose V/H Sync+Blank (default), Blank

Doze Mode When the set time has elapsed, the BIOS sends a

Standby Mode The default is Disabled. Time is adjustable from

Suspend Mode The default is Disabled. Only an SL-Enhanced

HDD Power Down When the set time has elapsed, the BIOS sends a

Choose Yes or No (default). APM stands for
Advanced Power Management. To use APM,
you must run Òpower.exeÓ under DOS v6.0 or
later version.

screen, or DPMS for the selected PM mode.

command to the system to enter doze mode
(system clock drops to 33MHz). Time is
adjustable from 1 Min to 1 Hour.

1 Min to 1 Hour.

(or SMI) CPU can enter this mode. Time is
adjustable from 1 Min to 1 Hour. Under Suspend
mode, the CPU stops completely (no instructions
are executed.)

command to the HDD to power down, which
turns off the motor. Time is adjustable from 1 to
15 minutes. The default setting is Disabled.
Some older model HDDs may not support this
advanced function.

IRQx (Wake-Up
Events)

Power Down
Activities

3. After you have finished with the Power Management Setup, press the
<ESC> key to return to the Main Menu.

The BIOS monitors these items for activity. If
activity occurs from the Enabled item the system
wakes up.

The BIOS monitors these items for no activity. If
no activity occurs from the Enabled item the
system will enter power saving mode
(Doze/Standby/Suspend/ HDD Power Down
mode) .

BIOS Setup 25

PNP/PCI Configuration Setup

This option sets the mainboardÕs PCI Slots. Run this option as follows:

1. Choose ÒPNP/PCI CONFIGURATION SETUPÓ from the Main
Menu and the following screen appears. (The screen below shows
default settings.)

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Resources Controlled By : Manual
Reset Configuration Data : Disabled

IRQ-3 assigned to : Legacy ISA*
IRQ-4 assigned to : Legacy ISA*
IRQ-5 assigned to : PCI/ISA PnP*
IRQ-7 assigned to : Legacy ISA*
IRQ-9 assigned to : PCI/ISA PnP*
IRQ-10 assigned to : PCI/ISA PnP*
IRQ-11 assigned to : PCI/ISA PnP*
IRQ-12 assigned to : PCI/ISA PnP*
IRQ-14 assigned to : Legacy ISA*
IRQ-15 assigned to : Legacy ISA*
DMA-0 assigned to : PCI/ISA PnP*
DMA-1 assigned to : PCI/ISA PnP*
DMA-3 assigned to : PCI/ISA PnP*
DMA-5 assigned to : PCI/ISA PnP*
DMA-6 assigned to : PCI/ISA PnP*
DMA-7 assigned to : PCI/ISA PnP*

*: These items will disappear when Resource Controlled. is Auto.

PCI IRQ Actived By : Level
PCI IDE IRQ Map To : PCI-AUTO
Primary IDE INT# : A
Secondary IDE INT# : B

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values. Modify
selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows:

Resources
Controlled By

Manual: BIOS doesnÕt manage PCI/ISA PnP

card (i.e., IRQ) automatically.

Auto: BIOS auto manage PCI and ISA PnP

card (recommended).

Reset
Configuration
Data

Disabled: Retain PnP configuration data in

BIOS.

Enabled: Reset PnP configuration data in BIOS.

26 BIOS Setup

IRQX and
DMAX assigned
to

PCI IRQ
Activated By

PCI IDE IRQ
Map To

Primary IDE
INT#

Secondary IDE
INT#

3. After you have finished with the PCI Slot Configuration, press the
<ESC> key and follow the screen instructions to save or disregard
your settings.

Choose PCI/ISA PnP or Legacy ISA. If the first
item is set to Manual, you could choose IRQX
and DMAX assigned to PCI/ISA PnP card or ISA
card.

PCI/ISA PnP: BIOS auto assigns IRQ/DMA to

the device.

Legacy ISA: User assigns IRQ/DMA to the

device.

Choose Edge or Level. Most PCI trigger signals
are Level. This setting must match the PCI card.

Select PCI-AUTO, ISA, or assign a PCI SLOT
number (depending on which slot the PCI IDE is
inserted). The default setting is PCI-AUTO. If
PCI-AUTO does not work, then assign an
individual PCI SLOT number.

Choose INTA#, INTB#, INTC#, or INTD#. The
default setting is INTA#.

Choose INTA#, INTB#, INTC#, or INTD#. The
default setting is INTB#.

Load Setup Defaults

This item loads the system values you have previously saved. Choose
this item and the following message appears:

ÒLoad SETUP Defaults (Y/N)? NÓ

To use the SETUP defaults, change the prompt to ÒYÓ and press
<Enter>.

Note: The SETUP Defaults are optimized for the most stabilized

performance.

BIOS Setup 27

Load BIOS Defaults

Choose this item and the following message appears:

ÒLoad BIOS Defaults (Y/N)?NÓ

To use the BIOS defaults, change the prompt to ÒYÓ and press <Enter>.

Note: BIOS DEFAULTS values are adjusted for high performance. If

you run into any problems after loading BIOS DEFAULTS, please
load the SETUP DEFAULTS for the stable performance.

Integrated Peripherals

The Integrated Peripherals option changes the values of the chipset
registers. These registers control system options in the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Integrated Peripherals as follows.

1. Choose ÒIntegrated PeripheralsÓ from the Main Menu and the
following screen appears. (The screen below shows default
settings.â

IDE HDD Block Mode : Enabled
PCI Slot IDE 2nd Channel : Enabled
On-Chip Primary PCI IDE: Enabled
On-Chip Secondary PCI IDE: Enabled
IDE Primary Master PIO : Auto
IDE Primary Slave PIO : Auto
IDE Secondary Master PIO : Auto
IDE Secondary Slave PIO : Auto
USB Controller : Disabled

Onboard FDD Controller : Enabled
Onboard Serial Port 1 : 3F8/IRQ4
Onboard Serial Port 2 : 2F8/IRQ3
Infra Red (IR) Function : Disabled
Onboard Parallel Port : 378H/IRQ7
Onboard Parallel MODE : ECP/EPP
ECP Mode Use DMA : 3
IR Transfer Mode : Half-Dup

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

ESC : Quit ↑ ↓ → ←: Select Item
F1 : Help PU/PD/+/– : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values.
Modify selected fields using the PgUp/PgDn/+/Ð keys.

28 BIOS Setup

A short description of screen items follows:

IDE HDD Block Mode Choose Enabled (default) or Disabled.

Enabled invokes multi-sector transfer
instead of one sector per transfer. Not all
HDDs support this function.

PCI Slot IDE 2nd
Channel

On-chip Primary/
Secondary PCI IDE

IDE Primary Master PIO

IDE Primary Slave PIO

IDE Secondary Master
PIO

IDE Secondary Slave
PIO

USB Controller

Onboard FDC Controller

Onboard Serial Port 1

Onboard Serial Port 2

Choose Enabled (default) or Disabled.
When Enabled is set, IRQ15 is dedicated
for secondary IDE use. When Disabled is
set, IRQ15 is released for other devices.

Enabled: Use the on-board IDE (default)
Disabled: Turn off the on-board IDE

Choose Auto (default) or mode 0~4.
Mode 0 is the slowest speed, and HDD
mode 4 is the fastest speed. For better
performance and stability, we suggest you
use the Auto setting to set the HDD
control timing.

Enabled it when you use USB device.

Enabled: Use the on-board floppy

controller (default).

Disabled: Turn off the on-board floppy

controller.

Choose serial port 1 & 2Õs I/O address.
Do no set port 1 & 2 to the same value
except for Disabled.

COM 1/3F8H | COM3/3E8H
COM 2/2F8H | COM4/2E8H
(default) |

BIOS Setup 29

Infra Red (IR) Function Disabled: Disabled the IR function.

HKSIR: Use UART in HKSIR mode

when your IR equipment
meets this specification.

ASKIR: Use UART in ASKIR mode

when your IR equipment meets
this specification.

Onboard Parallel Port Choose the printer I/O address:

378H/IRQ7 (default), 3BCH/IRQ7,
278H/IRQ5

Onboard Printer Mode Choose ECP + EPP (default), SPP or EPP,

ECP mode. The mode depends on your
external device that connects to this port.

ECP Mode DMA Select Choose DMA3 (default) or DMA1. This

setting only works when the Onboard
Printer Mode is set at the ECP mode.

IR Transfer Mode Half-Dup: Use IR function in half-

duplex mode.

Full-Dup: Use IR function in full-duplex

mode.

30 BIOS Setup

Supervisor Password

Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS
FEATURES SETUPÓ, this Main Menu item lets you configure the
system so that a password is required every time the system boots or an
attempt is made to enter the Setup program. Change the password as
follows:

1. Choose ÒSUPERVISOR PASSWORDÓ in the Main Menu and press
<Enter>. The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.

(If you do not wish to use the password function, you can just press
<Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears
prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main
Menu.

5. You have the right to change any changeable settings in the ÒCMOS
SETUP UTILITY.Ó

Important: If you forget or lose the password, the only way to access

the system is to set jumper JP5 to clear the CMOS RAM.
All setup information is lost and you must run the BIOS
setup program again.

BIOS Setup 31

User Password

Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS
FEATURES SETUPÓ, this Main Menu item lets you configure the
system so that a password is required every time the system boots or an
attempt is made to enter the Setup program. Change the password as
follows:

1. Choose ÒUSER PASSWORDÓ in the Main Menu and press <Enter>.
The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.

(If you do not wish to use the password function, you can just press
<Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears
prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main
Menu.

5. You are not allowed to change any setting in ÒCMOS SETUP
UTILITYÓ except change userÕs password.

Important: If you forget or lose the password, the only way to access

the system is to set jumper JP5 to clear the CMOS RAM.
All setup information is lost and you must run the BIOS
setup program again.

32 BIOS Setup

IDE HDD Auto Detection

This Main Menu item automatically detects the hard disk type and
configures the STANDARD CMOS SETUP accordingly.

Note: This function is only valid for IDE hard disks.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master : None 0 0 0 0 0 0 ----

Primary Slave : None 0 0 0 0 0 0 ---­Secondary Master : None 0 0 0 0 0 0 ---­Secondary Slave : None 0 0 0 0 0 0 ----

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Do you accept this drive C (Y/N)? N

ESC : Skip

4 Drivers Installation Guide

IDE BUS Master Installation Guide

MS-DOS/WINDOW/WFW

1) You should install CD-ROM in secondary channel in Windows
(WFW).

2) Change the current directory to a: or b:.

3) Under DOS command line prompt, run the SETUP directly.

After entering the setup utility, just follow the instructions of the setup.

WINDOWS NT3.5

1) From the Program Manager, double click on ÒWindows NT SetupÓ
in the Main group.

2) Select ÒOptions/Add/Remove SCSI Adapters...Ó.

3) Click on Add.

4) The ÒSelect SCSI Adapter OptionÓ dialog will appear; select ÒOther
(Requires a disk from a hardware manufacturer)Ó from the
ÒAdapter:Ó list box.

5) Next, the ÒInsert DisketteÓ dialog box will appear; insert the Triones
PIIX/PIIX3 Bus Master EIDE/ATAPI Driver disk into Drive A: and
type in Òa:\winnt35Ó and <Return>.

6) Next, the ÒSelect OEM OptionÓ dialog box will appear; select
ÒPIIX/PIIX3 Bus Master EIDE/ATAPIÓ and click ÒOKÓ.

7) Next, the ÒSelect SCSI Adapter OptionÓ dialog box will appear;
click on the ÒInstallÓ button in the dialog box. If installation is
successful, the ÒSCSI Adapter SetupÓ dialog box will reappear, and
ÒPIIX/PIIX3 Bus Master EIDE/ATAPIÓ will be listed. That means
the driver is installed.

8) Reboot your system to load the driver.

34 Drivers Installation Guide

WINDOWS 95

1) Close any running applications.

2) Insert the floppy disk into drive A:.

3) Open ÒMy ComputerÓ, double click ÒDrive A:Ó.

4) Double click ÒWin95Ó.

5) Double click the Setup program.

6) Then just follow the instruction.

NOVELL 3.X&4.X

1) Copy the driver TRIN4X.DSK or TRIN312.DSK to the subdirectory
which holds the file SERVER.EXE.

2) Boot up the file server.

3) On the system console and on the command prompt state, type in:
load TRIN4X.DSK <Enter> or load TRIN312.DSK <Enter>

You can also include the above command line into the start up file
STARTUP.NCF to load the driver automatically.

SCO UNIX

1) Install SCO UNIX 3.2.x or SCO Open Desktop 3.x using the default
SCO IDE driver.

2) Reboot your SCO UNIX system

3) Insert Triones supplied diskette into the 3.5 inch floppy drive of
your system. Use doscp command to copy the file TRISCO.TAR to
your /tmp directory. for example, if you are using floppy drive A,
type: doscp a:/scounix/trisco.tar/tmp/trisco.tar

Drivers Installation Guide 35

4) From root directory, type the following commands:

mkdir/inst
cd /inst
tar xvf /tmp/trisco.tar.

(Note: there is a period at the end of the last command.)

5) Now, insert a blank diskette into the floppy drive A and type:

tar cvf /dev/<your floppy drive A device name>.

(Note: there is a period at the end of the last command.)

Your floppy drive A device name could be:

¥ rfd096ds15,5.25 DSHD
¥ rfd0135ds18 3.5 DSHD
¥ rfd048ds9 5.25 DSDD
¥ rfd0135ds9 3.5 DSDD

Now you have already made an installation diskette for the device
driver.

Start the installation by typing: custom.

6) Select the ÒInstallÓ operation and then follow the guided steps.
When prompted ÒDo you want to set the device configuration (y/n)Ó,
answer ÒnÓ.

7) Reboot your SCO UNIX system.

SCO UNIX 5.0

1) Install SCO UNIX 5.0 using the default SCO IDE driver.

2) Reboot your SCO UNIX system

3) Insert Triones supplied diskette into the 3.5 inch floppy drive of
your system. Use doscp command to copy the file TRISCO.TAR to
your /tmp directory. for example, if you are using floppy drive A,
type: doscp a:/scounix/trisco5.tar/tmp/trisco5.tar

36 Drivers Installation Guide

4) From root directory, type the following commands:

mkdir/inst
cd /inst
tar xvf /tmp/trisco.tar.

(Note: there is a period at the end of the last command.)

5) Install the driver by typing:

./install

6) Reboot your SCO UNIX system..

OS/2 2.0 and WARP 3.X

1) Copy TRIOS2.ADD from the floppy diskette to your hard disk
under the OS2 directory (i.e., C:\OS2).

2) Edit C:\CONFIG.SYS to replace BASEDEV=IBM1S506.ADD
with BASEDEV=TRIOS2.ADD

3) Reboot the system.

Note: For more information (like parameter settings, driver de-

installation, etc.), please refer to the README.TXT file on the
diskette.
