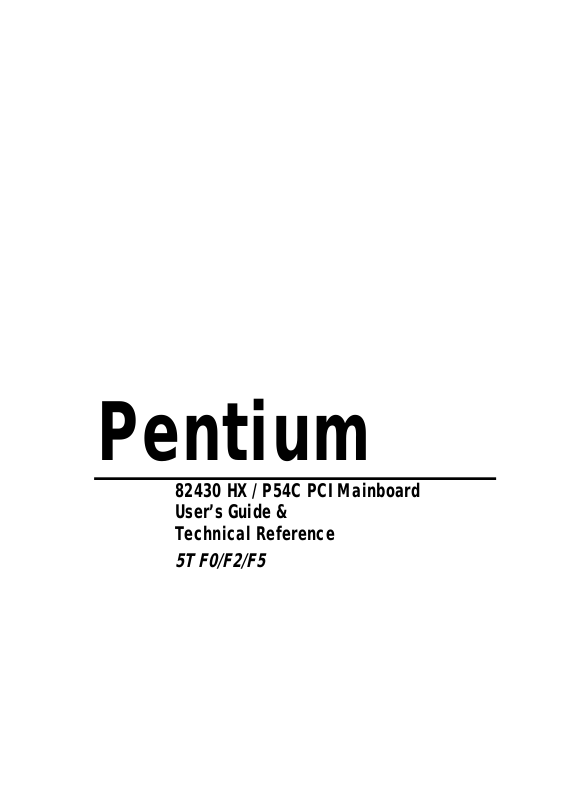

Pentium

82430 HX / P54C PCI Mainboard User’s Guide &

Technical Reference

5T F0/F2/F5

Page 2

™

About This Guide

This UserÕs Guide is for assisting system manufacturers and end users in setting up and installing the mainboard. Information in this guide has been carefully checked for reliability; however, no guarantee is given as to the correctness of the contents. The information in this document is subject to change without notice.

Copyright 1996, Soyo Computer Inc. All rights reserved. This manual is copyrighted by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, any part of this publication without express written permission of Soyo Computer Inc.

Trademarks

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their owners.

Disclaimer

Soyo Computer Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to revise the manual or make changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision or change. The information contained in this manual is provided for general use by our customers. Our customers should be aware that the personal computer field is the subject of many patents. Our customers should ensure that they take appropriate action so that their use of our products does not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at 252.277-7013.

Product Rights

Product mentioned in this manual are mentioned for identification purpose only. Product names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies.

If you need any further information, please come to our home page on internet. The address is Òhttp://www.soyo.com.twÓ.

Edition: February 1997 Version 2.1 5T F0/F2/F5 SERIAL

Page 3

iii

Table of Contents

Chapter 1: Introduction .................................................. 1

Key Features ............................................................................... 1

Unpacking the Mainboard........................................................... 2

Electrostatic Discharge Precautions............................................ 2

Mainboard Layout w/ default settings ........................................ 3

Chapter 2: Hardware Setup ............................................ 5

Jumpers ....................................................................................... 5

Factory Set Jumpers .............................................................. 5

JP3: Display Type ................................................................. 5

J23: Sleep Switch Connector Enable/Disable ....................... 5

J3: PS/2 Mouse Connector .................................................... 6

JP13, JP14: Bus Fraction Core/Bus Ratio Select .................. 6

JP5: CMOS Clear Jumper ..................................................... 6

JPS2: PS/2 Mouse Function Jumper ..................................... 7

CPU Type Configuration ............................................................ 8

Step 1: Frequency Setting..................................................... 8

Pentium Ð 75*/90*/100* CPU Settings (1.5 x clock)....... 8

Pentium Ð 100*/120*/133* CPU Settings (2.0 x clock)... 9

Pentium Ð 150* CPU Settings (2.5 x clock) ................... 10

Pentium Ð 180*/200* CPU Settings (3.0 x clock).......... 10

Step 2: CPU Single/Dual Voltage Setting.......................... 11

Single Voltage CPU Setting ........................................... 11

Dual Voltage CPU Setting.............................................. 12

Memory Configuration ............................................................. 12

Cache Configuration ................................................................. 12

Cache Size and RAM Locations ......................................... 13

256K Pipelined Burst Cache Configuration ................... 13

512K Pipelined Burst Cache Configuration ................... 14

Multi I/O Port Addresses .......................................................... 14

Connectors ................................................................................ 15

J2 Ð Keyboard Connector .................................................... 15

J1 Ð Power Supply Connectors............................................ 15

J17 Ð Keylock & Power LED Connector ............................ 15

J18 Ð Speaker Connector ..................................................... 15

J19 Ð Hardware Reset Control............................................. 15

Page 4

J22 Ð Turbo LED Connector ............................................... 16

IDE1/IDE2 Ð On-board Primary/Secondary IDE HDD

Connectors ........................................................................... 16

J24 Ð HDD LED Connectors ............................................... 16

COM1/COM2 Connectors................................................... 16

FDC1 Connector ................................................................. 16

P1 Ð Parallel Port Connector ............................................... 16

J4 Ð Pipelined Burst SRAM Module Slot ........................... 16

J5, U8 Ð Universal Serial Bus Connector (Optional) .......... 16

J6 Ð IR Connector (Optional) .............................................. 16

Chapter 3: BIOS Setup.................................................. 17

Standard CMOS Setup .............................................................. 18

BIOS Features Setup ................................................................. 19

Chipset Features Setup.............................................................. 22

Power Management Setup ........................................................ 25

PNP/PCI Configuration Setup .................................................. 27

Load Setup Defaults.................................................................. 28

Load BIOS Defaults.................................................................. 29

Integrated Peripherals ............................................................... 29

Supervisor Password ................................................................. 32

User Password ........................................................................... 33

IDE HDD Auto Detection ......................................................... 34

Chapter 4: Drivers Installation Guide ......................... 35

IDE BUS Master Installation Guide ......................................... 35

MS-DOS/WINDOW/WFW ................................................ 35

WINDOWS NT3.5 .............................................................. 35

WINDOWS 95 .................................................................... 36

NOVELL 3.X&4.X ............................................................. 36

SCO UNIX .......................................................................... 36

SCO UNIX 5.0 .................................................................... 37

OS/2 2.0 and WARP 3.X..................................................... 37

Page 5

1 Introduction

The 82430 HX/P54C PCI mainboard is a high-performance system board that supports Pentium P54CX family CPUs. You can install 256K to 512K of external cache memory on the mainboard. The mainboard is fully compatible with industry standards, and adds many technical enhancements.

Key Features

¥ Supports P54C/P55C family CPUs running at 75 ~ 200 MHz speeds,

Cyrix 6X86/6x86L CPUs running at P120+/P133+/P150+/P166+, and AMD K5 CPUs.

¥ Supports Dual voltage processor (Optional) ¥ Supports SOCKET 7 &VRM for upgrade (optional)

¥ Integrated Second Level (L2) Cache Controller

Ñ Write Back Cache Modes and Direct Mapped Organization Ñ On-board 256K/512K Pipeline Burst SRAMs Cache and

upgrade slot supports

¥ Integrated DRAM Controller

Ñ CAS#-before-RAS# Transparent DRAM Refresh Ñ Supports 60/70ns Fast Page Mode (both symmetrical and

asymmetrical addressing) and EDO DRAM (72-pin SIMM) Ñ On-board memory configurations from 4 to 256 Mbytes Ñ Supports Error Checking & Correction (ECC) and Parity Check

(Optional)

¥ Shadow RAM in Increments of 16 Kbytes ¥ Supports Pentium / P54C SMM Mode and CPU Stop Clock ¥ Supports ÒTable-FreeÓ DRAM configuration

¥ Supports Universal Serial Bus Ñ USB (Optional) ¥ Compliant to PCI specifications v2.1

¥ Four 32-bit PCI slots (Masters) and Four ISA slots, 4-layer PCB ¥ System BIOS built-in NCR306 SCSI Card BIOS and ÒPlug and

PlayÓ function

¥ On-board built-in PCI Master IDE controller and floppy controller ¥ On-board supports for two high speed UARTS (w/i 16550 FIFO),

Multimode parallel port for SPP/EPP/ECP modes, PS/2 mouse function, and IR function

¥ On-board supports FLASH Memory for easy upgrade BIOS ¥ Easy installation of Triones EIDE/ATAPI CD-ROM Bus Master

Drivers.

Page 6

2 Introduction

Unpacking the Mainboard

The mainboard package contains: ¥ The 82430 HX/P54C Mainboard

¥ This User's Guide ¥ One Triones IDE/ATAPI CD-ROM Bus Master Drivers Diskette

Note: Do not unpack the mainboard until you are ready to install it.

Follow the precautions below while unpacking the mainboard.

1. Before handling the mainboard, ground yourself by grasping an unpainted portion of the systemÕs metal chassis.

2. Remove the mainboard from its anti-static packaging and place it on a grounded surface, component side up.

3. Check the mainboard for damage. If any chip appears loose, press carefully to seat it firmly in its socket.

Do not apply power if the mainboard appears damaged. If there is damage to the board contact your dealer immediately.

Electrostatic Discharge Precautions

Make sure you ground yourself before handling the mainboard or other system components. Electrostatic discharge can easily damage the components. Note that you must take special precaution when handling the mainboard in dry or air-conditioned environments.

Take these precautions to protect your equipment from electrostatic discharge:

¥ Do not remove the anti-static packaging until you are ready to install

the mainboard and other system components.

¥ Ground yourself before removing any system component from its

protective anti-static packaging. To ground yourself grasp the expansion slot covers or other unpainted portions of the computer chassis.

¥ Frequently ground yourself while working, or use a grounding strap.

¥ Handle the mainboard by the edges and avoid touching its

components.

Page 7

Introduction 3

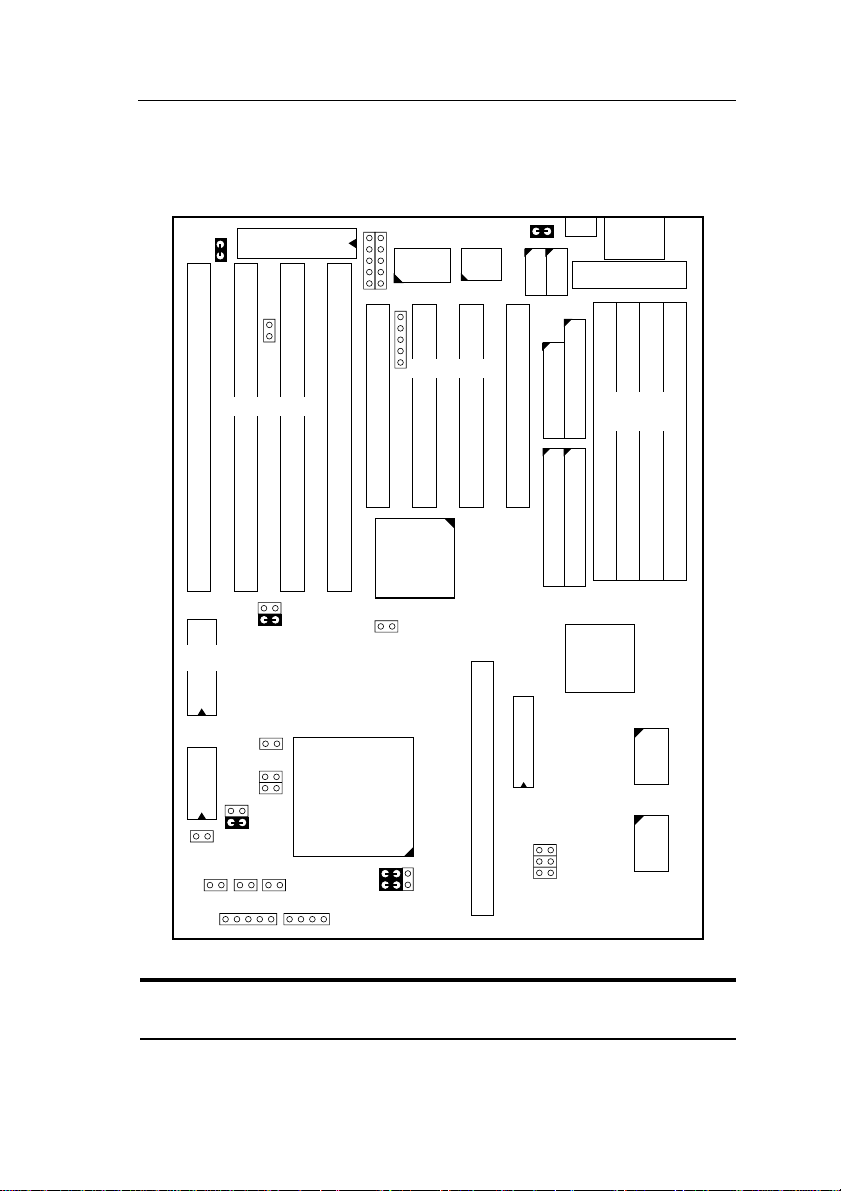

Mainboard Layout w/ default settings

18 18

7 8

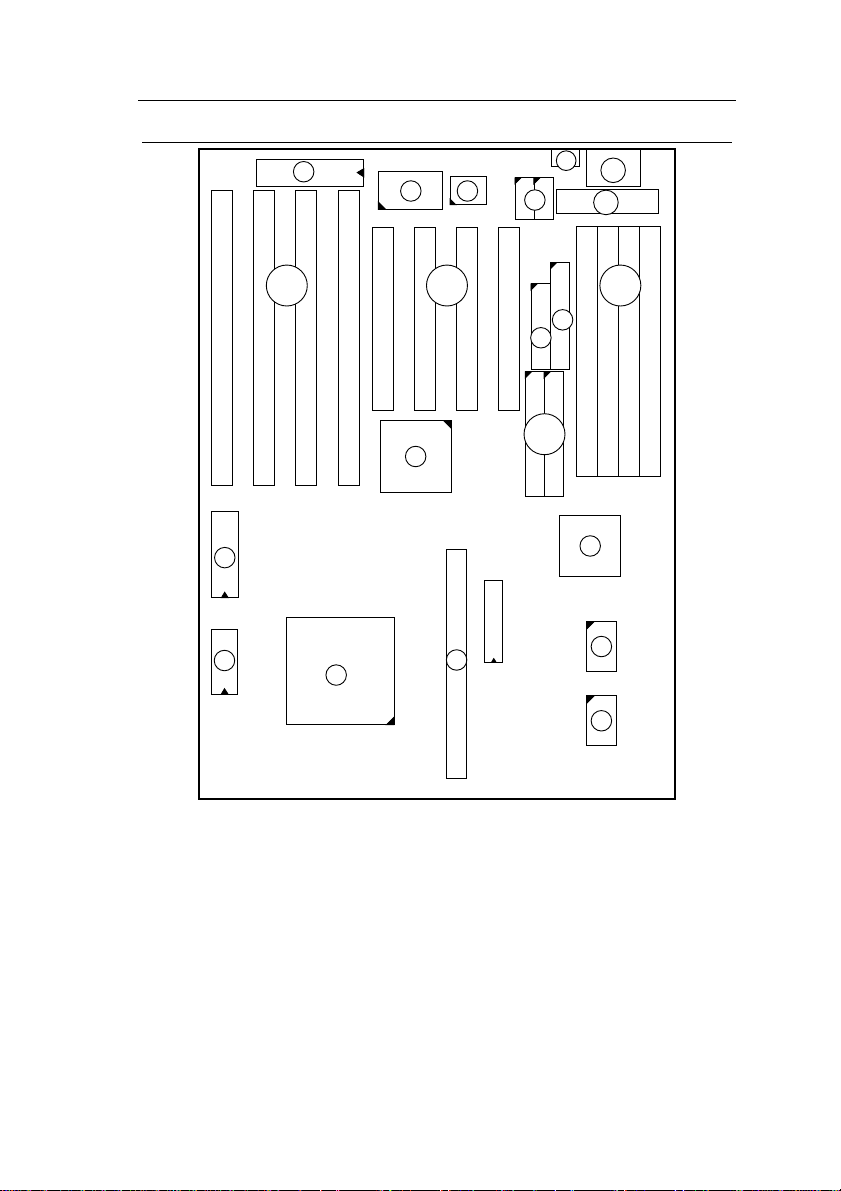

Figure 1Ð1. Mainboard Layout

1. P54C/6x86 in ZIF socket 7 10. 5V DC Power Connector

2. Pipelined Burst SRAM 11. Keyboard Connector

3. 82430 HX Chipset 12. PS/2 Mouse Connector

4. Pipelined Burst SRAM Module

13. IDE1/IDE2 Connector

Slot

5. PnP FLASH BIOS 14. Floppy Connector

6. Real Time Clock (RTC) 15. Parallel Port Connector

7. ISA Slots 16. COM1/COM2 Connector

8. PCI Slots 17. Keyboard BIOS

9. SIMM Memory Bank 18. Super I/O Chipset

Page 8

4 Introduction

Default settings are as follows: Pentium 100MHz CPU, 256K W/B Pipelined Burst cache, Address Pipeline Enabled, On-board Local Bus IDE Enabled, FDC Enabled, 2 high speed UARTS Enabled (w/ 16550 FIFO), 1 EPP/ECP port (ECP + EPP mode).

JP3

KB BIOS

Super I/O

CHIP

COM1

COM2

JP40

I/O

FLASH

BIOS

RTC

JP5

RST

JPS2

PCI SLOT

ISA SLOT

#3 #2 #1

JP10 JP11

JP20

82371/SB

J23

586 CPU

HDD LED

J18

Family

JP35

1 4

JP13 JP14

JP31 JP30

J22J19

J24

TB LED

keylock SPK

J17

Figure 1Ð2. Mainboard Default Setting

FDC1

DRAM

BANK

#1#2#3#4

IDE1

IDE2

#1 #2 #3

16Kx8 TAG

82439HX

JP32 JP33 JP34

32k x 32

Pipelined Burst SRAM Module Slot

P.B. SRAM

Important: Make sure the system is well ventilated to prevent

overheating and ensure system stability.

Page 9

2 Hardware Setup

This chapter explains how to configure the mainboardÕs hardware. After you install the mainboard, you can set jumpers, install memory on the mainboard, and make case connections. Refer to this chapter whenever you upgrade or reconfigure your system.

CAUTION: Turn off power to the mainboard, system chassis, and

peripheral devices before performing any work on the

mainboard or system.

Jumpers

Factory Set Jumpers

The following jumpers are set at the factory as below.

Jumpers Factory settings

JP40 factory setting at short

JP3: Display Type

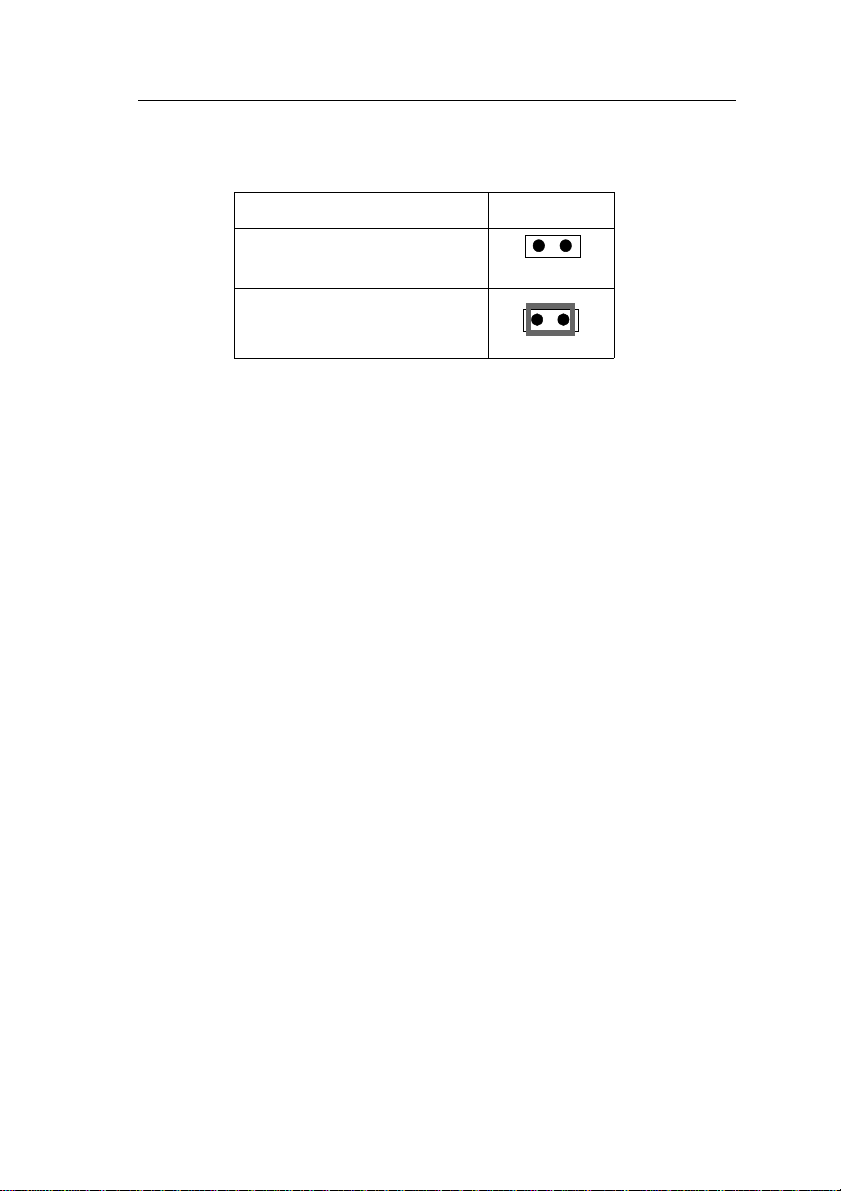

Set JP3 to configure the mainboard for use with either a color or monochrome monitor.

Monitor Type JP3

Monochrome

1 2

EGA/VGA

(default)

1 2

J23: Sleep Switch Connector Enable/Disable

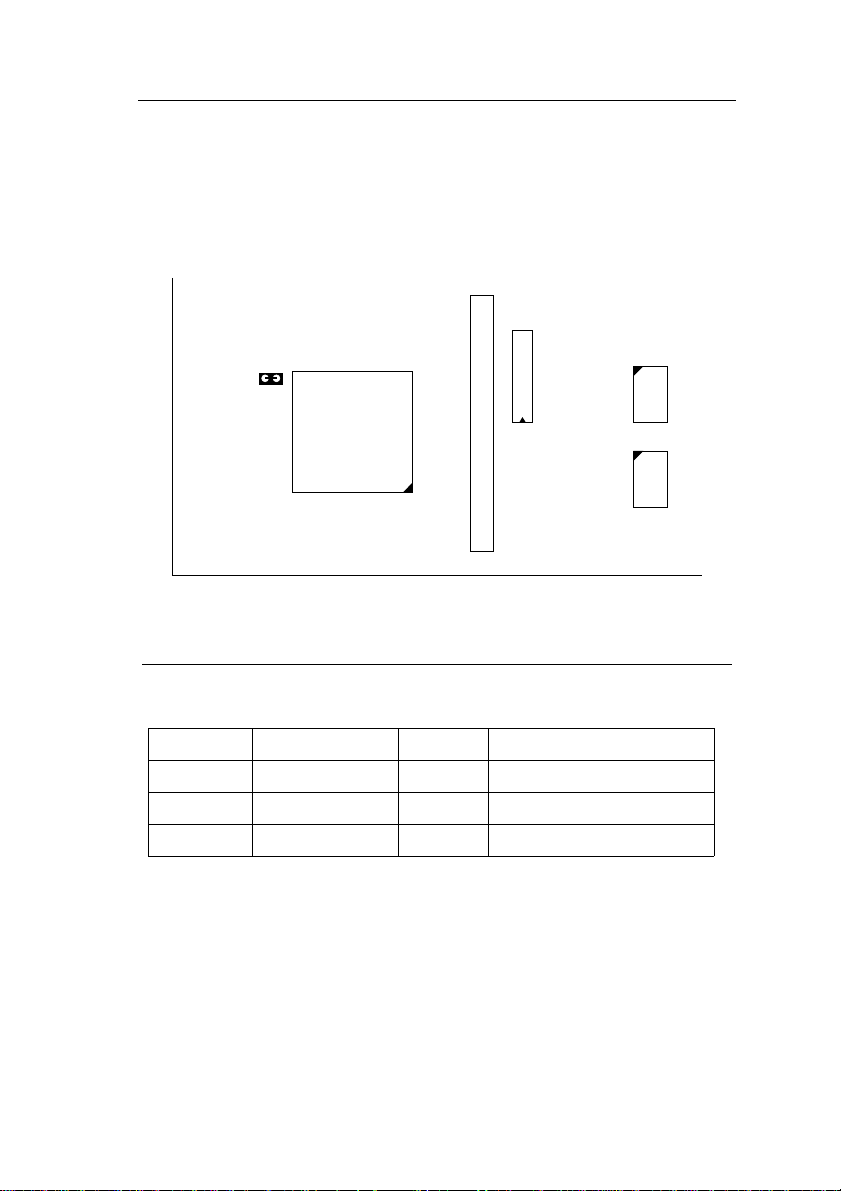

Toggle this jumper to force the system into power saving (Green) mode. Any hardware IRQ signal makes the system wakeups.

Page 10

6 Hardware Setup

J3: PS/2 Mouse Connector

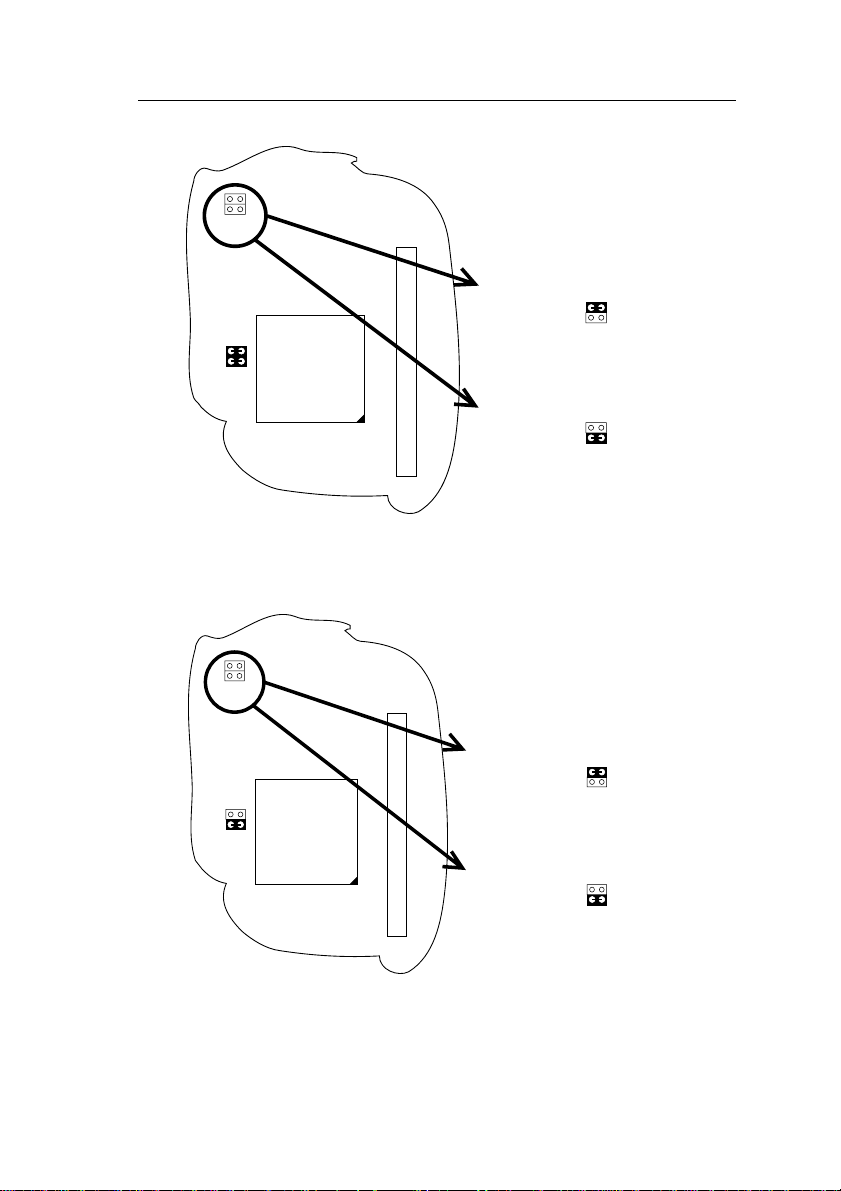

Attach PS/2 mouse cable to this connector to enable the PS/2 mouse function.

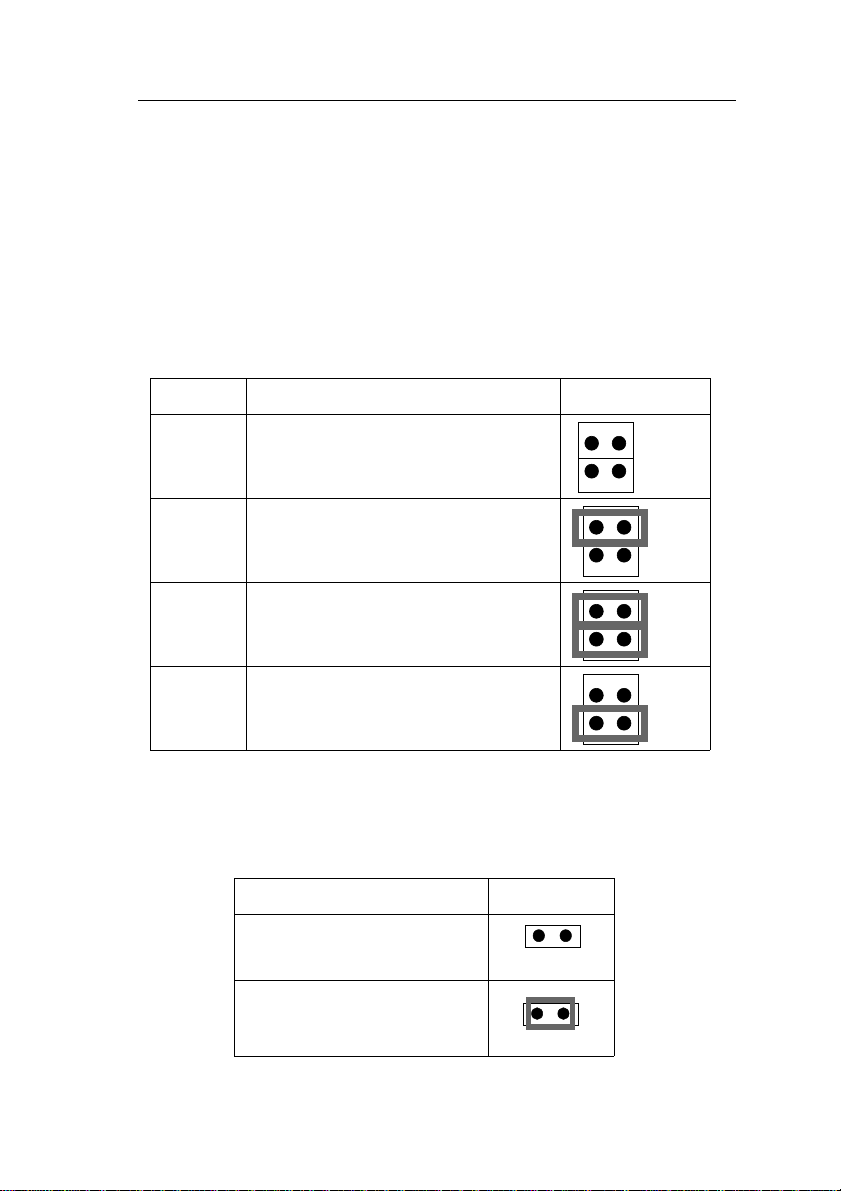

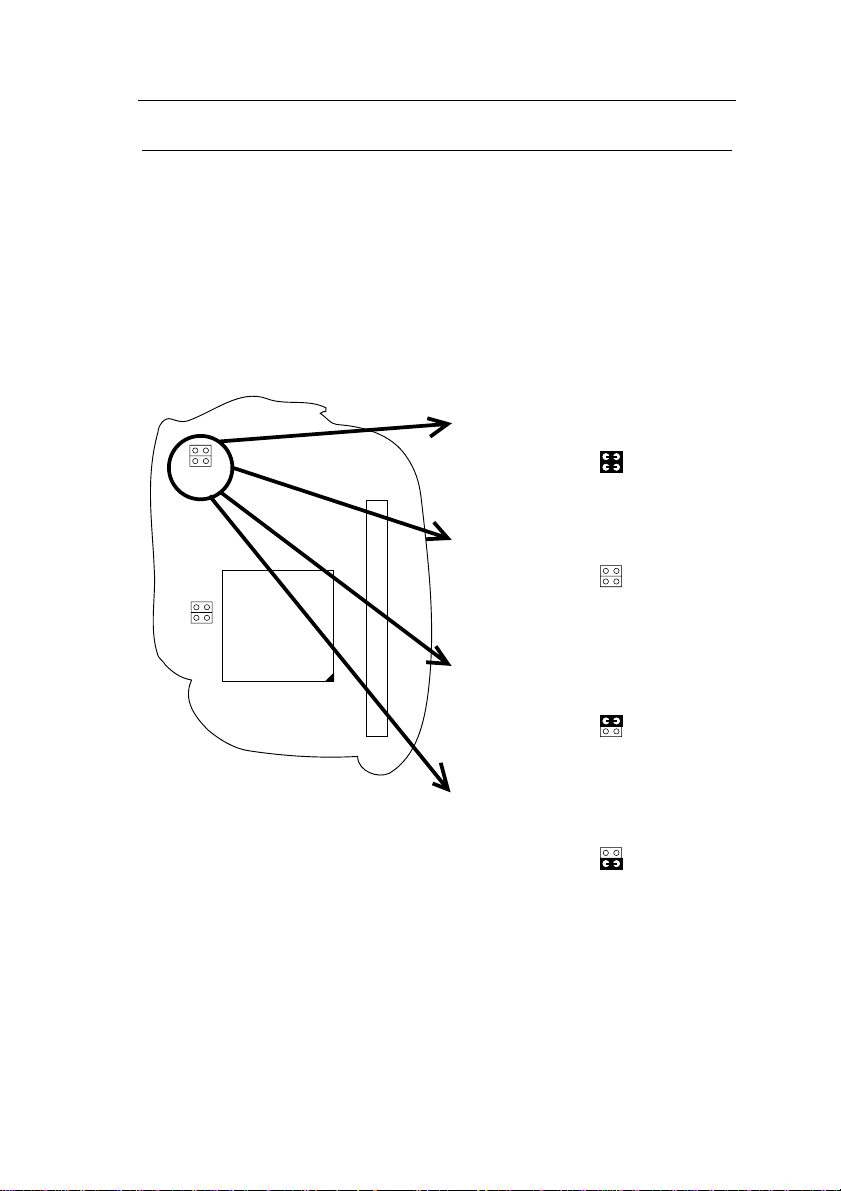

JP13, JP14: Bus Fraction Core/Bus Ratio Select

Set this jumper according to your CPU clock.

Note: For Pentium X / Y MHz, X stands for CPU core clock, Y stands

for bus clock.

Ratio P54CX Family JP13, JP14

3/2

(Default)

2/1 Pentium Ð (100/50)MHz

5/2 Pentium Ð (150/60)MHz

3/1 Pentium Ð (180/60) MHz

Pentium Ð (100/66, 90/60, 75/50)MHz

Pentium Ð (120/60, 133/66)MHz

Pentium Ð (166/66) MHz

Pentium Ð (200/66) MHz

JP13 JP14

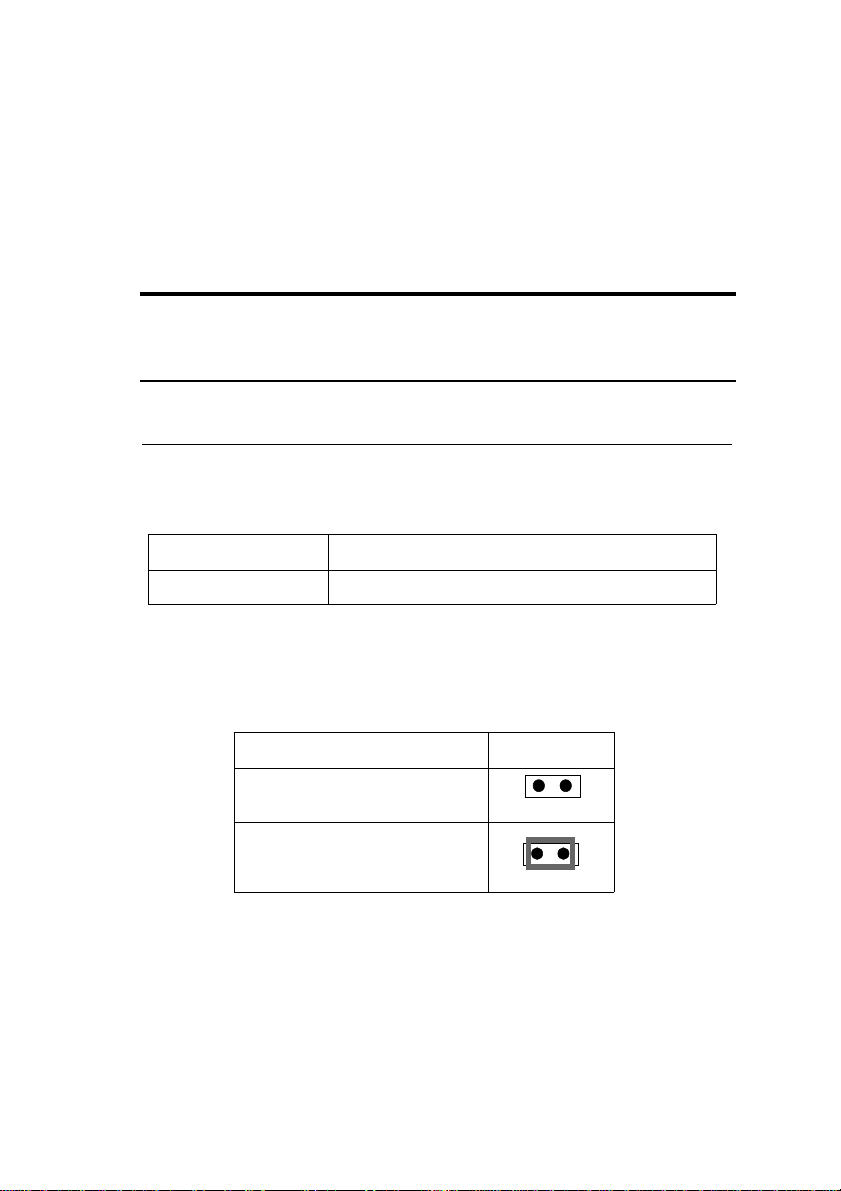

JP5: CMOS Clear Jumper

Clear the CMOS memory by momentarily shorting this jumper; then open the jumper to retain new settings.

CMOS Setting JP5

Retain CMOS data

(default)

1 2

Clear CMOS data

1 2

Page 11

Hardware Setup 7

JPS2: PS/2 Mouse Function Jumper

Set PS/2 mouse function enabled or disabled.

PS/2 Mouse Function JPS2

Disabled

(default)

Enabled

Note: The IRQ12 is dedicated to PS/2 mouse when choose enabled of

PS/2 Mouse Function.

1 2

Page 12

8 Hardware Setup

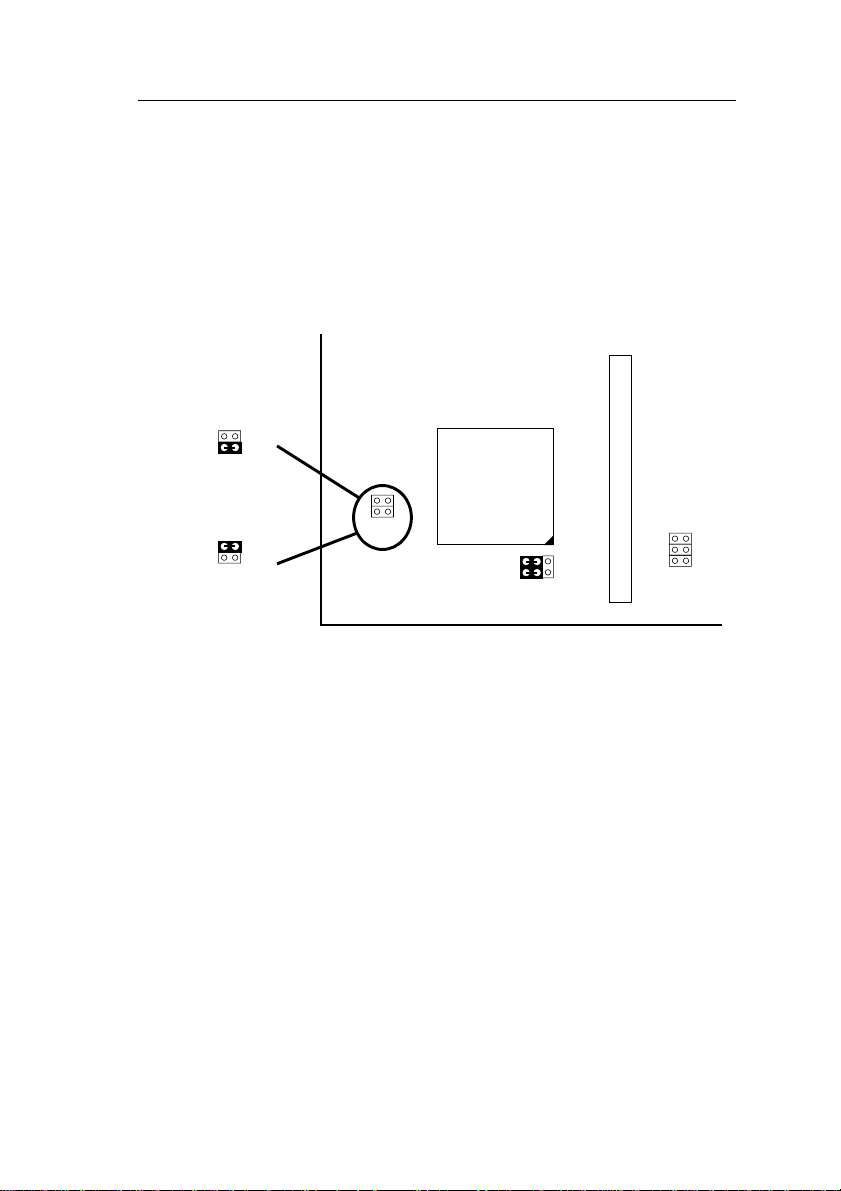

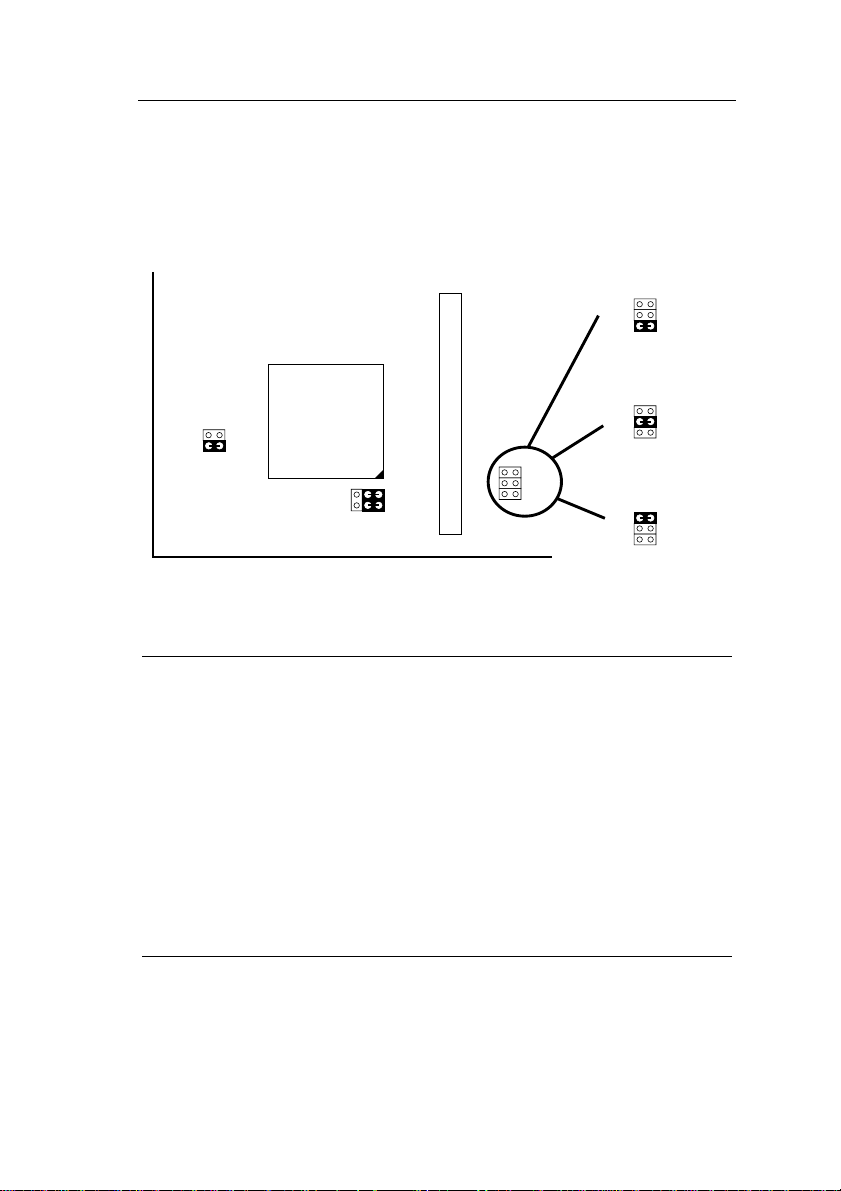

CPU Type Configuration

Set the mainboardÕs CPU jumpers JP10, JP11, JP13, and JP14 according to CPU type as described below, and then set JP23 and JP24 for the proper voltage of the CPU.

❑ Step 1: Frequency Setting

Pentium – 75*/90*/100* CPU Settings (1.5 x clock) AMD K5 – PR75/PR90/PR100/PR120/PR133 Settings (1.5 x clock)

JP10 JP11

Pentium (P54CX) – 75*/50 MHz

AMD K5 (SSA5) – PR75/50 MHz

(Red Caps)

JP10 JP11

AMD 5K86 (SSA5) – P90/55 MHz

(Red Caps)

JP10 JP11

Pentium (P54CX) – 90*/60 MHz

JP13 JP14

Pipelined Burst SRAM Module Slot

586 CPU

Family

AMD K5 (SSA5) – PR90/60 MHz AMD K5 – PR120/60 MHz

(Red Caps)

JP10 JP11

Pentium (P54CX) – 100*/66 MHz

AMD K5 (SSA5) – PR100/66 MHz AMD K5 – PR133/66 MHz

(Red Caps)

JP10 JP11

Figure 2Ð1Ð1. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

Page 13

Hardware Setup 9

Pentium – 100*/120*/133* CPU Settings (2.0 x clock) Cyrix 6x86/6x86L – P120+/P133+/P150+/P166+ CPU Settings (2.0 x clock)

JP10 JP11

Pentium – 100*/50 MHz

Cyrix 6x86/6x86L – P120+/50 MHz

(Red Caps)

JP10 JP11

Pipelined Burst SRAM Module Slot

Cyrix 6x86/6x86L – P133+/55 MHz

(Red Caps)

JP10 JP11

586 CPU

JP13 JP14

Family

Pentium – 120*/60 MHz

Cyrix 6x86/6x86L – P150+/60 MHz

(Red Caps)

JP10 JP11

Pentium – 133*/66 MHz

Cyrix 6x86/6x86L – P166+/66 MHz

(Red Caps)

JP10 JP11

Figure 2Ð1Ð2. CPU Jumper Settings

Note: You must equip the CPU with a fan and heat sink for system

stability.

Page 14

10 Hardware Setup

Pentium/AMD – 150/166 CPU Settings (2.5 x clock)

JP10 JP11

Pentium – 150*/60 MHz

AMD K5 – PR150

Pipelined Burst SRAM Module Slot

(Red Caps)

JP10 JP11

JP13 JP14

586 CPU

Family

Pentium – 166*/66 MHz

AMD K5 – PR166

(Red Caps)

JP10 JP11

Figure 2Ð1Ð3. CPU Jumper Settings

*: You must equip the CPU with a fan and heat sink for system stability.

Pentium – 180*/200* CPU Settings (3.0 x clock)

JP10 JP11

Pentium – 180*/60 MHz

(Red Caps)

JP10 JP11

Pentium – 200*/66 MHz

(Red Caps)

JP10 JP11

JP13 JP14

Pipelined Burst SRAM Module Slot

586 CPU

Family

Figure 2Ð1Ð4. CPU Jumper Settings

*: You must equip the CPU with a fan and heat sink for system stability.

Page 15

Hardware Setup 11

❑ Step 2: CPU Single/Dual Voltage Setting

Single Voltage CPU Setting

Signal voltage CPUs use the same voltage for VIO and VCore and has been used traditionally. The CPUs which fall into this category are Intel P54CX, AMD-K5-PRxxxBx, AMD-K5-PRxxxCx, AMD-K5-PRxxxFx, and Cyrix 6x86. Refer to the following figure to set these CPUsÕ voltage:

3.3V CPU

JP31 JP30

3.45V ~ 3.6V CPU

JP31 JP30

586 CPU

Family

JP31 JP30

1 4

JP35

Figure 2Ð2Ð1. Single Voltage CPU

Pipelined Burst SRAM Module Slot

JP32 JP33 JP34

Page 16

12 Hardware Setup

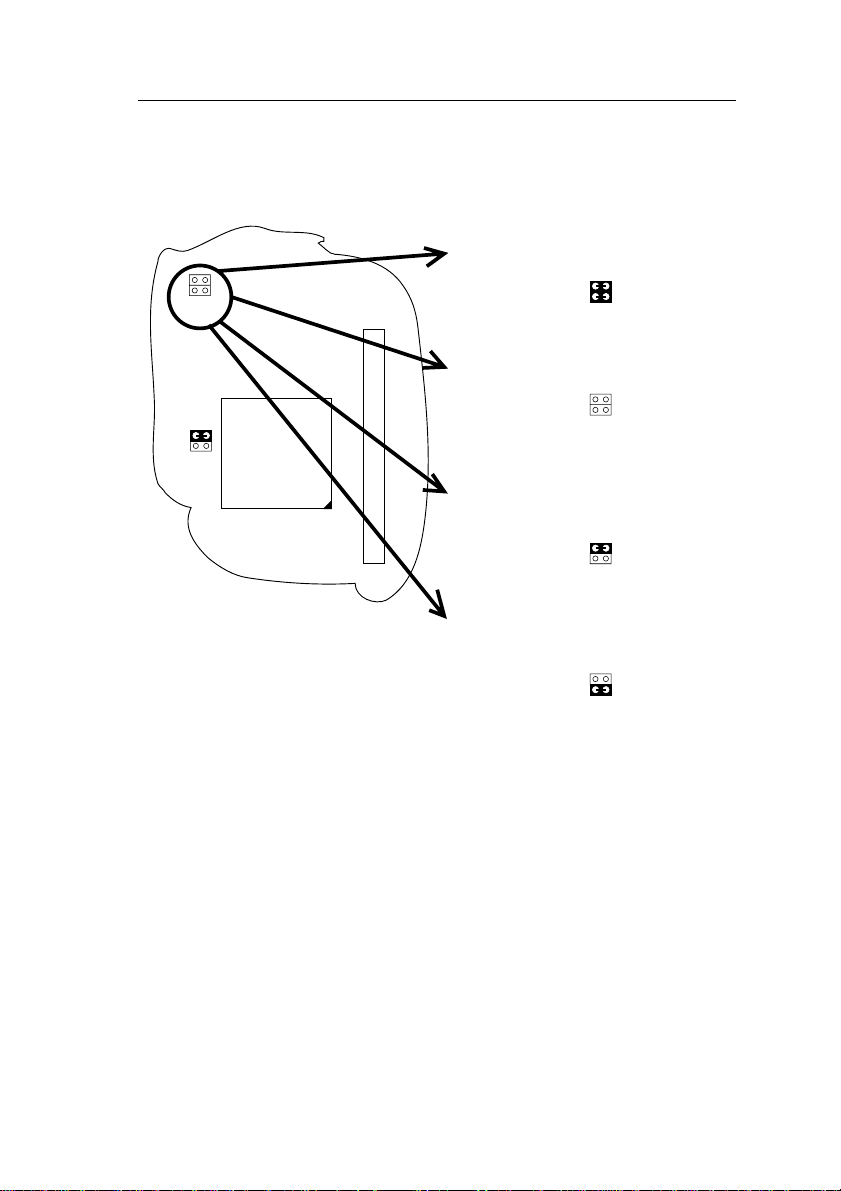

Dual Voltage CPU Setting (Optional)

Dual voltage CPUs are designed to use different voltage for VIO and VCore and they include Intel P55CX, AMD-K5-PRxxxHx, AMD-K5PRxxxJx, AMD-K5-PRxxxKx, Cyrix 6x86L, and Cyrix M2. Refer to the following figure to set these CPUsÕ voltage:

2.5V CPU

JP32 JP33

Pipelined Burst SRAM Module Slot

JP34

2.7V ~ 2.8V CPU

JP31 JP30

586 CPU

Family

JP35

JP32

1 4

JP33 JP34

JP32 JP33 JP34

2.9V CPU

JP32 JP33 JP34

Figure 2Ð2Ð2. Dual Voltage CPU

Memory Configuration

The mainboard supports two banks of 72-pin SIMM or EDO DRAM (with or without parity). The mainboard requires SIMM of at least 80ns

access time.

The mainboard supports from 4 to 256 Mbytes with no other restrictions on memory configurations. You can install DRAM in any combination without having to rely on a memory configuration table. Memory configuration is thus ÒTable-FreeÓ in any bank. (You have to install two stripes of SIMM module to complete a bank.)

Cache Configuration

The mainboard has a write-back caching scheme. You can configure the mainboardÕs cache by installing cache chips in the sockets noted below and then set jumper JP20 to set the mainboard for the type of SRAM installed. See Figures 2Ð3Ð1 ~ 2Ð3Ð2 for cache configurations.

Page 17

Hardware Setup 13

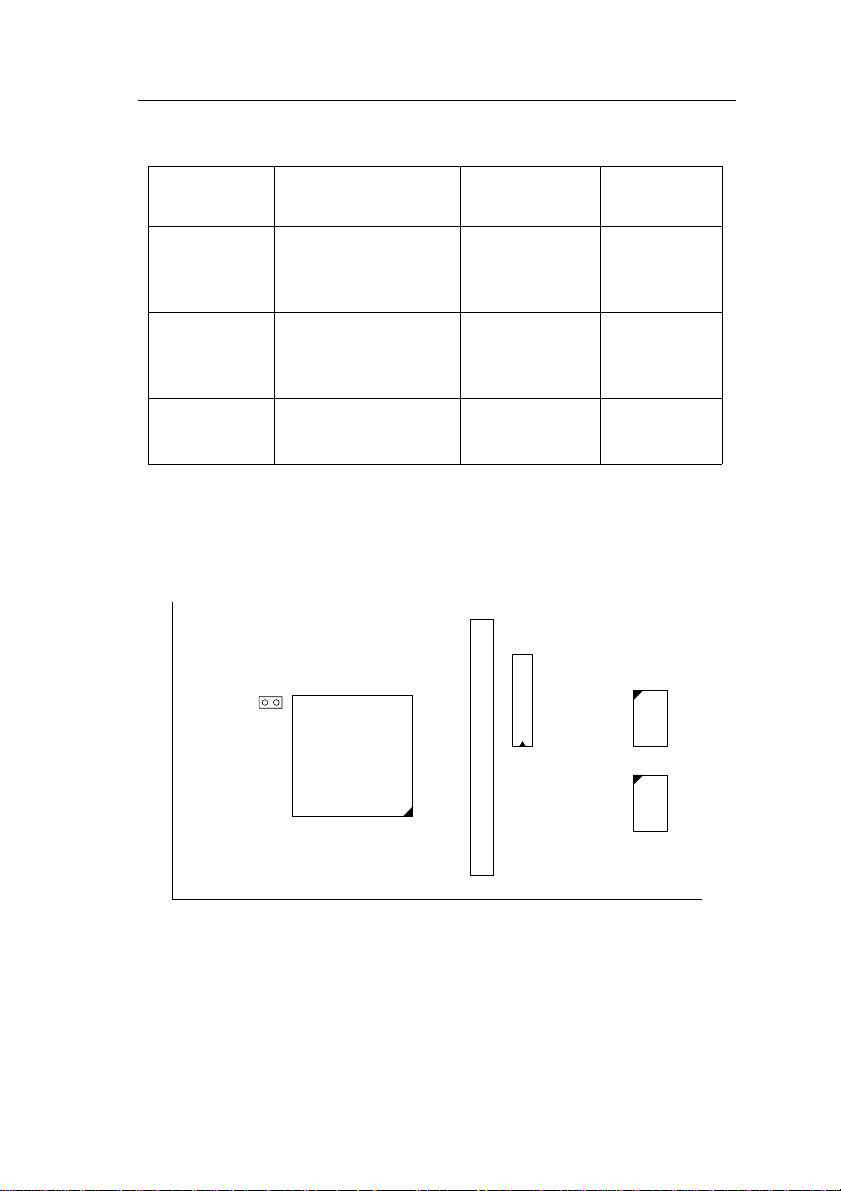

Cache Size and RAM Locations

Cache Size Cache RAM TAG RAM

256KB 32K x32, 2 pcs

(or 256K module)/

16K x 8/

U2, U4 (or J4)

Upgrade to

512KB

32K x 32, 2pcs +

256K module/

16K x 8/

U2, U4, and J4

Onboard

512KB

64K x 32, 2 pcs

on U2 and U4

16K x 8

on U5

256K Pipelined Burst Cache Configuration

1. Leave JP20 opened when you have 256K Pipelined Burst SRAM CHIPs onboard.

256K Pipelined Burst SRAM Module Slot

Cacheable

Range

64 MB

64MB

JP20

TAG

586 CPU

Family

P.B. SRAM

32k x 32

P.B. SRAM

32k x 32

Figure 2Ð3Ð1. 256K Pipelined Burst Cache Configuration

Page 18

14 Hardware Setup

Upgrade to 512K/Onboard 512KB Pipelined Burst Cache Configuration

1. Insert Jumper into JP20 when you have 512K Pipelined Burst SRAM CHIPs onboard or 256K SRAM CHIPs and 256K Pipelined Burst SRAM module.

2. Due to the various design, contact the supplier for Pipelined Burst SRAM module when you want to upgrade to 512K cache on your motherboard.

256K Pipelined Burst SRAM Module Slot

JP20

TAG

586 CPU

Family

P.B. SRAM

32k x 32

P.B. SRAM

32k x 32

Figure 2Ð3Ð2. 512K Pipelined Burst Cache Configuration

Multi I/O Port Addresses

Default settings for multi-I/O port addresses are shown in the table below.

Port I/O Address IRQ Status

LPT1* 378H 7 ECP + EPP

COM1 3F8H 4

COM2 2F8H 3

* LPT1 is default for standard mode. If you want ECP/EPP functions

you must use the BIOS settings. If default I/O port addresses conflict with other I/O cards (e.g. sound cards or I/O cards), you must adjust one of the I/O addresses to avoid address conflict. (You can adjust these I/O addresses from the BIOS..)

Note: Some sound cards have a default IRQ setting for IRQ7, which

may conflict with printing functions. If this occurs do not use

sound card functions at the same time you print.

Page 19

Hardware Setup 15

Connectors

Attach the mainboard to case devices, or an external battery, via connectors on the mainboard. Refer to Figure 1-1 for connector locations and connector pin positions.

J2 – Keyboard Connector

A five-pin female DIN keyboard connector is located at the rear of the board. Plug the keyboard jack into this connector.

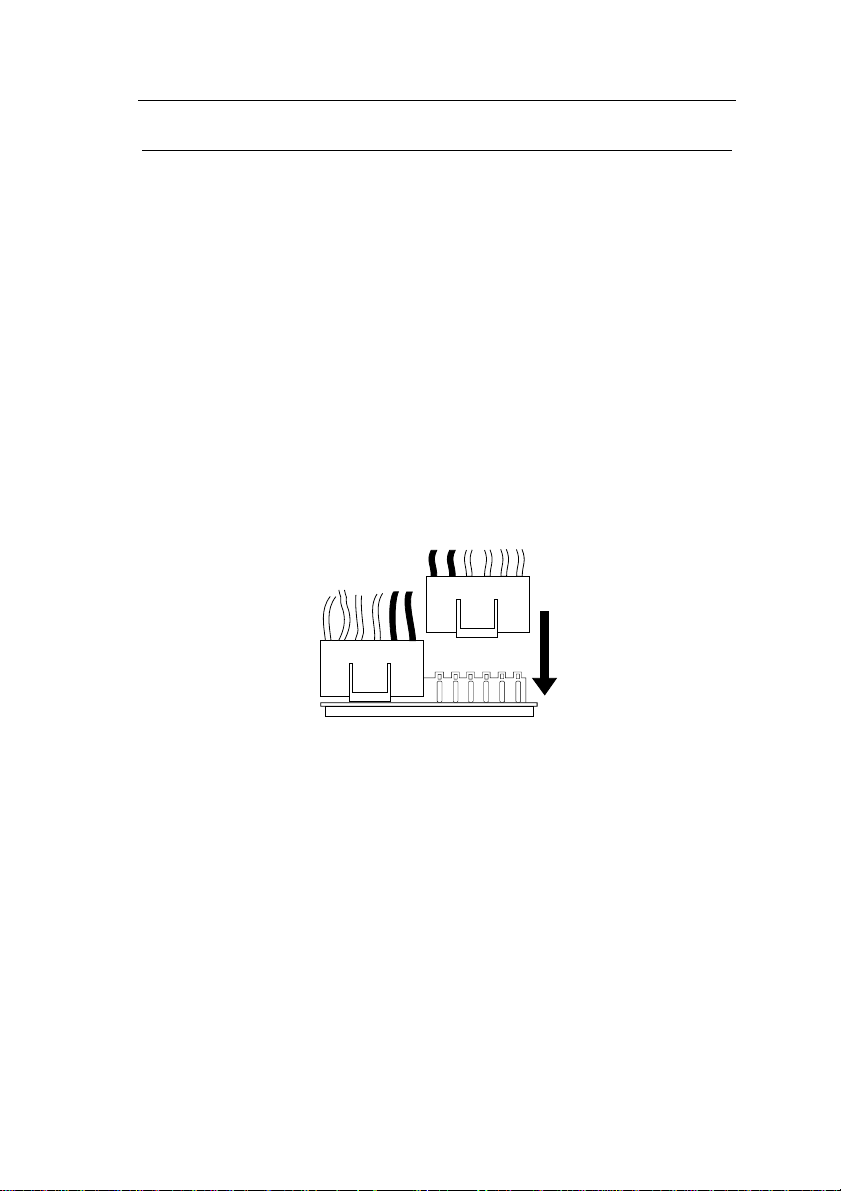

J1 – Power Supply Connectors

The mainboard requires a power supply with at least 200 watts and a Òpower goodÓ signal. J1 has two six-pin male header connectors. Plug the dual connectors from the power directly onto the board connector while making sure the black leads are in the center.

J17 – Keylock & Power LED Connector

J17 is a connector for a lock that may be installed on the system case for enabling or disabling the keyboard. J17 also attaches to the caseÕs Power LED. (Pin 1, 3 for power LED, pin4, 5 for keylock.)

J18 – Speaker Connector

Attach the system speaker to connector J18.

J19 – Hardware Reset Control

Attach the Reset switch to J19. Closing the Reset switch restarts the system.

Page 20

16 Hardware Setup

J22 – Turbo LED Connector

Attach the turbo LED to J22. The LED lights when the system is in Turbo mode.

IDE1/IDE2 – On-board Primary/Secondary IDE HDD Connectors

Attach on-board hard disk drives to these connectors.

J24 – HDD LED Connectors

Attach on-board hard disk drive LEDs to this connector. The LED lights when an HDD is active.

COM1/COM2 Connectors

Attach COM1/COM2 cable to these connectors.

FDC1 Connector

Attach floppy cable to this connector.

P1 – Parallel Port Connector

Attach parallel port cable to this connector.

J4 – Pipelined Burst SRAM Module Slot

Contact your supplier for Pipelined Burst SRAM upgrade module to upgrade your on-board cache SRAM up to 512KB. Make sure JP20 are set for the right size when you upgrade your cache SRAM.

J5, U8 – Universal Serial Bus Connector (Optional)

Attach USB cable to these connectors for external USB device.

J6 – IR Connector (Optional)

Attach 5-pin Infra Red device cable to this connector.

Page 21

3 BIOS Setup

The mainboardÕs BIOS setup program is the ROM PCI/ISA BIOS from Award Software Inc. Enter the Award BIOS programÕs Main Menu as follows:

1. Turn on or reboot the system. After a series of diagnostic checks, you are asked to press DEL to enter Setup.

2. Press the <DEL> key to enter the Award BIOS program and the main screen appears:

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PCI & ONBOARD I/O SETUP

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

Esc : Quit ↑ ↓ → ← : Select Item F10 : Save & Exit Setup (Shift) F2 : Change Color

Time, Date, Hard Disk Type...

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

3. Choose an option and press <Enter>. Modify the system parameters to reflect the options installed in the system. (See the following sections.)

4. Press <ESC> at anytime to return to the Main Menu.

5. In the Main Menu, choose ÒSAVE AND EXIT SETUPÓ to save your changes and reboot the system. Choosing ÒEXIT WITHOUT SAVINGÓ ignores your changes and exits the program.

The Main Menu options of the Award BIOS are described in the sections that follow.

Page 22

18 BIOS Setup

Standard CMOS Setup

Run the Standard CMOS Setup as follows.

1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu. A screen appears.

Date (mm:dd:yy) : Fri, Feb 1 1995 Time (hh:mm:ss) : 7 : 30 : 33

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master : None 0 0 0 0 0 0 ----

Primary Slave : None 0 0 0 0 0 0 ---Secondary Master : None 0 0 0 0 0 0 ---Secondary Slave : None 0 0 0 0 0 0 ----

Drive A : 1.44M, 3.5 in. Drive B : None

Video : EGA/VGA Halt On : All Errors

Esc : Quit ↑ ↓ → ← : Select Item PU/PD/+/– : Modify F11 : Help (Shift) F2 : Change Color F3 : Toggle Calendar

2. Use arrow keys to move between items and select values. Modify selected fields using PgUp/PgDn/+/Ð keys. Some fields let you enter values directly.

Date (mm/dd/yy) Type the current date.

Time (hh:mm:ss) Type the current time.

Primary (Secondary) Master & Slave

Drive A & B Choose 360KB , 5 1/4 in.,

Video Choose Monochrome,

ROM PCI/ISA BIOS

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

Base Memory: 640K

Extended Memory: 3328K

Other Memory: 128K

Total Memory: 4096K

Choose from the standard hard disk types 1 to

46. Type 47 is user definable. If a hard disk is not installed choose ÒNot installed.Ó (default)

1.2MB , 5 1/4 in., 720KB , 3 1/2 in.,

1.4M , 3 1/2 in.(default),

2.88 MB, 3 1/2 in. or Not installed

Color 40x25, VGA/EGA (default), Color 80x25

3. When you finish, press the <ESC> key to return to the Main Menu.

Page 23

BIOS Setup 19

BIOS Features Setup

Run the BIOS Features Setup as follows.

1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a screen with a list of items appears. (The screen below shows the BIOS default settings.)

CPU Internal Cache : Enabled External Cache : Enabled Quick Power on Self Test : Enabled Boot Sequence : A,C Swap Floppy Drive : Disabled Boot Up NumLock Status : On Gate A20 Option : Fast Typematic Rate Setting : Disabled Typematic Rate (Chars/Sec): 6 Typematic Delay (Msec) : 250 Security Option : Setup PCI/VGA Palette Snoop : Disabled OS Select for DRAM >64MB : Non-OS2

2. Use the arrow keys to move between items and to select values. Modify the selected fields using the PgUp/PgDn/+/Ð keys. <F> keys are explained below:

<F1>: ÒHelpÓ gives options available for each item.

Shift <F2>: Change color.

<F5>: Get the old values. These values are the values with which the user started the current session.

<F6>: Load all options with the BIOS Setup default values. <F7>: Load all options with the Power-On default values.

ROM PCI/ISA BIOS

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Video BIOS Shadow : Enabled C8000-CBFFF Shadow : Disabled CC000-CFFFF Shadow : Disabled D0000-D3FFF Shadow : Disabled D4000-D7FFF Shadow : Disabled D8000-DBFFF Shadow : Disabled DC000-DFFFF Shadow : Disabled

ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

A short description of screen items follows:

CPU Internal Cache

This option enables/disables the CPUÕs internal cache. (The Default setting is Enabled.)

External Cache This option enables/disables the external cache

memory. (The Default setting is Enabled.)

Quick Power

Enabled provides a fast POST at boot-up .

On Self Test

Page 24

20 BIOS Setup

Boot Sequence The default setting attempts to first boot from drive

A:, drive C, or CD-ROM. You can reverse this sequence with ÒC: A:Ó, but then drive A: cannot boot directly. (It depends on the specifications of CDROM or CD-ROM drivers to boot from CD-ROM.)

Swap Floppy Drive

Boot Up Num Lock Status

Gate A20 Option

Typematic Rate Setting

Typematic Rate (Chars/Sec)

Typematic Delay (Msec)

Security Option Choose Setup or System. Use this feature to prevent

PCI/VGA Palette Snoop

OS Select for DRAM >64MB

Enabled changes the sequence of the A: and B: drives. (The Default setting is Disabled.)

Choose On or Off. On puts numeric keypad in Num Lock mode at boot-up. Off puts this keypad in arrow key mode at boot-up.

Choose Fast (default) o Normal. Fast allows RAM accesses above 1MB using the fast gate A20 line.

Enable this option to adjust the keystroke repeat rate.

Choose the rate a character keeps repeating.

Choose how long after you press a key that a character begins repeating.

unauthorized system boot-up or use of BIOS Setup.

ÒSystemÓ Ð Each time the system is booted the password prompt appears.

ÒSetupÓÐ If a password is set, the password prompt only appears if you attempt to enter the Setup program.

Enabled: The color of the monitor may be incorrect

if uses with MPEG card. Enable this option to make the monitor normal.

Disabled: Default setting.

OS2: Choosing this when you are using OS/2

operation system.

Non-OS/2: Choosing this when you are using no-

OS/2 operation system.

Page 25

BIOS Setup 21

Video or Adapter BIOS Shadow

3. After you have finished with the BIOS Features Setup program, press the <ESC> key and follow the screen instructions to save or disregard your settings.

BIOS shadow copies BIOS code from slower ROM to faster RAM. BIOS can then execute from RAM. These 16K segments can be shadowed from ROM to RAM. BIOS is shadowed in a 16K segment if it is enabled and it has BIOS present.

Page 26

22 BIOS Setup

Chipset Features Setup

The Chipset Features Setup option changes the values of the chipset registers. These registers control system options in the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Chipset Features Setup as follows.

1. Choose ÒCHIPSET FEATURES SETUPÓ from the Main Menu and the following screen appears. (The screen below shows default settings.)

Auto Configuration : Enabled DRAM Timing : 70 ns DRAM RAS# Precharge Time : 4 DRAM R/W Leadoff Timing : 7/6 Fast RAS# To CAS# Delay : 3 DRAM Read Burst Timing : x333 DRAM Write Burts Timing : x333 Turbo Read Leadoff : Disabled DRAM Speculative Leadoff : Disabled Turn-Around Insertion : Disabled

System BIOS Cacheable : Disabled Video BIOS Cacheable : DIsabled 8 Bit I/O Recovery Time : 3 16 Bit I/O Recovery Time : 1 Memory Hole At 15M-16M : Disabled Peer Concurrency : Enabled Chipset Special Features : Enabled DRAM ECC/PARITY Select : Parity Memory Parity/ECC Check : Auto

ROM PCI/ISA BIOS

CHIPSET FEATURES SETUP

AWARD SOFTWARE, INC.

Single Bit Error Report : Enabled L2 Cache cacheable Size : 64MB Chipset NA# Asserted : Enabled

ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values. Modify selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows: Auto Configuration Enable this option (strongly

recommended) and the system automatically sets all options on the left side of the screen (except cache update mode & BIOS cacheable).

If this option is Enabled you must boot from Turbo mode.

DRAM Timing Choose the right speed to fit your

DRAMÕs spec.

DRAM RAS Precharge

Use the default setting.

Time

Page 27

BIOS Setup 23

DRAM R/W Leadoff Timing

DRAM RAS to CAS Delay

DRAM Read Burst Timing

DRAM Write Burst Timing

Turbo Read Leadoff Use the default setting.

DRAM Speculative Leadoff

Turn-Around Insertion Use the default setting.

ISA Clock Use BIOS default setting or choose:

System BIOS Cacheable Disabled: The ROM area F0000H-

Video BIOS Cacheable Disabled: The video BIOS C0000H-

8Bit I/O Recovery Time Use the default setting.

16Bit I/O Recovery Time

Memory Hole At 15M16M

Peer Concurrency Use the default setting.

Use the default setting.

/4: for 60, 66MHz CPU Bus Frequency

/3: for 50, 55MHz CPU Bus Frequency.

FFFFFH is not cached.

Enabled: The ROM area F0000H-

FFFFFH is cacheable if cache controller is enabled.

C7FFFH is not cached.

Enabled: The video BIOS C0000H-

C7FFFH is cacheable if cache controller is enabled.

Use the default setting.

Choose Enabled or Disabled (default). Some interface cards will map their ROM address to this area. If this occurs, you should select Enabled, otherwise use Disabled.

Page 28

24 BIOS Setup

Chipset Special Features Use the default setting.

DRAM ECC/PARITY Select

Memory Parity/ECC Check

Single Bit Error Report Enabled: System will report DRAM

L2 Cache Cacheable Size

3. After you have finished with the Chipset Features Setup, press the <ESC> key and follow the screen instructions to save or disregard your settings.

Choose ECC or Parity (default) according the type of DRAM you have.

Auto: Active memory checking

automatically.

Enabled: Enable memory checking.

Disabled: Disable memory checking.

error to CPU.

Disabled: System will not report DRAM

error to CPU.

Use the default setting.

Page 29

BIOS Setup 25

Power Management Setup

The Power Management Setup option sets the systemÕs power saving functions.

Run the Power Management Setup as follows.

1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu and a screen with a list of items appears.

Power Management : Disabled PM Control by APM : No Video Off Method : V/H SYNC+Blank

Doze Mode : Disabled Standby Mode : Disabled Suspend Mode : Disabled HDD Power Down : Disabled

** Wake Up Events In Doze & Standby ** IRQ3 (Wake-Up Event) : ON IRQ4 (Wake-Up Event) : ON IRQ8 (Wake-Up Event) : ON IRQ12 (Wake-Up Event) : ON

2. Use the arrow keys to move between items and to select values. Modify the selected fields using the PgUp/PgDn/+/- keys.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

POWER MANAGEMENT SETUP

** Power Down & Resume Events ** IRQ 3 (COM 2) : ON IRQ 4 (COM 1) : ON IRQ 5 (LPT 2) : ON IRQ 6 (Floppy Disk) : OFF IRQ 7 (LPT 1) : ON IRQ 8 (RTC Alarm) : OFF IRQ 9 (IRQ2 Redir) : ON IRQ 10 (Reserved) : ON IRQ 11 (Reserved) : ON IRQ 12 (PS/2 mouse) : ON IRQ 13 (Coprocessor) : ON IRQ 14 (Hard Disk) : ON IRQ 15 (Reserved) : ON

ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

A short description of selected screen items follows:

Power Management

Options are as follows:

User Define LetÕs you define the HDD and

system power down times.

Disabled Disables the Green PC Features.

Min Saving Doze timer = 1 Hour

Standby timer = 1 Hour Suspend timer = 1 Hour HDD Power Down = 15 Min

Max Saving Doze timer = 1 Min

Standby timer = 1 Min Suspend timer = 1 Min HDD Power Down = 1 Min

Page 30

26 BIOS Setup

PM Control by APM

Video Off Method Choose V/H Sync+Blank (default), Blank

Doze Mode When the set time has elapsed, the BIOS sends a

Standby Mode The default is Disabled. Time is adjustable from

Suspend Mode The default is Disabled. Only an SL-Enhanced

HDD Power Down When the set time has elapsed, the BIOS sends a

IRQx (Wake-Up Events)

Power Down Activities

Choose Yes or No (default). APM stands for Advanced Power Management. To use APM, you must run Òpower.exeÓ under DOS v6.0 or later version.

screen, or DPMS for the selected PM mode.

command to the system to enter doze mode (system clock drops to 33MHz). Time is adjustable from 1 Min to 1 Hour.

1 Min to 1 Hour.

(or SMI) CPU can enter this mode. Time is adjustable from 1 Min to 1 Hour. Under Suspend mode, the CPU stops completely (no instructions are executed.)

command to the HDD to power down, which turns off the motor. Time is adjustable from 1 to 15 minutes. The default setting is Disabled. Some older model HDDs may not support this advanced function.

The BIOS monitors these items for activity. If activity occurs from the Enabled item the system wakes up.

The BIOS monitors these items for no activity. If no activity occurs from the Enabled item the system will enter power saving mode (Doze/Standby/Suspend/ HDD Power Down mode) .

3. After you have finished with the Power Management Setup, press the <ESC> key to return to the Main Menu.

Page 31

BIOS Setup 27

PNP/PCI Configuration Setup

This option sets the mainboardÕs PCI Slots. Run this option as follows:

1. Choose ÒPNP/PCI CONFIGURATION SETUPÓ from the Main Menu and the following screen appears. (The screen below shows default settings.)

ROM PCI/ISA BIOS

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

Resources Controlled By : Manual Reset Configuration Data : Disabled

IRQ-3 assigned to : Legacy ISA* IRQ-4 assigned to : Legacy ISA* IRQ-5 assigned to : PCI/ISA PnP* IRQ-7 assigned to : Legacy ISA* IRQ-9 assigned to : PCI/ISA PnP* IRQ-10 assigned to : PCI/ISA PnP* IRQ-11 assigned to : PCI/ISA PnP* IRQ-12 assigned to : PCI/ISA PnP* IRQ-14 assigned to : Legacy ISA* IRQ-15 assigned to : Legacy ISA* DMA-0 assigned to : PCI/ISA PnP* DMA-1 assigned to : PCI/ISA PnP* DMA-3 assigned to : PCI/ISA PnP* DMA-5 assigned to : PCI/ISA PnP* DMA-6 assigned to : PCI/ISA PnP* DMA-7 assigned to : PCI/ISA PnP*

*: These items will disappear when Resource Controlled. is Auto.

2. Use the arrow keys to move between items and select values. Modify selected fields using the PgUp/PgDn/+/Ð keys.

PCI IRQ Actived By : Level PCI IDE IRQ Map To : PCI-AUTO Primary IDE INT# : A Secondary IDE INT# : B

ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

A short description of screen items follows:

Resources Controlled By

Manual: BIOS doesnÕt manage PCI/ISA PnP

card (i.e., IRQ) automatically.

Auto: BIOS auto manage PCI and ISA PnP

card (recommended).

Reset Configuration Data

Disabled: Retain PnP configuration data in

BIOS.

Enabled: Reset PnP configuration data in BIOS.

Page 32

28 BIOS Setup

IRQX and DMAX assigned to

PCI IRQ Activated By

PCI IDE IRQ Map To

Primary IDE INT#

Secondary IDE INT#

3. After you have finished with the PCI Slot Configuration, press the <ESC> key and follow the screen instructions to save or disregard your settings.

Choose PCI/ISA PnP or Legacy ISA. If the first item is set to Manual, you could choose IRQX and DMAX assigned to PCI/ISA PnP card or ISA card.

PCI/ISA PnP: BIOS auto assigns IRQ/DMA to

the device.

Legacy ISA: User assigns IRQ/DMA to the

device.

Choose Edge or Level. Most PCI trigger signals are Level. This setting must match the PCI card.

Select PCI-AUTO, ISA, or assign a PCI SLOT number (depending on which slot the PCI IDE is inserted). The default setting is PCI-AUTO. If PCI-AUTO does not work, then assign an individual PCI SLOT number.

Choose INTA#, INTB#, INTC#, or INTD#. The default setting is INTA#.

Choose INTA#, INTB#, INTC#, or INTD#. The default setting is INTB#.

Load Setup Defaults

This item loads the system values you have previously saved. Choose this item and the following message appears:

ÒLoad SETUP Defaults (Y/N)? NÓ

To use the SETUP defaults, change the prompt to ÒYÓ and press <Enter>.

Note: The SETUP Defaults are optimized for the most stabilized

performance.

Page 33

BIOS Setup 29

Load BIOS Defaults

Choose this item and the following message appears:

ÒLoad BIOS Defaults (Y/N)?NÓ

To use the BIOS defaults, change the prompt to ÒYÓ and press <Enter>.

Note: BIOS DEFAULTS values are adjusted for high performance. If

you run into any problems after loading BIOS DEFAULTS,

please load the SETUP DEFAULTS for the stable performance.

Integrated Peripherals

The Integrated Peripherals option changes the values of the chipset registers. These registers control system options in the computer.

Note: Change these settings only if you are familiar with the Chipset.

Run the Integrated Peripherals as follows.

1. Choose ÒIntegrated PeripheralsÓ from the Main Menu and the

following screen appears. (The screen below shows default settings.â

IDE HDD Block Mode : Enabled PCI Slot IDE 2nd Channel : Enabled On-Chip Primary PCI IDE: Enabled On-Chip Secondary PCI IDE: Enabled IDE Primary Master PIO : Auto IDE Primary Slave PIO : Auto IDE Secondary Master PIO : Auto IDE Secondary Slave PIO : Auto

Onboard FDD Controller : Enabled Onboard Serial Port 1 : 3F8/IRQ4 Onboard Serial Port 2 : 2F8/IRQ3 UART 2 Mode : Standard Onboard Parallel Port : 378H/IRQ7 Onboard Parallel MODE : ECP/EPP ECP Mode Use DMA : 3 Paralel Port EPP Type : EPP1.7

ROM PCI/ISA BIOS

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

2. Use the arrow keys to move between items and select values.

Modify selected fields using the PgUp/PgDn/+/Ð keys.

A short description of screen items follows:

Page 34

30 BIOS Setup

IDE HDD Block Mode Choose Enabled (default) or Disabled.

Enabled invokes multi-sector transfer instead of one sector per transfer. Not all HDDs support this function.

PCI Slot IDE 2nd Channel

On-chip Primary/ Secondary PCI IDE

IDE Primary Master PIO

IDE Primary Slave PIO

IDE Secondary Master PIO

IDE Secondary Slave PIO

Onboard FDC Controller Enabled: Use the on-board floppy

Onboard Serial Port 1

Onboard Serial Port 2

Choose Enabled (default) or Disabled. When Enabled is set, IRQ15 is dedicated for secondary IDE use. When Disabled is set, IRQ15 is released for other devices.

Enabled: Use the on-board IDE (default) Disabled: Turn off the on-board IDE

Choose Auto (default) or mode 0~4. Mode 0 is the slowest speed, and HDD mode 4 is the fastest speed. For better performance and stability, we suggest you use the Auto setting to set the HDD control timing.

controller (default).

Disabled: Turn off the on-board floppy

controller.

Choose serial port 1 & 2Õs I/O address. Do no set port 1 & 2 to the same value except for Disabled.

UART 2 Mode

COM 1/3F8H | COM3/3E8H COM 2/2F8H | COM4/2E8H (default) |

Standard: Use standard UART mode

(default).

ASK IR:Use UART with ASKIR

function.

Page 35

BIOS Setup 31

Onboard Parallel Port Choose the printer I/O address:

378H/IRQ7 (default), 3BCH/IRQ7, 278H/IRQ5

Onboard Printer Mode Choose ECP + EPP (default), SPP or EPP,

ECP mode. The mode depends on your external device that connects to this port.

ECP Mode DMA Select Choose DMA3 (default) or DMA1. This

setting only works when the Onboard Printer Mode is set at the ECP mode.

Parallel Port EPP Type

Choose EPP specification Ver. 1.7 (default) or 1.9.

Page 36

32 BIOS Setup

Supervisor Password

Based on the setting you made in the ÒSecurity OptionÓ of the ÒBIOS FEATURES SETUPÓ, this Main Menu item lets you configure the system so that a password is required every time the system boots or an attempt is made to enter the Setup program. Change the password as follows:

1. Choose ÒSUPERVISOR PASSWORDÓ in the Main Menu and press <Enter>. The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.

(If you do not wish to use the password function, you can just press <Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main Menu.

5. You have the right to change any changeable settings in the ÒCMOS SETUP UTILITY.Ó

Important: If you forget or lose the password, the only way to access

the system is to set jumper JP5 to clear the CMOS RAM. All setup information is lost and you must run the BIOS setup program again.

Page 37

BIOS Setup 33

User Password

1. Choose ÒUSER PASSWORDÓ in the Main Menu and press <Enter>. The following message appears:

ÒEnter Password:Ó

2. Enter a password and press <Enter>.

(If you do not wish to use the password function, you can just press <Enter> and a ÒPassword disabledÓ message appears. )

3. After you enter your password, the following message appears prompting you to confirm the new password:

ÒConfirm Password:Ó

4. Re-enter your password and then Press <ESC> to exit to the Main Menu.

5. You are not allowed to change any setting in ÒCMOS SETUP UTILITYÓ except change userÕs password.

Important: If you forget or lose the password, the only way to access

the system is to set jumper JP5 to clear the CMOS RAM.

All setup information is lost and you must run the BIOS

setup program again.

Page 38

34 BIOS Setup

IDE HDD Auto Detection

This Main Menu item automatically detects the hard disk type and configures the STANDARD CMOS SETUP accordingly.

Note: This function is only valid for IDE hard disks.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master : None 0 0 0 0 0 0 ----

Primary Slave : None 0 0 0 0 0 0 ---Secondary Master : None 0 0 0 0 0 0 ---Secondary Slave : None 0 0 0 0 0 0 ----

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

Do you accept this drive C (Y/N)? N

ESC : Skip

Page 39

4 Drivers Installation Guide

IDE BUS Master Installation Guide

MS-DOS/WINDOW/WFW

1) You should install CD-ROM in secondary channel in Windows

(WFW).

2) Change the current directory to a: or b:.

3) Under DOS command line prompt, run the SETUP directly.

After entering the setup utility, just follow the instructions of the setup.

WINDOWS NT3.5

1) From the Program Manager, double click on ÒWindows NT SetupÓ

in the Main group.

2) Select ÒOptions/Add/Remove SCSI Adapters...Ó.

3) Click on Add.

4) The ÒSelect SCSI Adapter OptionÓ dialog will appear; select ÒOther

(Requires a disk from a hardware manufacturer)Ó from the ÒAdapter:Ó list box.

5) Next, the ÒInsert DisketteÓ dialog box will appear; insert the Triones

PIIX/PIIX3 Bus Master EIDE/ATAPI Driver disk into Drive A: and type in Òa:\winnt35Ó and <Return>.

6) Next, the ÒSelect OEM OptionÓ dialog box will appear; select

ÒPIIX/PIIX3 Bus Master EIDE/ATAPIÓ and click ÒOKÓ.

7) Next, the ÒSelect SCSI Adapter OptionÓ dialog box will appear;

click on the ÒInstallÓ button in the dialog box. If installation is successful, the ÒSCSI Adapter SetupÓ dialog box will reappear, and ÒPIIX/PIIX3 Bus Master EIDE/ATAPIÓ will be listed. That means the driver is installed.

8) Reboot your system to load the driver.

Page 40

36 Drivers Installation Guide

WINDOWS 95

1) Close any running applications.

2) Insert the floppy disk into drive A:.

3) Open ÒMy ComputerÓ, double click ÒDrive A:Ó.

4) Double click ÒWin95Ó.

5) Double click the Setup program.

6) Then just follow the instruction.

NOVELL 3.X&4.X

1) Copy the driver TRIN4X.DSK or TRIN312.DSK to the subdirectory

which holds the file SERVER.EXE.

2) Boot up the file server.

3) On the system console and on the command prompt state, type in:

load TRIN4X.DSK <Enter> or load TRIN312.DSK <Enter> You can also include the above command line into the start up file STARTUP.NCF to load the driver automatically.

SCO UNIX

1) Install SCO UNIX 3.2.x or SCO Open Desktop 3.x using the default SCO IDE driver.

2) Reboot your SCO UNIX system

3) Insert Triones supplied diskette into the 3.5 inch floppy drive of your system. Use doscp command to copy the file TRISCO.TAR to your /tmp directory. for example, if you are using floppy drive A, type: doscp a:/scounix/trisco.tar/tmp/trisco.tar

4) From root directory, type the following commands:

mkdir/inst cd /inst tar xvf /tmp/trisco.tar.

(Note: there is a period at the end of the last command.)

5) Now, insert a blank diskette into the floppy drive A and type:

tar cvf /dev/<your floppy drive A device name>.

(Note: there is a period at the end of the last command.)

Page 41

Drivers Installation Guide 37

Your floppy drive A device name could be: ¥ rfd096ds15,5.25 DSHD

¥ rfd0135ds18 3.5 DSHD ¥ rfd048ds9 5.25 DSDD ¥ rfd0135ds9 3.5 DSDD Now you have already made an installation diskette for the device

driver. Start the installation by typing: custom.

6) Select the ÒInstallÓ operation and then follow the guided steps. When prompted ÒDo you want to set the device configuration (y/n)Ó, answer ÒnÓ.

7) Reboot your SCO UNIX system.

SCO UNIX 5.0

1) Install SCO UNIX 5.0 using the default SCO IDE driver.

2) Reboot your SCO UNIX system

4) From root directory, type the following commands:

mkdir/inst cd /inst tar xvf /tmp/trisco.tar.

(Note: there is a period at the end of the last command.)

5) Install the driver by typing:

./install

6) Reboot your SCO UNIX system..

OS/2 2.0 and WARP 3.X

1) Copy TRIOS2.ADD from the floppy diskette to your hard disk under the OS2 directory (i.e., C:\OS2).

2) Edit C:\CONFIG.SYS to replace BASEDEV=IBM1S506.ADD with BASEDEV=TRIOS2.ADD

3) Reboot the system.

Note: For more information (like parameter settings, driver de-

installation, etc.), please refer to the README.TXT file on the

diskette.
