Page 1

9" X 138½" OSCILLATING EDGE SANDER

MODEL SB1117

***Keep for Future Reference***

OWNER'S MANUAL

South Bend Tools

A Tradition of Excellence

Page 2

We stand behind our machines. If you have any service questions, parts requests or general questions about your purchase, feel free to contact us.

South Bend Tools P.O. Box 2027 Bellingham, WA 98227 Phone: (360) 734-1540 Fax: (360) 676-1075 (International) Fax: (360) 734-1639 (USA Only) Email: [email protected]

For your convenience, any updates to this manual will be available to download free of charge

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control it during operation, and how to keep it in good working condition. We assume the reader has a basic understanding of how to operate this type of machine, but that the reader is not familiar with the controls and adjustments of this specific model. As with all machinery of this nature, learning the nuances of operation is a process that happens through training and experience. If you are not an experienced operator of this type of machinery, read through this entire manual, then learn more from an experienced operator, schooling, or research before attempting operations. Following this advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes happen or the machine design changes after the documentation process—so exactly match your machine. contact our

We highly value customer feedback on our manuals. If you have a moment, please share your experience using this manual. What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

P.O. Box 2027 Bellingham, WA 98227 Email: [email protected]

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

through our website at:

Customer Service

Page 3

Table of Contents

INTRODUCTION

Identiﬁcation Description of Controls & Components Product Speciﬁcations

SAFETY

Understanding Risks of Machinery Basic Machine Safety Additional Oscillating Edge Sander Safety

PREPARATION

Preparation Overview Required for Setup Power Supply Requirements Unpacking Inventory Cleaning & Protecting Location Lifting & Moving Assembly Dust Collection Test Run

................................................................................ 7

............................................................ 13

.............................................................. 15

............................................................17

............................................................. 20

............................................................... 2

........................................................ 2

..............3

.........................................5

.................... 7

..........................................7

.............................................................. 10

........................................10

............................................. 10

............................. 11

..........................................................13

.......................................14

................................................16

...................................................20

........ 9

ACCESSORIES .............................................................. 32

MAINTENANCE

Maintenance Schedule Cleaning & Protecting Lubrication Machine Storage

SERVICE...........................................................................34

Calibrating Main Table Tilt Calibrating Miter Stop

TROUBLESHOOTING

ELECTRICAL

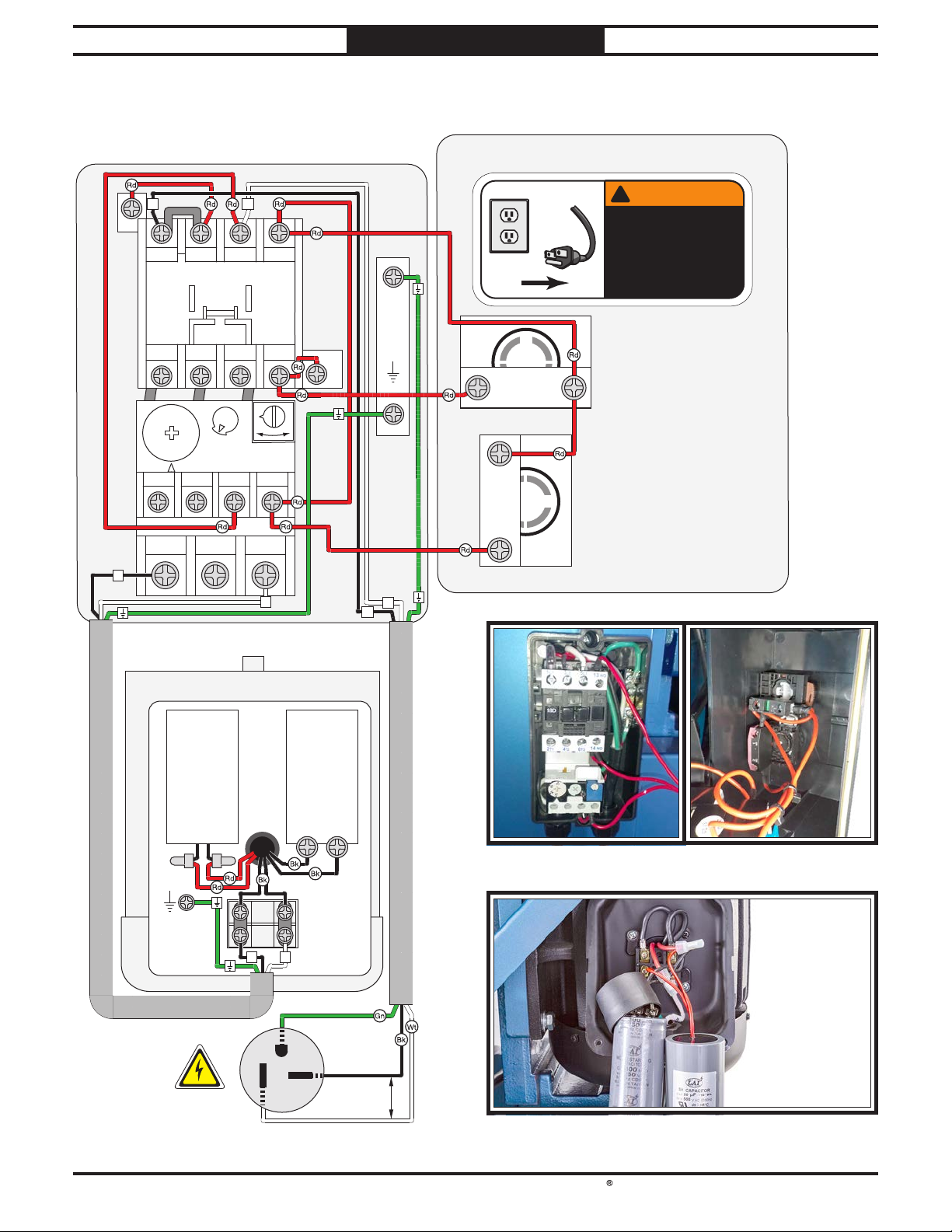

Electrical Safety Instructions Wiring Diagram

PARTS................................................................................40

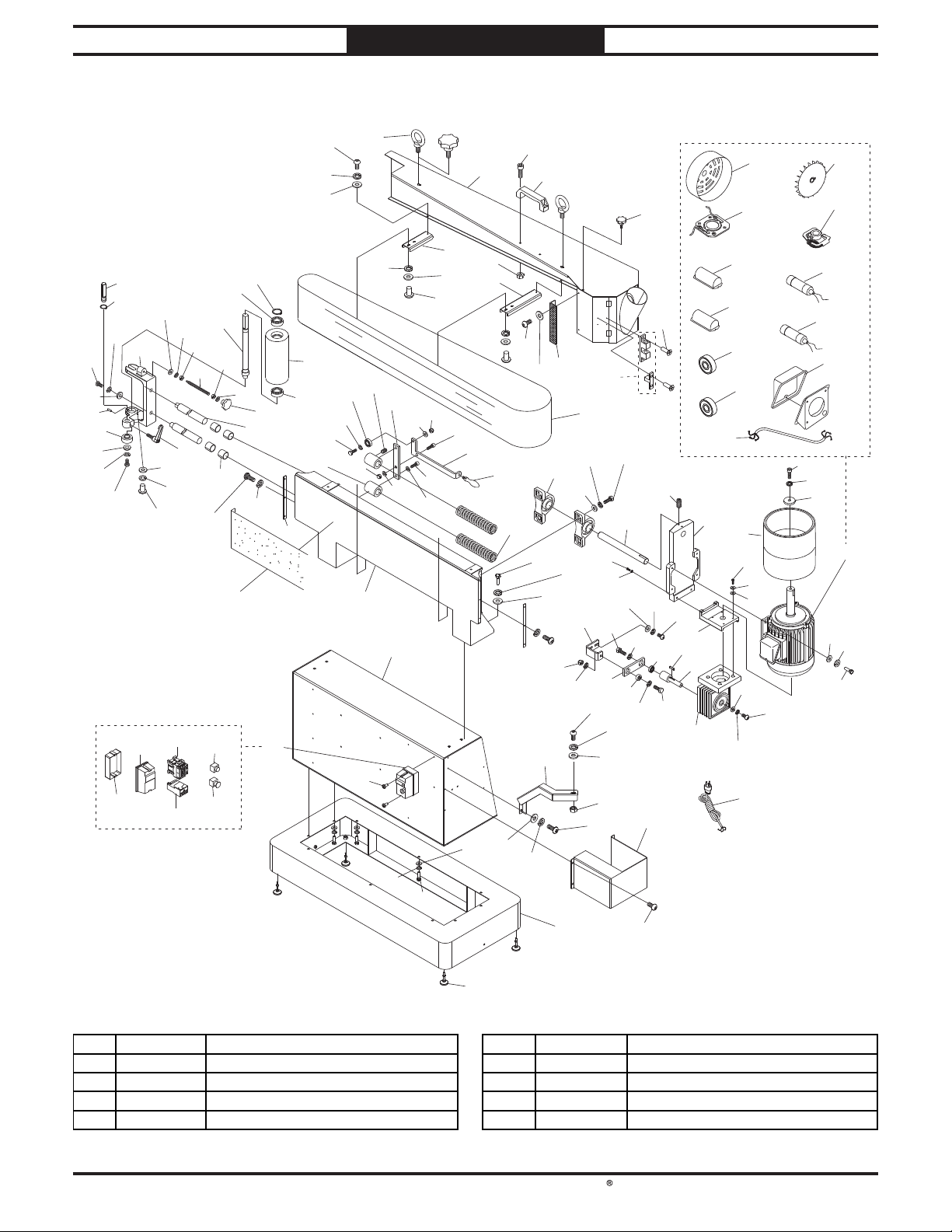

Main

....................................................................40

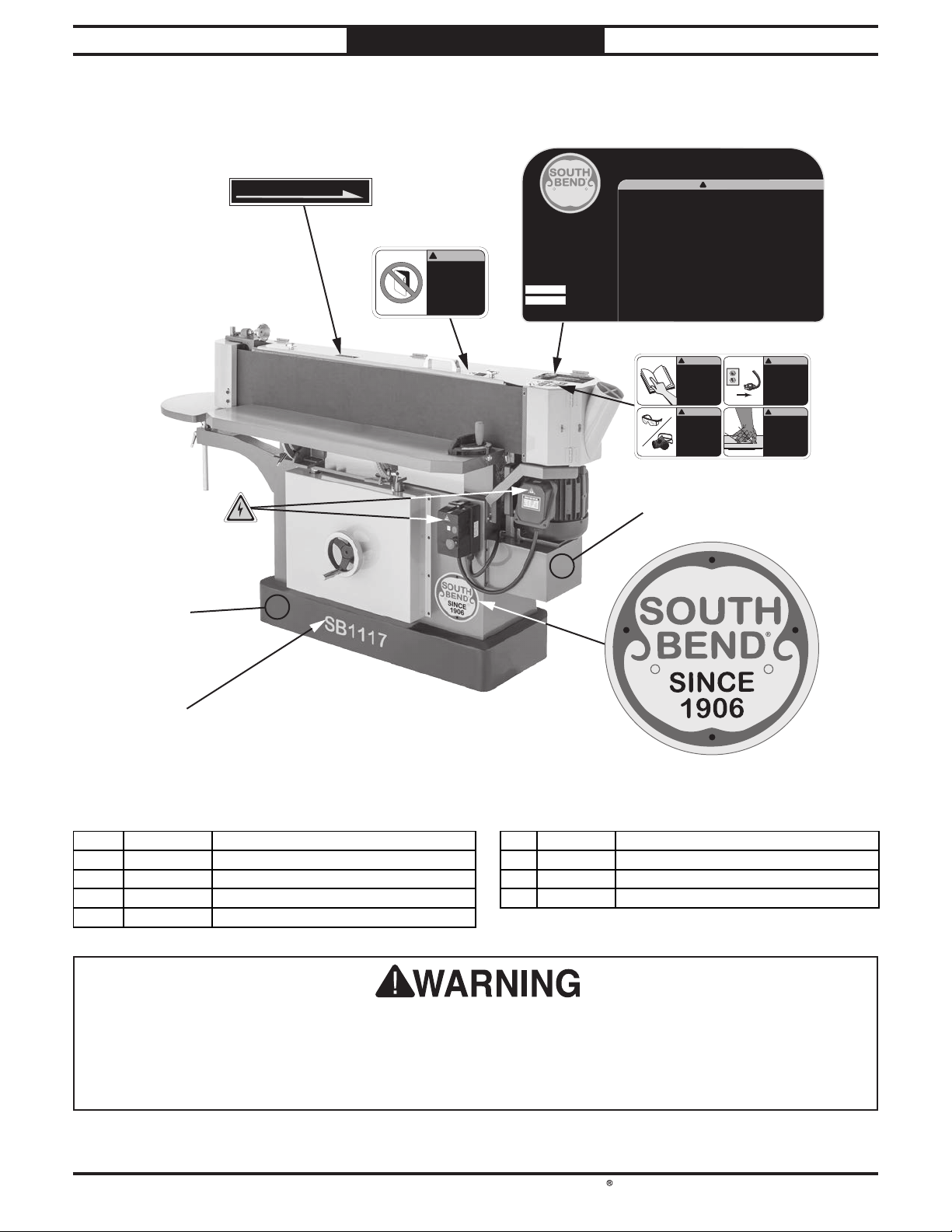

Tables Machine Labels

WARRANTY

.................................................................42

............................................................. 33

.......................................33

......................................................... 33

................................................33

.............................. 34

......................................35

................................................. 36

................................................................... 38

...........................38

.................................................39

.................................................. 44

..................................................................... 45

OPERATION

Operation Overview

Stock Inspection & Requirements.....................23

Sanding Tips Choosing Sanding Belts

Installing/Changing Sanding Belts...................24

Pre-Tracking Belt Checking/Adjusting Belt Tracking Adjusting Main Table Adjusting End Table Adjusting Miter Stop Using Back Stop Edge & End Sanding Contour Sanding Bevel Sanding

.................................................................... 22

........................................... 22

......................................................23

.....................................24

..............................................26

....................26

........................................ 27

.......................................... 28

.........................................29

.................................................29

.........................................30

................................................ 31

....................................................31

Page 4

South Bend Tools

Model SB1117

INTRODUCTION

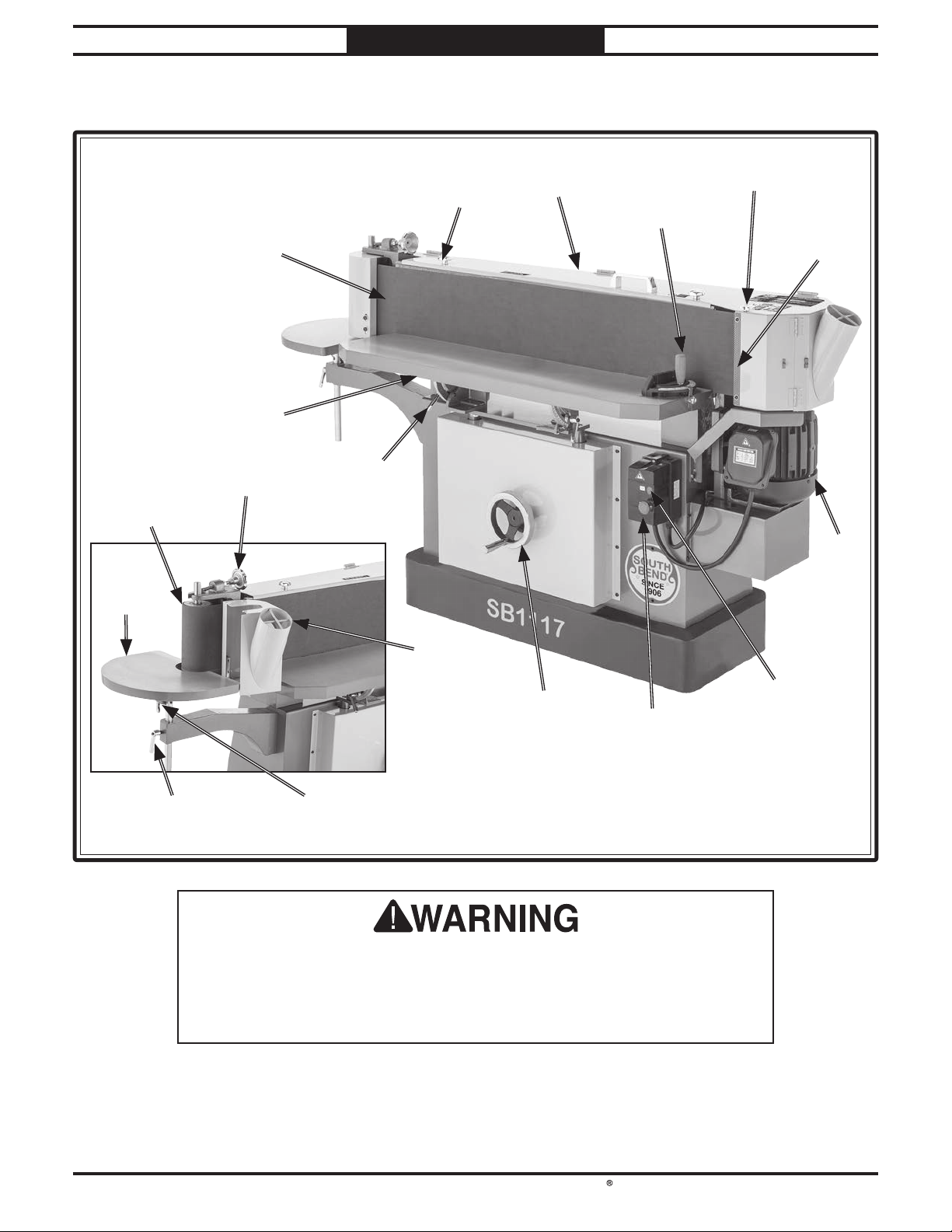

Identiﬁcation

INTRODUCTION

For Machines Mfd. Since 03/22

ContourContour

Sanding DrumSanding Drum

End End

TableTable

Sanding Sanding

BeltBelt

Main TableMain Table

Tracking Tracking

KnobKnob

Table TiltTable Tilt

Lock HandleLock Handle

Belt Guard Belt Guard

Lock KnobLock Knob

Belt Belt

GuardGuard

Back StopBack Stop Lock KnobLock Knob

Miter Miter

StopStop

Back StopBack Stop

MotorMotor

End Table Height End Table Height

Lock HandleLock Handle

For Your Own Safety, Read Instruction Manual Before Operating Sander a) Wear eye protection. b) Support workpiece with miter gauge, backstop, or worktable. c) Maintain d) Avoid kickback by sanding in accordance with the directional arrows.

Dust Dust

HoodHood

Main TableMain Table

HeightHeight

HandwheelHandwheel

End Table Tilt End Table Tilt

Lock HandleLock Handle

/16" maximum clearance between table and sanding belt.

E-StopE-Stop ButtonButton

ON ButtonON Button

-2-

Page 5

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

Description of Controls

INTRODUCTION

C. Tracking Knob: Adjusts sanding belt

tracking.

& Components

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

Untrained users have an increased risk of seriously injuring themselves with this machine. Do not operate this machine until you have understood this entire manual and received proper training.

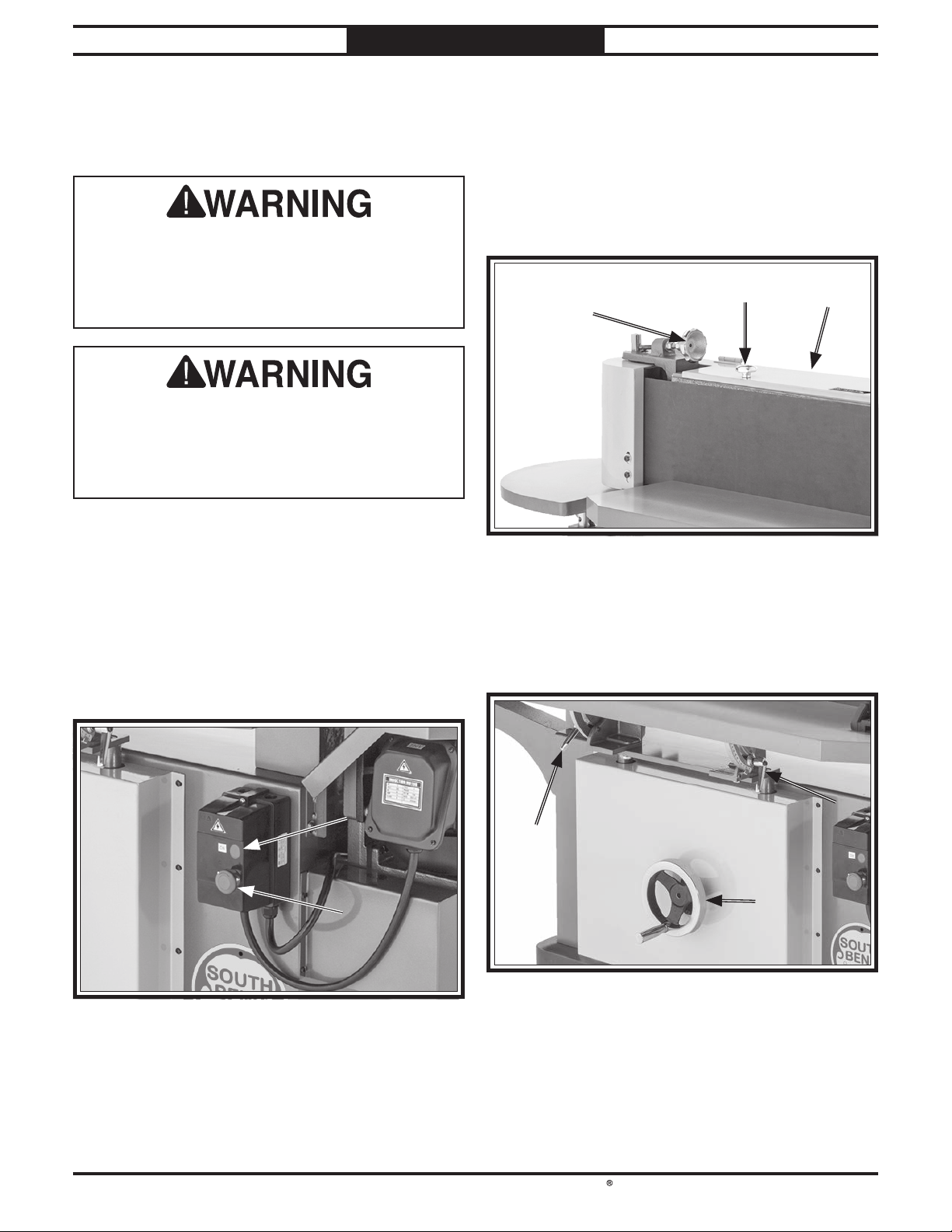

Refer to Figures 1–5 and the following descriptions to become familiar with the basic controls and components used to operate this machine.

D. Belt Guard Lock Knob: Tightens to lock belt

guard and loosens to open belt guard.

E. Belt Guard: Opens and closes to allow for belt

replacement and maintenance.

Figure Figure 2. Belt controls and components.. Belt controls and components.

F. Table Tilt Lock Handles: Tighten to lock table

tilt angle and loosen to adjust tilt angle.

A. ON Button: Starts motor.

B. E-Stop Button: Stops motor and prevents

accidental startup. Twist to reset.

Figure Figure 1. Electrical components.. Electrical components.

G. Main Table Height Handwheel: Adjusts main

table height.

Figure Figure 3. Main table adjustment components.. Main table adjustment components.

-3-

Page 6

South Bend Tools

Model SB1117

INTRODUCTION

For Machines Mfd. Since 03/22

H. End Table Tilt Lock Handle: Tightens to lock

end table tilt angle and loosens to adjust tilt angle.

I. End Table Height Lock Handle: Tightens to

lock end table height and loosens to adjust table height.

J. Dust Hood Lock Handle: Tightens to lock

dust hood position and loosens to adjust dust hood position.

K. Miter Stop: Adjusts from 0–60 degrees to

support workpiece against sanding belt and main table.

L. Back Stop Lock Knob: Tightens to lock back

stop closed and loosens to open.

M. Back Stop: Supports workpiece and prevents

entanglement.

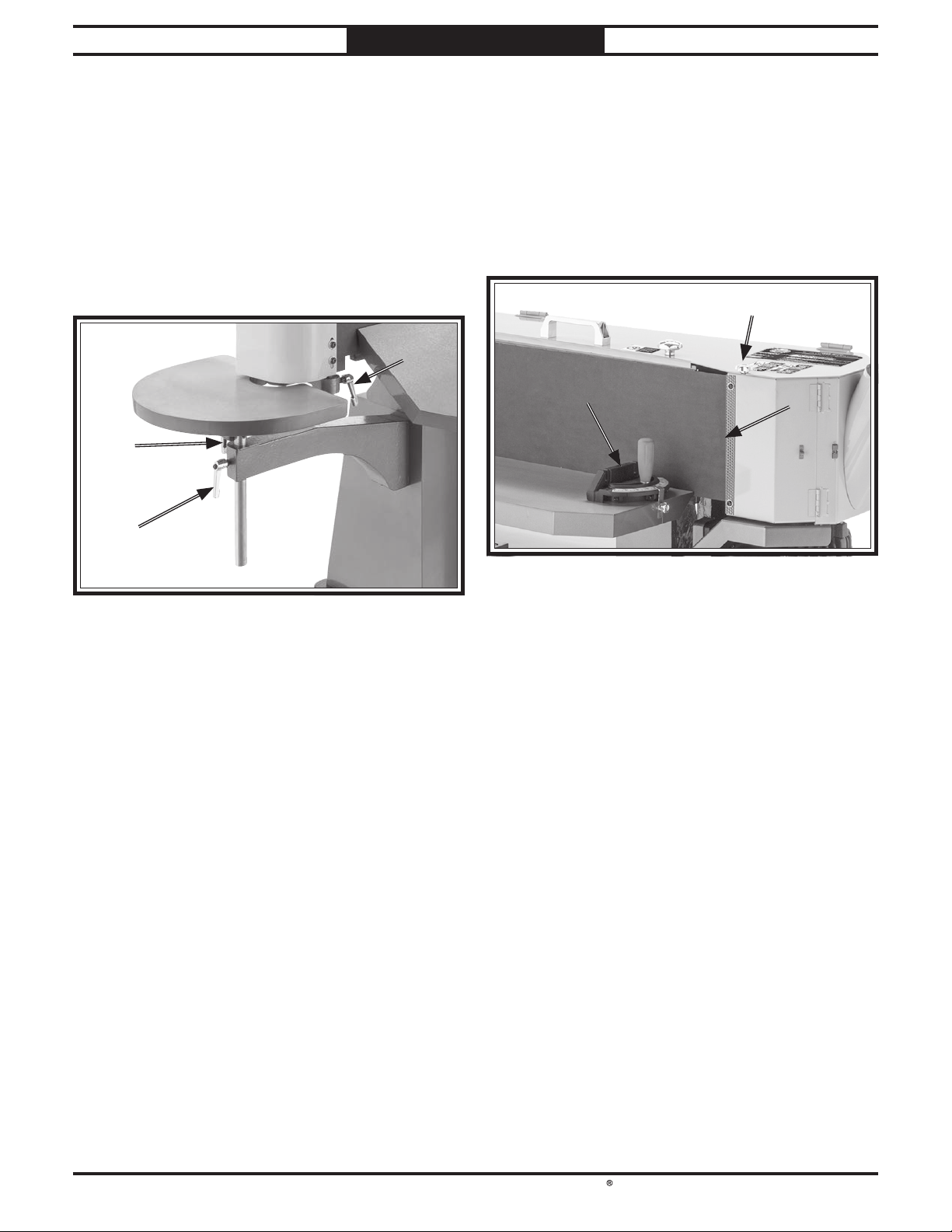

Figure Figure 4. End table adjustment components.. End table adjustment components.

Figure Figure 5. Additional support components.. Additional support components.

-4-

Page 7

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

Model SB1117

INTRODUCTION

Product Speciﬁcations

Product Specifications

P.O. Box 2027, Bellingham, WA 98227 U.S.A.

PHONE: (360) 734-1540 •

www.southbendtools.com

9" x 1381/2" Oscillating Edge Sander

Product Dimensions

Weight.............................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height................................................... 82-1/2 x 26-1/2 x 46-1/2 in.

Footprint (Length x Width)................................................................................................................. 44-1/2 x 19 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content..........................................................................................................................................................

Weight.............................................................................................................................................................

Length x Width x Height................................................................................................................... 82 x 30 x 51 in.

Must Ship Upright................................................................................................................................................ Yes

739 lbs.

Machine

839 lbs.

Electrical

Power Requirement......................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................

Minimum Circuit Size..........................................................................................................................................

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 110 in.

Power Cord Gauge.........................................................................................................................................

Plug Included........................................................................................................................................................

Included Plug Type.............................................................................................................................................. 6-20

Switch Type............................................................................................... Magnetic Switch w/Overload Protection

Motors

Main

Horsepower............................................................................................................................................... 3 HP

Phase............................................................................................................................................

Amps...........................................................................................................................................................

Speed................................................................................................................................................ 1720 RPM

Type............................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................ Direct Drive

Bearings................................................................................................

Centrifugal Switch/Contacts Type.....................................................................................................

Main Specifications

Operation Information

Sanding Belt Speed.......................................................................................................................... 4120 FPM

Sanding Belt Oscillations....................................................................................................................... 1/4 in.

Sanding Belt Length....................................................................................................................... 138-1/2 in.

Sanding Belt Width...................................................................................................................................

Shielded & Permanently Lubricated

15A 20A

12 AWG

Yes

Single-Phase

15A

External

9 in.

-5-

Page 8

South Bend Tools

Model SB1117

Table Information

Platen Information

Construction

INTRODUCTION

Table Length......................................................................................................................................

Table Width.......................................................................................................................................

Table Thickness................................................................................................................................... 1-5/8 in.

Table Tilt.......................................................................................................................................... 0 - 45 deg.

Table Travel......................................................................................................................................... 5-1/8 in.

Floor To Table Height..........................................................................................................

End Table Length....................................................................................................................................

End Table Width...................................................................................................................................... 13 in.

End Table Thickness........................................................................................................................... 1-1/4 in.

End Table Travel....................................................................................................................................... 8 in.

Platen Type............................................................................................................................

Platen Length....................................................................................................................................

Platen Width........................................................................................................................................ 9-1/2 in.

Table................................................................................................................................................ Aluminum

Frame................................................................................................................................................. Cast Iron

Base...........................................................................................................................................................

Drive Roller...........................................................................................................................................

Idler Roller............................................................................................................................................ Rubber

Paint Type/Finish................................................................................................................................. Enamel

For Machines Mfd. Since 03/22

47-3/4 in. 11-3/4 in.

33-1/4 - 38-3/8 in.

18 in.

Graphite Coated

47-1/2 in.

Steel

Rubber

Other Related Information

Number of Dust Ports..................................................................................................................................... 2

Dust Port Size............................................................................................................................................

Belt Release...............................................................................................................................

Drive Roller Size........................................................................................................................................ 9 in.

Idler Roller Size......................................................................................................................................... 4 in.

Quick Release

Other

Country of Origin ........................................................................................................................................... Taiwan

Warranty ........................................................................................................................................................ 2 Years

Approximate Assembly & Setup Time .......................................................................................................... 1 Hour

Serial Number Location .............................................................................................................................. ID Label

Sound Rating ............................................................................................................................................. 96 - 98 dB

Features

Miter Work Stop Quick-Release Belt Lever Conveniently Located Belt Tracking and Tension Adjustment 1/4" Belt Oscillation Two Large Sanding Tables Table Height Handwheel for Easy Adjustment and Maximum Use of Sanding Surface Area

4 in.

-6-

Page 9

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This responsibility includes proper installation in a safe environment, personnel training and usage authorization, regular inspection and maintenance, manual availability and comprehension, application of safety devices, integrity of cutting tools or accessories, and the usage of approved personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property damage from negligence, improper training, machine modiﬁcations, or misuse. Failure to read, understand, and follow the manual and safety labels may result in serious personal injury, including amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

Understanding Risks of Machinery

Death or catastrophic harm WILL occur.

Death or catastrophic harm COULD occur.

Moderate injury or ﬁre MAY occur.

Machine or property damage may occur.

Basic Machine Safety

equipment presents serious injury hazards to untrained users. To reduce the risk of injury, anyone who uses THIS item MUST read and understand this entire manual before starting.

Personal Protective Equipment:

servicing this item may expose the user to ﬂying debris, dust, smoke, dangerous chemicals, or loud noises. These hazards can result in eye injury, blindness, longterm respiratory damage, poisoning, cancer, reproductive harm or hearing loss. Reduce your risks from these hazards by wearing approved eye protection, respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves or bystanders. Only allow trained and properly supervised personnel to operate this item. Make sure safe operation instructions are clearly understood. If electrically powered, use padlocks and master switches, and remove start switch keys to prevent unauthorized use or accidental starting.

Guards/Covers:

moving parts during operation may cause severe entanglement, impact, cutting, or crushing injuries. Reduce this risk by keeping any included guards/covers/doors installed, fully functional, and positioned for maximum protection.

Accidental contact with

-7-

Page 10

South Bend Tools

Model SB1117

Entanglement: Loose clothing, gloves, neckties,

rotate.

Chuck Keys or Adjusting Tools:

Tools used to

our Technical Support for assistance.

SAFETY

For Machines Mfd. Since 03/22

jewelry or long hair may get caught in moving parts, causing entanglement, amputation, crushing, or strangulation. Reduce this risk by removing/securing these items so they cannot contact moving parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the risk of accidental injury. Do not let a temporary influence or distraction lead to a permanent disability! Never operate when under the influence of drugs/alcohol, when tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment may result in electrocution; operating near highly ﬂammable materials may result in a ﬁre or explosion. Only operate this item in a dry location that is free from ﬂammable materials.

Electrical Connection: With electically powered

equipment, improper connections to the power source may result in electrocution or fire. Always adhere to all electrical requirements and applicable codes when connecting to the power source. Have all work inspected by a qualified electrician to minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it is connected to the power source greatly increases the risk of injury from accidental startup. Always disconnect power BEFORE any service or adjustments, including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/ rotating parts will become dangerous projectiles if left in place when the machine is started. Reduce this risk by developing the habit of always removing these tools immediately after using them.

Work Area:

the risks of accidental injury. Only operate this item in a clean, non-glaring, and welllighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning equipment has higher risks of causing serious personal injury compared to those that are properly maintained. To reduce this risk, always maintain this item to the highest standards and promptly repair/service a damaged or malfunctioning component. Always follow the maintenance instructions included in this documentation.

Unattended Operation:

equipment that is left unattended while running cannot be controlled and is dangerous to bystanders. Always turn the power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when cutting, may contain chemicals known to the State of California to cause cancer, respiratory problems, birth defects, or other reproductive harm. Minimize exposure to these chemicals by wearing approved personal protective equipment and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can become dangerous projectiles if not secured or if they hit another object during operation. Reduce the risk of this hazard by verifying that all fastening devices are properly secured and items attached to spindles have enough clearance to safely

-8-

Loose workpieces,

Difﬁcult Operations:

operations with which you are unfamiliar increases the risk of injury. If you experience difficulties performing the intended operation, STOP! Seek an alternative method to accomplish the same task, ask a qualified expert how the operation should be performed, or contact

Attempting difficult

Page 11

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

SAFETY

Additional Oscillating Edge Sander Safety

Serious injury or death can occur if ﬁngers, clothing, jewelry, or hair get entangled in moving components. Impact injuries can occur from kickback if workpiece is improperly fed into moving sandpaper. Serious pinch injuries can occur from touching in-running nip point between table and sanding surface. Long-term respiratory damage can occur from using sander without proper use of a respirator. To reduce the risk of these hazards, operator and bystanders MUST completely heed the hazards and warnings below.

Avoiding Entanglement. Becoming entangled

in moving parts of this machine can cause pinching and crushing injuries. To avoid these hazards, DO NOT wear loose clothing, gloves, or jewelry, and tie back long hair. Keep all guards in place and secure.

In-Running Nip Points. The gap between moving

sandpaper and fixed table/support creates a pinch point for fingers or workpieces; the larger this gap is, the greater risk of fingers or workpieces getting caught in it. Minimize this risk by adjusting table no more than

Sandpaper Direction. Feeding workpiece

incorrectly can cause it to be thrown from machine, striking operator or bystanders, or causing your hands to slip into the moving sandpaper. To reduce these risks, only sand against direction of sandpaper travel, ensure workpiece is properly supported, and avoid introducing sharp edges into moving sandpaper on leading side of workpiece.

Workpiece Support & Hand Placement. Rotating

sandpaper can remove a large amount of skin quickly, and kickback can occur with violent force if workpiece is not properly supported during operation. Always sand with workpiece firmly against table or another support device. Never touch moving sandpaper on purpose.

Workpiece Integrity. Only sand solid workpieces

that can withstand power sanding forces. Make sure shape of workpiece is properly supported on table; avoid sanding workpieces without flat bottom surfaces unless some type of jig is used to maintain support and control when sanding force is applied.

⁄16" away from sandpaper.

Feeding Workpiece. Forcefully jamming

workpiece into sanding surface could cause workpiece to be aggressively grabbed and pull your hands into sanding surface. Firmly grasp workpiece in both hands and ease it into sandpaper using light pressure.

Small Workpieces. Small workpieces are

difficult to control and require close support near sanding surface. Always use a jig or other holding device when sanding small workpieces, and keep hands and fingers at least 2" away from sanding surface.

Workpiece Inspection. Nails, staples, knots, or

other imperfections in workpiece can be dislodged and thrown from sander at high rate of speed into operator or bystanders, or cause damage to sandpaper or sander. Never try to sand stock that has embedded foreign objects or questionable imperfections.

Sandpaper Condition. Worn or damaged

sandpaper not only produces poor sanding results, but could fly apart, aggressively grab workpiece, and throw debris at the operator. Always inspect sandpaper before operation and replace if worn or damaged.

Sanding Dust & Dust Collection. Sanding creates

large amounts of dust and flying particles that can lead to eye injury or respiratory illness. Reduce risk by wearing approved eye and respiratory protection when using sander. Never operate without adequate dust-collection system in place and running. Proper dust collection reduces dust in work area, decreasing risk of long-term respiratory damage, but it is not a substitute for using a respirator.

-9-

Page 12

South Bend Tools

Model SB1117

PREPARATION

For Machines Mfd. Since 03/22

Preparation Overview Required for Setup

The purpose of the preparation section is to help you prepare your machine for operation. The list below outlines the basic process. Specific steps for each of these points will be covered in detail later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

Clean the machine and its components.

3. Identify an acceptable location for the

machine and move it to that location.

Level the machine and either bolt it to the

floor or place it on mounts.

Assemble the loose components and make

any necessary adjustments or inspections to ensure the machine is ready for operation.

Connect the machine to the power source.

7. Test run the machine to make sure it

functions properly and is ready for operation.

The items listed below are required to successfully set up and prepare this machine for operation.

For Lifting

• A forklift or other power lifting device rated for the weight of the machine.

• Lifting Strap or Chain (rated for at least 1000 lbs.)

For Power Connection

• A power source that meets the minimum circuit requirements for this machine. (Refer to the Power Supply Requirements section for details.)

• A qualified electrician to ensure a safe and code-compliant connection to the power source.

For Assembly

• Disposable Rags

• Cleaner/Degreaser

• Disposable Gloves

• Safety Glasses

• Floor Mounting Hardware (As Needed)

• Calipers or Measuring Tape

• Wrench or Socket 17mm

• Dust Collection System

• Dust Hose 4"

• Hose Clamp 4"

• Open-End Wrench 19mm

-10-

Page 13

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed.

To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by a or qualified service personnel applicable electrical codes and safety standards.

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result—especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Note: The circuit requirements in this manual are for machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure the circuit is properly sized.

A power supply circuit includes all electrical equipment between the main breaker box or fuse panel in your building and the incoming power connections inside the machine. This circuit must be safely sized to handle the full-load current that may be drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Serious injury could occur if you connect

PREPARATION

Power Supply Requirements

Availability

Electrocution or fire may occur if machine is not correctly grounded and attached to the power supply. Use a qualified electrician to ensure a safe power connection.

n electrician

in accordance with

the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

Circuit Requirements

Nominal Voltage ........... 208V/220V/230V/240V

Cycle Phase

Circuit Rating....................................... 20 Amps

Plug/Receptacle (included)

.............................................................60 Hz

..............................................Single-Phase

...........NEMA 6-20

Full-Load Current Rating

Full-Load Rating at 220V ................... 15 Amps

For your own safety and protection of property, consult an electrician if you are unsure about wiring practices or applicable electrical codes.

a dedicated circuit—where only one

-11-

Page 14

South Bend Tools

Model SB1117

This machine must be grounded! In the event of grounding provides a path of least resistance for electric current electric shock.

This machine is equipped with a power cord that has grounding plug The plug receptacle (outlet) grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipmentgrounding wire to a live (current carrying) terminal.

Check with an electrician or qualiﬁed service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded.

If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. If you must use one, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle listed in the

Requirements

meet the following requirements:

PREPARATION

Grounding Requirements

certain types of malfunctions or breakdowns,

in order to reduce the risk of

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

For Machines Mfd. Since 03/22

Extension Cords

6-20 PLUG

Grounding Prong

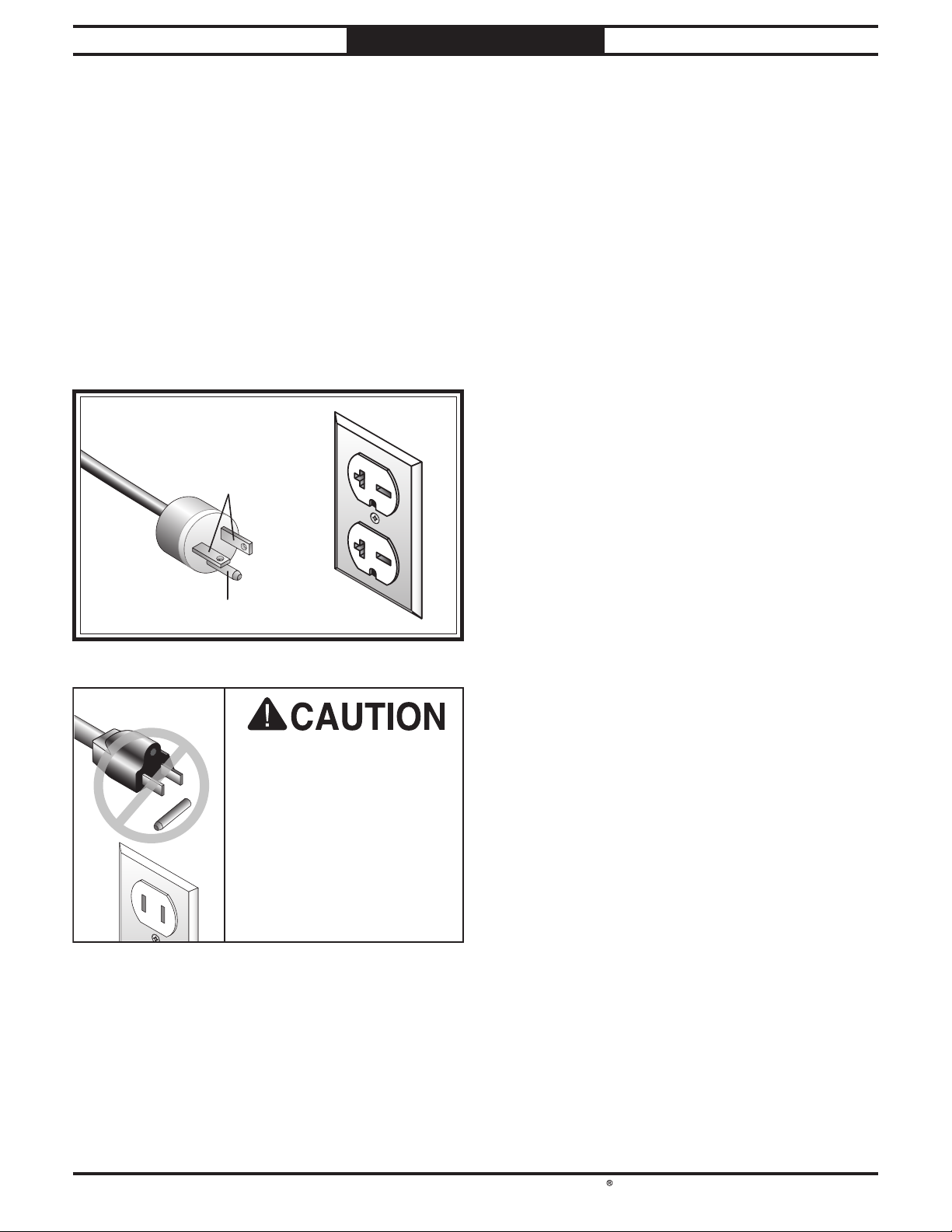

Figure Figure 6. NEMA 6-20 plug and receptacle.. NEMA 6-20 plug and receptacle.

DO NOT modify the included plug or use an adapter if it will not fit your receptacle. Instead, have a qualified electrician install the proper receptacle on a power supply circuit that

-12-

is grounded and meets the requirements for this machine.

Circuit

for the applicable voltage, and

Minimum Gauge Size ............................12 AWG

Maximum Length (Shorter is Better)

....50 ft.

Page 15

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

This item was carefully packaged to prevent damage during transport. If you discover any damage, please immediately call Customer Service at need to file a freight claim, so save the containers and all packing materials for possible inspection by the carrier or its agent.

PREPARATION

Unpacking

(360) 734-1540 for advice. You may

Inventory

Inventory (Figures 7–8) Qty

A. Sander ............................................................. 1

Sanding Belt 9" x 1381/2" 180-Grit .................1

End Table Assembly ...................................... 1

Machine Feet M12-1.75 x 40 ......................... 4

Handle M10-1.5 x 30 ...................................... 1

Knob Bolts M10-1.5 x 15 ................................ 2

Flat Washers 10mm ....................................... 2

Lock Washers 10mm ...................................... 2

NOTICE

If you cannot ﬁ nd an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

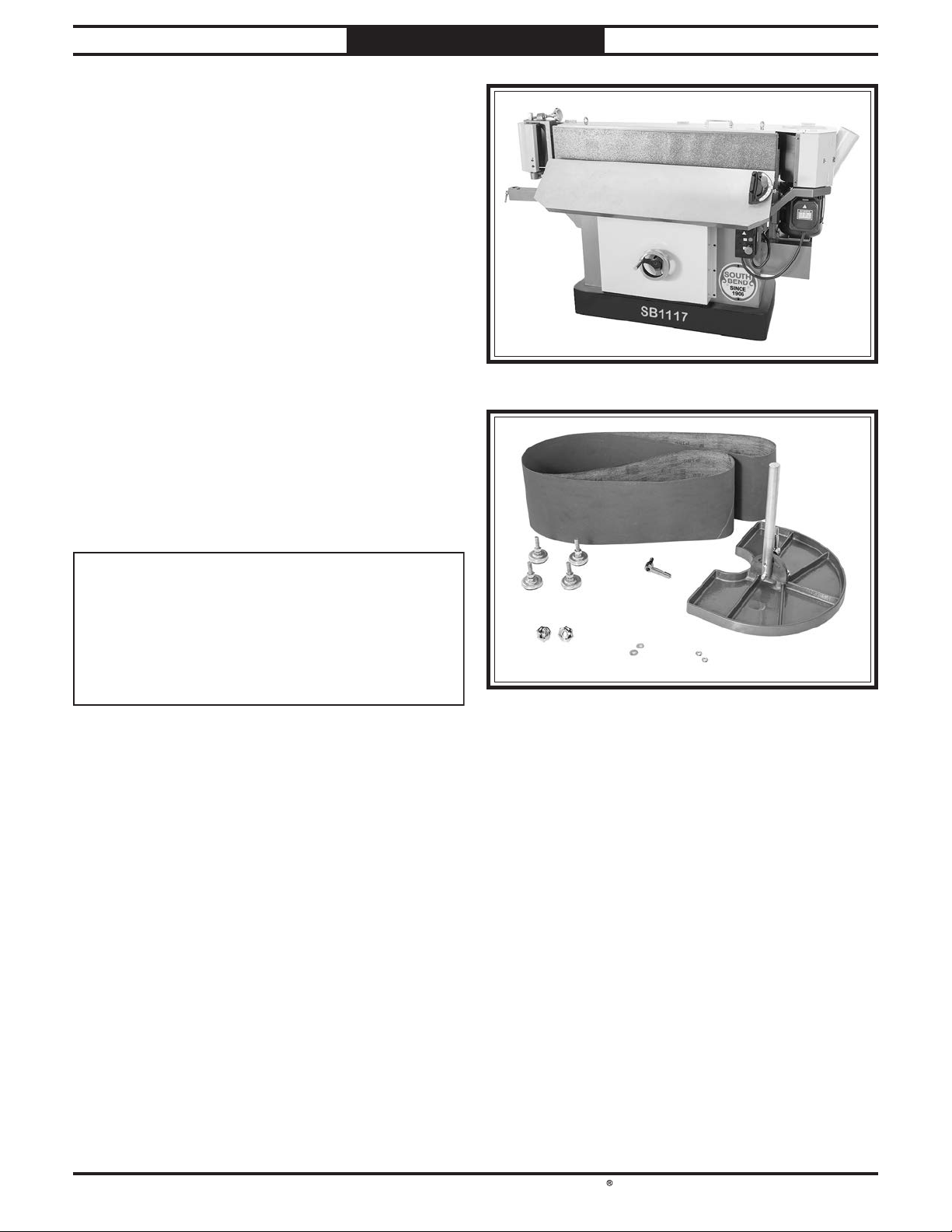

Figure Figure 7. Machine as shipped.. Machine as shipped.

Figure Figure 8. Loose parts.. Loose parts.

-13 -

Page 16

South Bend Tools

Model SB1117

The unpainted surfaces are coated with a heavy-duty rust preventative that prevents corrosion during shipment and The beneﬁ t of this rust preventative is that it works very well. The downside is that it time-consuming

Be patient and do a careful job when and removing the rust preventative you spend doing this will reward you with smooth for the proper care of

Although there are many ways to successfully remove the rust preventative, the process works well in most situations

Before cleaning, gather the following:

• Disposable

• Cleaner/degreaser

• Safety glasses & disposable gloves

Note:

WD•40 can be used to remove rust preventative. Before using these products, though, test them on an inconspicuous area of a painted surface to make sure they will not damage it.

GAS

PREPARATION

Cleaning & Protecting

For Machines Mfd. Since 03/22

at the factory

to thoroughly remove.

-sliding parts and a better appreciation the unpainted surfaces.

rags

(certain citrus-based degreasers work extremely well and they have non-toxic fumes)

Automotive degreasers, mineral spirits, or

. The time

following

storage.

can be

cleaning

Avoid chlorine-based solvents, such as acetone or brake parts cleaner that may damage painted surfaces. Always follow the manufacturer’s instructions when using any type of cleaning product.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat all surfaces that have rust preventative

with a liberal amount of your cleaner or degreaser and let them soak for a few minutes.

3. Wipe off the surfaces. If your cleaner or

degreaser is effective, the rust preventative will wipe off easily.

Note: To clean off thick coats of rust

preventative on ﬂ at surfaces, such as beds or tables, use a PLASTIC paint scraper to scrape off the majority of the coating before wiping it off with your rag. (Do not use a metal scraper or it may scratch the surface.)

4. Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant or light oil to prevent rust.

-14-

Gasoline and petroleum products have low flash points and can explode or cause fire if used for cleaning. Avoid using these products to remove rust preventative.

Many cleaning solvents are toxic if inhaled. Minimize your risk by only using these products in a well ventilated area.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

Figure Figure 9.. T23692 Orange Power Degreaser.

Page 17

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

Weight Load

equipment that may be installed on the machine,

Physical Environment

The physical environment where your machine is operated is important for safe operation and longevity of machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature 104°F; the relative humidity of is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate enough to perform operations safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

PREPARATION

Location

Physical Environment Electrical Installation Lighting Weight Load

Space Allocation

20–95% (non-condensing); or the environment

parts. For best results, operate this

or flammable

is outside the range of 41°–

is outside the range

Refer to the Machine Speciﬁcations for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional

and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

26½"

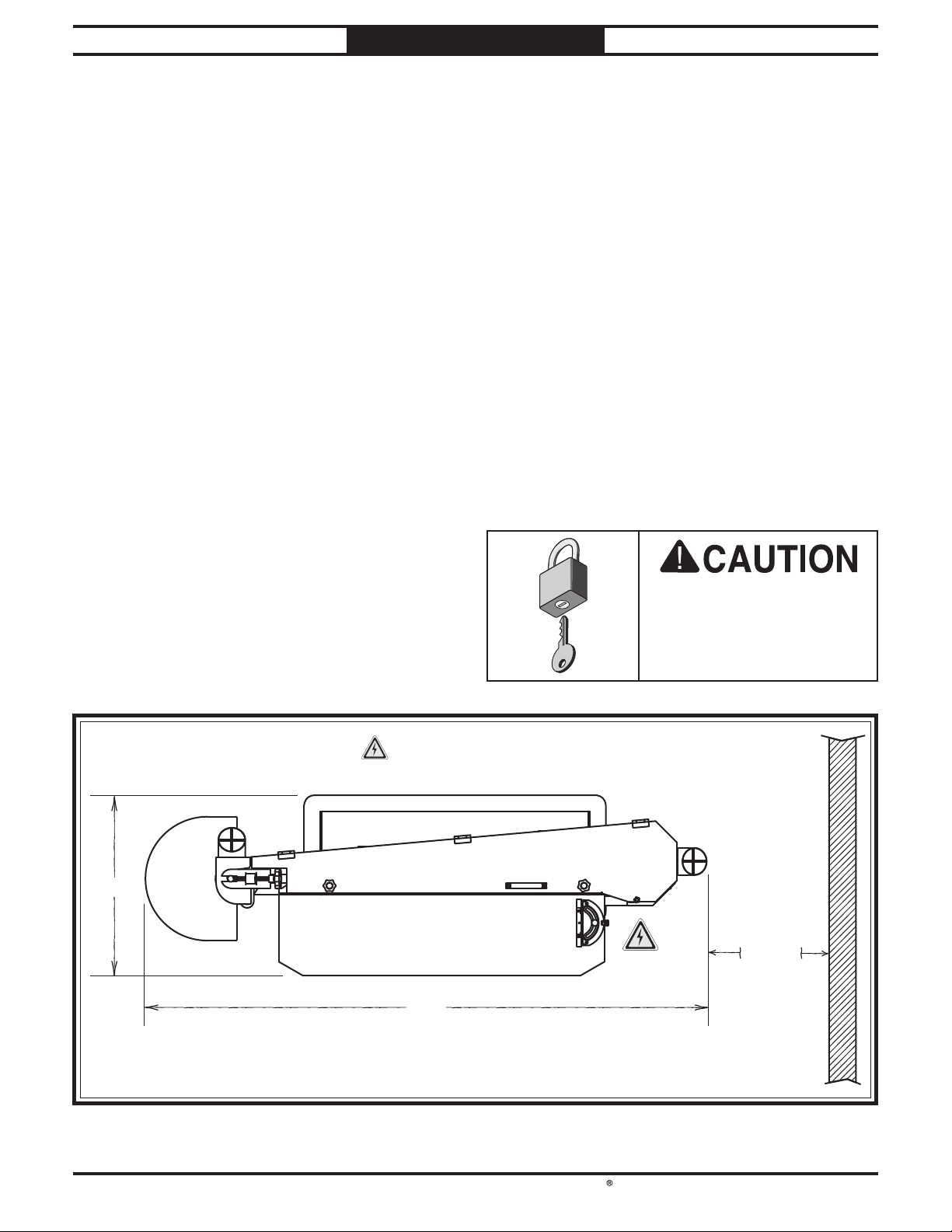

Figure 10. Minimum working clearances.Figure 10. Minimum working clearances.

Children or untrained people may be seriously

= Electrical Connection

82½"

injured by this machine. Only install in an access restricted location.

Wall

Min. 30"

-15 -

Page 18

South Bend Tools

Model SB1117

Machine mounts are rubber pads mounted to a threaded stud, which can be fastened to the bottom of the machine.

Machine mounts offer certain advantages such as ease of installation, vibration dampening, and easy leveling. They also make it easier to relocate the machine later on.

The disadvantage of machine mounts is that the machine can shift or move over time. For this reason, electrical codes may limit their use if the machine is hardwired to the power source. Also, mounts may reduce the total surface area of machine-to-floor contact, depending on the design of the machine.

PREPARATION

For Machines Mfd. Since 03/22

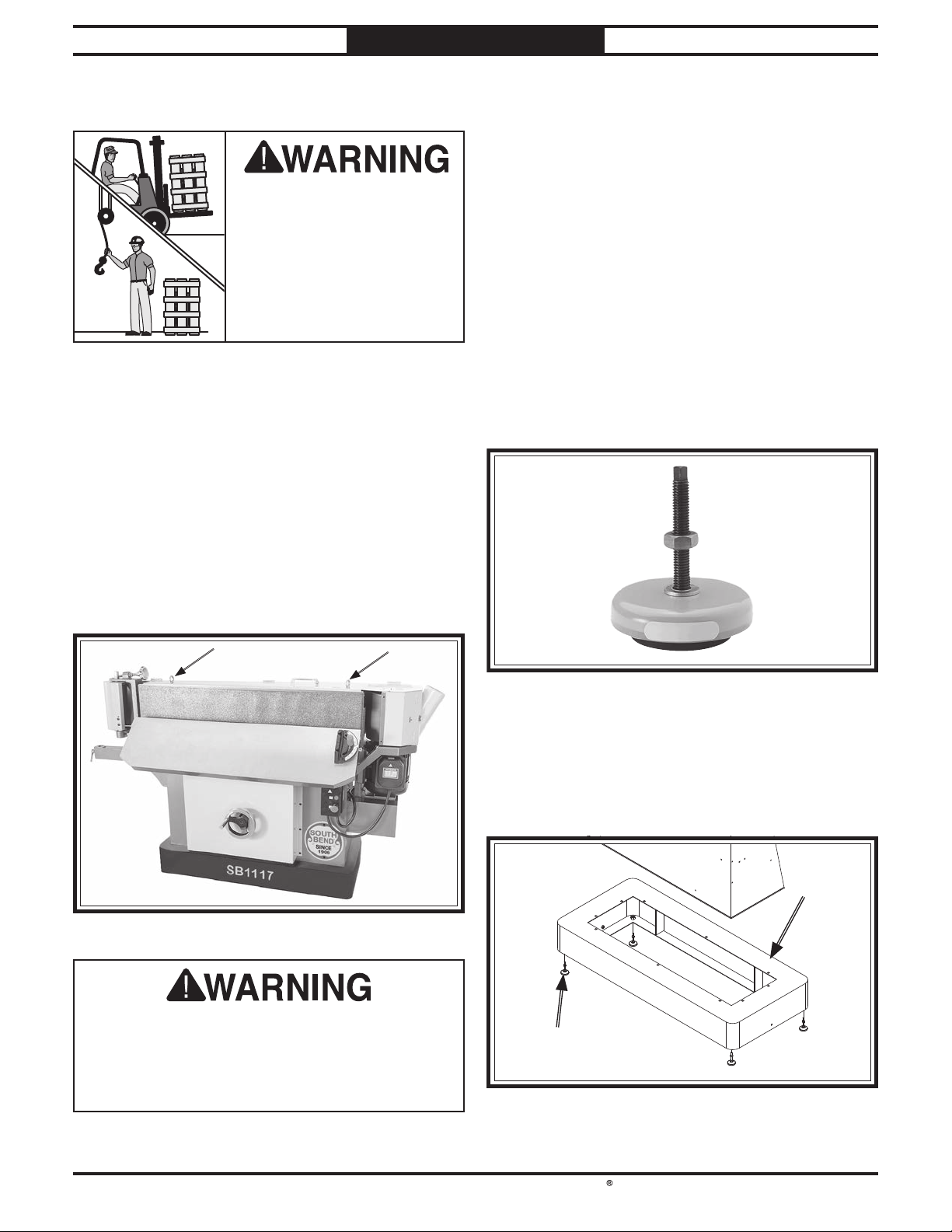

Lifting & Moving

This machine and its parts are heavy! Serious personal injury may occur if safe moving methods are not used. To reduce the risk of a lifting or dropping injury, ask others for help and use power equipment.

Do not attempt to lift or move this machine without using the proper lifting equipment (such as forklift or crane). Each piece of lifting equipment must be rated for at least 1000 lbs. to support dynamic loads that may be applied while lifting.

Use lifting straps or chains to lift the machine off the pallet using the eye bolts shown in Figure

11. While machine is suspended, install machine feet as described in Machine Mounts before placing machine in a suitable location.

Machine Mounts

Lifting using only one ring or different location could unbalance and tip machine, which could result in serious crushing injury or machine damage. To reduce risk of this injury, be sure to use BOTH lifting rings to lift machine.

Figure 11. Lifting eye bolt locations.Figure 11. Lifting eye bolt locations.

Figure 12. Typical machine mount.Figure 12. Typical machine mount.

To install machine mounts:

1. While machine is suspended to provide

access to mounting holes at base of machine, install (4) M12-1.75 x 40 machine feet at locations shown in Figure 13.

MachineMachine

BaseBase

Machine FootMachine Foot

(1 of 4)(1 of 4)

Figure Figure 13. Machine feet mounting locations (machine . Machine feet mounting locations (machine

base separated for clarity).base separated for clarity).

-16 -

Page 19

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to Required for Setup on Page 10 and gather all listed items. To ensure the assembly process goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if applicable).

Assembly of the Model SB1117 consists of installing the sanding belt and end table.

PREPARATION

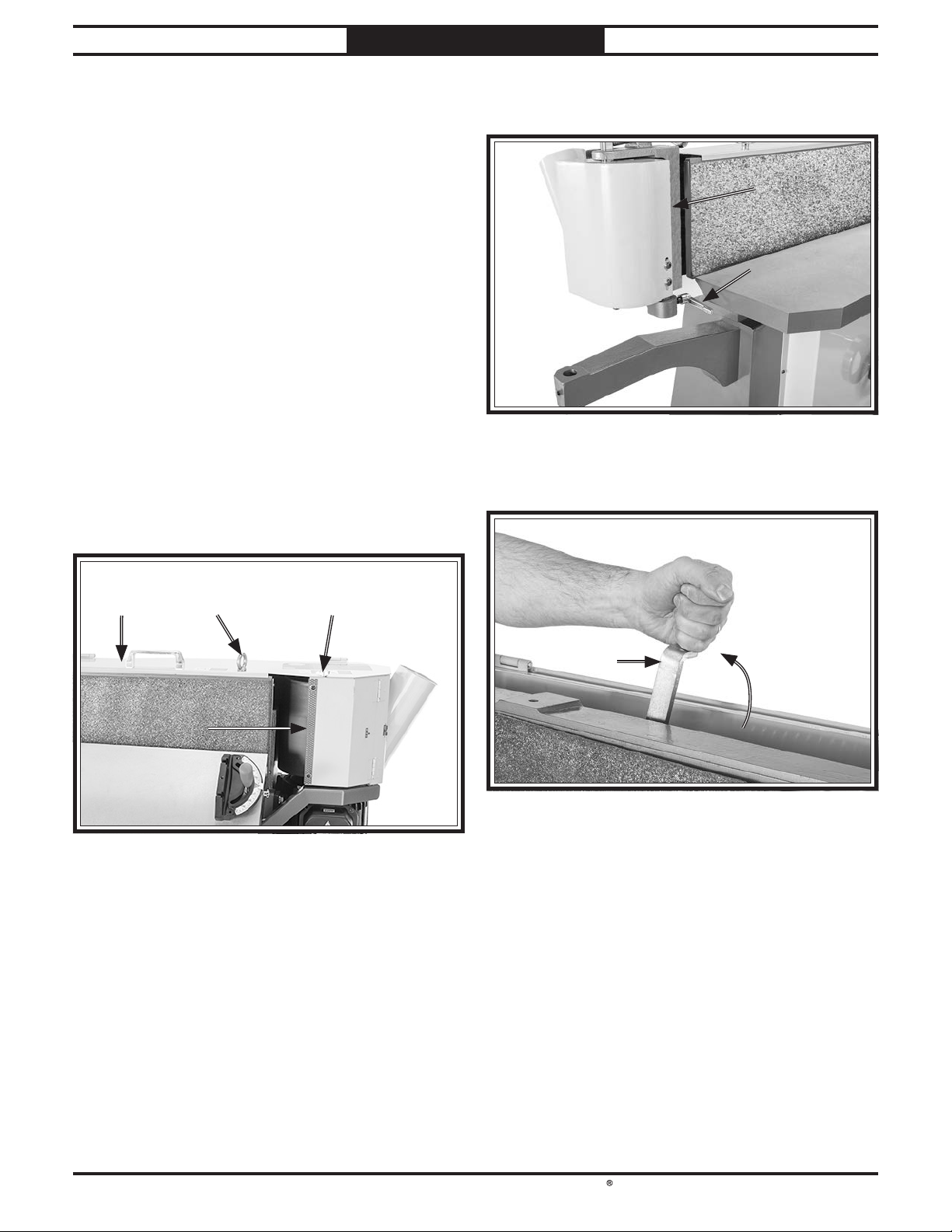

3. Loosen dust hood lock handle to open end

table dust hood (see Figure 15).

Dust HoodDust Hood

Lock HandleLock Handle

To assemble machine:

1. Remove (2) eye bolts used for lifting (see

Figure 14).

Figure Figure 15. Location of dust hood lock handle.. Location of dust hood lock handle.

Note: Save eye bolts in case you need to move

Move belt tension lever up and toward

machine later.

Loosen back stop lock knob (see Figure 14)

and open belt guard and back stop door.

contour drum, as shown in Figure 16.

Belt Belt

GuardGuard

Back StopBack Stop

Figure Figure 14. Lifting eye bolts and access door . Lifting eye bolts and access door

DoorDoor

Eye BoltEye Bolt

(1 of 2)(1 of 2)

components.components.

Back StopBack Stop Lock KnobLock Knob

Belt Tension Belt Tension

LeverLever

Figure Figure 16. Moving belt tension lever to un-tensioned . Moving belt tension lever to un-tensioned

position.position.

-17-

Page 20

South Bend Tools

Model SB1117

PREPARATION

For Machines Mfd. Since 03/22

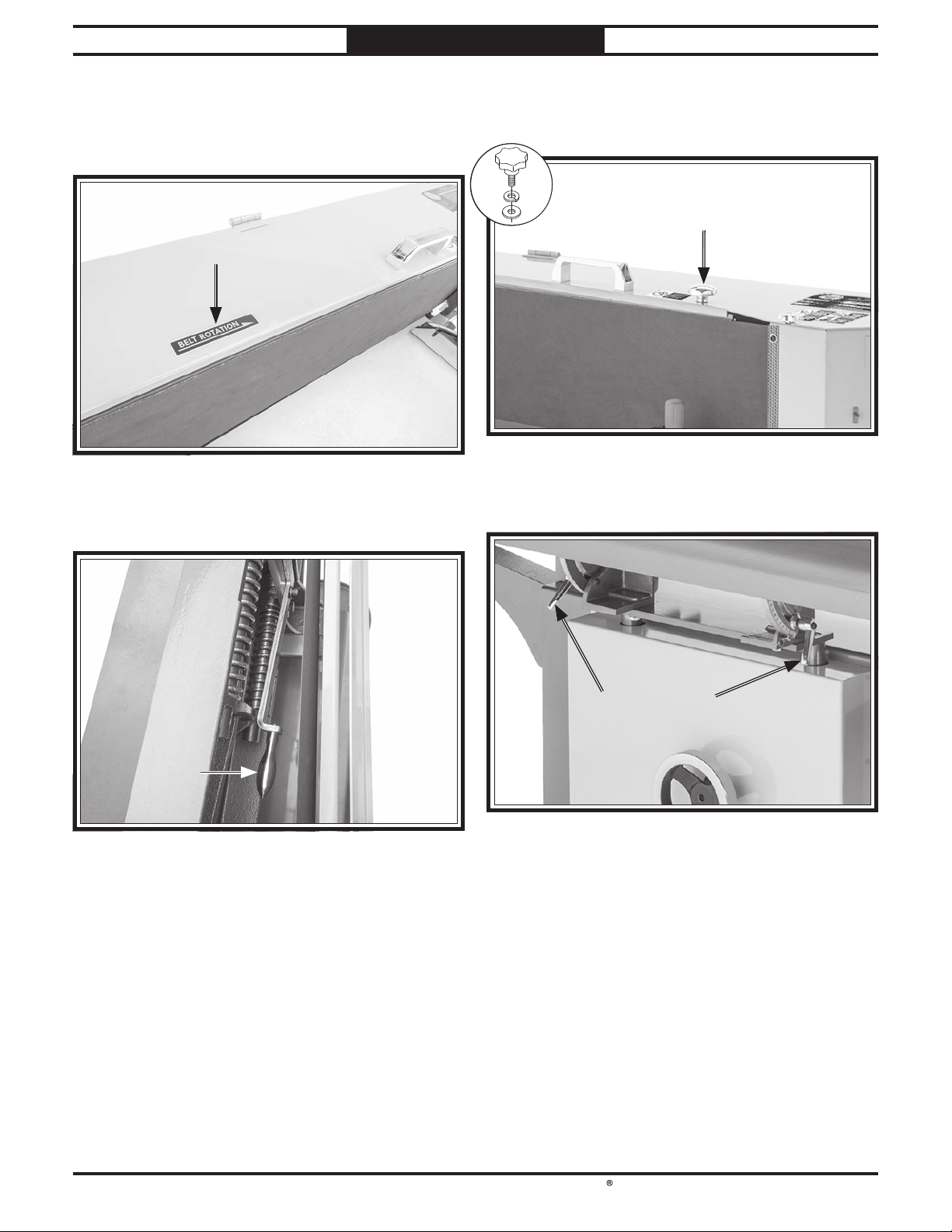

5. Install and center sanding belt around

sanding drums, being sure arrows on belt match arrow of belt rotation on machine (see Figure 17).

Belt RotationBelt Rotation

ArrowArrow

Figure Figure 17. Sanding belt rotation arrow.. Sanding belt rotation arrow.

Move belt tension lever down to tension

sanding belt (see Figure 18).

7. Close belt guard and secure with (2) M10-

1.5 x 15 knob bolts, 10mm lock washers, and 10mm flat washers (see Figure 19).

x 2

Knob BoltKnob Bolt

(1 of 2)(1 of 2)

Figure Figure 19. Belt guard lock knob installed.. Belt guard lock knob installed.

8. Loosen main table tilt lock handles (see

Figure 20).

Belt TensionBelt Tension

LeverLever

Figure Figure 18. Sanding belt installed and tensioned.. Sanding belt installed and tensioned.

Main Table TiltMain Table Tilt

Lock HandlesLock Handles

Figure Figure 20. Location of main table tilt lock handles.. Location of main table tilt lock handles.

-18 -

Page 21

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

PREPARATION

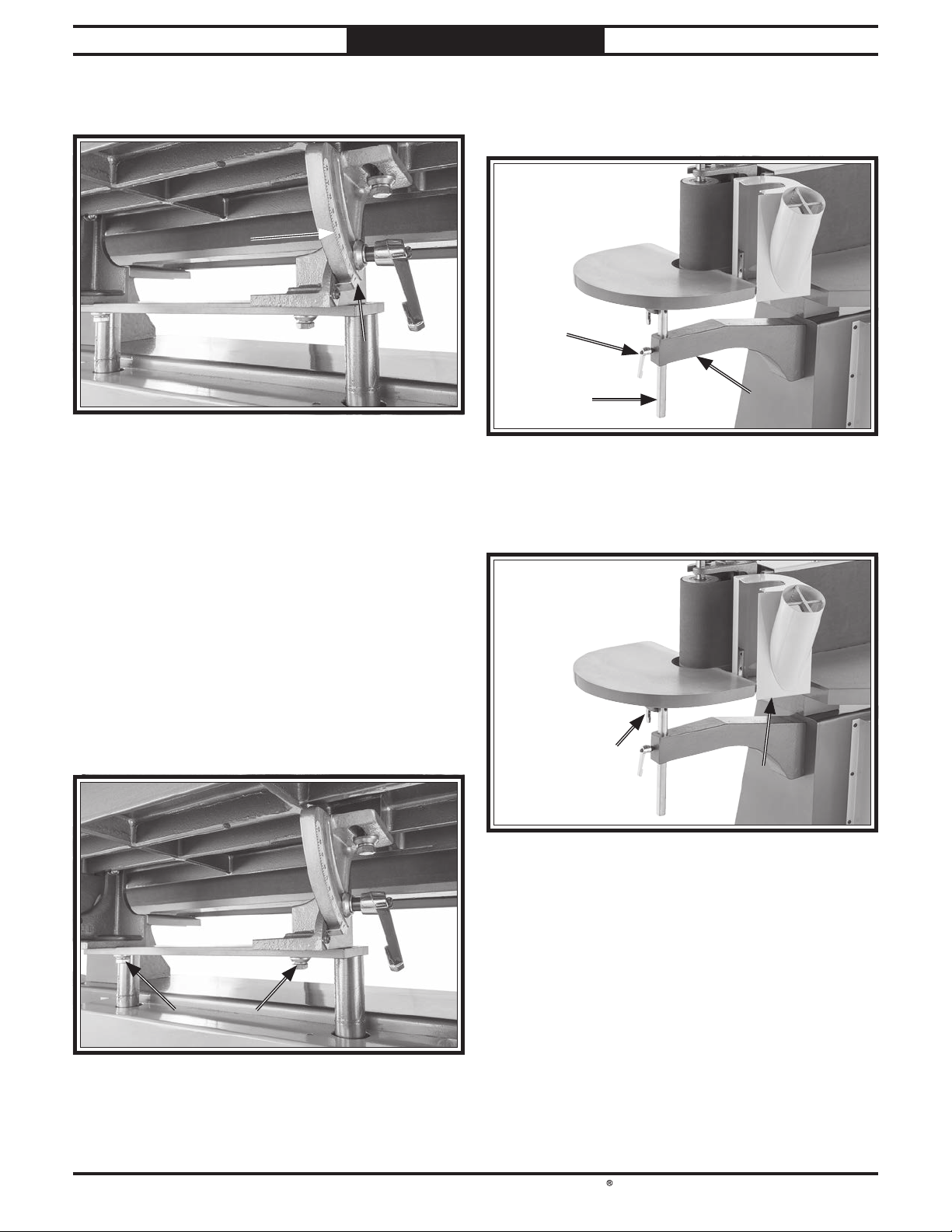

9. Tilt main table until pointer on tilt scale

indicates 0° (see Figure 21).

Tilt ScaleTilt Scale

PointerPointer

Figure Figure 21. Main table tilt scale and pointer.. Main table tilt scale and pointer.

Tighten lock handles from Step 8 to secure

10.

setting.

Measure clearance between table and

11.

sanding belt.

13. Insert end table shaft into machine arm

mount and secure with M10-1.5 x 30 handle (see Figure 23).

HandleHandle

End Table End Table

ShaftShaft

Figure Figure 23. End table installed.. End table installed.

Arm Arm

MountMount

— If dust hood is in the way, loosen end table

tilt lock handle (see Figure 24) to angle end table so it will fit past dust hood.

— If clearance is less than

/16", no further

adjustment is necessary.

— If clearance is more than

/16", proceed to

Step 12.

12. Loosen lock bolts shown in Figure 22, push

table so there is

/16" or less between table

and sandpaper, then tighten bolts.

Lock BoltsLock Bolts

End Table TiltEnd Table Tilt

Lock HandleLock Handle

Figure Figure 24. Location of end table tilt lock handle.. Location of end table tilt lock handle.

Dust HoodDust Hood

Note: Leave back stop door and end table

dust hood open until instructed to close in Test Run.

Figure Figure 22. Location of main table lock bolts.. Location of main table lock bolts.

-19 -

Page 22

South Bend Tools

Model SB1117

PREPARATION

For Machines Mfd. Since 03/22

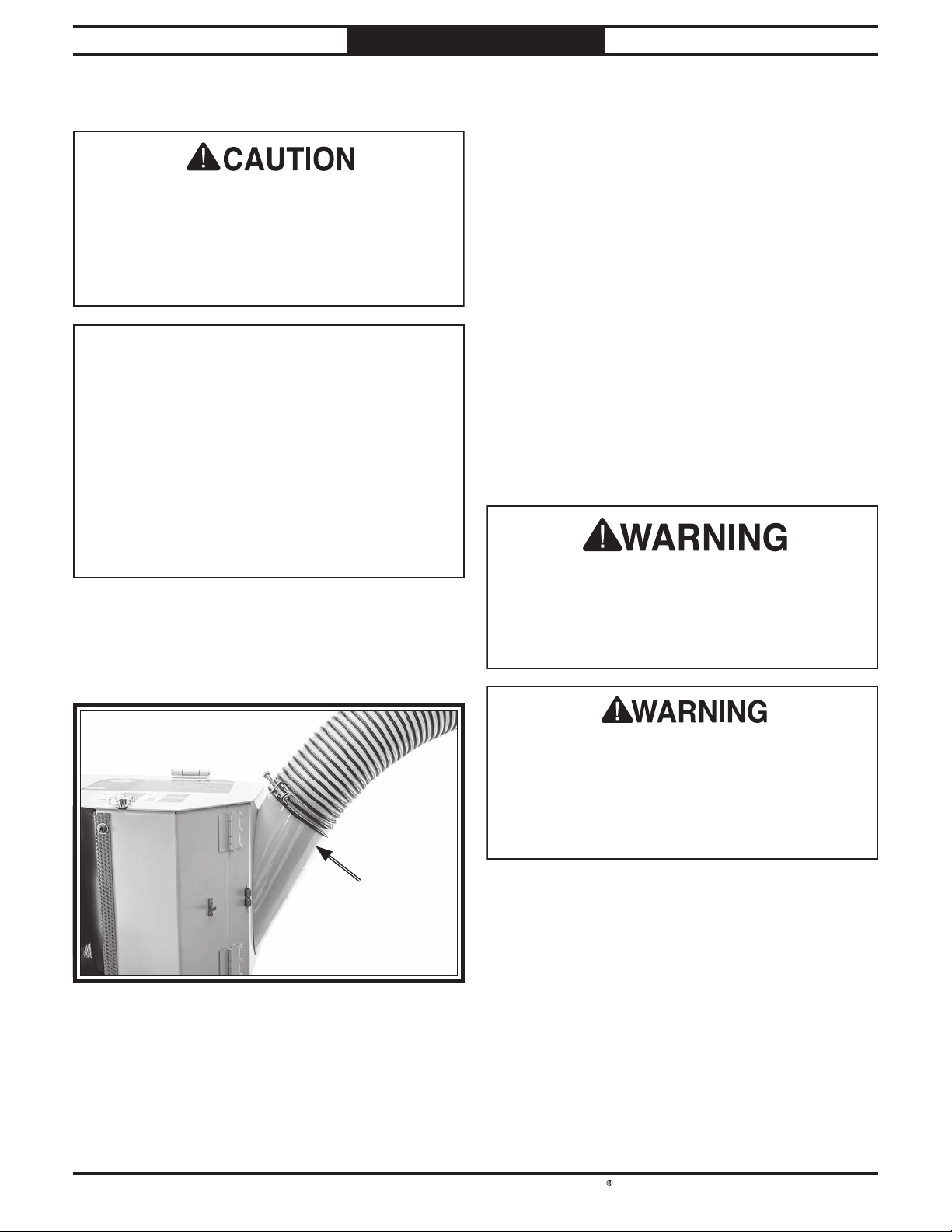

Dust Collection

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Recommended CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

To connect machine to dust collector:

1. Fit (2) 4" dust hoses connected to a dust

collector over dust ports and secure in place with hose clamps (see Figure 25).

Test Run

After all preparation steps have been completed, the machine and its safety features must be tested to ensure correct operation. If you discover a problem with the operation of the machine or its safety components, do not operate it further until you have resolved the problem.

Note: Refer to Troubleshooting on Page 36 for solutions to common problems that may occur. If you need additional help, contact our Tech Support at (360) 734-1540.

The test run consists of verifying the following:

• Belt tracks properly and will not come off the drums during initial startup.

• Motor powers up and runs correctly.

• E-Stop button works correctly.

Serious injury or death can result from using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

Dust Port Dust Port

(1 of 2)(1 of 2)

Figure Figure 25. Dust hose connected to dust port.. Dust hose connected to dust port.

Tug hoses to make sure they do not come off.

Note: A tight ﬁt is necessary and ensures

proper performance during operation.

-20-

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

1. Clear away all tools and objects used during

preparation and assembly.

Follow Steps 2–5 as described in Pre-

Tracking Belt on Page 26 to pre-track sanding belt.

Page 23

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

PREPARATION

. Press E-Stop button in (see Figure 26).

ON ButtonON Button

E-Stop E-Stop ButtonButton

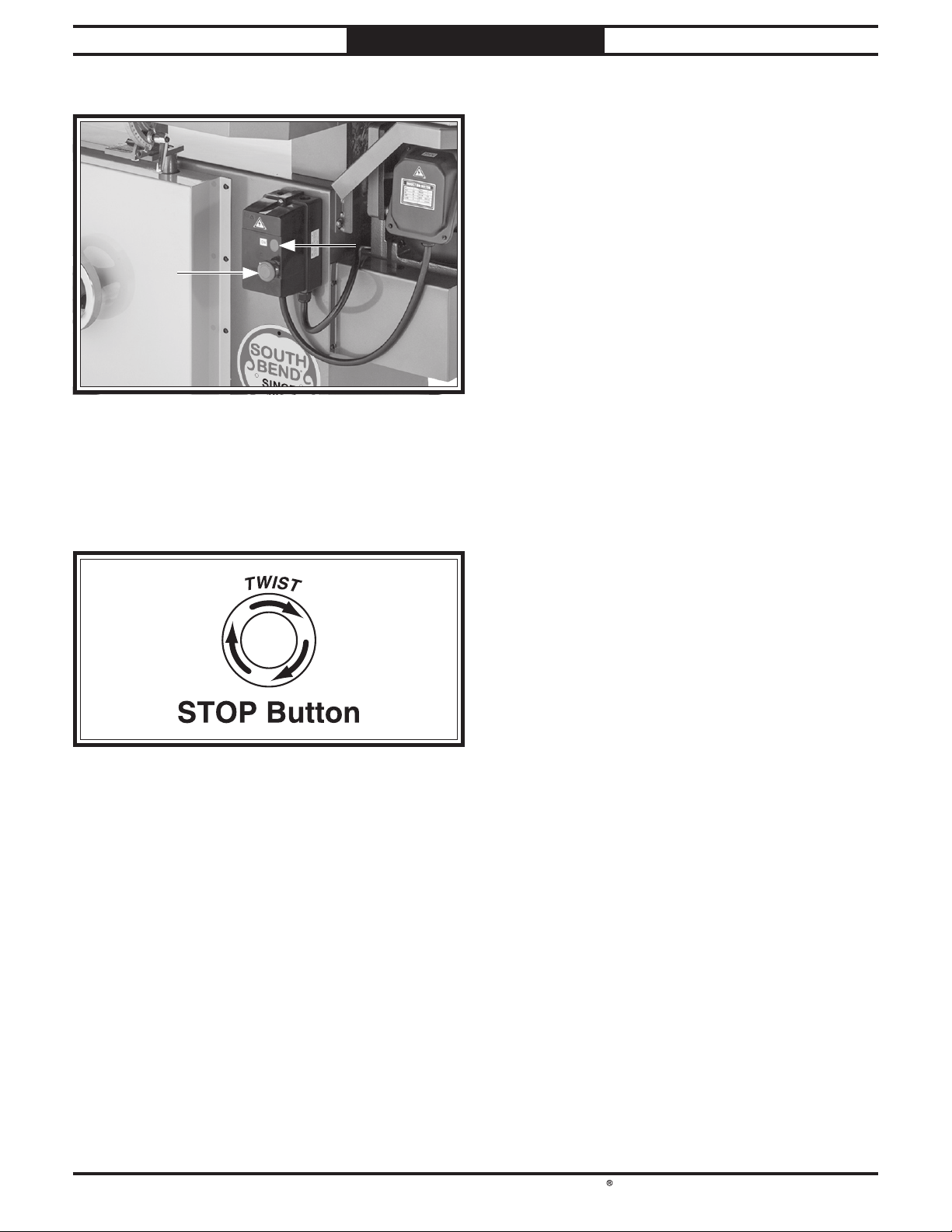

Figure Figure 26. Power control components.. Power control components.

Connect machine to power source.

. Twist E-Stop button clockwise until it

springs out (see Figure 27). This resets the switch so machine can start.

— If belt does not track centered on drums,

you must adjust belt tracking before proceeding to next step so belt is not damaged. Refer to Checking/Adjusting

Belt Tracking on Page 26 and follow Steps 3–8 before continuing.

. Close and secure end table dust hood and

back stop door.

. Start machine and allow it to run while

ensuring belt tracks properly.

The motor should run smoothly and without

unusual problems or noises and belt MUST rotate in same direction as arrows of belt rotation on machine.

— If motor runs smoothly and belt rotates in

correct direction, proceed to Step 9.

— If motor does not run smoothly, or belt

does not rotate in correct direction, turn machine OFF and disconnect power. Contact Technical Service before proceeding.

Figure Figure 27. Resetting the switch.. Resetting the switch.

6. Use ON and E-Stop buttons (see Figure

26) to start and immediately stop machine, while watching how belt tracks on drums. Belt "tracking" refers to belt positioning on drums when belt rotates. When tracking properly, belt remains centered on drums as they rotate.

— If belt tracks centered on drums, proceed

to Step 7.

Press E-Stop button to turn machine OFF.

WITHOUT resetting E-Stop button, try

10.

to start machine by pressing ON button. Machine should not start.

— If machine does not start, safety feature

of E-Stop button is working correctly. Congratulations! Test run is complete.

— If machine does start, immediately turn it

OFF and disconnect power. Safety feature of E-Stop button is NOT working properly and must be replaced before further using machine. Contact Technical Support.

-21-

Page 24

South Bend Tools

Model SB1117

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so they can more easily understand the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide for performing actual machine operations. To learn more about speciﬁc operations and machining techniques, seek training from people experienced with this type of machine, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

at all times. Entanglement

tation, or severe crushing

OPERATION

Operation Overview

Due to the generic nature of this overview,

For Machines Mfd. Since 03/22

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, South Bend Tools will not be held liable for accidents caused by lack of training.

To complete a typical operation, the operator does the following:

1. Examines the workpiece to make sure it

is suitable for sanding. No extreme bows, knots, or cracks should exist.

2. Prepares and trims workpiece as necessary.

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

To reduce risk of eye injury from flying chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

Keep hair, clothing, and jewelry away from moving parts

can result in death, ampu-

injuries!

3. Installs sanding belt with appropriate grit

for operation.

4. Adjusts table tilt as desired, then adjusts

table height to allow maximum clearance between table and sandpaper.

5. Ties back loose hair and clothing, and puts

on safety glasses and respirator. Takes all other required safety precautions.

6. Starts sander and dust collector system.

7. With both hands, holds workpiece ﬁrmly and

ﬂatly against table (and miter stop or back stop if used), and gradually eases workpiece into sanding belt.

8. Stops machine.

/16"

-22-

Page 25

For Machines Mfd. Since 03/22 Model SB1117

OPERATION

Stock Inspection & Requirements

Some workpieces are not safe to sand or may require modification before they are safe to sand.

Before sanding, inspect all workpieces for the following:

• Material Type: This machine is intended

for sanding natural and man-made wood products. This machine is NOT designed to sand metal, glass, stone, tile, plastics, drywall, cement backer board, laminate products, etc.

Sanding improper materials increases risk of

respiratory harm to operator and bystanders due to especially ﬁne dust inherently created by all types of sanding operations—even if a dust collector is used. Additionally, life of machine and sanding belts will be greatly reduced (or immediately damaged) from sanding improper materials or from exposure to ﬁne dust created when doing so.

• Foreign Objects: Nails, staples, dirt, rocks

and other foreign objects are often embedded in wood. While sanding, these objects can become dislodged and tear sanding belt Always visually inspect your workpiece for these items. If they cannot be removed, DO NOT sand the workpiece.

• Wet or "Green" Stock: Sanding wood

with a moisture content over 20% causes unnecessary clogging and wear on the sanding belt, increases the risk of kickback, and yields poor results.

Sanding Tips

• Avoid sanding a workpiece more than is

necessary, since doing so will unnecessarily decrease belt life and cost you more money over time.

• Extend the life of sanding belts by regularly

using a PRO-STIK® abrasive surface cleaner (see Accessories on Page 32).

• As a rule-of-thumb, sand with progressively

higher grit numbers in increments of 50 or less.

• Replace sandpaper with a higher grit to

achieve a ﬁner ﬁnish (refer to Installing/ Changing Sanding Belts on Page 24).

• Hold the workpiece securely with both

hands. Use the tables/miter stop/back stop whenever possible to support workpieces. Do not force the workpiece against the belt.

• When sanding workpieces with a bow or

crown, place the high point up on the table to prevent the workpiece from rocking, then take very light passes.

• Use the full width of the sanding belt by

adjusting the table height or workpiece position so sanding is not always done in just one area.

• Make sure belt guard is closed and secured

during operation.

• Belts clog and wear. Change belts whenever

you notice a difference in sanding quality/ performance.

Moving belt can cause serious personal injury if it comes in contact with fingers, hands, or other body parts. Always support workpiece against table or miter stop when sanding. Use extreme care to provide a safe distance between belt and any body part.

-23-

Page 26

South Bend Tools

Model SB1117

OPERATION

For Machines Mfd. Since 03/22

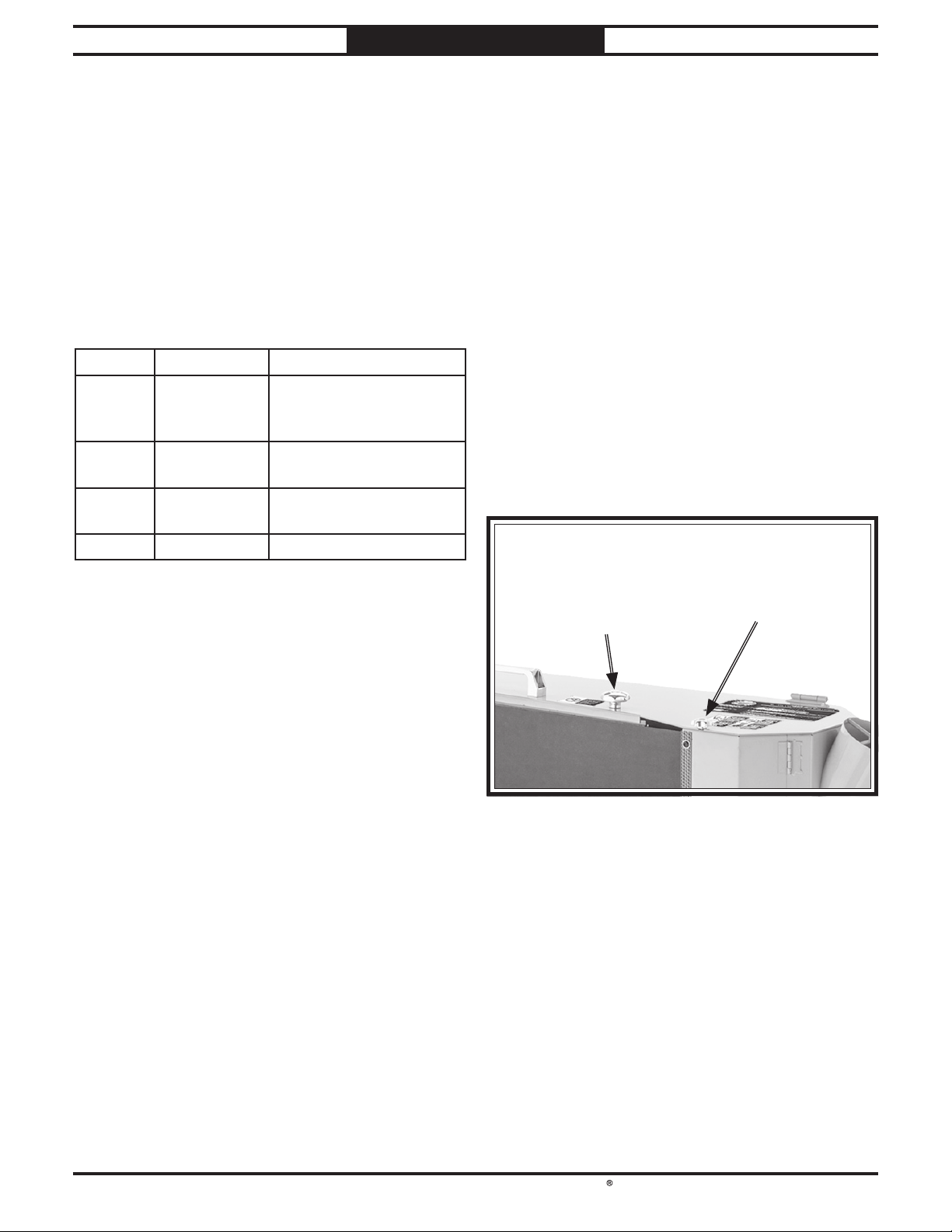

Choosing Sanding Belts

The Model SB1117 uses a 9" x 1381/2" sanding belt.

We recommend using aluminum-oxide sanding belts for best results. The grit you

choose will depend on the condition and species of wood, and the level of finish you wish to achieve.

Grit Class Usage

36 Extra

Coarse

60 Coarse Thickness sanding and

80–100 Medium Removing marks and

120–180 Fine Finish sanding.

Rough sawn boards, thickness sanding, and glue removal.

glue removal.

initial finish sanding.

Installing/Changing Sanding Belts

The sanding belt should be replaced whenever there is a noticeable change in sanding quality/ performance. You may also need to change grit sizes of sanding belt for quick material removal or finer finishes.

Required Sanding Belt Size

To install/change sanding belt:

1. DISCONNECT MACHINE FROM POWER!

Remove (2) belt guard lock knobs and

washers (see Figure 28).

Loosen back stop lock knob (see Figure 28)

and open belt guard and back stop door.

............9" x 1381/2"

The general rule of thumb is to sand a workpiece with progressively higher grit numbers—in increments of 50 or less. Avoid skipping grits; the larger the grit increase at one time, the harder it will be to remove the scratches from the previous grit.

Note: Sandpaper ﬁner than 180-grit will easily load up or burn workpieces.

Belt Guard Belt Guard

Lock Knob Lock Knob

(1 of 2)(1 of 2)

Figure Figure 28. Belt guard components.. Belt guard components.

Back Stop Back Stop Lock KnobLock Knob

-24-

Page 27

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

OPERATION

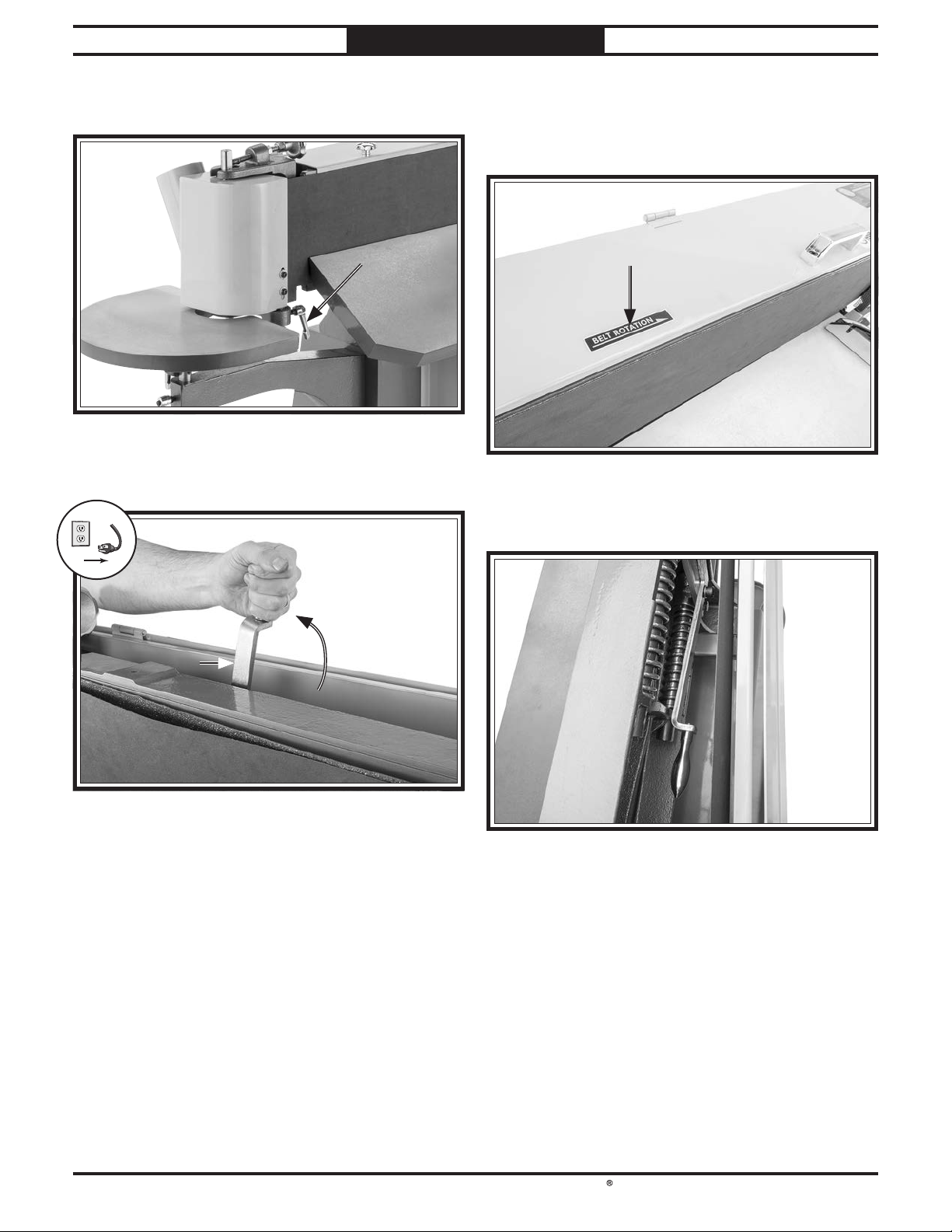

4. Loosen dust hood lock handle to open end

table dust hood (see Figure 29).

Dust HoodDust Hood

Lock HandleLock Handle

Figure Figure 29. Location of dust hood lock handle.. Location of dust hood lock handle.

5. Move belt tension lever up and toward

contour drum, as shown in Figure 30.

6. Remove old sanding belt and replace with

new one, being sure arrows on belt match arrows of belt rotation on machine (see Figure 31).

Belt RotationBelt Rotation

ArrowArrow

Figure Figure 31. Sanding belt rotation arrow.. Sanding belt rotation arrow.

Move belt tension lever down to tension

sanding belt (see Figure 32).

Belt Tension Belt Tension

LeverLever

Figure Figure 30. Moving belt tension lever to un-tensioned . Moving belt tension lever to un-tensioned

position.position.

Figure Figure 32. Sanding belt installed and tensioned.. Sanding belt installed and tensioned.

8. Close belt guard and secure with lock knobs

and washers removed in Step 2.

Belt MUST be pre-tracked before connecting

machine to power. Proceed to Pre-Tracking Belt on Page 26.

-25-

Page 28

South Bend Tools

Model SB1117

OPERATION

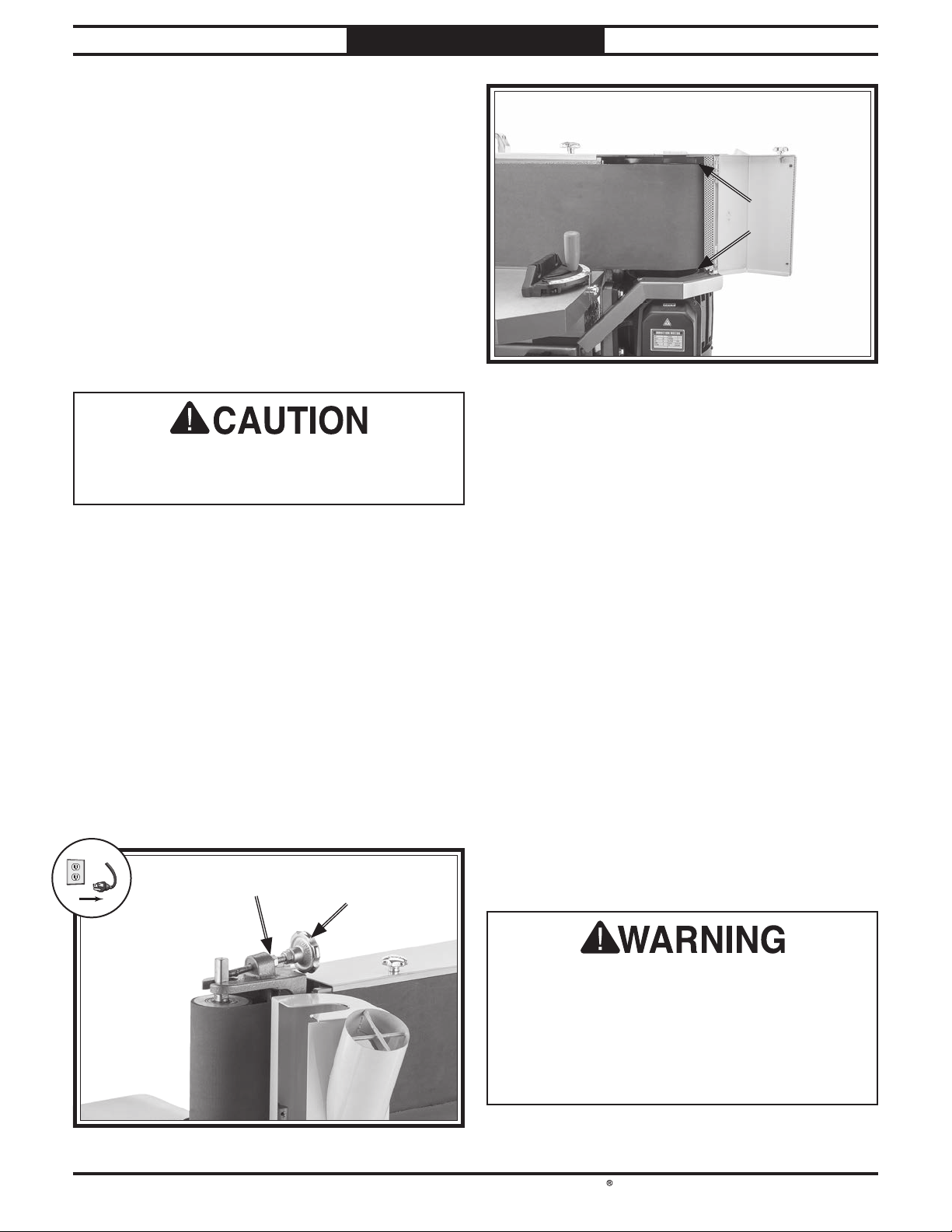

Pre-Tracking Belt

You must perform the following procedure after installing a sanding belt to ensure that the belt does not come off or get jammed against the sanding belt frame.

Items Needed Qty

Protective Gloves .......................................... 1 Pair

To pre-track belt:

1. Install desired sanding belt as described in

Installing/Changing Sanding Belts on Page 24.

For Machines Mfd. Since 03/22

Even Spaces Even Spaces

on Both Sideson Both Sides

Figure Figure 34. Example of sanding belt centered on drive . Example of sanding belt centered on drive

wheel.wheel.

Fingers or other body parts can be quickly injured if they touch moving sanding surfaces. To reduce this risk, wear gloves in next step.

2. Standing in front of sander, push sanding

belt multiple times along platen, so that it moves in direction of operation (counterclockwise on rollers), then watch how belt tracks on drums.

3. Loosen jam nut shown in Figure 33.

Adjust tracking with tracking adjustment

knob and continue to rotate belt by hand until sanding belt is centered on drive wheel (see Figures 33–34).

Note: Adjust tracking adjustment knob in

about 1-turn increments.

Jam NutJam Nut

TrackingTracking

AdjustmentAdjustment

KnobKnob

5. Once belt tracks centered on drive wheel,

tighten jam nut from Step 3 to secure setting.

Proceed to Checking/Adjusting Belt

Tracking to complete belt tracking.

Checking/Adjusting Belt Tracking

The purpose of belt tracking is to make sure the belt stays centered on the drums and platen during sanding operations. The belt tracking needs to be checked any time you change or replace the belt.

If sanding belt tracking is not adjusted properly, the belt can be damaged and present a serious safety hazard if it moves off center of the drums and throws material when it contacts the belt guard and other components.

Figure Figure 33. Belt tracking components.. Belt tracking components.

-26-

It is necessary to connect machine to power to visually track the sanding belt tracking. DO NOT attempt to perform any adjustments to sanding belt while machine is connected to power. Failure to unplug machine before making adjustments could result in serious personal injury.

Page 29

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

OPERATION

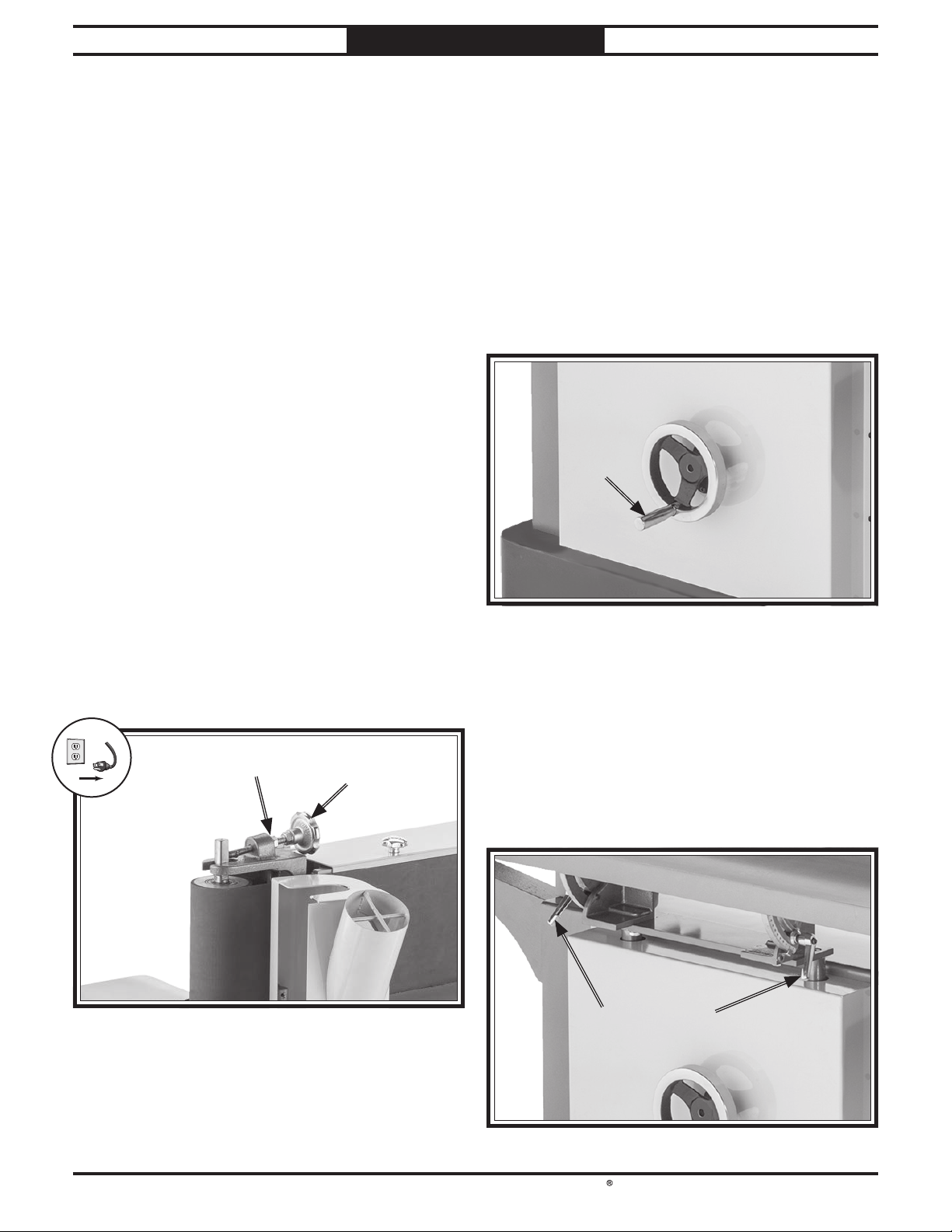

To check/adjust belt tracking:

1. Install desired sanding belt as described in

Installing/Changing Sanding Belts on Page 24.

Pre-track sanding belt as described in Pre-

Tracking Belt on Page 26.

Connect machine to power, press ON button,

then press E-Stop button immediately after. Sander should run just long enough to observe belt tracking across drums and platen.

— If belt tracks centered on drums, no

adjustment is necessary.

— If belt does not track centered on drums,

proceed to Step 4.

DISCONNECT MACHINE FROM POWER!

Adjusting Main Table

The main table is adjustable to accommodate a wide range of workpiece and sanding operations. The table is easily adjusted up and down due to the special balance mount, and can be tilted 0°–45°.

Adjusting Main Table Height

Turn main table height handwheel counterclockwise to raise the table or clockwise to lower it (see Figure 36).

Main Table Main Table

Height Height

HandwheelHandwheel

5. Loosen jam nut shown in Figure 35.

Turn tracking adjustment knob

counterclockwise to adjust tracking upward or clockwise to adjust tracking downward (see Figure 35).

Note: Adjust tracking adjustment knob in

about 1-turn increments.

Jam NutJam Nut

TrackingTracking

AdjustmentAdjustment

KnobKnob

Figure Figure 36. Location of main table height handwheel.. Location of main table height handwheel.

Adjusting Main Table Tilt

Tools Needed Qty

Calipers ..................................................................1

Wrench or Socket 17mm

To adjust main table tilt:

1. Loosen main table tilt lock handles (see

Figure 37).

.......................................1

Figure Figure 35. Belt tracking components.. Belt tracking components.

Repeat Steps 3–6 until belt tracks in center

of drums.

Tighten jam nut from Step 5 to secure

setting.

Main Table TiltMain Table Tilt

Lock HandlesLock Handles

Figure Figure 37. Location of main table tilt lock handles.. Location of main table tilt lock handles.

-27-

Page 30

South Bend Tools

Model SB1117

2. Tilt main table until pointer on tilt scale

indicates desired angle (see Figure 38).

Tilt ScaleTilt Scale

PointerPointer

Figure Figure 38. Main table tilt scale and pointer.. Main table tilt scale and pointer.

Tighten lock handles from Step 1 to secure

setting.

OPERATION

For Machines Mfd. Since 03/22

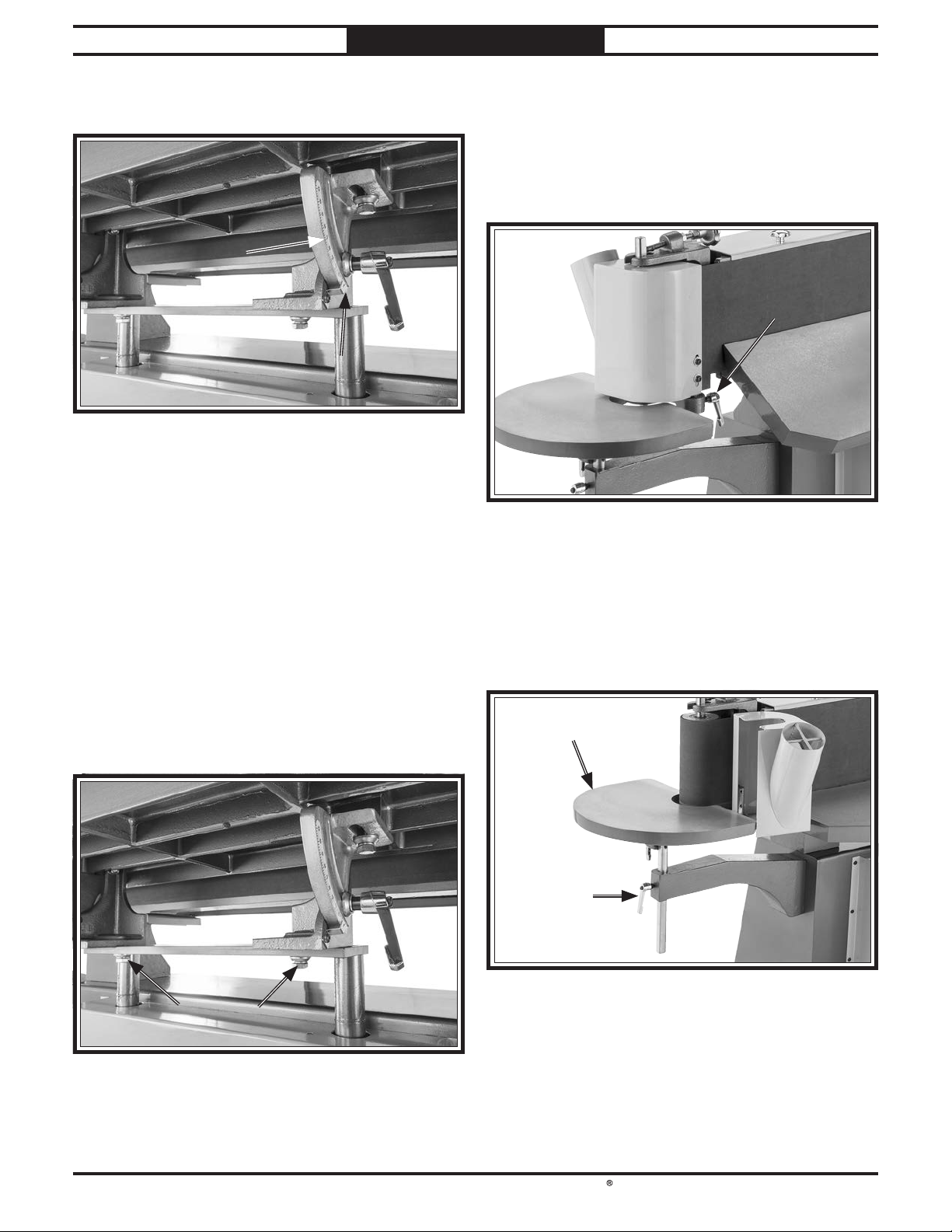

Adjusting End Table

The end table has 8" of travel and can be tilted. Loosen the dust hood lock handle (see Figure

40) to open the end table dust hood before

adjusting the table height or tilt.

Dust HoodDust Hood

Lock HandleLock Handle

Measure clearance between table and

sanding belt.

— If clearance is less than

adjustment is necessary.

— If clearance is more than

Step 5.

5. Loosen lock bolts shown in Figure 39, push

table so there is and sandpaper, then tighten bolts.

/16" or less between table

/16", no further

/16", proceed to

Figure Figure 40. Location of dust hood lock handle.. Location of dust hood lock handle.

Adjusting End Table Height

1. Loosen end table height lock handle (see

Figure 41).

Move end table to desired height (see

Figure 41).

End TableEnd Table

HeightHeight

Lock HandleLock Handle

Lock BoltsLock Bolts

Figure Figure 39. Location of lock bolts.. Location of lock bolts.

-28-

Figure Figure 41. End table height components.. End table height components.

Tighten end table height lock handle to

secure.

Page 31

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

OPERATION

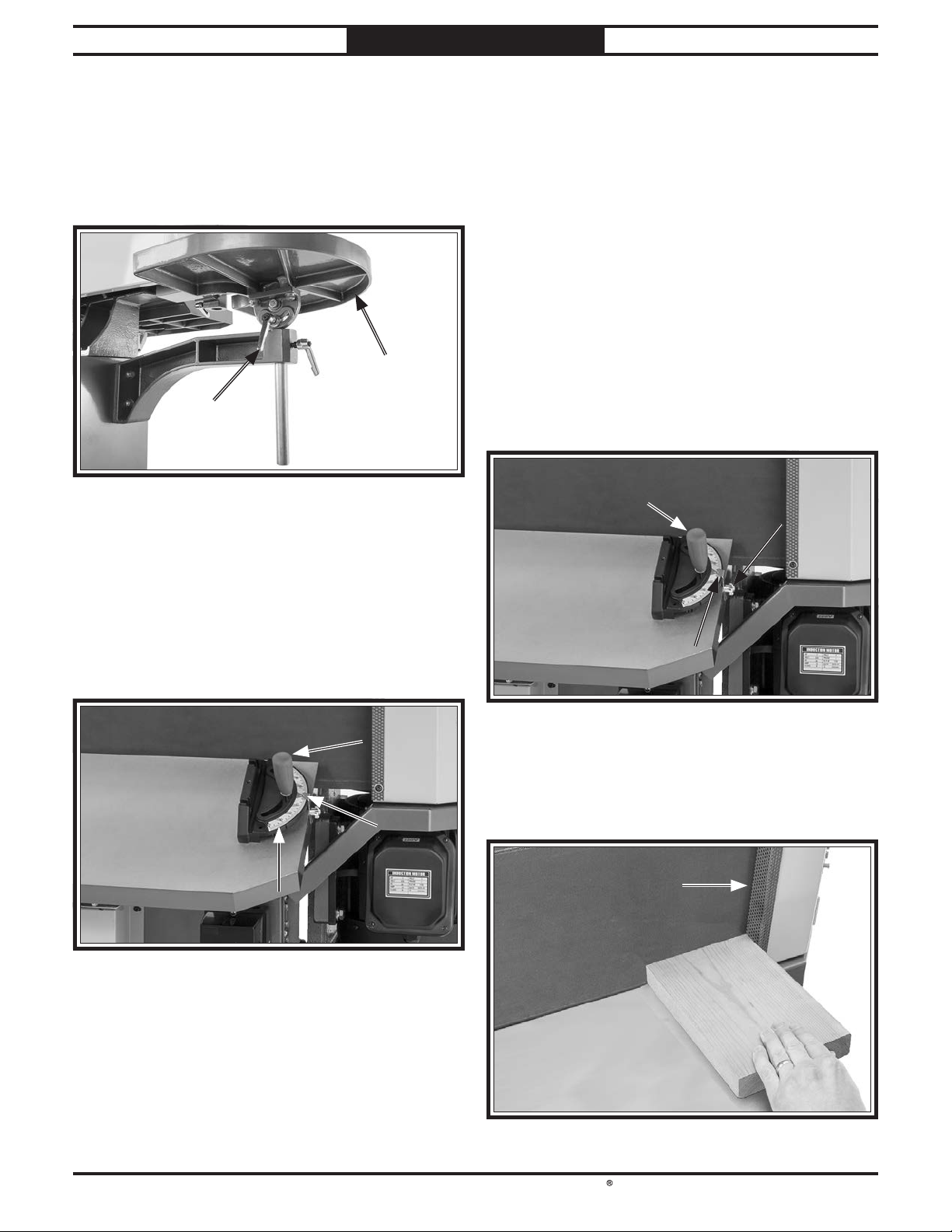

Adjusting End Table Tilt

1. Loosen end table tilt lock handle (see

Figure 42).

Tilt end table to desired angle (see

Figure 42).

End TableEnd Table

End Table TiltEnd Table Tilt

Lock HandleLock Handle

Figure Figure 42. End table tilt components.. End table tilt components.

Tighten end table tilt lock handle to secure.

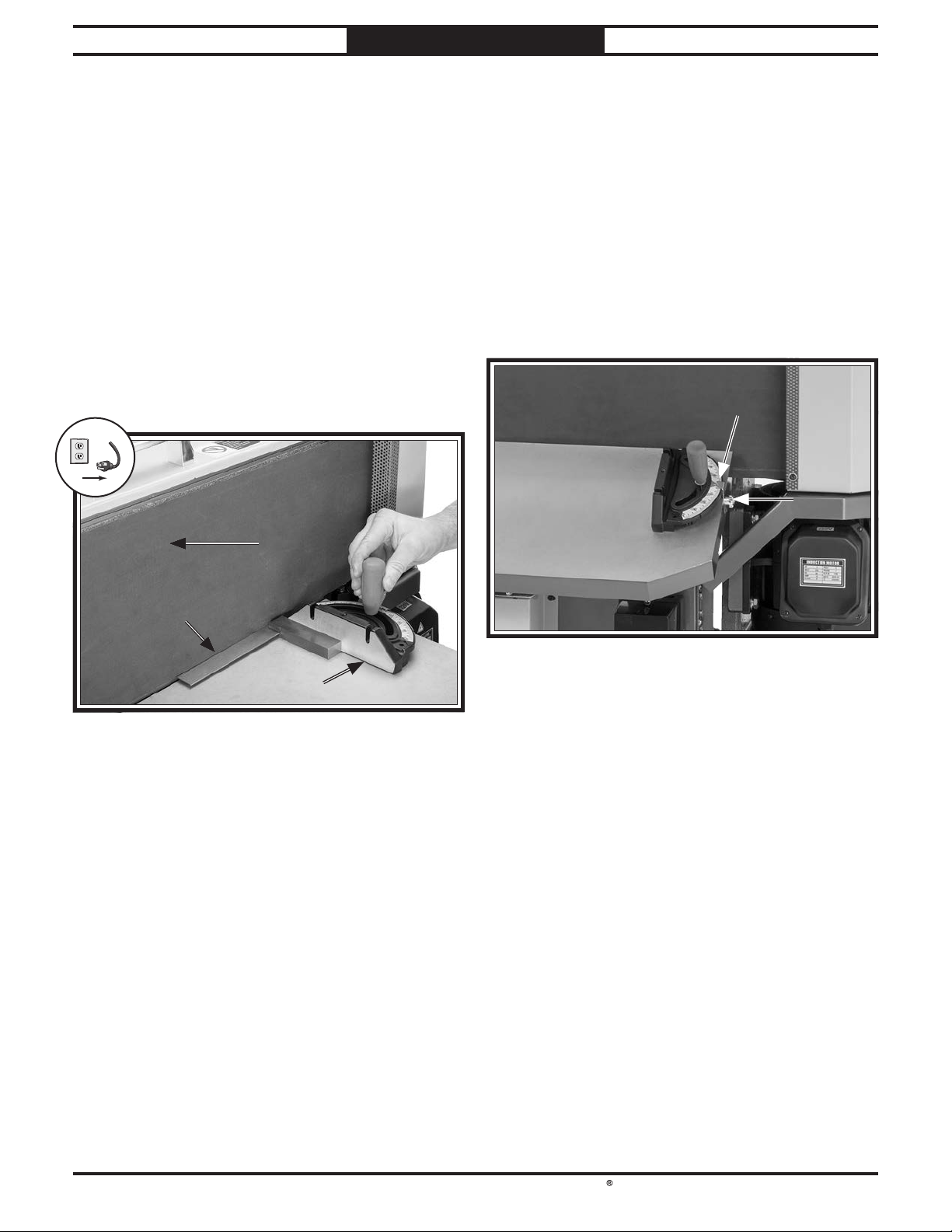

Using Back Stop

When mitered support is not needed, the miter stop can be removed so workpieces can be instead supported by the back stop and the main table.

Note: Use these steps to re-install the miter stop and be sure to calibrate the scale before use by referring to Calibrating Miter Stop on Page 35.

To use back stop:

1. Remove lock handle and flat washer shown

in Figure 44.

Remove scale pointer knob shown in Figure

44 to remove pointer.

Lock Handle & Lock Handle &

Flat WasherFlat Washer

Scale PointerScale Pointer

KnobKnob

Adjusting Miter Stop

The main table has a stationary miter stop (see Figure 43) that is used to support the workpiece at various angles against the sanding belt.

LockLock

HandleHandle

PointerPointer

ScaleScale

Figure Figure 43. Main table miter stop.. Main table miter stop.

To adjust miter stop:

1. Loosen lock handle shown in Figure 43.

PointerPointer

Figure Figure 44. Miter stop removal components.. Miter stop removal components.

Remove miter stop body from table.

Use back stop to support workpieces, as

shown in Figure 45.

Back StopBack Stop

Rotate miter stop to until pointer on scale

indicates desired angle (see Figure 43).

Tighten lock handle from Step 1 to secure.

Figure Figure 45. Workpiece supported by back stop.. Workpiece supported by back stop.

-29-

Page 32

South Bend Tools

Model SB1117

OPERATION

For Machines Mfd. Since 03/22

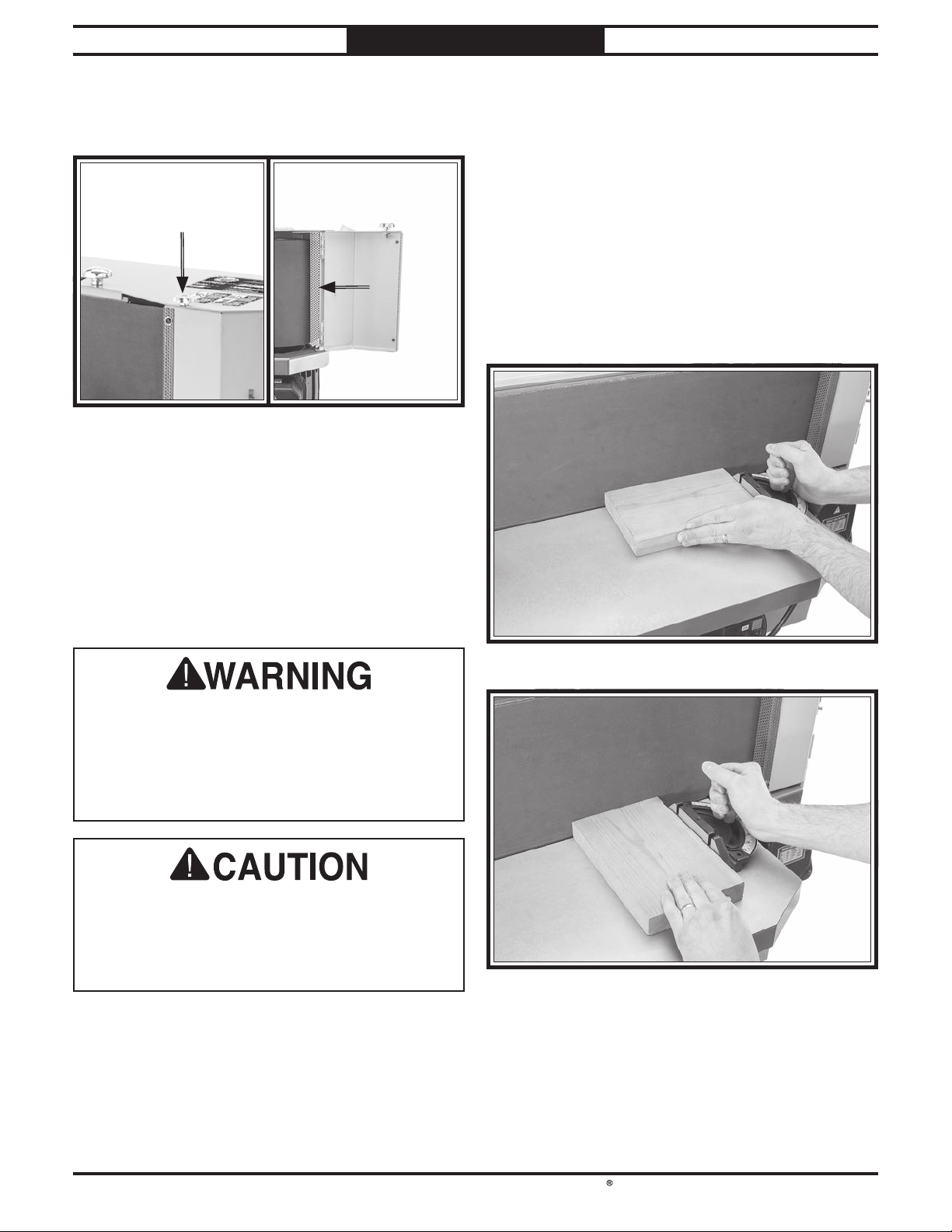

Note: Loosen back stop lock knob and open

back stop door to reveal hidden back stop for larger workpieces (see Figure 46).

Back Stop Back Stop

Lock KnobLock Knob

Hidden Hidden

Back StopBack Stop

Figure Figure 46. Hidden back stop components.. Hidden back stop components.

Edge & End Sanding

Proper use of the oscillating edge sander will yield excellent sanding results due to the oscillating movement. Always use the miter stop to support the workpiece whenever possible. Edge and end sanding operations are performed on the main table against the platen.

To edge or end sand:

1. Connect machine to power, turn it ON, and

allow it to reach full speed.

Raise main table to desired height and

adjust table tilt to desired setting (refer to Adjusting Main Table on Page 27).

Support workpiece against miter stop and

slowly feed workpiece into moving belt with light, even pressure. Maintain control of workpiece, as shown in Figures 47–48. DO NOT force workpiece against belt.

Moving sanding belt can cause serious personal injury if it comes in contact with fingers, hands, or other body parts. Make sure workpiece is always supported against table. Use extreme care to provide a safe distance between belt and any part of your body.

If you must feed workpiece into sanding belt corner first, feed trailing corner first. Feeding leading corner first could cause sanding belt to grab workpiece and jerk it out of your hands.

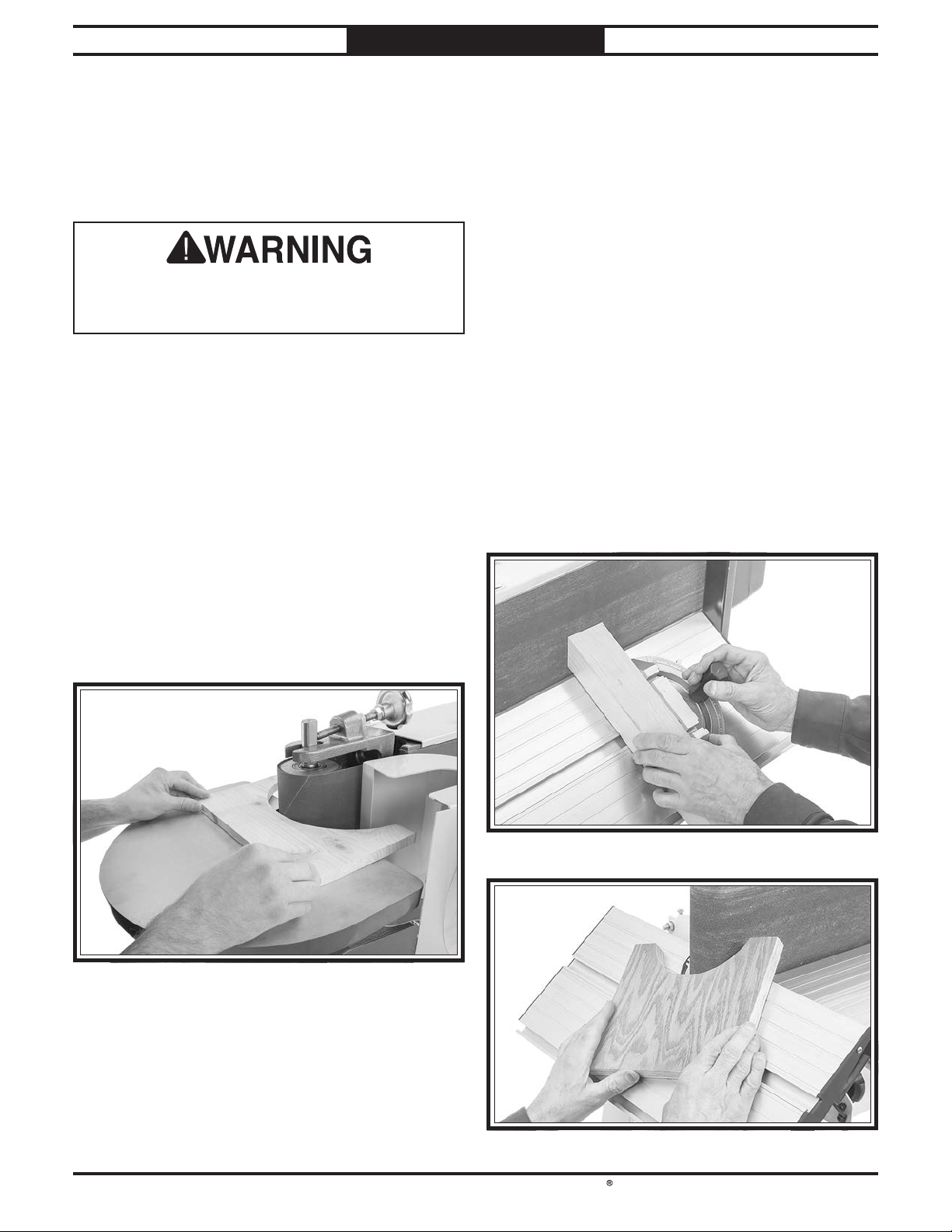

Figure Figure 47. Typical edge sanding operation.. Typical edge sanding operation.

Figure Figure 48. Typical end sanding operation.. Typical end sanding operation.

-30-

Page 33

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

OPERATION

Contour Sanding

Contour sanding operations are performed on the end table with the workpiece pressing against the idler wheel sanding drum. Always use two hands to maintain best control.

Do not contour sand without end table properly installed or serious personal injury could result.

To contour sand:

1. Open end table dust hood.

Raise end table to desired height and

adjust table tilt to desired setting (refer to Adjusting End Table on Page 28).

Connect machine to power, turn it ON, and

allow it to reach full speed.

Bevel Sanding

Bevel sanding can take place on either the main table or the end table on the Model SB1117. Adjust the table tilt to match the angle you wish to sand on a workpiece. Regardless of the table being used, always keep the workpiece against the table and use two hands to control it.

To bevel sand:

1. Set table tilt to match angle of bevel on

workpiece, and set main table height to match workpiece thickness.

Connect machine to power, turn it ON, and

allow it to reach full speed.

Support workpiece with table (and miter

gauge or back stop if operation allows), and slowly feed workpiece into moving belt with light, even pressure (see Figures 50–51. DO NOT force workpiece against belt.

While securely holding workpiece, slowly

feed workpiece into moving belt with light, even pressure. Maintain control of workpiece, as shown in Figure 49. DO NOT force workpiece against belt.

Figure Figure 49. Typical contour sanding operation.. Typical contour sanding operation.

Figure Figure 50. Bevel sanding operation example.. Bevel sanding operation example.

Figure Figure 51. Bevel contour sanding operation example.. Bevel contour sanding operation example.

-31-

Page 34

South Bend Tools

Model SB1117

order online at www.grizzly.com or call 1-800-523-4777

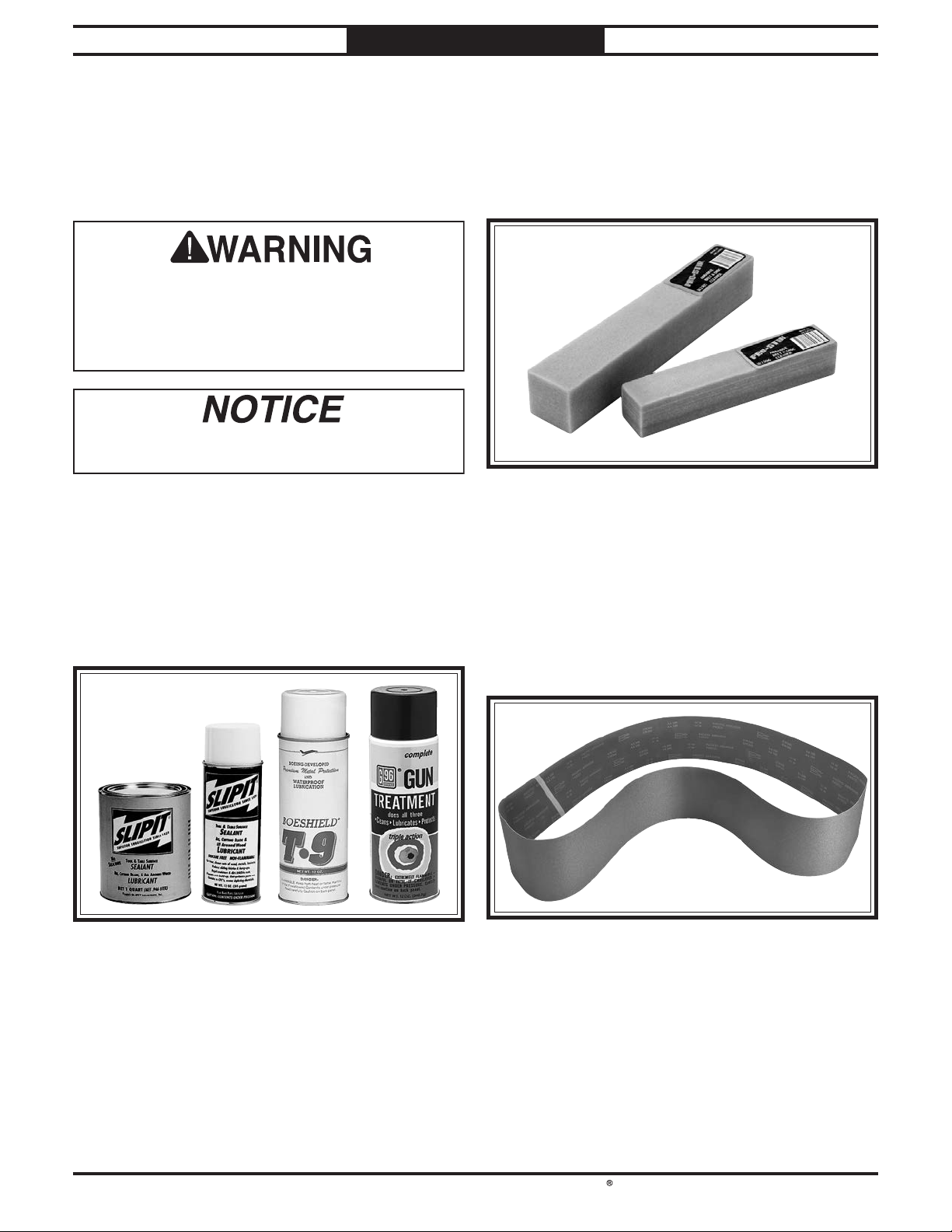

ACCESSORIES

Accessories

This section includes the most common accessories available for your machine, which are available through our exclusive dealer, Grizzly Industrial, Inc., at grizzly.com.

Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended by South Bend or Grizzly.

Refer to Grizzly’s website or latest catalog for additional recommended accessories.

For Machines Mfd. Since 03/22

Pro-Stik® Abrasive Surface Cleaners

W1306—1½" x 1½" x 8½" W1307—2" x 2" x 12"

Extend the life of your sanding belts! Choose the Pro-Stik® with a handle for greater control or without a handle for more usable area.

Figure Figure 53. Pro-Stik. Pro- Stik®® abrasive surface cleaners. abrasive surface cleaners.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT® 12 Oz. Spray G2870—Boeshield® T-9 4 Oz. Spray G2871—Boeshield® T-9 12 Oz. Spray H3788—G96® Gun Treatment 12 Oz. Spray H3789—G96® Gun Treatment 4.5 Oz. Spray

Figure Figure 52. Recommended products for protecting . Recommended products for protecting

unpainted cast iron/steel parts on machinery.unpainted cast iron/steel parts on machinery.

A/O Sanding Belts 9" x 138½"

H4181—60-Grit H4182—80-Grit H4183—100-Grit H4184—120-Grit H4185—150-Grit

These belts feature tough aluminum oxide grain and are sized for the Model SB1117.

Figure Figure 54. Model H4181 60-Grit Sanding Belt.. Model H4181 60-Grit Sanding Belt.

-32-

Page 35

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

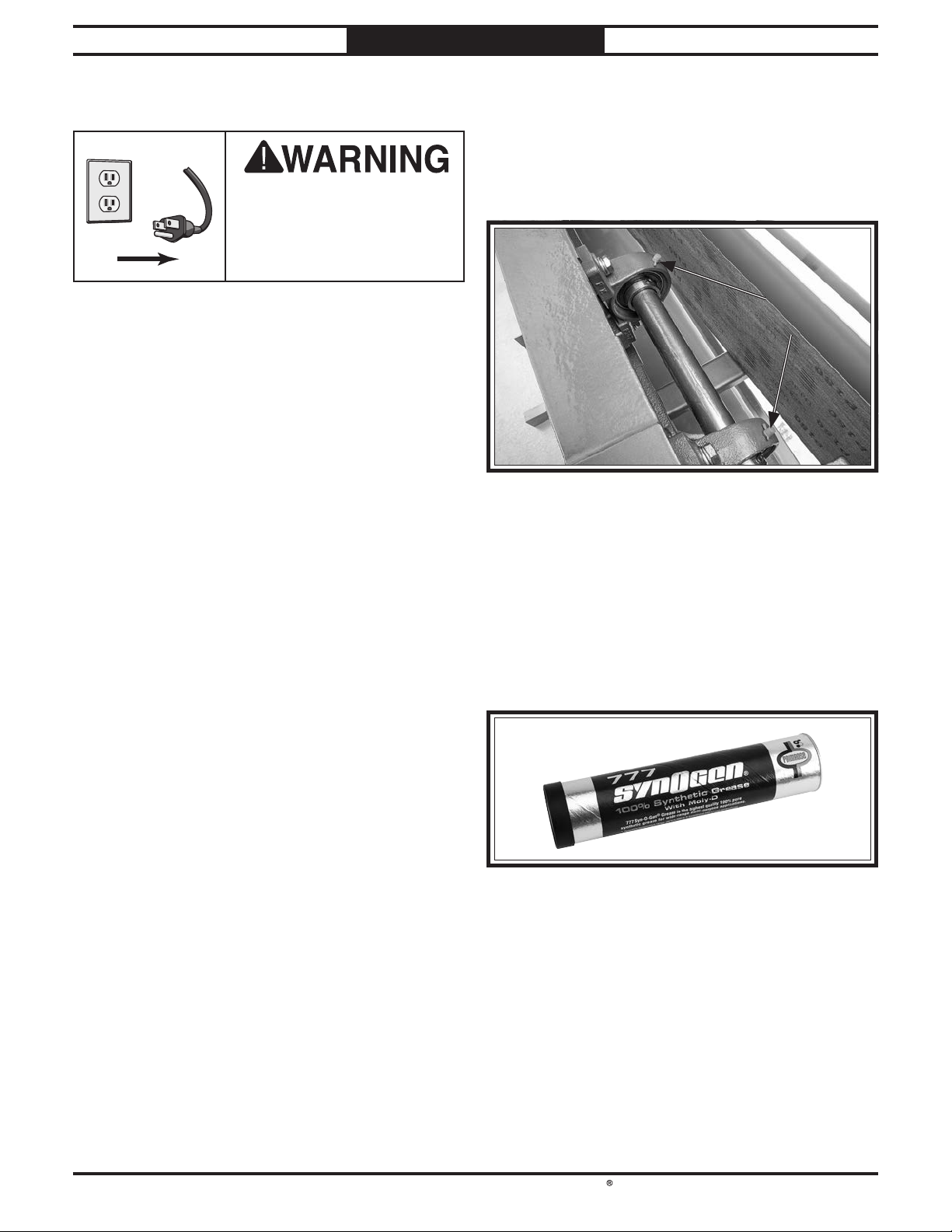

MAINTENANCE

Maintenance Schedule

Always disconnect machine from power before performing maintenance or serious personal injury may result.

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

• Check/correct loose mounting bolts.

• Check/replace damaged sanding belt. Check/replace worn switch.

• Check/replace worn or damaged wires.

•

• Clean/protect table. Correct any other unsafe condition.

•

Monthly

• Lubricate oscillation grease fittings.

• Clean/vacuum dust buildup from inside

cabinet and belt guard and off motor.

MAINTENANCE

Lubrication

The oscillation grease fittings shown in Figure 55 should be lubricated once every 50 hours of

operation with a thin coat of light machine oil and 1–2 pumps of NLGI #2 or Syn-O-Gen grease.

Grease Grease

FittingsFittings

Figure Figure 55. Location of oscillation grease fittings.. Location of oscillation grease fittings.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and waterresistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

Cleaning & Protecting

Bare metal surfaces can quickly develop surface rust if not coated. Machinery stored near windows in direct sunlight or where paints, thinners, or certain gasses are open to the air can experience bleaching, discoloring of paint or yellowing of clear plastic guards.

Cleaning the SB1117 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin-dissolving cleaner to remove it.

Protect the unpainted cast iron table by wiping it clean after every use—this ensures moisture from wood dust does not remain on bare metal surfaces. Keep the tables rust-free with regular applications of products like G96® Gun Treatment, SLIPIT®, or Boeshield® T-9 (see Page 32 for more details).

Figure Figure 56. Model T26419 Syn-O-Gen Synthetic . Model T26419 Syn-O-Gen Synthetic

Grease (NLGI #2 equivalent).Grease (NLGI #2 equivalent).

Machine Storage

All machinery will develop serious rust or corrosion damage if it is not properly prepared for storage. If decommissioning this machine, disconnect all power sources, thoroughly clean bare metal surfaces, coat them with light weight grease or rust preventative, and cover machine with a tarp or plastic sheet to keep out dust.

-33-

Page 36

South Bend Tools

Model SB1117

SERVICE

For Machines Mfd. Since 03/22

SERVICE

Calibrating Main Table Tilt

For best sanding results, ensure the table angle is calibrated correctly. If calibrated correctly, the scale should read 0° when perpendicular to the sanding belt.

Tools Needed Qty

90° Square .............................................................1

Hex Wrench 3mm

To calibrate main table tilt:

1. DISCONNECT MACHINE FROM POWER!

Remove sanding belt.

Set one edge of 90° square on main table

surface and other edge against face of platen, as shown in Figure 57.

.................................................1

4. Adjust main table angle until perpendicular

to face of platen.

— If tilt scale reads 0° when main table is

perpendicular to platen, no calibration is required.

— If tilt scale does not read 0° when main

table is perpendicular to platen, proceed to Step 5.

Loosen scale pointer button head cap screw

(see Figure 58), adjust pointer to 0°, then tighten screw.

PointerPointer

PlatenPlaten

Main TableMain Table

9090°° Square Square

Figure Figure 57. Square positioned to check table angle.. Square positioned to check table angle.

Scale PointerScale Pointer

ScrewScrew

Figure Figure 58. Tilt scale pointer components.. Tilt scale pointer components.

6. Check accuracy with 90° square before

installing sanding belt.

-34-

Page 37

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

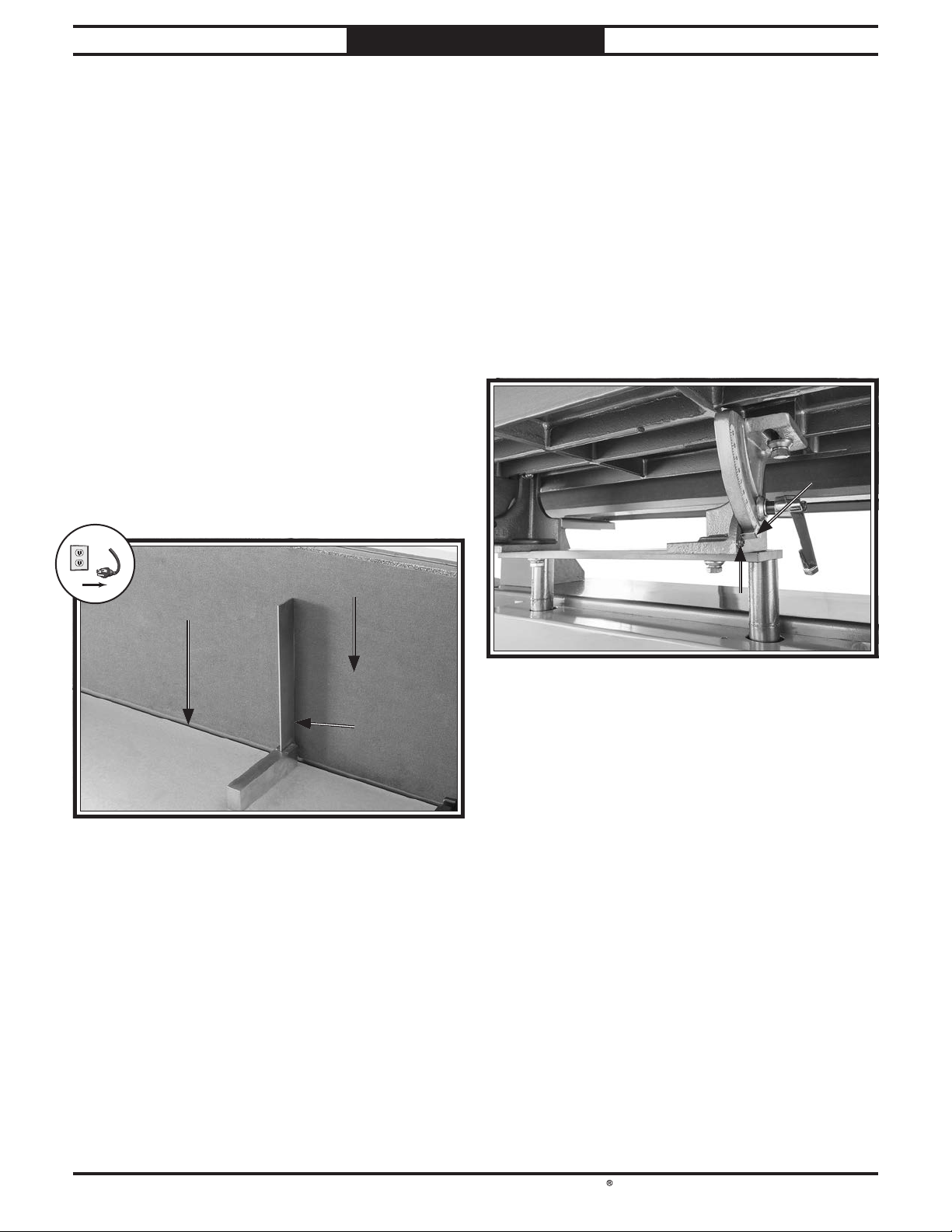

Calibrating Miter Stop

This procedure ensures the miter stop angle is accurate when set to 0°.

Tool Needed Qty

90° Square .............................................................1

To calibrate miter stop:

1. DISCONNECT MACHINE FROM POWER!

Remove sanding belt.

Set one edge of 90° square against miter

stop and other edge against face of platen, as shown in Figure 59.

PlatenPlaten

SERVICE

4. Adjust miter stop angle until perpendicular

to face of platen.

— If miter scale reads 0° when miter stop is

— If miter scale does not read 0° when miter

Loosen scale pointer knob (see Figure 60),

adjust pointer to 0°, then tighten knob.

perpendicular to platen, no calibration is required.

stop is perpendicular to platen, proceed to Step 5.

PointerPointer

ScaleScale

PointerPointer

KnobKnob

9090°° Square Square

Miter StopMiter Stop

Figure Figure 59. Square positioned to miter angle.. Square positioned to miter angle.

Figure Figure 60. Miter scale pointer components.. Miter scale pointer components.

6. Check accuracy with 90° square before

installing sanding belt.

-35-

Page 38

South Bend Tools

Model SB1117

TROUBLESHOOTING

For Machines Mfd. Since 03/22

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free to call us at (360) 734-1540.

Symptom Possible Cause Possible Solution

Machine does not start or power supply breaker trips immediately after startup.

Machine stalls or is underpowered.

E-Stop button depressed/at fault.

Incorrect power supply voltage or circuit size.

Power supply circuit breaker tripped or fuse blown.

Motor wires connected incorrectly.

Thermal overload relay has tripped/ at fault.

Start capacitor at fault.

Contactor not energized/at fault.

Wiring broken, disconnected, or corroded.

Centrifugal switch adjustment/ contact points at fault.

10.

ON button at fault.

11.

Motor or motor bearings at fault.

Workpiece material unsuitable for machine.

Motor wires connected incorrectly.

Machine undersized for task.

Motor overheated.

Run capacitor at fault.

Extension cord too long.

Contactor not energized/at fault.

Centrifugal switch/contact points at fault.

Motor or motor bearings at fault.

Rotate E-Stop button head to reset. Replace if at fault.

Ensure correct power supply voltage and circuit size.

Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

Correct motor wiring connections.

Reset. Adjust or replace if at fault.

Test/replace if at fault.

Test all legs for power; replace if necessary.

Fix broken wires or disconnected/corroded connections.

Adjust centrifugal switch/clean contact points. Replace either if at fault.

10.

Replace button.

11.

Replace motor.

Only sand wood/ensure moisture is below 20% (Page 23).

Correct motor wiring connections.

Clean (Page 32)/replace sandpaper (Page 24); reduce feed rate/sanding depth.

Clean motor, let cool, and reduce workload.

Test/repair/replace.

Move machine closer to power supply; use shorter extension cord.

Test all legs for power; repair/replace if necessary.

Adjust centrifugal switch/clean contact points. Replace either if at fault.

Replace motor.

Machine has vibration or noisy operation.

Sanding belt slaps or vibrates excessively.

Motor or component loose.

Stand feet not adjusted properly.

Drive wheel cap screw is missing or loose.

Motor fan rubbing on fan cover.

Centrifugal switch at fault.

Motor bearings at fault.

Incorrect sanding belt tension.

Belt tracking needs adjustment.

Broken/defective sanding belt.

Idler wheel is too loose.

Weak or broken tension spring.

-36-

Replace damaged or missing bolts/nuts or tighten if loose.

Adjust stand feet to stabilize machine.

Inspect keys and set screws. Replace or tighten if necessary.

Fix/replace fan cover; replace loose/damaged fan.

Adjust/replace if at fault.

Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Make sure tension lever is engaged (Page 24).

Adjust sanding belt tracking (Page 26).

Replace sanding belt (Page 24).

Tighten idler roller.

Replace spring.

Page 39

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

TROUBLESHOOTING

Symptom Possible Cause Possible Solution

Sanded surface not square when main table tilt and miter stop both set to 0°.

Deep sanding grooves or scores in workpiece.

Abrasive grit rubs off the belt easily.

Snake-shaped marks on workpiece.

Sanding belt surfaces clog quickly or burn.

Main table not perpendicular to platen/belt.

Miter stop not perpendicular to platen/belt.

Using too coarse of sanding grit.

Workpiece sanded across grain.

Too much pressure against belt.

Workpiece held still for too long.

Graphite pad on platen damaged.

Sanding belt has been stored in an incorrect environment.

Sanding belt has been folded or crushed.

Sanding belt loaded with sawdust, resin, and/or pitch.

Sanding belt damaged.

Worn sanding belt.

Too much pressure against belt.

Sanding softwood.

Workpiece has high moisture content or sap.

Using too ﬁne of sanding grit.

Poor dust collection.

Calibrate tilt scale (Page 34).

Calibrate miter stop scale (Page 35).

Use ﬁner grit sanding belt (Page 24).

Sand with workpiece grain.

Reduce pressure on workpiece while sanding.

Do not keep workpiece in one place for too long.

Replace graphite pad.

Replace sanding belt (Page 24). Store sanding belt in a cool, dry area.

Replace sanding belt (Page 24). Store sanding belt ﬂat, not folded or bent.

Clean (Page 32) or replace belt (Page 24).

Replace sanding belt (Page 24).

Reduce pressure on workpiece while sanding.

Use different stock or accept characteristics of workpiece and plan on cleaning/replacing belt frequently.

Use different stock or accept characteristics of workpiece and plan on cleaning (Page 32)/replacing belt frequently (Page 24).

Use coarser grit sanding belt (Page 24).

Unclog ducts; close gates to improve suction; redesign dust collection system.

Burn marks on workpiece.

Glazed sanding surfaces.

Workpiece frequently gets pulled out of your hand.

Belt does not track correctly.

Using too ﬁne of sanding grit.

Too much pressure against belt.

Workpiece held still for too long.

Sanding belt loaded with sawdust, resin, and/or pitch.

Sanding wet stock.

Sanding stock with high pitch/ residue.

Belt worn or ﬁlled with pitch/ residue.

Not supporting workpiece properly.

Starting workpiece on a leading corner.

Belt tracking needs adjustment.

Incorrect sanding belt tension.

Sanding belt damaged, worn, or misshapen.

Use coarser grit sanding belt (Page 24).

Reduce pressure on workpiece while sanding.

Do not keep workpiece in one place for too long.

Clean (Page 32) or replace belt (Page 24).

Dry stock properly before sanding (Page 23).

Use different stock or accept characteristics of workpiece and plan on cleaning (Page 32)/replacing belt frequently (Page 24).

Replace belt or clean pitch/residue from belt (Page 32).

Use backstop/miter stop to support workpiece.

Start workpiece on a trailing corner.

Adjust sanding belt tracking (Page 26).

Make sure tension lever is engaged. (Page 24).

Replace sanding belt (Page 24).

-37-

Page 40

South Bend Tools

Model SB1117

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modiﬁcations:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at (360) 734-1540.

ELECTRICAL

For Machines Mfd. Since 03/22

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may make changes to the electrical systems of future machines. Study this section carefully. If you see differences between your machine and what is shown in this section, call Technical Support at (360) 734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the machine is connected to the power source. Touching electriﬁed parts will result in personal injury including but not limited to severe burns, electrocution, or death. For your own safety, disconnect machine from the power source before servicing electrical components or performing any wiring tasks!

All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

Using aftermarket parts or modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or ﬁre.

The motor wiring shown in these diagrams is current at the time of printing, but it may not match your machine. Always use the wiring diagram inside the motor

to an improperly sized circuit will greatly increase the risk of ﬁre. To minimize this risk, only connect the machine to a power circuit that meets the minimum requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious personal injury, ﬁre, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components before completing the task.

Experiencing Difﬁculties: If you are

experiencing difﬁculties understanding the information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

-38-

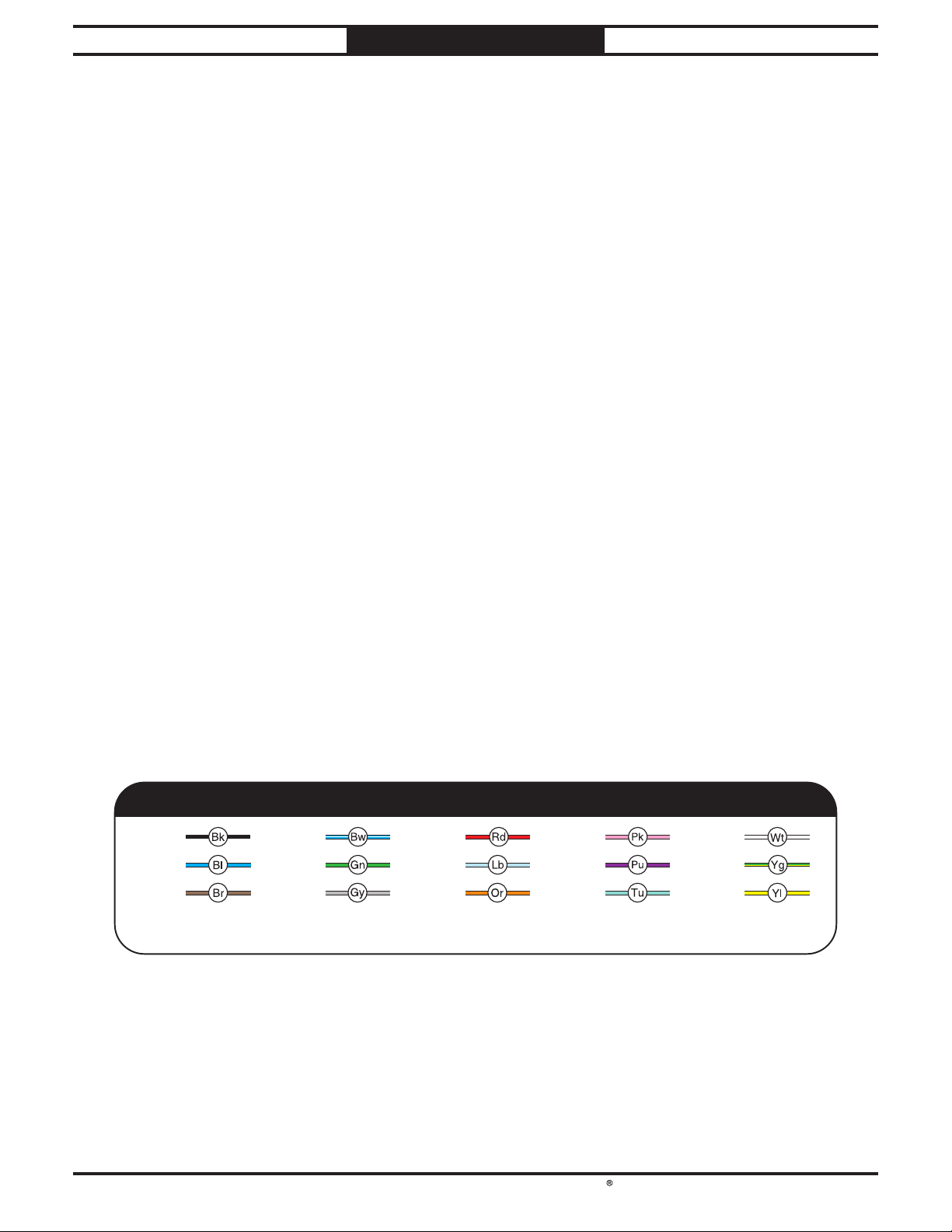

WIRING DIAGRAM COLOR KEY

BLUE WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can see them in color at www.southbendtools.com.

RED

LIGHT BLUE

ORANGE

PINK

PURPLE

TURQUIOSE

WHITE

YEL LOW GREEN

YEL LOW

Page 41

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

Mag Switch

ELECTRICAL

Wiring Diagram

1L1 5L3

3L2

NHD C-18D

220V

2T1 6T3

4T2

NHD NTH-17

98 97 96 95

2T1 4T2 6T3

NHD MS-18D

13NO

14NO

O R

Mag Switch Cover

WARNING!

Ground

NHD CB-10

3 4

1NC2 NO

CB-01

SHOCK HAZARD!

Disconnect power before working on wiring.

Start Button

NPB22-F

E-Stop Button

TPB22-S01R

Motor 220V

Run

Capacitor

20uF

500VAC

Ground

U W

6-20 Plug

Start

Capacitor 300MFD

250VAC

Ground

Hot

Figure Figure 61. Magnetic switch wiring.. Magnetic switch wiring.

220 VAC

Figure Figure 62. Motor junction box wiring.. Motor junction box wiring.

-39-

Page 42

South Bend Tools

Model SB1117

PARTS

Main

PARTS

For Machines Mfd. Since 03/22

126

125

128

129 125 106

106

126

32-1

127

114

124

32-2

123

131

132

32-3

32-5

104

130

106

122

121

32-4

32-6

117

119

115

122

114

104

118

120

115

102

116

104

112

113

103

108

105

133

104

103

107

106

111

109

110

101

201

229

202

218

203

232

204

205

208

209

230 209

231

228

227

203

218

206

225

216-12

207

211 210

224

223

226

222

216-1

216-3

216-5

216-7

216-9

216-10

215

211

209 212

221

220

209

233

213

216-4

216-8

203

214

217

216-2

216-6

216-11

216

218

219

REF PAR T # DE SCR IPTION REF PART # DESCRIPTION

1 PSB1117001 SAN DING B ELT GUARD 6 PSB1117006 FLAT WASHER 6MM

2 PSB1117002 GUARD HAN DLE 7 PSB1117007 LOCK WASHER 6MM

3 PSB1117003 CAP SCREW M8-1.25 X 16 8 PSB1117008 BUTTON HD CAP SCR M6-1 X 16

4 PSB1117004 KNOB B OLT 1/4-20 X 3/4, 7-LOB E, D1-1 /8 9 PSB1117009 GUARD B RACKET (SH ORT)

5 PSB1117005 EYE BOLT 1", M10-1.5 X 18 10 PSB1117010 GUARD BRACKET (LON G)

-40-

29V2

Page 43

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

REF PART # DE SCRIPT ION REF PART # DE SCR IPT ION

PARTS

Main Parts List

11 PSB1117011 HEX N UT M8-1.25 125 PSB1117125 FENDER WASHER 10 X 25 X 6

12 PSB1117012 STOP GUARD 126 PSB1117126 BUTTON HD CAP SCR M10 -1.5 X 25

13 PSB1117013 BUTTON HD CAP SCR M6-1 X 8 127 PSB1117127 TENSION MOUNTING SHAFT 25 X 112

14 PSB1117014 BALL-STYLE GRAB LATCH 128 PSB1117128 SET SCREW M6-1 X 12

15 PSB1117015 FLA T H D SCR M3-.5 X 6 129 PSB1117129 S PHERICA L BEARING PB-20

16 PSB1117016 SANDING BELT 9" X 138-1/2" 180-GRIT 130 PSB1117130 FIXED HANDLE 21 X 81, M10-1.5 X 30

17 PSB1117017 FLAT WASHER 10MM 131 PSB1117131 FLAT WASHER 10MM

18 PSB1117018 LOCK WASHER 10MM 132 PSB1117132 BUTTON HD CAP SCR M10 -1.5 X 1 6

19 PSB1117019 HEX BOLT M10-1.5 X 40 133 PSB1117133 FLAT WASHER 12MM

20 PSB1117020 PLATEN 201 PSB1117201 PILLOW B EARIN G UCP1 07

21 PSB1117021 GRAPHITE PA D BRA CKET 202 PSB1117202 FLAT WASHER 12MM

22 PSB1117022 LOCK WASHER 5MM 203 PSB1117203 LOCK WASHER 12MM

23 PSB1117023 BUTTON HD CA P S CR M5-.8 X 16 204 PSB1117204 HEX BOLT M12-1.75 X 40

24 PSB1117024 GRAPH ITE PAD 9" X 50-3/8" 205 PSB1117205 OSCILLATION SHAFT 35 X 355

25 PSB1117025 MACHINE BASE 206 PSB1117206 SET SCREW M10-1.5 X 10

26 PSB1117026 GUARD SUPPORT 207 PSB1117207 MOTOR MOUNT

27 PSB1117027 GEARB OX C OVER 208 PSB1117208 HEX B OLT M8-1.25 X 35

28 PSB1117028 B UTTON HD CA P S CR M6-1 X 12 209 PSB1117209 LOCK WASHER 8MM

29V2 PSB1117029V2 BA SE SUPPORT V2.03.22 210 PSB1117210 MOTOR/GEARB OX B RACKET

30 PSB1117030 F OOT M 12-1.75 X 40 211 PSB1117211 BUTTON HD CAP SCR M8-1.25 X 20

31 PSB1117031 HEX BOLT M10-1.5 X 25 212 PSB1117212 FLAT WASHER 8MM

32 PSB1117032 MAG SWITCH NHD MS-18D 213 PSB1117213 CAP SCREW M12-1.75 X 35

32-1 PSB1117032-1 SWITCH BOX 214 PSB1117214 FENDER WASH ER 14MM

32-2 PSB1117032-2 S WITCH BOX C OVER 215 PSB1117215 DRIVE WHEEL

32-3 PSB1117032-3 CONTACTOR C-18D 220V 216 PSB1117216 MOTOR 3H P 220V 1-PH

32-4 PSB1117032-4 STA RT B UTTON NPB 22-F 216 -1 PSB1117216-1 M OTOR FA N COVER

32-5 PSB1117032-5 OL RELAY NTH-17 14-17A 216 -2 PSB1117216-2 MOTOR F A N

32-6 PSB1117032-6 E-S TOP B UTTON TPB 22-S01 R 216 -3 PSB1117216-3 CON TACT PLATE 24 X 6 7MM

33 PSB1117033 PHLP HD SCR 10-24 X 1/2 216-4 PSB1117216-4 CEN TRIF UGAL SWITC H 3/4 1720 RPM

34 PSB1117034 HEX NUT M6-1 216-5 PSB1117216-5 S CAPACITOR COVER

101 PSB1117101 COMPRESSION SPRING 5.5 X 43 X 236 216-6 PSB1117216-6 S CAPACITOR 300M 250V 1-3/4 X 3-5/8

102 PSB1117102 LOCK COLLAR 49 X 60 216-7 PSB1117216-7 R CAPACITOR COVER

103 PSB1117103 ACORN N UT M1 2-1.75 216 -8 PSB1117216-8 R CAPACITOR 20M 500V 2 X 3-5/8

104 PSB1117104 LOCK WASHER 12MM 216-9 PSB1117216-9 BALL B EARING 6308 Z Z (FRONT)

105 PSB1117105 TENSION PLATE 9.5 X 31 .8 X 1 75 216-10 PSB1117216-10 BALL B EARING 620 5Z Z (REAR)

106 PSB1117106 LOCK WASHER 10MM 216-11 PSB1117216-11 MOTOR JUN CTION BOX

107 PSB1117107 CAP SCREW M10-1.5 X 20 216-12 PSB1117216-12 MOTOR CORD 12 G 3W 2 4"

108 PSB1117108 SET SCREW M10-1.5 X 10 217 PSB1117217 FLAT WASHER 10MM

109 PSB1117109 TENSION LEVER 218 PSB1117218 LOCK WASHER 10MM

110 PSB1117110 REVOLVING HAN DLE 25 X 85, M10-1.25 X 12 219 PSB1117219 HEX BOLT M10-1.5 X 35

111 PSB1117111 CAP SCREW M12-1.75 X 30 220 PSB1117220 B UTTON HD CAP SCR M8-1.25 X 25

112 PSB1117112 HEX BOLT M12-1.75 X 30 221 PSB1117221 FENDER WASH ER 8MM

113 PSB1117113 BALL BEARING 620 1ZZ 222 PSB1117222 GEARBOX REDUCER

114 PSB1117114 EXT RETAINING RING 25MM 223 PSB1117223 PLUG-IN SHAFT 35 X 120

115 PSB1117115 BALL B EA RIN G 6205ZZ 224 PSB1117224 KEY 6 X 6 X 30 RE

116 PSB1117116 IDLER WHEEL 225 PSB1117225 BALL B EA RIN G 60 01Z Z

117 PSB1117117 WHEEL SHAFT 25 X 334 226 PSB1117226 HEX BOLT M10-1.5 X 30

118 PSB1117118 TENSION SHAFT 30 X 550 227 PSB1117227 S PHERICA L BEARING PB-10

119 PSB1117119 B USHIN G 30 X 34 X 25 228 PSB1117228 BEARING HOUSING

120 PSB1117120 KNOB M12-1.75, 7-LOBE, D60 229 PSB1117229 ACORN NUT M 10-1 .2 5

121 PSB1117121 TA PERED THREA DED ROD M12-1.75 X 155 230 PSB1117230 FLAT WASHER 8MM

122 PSB1117122 HEX NUT M12-1.75 231 PSB1117231 HEX BOLT M12-1.75 X 30

123 PSB1117123 FLAT WASHER 10MM 232 PSB1117232 GEARBOX MOUNTIN G BRACKET

124 PSB1117124 TENSION BRACKET 233 PSB1117233 POWER CORD 12G 3W 110" 6-20P

-41-

Page 44

South Bend Tools

Model SB1117

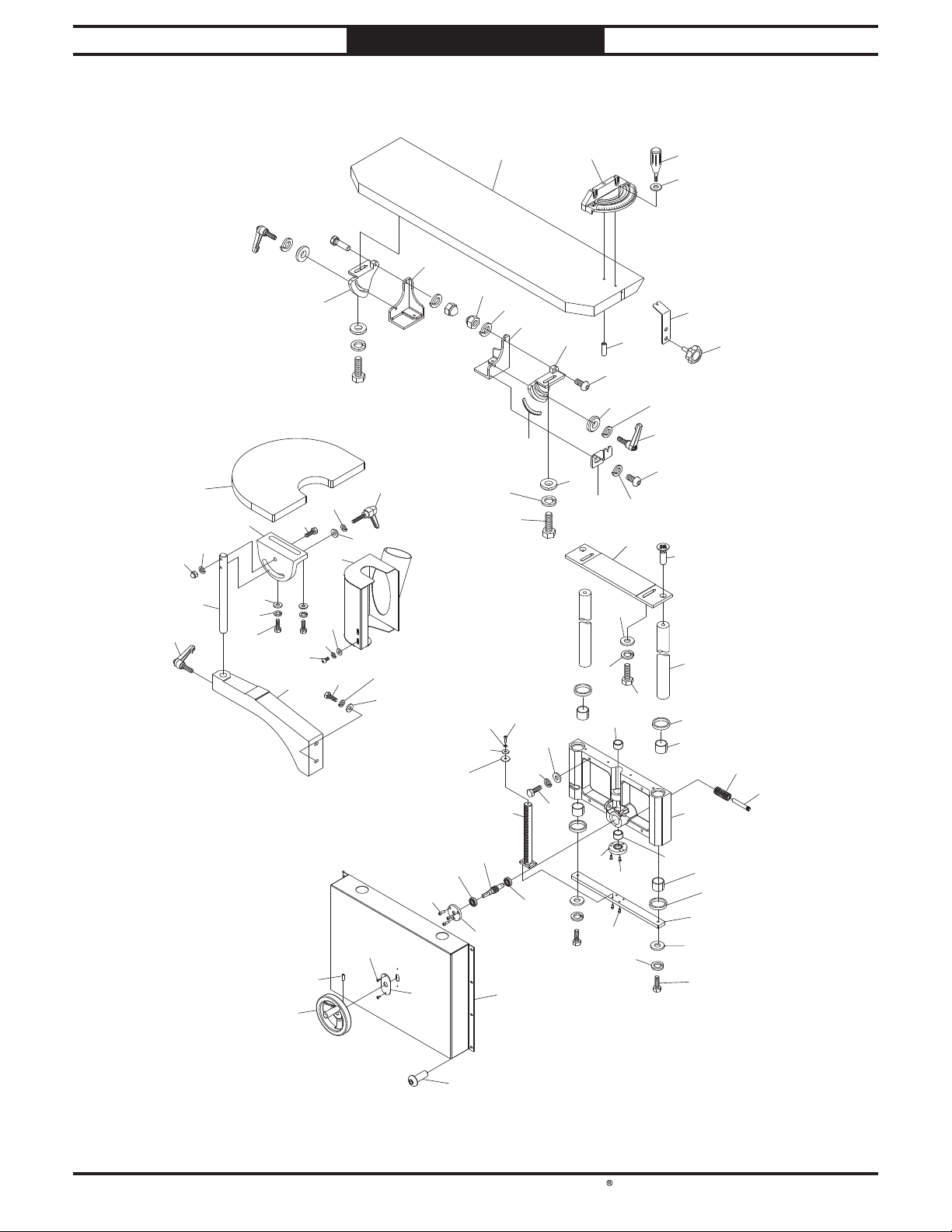

Tables

PARTS

For Machines Mfd. Since 03/22

407

417

401

408

403

406

409

403

410

308

405

414

416

413

403

411

412

415

402

404

403

409

309

343

345

344

310

340

301

311

321

311

314

346

333

312

338

339

313

316

302

320

311

315

316

329

307

319

323

324

303

304

305

306

311

317

318

322

325

326

327

350

349

328

351

-42-

352

353

348

354

331

342

332

330

341

331

334

348

347

333

329

327

326

335

336

337

Page 45

South Bend Tools

For Machines Mfd. Since 03/22 Model SB1117

PARTS

Tables Parts List

REF PAR T # DESCRIPTION REF PAR T # DESCR IPTION

301 PSB1117301 MAIN TABLE 337 PSB1117337 HEX BOLT M8-1.25 X 30

302 PSB1117302 MITER GA UGE 338 PSB1117338 FLAT WASHER 8MM

303 PSB1117303 FIXED HANDLE 1-3/16 X 3-1/8 339 PSB1117339 HEX BOLT M8-1.25 X 60

304 PSB1117304 FEN DER WASHER 10 X 25 X 6 340 PSB1117340 ELEVATION LEADSCREW

305 PSB1117305 MITER AN GLE POIN TER 341 PSB1117341 CABINET COVER

306 PSB1117306 KNOB B OLT M 5-.8 X 1 0 , 6-LOB E, D20 342 PSB1117342 BUTTON HD CAP SCR M6-1 X 8

307 PSB1117307 HINGE PIN M8-1.25 X 20 343 PSB1117343 FENDER WASHER 12MM

308 PSB1117308 TRUN N ION (LEFT) 344 PSB1117344 FENDER WASHER 6MM

309 PSB1117309 TRUNNION MOUN T (LEF T) 345 PSB1117345 LOCK WASHER 6MM

310 PSB1117310 A CORN N UT M10 -1 .5 346 PSB1117346 CAP SCREW M6-1 X 12

311 PSB1117311 LOCK WASHER 10MM 347 PSB1117347 CAP SCREW M5-.8 X 15

312 PSB1117312 TRUNNION MOUNT (RIGHT) 348 PSB1117348 CAP SCREW M5-.8 X 10

313 PSB1117313 TRUNNION (RIGHT) 349 PSB1117349 WORM GEAR SHAFT

314 PSB1117314 ANGLE SCALE 350 PSB1117350 WORM GEAR T15-1.5

315 PSB1117315 B UTTON HD CA P SCR M1 0-1.5 X 35 351 PSB1117351 HAN DWHEEL TYPE-24 165D X B-S

316 PSB1117316 FENDER WASH ER 10 X 25 X 6 352 PSB1117352 SET SCREW M8-1 .25 X 1 2

317 PSB1117317 FIXED HANDLE 21 X 81, M10-1.5 X 35 353 PSB1117353 BUTTON H D CAP SCR M5-.8 X 6

318 PSB1117318 BUTTON H D CA P S CR M5-.8 X 10 354 PSB1117354 DUST COVER PLA TE

319 PSB1117319 LOCK WASHER 5MM 401 PSB1117401 CORNER TAB LE

320 PSB1117320 TABLE ANGLE POINTER 402 PSB1117402 FIXED HANDLE 21 X 81, M10-1.5 X 35

321 PSB1117321 HEX BOLT M10-1.5 X 35 403 PSB1117403 LOCK WASHER 10MM

322 PSB1117322 FLAT HD SCR M10-1.5 X 15 404 PSB1117404 FENDER WASHER 10 X 25 X 6

323 PSB1117323 A DJUS TMENT PLATE 405 PSB1117405 H EX B OLT M10-1 .5 X 50

324 PSB1117324 HEX BOLT M10-1.5 X 30 406 PSB1117406 PI VOT B AS E

325 PSB1117325 ELEVATION SHAFT 35 X 425 407 PSB1117407 ACORN N UT M10 -1.5

326 PSB1117326 SEAL 35 X 50 X 8 408 PSB1117408 CORNER TABLE SHA FT

327 PSB1117327 BUS HING 35 X 39 X 30 409 PSB1117409 FLAT WASHER 10MM

328 PSB1117328 ELEVATION BLOCK 410 PSB1117410 HEX BOLT M10-1.5 X 25

329 PSB1117329 SLEEVE BEARING 28 X 32 X 20 411 PSB1117411 DUST HOOD

330 PSB1117330 B EARING CAP (FRONT) 412 PSB1117412 FLAT WASHER 8MM

331 PSB1117331 BALL B EA RIN G 60 02Z Z 413 PSB1117413 LOCK WASH ER 8MM

332 PSB1117332 WORM GEAR SHAFT 414 PSB1117414 B UTTON HD CAP SCR M8 -1.25 X 16

333 PSB1117333 LOCK WASHER 8MM 415 PSB1117415 HEX BOLT M10-1.5 X 40

334 PSB1117334 BEARING CAP (LOWER) 416 PSB1117416 CORNER TABLE SUPPORT

335 PSB1117335 ADJUSTMEN T PLA TE 417 PSB1117417 FIXED HANDLE 21 X 81, M10-1.5 X 30

336 PSB1117336 FEN DER WASHER 8MM

-43-

Page 46

South Bend Tools

Model SB1117

SB1117

503V2

SB1117 Machine Labels (A)

(3/1/21)

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

Machine Labels

PARTS

For Machines Mfd. Since 03/22

501

BELT ROTATION

507

502

WARNING!

INJURY HAZARD Keep door closed while machine is operating. Disconnect power before opening door.

SINCE

1906

Motor: 3 HP, 220V, 1-Ph, 60 Hz Full-Load Current Rating: 15A Sanding Belt Size: 9" x 138-1/2" Sanding Belt Speed: 4120 FPM Oscillation Stroke: 1/4" Main Table Travel: 5-1/8" End Table Travel: 8" Table Tilt: 0 – 45° Floor-to-Table Height: 33-1/4" – 38-3/8" Weight: 739 lbs.

Serial No:

MFG Date:

Made in Taiwan to South Bend Specifications

9" x 138½" OSCILLATING EDGE SANDER

To reduce the risk of serious injury while using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Support workpiece with miter gauge, backstop, or worktable.

5. Maintain

6. Never touch moving sandpaper.

7. Always sand in accordance with directional arrows on machine.

8. Make sure sander is properly assembled, adjusted, and stable before operating. Only operate with all guards in place.

9. Never sand pointed stock with point facing into sanding rotation, and never force workpiece into sanding surface.

10. Only remove jammed pieces when sandpaper is stopped.

11. Turn motor OFF and disconnect power before changing sandpaper, removing jammed pieces, making adjustments, or servicing.

12. Do not wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

13. Never reach over moving sanding belt.

14. Do not expose to rain or use in damp locations.

15. Do not operate under influence of drugs or alcohol, or when tired.

16. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

MODEL SB1117

WARNING!

/16" maximum clearance between table and sandpaper.

504

WARNING!

INJURY HAZARD Do not use machine if you have not read the manual. Visit southbendtools.com or call 360-734-1540 to get a manual.

WARNING!

EYE/LUNG INJURY

HAZARD Always wear ANSIapproved safety glasses and respirator when using this equipment.

WARNING!

INJURY/SHOCK

HAZARD To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

WARNING!

ABRASION INJURY

HAZARD DO NOT touch moving sanding belt or personal injury may occur!

509

505

508

506

REF PART # DESCRIPTION REF PART # DE SCR IPT ION

501 PSB1117501 BELT ROTATION LABEL 506 PSB1117506 MODEL NUMBER LAB EL

502 PSB1117502 DOOR CLOS ED LAB EL 507 PSB1117507 ELECTRICITY LAB EL

50 3V2 PSB1117503V2 MACHINE ID LABEL V2.03.22 508 PSB1117508 TOUCH-UP PAINT, S B DARK BLUE

504 PSB1117504 MACHINE WARNINGS LABEL 509 PSB1117509 TOUCH -UP PA IN T, SB LIGHT B LUE

505 PSB1117505 SOUTH BEND NAMEPLATE 203MM

The safety labels provided with your machine are used to make the operator aware of the machine hazards and ways to prevent injury. The owner of this machine MUST maintain the original location and readability of these safety labels. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact South Bend Tools at (360) 734-1540 or www.southbendtools.com to order new labels.

-44-

Page 47

WARRANTY

This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs. In no event shall we be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act, code, regulation, or standard of any domestic or foreign government, industry, or authority. In no event shall South Bend’s liability under this warranty exceed the original purchase price paid for this machine. Any legal actions brought against South Bend Tools shall be tried in the State of Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by law, including any merchantability or fitness, for any purpose, are hereby limited to the duration of this warranty.

Thank you for your business and continued support.

To take advantage of this warranty, register at can scan the QR code below to be automatically directed to our warranty registration page. Enter all applicable information for the product.

Warranty

https://www.grizzly.com/forms/warranty, or you

WARRANT Y

southbendtools.com

Page 48

southbendtools.com

Printed In Taiwan #CS21567
