Page 1

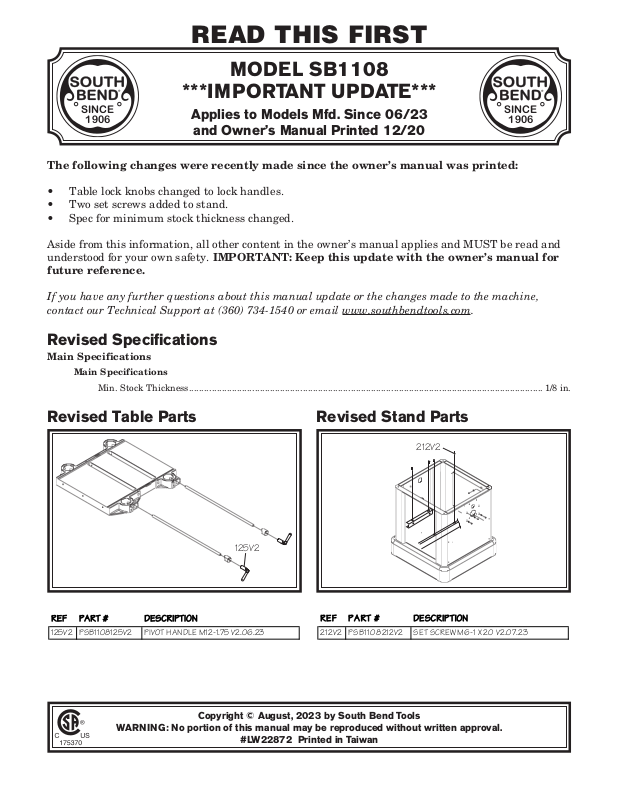

READ THIS FIRST

MODEL SB1108

***IMPORTANT UPDATE***

SINCE

1906

Applies to Models Mfd. Since 06/23

and Owner’s Manual Printed 12/20

The following changes were recently made since the owner’s manual was printed:

• Table lock knobs changed to lock handles.

• Two set screws added to stand.

• Spec for minimum stock thickness changed.

Aside from this information, all other content in the owner’s manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the owner’s manual for

future reference.

If you have any further questions about this manual update or the changes made to the machine, contact our Technical Support at (360) 734-1540 or email www.southbendtools.com.

SINCE

1906

Revised Speciﬁcations

Main Specifications

Min. Stock Thickness ............................................................................................................................................ 1/8 in.

Revised Table Parts

125V2

REFPART #

125V2 PSB1108125V2 PIVOT HANDLE M12-1.75 V2.06.23

DESCRIPTION

Revised Stand Parts

212V2

REFPART #

212V2 PSB1108212V2 SET SCREW M6-1 X 20 V2.07.23

DESCRIPTION

WARNING: No portion of this manual may be reproduced without written approval.

#LW22872 Printed in Taiwan

Page 2

READ THIS FIRST

REF PART # DESCRIPTION

MODEL SB1108/SB1109

***IMPORTANT UPDATE***

SINCE

1906

Applies to Models Mfd. Since 11/22

and Owner’s Manual Printed 12/20

The following change was made to this machine since the owner’s manual was printed:

• Digital readout bracket and housing changed.

Aside from this information, all other content in the owner’s manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the owner’s manual for

future reference.

If you have any further questions about this manual update or the changes made to the machine, contact our Technical Support at (360) 734-1540 or email www.southbendtools.com.

SINCE

1906

Revised Parts

63V2 (SB1108)

52V2 (SB1109)

SB1108

61V2 PSB1108061V2

63V2 PSB1108063V2

SB1109

Old DRO Housing

61V2 (SB1108) 51V2 (SB1109)

New DRO Housing

DIGITAL READOUT BRACKET V2.11.22

DIGITAL READOUT HOUSING V2.11.22

51V2 PSB1109051V2

52V2 PSB1109052V2

WARNING: No portion of this manual may be reproduced without written approval.

DIGITAL READOUT BRACKET V2.11.22

DIGITAL READOUT HOUSING V2.11.22

#JP22475 Printed in Taiwan

Page 3

READ THIS FIRST

MODEL SB1108/SB1109

***IMPORTANT UPDATE***

SINCE

1906

Applies to Models Mfd. Since 07/22

and Owner’s Manual Printed 12/20

The following change was made to this machine since the owner’s manual was printed:

• Control panel and pedestal have been modiﬁed.

Aside from this information, all other content in the owner’s manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the owner’s manual for

future reference.

If you have any further questions about this manual update or the changes made to the machine, contact our Technical Support at (360) 734-1540 or email www.southbendtools.com.

SB1108 Revised Parts SB1109 Revised Parts

SINCE

1906

159V2

159-4V2

159-1V2

176V2

176-1V2

176-4V2

REF PART # DESCR IPTION

159V2 PSB1108159V2 CONTROL PAN EL ASS EMB LY V2. 07.22

159-1V2 PSB1108159-1V2 CON TROL PA N EL B OX V2.07. 22

159-4 V2 PSB1108159-4V2 CONTROL PA N EL PEDES TAL V2.07.22

WARNING: No portion of this manual may be reproduced without written approval.

#MN22381 Printed in Taiwan

REF PART # DESCRIPT ION

176V2 PSB1109176V2 CONTROL PAN EL ASS EMB LY V2.07.22

176-1V2 PSB1109176-1V2 CONTROL P AN EL BOX V2.0 7.22

176-4V2 PSB1109176-4V2 SWITCH PEDESTAL V2.07.22

Page 4

15" & 20" PLANER

w/HELICAL CUTTERHEAD

MODEL SB1108/SB1109

OWNER'S MANUAL

South Bend Tools

A Tradition of Excellence

Page 5

We stand behind our machines. If you have any service questions, parts requests or general questions about your purchase, feel free to contact us.

South Bend Tools P.O. Box 2027 Bellingham, WA 98227 Phone: (360) 734-1540 Fax: (360) 676-1075 (International) Fax: (360) 734-1639 (USA Only) Email: [email protected]

For your convenience, any updates to this manual will be available to download free of charge

www.southbendtools.com

Scope of Manual

This manual helps the reader understand the machine, how to prepare it for operation, how to control it during operation, and how to keep it in good working condition. We assume the reader has a basic understanding of how to operate this type of machine, but that the reader is not familiar with the controls and adjustments of this specific model. As with all machinery of this nature, learning the nuances of operation is a process that happens through training and experience. If you are not an experienced operator of this type of machinery, read through this entire manual, then learn more from an experienced operator, schooling, or research before attempting operations. Following this advice will help you avoid serious personal injury and get the best results from your work.

We've made every effort to be accurate when documenting this machine. However, errors sometimes happen or the machine design changes after the documentation process—so exactly match your machine. contact our

We highly value customer feedback on our manuals. If you have a moment, please share your experience using this manual. What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?

South Bend Tools

P.O. Box 2027 Bellingham, WA 98227 Email: [email protected]

Manual Feedback

If a difference between the manual and machine leaves you in doubt,

customer service for clarification.

the manual may not

/O Technical Documentation Manager

Updates

through our website at:

Customer Service

Page 6

Table of Contents

INTRODUCTION

Identiﬁcation Description of Controls & Components Internal Components Product Speciﬁcations SB1108 Product Speciﬁcations SB1109

SAFETY

Understanding Risks of Machinery Basic Machine Safety Additional Planer Safety

PREPARATION

Preparation Overview Required for Setup Power Supply Requirements Unpacking Inventory Cleaning & Protecting Location Lifting & Moving Assembly Dust Collection Checking Gearbox Oil Level Test Run Inspections & Adjustments

OPERATION

Operation Overview

Stock Inspection & Requirements.....................25

Wood Types Planing Tips Common Cutting Problems Depth of Cut Setting Feed Rate Bed Roller Height Rotating/Replacing Cutterhead Inserts Digital Readout

ACCESSORIES

................................................................................ 9

............................................................ 15

.............................................................. 18

............................................................19

............................................................. 22

............................................................... 2

........................................................ 2

..............3

........................................... 4

............................5

............................7

.................... 9

..........................................9

................................... 11

.............................................................. 12

........................................12

............................................. 12

............................. 13

..........................................................15

.......................................17

................................................19

...................................................21

..............................22

...............................23

.................................................................... 24

........................................... 24

........................................................25

....................................................... 26

............................... 26

....................................................... 28

..............................................28

..............................................29

............30

.................................................. 31

.............................................................. 32

MAINTENANCE .............................................................34

Maintenance Schedule Cleaning & Protecting Machine Storage Lubrication Anti-Kickback Fingers

SERVICE........................................................................... 38

Tensioning/Replacing V-Belts Setting Feed Roller, Chip Breaker & Pressure Bar Heights Adjusting Feed-Roller Spring Tension Positioning Chip Deﬂector Calibrating Table Height Scale Replacing Feed Motor Brushes Checking Pulley Alignment Tensioning Table Height Chain Adjusting Table Parallelism

TROUBLESHOOTING

ELECTRICAL

Electrical Safety Instructions SB1108 Wiring Diagram SB1108 Electrical Component Photos SB1108 Height DRO Wiring Diagram SB1109 Wiring Diagram SB1109 Electrical Component Photos SB1109 Height DRO Wiring Diagram

PARTS................................................................................57

SB1108 Main SB1108 Table & Base SB1108 Stand & Motor SB1108 Labels & Cosmetics SB1109 Main SB1109 Table & Base SB1109 Stand & Motor SB1109 Labels & Cosmetics

WARRANTY

......................................................... 35

........................................................ 39

................................................................... 50

..................................................... 57

...................................................... 65

..................................................................... 73

.......................................34

................................................34

.......................................37

........................... 38

.............42

.................................42

.........................43

......................... 43

...............................44

........................ 44

..............................45

................................................. 47

...........................50

...................................51

..............52

..............53

...................................54

..............55

..............56

........................................60

......................................62

..............................64

........................................68

......................................70

..............................72

Page 7

South Bend Tools

Model SB1108/ SB1109

INTRODUCTION

Identiﬁcation

INTRODUCTION

For Machines Mfd. Since 12/20

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

-2-

SB1108 Rear ViewSB1109 Front View

Untrained users have an increased risk of seriously injuring themselves with this machine. Do not operate this machine until you have understood this entire manual and received proper training.

Page 8

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

INTRODUCTION

Description of Controls & Components

Refer to Figures 1–2 and the following descriptions to become familiar with the basic controls and components used to operate this machine.

Control Panel

Figure 1. Control panel.

A. Feed Speed Control Knob: Controls the

workpiece speed (feed rate). Turn clockwise to increase feed rate; turn counter-clockwise to reduce feed rate.

B. Power Indicator Light: Illuminates when

power is present at control panel.

C. EMERGENCY STOP Button: Stops machine

when pressed. Rotate button clockwise until it pops out to reset.

Operation Controls

E. Return Rollers: Assist sliding workpiece back

to feed side of planer after planing pass.

F. Table Height Handwheel: Raises and lowers

table to accommodate different workpiece thicknesses. One complete revolution moves the table approximately

G. Depth of Cut Digital Readout: Displays

current table height.

H. Table Locks: Secure table height position.

I. Depth Limiter: Limits maximum depth of cut.

SB1108: 3⁄32" at full width. SB1109: 5⁄64" at full width.

⁄16".

D. START Button: Starts cutterhead and feed

rollers.

-3-

Page 9

South Bend Tools

Model SB1108/ SB1109

INTRODUCTION

Internal Components

Front Rear

Workpiece

For Machines Mfd. Since 12/20

A. Anti-Kickback Fingers: Provide additional

safety for the operator.

B. Serrated Infeed Roller: Pulls the workpiece

toward the cutterhead.

C. Chip Breaker: Breaks off chips created by the

cutterhead to prevent tear-out and diverts the chips to the dust hood.

D. Chip Deﬂector: Directs chips into the dust

hood.

E. Cutterhead: Holds the knives/indexable

carbide inserts that remove material from the workpiece.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

F. Pressure Bar: Stabilizes the workpiece

as it leaves the cutterhead and assists in deflecting wood particles toward the dust hood.

G. Outfeed Roller: Pulls the workpiece through

the planer.

H. Bed Rollers: Provide upward pressure on the

workpiece, enabling the feed rollers to pull the workpiece along.

I. Planer Table: Provides a smooth and level

path for the workpiece as it moves through the planer.

-4-

Page 10

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

INTRODUCTION

Product Speciﬁcations SB1108

Model SB1108

15" Planer with Helical Cutterhead

Product Dimensions

Weight.............................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 39 x 48 x 44-1/2 in.

Footprint (Length x Width)................................................................................................................. 23 x 22-1/2 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content..........................................................................................................................................................

Weight.............................................................................................................................................................

Length x Width x Height................................................................................................................... 27 x 37 x 52 in.

Must Ship Upright................................................................................................................................................ Yes

509 lbs.

Machine

595 lbs.

Electrical

Power Requirement......................................................................................................... 230V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................

Minimum Circuit Size..........................................................................................................................................

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 120 in.

Power Cord Gauge.........................................................................................................................................

Plug Included........................................................................................................................................................

Included Plug Type.............................................................................................................................................. 6-20

Switch Type................................................................................ Magnetic Switch w/Thermal Overload Protection

Motors

Main

Horsepower............................................................................................................................................... 3 HP

Phase............................................................................................................................................

Amps...........................................................................................................................................................

Speed................................................................................................................................................ 3450 RPM

Type............................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ........................................................................................................................... Triple V-Belt

Bearings....................................................................................................

Centrifugal Switch/Contacts Type.....................................................................................................

Feed

Horsepower............................................................................................................................................ 3/4 HP

Amps............................................................................................................................................................. 8A

Speed................................................................................................................................................ 2500 RPM

Type...................................................................................................................................................

Power Transfer ...........................................................................................................................

Bearings................................................................................................... Sealed & Permanently Lubricated

Sealed & Permanently Lubricated

18A 20A

12 AWG

Yes

Single-Phase

12A

External

DC Motor

Belt & Chain

-5-

Page 11

South Bend Tools

Model SB1108/ SB1109

Main Specifications

Planer Size...............................................................................................................................................

Max. Cut Width.......................................................................................................................................

Max. Cut Height........................................................................................................................................ 6 in.

Min. Stock Length..................................................................................................................................... 6 in.

Min. Stock Thickness............................................................................................................................ 3/16 in.

Number of Cuts Per Inch.....................................................................................................................

Number of Cuts Per Minute..................................................................................................................

Cutterhead Speed............................................................................................................................ 5000 RPM

Planing Feed Rate........................................................................................................................ 10 - 28 FPM

Max. Cut Depth Planing Full Width................................................................................................... 3/32 in.

Max. Cut Depth Planing 6-Inch Wide Board........................................................................................

Cutterhead Info

Cutterhead Type....................................................................................................................................

Cutterhead Diameter ................................................................................................................................ 3 in.

Number of Cutter Rows.................................................................................................................................. 4

Number of Indexable Cutters....................................................................................................................... 52

Cutter Insert Type..............................................................................................................

Cutter Insert Size Length......................................................................................................................

Cutter Insert Size Width........................................................................................................................ 15mm

Cutter Insert Size Thickness................................................................................................................ 2.5mm

INTRODUCTION

For Machines Mfd. Since 12/20

15 in. 15 in.

167 - 60

20,000

1/8 in.

Helical

Indexable Carbide

15mm

Table Info

Table/Headstock Movement...................................................................................................................... 6 in.

Table Bed Size Length.............................................................................................................................

Table Bed Size Width..............................................................................................................................

Table Bed Size Thickness.......................................................................................................................... 2 in.

Number of Bed Rollers.................................................................................................................................... 2

Floor-to-Table Height....................................................................................................................... 30 - 36 in.

Table Wings Size Length.........................................................................................................................

Table Wings Size Width..................................................................................................................

Construction

Table.................................................................................................................... Precision-Ground Cast Iron

Body................................................................................................................................................... Cast Iron

Stand......................................................................................................................................................... Steel

Cutterhead Assembly...............................................................................................................................

Infeed Roller..............................................................................................................................

Outfeed Roller............................................................................................................................. Smooth Steel

Paint Type/Finish.................................................................................................................... Powder Coated

Other

Table/Headstock Locks............................................................................................................................... Yes

Measurement Scale...................................................................................................................

Number of Dust Ports.....................................................................................................................................

Dust Port Size............................................................................................................................................ 4 in.

Mobile Base........................................................................................................................................... T28000

Serrated Steel

48 in. 15 in.

14 in.

15-1/16 in.

Steel

Inch & Metric

Other

Country of Origin ........................................................................................................................................... Taiwan

Warranty ......................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time .......................................................................................................... 1 Hour

Serial Number Location .............................................................................................................................. ID Label

Certified by a Nationally Recognized Testing Laboratory (NRTL) ................................................................... Yes

-6-

Page 12

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

INTRODUCTION

Product Speciﬁcations SB1109

Model SB1109

20" Planer with Helical Cutterhead

Product Dimensions

Weight.............................................................................................................................................................

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 46-1/2 x 56 x 46 in.

Footprint (Length x Width)........................................................................................................... 23-1/2 x 29-1/2 in.

Shipping Dimensions

Type.......................................................................................................................................................... Wood Crate

Content..........................................................................................................................................................

Weight.............................................................................................................................................................

Length x Width x Height................................................................................................................... 42 x 30 x 52 in.

Must Ship Upright................................................................................................................................................ Yes

719 lbs.

Machine

820 lbs.

Electrical

Power Requirement......................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................

Minimum Circuit Size..........................................................................................................................................

Connection Type..................................................................................................................................... Cord & Plug

Power Cord Included............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 120 in.

Power Cord Gauge.........................................................................................................................................

Plug Included........................................................................................................................................................

Included Plug Type............................................................................................................................................ L6-30

Switch Type................................................................................ Magnetic Switch w/Thermal Overload Protection

Motors

Main

Horsepower.............................................................................................................................................. 5 HP

Phase............................................................................................................................................

Amps...........................................................................................................................................................

Speed................................................................................................................................................ 3450 RPM

Type............................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ........................................................................................................................... Triple V-Belt

Bearings....................................................................................................

Centrifugal Switch/Contacts Type.....................................................................................................

Feed

Horsepower............................................................................................................................................ 3/4 HP

Amps............................................................................................................................................................. 8A

Speed................................................................................................................................................ 2500 RPM

Type...................................................................................................................................................

Power Transfer ...........................................................................................................................

Bearings.................................................................................................... Sealed & Permanently Lubricated

Sealed & Permanently Lubricated

27A 30A

12 AWG

Yes

Single-Phase

23A

External

DC Motor

Belt & Chain

-7-

Page 13

South Bend Tools

Model SB1108/ SB1109

Main Specifications

Planer Size...............................................................................................................................................

Max. Cut Width.......................................................................................................................................

Max. Cut Height........................................................................................................................................ 8 in.

Min. Stock Length..................................................................................................................................... 7 in.

Min. Stock Thickness.............................................................................................................................. 1/4 in.

Number of Cuts Per Inch.....................................................................................................................

Number of Cuts Per Minute..................................................................................................................

Cutterhead Speed............................................................................................................................ 5000 RPM

Planing Feed Rate........................................................................................................................ 10 - 28 FPM

Max. Cut Depth Planing Full Width................................................................................................... 5/64 in.

Max. Cut Depth Planing 6-Inch Wide Board........................................................................................

Cutterhead Info

Cutterhead Type....................................................................................................................................

Cutterhead Diameter ......................................................................................................................... 3-1/4 in.

Number of Cutter Rows.................................................................................................................................. 4

Number of Indexable Cutters....................................................................................................................... 92

Cutter Insert Type..............................................................................................................

Cutter Insert Size Length......................................................................................................................

Cutter Insert Size Width........................................................................................................................ 15mm

Cutter Insert Size Thickness................................................................................................................ 2.5mm

INTRODUCTION

For Machines Mfd. Since 12/20

20 in. 20 in.

167 - 60

20,000

1/8 in.

Helical

Indexable Carbide

15mm

Table Info

Table/Headstock Movement...................................................................................................................... 8 in.

Table Bed Size Length.............................................................................................................................

Table Bed Size Width..............................................................................................................................

Table Bed Size Thickness.................................................................................................................... 2-1/4 in.

Number of Bed Rollers.................................................................................................................................... 2

Floor-to-Table Height....................................................................................................................... 28 - 36 in.

Table Wings Size Length.........................................................................................................................

Table Wings Size Width....................................................................................................................

Construction

Table.................................................................................................................... Precision-Ground Cast Iron

Body................................................................................................................................................... Cast Iron

Stand......................................................................................................................................................... Steel

Cutterhead Assembly...............................................................................................................................

Infeed Roller..............................................................................................................................

Outfeed Roller............................................................................................................................. Smooth Steel

Paint Type/Finish.................................................................................................................... Powder Coated

Other

Table/Headstock Locks............................................................................................................................... Yes

Measurement Scale...................................................................................................................

Number of Dust Ports.....................................................................................................................................

Dust Port Size............................................................................................................................................ 5 in.

Mobile Base........................................................................................................................................... T28000

Serrated Steel

56 in. 20 in.

15 in.

21-1/4 in.

Steel

Inch & Metric

Other

Country of Origin ........................................................................................................................................... Taiwan

Warranty ........................................................................................................................................................ 2 Years

Approximate Assembly & Setup Time .......................................................................................................... 1 Hour

Serial Number Location .............................................................................................................................. ID Label

Certified by a Nationally Recognized Testing Laboratory (NRTL) ................................................................... Yes

-8-

Page 14

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).

The owner of this machinery or equipment is ultimately responsible for its safe use. This responsibility includes proper installation in a safe environment, personnel training and usage authorization, regular inspection and maintenance, manual availability and comprehension, application of safety devices, integrity of cutting tools or accessories, and the usage of approved personal protective equipment by all operators and bystanders.

The manufacturer of this machinery or equipment will not be held liable for injury or property damage from negligence, improper training, machine modiﬁcations, or misuse. Failure to read, understand, and follow the manual and safety labels may result in serious personal injury, including amputation, broken bones, electrocution, or death.

The signals used in this manual to identify hazard levels are as follows:

Owner’s Manual: All machinery and machining

Trained/Supervised Operators Only: Untrained

SAFETY

Understanding Risks of Machinery

Death or catastrophic harm WILL occur.

Death or catastrophic harm COULD occur.

Moderate injury or ﬁre MAY occur.

Machine or property damage may occur.

Basic Machine Safety

equipment presents serious injury hazards to untrained users. To reduce the risk of injury, anyone who uses THIS item MUST read and understand this entire manual before starting.

Personal Protective Equipment:

servicing this item may expose the user to ﬂying debris, dust, smoke, dangerous chemicals, or loud noises. These hazards can result in eye injury, blindness, longterm respiratory damage, poisoning, cancer, reproductive harm or hearing loss. Reduce your risks from these hazards by wearing approved eye protection, respirator, gloves, or hearing protection.

Operating or

users can seriously injure themselves or bystanders. Only allow trained and properly supervised personnel to operate this item. Make sure safe operation instructions are clearly understood. If electrically powered, use padlocks and master switches, and remove start switch keys to prevent unauthorized use or accidental starting.

Guards/Covers:

moving parts during operation may cause severe entanglement, impact, cutting, or crushing injuries. Reduce this risk by keeping any included guards/covers/doors installed, fully functional, and positioned for maximum protection.

Accidental contact with

-9-

Page 15

South Bend Tools

Model SB1108/ SB1109

Entanglement: Loose clothing, gloves, neckties,

rotate.

Chuck Keys or Adjusting Tools:

Tools used to

our Technical Support for assistance.

SAFETY

For Machines Mfd. Since 12/20

jewelry or long hair may get caught in moving parts, causing entanglement, amputation, crushing, or strangulation. Reduce this risk by removing/securing these items so they cannot contact moving parts.

Mental Alertness: Operating this item with

reduced mental alertness increases the risk of accidental injury. Do not let a temporary influence or distraction lead to a permanent disability! Never operate when under the influence of drugs/alcohol, when tired, or otherwise distracted.

Safe Environment:

powered equipment in a wet environment may result in electrocution; operating near highly ﬂammable materials may result in a ﬁre or explosion. Only operate this item in a dry location that is free from ﬂammable materials.

Electrical Connection: With electically powered

equipment, improper connections to the power source may result in electrocution or fire. Always adhere to all electrical requirements and applicable codes when connecting to the power source. Have all work inspected by a qualified electrician to minimize risk.

Disconnect Power: Adjusting or servicing

electrically powered equipment while it is connected to the power source greatly increases the risk of injury from accidental startup. Always disconnect power BEFORE any service or adjustments, including changing blades or other tooling.

Operating electrically

adjust spindles, chucks, or any moving/ rotating parts will become dangerous projectiles if left in place when the machine is started. Reduce this risk by developing the habit of always removing these tools immediately after using them.

Work Area:

the risks of accidental injury. Only operate this item in a clean, non-glaring, and welllighted work area.

Properly Functioning Equipment:

maintained, damaged, or malfunctioning equipment has higher risks of causing serious personal injury compared to those that are properly maintained. To reduce this risk, always maintain this item to the highest standards and promptly repair/service a damaged or malfunctioning component. Always follow the maintenance instructions included in this documentation.

Unattended Operation:

equipment that is left unattended while running cannot be controlled and is dangerous to bystanders. Always turn the power OFF before walking away.

Health Hazards: Certain cutting fluids and

lubricants, or dust/smoke created when cutting, may contain chemicals known to the State of California to cause cancer, respiratory problems, birth defects, or other reproductive harm. Minimize exposure to these chemicals by wearing approved personal protective equipment and operating in a well ventilated area.

Clutter and dark shadows increase

Poorly

Electrically powered

Secure Workpiece/Tooling:

cutting tools, or rotating spindles can become dangerous projectiles if not secured or if they hit another object during operation. Reduce the risk of this hazard by verifying that all fastening devices are properly secured and items attached to spindles have enough clearance to safely

-10-

Loose workpieces,

Difﬁcult Operations:

operations with which you are unfamiliar increases the risk of injury. If you experience difficulties performing the intended operation, STOP! Seek an alternative method to accomplish the same task, ask a qualified expert how the operation should be performed, or contact

Attempting difficult

Page 16

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

Amputation, serious cuts, entanglement, or death can occur from contact with rotating cutterhead or other moving parts! Flying chips can cause eye injuries or blindness. Workpieces or knives thrown by cutterhead can strike nearby operator or bystanders with deadly force. To reduce the risk of these hazards, operator and bystanders MUST completely heed hazards and warnings below.

Kickback:

Avoid Contact with Moving Parts:

Dull/Damaged Knives/Inserts:

Inspecting Stock:

Body Placement:

Grain Direction:

with the wood grain.

SAFETY

Additional Planer Safety

Know how to reduce the risk of kickback and kickback-related injuries. “Kickback” occurs during the operation when the workpiece is ejected back from the infeed side of the machine at a high rate of speed. Kickback is commonly caused by poor workpiece selection, unsafe feeding techniques, or improper machine setup/ maintenance. Kickback injuries typically occur as follows: (1) operator/bystanders are struck by the workpiece, resulting in impact injuries (i.e., blindness, broken bones, bruises, death); (2) operator’s hands are pulled into the machine from the outfeed side, resulting in amputation or severe lacerations.

Never remove guards/covers or reach inside the planer during operation or while connected to power. You could be seriously injured if you accidentally touch the spinning cutterhead or get entangled in moving parts. If a workpiece becomes stuck or sawdust removal is necessary, turn planer OFF, allow cutterhead to stop, and disconnect power before clearing.

Only use sharp, undamaged knives/inserts. Dull or damaged knives/inserts increase the risk of kickback.

To reduce the risk of kickback injuries or machine damage, thoroughly inspect and prepare the workpiece before cutting. Verify workpiece is free of nails, staples, loose knots, or foreign material. Workpieces with minor warping should be jointed first or planed with the cupped side facing the table.

Stand to one side of planer during the entire operation to avoid getting hit if kickback occurs.

Planing across the grain is hard on the planer and may cause kickback. Plane in the same direction or at a slight angle

Planing Correct Material: Only plane natural

wood stock with this planer. DO NOT plane MDF, OSB, plywood, laminates or other synthetic materials that can break up inside the planer and be ejected towards the operator.

Looking Inside Planer: Wood chips fly around

inside the planer at a high rate of speed during operation. To avoid injury from flying material, DO NOT look inside planer during operation.

Cutting Limitations: To reduce the risk of

kickback hazards or damage to the machine, do not exceed the maximum depth of cut or minimum board length and thickness found in the Data Sheet. Only feed one board at a time.

Infeed Roller Clearance: The infeed roller

is designed to pull material into the spinning cutterhead. To reduce the risk of entanglement, keep hands, clothing, jewelry, and long hair away from the infeed roller during operation.

Feed Workpiece Properly: To reduce the risk

of kickback, never start planer with workpiece touching cutterhead. Allow cutterhead to reach full speed before feeding, and do not change feed speed during cutting operation.

Workpiece Support: To reduce the risk of

kickback, always make sure workpiece can move completely across table without rocking or tipping. Use auxiliary support stands for long stock.

Secure Knives/Inserts: Loose knives or

improperly set inserts can become dangerous projectiles or cause machine damage. Always verify knives/inserts are secure and properly adjusted before operation.

-11-

Page 17

South Bend Tools

Model SB1108/ SB1109

PREPARATION

For Machines Mfd. Since 12/20

Preparation Overview Required for Setup

The purpose of the preparation section is to help you prepare your machine for operation. The list below outlines the basic process. Specific steps for each of these points will be covered in detail later in this section.

The typical preparation process is as follows:

1. Unpack the machine and inventory the

contents of the box/crate.

Clean the machine and its components.

3. Identify an acceptable location for the

machine and move it to that location.

Level the machine using the pre-installed

machine mounts.

Assemble the loose components and make

any necessary adjustments or inspections to ensure the machine is ready for operation.

Connect the machine to the power source.

7. Test run the machine to make sure it

functions properly and is ready for operation.

The items listed below are required to successfully set up and prepare this machine for operation.

For Lifting

• A forklift or other power lifting device rated for the weight of the machine.

• Lifting Strap or Chain (rated for at least 1000 lbs.)

For Power Connection

• A power source that meets the minimum circuit requirements for this machine. (Refer to the Power Supply Requirements on Page 13 for details.)

For Assembly

• Safety Glasses (for each person)

• Straightedge 4' (or longer)

• Dust Collection System

• 4" Dust Hose (for SB1108)

• 4" Hose Clamp (for SB1108)

• 5" Dust Hose (for SB1109)

• 5" Hose Clamp (for SB1109)

• Disposable Rags

• Disposable Gloves

• Cleaner/Degreaser

• Gearbox Oil

• Phillips Head Screwdriver #2

• Open-End Wrench 8mm (for SB1108)

• Open-End Wrench 17mm (for SB1109)

-12-

Page 18

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed.

To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by a or qualified service personnel applicable electrical codes and safety standards.

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result—especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

Note: The circuit requirements in this manual are for machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure the circuit is properly sized.

A power supply circuit includes all electrical equipment between the main breaker box or fuse panel in your building and the incoming power connections inside the machine. This circuit must be safely sized to handle the full-load current that may be drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine must be grounded! In the event of grounding provides a path of least resistance for electric current electric shock.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipmentgrounding wire to a live (current carrying) terminal.

Check with an electrician or qualiﬁed service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded.

If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

PREPARATION

Power Supply Requirements

Availability

in accordance with

Electrocution or fire may occur if machine is not correctly grounded and attached to the power supply. Use a qualified electrician to ensure a safe power connection.

Circuit Information

Power supply requirements

a dedicated circuit—where only one

n electrician

For your own safety and protection of property, consult an electrician if you are unsure about wiring practices or applicable electrical codes.

Grounding Requirements

Full-Load Current Rating at 220V

SB1108 Full-Load Rating ................... 18 Amps

SB1109 Full-Load Rating

................... 27 Amps

certain types of malfunctions or breakdowns,

in order to reduce the risk of

-13 -

Page 19

South Bend Tools

Model SB1108/ SB1109

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

This machine is equipped with a power cord that has grounding plug The plug receptacle (outlet) grounded in accordance with all local codes and ordinances.

We do not recommend using an extension cord with this machine. If you must use one, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle listed in the

Requirements

meet the following requirements:

PREPARATION

For Machines Mfd. Since 12/20

SB1108 Circuit Requirements

Nominal Voltage ........ 208V, 220V, 230V, 240V

Cycle Phase

Circuit Rating....................................... 20 Amps

Plug/Receptacle (included)

.............................................................60 Hz

..............................................Single-Phase

...........NEMA 6-20

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

SB1109 Circuit Requirements

Nominal Voltage ........ 208V, 220V, 230V, 240V

Cycle Phase

Circuit Rating....................................... 30 Amps

Plug/Receptacle (included)

.............................................................60 Hz

..............................................Single-Phase

........ NEMA L6-30

an equipment-grounding wire and a

(similar to the figure below).

must only be inserted into a matching

that is properly installed and

GROUNDED

L6-30 LOCKING

RECEPTACLE

Grounding Prong

is Hooked

6-20 PLUG

Grounding Prong

No adapter should be used with plug. If plug does not fit available receptacle, or if machine must be reconnected for use on a different type of circuit, reconnection must be performed by an electrician or qualified service personnel, and it must comply with all local codes and ordinances.

-14-

L6-30

LOCKING

PLUG

Current Carrying Prongs

Extension Cords

Circuit

for the applicable voltage, and

SB1108 .............................. 12 AWG, 50 ft or less

SB1109

.............................. 10 AWG, 50 ft or less

Page 20

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

This item was carefully packaged to prevent damage during transport. If you discover any damage, please immediately call Customer Service at (360) 734-1540 for advice. You may need to file a freight claim, so take pictures and save all the containers and packing materials for possible inspection by the carrier or its agent.

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

PREPARATION

Unpacking

Inventory

SB1108

Wood Crate (Figures 6–8) Qty

A. Planer Unit (Not Shown) ............................... 1

Extension Tables ............................................ 2

Dust Hood ....................................................... 1

Handwheel .....................................................1

Batteries AAA ................................................2

Flange Bolts M6-1 x 12 (Dust Port) .............. 6

Machine Key 4 x 4 x 10 (Handwheel) ...........1

Direction Label (Handwheel) ........................ 1

Hex Bolts M8-1.25 x 25 (Ext. Table) ............. 6

Flat Washer 10mm (Handwheel) .................. 1

Hex Nut M10-1.25 (Handwheel) ................... 1

Flat Washers 8mm (Ext. Table) .................... 6

Set Screws M8-1.25 x 12 (Ext. Table) ........... 6

Handwheel Handle ........................................ 1

Hex Wrench Set 3, 4, 6mm ...................1 Each

Open-End Wrench 10/13mm ......................... 1

Open-End Wrench 12/14mm .........................1

T-Handle Torx Wrenches T-25 ...................... 2

Flat Head Torx Screws #10-32 x 1⁄2" ............ 10

Indexable Carbide Inserts 15 x 15 x 2.5mm . 5

D E

F G H

O P

LOW HIGH

-15 -

Page 21

South Bend Tools

Model SB1108/ SB1109

PREPARATION

SB1109

Wood Crate (Figures 9–11) Qty

A. Planer Unit (Not Shown) ............................... 1

Extension Tables ............................................ 2

Dust Hood ....................................................... 1

Handwheel .....................................................1

Batteries AAA ................................................2

Flange Bolts M6-1 x 12 (Dust Hood) ............. 6

Machine Key 4 x 4 x 10 (Handwheel) ...........1

Direction Label (Handwheel) ........................ 1

Hex Bolts M8-1.25 x 25 (Ext. Table) ............. 6

Flat Washer 10mm (Handwheel) .................. 1

Hex Nut M10-1.25 (Handwheel) ................... 1

Flat Washers 8mm (Ext. Table) .................... 6

Set Screws M8-1.25 x 12 (Ext. Table) ........... 6

Handwheel Handle ........................................ 1

Hex Wrench Set 3–6mm .......................1 Each

Open-End Wrench 8/10mm ........................... 1

Open-End Wrench 10/13mm .........................1

Open-End Wrench 12/14mm .........................1

Open-End Wrench 17/19mm .........................1

T-Handle Torx Wrenches T-25 ...................... 2

Flat Head Torx Screws #10-32 x 1⁄2" ............ 20

Indexable Carbide Inserts 15 x 15 x 2.5mm .10

For Machines Mfd. Since 12/20

F G H

J K

LOW HIGH

NOTICE

If you cannot ﬁ nd an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

O P

-16 -

Page 22

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

The unpainted surfaces are coated with a heavy-duty rust preventative that prevents corrosion during shipment and The beneﬁ t of this rust preventative is that it works very well. The downside is that it time-consuming

Be patient and do a careful job when and removing the rust preventative you spend doing this will reward you with smooth for the proper care of

Although there are many ways to successfully remove the rust preventative, the process works well in most situations

Before cleaning, gather the following:

• Disposable

• Cleaner/degreaser

• Safety glasses & disposable gloves

Note:

WD•40 can be used to remove rust preventative. Before using these products, though, test them on an inconspicuous area of a painted surface to make sure they will not damage it.

GAS

PREPARATION

Cleaning & Protecting

at the factory

to thoroughly remove.

-sliding parts and a better appreciation the unpainted surfaces.

rags

(certain citrus-based degreasers work extremely well and they have non-toxic fumes)

Automotive degreasers, mineral spirits, or

. The time

following

storage.

can be

cleaning

Avoid chlorine-based solvents, such as acetone or brake parts cleaner that may damage painted surfaces. Always follow the manufacturer’s instructions when using any type of cleaning product.

Basic steps for removing rust preventative:

1. Put on safety glasses and disposable gloves.

2. Coat all surfaces that have rust preventative

with a liberal amount of your cleaner or degreaser and let them soak for a few minutes.

3. Wipe off the surfaces. If your cleaner or

degreaser is effective, the rust preventative will wipe off easily.

Note: To clean off thick coats of rust

preventative on ﬂ at surfaces, such as beds or tables, use a PLASTIC paint scraper to scrape off the majority of the coating before wiping it off with your rag. (Do not use a metal scraper or it may scratch the surface.)

4. Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant or light oil to prevent rust.

Gasoline and petroleum products have low flash points and can explode or cause fire if used for cleaning. Avoid using these products to remove rust preventative.

Many cleaning solvents are toxic if inhaled. Minimize your risk by only using these products in a well ventilated area.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

-17-

Page 23

South Bend Tools

Model SB1108/ SB1109

Weight Load

equipment that may be installed on the machine,

Physical Environment

The physical environment where your machine is operated is important for safe operation and longevity of machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature 104°F; the relative humidity of is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate enough to perform operations safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

PREPARATION

For Machines Mfd. Since 12/20

Location

Physical Environment Electrical Installation Lighting Weight Load

Space Allocation

20–95% (non-condensing); or the environment

parts. For best results, operate this

or flammable

is outside the range of 41°–

is outside the range

Refer to the Machine Speciﬁcations for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional

and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

Model SB1108

X = 48" Y = 39"

Model SB1109

X = 56" Y = 46

/2"

Po rt

= Electrical Connection

Children or untrained people may be seriously

Wall

injured by this machine. Only install in an access restricted location.

Min. 30"

for Maintenance

Feed DirectionDust

-18 -

Page 24

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PREPARATION

Lifting & Moving

This machine and its parts are heavy! Serious personal injury may occur if safe moving methods are not used. To reduce the risk of a lifting or dropping injury, ask others for help and use power equipment.

The Models SB1108 and SB1109 require the use of lifting equipment such as a forklift, engine hoist, or boom crane. DO NOT attempt to lift or move planer without necessary assistance from other people. Each piece of lifting equipment must be rated for at least 1000 lbs. to support dynamic loads that may be applied while lifting.

The cabinet stand of your planer is equipped with four lifting bars that pull out in order to lift and place the planer as shown in Figure 14 using a forklift or lifting slings.

Assembly

This machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to Required for Setup and gather all listed items. To ensure the assembly process goes smoothly, first clean any parts that are covered or coated in heavy-duty rust preventative (if applicable).

Review the Power Supply section on Page 13, then prepare a permanent location for the planer.

To assemble planer:

Unbolt planer from pallet.

2. Move planer to desired location.

3. Remove (2) hex bolts from bottom of control

panel (see Figure 15).

Rotate control panel 90° (so front is facing

forward) and install hex bolts removed in Step 3 (see Figure 15).

Note: When positioning lift forks, place shop rags or cardboard between the forks and cabinet stand to avoid scratching the paint.

Control Panel

Mounting Bolts

-19 -

Page 25

South Bend Tools

Model SB1108/ SB1109

LOW HIGH

Insert 4 x 4 x 10 key into keyway on

handwheel shaft (see Figure 16).

Line up notch in handwheel bore with

key, slide handwheel onto shaft, then slide handwheel direction label onto shaft, and secure with M10-1.75 hex nut and 10mm flat washer (see Figure 17).

PREPARATION

For Machines Mfd. Since 12/20

8. Attach each cast-iron extension table to

planer table with (3) M8-1.25 x 25 hex bolts and (3) 8mm flat washers as shown in Figure 18. Do not fully tighten hex bolts at this time.

Thread (3) M8-1.25 x 12 set screws into

each extension table at locations shown in Figure 18.

x 3

Figure 18. Extension table mounting locations.

7. Thread handle into rim of handwheel and

tighten with wrench (see Figure 17).

Using a straightedge as a guide, rotate

10.

set screws from Step 9 until extension tables are in plane with main table, then fully tighten hex bolts from Step 8 (see Figure 19).

Note: Bed rollers will give you a false reading

if they are raised above table. Move them down or work around them when leveling extension wings (refer to Bed Roller Height on Page 29 for more information).

-20-

Page 26

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PREPARATION

11. Attach dust hood to planer with (6) M6-1 x

12 flange bolts (see Figure 20).

x 6

12. Remove battery cover from front of digital

readout and install (2) AAA batteries (see Figure 21), then re-install battery cover.

Dust Collection

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Minimum CFM at Dust Port:

• SB1108: 400 CFM

• SB1109: 600 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

13.

Follow instructions in Calibrating Digital

Readout on Page 31.

To connect machine to a dust collector:

1. For SB1108, fit a 4" dust hose (SB1109

requires 5" dust hose) that is connected to a dust collector over dust port (see Figure 22), and secure in place with a hose clamp.

Tug hose to make sure it does not come off.

Note: A tight ﬁt is necessary and ensures

proper performance during operation.

-21-

Page 27

South Bend Tools

Model SB1108/ SB1109

PREPARATION

For Machines Mfd. Since 12/20

Checking Gearbox Oil

gearbox oil level

Level

Before starting your machine for the first time, check the gearbox oil level. The proper oil level is just even with the bottom of the fill plug hole. See Gearbox Oil on Page 37 for more information. DO NOT mix oil types.

Tools Needed Qty

Open-End Wrench 17mm .....................................1

Hex Wrench 6mm

To check gearbox oil level:

Remove gearbox oil fill plug (see Figure 23).

Note: For easier access to the ﬁll plug, remove

gearbox cover (see Figure 23).

.................................................1

Test Run

After all preparation steps have been completed, the machine and its safety features must be tested to ensure correct operation. If you discover a problem with the operation of the machine or its safety components, do not operate it further until you have resolved the problem.

Note: Refer to Troubleshooting on Page 47 for solutions to common problems that occur with all planers. If you need additional help, contact our Tech Support or (360) 734-1540.

The test run consists of verifying the following:

• Motors power up and run correctly.

• EMERGENCY STOP button works

correctly.

Serious injury or death can result from using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

2. Wipe clean 6mm hex wrench and insert

short end inside oil fill hole with inserted end pointing down, then remove it.

— If end of hex wrench is coated with oil,

then gearbox oil level is okay. Replace fill plug and continue setup.

— If end of hex wrench is not coated with oil,

then you need to add more oil. Refer to Gearbox Oil on Page 37 for instructions on how to do this.

Note: We recommend that you replace the gearbox oil after the ﬁrst 20 hours of operation. This is a normal break-in procedure and will help maximize the service life of the machine by ﬂushing away any particles from the break-in and manufacturing process.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

1. Clear all tools and objects used during

assembly and preparation away from machine.

Push EMERGENCY STOP button in.

Connect machine to power supply.

-22-

Page 28

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

Twist EMERGENCY STOP button clockwise

until it pops out (see Figure 24). This resets switch and machine can now start.

PREPARATION

Inspections & Adjustments

The following list of adjustments were performed at the factory before your machine was shipped:

• Chip Breaker Height .......................Page 39

• Pressure Bar Height .......................Page 39

• Infeed/Outfeed Roller Height .......Page 39

• Roller Spring Tension ....................Page 42

• Chip Deﬂector Positioning ............Page 42

• Table Height Chain Tension ........Page 44

• Table Parallelism .............................Page 45

5. Press START button to turn machine ON,

then turn Feed Speed dial from minimum to maximum. Verify motors start up and run smoothly without any unusual vibrations or noises.

— When operating correctly, machine runs

smoothly with little or no vibration or rubbing noises.

— Investigate and correct strange or

unusual noises or vibrations before operating machine further. ALWAYS disconnect machine from power when investigating or correcting potential problems.

Press EMERGENCY STOP button to turn

machine OFF.

WITHOUT resetting EMERGENCY STOP

button, try to start machine by pressing START button. The machine should not start.

Be aware that machine components can shift during the shipping process. Pay careful attention to these adjustments as you test run your machine. If you ﬁnd that the adjustments are not set according to the procedures in this manual or your personal preferences, re-adjust them.

After approximately 16 hours of operation, V-belts will stretch and seat into pulley grooves and need to be properly tensioned to ensure good power transfer from motor and avoid severely reducing life of V-belts. Refer to Tensioning/Replacing V-Belts on Page 38 for detailed instructions.

— If machine does not start, the

EMERGENCY STOP button safety feature is working correctly. Test Run is complete.

— If machine does start (with EMERGENCY

STOP button pushed in), immediately disconnect power to machine. EMERGENCY STOP button safety feature is not working correctly and must be replaced before further using the machine. Call Tech Support for help.

-23-

Page 29

South Bend Tools

Model SB1108/ SB1109

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so they can more easily understand the controls discussed later in this manual.

Note:

it is not intended to be an instructional guide for performing actual machine operations. To learn more about speciﬁ c operations and machining techniques, seek training from people experienced with this type of machine, and do additional research outside of this manual by reading "howto" books, trade magazines, or websites.

OPERATION

For Machines Mfd. Since 12/20

OPERATION

Operation Overview

Due to the generic nature of this overview,

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

To complete a typical operation, the operator does the following:

1. Examines workpiece to make sure it is

suitable for planing.

Puts on safety glasses or face shield, a

respirator, and hearing protection.

Places workpiece on table with flat side

down and correctly adjusts table height for workpiece thickness and depth of cut.

— If workpiece is bowed, operator surface

planes workpiece on a jointer, with cupped side facing down, until one side is flat. Doing so ensures that it sits solidly on planer table during operation.

When all safety precautions have been

taken, turns planer ON.

Stands to one side of planer path to reduce

risk of kickback injuries, then feeds workpiece into planer until infeed roller grabs it.

To reduce risk of short and long term injury, wear eye, ear, and lung protection when using this machine.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, South Bend Tools will not be held liable for accidents caused by lack of training.

Note: Infeed and outfeed rollers control feed

rate of workpiece as it passes through planer. Operator does not push or pull on workpiece.

— If cut is too deep and bogs down planer,

operator immediately reduces depth of cut.

Once workpiece is clear of outfeed roller and

stops moving, operator removes workpiece from outfeed table and measures workpiece thickness. If further planing is required, operator raises table slightly, such as of table height handwheel (approximately

⁄4 to 1⁄2 turn of the handwheel), then feeds

workpiece into front of planer again.

Operator continues process until desired

workpiece thickness is achieved, then turns machine OFF.

⁄2-turn

-24-

Page 30

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

South Bend Tools

Some workpieces are not safe to use or may require modiﬁ cation before they are.

planing, inspect all workpieces for the following:

•

cause kickback and machine damage. Always

•

the machine. Excess moisture can also hasten

•

facing the table. On the contrary, a workpiece

The species of wood, as well as its condition, greatly affects the depth of cut the planer can effectively take with each pass.

The chart below shows the Janka Hardness Rating for a number of commonly used species. The larger the number, the harder the workpiece, and the less material should be removed in any one pass for good results.

Note:

The Janka Hardness Rating is expressed in pounds of force required to embed a 0.444" steel ball into the surface of the wood to a depth equal to half the ball's diameter.

OPERATION

Wood TypesStock Inspection &

Stock Inspection

Requirements

Before

Material Type: This machine is only

intended for workpieces of natural wood ﬁ ber Attempting to use workpieces of any other material that may break apart during operation could lead to serious personal injury and property damage.

Foreign Objects: Inspect lumber for defects and foreign objects (nails, staples, embedded gravel, etc,). If you have any question about the quality of your lumber, DO NOT use it. Remember, wood stacked on a concrete floor can have small pieces of stone or concrete pressed into the surface.

Large/Loose Knots: Loose knots can become dislodged during operation. Large knots can

use workpieces that do not have large/loose knots.

Wet or "Green" Stock: Avoid using wood with a high water content. Wood with more than 20% moisture content or wood exposed to excessive moisture (such as rain or snow), will cut poorly and cause excessive wear to

Janka

Species

Hardness

Ebony 3220 Red Mahogany 2697 Rosewood 1780 Red Pine 1630 Sugar Maple 1450 White Oak 1360 White Ash 1320 American Beech 1300 Red Oak 1290 Black Walnut 1010 Teak 1000

rust and corrosion of the machine and/or individual components.

Excessive Warping: Workpieces with excessive cupping, bowing, or twisting are dangerous to cut because they are unstable and often unpredictable when being cut. DO NOT use workpieces with these characteristics!

Minor Cupping: Though it is always best to ﬂ atten the cupped side on a jointer before planing, workpieces with slight cupping can be safely supported if the cupped side is

supported on the bowed side will rock during operation and could cause severe injury from kickback.

Black Cherry 950 Cedar 900 Sycamore 770 Douglas Fir 660 Chestnut 540 Hemlock 500 White Pine 420 Basswood 410 Eastern White Pine 380 Balsa 100

-25-

Page 31

South Bend Tools

Model SB1108/ SB1109

• Inspect your lumber for twisting or cupping,

•

• Use a jointer on one side of the workpiece and

•

knives/inserts will remain sharp much longer.

•

• Plane ONLY natural wood fiber. Do not plane

wood composites or other materials that could

•

Below is a list of wood characteristics you may encounter when planing. The following descriptions of defects will give you some possible answers to problems you may encounter while planing different materials. Possible solutions follow the descriptions.

Chipped Grain

Problem:

grain, planing lumber with knots or excessive amount of cross grain, or using dull knives/ inserts.

Note:

highly ﬁ gured wood.

Solution:

feed rate. Inspect your lumber and determine if its grain pattern is causing the problem. If the lumber does not show substantial crossgrain, inspect your knives/inserts.

Fuzzy Grain

Problem:

with too high of a moisture content. Sometimes fuzzy grain is an unavoidable characteristic of some woods, such as basswood. Fuzzy grain can also be caused by dull knives/inserts.

Solution:

meter. If moisture is greater than 20%, sticker the lumber and allow it to dry. Otherwise, inspect the knife/insert condition.

OPERATION

For Machines Mfd. Since 12/20

Planing Tips

and surface cupped side on a jointer if necessary before planing workpiece.

Scrape off all glue when planing glued-up panels. Dried glue can quickly dull inserts.

DO NOT plane more than one piece at a time side by side.

Never remove more than the recommended amount of material on each pass. Only remove a small amount of material on each pass when planing wide or dense stock.

Support the workpiece on both ends. Get assistance from another person if you are planing long lumber, or use roller stands to support the workpiece.

Measure the workpiece thickness with calipers to get exact results.

the planer for the other.

Use the entire width of the planer to wear knives/inserts evenly. With narrow workpieces, alternate between far left, far right, and the middle of the table. Your

To avoid "chip marks", always plane WITH the grain direction of the wood. Never plane cross-grain or end-grain.

Common Cutting Problems

Usually a result of cutting against the

Some amount of chipping is normal with

Decrease the depth of cut. Reduce the

Usually caused by surfacing lumber

Check the lumber with a moisture

break up in the planer and cause operator injury or damage to planer.

Always true cupped or warped stock on a jointer before planing.

-26-

Page 32

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

Pitch & Glue Build-up

Problem:

and cutterhead will cause overheating by decreasing cutting sharpness while increasing drag in the feed mechanism. The result can include scorched lumber, uneven knife/insert marks, and chatter.

Solution:

Chip Marks or Indentations

Problem:

the result of wood chips not being thrown away from the cutterhead and out of the machine. Instead they are carried around the cutterhead, deposited on the planed surface and crushed by the outfeed roller. Some of the causes of chip indentation are:

•

Solution:

•

moisture. DO NOT surface partially-air-dried

•

Snipe

Problem:

material removed than the rest of the board. Usually caused when the workpiece is not properly supported as it goes through the machine. In many cases, however, a small amount of snipe is inevitable and cannot be completely prevented.

Solution:

the outfeed end of the planer. The best way to deal with snipe is by planing lumber longer than your intended work length and then cutting off the excess after planing is completed.

Rippled Cut

Problem:

face of workpiece are caused by excessive outfeed roller pressure or excessive feed rate.

Solution:

feed rate.

OPERATION

Glue and resin buildup on the rollers

Clean the rollers and cutterhead.

Chip indentation or chip bruising is

Wood chips/sawdust not being properly expelled from the cutterhead.

The type of lumber being planed. Certain species have a tendency to chip bruise.

Dull knives/inserts.

Excessive depth of cut.

Use a proper dust-collection system; adjust chip deﬂ ector in or out as necessary.

Occurs when board ends have more

Hold workpiece up slightly as it leaves

Regularly spaced indentations across

Reduce outfeed roller pressure; reduce

Lumber must be completely dry, preferably kiln-dried (KD). Air-dried (AD) lumber must be seasoned properly and have no surface

(PAD) lumber.

Make sure planer knives/inserts are sharp.

Reduce depth of cut.

-27-

Page 33

South Bend Tools

Model SB1108/ SB1109

OPERATION

For Machines Mfd. Since 12/20

Depth of Cut

Table Movement

One Full Revolution of Handwheel

Material Thickness Range

SB1108 SB1109

The depth of cut on a planer means the amount of material that is removed from the top of the workpiece as it passes underneath the cutterhead.

The depth of cut is set by adjusting the distance of the table below the cutterhead. This distance is the thickness of the workpiece minus the depth of cut. The planing depth of cut is controlled by using the table height handwheel on the right side of the machine. Rotating the handwheel clockwise raises the table.

Although the correct depth of cut varies according to wood hardness and workpiece width, we recommend the maximum depth of cut (per pass) be no more than will give better end results and put less stress on the planer than trying to take off too much material in a single pass.

.......................................................3/16"

.........................................................1⁄4" – 8"

Depth of Cut

..................1⁄16"

—

⁄16". A series of light cuts

Setting Feed Rate

Feed Rate ..............................................10–28 FPM

The infeed and outfeed rollers move the workpiece through the planer while keeping it flat and providing a consistent rate of movement. The speed that these rollers move the workpiece through the planer is the feed rate.

Generally, low feed rates are used for finishing passes, while higher feed rates are used for dimensioning passes.

Use the FEED SPEED control knob (see Figure 26) to adjust the feed rate according workpiece type and desired results.

Feed Rate

The depth of cut can be referenced directly from the scale on the front of the planer, as shown in the figure below.

Note: The scale and digital readout function as a general guide only, and is not intended for lowtolerance, precision results. To ensure accuracy, use a tape measure or caliper to measure your workpiece thickness after each pass.

Figure 26. Feed speed control knob.

-28-

Page 34

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

The correct height of the bed rollers will vary, depending on the type of material you intend to plane. However, as a general rule, keep the bed roller height range within the listed range above the table surface, as illustrated.

When planing rough stock, set the rollers high to keep the lumber from dragging along the bed. When planing milled lumber, set the rollers low to help minimize snipe.

To ensure accurate results and make the adjustment process quicker and easier, we recommend using a Rotacator (refer to Accessories) to gauge the bed roller height from the table surface. If a Rotacator is not available, a straightedge and feeler gauges can be used, but

OPERATION

Bed Roller Height

Bed Roller Height Range ................. 0.002"–0.020"

Table

Roller

Bed Roller Height

0.002"–0.020"

Items Needed Qty

Hex Wrench 3mm .................................................1

Open-End Wrench 14mm Rotacator (optional, see Page 32)

.....................................1

........................ 1

To adjust bed roller height:

1. DISCONNECT MACHINE FROM POWER!

2. Completely lower table to give yourself

enough room to work.

Loosen set screw above each of four roller

adjustment cams—there are two on each side of planer table (see Figure 28).

Bed rollers that are not adjusted to the correct height or out of alignment with each other can cause poor ﬁ nishes, inconsistent planing thickness, and other undesirable results.

Rotate eccentric adjustment cams on each

side of roller to raise or lower bed rollers to desired height above table surface.

Verify both sides of each roller are at the

same height, then re-tighten set screws to secure in place.

IMPORTANT: Bed rollers MUST be parallel

with the table.

Re-check roller heights to make sure they

did not change while being secured.

— If roller heights are not correct, repeat

this procedure until they are.

-29-

Page 35

South Bend Tools

Model SB1108/ SB1109

The spiral cutterhead is equipped with 4-sided indexable carbide inserts. Each insert can be removed, rotated, and re-installed to use any one of its four cutting edges. Therefore, if one cutting edge becomes dull or damaged, simply rotate it 90˚ (as shown below) to use a sharp cutting edge.

The inserts have a reference dot on one corner. The position of the reference dot on installed inserts can be used to track which edges are sharp/unused and which edges are dull or damaged. Replace inserts once the reference dot has been rotated back to its original position.

OPERATION

For Machines Mfd. Since 12/20

Rotating/Replacing

Cutterhead Inserts

Reference Dot

3. Remove any sawdust or debris from head

of insert, Torx screw, and surrounding area (see Figure 30).

4. Remove Torx screw and insert, then clean

all dust and debris from both parts and cutterhead pocket.

Items Needed Qty

Hex Wrench 5mm .................................................1

Wrench or Socket 10mm T-25 Torx Bit

Carbide Cutterhead Inserts.................. As Needed

...................................................... As Needed

Rags Light Machine Oil

The carbide inserts are very sharp and can quickly cut your hands. ALWAYS use caution when handling these parts to reduce the risk of personal injury.

......................................................... 1

................................. As Needed

....................................... 1

Note: Proper cleaning of insert, Torx screw,

and cutterhead pocket is critical to achieving a smooth ﬁnish. Dirt or dust trapped between insert and cutterhead will raise insert, and make marks on your workpiece when planing.

Tip: Use low-pressure compressed air or a

vacuum nozzle to clean out cutterhead pocket.

Replace insert so that a fresh cutting edge

faces outward.

— If all four insert cutting edges have been

used, replace insert with a new one. Always position insert reference dot in same position when installing a new insert to aid in rotational sequencing.

Lubricate Torx screw threads with a very

small amount of light machine oil, wipe excess off, and torque screw to 50–55 inch/ pounds.

To rotate or replace a helical cutterhead insert:

1. DISCONNECT MACHINE FROM POWER!

2. Remove dust hood, top cover, and belt cover.

-30-

Note: If too much oil is applied to the

threads, excess oil will attempt to squeeze out of the threaded hole and raise insert during installation, bringing it out of height alignment.

Page 36

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

OPERATION

Digital Readout

The digital readout has two modes of use, Absolute (ABS) and Incremental (INC).

When used in ABS mode, the readout displays the distance between the table and the edge of the cutterhead insert at bottom-dead-center (BDC) to show workpiece thickness.

When INC mode is used, the readout displays the distance between the current position of the table and the position of the table where incremental mode was set at 0 to show how much material was removed from the workpiece.

To enter INC mode, press ABS/INC until INC is displayed. Each time the unit is placed in INC mode, the incremental value is reset to 0.

The digital readout is powered by 2 AAA batteries. The readout will display a battery icon when the battery level is low and needs replacing. Each time the batteries are replaced, the digital readout will need to be calibrated.

Calibrating Digital Readout

To calibrate digital readout:

1. Raise table all the way up.

Press mm/in button until 'in' is displayed.

Press ABS/INC button until ABS is

displayed. (This should already be displayed by default after the batteries are replaced.)

Press and hold ON/OFF (CAL) button until

ABS begins to flash (2–3 seconds).

Press + (mm/in) or – (ABS/INC) buttons to

adjust readout until it displays 1⁄4".

Press ON/OFF button to return to normal

operating mode.

-31-

Page 37

South Bend Tools

Model SB1108/ SB1109

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

For Machines Mfd. Since 12/20

Accessories

This section includes the most common accessories available for your machine through our exclusive dealer, Grizzly Industrial, Inc., at grizzly.com.

Installing unapproved accessories may cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended by South Bend or Grizzly.

Refer to Grizzly’s website or latest catalog for additional recommended accessories.

W1218A—Rotacator Precision Planer Tool

The Rotacator is a dial indicator on a magnetic base, designed for quickly and accurately setting the critical tolerances needed when making planer adjustments. Perfect for adjusting infeed/ outfeed rollers, pressure bars, chip breakers, and bed rollers. Also a great setup tool for other machines! Accurate to 0.001". Indicator rotates 360°.

T28000—Bear Crawl (for SB1108) T28923–Bear Crawl "Papa Bear" (for SB1109) Heavy Duty Mobile Base

The Grizzly Bear Crawl Mobile Base, with a 1200 lb. capacity, steel and polyurethane heavyduty ball bearing wheels, and toe flip-stops, will make this mobile base a staple under your machines for years to come. Adjusts from: T28000–19" x 21" to 29 T28923–19" x 26" to 29

H9893—Indexable Carbide Inserts, 10-Pack

These indexable carbide inserts are designed for use in spiral or helical cutterhead systems and made to last up to 10 times longer than a set of HSS steel straight blades. Made of solid carbide. Size: 15 x 15 x 2.5mm.

⁄2" x 291⁄2"

⁄2" x 341⁄2"

-32-

Page 38

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

order online at www.grizzly.com or call 1-800-523-4777

ACCESSORIES

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT® 12 Oz. Spray G2871—Boeshield® T-9 12 Oz. Spray G2870—Boeshield® T-9 4 Oz. Spray H3788—G96® Gun Treatment 12 Oz. Spray H3789—G96® Gun Treatment 4.5 Oz. Spray

SB1365—South Bend Way Oil-ISO 68

Engineered for the high pressure exerted on horizontal or vertical ways and slides. Protects against rust and corrosion. Ensures stick-free, smooth motion which maximizes finishes and extends the life of your machine. Won’t gum up! 12 oz. AMGA#2 (ISO 68 Equivalent).

slipit

T28042—Moly-D Industrial Gear Oil-ISO 320

This industrial gear oil from Primrose has been developed specifically for the high temperatures and pressures typical of modern industrial applications. 1-gallon size.

T26419—Syn-O-Gen NLGI #2 Synthetic Grease

100% pure synthesized hydrocarbon basestocks compounded with special thickeners and additives make Syn-O-Gen non-melt, tacky, and water resistant. Extremely low pour point, high temperature oxidation, and thermal stability produce a grease unmatched in performance.

-33-

Page 39

South Bend Tools

Model SB1108/ SB1109

MAINTENANCE

Maintenance Schedule

Always disconnect machine from power before performing maintenance or serious personal injury may result.

For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section.

Note: This maintenance schedule is based on average daily usage. Adjust the maintenance schedule to match your usage, to keep your planer running smoothly, and to protect your investment.

Ongoing:

• Clean machine and protect unpainted cast iron.

• Lubricate feed rollers bushings (Page 35).

• Tighten loose mounting bolts.

• Check/rotate/replace damaged or worn inserts (Page 30).

• Check/repair/replace worn or damaged wires.

• Resolve any other unsafe condition.

Every 40 Hours of Operation:

• Clean cutterhead and inspect inserts (Page 30).

• Lubricate table columns and leadscrews (Page 35).

• Inspect/Clean anti-kickback fingers (Page 37).

Every 160 Hours of Operation:

• Check/tension/replace V-belts (Page 38).

• Clean/vacuum dust buildup from inside cabinet and off motor.

• Lubricate table height worm gear (Page 36).

• Lubricate table height chain and sprockets (Page 36).

• Lubricate drive chain and sprockets (Page 36).

For Machines Mfd. Since 12/20

Cleaning & Protecting

Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin-dissolving cleaner to remove it.

Protect the unpainted cast-iron table by wiping it clean after every use—this ensures moisture from wood dust does not remain on bare metal surfaces. Keep the table rust-free with regular applications of products like G96 Treatment, SLIPIT 33 for more details).

, or Boeshield® T-9 (see Page

Gun

Machine Storage

All machinery will develop serious rust problems and corrosion damage if it is not properly prepared for storage. If decommissioning this machine, use the steps in this section to ensure that it remains in good condition.

To prepare machine for storage or decommission from service:

1. Disconnect all power sources to the machine.

2. Thoroughly clean all unpainted, bare metal

surfaces, then coat them with a light weight grease or rust preventative. Take care to ensure these surfaces are completely covered but that the grease or rust preventative is kept off of painted surfaces.

Note: If the machine will be out of service for

only a short period of time, use way oil or a good grade of medium-weight machine oil (not auto engine oil) in place of the grease or rust preventative.

Loosen or remove belts so they do not become

stretched while the machine is not in use.

Yearly:

• Change gearbox oil (Page 37).

-34-

Page 40

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

MAINTENANCE

4. Fill the gearbox with the recommended gear

oil so components above the normal oil level do not develop rust. (Make sure to put a tag on the controls as a reminder for the recommissioning process to adjust the gear oil level before starting the machine.)

Note: If the machine will be out of service

for only a short period of time, start the machine once a week and run all gear-driven components for a few minutes. This will put a fresh coat of gear oil on the gearing components inside the gearbox.

Completely cover the machine with a tarp

or plastic sheet that will keep out dust and resist liquid or moisture. If machine will be stored in/near direct sunlight, use a cover that will block the sun's rays.

Lubrication

Feed Roller Bushings

Oil Type ..................SB1365 or ISO 68 Equivalent

Oil Amount Frequency

The infeed and outfeed rollers rotate inside bushing blocks on both ends of the rollers. Add 2–3 drops of ISO 68 machine oil to the center hole of the four feed roller tension adjustment bolts on top of the head casting, as shown in Figure 39.

............................................. 2–3 Drops

.................. Every 8 Hours of Operation

Lubricate feed roller bushings

Failure to follow reasonable lubrication practices as instructed in this manual for your machine could lead to premature failure of components and void the warranty.

Your planer features bearings that are lubricated and sealed at the factory. These bearings do not require any further attention unless they need to be replaced. If a bearing fails, your planer will probably develop a noticeable rumble or vibration, which will increase when the machine is under a load. The bearings are standard sizes and can be replaced through Grizzly.

Follow the maintenance schedule on this page and the procedures beginning on Page 33 to properly lubricate the other planer components, which are essential for long life and trouble-free operation of your planer.

Columns & Leadscrews

Oil Type ..................SB1365 or ISO 68 Equivalent

Oil Amount Grease Type Frequency

The table rides on the columns and is moved by the rotation of the leadscrews inside the columns. Loosen the dust sleeve to access the columns and leadscrews (see Figure 40). Apply a thin coat of ISO 68 machine oil to the outside surface of the columns and brush on a light application of multi-purpose grease to the leadscrew threads. Move the table up and down to distribute the lubricant.

............................................. Thin Coat

............................NLGI#2 Equivalent

................ Every 40 Hours of Operation

Lubricate column and leadscrews

-35-

Page 41

South Bend Tools

Model SB1108/ SB1109

MAINTENANCE

For Machines Mfd. Since 12/20

Table Height Worm Gear

Grease Type .......... T26419 or NLGI#2 Equivalent

Frequency

Remove the three cap screws that secure the worm gear housing (see Figure 41), then lift the housing and handwheel assembly off the machine. Clean away any debris from the housing and gears, then brush on a moderate amount of multi-purpose grease to the gear teeth.

.............. Every 160 Hours of Operation

Lubricate table ht worm gear

Drive Chain & Sprockets

Grease Type .......... T26419 or NLGI#2 Equivalent

Frequency

The infeed and outfeed rollers receive the transferred power from the cutterhead through the drive chain system on the right side of the machine, as shown in Figure 43.

.............. Every 160 Hours of Operation

Drive chain and sprockets

Table Height Chain & Sprockets

Lubricate chain and sprockets

Grease Type .......... T26419 or NLGI#2 Equivalent

Frequency

The table leadscrews are synchronized by the table height chain and sprockets located underneath the planer base (see Figure 42). Use shop rags and mineral spirits to clean away debris and grime, then brush a light coat of multi-purpose grease onto the chain and sprockets.

.............. Every 160 Hours of Operation

Use shop rags and mineral spirits to clean away any debris and grime, then brush a light coat of multi-purpose grease onto the chain and sprockets.

-36-

Page 42

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

Check the anti-kickback ﬁ ngers regularly to ensure they swing freely and easily. If the ﬁ ngers do not swing freely and easily, ﬁ rst clean them with a wood-resin solvent, then inspect them for damage. If any of the ﬁ ngers are damaged, the device must be replaced before using the machine.

Do not apply oil or other lubricants to the antikickback ﬁ ngers that will attract dust and restrict free movement of the ﬁ ngers.

MAINTENANCE

Gearbox Oil

Oil Type ................ T28042 or ISO 320 Equivalent

Oil Amount Frequency

Note: SAE 140 Gear Oil or SAE 85W-140 multiweight gear oil may also be used. DO NOT mix oil types!

Although it is not necessary to remove the drive chain cover to access the fill and drain plugs, it is more convenient to do so (see Figures 44–45). Drain the old oil into a pan. Re-install the drain plug, then refill the gearbox with ISO 320 or equivalent oil until it just reaches the fill plug. Re-install the fill plug.

................................................... 20 Oz.

....... After First 20 Hours, Then Yearly

Anti-Kickback Fingers

The anti-kickback ﬁngers are an important safety feature of your planer. The ﬁngers hang from a rod suspended across the head casting and in front of the infeed roller, as shown. This design allows the workpiece to easily enter the planer but reduces the risk of kickback by digging into the workpiece if it moves backward.

Anti Kickback Fingers

Proper operation of anti-kickback ﬁ ngers is critical for safe operation of this planer. DO NOT operate planer if anti-kickback ﬁ ngers are not operating correctly. Failure to heed this warning could result in serious personal injury.

-37-

Page 43

South Bend Tools

Model SB1108/ SB1109

SERVICE

For Machines Mfd. Since 12/20

Tensioning/Replacing V-Belts

Three V-belts transfer power from the motor to the cutterhead, and then to the infeed and outfeed rollers with the use of the drive chain system. To ensure efﬁcient transfer of power to these systems, make sure the V-belts are always properly tensioned and in good condition.

If the V-belts are worn, cracked, or damaged, replace them. Always replace all V-belts at the same time with a matched set of three, or belt tension may not be even among the belts, causing premature belt failure or weakened power transfer.

Items Needed Qty

Phillips Screwdriver #2 ........................................1

Open-End Wrench 19mm

.....................................1

3. Remove rear cabinet cover to access motor

mount hex nuts (see Figure 48).

Note: SB1108 has (1) motor mount

connecting rod, SB1109 has (2).

If V-belts need to be replaced, raise motor

to release belt tension, roll them off pulleys, then replace with a matched set of three.

V-belts and pulleys will be hot after operation. Allow them to cool before handling.

To tension/replace V-belts:

DISCONNECT MACHINE FROM POWER!

2. Remove V-belt cover from left side of

machine to expose belts (see Figure 47).

Note: A collection of black belt dust at the

bottom of the belt cover is normal during the life of the belts.

To adjust V- belt tension, loosen top motor

mount hex nuts (see Figure 48), then adjust bottom hex nuts to raise or lower motor.

Note: V-belts are properly tensioned when

there is approximately moderate pressure is applied to them midway between pulleys, as illustrated in Figure 49.

Approximately

⁄4" Deflection

⁄4" deﬂection when

Disc

Pulley

Motor

Pulley

-38-

6. After V-belts are properly tensioned, tighten

top motor mount hex nuts, then re-install cabinet cover and belt cover.

Page 44

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

SERVICE

Setting Feed Roller,

Setting Feed Roller, Chip Breaker

Chip Breaker &

& Pressure Bar Heights

Pressure Bar Heights

It is essential that the feed rollers, chip breaker, and pressure bar are set at the correct distance below the cutterhead knives/inserts at BDC (bottom dead center) to ensure that the workpiece moves through the planer evenly and the correct distance from the cutterhead knives/ inserts.

To ensure accurate results and make the adjustment process quicker and easier, we recommend using a Rotacator for these adjustments (refer to Page 32).

If a Rotacator is not available, a 6' 2x4 cut into two even-sized pieces and a feeler gauge set can be used, but care must be taken when jointing the wood to achieve accurate results and ensure both boards have the exact same height.

Dist. Below Cutterhead Insert at BDC (Figure 50)

Infeed Roller ...........................................0.040"

Chip Breaker ..........................................0.040"

Pressure Bar ...........................................0.008"

Outfeed Roller ........................................0.020"

Using a Rotacator

Items Needed Qty

Hex Wrenches 3mm, 5mm ............................. 1 Ea.

Wrench or Socket 10mm Rotacator (see Page 32)

To use a Rotacator to check/adjust heights:

1. DISCONNECT MACHINE FROM POWER!

2. Make sure all inserts are properly installed

(refer to Rotating/Replacing Cutterhead Inserts on Page 30 for detailed

instructions).

Lower table at least 4" below head casting,

then lock it in place.

Remove dust hood, top cover, belt cover, and

drive chain cover.

Using your Rotacator, ﬁnd bottom dead

center (BDC) of any insert edge by slowly rocking cutterhead pulley back and forth, then set Rotacator dial to "0" (see Figure 51).

................................ 1 Ea.

.......................................1

Chip

Breaker

A & B

(Bottom Dead Center)

Infeed Roller

BDC

Outfeed

Roller

Pressure

Bar

Move feed rate control knob to neutral

position to allow infeed roller to freely rotate.

-39-

Page 45

South Bend Tools

Model SB1108/ SB1109

SERVICE

For Machines Mfd. Since 12/20

Keeping Rotacator dial at "0", position it

under right-hand side of infeed roller and find BDC of a serrated edge by rocking infeed roller back and forth.

8. Loosen jam nuts and use set screws on each

side of feed roller as shown to adjust height of infeed roller bushing block until Rotacator dial shows 0.040", which is the recommended distance for infeed roller below the cutterhead (see Figure 52).

Using same "0" reference on Rotacator

12.

dial from Step 5, perform similar steps as described previously to adjust height of chip breaker to its recommended speciﬁcation given at beginning of this subsection. The adjustment controls are shown below (see Figure 53).

Repeat Steps 7–8 on left side of feed roller.

Re-check both sides of infeed roller and, if

10.

necessary, make further adjustments until infeed roller height from side to side is

0.040" below BDC of cutterhead insert, then retighten both jam nuts.

Keeping same "0" reference on Rotacator dial

11.

from Step 5, repeat Steps 7–10 for outfeed roller, but adjust it until it is 0.020" below BDC of cutterhead insert.

Repeat Step 12 for pressure bar height

13.

adjustment using adjustment controls shown in Figure 54.

Re-install belt cover, top cover, chain cover,

14.

and dust hood.

-40-

Page 46

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

SERVICE

Using Wood Blocks

Items Needed Qty

Hex Wrench 3mm, 5mm ....................................... 1

Wrench or Socket 10mm 2x4 6' Long Feeler Gauge Set

.............................................................1

................................................... 1

To use wood blocks to check/adjust heights:

1. Build wood blocks by cutting a straight

6-foot-long 2x4 in half.

Note: Having the wood blocks at an even

height is critical to the accuracy of your overall adjustments. For best results, make the 2x4 square with a jointer and table saw before cutting it in half.

DISCONNECT MACHINE FROM POWER!

3. Lower bed rollers below table surface (refer

to Bed Roller Height on Page 29 for detailed instructions).

....................................... 1

7. Loosen jam nuts and set screws on each side

of infeed roller (see Figure 56).

Using feeler gauge, adjust set screw so it

is 0.040" from roller bushing block (see Figure 56), then tighten jam nut. Repeat on other side of infeed roller.

Place wood blocks along sides of table, as

illustrated in Figure 55, then raise table until blocks are close to cutterhead.

Wood Blocks

36"

Remove dust hood, top cover, belt cover, and

drive chain cover.

Using belt to rotate cutterhead, continue

to raise table until blocks just barely touch cutterhead insert at its lowest point of rotation (BDC), then lock table in place.

Repeat Steps 8–9 with outfeed roller, only

adjust the gaps to 0.020".

Loosen jam nuts and set screws on each side

10.

of chip breaker (see Figure 57).

Using a feeler gauge, adjust set screw so

11.

chip breaker is 0.040" from cross bar (see Figure 57), then tighten jam nut. Repeat on other side of chip breaker.

Note: The wood blocks will hold infeed and

outfeed rollers, chip breaker, and pressure bar at same level as insert at BDC.

Re-install belt cover, top cover, drive chain

12.

cover, and dust hood.

-41-

Page 47

South Bend Tools

Model SB1108/ SB1109

When properly distanced from the cutterhead, the chip deﬂ ector directs the chips into the dust hood, and keeps them from falling onto the outfeed roller and being pressed into the workpiece.

SERVICE

For Machines Mfd. Since 12/20

Adjusting Feed-Roller Spring Tension

The infeed and outfeed rollers keep the workpiece moving through the planer. Springs exert downward pressure on the feed rollers while allowing them to raise with an uneven workpiece surface. Proper spring tension is crucial to keep the workpiece moving through the planer during operation without pulling from one side to the other.

The ideal feed-roller spring tension varies depending upon the type of wood you plane. When adjusting spring tension, keep the following in mind:

• If you are planing milled lumber with a consistent surface, use less spring tension to reduce the risk of marring the workpiece.

• If you are planing rough lumber with

inconsistent surfaces, use greater spring tension to keep the stock moving through the planer.

Positioning Chip Deﬂector

Chip Deﬂector Gap Setting

Tools Needed Qty

Wrench or Socket 10mm ....................................... 1

Hex Wrench 5mm

To adjust chip deﬂector gap:

DISCONNECT MACHINE FROM POWER!

2. Remove dust hood, top cover, and belt cover.

3. Use cutterhead pulley to rotate cutterhead

until an insert reaches closest distance to chip deﬂector (see Figure 59), then measure distance between insert and chip deﬂector.

.................................................1

........................1⁄16"– 1⁄4"

• If the workpiece consistently stops feeding

during operation, the spring tension may need to be increased.

Items Needed Qty

Hex Wrench 5mm .................................................1

To adjust feed-roller spring tension:

DISCONNECT MACHINE FROM POWER!

2. Rotate tension screws clockwise to increase

tension or counterclockwise to decrease tension (see Figure 58).

4. If distance measured in Step 3 is not equal

to correct chip deflector gap setting, then loosen (3) flange bolts that secure chip deflector and adjust gap to correct setting.

Re-tighten flange bolts, then replace belt

cover, top cover, and dust hood.

-42-

Page 48

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

SERVICE

Calibrating Table Height Scale

Although correctly set at the factory, the table height scale can be adjusted for accuracy if it becomes necessary.

Items Needed Qty

Hex Wrench 4mm .................................................1

To calibrate table height scale:

1. Raise table all the way up.

2. Loosen scale pointer cap screw shown in

Figure 60.

Adjust scale pointer to 1⁄4" mark on scale,

then tighten cap screw (see Figure 60).

Replacing Feed Motor Brushes

The models SB1108 and SB1109 feature a DC motor that is used to control the feed rollers, which uses heavy-duty carbon brushes. While these brushes are design for extended life, they will eventually wear out, causing loss of power or faulty starting..

Items Needed Qty

Phillips Screwdriver #2 ........................................1

Flat Head Screwdriver Motor Brushes

To replace feed motor brushes:

1. DISCONNECT MACHINE FROM POWER!

2. Remove motor access panel.

3. Remove DC motor brush cover, then pull out

used motor brush (see Figure 61).

................................................ 1 Set

..........................................1

Figure 60. Location of adjustment screw for table

height scale.

Insert new motor brush, then re-install and

tighten brush cover.

Repeat Step 4 to replace second motor

brush.

Re-install motor access cover.

-43-

Page 49

South Bend Tools

Model SB1108/ SB1109

SERVICE

For Machines Mfd. Since 12/20

Checking Pulley Alignment

Proper pulley alignment prevents premature V-belt wear and proper power transfer from the motor. The pulleys are properly aligned when they are parallel and in the same plane as each other.

Items Needed Qty

Straightedge 3' ......................................................1

Wrench or Socket 14mm, 17mm

To check/re-align pulleys:

1. DISCONNECT MACHINE FROM POWER!

2. Remove belt cover, then use straightedge

to check pulley alignment, as shown in Figure 62.

................... 2 Ea.

Tensioning Table Height Chain

The table height chain is located under the table. It transfers movement from the handwheel to the columns that control table height. The chain drive can be adjusted to remove slack if the chain stretches over time or is loosened during table leveling procedures.

Items Needed Qty

Phillips Screwdriver #2 ........................................1

Wrench or Socket 14mm

To tension table height chain:

1. DISCONNECT MACHINE FROM POWER!

2. Remove motor access panel to access table

height chain (see Figure 63).

Loosen both chain-tension lock bolts (see

Figure 63), then push idler sprocket against chain with moderate pressure to eliminate slack in chain. While maintaining pressure on idler sprocket, re-tighten lock bolts.

....................................... 1

— If pulleys are parallel and in the same

plane, no adjustment is necessary. Reinstall belt cover.

— If pulleys are not parallel or in the same

plane, remove motor access panel, then proceed to Step 3.

Loosen (4) motor mount bolts, shift motor

until pulleys are aligned, then re-tighten bolts.

Re-check pulleys and repeat Step 3 as

necessary until you are satisfied with pulley alignment, then re-tighten all fasteners, and replace belt cover and motor access panel.

-44-

4. Clean and lubricate chain and sprockets

(refer to Table Height Chain & Sprockets on Page 36 for detailed instructions), then re-install motor access panel.

NOTICE

DO NOT let chain fall off sprockets. It can be very difﬁcult to return chain to its proper location on sprockets without changing table adjustments.

Page 50

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

SERVICE

Adjusting Table Parallelism

Maximum Allowable Tolerances

Cutterhead/Table Side-to-Side Head Casting/Table Front/Back

Tools Needed Qty

Rotacator ...............................................................1

Phillips Screwdriver #2 Wrench or Socket 14mm Hex Wrench 6mm

Table parallelism is critical to the operation of the machine. As such, it is essential that the table is adjusted parallel with the cutterhead (within 0.002") from side-to-side, as illustrated in Figure 64.

........................................1

.................................................1

Cutterhead

.....................0.002"

...................0.020"

....................................... 1

How the table sits in relation to the head casting from front-to-back is also important. Because the feed rollers, pressure bar, and chip breaker are adjusted off the table position, the tolerances on the front-to-back positioning are not as critical as the cutterhead/table side-to-side positioning. Therefore, the maximum allowable tolerance for the front-to-back parallelism is within 0.020" (see Figure 65).

Head

Parallel Parallel

Table

FRONT BACK

Head

Not Parallel Not Parallel

Table

Parallel Parallel

Table

SIDE-TO-SIDE

Cutterhead

Not Parallel Not Parallel

Table

FRONT

VIEW

Table Parallelism Inspection

The easiest way to determine if your head casting has a parallelism problem is to plane a workpiece and measure the thickness in multiple locations. If the workpiece is tapered from left-toright or from front-to-back, then parallelism may be a problem.

Use your Rotacator to further inspect the table parallelism. If you do not have a Rotacator, a wood block and feeler gauges may be used, but extra care must be taken to ensure accuracy. If the table is not within the maximum allowable tolerances, it must be adjusted.

-45-

Page 51

South Bend Tools

Model SB1108/ SB1109

SERVICE

For Machines Mfd. Since 12/20

Table Parallelism Adjustments

The table is adjusted by turning the chain sprockets underneath the table for movements over 0.016" or by adjusting how the table is mounted on the columns for movements under

0.016".

NOTICE

When making adjustments, tighten fasteners after each step to ensure the accuracy of your tests. When adjusting the chain sprockets, keep in mind that if the chain becomes too loose, it will fall off of all the sprockets, and returning it to its proper location can be extremely difﬁcult.

To adjust table parallelism:

DISCONNECT MACHINE FROM POWER!

Remove motor access panel and locate chain

on underside of table.

Loosen lock bolts and idler sprocket (see

Figure 66).

5. Mark location of one tooth of sprocket that

you are adjusting.

Carefully rotate sprocket (clockwise to lower

table; counterclockwise to raise table) just enough to position next tooth at marked location, then ﬁt chain around sprocket again.

Repeat Steps 4–6 with each sprocket

that needs to be adjusted until table-tocutterhead clearance is within 0.016" from one side to the other.

8. Make sure chain is properly ﬁtted on

sprockets, then re-tighten idler sprocket and lock bolts.

If necessary, micro-adjust table position by

loosening cap screws (see Figure 67) and raising or lowering table until it is properly aligned with cutterhead.

Note: This process may require adjusting the

columns on both the left and right hand sides until you ﬁnd the correct combination.

4. Move chain away from sprocket you want to

adjust so only that sprocket can be rotated independent of chain.

Note: If the left side of the table is too high,

the left two sprockets will need to be adjusted. Each tooth on the sprocket represents 0.016" of vertical movement as the cogs are turned. Make sure, as you turn the sprockets, to keep an accurate tooth count to ensure that the table is adjusted equally.

Re-tension table height chain (see

10.

Tensioning Table Height Chain instructions on Page 44).

-46-

Page 52

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

TROUBLESHOOTING

If you need replacement parts, or if you are unsure how to do any of the solutions given here, feel free to call us at (360) 734-1540.

Symptom Possible Cause Possible Solution

Machine does not start or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

EMERGENCY STOP button depressed/at fault.

Machine circuit breaker tripped.

Incorrect power supply voltage or circuit size.

Power supply circuit breaker tripped or fuse blown.

Thermal overload relay has tripped/ at fault.

Start capacitor at fault.

Contactor not energized/at fault.

Wiring broken, disconnected, or corroded.

Start button or circuit breaker switch at fault.

10.

Centrifugal switch adjustment/ contact points at fault.

11.

Pulse width modulator circuit board at fault.

12.

Motor or motor bearings at fault.

Workpiece material not suitable for machine.

Feed rate/cutting speed too fast.

Belts slipping/pulleys misaligned.

Pulley/sprocket slipping on shaft.

Machine undersized for task.

Motor overheated, tripping machine circuit breaker.

Run capacitor at fault.

Extension cord too long.

Contactor not energized/at fault.

10.

Centrifugal switch/contact points at fault.

11.

Motor or motor bearings at fault.

Rotate EMERGENCY STOP button head to reset. Replace if at fault.

Reset circuit breaker on control panel.

Ensure correct power supply voltage and circuit size.

Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

Reset. Adjust or replace if at fault.

Test/replace if at fault.

Test all legs for power; replace if necessary.

Fix broken wires or disconnected/corroded connections.

Replace button/circuit breaker switch.

10.

Adjust centrifugal switch/clean contact points. Replace either if at fault.

11.

Inspect; replace if at fault.

12.

Replace motor.

Only cut wood/ensure moisture is below 20% (Page 25).

Decrease feed rate/cutting speed (Page 28).

Clean/tension/replace belts (Page 38) ; ensure pulleys are aligned (Page 44).

Tighten/replace loose pulley/shaft.

Use sharp inserts; reduce feed rate/depth of cut.

Clean motor/let cool, and reduce workload. Reset breaker.

Test/repair/replace.

Move machine closer to power supply; use shorter extension cord.

Test all legs for power; repair/replace if at fault.

10.

Adjust centrifugal switch/clean contact points. Replace either if at fault.

11.

Replace motor.

Feed motor does not start or stalls.

Motor brushes worn out.

Replace motor brushes (Page 43).

-47-

Page 53

South Bend Tools

Model SB1108/ SB1109

TROUBLESHOOTING

For Machines Mfd. Since 12/20

Symptom Possible Cause Possible Solution

Machine has excessive vibration or noisy operation.

Table is hard to adjust.

Workpiece stops/ slows in the middle of cut.

Motor or component loose.

Machine feet not adjusted properly.

V-belts worn, loose, pulleys misaligned or belt slapping cover.

Cutterhead inserts at fault.

Pulley loose.

Motor mount loose/broken.

Motor fan rubbing on fan cover.

Bed rollers protruding unevenly.

Cutterhead bearings at fault.

10.

Centrifugal switch.

11.

Motor bearings at fault.

12.

Plastic chip deflector hitting inserts.

Table locks are engaged or partially engaged.

Depth of cut too deep.

Pitch and glue build-up on planer components.

One or both bed rollers are set too low.

Chip breaker or pressure bar set too low.

Feed rollers set too low or too high.

Replace damaged or missing bolts/nuts or tighten if loose.

Adjust machine feet to stabilize machine.

Inspect/replace belts with a new matched set (Page 38). Realign pulleys if necessary (Page 44).

Rotate/replace inserts (Page 30).

Secure pulley on shaft.

Tighten/replace.

Fix/replace fan cover; replace loose/damaged fan.

Adjust bed rollers (Page 29).

Replace bearing(s)/realign cutterhead.

Test/repair/replace.

11.

Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

12.

Replace chip deflector and realign (Page 42).

Completely loosen table locks.

Reduce depth of cut (Page 28).

Clean planer components with a pitch/resin dissolving solvent.

Raise height of bed rollers (Page 29).

Raise height of chip breaker or pressure bar (Page 39).

Adjust feed rollers to correct height (Page 39).

Excessive snipe (gouge at the end of workpiece that is uneven with the rest of cut).

Note: A small amount of snipe is inevitable with all types of planers– the key is to minimize it.

One or both bed rollers are set too high.

Rear extension table slopes down or is not level with main table.

Chip breaker, feed roller, or pressure bar set too low.

Workpiece is not properly supported as it leaves planer.

Lower height of bed rollers (Page 29).

Adjust rear extension table set screws to make extension table level with main table (Page 19).

Adjust height of chip breaker, feed roller, or pressure bar (Page 39).

Use an assistant or roller beds/stands to properly support workpiece as it leaves planer.

-48-

Page 54

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

TROUBLESHOOTING

Symptom Possible Cause Possible Solution

Consistent chipping pattern.

Fuzzy grain.

Glossy surface.

Long lines or ridges that run the length of workpiece.

Uneven cutting marks, wavy surface, or chatter marks across face of workpiece.

Knots or conflicting grain direction in workpiece.

Nicked, chipped, or dull insert.

Feed rate too fast.

Depth of cut too deep.

Bed rollers set too high or low; not even with each other.

Misaligned chip breaker.

Workpiece has high moisture content or surface wetness.

Dull inserts.

Inserts are dull.

Feeding workpiece too slow.

Cutting depth too shallow.

Nicked or chipped inserts.

Feed rate too fast.

Chip breaker or pressure bar set unevenly.

Bed rollers set too high or low; not even with each other.

Insert(s) not properly installed.

Worn cutterhead bearings.

Inspect workpiece for knots and grain direction; use only clean stock (Page 25).

Rotate/replace insert (Page 30).

Reduce feed rate (Page 28).

Reduce depth of cut (Page 28).

Properly adjust bed roller height (Page 29).

Adjust both sides of chip breaker to correct height (Page 39).

Allow workpiece to dry if moisture content is over 20% or has high surface wetness.

Rotate/replace inserts (Page 30).

Increase feed rate (Page 28).

Increase depth of cut (Page 28).

Rotate/replace inserts (Page 30).

Reduce feed rate (Page 28).

Adjust height of chip breaker or pressure bar (Page 39).

Properly adjust bed roller height (Page 29).

Remove insert(s), then properly clean and re-install (Page 30).

Replace cutterhead bearings.

Inconsistent chip marks.

Workpiece twists in machine.

Chips are not being properly expelled from around cutterhead.

Pressure bar set unevenly.

Bed rollers not parallel with table.

Use an adequate dust collection system; adjust chip deflector in or out, depending on your setup (Page 39).

Adjust height of pressure bar (Page 39).

Adjust bed roller height (Page 29).

-49-

Page 55

South Bend Tools

Model SB1108/ SB1109

Shock Hazard: It is extremely dangerous to

Wire Connections:

Modiﬁcations:

Motor Wiring:

junction box.

Circuit Requirements: Connecting the machine

power inverters store an electrical charge for

our Technical Support at (360) 734-1540.

ELECTRICAL

For Machines Mfd. Since 12/20

Electrical Safety Instructions

These pages are accurate at the time of printing. In the constant effort to improve, however, we may make changes to the electrical systems of future machines. Study this section carefully. If you see differences between your machine and what is shown in this section, call Technical Support at (360) 734-1540 for assistance BEFORE making any changes to the wiring on your machine.

perform electrical or wiring tasks while the machine is connected to the power source. Touching electriﬁed parts will result in personal injury including but not limited to severe burns, electrocution, or death. For your own safety, disconnect machine from the power source before servicing electrical components or performing any wiring tasks!

All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

Using aftermarket parts or modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or ﬁre.

The motor wiring shown in these diagrams is current at the time of printing, but it may not match your machine. Always use the wiring diagram inside the motor

to an improperly sized circuit will greatly increase the risk of ﬁre. To minimize this risk, only connect the machine to a power circuit that meets the minimum requirements given in this manual.

Capacitors/Inverters: Some capacitors and

up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

Wire/Component Damage: Damaged wires

or components increase the risk of serious personal injury, ﬁre, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components before completing the task.

Experiencing Difﬁculties: If you are

experiencing difﬁculties understanding the information included in this section, contact

BLACK

BLUE

BROWN

NOTICE:

-50-

WIRING DIAGRAM COLOR KEY

BLUE WHITE

GREEN

G R AY

The photos and diagrams included in this section are best viewed in color. You can see them in color at www.southbendtools.com.

RED

LIGHT BLUE

ORANGE

PINK

PURPLE

TURQUIOSE

WHITE

YEL LOW GREEN

YEL LOW

Page 56

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

ELECTRICAL

SB1108 Wiring Diagram

ZING EAR

ZE-800 4A 250V

INPUT 220V(3A)

Transformer

SUENN LIANG SP-CL-20660

OUTPUT 110V(6A)

Circuit Breaker

Magnetic Switch

L1/1

L2/3

SDE

MA-18

T2/4

T1/2 T3/6 NO14

1/2

3/4

SDE MPE-18

L3/5

NO13

NC 21

NC 22

RA-20

5/6

Main Motor

400MFD

125VAC

250V 1.2W

A600

Power

Indicator

CNONC

RENY

E-Stop Button

Potentiometer

B10K

10A250VAC

7.5A380VAC

A600

Start

Button

Control Panel

GND

Feed Motor

RESET

Pulse Width Modulator

Circuit Board

Start

Capacitor

LOW

M+

VR2

M-

70uF

250VAC

Run

Capacitor

AC1

Hot

220 VAC

High

AC2

Ground

Hot

VR1

6-20 Plug

-51-

Page 57

South Bend Tools

Model SB1108/ SB1109

ELECTRICAL

For Machines Mfd. Since 12/20

SB1108 Electrical Component Photos

width modulator.

-52-

Page 58

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

ELECTRICAL

SB1108 Height DRO Wiring Diagram

HEIGHT

DIGITAL

READOUT

AAA Battery

DRO HEIGHT

SENSOR

AAA Battery

-53-

Page 59

South Bend Tools

Model SB1108/ SB1109

ELECTRICAL

SB1109 Wiring Diagram

INPUT 220V(3A)

Transformer

SUENN LIANG SP-CL-20660

OUTPUT 110V(6A)

ZING EAR

ZE-800 4A 250V

Circuit Breaker

For Machines Mfd. Since 12/20

Magnetic Switch

R/1/L1

SDE

MA-30

U/2/T1 W/6/T3

1/2

SDE MPE-30

S/3/L2

T/5/L3

V/4/T2

3/4

5/6

Main Motor

RA-30

600MFD

125VAC

250V 1.2W

A600

Power

Indicator

CNONC

RENY

E-Stop

Button

Potentiometer

B10K

10A250VAC

7.5A380VAC

A600

Start

Button

Control Panel

GND

Feed Motor

RESET

Pulse Width Modulator

Circuit Board

Start

Capacitor

LOW

M+

VR2

M-

-54-

60uF

350VAC

Run

Capacitor

AC1

Ground

Hot

AC2

Hot

High

VR1

220 VAC

L6-30 PLUG

Page 60

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

ELECTRICAL

SB1109 Electrical Component Photos

width modulator.

-55-

Page 61

South Bend Tools

Model SB1108/ SB1109

ELECTRICAL

For Machines Mfd. Since 12/20

SB1109 Height DRO Wiring Diagram

HEIGHT

DIGITAL

READOUT

AAA Battery

DRO HEIGHT

SENSOR

AAA Battery

-56-

Page 62

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PARTS

SB1108 Main

212

221

220

202

203

106

105

56-1

56-2

56-3

107

56-4

208

108

207

106

109

224

114

223

110

115

116

113

117

118

114

116

111

112

64-3

119

115

64-1

64-2

212

220

82 101

220

100

102

205

204

103

104

-57-

Page 63

South Bend Tools

Model SB1108/ SB1109

PARTS

For Machines Mfd. Since 12/20

SB1108 Main Parts List

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

1 PSB1108001 KNOB 5/1 6-18 LOBED 53 PSB1108053 SPROCKET SIZE 31T

2 PSB1108002 BELT PULLEY COVER 54 PSB1108054 HEX BOLT M6-1 X 16

3 PSB1108003 V-B ELT M 58 55 PSB1108055 CHAIN #06B X 40P

4 PSB1108004 HEX BOLT M8-1.25 X 30 56 PSB1108056 HELICAL CUTTERHEAD ASSY

6 PSB1108006 FEN DER WASHER 8MM 56-1 PSB1108056-1 T-HANDLE TORX DRIVER T25

7 PSB1108007 STANDOFF-H EX MM 5.16-18 X 2-1/4, 3/8 56-2 PSB1108056-2 FLA T HD TORX 10-32 X 1/2

8 PSB1108008 FLAN GE BOLT M6-1 X 12 56-3 PSB1108056-3 INSERT 15 X 15 X 2.5MM-10 PK

9 PSB1108009 BELT PULLEY GUARD 56-4 PSB1108056-4 HELICAL CUTTERHEAD 15"

10 PSB1108010 PULLEY 57 PSB1108057 BA LL BEARING 6205-2N SE

11 PSB1108011 FLAT WASHER 8MM 58 PSB1108058 KEY 8 X 8 X 36 RE

12 PSB1108012 HEX NUT 5/16-18 59 PSB1108059 DEPTH LIMITER

13 PSB1108013 UPPER COVER 60 PSB1108060 FLAT H D SCR M5-.8 X 1 2

14 PSB1108014 CLIP-ON NUT M6-1 61 PSB1108061 DIGITAL READOUT BRACKET

15 PSB1108015 DUS T H OOD W/4" PORT 62 PSB1108062 CAP SCREW M6-1 X 10

16 PSB1108016 CAP SCREW M6-1 X 20 63 PSB1108063 DIGITAL READOUT HOUSIN G

17 PSB1108017 RETURN ROLLER B RAC KET 64 PSB1108064 DIGITAL READOUT ASS EMBLY

18 PSB1108018 BEARING SHAFT 64-1 PSB1108064-1 DIGITAL READOUT WIXEY WR5502

19 PSB1108019 BALL B EARING 608 Z 64-2 PSB1108064-2 BATTERY COVER

20 PSB1108020 RETURN ROLLER 64-3 PSB1108064-3 BATTERY COVER DECAL

21 PSB1108021 WORM GEAR HOUSING 65 PSB1108065 TAP S CREW M3 X 8

22 PSB1108022 KEY 4 X 4 X 10 RE 67 PSB1108067 MOUNTIN G PLA TE

23 PSB1108023 WORM SHAFT 69 PSB1108069 HEX N UT M6-1

24 PSB1108024 BALL B EARING 6200Z 72 PSB1108072 BATTERY AAA (2PC)

25 PSB1108025 INT RETAINING RING 30MM 73 PSB1108073 OIL SEAL 28 X 40 X 8

26 PSB1108026

27 PSB1108027 REVOLVING HANDLE 3/8 -16 X 1/2 75 PSB1108075 ROLL PIN 8 X 20

28 PSB1108028 DIRECTION LAB EL 76 PSB1108076 FEN DER WASHER 6MM

29 PSB1108029 FLAT WASHER 10MM 77 PSB1108077 CAP SCREW M6-1 X 12

30 PSB1108030 HEX NUT M10-1.25 78 PSB1108078 BA LL BEARING 6204-2NSE

31 PSB1108031 SPRIN G PLA TE 79 PSB1108079 FENDER WASHER 6MM

32 PSB1108032 CHIP DEFLECTOR 80 PSB1108080 LOCK WASHER 6MM

33 PSB1108033 OILER SCREW M22-1.5 X 20 81 PSB1108081 CAP SCREW M6-1 X 16

34 PSB1108034 FEN DER WASHER 6MM 82 PSB1108082 BALL B EARING 6201Z Z

35 PSB1108035 HEX BOLT M6-1 X 12 83 PSB1108083 EXT RETAINING RING 20MM

36 PSB1108036 SET SCREW M10-1.5 X 12 84 PSB1108084 KEY 5 X 5 X 10 RE

37 PSB1108037 PLATE 85 PSB1108085 GEAR 96T

38 PSB1108038 HEAD CASTING 86 PSB1108086 SHAFT SIZE 24.5 X 105

39 PSB1108039 SET SCREW M8-1.25 X 10 87 PSB1108087 OIL SEAL 25 X 35 X 5

40 PSB1108040 HEX BOLT M8-1.25 X 20 88 PSB1108088 KEY 6 X 6 X 15 RE

41 PSB1108041 PLATE 89 PSB1108089 COLLAR

42 PSB1108042 S ET SCREW M6-1 X 12 90 PSB1108090 GASKET

43 PSB1108043 F ENDER WASH ER 8MM 91 PSB1108091 GEA RB OX COVER

44 PSB1108044 CHAIN TENSIONER 92 PSB1108092 CAP SCREW M6-1 X 25

45 PSB1108045 SHOULDER BOLT M8-1.25 X 14.5, 4 X 12 93 PSB1108093 CAP SCREW M5-.8 X 12

46 PSB1108046 IDLER WHEEL 94 PSB1108094 S PROCKET 12T

47 PSB1108047 IDLER SHAFT 95 PSB1108095 PHLP HD SCR M4-.7 X 10

48 PSB1108048 EXTENSION SPRING 1 X 8.5 X 35 96 PSB1108096 PULLEY COVER

49 PSB1108049 COMPRESSION SPRING 3.5 X 19.7 X 70 97 PSB1108097 PULLEY

50 PSB1108050 COMPRESSION SPRING BUSHING BLOCK 98 PSB1108098 FENDER WASHER 5MM

51 PSB1108051 OUTFEED ROLLER 99 PSB1108099 OIL PLUG NPT 1/4 X 3/4

52 PSB1108052 SPROCKET SIZE 31T 100 PSB1108100 GEA R B OX

HAND W HEEL TYPE-11 150D X 10B- K X 3 / 8-16

74 PSB1108074 CAP SCREW M8-1.25 X 50

-58-

Page 64

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

PARTS

SB1108 Main Parts List (Cont.)

101 PSB1108101 GEA R 1 8 T 116 PSB1108116 ANTI-KICKB ACK FINGER

102 PSB1108102 KEY 4 X 4 X 16 RE 117 PSB1108117 SH A FT 19.95MM

103 PSB1108103 GEA RED SH AFT 18T/22T 118 PSB1108118 SPROCKET 31T

104 PSB1108104 GEA R 71T 119 PSB1108119 CHAIN #06B X 67P

105 PSB1108105 GEA RBOX GUA RD 202 PSB1108202 B ALL BEA RIN G 6003Z Z

106 PSB1108106 FLAT WASHER 6MM 203 PSB1108203 OIL SEAL 12 X 22 X 7

107 PSB1108107 TIMIN G B ELT 3GT-741-1 5 204 PSB1108204 CAP SCREW M5-.8 X 6

108 PSB1108108 GEARBOX COVER 205 PSB1108205 FLAT WASHER 5MM

109 PSB1108109 EXT RETAINING RIN G 12MM 207 PSB1108207 OUTER CHA IN TEN SIONER

110 PSB1108110 ADJUSTING SHAFT 208 PSB1108208

111 PSB1108111 LOC K ROD 212 PSB1108212 SET SCREW M6-1 X 16

112 PSB1108112 HEX NUT M12-1.75 220 PSB1108220 PHLP HD SCR M5-.8 X 8

113 PSB1108113 INFEED ROLLER 221 PSB1108221 C ORD ROUTIN G COVER

114 PSB1108114 E-CLIP 1 5MM 223 PSB1108223 CHIP B REAKER

115 PSB1108115 SPACER 20.5 X 32 X 6 224 PSB1108224 FOAM S TRIP 8 X 1 0 X 390

ST AN DO FF-H EX MM 5 /16- 18 X 2-1/ 2, 3-5 /16

-59-

Page 65

South Bend Tools

Model SB1108/ SB1109

PARTS

SB1108 Table & Base

For Machines Mfd. Since 12/20

120

121

139

142

143

144

122

127

144

128

129

122

225

215

106

146

127

147

120

216

222

123

229

228

129

128

126

124

125

135 136

137

138

139

140

-60-

145

146

153

154

155

156

148

149

150

151

127

152

148

149

150

151

141

131

157

181

182

183

184

185

Page 66

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PARTS

SB1108 Table & Base Parts List

REF PART # DE SCRIPTION REF PART # DE SCRIPTION

16 PSB1108016 CAP SCREW M6-1 X 20 140 PSB1108140 LEA DSCREW, PRIMA RY

19 PSB1108019 B ALL B EARING 608 Z 141 PSB1108141 COLUMN, PRIMARY

22 PSB1108022 KEY 4 X 4 X 1 0 RE 142 PSB1108142 LEADSCREW, SECONDARY

30 PSB1108030 HEX NUT M10-1.25 143 PSB1108143 COLUMN , SECON DA RY

35 PSB1108035 HEX BOLT M6-1 X 12 144 PSB1108144 HEX BOLT M8-1.25 X 45

36 PSB1108036 SET SCREW M10-1.5 X 12 1 45 PSB1108145 BASE

42 PSB1108042 S ET S CREW M 6-1 X 12 146 PSB1108146 E-CLIP 12MM

43 PSB1108043 F ENDER WASH ER 8MM 1 47 PSB1108147 LIFTING BAR

68 PSB1108068 BRACKET 148 PSB1108148 B ALL BEA RIN G 620 2Z

70 PSB1108070 PLA TE 149 PSB1108149 I NT RETAINING RIN G 35MM

71 PSB1108071 H EX NUT M 6-1 1 50 PSB1108150 IDLER SPROCKET 1 0T

93 PSB1108093 CAP SCREW M5-.8 X 12 151 PSB1108151 FEN DER WA SHER 10MM

106 PSB1108106 FLAT WASHER 6MM 1 52 PSB1108152 B RACKET

120 PSB1108120 ECCENTRIC SHAFT 153 PSB1108153 SHAFT

121 PSB1108121 TA B LE ROLLER 1 54 PSB1108154 SPROCKET 1 0T

122 PSB1108122 TH RE ADED GI B 155 PSB1108155 EXT RETA IN IN G RING 15MM

123 PSB1108123 LOCK IN G ROD 156 PSB1108156 CH AIN #410 X 134P

124 PSB1108124 GIB 157 PSB1108157 PHLP HD SCREW M3-.5 X 6

125 PSB1108125 KN OB LOB ED M12-1 . 75 181 PSB1108181 HEX WRENCH 6MM

126 PSB1108126 MAIN TABLE 182 PSB1108182 HEX WRENCH 4MM

127 PSB1108127 HEX BOLT M8-1.25 X 25 183 PSB1108183 HEX WRENCH 3MM

128 PSB1108128 SET SCREW M8 -1 X 12 184 PSB1108184 WRENCH 10 X 13MM OPEN-EN DS

129 PSB1108129 EXTEN SION TA BLE 185 PSB1108185 WRENCH 12 X 1 4MM OPEN -ENDS

131 PSB1108131 SCALE 215 PSB1108215 RIVET 2 X 5

135 PSB1108135 EXT RETAINING RING 10MM 216 PSB1108216 PHLP HD SCR M5-.8 X 6

136 PSB1108136 GEA R 14T 222 PSB1108222 CA BLE TIE 4"

137 PSB1108137 INT RETAI NI NG RING 38MM 225 PSB1108225 FLAT WASHER 8MM

138 PSB1108138 BUSHING 228 PSB1108228 DRO REMOTE S EN S OR

139 PSB1108139 LEADSCREW N UT 1 6-4 229 PSB1108229 DRO CORD CAT5E 39"

-61-

Page 67

South Bend Tools

Model SB1108/ SB1109

PARTS

SB1108 Stand & Motor

234

233

159-11

159-12

159-13

159-17

159-9

159-10

159-14

159-7

159-8

159-15

159-16

159

159-1

159-6

159-5

159-6

159-2

159-3

159-4

159-5

232

231

163

164

210

162

235

134

165

166

167

For Machines Mfd. Since 12/20

134-1

134-2

134-3

134-4

134-5

134-6

134-7

134-8

159-18

213

179

306

180

161

186

160

212

106

227

217

218

256

106

171

169

222

168

263

172-2

172-3

219

206

172-1

170

259

198

158-3

158-2

172

158-4

158-5

173

158-1

158-6

158-7

158-8

158

106

200

-62-

201

178

257

209

106

174

175

176

177

176

Page 68

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PARTS

SB1108 Stand & Motor Parts List

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

11 PSB1108011 FLAT WASHER 8MM 161 PSB1108161 FOOT M1 2-1.75

30 PSB1108030 HEX NUT M10-1.25 162 PSB1108162 HEX BOLT M8-1.25 X 30

42 PSB1108042 S ET SCREW M6-1 X 12 163 PSB1108163 H EX NUT M8-1.2 5

43 PSB1108043 F ENDER WASH ER 8MM 164 PSB1108164 MOTOR MOUNT PLATE

65 PSB1108065 TAP S CREW M3 X 8 165 PSB1108165 FEN DER WASHER 10MM

66 PSB1108066 PHLP HD SCR M6-1 X 16 166 PSB1108166 MOTOR MOUN T CONNECTIN G ROD

77 PSB1108077 CAP SCREW M6-1 X 12 167 PSB1108167 SHAFT

95 PSB1108095 PHLP HD SCR M4-.7 X 10 168 PSB1108168 M OTOR A CCES S PA N EL

106 PSB1108106 FLAT WASHER 6MM 169 PSB1108169 PHLP HD SCR M6-1 X 20

134 PSB1108134 M OTOR 3HP 230V 1 -P H 1 70 PSB1108170 PHLP HD SCR M6-1 X 10

134-1 PSB1108134-1 S CAPACITOR 400M 125V 1-9/16 X 3-9/16 171 PSB1108171 STRAIN RELIEF TYPE-1 19MM

134-2 PSB1108134-2 R CAPACITOR 70M 250V 1-9/16 X 3-9/1 6 172 PSB1108172 DC MOTOR 3/4HP 90VDC 8 A

134-3 PSB1108134-3 CAPACITOR COVER 1 72-1 PSB1108172-1 BRUSH B RACKET

134-4 PSB1108134-4 CEN T SWITCH 16 MM 3450 172-2 PSB1108172-2 MOTOR BRUS H 120V (2-PC SET)

134-5 PSB1108134-5 CONTACT PLATE 16MM 1 72-3 PSB1108172-3 BRUSH COVER

134-6 PSB1108134-6 MOTOR FA N 173 PSB1108173 MOTOR MOUNT PLATE

134-7 PSB1108134-7 MOTOR F AN COVER 174 PSB1108174 CAP SCREW M8-1.25 X 12

134-8 PSB1108134-8 MOTOR JUNCTION B OX 175 PSB1108175 COLLAR

158 PSB1108158 MAGNETIC SWITCH SDE MPE-18 176 PSB1108176 PULLEY COVER

158-1 PSB1108158-1 MAG SWITCH COVER 177 PSB1108177 PULLEY

158-2 PSB1108158-2 MAG SWITCH BASE 178 PSB1108178 FLAT WASHER 5MM

158-3 PSB1108158-3 CONTACTOR SDE MA-16 220V 179 PSB1108179 PHLP HD SCR M5-.8 X 20

158-4 PSB1108158-4 OL RELAY SDE RA-20 12-18A 180 PSB1108180 DC MOTOR CONTROL COVER

158-5 PSB1108158-5 CONTROL P ANEL CORD 18G 5W 86" 186 PSB1108186 DC MOTOR CONTROLLER AC 120V/DC

158-6 PSB1108158-6 TRANSF ORMER CORD 18G 2W 23" 198 PSB1108198 PHLP HD SCR 3/16-24 X 3/8

158-7 PSB1108158-7 MOTOR CORD 1 2G 3W 33" 200 PSB1108200 SET SCREW M5-.8 X 5

158-8 PSB1108158-8 STRAIN RELIEF TYPE-3 PG13.5 201 PSB1108201 PHLP HD SCR M5-.8 X 10

159 PSB1108159 CONTROL PAN EL ASS EMBLY 206 PSB1108206 DRO SENSOR COVER

159-1 PSB1108159-1 CON TROL PA N EL B OX 209 PSB1108209 SWITCH PANEL

159-2 PSB1108159-2 PHLP HD SCR M4-.7 X 6 210 PSB1108210 SPACER 16.2 X 25 X 12.7

159-3 PSB1108159-3 EXT TOOTH WASH ER 4MM 212 PSB1108212 SET SCREW M6-1 X 16

159-4 PSB1108159-4 CON TROL PANEL PEDESTAL 213 PSB1108213 PHLP HD SCR M5-.8 X 10

159-5 PSB1108159-5 HEX BOLT M5-.8 X 10 217 PSB1108217 SPACER 7 X 11.9 X 13.5

159-6 PSB1108159-6 F LANGE B OLT M6-1 X 12 218 PSB1108218 CAP SCREW M5-.8 X 25

159-7 PSB1108159-7 CIRCUIT B REA KER S WITCH 10A ZE-80 0 219 PSB1108219 PHLP HD SCR M6-1 X 70

159-8 PSB1108159-8 POTENTIOMETER 50K X 1900MM 222 PSB1108222 CABLE TIE 4"

159-9 PSB1108159-9 CONTROL PANEL FACE PLATE 227 PSB1108227 DRO SEN SOR STRIP

159-10 PSB1108159-10 PHLP HD SCR M5-.8 X 8 231 PSB1108231 KEY 5 X 5 X 30 RE

159-11 PSB1108159-11 S ET S CREW M 4-.7 X 6 232 PSB1108232 HEX BOLT M8-1.25 X 25

159-12 PSB1108159-12 FEED SPEED ADJUSTMENT KNOB 233 PSB1108233 MOTOR PULLEY

159-13 PSB1108159-13

159-14 PSB1108159-14 E-STOP BUTTON RENY 250 V, 22MM 235 PSB1108235 S TRAIN RELIEF TYPE-3 PG13.5

159-15 PSB1108159-15 START SWITCH YUAN GUAN 250 V, 22MM 256 PSB1108256 TRANSF ORMER SUEN SPCL2 0660 220V

159-16 PSB1108159-16 S TOP B UTTON CORD 18G 1W 6" 257 PSB1108257 WIRE NUT P3

159-17 PSB1108159-17 DC CONTROLLER CORD 18G 1W 8" 259 PSB1108259 POWER CORD 12G 3W 138" 6-20P

159-18 PSB1108159-18 CIRCUIT B REAKER CORD 18 G 2W 71" 263 PSB1108263 PLA TE

160 PSB1108160 CABINET STAND

POWER INDICATOR LIGHT YUAN GUAN 25MM

234 PSB1108234 FENDER WASHER 8MM

-63-

Page 69

South Bend Tools

Model SB1108/ SB1109

SB1108

PARTS

SB1108 Labels & Cosmetics

MODEL SB1108

15" Planer w/Helical Cutterhead

FEED SPEED

– +

28 FPM

10 FPM

312

POWER

LEVEL BEFORE USING!

OWNER’S MANUAL FOR OIL TYPE AND

311

CHECK OIL

REFER TO

AMOUNT.

STOP

300

START

SINCE

1906

Main Motor: 3 HP, 230V, 1-Ph, 60 Hz Full-Load Current Rating: 12A Cutterhead: 4 Spirals, 52 Inserts Replacement Inserts: H9893 Cutterhead Speed: 5000 RPM Feed Rates: 10–28 FPM Max. Depth of Cut: 1/8" Min. Stock Thickness: 3/16" Min. Stock Length: 6" Max. Cutting Width: 15" Max. Cutting Height: 6" Weight: 509 lbs.

Made in Taiwan to South Bend Specications

service, or adjustments.

WARNING!

INJURY HAZARD To reduce risk of short- and long-term injury, wear eye, ear, and lung protection when using this

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses, hearing protection, and respirator.

3. Disconnect power before changing blades, removing parts, or doing maintenance,

4. Only plug power cord into a grounded outlet.

5. Do not wear loose clothing, gloves, jewelry, or other items that can get entangled. Tie back long hair and roll up sleeves.

6. Ensure machine is correctly set up before starting.

7. Do not plane two boards of varying thickness at the same time.

8. Never plane material smaller than 6" long, 3/4” wide, or 3/16" thick.

9. Do not allow hands or clothing to get pulled into cutting area while feeding workpiece.

10. Stand clear of board ends during cutting operation.

11. Do not plane boards with cracks, loose knots, or other defects.

12. Inserts are sharp! Use extreme caution when changing/adjusting.

13. Never reach into cutting area while machine is running.

14. Keep ngers clear of pinch point bet ween stock and table.

15. Do not operate when tired or under inuence of drugs or alcohol.

16. Do not expose to rain or use in wet locations.

17. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

WARNING!

INJURY HAZARD Do not use machine if you have not read the manual. Visit southbendtools.com or call 360-734-1540 to get a manual.

301

WARNING!

For Machines Mfd. Since 12/20

MFG DateSerial No

302

WARNING!

INJURY/SHOCK

HAZARD

To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

NOTICE

For shipping purposes, some inventory components are packed inside cabinet. Remove cabinet panels to access these components.

South Bend Tools

310

NOTICE

Add SAE 30 oil every 24 hours of operation.

307

309

303

308

307

WARNING!

INJURY HAZARD Keep cover closed while machine is operating. Disconnect power before removing or servicing.

306

305

304

WARNING!

INJURY HAZARD Keep cover closed while machine is operating. Disconnect power before removing or servicing.

304

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

300 PSB1108300 MACHINE ID LABEL 307 PSB1108307 ELECTRICITY LAB EL 0.7

301 PSB1108301 COM B O WA RN IN G LAB EL 308 PSB1108308 TOUCH -UP PAINT, SB LIGHT BLUE

302 PSB1108302 INVENTORY SHIPPING NOTICE 30 9 PSB1108309 TOUCH-UP PAIN T, SB GRAY

303 PSB1108303 TOUCH-UP PAIN T, S B DARK B LUE 310 PSB1108310 ADD OIL NOTICE

304 PSB1108304 DOOR CLOSED LABEL 2.5 X 1.5 311 PSB1108311 CONTROL PANEL LA BEL

305 PSB1108305 MODEL NUMBER LAB EL 31 2 PSB1108312 STOP OIL FILL TA G

306 PSB1108306 SOUTH BEN D NAMEPLATE 6"

The safety labels provided with your machine are used to make the operator aware of the machine hazards and ways to prevent injury. The owner of this machine MUST maintain the original location and readability of these safety labels. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact South Bend Tools at (360) 734-1540 or www.southbendtools.com to order new labels.

-64-

Page 70

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PARTS

SB1109 Main

116

117

112

119

113

212

231

249

232

118

114

115

112

121

122

123

53-1

124

120

53-3

125

53-2

237

126

237

122

104

105

106

107

110

111

108

109

127

238

225

128

239

222

223

100

101

102

101

100

103

62-1

62-2

62-3

135

62-4

111

-65-

Page 71

South Bend Tools

Model SB1108/ SB1109

PARTS

For Machines Mfd. Since 12/20

SB1109 Main Parts List

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

1 PSB1109001 KNOB 5/16 -1 8 LOB ED 53 PSB1109053 DIGITAL READOUT AS SEMB LY

2 PSB1109002 B ELT PULLEY COVER 53-1 PSB1109053-1 DIGITAL READOUT WIXEY MODEL WR5502

3 PSB1109003 V-B ELT M 58 53-2 PSB1109053-2 BATTERY COVER

4 PSB1109004 HEX BOLT M8-1.25 X 30 53-3 PSB1109053-3 BATTERY COVER DECAL

5 PSB1109005 LOCK WASHER 8MM 54 PSB1109054 COMPRESSION SPRING 3.5 X 19.7 X 70

6 PSB1109006 FENDER WASHER 8MM 55 PSB1109055 COMPRESSION SPRING BUSHING BLOCK

7 PSB1109007 STANDOFF-HEX MM 5/16-18 X 2-1 /4, 3/8 56 PSB1109056 OUTFEED ROLLER

8 PSB1109008 FLANGE B OLT M6-1 X 12 57 PSB1109057 SPROCKET 31T

9 PSB1109009 BELT PULLEY GUARD 58 PSB1109058 SPROCKET 31T

10 PSB1109010 PULLEY 59 PSB1109059 FENDER WASHER 6MM

11 PSB1109011 FLAT WASHER 8MM 60 PSB1109060 HEX BOLT M6-1 X 16

12 PSB1109012 HEX NUT 5/16-18 61 PSB1109061 CH AIN #06B X 44P

13 PSB1109013 DUST HOOD W/5" PORT 62 PSB1109062 HELICAL CUTTERHEAD ASSY

14 PSB1109014 UPPER COVER 62-1 PSB1109062-1 T-HAN DLE TORX DRIVER T25

15 PSB1109015 CAP SCREW M6-1 X 10 62-2 PSB1109062-2 F LAT HD TORX 10 -32 X 1/2

16 PSB1109016 FENDER WASHER 6MM 62-3 PSB1109062-3 INSERT 15 X 15 X 2.5MM-10 PK

17 PSB1109017 CAP SCREW M6-1 X 16 62-4 PSB1109062-4 HELICA L CUTTERH EAD 20"

18 PSB1109018 RETURN ROLLER BRACKET 63 PSB1109063 KEY 8 X 8 X 36 RE

19 PSB1109019 BEARING SHAFT 64 PSB1109064 CHAIN TENSIONER

20 PSB1109020 BALL BEARING 6202-2NSE 65 PSB1109065 SHOULDER BOLT M8-1.25 X 14.5, 4 X 12

21 PSB1109021 RETURN ROLLER 66 PSB1109066 EXTENSION SPRING 1 X 8.5 X 35

22 PSB1109022 CAP SCREW M6-1 X 50 67 PSB1109067 IDLER WHEEL

23 PSB1109023 WORM GEAR HOUSIN G 68 PSB1109068 IDLER SHAFT

24 PSB1109024 KEY 4 X 4 X 10 RE 69 PSB1109069 BALL B EARING 6206-2NS E

25 PSB1109025 WORM SHAFT 71 PSB1109071 BATTERY AAA (2 PCS)

26 PSB1109026 BALL BEARIN G 6201Z 72 PSB1109072 SCALE

27 PSB1109027 IN T RETAINING RING 32MM 75 PSB1109075 MOUNTING PLA TE

28 PSB1109028 COLLAR 76 PSB1109076 SET SCREW M1 0-1.5 X 30

29 PSB1109029 HANDWHEEL TYPE-14 200D 12B-K 3/8-16 77 PSB1109077 HEX NUT M10-1.5

31 PSB1109031 HEX NUT M12-1.75 78 PSB1109078 OIL S EAL 28 X 40 X 8

32 PSB1108032 SPRING PLA TE 79 PSB1109079 CAP SCREW M8-1.25 X 50

33 PSB1109033 CHIP DEFLECTOR 80 PSB1109080 ROLL PIN 8 X 20

34 PSB1109034 FOAM GASKET 81 PSB1109081 CAP SCREW M6-1 X 12

35 PSB1109035 SET SCREW M6-1 X 20 82 PSB1109082 BALL BEA RIN G 6204-2NS E

36 PSB1109036 HEX NUT M6-1 83 PSB1109083 FENDER WASHER 6MM

37 PSB1109037 SHAFT 5/8 84 PSB1109084 LOCK WASHER 6MM

38 PSB1109038 SET SCREW M10-1.5 X 12 85 PSB1109085 CAP SCREW M6-1 X 16

39 PSB1109039 OILER SCREW M22-1.5 X 20 86 PSB1109086 BA LL BEARING 6201ZZ

40 PSB1109040 SET SCREW M6-1 X 16 87 PSB1109087 EXT RETA IN IN G RING 20MM

41 PSB1109041 SPRING PLATE 88 PSB1109088 KEY 5 X 5 X 10 RE

42 PSB1109042 HEX BOLT M6-1 X 12 89 PSB1109089 GEA R 96T

43 PSB1109043 FENDER WASHER 6MM 90 PS B 1 109090 SHAFT 24.5 X 105

44 PSB1109044 PLATE 91 PS B 1 109091 OIL S EAL 25 X 35 X 5

45 PSB1109045 HEAD CASTING 92 PS B 11090 92 KEY 6 X 6 X 15 RE

46 PSB1109046 SET S CREW M8-1.25 X 12 93 P SB110 90 93 COLLAR

47 PSB1109047 PLATE 94 PSB11 0 90 94 GAS KET

48 PSB1109048 HEX BOLT M8-1.25 X 20 95 PS B 1 109095 GEA RB OX COVER

49 PSB1109049 DEPTH LIMITER 96 PSB11 0 90 96 CAP SCREW M6-1 X 25

50 PSB1109050 FLA T HD SCR M5-.8 X 12 97 PSB11 0 90 97 CAP SCREW M5-.8 X 12

51 PSB1109051 DIGITAL REA DOUT BRACKET 98 P S B 11090 98 SPROCKET 12T

52 PSB1109052 DIGITA L READOUT HOUSING 99 P SB110 90 99 TAP SCREW M3 X 8

-66-

Page 72

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

PARTS

SB1109 Main Parts List (Cont.)

ST AN DO FF-H EX MM 5 /16- 18 X 2-1/ 2, 3-5 /16

-67-

Page 73

South Bend Tools

Model SB1108/ SB1109

PARTS

SB1109 Table & Base

129

130

131

For Machines Mfd. Since 12/20

134

132

129

130

132

131

133

153

136

137

146

149

144

147

240

145

116

148

150

152

131

111

113

141

189

136

142

143

243

230

240

129

244

157

131

150

145

138

239

137

138

139

140

139

140

160

161

162

158

163

159

171

172

173

174

169

170

136

154

145

156

164

165

166

167

168

163

162

164

165

166

167

168

160

161

154

153

154

145

158

203

204

205

206

207

208

209

210

-68-

Page 74

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PARTS

SB1109 Table & Base Parts List

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

11 PSB1109011 FLAT WASHER 8MM 154 PSB1109154 PHLP HD SCR M5-2.12 X 10

24 PSB1109024 KEY 4 X 4 X 10 RE 156 PSB1109156 COLUMN, PRIMARY

26 PSB1109026 BALL BEARIN G 6201Z 157 PSB1109157 LEADSCREW, SECONDARY

38 PSB1109038 SET SCREW M10-1.5 X 12 158 PSB1109158 COLUM N, S ECONDARY

42 PSB1109042 HEX BOLT M6-1 X 12 159 PSB1109159 BASE

46 PSB1109046 SET S CREW M8-1.25 X 12 160 PSB1109160 HEX B OLT M12-1.75 X 50

74 PSB1109074 B RACKET 161 PSB1109161 FENDER WASHER 12MM

76 PSB1109076 SET SCREW M10-1 .5 X 30 162 PSB1109162 LIFTING BAR

111 PSB1109111 FLAT WASHER 6MM 163 PSB1109163 E-C LIP 17MM

113 PSB1109113 LOCK N UT M 6-1 164 PSB1109164 BALL B EARING 620 2Z

116 PSB1109116 EXT RETAINING RING 12MM 165 PSB1109165 IN T RETA IN IN G RING 35MM

129 PSB1109129 ECCENTRIC SHAFT 166 PSB1109166 S PROCKET 10 T

130 PSB1109130 TABLE ROLLER 167 PSB1109167 FLAT WASHER 10MM

131 PSB1109131 CAP SCREW M8-1.25 X 16 168 PSB1109168 HEX NUT M10-1.25

132 PSB1109132 THREA DED GIB 169 PSB1109169 BRACKET

133 PSB1109133 SET SCREW M6-1 X 12 170 PSB1109170 FENDER WASHER 8MM

134 PSB1109134 MAIN TABLE 171 PSB1109171 SHAFT

136 PSB1109136 HEX BOLT M8-1.25 X 25 172 PSB1109172 SPROCKET 1 0T

137 PSB1109137 EXTENS ION TAB LE 1 73 PSB1109173 EXT RETAINING RIN G 15MM

138 PSB1109138 LOCKING ROD 174 PSB1109174 CHAIN #40 X 166P

139 PSB1109139 THREA DED GIB 189 PSB1109189 PLATE

140 PSB1109140 PIVOT HANDLE M12-1.75 203 PSB1109203 HEX WRENCH 3MM

141 PSB1109141 SCA LE POINTER 204 PSB1109204 HEX WRENCH 4MM

142 PSB1109142 CAP SCREW M5-.8 X 10 205 PSB1109205 HEX WRENCH 5MM

143 PSB1109143 CAP SCREW M8-1.25 X 30 206 PSB1109206 HEX WRENCH 6MM

144 PSB1109144 PLATE 207 PSB1109207 WRENCH 8 X 10MM OPEN-ENDS

145 PSB1109145 COLLAR 208 PSB1109208 WRENCH 10 X 13MM OPEN-ENDS

146 PSB1109146 PHLP HD SCR M5-.8 X 15 209 PSB1109209 WRENCH 12 X 14MM OPEN-ENDS

147 PSB1109147 GEAR 24T 210 PSB1109210 WRENCH 17 X 19MM OPEN-ENDS

148 PSB1109148 INT RETAIN ING RING 38MM 230 PSB1109230 PHLP HD SCR M5-.8 X 6

149 PSB1109149 BUSHING 239 PSB1109239 CABLE TIE 4"

150 PSB1109150 LEADSCREW NUT 16 -4 240 PSB1109240 FLAT WASHER 8MM

152 PSB1109152 LEA DSCREW, PRIMARY 243 PSB1109243 DRO REMOTE SEN SOR

153 PSB1109153 DUST B OOT 244 PSB1109244 DRO CORD CAT5E 39"

-69-

Page 75

South Bend Tools

Model SB1108/ SB1109

PARTS

SB1109 Stand & Motor

For Machines Mfd. Since 12/20

176-11

176-12

176-13

176-18

176-9

176-10

176-14

176-17

177

176-7

176-8

176-6

176-15

176-16

176-6

176-1

176-2

176-3

176-4

176-5

179

176

181

248

170

180

247

184

182

170

183

246

245

220

251

175

185

186

175-1

175-2

175-3

188-2

175-4

188-3

188-5

188-6

175-5

175-6

187

188-1

188-4

175-7

175-8

175-9

188-7

188-8

310

228

202

201

178

252

111

199

200

242

233

254

253

111

234

190

191-3

226

239

191-1

191-2

235

111

236

191

192

193

194

195

227

100

188-9

188

111

221

196

197

196

100

-70-

Page 76

South Bend Tools

For Machines Mfd. Since 12/20 Model SB1108/ SB1109

PARTS

SB1109 Stand & Motor Parts List

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

15 PSB1109015 CAP SCREW M6-1 X 10 185 PSB1109185 SHAFT

30 PSB1109030 FENDER WASHER 12MM 186 PSB1109186 COLLAR

31 PSB1109031 HEX NUT M12-1.75 187 PSB1109187 MOTOR MOUN T CONNECTIN G ROD

46 PSB1109046 SET S CREW M8-1.25 X 12 188 PSB1109188 MAG SWITCH 5H SDE

70 PSB1109070 PHLP HD SCR M6-1 X 10 188-1 PSB1109188-1 MAG SWITCH COVER

73 PSB1109073 PHLP HD SCR M6-1 X 8 188-2 PSB1109188-2 MAG SWITCH BASE

81 PSB1109081 CAP SCREW M6-1 X 12 188-3 PSB1109188-3 CONTACTOR SDE MA-30 220V-240V

99 PSB 11090 99 TA P S CREW M3 X 8 188-4 PSB1109188-4 OL RELAY SDE RA-30 22-34A

100 PSB1109100 PHLP HD SCR M4-.7 X 10 188-5 PSB1109188-5 STRAIN RELIEF TYPE-3 M25-1.5

111 PSB1109111 FLAT WASHER 6MM 188-6 PSB1109188-6 STRAIN RELIEF TYPE-3 M25-1.5

170 PSB1109170 FENDER WASHER 8MM 188-7 PSB1109188-7 CON TROL PA N EL C ORD 18G 5W 98"

175 PSB1109175 MOTOR 5HP 220-240V 1-PH 188-8 PSB1109188-8 TRA NSF ORMER CORD 18G 2W 23"

175-1 PSB1109175-1 S CAPACITOR 600M 125V 1-3/4 X 3-5/16 188-9 PSB1109188-9 MOTOR CORD 12G 3W X 37"

175-2 PSB1109175-2 R CAPACITOR 60M 350V 1-3/4 X 4-5/1 6 190 PSB1109190 STRAIN RELIEF TYPE-1 19MM

175-3 PSB1109175-3 CAPACITOR COVER 1 91 PSB1109191 DC M OTOR 3/4H P 90VDC 8 A

175-4 PSB1109175-4 CENT S WITCH 16MM 3450 191-1 PSB1109191-1 BRUS H BRA CKET

175-5 PSB1109175-5 CON TACT PLATE 191-2 PSB1109191-2 MOTOR BRUSH 1 20 V (2PC SET)

175-6 PSB1109175-6 MOTOR FA N 191-3 PSB1109191-3 BRUSH COVER

175-7 PSB1109175-7 FAN COVER 1 92 PSB1109192 MOTOR MOUNT PLATE

175-8 PSB1109175-8 MOTOR JUNCTION B OX 1 93 PSB1109193 FLAT WASHER 8MM

175-9 PSB1109175-9 S TRAIN RELIEF SW-P4 1 94 PSB1109194 CAP SCREW M8-1.25 X 12

176 PSB1109176 CONTROL PAN EL ASSEMB LY 1 95 PSB1109195 COLLAR

176 -1 PSB1109176-1 C ONTROL P ANEL B OX 1 96 PSB1109196 PULLEY COVER

176 -2 PSB1109176-2 PHLP HD SCR M4-.7 X 6 1 97 PSB1109197 PULLEY

176 -3 PSB1109176-3 EXT TOOTH WASHER 4MM 199 PSB1109199 PHLP HD SCR M5-.8 X 10

176 -4 PSB1109176-4 SWITCH PEDESTAL 200 PSB1109200 FLAT WASHER 5MM

176 -5 PSB1109176-5 HEX BOLT M5-.8 X 10 201 PSB1109201 DC MOTOR CONTROL COVER

176 -6 PSB1109176-6 FLANGE B OLT M6-1 X 12 202 PSB1109202 PHLP HD SCR M5-.8 X 20

176 -7 PSB1109176-7 CIRCUIT BREA KER S WITCH 10A ZE-800 220 PSB1109220 PLATE

176 -8 PSB1109176-8 POTENTIOMETER 50K W/86" CORD 221 PSB1109221 SET S CREW M5-.8 X 20

176 -9 PSB1109176-9 CONTROL PANEL FACE PLATE 226 PSB1109226 SWITCH PANEL

176-10 PSB1109176-10 PHLP HD SCR M5-.8 X 8 227 PSB1109227 PHLP HD SCR 3/16-24 X 3/8

176-11 PSB1109176-11 SET SCREW M4-.7 X 6 228 PSB1109228 PHLP HD SCR M5-.8 X 10

176-12 PSB1109176-12 FEED SPEED ADJUSTMEN T KNOB 233 PSB1109233 SPACER 7 X 11.9 X 13.5

176-13 PSB1109176-13 POWER INDICATOR LIGHT 25MM 250V 1.2W 234 PSB1109234 CAP SCREW M5-.8 X 25

176-14 PSB1109176-14 E-STOP B UTTON RENY 250V, 22M M 235 PSB1109235 DRO S EN SOR COVER

176-15 PSB1109176-15 START S WITCH 250V, 22MM 236 PSB1109236 PHLP HD SCR M6-1 X 70

176-16 PSB1109176-16 DC MOTOR CON TROL CORD 1 8G 1W 8" 239 PSB1109239 CAB LE TIE 4"

176-17 PSB1109176-17 STOP BUTTON CORD 18G 1W 6 " 242 PSB1109242 DRO SEN SOR STRIP

176-18 PSB1109176-18 CIRCUIT BREAKER CORD 18G 2W 71" 245 PSB1109245 KEY 5 X 5 X 30 RE

177 PSB1109177 CAB IN ET STAN D 246 PSB1109246 MOTOR PULLEY

178 PSB1109178 FOOT M1 2-1.75 247 PSB1109247 FENDER WASHER 8MM

179 PSB1109179 SET SCREW M8-1.25 X 40 248 PSB1109248 HEX BOLT M8-1.25 X 20

180 PSB1109180 M OTOR A CCES S COVER 251 PSB1109251 POWER CORD 12G 3W 1 45" L6-30P

181 PSB1109181 FLA T HD SCR M6-1 X 20 252 PSB1109252 DC M OTOR C ON TROLLER

182 PSB1109182 MOTOR MOUN T PLATE 253 PSB1109253 TRAN SFORMER SP-CL-20660 220V

183 PSB1109183 HEX BOLT M8-1.25 X 40 254 PSB1109254 WIRE NUT P3

184 PSB1109184 H EX N UT M8-1 .25

-71-

Page 77

South Bend Tools

Model SB1108/ SB1109

REFER TO OWNER’S MANUAL FOR OIL TYPE AND

AMOUNT.

CHECK OIL

LEVEL BEFORE USING!

WARNING!

INJURY HAZARD Keep cover closed while machine is operating. Disconnect power before removing or servicing.

Add SAE 30 oil every 24 hours of operation.

NOTICE

SB1109

WARNING!

INJURY HAZARD Keep cover closed while machine is operating. Disconnect power before removing or servicing.

NOTICE

For shipping purposes, some inventory components are packed inside cabinet. Remove cabinet panels to access these components.

South Bend Tools

POWER

STOP

START

FEED SPEED

– +

28 FPM

10 FPM

Made in Taiwan to South Bend Specications

WARNING!

MODEL SB1109

20" Planer w/Helical Cutterhead

MFG DateSerial No

Main Motor: 5 HP, 220V, 1-Ph, 60 Hz Full-Load Current Rating: 23A Cutterhead: 4 Spirals, 92 Inserts Replacement Inserts: H9893 Cutterhead Speed: 5000 RPM Feed Rates: 10–28 FPM Max. Depth of Cut: 1/8" Min. Stock Thickness: 1/4" Min. Stock Length: 7" Max. Cutting Width: 20" Max. Cutting Height: 8" Weight: 719 lbs.

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses, hearing protection, and respirator.

3. Disconnect power before changing blades, removing parts, or doing maintenance, service, or adjustments.

4. Only plug power cord into a grounded outlet.

5. Do not wear loose clothing, gloves, jewelry, or other items that

can get entangled. Tie back long hair and roll up sleeves.

6. Ensure machine is correctly set up before starting.

7. Do not plane two boards of varying thickness at the same time.

8. Never plane material smaller than 7" long, 3/4” wide, or 1/4" thick.

9. Do not allow hands or clothing to get pulled into cutting area while feeding workpiece.

10. Stand clear of board ends during cutting operation.

11. Do not plane boards with cracks, loose knots, or other defects.

12. Inserts are sharp! Use extreme caution when changing/adjusting.

13. Never reach into cutting area while machine is running.

14. Keep ngers clear of pinch point between stock and table.

15. Do not operate when tired or under inuence of drugs or alcohol.

16. Do not expose to rain or use in wet locations.

17. Prevent unauthorized use by children or untrained users;

restrict access or disable machine when unattended.

SINCE

1906

INJURY HAZARD Do not use machine if you have not read the manual. Visit southbendtools.com or call 360-734-1540 to get a manual.

WARNING!

INJURY/SHOCK

HAZARD To avoid shock or accidental starting, disconnect power before adjusting or servicing machine.

WARNING!

INJURY HAZARD To reduce risk of short- and long-term injury, wear eye, ear, and lung protection when using this

301

304

302

305

301

304

306

309

311

312

300

310

308

307

303

PARTS

SB1109 Labels & Cosmetics

For Machines Mfd. Since 12/20

REF PAR T # DE SCR IPTION REF PAR T # DE SCR IPTION

300 PSB1109300 MODEL NUMBER LAB EL 30 7 PSB1109307 TOUCH -UP PAINT, SB GRAY

301 PSB1109301 DOOR CLOSED LA B EL 2 .5 X 1 .5 30 8 PSB1109308 TOUCH-UP PAINT, SB LIGHT B LUE

302 PSB1109302 STOP OIL FILL TAG 309 PSB1109309 MACHINE ID LABEL

303 PSB1109303 TOUCH-UP PA IN T, S B DARK B LUE 310 PSB1109310 SOUTH BEN D NAMEPLATE 6"

304 PSB1109304 ELECTRICITY LABEL 0.7 311 PSB1109311 CONTROL PANEL LA BEL

305 PSB1109305 ADD OIL N OTI CE 312 PSB1109312 INVENTORY SHIPPING NOTICE

306 PSB1109306 COMBO WARNIN G LA B EL

-72-

Page 78

WARRANTY

This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs. In no event shall we be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our products.

We do not warrant or represent that this machine complies with the provisions of any law, act, code, regulation, or standard of any domestic or foreign government, industry, or authority. In no event shall South Bend’s liability under this warranty exceed the original purchase price paid for this machine. Any legal actions brought against South Bend Tools shall be tried in the State of Washington, County of Whatcom.

This is the sole written warranty for this machine. Any and all warranties that may be implied by law, including any merchantability or fitness, for any purpose, are hereby limited to the duration of this warranty.

Thank you for your business and continued support.

To take advantage of this warranty, register at can scan the QR code below to be automatically directed to our warranty registration page. Enter all applicable information for the product.

Warranty

https://www.grizzly.com/forms/warranty, or you

WARRANT Y

southbendtools.com

Page 79

southbendtools.com

Printed In Taiwan #JPCS21259
