Source Technologies STM.117B User Manual
MODEL : STm.117b
MOBILE PRINTER
Rev. 1.0
All specifications are subject to change without notice
Table of Contents
1.
Unpacking
2. Product overview
3. Usage and Installation 5
3-1. Control panel usage
3-2. Battery Installation
3-3. Battery charging
3-4. Battery charger usage
3-5. Usage of Cigar Jack for charging
3-6. Roll paper installation

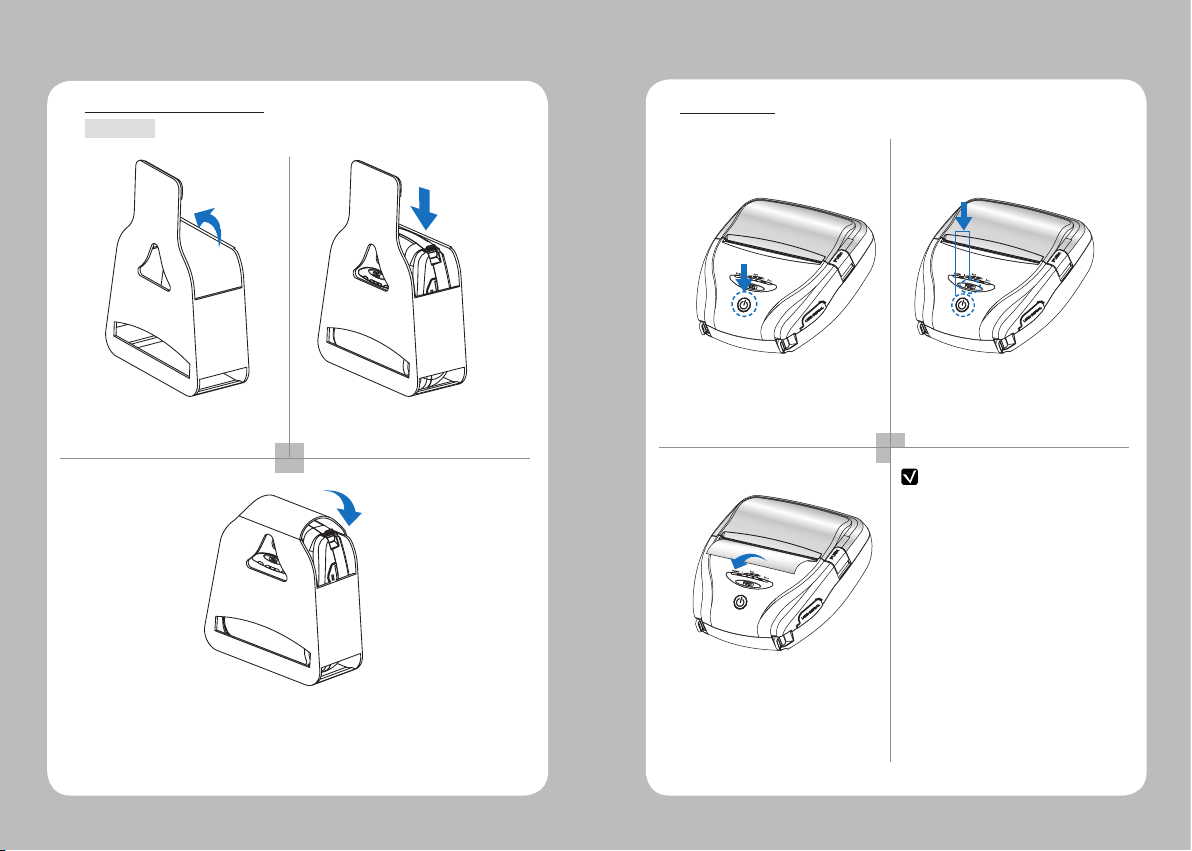

3-7. Leather case usage
3-8. Self test
4.
Peripherals connection 13
4-1. Bluetooth connectiontion
4-2. Interface cable connection
5.
Printer cleaning 15
6.
Printer specification 16
6-1. Specification
3
4
5
6
7
8
9
10
11
12
13
14
16
7.
CPCL Command Compatibility 18
8.
Certification 21
9.
Setting up the software 23
1
1. Unpacking
Standard
Printer Battery
Roll paper
2. Product overview
Front
Paper feed
button
Power
switch
Open Button
USB
Optional
Battery Holder (Cradle)
2
Charger
CD Quick Manual
USB Cable Shielded
Cigar Jack Charger
Leather case
Serial Cable
Shoulder strip
Rear
Battery
DC Power
SERIAL
3
3. Usage and Installation
3-1 Control panel usage
Button Name
Power
button
Paper
Feed
Button
Battery
Status
Lamp
This button is used to turn the printer on and off.
When the printer is off, press this button for approximately 3
seconds and it will turn on the power. When you press this button
in a state that the printer is on, the printer will turn off.
Paper output can be done manually by pressing this button.
Additionally, self-testing and Hexadecimal Dumping can be
processed..
1. Refer to “3-10” for self test information.
2. Refer to the service manual regarding Hexadecimal Dumping.
1. If the Batt, LED are Lit, the battery is fully charged.
2. If you can hear beeping sound and LED light is turned off, it
means that the battery is at the lowest level.
3. If the battery is not charged at all, the printer turns off
automatically.
function
3-2 Battery Installation
Hook
1. Align battery hook as shown in the picture
2. Push the battery into the printer until it locks in place.
NOTE
As the battery is not charged at the time of your purchase, charge the
battery prior to using the printer
(Battery charger or Cradle can be used to charge)
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions
Error
Lamp
4
If the red light is turned on, it means there is no paper roll or the
paper cover is open.
