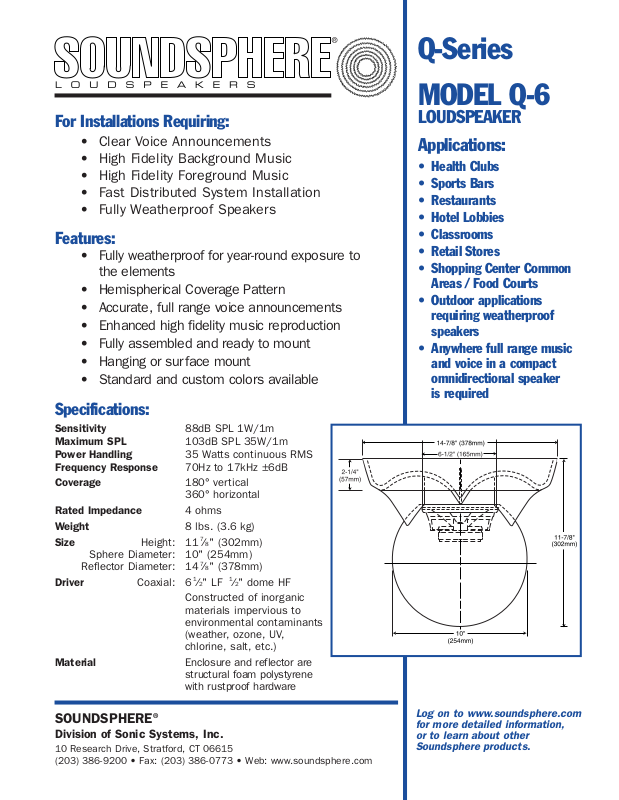

Soundsphere Q-6 Quick Start Guide

Specifications:

Sensitivity 88dB SPL 1W/1m
Maximum SPL 103dB SPL 35W/1m
Power Handling 35 Watts continuous RMS

Frequency Response 70Hz to 17kHz ±6dB
Coverage 180° ver tical

360° horizontal

Rated Impedance 4 ohms
Weight 8 lbs. (3.6 kg)
Size Height: 11

7

⁄8" (302mm)

Sphere Diameter: 10" (254mm)

Reflector Diameter: 14

7

⁄8" (378mm)

Driver Coaxial: 6

1

⁄2" LF 1⁄2" dome HF

Constructed of inorganic
materials impervious to
environmental contaminants
(weather, ozone, UV,
chlorine, salt, etc.)

Material Enclosure and reflector are

structural foam polystyrene
with rustproof hardware

Q-Series

MODEL Q-6

LOUDSPEAKER

Applications:

• Health Clubs

• Sports Bars

• Restaurants

• Hotel Lobbies

• Classrooms

• Retail Stores

• Shopping Center Common
Areas / Food Courts

• Outdoor applications
requiring weatherproof
speakers

• Anywhere full range music
and voice in a compact
omnidirectional speaker
is required

Features:

• Fully weatherproof for year-round exposure to
the elements

• Hemispherical Coverage Pattern

• Accurate, full range voice announcements

• Enhanced high fidelity music reproduction

• Fully assembled and ready to mount

• Hanging or surface mount

• Standard and custom colors available

SOUNDSPHERE

®

Division of Sonic Systems, Inc.

10 Research Drive, Stratford, CT 06615
[phone] • Fax: [phone] • Web: www.soundsphere.com

Log on to www.soundsphere.com
for more detailed information,
or to learn about other
Soundsphere products.

For Installations Requiring:

• Clear Voice Announcements

• High Fidelity Background Music

• High Fidelity Foreground Music

• Fast Distributed System Installation

• Fully Weatherproof Speakers

MODEL Q-6 LOUDSPEAKER

Hemispherical Frequency Response 1W/1mVertical Polar Response

Architects and Engineers Specifications

The loudspeaker shall be a self contained, wide range device with a wide coverage pattern. The frequency response shall be 70Hz to

17kHz ±6dB; the vertical polar coverage shall be 180˚ within ±4dB.

The loudspeaker shall have a minimum sensitivity of 88dB SPL 1 Watt/1 meter, a continuous power handling capability of 35 Watts RMS,

and a rated impedance of 4 ohms.

The loudspeaker driver shall be one 6

1

⁄2 inch woofer with a 1⁄2 inch dome tweeter mounted coaxially. The driver shall be mounted in a
spherical enclosure made of structural foam polystyrene. Assembly hardware shall be rustproof. Optional mounting kits are available; a bracket
to mount flat against a ceiling surface, or a three element hanging kit for single point suspension.

The enclosure and reflector color shall be ordered in advance, other wise white shall be supplied. The loudspeaker shall be comprised of a

14

7

⁄8 inch (378mm) diameter reflector mounted to a 10 inch (254mm) diameter sphere. The complete loudspeaker shall be 117⁄8 (302mm)

inches in overall height and weigh 8 lbs. (3.6kg). The loudspeaker shall be the Soundsphere Model Q-6.

Warranty

Soundsphere®loudspeakers are warranted against failure or malfunction
due to defects in materials or workmanship for a period of five years
from date of original purchase. Defective units will be repaired or
replaced at our option if delivered prepaid to our factor y. Repaired or
replaced units will be returned at our expense. Warranty does not cover
appearance or damage caused by abuse, misuse, neglect, accident, or
exceeding maximum rated power. Warranty does not cover labor costs
involved in removing and/or reinstalling the defective unit, nor any liabil­ity due to accidents caused by improper installation. Warranty is extend­ed to original purchaser and is not transferable.

Q-Series

dB SPL

Accessories

Line Matching Transformer — Order No. TX30

The Model TX30 is a 30 Watt line matching transformer for the Model Q-6 with taps for 25, 50, 70, and 100 Volt
constant voltage systems. The TX30 is designed for factory or field mounting in the Q-6 reflector. Connection to
system wiring is via 10" color coded flying leads. Available taps: 25 Volt: 30, 15, 7.5, 3.8, 1.9, 1.0, 0.5 Watts;
50 Volt: 30, 15, 7.5, 3.8, 1.9 Watts; 70 Volt: 30, 15, 7.5, 3.8 Watts; 100 Volt: 30, 15, 7.5 Watts.

Hanging Kit — Order No. HK Mounting Bracket — Order No. MBS

for mounting speaker on a flat surface

Beam Clip —
Order No. BC

Locates a 1/4”

hole on a 1/8”
to 1/4” beam flange
using just a hammer.

Drop Ceiling
Bracket —
Order No.
DCB

Two twist clips and MBS
are supplied. Clips twist
onto t-bar stringers, and
mounting bracket attaches
with wing nuts.

10 Research Drive, Stratford, CT 06615 • [phone] • Fax: [phone] • Web: www.soundsphere.com

© 2006 Sonic Systems, Inc. 1-06
