NA1610
AV Media Receiver
User Manual
Enjoy the Lifestyle of In-Car Entertainment
FCC ID :2AB7S-NA1610
FCC Compliance Statement:
This device complies with Part 15 of the FCC rules. Operation is
subjected to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications or change to this equipment.
Such modifications or change could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure
requirement.
To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
CONTENTS
Contents
Thank you for purchasing Nakamichi products.
Please read all instructions carefully before operation, to ensure your complete
understanding and to obtain the best possible performance from the unit.
IN TRODUCTIO NS
Overvi ew the un it
Ge t Start ed
Ba sic ope rati ons ... ..... ..... .... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... ...
AV MEDIA
Li steni ng to th e radi o.... ..... .... ..... ..... ..... ..... ..... ..... ..... ..... ..... .... ..... ..... .
Pl ayin g of Musi c.... ..... ..... ..... ..... ......... ..... ..... ..... ..... ..... ..... ..... ..... .......
US B Smart P hone 1A C harg e.... ..... ..... ..... ..... ..... ..... .... ..... ..... ..... ..... ..... .
En joyi ng the mo vie.. ..... ......... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... .
Vi ewing t he photo... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... ..... ..... .....
AUDIO ADJUS TMENT
Sp eake r/Sub woofe r .
Eq ualizer.. ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... ..... ..... ..... ..... ..... ...
.. ..... ......... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... ...
.. ..... ......... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... ..... .....
.. ..... ......... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ....
2
3
4
5
6
7
8
9
10
11
BL UETOOTH
Using bluetooth...................................................................................................
EX TERNAL BOX
Mirror Phone/Analog TV/DVBT Box.......................................................................
NAVIGATIO N
Naviga tion Se tting s.... .... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... ..... ...
RE FERENCE
Sp ecifi catio ns... ..... .... ..... ..... ..... ..... ..... ..... ..... ..... ......... ..... ..... ..... ..... .
1
12
13
14
15
INTRODUCTIONS
Overview the unit
Eject
Increase
Volume
Decrease
Volume
Reset
Reset
USB
Socket
Aux In
Socket
Mute
Dimmer
List browser
Up/Down
Home
Confirm
Tune for radio station
Fast backward/forward playback
Skip/search for track
Radio band
play/Pause
DVD playback control
Mic
Hold:
Press:
Hold:
Press:
GPS Map
Card
Socket
Power
Ad jus t the f unction
Volume level
Return/Exit
Setting menu
EQ m ode
iX-BASS (booster function)
Dynamic bass boost sound
Power
Mute
Navigation
Home
2
INTRODUCTIONS
Get started
Please select the suitable Language & country/region for this unit,
otherwirse the unit can not work properly.
1. Press this button to power On the unit, The available OSD are displayed.
2. Tap to select suitable a language
4. Tap OK button to confirm
Init ial Se tt ings
Radio Ar ea Latin
3. Tap to select suitable a country
/region
Init ial Se tt ings
Radio Ar ea Latin
Euro pe
USA
Russi a
OK
Euro pe
USA
Russi a
OK
3
INTRODUCTIONS
BA S SBA S S
EQ
GPS
Basic operations
Access to HOME
Tap to MUTE
Access to Setup Menu
Adjust the dimmer level Audio Control
Access to system settings
Access to CLOCK
FEB
2013
02 34
Access to General settings
23
PM
PM
4
AV MEDIA

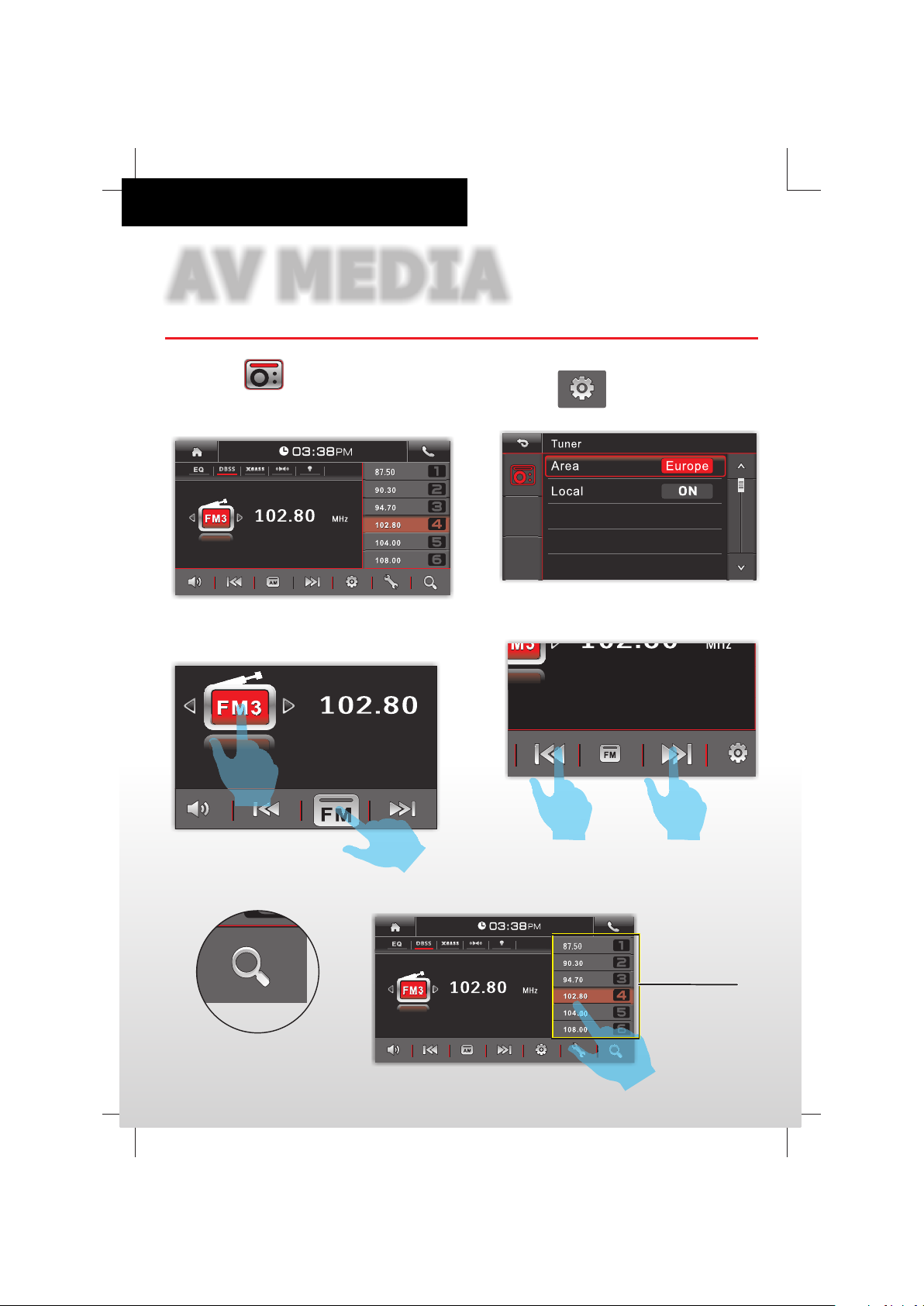

Listening to the radio
Tap on button on the TFT
screen access into the tuner
function.
Tap BAND to change to FM or AM
Tap on button into the
Tuner Function menu.
Press to AUTO SEEK
Press and hold t o MANUAL SEE K
Tap to Auto Store
or
Press and hold to Store stations
Preset List
5
Tap UP/DOWN
Tap PLAY/PAUSE
Adjust the different REPEAT mode
AV MEDIA
Playing of Music
Quick Browser
6
AV MEDIA
USB Smart Phone 1A Charge
This unit can support USB Samrt Phone 1A Charge.
Open the USB Socket cover to left.
Insert the iPhone or Smart Phone device into the USB socket.
Once is recognized, the iPhone or Smart Phone begins to charge.
TIPS
Andriod
USB Cable (Not included)
USB Cable (Not included)
iPhone
1. The device only can charge Phones, but cannot play or
decode music files stores inside the Smart Phones.
2. Connect the desire playback device USB to the USB
socket, access to the HOME, then tap the to start
playback mode.
9
7
AV MEDIA
Enjoying the movie
DVD
00: 01:10 / 0 0:04: 32
1/2
Ho me menu
Ch ange functi on bar
Previo us, Pa use / Ne xt Pl ay,
Media function menu.
access to system menu
Top Men u or Brow ser
Se lect th e audio type. ( For D VD-V R: th e audio chann el)Se lect
T:2/5 C :1/ 20
Pause
GOTOGOTO
Repeat playb ack mod e
Access into the search mode (DVD only).
Up /Down /Left /Righ t
Zoom th e video & p hoto
Se lect as pect ratio
8
AV MEDIA
Viewing the photo
1/2
Ch ange functi on bar
1/20
2/2
1/20
Top Men u or Brow ser
Move lef t the zo oming f rame
Move up th e zoom ing frame
Move dow n the zo oming f rame
Move rig ht the zoomin g fram e
Zoom th e photo
9
AUDIO ADJUSTMENT

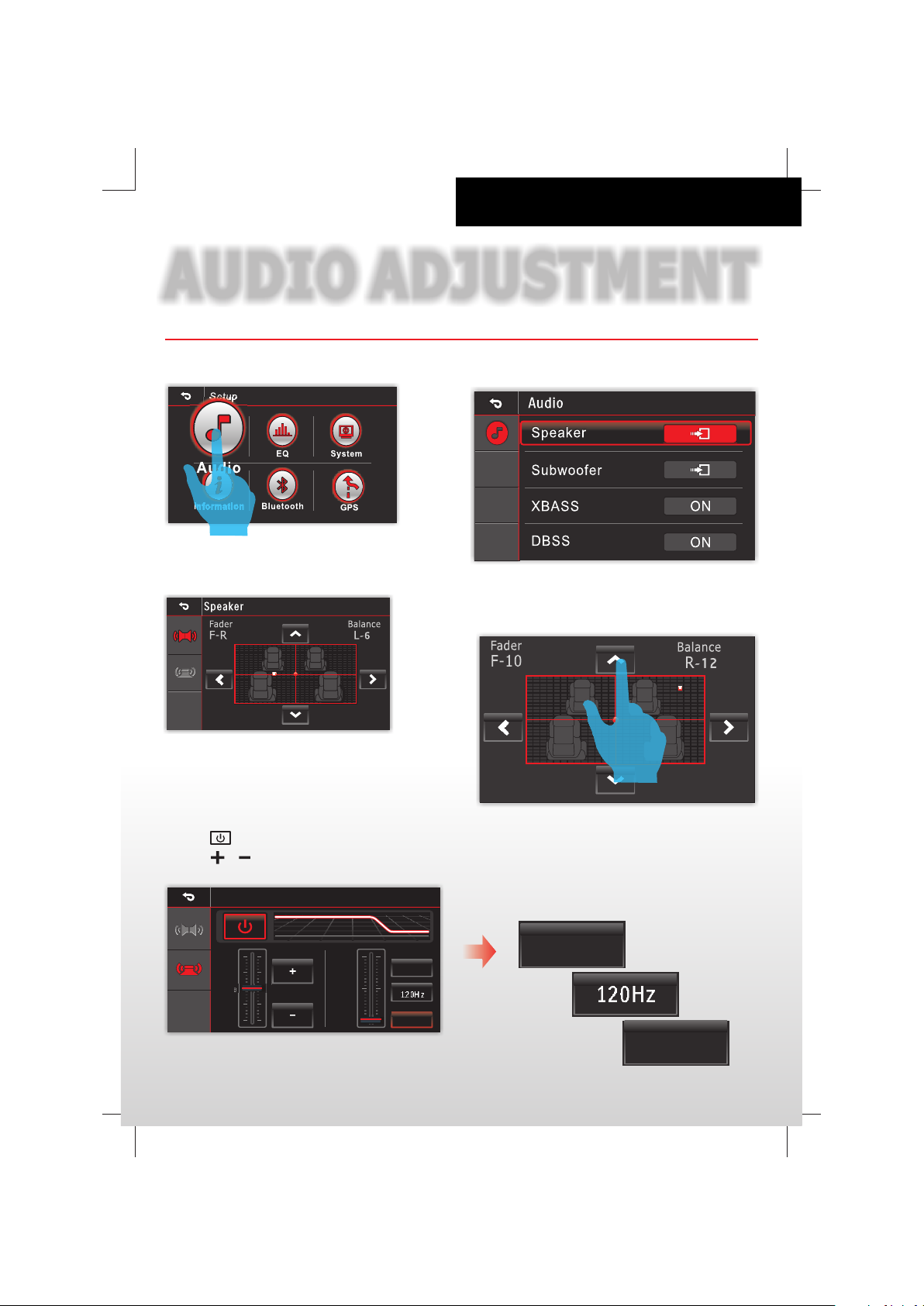

Speaker/Subwoofer
Access to System Menu
Speaker settings
SUB-WOOFER settings
Touch to turn On / Off the subwoofer
Tap on / buttons to adjust value of
subwoofer level.
Subwoof er
Access to Audio Menu
Adjust Fader/Balance Value From
-12 to +12
Low Pass Filter Transfer
Function
12dB
Lev el
6dB
0dB
6dB
160H z
120H z
80Hz
LPF
160 Hz
120 Hz
80H z
160Hz
120Hz
80Hz
10
AUDIO ADJUSTMENT
Reset
BASS
+12d B
MIDD LE
-2dB
TREB LE
+8dB
Pop

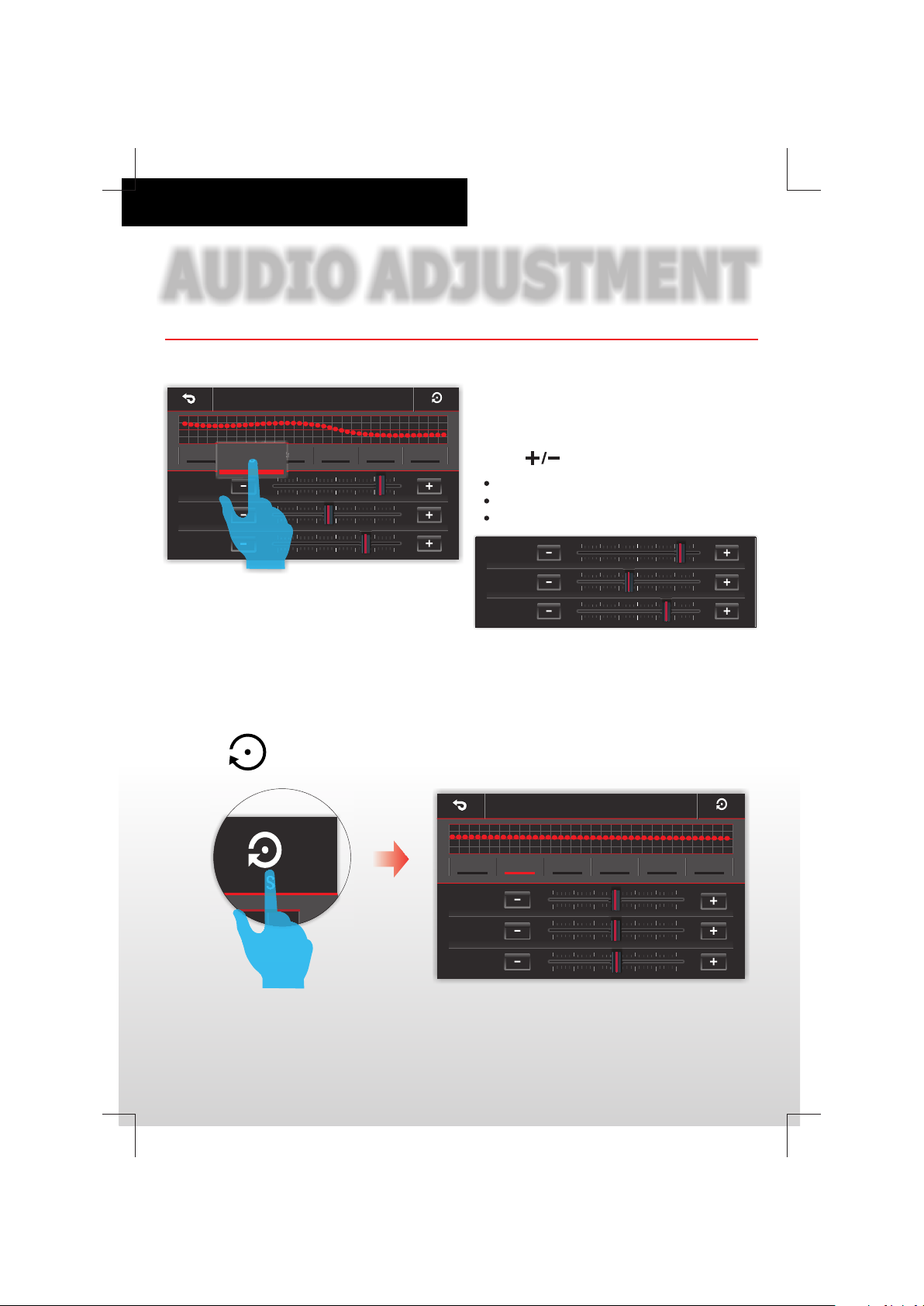

Equalizer
6 Preset EQUALIZER
EQ
User Pop Rock Clas sic Jazz Vol cal
BASS
+12d B
MIDD LE
-2dB
TREB LE
+8dB
Resume to factory default value
Rese t
Tap on button to adjust the level:
[BASS]: bass level range -15dB to +15dB.
[MIDDLE]: middle level range -15dB to +15dB.
[TREBLE]: treble level range -15dB to +15dB.
EQ
Rese t
User Pop Rock Class ic Ja zz Volcal
BASS
0dB
MIDDLE
0dB
TREBL E
0dB
11
BLUETOOTH
Calling...
08601018 72903
Ho w to pair & conne ct device ?
0 0 0 0
NAKA MIC HI
Using bluetooth
Making A Call
Call Transfer
Pairing code "0000"
Connecting
Calling ...
0860101872 903
Call Tra nsfe r
to Ce ll phone !
12
External Box
EXT
BOX

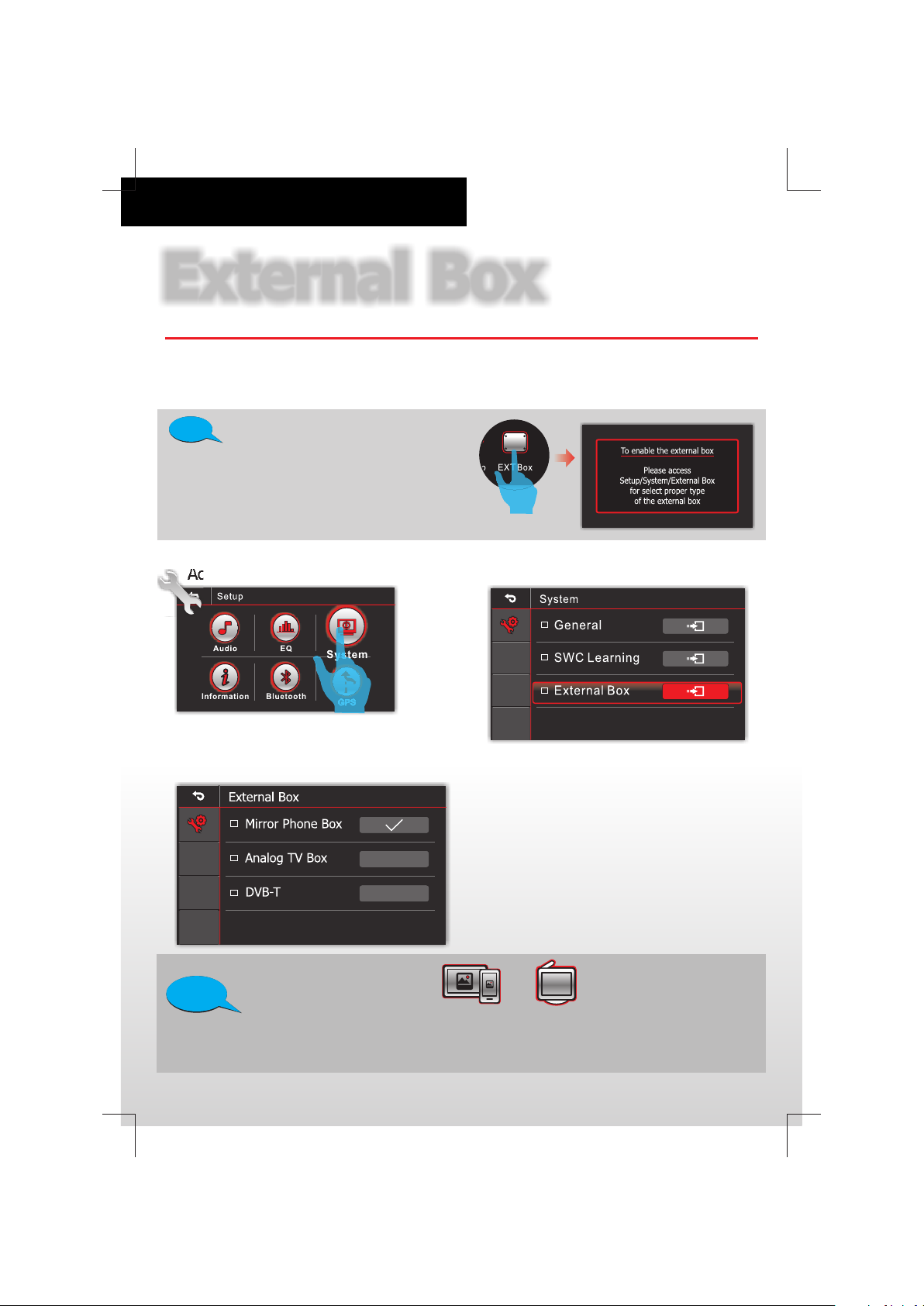

Mirror Phone/Analog TV/DVBT Box
This unit can support connecting the External box: Mirror Phone Box /
Analog TV Box / DVBT Box.
TIPS
Access to Setup Menu Access to System Menu
To select proper type mode
Before operating the External
Box function, please go to
Setup Menu to select proper
type of the external box.
TIPS
EXT
1. Access to HOME, tap or to active the Mirror
Phone Box / Analog TV / DVBT function.
2. For the detailed operation of each mode, please refer the User
Guide.
BO X
13
TVTVTVTVTVTV
13
NAVIGATION
GPS
Navigation Settings
Access to Setup Menu
Navigation Voice Setting
GPS GPS
Access to GPS Setting
Turn Off the Navigation Voice
TIPS
1. If the GPS Navigation mode is
off, tap , the right OSD
will display.
2.
For the detailed operation, please refer
the “Navigation User Manual”
14
REFERENCE
Specifications
TF T M onito r secti on
Sc ree n Siz e
Di spl ay Re sol uti on : 800 x480 d ots
Co ntrast Rati o
:6 .2 in che s
:500
Di sc player sec tion
Di sc Sy ste m
Di sc Di ameter
Frequ enc y Res pons e
Si gna l/Noise R ati o :> 75 dB
Di sto rtio n
Ch ann el Sep aratio n :> 55 dB
Vi deo S ignal Fo rma t
Vi deo O utp ut
De cod ing Form at
:DVD/ CD/ VCD
:12cm
:20Hz - 2 0kH z
:L ess t han 0.3%Total H arm oni c
:N TSC /PAL
:1 +/- 0.2V p-p
:
MP 3/a vi/ WMA/ MPG 1/
MP EG2
Radio se ction
Frequ enc y FM ra nge
Frequ enc y AM(M W) range
Us abl e sens iti vity : 2 uV ( )FM
: 87.5 - 107.9 MHz
: 53 0-1 710 KHz
: 80 u V (AM )(M W)
Audio se ction
Ma xim um Po wer
Co nt inu ous Pow er O utp ut
(R MS )
Preou t Lev el V( ) : 2 V/ 10kΩ
Preou t Imp edan ce
Sp eak er Im pedance
Ex ter nal Audio I npu t Lev el
(R CA)
(3 .5m m Jack)
: 50Wx 4
: 22 Wx4
: 60 0Ω
: 4- 8 Ω
: 1 V/ 10KΩ
:
60 0mv /10 KΩEx ter nal Audio I npu t Lev el
(< 1%T HD)
Bl uetoo th sect ion
Co mmu nicatio n
Syste m
Ou tpu t
Ma xim um
Co mmu nicatio n Ran ge
Frequ enc y B and : 2.4 GHz
Co mpa tible
Porf iles
Su ppo rted Code cs
Bl uet ooth
: Bl uet ooth S tan dard
versi on 3. 0
: Bl uet ooth S tan dard
Powe r Clas s 2
: Ap prox. 5m ete rs
: HFP/HSP/A2DP/AVRCP
: SBC (Sub Band Codec)
US B inter face s ectio n
US B Sta ndard :U SB 2. 0 Ful l S pee d
Fi le Sy ste m :FAT 1 6/32
Ma xim um
D/ A Con ver ter
De cod ing Form at :
Cu rre nt
:D C 5V 1A
:2 4Bi t
MP 3/a vi/ WMA/ MPG 1/
MP EG2
Vi deo sec tion
Co lor S yst em of
Ex ter nal Video I npu t
Ex ter nal Video I npu t
(R CA/ 3.5m Jack )
: NTSC/ PA L/SC EAM
: 1 Vp -p /7 5Ω
Naviga tion Se ction
Rece ptio n sys tem
Rece ptio n fre que ncy
Se nsi tivi ty :- 130 dBm
Posi tion u pda te
frequ enc y
:20 channel multi-channel
reception system
:1 575 .42MHz
Ap pro x.o nce p er
:
se con d
Ge nera l
Op eratin g Volta ge : 14 .4V (10.5-1 6 V)
Di men sion (Wx HxD)
Op eratio nal Temp era tur e
Range
Weig ht : 1. 9 kg
15
: 17 8x1 02x172m m
: -1 0°C-+ 60°C
Design and specifications are subject to change
without notice
C
2015 Nakamichi
www.nakamichicaraudio.com
