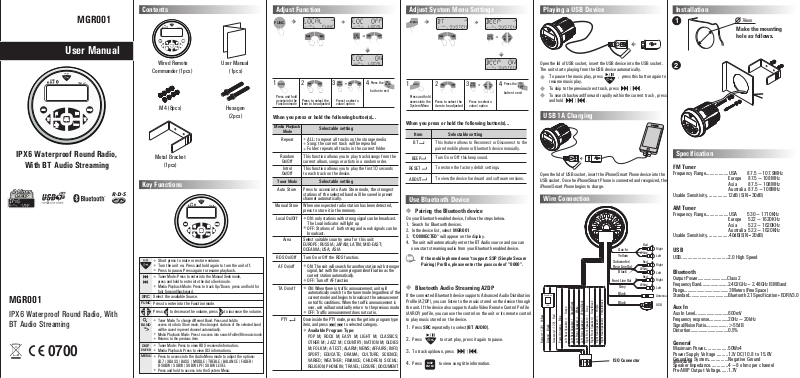

SOUNDMAX ELECTRONICS MGR001 User Manual
MGR001
User Manual
Contents
USB
SRC
VOL
Adjust Function
50w
x4
FUNC
VOL
DISP
ENTER
MENU
BAND
FUNC
DISP
ENTER
Adjust System Menu Settings
MENU
DISP
ENTER
VOL
VOL
Playing a USB Device
Installation
1
76mm
Make the mounting
hole as follows.
USB
SRC
VOL
BAND
50w
x4
FUNC
VOL
DISP
ENTER
MENU
IPX6 Waterproof Round Radio,
With BT Audio Streaming
MGR001
IPX6 Waterproof Round Radio, With
BT Audio Streaming
0700
Wired Remote
Commander (1pcs)
M4 (8pcs)
User Manual
(1pcs)
Hexagon
(2pcs)
Metal Bracket
(1pcs)
Key Functions
USB
50w
x4
SRC
VOL
BAND
Short press to mute or restore volume.
Turn the unit on. Press and hold again to turn the unit off.
Press to pause. Press again to resume playback.
Tuner Mode: Press to enter into the Manual Seek mode,
press and hold to enter into the Auto Seek mode.
Media Playback Mode: Press to track Up/Down, press and hold for
fast forward/backward.
SRC
Select the available Source.
FUNC
Press to enter into the Function mode.
VOL
VOL
VOL
Press to decrease the volume, press to increase the volume.
Tuner Mode: To change different Band.
BAND
access into Auto Store mode, the strongest stations of the selected band
will be saved in preset channel automatically.
Media Playback Mode: Press to .
Returns to the previous item.
DISP
Tuner Mode: Press to view RDS received information.
ENTER
Media Playback: Press to view ID3 informations.
MENU
Press to access into the Audio Menu mode to adjust the options:
EQ7 / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER /
R-SUBW / SUBW / SUBW LPF / SUBW LEVEL
Press and hold to access into the System Menu.
FUNC
VOL
DISP
ENTER
MENU
VOL
Press and hold to
access into search Folder/File music mode
1
FUNC
Press and hold
access into the
Function mode
2
Press to select the
item to be adjusted
DISP
3
ENTER
Press to select a
value / option
Press the
4
button to exit
When you press or hold the following button(s)...
Media Playback
Mode
Repeat
Random
On/Off
Introl
On/Off
Tuner Mode
Auto Store
Manual Stroe
Local On/Off
Area
RDS On/Off
AF On/off
TA On/off
PTY
Selectable setting
ALL:
to repeat all tracks on the storage media
Song:
the current track will be repeated
Folder: repeats all tracks in the current folder
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
This function allows you to play the first 10 seconds
to each track on the device.
Selectable setting
Press to access into Auto Store mode, the strongest
stations of the selected band will be saved in preset
channel automatically.
When one expected radio station has been detected,
press to store it in the memory.
ON:
only stations with strong signal can be broadcast.
The Local indicator will light up
OFF:
Stations of both strong and weak signals can be
broadcast.
Select suitable country area for this unit:
EUROPE; RUSSIA; JAPAN; LATIN; MID-EAST;
OCEANIA; USA; ASIA
Turn On or Off the RDS function.
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcemet
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
Once inside the PTY mode, press the get into program type
item, and press to selected category.
/
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
BAND
MENU
1
Press and hold
access into the
System Menu
2
Press to select the
item to be adjusted
DISP
3
ENTER
Press to select a
value / option
VOL
VOL
VOL
Press the
4
button to exit
BAND
When you press or hold the following button(s)...
Item
BT
BEEP
RESET
ABOUT
Selectable setting
This feature allows to Reconnect or Disconnect to the
paired mobile phone or Bluetooth device manually.
Turn On or Off this beep sound.
To restore the factory defult settings.
To view the device hardward and software versions.
Use Bluetooth Device
Pairing the Bluetooth device
On your Bluetooth-enabled device, follow the steps below.
1. Search for Bluetooth devices.
2. In the device list, select MGR001
3. “CONNECTED” will appear on the display.
4. The unit will automatically enter the BT Audio source and you can
now start streaming audio from your Bluetooth enabled device.
NOTE
If the mobile phone doesn't support SSP (Simple Secure
Pairing) Profile, please enter the pass code of ”0000”.
Bluetooth Audio Streaming A2DP
If the connected Bluetooth device supports Advanced Audio Distribution
Profile (A2DP), you can listen to the music stored on the device through
the unit. If the device also supports Audio Video Remote Control Profile
(AVRCP) profile, you can use the control on the unit or its remote control
to play music stored on the device.
1. Press SRC repeatedly to select [BT AUDIO].
2. Press to start play, press it again to pause.
3. To track up/down, press / .
4. Press to view song title information.
DISP
ENTER
Open the lid of USB socket, insert the USB device into the USB socket.
The unit starts playing from the USB device automatically.
To pause the music play, press , press this button again to
resume music play.
To skip to the previous/next track, press / .
To search backward/forward rapidly within the current track , press
and hold / .
USB 1A Charging
Open the lid of USB socket, insert the device into the
USB socket.
Once he iPhone/Smart Phone is connected and recognized, the
iPhone/Smart Phone begins to charge.
iPhone/Smart Phone
Wire Connection
Red
White
White
White
Right
Left
Red
Right
Left
Red
Right
Left
Antenna
USB
Fuse Box
15A
Accessory(+12V) Red
Ground Black
Battery(+12V) Yellow
Left Rear Speaker(+) Green
Power Anteena Blue
Left Rear Speaker(-) Green/Black
Left Front Speaker(+) White
Left Front Speaker(-) White/Black
Right Front Speaker(+) Gray
Right Front Speaker(-) Gray/Black
Right Rear Speaker(+) Purple
Right Rear Speaker(-) Purple/Black
Aux-In
Yellow
Subwoofer/
Rear Line Out
Black
Front Line Out
Grey
Black
Black
ISO Connector
2
Specification
FM Tuner
Frequency Range..................USA 87.5~107.9MHz
Usable Sensitivity................12dB (S/N=30dB)
AM Tuner
Frequency Range..................USA 530~1710KHz
Usable Sensitivity.................40dB(S/N=20dB)
USB
USB.....................................2.0 High Speed
Bluetooth
Output Power..........................Class 2
Frequency Band.......................2.402GHz~2.48GHz ISM Band
Range.......................................3 Meters (Free Space)
Standard..................................Bluetooth 2.1 Specification+EDR/V3.0
Aux In
Aux In Level.............................600mV
Frequency response.................20Hz~20kHz
Signal/Noise Ratio...................>55dB
Distortion.................................0.5%
General
Maximum Power..................50Wx4
Power Supply Voltage .........12V DC(10.8 to 15.6V
Grounding System................Negative Ground
allowable)
Speaker Impedance..............4~8 ohms per channel
Pre-AMP Output Voltage......1.7V
Europe 87.5~108MHz
Asia 87.5~108MHz
Australia 87.5~108MHz
Europe 522~1620KHz
Asia 522~1620KHz
Australia 522~1620KHz
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed
and operated with minimum distance between 20cm the radiator your body: Use only the supplied
antenna.
