Owner’s manual & Installation manual
USB/MP3/WMA DIGITAL MEDIA
RECEVIER
Contents
English
1. FEATURES......................................................................................................................2
2. PRECAUTIONS...............................................................................................................2
Owner’s Manual
3. CAUTIONS ON HANDLING............................................................................................2
4. CONTROLS.....................................................................................................................3
Names of Buttons and Their Functions...........................................................................3
5. OPERATIONS..................................................................................................................5
Basic Operation...............................................................................................................5
System Menu...................................................................................................................6
Audio Menu......................................................................................................................6
Radio Operation...............................................................................................................7

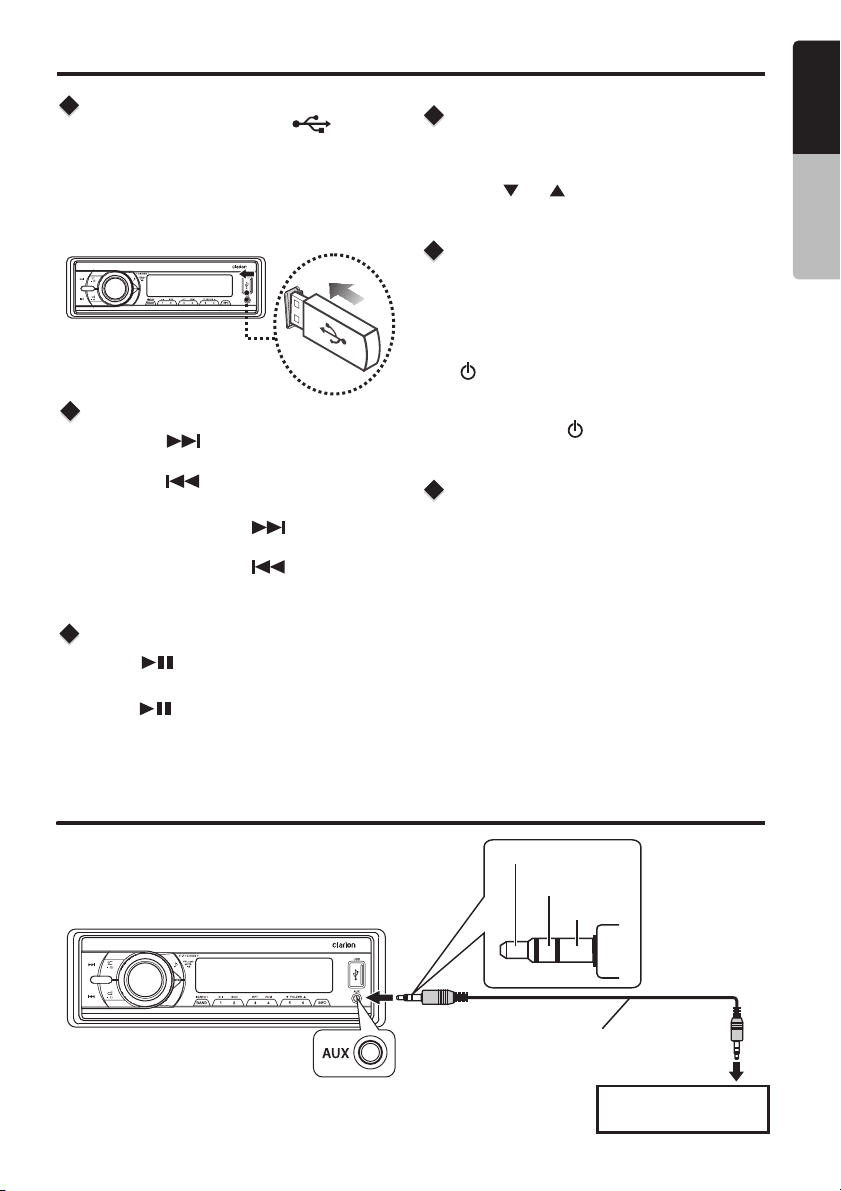

USB Mode Operation.......................................................................................................8
Aux Operation..................................................................................................................8

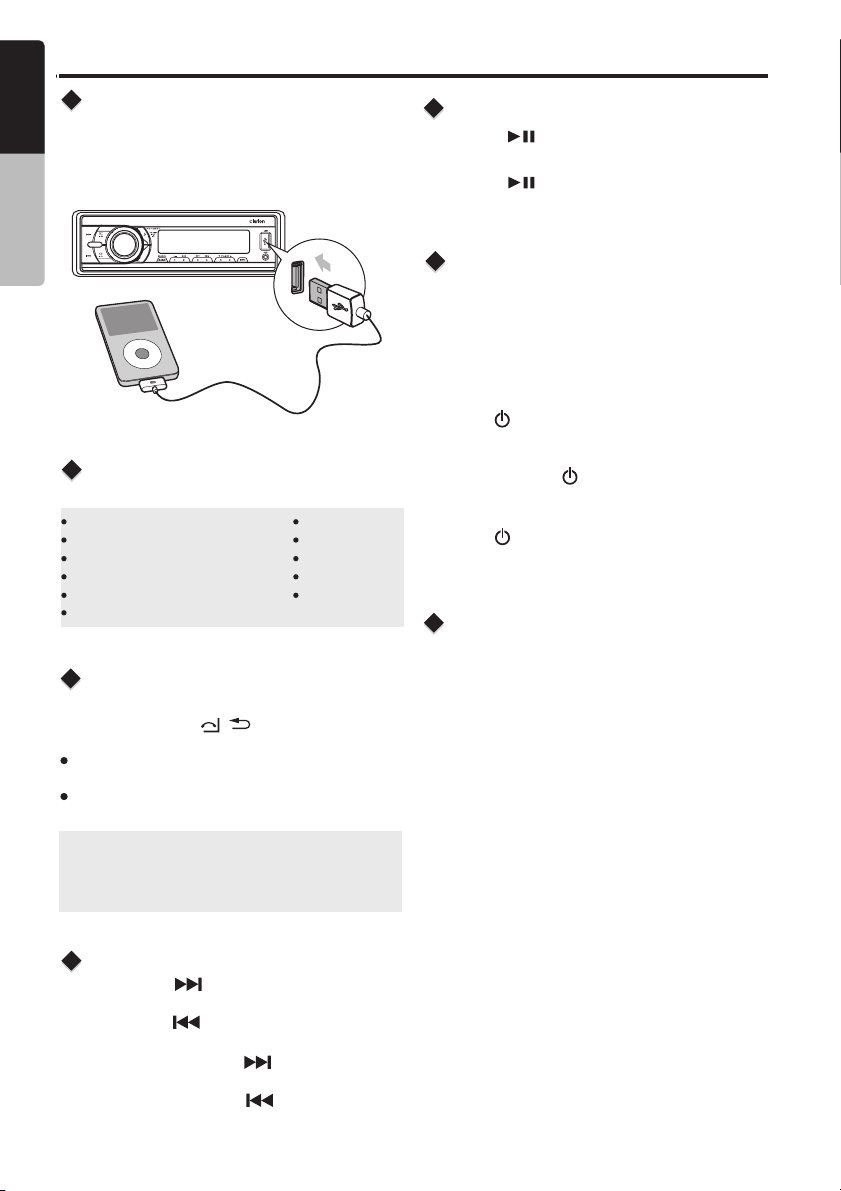

iPod/iPhone Mode Operation...........................................................................................9
Bluetooth Operation.......................................................................................................10
6. TROUBLESHOOTING....................................................................................................11
7. SPECIFICATIONS..........................................................................................................12

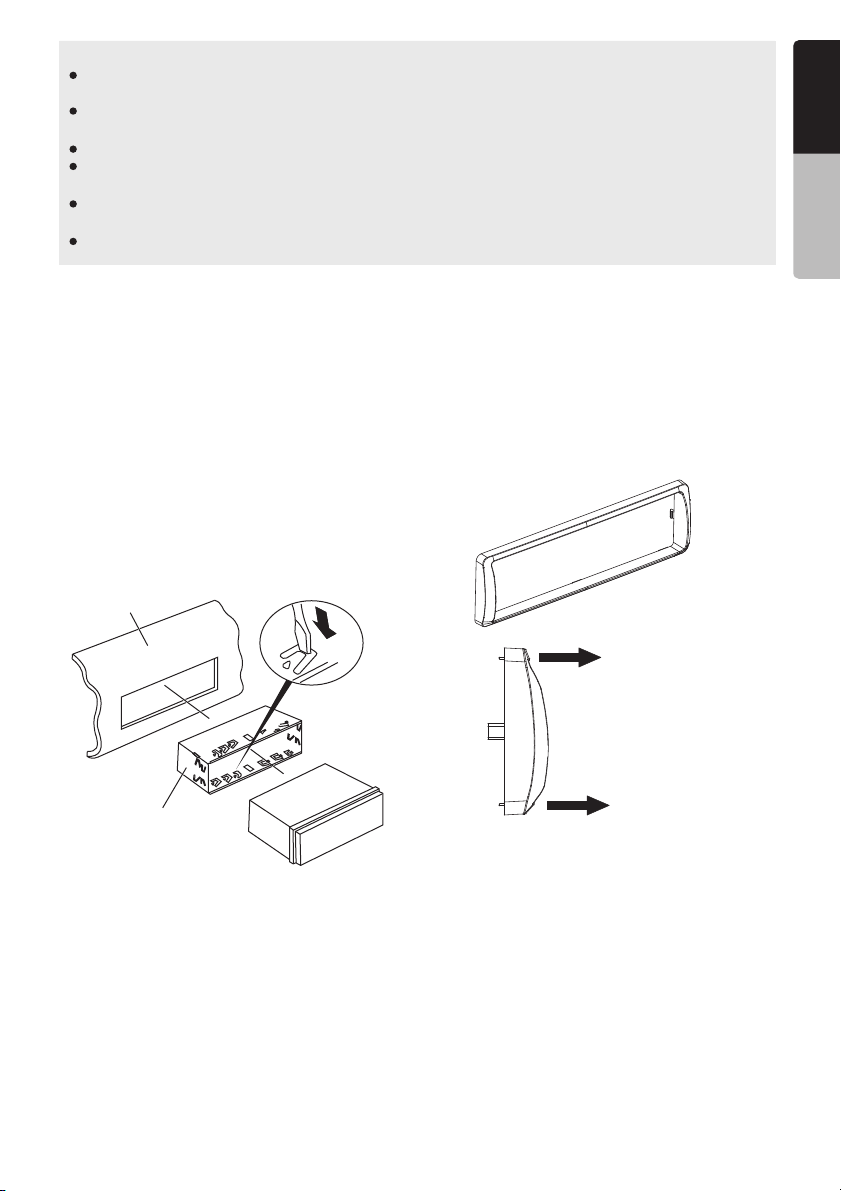

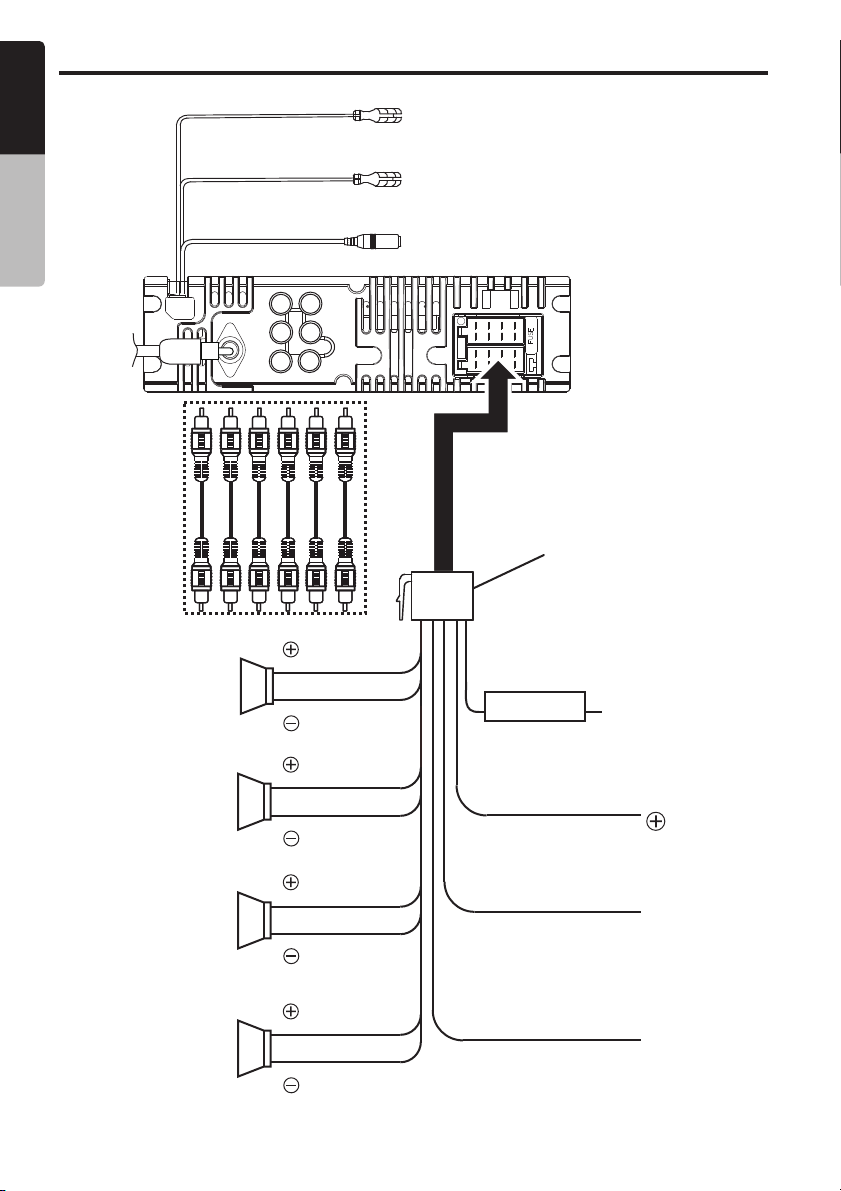

INSTALLATION AND WIRE CONNECTION......................................................................13
1
FZ105BT
1. FEATURES.
Front USB Port
MP3/WMA Compatible with ID3-TAG display
Front 3.5mm AUX Input
English
50W x 4 Built-in Amplifier
Bulit-in Bluetooth
Compatible with iPod / iPhone
®
®
® ®
Owner’s Manua
u
2. PRECAUTIONS.
TURES
WARNING
For your safety, while boating, keep the volume to a level at which external
sounds can be heard.
1. This unit
that trouble arises, never open the case, disassemble
the unit, or lubricate the parts.
2. FCC STATEMENT
2.1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2)
received, including interference that may cause
undesired operation.
2.2.
by the party responsible for compliance could void
the user's authority to operate the equipment.
Note:
This quipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interfe r e n c e in a re sidenti a l in s tallati o n .
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
has precision parts inside. Even in the event
This device must accept any interference
Changes or modifications not expressly approved
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
IC Caution.
- English:
This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including
interference that may cause undesired operation of
the device.
- French:
Le présentappareilestconforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitationestautorisée aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouilla-
geradioélectriquesubi, mêmesi le brouillageest
susceptible d'encompromettre le fonctionnement.
:
PIN
FZ105BT
WIRE COLOR
YELLOW
ORANGE/WHITE
RED
BLACK
VIOLET
VIOLET/BLACK
GREY
GREY/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
FUNCTION/LABEL
BATTERY(+)
DIMMER
IGNITION(ACC)
GROUND
RIGHT REAR SPEAKER (+)
RIGHT REAR SPEAKER (-)
RIGHT FRONT SPEAKER (+)
RIGHT FRONT SPEAKER (-)
LEFT FRONT SPEAKER (+)
LEFT FRONT SPEAKER (-)
LEFT REAR SPEAKER (+)
LEFT REAR SPEAKER (-)
CLARION
A4
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
Blue/ Wire:Blue Wire for Amplifier Turn -ON and should
White White/
provide 12+ output when the radio is ON and in any source.
This device complies with Part 15 of the FCC rules. Operation is subject to the
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CLARION CORPORATION OF AMERICA
6200 GATEWAY DRIVE, CYPRESS, CALIFORNIA 90630, USA
MANUFACTURED:
MANUFACTURER: SMX
SERIAL NO.
U.S.A:
AM 530-1710kHz,
FM 87.9-107.9MHz
Europe:
AM 531-1602kHz,
FM 87.5-108.0MHz
Aisa:
AM 531-1620kHz,
FM 87.5-108.0MHz
Australia:
AM531-1620kHz,
FM 87.5-108.0MHz
12V GROUND
2AB7S-FZ105BT
FCC ID:
IC: 11888A-FZ105BT
MADE IN CHINA
following two conditions:
3. CAUTIONS ON HANDLING
TURES
Protect from high temperature. Expose to direct sunlight for an extended period of time can produce very high
temperature in your vehicle. Cool down the interior before starting the playback.
FZ105BT
2
English
4. CONTROLS
Operational Panel
Owner’s Manual
[SOURCE] [MENU] USB Port
[ / ]
[ / MUTE]
SOURCE
[ / ] [ / ]
[VOLUME]
[ ]
AS/PS
[AS/PS]
[BAND/SEARCH]
[1~6] [INFO] AUX Input
Name of Buttons and their Functions
[SOURCE] Button [ / ] Button
Press SOURCE button to toggle the audio
source
[ / ] Button
Dial / Answer / Transfer call / Press and hold
to Redial
[ / MUTE] Button
Press this button to turn power On or Off.
Press this button to mute the audio output, press
it again to unmute the audio output.
Press to confirm the selection.
[ ] Button
Press to adjust the sound effect setting:
EQ -> XBS(iXBass) -> BAS(bass) -> MID
(Middle) -> TRE(treble) -> BAL(balance)
-> FAD(fader) -> SUBW(Subwoofer)
[MENU] Button
Press access into the system menu mode.
[ / ] Button
Use these buttons for tuning up and down in
Tuner mode, USB mode.
Press and hold momentarily to Fast Forward/
Backward in USB mode.
3
3
3
FZ105BT
Terminate call
Press this button to quick return to previous
menu or mode.
[VOLUME] Button
Rotate to adjust the volume level.
[AS/PS] Button
Scan play / Preset scan
Press and hold enter Auto memory store mode
[BAND/SEARCH] Button
Press to select tuner band in Tuner mode.
Press to activate the MP3 file searching mode,
then use the volume to select / search by file
number in USB mode.
[1~6] Buttons
[1] Button: Play / Pause / Preset station 1
[2] Button: Scan play / Preset station 2
[3] Button: Repeat play / Preset station 3
[4] Button: Random play / Preset station 4
[5] Button: Previous folder / Preset station 5
[6] Button: Next folder / Preset station 6
[INFO] Button
Press to view the Clock
Press to change the display indication.
Notes for use of Optional Remote Control
English
1. Aim the remote control at the remote sensor
on the unit.
2. Remove the battery from the remote control
or insert a battery insulator if the battery has
not been used for a month or longer.
3. DO NOT store the remote control under direct
sunlight or in high temperature environment,
or it may not function properly.
4. Use “button shaped” lithium battery “CR2025”
(3V) only.
5. DO NOT subject battery to recharge,
disassemble,heat or dispose in fire or water.
6. Insert the battery in proper direction according
to the (+) and (-) polarities.
7. Store the battery in a place where children can
not reach to avoid the risk of accident.
Remote Control
[ ] Button
Mute or Unmute the audio output
Inserting the Battery
1. Slide remote control units rear cover in the
direction shown.
2. Insert battery (Cr2025) into insertion guides
with printed side (+) up.
3. Press battery into compartment as shown.
4. Replace and slide cover until it clicks into
place.
Insertion guide
[ ] Button
Press the button to turn power on or off.
Owner’s Manual
[ ] [ ] Button
Press button to increase the volume.
Press button to decrease the volume.
[ / ] Button
Preset station up/down
Previous / next track
Press and hold for Fast Forward / Backward
[SRC] Button
Toggle the audio source
[AUDIO] Button
Press the button to enter the Audio Menu
mode.
[ ]
[ / ]
[ ]
[SRC]
AUDIO
SRC
[AUDIO]
FZ105BT
[ ]
[ ]
4
English
5. OPERATIONS
Basic Operation
Owner’s Manual
Note: Be sure to read this chapter referring
the chapter “4.CONTROLS”
CAUTION
When the unit is turned on, starting and
stopping the engine with its volume raised to
the maximum level it may cause hearing
damage. Be careful about adjusting the
volume.
to
Selecting a mode
1. Press the [SOURCE] button to display source
menu.
External equipment not connected to this unit
*
is not displayed.
Adjusting the volume
1. Rotating the [VOLUME] to increase/decrease
the volume.
The adjustable range of volume is o to 46.
Setting The Clock
1. Press [ MENU ] button to enter System Menu.
2. Press [ ] or [ ] button to select
the Clock.
3. Rotate the [ VOLUME ] knob to set clock,
rotating the [ VOLUME ] clockwise to adjust
the minutes and counterclockwise to adjust
the hours.
Power On/Off
Note:
Start the engine before using this unit.
Be careful about using this unit for a long
time without running the engine. If you drain
the vehicle battery too far, you may not be
able to start the engine and this can reduce
the service life of the battery.
1. Start the engine. The power button / knob
illumination on the unit will light up.
Engine ON
position
2. Press the [ / MUTE ] button to turn
power On or Off .
the
Mute
Press the [MUTE] button to turn the mute On and
Off.
Display System information
press the [INFO] button on the front panel to
switch the display information, system time and
playing source.
5
FZ105BT
System Menu
English
In any mode, press [ MENU ] button to enter
System Menu. Press [ ] or [ ] button
to select options, rotate the [ VOLUME ] knob
to adjust a value / option.
CLOCK
Rotate the [VOLUME] knob to set Clock,
rotating the [VOLUME] clockwise to adjust the
minutes and counterclockwise to adjust the hours.
12/24H
Rotate the [ VOLUME ] knob to choose time
format: 12 or 24 hours.
BEEP ON/OFF
Rotate the [VOLUME] knob to choose button
Beep sound On or Off.
DIMMER
Rotate the [ VOLUME ] konb to choose the
Dimmer On or Off.
ON: LCD dimmer is active when small light
of vehicle is turned ON.
OFF: LCD always maximum brightness
regardless of the vehicle small light.
LOCAL SEEKING
Rotate the [VOLUME] knob to choose radio
Local or distant at RADIO mode.
LOCAL: Only stations with strong signal can
be received.
DX: Stations with strong and weak signals
can be received.
TUNE AREA
Rotate the [VOLUME] knob to select suitable
country region:
U.S.A (United States)
LATIN (Latin America)
EUROPE (Eastern/Western Europe)
ASIA (Asia Pacific)
AUST (Australia)
DIS-CON / RE-CON
Disconnect / Re-connect currently connected mobile
phone.
Press the [MUTE] button to disconnect / Re-connect.
Owner’s Manual
Audio Menu
Press [ ] button to enter sound effect setting
mode. Press [ ] or [ ] button to select
options, rotate the [ VOLUME ] knob to adjust
a value / option.
EQ (Preset Equalizer Setting)
Rotate the [VOLUME] knob to change EQ:
Flat->Jazz->Pop->Classic->Rock->News->
Urban->Rave->Movie->Techno->User
XBS On/Off
Rotate the [VOLUME] knob to turn On or Off the
X-BASS bosster function.
BAS (Bass Level)
Rotate the [VOLUME] knob to adjust the desired
Bass level range from -7 to +7.
MIDDLE
Rotate the [VOLUME] knob to adjust the desired
Middle level range from -7 to +7.
TRE (Treble Level)
Rotate the [VOLUME] knob to adjust the desired
Treble level range from -7 to +7.
BAL (Balance)
Rotate the [VOLUME] knob to adjust adjust the
Balance between the right and left speakers from
10R (full right) to 10L (full left).
FAD (Fader)
Rotate the [VOLUME] knob to adjust adjust the
Fader between the front and rear speakers from
10R (full rear) to 10F (full front).
SUBW On/Off
Rotate the [VOLUME] knob to select subwoofer
between ON and OFF
FZ104PA
6
English
Radio Operation
Select Radio As Playing
Source
Owner’s Manual
Press the [ SOURCE ] button to select the
RADIO mode.
Selecting The Radio Band
Press the [ BAND / SEARCH ] button on the
front panel to select one Radio band among F1,
F2,F3 ,AM.
[ ] Tuning Up / [ ]
Tuning Down Buttons
1. Press the [ ] / [ ] button change
intervals step by step.
2. Press and hold the [ ] / [ ] button
to seek to the next strongest station.
Auto Store
Only stations with sufficient signal strength will
be detected and stored in the memory.
Press the [AS/PS] button to start automatically
select six strong stations and store them into six
presets. The new stations replace any stations
already stored in the band.
Manual Store
when one expected radio station has been
detected, press and hold number button 1-6 to
store it in the memory.
Recall The Stored Stations
Press one numeric button among 1 to 6 on the
front panel to select the corresponding stored
stations.
Local Seeking
When LOCAL seeking is ON, only those radio
stations with strong radio signal could be
received.
To select LOCAL function, press the [ MENU ]
button on the front panel, then press the [ ]
/ [ ] button repeatedly until LOCAL or DX
display on the LCD, rotate the [VOLUME] knob
to select local or distant mode.
7
FZ105BT
USB Mode Operation
English
Connect
1. Slide the USB socket cover to right.
2. Insert the USB device into the USB socket.
The unit starts playing from the USB device.
3. To remove the USB device, you should first
select another source or turn off the power, in
order to avoid damaging the USB device.
Then take off the USB device.
SOURCE
AS/PS
Selecting a Track
1. Press the [ ] button to advance to the
next track/song.
Press the [ ] button to go to previous
track/song.
2. Press and Hold in the [ ] button to fast
forward through the track/song.
Press and Hold in the [ ] button to fast
backward through the track/song.
Play / Pause
Press the [ ] button to pause the track/song
that is currently playing.
Press the [ ] button to resume playing the
track/song that has been paused.
Folder Select
This function allows you to select a folder containing
MP3/WMA files and start playing from the first track
in the folder.
Press the [ 5 / 6 ] button to select a folder.
Search Function
1. Press the [ BAND / SEARCH ] button on
front panel access the MP3 / WMA file search
mode.
2. Rotate the [ VOLUME ] knob to search
through all folders on the device then press
[ / MUTE ] to make your selection.
3. Rotate the [ VOLUME ] knob to select the
desired track within the previously selected
folder and press [ / MUTE ] to start playing.
Display Function
During playback, pressing the [ INFO ] button will
auto maticall y cycl e through the follow ing
information on the file being played on the LCD:
FOLDER NAME->FILE NAME->ALBUM->TITLE
->ARTIST
Owner’s Manual
AUX Mode Operation
Press the [ SOURCE ] button on the front panel
to select “AUX IN”.
AUX IN is just for audio content with 3.5mm Jack
connector plugged into audio-in socket on the
front panel.
SOURCE
AS/PS
Left Track
Right Track
Ground
3.5mm Cable (not included)
Portable audio player,
etc..
FZ104PA
8
English
iPod/iPhone Mode Operation
Connect
Connect an iPod/iPhone to the USB socket on
front panel. When connecting a device, the unit
Owner’s Manual
will read the files automatically. The track
information displays on the screen once playback
start.
SOURCE
AS/PS
Compatible iPod/iPhone
You can connect the following iPod/iPhone:
iPod nano (6G)
iPod nano (7G)
iPod touch (4G)
iPod touch (5G)
iPhone 3GS
Minimum iOS 5.0 or higher
iPhone 4
iPhone 4S
iPhone 5
iPhone 5C
iPhone 5S
iPod/iPhone Control Music
Playback Mode
Press and hold the [ / ] button on front panel
to switch between the two control modes:
iPod control mode: Use the iPod/iPhone to
operates the music control.
Unit control mode: Use the head unit to
operates the music control.
Note:
Please make sure the iPod/iPhone cable is
connected correctly. And please only use
original iPod/iPhone cable.
Play / Pause
Press the [ ] button to pause the track/song
that is currently playing.
Press the [ ] button to resume playing the
track/song that has been paused.
iPod Menu Search
1. Press the [BA ND/SEARCH] button on front
panel access the iPod menu search mode.
2. Rotate the [ VOLUME ] knob to switch between
categories.
PLAYLISTS->ARTIST-> ALBUMS->
SONGS->COMPOSERS->AUDIOBOOK->
PODCASTS
3. Press [ /MUTE ] button to confirm the selecting.
4. When display the desired Playlist or Artist or Album
or Genres or Songs or Composers or Audiobook or
Podcasts, press [ /MUTE] button then the
GENRES->
music file will be displayed.
5. Rotate the [VOLUME] knob to select File.
6. Press [ /MUTE] button to confirm wanted file to
play.
Display Function
During playback, pressing the [ INFO ] button will
auto maticall y cycl e through the follow ing
information on the file being played on the LCD:
ALBUM -> SONGS -> ARTIST -> CLOCK
Selecting a Track
1. Press the [ ] button to advance to the
next track/song.
Press the [ ] button to go to previous
track/song.
2. Press and hold the [ ] button to fast
forward through the track/song.
Press and hold the [ ] button to fast
backward through the track/song.
9
FZ105BT
Bluetooth Operation
English
Pairing the Bluetooth Device
1. From your Bluetooth enabled device, turn the
Bluetooth ON and search for Bluetooth devices.
2. When a list of available Bluetooth devices appear
on your Bluetooth device, select "CLARION".
3. "CONNECTED will appear on the display.
4. The unit will automatically enter the BT Audio
source and you can now start streaming audio
from your Bluetooth enabled device.
Note: If the mobile phone doesn't support SSP
(Simple Secure Pairing) Profile, please enter the
pass code of "0000".
"
Making a Call
You can dial number through the mobile phone.
1. Use the Mobile Phone to dial and make an outgoing
call.
2. Once completed the dialing [CALLING] is displayed
Redial
You can call last dialed number.
1. Press the [ / ] on front panel to redial.
2. Once completed the dialing [CALLING] is displayed
Answering a Call
1. You can answer an incoming call by pressing
the button.
[ / ]
2. Press the [ / ] button to reject an incoming call.
Call Transfer
You can switch Handsfree call and mobile phone call.
Press the [ / ] button during call.
Dis-connect / Re-Connect
1. Press and hold the [ MENU ] button to enter
System menu.
2. Press the [ / ] button until “DIS-CON”
or “RE-CON” is displayed.
3. Press [ /MUTE] button to confirm the selection.
Audio Streaming Operations
What is audio streaming?
Audio streaming is a technique for transferring audio
data such that it can be processed as a steady and
continuous stream. Users can stream music from
their external audio player to their audio system
wirelessly and listen to the tracks through the boat’s
speakers. Please consult your nearest Clarion dealer
for more information on the product of wireless audio
streaming transmitter offered.
CAUTION
Please avoid operating your connected mobile
phone while audio streaming as this may cause
noise or sound choppy on the song playback.
Audio streaming may or may not resume after
telephone interrupt as this is dependent on
mobile phone.
Search Function
1. Press the [BA ND/SEARCH] button on front
panel access the search mode.
2. Rotate the [ VOLUME ] knob to switch between
categories.
PLAYLISTS->ARTIST-> ALBUMS->
SONGS->COMPOSERS->AUDIOBOOK->
PODCASTS
3. Press [ /MUTE ] button to confirm the selecting.
4. When display the desired Playlist or Artist or Album
or Genres or Songs or Composers or Audiobook or
Podcasts, press [ /MUTE] button then the
GENRES->
music file will be displayed.
5. Rotate the [VOLUME] knob to select File.
6. Press [ /MUTE] button to confirm wanted file to
play.
Note:
The sear ch feat ure requi res the pai red and
connect ed device that the minimum Bluet oot h
AVRCP1.4 be incor porat ed to funct ion.
Play / Pause
Press the [ ] button to pause the track/song
that is currently playing.
Press the [ ] button to resume playing the
track/song that has been paused.
Selecting a Track
1. Press the [ ] button to advance to the
next track/song.
Press the [ ] button to go to previous
track/song.
2. Press and hold the [ ] button to fast
forward through the track/song.
Press and hold the [ ] button to fast
backward through the track/song.
Note:
Playing order will depend on Bluetooth audio
player. When [ ] button is pressed, some
A2DP devices will restart the current track
de pend s on the durat i on of pla ybac k .
During music streaming playback “A2DP” will be
shown on the display. When A2DP and HFP
de v i c e i s d i s c on n e c t , “ B L UE T O O TH
DISCONNECT” will be shown on the display
and return to previously selected audio source.
Some Bluetooth audio players may not have
play / pause synchronized with this unit. Please
make sure both device and main unit are in the
same play / pause status in BT MUSIC mode.
ID3 Display
During music streaming playback, press [INFO] to
view the ID3 display information:
ALBUM -> SONGS -> ARTIST -> CLOCK
FZ104PA
10
Owner’s Manual
English
6. TROUBLESHOOTING
GENERAL
Owner’s Manual
Problem Cause Measure
Unit can not power
on.
No/low audio output.
Poor sound quality
or distortion.
Unit resets itself
when engine is off.
USB
Problem
USB device cannot
be inserted.
USB device is not
recognized.
No sound heard with
the display “No File”
shown.
Sound skips or is
noisy.
Unit fuse blown.
Car battery fuse blown.
Improper audio output
connection.
Volume set too low.
Speakers damaged.
Heavily biased volume
balance.
Speaker wiring is in contact
with metal part of car.
Speaker power rating does
not match unit.
Wrong connections.
Speaker is shorted.
Incorrect connection between
ACC and Battery.
Cause
The USB device has been
inserted with wrong
direction.
The USB connector is
broken.
The USB device is damaged.
Connectors are loose.
No MP3/WMA file is stored in
the USB device.
MP3/WMA files are not
encoded properly.
Replace with new fuse of correct rating.
Replace with new fuse of correct rating.
Check wiring and correct.
Increase volume level.
Replace speakers.
Adjust the channel balance to center position.
Insulate all speaker wiring connections.
Replace speakers.
Check wiring and correct.
Check wiring and correct.
Check the wiring and correct.
Measure
Reversing the connection direction of the USB
device, try it again.
Replace with a new USB device.
Disconnect the USB device and reconnect. If
the device is still not recognized, try replacing
with a different USB device.
Store these files properly in the USB device.
Use MP3/WMA files encoded properly.
Bluetooth
Problem Cause Measure
Cannot pair the
Bluetooth enabled
device with the
audio system.
The audio quality is
poor after connection
with a Bluetoothenabled device.
11
FZ105BT
The device does not support
the profiles required for the
system.
The Bluetooth function of the
device is not enabled.
The Bluetooth reception is poor.
Use another device to connect.
Refer to the user manual of the device for how
to enable the function.
Move the device closer to the audio system or
remove any obstacle between the device and
the system.
7. SPECIFICATIONS
English
FM Tuner
Frequency Range: 87.9 - 107.9MHz
Usable Sensitivity: Less than 10dB at S/N 30dB
Stereo Separation: >30dB(1kHz)
Signal/noise ratio: >55dB
AM Tuner
Frequency Range: 530 -1710KHz
Usable Sensitivity: Less than 40dB
USB
USB Host: Host 1.1 compatibles 2.0
MP3/WMA mode
MP3 sampling rate: 32kHz, 44.1kHz, 48kHz
MP3 bit rate: 8~320kbps and varibale bit
rate
WMA bit rate: 8~320kbps
Logical format: ISO9660, Joliet
Number of file: Maximum 999
Max directory 10
depth:
Sorting Method: Tree sorting
Max File/Directory 64Byte
Name:
ID3 tag: V2.0 or later
Bluetooth
Specification: Bluetooth Version. EDR
(Enhanced Data Rate)
Supported Profiles: A2DP (Advanced Audio
Distribution Profile)
AVRCP 1.4 (Audio/Video
Remote Control Profile)
SSP (Simple Secure Pairing)
Send/Receive Sensitivity: Class 2
2.1+
General
Power Supply Voltage: 12V DC (10.8 to 15.6V),
Negative Ground
Fuse: 15A
Speaker Impedance: 4-8 ohms per channel
Power output: 50W x 4 channels
Aux-in level: ≥ 650mV
Note: Specifications and design are subject to
change without notice for further improvement.
Power Output:
20W × 4 Channels at 4 Ω
and 1% THD+N
Signal to Noise Ratio:
74dB (reference: LPF 1 W into 4
)
Owner’s Manual
FZ104PA
12
English
INSTALLATION AND
WIRE
CONNECTION
Owner’s Manual

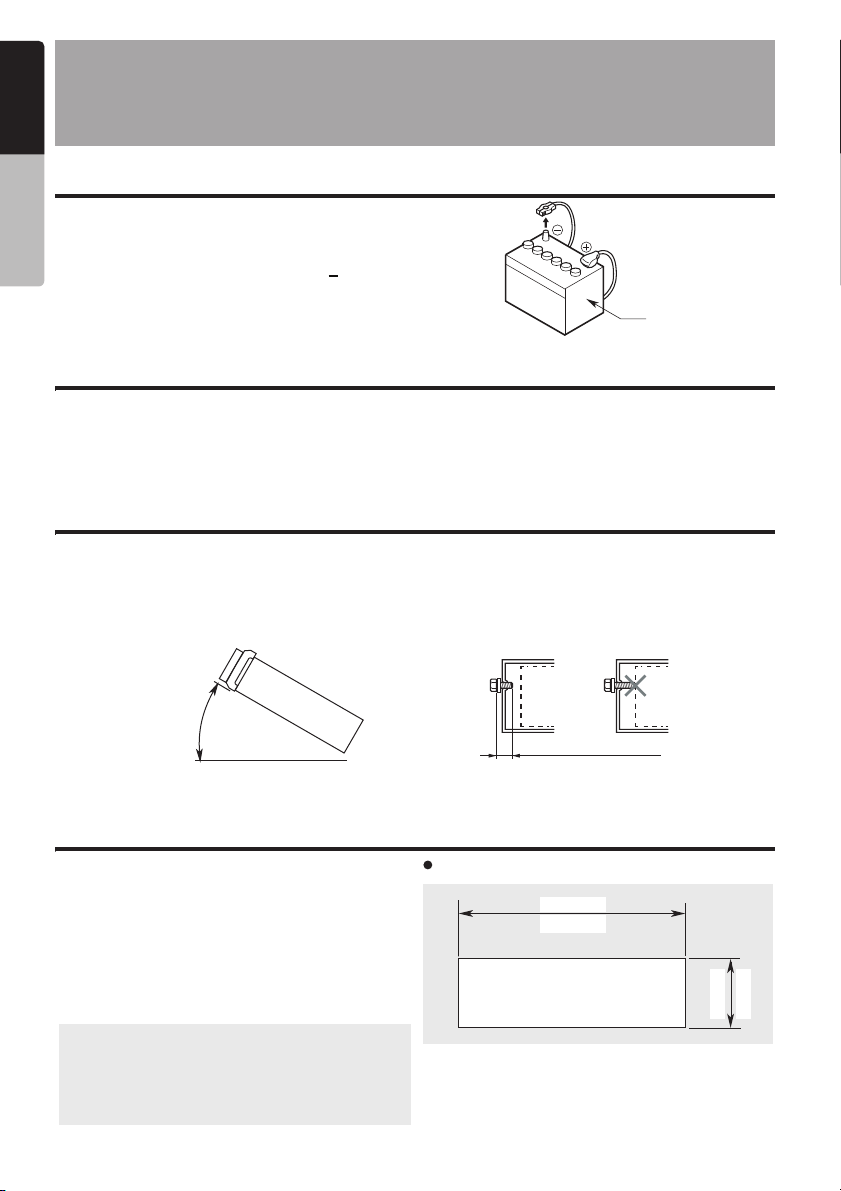

1. Before Starting
1. This set is exclusively for use in vehicles with
a negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “ ” terminal
before starting. This is to prevent short circuits
during installation. (Figure 1)
2. General Cautions
1. Do not open the case. There are no user serviceable parts inside. If you drop anything into the unit
during installation, consult your dealer or an authorized Clarion service center.
2. Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol etc.
For tough dirt, apply a little cold or warm water to a soft cloth and wipe off the dirt gently.
3. Cautions on Installation
1. Prepare all articles necessary for installing the
source unit before starting.
2. Install the unit within 30 of the horizontal
plane. (Figure 2)
3. If you have to do any work on the car body,
such as drilling holes, consult your car dealer
beforehand.
o
4. Use the enclosed screws for installation. Using
other screws can cause damage. (Figure 3)
Chassis Chassis
Battery
Figure 1
o
Max 30
Figure 2 Figure 3
4. Installation the Source Unit
1.
Place the mounting bracket into the instrument
panel, use a crewdriver to bend each stopper
of the mounting bracket inward, then secure the
stopper.
Wire as shown in Section 7) .
2.
Insert the source unit into the mounting bracket
3.
until it locks.
4. Take care of the top and bottom of the trim ring
and mount it so that all the hooks are locked.
1. Some car models require special mounting
Note:
kits for proper installation. Consult your
Clarion dealer for details.
2. Fasten the front stopper securely to prevent
the source unit from coming loose.
13
FZ105BT
Console opening dimensions
Max. 6 mm (M5 screw)
7-3/16"
(182 mm)
Hole
Damage
2-1/8"
53 mm
Notes of installation:
Before installation,please make sure prope connections are conducted and the unit operates
normally. Improper connection may result in damage to the unit.
Use only accessories designed and manufactured for this unit and other unauthorized
accessories may result in damage to the unit.
Before installation, please fasten all power cables.
DO NOT install the unit in the place where close to hot area to prevent damage to electrical
components such as the laser head.
Install the unit horizontally. Installing the unit more than 30 degree vertically may result in worse
performance.
To prevent electric spark, connect the positive pole first and then the negative pole.
English
Owner’s Manual
Unit installation
1. Insert mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting tab
outwards with a screwdriver to fix the
mounting bracket in place.
2. Slide the unit into the bracket until you hear a
click sound.
Dashboard
Mounting Bracket
Screwdriver
Trim ring installation
Attach the trim ring around the front panel.
care of the top and bottom of the trim ring and
mount it so that all the hooks are locked.
Top
Bottom
Take
FZ104PA
14
English
5. Wiring and Connections
System Remote
White/Blue
Owner’s Manual
Power Antenna
Blue
OEM Steering Wheel
Purple
Antenna
Jack
Front Right
Front Left
Rear Right
Rear
Audio
Output
SUB
R
SUB
Front
L
Audio
Output
Gray
Gray/Black
White
White/Black
Violet
Violet/Black
ISO Connector
Yellow wire
(Memory back-up lead)
Fuse 15A
Connect directly
to battery
Red wire
(Power lead)
Accessory
12V
Orange/White wire
(Illumination lead)
Connect it to the power supply
terminal for illumination
15
Rear Left
FZ105BT
Green
Green/Black
Black wire (Ground lead)
Connect to vehicle chassis
ground
Clarion Corporation of America
12/2014
All Rights Reserved. Copyright © 2014:
Printed in China
Clarion Corporation of America
FZ105BT
Loading...
