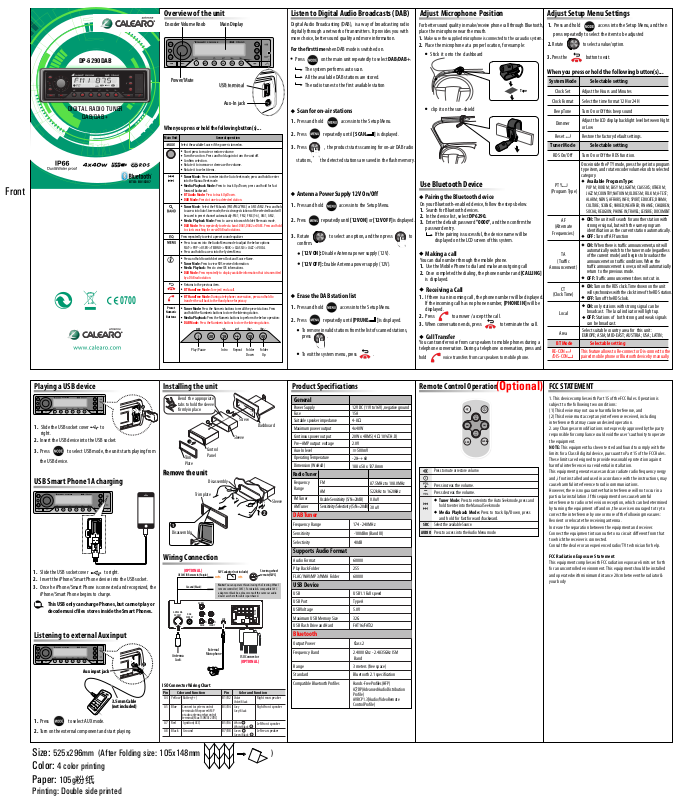

SOUNDMAX ELECTRONICS DP6290 User Manual

Overview of the unit

Listen to Digital Audio Broadcasts (DAB)

Adjust Microphone Position

Adjust Setup Menu Settings

Front

DP-6290DAB

DIGITAL RADIO TUNER

DAB/DAB+

BT ID: B018387

0700

DP-6290DAB

Main Display

USB terminal

Aux-In jack

Encoder Volume Knob

Power/Mute

When you press or hold the following button(s)...

Main Unit

Preset Numeric Buttons

Select the available Source. if the,power is turned on.

Short press to mute or restore volume. Turn the unit on. Press and hold again to turn the unit off. Confirm selection. Rotate it to increase or decrease the volume. Rotate it to select items.

Tuner Mode: Press to enter into the Auto Seek mode, press and hold to enter into the Manual Seek mode. Media Playback Mode: Press to track Up/Down, press and hold for fast forward/backward.

BT Audio Mode: Press to track Up/Down. DAB Mode: Press to tune to a detected station.

Tuner Mode: Select the FM bands (FM1/FM2/FM3) or AM1/AM2. Press and hold

to access into Auto Store mode, the six strongest stations of the selected band will be saved in preset channel automatically: FM1, FM2, FM3(1-6), AM1, AM2.

Media Playback Mode: Press to access into search Folder/File music mode.

DAB Mode: Press repeatedly to select a band: DAB1,DAB2 or DAB3. Press and hold

to starts searching for on-air DAB radio stations.

Press repeatedly to select a preset sound equalizer.

Press to access into the Audio Menu mode to adjust the below options: FLAT->POP->USER->TECHNO->ROCK->CLASSIC->JAZZ->VOCAL Press and hold to access into the System Menu.

Press and hold to switch between Clock and Source Name.

Tuner Mode: Press to view RDS received information. Media Playback: Press to view ID3 informations.

DAB Mode: Press repeatedly to display available information that is transmitted

by a DAB radio station.

Returns to the previous item.

BT Handfree Mode: To reject/end a call.

BT Handfree Mode: During a telephone conversation, press and hold to

transfer the call back to the Hand phone for privacy.

Tuner Mode: Press the Numeric buttons to recall the preset stations. Press and hold the Numberic buttons to store the listening station.

Media Playback: Press the Numeric buttons to perform the below operation:

DAB Mode: Press the Numberic buttons to store the listening station.

Play/Pause

General operation

Intro

Repeat

Folder Down

Folder

Digital Audio Broadcasting (DAB), is a way of broadcasting radio digitally through a network of transmitters. It provides you with more choice, better sound quality and more information.

For the first time when DAB mode is switched on.

Press on the main unit repeatedly to select DAB/DAB+.

The system performs auto scan. All the available DAB stations are stored. The radio tunes to the first available station

Scan for on-air stations

1. Press and hold access into the Setup Menu.

2. Press repeatedly until [ SCAN ] is displayed.

3. Press , the product starts scanning for on-air DAB radio

stations, the detected stations are saved in the flash memory.

Antenna Power Supply 12V On/Off

1. Press and hold access into the Setup Menu.

2. Press repeatedly until [12V ON] or [12V OFF] is displayed.

3. Rotate to select an option, and then press to

confirm.

[12V ON]: Disable Antenna power supply (12V).

[12V OFF]: Enable Antenna power supply (12V).

Erase the DAB station list

1. Press and hold access into the Setup Menu.

2. Press repeatedly until [PRUNE ] is displayed.

To remove invalid stations from the listof scanned stations, press .

To exit the system menu, press .

For better sound quality in make/receive phone call through Bluetooth, place the microphone near the mouth.

1. Make sure the supplied microphone is connected to the car audio system.

2. Place the microphone at a proper location, for example:

Stick it onto the dashboard

Tape

clip it on the sun-shield

Use Bluetooth Device

Pairing the Bluetooth device

On your Bluetooth-enabled device, follow the steps below.

1. Search for Bluetooth devices.

2. In the device list, select DP6290.

3. Enter the default password "0000", and then confirm the

password entry. If the pairing is successful, the device name will be displayed on the LCD screen of this system.

Making a call

You can dial number through the mobile phone.

1. Use the Mobile Phone to dial and make an outgoing call

2. Once completed the dialing, the phone number and [CALLING]

is displayed.

Receiving a Call

1. If there is an incoming call, the phone number will be displayed.

If the incoming call has no phone number, [PHONE IN] will be displayed.

2. Press to answer / accept the call.

3. When conversation ends, press to terminate the call.

Call Transfer

You can transfer voice from car speakers to mobile phones during a telephone conversation. During a telephone conversation, press and

hold voice transfers from car speakers to mobile phone.

1. Press and hold access into the Setup Menu, and then

press repeatedly to select the item to be adjusted

2. Rotate to select a value/option.

3. Press the button to exit.

When you press or hold the following button(s)...

System Mode

Clock Set

Clock Format

Beep Tone

Dimmer

Reset

Tuner Mode

RDS On/Off

PTY (Program Type)

(Alternate

Frequencies)

(Traffic

Announcement)

(Clock Time)

Local

Area

BT Mode

RE-CON

/DIS-CON

Selectable setting

Adjust the Hours and Minutes

Select the time format 12H or 24H

Turn On or Off this beep sound

Adjust the LCD display backlight level between Hight or Low

Restore the factory default settings.

Selectable setting

Turn On or Off the RDS function.

Once inside the PTY mode, press the get into program type item, and rotat encoder volume knob to selected category.

Available Program Type:

POP M; ROCK M; EASY M; LIGHT M; CLASSICS; OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO; SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE; VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL; RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT

ON: The unit will search for another station with stronger signal, but with the same program identification as the current station automatically.

OFF: Turn off AF function

ON: When there is traffic announcement,unit will

automatically switch to the tuner mode (regardless of the current mode) and begins to broadcast the announcemet on traffic conditions. When the traffic announcement is over, unit will automatically return to the previous mode.

OFF: Traffic announcement does not cut in.

ON: Turn on the RDS clock. Time shown on the unit

will synchronizes with the clock time of the RDS station.

OFF: Turn off the RDS clock.

ON: only stations with strong signal can be

broadcast. The Local indicator will light up. OFF: Stations of both strong and weak signals

can be broadcast.

Select suitable country area for this unit: EUROPE; ASIA; MID-EAST; AUSTRIA; USA; LATIN;

Selectable setting

This feature allows to Re-connect or Dis-connect to the paired mobile phone or Bluetooth device by manually.

Playing a USB device

DP-6290DAB

1. Slide the USB socket cover to right.

2. Insert the USB device into the USB socket.

3. Press to select USB mode, the unit starts playing from

the USB device.

USB Smart Phone 1A charging

DP-6290DAB

1. Slide the USB socket cover to right.

2. Insert the iPhone/Smart Phone device into the USB socket.

3. Once he iPhone/Smart Phone is connected and recognized, the

iPhone/Smart Phone begins to charge.

This USB only can charge Phones, but cannot play or

NOT E

decode music files stores inside the Smart Phones.

Installing the unit

Bend the appropriate tabs to hold the sleeve firmly in place.

Control

Trim

Panel

Plate

Remove the unit

Disassembly

Trim plate

Disassembly

Wiring Connection

(OPTIONAL)

OE SWC IR Remote In (Purple)

Ground (Black)

SUB-W

ANTEENA

SOCKET

DAB

SOCKET

L L

R R

REAR FRONT

Screw

Dashboard

Sleeve

Steering wheel

7 8

Steering wheel

remote(SWC)

FUSE

SWC adaptor (not include)

Note: You can operate this unit using the Steering Wheel remote controller ( SWC ). For details & compatible SWC adaptor or black box, please consult the same car audio dealer as where this unit is purchased.

MIC

Product Specifications

General

Power Supply Fuse

Suitable speaker impedance

Maximum power output

Continous power output Pre-AMP output voltage

Aux-In level Operating Temperature

Dimension (WxHxD)

Radio Tuner

Frequency Range

FM Tuner

AM Tuner

Usable Sensitivity (S/N=20dB)

Sensitivity/Selectivity (S/N=20dB)

DAB Tuner

Frequency Range 174 - 240MHz

Sensitivity -100dBm(Band III)

Selectivity 40dB

Supports Audio Format

Audio Format 60000

Play Back Folder 255

FLAC/WAV/MP3/WMA Folder 60000

USB Device

USB USB1.1 Full speed

USB Port Type A

USB Voltage 5.0V

Maximum USB Memory Size 32G

USB Flash Drive and Hard FAT16/FAT32

12V DC (11V to 16V), negative ground 15A 4-8Ω

4x40W 20W x 4RMS (4Ω10%T.H.D)

2.0V ≥500mV

-20~+60

188 x 58 x 137.8mm

87.5MHz to 108.0MHz

522kHz to 1620kHz

0.8uV

30 uV

Remote Control Operation

AUDIO

SRC

AUDIO

SRC

Press to mute or restore volume.

Press increas the volume.

Press decreas the volume.

Tuner Mode: Press to enter into the Auto Seek mode, press and hold to enter into the Manual Seek mode.

Media Playback Mode: Press to track Up/Down, press and hold for fast forward /backward.

Select the available Source.

Press to access into the Audio Menu mode.

(Optional)

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received, including interference that may cause undesired operation.

2. any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency nergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

Listening to external Aux input

DP-6290DAB

Aux input jack

3.5 mm Cable

(not included)

1. Press to select AUX mode.

2. Turn on the external component and start playing.

Antenna

Jack

ISO Connector Wiring Chart

Yellow

Blue

Red

Black

Color and function

Battery(+)

Connect to system control

www.grundigcarradio.com

terminal of the power AMP or auto antenna relaycontrol terminal (Max 150MA12VDC)

Ignition(ACC)

Ground

External

Microphone

B1/B2

B3/B4

B5/B6

B7/B8

ISO Connector

(OPTIONAL)

Color and function

Violet Violet/Black

Grey Grey/Black

White White/Black

Green Green/Black

Right rear speaker

Right front speaker

Left front speaker

Left rear speaker

Size: 525x296mm (After Folding size: 105x148mm )

Bluetooth

Output Power Class 2

Frequency Band 2.4000 Ghz - 2.4835GHz ISM Band

Range 3 meters (free space)

Standard Bluetooth 2.1 specification

Compatible Bluetooth Profiles

Hands-Free Profiles (HFP) A2DP(Advanced Audio Distribution Profile) AVRCP1.3(Audio/Video Remote Control Profile)

Color: 4 color printing Paper: 105g粉纸

Printing: Double side printed
