INSTRUCTION MANUAL
PORTABLE CD PLAYER WITH STEREO
RADIO CASSETTE RECORDER
Model: SCD-5500
Please read carefully these instructions before using this unit.
1
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD DO NOT USE THIS PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PRESENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD.
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufactures
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where it exits from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening storms or when unused for long periods of time.
13. Refer all servicing to qualified personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
14. This appliance should not be exposed to dripping or splashing water and no objects filled
with liquids such as vases should be placed on apparatus.
This lightning flash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert the user to
the presence of insulated
dangerous voltage within
the products enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock
presents
Warning: to reduce the risk of
electric shock, do not remove
cover (or back ) no user serviceable part inside.
Refer servicing to qualified
service personnel.
The exclamation point
within an equilateral
triangle is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
2

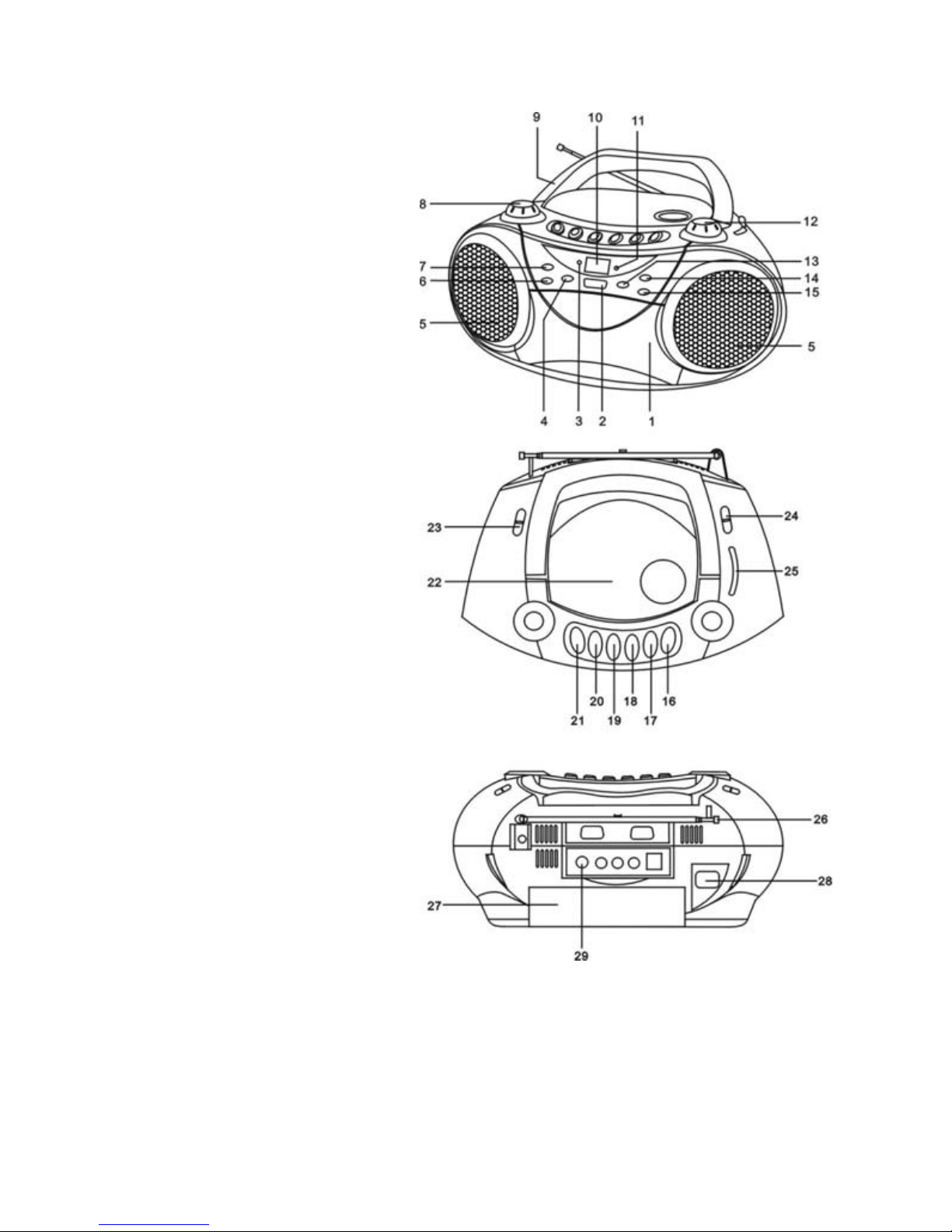

NAMES OF CONTROLS
1. CASSETTE COMPARTMENT
2. CD PLAY/PAUSE BUTTON
3. POWER INDICATOR
4. CD SKIP/SEARCH
BACKWARD BUTTON
5. SPEAKERS
6. CD RANDOM BUTTON
7. CD STOP BUTTON
8. VOLUME CONTROL
9. FOLDING HANDLE
10. CD DISPLAY
11. FM STEREO INDICATOR
12. TUNING CONTROL
13. CD SKIP/SEARCH NEXT
(FORWARD) BUTTON
14. CD PROGRAM BUTTON
15. CD REPEAT BUTTON
16. CASSETTE RECORD KEY
17. CASSETTE PLAY KEY
18. CASSETTE REWIND KEY
19. CASSETTE FAST FORWARD KEY
20. CASSETTE STOP/EJECT KEY
21. CASSETTE PAUSE KEY
22. CD COMPARTMENT
23. FUNCTION SWITCH
24. BAND SWITCH
25. DIAL SCALE
26. FM TELESCOPIC ANTENNA
27. BATTERY COMPARTMENT
28. AC SOCKET
29. PHONES JACK
