1 General
This document describes the minimum required equipments for the Electrical Repair Process of the S700i and S700c mobile phones. Equipment
listed without a part number is not orderable from Sony Ericsson and must be bought locally.
The matrices in the end of the equipment tables describe where the actual equipment is needed (marked with an X) or may be needed/optional
(marked with a Z).
Flash upgrade: Equipment for downloading software to the unit, both signalling and test-program.
Manual test: Equipment necessary to perform a manual test.
Repair: Equipment necessary for replacing components.
Go/No Go test: Equipment necessary for Go/No Go test.
Calibration in SERP: Equipment necessary to perform a calibration in SERP. Calibration can only be done by authorized repair centers.
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
2(10)
Page 3
Equipment List, Electrical
2 Repair Equipment, Electrical
2.1 Sony Ericsson Provided Repair Equipment
Flash Upgrade
Manual Test
Go/No Go
Test
Calibration in
SERP
Repair

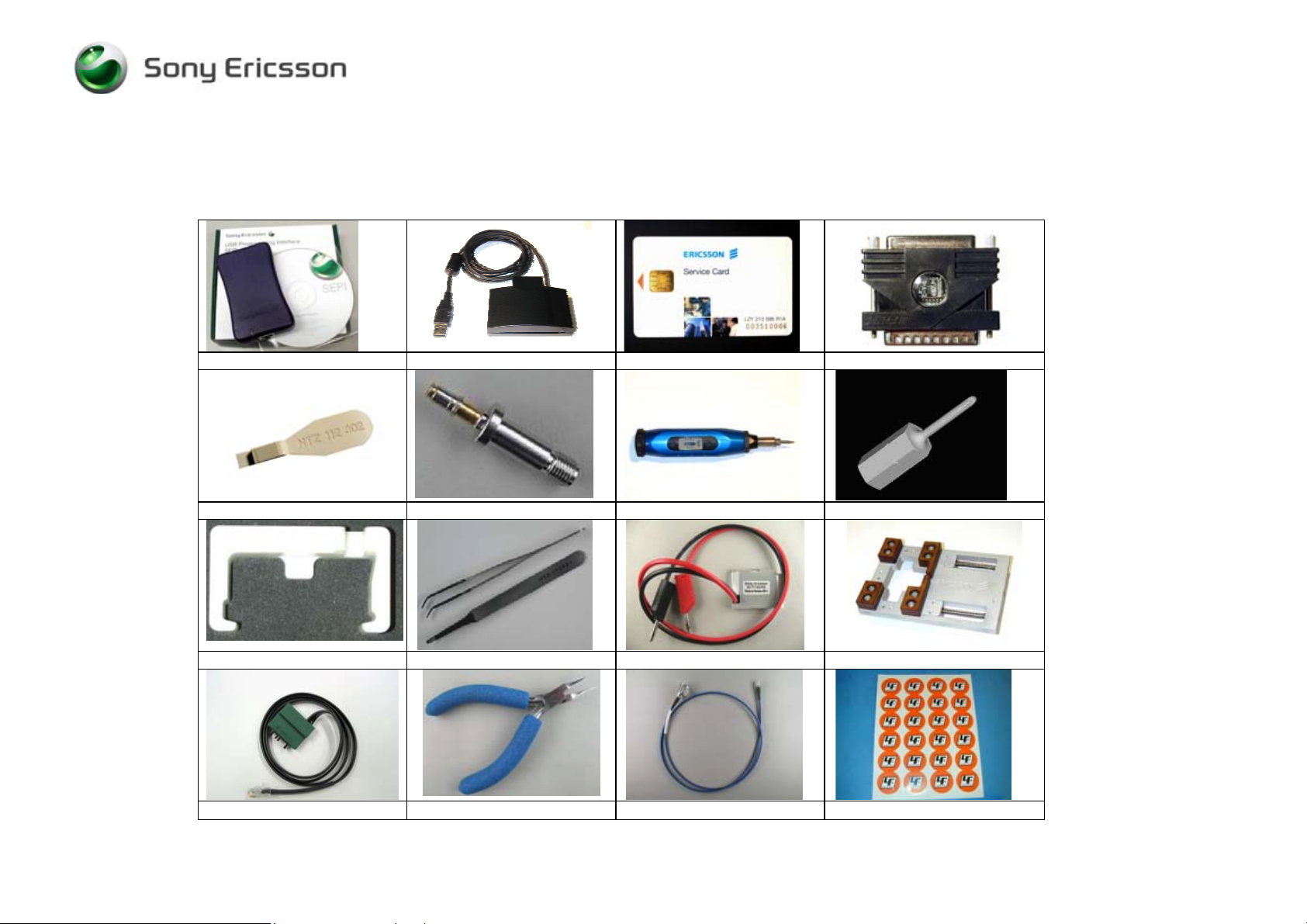

Description Part Number Comments
USB Service Card Reader LZY 213 1191 Software Package/CD+USB Reader X
Service Card LZY 213 595 X
Hard lock KRY 105 165 X
SonyEricsson programming
interface - SEPI
SonyEricsson interface - SEPI KRY 101 1115 USB Cable 3V/Accessories X X
Torque Screwdriver * NTZ 112 459 Torque set to 9, 14, 17 and 20 Ncm +/- 6 % X
Bits NTZ 112 1052 Spare part to screwdriver X
Front opening tool NTZ 112 302/2 Opening tool X
Flex film assembly tool NTZ 112 521 Tweezers X
Shield Fence Plier NTZ 112 537 For use when repair under shield fence is necessary X
Lead-free labels (sheet of 24) SVF 930 1379 These lead-free labels must be applied to all materials
Dummy Battery NTZ 112 1050 Dummy battery cover see Working Instr. Mechanical Z X
Rework fixture LTD 260 273 For PBA (Printed Board Assembly) X
Holder RF Connector (prototype) NTZ 112 549 Used together with antenna connector and RF cable. Z X
Antenna Connector RNT 403 303/001 Z X
RF Test Cable Flexible 1M
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
3(10)
LTN 214 1484 USB/Interface Box+CD X X
X
and tools that contact the solder.
RPM 119 855
This is the only approved RF cable!
Z X
Page 4
Equipment List, Electrical
*Any screwdriver that fulfils the torque and bit demand can be used.
**The matrices describe where the actual equipment is needed (marked with an X) or may be needed/optional (marked with a Z).
KRY 101 1115 NTZ 112 537 RPM 119 855 SVF 930 1379
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
4(10)
Page 5
Equipment List, Electrical
2.2 Equipment Provided by Other Supplier
Flash Upgrade
Manual Test
Go/No Go
Test
Description Comments
Battery Model # BST-27
• Purchase from local vendor
- Battery Charger Standard SonyEricsson charger X
Computer Minimum Pentium III 500 Mhz 128 Mb RAM or better. At least 2
USB ports
USB-PC Cable Type A-B Plug-Plug Cable X X
Tweezers ESD-safe X
Dentist hook To be used when removing adhesives. X
Isopropyl Alcohol To be used when removing glue. X
Cotton Gloves ESD-safe X
Zebra Printer 90xi, 90xi II or 4000 deluxe Z
Printer Cable Standard RS 232 serial printer cable [referred to Zebra printer
manual]
Hot Air Flow Repair Station, Medium. Temperature range 360-380° C. Air-flow up to 9 l/min X
Soldering Iron Temperature range 340-370° C. X
Soldering Iron Tip Lead free Temperature range 340-370° C. X
Flux RMA, No-clean flux X
Solder-wire Lead free : SN 96%, Ag 3,5% and Cu 0,5% X
Solder-paste Lead free : SN 96%, Ag 3,5% and Cu 0,5% X
Microscope Minimum 10x magnification X
X X X
X Z X
Z
Calibration in
SERP
Repair
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
5(10)
Page 6
Equipment List, Electrical
Flash Upgrade
Go/No Go
Test
Manual Test
Calibration in
SERP
Repair
Description Comments
Test Instrument – Willtek 42xx
Or other Radio test instrument
according to 2/1524-2/FEA 209 544/89
- RF Shield Package Rohde&Schwarz CMU Z11 X
Test SIM-card According to your Instrument supplier. X
Operator SIM-card To be used when making a landline call. X
IR-device To be used to make connection between the phone and the device X
Bluetooth-device To be used to make connection between the phone and the device X
Hands free equipment To be used to verify connection in the system connector.
GSM Radio Tester for calibration with
SERP according to Instrument List
1/131 30-2/FEA 209 544
GPIB Card – National
GPIB Card – Keithley
GPIB Cable X
Power supply
NOTE!
If using the Power Supply in
conjunction with the (Dummy Battery)
to power the phone during the GNG
test or Calibration routine a high
quality DC source that meets the
following requirements must be used.
X
Applicable for S700i and S700c phone
Only instruments documentated in the Instrument list are
supported.
Either National or Keithley can be used. X
NOTE: Only necessary if using the Dummy Battery.
Output Voltage: 0-5 volt minimum.
Output Current: 0-2 amps minimum
Transient response time: < 100 µs
X
X
X
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
6(10)
Page 7
Equipment List, Electrical
Flash Upgrade
Go/No Go
Test
Manual Test
Calibration in
SERP
Repair
Description Comments

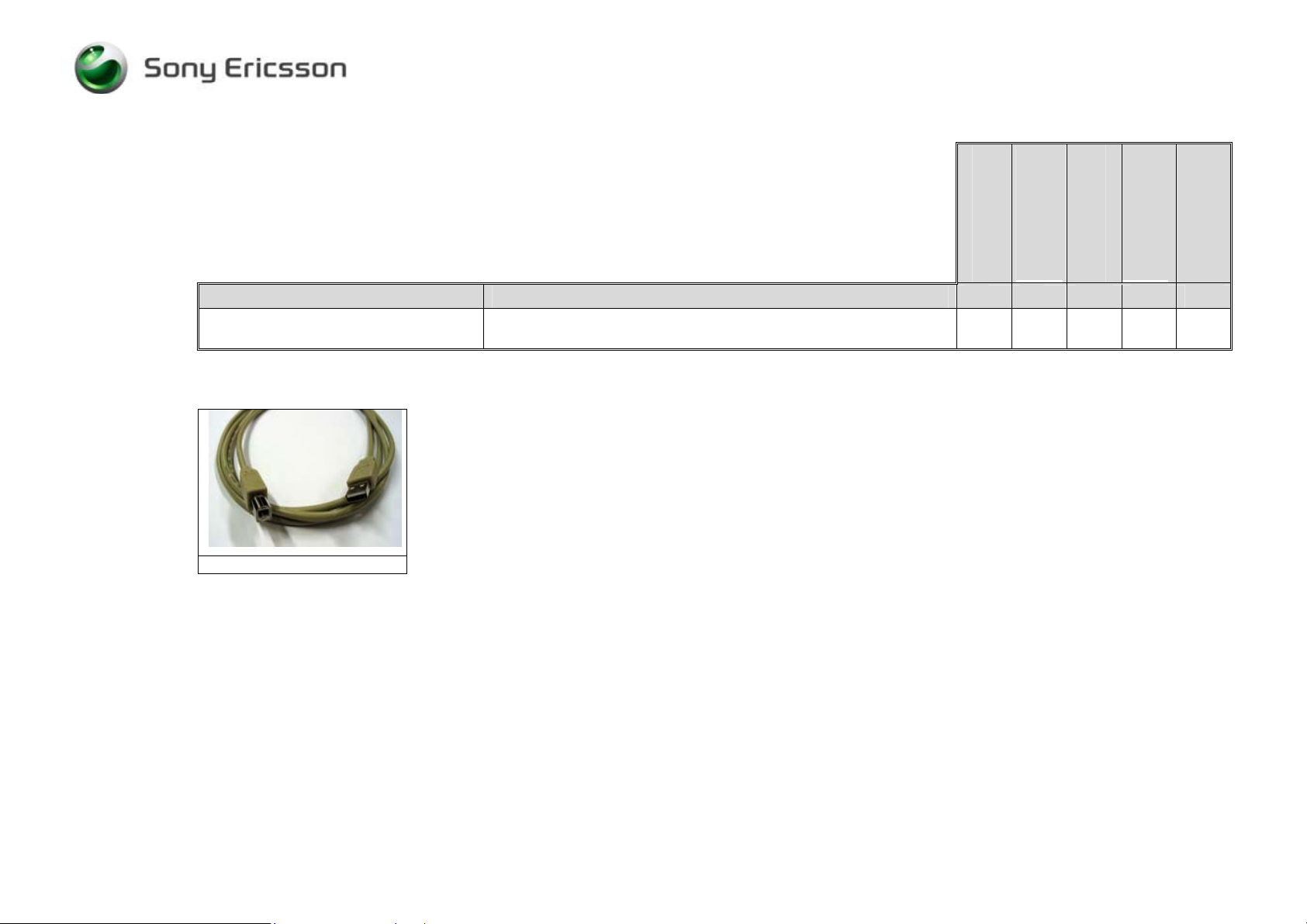

Power cabels Red & Black Minimum cross sectional area of conductor: 1.2 mm²
Maximum length: 1.5 m
*The matrices describe where the actual equipment is needed (marked with an X) or may be needed/optional (marked with a Z).
-
-
Z Z X
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
7(10)
Page 8
Equipment List, Electrical
2.3 Lead Free Solder equipment
The items in this table, and any other soldering tools or material that make physical contact with the solder, must remain lead-free. They must be
adequately labelled to make their lead-free status clearly and easily recognized.
Test
Pos Description Comments Picture

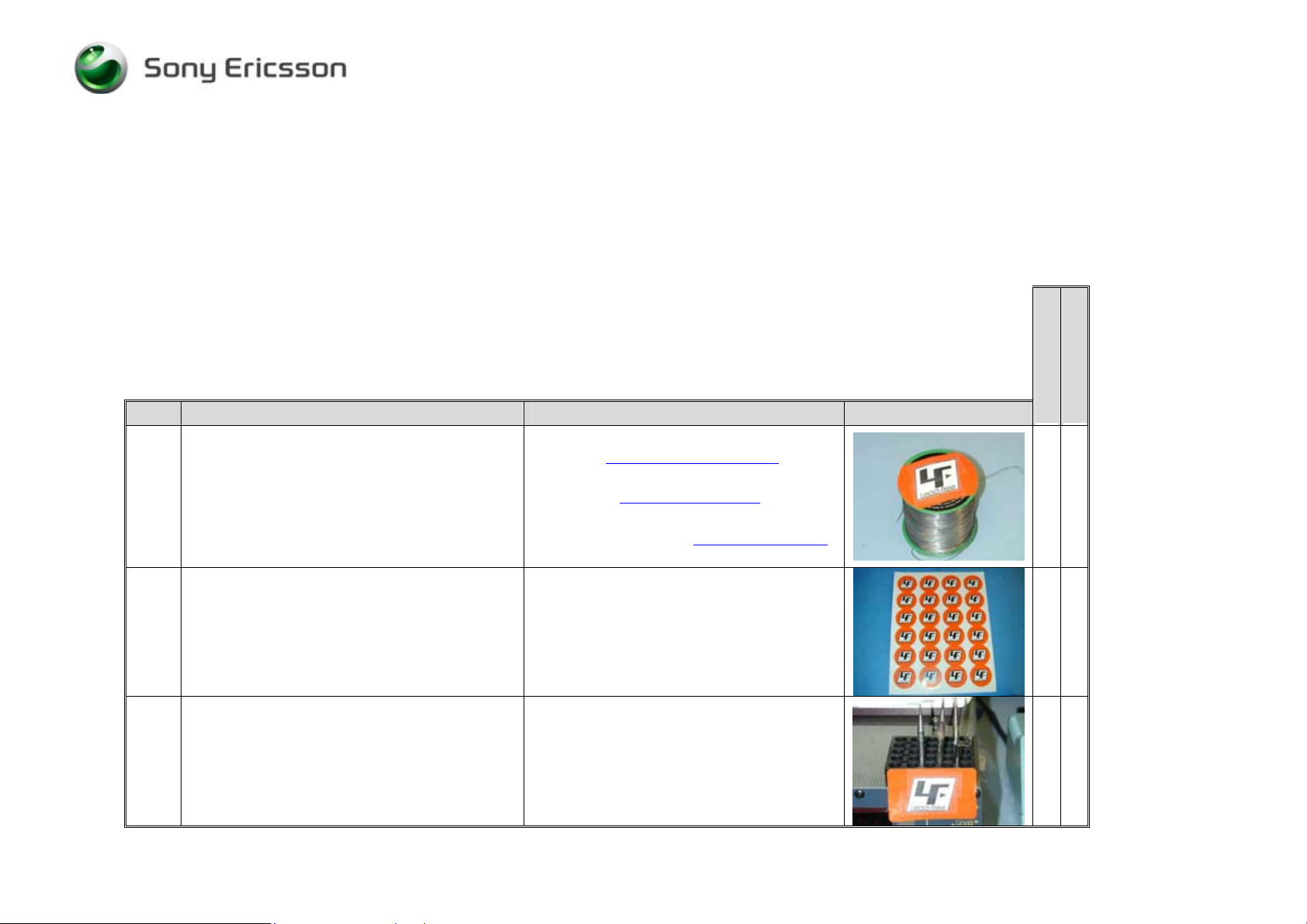

Lead-free Solder
The solder must be composed of Tin, Silver,
and Copper, and nothing else. The exact
composition ratio may vary, but it must be Tin,
Silver, and Copper only.
This composition may also be known as
SnAgCu or SAC.
Lead-free labels
(sheet of 24)
Manufacturers of LF Solder:
- Tamura (www.tamura-kaken.co.jp)
Part # TLF-206-93F
- Multicore (www.multicore.com)
Part # 96SC
- Senju (www.senju-m.co.jp)
Part # M705
SVF
9301379
Required for labeling all soldering tools and
materials that contact the solder.
Repair
X
X

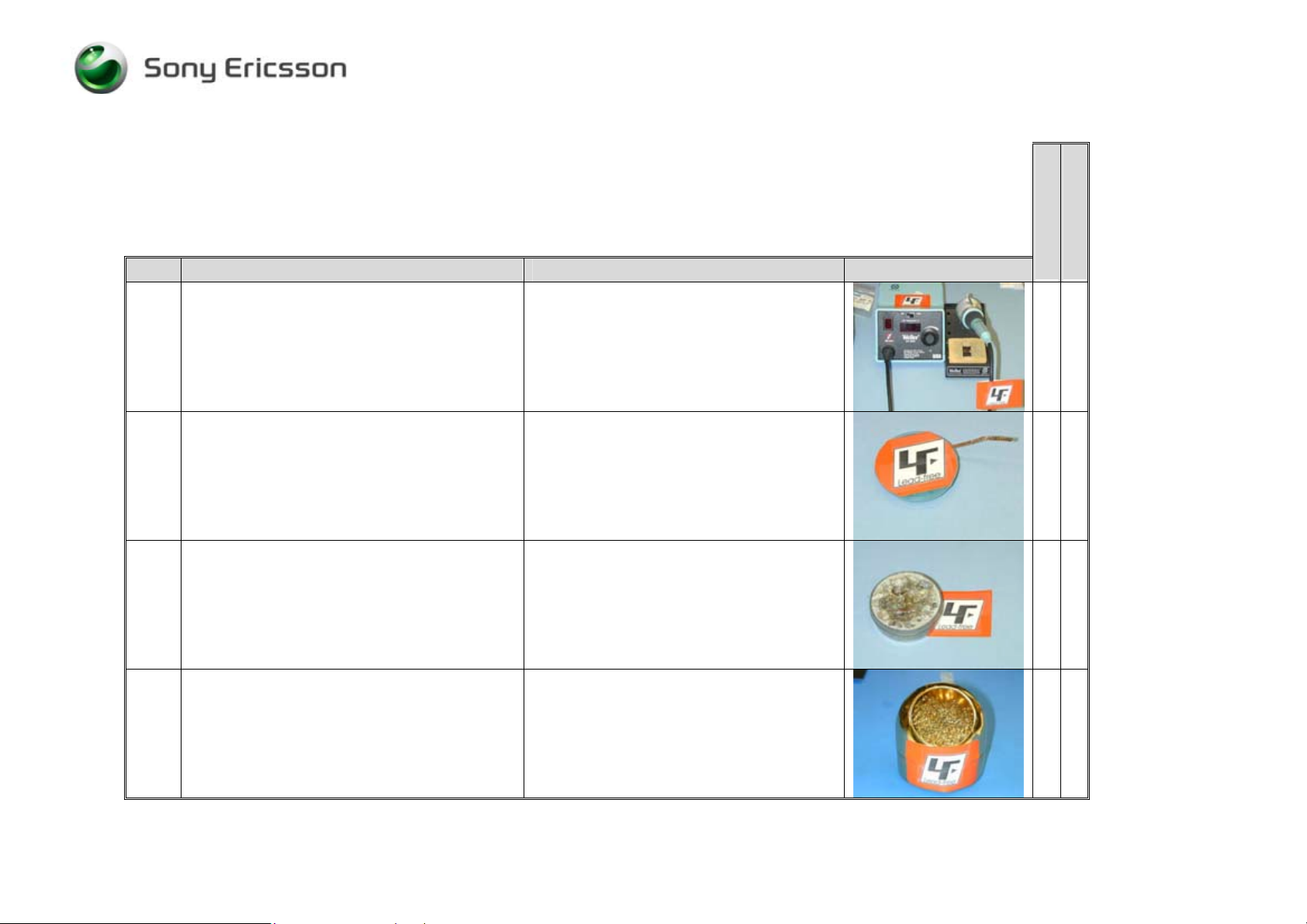

Soldering Tips
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
X
8(10)
Page 9
Equipment List, Electrical
Test
Repair
Pos Description Comments Picture
Soldering Iron
If one work bench is divided to accommodate
both leaded and lead-free solder, then each side
of the bench should have its own iron.
Wicking Tape
• The device should allow variable
temperature adjustment and be capable
of reaching an upper temperature of
426.7oC (800oF) or more.
X
X
Tip Tinner
Tip Cleaner (steel wool)
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
X
X
9(10)
Page 10
Equipment List, Electrical
3 Revision History
Rev. Date Changes / Comments
A 2004-09-13 First release
B 2004-09-24 Updated with new picture on dummybattery. Power cables added.
C 2005-02-18 Updated with Leade free wire info
D 2005-05-20 Correction of Description “Battery”. Shall be BST-27
131 30-2/FEA 209 544/89 D
Company Internal
©
Sony Ericsson Mobile Communicat i ons AB
10(10)
