Technical overview and architecture
This document is valid for the Sony Ericsson P800, P900 and P910 series mobile phones.
The Sony Ericsson P800, P900 and P910 series mobile phones are based on the Symbian™ UIQ user
interface. UIQ is a pen-based user interface platform for media rich mobile phones based on the Symbian
Operating System (OS).
The P800, P900 and P910 series is a versatile application platform enabling application developers to create applications in a variety of programming languages, including native C++, Personal Java (pJava), Java
(J2ME) and Visual Basic. This document provides guidelines for developing C++ and pJava based applications. For J2ME and Visual Basic development environments, refer to the links provided at the end of
this document.
The reader of this document is expected to understand the basics of Symbian OS™, UIQ and the development environment of UIQ SDK. For further reading, please refer to h
ttp://www.uiq.com/developer.
7 October 2004
Page 8
Developers Guideline UIQ C++ and PersonalJava
A developer’s perspective on the P800, P900 and P910 series
The P800, P900 and the P910 series are based on Symbian OS 7.0. The P800 User Interface (UI) is based
on UIQ 2.0, whereas the P900 and P910 series are based on UIQ 2.1. The table below presents a comparison of what is supported by the different phones and what developers need to consider when designing
applications:
Technical data P910 series P900 series P800 series
SDK support UIQ 2.1, 2.0 UIQ 2.1, 2.0 UIQ 2.0
Colour screen 262K 65K 4K
Camera API Yes Yes Yes
(CXC 162001 R2A14 and later)
Camera Video API Yes Yes No
MMS API Yes No No
Vibration API Yes Yes Yes
Streaming AMR API Yes Yes Yes
Themes Yes Yes No
Internal User storage 64 MB 16 MB 12 MB
Additional storage:
Memory Stick Duo
Memory Stick Duo Pro
supports up to 128 MB
supports up to 1 GB
supports up to 128 MB
No
(CXC 162001 R2A14 and later)
supports up to 128 MB
No
8 October 2004
Page 9
Developers Guideline UIQ C++ and PersonalJava
Application development
This chapter contains information for the developer of C++ and PersonalJava™ applications for the Sony
Ericsson P800, P900 and P910 series of mobile phones.
9 October 2004
Page 10
Developers Guideline UIQ C++ and PersonalJava
General information about the P900 series
The table below lists the major features of the P900 series:
Feature Support
Third party application support • C++
• PersonalJava
TM
•J2ME
• Microsoft® Visual Basic® 6
Music Player MP3,WAV, AU, AMR, MIDI (G-MIDI level 1 with 24 voices polyphony),
RMF, iMelody
Video Recorder and Player 3GPP and MPEG4 (VGA, QVGA, QQVGA and 24-bit colour depth)
with AMR encoded audio (2 quality levels + video without audio)
CLDC/MIDP 2.0 with JSR 120 and JSR 82.
Streaming RTSP according to 3GPP
Still images JPEG/EXIF
Feature Support
Integrated browser • WAP Version:2.0
• Markup HTML3.2 (excl. JavaScript and partial support for
Frames)
• Languages: WML 1.3
WBXML
XHTML Basic
XHTML Mobile Profile
cHTML
• Scripting: Compiled WML scripts
• Style sheets: WCSS
• Security: WTLS Class 1, 2, 3
TLS/SSL
• Certificates: Pre-install & download
WTLS, X.509
• WIM: WIM interface including SIM-WIM
Note: For further J2ME related information, see “Developers Guidelines Java MIDP 2.0 for the P900 series
mobile phones” available at Sony Ericsson Developer World
.
General tips for the P900 and P910 series
The UIQ version 2.1 introduces new features within the Symbian OS platform:
10 October 2004
Page 11
Developers Guideline UIQ C++ and PersonalJava
• Make sure your AppUi is derived from CQikAppUi (Qikon) and not from CEikAppUi (Uikon).
• Ensure that your application is “theme aware”. Use logical colors to draw application controls and
propagate color scheme change messages through your application.
• Add a large version of your application icon for display in the Applauncher icon view.
• The media server supports MP3 audio files. If your application uses audio files in any format, other than
AMR, then convert them to MP3.
Internal user storage – C: drive
The user storage space (C: drive) is shared across applications without any imposed restrictions, apart
from the space becoming full. Unlike a PC, the user does not need to be aware of the underlying file system. Applications will always make sensible choices and store information automatically, simplifying management of data. Third party applications may implement more complex file management solutions where
required.
Applications and information are placed in the internal storage of the P800, P900 and P910 series in the
factory. This provides sample demonstration, educational, multimedia and fun content so that the P800/
P900 series can be used directly out of the box. Much of this can be deleted by the user in order to make
the space available for personal use. The following may be deleted by the user:
• Sony Ericsson Multimedia Content
(Sound, pictures, video and other files chosen to show off the capabilities of the P800, P900 and P910
series)
• Demonstration application files are available for the P800, P900 and P910 series. These files may be
uninstalled.
•In the P800 series, Chess and Solitaire may be uninstalled if more space is needed.
In the P900 and P910 series these games do not utilise internal user storage.
• Language files (Language is selected at First Startup and Master Reset).
If the user selects any language other than UK English, the selected language files and UK English are
retained on the C: drive and the other language files are deleted.)
Note: Themes can not be deleted.
Folder view of internal storage
This section explains in more detail how the data is organised on the C: drive.
Beneath each media type and documents, the material on the mobile phone is broken into Folders. For
each named folder in the related application, a folder is created beneath the applicable media type. For
example, if the user creates a ‘My MP3’ folder in the Music player application, a ‘My MP3’ subfolder is cre-
11 October 2004
Page 12
Developers Guideline UIQ C++ and PersonalJava
ated beneath the audio folder. Unfiled folders are created in the initial folder structure and all material is
placed in the unfiled folder by default. Sony Ericsson Multimedia Content is stored in ‘Sony Ericsson’ subfolders.
When the file system is viewed from a PC using PC Suite, the C: drive is called 'Phone Memory'. Only a

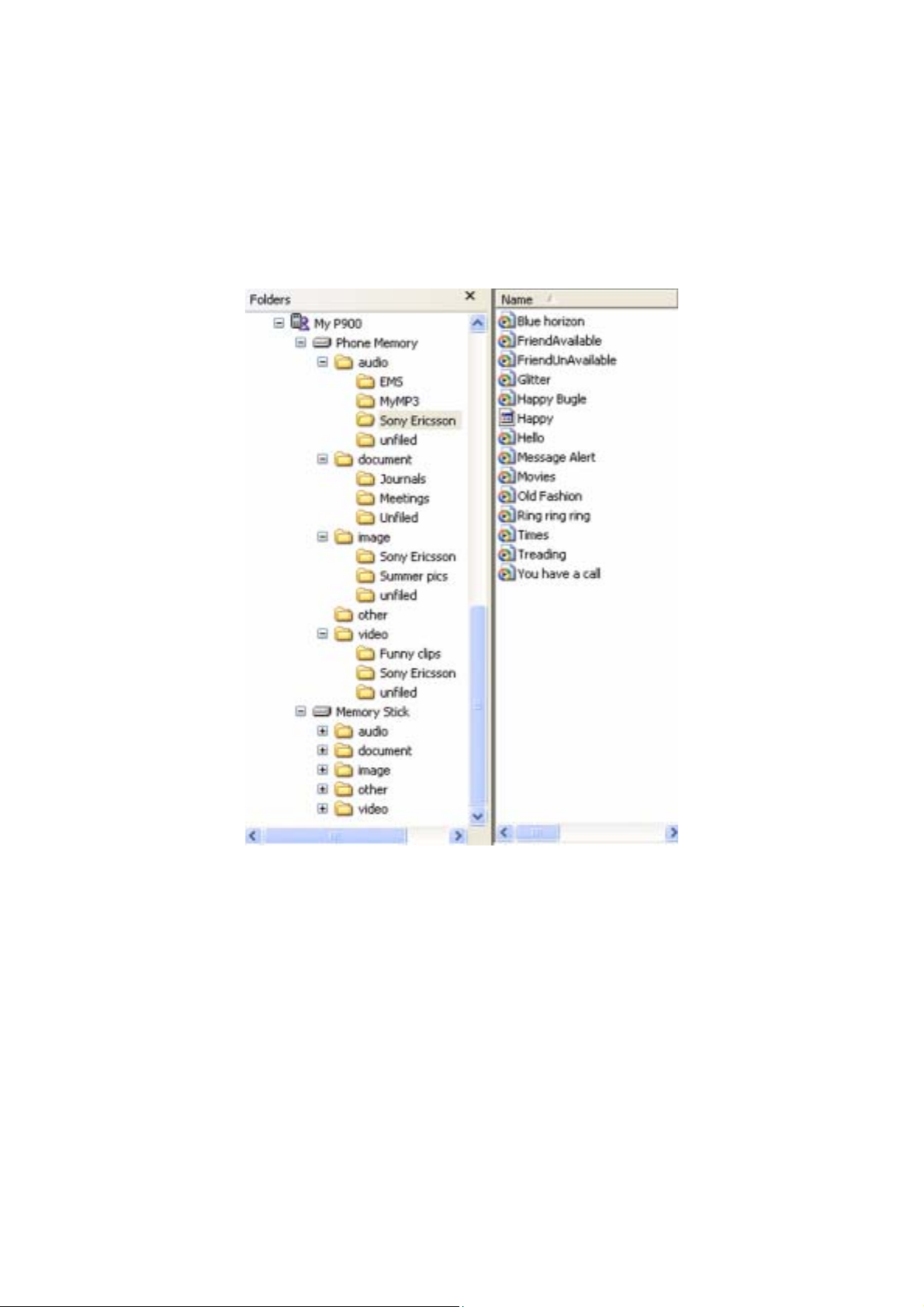

subset of the folders is accessible. The picture below shows the layout of the folder structure:
• Multimedia is stored in a structure where each media type has its own folder: ‘audio’, ‘video’ and
‘image’.
• Documents (such as Microsoft Word files) are stored under the ‘document’ folder.
• An ‘other’ folder provides a place for files that do not fit into the other categories. Beneath each
media type and documents, the material is broken into folders.
12 October 2004
Page 13
Developers Guideline UIQ C++ and PersonalJava
C++
Applications written in C++ have the most direct access to hardware and functions of the phone and
require in-depth knowledge of Symbian C++. Since C++ is a compiled language, the applications run
faster and have a faster startup time than those written in pJava, J2ME or Visual Basic. This does not
imply that applications written in other languages will be slow. In fact, the other languages may be a better
choice if your application does not require excessive speed performance.
Data calls can be made with C++ applications. Low level access to the media player, screen, Bluetooth™,
and so on, is available.You can also utilise the full screen and your applications will not be restricted to the
canvas window of pJava and J2ME.
Sony Ericsson C++ API extensions for the UIQ SDK are available for download from Sony Ericsson Devel-
oper World. These APIs enable developers to write UIQ applications to access:
• camera/video
• streaming AMR(Adaptive Multi-Rate speech codec)
• vibration functions
The P800, P900 and P910 series mobile phones support several productivity enhancing tools - Integrated
Development Environment (IDE). Below is a list of supported IDEs for developing both emulated and
native C++ applications.
IDE SDK compatibility To be used with...
CodeWarrior™ Development
Studio for Symbian OS 2.5
CodeWarrior Development Studio for Symbian OS 2.5
Borland® C++ BuilderX Mobile
edition
Note: An IDE is required if you need to test your application in the UIQ emulator. Without these productiv-
ity tools you will only be able to test your application on the target device itself.
• UIQ 2.0 SDK
• Sony Ericsson API extensions (camera/video,vibration
and AMR streaming)
• UIQ 2.1 SDK
• Sony Ericsson API extensions
• UIQ 2.1 SDK
• Sony Ericsson API extensions
P800 series C++ native application development
P900 and P910 series C++
native application development
P900 and P910 C++ native
application development
13 October 2004
Page 14
Developers Guideline UIQ C++ and PersonalJava
PersonalJava
This section offers advice about developing PersonalJava applications. This requires Symbian OS environment specific knowledge not needed for MIDP application development.
PersonalJava (referred to as “pJava” in this document) was one of the first Java programming environments targeted for development of applications for resource-constrained devices. These devices include
PDAs (Personal Digital Assistants) and Communicators/Smartphones. pJava specifies a reduced set of
class libraries compared to a desktop environment and historically represented the first attempt at selecting desktop level APIs suitable for the Java runtime environment of a high-end mobile device.
Over the years the Symbian port of pJava to Symbian OS has been undergoing substantial optimization
(assembler coded byte code interpreter, optimized AWT library and so on) that today, in combination with
hardware performance advancements, make this a powerful alternative for realizing mobile applications.
pJava is supported on both P800, P900 and P910 series, and is provided as an alternative to using Symbian OS C++ for feature-rich third party applications.
Applications developed in pJava do not have access to the hardware and functions of the phone unless
you use the Java Native Interface (JNI) and write the access procedures in C++. Your applications written
in pJava will probably run slower than a corresponding application written in C++, however they are typically easier to write. As previously stated, this does not mean to imply that pJava applications will not perform well. You can access the features of the phone by using JNI to access C++ DLLs to access the
features of the phone available to C++ applications.
Note:
JavaPhone APIs is not available on P800, P900 and P910 series and there is no direct Bluetooth access.
For more information on programming in pJava, download the self training course from Sony Ericsson
Developer World, see links.
Additional tools useful to the pJava developer
• The Sun Microsystems Inc. specification of Personal Java (PJAE). This document describes the subset
of a JDK 1.1.x generation class library that is supported by a pJava edition. The P800, P900 and P910
series pJava runtime environment corresponds to version 1.1.1a
(
http://java.sun.com/products/personaljava/spec-1-1-1/pjae-spec.pdf)
• A copy of the Sun Microsystems Inc. “JDK” (Java Development Kit).
• If you intend to use the JDK standalone to carry out the compilation of Java source code from a DOS
command shell to be executed on P800, P900 and P910 series, you should download and install the
JDK.1.8_010 at
http://java.sun.com/products/archive/jdk/1.1.8_010/index.html
pJava evolution. It has formally passed the “Sun End of Life process” but may still be preferred for this
usage, since it does not offer more advanced Java features and class library than supported by the
Symbian Java runtime, thus reducing the risk of code incompatibility.
, which closely corresponds to the
14 October 2004
Page 15
Developers Guideline UIQ C++ and PersonalJava
• It is recommended to install Sun J2SDK. When using the J2SDK, it is important to compile using a
pJava “classes.zip” file. Such a file can be found in the UIQ SDK. Also, the javac compiler directive “target 1.1” must be used for the J2SDK to assure that JDK 1.1.* compatible bytecode is generated. A
good example of this can be found on the Sun web page: http://java.sun.com/j2se/1.
tooldocs/windows/javac.html#crosscomp-example.
• JavaCheck(tm) is a useful tool provided by Sun that helps you to find out if your source code conforms
to the pJava specification. See:
http://java.sun.com/products/personaljava/javacheck.html
You should use JavaCheck 3.0 which corresponds to the 1.1.x PJAE specification.
5.0/docs/
pJava performance
pJava is located on the A: drive in the P800 series. However, in the P900 and P910 series, pJava resides in
ROM (Z: drive) and 'executes in place'. This means that in the P900 and P910 series, the virtual machine
binaries and classes.zip are not copied to RAM before execution. This results in approximately 1 second
shorter startup time for an application and lower RAM usage per launched application.
pJava application considerations
The available screen size is 276x208 pixels and applications are usually based on the java.awt.Frame
class. A good rule to minimise the start-up of applications containing complex GUIs, is to instantiate all
GUI elements just before they are first needed, rather than at start-up. To give the user a perception of a
quick starting application, it may be a good idea to load and display a “splash screen” as the first action
while additional initialisation continues. This is something to consider for commercial grade applications
where this additional development work is well worth the effort.
pJava font limitations (java.awt.Font)
The fonts and font sizes available to pJava applications are limited by the native fonts available in Symbian
OS.
It is possible to obtain a list of the available fonts by using the java.awt.Toolkit class. The toolkit is acquired
by using:
java.awt.Tookit tk=java.awt.Toolkit.getDefaultToolkit();
You can now get a string array of available fonts by using:
String[]fonts = tk.getFontList();
Only a limited set of font sizes are available for each font. For pJava, not all font sizes that can be specified
in the font constructor are available. Instead the nearest smaller size available will be constructed. It is
possible to sense the actual size obtained by using the method:
FontMetrics fm = tk.getFontMetrics();
15 October 2004
Page 16
Developers Guideline UIQ C++ and PersonalJava
Behaviour related to flip modes
The P800, P900 and P910 series operates in two distinctly different UI modes: Flip Open (FO) and Flip
Closed (FC). pJava applications can be launched and can only appear on screen while in the FO mode. On
transition from FO to FC, the UI of any pJava application being executed becomes out of focus (hidden)
and the user is unable to interact with the application. The application may however continue to execute
and perform various tasks in the background. The user is able to return to the pJava application by returning to the FO mode Application Launcher panel and selecting the application from the list of installed
applications. If that pJava application is already running, its UI appears instantly on screen. If it is not running, the application needs to start up before it can appear on screen.
To detect an AWT window state transition for pJava(AWT), it is possible to override the methods WindowClosing and WindowOpening in java.awt.event.WindowAdapter. If such a transition occurs, the application
may decide to perform certain actions such as terminating, reducing resource usage, saving/restoring
state and so on.
Application development
This section provides a high level overview of the components required to successfully develop P800,
P900 and P910 series applications.
The UIQ SDK is generic and is not tailor-made for the Sony Ericsson smartphones. The P800, P900 and
P900 series devices are platforms based on the Symbian/UIQ base port supporting most of the APIs available in the SDK.
UIQ 2.0 vs UIQ 2.1 and application compatibility
The table below lists the UIQ versions and the appropriate development platform:
Use UIQ version... for development on the ...
UIQ 2.1 SDK P900 and P910 series
UIQ 2.0 SDK P800 series
Note:
It is recommended that you test your application on all target devices.
Convention
From this point on, the UIQ 2.0 SDK and UIQ 2.1 SDK will be referred to as UIQ SDK meaning the SDK
applicable to the platform in reference.
Sony Ericsson publishes - at its own discretion - extra platform specific APIs. These are available from
Sony Ericsson Developer World.
16 October 2004
Page 17
Developers Guideline UIQ C++ and PersonalJava
UIQ SDK for Symbian OS v7.0
The UIQ SDK contains:
• Library files
• Documentation
• Sample code
• Tools for packaging applications into Symbian installable format (.sis) for C++ and Personal Java
applications.
These .sis files can be compared to ‘InstallShield’ in Microsoft® Windows® development environment.
• A standard UIQ device emulator to simplify and speed up your development process
• Deployment tools, such as AIFBuilder and MakeSIS
Technical requirements for the UIQ SDK
• Windows NT 4.0 or Windows 2000. The SDK has not been thoroughly tested and verified with Win-
dows XP.
• Java Runtime Environment (JRE) version 1.3.1 (included in the SDK) is required for installing the
SDK. The installation process has been verified with this JRE.
• 1,4 GB or more of free disk space (to install all components).
• WinZip or an equivalent file utility for unzipping files.
Note:
The UIQ SDK needs to be installed before installing Metrowerks CodeWarrior Development Studio for
Symbian OS.
Device Emulator and Library Linking
The UIQ SDK includes a generic UIQ emulator enabling application developers to emulate and debug
applications on a PC during the development cycle.
The directory \epoc32\tools is required for the bldmake command. This command generates the abld
batch file used in building the specific project.
Library linking for applications with device emulation
When developing for the Emulator, you need to link to the libraries in:
• the subdirectory epoc32\release\WINSCW if using Metrowerks CodeWarrior.
• the subdirectory epoc32\release\WINS if using Borland C++ BuilderX.
Library linking for applications for target execution
When building your application for the target device/mobile phone, you need to link to the libraries in:
• the subdirectoryepoc32\release\THUMB.
17 October 2004
Page 18
Developers Guideline UIQ C++ and PersonalJava
Skin images
Sony Ericsson provides skin images and property files for changing the “look and feel” of the generic UIQ
emulator of the Sony Ericsson P800, P900 and P910 series. The skin images are available at Sony Erics-
son Developer World.
In order to mirror the appearance of the phone’s screen in the UIQ Emulator, do the following:
1. Backup existing files in the UIQ SDK.
and
<sdkroot>\epoc32\data\epoc.ini
2. Replace the above epoc.bmp and epoc.ini files with the files provided by Sony Ericsson.
Emulator issues and guidelines
• An emulator error may occur for PCs with more than two COM ports. Removing irda.esk and
bt.esk from \epoc32\[target]\system\data resolves this problem.
• If the emulator does not start when pressing run and the command line window says: "Unable to
initialize threads: cannot find class java/lang/Thread", set the environment vari-
able _epoc_drive_j to <SDK_DIR>\epoc32\java\.
• Personal Java applications can be compiled with any Personal Java compiler and tested in the UIQ
emulator.
• C++ applications must be compiled with CodeWarrior Development Studio for Symbian OS or Borland
C++ BuilderX Mobile Edition to be able to be tested in the UIQ emulator. See page 12
mation concerning IDEs.
for further infor-
Chinese extensions to the emulator
If your applications require Chinese Traditional and Simplified Chinese input in the emulator (P802/P908),
a Chinese extension to the UIQ SDK can be downloaded from Sony Ericsson Developer World
.
Porting applications
The UIQ User interface design is referred to as Qikon. Another well-known User Interface in the Symbian
community is Series 60, referred to as Avkon.
Porting guidelines are available for developers who would like to port their applications from Series 60 to
UIQ. There are also commercial porting tools and professional services available for developers who want
to port from Avkon to Qikon user interfaces. More information can be found in “Porting Guide S60 to
P800/P900” at Sony Ericsson Developer World
.
18 October 2004
Page 19
Developers Guideline UIQ C++ and PersonalJava
Sony Ericsson specific APIs
The Sony Ericsson specific API:s and relevant documents can be found at Sony Ericsson Developer
World.
Camera API
The Sony Ericsson Camera APIs for the P800, P900 and P910 series support:
• Still image capturing of RGB bitmap based pictures in three sizes.
• Still image mode direct-to-screen view finding of one fixed size (QQVGA). The Camera API for the
P900 also supports video recording of QCIF sized frames in YUV 4:2:0 format at 15 frames per second and video mode direct-to-screen view finding of one fixed size (QCIF).
Detailed API information is available within the downloadable packages.
The Camera API support for the P800 series is not pre-installed in the device and must be installed separately. At install time the package (ECam.sis) checks to see if the target phone supports the Camera API.
Applications using the Camera API embed ECam.sis into the application package.
Compatibility
The camera API for the P800 is compatible with P800 Organiser software CXC162001 R2A14 and later.
There is no need to install any Camera API packages for the P900 and P910 series. This function is provided in the base software.
To make the Camera API a part of an installable application, add the following line to the application's .pkg
file:
@"ECam.sis", (0x101F7D30)
Vibration API
The Sony Ericsson Vibration API turns the vibration function on and off. This API is also used to specify the
time to turn the vibration on or off and the number of times to run this scenario. Detailed API information is
available within the downloadable package.
The Vibration API in the P900, P910 and the P800 series are binary compatible. The dynamic link library is
present in the P900 and P910 series but needs to be installed manually in the P800 series.
The Vibration.sis file has to be embedded into the application .sis-file to provide application support on
both P800, P900 and P910 series. This embedded .sis-file will be ignored by the P900 and P910.
To make the Vibration API a part of an installable application, add the following line to the application's
.pkg file:
@"Vibration.sis", (0x101F94A3)
19 October 2004
Page 20
Developers Guideline UIQ C++ and PersonalJava
Streaming AMR API
AMR is standard speech GSM encoding/decoding technology. It lets you play and record AMR encoded
sound at different bit rates. This function can therefore be used by your application.
The Streaming AMR API support is not supplied in the base software of the P800 and must therefore be
installed separately. The package provided (StreamingAmr.sis) is used to add this Streaming AMR API to
the device.
Compatibility
The Streaming AMR API is compatible with the P800 Organiser software CXC162001 R2A14 and later.
There is no need to install any AMR packages for the P900 or P910 series. This function is provided in the
base software.
To make the Streaming AMR API a part of an installable application, add the following line to the application’s.pkg file:
@"StreamingAmr.sis", (0x101F94AE)
MMS API
The P910 incorporates its own version version of MMS APIs allowing multimedia messages to be received
on and sent from the phone. This MMS is different from the MMS service that is found in the standard UIQ
2.1 SDK.
The MMS API is based on a similar MMS API available for Nokia Series 60 Developer Platform 2.0. This
will allow easy porting of applications that use MMS between Series 60 and UIQ 2.1.
Compatibility
The MMS API is compatible with the P910 Organiser software CXC 162041 R2A17 and later. The MMS
API will not work on P800 and P900 series
Other useful Symbian APIs
Device identification
HAL can be used to identify and adjust the behaviour of the P800, P900 and P910 series applications.
#include <hal.h>
HAL::Get(HALData::EMachineUid, aInt)
20 October 2004
Page 21
Developers Guideline UIQ C++ and PersonalJava
The aInt values are listed in the table below:
Device Device UID
P910 aInt = 0x10200AC6
P900 aInt = 0x101FB2AE
P800 aInt = 0x101F408B
UIQ emulator aInt = 0x10005F62
Bluetooth
For more information, see the C++/Bluetooth Special Interest Paper at Sony Ericsson Developer World.
IMEI, IMSI
The IMEI number can be obtained by reading C:\System\plpvar.ini
The IMSI number can be obtained by reading C:\System\data\imsi.txt
Colour display
The P910 has a colour-depth of 262K, the P900 has a colour-depth of 65K and the P800 4K. Applications
requiring direct access to the screen will encounter problems with devices. It is therefore recommended
that applications use the CDirectScreenAccess method. This method is described with an example in
the SDK in:
<SDKROOT>\examples\Graphics\WS\Direct\
and
<SDKROOT>\examples\Graphics\2DAccel
The latter shows how to query the system to obtain the resolution used by the device.
Audio
Programmers can use the versatile audio engine available in the P800, P900 and P910 series mobile
phones. The mobile phones use Beatnik Audio Engine, Mini Edition (MiniBAE) to reproduce high quality
MIDI sounds and is able to play different media types together, at the same time.
To extend your applications with high quality sound effects, use the miniBAE devkit available from Sony
Ericsson Developer World.
Media server
The Media server is ‘single threaded’. This means that audio recording/playback and image operations
cannot be done at the same time without affecting each other. Applications that use the Media Server
should take this into consideration and ensure that they break up long operations (for example, converting
a GIF to a BMP) into smaller steps. In this way, the Media Server is able to serve both the audio and the
image requests in a reasonable amount of time.
21 October 2004
Page 22
Developers Guideline UIQ C++ and PersonalJava
API Limitations
Some components in the P800, P900 and P910 series have been replaced and therefore some of the
standard Symbian/UIQ APIs are not valid.
COMMDB Object
The following interface has a slightly different behaviour:
CCommsDbTableView::ReadTextL(const TDesC& aColumn, TDes8& aValue)
The difference relates to the type of data stored in 'aColumn'.
In the SDK version of COMMDB, 'aColumn' is either narrow text (EDbColText8) or wide text
(EDbColText16). If it is wide text, a conversion is performed.
In the P800, P900 and P910 series version of COMMDB, 'aColumn' must be narrow. If it is not, the client
will receive the following error:
Category - DBMS
Reason - 7 (EDbWrongType)
BIOMSG Object
The following MTM library is not present in the P800, P900 and P910 series:
Z:\SYSTEM\PARSERS\wapp.dll
Any client attempting to dynamically load this library will receive the error code -1 (KErrNotFound).
BAFL bassnd.h
Built in system sounds, i.e. in ROM, cannot be replaced by using the function:
BaSystemSound::SetSoundL()
CEikInfoDialog
Subclassing of CEikInfoDialog is not recommended in the P800, P900 and P910 series.
WAP stack
The component does not exist in the P800, P900 and P910 series – do not use these APIs. Another
unpublished set of APIs are used.
22 October 2004
Page 23
Developers Guideline UIQ C++ and PersonalJava
ETel
ETel Core can be used to produce a simple telephony application. It handles placing of a call, answering a
call and ending a call. It does not use GSM specific information such as signal strength and network
name. The functions of the ETel Core API which are supported are listed below:
Class RCall
(functionality associated with a
specific call)
AnswerIncomingCall
Connect
Dial
GetCallDuration
GetCallParams
GetCaps
GetFaxSettings
GetInfo
GetOwnershipStatus
GetStatus
HangUp
NotifyCapsChange
NotifyHookChange
NotifyStatusChange
GetBearerServiceInfo
AcquireOwnership
LoanDataPort
NotifyCallDurationChange
RecoverDataPort
ReferenceCount
SetFaxSettings
TransferOwnership
Class RLine
(functionality associated with a
specific line)
EnumerateCall
GetCallInfo
GetCaps
GetHookStatus
GetInfo
GetStatus
NotifyCallAdded
NotifyCapsChange
NotifyHookChange
NotifyIncomingCall
NotifyStatusChange
Class RPhone
(functionality associated with a
specific phone)
GetLineInfo
GetStatus
EnumerateLines
GetCaps
GetInfo
Initialise
NotifyCapsChange
NotifyModemDetected
Messaging/MMS
The P800 and P900 series do not use the standard Symbian MMS API.
Deploying applications on the P800, P900 and P910 series
The steps described below are documented in the UIQ SDK. It is important that the developer is familiar
with the “Aifbuilder” and “MakeSIS” tools which are used for preparing applications to execute on the
mobile phones.
Each Symbian OS UI variant has a shell program that allows the user to run application programs. For an
application to be run from such a shell program, at least two files are needed:
23 October 2004
Page 24
Developers Guideline UIQ C++ and PersonalJava
1. An application file (.app) minimally containing a unique identifier (UID) to identify the program.
2. An application information file (.aif) specifying the application’s icon and caption in the P800, P900 and
P910 series Application Launcher list of applications.
Note:
There is no need to generate an .aif file. If this file does not exist, the application uses the default system
icon. It is recommended that each application has a resource file and an .aif file.
Other files may also be required depending on the programming language. For a pJava application, an
additional text file (.txt) is required to specify the command line to the JVM when the application is
launched.
• Create a .pkg file by copying a sample one from the Install directory <SDK_DIR>\Examples\Tool-
sAndUtilities\Install\ and modify it to match your application.
• Run the MakeSIS tool from the command line.
“MakeSIS” is needed for generating .sis format installation files to ensure availability of a C++ and pJava
application to end users for installation.
P800/P900 series specific .sis packages
The P800, P900 and P910 series are open devices for adding applications. Today, there are Symbian
devices on the market based on different User Interfaces (UI), namely UIQ, Series 60, Series 80 and Series
90. Applications for these devices are all installed using an installation package.
The format is developed by Symbian and is called .sis.
To ensure that the appropriate .sis file is installed on a designated target device, the P800, P900 and P910
series .sis packages need to contain platform-specific package information. If this information is not
included, the installation will stop and the user will receive the error [Incompatible installer version] when
trying to install the .sis package.
The table below describes the information that needs to be added to the .sis package files depending on
the platform being used:
Platform Information to be added to .pkg file For general UIQ v2.0 compatibility
P910 series (0x101FBB35), 2, 0, 0,
{"SonyEricssonP9xxPlatformProductID"}
P900 series (0x101FBB35), 1, 0, 0,
{"SonyEricssonP90xPlatformProductID"}
P800 series (0x101F80BE), 1, 0, 0,
{"SonyEricssonP80xPlatformProductID"}
(0x101F61CE), 2, 1, 0, {"UIQ21ProductID"}
(0x101F61CE), 2, 1, 0, {"UIQ21ProductID"}
(0x101F617B), 2, 0, 0, {"UIQ20ProductID"}
Note:
Applications that are P800 series specific will run on the P900 and P910 series platform, but not vice
versa.
24 October 2004
Page 25
Developers Guideline UIQ C++ and PersonalJava
Installation and data storage
Applications can be easily downloaded directly to the mobile phone using the browser, or may be installed
from a connected PC, using USB, Infrared or Bluetooth. Applications can also be installed from a Memory
Stick.
Multimedia content such as images, movie clips, sound clips and general-purpose files such as Word
documents can either be stored locally (C: drive) or on a Memory Stick (D: drive). Third party (pJava and
C++) applications can also use the Memory Stick for both application and data storage. These are all
accessed using the viewers provided with the mobile phones.
The built in browser can download .jar/.jad or .sis files from WML and xHTML pages provided that the
server supports the actual file types. The P800, P900 and P910 series mobile phones can also download
.jar/.jad/.sis files from ordinary Web servers provided that they support the MIME type for each of the file
types. Some servers need to be configured for this.
On-target debugging
Testing and debugging are two of the most time-intensive phases of the application development cycle.
The Sony Ericsson P800 series mobile phone was the first Symbian device on the market to support ontarget debugging of native C++ applications.
It is recommended that you use an IDE if you need to perform on-target debugging of your application. It
is possible to do this using:
• Metrowerks CodeWarrior for Symbian OS v2, Professional and Enterprise Editions using the proprietary MetroTRK on-target debugger client in the P800/P900 series. This allows developers to debug
their code on the commercial releases of the P800/P900 series. Metrowerks MetroTRK (Metrowerks
target resident kernel) provides target side application level debug support for the P800, P900 and
P910 series. This can be used in conjunction with the Metrowerks CodeWarrior IDE for Symbian OS.
The MetroTRK description, updates and patches are available from http://www.metrowerks.com/MW/
develop/wireless/default.htm.
• Borland C++BuilderX Mobile Edition. Borland Mobile studio allows on-target debugging via gdbstub.
For more information, see http://www.borland.com/mobile/cbuilderx
More information
For information on-target debugging for the P800, P900 and P910 series, refer to Sony Ericsson Devel-
oper World.
.
25 October 2004
Page 26
Developers Guideline UIQ C++ and PersonalJava
Signing digital applications
Symbian Signed
“Symbian Signed” is a new program from Symbian that supports tested and digitally signed applications on Symbian OS phones. It is supported by all Symbian licensees including Sony Ericsson.
A “signed” application means that the application has passed the test criteria and is digitally signed to
guarantee the source and integrity of the application. Sony Ericsson encourages all users to use
signed applications only.
Developers are allowed to use a Symbian logo called “For Symbian OS” to indicate compliance to the program. For further information see the Symbian Signed white paper
Installing ”Symbian Signed” applications on the P800, P900 and P910
series
In order to install an application that is “Symbian Signed”, a Symbian root certificate must be present in
your phone. This certificate is pre installed in the P900 and P910 series mobile phones but needs to be
installed in the P800 series mobile phones by following the installation steps in the section below: “How to
install the Symbian certificate”.
.
How to check if the Symbian certificate is installed
•Go to Applications -> Control Panel -> Certificate manager -> Certificate Authority. The list
contains a certificate called “Symbian”.
• If the Symbian certificate is not there you will need to install it.
• You must have the “Sony Ericsson” certificate in the list. If you do not see the “Sony Ericsson” cer-
tificate you must contact Sony Ericsson customer support.
All future Symbian OS based phones will have a preinstalled Symbian root certificate from the factory. If
you have accidentally erased it from your phone it is possible to use the same procedure as for the P800
series.
How to install the Symbian certificate
1. Download the Certificate Installation Application (CIA) to your PC. The CIA is available from the following sites:
• Sony Ericsson’s support web site at http://www.sonyericsson.com/support
• Sony Ericsson Developer World at http://www.sonyericsson.com/developer
• Sony Ericsson Application Shop at www.sonyericsson.com/applicationshop
• Symbian Signed web site at http://www.symbiansigned.com
2. Install the file Certificate_installation.sis to your phone through the PC suite in the same way as for all
downloadable applications (the format of the application is a normal Symbian OS installation file).
3. After successful installation, the application called "Certificate installation" appears in the application
list. (Scroll down if necessary).
26 October 2004
Page 27
Developers Guideline UIQ C++ and PersonalJava
4. Select "Certificate installation" to install the certificate. Upon successful installation, the Symbian certificate appears in the Certificate Authority list.
It is now possible to install “Symbian Signed“ applications in a secure way on your phone!
Go-to-Market opportunities
Sony Ericsson provides you with the opportunity to have your applications marketed through the Sony
Ericsson application shop at www.sonyericsson.com/applicationshop
mobile phone users are able to buy business and leisure applications which give extra functionality to their
handsets.
To apply for this please refer to Sony Ericsson Developer World.
. P800, P900 and P910 series
27 October 2004
Page 28
Developers Guideline UIQ C++ and PersonalJava
Technical specifications and references
This chapter provides technical references for the mobile phones in the scope of the document, and also
information on reference documents and useful links.
28 October 2004
Page 29
Developers Guideline UIQ C++ and PersonalJava
Technical specifications for the P800, P900 and P910 series
Specification table:
Characteristic P910 series P900 series P800 series
Pixel ratio (H: W) 1:1 1:1 1:1
Colours 18-bit (262 144 colours) 16-bit (65 536 colours) 12-bit (4096 colours)
Internal user storage 64 MB 16 MB 12 MB
RAM 32 MB 16 MB 16 MB
Other API support pJava supports JNI (Java
Native Interface)
pJava version 1.1.1a 1.1.1a 1.1.1a
Physical communication interfaces
Characteristic
Bluetooth APIs C++ and J2ME * C++ and J2ME * C++ only
JavaPhone API No No No
Java Serial APIs No No No
Debug interface C++ only C++ only C++ only
OTA RP v1.0 Yes, applicable to J2ME
4 way arrow keys with
select
Other function keys Jog Dial (up, down,
Bluetooth, IR, Serial Bluetooth, IR, Serial Bluetooth, IR, Serial
P910 P900 series P800 series
MIDP applications
KVM - soft buttons KVM - soft buttons KVM - soft buttons
towards, away, select
pJava supports JNI (Java
Native Interface)
Yes, applicable to J2ME
MIDP applications
Jog Dial (up, down,
towards, away, select)
pJava supports JNI
(Java Native Interface)
Yes, applicable to J2ME
MIDP applications
Jog Dial (up, down,
select)
Numeric keys KVM soft buttons 0-9,
*# (ITU-T)
Inside flip keyboard Yes No No
* For more information about J2ME functions for the P900 series, refer to “Developers Guidelines for
J2ME MIDP 2.0 for the P900 and P910 series” at Sony Ericsson Developer World.
KVM soft buttons 0-9,
*# (ITU-T)
KVM soft buttons 0-9, *#
(ITU-T)
29 October 2004
Page 30
Developers Guideline UIQ C++ and PersonalJava
Links and references
pJava on P800, P900 and P910 series
pJava Application Environment http://java.sun.com/products/personaljava/
Refer also to the UIQ SDK documentation for pJava specifications
Wireless Java for Symbian
Devices
Java on Symbian http://www.symbian.com/technology/standard-java.html
http://www.symbian.com/books/wjsd/wjsd-info.html
Links
Symbian C++ developer http://www.symbian.com/developer/index.html
(Be aware that this is not P800, P900 or P910 series specific information)
Sony Ericsson Developer World http://www.sonyericsson.com/developer
Tips, information and external documentation
Development books
Author Title ISBN Publication date
Allin Wireless Java for Symbian Devices 0471486841 08/24/01
Dreamtech Programming for embedded systems: Cracking the
code
Harrison Symbian OS C++ for Mobile Phones 0470856114 04/17/03
Jipping Symbian OS Communications Programming 0470844302 06/18/02
Mallick Mobile And Wireless Design Essentials 0471214191 04/25/03
Symbian Newcomer to Symbian OS Guide
764549545 July 2002
30 October 2004
Page 31
Index
Developers Guideline UIQ C++ and PersonalJava
A
A: drive
Aifbuilder
AMR
API support
Application files
Applications
Audio
Avkon
B
Beatnik Audio Engine
BIOMSG
Bluetooth
Browser
C
C++
C: drive
Camera
CEikInfoDialog
Chinese extension
Colour support
COMMDB
Compatibility
................................................................ 15
............................................................. 23
.................................................................... 20
......................................................... 29
................................................... 11
........................................................ 25
................................................................... 21
.................................................................. 18
.......................................... 21
.............................................................. 22
............................................................ 21
............................................................... 10
..................................................................... 13
....................................................11, 12, 25
............................................................... 19
.................................................... 22
.............................................. 18
.................................................... 21
........................................................... 22
....................................................... 16
l
a
L
Language files
M
MakeSIS
Marketing
Media server
Messaging
MetroTRK
Multimedia Content
Multimedia content
Music Player
P
pJava
Q
Qikon
S
Screen size
sis packages
............................................................. 23
............................................................ 27
....................................................... 21
.......................................................... 23
........................................................... 25
....................................................... 10
............................................................ 13, 14
............................................................ 11, 18
se
......................................................... 15
....................................................... 24
U
T
Testing
................................................................ 25
.................................................... 11
............................................ 11
............................................. 25
nly
O
D
D: drive
Debugging
Development Books
................................................................ 25
.......................................................... 25
........................................... 30
e
n
r
t
E
ETel
..................................................................... 23
F
Flip
...................................................................... 16
Fonts
................................................................... 15
I
Identification
IMEI
IMSI
J
J2ME
JavaCheck
JavaPhone
For In
....................................................... 20
..................................................................... 21
..................................................................... 21
................................................................... 13
.......................................................... 15
.......................................................... 14
U
Uikon
.................................................................. 11
UIQ
....................................................................... 8
UIQ emulator
UIQ SDK
V
Vibration
Video Recorder
W
WAP stack
Z
Z: drive
...................................................... 17
....................................................... 16, 17
............................................................. 19
................................................... 10
.......................................................... 22
................................................................ 15
31 October 2004
Loading...
