CDP-CX220

SERVICE MANUAL

SPECIFICATIONS

US Model

Canadian Model

AEP Model

UK Model

E Model

Australian Model

Model Name Using Similar Mechanism CDP-CX250 CD Mechanism Type CDM-40B Base Unit Type KSM-213BKN/M-N Optical Pick-up Type KSS-213B/S-N

Compact disc player

Laser Semiconductor laser (λ = 780 nm)

Emission duration: continuous

Laser output Max 44.6 µW*

* This output is the value measured at

a distance of 200 mm from the objective lens surface on the Optical Pick-up block with 7 mm aperture.

Frequency response 20 Hz to 20 kHz ± 0.5 dB

Signal-to-noise ratio More than 105 dB

Dynamic range More than 98 dB

Harmonic distortion Less than 0.0045%

Channel separation More than 97 dB

Outputs

Jack Maximum Load impedance type output

level

LINE OUT Phono 2V Over 10 kilohms

Jacks (at 50 kilohms)

DIGITAL Optical –18 dBm Wave length: 660 nm OUT output (OPTICAL) connector

General

Power requirements

Where purchased Power requirements

USA/Canada 120 V AC, 60 Hz Australia 240 V AC, 50/60 Hz Europe 220 V – 230 V AC, 50/60 Hz Other countries 110 V – 120 V or 220 V – 240 V AC,

adjustable, 50/60 Hz

Power consumption 12 W Dimensions (approx.) When the front cover is closed (w/h/d) 430 × 200 × 480 mm (17 × 7 7/8 × 19 in.)

incl. projecting parts

Mass (approx.) 9.5 kg (21 lbs)

Supplied accessories

Audio cord (2 phono plugs – 2 phono plugs) (1) Remote commander (remote) (1) Sony SUM-3 (NS) batteries (2) CD booklet holders (2) and label (1)

Design and specifications are subject to change without notice.

COMPACT DISC PLAYER

MICROFILM

TABLE OF CONTENTS

1. SERVICING NOTES............................................... 3

2. GENERAL ................................................................... 6

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

3. DISASSEMBLY ......................................................... 7

4. TEST MODE.............................................................. 10

5. MECHANICAL ADJUSTMENTS ....................... 13

6. ELECTRICAL ADJUSTMENTS......................... 19

7. DIAGRAMS................................................................. 22

7-1. Note for Printed Wiring Boards and

Schematic Diagrams ....................................................... 23

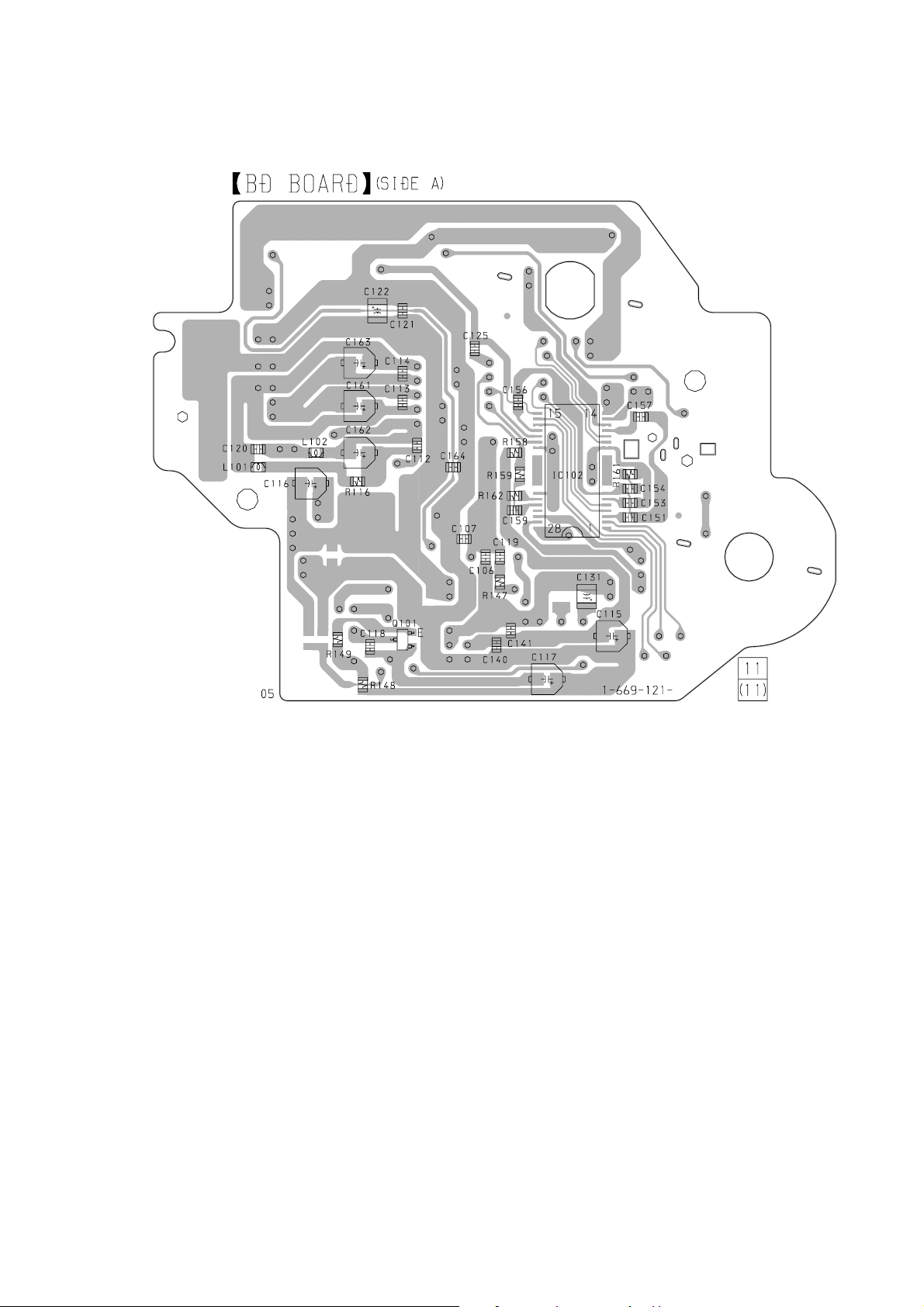

7-2. Printed Wiring Board – BD Section – ........................... 25

7-3. Schematic Diagram – BD Section – ............................... 27

7-4. Printed Wiring Board – Main Section – ........................ 29

7-5. Schematic Diagram – Main Section – ........................... 31

7-6. Printed Wiring Boards – Jack Section –........................ 33

7-7. Schematic Diagram – Jack Section – ............................ 35

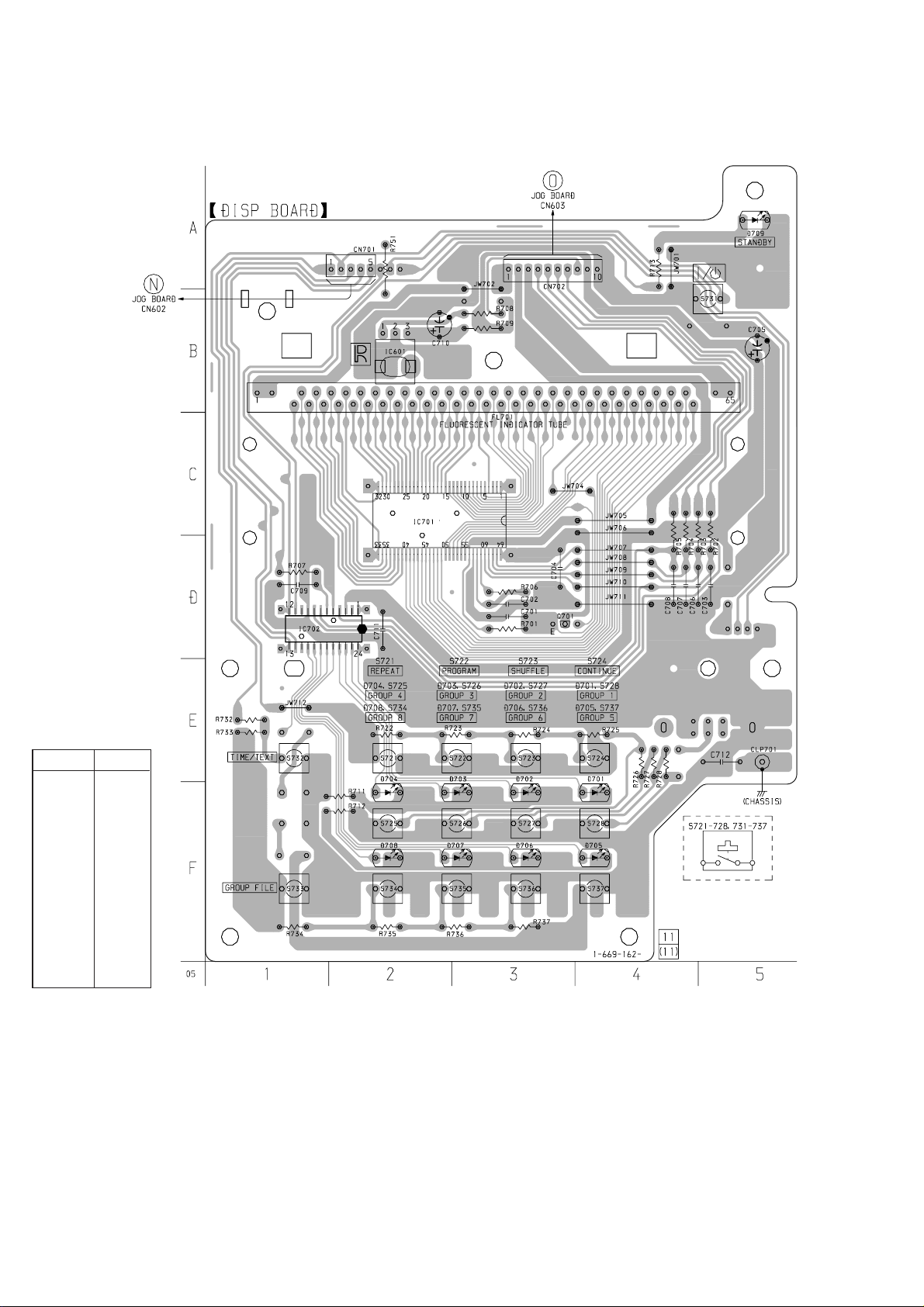

7-8. Printed Wiring Boards – Panel Section – ...................... 37

7-9. Schematic Diagram – Panel Section – .......................... 39

7-10. Printed Wiring Board – Sensor/Motor Section – .......... 41

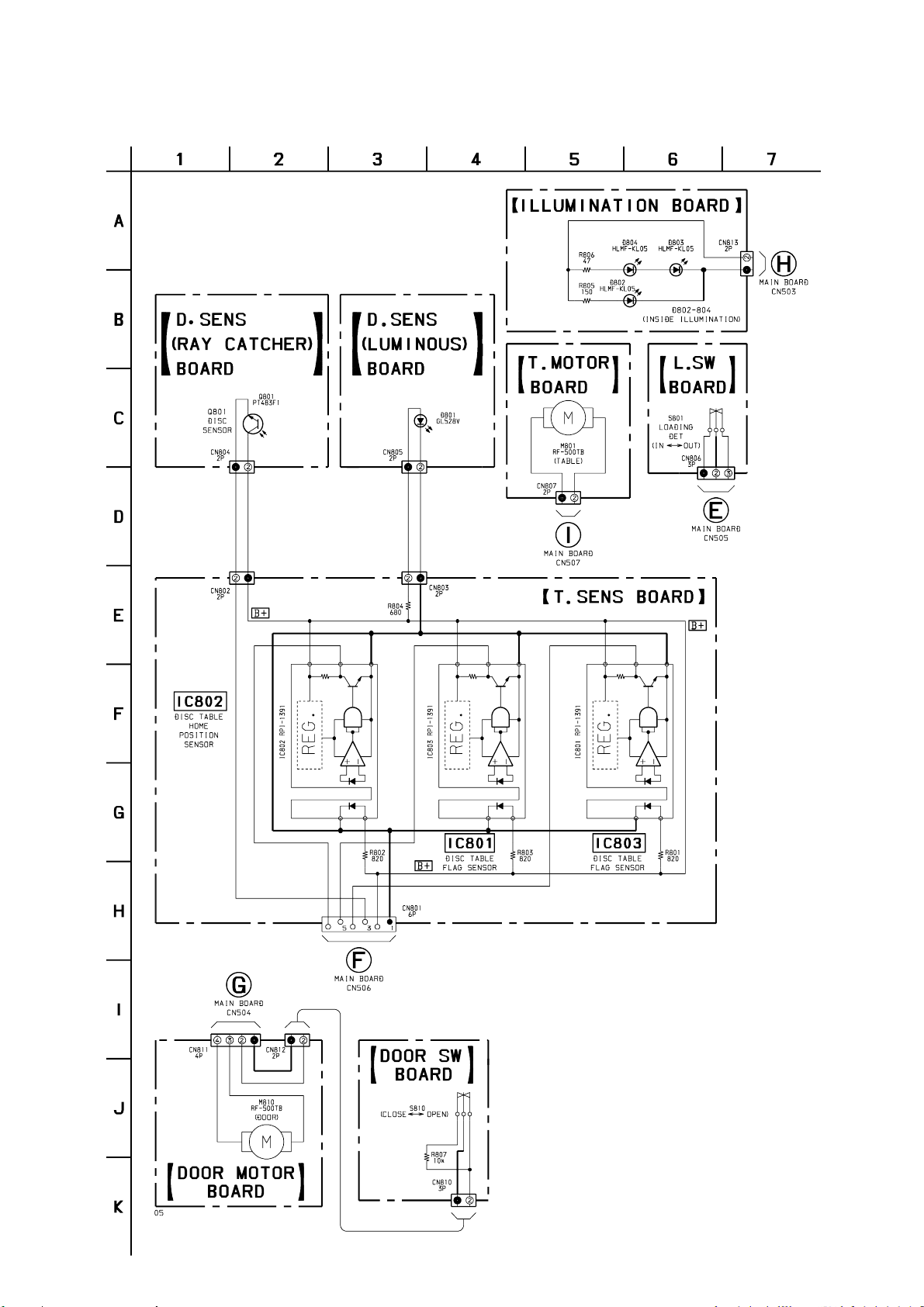

7-11. Schematic Diagram – Sensor/Motor Section – ............. 43

7-12. IC Pin Function Description ........................................... 47

8. EXPLODED VIEWS................................................ 49

9. ELECTRICAL PARTS LIST ............................... 56

The laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

(Except for the customers in the United States and Canada)

The following caution label is located inside the unit.

CAUTION :

INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.

ADVARSEL :

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLING.

VORSICHT :

ABDECKUNG GEÖFFNET UND SICHEREITSVERRIEGELUNG ÜBERBRÜCKT. NICHT DEM STRAHL AUSSETZEN.

VARO!:

TIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

VARNING :

OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.

ADVERSEL :

SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.

VIGYAZAT!:

GÁRVESZÉLY

INVISIBLE LASER RADIATION WHEN OPEN AND

USYNLIG LASERSTRÅLING VED ÅBNING NÅR

UNSICHTBARE LASERSTRAHLUNG, WENN

AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALT -

OSYNLING LASERSTRÅLING NÄR DENNA DEL ÄR ÖPPNAD

USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG

A BURKOLAT NYITÁSAKOR LÁTHATATLAN LÉZERSU-

KERÜLJE A BESUGÁRZÁST!

MODEL IDENTIFICATION — BACK PANEL —

PART No. MODEL

4-998-525-0 4-998-525-1 4-998-525-2 4-998-525-4 4-998-525-5 4-998-525-6

US model Canadian model AEP, AED UK model Singapore model E model Australian model

• Abbreviation AED: North European

PART No.

– 2 –

SECTION 1

SERVICING NOTES

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

LEAKAGE

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers.). Leakage current can be measured by any one of three methods.

1. A commercial leakage tester , such as the Simpson 229 or RCA WT -540A. Follo w the manufacturers’ instructions to use these instruments.

2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V A C range are suitable. (See Fig. A)

To Exposed Metal Parts on Set

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

LASER DIODE AND FOCUS SEARCH OPERATION CHECK

Carry out the “S curve check” in ”CD section adjustment” and check that the S curve waveform is output repeatedly.

1.5 k

0.15 µF

Fig. A. Using an AC voltmeter to check AC leakage.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIA GRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

Ω

Earth Ground

AC voltmeter (0.75 V)

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

– 3 –

CD-TEXT TEST DISC

This unit is able to display the test data (character information) written in the CD on its fluorescent indicator tube. The CD-TEXT TEST DISC (TGCS-313:4-989-366-01) is used for checking the display. To check, perform the following procedure.

Checking Method:

1. Turn ON the power, set the disc on the disc table with the side labeled as “test disc” as the right side, close the front cover , and chuck the disc.

2. Press the · button and play back the disc.

3. The following will be displayed on the fluorescent indicator tube.

Display : 1kHz/0 dB/ L&R

4. Press the ≠ and ± buttons to switch the track. The text data of each track will be displayed. For details of the displayed contents for each track, refer to “Table 1 : CD-TEXT TEST DISC TEXT Data Contents” and “Table 2 : CDTEXT TEST DISC Recorded Contents and Display”.

Restrictions in CD-TEXT Display

In this unit, some special characters will not be displayed properly. These will be displayed as a space or a character resembling it. For details, refer to “Table 2 : CD-TEXT DISC Recorded Contents and Display”.

Table 1 : CD-TEXT TEST DISC TEXT Data Contents (TRACKS No. 1 to 41:Normal Characters)

TRACK

No.

1 1kHz/0dB/L&R 22 1kHz/-90dB/L&R 2 20Hz/0dB/L&R 23 Infinity Zero w/o emphasis//L&R 3 40Hz/0dB/L&R 24 Infinity Zero with emphasis//L&R 4 100Hz/0dB/L&R 25 400Hz+7kHz(4:1)/0dB/L&R 5 200Hz/0dB/L&R 26 400Hz+7kHz(4:1)/-10dB/L&R 6 500Hz/0dB/L&R 27 19kHz+20kHz(1:1)/0dB/L&R 7 1kHz/0dB/L&R 28 19kHz+20kHz(1:1)/-10dB/L&R 8 5kHz/0dB/L&R 29 100Hz/0dB/L*

9 7kHz/0dB/L&R 30 1kHz/0dB/L* 10 10kHz/0dB/L&R 31 10kHz/0dB/L* 11 16kHz/0dB/L&R 32 20kHz/0dB/L* 12 18kHz/0dB/L&R 33 100Hz/0dB/R* 13 20kHz/0dB/L&R 34 1kHz/0dB/R* 14 1kHz/0dB/L&R 35 10kHz/0dB/R* 15 1kHz/-1dB/L&R 36 20kHz/0dB/R* 16 1kHz/-3dB/L&R 37 100Hz Squer Wave//L&R 17 1kHz/-6dB/L&R 38 1kHz Squer Wave//L&R 18 1kHz/-10dB/L&R 39 1kHz w/emphasis/-0.37dB/L&R 19 1kHz/-20dB/L&R 40 5kHz w/emphasis/-4.53dB/L&R 20 1kHz/-60dB/L&R 41 16kHz w/emphasis/-9.04dB/L&R 21 1kHz/-80dB/L&R

Displayed Contents

TRACK

No.

Displayed Contents

NOTE: The contents of Track No. 1 to 41 are the same as those of the current TEST DISC-their titles are displayed.

– 4 –

Table 2: CD-TEXT TEST DISC Recorded Contents and Display

(In this unit, some special characters cannot be displayed. This is no a fault.)

TRACK

No.

Recorded Contents Display

42 ! ” # $% & ´ (21h to 27h)1kHz 0dB L&R N All the same 43 ( ) + , – . / (28h to 2Fh) N All the same

44 01234567 (30h to 37Fh) N All the same 45 8 9 : ; < = > ? (38h to 3Fh) N All the same 46 @A B C D E F G (40h to 47Fh) N All the same 47 H I J K L MN O (48h to 4Fh) N All the same 48 P QR S T U VW (50h to 57Fh) PQR S T U VW (50h to 57h) 49 X Y Z [ ¥ ] ^ _ (58h to 5Fh) XY Z [ \ ] ^ _ (58···· 50 a b c d e f g (60h to 67Fh) a b c d e f g (60h to 67h)

′

51 h i j k l m n o (68h to 6Fh) N All the same 52 p q r s t u v w (70h to 77Fh) p q r s t u v w (70h to 77h) 53 x y z { I } (78h to 7Fh) x y z { } ~ (78····

54 i¢£¤¥ § (A0h to A7h) 8859-1 i ¢ £ ¤ ¥ § (A0···· is not displayed 55 ≥ C ª¬PR (A8h to AFh) ≥ (A8···· C ª ¬ P R – are not displayed 56

•±23

57 †1º ¿ (B8h to BFh) † ¿ (B8····

–

µ¶ • (B0h to B7h) µ • (B0····

′

14123

′

• ± 2 3

¶ are not displayed

14123

º are not displayed

58 АБВГДЕЖЗ (C0h to C7Fh) ÀÁ Â Ã Ä ÅÆÇ (C0h to C7h) 59 ÈÉÊË ÌÍÎÏ (C8h to CFh) N All the same 60 DСТУФХЦ (D0h to D7Fh) D СТУФХЦ (D0h to D7h)

61 ШЩЪЫЬY Я (D8h to DFh) Ù Ú Û Ü Y ß (D8····

62 абвгдежз (E0h to E7h) а бвгдежз (E0h to E7h) 63 ийклмноп (E8h to EFh) N All the same 64 ∂ стуфхц÷ (F0h to F7Fh) стуфхц÷ (F0h to F7h) 65 шщъыьy ÿ (F8h to FFFh) шщъыьy ÿ (F8h to FFh)

66 No.66 N All the same 67 No.67 N All the same

to to to

99 No.99 N All the same

– 5 –

LOCATION OF PARTS AND CONTROLS

Front Panel

SECTION 2

GENERAL

2 345

STANDBY

1/u

CONTINUE

SHUFFLE

PROGRAM

REPEAT

TIME/TEXT

GROUP 1

GROUP 2

GROUP 3

GROUP 4

GROUP 5

GROUP 6

GROUP 7

GROUP 8

GROUP FILE

!•!ª@º

OPEN/CLOSE

!º

INPUT

MEMO SEARCH

AMS

DISC/CHARACTER

PUSH ENTER

CHECK

Pp§

!¡

!™

!£

CLEAR

!¢

!∞!§!¶

1 I/u (power switch) button 2 CONTINUE button 3 SHUFFLE button 4 Display window 5 PROGRAM button 6 REPEAT button 7 TIME/TEXT button 8 Front cover 9 MEMO SEARCH button !º INPUT button

!¡ ≠/± buttons !™ JOG dial (DISC/CHARACTER/PUSH ENTER knob) !£ CHECK button !¢ CLEAR button !∞ p button !§ P button !¶ · button !• § (OPEN/CLOSE) button !ª GROUP FILE button @º GROUP 1 – 8 buttons

– 6 –

SECTION 3

)

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

CASE

four screws (case 3 TP2)

Open the case.

Remove the case to direction of arrow

five screws (case 3 TP2

FRONT PANEL SECTION

four screws (BVTP3

claw

front panel section

Remove the door (CD) ass’y to direction of arrow

flat wire (CN501)

claw

– 7 –

five screws (BVTT3 × 6)

GUIDE ASS’Y

)

screw (PSW3

boss

three screws (BVTT3

guide ass’y

three screws (BVTT3

connector (CN503)

REAR PANEL SECTION

connector (CN904)

flat wire (CN502)

connector (CN505)

four screws (BVTT3

PC board holder

three connectors (CN504, 506, 507)

rear panel section

four screws (PTTWH3

bracket

five screws (BVTT3

– 8 –

MECHANISM DECK

three screws (BVTT3

mechanism deck

BASE UNIT

six screws (BVTT3

screw (BVTT3 × 8)

fulcrum plate

(BU upper) ass’y

base uni

– 9 –

SECTION 4

TEST MODE

DISPLAY CHECK MODE

With the power turned off (standby state), press the I/u button while pressing the P (pause) button. All FL segments and grids light up together with the · (play),

P (pause), and standby LEDs.

At the same time, the GROUP LEDs are scanned one by one.

Note: To exit this mode, press the p (stop) button.

ADJ MODE

1. Turn ON the power of the unit, set disc to disc table, and perform chucking.

2. Disconnect the power supply plug from the outlet.

3. T o set ADJ mode, connect the test point (TP: ADJ) of the MAIN board to Ground, and connect the power supply plug to the outlet.

The power will turn on automatically, and the first track will be played. In this mode, table rotation and loading operations are not performed because it is taken that the disc has already been chucked.

Note: The same operations are also performed in the following when the

test point (TP: ADJ) is connected to Ground after turning on the power.

• Direct search (movement of sledding motor) is not performed

during accessing

• Ignored even when GFS becomes L

• Ignored even when the Q data cannot be read

• Focus gain does not decrease

• Spindle gain does not decrease

• Servo related settings can be set manually and checked (Refer

to ADJ Mode Special Functions Table)

ADJ Mode Special Functions Table (The buttons shown with ( ) function by using the supplied remote commander only)

Button Button Number or Display

CONTINUE Servo average display

Displays VC, FE, RF, TE and traverse in hexadecimal numbers

SHUFFLE Focus bias display

Each time this is pressed, the focus bias is switched between 1 and 2 1 Bias actually set Optimum bias Minimum jitter 2 U:Upper aliasing bias L:Lower aliasing bias

PROGRAM Auto gain display

Displays focus, tracking, sledding in hexadecimal

numbers GROUP 1 (1) Increases the focus bias in 8 steps. GROUP 2 (2) Sets the focus bias in the middle of aliasing. GROUP 3 (3) Turns off the tracking and sledding servo GROUP 4 (4) Returns the auto gain to the initial value (30) GROUP 5 (5) Turns off the focus servo GROUP 6 (6) Decreases the focus bias in 8 steps. GROUP 7 (7) Re-adjusts the focus bias GROUP 8 (8) Turns on the tracking and sledding servo

(9) Switches the focus servo gain between normal and down

FG. norm: normal, FG. down: down

(10/0) Sets the focus bias to 0 (no bias)

Next, displays the jitter measured at the focus bias set

CHECK S-curve observation mode CLEAR Automatic eccentric measurement

The results of measurement is displayed in mm directly.

KEY AND FLUORESCENT DISPLAY TUBE CHECK MODE

1. Connect the test point (TP:AFADJ) of the MAIN board to the Ground, and insert the power plug to the outlet to set this mode. First, the external SRAM is checked, and if abnormal, “SRAM NG” is displayed. If OK, the following steps are performed.

* Fluorescent Display Tube Check Mode

The whole fluorescent display tube lights up when the connection in step 1 is made.

* Key Check Mode

This mode is set when a button is pressed after the whole fluorescent display tube lights. All buttons have a button number. When a button is pressed, the counter display is counted up, and the number of that button is displayed. However, the counter display will only count up to 26, but the number of buttons pressed will always be displayed.

** **

Counter display

Buttons and Corresponding Button Numbers

Button Button Number or Display

CLEAR 3 CHECK 4

± (AMS) 5 ≠ (AMS) 6

PUSH ENTER 7

(OPEN/CLOSE)

INPUT 10

MEMO SEARCH 11

I/u 18

TIME/TEXT 19

GROUP FILE 20

GROUP 8 21 GROUP 7 22 GROUP 6 23 GROUP 5 24

REPEAT 27

PROGRAM 28

SHUFFLE 29

CONTINUE 30

GROUP 4 31 GROUP 3 32 GROUP 2 33 GROUP 1 34

· All lit (LED lit) P Partial lighting 1 (LED lit) p Partial lighting 2

DISC/ Partial lighting 3

CHARACTER • When the jog dial is rotated to the right, the

GROUP LEDs light up in the order of 1 → 2..8 → 2nd → 1.

• When the jog dial is rotated to the left, the

GROUP LEDs light up in the order of 8 → 7..1 → 2nd → 8.

Button number display

– 10 –

Partial lighting 1

A B C D E F G

Partial lighting 2

Partial lighting 3

2nd

: Counter displayed

Test Points Location:

[MAIN BOARD] – Component Side –

(ADJ)

IC502

IC501

(AFADJ)

IC506

AGING MODE

• Mode which repeatedly changes and plays back discs automatically in the unit.

• It will repeat aging as long as no errors occur.

• If an error occurs during aging, it will stop all servos, motors, etc. instantaneously, display the error number, and stop operations. However, the stopping conditions differ according to whether the unit is equipped with the “self-protection function during errors” described later. The function serves to maintain the state of the unit when errors occur.

Sequence of Aging Mode

1. Disc change

2. Load in

3. TOC read

4. Access of last track

5. 3 second playback

6. Access of first track

7. 3 second playback

8. Load out

Order of Disc Change

(1 cycle takes 3 minutes)

1. No. 40

2. No. 120

3. No. 80

4. No. 200

5. No. 160

CN509 CN508

Special Functions in Aging Mode

1. Disc setting mode:

5 discs are set before setting the aging mode. This mode makes the setting of these discs more easy.

2. Self protection function during errors:

Function which voluntarily corrects errors which occur during normal operations by retries. If this function is not provided, all operations will be stopped without retiring. It is suitable for checking errors with low reproducibility. If this function is provided, and errors can be corrected by retries, aging will be continued without stopping.

3. Aging cycle count function:

Functions which displays the number of agings carried out on the Fluorescent indicator tube in numbers. One aging cycle consists of five discs.

1DISC

DISC

CD1

number of agings

*DISC-40*

– 11 –

Aging Method

1. Change the [COMMANDMODE] switch (S901) on set to

[CD1].

2. Turn ON the power of the unit. Open the front cover.

3. Press the [AGINGSTART] button of the remote commander for aging mode (J-2501-123-A).

4. When the disc set mode is set, the · and P LEDs blink.

5. Rota te the JOG dial. The slits (No. 40, 80, 120, 160, 200) for setting the discs will come forward. Insert the discs into these slits. Do not set the discs in other slits.

6. Set whether the self-protection function during errors is equipped with the unit. Press the [REPEAT] button. If “RE- PEA T” is displayed on the Fluorescent indicator tube, it means the function is provided. If “REPEAT” is not display ed, it means the function is not provided.

7. Press the · button.

8. The · LED blinks, the aging mode is set, and aging is started.

9. T he a ging cycle lasts 3 minutes. If errors occur during aging, the error number will be displayed on the Fluorescent indicator tube. (Refer to the following table for the details of the errors.)

10. Aging will be repeated as long as no errors occur.

11. After each aging cycle, the number displayed on the Fluorescent indicator tube will increase.

12. To end aging, press the I/u button

Error Display

120 Err01



Disc number Error code

Error code

Code number Name Contents

Err 01 DISC sensor check 1 No disc in the specified slit Err 02 DISC sensor check 2 Disc in other slits Err 03 Table operation check 1 Table motor current over Err 04 Table operation check 2 No table sensor input Err 05 Loading operation check 1 Load in timeover Err 06 Loading operation check 2 Load out timeover Err *1 BU related check 1 Access timeover Err *2 BU related check 2 High speed search NG Err *3 BU related check 3 Q data read error Err *4 BU related check 4 BU operation (from focus search to until signal can be read) timeover Err *5 BU related check 5 GFS monitor error Err *6 BU related check 6 Focus cannot be imposed by focus search Err *7 BU related check 7 Auto focus bias adjustment cannot be performed

The * numbers mean the following according to the state of the unit during aging

2 : From checking to end of TOC read 3 : From end of TOC read to end of last track playback 4 : From end of last track playback to end of first track playback



– 12 –

SECTION 5

MECHANICAL ADJUSTMENTS

Perform the following steps before carrying out adjustments.

1. Turn ON the power of the unit, set disc to disc table No. 92, and perform chucking.

2. Turn OFF the power.

3. Remove the case.

4. While pressing the [STOP] button, turn ON the I/u button. The test mode is set.

5. The I/u button LED (STANDBY) starts blinking. (Test mode)

LED (STANDBY)

Note 1: The cam will start rotating when the [GROUP1] or [GROUP5]

button is pressed continuously in the test mode.

GROUP 1 button

GROUP 5 button

Note 2: If the power cannot be supplied, the cam can be rotated by rotat-

ing the pulley with your finger.

1/u

button

GROUP 1 button

STOP button

GROUP 5 butto

cam

pulle

– 13 –

GUIDE (DISC T) ALIGNMENT

cam

(1) Rotate the cam and adjust to the posi-

tion shown in the figure.

guide (disc T)

(2) Check that the state is as shown in

the figure.

guide (disc T)

cam

holder (guide T)

fixed scre

guide (disc T)

disc

(3) Loosen the fixed screw by about 60 °.

disc

holder (guide T)

tapering screwdriver

holder (guide T)

(4) Move the holder (guide T) with a tapering screwdriver,

and set the position of the guide (disc T) to A:B=1:1.

– 14 –

cam

holder (disc A2)

thrust screw

disc

0 – 1 mm

holder (disc A2)

disc

holder (disc A2)

thrust screw

HOLDER (DISC A2) ALIGNMENT

(1) Rotate the cam and adjust to the position

shown in the figure.

(2) Check that the state is as shown in

the figure.

(3) After applying suitable locking compound to the part, rotate the thrust screw until the holder (Disc A2) comes to the center of

the disc.

– 15 –

SENSOR ALIGNMENT

Perform this adjustment after the “holder (disc A2) adjustment”. If the disc table swings to the left and right just before the disc is chucked, perform the following adjustment.

cam

lever (stopper) ass’y

(1) Rotate the cam and adjust to the position

shown in the figure.

(2) Check that the lever (stopper) ass’y secures

the disc table as shown in the figure.

lever (stopper) ass’y

tapering screwdriver

bracket (sensor)

table ass’y

disc table

swing

(4) Moving the disc table right and left with a hand after the

screw is fixed, the table will mov e by the play of a disc table. If the LEDs light up alternately, the adjustment will be performed correctly.

LUMINOUS board

PLAY button

bracket (sensor)

fixed screw

PAUSE button

(3) Loosen the fixed screw by 60° to 90°, and use a tapering screwdriver to adjust the screw as shown in the figure.

Move the bracket (sensor) with the tapering scre wdriv er little by little, and fix the fix ed scre w at where the play button's LED (green) is switched to the pause button's LED (orange) (or its reverse).

– 16 –

PULLY AND DISC CENTER HOLE ALIGNMENT

cam

(1) Rotate the cam and adjust to the position

shown in the figure.

(2) Check that the state is as shown

in the figure.

disc

bracket (BU adjustment)

0.5 – 2 mm

magnet ass’y

base unit

cam

base unit

disc pulley

disc hole

Note: The disc should not

be fixed.

(3) Remove the Magnet ass’y.

holder (disc A2)

fixed screw

bracket (BU adjustment)

tapering screwdriver

magnet ass’y

(4) Loosen the fixed screw by 60° to 90°, and move and adjust

the bracket (BU adjustment) up and down using a tapering screwdriver so that the positions of the disc hole and disc pulley become A=B or between A:B=2:1 and 1:2.

– 17 –

MAGNET ASS’Y ALIGNMENT

cam

(1) Rotate the cam and adjust to the position

shown in the figure.

cam

adjustment screw

magnet ass’y

adjustment screw

(3) Apply suitable locking compaund to the part after ad-

justing.

magnet holder

magnet ass’y

disc

adjustment screw

(2) Rotate the adjustment screw until A=B or between A:B=2:1

and 1:2

– 18 –

SECTION 6

BD board

TP (TE) TP (VC)

+ –

oscilloscope

)

Traverse waveform

C (DC voltage)

0 V

Tracking servo Sled servo OFF

Tracking servo Sled servo ON

ELECTRICAL ADJUSTMENTS

Note:

1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given.

2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.

3. Use an oscilloscope with more than 10MΩ impedance.

4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks.

S-Curve Check

oscilloscop

BD board

TP (FE1) TP (VC)

+ –

Procedure :

1. Connect oscilloscope to test point TP (FE1) on BD board.

2. Connect test point TP (ADJ) on MAIN board to ground with lead wire.

3. Turn I/u button on to set the ADJ mode.

4. Put disc (YEDS-18) in and playback. Press the [CHECK] button.

5. Check the oscilloscope wa veform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 3 ± 1 Vp-p.

S-curve waveform

symmetry

within 3

1 Vp-p

6. After check, remove the lead wire connected in step 2.

Note: • T ry to measure se veral times to mak e sure than the ratio of A : B

or B : A is more than 10 : 7.

• Take sweep time as long as possible and light up the brightness to obtain best waveform.

Note: A clear RF signal waveform means that the shape “◊” can be clearly

distinguished at the center of the waveform.

RF signal waveform

VOLT/DIV: 200 m TIME/DIV: 500 ns

level: 1.2 Vp-p

+0.25 –0.20

E-F Balance Check

Procedure :

1. Connect oscilloscpe to test point TP (TE) on BD board.

2. Connect the test point TP (ADJ) on MAIN board to the ground with a lead wire.

3. Turn the I/u button on to set the ADJ mode.

4. Put disc (YEDS-18) in to play the number five track.

5. Press the [GROUP3] button. (The tr acking servo and the sledding servo are turned OFF.)

6. Check the level B of the oscilliscope's waveform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following : A/B x 100 = less than ± 22%

Traverse waveform

Center of the waveform

0 V

A (DC voltage

RF Level Check

oscilloscope

(AC range) BD board TP (RFO)

TP (VC)

+ –

Procedure :

1. Connect oscilloscope to test point TP (RFO) on BD board.

2. Turn I/u button on.

3. Put disc (YEDS-18) in to play the number five track.

4. Confir m that oscilloscope waveform is clear and check RF signal level is correct or not.

7. Press the

[GROUP8] button. (The tracking servo and sled-

ding servo are turned ON.) Confirm the C (DC voltage) is almost equal to the A (DC voltage) is step 6.

8. Disconnect the lead wire of TP (ADJ) connected in step 1.

– 19 –

level: 1.3 ± 0.6 Vp-p

RF PLL Free-run Frequency Check

Procedure :

1. Connect frequency counter to test point TP (XPCK) with lead wire.

frequency counter

BD board

TP (XPCK)

+ –

2. T urn I/u button on.

3. Put the disc (YEDS-18) in to play the number five track. Confirm that reading on frequency counter is 4.3218MHz.

Disc Sensor Adjustment

Perform this adjustment after completing all adjustments of the mechanism section. If not performed accurately, the presence of the disc may not be detected properly.

Connection 1:

Ω

oscilloscop

+ –

CN506 of MAIN board T1: Pin

T2: Pin D0: Pin

(T. SENS 1)

(T. SENS 2)

(D. SENS)

1 k

Procedure:

1. Connect the oscilloscope to Pins 1, 2, and 4 of CN506 of

the MAIN board. Also connect a 1 kΩ resistor to Pin 4 at the same time. (Connection 1)

2. Check that no discs are loaded in the unit, and press the

I/u button while pressing the [INPUT] button.

3. The rotary table will continue rotating in the clockwise direction.

4. Observe the waveform at that time on the oscilloscope.

5. Loosen the screw securing the LUMINOUS board slightly.

6. Slide the LUMINOUS board to the left and right so that the peak of the D0 waveform is at the center between the descending point of the T1 waveform and ascending point of the T2 waveform. (Waveform 1) After adjusting, apply locking compound.

LUMINOUS boar

Waveform 1:

Connection 2:

CN506 of MAIN board T1: Pin T2: Pin D0: Pin

Waveform 2

(T. SENS 1)

(T. SENS 2)

(D. SENS)

oscilloscop

+ –

7. Disconnect the resistor connected to Pin 4 of CN506 of the MAIN board. (Connection 2)

8. Observe the waveform on the oscilloscope. (Waveform 2)

9. Adjust RV501 of the MAIN board so that the waveform on the oscilloscope satisfies the following adjustment value.

10. After the adjustment, load a disc only in slit 1, close the front cover, and press the I/u button to turn off the power.

11. Press the

button while pressing the

I/u

[PUSHENTER] button

to turn on the power.

12. If the rotary table makes round, and “YES” is displayed on the fluorescent indicator tube after it stops, it means that the adjustment has been performed properly.

Adjustment value:

At the shoulder part of waveform D1, T1 becomes H and T2 becomes L, and at the same time, the Y width must not be smaller than 1/4 of the Z width. In order to satisfy this value more easily, adjust so that X=Y approximately and observe the deviation of the waveform.

– 20 –

Adjustment Location:

[BD BOARD] – Side B –

(XPCK)

IC101

(FE)

(FE2)

[MAIN BOARD] – Component Side –

CN501 CN506

RV501

IC502

(ADJ)

TP (RFO)

TP (TE)

(FE1)

(VC)

IC103

(AFADJ)

IC501

CN509 CN508

– 21 –

• Circuit Boards Location

D. SENS (RAY CATCHER) board

SECTION 7

DIAGRAMS

ILLUMINATION board

D. SENS (LUMINOUS) board

DISP board

T. SENS board

MAIN board

JACK boar

T. MOTOR board

DOOR SN board

DOOR MOTOR board

JOG board

L. MOTOR board

BD board

L. SW board

– 22 –

7-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)

Note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in Ω and specified.

•

: internal component.

W or less unless otherwise

• C : panel designation.

Note:

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Note:

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

• U : B+ Line.

• V : B– Line.

• H : adjustment for repair.

• Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark: PLAY

• Voltages are taken with a V OM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances.

• Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

J : CD c : digital out

• Abbreviation AED : North European AUS : Australian model. CND : Canadian model. E2 : 120 V AC Area in E model. E3 : 240 V AC Area in E model. SP : Singapore model.

Note on Printed Wiring Boards:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

•

: internal component.

• b : Pattern from the side which enables seeing.

• : Solder bridge.

• Indication of transistor.

C Q

These are omitted.

– 23 –

• Waveforms

– BD Section –

1 IC101 ^§ (XTAI)

16.9344 MHz

2 IC101 %¡ (RFAC)

500 mV/DIV, 1 µs/DIV

3 IC101 $¡ (TE)

200 mV/DIV, 1 µs/DIV

3.6 Vp-p

+0.25

1.2 Vp-p

–0.20

– PANEL Section –

1 IC701 %• (OSC0)

2.5 Vp-p

480 ns

4 IC101 #ª (FE)

200 mV/DIV, 10 µs/DIV

– MAIN Section –

1 IC501 #¡ (EXTAL)

Approx. 500 mVp-p

Approx. 600 mVp-p

3.6 Vp-p

10 MHz

– 24 –

7-2. PRINTED WIRING BOARD – BD Section –

•

See page 22 for Circuit Boards Location.

– 25 –

(Page 30)

– 26 –

7-3. SCHEMATIC DIAGRAM – BD Section –

• See page 24 for Waveforms. • See page 44 for IC Block Diagrams.

CDP-CX220

(Page 32)

• no mark: PLAY

• Signal path.

J : CD c : digital out

Note:

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Note:

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

– 27 –

– 28 –

CDP-CX220

7-4. PRINTED WIRING BOARD – MAIN Section –

• See page 22 for Circuit Boards Location.

• Semiconductor Location

Ref. No. Location

D327 E-5 D501 E-4 D502 E-4 D503 E-4 D504 E-4 D505 E-3 D506 E-1 D507 E-1 D508 E-5 D509 E-5 D521 B-3

IC401 C-8 IC501 C-3 IC502 B-4 IC503 C-1 IC504 D-5 IC505 D-3 IC506 C-5

Q322 E-7 Q323 E-7 Q325 E-6 Q327 E-5 Q422 E-8 Q423 E-8 Q425 E-6 Q501 E-2 Q503 C-5 Q521 A-3

(Page 41)

(Page 37)

(Page 42)

(Page 41)

(Page 26)

(Page 41)

– 29 –

(Page 33)

(Page 34)

– 30 –

7-5. SCHEMATIC DIAGRAM – MAIN Section –

• See page 24 for Waveforms. • See page 45 for IC Block Diagrams.

(Page 43)

CDP-CX220

(Page 27)

(Page 36)

(Page 43)

(Page 40)

(Page 35)

– 31 –

• no mark: PLAY

• Signal path.

J : CD c : digital out

– 32 –

CDP-CX220

7-6. PRINTED WIRING BOARDS – JACK Section –

• See page 22 for Circuit Boards Location.

(Page 29)

(Page 30)

– 33 –

– 34 –

7-7. SCHEMATIC DIAGRAM – JACK Section –

CDP-CX220

(Page 32)

• no mark: PLAY

• Signal path.

J : CD c : digital out

Note:

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Note:

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

– 35 –

– 36 –

7-8. PRINTED WIRING BOARDS – PANEL Section –

•

See page 22 for Circuit Boards Location.

(Page 29)

(Page 38)

– 37 –

(Page 37)

• Semiconductor Location (DISP Board)

Ref. No. Location

D701 F-4 D702 F-3 D703 F-3 D704 F-2 D705 F-4 D706 F-3 D707 F-3 D708 F-2 D709 A-5

IC601 B-2 IC701 C-2 IC702 D-1

Q701 D-3

– 38 –

7-9. SCHEMATIC DIAGRAM – PANEL Section –

• See page 24 for Waveforms. • See page 46 for IC Block Diagrams.

CDP-CX220

– 39 –

(Page 31)

– 40 –

7-10. PRINTED WIRING BOARDS – SENSOR/MOTOR Section –

•

See page 22 for Circuit Boards Location.

(Page 30)

(Page 29)

– 41 –

(Page 29)

– 42 –

7-11. SCHEMATIC DIAGRAM – SENSOR/MOTOR Section –

CDP-CX220

(Page 31)

– 43 –

• IC Block Diagrams – BD Board –

IC101 CXD2587Q

LRCK

PCMD

BCK

EMPH XVDD

XTAI XTAO XVSS

AVDD1 AOUT1

AIN1

LOUT1

AVSS1 AVSS2 LOUT2

AIN2

AOUT2 AVDD2

RMUT LMUT

VDD

AVDD3

DOUT

DIGITAL

OUT

61 62 63

64 65 66

67 68 69 70 71

72 73

74 75

76 77

78 79

D/A

INTERFACE

TIMING

LOGIC

OVER SAMPLING

PWM

3rd ORDER

NOISE SHAPER

DIGITAL FILTER

SERIAL IN

INTERFACE

INTERNAL BUS

PWM

VSS

ERROR

CORRECTOR

16K

RAM

SUBCODE

PROCESSOR

FILO

FILI

PCO

DIGITAL

PLL

EFM

DEMODULATOR

SERVO

INTERFACE

SERVO AUTO

SEQUENCER

CLTV

AVSS3

ASYI

BIAS

RFAC

ASYMMETRY CORRECTION

ASYO

AVDD0

IGEN

AVSS0

ADIO

SERVO DSP

FOCUS SERVO

TRACKING

SERVO

SLED

SERVO

RFDC

OPERATIONAL

AMPLIFIER

ANALOG SWITCH

A/D

CONVERTER

PWM GENERATOR

CLOCK

GENERATOR

FOCUS PWM GENERATOR

TRACKING

PWM GENERATOR

SLED PWM

GENERATOR

DIGITAL

CLV

MIRR, DFCT,

FOK

DETECTOR

XTSL

TES1

TEST

VSS

34 33

FRDR

FFDR TRDR

TFDR

SRDR

29 28

SFDR SSTP

MDP

26 25

LOCK

FOK

DFCT

23 22

MIRR

SQSO

SQCK

XRST

SYSM

CPU

INTERFACE

XLAT

DATA

CLOK

SENS

SCLK

11 12

VDD

ATSK

SPOA

SPOB

1516171819

XLON

WFCK

XUGF

XPCK

GFS

C2PO

SCOR

COUT

– 44 –

IC103 CXA2568M-T6

HOLD

AGC VTH

VEE

+ –

VCC

APC LD AMP

50µA

+ –

VEE

RF SUMMING AMP

+ –

FOCUS ERROR AMP

+ –

VCC

+ –

VCC

+ –

RF EQ AMP

+ –

VEE

3 4

APC PD AMP

+ –

VEE

– +

VEE

+ –

24 23 22

21 20

VCC LC/PD LD ON

HOLD SW AGC CONT

RF BOT

RFTC RF I RF O

RFE

VC BUFFER

– MAIN Board –

IC503 CXA1291P

+VIN2

–VIN2

OUT2

AMP2

AMP3

– +

VEEVEE

AMP1

CURRENT LIMITER

+ –

OUT1

236

THERMAL SHUT

DOWN AND

–VIN1

– +

TRACKING

ERROR AMP

VEE VCC

+VIN1

9 10 16151411

+VIN3

–VIN3

OUT3

VCC

– 45 –

IC506 LA5616

VIN1

VO1

EN1

GND

RES

EN2

VO2

VIN2

ON/OFF

ERROR

AMP

ON/OFF

OVERHEAT

PROTECT

RESET

GENERATOR

CURRENT

LIMITER

VREF

ERROR

AMP

– DISP Board –

IC702 M66310FP

1 2 3

4 5 6 7 8 9 10 11 12

VCC

ATA

RST

CLK

GND

SQP

– 46 –

7-12. IC PIN FUNCTION DESCRIPTION

• MAINN BOARD IC501 CXP84340-075Q (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Function

1 to 5 A3 to A7 O

6 A12 O 7 A14 O

8 to 11 A11 to A8 O

12 A13 O 13 WE O 14 CE O 15 KBCOUT O 16 KBDOUT O 17 KBDIN I 18 FLDATA O 19 FLCLK O 20 LEDLT O 21 TBLL O 22 TBLR O 23 DRIN O 24 DROUT O 25 ADJ I 26 LDIN O 27 LDOUT O 28 BUSOUT O 29 SMUTE O

30 RESET I

31 EXTAL I 32 XTAL O 33 VSS — 34 TX O 35 TEX I 36 AVSS — 37 AVREF I 38 D.SENS I 39 DOORSW I

40 CD1/2/3 I

41 SW I

42 KEY3 I

43 KEY2 I

44 KEY1 I

45 KEY0 I

46 BUSIN I 47 AMUTE O

Address signal output to the static RAM (IC502)

Data write enable signal output to the static RAM (IC502) “L” active Chip enable signal output to the static RAM (IC502) “H” active Serial data transfer clock signal output terminal Not used (open) Serial data output terminal Not used (open) Serial data input terminal Not used (open) Serial data output to the FL driver (IC701) and LED driver (IC702) Serial data transfer clock signal output to the FL driver (IC701) and LED driver (IC702) Serial data latch pulse output to the LED driver (IC702) “L” active Table motor drive signal (counterclockwise) output to the CXA1291P (IC503) “H” active Table motor drive signal (clockwise) output to the CXA1291P (IC503) “H” active Door motor drive signal (door close) output to the CXA1291P (IC503) “H” active Door motor drive signal (door open) output to the CXA1291P (IC503) “H” active Setting terminal for the test mode “L”: ADJ mode, Normally: fixed at “H” Loading motor drive signal (load-in direction) output to the CXA1291P (IC503) “H” active Loading motor drive signal (load-out direction) output to the CXA1291P (IC503) “H” active Sircs remote control signal output for the S-LINK CONTROL A1 “H” active Muting on/off control signal output terminal “H” active Not used (pull up) System reset signal input from the reset signal generator (IC505) “L”: reset

For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” Main system clock input terminal (10 MHz) Main system clock output terminal (10 MHz) Ground terminal Sub system clock output terminal Not used (open) Sub system clock input terminal Not used (fixed at “L”) Ground terminal (for A/D converter) Reference voltage (+5V) input terminal (for A/D converter) Inputs the disc sensor (Q801) detection signal (A/D input) Door open/close detect switch (S810) input (A/D input) “L”: open COMMAND MODE switch (S901) input terminal (A/D input)

“L”: CD1, “H”: CD3 (CD2: center voltage input) Destination setting terminal (A/D input) Fixed at “L” in this set Key input terminal (A/D input) p, P, ·, CLEAR, CHECK, ± AMS, ≠ AMS, PUSH

ENTER keys input and rotary encoder jog dial pulse input (S611 to 617 and RE601) Key input terminal (A/D input) § OPEN/CLOSE, INPUT, MEMO SEARCH keys input and

rotary encoder jog dial pulse input (S621 to 623 and RE601) Key input terminal (A/D input)

I/u, TIME/TEXT, GROUP FILE, GROUP 8/7/6/5 keys input (S731 to 737) Key input terminal (A/D input)

REPEAT, PROGRAM, SHUFFLE, CONTINUE, GROUP 4/3/2/1 keys input (S721 to 728) Sircs remote control signal input for the S-LINK CONTROL A1 “L” active Muting on/off control signal output to the CXD2587Q (IC101) “H”: muting on

– 47 –

Pin No. Pin Name I/O Function

48 CLK O 49 XLT O 50 DATA O

51 SQCLK O

52 SUBQ I 53 NC O 54 SENS I 55 OUTSW I 56 RMIN I 57 AFADJ I 58 FLLT O 59 NC O 60 KBCIN O 61 SCOR I 62 T.SENS1 I 63 T.SENS2 I 64 T.SENS3 I 65 ICSW O 66 RFSW O 67 INSW I

68 to 71 D3 to D6 I/O

72 VDD — 73 NC (VDD) —

74 D7 I/O 75 to 77 D2 to D0 I/O 78 to 80 A0 to A2 O

Command serial data transfer clock signal output to the CXD2587Q (IC101) Command latch pulse output to the CXD2587Q (IC101) “L” active Command serial data output to the CXD2587Q (IC101) SENS serial data reading clock and subcode Q data reading clock signal output to the CXD2587Q

(IC101) Subcode Q data input from the CXD2587Q (IC101) Not used (open) Internal status monitor input from the CXD2587Q (IC101) “H” active Inputs the loading in/out detect switch (S801) detection signal “L” active Remote control signal input from the remote control receiver (IC601) “L” active Setting terminal for the test mode “L”: AFADJ mode, Normally: fixed at “H” Serial data latch pulse output to the FL driver (IC701) “L” active Not used (open) Serial data transfer clock signal output terminal Not used (open) Subcode sync (S0+S1) detection signal input from the CXD2587Q (IC101) “H” active Disc table flag detect sensor (IC802) input terminal Disc table flag detect sensor (IC803) input terminal Disc table home position detect sensor (IC801) input terminal Enable signal output to the LA5616 (IC506) Used for the BD section reset “H” active RF AGC hold control signal output to the CXA2568M (IC103) “H” active Inputs the loading in/out detect switch (S801) detection signal “L” active Two-way data bus with the static RAM (IC502) Power supply terminal (+5V) Not used (connected to power supply (+5V) line) Two-way data bus with the static RAM (IC502) Two-way data bus with the static RAM (IC502) Address signal output to the static RAM (IC502)

– 48 –

SECTION 8

EXPLODED VIEWS

NOTE:

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED)

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

↑↑

Parts Color Cabinet's Color

(1) CASE, FRONT PANEL SECTION

• The mechanical parts with no reference number in the exploded views are not supplied.

• Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list.

• Abbreviation AED : North European AUS : Australian CND: Canadian SP : Singapore

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque ! sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

not supplied

Ref. No. Part No. Description Remark

1 X-4949-616-1 DOOR (CD) ASSY 2 4-998-523-01 KNOB (JOG) 3 X-4949-618-1 PANEL ASSY, FRONT (US, CND) 3 X-4949-619-1 PANEL ASSY, FRONT (EXCEPT US, CND) 4 4-996-698-01 EMBLEM, SONY

Ref. No. Part No. Description Remark

* 7 A-4724-027-A DISP BOARD, COMPLETE (US, CND) * 7 A-4724-033-A DISP BOARD, COMPLETE (EXCEPT US, CND)

8 1-783-364-11 WIRE (FLAT TYPE) (15 CORE)

* 9 1-669-161-11 JOG BOARD

10 3-363-099-01 SCREW (CASE 3 TP2)

5 4-951-620-01 SCREW (2.6X8), +BVTP 6 4-985-553-21 CUSHION

* 11 4-982-946-11 CASE

12 4-977-358-11 CUSHION (FOOT)

– 49 –

(2) GUIDE ASSY, REAR PANEL SECTION

not supplied

T901

AUS

AUS AEP, UK, AED,

US, CND

not supplied

66 67

Ref. No. Part No. Description Remark

* 51 4-982-802-01 RING (A) * 52 4-982-803-01 RING (B)

53 4-998-506-01 GUIDE (DOOR. T) 54 4-999-182-01 ILLUMINATOR

* 55 1-669-166-11 ILLUMINATION BOARD

56 4-982-870-01 SHAFT (GUIDE FULCRUM) 57 3-356-601-11 SCREW, STEP 58 4-982-862-01 GUIDE (DISC T) 59 4-985-553-11 CUSHION

* 60 3-378-434-01 CUSHION, SARANET

not supplied

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Remark

* 65 4-998-525-01 PANEL, BACK (US) * 65 4-998-525-11 PANEL, BACK (CND) * 65 4-998-525-21 PANEL, BACK (AEP, UK, AED) * 65 4-998-525-41 PANEL, BACK (SP) * 65 4-998-525-51 PANEL, BACK (E)

* 65 4-998-525-61 PANEL, BACK (AUS) * 66 A-4724-022-A MAIN BOARD, COMPLETE (US, CND) * 66 A-4724-031-A MAIN BOARD, COMPLETE (EXCEPT US, CND)

67 4-886-821-11 SCREW, S TIGHT, +PTTWH 3X6 68 4-053-543-01 RIVET, NYLON

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

* 61 4-982-807-01 COVER (FFC)

! 62 1-575-042-21 CORD, POWER (US, CND) ! 62 1-575-651-21 CORD, POWER (AEP, UK, AED, SP) ! 62 1-696-027-11 CORD, POWER (E) ! 62 1-696-845-11 CORD, POWER (AUS)

! 63 1-569-007-11 ADAPTOR, CONVERSION 2P (E)

* 64 3-703-244-00 BUSHING (2104), CORD (EXCEPT E)

64 3-703-571-11 BUSHING (S) (4516), CORD (E)

* 69 1-669-164-11 JACK BOARD

70 1-773-183-11 WIRE (FLAT TYPE) (23 CORE) 71 4-956-370-12 BAND, PLUG FIXED (AUS)

! T901 1-431-759-11 TRANSFORMER, POWER (US, CND) ! T901 1-431-760-11 TRANSFORMER, POWER

(AEP, UK, AED, SP, AUS)

! T901 1-431-761-11 TRANSFORMER, POWER (E)

– 50 –

(3) CHASSIS SECTION

107

102

108

105

106

104

M810

109

111

110

112

103

113

not supplied

114

115

117

112

#10

120

116

118

106

121

123

119

M801

124

125

122

CDM-40B

127

126

128

101

Ref. No. Part No. Description Remark

* 101 1-669-167-11 DOOR MOTOR BOARD * 102 X-4949-615-1 BRACKET (GEAR) ASSY

103 4-998-510-01 GEAR (PULLEY) 104 4-998-509-01 GEAR (CENTER) 105 4-998-508-01 GEAR (DOOR)

106 3-325-697-21 WASHER 107 4-998-507-01 GUIDE (DOOR.B) 108 4-951-620-01 SCREW (2.6X8), +BVTP

* 109 1-669-168-11 DOOR SW BOARD * 110 1-661-470-11 T. SENS BOARD

* 111 1-661-468-11 D. SENS (LUMINOUS) BOARD

112 3-356-601-11 SCREW, STEP 113 4-210-030-01 BELT (42X1) 114 X-4947-230-2 BRACKET (TABLE) ASSY 115 X-4947-606-1 HOLDER (ROLLER 2) ASSY

Ref. No. Part No. Description Remark

* 117 1-661-469-11 D. SENS (RAY CATCHER) BOARD

* 125 1-661-466-11 T. MOTOR BOARD

130

118 4-976-471-01 BEARING (TABLE) 119 X-4947-231-1 TABLE (200) ASSY 120 4-982-892-01 SHAFT (CENTER) 121 4-982-891-01 GEAR (TABLE)

122 4-962-822-01 BELT (TIMING) 123 4-982-893-01 GEAR (CENTER 2) 124 X-4947-607-1 GEAR (PULLEY) ASSY

126 3-703-397-01 STOPPER, WIRING

127 4-985-574-01 SPACER (ROLLER) 128 X-4947-229-1 HOLDER (ROLLER) ASSY 129 4-983-279-01 CUSHION (RF) 130 4-931-169-01 FOOT M801 A-4604-847-A MOTOR ASSY (TABLE)

not supplied

129

not supplied

116 3-701-446-21 WASHER, 8

M810 X-4950-062-1 DOOR MOTOR ASSY

– 51 –

(4) MECHANISM DECK SECTION-1

(CDM-40B)

161

168

167

153

169

#11

not supplied

160

154

not supplied

162

not supplied

174

171

173

170

172

#13

151

152

155

not supplied

166

165

164

156

163

Ref. No. Part No. Description Remark

151 X-4947-241-1 LEVER (C) ASSY 152 4-982-882-01 SPRING (LIMITTER), TORSION 153 4-982-881-01 SPRING (HOLDER), TORSION 154 X-4947-239-1 LIMITTER (A) ASSY 155 4-982-853-01 LEVER (B)

159

158

#12

157

Ref. No. Part No. Description Remark

163 A-4672-092-A MAGNET ASSY 164 3-366-559-02 MAGNET (CHUCK) 165 4-960-633-01 YOKE (MAGNET) 166 4-960-632-11 PULLEY (B) 167 4-983-319-01 SPRING (THRUST), COMPRESSION

156 X-4947-240-1 LEVER (A) ASSY 157 4-988-143-01 HOLDER (DISC A2) 158 4-982-855-01 HOLDER (DISC B) 159 4-982-856-01 PAD 160 4-976-458-01 HOLDER (MAGNET)

161 X-4946-326-1 HOLDER (CLAMP) ASSY 162 4-983-777-01 SPRING (MG), TENSION

* 168 4-976-456-01 WASHER (STOPPER)

169 3-938-588-01 SPRING, COMPRESSION 170 X-4947-242-1 SLIDER (C) ASSY 171 X-4947-238-1 SLIDER (B) ASSY 172 X-4947-237-1 SLIDER (A) ASSY

173 4-982-880-01 SPRING (SLIDER A), TENSION

* 174 4-982-863-01 GUIDE (DISC P)

– 52 –

(5) MECHANISM DECK SECTION-2

(CDM-40B)

206

210

205

212

213

206

201

214

206

204

209

206

203

202

215

M802

#10

211

216

not supplied

#14

208

Ref. No. Part No. Description Remark

201 4-976-465-01 GEAR (LOADING 1) 202 4-976-466-01 GEAR (LOADING 2) 203 4-982-893-01 GEAR (CENTER 2) 204 X-4947-607-1 GEAR (PULLEY) ASSY 205 4-982-867-01 BELT (TIMING)

206 3-325-697-21 WASHER

* 207 1-661-465-11 L. MOTOR BOARD * 208 1-661-467-11 L. SW BOARD

209 3-489-073-00 SCREW, THRUST

207

Ref. No. Part No. Description Remark

210 X-4947-227-1 LEVER (STOPPER) ASSY 211 4-951-291-01 SCREW 212 X-4947-234-1 SLIDER (LOCK) ASSY 213 4-982-857-01 BEARING (CAM) 214 4-982-860-01 CAM (A)

215 4-982-861-01 CAM (B) 216 3-356-601-11 SCREW, STEP M802 A-4604-847-A MOTOR ASSY (LOADING)

– 53 –

(6) MECHANISM DECK SECTION-3

(CDM-40B)

KSM-213BKN/M-N

#15

259

255

258

257

255

254

#15

256

254

255

258

255

254

#15

259

255

258

#15

259

255

258

255

254

251

252

Ref. No. Part No. Description Remark

251 3-356-601-11 SCREW, STEP 252 X-4947-244-1 SLIDER (BU ADJUSTMENT) ASSY 253 X-4947-243-1 HOLDER (BU) ASSY 254 4-982-859-01 HOLDER (DAMPER) 255 4-982-878-01 SPRING (F), COMPRESSION

253

Ref. No. Part No. Description Remark

256 4-982-872-01 SPRING (F-2), TENSION 257 4-982-871-01 SPRING (F-1), TENSION 258 4-982-858-01 DAMPER 259 4-960-617-01 CAP (F)

– 54 –

(7) OPTICAL PICK-UP SECTION

(KSM-213BKN/M-N)

not supplied

303

#16

305

306

302

M101

M102

301

Ref. No. Part No. Description Remark * 301 A-4724-029-A BD BOARD, COMPLETE

302 2-626-907-01 GEAR (A) 303 2-627-003-02 GEAR (B) (RP) 304 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)

304

#15

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Ref. No. Part No. Description Remark

305 2-626-908-01 SHAFT, SLED

! 306 8-848-379-31 OPTICAL PICK-UP KSM-213BKN/M-N

M101 X-2626-234-1 T. T CHASSIS ASSY (MG) (K) (SPINDLE) M102 X-2625-769-1 MOTOR GEAR ASSY (MB) (PP) (SLED)

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

– 55 –

SECTION 9

ELECTRICAL PARTS LIST

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

Ref. No. Part No. Description Remark

* A-4724-029-A BD BOARD, COMPLETE

******************

< CAPACITOR >

C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C102 1-163-038-00 CERAMIC CHIP 0.1uF 25V C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C104 1-164-232-11 CERAMIC CHIP 0.01uF 50V C106 1-164-346-11 CERAMIC CHIP 1uF 16V

C107 1-164-346-11 CERAMIC CHIP 1uF 16V C108 1-163-035-00 CERAMIC CHIP 0.047uF 50V C109 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V C110 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C112 1-163-038-00 CERAMIC CHIP 0.1uF 25V C113 1-163-038-00 CERAMIC CHIP 0.1uF 25V C114 1-163-038-00 CERAMIC CHIP 0.1uF 25V C115 1-126-607-11 ELECT CHIP 47uF 20% 4V C116 1-126-607-11 ELECT CHIP 47uF 20% 4V

C117 1-126-209-11 ELECT CHIP 100uF 20% 4V C118 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C119 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C120 1-163-038-00 CERAMIC CHIP 0.1uF 25V C121 1-163-038-00 CERAMIC CHIP 0.1uF 25V

• SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. .

• CAPACITORS uF: µF

• COILS uH: µH

• Abbreviation AED : North European AUS : Australian CND: Canadian SP : Singapore

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque ! sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

Ref. No. Part No. Description Remark

C163 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C164 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C165 1-163-038-00 CERAMIC CHIP 0.1uF 25V C166 1-163-038-00 CERAMIC CHIP 0.1uF 25V C167 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C168 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C171 1-163-137-00 CERAMIC CHIP 680PF 5% 50V

C172 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C181 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C182 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

< CONNECTOR >

CN101 1-770-072-11 CONNECTOR, (LIF (NON-ZIF)) FFC23P CN102 1-777-937-11 CONNECTOR, FFC/FPC 16P

< IC >

IC101 8-752-386-85 IC CXD2587Q IC102 8-759-455-91 IC BA6392FP-E2 IC103 8-752-085-51 IC CXA2568M-T6

< COIL >

L101 1-414-234-11 INDUCTOR CHIP 0uH L102 1-414-234-11 INDUCTOR CHIP 0uH

C122 1-135-155-21 TANTALUM CHIP 4.7uF 10% 16V C123 1-164-232-11 CERAMIC CHIP 0.01uF 50V C124 1-164-005-11 CERAMIC CHIP 0.47uF 25V C125 1-163-038-00 CERAMIC CHIP 0.1uF 25V C126 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C127 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C130 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C131 1-135-216-11 TANTALUM CHIP 10uF 20% 10V C140 1-163-038-00 CERAMIC CHIP 0.1uF 25V C141 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C151 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C153 1-163-038-00 CERAMIC CHIP 0.1uF 25V C154 1-164-336-11 CERAMIC CHIP 0.33uF 25V C156 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C157 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V

C159 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C161 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C162 1-126-205-11 ELECT CHIP 47uF 20% 6.3V

< TRANSISTOR >

Q101 8-729-010-08 TRANSISTOR MSB710-R

< RESISTOR >

R101 1-216-077-00 METAL CHIP 15K 5% 1/10W R102 1-216-097-00 RES, CHIP 100K 5% 1/10W R103 1-216-077-00 METAL CHIP 15K 5% 1/10W R104 1-216-085-00 METAL CHIP 33K 5% 1/10W R105 1-216-097-00 RES, CHIP 100K 5% 1/10W

R106 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R107 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R108 1-216-073-00 METAL CHIP 10K 5% 1/10W R109 1-216-121-00 RES, CHIP 1M 5% 1/10W R110 1-216-025-00 RES, CHIP 100 5% 1/10W

R111 1-216-121-00 RES, CHIP 1M 5% 1/10W R113 1-216-121-00 RES, CHIP 1M 5% 1/10W R116 1-216-025-00 RES, CHIP 100 5% 1/10W

– 56 –

BD D. SENS (LUMINOUS) D. SENS (RAY CATCHER) DISP

Ref. No. Part No. Description Remark

R117 1-216-049-11 RES, CHIP 1K 5% 1/10W R119 1-216-043-00 RES, CHIP 560 5% 1/10W

R123 1-216-073-00 METAL CHIP 10K 5% 1/10W R124 1-216-097-00 RES, CHIP 100K 5% 1/10W R131 1-216-037-00 METAL CHIP 330 5% 1/10W R135 1-216-295-00 SHORT 0 R136 1-216-295-00 SHORT 0

R137 1-216-295-00 SHORT 0 R138 1-216-295-00 SHORT 0 R143 1-216-103-00 METAL CHIP 180K 5% 1/10W R144 1-216-103-00 METAL CHIP 180K 5% 1/10W R147 1-216-081-00 METAL CHIP 22K 5% 1/10W

R148 1-216-001-00 METAL CHIP 10 5% 1/10W R149 1-216-003-11 RES, CHIP 12 5% 1/10W R158 1-216-111-00 METAL CHIP 390K 5% 1/10W R159 1-216-101-00 METAL CHIP 150K 5% 1/10W R161 1-216-308-00 METAL CHIP 4.7 5% 1/10W

R162 1-216-101-00 METAL CHIP 150K 5% 1/10W R171 1-216-077-00 METAL CHIP 15K 5% 1/10W R172 1-216-077-00 METAL CHIP 15K 5% 1/10W R173 1-216-077-00 METAL CHIP 15K 5% 1/10W R181 1-216-077-00 METAL CHIP 15K 5% 1/10W

R182 1-216-077-00 METAL CHIP 15K 5% 1/10W R183 1-216-077-00 METAL CHIP 15K 5% 1/10W

Ref. No. Part No. Description Remark

C703 1-162-306-11 CERAMIC 0.01uF 20% 16V C704 1-164-159-11 CERAMIC 0.1uF 50V C705 1-124-584-00 ELECT 100uF 20% 10V

C706 1-162-282-31 CERAMIC 100PF 10% 50V C707 1-162-282-31 CERAMIC 100PF 10% 50V C708 1-162-282-31 CERAMIC 100PF 10% 50V C709 1-162-288-31 CERAMIC 330PF 10% 50V C710 1-124-584-00 ELECT 100uF 20% 10V

C711 1-164-159-11 CERAMIC 0.1uF 50V C712 1-164-159-11 CERAMIC 0.1uF 50V

< LEAD PIN >

* CLP701 1-690-880-31 LEAD (WITH CONNECTOR)

< LED >

D701 8-719-046-39 LED SEL5821A-TH15 (GROUP 1) D702 8-719-046-39 LED SEL5821A-TH15 (GROUP 2) D703 8-719-046-39 LED SEL5821A-TH15 (GROUP 3) D704 8-719-046-39 LED SEL5821A-TH15 (GROUP 4) D705 8-719-046-39 LED SEL5821A-TH15 (GROUP 5)

D706 8-719-046-39 LED SEL5821A-TH15 (GROUP 6) D707 8-719-046-39 LED SEL5821A-TH15 (GROUP 7) D708 8-719-046-39 LED SEL5821A-TH15 (GROUP 8) D709 8-719-046-44 LED SEL5221S (STANDBY)

< SWITCH >

S101 1-572-085-11 SWITCH, LEAF (LIMIT)

< VIBRATOR >

X101 1-767-408-41 VIBRATOR, CRYSTAL (16.9344MHz)

************************************************************

* 1-661-468-11 D.SENS (LUMINOUS) BOARD

***********************

* 4-976-473-01 HOLDER (LED-S)

< DIODE >

D801 8-719-055-84 DIODE GL-528VS1

************************************************************ *

1-661-469-11 D.SENS (RAY CATCHER) BOARD

**************************

* 4-985-300-01 HOLDER (P-T)

< PHOTO TRANSISTOR >

Q801 8-729-926-31 PHOTO TRANSISTOR PT483F1S

************************************************************

* A-4724-027-A DISP BOARD, COMPLETE (US, CND) * A-4724-033-A DISP BOARD, COMPLETE (EXCEPT US, CND)

********************

* 4-982-811-01 HOLDER (FL)

< CAPACITOR >

C701 1-162-294-31 CERAMIC 0.001uF 10% 50V C702 1-162-215-31 CERAMIC 47PF 5% 50V

< FLUORESCENT INDICATOR TUBE >

FL701 1-517-756-11 INDICATOR TUBE, FLUORESCENT

< IC >

IC601 8-749-014-66 IC NJL56H400 IC701 8-759-498-92 IC MSM9202-03GS-K IC702 8-759-183-47 IC M66310FP

< TRANSISTOR >

Q701 8-729-900-80 TRANSISTOR DTC114ES

< RESISTOR >

R701 1-249-441-11 CARBON 100K 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R703 1-247-807-31 CARBON 100 5% 1/4W R704 1-247-807-31 CARBON 100 5% 1/4W R705 1-247-807-31 CARBON 100 5% 1/4W

R706 1-247-843-11 CARBON 3.3K 5% 1/4W R707 1-247-807-31 CARBON 100 5% 1/4W R708 1-247-807-31 CARBON 100 5% 1/4W R709 1-247-807-31 CARBON 100 5% 1/4W R711 1-249-411-11 CARBON 330 5% 1/4W

R712 1-249-411-11 CARBON 330 5% 1/4W R713 1-249-413-11 CARBON 470 5% 1/4W R722 1-249-415-11 CARBON 680 5% 1/4W R723 1-249-417-11 CARBON 1K 5% 1/4W R724 1-249-419-11 CARBON 1.5K 5% 1/4W

R725 1-249-421-11 CARBON 2.2K 5% 1/4W R726 1-247-843-11 CARBON 3.3K 5% 1/4W R727 1-249-427-11 CARBON 6.8K 5% 1/4W R728 1-249-431-11 CARBON 15K 5% 1/4W R732 1-249-415-11 CARBON 680 5% 1/4W

– 57 –

DISP DOOR MOTOR DOOR SW ILLUMINATION JACK

Ref. No. Part No. Description Remark

R733 1-249-417-11 CARBON 1K 5% 1/4W R734 1-249-419-11 CARBON 1.5K 5% 1/4W R735 1-249-421-11 CARBON 2.2K 5% 1/4W R736 1-247-843-11 CARBON 3.3K 5% 1/4W R737 1-249-427-11 CARBON 6.8K 5% 1/4W

R751 1-249-429-11 CARBON 10K 5% 1/4W

< SWITCH >

S721 1-572-184-11 SWITCH, KEYBOARD (REPEAT) S722 1-572-184-11 SWITCH, KEYBOARD (PROGRAM) S723 1-572-184-11 SWITCH, KEYBOARD (SHUFFLE) S724 1-572-184-11 SWITCH, KEYBOARD (CONTINUE) S725 1-572-184-11 SWITCH, KEYBOARD (GROUP 4)

S726 1-572-184-11 SWITCH, KEYBOARD (GROUP 3) S727 1-572-184-11 SWITCH, KEYBOARD (GROUP 2) S728 1-572-184-11 SWITCH, KEYBOARD (GROUP 1) S731 1-572-184-11 SWITCH, KEYBOARD (I/u) S732 1-572-184-11 SWITCH, KEYBOARD (TIME/TEXT)

S733 1-572-184-11 SWITCH, KEYBOARD (GROUP FILE) S734 1-572-184-11 SWITCH, KEYBOARD (GROUP 8) S735 1-572-184-11 SWITCH, KEYBOARD (GROUP 7) S736 1-572-184-11 SWITCH, KEYBOARD (GROUP 6) S737 1-572-184-11 SWITCH, KEYBOARD (GROUP 5)

************************************************************

* 1-669-167-11 DOOR MOTOR BOARD

******************

Ref. No. Part No. Description Remark

* 1-669-164-11 JACK BOARD

**********

* 4-962-200-11 PLATE (TR), GROUND

< CAPACITOR >

C351 1-162-290-31 CERAMIC 470PF 10% 50V C451 1-162-290-31 CERAMIC 470PF 10% 50V C901 1-161-494-00 CERAMIC 0.022uF 25V C904 1-164-159-11 CERAMIC 0.1uF 50V C907 1-164-159-11 CERAMIC 0.1uF 50V

C911 1-161-494-00 CERAMIC 0.022uF 25V C912 1-126-052-11 ELECT 100uF 20% 10V

< CONNECTOR >

CN902 1-569-497-11 SOCKET, CONNECTOR 11P

* CN903 1-569-496-11 SOCKET, CONNECTOR 10P * CN904 1-568-951-11 PIN, CONNECTOR 2P

CN906 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P

< DIODE >

D901 8-719-911-19 DIODE 1SS119

< IC >

IC901 8-749-921-12 IC GP1F32T (DIGITAL OUT OPTICAL)

< JACK >

< CONNECTOR >

* CN812 1-568-951-11 PIN, CONNECTOR 2P ************************************************************

* 1-669-168-11 DOOR SW BOARD

**************

< RESISTOR >

R807 1-249-429-11 CARBON 10K 5% 1/4W

< SWITCH >

S810 1-571-300-21 SWITCH, ROTARY (DOOR SW)

************************************************************

* 1-669-166-11 ILLUMINATION BOARD

******************

< CONNECTOR >

CN813 1-506-481-11 PIN, CONNECTOR 2P

< LED >

D802 8-719-059-65 LED HLMF-KL05 (INSIDE ILLUMINATION) D803 8-719-059-65 LED HLMF-KL05 (INSIDE ILLUMINATION) D804 8-719-059-65 LED HLMF-KL05 (INSIDE ILLUMINATION)

< RESISTOR >

R805 1-249-407-11 CARBON 150 5% 1/4W R806 1-249-401-11 CARBON 47 5% 1/4W

************************************************************

* J901 1-764-188-11 JACK (SMALL TYPE) (DIA. 3.5)

(S-LINK CONTROL A1)

* J902 1-764-188-11 JACK (SMALL TYPE) (DIA. 3.5)

(S-LINK CONTROL A1)

J904 1-770-719-11 JACK, PIN 2P (LINE OUT)

< LINE FILTER >

! L901 1-421-915-11 FILTER, LINE (EXCEPT E)

< COIL >

L902 1-410-503-11 INDUCTOR 3.3uH

< TRANSISTOR >

Q901 8-729-620-05 TRANSISTOR 2SC2603-EF

< RESISTOR >

R351 1-215-405-00 METAL 220 1% 1/4W R451 1-215-405-00 METAL 220 1% 1/4W R901 1-249-393-11 CARBON 10 5% 1/4W R902 1-249-425-11 CARBON 4.7K 5% 1/4W R903 1-249-429-11 CARBON 10K 5% 1/4W

R921 1-249-429-11 CARBON 10K 5% 1/4W

< SWITCH >

S901 1-762-910-11 SWITCH, SLIDE (COMMAND MODE)

! S902 1-572-675-11 SWITCH, POWER VOLTAGE CHANGE

(VOLTAGE SELECTOR) (E)

– 58 –

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

JACK JOG L.MOTOR L.SW MAIN

Ref. No. Part No. Description Remark

< TRANSFORMER >

! T901 1-431-759-11 TRANSFORMER, POWER (US, CND) ! T901 1-431-760-11 TRANSFORMER, POWER

(AEP, AED, UK, SP, AUS)

! T901 1-431-761-11 TRANSFORMER, POWER (E)

************************************************************

* 1-669-161-11 JOG BOARD

**********

< CONNECTOR >

* CN601 1-569-306-11 SOCKET, CONNECTOR (L TYRE) 15P

< LED >

D601 8-719-046-40 LED SEL5521C-TH8F (·) D602 8-719-046-38 LED SEL5821A-TH8F (P)

< RESISTOR >

R601 1-249-407-11 CARBON 150 5% 1/4W R602 1-249-409-11 CARBON 220 5% 1/4W R612 1-249-415-11 CARBON 680 5% 1/4W R613 1-249-417-11 CARBON 1K 5% 1/4W R614 1-249-419-11 CARBON 1.5K 5% 1/4W

Ref. No. Part No. Description Remark

* 1-661-467-11 L.SW BOARD

**********

< SWITCH >

S801 1-571-300-21 SWITCH, ROTARY (LOADING DET)

************************************************************

* A-4724-022-A MAIN BOARD, COMPLETE (US, CND) * A-4724-031-A MAIN BOARD, COMPLETE (EXCEPT US, CND)

*********************

7-685-871-01 SCREW +BVTT 3X6 (S)

< CAPACITOR >

C301 1-126-233-11 ELECT 22uF 20% 50V C305 1-126-052-11 ELECT 100uF 20% 10V C327 1-126-163-11 ELECT 4.7uF 20% 50V C401 1-126-233-11 ELECT 22uF 20% 50V C405 1-126-052-11 ELECT 100uF 20% 10V

C501 1-128-489-11 ELECT 3300uF 20% 16V C502 1-124-360-00 ELECT 1000uF 20% 16V

(US, CND)

C502 1-126-027-11 ELECT 1000uF 20% 25V

(EXCEPT US, CND)

R615 1-249-421-11 CARBON 2.2K 5% 1/4W R616 1-247-843-11 CARBON 3.3K 5% 1/4W R617 1-249-427-11 CARBON 6.8K 5% 1/4W R618 1-249-431-11 CARBON 15K 5% 1/4W R619 1-249-437-11 CARBON 47K 5% 1/4W

R622 1-249-415-11 CARBON 680 5% 1/4W R623 1-249-417-11 CARBON 1K 5% 1/4W R624 1-249-419-11 CARBON 1.5K 5% 1/4W R651 1-249-429-11 CARBON 10K 5% 1/4W R652 1-249-429-11 CARBON 10K 5% 1/4W

< ROTARY ENCODER >

RE601 1-475-543-11 ENCODER, ROTARY

(DISC/CHARACTER PUSH ENTER)

< SWITCH >

S611 1-572-184-11 SWITCH, KEYBOARD (p) S612 1-572-184-11 SWITCH, KEYBOARD (P) S613 1-572-184-11 SWITCH, KEYBOARD (·) S614 1-572-184-11 SWITCH, KEYBOARD (CLEAR) S615 1-572-184-11 SWITCH, KEYBOARD (CHECK)

S616 1-572-184-11 SWITCH, KEYBOARD (±, AMS) S617 1-572-184-11 SWITCH, KEYBOARD (≠, AMS) S621 1-572-184-11 SWITCH, KEYBOARD (§, OPEN/CLOSE) S622 1-572-184-11 SWITCH, KEYBOARD (INPUT) S623 1-572-184-11 SWITCH, KEYBOARD (MEMO SEARCH)

************************************************************

* 1-661-465-11 L.MOTOR BOARD

**************

C503 1-124-122-11 ELECT 100uF 20% 50V C504 1-126-021-11 ELECT 33uF 20% 35V C505 1-126-052-11 ELECT 100uF 20% 16V C506 1-126-101-11 ELECT 100uF 20% 16V C507 1-126-044-11 ELECT 1uF 20% 50V

C508 1-126-101-11 ELECT 100uF 20% 16V C509 1-124-997-11 ELECT 470uF 20% 10V C510 1-126-163-11 ELECT 4.7uF 20% 50V C511 1-126-163-11 ELECT 4.7uF 20% 50V C512 1-161-494-00 CERAMIC 0.022uF 25V

C513 1-126-052-11 ELECT 100uF 20% 16V C514 1-126-023-11 ELECT 100uF 20% 25V C516 1-164-159-11 CERAMIC 0.1uF 50V C518 1-164-159-11 CERAMIC 0.1uF 50V

C519 1-164-159-11 CERAMIC 0.1uF 50V C521 1-164-159-11 CERAMIC 0.1uF 50V C522 1-110-489-11 CAPACITOR 1F 5.5V C531 1-161-494-00 CERAMIC 0.022uF 25V C532 1-126-052-11 ELECT 100uF 20% 10V

C533 1-161-494-00 CERAMIC 0.022uF 25V C551 1-136-165-00 FILM 0.1uF 5% 50V C552 1-164-159-11 CERAMIC 0.1uF 50V C561 1-136-165-00 FILM 0.1uF 5% 50V C562 1-164-159-11 CERAMIC 0.1uF 50V

C571 1-136-165-00 FILM 0.1uF 5% 50V C572 1-164-159-11 CERAMIC 0.1uF 50V C610 1-161-494-00 CERAMIC 0.022uF 25V C620 1-161-494-00 CERAMIC 0.022uF 25V C720 1-161-494-00 CERAMIC 0.022uF 25V

************************************************************

– 59 –

C730 1-161-494-00 CERAMIC 0.022uF 25V

< CONNECTOR >

CN501 1-569-321-11 SOCKET, CONNECTOR 15P CN502 1-568-742-11 SOCKET, CONNECTOR 23P

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

MAIN

Ref. No. Part No. Description Remark * CN503 1-568-951-11 PIN, CONNECTOR 2P

CN504 1-506-469-11 PIN, CONNECTOR 4P CN505 1-506-468-11 PIN, CONNECTOR 3P

* CN506 1-568-955-11 PIN, CONNECTOR 6P * CN507 1-568-951-11 PIN, CONNECTOR 2P * CN508 1-569-505-11 PIN, CONNECTOR 10P * CN509 1-569-506-11 PIN, CONNECTOR 11P

< DIODE >

D327 8-719-911-19 DIODE 1SS119 D501 8-719-024-99 DIODE 11ES2-NTA2B D502 8-719-024-99 DIODE 11ES2-NTA2B D503 8-719-024-99 DIODE 11ES2-NTA2B D504 8-719-024-99 DIODE 11ES2-NTA2B

D505 8-719-024-99 DIODE 11ES2-NTA2B D506 8-719-110-72 DIODE RD30ESB2 D507 8-719-109-93 DIODE RD6.2ESB2 D508 8-719-109-85 DIODE RD5.1ES-B2 D509 8-719-911-19 DIODE 1SS119

D521 8-719-911-19 DIODE 1SS119

< IC >

IC401 8-759-145-58 IC uPC4558C IC501 8-752-892-41 IC CXP84340-075Q IC502 8-759-463-99 IC M5M5256DFP-70XL IC503 8-759-821-32 IC CXA1291P IC504 8-759-094-53 IC TA7805S

IC505 8-759-256-72 IC PST994D IC506 8-759-330-29 IC LA5616

Ref. No. Part No. Description Remark

R323 1-249-421-11 CARBON 2.2K 5% 1/4W R325 1-249-441-11 CARBON 100K 5% 1/4W R327 1-249-441-11 CARBON 100K 5% 1/4W R401 1-215-453-00 METAL 22K 1% 1/4W R402 1-215-425-00 METAL 1.5K 1% 1/4W

R403 1-215-425-00 METAL 1.5K 1% 1/4W R404 1-215-445-00 METAL 10K 1% 1/4W R405 1-215-443-00 METAL 8.2K 1% 1/4W R413 1-215-469-00 METAL 100K 1% 1/4W R414 1-215-405-00 METAL 220 1% 1/4W

R415 1-215-405-00 METAL 220 1% 1/4W R416 1-249-393-11 CARBON 10 5% 1/4W R422 1-249-421-11 CARBON 2.2K 5% 1/4W R423 1-249-421-11 CARBON 2.2K 5% 1/4W R425 1-249-441-11 CARBON 100K 5% 1/4W

R501 1-249-435-11 CARBON 33K 5% 1/4W R502 1-249-425-11 CARBON 4.7K 5% 1/4W R505 1-249-413-11 CARBON 470 5% 1/4W R506 1-249-429-11 CARBON 10K 5% 1/4W R507 1-249-425-11 CARBON 4.7K 5% 1/4W

R508 1-249-413-11 CARBON 470 5% 1/4W R511 1-249-425-11 CARBON 4.7K 5% 1/4W R512 1-249-425-11 CARBON 4.7K 5% 1/4W R521 1-249-429-11 CARBON 10K 5% 1/4W R522 1-249-403-11 CARBON 68 5% 1/4W

R523 1-249-403-11 CARBON 68 5% 1/4W R524 1-249-429-11 CARBON 10K 5% 1/4W R531 1-249-429-11 CARBON 10K 5% 1/4W R532 1-249-429-11 CARBON 10K 5% 1/4W R533 1-249-429-11 CARBON 10K 5% 1/4W

< COIL >

L501 1-412-473-21 INDUCTOR 0uH L502 1-412-473-21 INDUCTOR 0uH

< TRANSISTOR >

Q322 8-729-141-26 TRANSISTOR 2SC3622A-LK Q323 8-729-141-26 TRANSISTOR 2SC3622A-LK Q325 8-729-900-65 TRANSISTOR DTA144ES Q327 8-729-900-65 TRANSISTOR DTA144ES Q422 8-729-141-26 TRANSISTOR 2SC3622A-LK

Q423 8-729-141-26 TRANSISTOR 2SC3622A-LK Q425 8-729-900-65 TRANSISTOR DTA144ES Q501 8-729-140-97 TRANSISTOR 2SB734-34 Q503 8-729-119-76 TRANSISTOR 2SA1175-HFE Q521 8-729-030-08 TRANSISTOR DTC144VSA-TP

< RESISTOR >

R301 1-215-453-00 METAL 22K 1% 1/4W R302 1-215-425-00 METAL 1.5K 1% 1/4W R303 1-215-425-00 METAL 1.5K 1% 1/4W R304 1-215-445-00 METAL 10K 1% 1/4W R305 1-215-443-00 METAL 8.2K 1% 1/4W

R313 1-215-469-00 METAL 100K 1% 1/4W R314 1-215-405-00 METAL 220 1% 1/4W R315 1-215-405-00 METAL 220 1% 1/4W R316 1-249-393-11 CARBON 10 5% 1/4W R322 1-249-421-11 CARBON 2.2K 5% 1/4W

R534 1-249-421-11 CARBON 2.2K 5% 1/4W R535 1-247-843-11 CARBON 3.3K 5% 1/4W R536 1-249-425-11 CARBON 4.7K 5% 1/4W R537 1-249-429-11 CARBON 10K 5% 1/4W R538 1-249-429-11 CARBON 10K 5% 1/4W

R539 1-249-429-11 CARBON 10K 5% 1/4W R540 1-249-429-11 CARBON 10K 5% 1/4W R541 1-249-429-11 CARBON 10K 5% 1/4W R542 1-249-429-11 CARBON 10K 5% 1/4W R543 1-249-429-11 CARBON 10K 5% 1/4W

R544 1-249-429-11 CARBON 10K 5% 1/4W R551 1-247-887-00 CARBON 220K 5% 1/4W R552 1-247-887-00 CARBON 220K 5% 1/4W R553 1-247-860-11 CARBON 16K 5% 1/4W R554 1-249-431-11 CARBON 15K 5% 1/4W

R555 1-249-382-11 CARBON 1.2 5% 1/6W R556 1-249-382-11 CARBON 1.2 5% 1/6W R557 1-247-883-00 CARBON 150K 5% 1/4W R558 1-249-393-11 CARBON 10 5% 1/4W R561 1-249-441-11 CARBON 100K 5% 1/4W

R562 1-249-441-11 CARBON 100K 5% 1/4W R563 1-247-860-11 CARBON 16K 5% 1/4W R564 1-249-431-11 CARBON 15K 5% 1/4W R565 1-249-382-11 CARBON 1.2 5% 1/6W R566 1-249-382-11 CARBON 1.2 5% 1/6W

R567 1-247-883-00 CARBON 150K 5% 1/4W R568 1-249-393-11 CARBON 10 5% 1/4W R571 1-247-885-00 CARBON 180K 5% 1/4W

– 60 –

MAIN T.MOTOR T.SENS

Ref. No. Part No. Description Remark

R572 1-247-885-00 CARBON 180K 5% 1/4W R573 1-247-860-11 CARBON 16K 5% 1/4W

R574 1-249-431-11 CARBON 15K 5% 1/4W R575 1-249-382-11 CARBON 1.2 5% 1/6W R576 1-249-382-11 CARBON 1.2 5% 1/6W R577 1-247-883-00 CARBON 150K 5% 1/4W R578 1-249-393-11 CARBON 10 5% 1/4W

R581 1-249-429-11 CARBON 10K 5% 1/4W R610 1-249-427-11 CARBON 6.8K 5% 1/4W R620 1-249-427-11 CARBON 6.8K 5% 1/4W R720 1-249-427-11 CARBON 6.8K 5% 1/4W R730 1-249-427-11 CARBON 6.8K 5% 1/4W

< VARIABLE RESISTOR >

RV501 1-241-787-11 RES, ADJ, CARBON 47K

< VIBRATOR >

X501 1-579-175-11 VIBRATOR, CERAMIC (10MHz)

************************************************************

* 1-661-466-11 T.MOTOR BOARD

*************

************************************************************

* 1-661-470-11 T.SENS BOARD

************

< CONNECTOR >

CN802 1-506-481-11 PIN, CONNECTOR 2P CN803 1-506-481-11 PIN, CONNECTOR 2P

< PHOTO INTERRUPTER >

IC801 8-749-924-18 PHOTO INTERRUPTER RPI-1391 IC802 8-749-924-18 PHOTO INTERRUPTER RPI-1391 IC803 8-749-924-18 PHOTO INTERRUPTER RPI-1391

< RESISTOR >

R801 1-249-416-11 CARBON 820 5% 1/4W R802 1-249-416-11 CARBON 820 5% 1/4W R803 1-249-416-11 CARBON 820 5% 1/4W R804 1-249-415-11 CARBON 680 5% 1/4W

************************************************************

MISCELLANEOUS

**************

8 1-783-364-11 WIRE (FLAT TYPE) (15 CORE)

! 62 1-575-042-21 CORD, POWER (US, CND) ! 62 1-575-651-21 CORD, POWER (AEP, UK, AED, SP) ! 62 1-696-027-11 CORD, POWER (E) ! 62 1-696-845-11 CORD, POWER (AUS)

Ref. No. Part No. Description Remark

M810 X-4950-062-1 DOOR MOTOR ASSY

! T901 1-431-759-11 TRANSFORMER, POWER (US, CND)

! T901 1-431-760-11 TRANSFORMER, POWER

(AEP, UK, AED, SP, AUS)

! T901 1-431-761-11 TRANSFORMER, POWER (E)

************************************************************

**************

HARDWARE LIST

**************

#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-871-01 SCREW +BVTT 3X6 (S) #3 7-685-134-19 SCREW +PTPWH 2.6X8 (TYPE2) #4 7-624-106-04 STOP RING 3.0, TYPE -E #5 7-682-947-01 SCREW +PSW 3X6

#6 7-682-547-04 SCREW +BV 3X6, S TIGHT #7 7-685-872-09 SCREW +BVTT 3X8 (S) #8 7-621-775-00 SCREW +B 2.6X3 #9 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #10 7-624-111-04 STOP RING 7.0, TYPE -E

#11 7-682-552-09 SCREW +B 3X16 #12 7-621-772-20 SCREW +B 2X5 #13 7-624-109-04 STOP RING 5.0, TYPE -E #14 7-621-775-20 SCREW +B 2.6X5 #15 7-621-772-30 SCREW +B 2X6

#16 7-621-255-15 SCREW +P 2X3

************************************************************

ACCESSORIES & PACKING MATERIALS

*******************************

1-475-654-11 REMOTE COMMANDER (RM-DX220) 1-558-271-11 CORD, CONNECTION (AUDIO) 1.5m 1-777-172-11 CORD, CONNECTION (CONTROL A1) 1m

(CND)

3-810-765-11 MANUAL, COMMONNESS INSTRUCTION

(ENGLISH) (US, AUS)

3-810-765-21 MANUAL, COMMONNESS INSTRUCTION

(ENGLISH, FRENCH, GERMAN, SPANISH,

DUTCH, SWEDISH, ITALIAN, PORTUGUESE,

CHINESE) (CND, AEP, UK, AED, E, SP)

3-862-563-11 MANUAL, INSTRUCTION (ENGLISH) (US, AUS) 3-862-563-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

SPANISH) (CND, AEP, UK, E, SP)

3-862-563-31 MANUAL, INSTRUCTION (GERMAN, DUTCH,

ITALIAN, PORTUGUESE) (AEP, UK)

3-862-563-41 MANUAL, INSTRUCTION

(SWEDISH, DANISH, FINNISH) (AED)

3-862-563-51 MANUAL, INSTRUCTION (CHINESE) (E, SP)

4-981-643-01 COVER, BATTERY (for RM-DX220) 4-984-086-01 BOOKLET (100)

! 63 1-569-007-11 ADAPTOR, CONVERSION 2P (E)

70 1-773-183-11 WIRE (FLAT TYPE) (23 CORE) 304 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)

! 306 8-848-379-31 OPTICAL PICK-UP KSM-213BKN/M-N

M101 X-2626-234-1 T. T CHASSIS ASSY (MG) (K) (SPINDLE)

M102 X-2625-769-1 MOTOR GEAR ASSY (MB) (PP) (SLED) M801 A-4604-847-A MOTOR ASSY (TABLE) M802 A-4604-847-A MOTOR ASSY (LOADING)

– 61 –

The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.

Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

CDP-CX220

9-922-819-11

Sony Corporation

Home A&V Products Company

– 62 –

98D0589-1

Published by Quality Assurance Dept.

(Shibaura)

Sony Ericsson CDP-CX220 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SERVICING NOTES

GENERAL

DISASSEMBLY

TEST MODE

MECHANICAL ADJUSTMENTS

ELECTRICAL ADJUSTMENTS

DIAGRAMS

EXPLODED VIEWS

ELECTRICAL PARTS LIST
