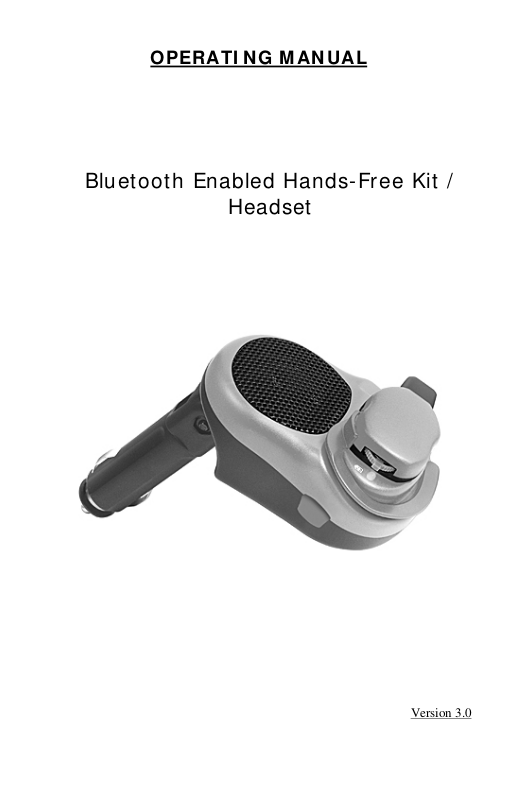

OPERATI NG MAN UAL

Bluet ooth Enabled Hands- Free Kit /

Headset

Version 3.0

OVERVI EW

This unit uses Bluetooth technology that allows wireless communications on devices such as cellular
phones. This is designed to be a totally wireless hands-free car kit or a stand-alone wireless headset.
This provides the user to operate a cellular phone inside the car while driving and can also be used
anywhere by detaching the earpiece and becomes a stand-alone Bluetooth headset. The unit will work
on all Bluetooth cellular phones provided that they respect the Bluetooth protocol.

A. I LLU ST RATI ONS

1 – Magnet
2 – Charging Pins
3 – Charge/Power Indicator
4 – Line Pick-up Button
5 – Cigarette Lighter Plug
6 – Main Speaker
7 – Ear Hook
8 – Multi-function Button (Talk/Power/Volume)
9 – Microphone / Indicator lights
10 – Speaker Volume
11 – Earphone

B. TU RN I N G ON / OFF TH E U N I T

There are two ways to turn ON/OFF the unit depending on how it is being used. When used as a

hands-free car kit, plugging it in the cigarette lighter plug (5) activates the unit. When used as
headset, follow the steps below:

1. Press the multi-function button for 2 seconds. A low-high tone will then be heard and a blue
light will show.

2. Release the button and the indicator light will blink. The headset is now ready and is waiting
for a call (standby mode). (Note: If the indicator becomes red, it means that the battery on the
headset is low. Re-charge it immediately by putting it back to the main unit.)

3. Turn the headset OFF by pressing the multi-function button for more than 4 seconds or more
depending on the phone. A high-low tone will then be heard and the indicator light becomes
red then turns off after a few seconds.

4. Wait at least 4 seconds before turning the headset ON again.

REMARK:

When the cell phone is not detected for more than 5 minutes, if used as a stand-alone headset or
docked and no power from the Cigarette lighter plug, it will turn off automatically to conserve
battery life.

1

Note :

Recommended Function Controls

C. OPERAT I ONS

Before use, the headset must be paired with the phone. Pairing is done only once. After being
paired, the phone and the headset will be automatically connected anytime when the phone is
used. (Please see Headset Operations for Popular Cell Phones section on page 4 for instructions.)

D. I N ST ALLI N G THE MI CROPH O N E

1. Put two (2) "AAA" Alkaline batteries in the wireless microphone. The negative polarity of the
batteries must be in the spring side.
Note: Microphone battery life is more than 500 calls (if 3 calls/day, battery life = more than 5
months).

2. It is highly recommended that you attach your microphone to the sun visor. Please make sure
that it does not hide the microphone otherwise your voice will be attenuated.

3. Turn "ON" the microphone by using the power switch.

REMARKS:



If microphone is not “ON” during the communication, the sound on the speaker will be

attenuated.



In standby mode, the microphone will still have a small consumption (less the 1.8

microwatts).



On some versions the indicator light will only turn ON for 2 seconds after the microphone is

switched ON. If the light is red, this indicates low battery.



The microphone is activated by the Hands-Free Kit base and can remain in “ON” position

even if not used, but in order to extend your battery life, it is recommended to switch “OFF”
your microphone when not using for a long time.

E. FUNCTI O N CONTR OLS

Adjust the Function Controls as recommended:

1. Tone Control

“L” for Low Tone.

“H” for High Tone

2. ASP Control

ON = Echo and Feedback Canceller
OFF = Echo Reducer only

3. Adjustable Microphone Gain (MIC) Control

“H” for high gain; “L” for low gain.

"L" is necessary in noisy background.
Control Switches

The Microphone gain must be adjusted to match with your cell phone model. If the gain is too high,
it can cause feedback (whistling sound), echo or background noise during calls on some cell
phones.

Setting (Working on all models):

MIC = L
ASP = ON
TONE = H

F. SETTI N G T H E VOLUME

There are two volume controls on the unit. One is on the main unit which is the speaker volume
(10) and controls only the main speaker (6). The other is on the headset which is the multi-function
button (8) and sets both the earphone (11) and the main speaker (6).

On high background environment,
If you experience audio level
fluctuation, turn ASP ‘’ OFF ’’.

2

The headset volume control is digital and is combined with the multi-function button (8). Pressing it
clockwise increases the volume. Counter-clockwise decreases it. Continuous pressing of the
digital volume control can also rapidly set the volume. (Please refer to the Headset Operations for
Popular Cell Phones section on page 4 for additional information.)

During a communication, pick-up the earphone and adjust it’s volume (8). Replace the earphone on

the base and adjust the speaker volume (10).
If the volume is too high, it can cause feedback (whistling sound), echo or background noise during
calls on some cell phones.

G. AN SW ERI N G/ RECEI V I N G A CALL

When the phone is receiving a call, the phone ring tone will be heard on the hands-free kit or on
the headset. Just press button (4) on the main unit, or button (8) on the headset once to answer
the call. Pressing the button again will hang-up and terminates the call. (Please refer to the
Headset Operations for Popular Cell Phones section on page 4 for additional information.)

H. MAKI N G A CALL

Calling through the hands-free kit can be done using voice tags (refer to the Headset Operations
for Popular Cell Phones section on page 4 for saving and activating voice tags). The steps are:

1. Press the line pick-up button (4) once on the main unit or the multi-function button (8) to

activate the voice dialing.

2. A beep will then be heard prompting the user to say the name of the person to call.

3. Say the name. The name will be played back to you.

4. The phone will then place the call automatically. In case the phone does not recognize

the name spoken, the steps above may be repeated.

5. Press the button again to terminate the call.

If the desired number to be dialed has no voice tag, normal dialing can also be done using the
keypad on the phone. (Please refer to the Headset Operations for Popular Cell Phones section on
page 4 for additional information.)

Important Remark:

On some versions of Nokia’s software, the headset/car kit will not connect automatically to the cell
phone. You will need to press the multi-function button once to connect it to the cell phone.

3

HEADSET OPERATIONS FOR POPULAR

CELL PHONES

Note 1: If your phone is not included on the following list of this manual, kindly refer to the manual of your
phone.

Note 2: Softwares and menus could be modified by the cell phone’s manufacturers without prior notice. If the

manual does not match with your cell phone operations, kindly refer to the manual of your cell phone.

Sony Ericsson T68/T68i

a. Activating the Bluetooth ………………………………………… 6
b. Pairing to the Cellular Phone ………………………………………… 6
c. Answering/Receiving a Call ………………………………………… 6
d. Making a Call with the headset on ………………………………………… 6
e. Rejecting a Call ………………………………………… 7
f. Setting the Volume ………………………………………… 7
g. Activating the Voice Dialing ………………………………………… 7
h. Recording for Voice Dialing ………………………………………… 7

Sony Ericsson T39m

a. Activating the Bluetooth ………………………………………… 8
b. Pairing to the Cellular Phone ………………………………………… 8
c. Answering/Receiving a Call ………………………………………… 8
d. Making a Call with the headset on ………………………………………… 8
e. Setting the Volume ………………………………………… 8
f. Activating the Voice Dialing ………………………………………… 9
g. Recording for Voice Dialing ………………………………………… 9

Sony Ericsson P800

a. Activating the Bluetooth ………………………………………… 9
b. Pairing to the Cellular Phone ………………………………………… 9
c. Answering/Receiving a Call ………………………………………… 9
d. Making a Call with the headset on ………………………………………… 10
e. Setting the Volume ………………………………………… 10
f. Activating the Voice Dialing ………………………………………… 10
g. Recording for Voice Dialing ………………………………………… 10

Sony Ericsson T610

a. Activating the Bluetooth ………………………………………… 10
b. Pairing to the Cellular Phone ………………………………………… 10
c. Answering/Receiving a Call ………………………………………… 11
d. Making a Call with the headset on ………………………………………… 11
e. Rejecting a Call ………………………………………… 11
f. Setting the Volume ………………………………………… 11
g. Activating the Voice Dialing ………………………………………… 11
h. Recording for Voice Dialing ………………………………………… 11

Nokia 6310/6310i

a. Activating the Bluetooth ………………………………………… 12
b. Pairing to the Cellular Phone ………………………………………… 12
c. Auto Accept Mode ………………………………………… 12
d. Answering/Receiving a Call ………………………………………… 12
e. Making a Call with the headset on ………………………………………… 12
f. Rejecting a Call ………………………………………… 13
g. Setting the Volume ………………………………………… 13
h. Recording for Voice Dialing ………………………………………… 13

Nokia 8910

a. Activating the Bluetooth ………………………………………… 13
b. Pairing to the Cellular Phone ………………………………………… 13
c. Auto Accept Mode ………………………………………… 14
d. Answering/Receiving a Call ………………………………………… 14
e. Making a Call with the headset on ………………………………………… 14

4

f. Rejecting a Call …… …… …… …… …… …… …… …… 14

g. Setting the Volume … … … … … … … … … … … … … … … … 14
h. Recording for Voice Dialing … … …… … …… … …… ……… ……… 15

Nokia 8910i

a. Activating the Bluetooth … … …… … …… … …… ……… ……… 15
b. Pairing to the Cellular Phone … … …… … …… … …… ……… ……… 15
c. Auto Accept Mode … … …… … …… … …… ……… ……… 15
d. Answering/Receiving a Call … …… …… …… …… …… …… …… … 16
e. Making a Call with the headset on … … …… … …… … …… ……… ……… 16
f. Rejecting a Call …… …… …… …… …… …… …… …… 16
g. Setting the Volume … … … … … … … … … … … … … … … … 16
h. Recording for Voice Dialing … … …… … …… … …… ……… ……… 16

Nokia 3650

a. Activating the Bluetooth … … …… … …… … …… ……… ……… 16
b. Pairing to the Cellular Phone … … …… … …… … …… ……… ……… 17
c. Auto Accept Mode … … …… … …… … …… ……… ……… 17
d. Answering/Receiving a Call … …… …… …… …… …… …… …… … 17
e. Making a Call with the headset on … … …… … …… … …… ……… ……… 17
f. Rejecting a Call …… …… …… …… …… …… …… …… 18
g. Setting the Volume … … … … … … … … … … … … … … … … 18
h. Recording for Voice Dialing … … …… … …… … …… ……… ……… 18

Siemens S55

a. Activating the Bluetooth … … …… … …… … …… ……… ……… 18
b. Pairing to the Cellular Phone … … …… … …… … …… ……… ……… 18
c. Answering/Receiving a Call … … …… … …… … …… ……… ……… 19
d. Making a Call with the headset on … … …… … …… … …… ……… ……… 19
e. Rejecting a Call … … …… … …… … …… ……… ……… 19
f. Setting the Volume … … …… … …… … …… ……… ……… 19
g. Recording for Voice Dialing … … …… … …… … …… ……… ……… 19

Suggested Pairing Modes

Cell Phone Models

Ericsson T68
Ericsson T68i (R6 and below)
Ericsson T68i (R7)
Ericsson T39m
Ericsson P800
Ericsson T610
Nokia 6310/6310i
Nokia 8910
Nokia 8910i
Nokia 3650
Siemens S55

Pairing Mode

Headset Handsfree

5
