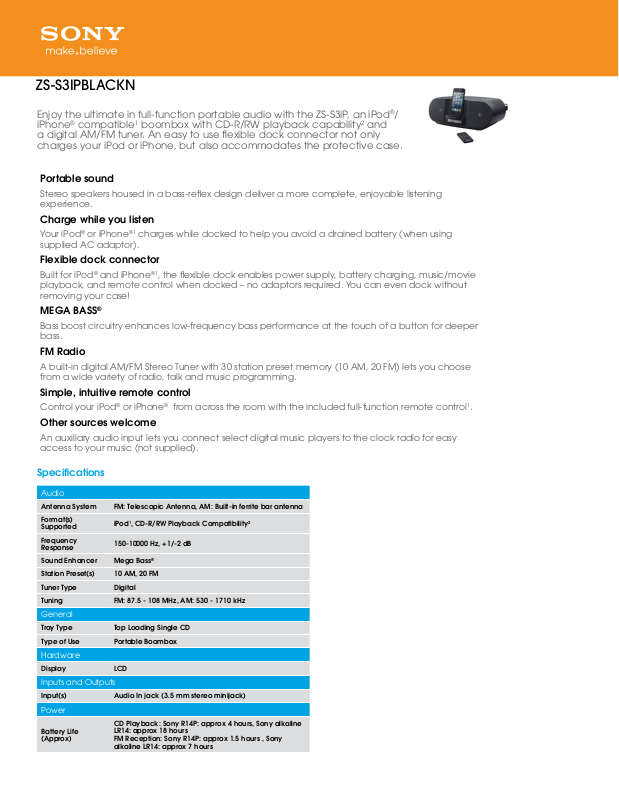

Sony ZS-S3IPBLACKN BROCHURE

ZS-S3IPBLACKN

Enjoy the ultimate in full-function portable audio with the ZS-S3iP, an iPod®/ iPhone® compatible1 boombox with CD-R/RW playback capability2 and a digital AM/FM tuner. An easy to use exible dock connector not only charges your iPod or iPhone, but also accommodates the protective case.

Portable sound

Stereo speakers housed in a bass-reex design deliver a more complete, enjoyable listening experience.

Charge while you listen

Your iPod® or iPhone®1 charges while docked to help you avoid a drained battery (when using supplied AC adaptor).

Flexible dock connector

Built for iPod® and iPhone®1, the exible dock enables power supply, battery charging, music/movie playback, and remote control when docked – no adaptors required. You can even dock without removing your case!

MEGA BASS

Bass boost circuitry enhances low-frequency bass performance at the touch of a button for deeper bass.

FM Radio

A built-in digital AM/FM Stereo Tuner with 30 station preset memory (10 AM, 20 FM) lets you choose from a wide variety of radio, talk and music programming.

Simple, intuitive remote control

Control your iPod® or iPhone® from across the room with the included full-function remote control1.

Other sources welcome

An auxiliary audio input lets you connect select digital music players to the clock radio for easy access to your music (not supplied).

Specications

Audio

Antenna System FM: Telescopic Antenna, AM: Built-in ferrite bar antenna

Format(s) Supported

Frequency Response

Sound Enhancer Mega Bass

Station Preset(s) 10 AM, 20 FM

Tuner Type Digital

Tuning FM: 87.5 - 108 MHz, AM: 530 - 1710 kHz

General

Tray Type Top Loading Single CD

Type of Use Portable Boombox

Hardware

Display LCD

Inputs and Outputs

Input(s) Audio In jack (3.5 mm stereo minijack)

Power

Battery Life (Approx)

, CD-R/RW Playback Compatibility

iPod

150-10000 Hz, +1/-2 dB

CD Playback: Sony R14P: approx 4 hours, Sony alkaline LR14: approx 18 hours

FM Reception: Sony R14P: approx 1.5 hours , Sony alkaline LR14: approx 7 hours

Output Power 1.7 W + 1.7 W (at 8 ohms, 10% harmonic distortion)

Power Consumption (in Operation)

Power Requirements

AC 18W

120 V AC, 60 Hz 9 V DC, 6x R14 (size C) batteries (sold separately)

Speaker

Speaker System Full Range: 3 1/8 inches (7.7 cm)

Weights and Measurements

Dimensions (Approx.)

Weight (Approx.) 5 lbs 8 oz (2.5 kg)

14 1/8 x 5 3/8 x 9 1/4 inches (356 x 134 x 234 mm)

Accessories

AC Power Cord (1)

Supplied Accessories

Remote Commander (with lithium battery) (1) Operating Instructions (1) Cushion for small-size iPod (1)

1. Works with iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPod Touch 4th Generation, iPod

Touch 3rd Generation, iPod Touch 2nd Generation, iPod Nano 6th Generation, iPod Nano,

5th Generation, iPod Nano 4th Generation, iPod Nano 3rd Generation, and iPod Classic.

iPod players and iPhone sold separately.

2. Playback depends on recording conditions

3. Actual performance varies based on settings, environmental conditions, and usage.

4. Measurements at 8 Ohms, no more than 10% T.H.D., 1 kHz, AC adaptor operation.

written permission is prohibited. Sony is a trademark of Sony. iPod, iPod classic, iPod

nano, iPod touch, and iPhone are trademarks of Apple Inc.. All other trademarks are

trademarks of their respective owners. Features and specications are subject to change

without notice. Non-metric weights and measures are approximate and may vary.

/Updated: April 16, 2013
