Display Unit
4-692-870-12 (1)
Display Controller
Operating Instructions
Before operating the unit, please read this manual and the supplied Before Using this
Unit document thoroughly and retain it for future reference.
ZRD-1
ZRCT-100
© 2016 Sony Corporation
Page 2
Table of Contents
Please Read This First .............................................. 3
Manual Structure ................................................... 3
Licenses ................................................................. 3
Condensation ......................................................... 3
Security .................................................................. 3
Burn-in ................................................................... 3
Defective pixels ..................................................... 3
General Precautions ............................................... 3
Overview .................................................................... 4
System Configuration Diagram ............................. 4
Parts Identification ................................................... 5
ZRD-1 Display Unit .............................................. 5
ZRCT-100 Display Controller ............................... 6
Turning the Power On/Off ....................................... 8
Turning the Power On ............................................ 8
Turning the Power Off ........................................... 9
Selecting the Video Input ......................................... 9
Changing the Display Starting Positions of
Pictures .............................................................. 10
Adjusting the Picture Quality ................................ 11
Displaying 3D Video ................................................ 12
Troubleshooting ....................................................... 13
Error Codes ............................................................. 15
Display Units ....................................................... 15
Display Controllers .............................................. 16
Cleaning and Storage .............................................. 17
Display Units ....................................................... 17
Display Controllers .............................................. 17
Signal Formats ........................................................ 17
Trademarks
Products or system names appearing in this document are
trademarks or registered trademarks of their respective
owners.
Further, the ® or ™ symbols are not used in the text.
• Reproduction or duplication, in whole or part, of the
operation manual supplied with the system without the
authorization of the right holder is prohibited under
copyright law.
• Sony assumes no responsibility for damages, loss of
income, or any claims from a third party arising out of
use of the system.
• Note that the specifications of the system are subject to
change for improvement without prior notice.
2
Page 3
Please Read This First
Manual Structure
This product includes the following manuals to be used
according to the situation.
Before Using this Unit (ZRD-1, ZRCT-100)
This includes important safety precautions, specifications,
etc.
Installation Manual
This includes information on installation, initial setup,
equipment adjustment procedures, etc. Refer to this
manual when changing equipment settings or performing
readjustments after installation as well.
Operating Instructions (this document)
This includes information on video input selection, picture
quality adjustment, parts identification, etc. Refer to this
manual when performing general operations.
Service Manual
This is intended for use by service personnel and includes
information on diagnosing malfunctions and instructions
on repair.
Licenses
Refer to the Software License Agreement.
Burn-in
Permanent burn-in may occur if a still image is displayed
for a prolonged period of time. Playing a video with
moving images may reduce the severity of burn-in once it
occurs, but it will not remove the burn-in completely.
Defective pixels
The panel fitted to this unit is manufactured with high
precision technology, giving a functioning pixel ratio of at
least 99.99%. Thus a very small proportion of pixels may
be “stuck,” either always off (black), always on (red, green,
or blue), or flashing. In addition, such “stuck” pixels may
appear spontaneously over a long period of use due to the
physical characteristics of the organic light-emitting
diodes.
Such occurrences do not indicate a malfunction.
General Precautions
• Avoid getting the product wet. In the event of accidental
contact with liquids, do not turn on the power, and
contact a service representative.
• If an error or malfunction occurs or if foreign matter
enters the interior of the product, turn off the power and
discontinue use, and contact a service representative.
• Do not subject the front panel of the display units to
damage or shocks.
• Request cleaning and maintenance periodically from a
service representative.
Condensation
If the product is suddenly taken from a cold to a warm
location, or if ambient temperature suddenly rises,
moisture may form on the outer surface and/or inside of the
product. This is known as condensation. If condensation
occurs, turn off the product and wait until the condensation
clears before operating the product. Operating the product
while condensation is present may damage the product.
Security
SONY WILL NOT BE LIABLE FOR DAMAGES OF
ANY KIND RESULTING FROM A FAILURE TO
IMPLEMENT PROPER SECURITY MEASURES ON
TRANSMISSION DEVICES, UNAVOIDABLE DATA
LEAKS RESULTING FROM TRANSMISSION
SPECIFICATIONS, OR SECURITY PROBLEMS OF
ANY KIND.
Depending on the operating environment, unauthorized
third parties on the network may be able to access the
product. When connecting the product to the network, be
sure to confirm that the network is protected securely.
3
Page 4
Overview
You can connect the display units based on the installation location and intended use, convert the video content signals that
are input to the display controller based on the array size, and output the signals onto the display units. 4K2K video can
be controlled via a single display controller. Control of the display units is performed from a computer on which Display
Control Software is installed.
Daisy-chain connections between display units can be configured using power cords (not supplied) and Category 7 cables
(not supplied). (For details on the number of display units that can be connected, refer to the Installation Manual.)
Notes
• Display of 4K2K video requires 72 display units.
• Each display controller is equipped with 12 ports, and each port is capable of controlling up to 6 display units.
System Configuration Diagram
Configuration example of the entire system
VPN router
Controller PC
(Display Control Software installed)
Video content transmitters
Production monitors
Matrix
switcher
Video
processor
Control (LAN)
Control (LAN)
DisplayPort
or DVI
connector
Hub
Array
(display units)
Display controller
Display controller
4
Page 5
Parts Identification
ZRD-1 Display Unit
Left / rear
a
b
f
e
d
c
Caution
Do not connect the OUT and IN connectors to a hub. The
input/output signals for these connectors are unique to the
product and are not Ethernet signals. In particular, be
aware that connecting these connectors to a PoE injector
hub may result in damage to the product.
a Unit joints
Connect to other display units.
Two unit joints are located on each of the top, bottom,
left, and right sides of the display unit.
b Status indicator
Indicates the status of the display unit.
Indicator Status
Off The display unit is turned off.
Lit yellow The display unit is starting up.
Blinking
yellow
Lit red The display unit is in standby mode.
Blinking red An error has occurred.
Lit green The display unit is operating normally.
A warning has occurred.
For details, see “Troubleshooting” (page 13).
For details, see “Troubleshooting” (page 13).
a
c - IN (AC power input) connector
Use a power cord (not supplied) to connect this
connector to the - OUT (AC power output)
connector on the preceding display unit in the daisychain connection.
For the first display unit in the daisy-chain
connection, use a power cord (not supplied) to
connect this connector to the circuit breaker.
d OUT (unit output) connector (RJ-45)
Use a Category 7 cable (not supplied) to connect this
connector to the IN (unit input) connector on the
succeeding display unit in the daisy-chain connection.
This connector is not used for the last display unit in
the daisy-chain connection.
e IN (unit input) connector (RJ-45)
Use a Category 7 cable (not supplied) to connect this
connector to the OUT (unit output) connector on the
preceding display unit in the daisy-chain connection.
For the first display unit in the daisy-chain
connection, use a Category 7 cable (not supplied) to
connect this connector to the UNIT OUTPUT
connector on the display controller.
5
Page 6
f - OUT (AC power output) connector
Use a power cord (not supplied) to connect this
connector to the - IN (AC power input) connector
on the succeeding display unit in the daisy-chain
connection.
ZRCT-100 Display Controller
Front
This connector is not used for the last display unit in
the daisy-chain connection.
a
fed c
a 1 (power) switch
Turns the display controller on/off.
For details, see “Turning the Power On/Off”
(page 8).
b MAINTENANCE connector
This connector is used for maintenance servicing.
c Intake vent
Do not block the intake vent, as doing so will result in
interior heat buildup which may result in fire or
malfunction.
d ERROR indicator
Blinks when warnings occur, and lights when errors
occur.
b
f POWER indicator
Indicates the power status of the display controller.
Indicator Status
Off The display controller is turned off.
Lit orange The display controller is in standby mode.
Lit green The display controller is turned on (normal
Blinking
green
Lit red The forced standby mode has been entered.
operating status).
The display controller is starting up or
shutting down.
For details, see “Entering the forced standby
mode” (page 14) in the “Troubleshooting.”
For details, see “Troubleshooting” (page 13) and
“Error Codes” (page 15).
e UNIT STATUS indicator
Indicates the power status of the display units.
The indicator lights green when all the display units
that are connected to the display controller according
to the display unit layout settings are turned on.
If any of the display units are turned off according to
the display unit layout settings, the indicator turns off.
For details on the display unit layout settings, consult
your system administrator.
6
Page 7

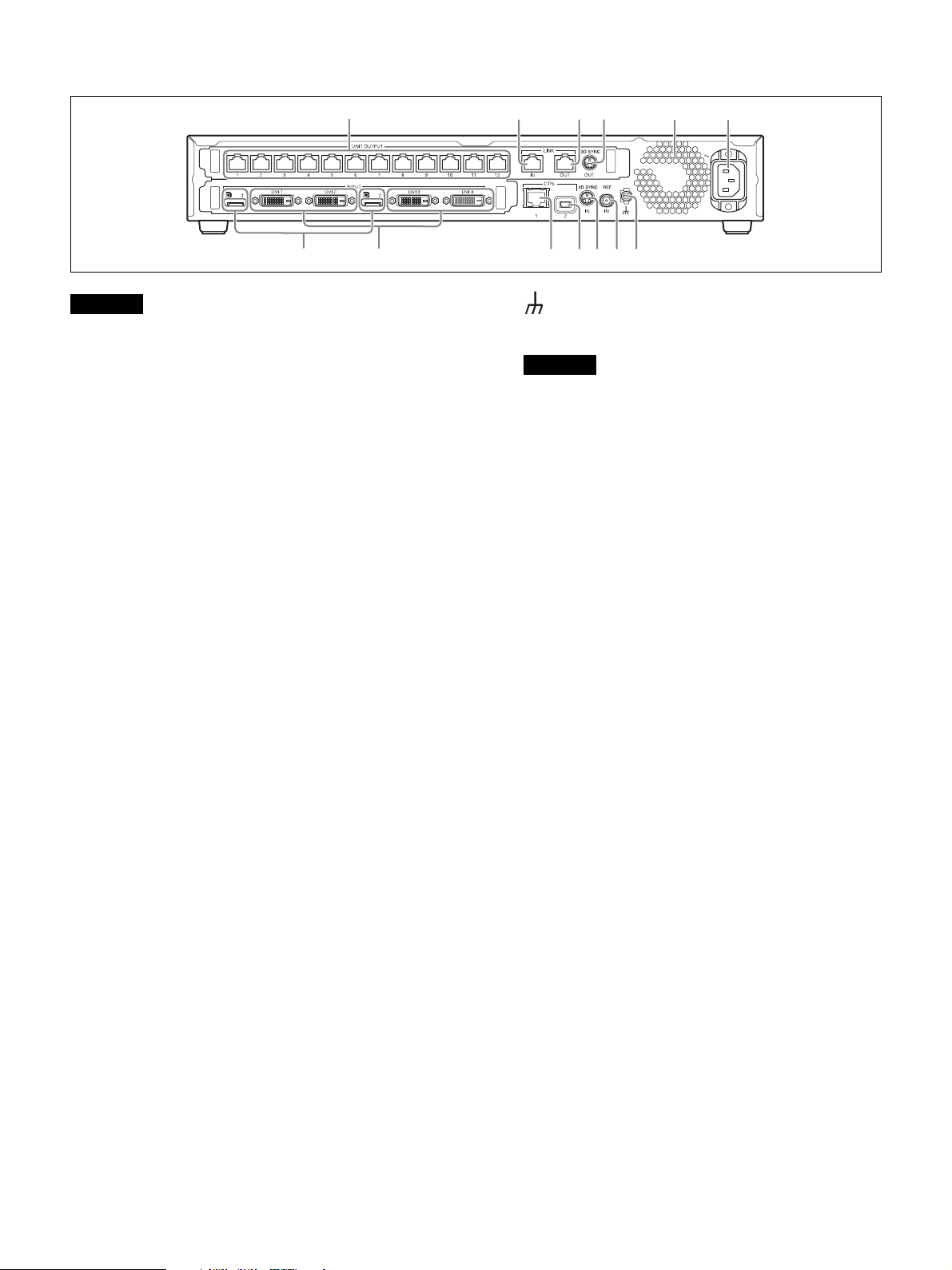

Rear
a
lkhg
Caution
Do not connect the UNIT OUTPUT, LINK IN, and LINK
OUT connectors to a hub. The input/output signals for
these connectors are unique to the product and are not
Ethernet signals. In particular, be aware that connecting
these connectors to a PoE injector hub may result in
damage to the product.
a UNIT OUTPUT connectors 1 to 12 (RJ-45)
Use a Category 7 cable (not supplied) to connect this
connector to the IN (unit input) connector on the
display unit you want to control (i.e., first display unit
in the daisy-chain connection).
b LINK IN connector (RJ-45)
Use this when using multiple display controllers to
control the display units.
Use a Category 7 cable (not supplied) to connect this
connector to the LINK OUT connector on the display
controller you want to link.
c LINK OUT connector (RJ-45)
Use this when using multiple display controllers to
control the display units.
Use a Category 7 cable (not supplied) to connect this
connector to the LINK IN connector on the display
controller you want to link.
d 3D SYNC OUT connector (mini-DIN, 3-pin)
Outputs 3D sync signals.
e Exhaust vent/fan
Do not block the exhaust vent, as doing so will result
in interior heat buildup which may result in fire or
malfunction.
bcd emf
ij
g (earth) terminal
Connect this to the earth conductor of the system.
Caution
Failure to connect the system to the protective earth
may result in electric shock. Be sure to connect to the
earth conductor, even during operation inspections.
h REF IN (external reference signal input)
connector (BNC)
Inputs external reference signals used for
synchronization.
For details, refer to the Installation Manual.
i 3D SYNC IN connector (mini-DIN, 3-pin)
Inputs 3D sync signals.
j CTRL (control) connector 2 (Mini-USB, Type B)
Use this to connect to the controller PC via a USB
(SERIAL) connection.
Use a USB cable (not supplied) to connect this to a
USB port on the controller PC.
k CTRL (control) connector 1 (RJ-45)
Use this to connect to the controller PC via an
Ethernet (LAN) connection. Use an Ethernet cable
(Category 5, not supplied) to connect this to a LAN
port on the controller PC.
l DVI (video input) connectors 1 to 4
Connect these to the video processor.
m DisplayPort (video input) connectors 1 to 2
Connect these to the video processor.
f - IN (AC power input) connector
Use a power cord (not supplied) to connect this
connector to the circuit breaker.
7
Page 8

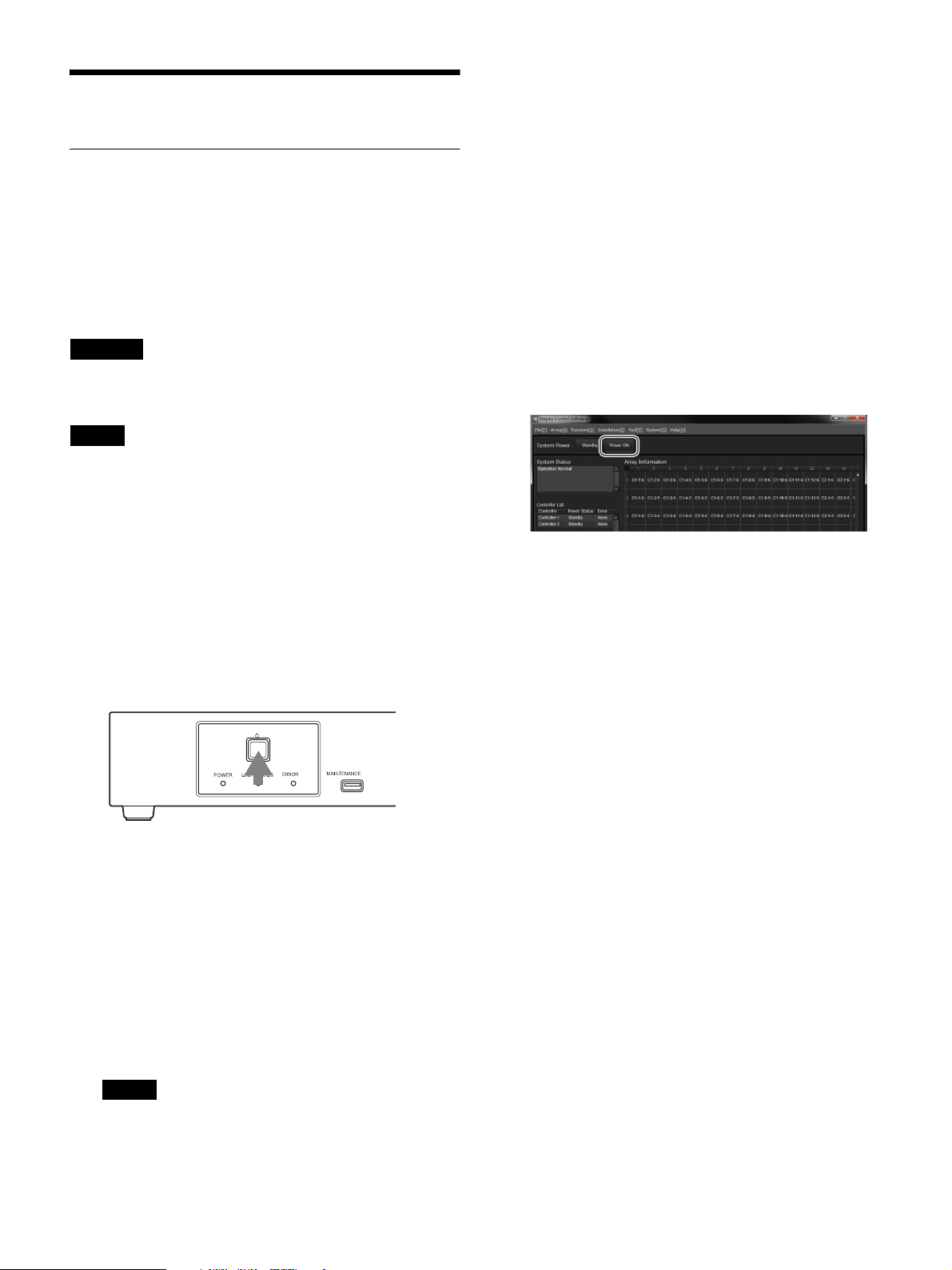

Turning the Power On/Off
You can enter standby mode by pressing the power
switch again while the indicator is still blinking red.
2
Turn on the video source equipment.
Turning the Power On
You can turn on the system’s power using one of three
methods. Consult your system administrator regarding
which method to use.
• Turning the power on via the display controller
• Turning the power on via Display Control Software
• Turning the power on by connecting the power cord to
the display controller
Caution
Always connect the display controller’s power cord to the
circuit breaker.
Note
If a startup delay is configured in the [Function] - [System
Settings] - [Display Unit Power On Delay] setting of
Display Control Software, the display units will turn on
according to the configured delay.
Turning the power on via the display
controller
1
Press and hold the power switch on the display
controller for about 2 seconds.
Turn on all the display controllers by pressing each of
their power switches.
Turning the power on via Display Control
Software
The initial settings must be configured beforehand to turn
the power on via Display Control Software. For details,
consult your system administrator.
1
Start the controller PC, and click [All Programs] [Display Control Software] - [Display Control
Software] in the start menu to start Display Control
Software.
2
Click [Power ON] in the main screen.
Under default settings, all display controllers and
display units will turn on.
When a display controller turns on, its POWER
indicator lights green.
When a display unit turns on, its status indicator lights
green.
When you click [Standby]
The power status of all connected display controllers
and display units will enter standby mode, and the
main screen will remain displayed.
Click [Power ON] to turn the power on again.
When a display controller turns on, its POWER
indicator lights green.
When a display unit turns on, its status indicator lights
green.
To enter standby mode
Press the power switch on a display controller twice to
set the display controller and display units to standby
mode.
To return to the power ON state, press and hold the
power switch again.
Note
If you press the power switch only once in the power
ON state, the POWER indicator will blink red for
2 seconds, but the standby mode will not be entered.
3
Turn on the video source equipment.
Turning the power on by connecting the
power cord to the display controller
When [Function] - [System Settings] - [Direct Array
Power On] is set to [ON] in Display Control Software
beforehand, simply connecting the display controller’s
power cord will turn on the display controller and display
units.
1
Connect the power cord to the - IN connector on the
display controller.
When a display controller turns on, its POWER
indicator will switch from blinking red/orange to
remaining lit green.
When a display unit turns on, its status indicator lights
green.
2
Turn on the video source equipment.
8
Page 9
Turning the Power Off
You can turn off the system’s power using one of two
methods.
• Turning the power off via the display controller
• Turning the power off via Display Control Software
Turning the power off via the display
controller

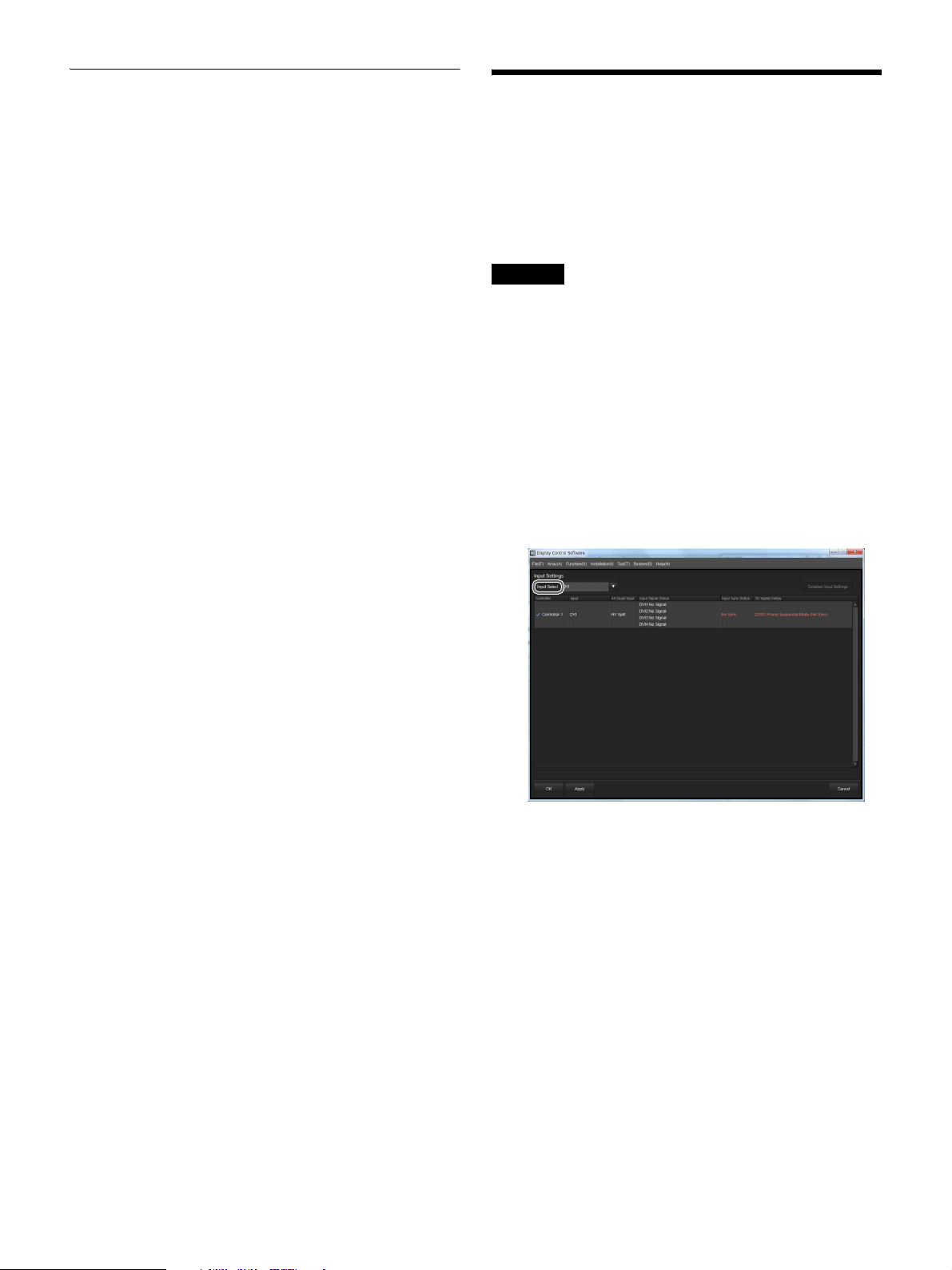

Selecting the Video Input
Select the video signals that will be input.
The settings configured on the primary controller will be
applied to all the other display controllers, including the
subordinate controllers (hereafter referred to as “sub
controllers”). Sub controllers cannot be configured
individually.
1
Turn off the video source equipment.
2
Press the power switch on the display controller
twice.
The display controller and display units will enter
standby mode.
3
If necessary, disconnect the AC power supply.
Turning the power off via Display Control
Software
1
Turn off the video source equipment.
2
Click [Standby] in the main screen of Display Control
Software.
The display controller and display units will enter
standby mode.
3
If necessary, disconnect the AC power supply.
Caution
If the a primary controller is not configured via Display
Control Software or the primary controller is not already
turned on at the time the [Input Setting] screen is
displayed, video input selection cannot be performed. In
addition, the video input settings will not be applied to the
sub controllers if they are not turned on.
1
Select [Input Settings] in the [Array] menu on the
main screen of Display Control Software.
2
Select the input channel in [Input Select], and click
[OK] or [Apply].
The video input changes.
[DVI]: Use the DVI connectors to display pictures as
large as 4K 50p/60p. (All four DVI connectors
are used.)
Example of picture positions and DVI
connectors:
• DVI connector 1: Top left
• DVI connector 2: Bottom left
• DVI connector 3: Top right
• DVI connector 4: Bottom right
9
Page 10

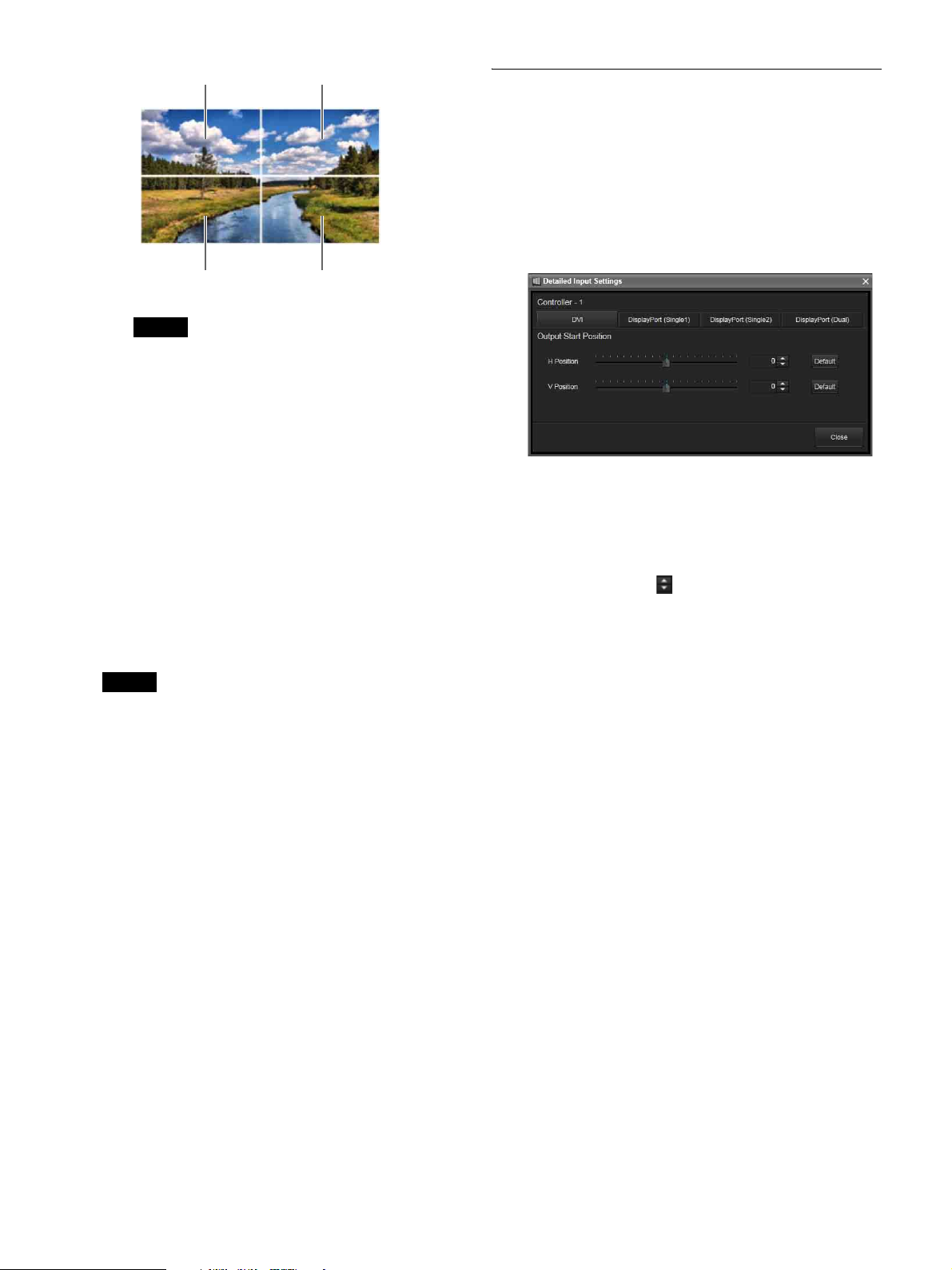

DVI connector 1 DVI connector 3
DVI connector 2 DVI connector 4
Note
A picture can be displayed using only one DVI
connector. For details, refer to the Installation
Manual.
[DisplayPort (Single)]: Use one DisplayPort
connector to display the picture. Only
DisplayPort connector 1 can be used for this
setting. (DisplayPort connector 2 cannot be
used.)
For details on the supported video signals for display,
see “Signal Formats” (page 17).
[DisplayPort (Dual)]: Use two DisplayPort
connectors to display pictures as large as 4K
100p/120p.
Note
If you are only inputting single-stream signals that are
50p/60p or lower, we recommend clicking [Detailed
Input Settings] and clearing the [High Frame Rate
Mode] checkbox in the [Detailed Input Settings]
screen.
Changing the Display Starting
Positions of Pictures
You can change the display positions for each picture.
For example, you can move a low-resolution picture from
the top left of the screen to the center.
1
Click [Detailed Input Settings] in the [Input Settings]
screen.
The [Detailed Input Settings] screen appears.
2
Click the tab ([DVI], [DisplayPort (Single1)],
[DisplayPort (Single2)], or [DisplayPort (Dual)]) of
the video signal for which you want to change the
display starting position.
3
Use the sliders and buttons for [H Position] and
[V Position] to specify the horizontal and vertical
positions.
The settings are reflected in the picture immediately
after they are configured.
For details, refer to the Installation Manual.
4
Click [Close].
The [Detailed Input Settings] screen closes.
3
Click [OK] or [Apply] to apply the settings.
The setting values will be registered to the display
controller and saved to Display Control Software.
10
Page 11

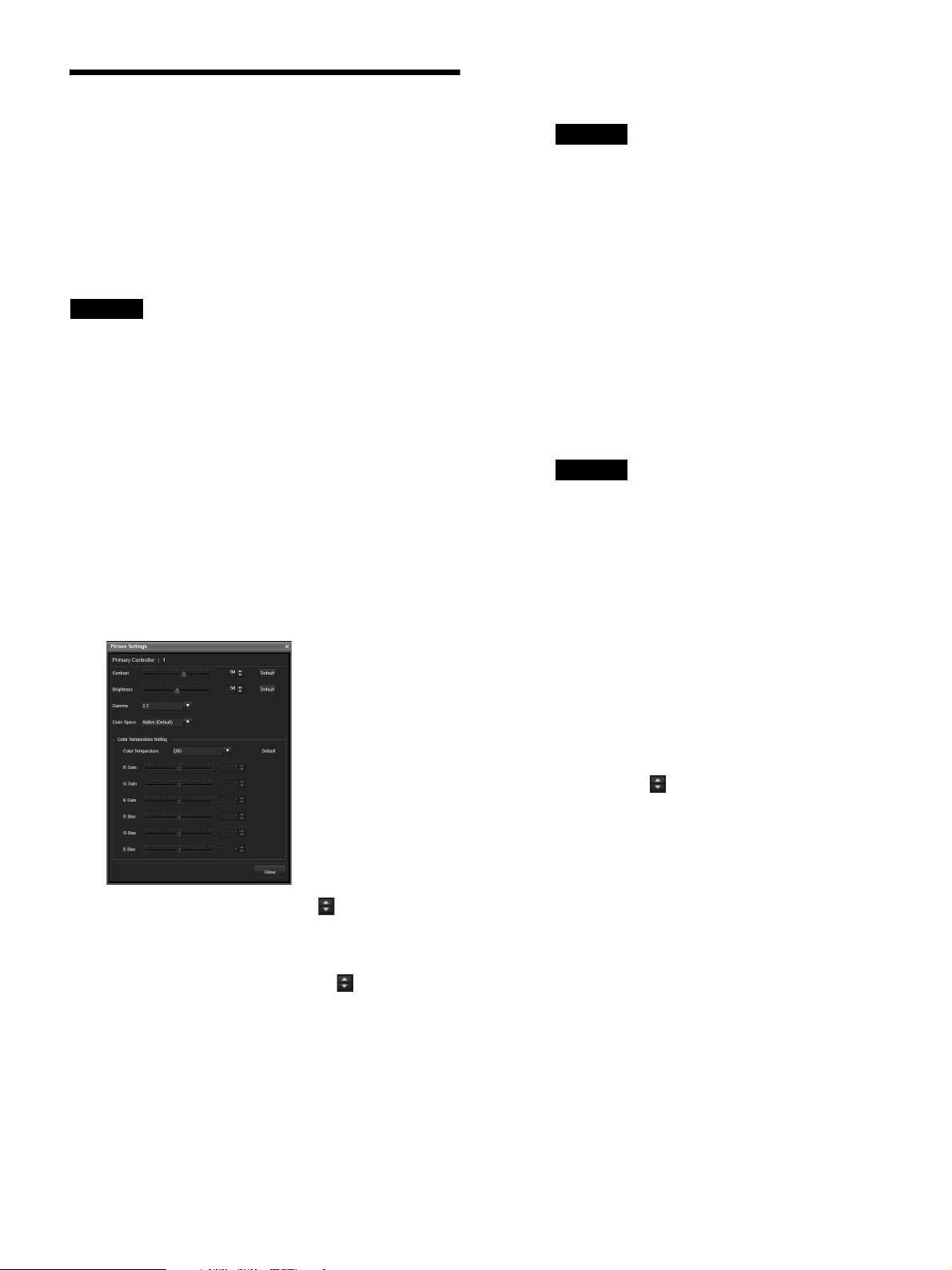

Adjusting the Picture
[Gamma]: Select the gamma correction value.
Default value: 2.2
Quality
Adjust the contrast, brightness, and other picture quality
settings.
The settings configured on the primary controller will be
applied to all the other display controllers, including the
sub controllers. Sub controllers cannot be configured
individually.
Caution
If the a primary controller is not configured via Display
Control Software or the primary controller is not already
turned on at the time the [Picture Settings] screen is
displayed, picture quality adjustment cannot be performed.
In addition, the picture quality settings will not be applied
to the sub controllers if they are not turned on.
1
Select [Picture Settings] in the [Array] menu on the
main screen of Display Control Software.
2
Configure each setting.
The values currently configured on the primary
controller are displayed on the [Picture Settings]
screen.
The settings are reflected in the picture immediately
after they are configured.
Caution
This product is not a medical device. The device
cannot be used for medical examinations, even
when [DICOM SIM] is selected.
[Color Space]: Select the color space.
• [Native (Default)]: Display the picture using
the original color space that is input.
• [sRGB]: Display the picture using the sRGB
color space standard.
• [AdobeRGB]: Display the picture using the
Adobe RGB color space standard.
• [DCI]: Display the picture using the DCI color
space standard.
• [BT.2020]: Display the picture using the
BT.2020 color space standard.
Caution
[AdobeRGB], [DCI], and [BT.2020] do not
include the entirety of the color spaces defined by
their respective standards.
[Color Temperature Setting]: Select the color
temperature in [Color Temperature].
• If you selected [D93], [D65], or [D50], proceed
to step 4 .
• If you selected [D93 Custom (Offset)], [D65
Custom (Offset)], or [D50 Custom (Offset)],
proceed to step 3 .
[Contrast]: Use the slider and buttons to adjust
the contrast.
Setting range: 0 to 100
Default value: 60
[Brightness]: Use the slider and buttons to
adjust the brightness.
Setting range: 0 to 100
Default value: 50
3
Configure the offset values.
These settings can only be configured when [Color
Temperature] is set to “Custom (Offset)” in step 2 .
Use the slider and buttons to adjust the contrast.
Setting range: –128 to +127
Default value: 0
4
When you are finished configuring settings, click
[Close].
11
Page 12

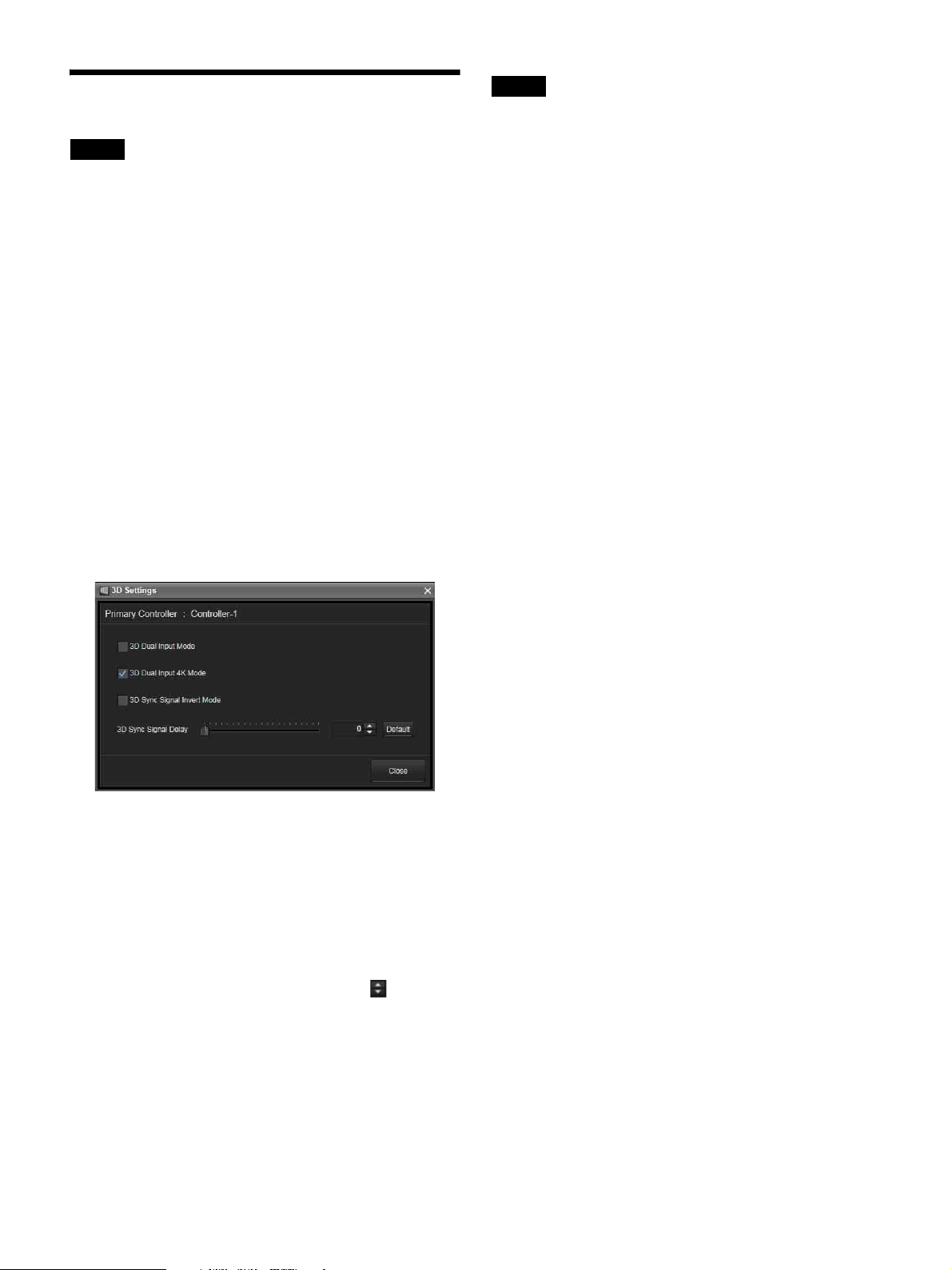

Displaying 3D Video
Note
In this document, the signals for the left and right eyes are
referred to as the L and R signals respectively.
For details, refer to the Installation Manual.
For mixed L/R signals (frame sequence mode):
Video signal inputs from the DisplayPort connector are
output to the display unit. 3D sync signal inputs from the
3D SYNC IN connector are output from the 3D SYNC
OUT connector according to the picture output’s timing.
For separated L/R signals (3D dual input mode):
Video signal inputs from the DisplayPort connectors (L
from DP 1 and R from DP 2) and the DVI connectors (L
from DVI 1 and R from DVI 3) are mixed (L/R) and output
to the display unit.
Internally generated 3D sync signals are output from the
3D SYNC OUT connector according to the picture
output’s timing.
Select [3D Settings] in the [Array] menu on the main
screen of Display Control Software to display the [3D
Settings] screen.
Note
Inversion and phase adjustments can be configured for
both mixed L/R and separated L/R. The settings are
reflected in the picture immediately after they are
configured.
[3D Dual Input Mode]: Leave this checkbox cleared if
the signal input from the DisplayPort connector is a
mixed L/R signal (100/120 Hz). Select the checkbox
if L (50/60 Hz) and R (50/60 Hz) are separated in the
input signal.
[3D Dual Input 4K Mode]: Clear this checkbox for 3D
video other than 4K.
[3D Sync Signal Invert Mode]: Select this checkbox to
invert the L and R signals.
[3D Sync Signal Delay]: Use the slider or buttons to
adjust the phase (when 3D video is not displayed
properly). Moving the slider also changes the number
value. Clicking [Default] restores the default value.
12
Page 13

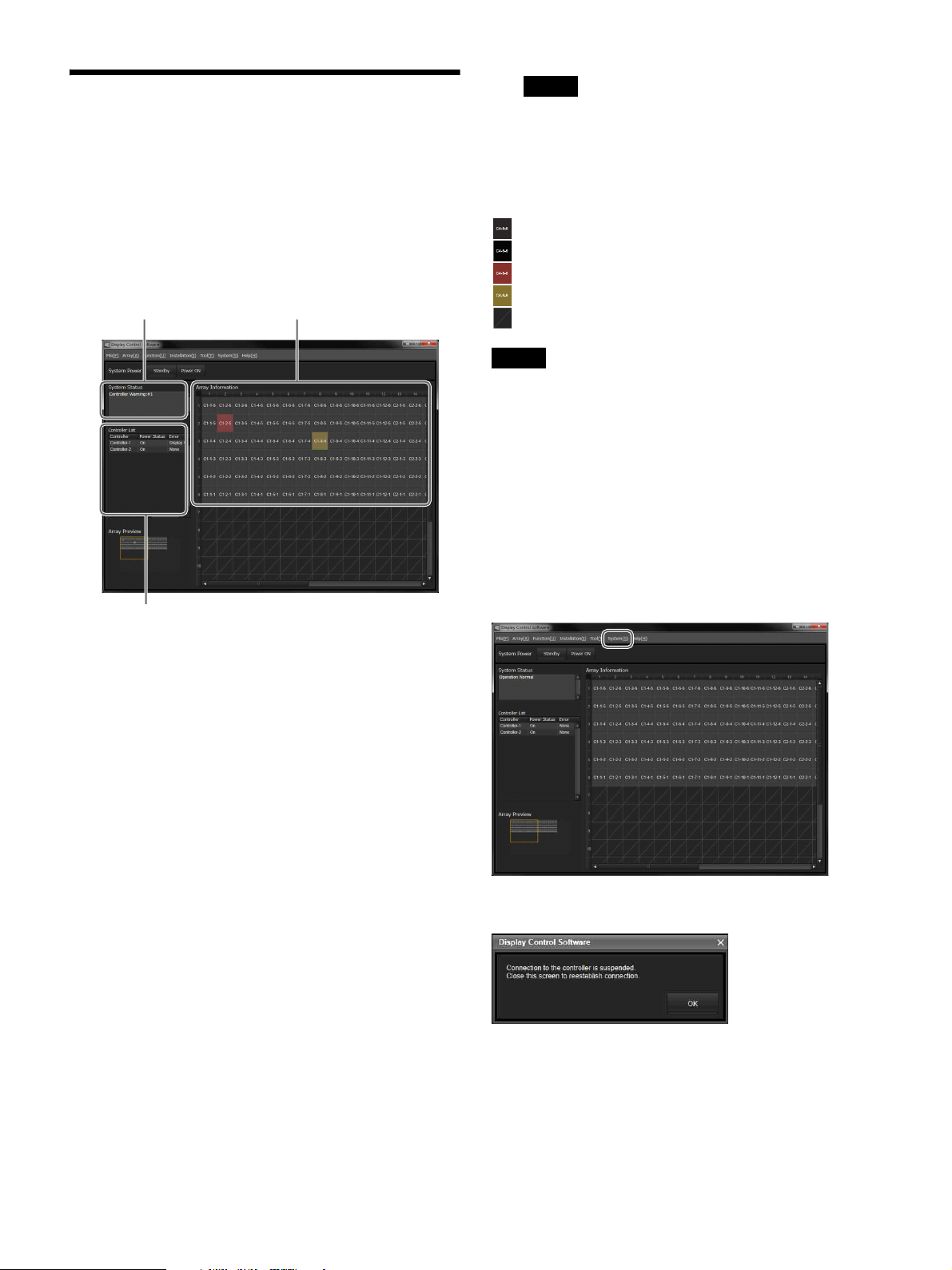

Troubleshooting
Be sure to conduct a check before requesting assistance. If
the problem persists, contact your local Sony
representative.
Checking the status of the system and
devices
You can check the status of the system, display controllers,
display units, and other devices in the main screen.
[System Status] [Array Information]
Note
You can view information on a display controller by
double-clicking its controller number or by rightclicking it and selecting [Controller Info.].
[Array Information]
Displays the status of each display unit.
(gray): The display unit is turned on.
(black): The display unit is turned off.
(maroon): An error has occurred on the display unit.
(ocher): A warning has occurred on the display unit.
(black): A display unit does not exist.
Note
You can view information on a display unit by doubleclicking within its frame or by right-clicking it and
selecting [Display Unit Info.].
If the controller PC is slow
By suspending the connection to the display controllers,
you can avoid slow communication responses that may
occur when using other applications, for example.
[Controller List]
[System Status]
Displays the status of the system and display controllers.
• [Operation Normal]: Operation is normal.
• [Controller Error]: Device operation has stopped due to
an error. The display controllers and display units have
entered standby mode, and picture display has stopped.
For details on the error, check the [Error] column under
[Controller List].
• [Controller Warning]: Device operation continues but a
warning (fan error, picture sync error, etc.) has occurred.
Check the details of the warning, and resolve the
problem as soon as possible.
For details on the warning, check the [Error] column
under [Controller List].
• [System Configuration Warning]: Displays details on
warnings detected during system configuration checks.
For details on system configuration checks, refer to the
Installation Manual.
[Controller List]
Displays the status of each display controller.
[Power Status]: “-” indicates that communication
with the display controller is not possible.
[Error]: “None” indicates that there are no errors or
warning.
If an error or warning occurs, see “Error Codes”
(page 15), and resolve the problem as soon as
possible.
Select [Disconnect] in the [System] menu on the main
screen of Display Control Software to suspend
communication with the display controllers.
The following dialog box is displayed while
communication is suspended.
To reestablish connection
Close the dialog box.
13
Page 14
Entering the forced standby mode
If the controller PC hangs, for example, you can force
display controllers and display units into standby mode.
1
Press and hold the power switch on the display
controller for at least 5 seconds.
The forced standby mode is entered, and the POWER
indicator lights red.
2
Press and hold the power switch again for about
2 seconds.
After the POWER indicator blinks red/orange, the
normal standby mode is entered.
The display units will also enter the normal standby
mode.
14
Page 15
Error Codes
When a system error or warning occurs, verify the error code as follows.
For display units:
Under [Array Information] in the main screen, double-click within the frame of the display unit or right-click it and select
[Display Unit Info.] to display the [Display Unit Information] screen and the error code.
For display controllers:
Under [Controller List] in the main screen, double-click the display controller number or right-click it and select
[Controller Info.] to display the [Controller Information] screen and the error code.
Display Units
Errors
Error code Category Definition Solution
102 Power Main Power (VDD1 / VDD2) Contact your local Sony representative.
104 AC Power Supply
111 Temperature Temperature (UC) Check the device environment and remove any obstructions from
110 Temperature (Ambient)
113 Temperature (CELL_1 to CELL_12)
121 Board UC Board (Power-up Sequence / Shut-
Down Sequence / Power Supply / Flash
Data Error / IC Setting / Other)
122 UP Board (CELL_1 to CELL_12)
130 Connection/
communication
Connection_Error / RS485
Communication / Video Input Signal /
Connection_Error / RS485
Communication / Video Input Signal
the fan and intake vent. If the problem persists, contact your
local Sony representative.
Contact your local Sony representative.
Check that all cables are properly connected. If the problem
persists, contact your local Sony representative.
Warnings
Warning
code
310 Temperature/fan Temperature (UC / Ambient) Check the device environment and remove any obstructions from
313 Temperature (CELL_1 to CELL_12)
315 Fan (Right): stop / speed-down
316 Fan (Left): stop / speed-down Check the device environment and remove any obstructions from
321 Board UC Board (Reserved) Turn the power off and turn it on again. If the problem persists,
322 UP Board (Reserved)
330 Connection/
340 System Update (UNIT FPGA) Perform update again. If the problem persists, contact your local
350
Category Definition Solution
the fan and intake vent. If the problem persists, contact your
local Sony representative.
Fan (Right): performance degradation Check the fan status and running time.
the fan and intake vent. If the problem persists, contact your
local Sony representative.
Fan (Left): performance degradation Check the fan status and running time.
contact your local Sony representative.
communication
UNIT Communication (RS485) Check the fan status and running time.
RS485 Wrong Command / Video Input Check that all cables are properly connected. If the problem
persists, contact your local Sony representative.
Sony representative.
15
Page 16
Display Controllers
Errors
Error code Category Description Solution
001 Power CPU power supply error Contact your local Sony representative.
002 DIF power supply error
003 PIF power supply error
012 Temperature DIF temperature error Check the device environment and remove any obstructions from
013 PIF temperature error
017 UNIT temperature error
023 Board
determination
050 System System version error
PIF determination error Contact your local Sony representative.
Warnings
Error code Category Description Solution
212 DIF Temperature warning Check the device environment and remove any obstructions from
213 PIF
214 PS
215 Fan (Front) Rotation stop warning / speed
216 Fan (Rear)
230 System Controller configuration data
233 PIF DIF signal connection warning /
240 System Update warning (CPU / DIF / PIF) Perform update again. If the problem persists, contact your local
warning
mismatch warning
Link connection warning / Sync
connection warning
the fan and intake vent. If the problem persists, contact your local
Sony representative.
the fan and intake vent. If the problem persists, contact your local
Sony representative.
Check the device environment and remove any foreign objects that
may be obstructing the fan. If the problem persists, contact your
local Sony representative.
Check the installation, wiring, and Display Control Software
settings, and if a problem does not exist, turn the power off and turn
it on again. If the problem persists, contact your local Sony
representative.
Sony representative.
16
Page 17
Cleaning and Storage
Signal Formats
The system supports the following video signals.
Display Units
Caution
Do not wet the surface of the display units.
Daily cleaning
• Use a soft anti-static cloth that does not produce lint
when cleaning the surface of the display units.
• Use ethyl alcohol (near 100%) to clean stubborn stains
on the surface. Do not use any other solvents.
• Use commercially available anti-static dust blowers to
clean joints.
Storage (for transportation)
• Make sure the display units are completely dry before
packing them.
• Store the display units in dry, well-ventilated
environments.
Display Controllers
Daily cleaning
• Use a cloth that has been dampened with a neutral
detergent and thoroughly wrung out to wipe the device
clean. Never use solvents, such as benzene and thinners.
DisplayPort (single input)
Resolution
3840 × 2160
1920 × 2160 120p
1920 × 1080 120p/100p/60p/
Input frame rate
2)
60p/50p/30p/25p/
24p
2)
60p/50p/30p/25p/
24p
50p/30p
/100p 2)/
DisplayPort (dual input)
Resolution
3840 × 2160
Input frame rate
3)
120p/100p 8-/10-bit RGB 4:4:4
DVI (1 input)
Resolution
1920 × 1080 60p/50p/30p/25p/
Input frame rate
24p
DVI (4 input)
1)
Input bit
length
8-/10-bit RGB 4:4:4
8-/10-bit RGB 4:4:4
8-/10-bit RGB 4:4:4
1)
Input bit
length
1)
Input bit
length
8-bit RGB 4:4:4
Input color
sampling
Input color
sampling
Input color
sampling
Storage
• Do not store in environments where condensation may
occur inside the device.
1)
Resolution
3840 × 2160
1) 1,000/1,001 frame rate is also supported.
2) Only multi-stream is supported.
3) Supported by two input signals of 1920 × 2160, 100p/120p.
4) Supported by four input signals of 1920 × 1080.
Input frame rate
4)
60p/50p/30p/25p/
24p
Input bit
length
8-bit RGB 4:4:4
Input color
sampling
17
Page 18
Sony Corporation
Loading...
