Sony XSF-1021 Product Specifications
26

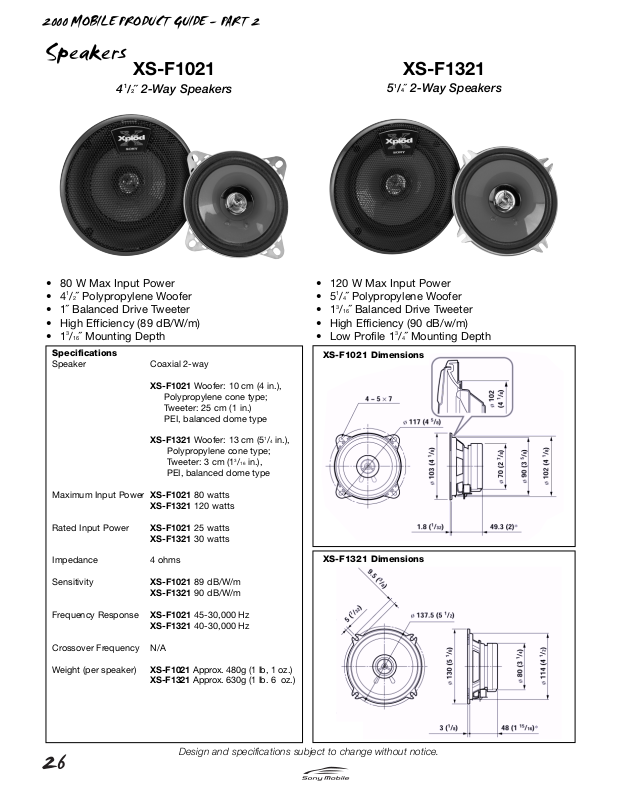

2000 MOBILE PRODUCT GUIDE – PART 2
Specifications
Speaker
Maximum Input Power
Rated Input Power
Impedance
Sensitivity
Frequency Response
Crossover Frequency
Weight (per speaker)
Coaxial 2-way
XS-F1021 Woofer: 10 cm (4 in.),
Polypropylene cone type;
Tweeter: 25 cm (1 in.)
PEI, balanced dome type
XS-F1321 Woofer: 13 cm (5
1
/4 in.),
Polypropylene cone type;
Tweeter: 3 cm (1
3
/16 in.),
PEI, balanced dome type
XS-F1021 80 watts
XS-F1321 120 watts
XS-F1021 25 watts
XS-F1321 30 watts
4 ohms
XS-F1021 89 dB/W/m
XS-F1321 90 dB/W/m
XS-F1021 45-30,000 Hz
XS-F1321 40-30,000 Hz
N/A
XS-F1021 Approx. 480g (1 lb, 1 oz.)
XS-F1321 Approx. 630g (1 lb. 6 oz.)
XS-F1021
4
1
/2˝ 2-Way Speakers
XS-F1321
5
1
/4˝ 2-Way Speakers
• 120 W Max Input Power
•51/4˝ Polypropylene Woofer
•1
3
/16˝ Balanced Drive Tweeter
• High Efficiency (90 dB/w/m)
• Low Profile 13/4˝ Mounting Depth
• 80 W Max Input Power
•4
1
/2˝ Polypropylene Woofer
• 1˝ Balanced Drive Tweeter
• High Efficiency (89 dB/W/m)
•1
3
/16˝ Mounting Depth
Design and specifications subject to change without notice.
Speakers
XS-F1021 Dimensions
XS-F1321 Dimensions
