Sony XR-5800-R Service manual

XR-5790R/5800R

SERVICE MANUAL

Photo: XR-5800R

AEP Model

UK Model

Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol a are trade­marks of Dolby Laboratories Licensing Corporation.

SPECIFICATIONS

Model Name Using Similar Mechanism NEW
Tape T r ansport Mechanism Type

MG-25G-136

MICROFILM

FM/MW/LW CASSETTE CAR STEREO

TABLE OF CONTENTS

1. GENERAL

Location of Controls (XR-5790R).................................. 3

Location of Controls (XR-5800R).................................. 3

Setting the Clock ............................................................. 4

Using the Rotary Commander ........................................ 4

Installation....................................................................... 5

Connection ...................................................................... 6

Connection Diagram ....................................................... 8

2. DISASSEMBLY ......................................................... 9

3. ASSEMBLY OF MECHANISM DECK........... 11

4. MECHANICAL ADJUSTMENTS....................... 14

5. ELECTRICAL ADJUSTMENTS

Test Mode........................................................................ 14

Tape Deck Section .......................................................... 14

Tuner Section .................................................................. 15

6. DIAGRAMS

6-1. Printed Wiring Boards – Main Section –....................... 22

6-2. Schematic Diagram – Main Section – ............................ 25

6-3. Printed Wiring Board – Panel Section – (XR-5790R) .. 30

6-4. Schematic Diagram – Panel Section – (XR-5790R) ..... 32

6-5. Printed Wiring Board – Panel Section – (XR-5800R) .. 35

6-6. Schematic Diagram – Panel Section – (XR-5800R) ..... 37

6-7. IC Pin Function Description ........................................... 39

Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270 ˚C dur­ing repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering
or unsoldering.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be dam­aged by heat.

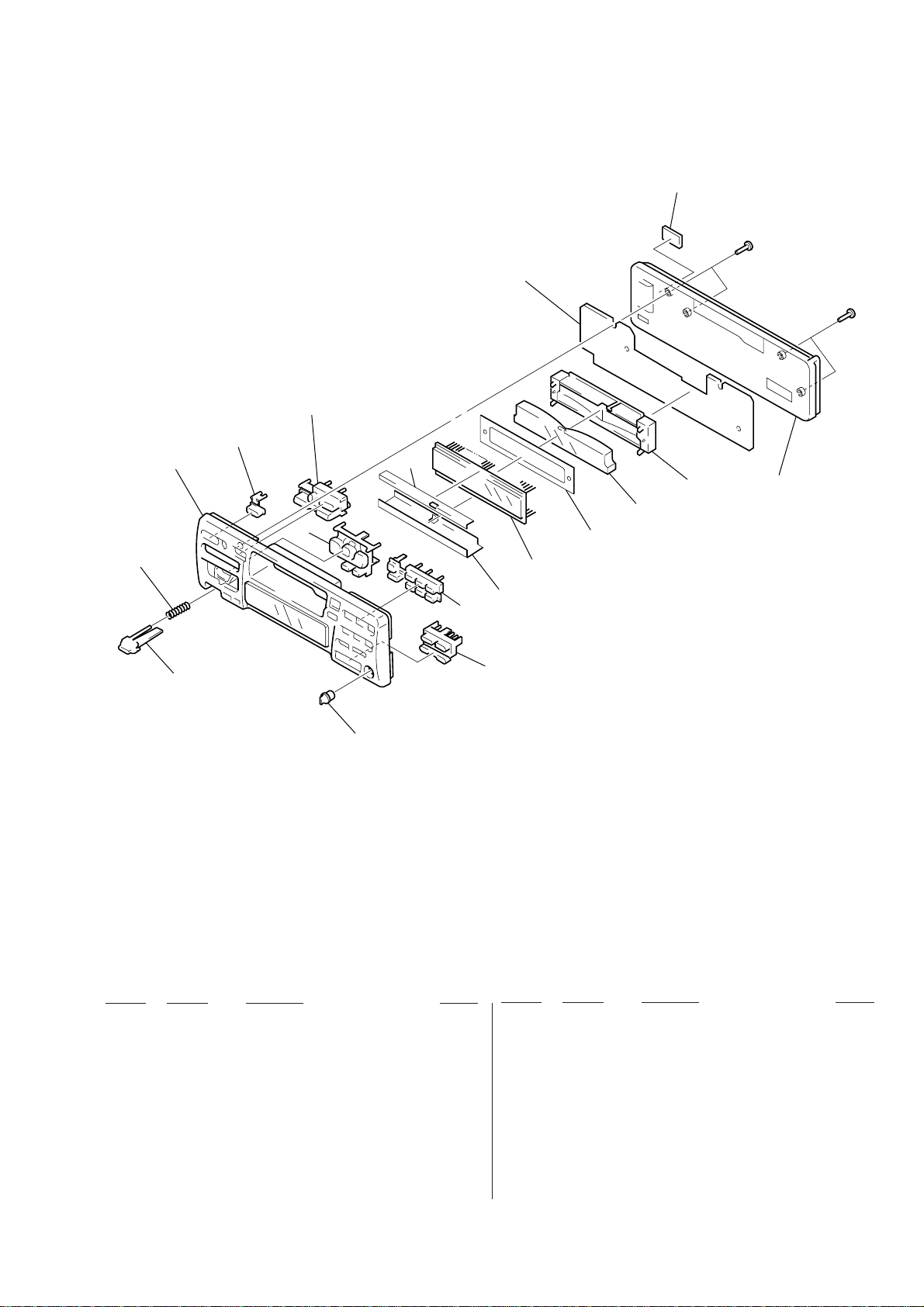

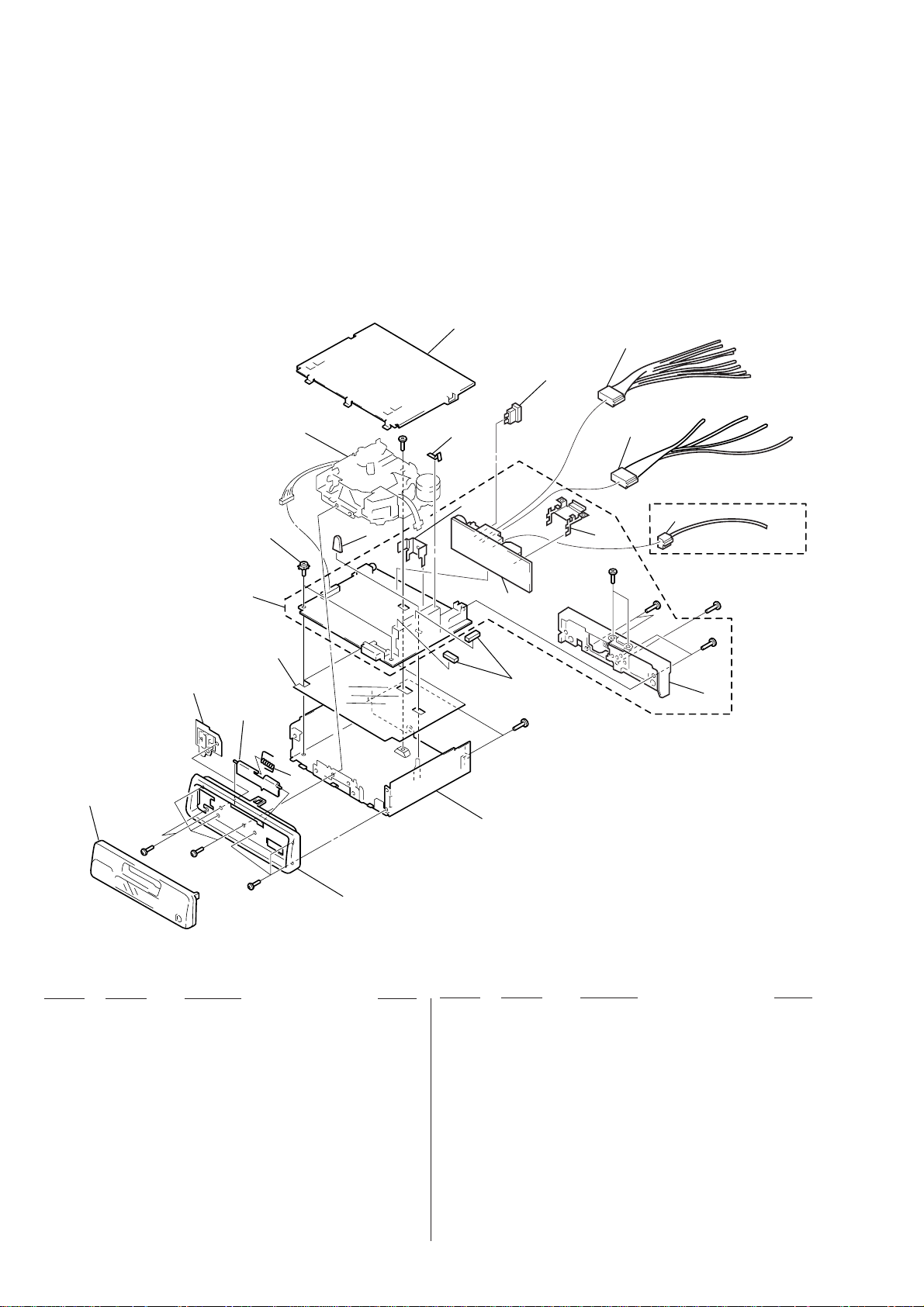

7. EXPLODED VIEWS ................................................ 42

8. ELECTRICAL PARTS LIST ............................... 46

– 2 –

(XR-5800R)

SECTION 1

GENERAL

This section is extracted from
instruction manual.

(XR-5790R)

– 3 –

– 4 –

– 5 –

– 6 –

(XR-5800R only)

– 7 –

– 8 –

SECTION 2

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

FRONT PANEL ASS’Y

1

Push the button
(release).

A

2

Remove the front panel ass’y
to the direction of the arrow

COVER ASS’Y

1

2

A

.

3

cover ass’y

– 9 –

2

1

SUB PANEL, MECHANISM DECK (MG-25G-136)

3

connector
(CN352)

2

sub panel

1

three screws
(PTT2.6

×

8)

5

screw

(PTT2.6

×

6)

6

mechanism deck
(MG-25G-136)

4

flexible flat cable
(CN351)

1

three screws
(PTT2.6

×

8)

MAIN BOARD, HEAT SINK

3

two ground point
screws

4

main board

2

rubber cap (25)

5

four screws
(PTT2.6 × 8)

1

screw (PTT2.6 × 8)

5

two screws
(PTT2.6 × 8)

6

heat sink

– 10 –

1

two screws

(PTT2.6 × 8)

SECTION 3

ASSEMBLY OF MECHANISM DECK

Note: Follow the assembly procedure in the numerical order given.

HOUSING

2

two claws of the housing.

4

Fit claw on B part.

3

Put the housing

under A part.

housing

5

Fit projection on C part.

Install the hanger onto

C

part

7

Holder the hanger by bending the claw.

1

Install the catch to the hanger.

hanger

6

Fit projection on D part.

8

Hold the hanger by

bending the claw.

D

part

ARM (SUCTION)

A

part

B

part

projection

2

Move the arm (suction) in the arrow

direction and fit on projection.

1

Fit the arm (suction) on the shaft.

– 11 –

LEVER (LDG-A) / (LDG-B)

shaft

A

shaft

1

Fit the lever (LDG-A)on

shafts A – C and install it.

B

shaft

C

3

type-E stop ring 2.0

shaft

A

Fit the lever (LDG-B) on

2

shafts
install it.

A

and B and

shaft

B

GEAR (LDG-FT)

hole

hole

gear (LDG-D)

lever (LDG-A)

gear (LDG-FB)

4

Align hole in the gear (LDG-D)

with hole the lever (LDG-A)

2

tension spring (LD-2)

5

gear (LDG-FT)

1

6

polyethylene washer

2

tension spring (LD-1)

– 12 –

3

Move the lever (LDG-B)

in the arrow direction.

GUIDE (C)

2

guide (C)

1

three claws

– 13 –

SECTION 4

MECHANICAL ADJUSTMENTS

SECTION 5

ELECTRICAL ADJUSTMENTS

1. Clean the following parts with a denatured-alcohol-moistened
swab:

playback head pinch roller
rubber belt capstan
idlers

2. Demagnetize the playback head with a head demagnetizer.

3. Do not use a magnetized screwdriver for the adjustments.

4. After the adjustments, apply suitable locking compound to the
parts adjusted.

5. The adjustments should be performed with the power supply
voltage unless otherwise noted.

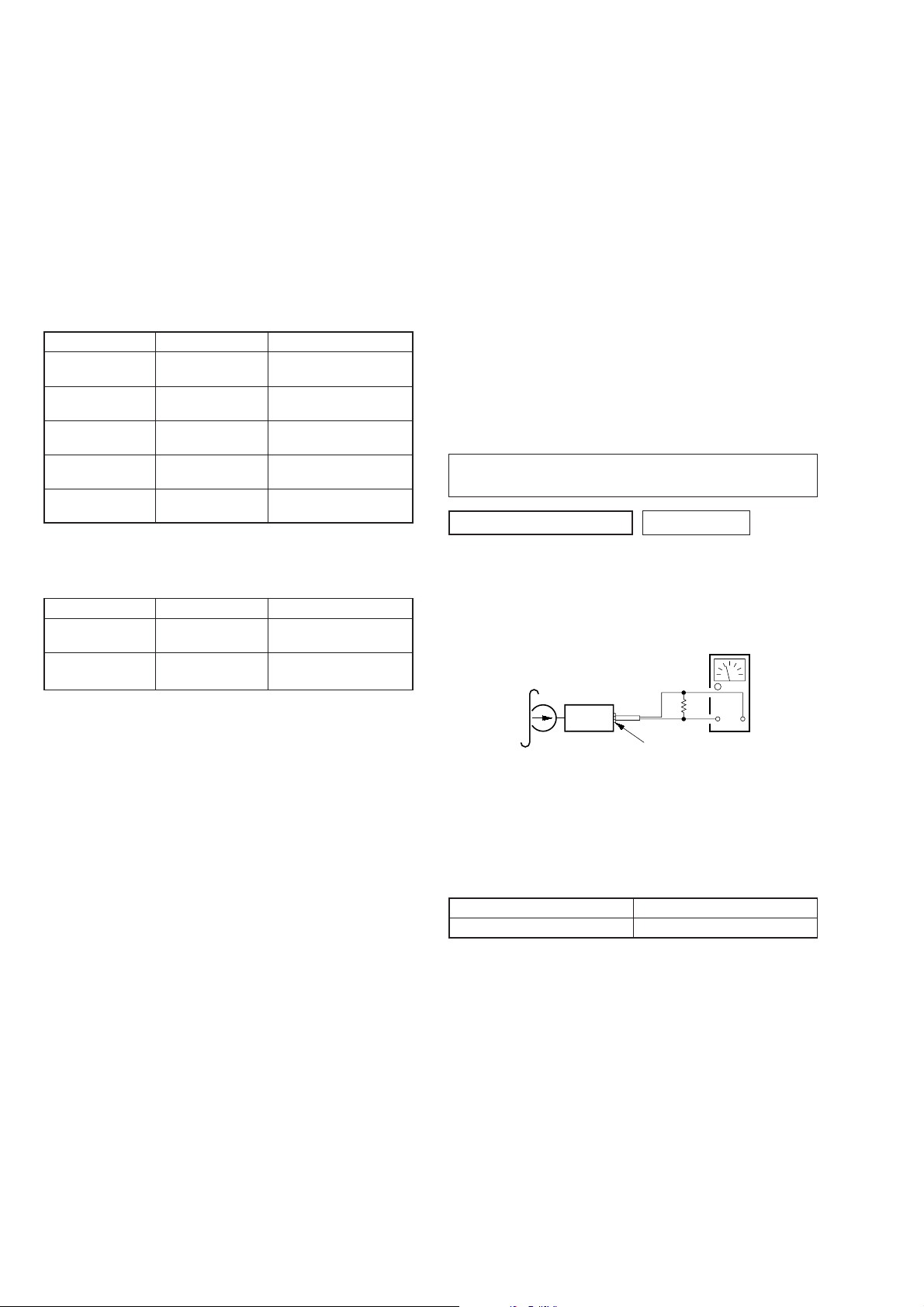

• T orque Measurement

Mode Torqu Meter Meter Reading

Forward CQ-102C
Forward

Back Tension (0.01 - 0.06 oz•inch)

Reverse CQ-102RC
Reverse

Back Tension (0.01 - 0.06 oz•inch)

FF, REW CQ-201B

CQ-102C

CA-102RC

30 - 65 g•cm

(0.42 - 0.90 oz•inch)

0.5 - 4.5 g•cm

30 - 65 g•cm

(0.42 - 0.90 oz•inch)

0.5 - 4.5 g•cm

60 - 200 g•cm

(0.83 - 2.78 oz•inch)

• T ape Tension Measurement

Mode Torqu Meter Meter Reading

Forward CQ-403A

Reverse CQ-403R

more than 90 g

(more than 3.18 oz)

more than 90 g

(more than 3.18 oz)

TEST MODE

This set have the test mode function. In the test mode, FM Auto
Scan/Stop Level and AM (MW) Auto Scan/Stop Lev el adjustments
can be performed easier than it in ordinary procedure.

<Set the Test Mode>

1. Set the “power select” switch (S801) is “A” position.

2. Turn ON the regulated power supply. (All LEDs on the set
lights up, and the clock is displayed.)

Note: Press the [OFF] button, if the clock is not displayed.

3. Push the preset [4] button.

4. Push the preset

5. Press the preset

[5] button.

[1] button for more than two seconds.

6. Then the display indicates all lights, the test mode is set.

<Release the Test mode>

1. Push the [OFF] button.

2. Return the “power select” switch (S801) to initially set posi­tion.

See the adjustment location from on page 17 for the
adjustment.

TAPE DECK SECTION

0 dB=0.775 V

Tape Speed Adjustment

Setting:

speed checker

or

test tape
WS-48A
(3 kHz, 0 dB)

frequency counter

4

Ω

set

speaker out terminal

+–

Procedure:

1. Put the set into the FWD PB mode.

2. Adjust adjustment resistor for inside capstan motor so that the
reading on the speed checker or frequency counter becomes in
specification.

Specification: Constant speed

Speed checker Frequency counter

–1.5 to +2.5% 2,955 to 3,075 Hz

Adjustment Location: See page 17.

– 14 –

TUNER SECTION

FM RF signal

generator

Carrier frequency : 98.0 MHz
Output level : 70 dB (3.2 mV)
Mode : stereo
Modulation : main: 1 kHz, 20 kHz deviation (26.7%)

sub: 1 kHz, 20 kHz deviation (26.7%)

: 19 kHz pilot: 7.5 kHz deviation (10%)

0.01 µF
set

antenna jack (J1)

+
–

speaker out terminal

level meter

4

Ω

0 dB=1 µV

Cautions during repair

When the tuner unit is defective, replace it by a new one be­cause its internal block is difficult to repair.

Note:

Adjust the tuner section in the sequence shown below.

1. FM Auto Scan/Stop Level Adjustment

2. FM Noise Focus Adjustment

3. FM Stereo Separation Adjustment

4. FM Signal Meter Adjustment

5. AM (MW) Auto Scan/Stop Level Adjustment

FM Auto Scan/Stop Level Adjustment

Setting:

[SOURCE] button: FM

FM RF signal

generator

Carrier frequency : 98.0 MHz
Output level : 22 dB (12.6
Mode : mono
Modulation : 1 kHz, 22.5 kHz deviation (30%)

Procedure:

1. Set to the test mode. (See page 14).

2. Push the

[SOURCE] button and set to FM.

antenna jack (J1)

0.01 µF

Display

set

µ

V)

FM Noise Focus Adjustment

Setting:

[SOURCE] button: FM

FM RF signal

generator

Carrier frequency : 98.00 MHz
Output level : 60 dB (1 mV)
Mode : stereo
Modulation : 1 kHz, 75 kHz deviation (100%)

antenna jack (J1)

0.01 µF

4

set

speaker out terminal

Procedure:

1. Tuner the 98.00 MHz.

2. The then output level is supposing that (A) dB.

3. Adjust with the volume R V3 on TU1 so that the output le vel is
(A) –32 ± 2 dB then signal generator input set to –20 dB.

Adjustment Location: See page 17.

FM Stereo Separation Adjustment

Setting:

level meter

Ω

+
–

[SOURCE] button: FM

REG

FM

INTRO

3. Adjust with the volume R V2 on TU1 so that the “FM” indica­tion turns to “FM0” indication on the display window.
But, in case of already indicated “FM0”, turn the RV2 so that
put out light “0” indication and adjustment.

Display

REG

INTRO

Adjustment Location: See page 17.

Procedure:

FM Stereo

signal generator

output channel

L-CH L-CH A

R-CH L-CH Adjust RV4 on TU1

R-CH R-CH C

L-CH R-CH Adjust RV4 on TU1

Level meter Level meter

connection reading (dB)

for minimum reading.

for minimum reading.

L-CH Stereo separation: A-B
R-CH Stereo separation: C-D
The separations of both channels should be equal.

Specification: Separation more than 30 dB

B

D

Adjustment Location: See page 17.

– 15 –

FM Signal Meter Adjustment

µ

Setting:

[SOURCE] button: FM

FM RF signal

generator

Carrier frequency : 98.00 MHz
Output level : 35 dB (56.2
Mode : mono
Modulation : no modulation

Procedure:

1. Set to the test mode. (See page 14.)

2. Push the [SOURCE] button and set to FM.

FM

3. Push the

4. Adjust RV1 so that the display indication is “160”.

[6] button.

FM

Specification: Display indication: 158 to 162

Adjustment Location: See page 17.

antenna jack (J1)

0.01 µF

Display

REG

Display

set

µ

V)

INTRO

INTRO

AM (MW) Auto Scan/Stop Level Adjustment

Make this adjustment after “FM Auto Scan/Stop Level Adjust­ment”.

Setting:

[SOURCE] button: MW

30

Ω

15 pF

65 pF

AM RF signal

generator

AM dummy antenna
(50 Ω)

Carrier frequency : 999 kHz
30% amplitude
modulation by
1 kHz signal
Output level : 33 dB (44.7

Procedure:

1. Set to the test mode. (See page 14.)

2. Push the

3. Push the

[SOURCE] button and set to FM.
[MODE] button and set to MW.

V)

Display

MW

set

antenna jack (J1)

INTRO

999 @

4. Adjust with the volume RV1 on TU1 so that the “MW” indi­cation turns to “MW0” indication on the display window.
But, in case of already indicated “MW0”, turn the R V1 so that
put out light “0” indication and adjustment.

Display

999

Adjustment Location: See page 17.

INTRO

– 16 –

Adjustment Location:

t

– SET UPPER VIEW –

Tape Speed Adjustment

TU1

RV1 AM (MW) Auto Scan/Stop Level Adjustmen

RV2 FM Auto Scan/Stop Level Adjustment
RV3 FM Noise Focus Adjustment

RV4 FM Stereo Separation Adjustment

RV1 FM Signal Meter Adjustment

– 17 –

• IC Block Diagrams – MAIN Board –

IC1 TB2114F (EL)

VCC

RF

A-GND

XTIN

24 23 22

RIPPLE

FILTER

SEEK/RECP

AM CP OUT

21

20 19 18

+

–

VCC

VT

+

–

4BIT

SWALLOW

COUNTER

FM CP OUT

SEEK/RECP

MODULAS

PRESCALER

D-GND

17 16

PSC

2

SECTION 6

DIAGRAMS

AM/FM IF

VDD

FM IN

AM IN

14

15

13

VDD

AMPAMPAMP

REF

PHASE

COMPARATOR

OSC IN

OR

X'TAL OSC

1

XTOUT

REFERENCE

COUNTER

ON/OFF

BUFFER

2

SC OUT

18BIT
18BIT

BUS INTERFACE

3

4

CE

DIN

IC3 TDA7330BD-013TR

POR

20

TM

19 18 17 16 15 14 13 12 11

FSEL

12BIT

SIG

PROGRAMABLE

COUNTER

40BIT

SHIFT

22BIT

RESISTER

N

I/O PORTS

DATA

6

5

CK

DOUT

T7

7 8 9 10

SR

I/O-1

VCC

OUT PORTS

I/O-2

11

OUT-1

ARI

IF COUNTER

12

OUT-2

OUT-3

OUAL

20BIT

RODA

ROCL

T57

2nd ORDER

ANTIALIAS

FILTER

1

MPXIN

8th ORDER

SC-BANDPASS

FILTER

VCC

2

VREF

CMP

4

FILOUT

5

GND

+
–

TEST LOGIC

T1

COSTAS

LOOP

PLL

57kHz

T3

PHASE

DECODER

RECOVERY

1.4675kHz

T4

DIFF

DECODER

CLOCK

PLL

– 18 –

ON/OFF

OSCILLATOR

fx DIVIDER

10986 73

OSCOUT

OSCIN

IC151 LC75373ED

LSELO

VDD

RSELO

SHIFT

REGISTER

LSOUT

2324252627282930313233

11

RSOUT

CONTROL

22

LFIN

+
–

+
–

–
+

–
+

LFOUT

21

LROUT

20

19

VREF

18

CE

17

DI

16

CL

15

VSS

14

RROUT

RFOUT

13

12

RFIN

LS3

LS1

LSIN

LT3

LT2

LVRIN

34
35

L4
L3

36

L2

37

L1

38

39

R1

40
41

R2
R3

42

R4

43
44

1

RVRIN

LCOM

+
–

+
–

–
+

–
+

2 345 6 7 8 9 10

RCOM

LT1

+
–

+
–

+
–

–
+

RT1

RT2

RT3

LTOUT

–
+

DECODER LATCH

+
–

RS1

RSIN

RTOUT

LS2

–
+

–
+

+
–

+
–

RS2

RS3

IC351 CXA2509AQ-T4

PBEQ2

PBOUT2

120µ/70µ

+

–

PBFB2

31
32

PBRIN2

1

VCT

PBEQ1

F2

F1

–

+

120µ/70µ

2

PBOUT1

PBREF2

PBFIN2

VCT

PBGND

PBFIN1

PBREF1
PBRIN1

PBFB1

33
34

35
36

37
38

39
40

LINEOUT2

MSLPF

NR BIAS

TAPE/AUX

TAPE EQ

FWD/RVS

VCC

+
–

F3

–

+

LINEOUT1

DIREF

24dB

NC

2425

+

–

NC

AUXIN2

TAPEIN2

GND

T2

X1

+

LPF

X1

T1

345 6 7 8 9 10

VCC

AUXIN1

TAPEIN1

24dB

G2FB

NC

MSSW

NC

2122232627282930

MS

MODE

DETECT

MS ON/

OFF

20

19

18
17

16

15

14

13

12
11

MSMODE

DRSW

TAPESW
INSW

NC

NC

MSOUT

DGND

MSTC
G1FB

– 19 –

IC360 MM1322XFBE

1

GND

2

IN2

3

VCC

4

IN1

IC601 BA3918-V2

CONTROL CIRCUIT

8

OUT2

7

VS

6

OUT1

5

GND

REGULATOR

OVER VOLTAGE

PROTECT

–
+

2 3

4

1

NC

STB

MODE2

MODE1

5 6 7 8 9 10 1211

VCC

AMP

ANT

COM

VDD

–
+

AM

–
+

FM

–
+

GND

– 20 –

• Waveforms

1 IC1 1 XO

200 ns

3 IC501 9 X OUT

125 ns

42 mVp-p

3.9 Vp-p

2 IC3 9 XO

5.1 Vp-p

230 ns

4 IC501 !™ XT OUT

5 Vp-p

30.6 µs

– 21 –

• MAIN BOARD IC501 MN1884820SC (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Function

1 TUNMUT O FM audio signal muting control output terminal “H”: muting on
2 AMPON O Standby control signal output to the power amplifier (IC801) “L”: standby

Power supply on/off control signal output terminal at the illumination and liquid crystal display

3 ILLON O

4 PW ON O Main system power supply on/off control signal output to the BA3918 (IC601) “H”: power on
5 AMPMUTE O Muting control signal output to the power amplifier (IC801) “L”: muting on
6 RCIN1 I Rotary remote commander shift key A/D input terminal
7 VDD — Power supply terminal (+5V)
8 X IN I Main system clock input terminal (8 MHz)

9 X OUT O Main system clock output terminal (8 MHz)
10 GND — Ground terminal
11 XT IN I Sub system clock input terminal (32.768 kHz)
12 XT OUT O Sub system clock output terminal (32.768 kHz)
13 EX2 I Connected to ground

14 RESET I

15 RDSCKI I Serial data transfer clock signal input from the RDS decoder (IC3)
16 BU IN I Battery detect signal input terminal “H”: battery on

17 KEYACK I

18 VOLSO O Serial data output to the electrical volume (IC151)
19 VOLCKO O Serial data transfer clock signal output to the electrical volume (IC151)
20 VOLCE O Chip enable signal output to the electrical volume (IC151)
21 TAPEMUT O Tape muting on/off control signal output to the CXA2509AQ (IC351) “H”: tape muting on

22 LMLOD O

23 LMEJ O

24 AMSON O

25 N/R OUT O

26 AMSIN I

27 PLLSO O PLL serial data output to the FM/AM PLL (IC1)
28 PLLCKO O PLL serial data transfer clock signal output to the FM/AM PLL (IC1)
29 PLLCE O PLL serial chip enable output to the FM/AM PLL (IC1)
30 RDSSI I Serial data input from the RDS decoder (IC3)
31 AD ON O Power supply on/off control signal output for the A/D converter “L”: power on

driver (IC901) “H”: power on
At power select switch (S801) on mode: “H” output at the accessory on
At power select switch (S801) off mode: “H” output at the power on

System reset signal input from the reset signal generator (IC571) and reset switch (S601)
“L” is input for several 100 msec after power on, then it changes to “H”

Input of acknowledge signal for the key entry Acknowledge signal is input to accept function
and eject keys in the power off status On at input of “L”

Loading/tape operation motor control signal output to the MM1322XFBE (IC360)
(For the loading direction and forward side operation) *1

Loading/tape operation motor control signal output to the MM1322XFBE (IC360)
(For the eject direction and reverse side operation) *1

Tape auto music sensor control signal output to the CXA2509AQ (IC351)
“L” is output to lower the gain for audio level at FF/REW

Forward/reverse direction control signal output to the CXA2509AQ (IC351)
“L: forward direction, “H”: reverse direction

Whether a music is present or not from CXA2509AQ (IC351) is detected at auto music sensor
“L”: music is present, “H”: music is not present

32 DOLON I/O

Dolby control in/out terminal
At initial mode: valid/invalid selection input of dolby function (“L” input: valid)
At normal mode: dolby on/off control signal output “H”: dolby on
Not used this function in this set (fixed at “H”)

– 39 –

Pin No. Pin Name I/O Function

METAL control in/out terminal
At initial mode: valid/invalid selection input of METAL function (“L” input: valid)

33 MTLON I/O

34 CMON O Capstan/reel motor (M901) drive signal output terminal “H”: motor on
35 TAPEON O Tape system power supply on/off control signal output terminal “H”: tape on
36 ACCON I Accessory detect signal input terminal “L”: accessory on
37 PLLSI I PLL serial data input from the FM/AM PLL (IC1)
38 BEEP O Beep sound output terminal
39 LCDCKO O Serial data transfer clock signal output to the liquid crystal display driver (IC901)
40 LCDSO O Serial data output to the liquid crystal display driver (IC901)

41 LCDINH O

42 LCDCE O Chip enable output to the liquid crystal display driver (IC901)
43 UNICKO O Serial data transfer clock signal output terminal for the unilink Not used (pull down)
44 UNICKI I Serial data reading clock signal input terminal for the unilink Not used (fixed at “L”)
45 UNISI I Serial data input terminal for the unilink Not used (fixed at “L”)
46 UNISO O Serial data output terminal for the unilink Not used (pull down)
47 VDD — Power supply terminal (+5V)
48 AVDD — Power supply terminal (+5V) (for A/D converter)
49 AVREF+ I Reference voltage input terminal (+5V) (for A/D converter)

50 KEYIN1 I

At normal mode: METAL on/off control signal output “H”: METAL on
XR-5790R: Not used this function in this set (fixed at “H”)
XR-5800R: Used for the this function

Blank indicate control signal output to the liquid crystal display driver (IC901)
“L”: no display

Key input terminal (A/D input)
XR-5790R: 6, INTRO 1, REPEAT 2, 3, BL SKIP 6, ATA 5, 4, PTY, AF/TA, PRST +/–, DSPL
keys input (LSW921 to LSW932)
XR-5800R: 6, INTRO 1, REPEAT 2, 3, BL SKIP 6, ATA 5, MTL 4, PTY, AF/TA, BTM
SENS, DSPL keys input (LSW921 to LSW931)

Key input terminal (A/D input)
XR-5790R: OFF, SOURCE, MODE *, + ) + SEEK AMS, – = 0 SEEK AMS,

51 KEYIN0 I

52 D-BASS I D-BASS switch (SW951) input (A/D input)
53 KEYSEL I Setting terminal for the key (fixed at center voltage)

54 DSTSEL I

55 RCIN0 I Rotary remote commander shift key A/D input terminal
56 VSM1 I Signal meter voltage detection input terminal Not used (fixed at “L”)
57 VSM0 I FM and AM signal meter voltage detection input from the FM/AM tuner unit (TU1)
58 AVREF– I Reference ground terminal
59 AVSS — Ground terminal (for A/D converter)
60 GND — Ground terminal
61 BUSON O Bus on/off control signal output terminal Not used (pull down)
62 SYSRST O Reset signal output terminal “L”: reset Not used (pull down)
63 SEKOUT O Seek control signal output to the FM/AM tuner unit (TU1)
64 TUNON O Tuner system power supply on/off control signal output to the BA3918 (IC601) “H”: tuner on
65 FM ON O FM system power supply on/off control signal output to the BA3918 (IC601) “H”: FM on
66 MUT O Line muting control signal output terminal “H”: line muting on

VOLUME –, SEL, VOLUME +, ATT , BTM SENS keys input (LSW901 to LSW910)
XR-5800R: OFF, SOURCE, MODE *, + ) + SEEK AMS, – = 0 SEEK AMS,
VOLUME –, SEL, VOLUME +, ATT keys input (LSW901 to LSW908 and LSW910)

Destination setting terminal
AEP, UK, South European models: fixed at “L”, German model: fixed at “H”

– 40 –

Pin No. Pin Name I/O Function

67 AF SEK O AF seek control signal output terminal Not used (open)
68 COLOR I Setting terminal for the illumination color “L”: amber, “H”: green Not used (open)
69 NOSESW I Detects the removal of the attaching and removing type front panel block “L”: attaching

Input of FM stereo detection signal from FM/AM tuner unit (TU1), and output of forced

70 ST IN I/O

monaural control signal to FM/AM tuner unit (TU1) (Commonly used for stereo display input
and forced monaural output)
FM stereo detection at input of “L”, forced monaural at output of “L”

71 SD IN I

72 REL T I Reel table rotation detect signal input from the take-up and supply reel sensor
73 POS3 I
74 POS2 I
75 POS1 I
76 POS0 I

77 PW SEL I

78 TELEMUTE I

79 TEST I Setting terminal for the test mode “L”: test mode (normally fixed at “H”)
80 ILLIN I Not used (fixed at “L”)

*1 loading/tape operation motor control
MODE
TERMINAL

LMLOD (pin @™) “L” “H” “L” “H”

LMEJ (pin @£) “L” “L” “H” “H”

Station detector detect input from the FM/AM tuner unit (TU1)
Stop level for SEEK, BTM, etc. is determined SD is present at input of “H”

Tape position detect input from tape operation switch on the mechanism block

Power select switch (S801) input terminal
“L”: position A (halt mode), “H”: position B (operation mode)

Telephone muting signal input terminal
At input of “L”, the signal is attenuated by –20 dB Used for XR-5800R only

STOP

LOADING/
FORWARD

EJECT/

REVERSE

BRAKE

– 41 –

SECTION 7

EXPLODED VIEWS

NOTE:

• -XX and -X mean standardized parts, so they
may have some difference from the original
one.

• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet's Color

(1) CHASSIS SECTION

MG-25G-136

7

• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.

• The mechanical parts with no reference num­ber in the exploded views are not supplied.

• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.

8

F801

14

#3

19

18

17

16

XR-5800R

9

10

6

5

4

3

2

Front panel ass’y

#1

#2

#2

Ref. No. Part No. Description Remark

1 3-009-294-01 PANEL, SUB
2 3-935-003-01 SPRING, TORSION
3 3-932-205-21 DOOR, CASSETTE
4 X-3367-636-1 LOCK ASSY

* 5 3-009-306-01 SHEET, INSULATING

1

#2

15

#2

12

#2

#2

#2

11

13

Ref. No. Part No. Description Remark

9 1-777-989-31 CORD (WITH CONNECTOR) (ATT) (5800R)

* 10 3-009-307-01 BRACKET (IC)
* 11 3-010-471-01 HEAT SINK

12 3-935-014-01 CUSHION (U)

* 13 3-009-813-01 CHASSIS

* 6 A-3313-356-A MAIN BOARD, COMPLETE (5790R: AEP, UK)
* 6 A-3313-357-A MAIN BOARD, COMPLETE (5790R: German)
* 6 A-3313-363-A MAIN BOARD, COMPLETE

(5800R: AEP, UK, South European)

* 6 A-3313-364-A MAIN BOARD, COMPLETE (5800R: German)

7 3-915-923-01 SCREW, GROUND POINT

* 8 X-3373-269-1 COVER ASSY (ISO)

14 3-937-650-01 PLATE (C), GROUND

* 15 A-3309-740-A POWER BOARD, COMPLETE

16 1-782-092-11 CORD (WITH CONNECTOR) (ISO-P) (POWER)
17 1-782-093-11 CORD (WITH CONNECTOR) (ISO-S)

(SPEAKER)

18 3-012-859-01 CAP (25), RUBBER

* 19 3-012-105-01 BRACKET (HS)

F801 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)

– 42 –

(2) FRONT PANEL SECTION

(XR-5790R)

57

56

55

58

54

52

not supplied
(KEY board)

LCD901

61

62

65

63

#5

#5

64

59

53

51

Ref. No. Part No. Description Remark

51 3-018-930-01 KNOB (D-BASS)

* 52 3-014-857-01 SHEET (LCD) (T)

53 3-010-398-01 BUTTON (RELEASE)
54 3-010-395-01 SPRING (RELEASE)
55 X-3374-695-1 PANEL SUB ASSY

66

60

Ref. No. Part No. Description Remark

60 3-010-389-01 BUTTON (P. A. P) (PTY. AF/TA. –. PRST. +)

* 61 3-010-375-01 SHEET (REFLECTOR)
* 62 3-018-385-01 PLATE (LCD), LIGHT GUIDE
* 63 3-018-386-01 HOLDER (LCD)

64 3-010-382-01 PANEL, FRONT BACK

56 3-010-383-01 BUTTON (SOURCE)
57 3-010-384-01 BUTTON (M. O. S)

(r. OFF. – = 0. SEEK AMS. +
58 3-010-385-11 BUTTON (S. M. +/–) (–. SEL. +. ATT. SENS)
59 3-010-387-01 BUTTON (PRESET)

(6. 1. 2. 3. 4. 5. 6. DSPL)

))

) +)

))

65 3-015-036-01 CUSHION (BACK PANEL)

* 66 3-014-861-01 SHEET (LCD) (B)

LCD901 1-801-968-11 DISPLAY PANEL, LIQUID CRYSTAL

– 43 –

(3) FRONT PANEL SECTION

5

(XR-5800R)

102

105

104

103

107

108

109

111

not supplied
(KEY board)

114

112

113

#5

#

118

117

116

106

115

LCD901

not supplied

101

Ref. No. Part No. Description Remark

101 3-018-799-01 BUTTON (D-BASS)
102 3-015-036-01 CUSHION (BACK PANEL)
103 3-016-924-01 BUTTON (L) (2) (+. –)
104 3-009-304-01 BUTTON (RELEASE)
105 3-932-475-01 SPRING (RELEASE)

* 106 3-019-149-01 PLATE, LCD

107 X-3374-682-1 PANEL SUB ASSY
108 3-009-300-01 BUTTON (SOURCE)
109 3-018-797-11 BUTTON (L) (3) (+ +

))

). SEEK AMS.

))

= 0 –. r. OFF. SEL. ATT)

Ref. No. Part No. Description Remark

111 3-016-927-01 BUTTON (1-3) (6. 1. 2. 3)
112 3-016-928-11 BUTTON (4-6) (4. 5. 6)
113 3-016-929-01 BUTTON (R) (2) (PTY. AF/TA. r. SENS)

* 114 3-019-151-01 PLATE (LCD), GROUND
* 115 3-019-150-01 SHEET (REFLECTOR)

* 116 3-018-612-01 PLATE, LIGHT GUIDE
* 117 3-018-611-01 HOLDER (LCD)

118 3-010-519-01 PANEL, FRONT BACK
LCD901 1-801-968-11 DISPLAY PANEL, LIQUID CRYSTAL

– 44 –

(4) MECHANISM DECK SECTION

(MG-25G-136)

154

153

#6

155

158

152

157

156

159

A

160

163

A

HP901

161

162

M901

164

165

168

151

Ref. No. Part No. Description Remark

151 A-3291-667-A CLUTCH (FR) ASSY

* 152 3-019-130-01 LEVER (LDG-A)
* 153 3-019-131-01 LEVER (LDG-B)

154 3-020-539-01 SPRING (LD-1), TENSION
155 3-020-540-01 SPRING (LD-2), TENSION

156 3-020-542-01 GEAR (LOADING FT)
157 3-341-753-11 WASHER, POLYETHYLENE
158 3-020-533-01 HOUSING

* 159 3-020-532-01 ARM (SUCTION)

160 3-020-534-01 HANGER

#7

168

166

167

Ref. No. Part No. Description Remark

161 3-933-346-01 CATCHER
162 3-933-344-01 GUIDE (C)
163 3-014-798-01 SCREW (HEAD), SPECIAL
164 3-364-151-01 WASHER
165 A-3301-267-A CHASSIS ASSY (G)

166 3-017-302-01 BELT (25)
167 3-936-853-01 FLYWHEEL (F)
168 3-701-437-21 WASHER
HP901 1-500-196-21 HEAD, MAGNETIC (PLAYBACK)
M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)

– 45 –

KEY

SECTION 8

ELECTRICAL PARTS LIST

NOTE:

• Due to standardization, replacements in the
parts list may be different from the parts speci­fied in the diagrams or the components used
on the set.

• -XX and -X mean standardized parts, so they
may have some difference from the original
one.

• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable

Ref. No. Part No. Description Remark

KEY BOARD

**********

* 3-010-375-01 SHEET (REFLECTOR)
* 3-018-385-01 PLATE (LCD), LIGHT GUIDE
* 3-018-386-01 HOLDER (LCD)
* 3-018-611-01 HOLDER (LCD)
* 3-018-612-01 PLATE, LIGHT GUIDE

* 3-019-149-01 PLATE, LCD
* 3-019-150-01 SHEET (REFLECTOR)

< CAPACITOR >

C901 1-163-033-00 CERAMIC CHIP 0.022uF 50V
C902 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C903 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C904 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

< CONNECTOR >

CN901 1-764-423-11 PIN, CONNECTOR 12P

< DIODE >

D901 8-719-420-90 DIODE MA8051-M
D902 8-719-422-64 DIODE MA8062-M
D903 8-719-422-64 DIODE MA8062-M
D904 8-719-422-64 DIODE MA8062-M
D905 8-719-422-64 DIODE MA8062-M

< IC >

IC901 8-759-365-90 IC LC75824W

< SHORT CHIP >

JC901 1-216-295-00 SHORT (CHIP) 0

< LIQUID CRYSTAL DISPLAY >

LCD901 1-801-968-11 DISPLAY PANEL, LIQUID CRYSTAL

< SWITCH >

LSW901 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (OFF)

LSW901 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (OFF)

• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order­ing these items.

• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .

• CAPACITORS
uF: µF

• COILS
uH: µH

(AMBER)

(GREEN)

When indicating parts by reference
number, please include the board.

Ref. No. Part No. Description Remark

LSW902 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (SOURCE)

(AMBER)

LSW902 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (SOURCE)

(GREEN)

LSW903 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(MODE *) (AMBER)

LSW903 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(MODE*) (GREEN)

LSW904 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(SEEK AMS, + + )) (AMBER)

LSW904 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(SEEK AMS, + + )) (GREEN)

LSW905 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(SEEK AMS, = 0 −) (AMBER)

LSW905 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(SEEK AMS, = 0 −) (GREEN)

LSW906 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (−)

(AMBER)

LSW906 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (−)

(GREEN)

LSW907 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (SEL)

(AMBER)

LSW907 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (SEL)

(GREEN)

LSW908 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (+)

(AMBER)

LSW908 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (+)

(GREEN)

LSW909 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (ATT)

(5790R: AMBER)

LSW909 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (ATT)

(5790R: GREEN)

LSW910 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(BTM, SENS) (5790R: AMBER)

LSW910 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (ATT)

(5800R: AMBER)

LSW910 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(BTM, SENS) (5790R: GREEN)

LSW910 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (ATT)

(5800R: GREEN)

LSW921 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (6)

(AMBER)

LSW921 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (6)

(GREEN)

LSW922 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (INTRO, 1)

(AMBER)

– 46 –

KEY

Ref. No. Part No. Description Remark

LSW922 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (INTRO, 1)

(GREEN)

LSW923 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (REPEAT, 2)

(AMBER)

LSW923 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (REPEAT, 2)

(GREEN)

LSW924 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (3)

(AMBER)

LSW924 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (3)

(GREEN)

LSW925 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(BL SKIP, 6) (AMBER)

LSW925 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(BL SKIP, 6) (GREEN)

LSW926 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (ATA, 5)

(AMBER)

LSW926 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (ATA, 5)

(GREEN)

LSW927 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (4)

(5790R: AMBER)

LSW927 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (MTL, 4)

(5800R: AMBER)

LSW927 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (4)

(5790R: GREEN)

LSW927 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (MTL, 4)

(5800R: GREEN)

LSW928 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (PTY)

(AMBER)

LSW928 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (PTY)

(GREEN)

LSW929 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (AF/TA)

(AMBER)

LSW929 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (AF/TA)

(GREEN)

LSW930 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (PRST, +)

(5790R: AMBER)

LSW930 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(BTM, SENS) (5800R: AMBER)

LSW930 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (PRST, +)

(5790R: GREEN)

LSW930 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(BTM, SENS) (5800R: GREEN)

LSW931 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (−, PRST)

(5790R: AMBER)

LSW931 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (DSPL)

(5800R: AMBER)

LSW931 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (−, PRST)

(5790R: GREEN)

LSW931 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (DSPL)

(5800R: GREEN)

LSW932 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (DSPL)

(5790R: AMBER)

LSW932 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (DSPL)

(5790R: GREEN)

< PILOT LAMP >

PL903 1-517-633-21 LAMP, PILOT (LCD BACK LIGHT)
PL904 1-517-633-21 LAMP, PILOT (LCD BACK LIGHT)

< RESISTOR >

R901 1-216-045-00 METAL CHIP 680 5% 1/10W
R902 1-216-045-00 METAL CHIP 680 5% 1/10W

Ref. No. Part No. Description Remark

R903 1-216-045-00 METAL CHIP 680 5% 1/10W
R904 1-216-049-11 RES, CHIP 1K (2012)
R905 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R906 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R907 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R908 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R909 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R910 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

(5790R)

R921 1-216-045-00 METAL CHIP 680 5% 1/10W
R922 1-216-045-00 METAL CHIP 680 5% 1/10W
R923 1-216-045-00 METAL CHIP 680 5% 1/10W
R924 1-216-049-11 RES, CHIP 1K (2012)
R925 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R926 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R927 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R928 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R929 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R930 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

R931 1-216-073-00 METAL CHIP 10K 5% 1/10W
R932 1-216-077-00 METAL CHIP 15K 5% 1/10W
R951 1-216-041-00 METAL CHIP 470 5% 1/10W
R952 1-216-109-00 METAL CHIP 330K 5% 1/10W
R953 1-216-049-11 RES, CHIP 1K (2012)

R954 1-216-049-11 RES, CHIP 1K (2012)
R955 1-216-049-11 RES, CHIP 1K (2012)
R956 1-216-049-11 RES, CHIP 1K (2012)
R961 1-216-025-00 RES, CHIP 100 (2012)

(5790R: GREEN)

R961 1-216-029-00 METAL CHIP 150 5% 1/10W

(5790R: AMBER)

R961 1-216-033-00 METAL CHIP 220 5% 1/10W

(5800R: GREEN)

R961 1-216-037-00 METAL CHIP 330 5% 1/10W

(5800R: AMBER)

R963 1-216-025-00 RES, CHIP 100 (2012)

(5800R: GREEN)

R963 1-216-029-00 METAL CHIP 150 5% 1/10W

(5800R: AMBER)

R963 1-216-033-00 METAL CHIP 220 5% 1/10W

(5790R: GREEN)

R963 1-216-037-00 METAL CHIP 330 5% 1/10W

(5790R: AMBER)

R965 1-216-033-00 METAL CHIP 220 5% 1/10W

(GREEN)

R965 1-216-037-00 METAL CHIP 330 5% 1/10W

(AMBER)

R967 1-216-021-00 METAL CHIP 68 5% 1/10W

(GREEN)

R967 1-216-029-00 METAL CHIP 150 5% 1/10W

(AMBER)

R969 1-216-021-00 METAL CHIP 68 5% 1/10W

(5790R: GREEN)

R969 1-216-025-00 RES, CHIP 100 (2012)

(5800R: GREEN)

R969 1-216-029-00 METAL CHIP 150 5% 1/10W

(AMBER)

R971 1-216-021-00 METAL CHIP 68 5% 1/10W

(GREEN)

R971 1-216-029-00 METAL CHIP 150 5% 1/10W

(AMBER)

– 47 –

KEY MAIN

Ref. No. Part No. Description Remark

R973 1-216-025-00 RES, CHIP 100 (2012) (5800R: GREEN)
R973 1-216-029-00 METAL CHIP 150 5% 1/10W

(5800R: AMBER)
R974 1-216-025-00 RES, CHIP 100 (2012) (5800R: GREEN)
R974 1-216-029-00 METAL CHIP 150 5% 1/10W

(5800R: AMBER)
R981 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R982 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R983 1-216-069-00 METAL CHIP 6.8K 5% 1/10W
R984 1-216-081-00 METAL CHIP 22K 5% 1/10W
R999 1-216-295-11 SHORT (CHIP) 0 (AMBER)
R999 1-216-308-00 METAL CHIP 4.7 5% 1/10W

(GREEN)

< SWITCH >

SW951 1-762-937-11 SWITCH, ROTARY (D-BASS)

************************************************************

* A-3313-356-A MAIN BOARD, COMPLETE (5790R: AEP, UK)
* A-3313-357-A MAIN BOARD, COMPLETE (5790R: German)
* A-3313-363-A MAIN BOARD, COMPLETE

(5800R: AEP, UK, South European)

* A-3313-364-A MAIN BOARD, COMPLETE (5800R: German)

*********************

(Including POWER BOARD, COMPLETE)

* 3-009-307-01 BRACKET (IC)
* 3-010-471-01 HEAT SINK
* 3-012-105-01 BRACKET (HS)

7-685-793-09 SCREW +PTT 2.6X8 (S)

< CAPACITOR >

C1 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C2 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C3 1-126-157-11 ELECT 10uF 20% 16V
C4 1-126-157-11 ELECT 10uF 20% 16V
C5 1-126-157-11 ELECT 10uF 20% 16V

C6 1-164-232-11 CERAMIC CHIP 0.01uF 50V
C9 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C11 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C12 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C13 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

C14 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C15 1-124-584-00 ELECT 100uF 20% 10V
C16 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V
C17 1-124-463-00 ELECT 0.1uF 20% 50V
C18 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C19 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C20 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C21 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C22 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V
C23 1-126-933-11 ELECT 100uF 20% 16V

C24 1-163-099-00 CERAMIC CHIP 18PF 5% 50V
C25 1-163-099-00 CERAMIC CHIP 18PF 5% 50V
C26 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C28 1-126-157-11 ELECT 10uF 20% 16V
C29 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C30 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C31 1-163-229-11 CERAMIC CHIP 12PF 5% 50V
C32 1-126-160-11 ELECT 1uF 20% 50V
C34 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

Ref. No. Part No. Description Remark

C35 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C36 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C101 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C102 1-126-160-11 ELECT 1uF 20% 50V
C103 1-126-160-11 ELECT 1uF 20% 50V
C111 1-126-160-11 ELECT 1uF 20% 50V

C112 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V
C113 1-126-160-11 ELECT 1uF 20% 50V
C114 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C115 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V
C116 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V

C118 1-126-157-11 ELECT 10uF 20% 16V
C119 1-126-157-11 ELECT 10uF 20% 16V
C120 1-126-157-11 ELECT 10uF 20% 16V
C121 1-126-157-11 ELECT 10uF 20% 16V
C151 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V

C152 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V
C153 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C155 1-124-234-00 ELECT 22uF 20% 16V
C157 1-124-584-00 ELECT 100uF 20% 10V
C158 1-163-031-11 CERAMIC CHIP 0.01uF 50V

C201 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C202 1-126-160-11 ELECT 1uF 20% 50V
C203 1-126-160-11 ELECT 1uF 20% 50V
C211 1-126-160-11 ELECT 1uF 20% 50V
C212 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V

C213 1-126-160-11 ELECT 1uF 20% 50V
C214 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C215 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V
C216 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V
C218 1-126-157-11 ELECT 10uF 20% 16V

C219 1-126-157-11 ELECT 10uF 20% 16V
C220 1-126-157-11 ELECT 10uF 20% 16V
C221 1-126-157-11 ELECT 10uF 20% 16V
C301 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C302 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C303 1-163-263-11 CERAMIC CHIP 330PF 5% 50V
C304 1-164-232-11 CERAMIC CHIP 0.01uF 50V
C305 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V
C308 1-126-160-11 ELECT 1uF 20% 50V
C309 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

C310 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C350 1-124-234-00 ELECT 22uF 20% 16V
C351 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C353 1-124-465-00 ELECT 0.47uF 20% 50V
C354 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C356 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C357 1-124-584-00 ELECT 100uF 20% 10V
C362 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C363 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C365 1-126-157-11 ELECT 10uF 20% 16V

C366 1-126-157-11 ELECT 10uF 20% 16V
C367 1-126-934-11 ELECT 220uF 20% 16V
C401 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C402 1-163-263-11 CERAMIC CHIP 330PF 5% 50V
C403 1-163-263-11 CERAMIC CHIP 330PF 5% 50V

C404 1-164-232-11 CERAMIC CHIP 0.01uF 50V

– 48 –

MAIN

Ref. No. Part No. Description Remark

C405 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V
C408 1-126-160-11 ELECT 1uF 20% 50V
C409 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C410 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V

C501 1-124-584-00 ELECT 100uF 20% 10V
C502 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C503 1-163-099-00 CERAMIC CHIP 18PF 5% 50V
C504 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C505 1-165-319-11 CERAMIC CHIP 0.1uF 50V

C506 1-164-232-11 CERAMIC CHIP 0.01uF 50V
C507 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C582 1-124-257-00 ELECT 2.2uF 20% 50V
C583 1-124-589-11 ELECT 47uF 20% 16V
C584 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C601 1-164-222-11 CERAMIC CHIP 0.22uF 25V
C603 1-125-710-11 DOUBLE LAYER 0.1F 5.5V
C605 1-126-157-11 ELECT 10uF 20% 16V
C606 1-126-157-11 ELECT 10uF 20% 16V
C607 1-126-157-11 ELECT 10uF 20% 16V

C609 1-124-589-11 ELECT 47uF 20% 16V
C610 1-124-234-00 ELECT 22uF 20% 16V
C612 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C614 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C617 1-126-157-11 ELECT 10uF 20% 16V

C618 1-164-232-11 CERAMIC CHIP 0.01uF 50V
C650 1-126-936-11 ELECT 3300uF 20% 16V
C660 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

(5800R)

C701 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

< CONNECTOR >

CN351 1-766-260-11 CONNECTOR, FFC/FPC (ZIF) 7P

* CN352 1-506-995-11 PIN, CONNECTOR (PC BOARD) 13P

CN602 1-764-422-11 PLUG, CONNECTOR 12P

< DISCHARGE GAP >

* CP1 1-517-422-11 GAP, SPARK

< DIODE >

D2 8-719-991-65 DIODE SB02W03C
D3 8-719-423-07 DIODE MA8100-L-TX
D4 8-719-422-64 DIODE MA8062-M
D350 8-719-404-49 DIODE MA111
D361 8-719-423-07 DIODE MA8100-L-TX

D362 8-719-911-19 DIODE 1SS119
D501 8-719-422-12 DIODE MA8039
D504 8-719-400-20 DIODE MA152WA
D506 8-719-911-19 DIODE 1SS119
D583 8-719-404-49 DIODE MA111

D584 8-719-422-12 DIODE MA8039
D601 8-719-423-32 DIODE MA8120-M
D605 8-719-977-03 DIODE DTZ5.6B
D606 8-719-017-67 DIODE MA8068H
D607 8-719-801-78 DIODE 1SS184

D609 8-719-422-64 DIODE MA8062-M
D610 8-719-422-64 DIODE MA8062-M
D611 8-719-109-97 DIODE RD6.8ES-B2
D612 8-719-109-97 DIODE RD6.8ES-B2

Ref. No. Part No. Description Remark

D613 8-719-034-94 DIODE MA4180-M(QZ)

D614 8-719-109-97 DIODE RD6.8ES-B2
D615 8-719-109-97 DIODE RD6.8ES-B2
D616 8-719-422-64 DIODE MA8062-M
D617 8-719-422-64 DIODE MA8062-M
D621 8-719-970-02 DIODE 1SR139-400

D623 8-719-970-02 DIODE 1SR139-400
D624 8-719-404-49 DIODE MA111
D652 8-719-018-04 DIODE MA8240-TX
D653 8-719-422-76 DIODE MA8075-M
D660 8-719-422-64 DIODE MA8062-M (5800R)

D661 8-719-404-49 DIODE MA111 (5800R)
D662 8-719-422-64 DIODE MA8062-M (5800R)
D701 8-719-057-80 DIODE MA8160-M-TX
D702 8-719-422-80 DIODE MA8075-H-TX

< IC >

IC1 8-759-448-88 IC TB2114F(EL)
IC3 8-759-163-63 IC TDA7330BD-013TR
IC151 8-759-443-67 IC LC75373ED
IC351 8-752-079-78 IC CXA2509AQ-T4
IC360 8-759-395-97 IC MM1322XFBE

IC501 8-759-492-40 IC MN1884820SC
IC571 8-759-940-45 IC S-8054HN-CB
IC601 8-759-347-49 IC BA3918-V2

< JACK >

J1 1-764-808-14 JACK (ANT) (FM/AM ANTENNA)
J501 1-566-822-41 JACK (REMOTE IN)

< SHORT CHIP >

JC5 1-216-295-11 SHORT (CHIP) 0
JC7 1-216-295-11 SHORT (CHIP) 0
JC8 1-216-295-11 SHORT (CHIP) 0
JC9 1-216-295-11 SHORT (CHIP) 0
JC10 1-216-295-11 SHORT (CHIP) 0

JC11 1-216-295-11 SHORT (CHIP) 0
JC14 1-216-295-11 SHORT (CHIP) 0
JC15 1-216-295-11 SHORT (CHIP) 0
JC16 1-216-295-11 SHORT (CHIP) 0
JC17 1-216-295-11 SHORT (CHIP) 0

JC18 1-216-295-11 SHORT (CHIP) 0
JC20 1-216-295-11 SHORT (CHIP) 0
JC21 1-216-295-11 SHORT (CHIP) 0
JC22 1-216-295-11 SHORT (CHIP) 0
JC23 1-216-295-11 SHORT (CHIP) 0

JC24 1-216-295-11 SHORT (CHIP) 0
JC27 1-216-295-11 SHORT (CHIP) 0
JC28 1-216-295-11 SHORT (CHIP) 0
JC29 1-216-295-11 SHORT (CHIP) 0
JC29 1-216-295-11 SHORT (CHIP) 0

JC30 1-216-295-11 SHORT (CHIP) 0
JC31 1-216-295-11 SHORT (CHIP) 0
JC32 1-216-295-11 SHORT (CHIP) 0
JC36 1-216-295-11 SHORT (CHIP) 0
JC37 1-216-295-11 SHORT (CHIP) 0

JC38 1-216-295-11 SHORT (CHIP) 0

– 49 –

MAIN

Ref. No. Part No. Description Remark

JC40 1-216-295-11 SHORT (CHIP) 0
JC50 1-216-296-00 SHORT (CHIP) 0
JC51 1-216-296-00 SHORT (CHIP) 0
JC52 1-216-296-00 SHORT (CHIP) 0

JC53 1-216-296-00 SHORT (CHIP) 0
JC54 1-216-296-00 SHORT (CHIP) 0
JC55 1-216-296-00 SHORT (CHIP) 0 (5790R)
JC56 1-216-296-00 SHORT (CHIP) 0
JC58 1-216-296-00 SHORT (CHIP) 0

JC59 1-216-296-00 SHORT (CHIP) 0
JC60 1-216-296-00 SHORT (CHIP) 0
JC62 1-216-296-00 SHORT (CHIP) 0
JC63 1-216-296-00 SHORT (CHIP) 0
JC65 1-216-296-00 SHORT (CHIP) 0

JC66 1-216-296-00 SHORT (CHIP) 0
JC67 1-216-296-00 SHORT (CHIP) 0
JC68 1-216-296-00 SHORT (CHIP) 0
JC70 1-216-296-00 SHORT (CHIP) 0
JC71 1-216-296-00 SHORT (CHIP) 0

JC72 1-216-296-00 SHORT (CHIP) 0 (5800R)
JC73 1-216-296-00 SHORT (CHIP) 0
JC74 1-216-296-00 SHORT (CHIP) 0
JC75 1-216-296-00 SHORT (CHIP) 0
JC76 1-216-296-00 SHORT (CHIP) 0

JC77 1-216-296-00 SHORT (CHIP) 0
JC78 1-216-296-00 SHORT (CHIP) 0
JC80 1-216-296-00 SHORT (CHIP) 0
JC81 1-216-296-00 SHORT (CHIP) 0

Ref. No. Part No. Description Remark

Q702 8-729-020-67 TRANSISTOR XN1A312-TX

< RESISTOR >

R1 1-216-049-11 RES, CHIP 1K (2012)
R2 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R3 1-216-073-00 METAL CHIP 10K 5% 1/10W
R4 1-216-097-00 RES, CHIP 100K (2012)
R5 1-216-017-00 RES, CHIP 47 (2012)

R6 1-216-077-00 METAL CHIP 15K 5% 1/10W
R7 1-216-075-00 METAL CHIP 12K 5% 1/10W
R8 1-216-025-00 RES, CHIP 100 (2012)
R9 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R11 1-216-049-11 RES, CHIP 1K (2012)

R14 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R15 1-216-073-00 METAL CHIP 10K 5% 1/10W
R16 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R17 1-216-129-00 METAL CHIP 2.2M 5% 1/10W
R18 1-216-049-11 RES, CHIP 1K (2012)

R19 1-216-073-00 METAL CHIP 10K 5% 1/10W
R101 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R102 1-216-085-00 METAL CHIP 33K 5% 1/10W
R103 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R104 1-216-190-00 RES, CHIP 470 (3216)

R105 1-216-190-00 RES, CHIP 470 (3216)
R108 1-216-077-00 METAL CHIP 15K 5% 1/10W
R109 1-216-077-00 METAL CHIP 15K 5% 1/10W
R110 1-216-077-00 METAL CHIP 15K 5% 1/10W
R111 1-216-077-00 METAL CHIP 15K 5% 1/10W

< COIL >

L1 1-412-006-31 INDUCTOR CHIP 10uH
L2 1-410-509-11 INDUCTOR 10uH
L4 1-410-509-11 INDUCTOR 10uH
L501 1-410-509-11 INDUCTOR 10uH

< TRANSISTOR >

Q2 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q3 8-729-907-28 TRANSISTOR IMD3
Q101 8-729-920-21 TRANSISTOR DTC314TKH04
Q102 8-729-920-21 TRANSISTOR DTC314TKH04
Q103 8-729-920-21 TRANSISTOR DTC314TKH04

Q201 8-729-920-21 TRANSISTOR DTC314TKH04
Q202 8-729-920-21 TRANSISTOR DTC314TKH04
Q203 8-729-920-21 TRANSISTOR DTC314TKH04
Q361 8-729-015-11 TRANSISTOR 2SD1802FAST-TL
Q362 8-729-020-67 TRANSISTOR XN1A312-TX

Q364 8-729-106-60 TRANSISTOR 2SB1115A
Q365 8-729-900-53 TRANSISTOR DTC114EK
Q501 8-729-020-67 TRANSISTOR XN1A312-TX
Q503 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q581 8-729-020-67 TRANSISTOR XN1A312-TX

Q603 8-729-423-99 TRANSISTOR 2SD2137-OP
Q605 8-729-020-67 TRANSISTOR XN1A312-TX
Q606 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q608 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q609 8-729-015-11 TRANSISTOR 2SD1802FAST-TL

Q610 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q701 8-729-900-53 TRANSISTOR DTC114EK

R112 1-216-129-00 METAL CHIP 2.2M 5% 1/10W
R113 1-216-129-00 METAL CHIP 2.2M 5% 1/10W
R151 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R201 1-216-214-00 RES, CHIP 4.7K (3216)
R202 1-216-085-00 METAL CHIP 33K 5% 1/10W

R203 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R204 1-216-041-00 METAL CHIP 470 5% 1/10W
R205 1-216-041-00 METAL CHIP 470 5% 1/10W
R208 1-216-077-00 METAL CHIP 15K 5% 1/10W
R209 1-216-077-00 METAL CHIP 15K 5% 1/10W

R210 1-216-077-00 METAL CHIP 15K 5% 1/10W
R211 1-216-077-00 METAL CHIP 15K 5% 1/10W
R212 1-216-129-00 METAL CHIP 2.2M 5% 1/10W
R213 1-216-129-00 METAL CHIP 2.2M 5% 1/10W
R303 1-216-077-00 METAL CHIP 15K 5% 1/10W

R304 1-216-081-00 METAL CHIP 22K 5% 1/10W

(5800R)
R305 1-216-109-00 METAL CHIP 330K 5% 1/10W
R306 1-216-190-00 RES, CHIP 470 (3216)
R307 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R308 1-216-073-00 METAL CHIP 10K 5% 1/10W

R351 1-208-812-11 RES, CHIP 18K
R352 1-216-105-00 RES, CHIP 220K (2012)
R353 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R354 1-216-077-00 METAL CHIP 15K 5% 1/10W
R355 1-216-009-00 METAL CHIP 22 5% 1/10W

R361 1-216-049-11 RES, CHIP 1K (2012)
R362 1-249-389-11 CARBON 4.7 5% 1/4W
R363 1-249-389-11 CARBON 4.7 5% 1/4W
R364 1-216-073-00 METAL CHIP 10K 5% 1/10W

– 50 –

MAIN POWER

Ref. No. Part No. Description Remark

R365 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R403 1-216-077-00 METAL CHIP 15K 5% 1/10W
R404 1-216-081-00 METAL CHIP 22K 5% 1/10W

(5800R)
R405 1-216-109-00 METAL CHIP 330K 5% 1/10W
R406 1-216-190-00 RES, CHIP 470 (3216)
R407 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R408 1-216-073-00 METAL CHIP 10K 5% 1/10W
R501 1-216-097-00 RES, CHIP 100K (2012)
R505 1-216-049-11 RES, CHIP 1K (2012)
R506 1-216-109-00 METAL CHIP 330K 5% 1/10W
R507 1-216-198-00 RES, CHIP 1K (3216)

R508 1-216-206-00 RES, CHIP 2.2K (3216)
R509 1-216-198-00 RES, CHIP 1K (3216)
R510 1-216-097-00 RES, CHIP 100K (2012)
R511 1-216-097-00 RES, CHIP 100K (2012)
R512 1-216-097-00 RES, CHIP 100K (2012)

R513 1-216-097-00 RES, CHIP 100K (2012)
R514 1-216-198-00 RES, CHIP 1K (3216)
R515 1-216-198-00 RES, CHIP 1K (3216)
R516 1-216-198-00 RES, CHIP 1K (3216)
R517 1-216-198-00 RES, CHIP 1K (3216)

R518 1-216-246-00 RES, CHIP 100K (3216)
R521 1-216-246-00 RES, CHIP 100K (3216)
R522 1-216-097-00 RES, CHIP 100K (2012)
R523 1-216-097-00 RES, CHIP 100K (2012)
R524 1-216-097-00 RES, CHIP 100K (2012)

Ref. No. Part No. Description Remark

R601 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R602 1-216-097-00 RES, CHIP 100K (2012)
R603 1-216-089-00 RES, CHIP 47K (2012)
R604 1-216-089-00 RES, CHIP 47K (2012)
R606 1-216-206-00 RES, CHIP 2.2K (3216)
R607 1-216-073-00 METAL CHIP 10K 5% 1/10W

R608 1-216-097-00 RES, CHIP 100K (2012)
R609 1-216-037-00 METAL CHIP 330 5% 1/10W
R610 1-216-073-00 METAL CHIP 10K 5% 1/10W
R612 1-216-025-00 RES, CHIP 100 (2012)
R613 1-216-025-00 RES, CHIP 100 (2012)

R614 1-208-806-11 RES, CHIP 10K
R615 1-208-806-11 RES, CHIP 10K
R616 1-216-295-11 SHORT (CHIP) 0
R617 1-216-025-00 RES, CHIP 100 (2012)
R618 1-208-806-11 RES, CHIP 10K

R619 1-208-806-11 RES, CHIP 10K
R620 1-216-025-00 RES, CHIP 100 (2012)
R621 1-216-025-00 RES, CHIP 100 (2012)
R624 1-249-383-11 CARBON 1.5 5% 1/6W
R625 1-249-383-11 CARBON 1.5 5% 1/6W

R626 1-249-383-11 CARBON 1.5 5% 1/6W
R627 1-249-383-11 CARBON 1.5 5% 1/6W
R660 1-216-198-00 RES, CHIP 1K (3216) (5800R)
R661 1-216-129-00 METAL CHIP 2.2M 5% 1/10W

(5800R)

R701 1-216-073-00 METAL CHIP 10K 5% 1/10W

R525 1-216-097-00 RES, CHIP 100K (2012)
R526 1-216-097-00 RES, CHIP 100K (2012)
R528 1-216-097-00 RES, CHIP 100K (2012)
R531 1-216-246-00 RES, CHIP 100K (3216)
R533 1-216-246-00 RES, CHIP 100K (3216) (5800R)

R534 1-216-246-00 RES, CHIP 100K (3216) (5790R)
R535 1-208-814-11 RES, CHIP 22K
R536 1-216-246-00 RES, CHIP 100K
R537 1-216-097-00 RES, CHIP 100K (2012) (German)
R538 1-216-246-00 RES, CHIP 100K (3216)

(AEP, UK, South European)

R539 1-208-806-11 RES, CHIP 10K
R540 1-216-097-00 RES, CHIP 100K (2012)
R544 1-216-049-11 RES, CHIP 1K (2012)
R545 1-216-097-00 RES, CHIP 100K (2012)
R546 1-216-097-00 RES, CHIP 100K (2012)

R548 1-216-222-00 RES, CHIP 10K (3216)
R549 1-216-222-00 RES, CHIP 10K (3216)
R551 1-249-429-11 CARBON 10K 5% 1/4W
R550 1-216-073-00 METAL CHIP 10K 5% 1/10W

(5800R)
R562 1-216-097-00 RES, CHIP 100K (2012)

R570 1-216-097-00 RES, CHIP 100K (2012)
R571 1-216-097-00 RES, CHIP 100K (2012)
R572 1-216-246-00 RES, CHIP 100K (3216)
R573 1-216-097-00 RES, CHIP 100K (2012)
R574 1-216-097-00 RES, CHIP 100K (2012)

R582 1-216-198-00 RES, CHIP 1K (3216)
R583 1-216-166-00 RES, CHIP 47 (3216)
R584 1-216-238-00 RES, CHIP 47K (3216)
R585 1-216-097-00 RES, CHIP 100K (2012)

R702 1-216-113-00 METAL CHIP 470K 5% 1/10W

< VARIABLE RESISTOR >

RV1 1-241-768-11 RES, ADJ, CARBON 220K

< SWITCH >

S601 1-692-431-21 SWITCH, TACTILE (RESET)

< TUNER UNIT >

TU1 1-693-373-11 TUNER UNIT (FM/AM TUNER UNIT)

< VIBRATOR >

X1 1-567-848-11 VIBRATOR, CRYSTAL (7.2MHz)
X2 1-579-242-41 VIBRATOR, CRYSTAL (4.332MHz)
X501 1-579-125-11 VIBRATOR, CERAMIC (8MHz)
X502 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)

************************************************************

* A-3309-740-A POWER BOARD, COMPLETE

***********************

(Included in MAIN BOARD, COMPLETE)

< CAPACITOR >

C801 1-126-157-11 ELECT 10uF 20% 16V
C802 1-126-157-11 ELECT 10uF 20% 16V
C803 1-126-157-11 ELECT 10uF 20% 16V
C804 1-124-589-11 ELECT 47uF 20% 16V
C805 1-136-165-00 FILM 0.1uF 5% 50V

C806 1-164-506-11 CERAMIC CHIP 4.7uF 16V
C811 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

– 51 –

POWER

Ref. No. Part No. Description Remark

C812 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C821 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C822 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V

< CONNECTOR >

CN801 1-778-985-11 PIN, CONNECTOR (ISO)
CN802 1-778-983-11 PIN, CONNECTOR (PC BOARD) 13P
CN803 1-778-983-11 PIN, CONNECTOR (PC BOARD) 13P

< DIODE >

D801 8-719-049-38 DIODE 1N5404TU
D813 8-719-970-02 DIODE 1SR139-400
D814 8-719-970-02 DIODE 1SR139-400
D815 8-719-970-02 DIODE 1SR139-400
D816 8-719-970-02 DIODE 1SR139-400

D823 8-719-970-02 DIODE 1SR139-400
D824 8-719-970-02 DIODE 1SR139-400
D825 8-719-970-02 DIODE 1SR139-400
D826 8-719-970-02 DIODE 1SR139-400

< IC >

IC801 8-759-490-48 IC HA13158

< SHORT CHIP >

Ref. No. Part No. Description Remark

**************

HARDWARE LIST

**************

#1 7-621-772-10 SCREW +B 2X4
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-685-792-09 SCREW +PTT 2.6X6 (S)
#5 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
#6 7-624-104-04 STOP RING 2.0, TYPE-E

#7 7-627-553-17 PRECISION SCREW +P 2X2 TYPE 3

************************************************************

ACCESSORIES & PACKING MATERIALS

********************************

1-473-067-71 REMOTE COMMANDER (RM-X4S)

(5800R: AEP, UK, South European)

3-861-508-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH,

SWEDISH, PORTUGUESE) (5800R: AEP, UK)

3-861-508-21 MANUAL, INSTRUCTION (FRENCH, GERMAN,

DUTCH, ITALIAN) (5800R: AEP)

3-861-508-31 MANUAL, INSTRUCTION

(CZECH, GREEK, POLISH, TURKISH, ENGLISH)

(5800R: South European)

3-861-508-41 MANUAL, INSTRUCTION (GERMAN)

(5800R: German)

JC801 1-216-296-00 SHORT (CHIP) 0

< COIL >

L801 1-416-046-11 COIL, CHOKE 400uH

< RESISTOR >

R801 1-216-198-00 RES, CHIP 1K (3216)
R802 1-216-198-00 RES, CHIP 1K (3216)
R803 1-216-049-11 RES, CHIP 1K (2012)
R804 1-216-049-11 RES, CHIP 1K (2012)
R811 1-216-296-00 SHORT (CHIP) 0

R812 1-216-296-00 SHORT (CHIP) 0
R813 1-216-296-00 SHORT (CHIP) 0
R814 1-216-296-00 SHORT (CHIP) 0
R821 1-216-296-00 SHORT (CHIP) 0
R822 1-216-296-00 SHORT (CHIP) 0

R823 1-216-296-00 SHORT (CHIP) 0
R824 1-216-296-00 SHORT (CHIP) 0

< SWITCH >

S801 1-571-478-11 SWITCH, SLIDE (POWER SELECT)

************************************************************

MISCELLANEOUS

***************

3-861-509-11 MANUAL, INSTRUCTION, INSTALL

(ENGLISH, SPANISH, SWEDISH, PORTUGUESE)

(5800R: AEP, UK)

3-861-509-21 MANUAL, INSTRUCTION, INSTALL

(FRENCH, GERMAN, DUTCH, ITALIAN)

(5800R: AEP, German)

3-861-509-31 MANUAL, INSTRUCTION, INSTALL

(CZECH, GREEK, POLISH, TURKISH, ENGLISH)

(5800R: South European)

3-861-512-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH,

SWEDISH, PORTUGUESE) (5790R: AEP, UK)

3-861-512-21 MANUAL, INSTRUCTION (FRENCH, GERMAN,

DUTCH, ITALIAN)(5790R: AEP)

3-861-512-41 MANUAL, INSTRUCTION (GERMAN)

(5790R: German)

3-861-513-11 MANUAL, INSTRUCTION, INSTALL

(ENGLISH, SPANISH, SWEDISH, PORTUGUESE)

(5790R: AEP, UK)

3-861-513-21 MANUAL, INSTRUCTION, INSTALL

(FRENCH, GERMAN, DUTCH, ITALIAN)

(5790R: AEP, German)

3-861-513-31 MANUAL, INSTRUCTION, INSTALL

(CZECH, GREEK, POLISH, TURKISH, ENGLISH)

(5800R: South European)

3-861-973-11 MANUAL, INSTRUCTION, INSTALL

(for RM-X4S) (ENGLISH, FRENCH, GERMAN,

SPANISH, DUTCH, SWEDISH, ITALIAN,

PORTUGUESE, POLISH, CZECH, GREEK,

TURKISH)) (5800R: AEP, UK, South European)

9 1-777-989-31 CORD (WITH CONNECTOR) (ATT) (5800R)
16 1-782-092-11 CORD (WITH CONNECTOR) (ISO-P) (POWER)
17 1-782-093-11 CORD (WITH CONNECTOR) (ISO-S)

(SPEAKER)
F801 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
HP901 1-500-196-21 HEAD, MAGNETIC (PLAYBACK)

M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)

************************************************************

– 52 –

3-921-278-01 LABEL (DSPL) (for RM-X4S)

(5800R: AEP, UK, South European)

X-3373-412-1 CASE (PANEL) ASSY (for FRONT PANEL)

Ref. No. Part No. Description Remark

PARTS FOR INSTALLATION AND CONNECTIONS

**************************************

501 3-916-161-31 FRAME ASSY
502 X-3370-077-1 SCREW ASSY (AE. KEY), FITTING
503 1-777-989-31 CORD (WITH CONNECTOR) (ATT) (5800R)
504 1-782-093-11 CORD (WITH CONNECTOR) (ISO-S)

505 1-782-092-11 CORD (WITH CONNECTOR) (ISO-P) (POWER)

(SPEAKER)

506 X-3373-432-1 BRACKET ASSY (for RM-X4S)

507 1-465-459-21 ADAPTER, ANTENNA

(5800R: AEP, UK, South European)

501 502

503 504 505

XR-5800R: AEP, UK, South European

506

507

– 53 –

XR-5790R/5800R

Sony Corporation

Personal & Mobile Communication Company9-925-675-11

– 54 –

Published by Quality Assurance Dept.

Printed in Japan © 1997. 12

97L0542-1
