Installation Information for Using Sony Wall-Mount Bracket (SU-WL855)
Supported models*:
* In the actual model names, the “x”/“xx” indicates numbers and/or characters specific to each
model.
XR-77A8xK / 77A8xCK / 65A8xK / 65A8xCK / 55A8xK / 55A8xCK
To Customers For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors Provide full attention to safety during the installation, periodic maintenance and examination of this product.
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
For Safety and proper installation, follow the Wall-Mount Bracket Operation Instructions, TV Setup Guide and the directions in this manual.
− 2 (US) −
Wall-Mount Bracket
On Safety
Thank you for purchasing this product.
To Customers
Installing the TV to the Wall
WARNING
PROFESSIONAL INSTALLATION REQUIRED
This product should only be installed by a professional installer who is trained to determine the strength of the wall for withstanding the TV’s weight. If it is not properly secured during installation, the TV may fall and cause serious injury. Sony is not liable for any damage or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.
To Sony Dealers
Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.
This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. It is your responsibility to read, thoroughly understand, and follow all instructions in this instruction manual. Failure to do so may result in serious personal injury or property damage, and may void the warranty. Keep this manual available for future reference.
Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.
CAUTION
Specified products
This Wall-Mount Bracket is designed for use with the products specified TVs. For TVs, refer to their Reference Guide to verify that the Wall-Mount Bracket can be used.
To Customers
WARNING
If the following precautions are not observed, serious injury or death through fire, electric shock, or the product dropping can result.
Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.
If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.
The TV may fall and cause a serious injury

such as a bruise or a fracture. If the wall on which the Wall-Mount

Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least six times the TV weight. (Refer to your TV’s Reference Guide for its weight.) If the installation of the Wall-Mount

Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.
Be sure to subcontract moving or dismounting of the TV to licensed contractors.
If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Two or more persons (three or more persons for
189.3 cm (75 inches) and above TV) are needed to transport a large TV set.
Do not remove screws, etc., after mounting the TV.
If you do so, the TV may fall and cause injury or property damage.
Do not make alterations to the parts of the Wall­Mount Bracket.
If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.
Do not mount any equipment other than the specified product.
This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.
Do not apply any load other than the TV on the Wall-Mount Bracket. Do not shake the TV left/ right, up/down.
If you do so, the TV may fall and cause injury or property damage.
Do not lean on or hang from the TV.
Do not lean on or hang from the TV as it may fall on you and cause serious injury.
CAUTION
If the following precautions are not observed, injury or property damage may occur.
Be careful to not pinch your fingers while

handling the Wall-Mount Bracket or swiveling the TV set. While swiveling the TV set, handle it with

caution and take care not to hit any people nearby. Be sure to store the unused parts in a safe

place for future use. Keep them away from children.
Do not handle the product with excessive force during cleaning or maintenance.
Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.
Do not place this product close to medical devices.
This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.
Keep out of the reach of children or the supervised individuals.
This product (including accessories) has magnet(s). Swallowing magnet(s) could cause serious harm, such as choking hazard or intestinal injuries. If magnets (or a magnet) were swallowed, consult a doctor immediately.
US
− 3 (US) −
Notice
If you use the TV installed on the

Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall. If the Wall-Mount Bracket is removed after

installing it on the wall, the screw holes are left. Do not use the Wall-Mount Bracket in a

place where it is subjected to mechanical vibrations.
Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.
If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using supplied screws and anchors.
Be sure to tighten the screws securely in the designated position.
If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.
Be careful not to subject the TV to shock during installation.
If the TV is exposed to shock, it may fall or break apart. This may cause injury.
Installing the Wall­Mount Bracket
To Sony Dealers
WARNING
The following instructions are for Sony dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product.
Do not install the Wall­Mount Bracket on wall surfaces where the corners or the sides of the TV protrude away from the wall surface.
Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.
Do not install the TV over or under an air­conditioner.
If the TV is exposed to water leaks or air current from an air conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV.
Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.
Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.
If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.
Be sure to install the TV on a wall that is both perpendicular and flat.
If you fail to do so, the TV may fall and cause injury.
After proper installation of the TV, secure the cables properly.
If people or objects get tangled with cables, this may result in injury or damage to the TV.
Do not allow the AC power cord or the connecting cable to be pinched.
If the AC power cord or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.
− 4 (US) −
Before Getting Started
The TV illustrations shown in this manual are examples used to provide clear explanations of

the operations. For this reason, the illustrations may appear different from your actual TV.

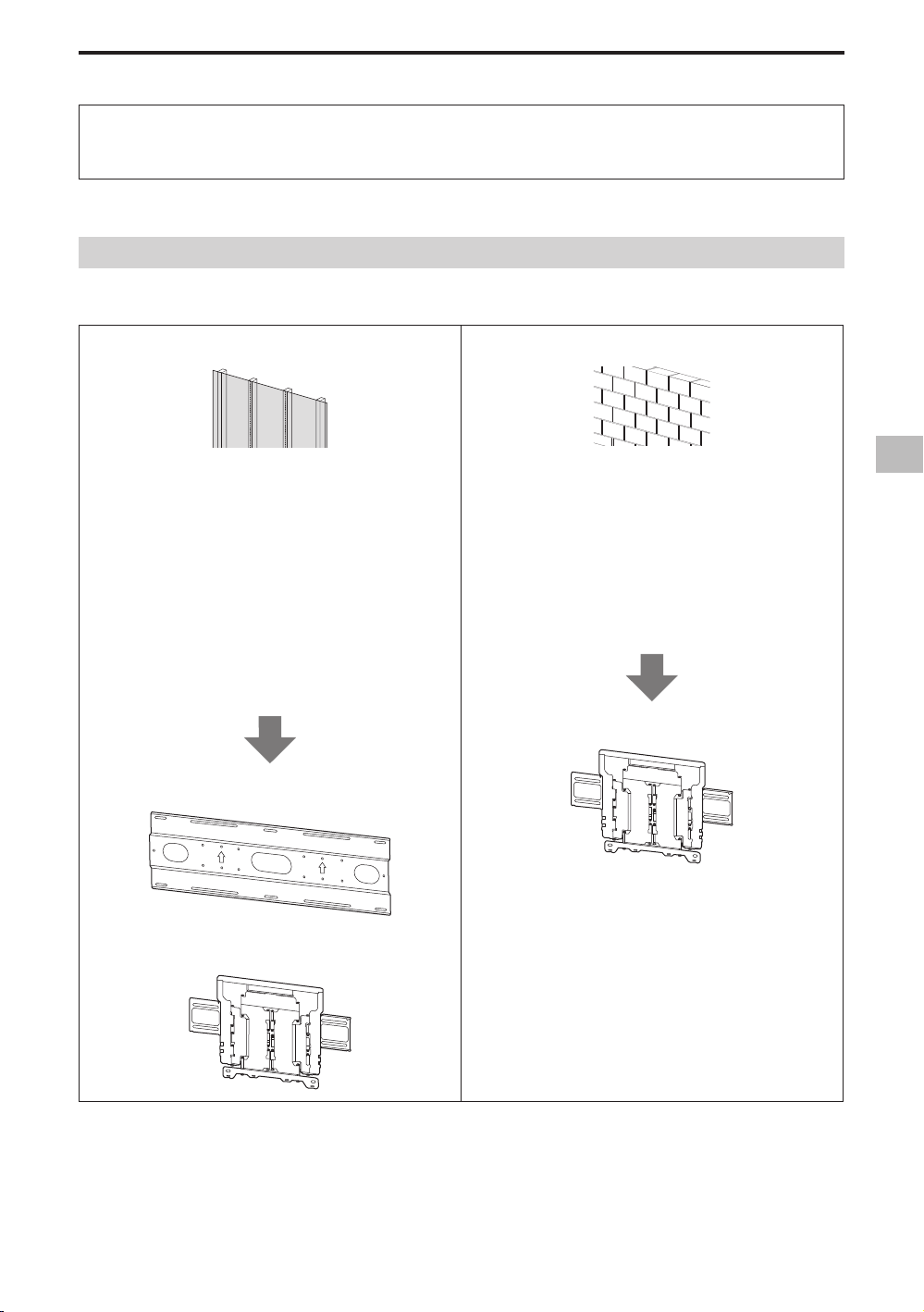

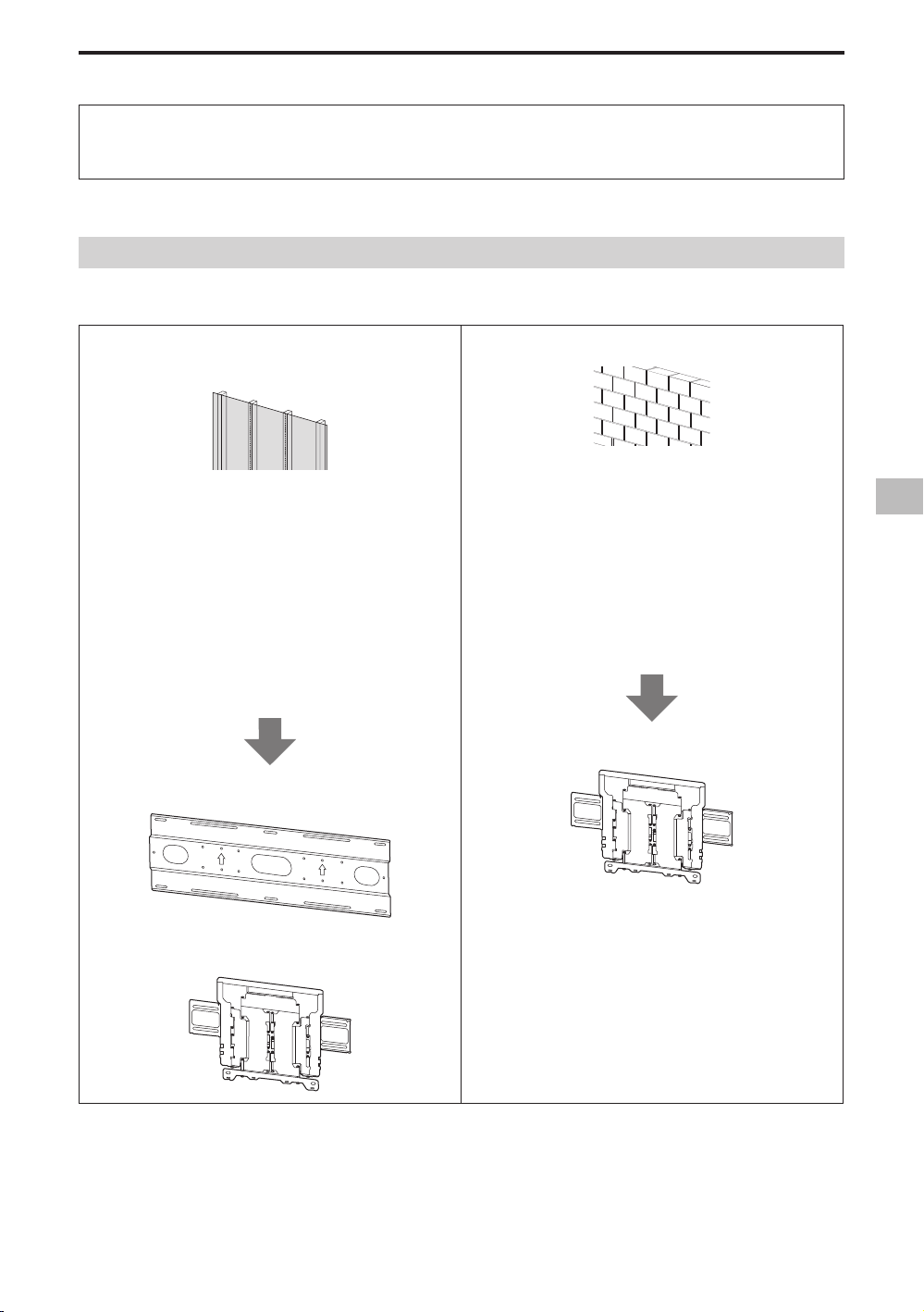

What Is Your Wall Made Of?
Firstly, check the type of the wall to install the TV. The Wall-Mount Bracket differs depending on the type of the wall.
Dry wall with studs
Precautions
Maximum dry wall thickness:

16mm (21/32inch). Ensure that the inner wood stud size is at

least 51mm × 102mm (21/8inch × 41/8inch) for common or 38mm × 89mm (11/2inch × 35/8inch) for nominal. Keep minimum 406mm (16inch) horizontal

space between fasteners.
Use the Lateral Shift Bracket.
Solid concrete or concrete block
Precautions
Mount the Wall-Mount Bracket directly onto

the solid concrete wall. Ensure that the thickness of solid concrete

wall is at least 203mm (8inch). Ensure that the size of each concrete block is

at least 203mm × 203mm × 406mm (8inch × 8inch × 16inch).
Use the Wall-Mount Bracket.
US
+
− 5 (US) −

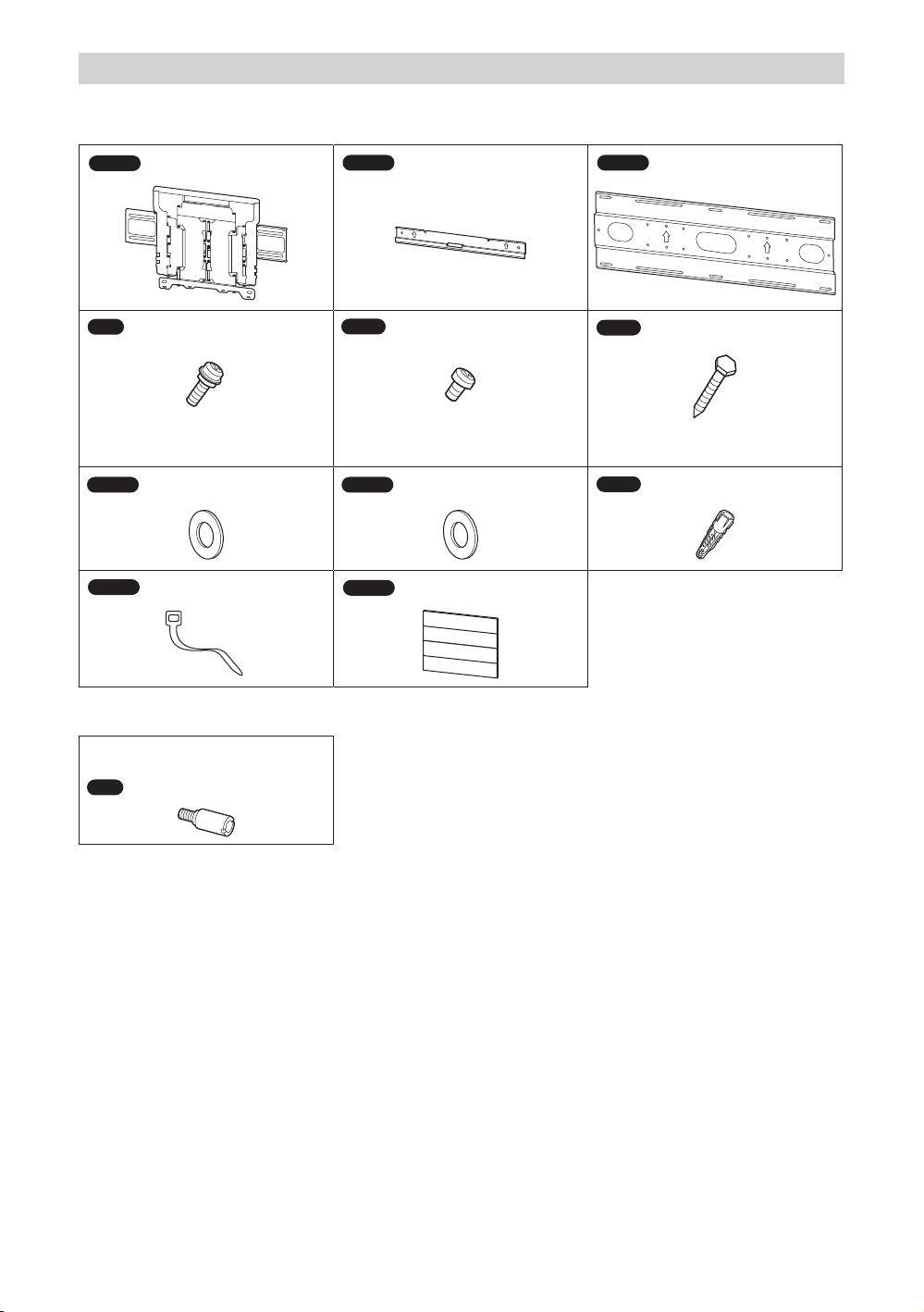

Checking the Parts
WS1
VS
Supplied with SU-WL855
Verify that all the parts are included.

WM1
M6
WW1
WT1
(×4)
(×1)
(×6)
(×6)
(×1)
WM2
(×4)
8mm × 12mm
(11/32inch × 1/2inch)
WW2
(×4)
(×4)
WM3
(×1)
WM4
(×6)
WS2
8mm × 60mm
(11/32inch × 23/8inch)
WA1
(×4)
Supplied with the TV
Wall-Mount Attachment
(×4)*
* Only for limited region/country/model.
− 6 (US) −
Preparing for Installation
Have the TV’s Reference Guide and Setup Guide at hand before installation.

Confirm the installing position of your TV.


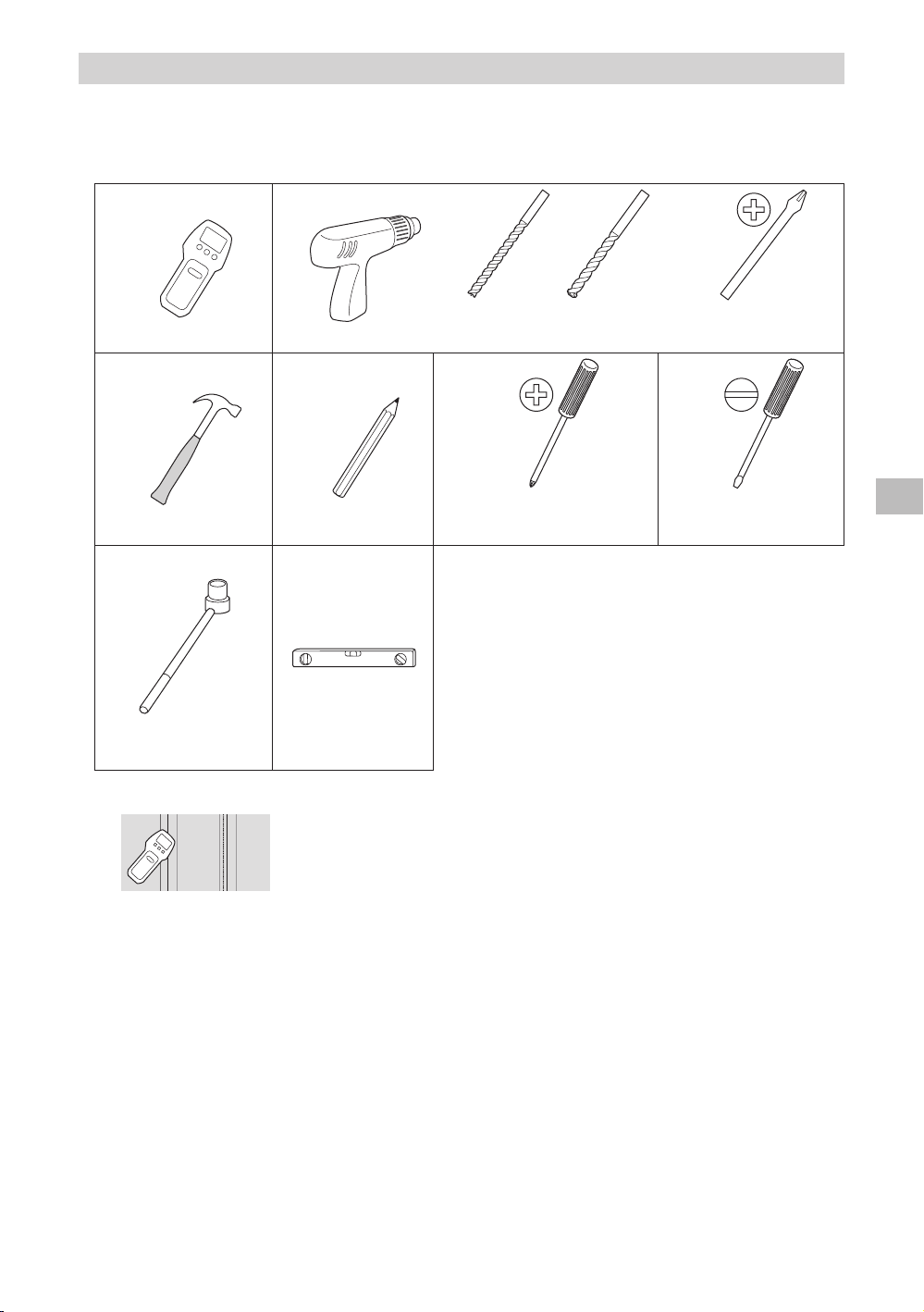

Prepare the following tools:

*1
5.5mm
(7/32inch)
10mm
(13/32inch)
*2 *3
1.5N.m/1,5N.m {15kgf.cm}
13mm (1/2inch)
12.5N.m/12,5N.m {130kgf.cm}
*1 Only for dry wall with studs
US
1.5N.m/1,5N.m {15kgf.cm}
*2 Only for solid concrete or concrete block *3 Depending on models
− 7 (US) −
Attaching the Wall-Mount
× 2
Bracket to the Dry Wall with Studs
WM4
We recommend you to check the position of TV in

the viewing environment.
2
WM1

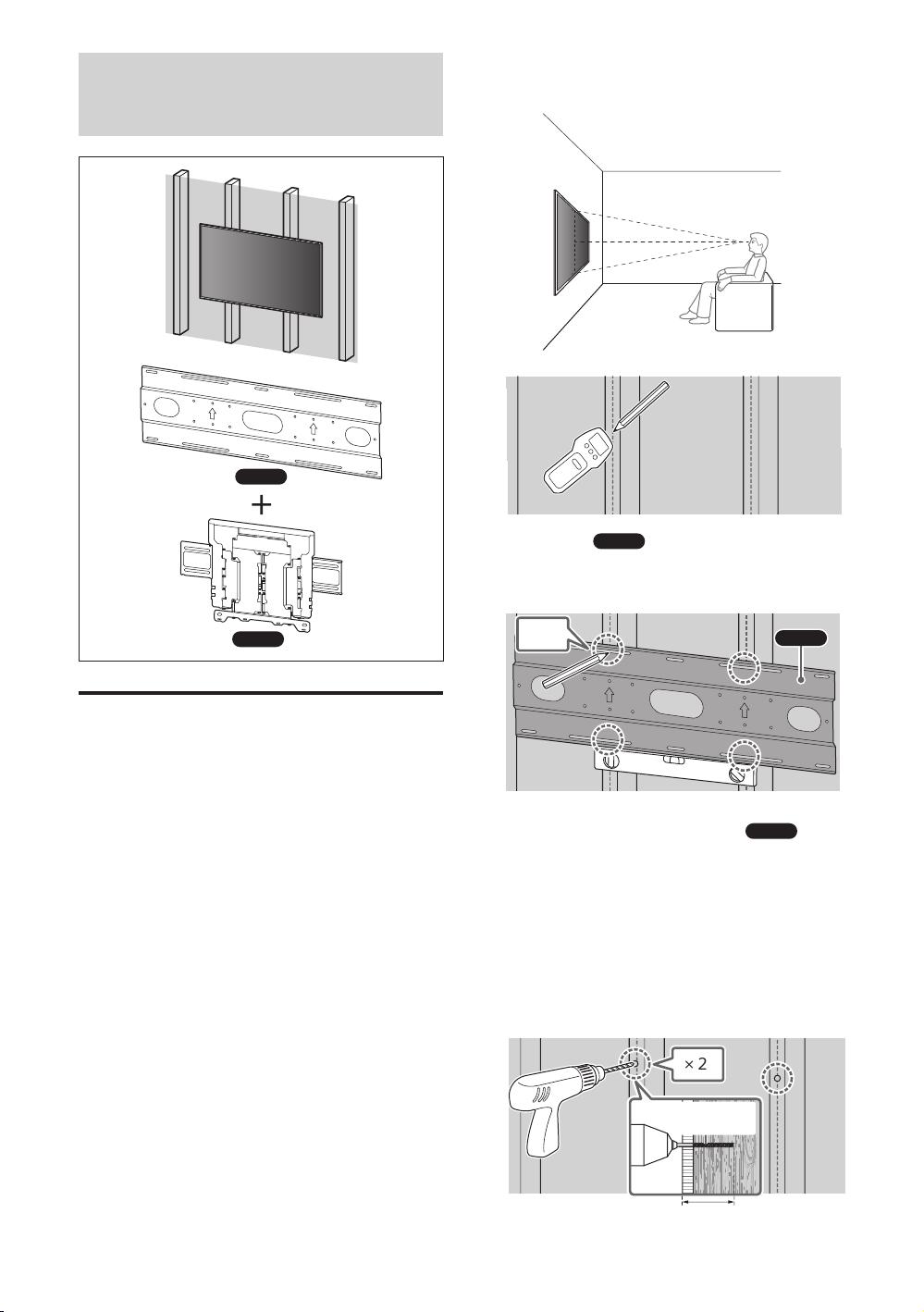

Installing the Lateral Shift Bracket to the Wall
1 Decide on the installation
location.
Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least six times that of the TV.
• Refer “Measurement for Lateral Shift Bracket installation on the wall” on page
20.
• Refer to your TV’s Reference Guide for the TV’s weight.
Note
When your TV is installed on the wall, the upper

side of the TV slightly leans forward.
3 Align
WM4
to the wall and make four marks aligned with the studs.
× 4
Note
Use a level to check whether

WM4
WM4
is level.

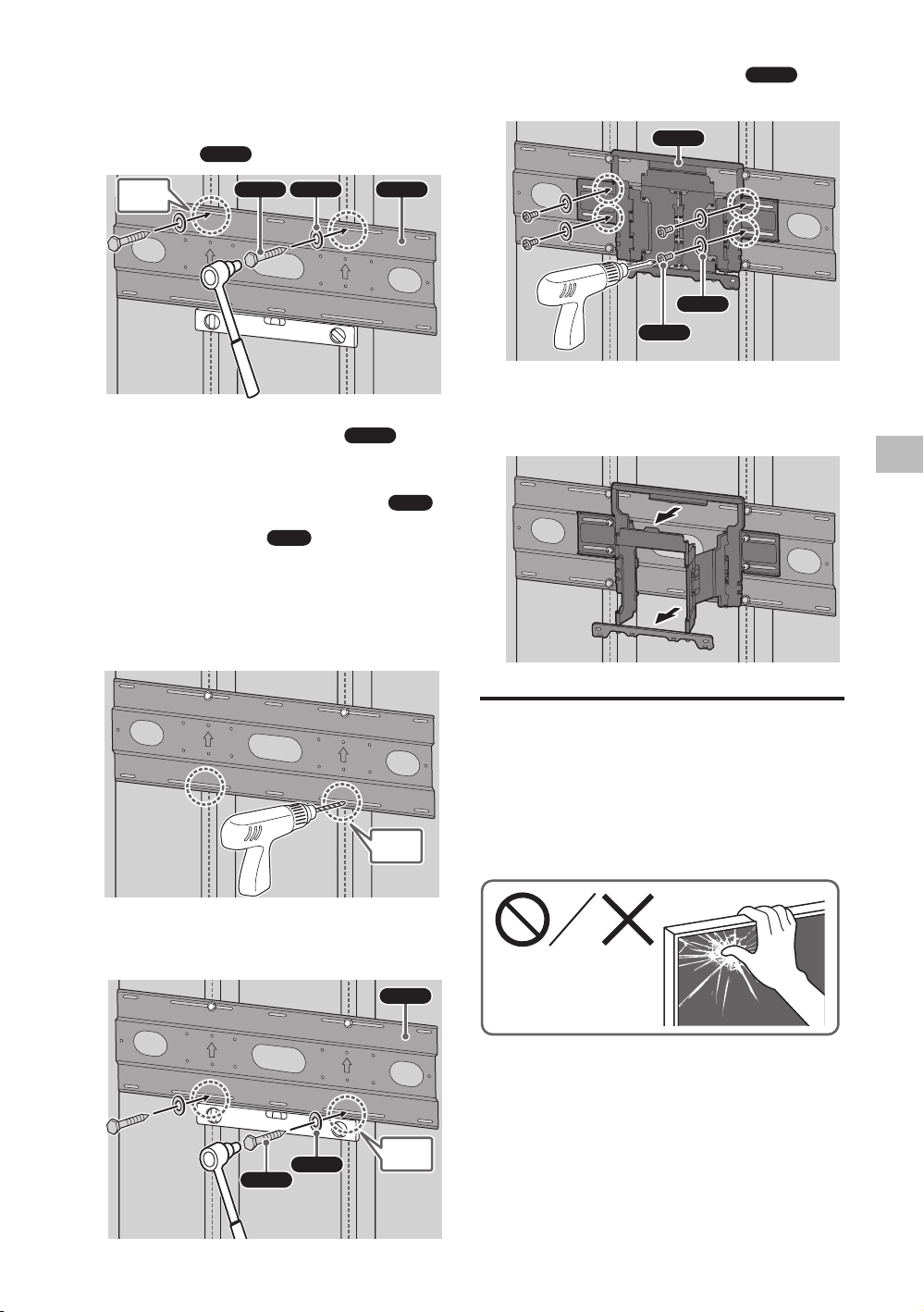

4 Drill upper pilot holes on the
marks.
Make sure the location on the wall to drill the holes are strong enough to support a weight of at least six times that of the TV.
5.5mm (7/32inch)
75mm (3inch)
− 8 (US) −
Note
Pilot holes must be drilled to a depth of 75mm

(3inch), using a 5.5mm (7/32inch) diameter drill bit.
5 Install
WM4
on the wall.
Note
Use a level to check whether

8
WM1
WM4
is level.
× 2
Note
Use a level to check whether

Precaution
Do not over-tighten the lag bolts

tightening could reduce the holding power of the lag bolts
WS2
.
WW1WS2 WM4
WM4
is level.
. Improper
WS2
6 Drill lower pilot holes on the
marks. (Refer step 4 for the drill instruction.)
WW2
WS1
9 Pull out the arm of the bracket to
the end.
Preparing for the Installation of the TV
US
× 2
7 Fit the screws and spacers to the
holes.
WM4
WW1
WS2
× 2
− 9 (US) −
Note
Be sure to store the removed screws and unused parts

in a safe place, keeping them away from children.

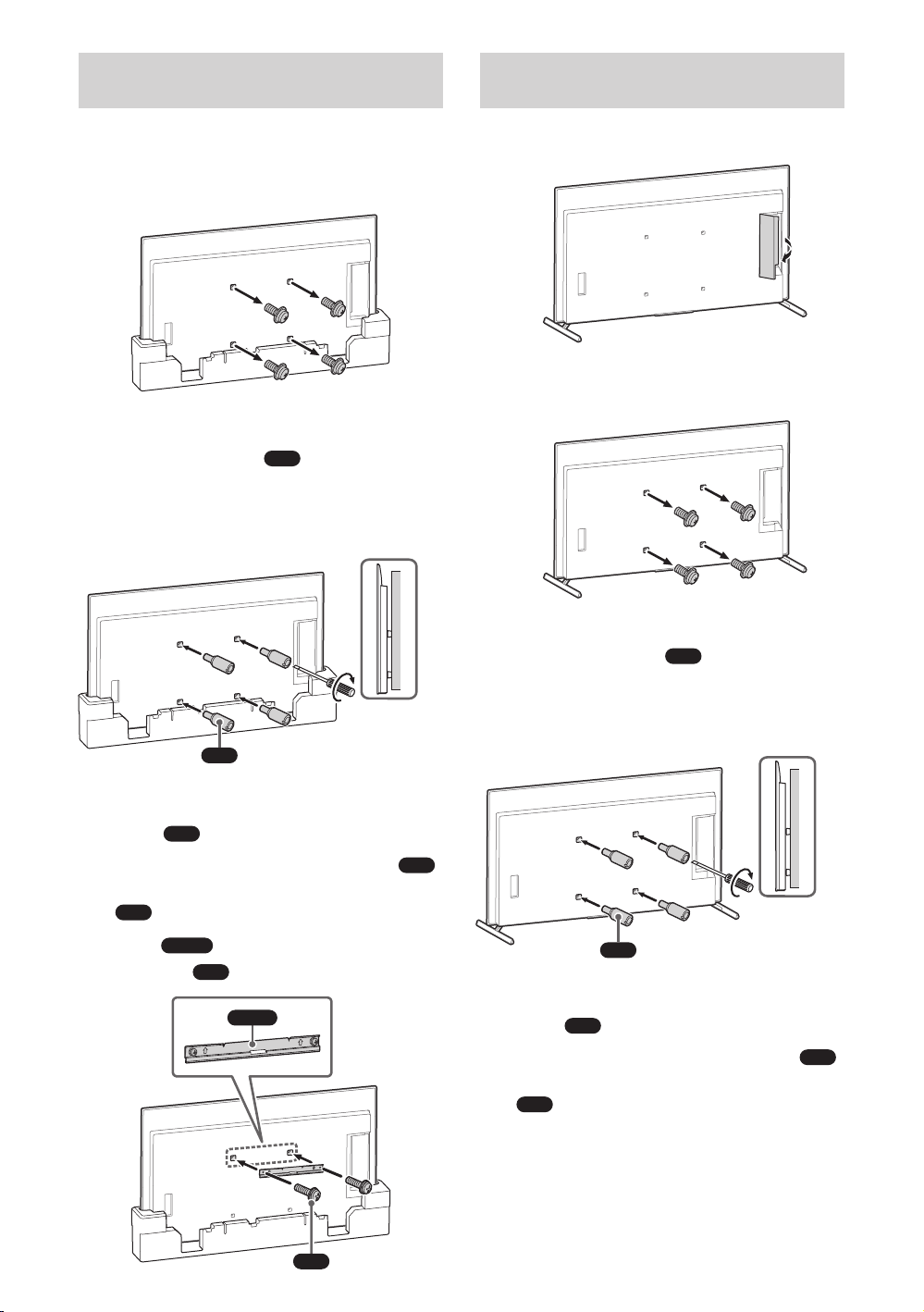

Installing the TV to the Wall from
VS
VS
VS
VS
VS
VS
VS
Carton
Installing the TV to the Wall from Table-Top Stand
(except XR-55A8xK / 55A8xCK)
1 Remove the screws from the rear
of the TV.
2 Attach the Wall-Mount
Attachment VS (supplied with the TV) to the rear of the TV (to make it parallel with the wall).
1.5 N·m/1,5 N·m {15 kgf·cm}
VS
1 Remove the terminal cover.
2 Remove the screws from the rear
of the TV.
3 Attach the Wall-Mount
Attachment the TV) to the rear of the TV (to make it parallel with the wall).
(supplied with
Note
Be sure to fasten the Wall-Mount Attachment

when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment in over torqueing the Wall-Mount Attachment
and damaging the TV.
3 Attach the
M6
.
. Use of another tool might result
WM2
to the TV using
WM2
M6
− 10 (US) −
1.5 N·m/1,5 N·m {15 kgf·cm}
VS
Note
Be sure to fasten the Wall-Mount Attachment

when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment in over torqueing the Wall-Mount Attachment
and damaging the TV.
. Use of another tool might result
4 Attach the
M6
.
WM2
to the TV using
WM2
M6
5 Detach the Table-Top Stand from
the TV.
Remove one side of the Table-Top Stand

at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.
Note
Three or more people are required to detach the

Table-Top Stand. Be careful not to use excessive force while

detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV. Take care when handling the Table-Top Stand to

prevent damage to the TV. Be careful when lifting the TV as the Table-Top

Stand is detached, the Table-Top Stand may topple over and cause personal injury. Take care when removing the Table-Top Stand from

the TV to prevent it from falling over and damaging the surface that the TV is sitting on.
Installing the TV on the Wall
US
Repeat the previous step and remove the

other side of the Table-Top Stand.
1
− 11 (US) −
2
3 Screw the left and right side of
the Wall-Mount Bracket using
M6
and attach
Note
Do not attach

WM3
WM3
.
on the labels.
M6
4
M6
WM3
5 When moving the TV, hold it
− 12 (US) −
firmly from the bottom.
Note
The TV may not move near close to the wall

depending on the type and number of cables attached. This is not a malfunction.
6
WARNING
Two or more persons (three or more persons for

189.3 cm (75 inches) and above TV) are needed to transport a large TV set.
Attaching the Wall-Mount Bracket to the Solid Concrete or Concrete Block
US
WM1
Installing the Wall-Mount Bracket to the Wall
Confirming the Completion of the Installation
Check the following points.
The cord and the cable are not twisted or

pinched.
WARNING
Improper placement of the AC power cord, etc. may

cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.
Other Information
When removing the TV, reverse the previous installation procedure.
WARNING
Two or more persons (three or more persons for

189.3 cm (75 inches) and above TV) are needed to transport a large TV set.
1 Decide on the installation
location.
Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least six times that of the TV.
• Refer “Measurement for Wall-Mount Bracket installation on the wall” on page
21.
• Refer to your TV’s Reference Guide for the TV’s weight.
Note
When your TV is installed on the wall, the upper

side of the TV slightly leans forward. We recommend you to check the position of TV in

the viewing environment.
− 13 (US) −
WS2
WW1
WM1
2 Align
four marks.
× 4
WM1
to the wall and make
WM1
5 Install
WM1
on the wall.
Note
Use a level to check whether

WM1
is level.
3 Drill pilot holes on the marks.
Make sure the location on the wall to drill the holes are strong enough to support a weight of at least six times that of the TV.
× 4
10mm (13/32inch)
75mm (3inch)
Note
Pilot holes must be drilled to a depth of 75mm

(3inch), using a 10mm (13/32inch) diameter drill bit.
4
Note
Use a level to check whether

Precaution
Do not over-tighten the lag bolts

tightening could reduce the holding power of the lag bolts
WS2
.
WM1
WS2
is level.
. Improper
6 Pull out the arm of the bracket to
the end.
Preparing for the Installation of the TV
Note
Be sure to store the removed screws and unused parts

in a safe place, keeping them away from children.
WA1
− 14 (US) −
Installing the TV to the Wall from
VS
VS
VS
VS
VS
VS
Carton
Installing the TV to the Wall from Table-Top Stand
(except XR-55A8xK / 55A8xCK)
1 Remove the screws from the rear
of the TV.
2 Attach the Wall-Mount
Attachment VS (supplied with the TV) to the rear of the TV (to make it parallel with the wall).
1.5 N·m/1,5 N·m {15 kgf·cm}
VS
1 Remove the terminal cover.
2 Remove the screws from the rear
of the TV.
3 Attach the Wall-Mount
Attachment VS (supplied with the TV) to the rear of the TV (to make it parallel with the wall).
US
Note
Be sure to fasten the Wall-Mount Attachment

when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment in over torqueing the Wall-Mount Attachment
and damaging the TV.
3 Attach the
M6
.
. Use of another tool might result
WM2
to the TV using
WM2
M6
− 15 (US) −
1.5 N·m/1,5 N·m {15 kgf·cm}
VS
Note
Be sure to fasten the Wall-Mount Attachment

when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment in over torqueing the Wall-Mount Attachment
and damaging the TV.
. Use of another tool might result
4 Attach the
M6
.
WM2
to the TV using
WM2
M6
5 Detach the Table-Top Stand from
the TV.
Remove one side of the Table-Top Stand

at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.
Note
Three or more people are required to detach the

Table-Top Stand. Be careful not to use excessive force while

detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV. Take care when handling the Table-Top Stand to

prevent damage to the TV. Be careful when lifting the TV as the Table-Top

Stand is detached, the Table-Top Stand may topple over and cause personal injury. Take care when removing the Table-Top Stand from

the TV to prevent it from falling over and damaging the surface that the TV is sitting on.
Installing the TV on the Wall
Repeat the previous step and remove the

other side of the Table-Top Stand.
1
− 16 (US) −
2
3 Screw the left and right side of
the Wall-Mount Bracket using
M6
and attach
Note
Do not attach

WM3
M6
WM3
.
on the labels.
WM3
M6
4
5 When moving the TV, hold it
firmly from the bottom.
US
− 17 (US) −
Note
The TV may not move near close to the wall

depending on the type and number of cables attached. This is not a malfunction.
6
WARNING
Two or more persons (three or more persons for

189.3 cm (75 inches) and above TV) are needed to transport a large TV set.
Confirming the Completion of the Installation
Check the following points.
The cord and the cable are not twisted or

pinched.
WARNING
Improper placement of the AC power cord, etc. may

cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.
Other Information
When removing the TV, reverse the previous installation procedure.
WARNING
Two or more persons (three or more persons for

189.3 cm (75 inches) and above TV) are needed to transport a large TV set.
− 18 (US) −
Specifications
WM4
b c
WM1
a
d
h
i
j
k
e
g
f
l

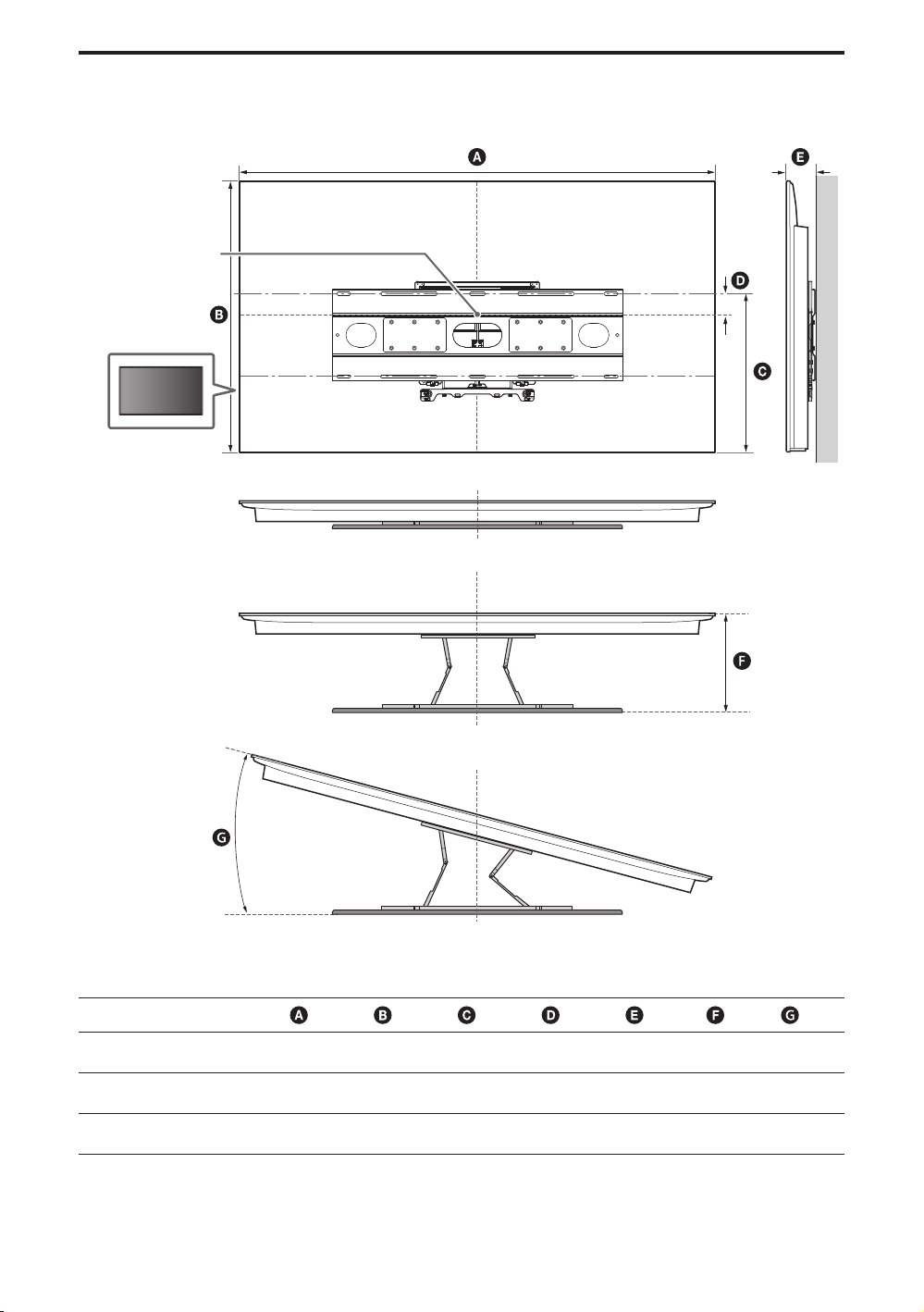

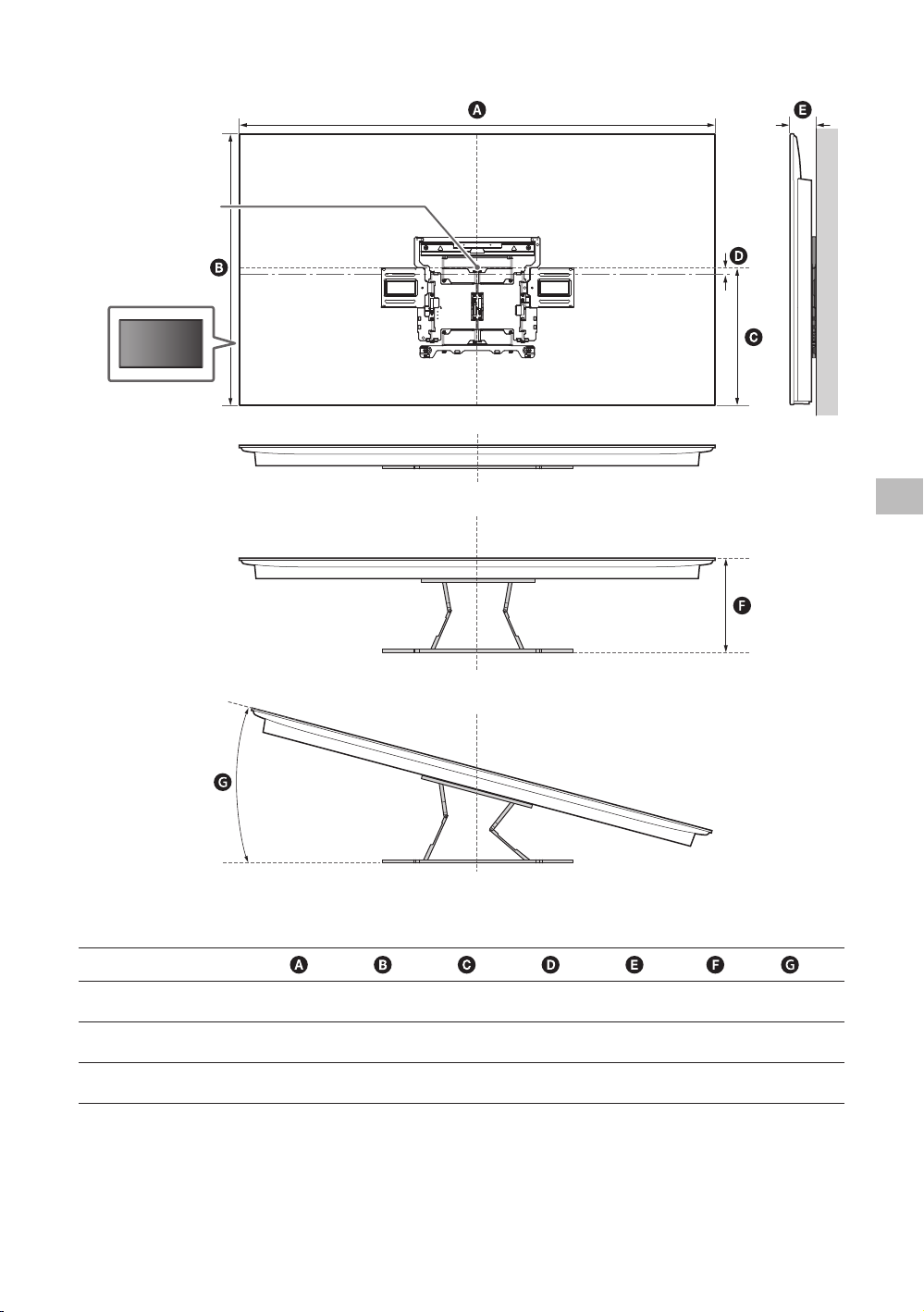

Dimensions: (Approx.) (mm (inch))
a : 860 (33 7/8) h : 563 (22 1/4) b : 272 (10 3/4) i : 533 (21) c : 245 (9 3/4) j : 370 (14 5/8) d : 11 (7/16) k : 368 (14 1/2) e : 354 (14) l : 350 (13 7/8) f : 116 (4 5/8) m : 11 (7/16) g : 77 (3 1/8)
Mass (base only): (Approx.) (kg (lb.))
WM4
4.2 (9.3)
WM1
3.0 (6.6)
US
m
Design and specifications are subject to change without notice.
− 19 (US) −
Loading...
+ 42 hidden pages
