4. Metal Washer (Flat) or Coin (for remove Rear Cover)
5. Ruler (for remove Rear Cover)
6. Service Manual (Unique) (for remove & replace details)
2 OPTIONAL EQUIPMENT
1. Screwdriver (e.g. #0 Phillips Screwdriver)
2. Parts Tray for loose screws and small items
TOOLS & EQUIPMENT
Thickness: approx. 1.5mm
Diameter: 20~25mm
(wrap in tape (L=50mm))
2. Flashlight
3. Service Manual (Common) (for t/shooting information)
For Surface Mounted Parts/Connectors:
Hot-Air Type soldering Iron is needed.
Plastic or Metal Ruler
(In case of Metal ruler, wrap in tape
(L=50mm) for prevent scratches)
3
DISSASSEMBLY AND REMOVAL CAUTION 55”
4
XR-55A8*J
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•and shaded parts are critical for safety. Replace only with part number specified.
•Parts contain confidential inform ation. Strictly follow the instruction whenever the components are repaired and/or replaced
1-4 EXP LODE D VIEW
AND PART LIS T
19
6
4
5
20
9
11
13
12
18
14
25
21
17
16
(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassem bly. Unplug connectors before disassembly
*
Only on limited region / country / TV model
4-745-336-01 SLIDE, CLAMP(MINI)
22
10
26
24
5-009-031-02 CLAMPER,CABLE
2
S(BNN)
2-650-770-21 SLIDE, CLAMP
23
Stand
8
7
28
27
3
15
1
3
5

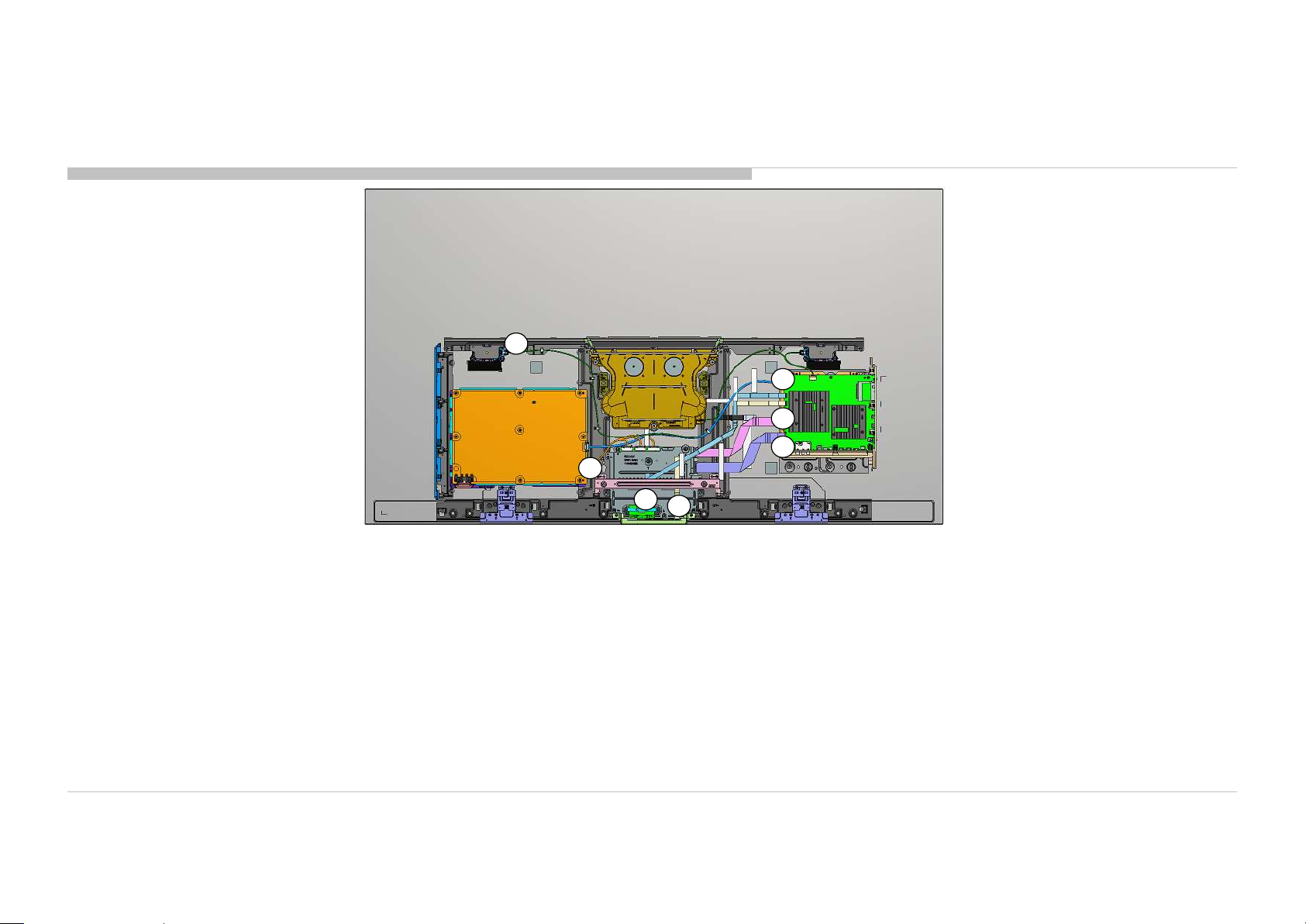

HARNESS/CABLES 55”
4
3
1
2
5
6
7
REF. NOPART NO.DESCRIPTIONREMARKS
1
2
3
4
5
6
7
1-010-633-11
1-010-635-11
1-010-577-11
1-010-578-11
1-010-579-11
1-010-629-11
1-010-631-11
FLEXIBLE FLAT CABLE 41PCN6801(B)-CN7(TCON)(1)
FLEXIBLE FLAT CABLE 51PCN6800(B)-CN5(TCON)(1)
CONNECTOR ASSY 20PCN6401(PSU)-CN1700(B)(1)
CONNECTOR ASSY 6PCN6613(B)-SP(1)
CONNECTOR ASSY 28P
CN6601(PSU)-CN8(TCON)CN6(TCON)(1)
FLEXIBLE FLAT CABLE 20PCN3803(B)-BT(1)
FLEXIBLE FLAT CABLE 25PCN1200(B)-CN102(H)(1)
6
PART LIST 55”
REF. NOPART NO.DESCRIPTION
14A-5026-262-A
14
191-010-549-11G11B - STATIC CONVERTER(TV)
26
A-5026-263-A
A-5026-952-A
1-912-832-11
1-002-007-11
1-001-115-12
COMPL SVC BM5S21_AT_EUUK
COMPL SVC BM5S21_AT_EUUK_DERI
P-MOD (YDBO055UNG01)(SVC)
POWER-SUPPLY CORD SET(EU)
C17 AC CORD SET(SWISS)
POWER-SUPPLY CORD SET(UK)
REMARKS
CEI, CEP
CEI, CEP
UKA
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Internal Power Supply
OLED
Cable
7
DISSASSEMBLY AND REMOVAL CAUTION 65”
8
XR-65A8*J
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•and shaded parts are critical for safety. Replace only with part number specified.
•Parts contain confidential inform ation. Strictly follow the instruction whenever the components are repaired and/or replaced
2-4 EXP LODE D VIEW
AND PART LIS T
20
19
6
4
3
11
5
21
9
13
12
18
14
26
22
10
17
8
16
(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassem bly. Unplug connectors before disassembly
*
Only on limited region / country / TV model
4-745-336-01 SLIDE, CLAMP(MINI)
23
27
25
5-009-031-02 CLAMPER,CABLE
2-650-770-21 SLIDE, CLAMP
24
S(BNN)
2
Stand
29
28
7
15
1
3
9
HARNESS /CABLES 65”
4
3
1
5
6
7
REF. NOPART NO.DESCRIPTIONREMARKS
2
1
2
3
4
5
6
7
1-010-633-11
1-010-635-11
1-010-577-11
1-010-578-11
1-010-579-11
1-010-629-11
1-010-631-11
FLEXIBLE FLAT CABLE 41PCN6801(B)-CN7(TCON)(1)
FLEXIBLE FLAT CABLE 51PCN6800(B)-CN5(TCON)(1)
CONNECTOR ASSY 20PCN6401(PSU)-CN1700(B)(1)
CONNECTOR ASSY 6PCN6613(B)-SP(1)
CONNECTOR ASSY 28P
CN6601(PSU)-CN8(TCON)CN6(TCON)(1)
FLEXIBLE FLAT CABLE 20PCN3803(B)-BT(1)
FLEXIBLE FLAT CABLE 25PCN1200(B)-CN102(H)(1)
10
PART LIST 65”
REF. NOPART NO.DESCRIPTION
14A-5026-262-A
14
20
27A-5026-953-A
A-5026-263-A
1-010-550-11
1-912-832-11
1-002-007-11
1-001-115-12
COMPL SVC BM5S21_AT_EUUK
COMPL SVC BM5S21_AT_EUUK_DERI
G11 - STATIC CONVERTER(TV)
P-MOD (YDBO065UNG01)(SVC)
POWER-SUPPLY CORD SET(EU)
C17 AC CORD SET(SWISS)
POWER-SUPPLY CORD SET(UK)
REMARKS
CEI, CEP
CEI, CEP
UKA
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Internal Power Supply
OLED
Cable
11
DISSASSEMBLY AND REMOVAL CAUTION 77”
12
XR-77A8*J
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•and shaded parts are critical for safety. Replace only with part number specified.
•Parts contain confidential inform ation. Strictly follow the instruction whenever the components are repaired and/or replaced
3-4 EXP LODE D VIEW
AND PART LIS T
27
25
6
4
26
5
9
17
11
14
13
12
29
10
24
22
8
21
(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassem bly. Unplug connectors before disassembly
