Sony XR-2800, XR-2803 Service manual

Download

XR-2800/2803

SERVICE MANUAL

Ver 1.1 2001.08

Photo: XR-2800

SPECIFICATIONS

AEP Model

UK Model

XR-2800

East European Model

XR-2803

Model Name Using Similar Mechanism NEW Tape T ransport Mechanism T ype MG-25E-136

FM/MW/LW CASSETTE CAR STEREO

9-925-682-12 Sony Corporation

2001H0500-1 e Vehicle Company C 2001.8 Shinagawa Tec Service Manual Production Group

TABLE OF CONTENTS

1. GENERAL

Location of Controls ....................................................... 3

Installation....................................................................... 4

Connections ..................................................................... 5

2. DISASSEMBLY ......................................................... 8

3. ASSEMBLY OF MECHANISM DECK........... 11

4. MECHANICAL ADJUSTMENTS....................... 14

5. ELECTRICAL ADJUSTMENTS

Test Mode........................................................................ 14

Tape Deck Section .......................................................... 14

Tuner Section .................................................................. 15

6. DIAGRAMS

6-1. Printed Wiring Boards – MAIN Section – .................... 19

6-2. Schematic Diagram – MAIN Section –.......................... 23

6-3. Printed Wiring Board – PANEL Section – .................... 27

6-4. Schematic Diagram – PANEL Section –....................... 29

6-5. IC Pin Function Description ........................................... 31

7. EXPLODED VIEWS ................................................ 34

8. ELECTRICAL PARTS LIST ............................... 37

Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270 ˚C during repairing.

• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or unsoldering.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’ s instructions.

ADVARSEL!

Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.

Udskiftning må kun ske med batteri

af samme fabrikat og type.

Levér det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri.

Benytt samme batteritype eller en tilsvarende type

anbefalt av apparatfabrikanten.

Brukte batterier kasseres i henhold til fabrikantens

instruksjoner.

VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en likvärdig typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt gällande föreskrifter.

VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. V aihda paristo ainoastaan laite valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

– 2 –

SECTION 1

GENERAL

This section is extracted from instruction manual.

– 3 –

– 4 –

– 5 –

– 6 –

– 7 –

SECTION 2

DISASSEMBLY

Note: Follow the disassembly procedure in the numerical order given.

COVER

two screws (PTT2.6

Remove the cover toward direction

COLLAR (A), HANDLE ASS’Y

screw (PTT2.6

seven claws

collar (A)

handle ass’y

screw (PTT2.6 × 6)

– 8 –

FRONT PANEL ASS’Y

two claws

front panel ass’y

three claws

MECHANISM DECK (MG-25E-136)

mechanism deck (MG-25E-136)

connector (CN351)

chassis (front)

two screws (PTT2.6

three screws (PTT2.6

flexible boar (CN1)

– 9 –

POWER BOARD

two connectors (CNJ400, 401)

power board

three screw (PTT2.6 × 8)

MAIN BOARD

claw

two ground point screws

Break the soldering of antenna cable.

ground point screw

main board

– 10 –

SECTION 3

Move the arm (suction) in the arrow direction and fit on projection.

Fit the arm (suction) on the shaft.

projection

ASSEMBLY OF MECHANISM DECK

Note: Follow the assembly procedure in the numerical order given.

HOUSING

Fit claw on B part.

Put the housing under A part.

Install the hanger onto two claws of the housing.

housing

Fit projection on C part.

part

Holder the hanger by bending the claw.

Install the catch to the hanger.

hanger

Fit projection on D part.

Hold the hanger by bending the claw.

part

ARM (SUCTION)

part

– 11 –

LEVER (LDG-A) / (LDG-B)

shaft

Fit the lever (LDG-A) on shafts A – C and install it.

shaft

type-E stop ring 2.0

shaft

Fit the lever (LDG-B) on

shafts install it.

and B and

shaft

GEAR (LDG-FT)

hole

gear (LDG-D)

lever (LDG-A)

gear (LDG-FB)

Align hole in the gear (LDG-D) with hole the lever (LDG-A).

tension spring (LD-2)

gear (LDG-FT)

polyethylene washer

tension spring (LD-1)

– 12 –

Move the lever (LDG-B) in the arrow direction.

GUIDE (C)

guide (C)

three claws

– 13 –

SECTION 4

MECHANICAL ADJUSTMENTS

SECTION 5

ELECTRICAL ADJUSTMENTS

1. Clean the following parts with a denatured-alcohol-moistened swab:

playback head pinch roller rubber belt capstan idlers

2. Demagnetize the playback head with a head demagnetizer.

3. Do not use a magnetized screwdriver for the adjustments.

4. After the adjustments, apply suitable locking compound to the parts adjusted.

5. The adjustments should be performed with the power supply voltage unless otherwise noted.

• Torque Measurement

Mode Torque Meter Meter Reading

Forward CQ-102C Forward

Back Tension (0.01 - 0.06 oz•inch) Reverse CQ-102RC Reverse

Back Tension (0.01 - 0.06 oz•inch) FF, REW CQ-201B

CQ-102C

CQ-102RC

30 - 65 g•cm

(0.42 - 0.90 oz•inch)

0.5 - 4.5g•cm

30 - 65 g•cm

(0.42 - 0.90 oz•inch)

0.5 - 4.5g•cm

60 - 200 g•cm

(0.83 - 2.78 oz•inch)

• T ape Tension Measurement

Mode Tension Meter Meter Reading

Forward CQ-403A

Reverse CQ-403R

more than 90 g

(more than 3.18 oz)

more than 90 g

(more than 3.18 oz)

TEST MODE

This set have the test mode function. In the test mode, FM Auto Scan/Stop Level and AM (MW) Auto Scan/Stop Lev el adjustments can be performed easier than it in ordinary procedure.

1. Set the “OFF” mode.

2. Push the preset [4] button.

3. Push the preset

4. Press the preset

[5] button.

[1] button for more than two seconds.

5. Then the display indicates all lights, the test mode is set.

1. Push the

[OFF] button.

See the adjustment location from on page 16 for the adjustment.

T APE DECK SECTION

0 dB= 0.775 V

Tape Speed Adjustment

Setting:

speed checker

test tape WS-48A (3 kHz, 0 dB)

set

speaker out terminal

frequency counter

Ω

+–

Procedure:

1. Put the set into the FWD PB mode.

2. Adjust adjustment resistor for inside capastan motor so that the reading on the speed checker or frequency counter becomes in specification.

Specification: Constant speed

Speed checker Frequency counter

–1.5 to +2.5% 2,955 to 3,075Hz

Adjustment Location: See page 16.

– 14 –

TUNER SECTION

FM RF signal

generator

Carrier frequency : 98.0 MHz Output level : 70 dB (3.2 mV) Mode : stereo Modulation : main: 1 kHz, 20 kHz deviation (26.7%)

sub: 1 kHz, 20 kHz deviation (26.7%) 19 kHz pilot: 7.5 kHz deviation (10%)

0.01 µF set

antenna terminal

+ –

speaker out terminal

level meter

Ω

Cautions during repair

When the tuner unit is defective, replace it by a new one because its internal block is difficult to repair.

Note: Adjust the tuner section in the sequence shown below.

1. FM Auto Scan/Stop Level Adjustment.

2. FM Stereo Separation Adjustment.

3. AM (MW) Auto Scan/Stop Level Adjustment.

FM Auto Scan/Stop Level Adjustment

Setting:

0 dB=1 µV

[SOURCE] button: FM

FM Stereo Separation Adjustment

Setting:

[SOURCE] button: FM

FM RF signal

generator

Carrier frequency : 98.0 MHz Output level : 20 dB (10.0 Mode : mono Modulation : 1 kHz, 22.5 kHz deviation (30%)

Procedure:

1. Set to the test mode. (See page 14.)

2. Push the

SHUF1

3. Adjust with the volume R V2 on TU1 so that the “FM” indication turns to “FMI” indication on the display window. But, in case of already indicated “FMI”, turn the RV2 so that put out light “I” indication and adjustment.

[SOURCE] button and set to FM.

antenna terminal

0.01

Display

98.0

Display

set



Procedure:

FM Stereo

signal generator

output channel

L-CH L-CH A

R-CH L-CH Adjust RV4 on TU1

R-CH R-CH C

L-CH R-CH Adjust RV4 on TU1

L-CH Stereo separation: A-B R-CH Stereo separation: C-D The separations of both channels should be equal.

Specification: Separation more than 26dB

Adjustment Location: See page 16.

Level meter Level meter

connection reading (dB)

for minimum reading.

SHUF1

Adjustment Location: See page 16.



98.0

– 15 –

AM (MW) Auto Scan/Stop Level Adjustment

Make this adjustment after “FM Auto Scan/Stop Le vel Adjustment”.

Setting:

[SOURCE] and [MODE] button: MW

Ω

15 pF

65 pF

AM RF signal

generator

AM dummy antenna (50 Ω)

set

Adjustment Location:

—SET UPPER VIEW–

Tape Speed Adjustment



antenna terminal

Carrier frequency : 999 kHz 30% amplitude modulation by 1 kHz signal Output level : 33 dB (44.7

Procedure:

1. Set to the test mode. (See page 14.)

2. Push the [SOURCE] button and set to FM.

3. Push the [MODE] button and set to MW.

Display

INTRO SHUF1

4. Adjust with the volume RV1 on TU1 so that the “MW” indication turns to “MWI” indication on the display window. But, in case of already indicated “MWI”, turn the RV1 so that put out light “I” indication and adjustment.

INTRO SHUF1

999

Display

999

TU1

RV4 FM Stereo Separation Adjustment

RV2 FM Auto Scan/Stop Level Adjustment

RV1 AM (MW) Auto Scan/Stop Level Adjustment

– 16 –

• IC Block Diagrams – MAIN Board –

OUT2 VS

OUT1

GND

IN1

VCC

IN2

GND

CONTROL CIRCUIT

IC301 CXA2509AQ-T4

AUXIN2

TAPEIN2

PBOUT2

GND

120µ/70µ

–

120µ/70µ

345 6 7 8 9 10

VCC

PBOUT1

TAPEIN1

AUXIN1

NR BIAS

TAPE/AUX

TAPE EQ

FWD/RVS

VCC

LPF

+ –

–

MSLPF

LINEOUT1

PBFB2

PBRIN2 PBREF2

PBFIN2

VCT

PBGND

PBFIN1

PBREF1 PBRIN1

PBFB1

PBEQ2

–

31 32

33 34

VCT

37 38

39 40

PBEQ1

DIREF

24dB

2425

LINEOUT2

24dB

–

G2FB

SECTION 6

DIAGRAMS

MSSW

2122232627282930

MODE

MS ON/

OFF

DETECT

18 17

12 11

IC361 MM1322XFBE

MSMODE

DRSW

TAPESW INSW

MSOUT

DGND

MSTC G1FB

IC401 LC75373ED

SHIFT

2324252627282930313233

LSOUT

CONTROL

RSOUT

LFIN

+ –

– +

LFOUT

LROUT

VREF

VSS

RROUT

RFOUT

RFIN

LS3

LS1

LSIN

LT3

LT2

LVRIN

LSELO

L4 L3

VDD

40 41

R2 R3

43 44

RSELO

RVRIN

LCOM

+ –

– +

2 345 6 7 8 9 10

RCOM

LT1

+ –

– +

RT1

RT2

RT3

LTOUT

– +

DECODER LATCH

+ –

RS1

RSIN

RTOUT

LS2

– +

+ –

RS2

RS3

– 17 –

IC601 BA3918-V2

– +

REGULATOR

OVER VOLTAGE

PROTECT

– +

2 3

STB

MODE2

MODE1

5 6 7 8 9 10 1211

VDD

AMP

VCC

ANT

COM

GND

– 18 –

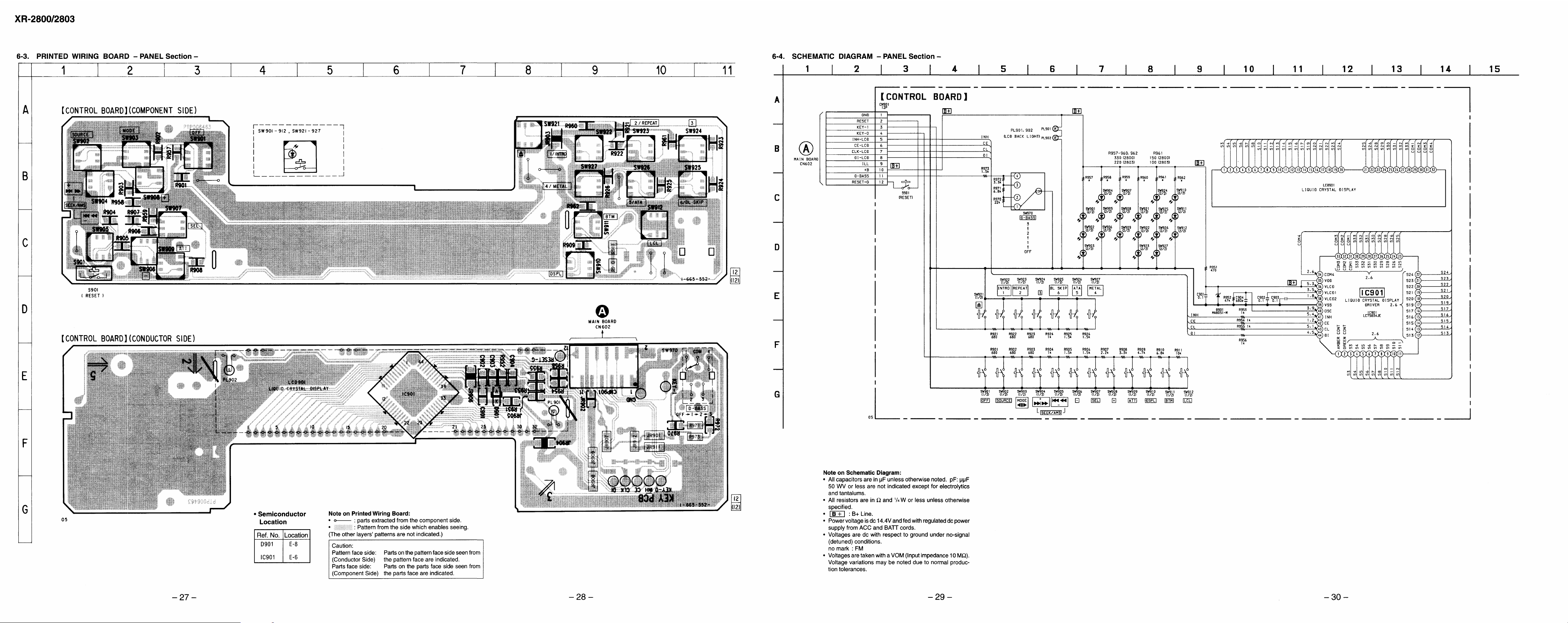

6-5. IC PIN FUNCTION DESCRIPTION

• MAIN BOARD IC501 µPD17707GC-529-3B9 (SYSTEM CONTROLLER)

Pin No. Pin Name I/O Function

1 ILLIN I Not used (fixed at “L”) 2 POS3 I 3 POS2 I 4 POS0 I 5 POS1 I 6 TAPEON O Tape system power supply on/off control signal output terminal “H”: tape on 7 CM ON O Capstan/reel motor (M901) drive signal output terminal “H”: motor on

8 LM LOD O

9 LM EJ O

10 TUNON O Tuner system power supply on/off control signal output to the BA3918 (IC601) “H”: tuner on 11 FM ON O FM system power supply on/off control signal output to the BA3918 (IC601) “H”: FM on 12 PW ON O Main system power supply on/off control signal output to the BA3918 (IC601) “H”: power on 13 MUT O Line muting control signal output terminal “H”: line muting on 14 VOLCE O Chip enable signal output to the electrical volume (IC401) 15 VOLCKO O Serial data transfer clock signal output to the electrical volume (IC401) 16 VOLSO O Serial data output to the electrical volume (IC401) 17 AMPON O Standby control signal output to the power amplifier (IC751) “L”: standby 18 AMPMUT O Muting control signal output to the power amplifier (IC751) “L”: muting on 19 DX/LO O Local/DX selection signal output to the FM/AM tuner unit (TU1) “L”: DX, “H”: local 20 AM MONO O AM forced monaural signal output terminal Not used (open) 21 GND — Ground terminal 22 DSTSEL I Destination setting terminal (XR-2800: fixed at “L”, XR-2803: fixed at center voltage) 23 D-BASS I D-BASS switch (SW970) input (A/D input)

24 KEYIN1 I

25 KEYIN0 I

26 RC IN0 I Rotary remote commander shift key A/D input terminal 27 VSM I FM and AM (MW/LW) signal meter voltage detection input from the FM/AM tuner unit (TU1) 28 AMIFIN I AM (MW/LW) intermediate frequency detection signal input from the FM/AM tuner unit (TU1) 29 FMIFIN I FM intermediate frequency detection signal input from the FM/AM tuner unit (TU1) 30 VDD2 — Power supply terminal (+5V) 31 FM OSC I FM local oscillator detection signal input from the FM/AM tuner unit (TU1) 32 AM OSC I AM (MW/LW) local oscillator detection signal input from the FM/AM tuner unit (TU1) 33 GND — Ground terminal 34 N.C. — Not used (open) 35 EO1 O Main charge-pump control signal output terminal 36 TEST0 I Setting terminal for the test (fixed at “L”) 37 N.C. O Not used (open) 38 SEKOUT O Seek control signal output to the FM/AM tuner unit (TU1) 39 N.C. O Not used (open) 40 BEEP O Beep sound output terminal

41 KEYACK I

Tape position detect input from tape operation switch on the mechanism block

Loading/tape operation motor control signal output to the MM1322XFBE (IC361) (For the loading direction and forward side operation) *1

Loading/tape operation motor control signal output to the MM1322XFBE (IC361) (For the eject direction and reverse side operation) *1

Key input terminal (A/D input) 6, INTRO 1, REPEAT 2, 3, BL SKIP 6, ATA 5, METAL 4 keys input (LSW921 to LSW927)

Key input terminal (A/D input) OFF, SOURCE, MODE *, + ) + SEEK AMS, – = 0 SEEK AMS,

VOLUME –, SEL, VOLUME +, ATT , DSPL, BTM, LCL keys input (LSW901 to LSW912)

Input of acknowledge signal for the key entry Acknowledge signal is input to accept function and eject keys in the power off status On at input of “L”

– 31 –

Pin No. Pin Name I/O Function

42 BU IN I Battery detect signal input terminal “H”: battery on

METAL control in/out terminal

43 MTLSEL I/O

44 DOLON I/O

At initial mode: auto/manual mode selection input of METAL function “L”: manual mode At manual mode: METAL on/off control signal output “H”: METAL on At auto mode: input at MTLIN (pin %ª)

Dolby control in/out terminal At initial mode: valid/invalid selection input of dolby function (“L” input: valid) At normal mode: dolby on/off control signal output “H”: dolby on Not used this function in this set (fixed at “H”)

45 AMSIN I

46 ST I/O

47 AMS ON O

48 N/R OUT O

49 TAPMUT O Tape muting on/off control signal output to the CXA2509AQ (IC301) “H”: tape muting on

50 ILLON O

51 SD IN I

52 NOSESW I

53 TELMUT I

54 REL T I Reel table rotation detect signal input from the take-up and supply reel sensor 55 ACCIN I Accessory detect signal input terminal “L”: accessory on 56 TESTIN I Setting terminal for the test mode “L”: test mode (normally fixed at “H”) 57 RC IN1 I Rotary remote commander shift key A/D input terminal 58 PW SEL I Power select switch input terminal Not used (fixed at “L”)

59 MTLIN I

60 AD ON O Power supply on/off control signal output for the A/D conversion 61 KEYSEL I Setting terminal for the key (fixed at “H”) 62 SEKOUTSEL I Active selection terminal for the SEKOUT (pin #•) 63 COLORSEL I Setting terminal for the illumination color “L”: amber, “H”: green (fixed at “H”) 64 LCDCE O Chip enable output to the liquid crystal display driver (IC901) 65 LCDCKO O Serial data transfer clock signal output to the liquid crystal display driver (IC901) 66 LCDSO O Serial data output to the liquid crystal display driver (IC901)

67 LCDINH O

68 UNICKI I Serial data reading clock signal input terminal for the unilink Not used (fixed at “H”) 69 UNISO O Serial data output terminal for the unilink Not used (open) 70 UNISI I Serial data input terminal for the unilink Not used (fixed at “L”) 71 UNICKO O Serial data transfer clock signal output terminal for the unilink Not used (open) 72 BUSON O Bus on/off control signal output terminal Not used (open)

Whether a music is present or not from CXA2509AQ (IC301) is detected at auto music sensor “L”: music is present, “H”: music is not present

Input of FM stereo detection signal from FM/AM tuner unit (TU1), and output of forced monaural control signal to FM/AM tuner unit (TU1) (Commonly used for stereo display input and forced monaural output) FM stereo detection at input of “L”, forced monaural at output of “L”

Tape auto music sensor control signal output to the CXA2509AQ (IC301) “L” is output to lower the gain for audio level at FF/REW

Forward/reverse direction control signal output to the CXA2509AQ (IC301) “L: forward direction, “H”: reverse direction

Power supply on/off control signal output terminal at the illumination and liquid crystal display driver (IC901) “H”: power on

Station detector detect input from the FM/AM tuner unit (TU1) Stop level for SEEK, BTM, etc. is determined SD is present at input of “H”

Detects the removal of the attaching and removing type front panel block “L”: attaching Not used (fixed at “L”)

Telephone muting signal input terminal At input of “L”, the signal is attenuated by –20 dB Not used (fixed at “H”)

Input terminal to set whether the auto metal function is present or not “L”: auto metal function is present (fixed at “L”)

Blank indicate control signal output to the liquid crystal display driver (IC901) “L”: no display

– 32 –

Pin No. Pin Name I/O Function

73 SYSRST O Reset signal output terminal “L”: reset Not used (open) 74 VREG O CPU regulator output terminal Connected to capacitor 75 GND — Ground terminal 76 X OUT O Main system clock output terminal (4.5 MHz) 77 X IN I Main system clock input terminal (4.5 MHz) 78 CE I CPU chip enable signal input (fixed at “H”) 79 VDD — Power supply terminal (+5V)

80 RESET I

*1 loading/tape operation motor control MODE TERMINAL

LM LOD (pin 8) “L” “H” “L” “H”

LM EJ (pin 9) “L” “L” “H” “H”

System reset signal input from the reset signal generator circuit and reset switch (S901) “L” is input for several 100 msec after power on, then it changes to “H”

STOP

LOADING/ FORWARD

EJECT/

REVERSE

BRAKE

– 33 –

SECTION 7

EXPLODED VIEWS

NOTE:

• -XX and -X mean standardized parts, so they

may have some difference from the original one.

• Color Indication of Appearance Parts

Example: KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet's Color

(1) CHASSIS SECTION

not supplied

MG-25E-136

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• The mechanical parts with no reference number in the exploded views are not supplied.

• Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list.

BT501

Front panel ass’y

Ref. No. Part No. Description Remark

1 3-012-567-01 COLLAR (A) 2 X-3372-126-1 HANDLE ASSY

* 3 3-012-574-01 INSULATOR * 4 A-3313-588-A MAIN BOARD, COMPLETE (XR-2803) * 4 A-3313-590-A MAIN BOARD, COMPLETE (XR-2800)

F901

Ref. No. Part No. Description Remark

12 3-340-614-11 SCREW (JACK), STEP 13 3-012-593-01 BRACKET

* 14 X-3373-590-1 CHASSIS ASSY

15 3-012-587-01 PLATE (C), GROUND 16 1-782-344-11 CORD (WITH CONNECTOR) (POWER)

5 3-915-923-01 SCREW, GROUND POINT

* 6 3-012-565-01 COVER * 7 3-012-568-01 BRACKET (CONNECTOR) * 8 3-012-569-01 HEAT SINK * 9 3-012-566-01 BRACKET (IC)

* 10 A-3313-589-A POWER BOARD, COMPLETE (XR-2803) * 10 A-3313-591-A POWER BOARD, COMPLETE (XR-2800)

11 3-012-575-01 PANEL (REAR)

17 3-338-263-01 CUSHION (U)

* 18 3-014-628-01 CHASSIS (FRONT)

19 3-017-103-01 BUTTON (RELEASE) 20 3-022-253-01 SHEET, INSULATING (A) 21 3-022-254-01 SHEET, INSULATING (B)

BT501 1-528-225-31 BATTERY, LITHIUM F901 1-532-677-00 FUSE, GLASS TUBE (10A)

– 34 –

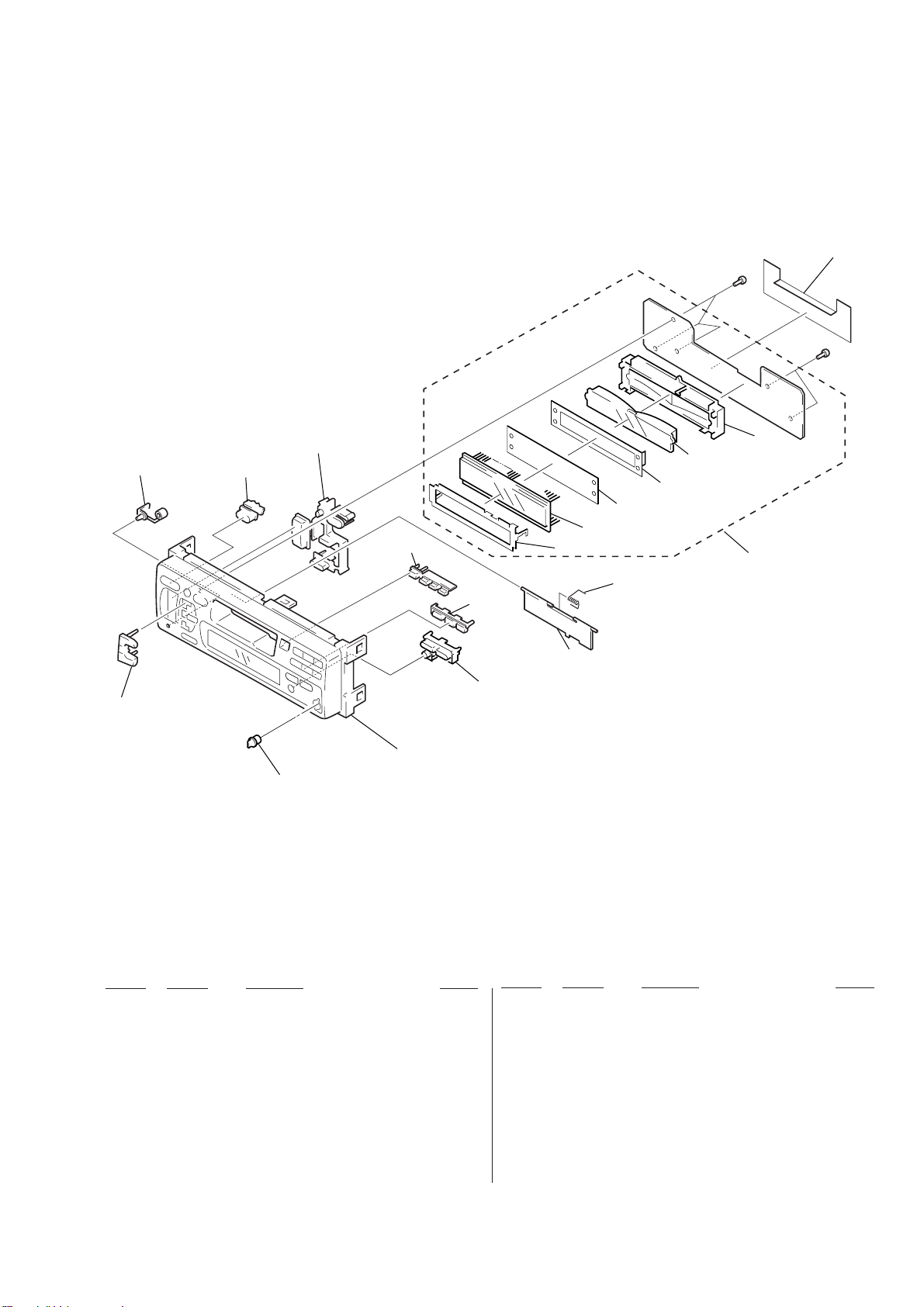

(2) FRONT PANEL SECTION

not supplie

LCD901

Ref. No. Part No. Description Remark

51 3-018-799-01 BUTTON (D-BASS) 52 3-016-932-01 BUTTON (L) (2) (+. –) 53 3-012-576-01 BUTTON (RESET) 54 3-009-300-01 BUTTON (SOURCE) 55 3-018-797-11 BUTTON (L) (3) (r. OFF. + + ).

SEEK AMS. = 0 –. SEL. ATT)

56 3-016-933-01 BUTTON (1-3) (6. 1. 2. 3) 57 3-016-931-01 BUTTON (4-6) (4. 5. 6) 58 3-009-315-01 BUTTON (R) (3) (BTM. LCL. r) 59 3-932-205-21 DOOR, CASSETTE 60 3-935-003-01 SPRING, TORSION

Ref. No. Part No. Description Remark

* 61 A-3294-388-A CONTROL BOARD, COMPLETE (XR-2803) * 61 A-3294-390-A CONTROL BOARD, COMPLETE (XR-2800) * 62 3-019-151-01 PLATE (LCD), GROUND * 63 3-019-150-01 SHEET (REFLECTOR) * 64 3-019-149-01 PLATE, LCD

* 65 3-018-612-01 PLATE, LIGHT GUIDE * 66 3-018-611-01 HOLDER (LCD)

67 X-3375-276-1 PAEL SUB ASSY (XR-2800) 67 X-3375-277-1 PAEL SUB ASSY (XR-2803) LCD901 1-801-966-31 DISPLAY PANEL, LIQUID CRYSTAL

– 35 –

(3) MECHANISM DECK SECTION (MG-25E-136)

154

153

155

158

152

157

156

159

160

163

HP901

161

162

M901

164

165

168

151

Ref. No. Part No. Description Remark

151 A-3291-667-A CLUTCH (FR) ASSY

* 152 3-019-130-01 LEVER (LDG-A) * 153 3-019-131-01 LEVER (LDG-B)

154 3-020-539-01 SPRING (LD-1), TENSION 155 3-020-540-01 SPRING (LD-2), TENSION

156 3-020-542-01 GEAR (LOADING FT) 157 3-341-753-11 WASHER, POLYETHYLENE 158 3-020-533-01 HOUSING

* 159 3-020-532-01 ARM (SUCTION)

160 3-020-534-01 HANGER

168

166

167

Ref. No. Part No. Description Remark

161 3-933-346-01 CATCHER 162 3-933-344-01 GUIDE (C) 163 3-014-798-01 SCREW (HEAD), SPECIAL 164 3-364-151-01 WASHER 165 X-3375-625-1 CHASSIS (SV) ASSY (D)

166 3-017-302-01 BELT (25) 167 3-936-853-01 FLYWHEEL (F) 168 3-701-437-21 WASHER HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK) M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)

– 36 –

SECTION 7

ELECTRICAL PARTS LIST

Ver 1.1

CONTROL

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable

Ref. No. Part No. Description Remark

* A-3294-388-A CONTROL BOARD, COMPLETE (XR-2803) * A-3294-390-A CONTROL BOARD, COMPLETE (XR-2800)

*************************

* 3-018-611-01 HOLDER (LCD) * 3-018-612-01 PLATE, LIGHT GUIDE * 3-019-149-01 PLATE, LCD * 3-019-150-01 SHEET (REFLECTOR) * 3-019-151-01 PLATE (LCD), GROUND

< CAPACITOR >

C901 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C902 1-163-038-00 CERAMIC CHIP 0.1uF 25V C903 1-163-038-00 CERAMIC CHIP 0.1uF 25V C904 1-163-137-00 CERAMIC CHIP 680PF 5% 50V

< CONNECTOR >

CN901 1-770-382-11 CONNECTOR, BOARD TO BOARD 12P

< DIODE >

D806 8-719-422-64 DIODE MA8062-M D901 8-719-420-90 DIODE MA8051-M D902 8-719-422-64 DIODE MA8062-M D903 8-719-422-64 DIODE MA8062-M D904 8-719-422-64 DIODE MA8062-M

D905 8-719-422-64 DIODE MA8062-M

< IC >

IC901 8-759-443-68 IC LC75834JED

< SHORT >

JR901 1-216-296-00 SHORT 0 JR902 1-216-295-00 SHORT 0 JR903 1-216-296-00 SHORT 0 JR904 1-216-296-00 SHORT 0 JR905 1-216-295-00 SHORT 0

• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. .

• CAPACITORS uF: µF

• COILS uH: µH

When indicating parts by reference number, please include the board.

Ref. No. Part No. Description Remark

< LIQUID CRYSTAL DISPLAY >

LCD901 1-801-966-31 DISPLAY PANEL, LIQUID CRYSTAL

< PILOT LAMP >

PL901 1-517-633-21 LAMP, PILOT (LCD BACK LIGHT) PL902 1-517-633-21 LAMP, PILOT (LCD BACK LIGHT)

< RESISTOR >

R73 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R901 1-216-045-00 METAL CHIP 680 5% 1/10W R902 1-216-045-00 METAL CHIP 680 5% 1/10W R903 1-216-045-00 METAL CHIP 680 5% 1/10W R904 1-216-049-11 RES, CHIP 1K 5% 1/10W

R905 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R906 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R907 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R908 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R909 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

R910 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R911 1-216-073-00 METAL CHIP 10K 5% 1/10W R921 1-216-045-00 METAL CHIP 680 5% 1/10W R922 1-216-045-00 METAL CHIP 680 5% 1/10W R923 1-216-045-00 METAL CHIP 680 5% 1/10W

R924 1-216-049-11 RES, CHIP 1K 5% 1/10W R925 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R926 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R951 1-216-041-00 METAL CHIP 470 5% 1/10W R952 1-216-089-00 RES, CHIP 47K 5% 1/10W

R953 1-216-049-11 RES, CHIP 1K 5% 1/10W R954 1-216-049-11 RES, CHIP 1K 5% 1/10W R955 1-216-049-11 RES, CHIP 1K 5% 1/10W R956 1-216-049-11 RES, CHIP 1K 5% 1/10W R957 1-216-033-00 METAL CHIP 220 5% 1/10W

(XR-2803)

JR906 1-216-296-00 SHORT 0 JR907 1-216-296-00 SHORT 0 JR908 1-216-296-00 SHORT 0 JR909 1-216-296-00 SHORT 0 JR911 1-216-296-00 SHORT 0

JR912 1-216-296-00 SHORT 0

R957 1-216-037-00 METAL CHIP 330 5% 1/10W

(XR-2800)

R958 1-216-033-00 METAL CHIP 220 5% 1/10W

(XR-2803)

R958 1-216-037-00 METAL CHIP 330 5% 1/10W

(XR-2800)

– 37 –

CONTROL MAIN

Ref. No. Part No. Description Remark

R959 1-216-033-00 METAL CHIP 220 5% 1/10W

(XR-2803)

R959 1-216-037-00 METAL CHIP 330 5% 1/10W

(XR-2800)

R960 1-216-033-00 METAL CHIP 220 5% 1/10W

(XR-2803)

R960 1-216-037-00 METAL CHIP 330 5% 1/10W

(XR-2800)

R961 1-216-025-00 RES,CHIP 100 5% 1/10W

(XR-2803)

R961 1-216-029-00 RES,CHIP 150 5% 1/10W

(XR-2800)

R962 1-216-033-00 METAL CHIP 220 5% 1/10W

R970 1-216-081-00 METAL CHIP 22K 5% 1/10W R971 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R972 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R973 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

< SWITCH >

S901 1-692-431-21 SWITCH, TACTILE (RESET) SW901 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (OFF)

(XR-2800)

SW901 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (OFF)

(XR-2803)

SW902 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (SOURCE)

(XR-2800)

SW902 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (SOURCE)

(XR-2803)

SW903 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(MODE *) (XR-2800)

SW903 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(MODE *) (XR-2803)

SW904 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(+ + ), SEEK/AMS) (XR-2800)

SW904 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(+ + ), SEEK/AMS) (XR-2803)

SW905 1-762-617-11 SWITCH, KEY BOARD (WITH LED)

(– = 0, SEEK/AMS) (XR-2800)

SW905 1-762-619-11 SWITCH, KEY BOARD (WITH LED)

(– = 0, SEEK/AMS) (XR-2803)

SW906 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (–)

(XR-2800)

SW906 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (–)

(XR-2803)

SW907 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (SEL)

(XR-2800)

SW907 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (SEL)

(XR-2803)

SW908 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (+)

(XR-2800)

SW908 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (+)

(XR-2803)

SW909 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (ATT)

(XR-2800)

SW909 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (ATT)

(XR-2803)

SW910 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (DSPL)

(XR-2800)

Ref. No. Part No. Description Remark

SW911 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (BTM)

(XR-2803)

SW912 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (LCL)

(XR-2800)

SW912 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (LCL)

(XR-2803)

SW921 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (6)

(XR-2800)

SW921 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (6)

(XR-2803)

SW922 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (1/INTRO)

(XR-2800)

SW922 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (1/INTRO)

(XR-2803)

SW923 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (2/REPEAT)

(XR-2800)

SW923 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (2/REPEAT)

(XR-2803)

SW924 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (3)

(XR-2800)

SW924 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (3)

(XR-2803)

SW925 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (6/BL SKIP)

(XR-2800)

SW925 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (6/BL SKIP)

(XR-2803)

SW926 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (5/ATA)

(XR-2800)

SW926 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (5/ATA)

(XR-2803)

SW927 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (4/METAL)

(XR-2800)

SW927 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (4/METAL)

(XR-2803)

SW970 1-762-937-11 SWITCH, ROTARY (D-BASS)

************************************************************

* A-3313-588-A MAIN BOARD, COMPLETE (XR-2803) * A-3313-590-A MAIN BOARD, COMPLETE (XR-2800)

*********************

3-022-253-01 SHEET, INSULATING (A) 3-022-254-01 SHEET, INSULATING (B)

< BATTERY >

BT501 1-528-225-31 BATTERY, LITHIUM

< CAPACITOR >

C1 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C2 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C3 1-124-234-00 ELECT 22uF 20% 16V C4 1-124-234-00 ELECT 22uF 20% 16V C5 1-124-234-00 ELECT 22uF 20% 16V

C6 1-164-232-11 CERAMIC CHIP 0.01uF 50V C7 1-164-232-11 CERAMIC CHIP 0.01uF 50V C8 1-164-232-11 CERAMIC CHIP 0.01uF 50V C9 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C10 1-163-213-00 CERAMIC CHIP 0.0022uF 5% 50V

SW910 1-762-619-11 SWITCH, KEY BOARD (WITH LED) (DSPL)

(XR-2803)

SW911 1-762-617-11 SWITCH, KEY BOARD (WITH LED) (BTM)

(XR-2800)

C12 1-164-232-11 CERAMIC CHIP 0.01uF 50V C13 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C14 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C15 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

– 38 –

MAIN

Ref. No. Part No. Description Remark

C16 1-124-589-11 ELECT 47uF 20% 16V

C17 1-163-038-00 CERAMIC CHIP 0.1uF 25V C18 1-136-169-00 FILM 0.22uF 5% 50V C19 1-136-287-11 FILM 0.0047uF 5% 100V C20 1-163-059-00 CERAMIC CHIP 0.01uF 10% 50V C21 1-124-234-00 ELECT 22uF 20% 16V

C22 1-163-038-00 CERAMIC CHIP 0.1uF 25V C24 1-163-038-00 CERAMIC CHIP 0.1uF 25V C25 1-163-205-00 CERAMIC CHIP 0.001uF 5% 50V C101 1-163-139-00 CERAMIC CHIP 820PF 5% 50V C102 1-163-139-00 CERAMIC CHIP 820PF 5% 50V

C104 1-164-232-11 CERAMIC CHIP 0.01uF 50V C105 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C106 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C107 1-126-163-11 ELECT 4.7uF 20% 50V C108 1-164-232-11 CERAMIC CHIP 0.01uF 50V

C122 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V

(XR-2800)

C122 1-163-986-00 CERAMIC CHIP 0.027uF 10% 25V

(XR-2803)

C123 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V

(XR-2800)

C123 1-164-232-11 CERAMIC CHIP 0.01uF 50V

(XR-2803)

C151 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

(XR-2803)

C151 1-163-986-00 CERAMIC CHIP 0.027uF 10% 25V

(XR-2800) C153 1-126-160-11 ELECT 1uF 20% 50V C161 1-126-160-11 ELECT 1uF 20% 50V C162 1-126-160-11 ELECT 1uF 20% 50V C163 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V

C164 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C165 1-126-157-11 ELECT 10uF 20% 16V C166 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C167 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C168 1-126-157-11 ELECT 10uF 20% 16V

C171 1-126-160-11 ELECT 1uF 20% 50V C175 1-126-160-11 ELECT 1uF 20% 50V C176 1-163-205-00 CERAMIC CHIP 0.001uF 5% 50V C181 1-126-160-11 ELECT 1uF 20% 50V C185 1-126-160-11 ELECT 1uF 20% 50V

C186 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-163-139-00 CERAMIC CHIP 820PF 5% 50V C202 1-163-139-00 CERAMIC CHIP 820PF 5% 50V C204 1-164-232-11 CERAMIC CHIP 0.01uF 50V C205 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V

C206 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C207 1-126-163-11 ELECT 4.7uF 20% 50V C208 1-164-232-11 CERAMIC CHIP 0.01uF 50V C223 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V

(XR-2800) C223 1-164-232-11 CERAMIC CHIP 0.01uF 50V

(XR-2803)

C251 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V

(XR-2803) C251 1-163-986-00 CERAMIC CHIP 0.027uF 10% 25V

(XR-2800) C253 1-126-160-11 ELECT 1uF 20% 50V

Ref. No. Part No. Description Remark

C261 1-126-160-11 ELECT 1uF 20% 50V C262 1-126-160-11 ELECT 1uF 20% 50V

C263 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C264 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C265 1-126-157-11 ELECT 10uF 20% 16V C266 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C267 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V

C268 1-126-157-11 ELECT 10uF 20% 16V C271 1-126-160-11 ELECT 1uF 20% 50V C275 1-126-160-11 ELECT 1uF 20% 50V C276 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C281 1-126-160-11 ELECT 1uF 20% 50V

C285 1-126-160-11 ELECT 1uF 20% 50V C286 1-163-205-00 CERAMIC CHIP 0.001uF 5% 50V C301 1-124-234-00 ELECT 22uF 20% 16V C302 1-126-157-11 ELECT 10uF 20% 16V C303 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C305 1-126-159-11 ELECT 0.47uF 20% 50V C306 1-164-232-11 CERAMIC CHIP 0.01uF 50V C307 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C335 1-124-234-00 ELECT 22uF 20% 16V C351 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C352 1-124-584-00 ELECT 100uF 20% 10V C353 1-163-038-00 CERAMIC CHIP 0.1uF 25V C354 1-126-157-11 ELECT 10uF 20% 16V C356 1-126-934-11 ELECT 220uF 20% 16V C362 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V

C401 1-124-584-00 ELECT 100uF 20% 10V C402 1-124-234-00 ELECT 22uF 20% 16V C406 1-124-589-11 ELECT 47uF 20% 16V C407 1-124-589-11 ELECT 47uF 20% 16V C408 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V

C501 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C502 1-163-091-00 CERAMIC CHIP 8PF 50V C504 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C505 1-124-589-11 ELECT 47uF 20% 16V C506 1-124-257-00 ELECT 2.2uF 20% 50V

C507 1-126-157-11 ELECT 10uF 20% 16V C508 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C509 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C510 1-163-139-00 CERAMIC CHIP 820PF 5% 50V C511 1-126-925-11 ELECT 470uF 20% 10V

C512 1-115-589-11 ELECT(BLOCK) 0.047uF 5.5V C517 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C520 1-163-059-00 CERAMIC CHIP 0.01uF 10% 50V C521 1-163-059-00 CERAMIC CHIP 0.01uF 10% 50V C524 1-163-059-00 CERAMIC CHIP 0.01uF 10% 50V

C561 1-163-197-00 CERAMIC CHIP 470PF 5% 50V C563 1-124-589-11 ELECT 47uF 20% 16V C601 1-164-222-11 CERAMIC CHIP 0.22uF 25V C602 1-124-257-00 ELECT 2.2uF 20% 50V C603 1-126-157-11 ELECT 10uF 20% 16V

C604 1-124-234-00 ELECT 22uF 20% 16V C605 1-126-157-11 ELECT 10uF 20% 16V C608 1-124-234-00 ELECT 22uF 20% 16V C704 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C707 1-126-163-11 ELECT 4.7uF 20% 50V

– 39 –

Ver 1.1

MAIN

Ref. No. Part No. Description Remark

< CONNECTOR >

CN1 1-766-260-11 CONNECTOR, FFC/FPC (ZIF) 7P

* CN351 1-506-995-11 PIN, CONNECTOR (PC BOARD) 13P

CN602 1-770-407-11 CONNECTOR, BOARD TO BOARD 12P CNJ400 1-770-381-11 CONNECTOR, BOARD TO BOARD 10P CNJ401 1-770-381-11 CONNECTOR, BOARD TO BOARD 10P

< COMPOSITION CIRCUIT BLOCK >

CP1 1-519-504-11 GAP, DISCHARGE

< DIODE >

D1 8-719-040-04 DIODE MA721WK-(TX) D2 8-719-010-34 DIODE UZ-4.7BSC D3 8-719-048-54 DIODE MTZJ-T-77-10A (XR-2800) D3 8-719-110-17 DIODE RD10ESB2 (XR-2803) D301 8-719-988-62 DIODE 1SS355

D351 8-719-110-14 DIODE RD9.1ES-B3 D352 8-719-991-33 DIODE 1SS133T-77 D501 8-719-988-62 DIODE 1SS355 D502 8-719-988-62 DIODE 1SS355 D503 8-719-988-62 DIODE 1SS355

D504 8-719-109-72 DIODE RD3.9ES-B2 D505 8-719-991-33 DIODE 1SS133T-77 D519 8-719-041-79 DIODE MA721WA-TX D520 8-719-988-62 DIODE 1SS355 D565 8-719-049-26 DIODE RB721Q

Ref. No. Part No. Description Remark

JR13 1-216-296-00 SHORT 0 JR14 1-216-295-00 SHORT 0 JR16 1-216-296-00 SHORT 0 JR17 1-216-295-00 SHORT 0 JR18 1-216-295-00 SHORT 0

JR19 1-216-296-00 SHORT 0 JR20 1-216-295-00 SHORT 0 JR21 1-216-295-00 SHORT 0 JR22 1-216-295-00 SHORT 0 JR23 1-216-295-00 SHORT 0

JR25 1-216-295-00 SHORT 0 JR26 1-216-296-00 SHORT 0 JR27 1-216-295-00 SHORT 0 JR28 1-216-295-00 SHORT 0 JR30 1-216-296-00 SHORT 0

JR31 1-216-295-00 SHORT 0 JR33 1-216-296-00 SHORT 0 JR34 1-216-295-00 SHORT 0 JR39 1-216-296-00 SHORT 0 JR40 1-216-296-00 SHORT 0

JR41 1-216-296-00 SHORT 0

< COIL >

L501 1-410-509-11 INDUCTOR 10uH

< TRANSISTOR >

D566 8-719-988-62 DIODE 1SS355 D601 8-719-923-74 DIODE MTZJ-T-77-11A D701 8-719-110-49 DIODE RD18ES-B2 D706 8-719-110-03 DIODE RD7.5ESB2 D707 8-719-110-06 DIODE RD8.2ESB1

D802 8-719-991-33 DIODE 1SS133T-77

< IC >

IC301 8-752-079-78 IC CXA2509AQ-T4 IC361 8-759-395-97 IC MM1322XFBE IC401 8-759-443-67 IC LC75373ED IC501 8-759-493-99 IC uPD17707GC-529-3B9 IC601 8-759-347-49 IC BA3918-V2

< SHORT/COIL >

JC2 1-216-295-00 SHORT 0 JC3 1-216-296-00 SHORT 0 (XR-2800) JC3 1-410-180-51 INDUCTOR CHIP 0.1uH (XR-2803) JC7 1-216-296-00 SHORT 0 JC702 1-216-295-00 SHORT 0

< SHORT >

JR1 1-216-295-00 SHORT 0 JR2 1-216-296-00 SHORT 0 JR3 1-216-296-00 SHORT 0 JR4 1-216-296-00 SHORT 0 JR5 1-216-296-00 SHORT 0

Q1 8-729-900-53 TRANSISTOR DTC114EK Q2 8-729-620-06 TRANSISTOR 2SC3052-EF Q4 8-729-025-28 FET 2SK1828 Q171 8-729-920-21 TRANSISTOR DTC314TKH04 Q181 8-729-920-21 TRANSISTOR DTC314TKH04

Q271 8-729-920-21 TRANSISTOR DTC314TKH04 Q281 8-729-920-21 TRANSISTOR DTC314TKH04 Q351 8-729-015-11 TRANSISTOR 2SD1802FAST-TL Q352 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q353 8-729-900-53 TRANSISTOR DTC114EK

Q354 8-729-106-60 TRANSISTOR 2SB1115A Q355 8-729-900-53 TRANSISTOR DTC114EK Q501 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q502 8-729-620-06 TRANSISTOR 2SC3052-EF Q503 8-729-027-23 TRANSISTOR DTA114EKA-T146

Q504 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q505 8-729-620-06 TRANSISTOR 2SC3052-EF Q506 8-729-216-22 TRANSISTOR 2SA1162-G Q601 8-729-026-68 TRANSISTOR 2SD2525(TP) Q602 8-729-026-68 TRANSISTOR 2SD2525(TP)

Q603 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q604 8-729-900-53 TRANSISTOR DTC114EK Q701 8-729-900-53 TRANSISTOR DTC114EK Q702 1-801-806-11 TRANSISTOR DTC144EKA-T146 Q703 8-729-620-06 TRANSISTOR 2SC3052-EF

Q704 8-729-027-38 TRANSISTOR DTA144EKA-T146

JR6 1-216-296-00 SHORT 0 JR9 1-216-296-00 SHORT 0 JR10 1-216-296-00 SHORT 0 JR11 1-216-295-00 SHORT 0 JR12 1-216-295-00 SHORT 0

< RESISTOR >

R1 1-249-417-11 CARBON 1K 5% 1/4W R3 1-216-049-11 RES, CHIP 1K 5% 1/10W R4 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

– 40 –

MAIN

Ref. No. Part No. Description Remark

R5 1-216-081-00 METAL CHIP 22K 5% 1/10W R6 1-216-073-00 METAL CHIP 10K 5% 1/10W

R7 1-216-097-00 RES, CHIP 100K 5% 1/10W R8 1-216-254-00 RES, CHIP 220K 5% 1/8W R9 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R10 1-216-049-11 RES, CHIP 1K 5% 1/10W R11 1-216-053-00 METAL CHIP 1.5K 5% 1/10W

R12 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R13 1-216-081-00 METAL CHIP 22K 5% 1/10W R14 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R15 1-216-029-00 METAL CHIP 150 5% 1/10W R17 1-216-041-00 METAL CHIP 470 5% 1/10W

R101 1-216-085-00 METAL CHIP 33K 5% 1/10W R102 1-216-085-00 METAL CHIP 33K 5% 1/10W R103 1-216-041-00 METAL CHIP 470 5% 1/10W R104 1-216-109-00 METAL CHIP 330K 5% 1/10W R105 1-216-077-00 METAL CHIP 15K 5% 1/10W

R106 1-216-079-00 METAL CHIP 18K 5% 1/10W R107 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R108 1-216-073-00 METAL CHIP 10K 5% 1/10W R121 1-216-069-00 METAL CHIP 6.8K 5% 1/10W

(XR-2803) R121 1-216-220-00 RES, CHIP 8.2K 5% 1/8W

(XR-2800)

R122 1-216-065-00 METAL CHIP 4.7K 5% 1/10W

(XR-2800) R152 1-216-063-00 RES, CHIP 3.9K 5% 1/10W

(XR-2800) R152 1-216-220-00 RES, CHIP 8.2K 5% 1/8W

(XR-2803) R161 1-216-063-00 RES, CHIP 3.9K 5% 1/10W R171 1-216-182-00 RES, CHIP 220 5% 1/8W

Ref. No. Part No. Description Remark

R281 1-216-033-00 METAL CHIP 220 5% 1/10W R282 1-249-429-11 CARBON 10K 5% 1/4W R283 1-216-230-00 RES, CHIP 22K 5% 1/8W R284 1-259-880-11 CARBON 2.2M 5% 1/4W R285 1-216-089-00 RES, CHIP 47K 5% 1/10W

R301 1-216-079-00 METAL CHIP 18K 5% 1/10W R302 1-216-097-00 RES, CHIP 100K 5% 1/10W R303 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R304 1-216-081-00 METAL CHIP 22K 5% 1/10W R305 1-249-417-11 CARBON 1K 5% 1/4W

R306 1-249-417-11 CARBON 1K 5% 1/4W R307 1-249-417-11 CARBON 1K 5% 1/4W R308 1-216-113-00 METAL CHIP 470K 5% 1/10W R309 1-249-417-11 CARBON 1K 5% 1/4W R351 1-216-198-00 RES, CHIP 1K 5% 1/8W

R352 1-249-385-11 CARBON 2.2 5% 1/6W R353 1-249-385-11 CARBON 2.2 5% 1/6W R354 1-216-222-00 RES, CHIP 10K 5% 1/8W R355 1-216-210-00 RES, CHIP 3.3K 5% 1/8W R360 1-216-001-00 METAL CHIP 10 5% 1/10W

R401 1-249-393-11 CARBON 10 5% 1/4W R501 1-216-097-00 RES,CHIP 100K 5% 1/10W R502 1-216-073-00 METAL CHIP 10K 5% 1/10W

(XR-2800)

R502 1-216-097-00 RES,CHIP 100K 5% 1/10W

(XR-2803)

R503 1-216-246-00 RES,CHIP 100K 5% 1/8W

R504 1-249-429-11 CARBON 10K 5% 1/4W R506 1-247-895-00 CARBON 470K 5% 1/4W R508 1-249-429-11 CARBON 10K 5% 1/4W R509 1-249-429-11 CARBON 10K 5% 1/4W R511 1-249-441-11 CARBON 100K 5% 1/4W

R172 1-216-222-00 RES, CHIP 10K 5% 1/8W R173 1-216-230-00 RES, CHIP 22K 5% 1/8W R174 1-259-880-11 CARBON 2.2M 5% 1/4W R175 1-216-089-00 RES, CHIP 47K 5% 1/10W R181 1-216-182-00 RES, CHIP 220 5% 1/8W

R182 1-216-222-00 RES, CHIP 10K 5% 1/8W R183 1-216-230-00 RES, CHIP 22K 5% 1/8W R184 1-259-880-11 CARBON 2.2M 5% 1/4W R185 1-216-089-00 RES, CHIP 47K 5% 1/10W R201 1-216-085-00 METAL CHIP 33K 5% 1/10W

R202 1-216-085-00 METAL CHIP 33K 5% 1/10W R203 1-216-041-00 METAL CHIP 470 5% 1/10W R204 1-216-109-00 METAL CHIP 330K 5% 1/10W R205 1-216-077-00 METAL CHIP 15K 5% 1/10W R206 1-216-079-00 METAL CHIP 18K 5% 1/10W

R207 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R208 1-216-073-00 METAL CHIP 10K 5% 1/10W R252 1-216-063-00 RES, CHIP 3.9K 5% 1/10W

(XR-2800) R252 1-216-220-00 RES, CHIP 8.2K 5% 1/8W

(XR-2803) R261 1-216-063-00 RES, CHIP 3.9K 5% 1/10W

R271 1-216-033-00 METAL CHIP 220 5% 1/10W R272 1-216-222-00 RES, CHIP 10K 5% 1/8W R273 1-216-230-00 RES, CHIP 22K 5% 1/8W R274 1-259-880-11 CARBON 2.2M 5% 1/4W R275 1-216-089-00 RES, CHIP 47K 5% 1/10W

R512 1-216-097-00 RES, CHIP 100K 5% 1/10W R515 1-216-097-00 RES, CHIP 100K 5% 1/10W R516 1-249-441-11 CARBON 100K 5% 1/4W R517 1-249-441-11 CARBON 100K 5% 1/4W R518 1-249-441-11 CARBON 100K 5% 1/4W

R519 1-249-441-11 CARBON 100K 5% 1/4W R520 1-249-437-11 CARBON 47K 5% 1/4W R521 1-216-246-00 RES, CHIP 100K 5% 1/8W R522 1-216-097-00 RES, CHIP 100K 5% 1/10W R523 1-249-441-11 CARBON 100K 5% 1/4W

R524 1-249-441-11 CARBON 100K 5% 1/4W R527 1-249-441-11 CARBON 100K 5% 1/4W R530 1-216-097-00 RES, CHIP 100K 5% 1/10W R531 1-216-097-00 RES, CHIP 100K 5% 1/10W R533 1-216-097-00 RES, CHIP 100K 5% 1/10W

R540 1-216-049-11 RES, CHIP 1K 5% 1/10W R541 1-249-417-11 CARBON 1K 5% 1/4W R542 1-249-417-11 CARBON 1K 5% 1/4W R543 1-249-417-11 CARBON 1K 5% 1/4W R544 1-249-417-11 CARBON 1K 5% 1/4W

R546 1-208-806-11 RES, CHIP 10K 0.50% 1/10W R547 1-208-806-11 RES, CHIP 10K 0.50% 1/10W R549 1-216-222-00 RES, CHIP 10K 0.50% 1/8W R550 1-216-222-00 RES, CHIP 10K 0.50% 1/8W R551 1-216-174-00 RES, CHIP 100 5% 1/8W

R552 1-216-174-00 RES, CHIP 100 5% 1/8W

– 41 –

MAIN PO WER

Ref. No. Part No. Description Remark

R553 1-216-097-00 RES, CHIP 100K 5% 1/10W R561 1-216-214-00 RES, CHIP 4.7K 5% 1/8W R563 1-216-113-00 METAL CHIP 470K 5% 1/10W R564 1-216-113-00 METAL CHIP 470K 5% 1/10W

R567 1-216-174-00 RES, CHIP 100 5% 1/8W R568 1-216-097-00 RES, CHIP 100K 5% 1/10W R572 1-249-441-11 CARBON 100K 5% 1/4W R573 1-249-417-11 CARBON 1K 5% 1/4W R576 1-216-057-00 METAL CHIP 2.2K 5% 1/10W

R578 1-249-413-11 CARBON 470 5% 1/4W R579 1-249-413-11 CARBON 470 5% 1/4W R580 1-249-421-11 CARBON 2.2K 5% 1/4W R581 1-249-421-11 CARBON 2.2K 5% 1/4W R582 1-249-421-11 CARBON 2.2K 5% 1/4W

R583 1-249-417-11 CARBON 1K 5% 1/4W R584 1-249-417-11 CARBON 1K 5% 1/4W R585 1-249-417-11 CARBON 1K 5% 1/4W R586 1-249-417-11 CARBON 1K 5% 1/4W R587 1-249-417-11 CARBON 1K 5% 1/4W

R588 1-249-417-11 CARBON 1K 5% 1/4W R589 1-249-417-11 CARBON 1K 5% 1/4W R590 1-249-417-11 CARBON 1K 5% 1/4W R591 1-216-081-00 METAL CHIP 22K 5% 1/10W R592 1-216-105-00 RES, CHIP 220K 5% 1/10W

R593 1-216-073-00 METAL CHIP 10K 5% 1/10W R596 1-249-441-11 CARBON 100K 5% 1/4W R597 1-249-437-11 CARBON 47K 5% 1/4W R598 1-216-089-00 RES, CHIP 47K 5% 1/10W R601 1-249-385-11 CARBON 2.2 5% 1/6W

R602 1-249-385-11 CARBON 2.2 5% 1/6W R603 1-249-411-11 CARBON 330 5% 1/4W R708 1-216-113-00 METAL CHIP 470K 5% 1/10W R709 1-216-073-00 METAL CHIP 10K 5% 1/10W R711 1-216-097-00 RES, CHIP 100K 5% 1/10W

R712 1-216-089-00 RES, CHIP 47K 5% 1/10W R713 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R851 1-247-807-31 CARBON 100 5% 1/4W R852 1-216-025-00 RES, CHIP 100 5% 1/10W R857 1-247-807-31 CARBON 100 5% 1/4W

Ref. No. Part No. Description Remark

7-685-792-09 SCREW +PTT 2.6X6 (S) 7-685-793-09 SCREW +PTT 2.6X8 (S) 7-685-794-09 SCREW +PTT 2.6X10 (S)

< CAPACITOR >

C503 1-126-157-11 ELECT 10uF 20% 16V C751 1-164-299-11 CERAMIC CHIP 0.22uF 10% 25V C752 1-126-157-11 ELECT 10uF 20% 16V C753 1-164-299-11 CERAMIC CHIP 0.22uF 10% 25V C778 1-163-251-11 CERAMIC CHIP 100PF 5% 50V

C787 1-164-232-11 CERAMIC CHIP 0.01uF 50V C789 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C790 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C791 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C801 1-163-038-00 CERAMIC CHIP 0.1uF 25V

C802 1-164-232-11 CERAMIC CHIP 0.01uF 50V C804 1-113-501-11 ELECT 4700uF 20% 16V C805 1-126-157-11 ELECT 10uF 20% 16V C807 1-164-232-11 CERAMIC CHIP 0.01uF 50V C808 1-164-232-11 CERAMIC CHIP 0.01uF 50V

< CONNECTOR >

CN801 1-779-533-11 PIN, CONNECTOR (PC BOARD) CNP400 1-770-406-11 CONNECTOR, BOARD TO BOARD 10P CNP401 1-770-406-11 CONNECTOR, BOARD TO BOARD 10P

< DIODE >

D765 8-719-200-82 DIODE 11ES2 D766 8-719-200-82 DIODE 11ES2 D775 8-719-200-82 DIODE 11ES2 D776 8-719-200-82 DIODE 11ES2 D785 8-719-200-82 DIODE 11ES2

D786 8-719-200-82 DIODE 11ES2 D795 8-719-200-82 DIODE 11ES2 D796 8-719-200-82 DIODE 11ES2 D801 8-719-049-38 DIODE 1N5404TU D805 8-719-110-49 DIODE RD18ES-B2

D806 8-719-109-93 DIODE RD6.2ESB2 D807 8-719-109-93 DIODE RD6.2ESB2

< TUNER UNIT >

TU1 A-3282-029-A TUX-006/2 (E) (FM/AM TUNER UNIT)

(XR-2800)

TU1 A-3282-031-A TUX-006/2 (EE) (FM/AM TUNER UNIT)

(XR-2803)

< VIBRATOR >

X501 1-578-785-11 VIBRATOR, CRYSTAL (4.5MHz)

************************************************************

* A-3313-589-A POWER BOARD, COMPLETE (XR-2803) * A-3313-591-A POWER BOARD, COMPLETE (XR-2800)

***********************

* 3-012-566-01 BRACKET (IC) * 3-012-568-01 BRACKET (CONNECTOR) * 3-012-569-01 HEAT SINK

3-012-593-01 BRACKET 7-682-548-04 SCREW +P 3X8

– 42 –

< IC >

IC751 8-759-490-48 IC HA13158

< COIL >

L801 1-411-670-11 COIL, CHOKE 400uH

< RESISTOR >

R534 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R535 1-216-049-11 RES, CHIP 1K 5% 1/10W R775 1-216-296-00 SHORT 0 R776 1-216-296-00 SHORT 0 R785 1-216-296-00 SHORT 0

R858 1-216-222-00 RES, CHIP 10K 5% 1/8W R859 1-216-073-00 METAL CHIP 10K 5% 1/10W

************************************************************

Ref. No. Part No. Description Remark

MISCELLANEOUS

**************

16 1-782-344-11 CORD (WITH CONNECTOR) (POWER) F901 1-532-677-00 FUSE, GLASS TUBE (10A) HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK) M901 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL)

************************************************************

**************

HARDWARE LIST

**************

#1 7-685-792-09 SCREW +PTT 2.6X6 (S) #2 7-685-793-09 SCREW +PTT 2.6X8 (S) #3 7-685-105-19 TPG +P 2X8, TYPE 2, NON-SLIT #4 7-682-548-04 SCREW +P 3X8 #5 7-685-794-09 SCREW +PTT 2.6X10 (S)

#6 7-624-104-04 STOP RING 2.0, TYPE-E #7 7-627-553-17 PRECISION SCREW +P 2X2 TYPE 3

************************************************************

ACCESSORIES & PACKING MATERIALS

********************************

3-861-995-11 MANUAL, INSTRUCTION

(ENGLISH, SPANISH, FRENCH, TURKISH, ARABIC)

3-861-996-11 MANUAL, INSTRUCTION, INSTALL

(ENGLISH, SPANISH, FRENCH, TURKISH, ARABIC)

3-861-998-11 MANUAL, INSTRUCTION

(HUNGARIAN, RUSSIAN) (XR-2803)

3-861-999-11 MANUAL, INSTRUCTION, INSTALL

(HUNGARIAN, RUSSIAN) (XR-2803)

************************************************************

(XR-2800)

PARTS FOR INSTALLATION AND CONNECTIONS

**************************************

501 3-012-593-01 BRACKET 502 X-3366-405-1 SCREW ASSY (EXP), FITTING 503 1-775-543-11 CORD, GROUND

501

502

503

– 43 –

XR-2800/2803

REVISION HISTORY

Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.

Ver. Date Description of Revision

1.1 2001.08 Correction of Part No. for Ref No. CN901 on CONTROL BOARD

and Ref No. CN602 on MAIN BOARD. (SPM-01018)

1.0 1998.02 New

– 44 –

Sony XR-2800, XR-2803 Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual

GENERAL

DISASSEMBLY

COVER

COLLAR (A), HANDLE ASS’Y

FRONT PANEL ASS’Y

MECHANISM DECK (MG-25E-136)

POWER BOARD

MAIN BOARD

ASSEMBLY OF MECHANISM DECK

HOUSING

ARM (SUCTION)

LEVER (LDG-A) / (LDG-B)

GEAR (LDG-FT)

GUIDE (C)

MECHANICAL ADJUSTMENTS

ELECTRICAL ADJUSTMENTS

TEST MODE

T APE DECK SECTION

TUNER SECTION

DIAGRAMS

EXPLODED VIEWS

ELECTRICAL PARTS LIST

CONTROL

REVISION HISTORY
