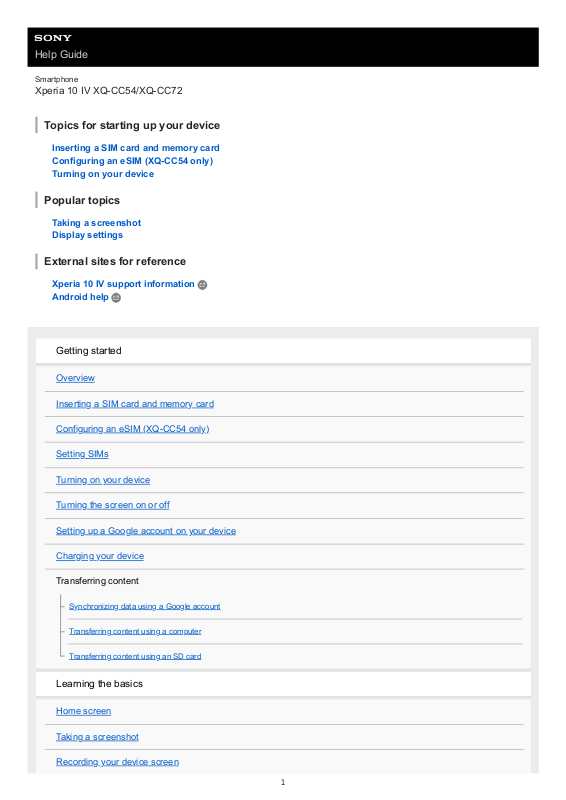

Page 1

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Topics for starting up your device

Inserting a SIM card and memory card Configuring an eSIM (XQ-CC54 only) Turning on your device

Related Topic

Settings menu

G-441-100-11

Place either the second SIM card (SIM2) or the memory card securely in the tray, in the correct orientation.

Gently push the SIM card tray back into the slot until it fits into place.

Page 11

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Configuring an eSIM (XQ-CC54 only)

Your device supports eSIMs (downloaded SIMs). To use an eSIM, perform setup from the Settings menu.

Note

The procedure for setting an eSIM differs depending on the network operator. If the setting cannot be completed with the procedure described here, refer to the setting procedure provided by your network operator.

Related Topic

Settings menu

G-441-100-11

Find and tap [Settings] > [Network & internet] > [SIMs].

If you have a SIM card inserted or eSIM already downloaded, tap

(Add icon).

Follow the on-screen instructions to scan the QR code provided by your network operator.

Page 12

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Setting SIMs

If you use two SIMs, you can do the following:

Receive incoming communications via both SIMs. Select the number from which to send outgoing communications, or have the option to select a SIM each time you place a call. Forward calls to the other SIM when one SIM is unreachable (Smart Forwarding). You must enable the [Smart Forwarding] function manually.

Before using multiple SIMs, you need to enable them and select which SIM will handle data traffic.

Hint

Your device works even when only one SIM is set.

Enabling or disabling the use of two SIMs

Renaming a SIM

Selecting which SIM handles data traffic

Setting the default SIM for placing a call

Enabling the [Smart Forwarding] function

Find and tap [Settings] > [Network & internet] > [SIMs].1. Select a SIM.2. Tap the [Use SIM] switch to enable or disable the SIM.3. Tap

(Back button) to set the other SIM.4.

Find and tap [Settings] > [Network & internet] > [SIMs].1. Select a SIM.2. Tap

(Edit icon), and then enter a new name.3.

Tap [Save].4.

Find and tap [Settings] > [Network & internet] > [SIMs].1. Select a SIM.2. Tap [Data preference].3. Select the SIM you want to use for data traffic.4.

Find and tap [Settings] > [Network & internet] > [SIMs].1. Select a SIM.2. Tap [Calls preference].3. Select the SIM you want to use for placing a call.4.

Launch the Phone app.1. Tap

(More icon) > [Settings] > [Calling accounts] > [Smart Forwarding].2. Tap the switch to enable the function.3. Follow the on-screen instructions to complete the procedure.4.

Page 13

Note

The [Smart Forwarding] function may not be available depending on the combination of network operators that provided the SIMs.

The [Smart Forwarding] function is not available when the [Always forward] function is enabled in the Phone app.

Hint

If you set one SIM for calling and the other SIM for data communications, you may not be able to access the internet while talking on the phone. In this case, turn on the [Data during calls] switch of the SIM for calling. You will now be able to perform data communications even during calls.

If the [Smart Forwarding] function does not work after you enable it, check that you have entered the phone numbers correctly for each SIM. In some cases, the numbers are detected automatically during setup. Otherwise, you are prompted to enter them manually.

Related Topic

Settings menu

Inserting a SIM card and memory card

G-441-100-11

Page 14

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Turning on your device

It is recommended that you charge the battery for at least 30 minutes before starting up your device for the first time. You can still use your device while it is charging. The first time you start your device, a setup guide helps you to configure basic settings, personalize your device, and sign in to your accounts, for example a Google account.

To turn off the device

Note

It may take a while for the device to shut down.

Hint

You can turn off the device from the Quick settings panel. Swipe down twice from the top of the screen, and then tap

(Power

menu button) > [Power off].

Long-pressing the power button is set to start the assistant by default in some countries/regions. To turn off the device by longpressing the power button, find and tap [Settings] > [System] > [Gestures] > [Power menu], and then tap the [Hold for Assistant] switch to disable the function.

Related Topic

Charging your device

Settings menu

G-441-100-11

Long press the power button until your device vibrates.

Press the volume up button and power button at the same time.1. In the menu that opens, tap [Power off].2.

Page 15

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Turning the screen on or off

When your screen is turned off, your device can be locked or unlocked, depending on your screen lock setting.

Hint

To turn the screen on by pressing the volume button, tap [Settings] > [System] > [Gestures], and then tap the [Wake up display on keypress] switch to enable the function.

Related Topic

Settings menu

G-441-100-11

Briefly press the power button.

Page 16

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Setting up a Google account on your device

Your device from Sony runs on the Android platform developed by Google. A range of Google applications and services is available on your device when you purchase it, for example, Gmail, Google Maps, YouTube, and the Google Play application. To get the most out of these services, you need a Google account. For example, a Google account enables you to do the following:

Download and install applications on Google Play. Synchronize your email, contacts, and calendar using Gmail. You can back up, restore, and transfer your data. Chat with friends using the Google Duo application. Synchronize your browsing history and bookmarks using the Chrome web browser. Identify yourself as the authorized user after a software repair using Xperia Companion. Remotely find, lock, or clear a lost or stolen device using the Find My Device services.

For more information, go to support.google.com/.

Related Topic

Synchronizing data using a Google account

Settings menu

G-441-100-11

Find and tap [Settings] > [Passwords & accounts] > [Add account] > [Google].

Follow the on-screen instructions to create a Google account, or sign in if you already have an account.

Page 17

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Charging your device

You can charge your device from a wall socket or computer. You can still use your device while charging. If the battery is depleted, it may take up to 10 minutes for your device to respond to the charging. During this time, the screen may remain completely dark, not showing the charging icon. It can take couple of hours for a completely drained battery to be fully charged. Charging speed may be affected by ambient temperature. Always use the Sony-branded charger and USB cable, since other types of chargers and USB cables may pose increased safety risks.

Note

Your device has an embedded, rechargeable battery that can only be replaced by an authorized Sony service partner. Never try to open or take apart the device yourself. Doing so can cause damage and void your warranty.

Hint

A wall socket charger will charge your device faster than charging via computer. You can still use your device while charging.

Page 18

Battery notification light status

Green: Battery is charging, charge level is greater than 90% Orange: Battery is charging, charge level is 15%–90% Red: Battery is charging, charge level is less than 15%

Note

If the message below appears on your device, a charging malfunction has occurred. Please stop using your device and contact an authorized Sony service partner for repair.

Related Topic

Battery and power management

G-441-100-11

Connect one end of the USB cable to the charger (or to the USB port of a computer).

Connect the other end of the cable to the USB port on your device.

The notification light illuminates when charging begins.

When the device is fully charged, disconnect the cable from your device by pulling it straight outwards.

Make sure not to bend the connector.

Page 19

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Synchronizing data using a Google account

You can transfer data by synchronizing data with your account. There are several ways to synchronize data, depending on the kind of device or content that you want to back up and synchronize. You can automatically synchronize data when you start up your new device or synchronize manually using the app in which the content is located.

Synchronizing data when you startup your new device

When you first turn on your new device, set your Google account and follow the on-screen instructions to synchronize content from your old device. For more information, go to support.google.com/android/answer/6193424.

Note

If you did not synchronize your data when you first turned on your new device, you can transfer data from your old device by tapping the notification in the status bar of your new device. Drag the status bar downwards, tap the finish setting up notification, and then follow the on-screen instructions.

You cannot transfer apps, settings, call history, or SMS/MMS manually. Follow the on-screen instructions when you first turn on your new device to transfer them.

The kinds of data that can be transferred depend on the type of device and method of transferring the data.

Gmail, Calendar, and Contacts

Images (photos) and videos

You can transfer photos and videos by backing them up from another device using Google Photos.

Find and tap [Settings] > [Passwords & accounts].1. If there is no Google account set yet, tap [Add account], and then follow the on-screen instructions to add an account.

Tap the [Automatically sync app data] switch to enable the function. Your Gmail, Calendar, and Contacts will be backed up automatically. For more information, refer to the help content for the app.

On your old device, back up photos and videos to the Google server using Google Photos, and then turn on the sync settings.

On your new device, log in with the same Google account that you are using on your old device.2. Launch the Google Photos app.3.

Page 20

Music and other document files

Music and other document files are transferred by backing them up to Google Drive manually from your old device.

Hint

To back up music and other document files from your new device, touch and hold the file you want to back up, and then tap (Share icon) to save it to Google Drive.

Related Topic

Settings menu

Setting up a Google account on your device

G-441-100-11

Photos and videos backed up from your old device can be viewed and edited. If you want to save files on the internal storage of your new device, you can download them. For more information, refer to the help content for the app.

On your old device, launch the Music app or File app.1. Select a file to upload to Google Drive, and then save it to Google Drive using the Share function.2. On your new device, log in with the same Google account that you are using on your old device.3. Launch the Google Drive app. The files backed up from your old device will be viewed or downloaded. For more information, refer to the help content for the app.

Page 21

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Transferring content using a computer

You can transfer a large amount of data to your new device from your old device using a computer.

Note

Always use a Sony-branded USB cable, since other types of USB cables may pose increased safety risks.

Make sure the USB cable is completely dry.

G-441-100-11

Connect both your new device and old device to a computer using a USB cable.

On any Android devices, drag down the status bar, tap the USB connection setting notification, and then tap [Tap for more options.] > [File Transfer]. If your old device is an iOS device, follow the on-screen instructions.

On the computer, select which files to transfer from your old device, and then copy and paste or drag and drop the files to a location on your new device.

When you copy files from your old device to your new device, make sure that the folder names are the same on both devices.

Page 22

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Transferring content using an SD card

You can transfer photos, videos, music, and other document files from your old device using an SD card.

On your old device, copy the data that you want to transfer to an SD card using the Storage function in the Settings menu or the Files app.

To copy contacts stored on your old Android device to an SD card, launch the Contacts app, and then export the contacts to the SD card.

Note

Check that the SD card can be used on both your new device and old device in advance.

Insert the SD card to which you copied the data into your new device, and then transfer the data to your new device's internal storage.

To copy contacts exported from your old Android device to the SD card, launch the Contacts app, and then import them.

Check the transferred data using the appropriate app.

Page 23

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Home screen

Hint

When the 3 buttons for Home, Back, and Overview are not displayed at the bottom of the screen, find and tap [Settings] > [System] > [Gestures] > [System navigation] > [3-button navigation].

To open the Quick settings panel

Status bar1. Navigation bar2. Overview button – Tap to find all open apps.

To open another app, tap the overview button, swipe left or right to select the app you want to open, and then tap the app. To close an app, tap the overview button, swipe left or right to select the app you want to close, and then swipe up on the app.

Home button – Tap to exit an app and go back to the Home screen.4. Back button – Tap to go back to the previous screen within an app or close the app.5.

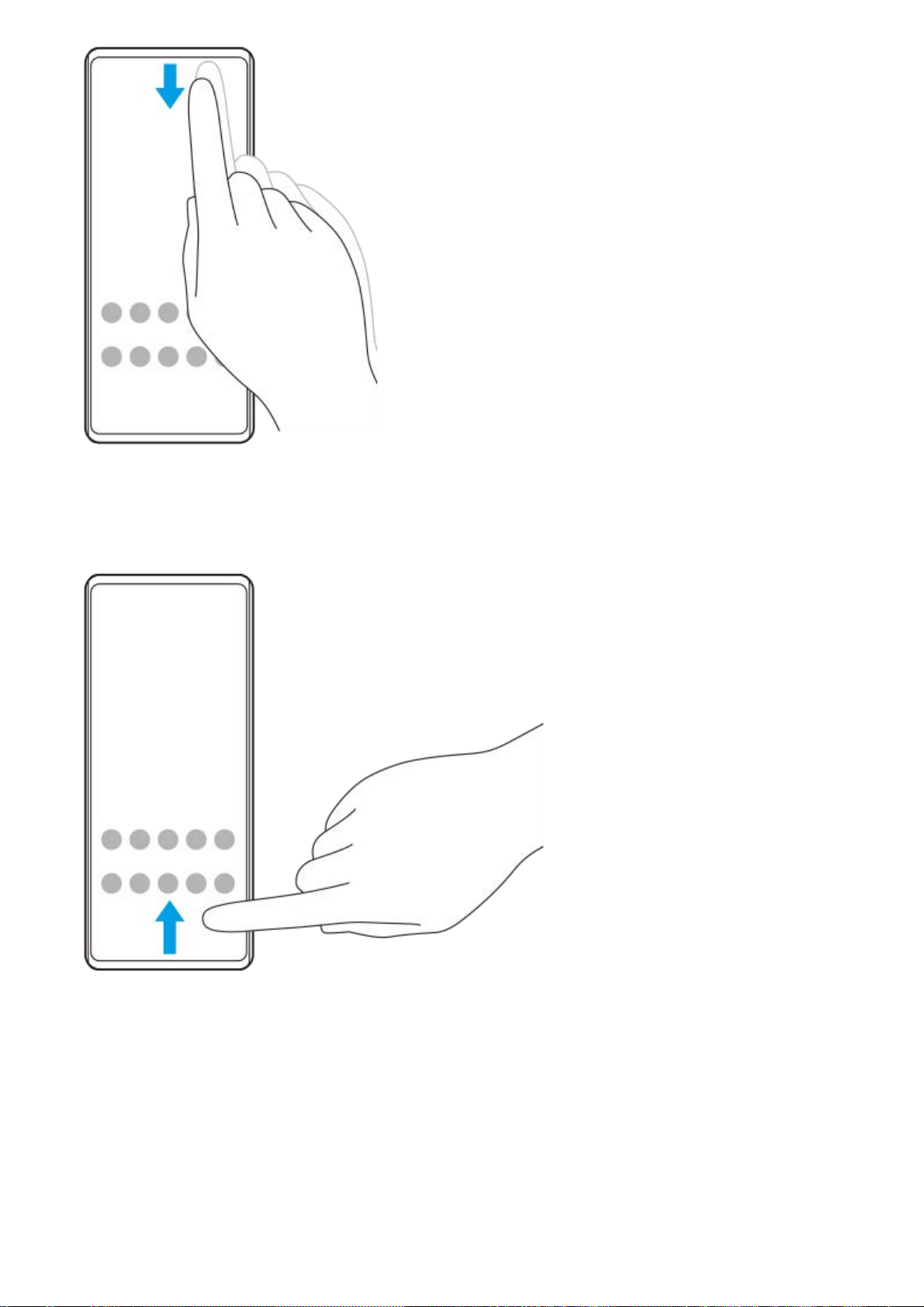

Swipe down twice from the top of the screen.1.

Page 24

To view all apps in the app drawer and open an app

To change your wallpaper

You can change your wallpaper to a preset image or your favorite photo.

Swipe up from the bottom of the screen to the top to open the app drawer.1.

Tap the app that you want to open.2.

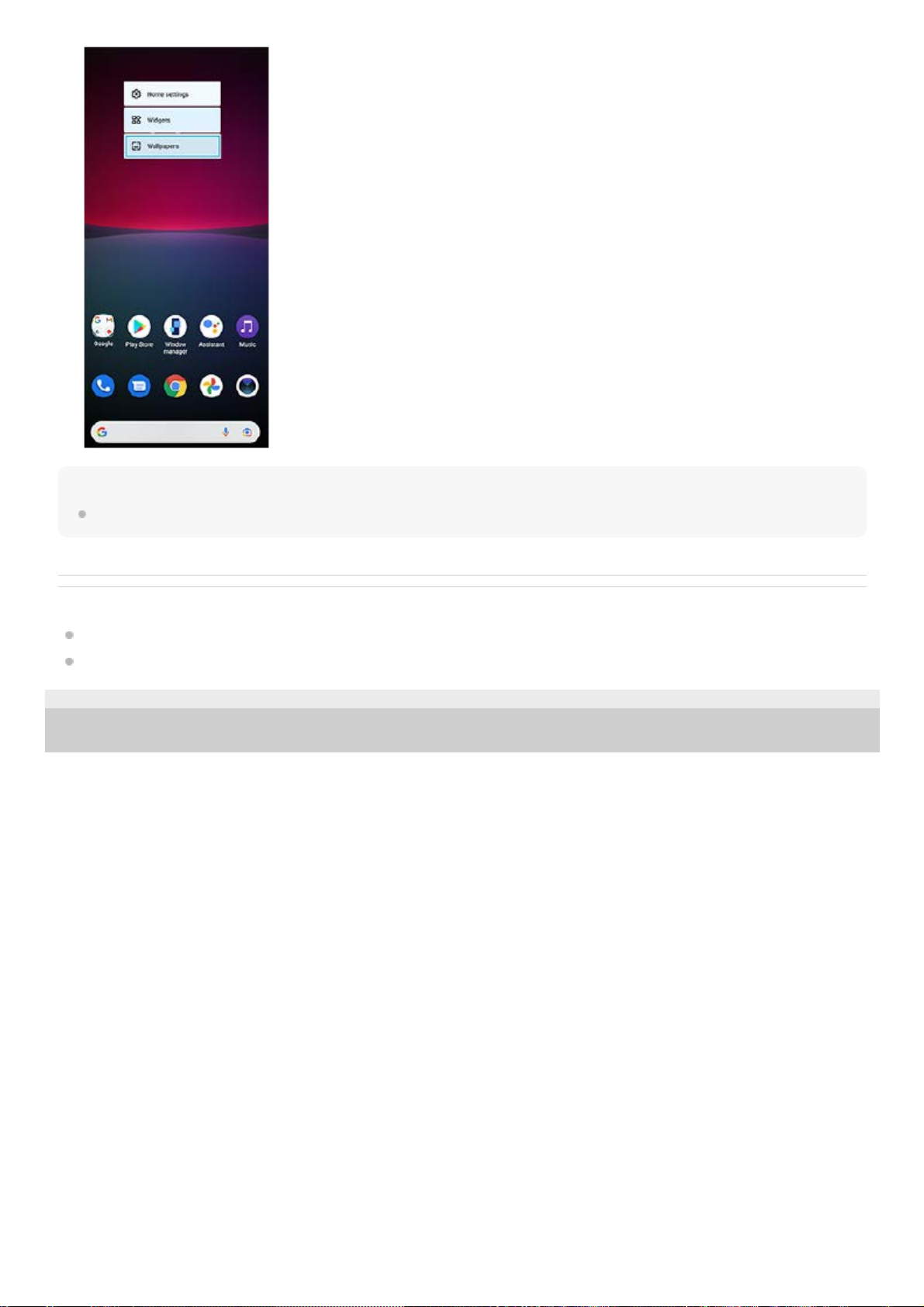

Touch and hold an empty area on the Home screen, and then tap [Wallpapers].1.

Page 25

Hint

To add a widget to the Home screen, touch and hold an empty area on the Home screen, and then tap [Widgets].

Related Topic

Settings menu

Display settings

G-441-100-11

Page 26

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Taking a screenshot

You can capture still images of any screen on your device as a screenshot. After you take a screenshot, you can view, edit, and share the image. Screenshots you take are automatically saved in your device’s internal storage.

Hint

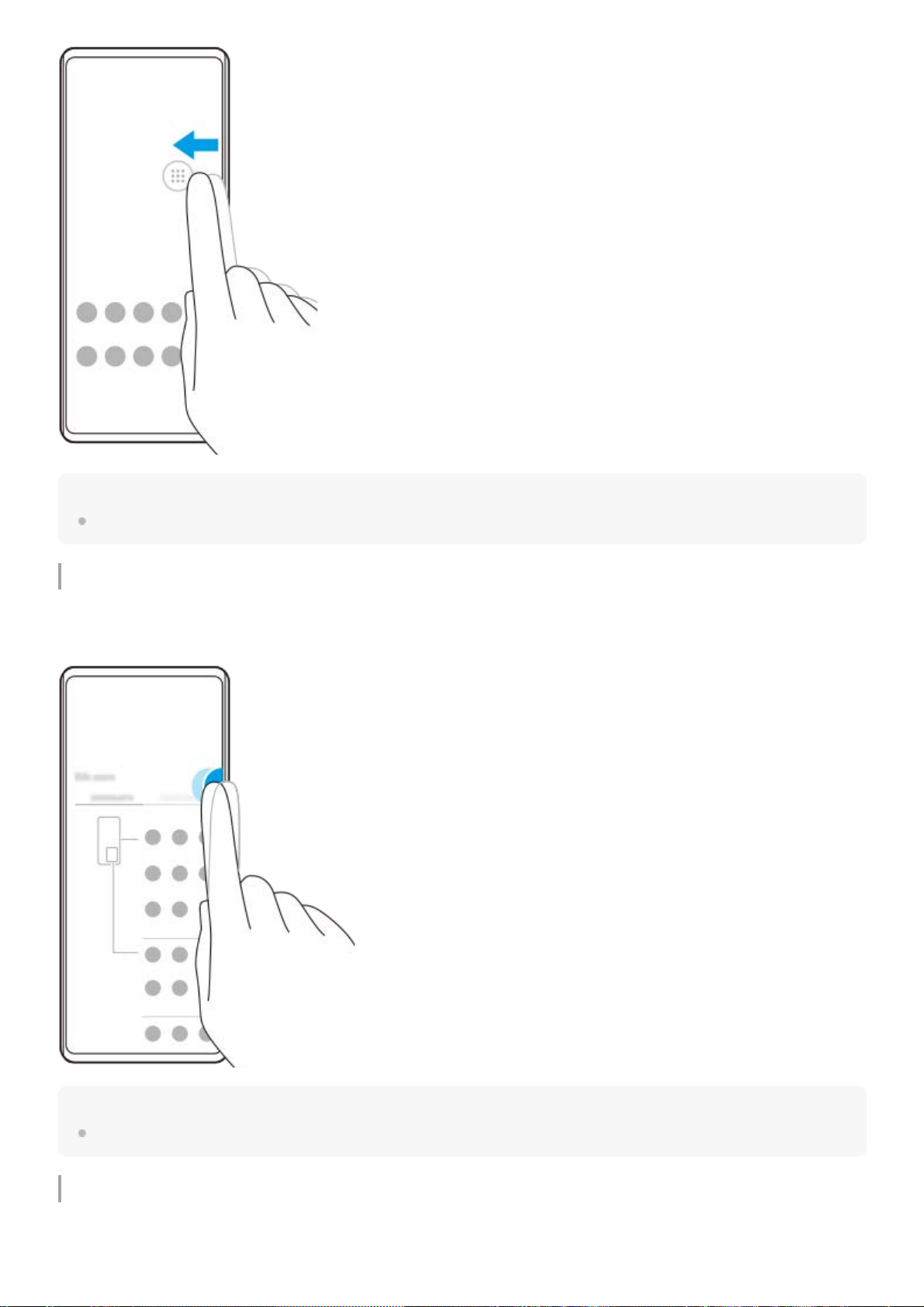

You can take a screenshot by using the Side sense menu. Double-tap the Side sense bar or circle, and then tap [Take screenshot].

You can assign taking screenshots to a gesture on the Side sense bar. To take a screenshot using the Side sense bar, find and tap [Settings] > [Display] > [Side sense] > [Gesture function assignments], select a gesture from among [Double-tap], [Slide up], and [Slide down], and then tap [Take screenshot].

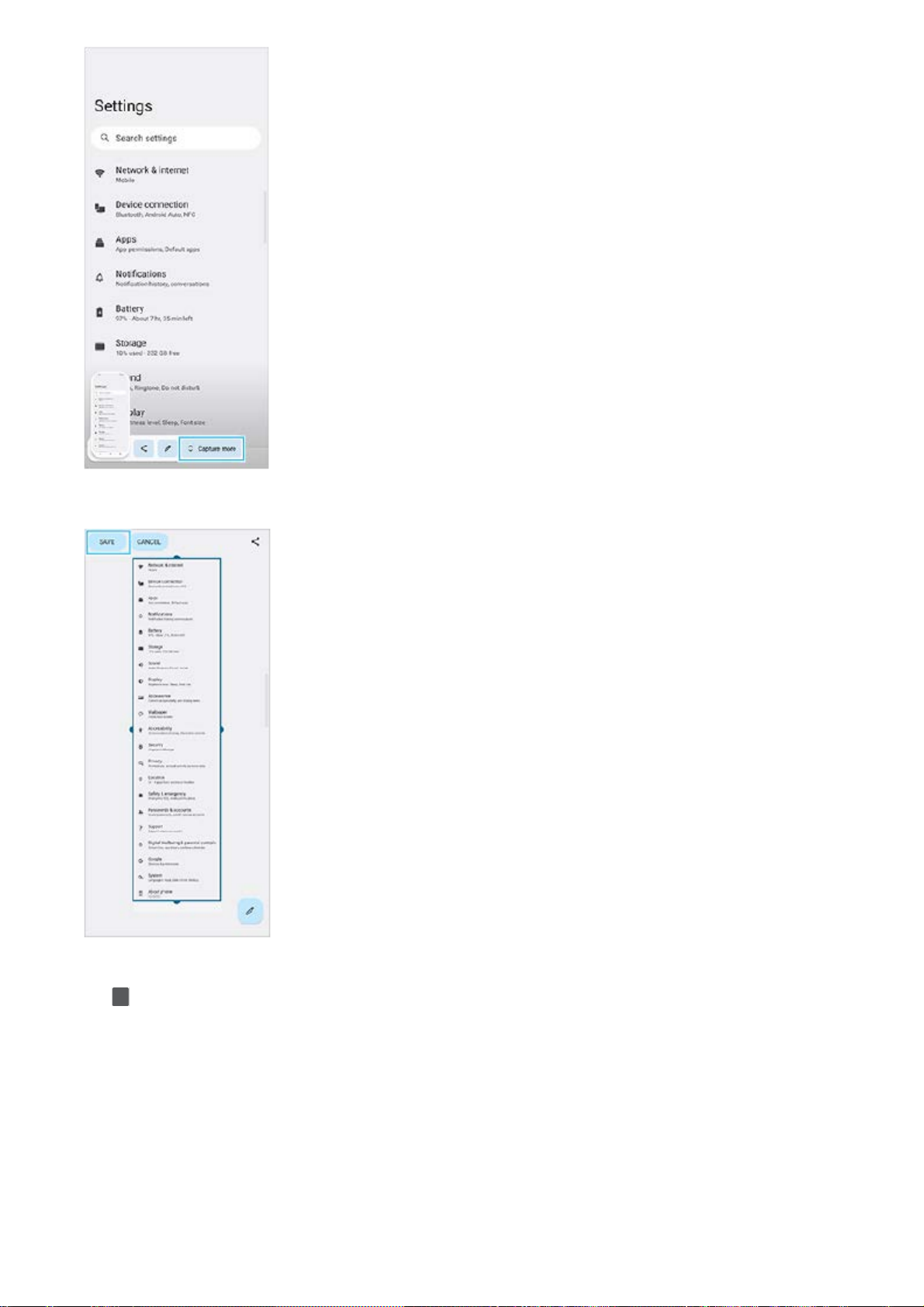

To take a scrolling screenshot

You can take a screenshot of a screen that is scrollable.

Note

Scrolling screenshots are available if the app supports the feature.

Press the volume down button (A) and power button (B) at the same time.

Press the volume down button and power button at the same time.1.

Tap [Capture more].2.

Page 27

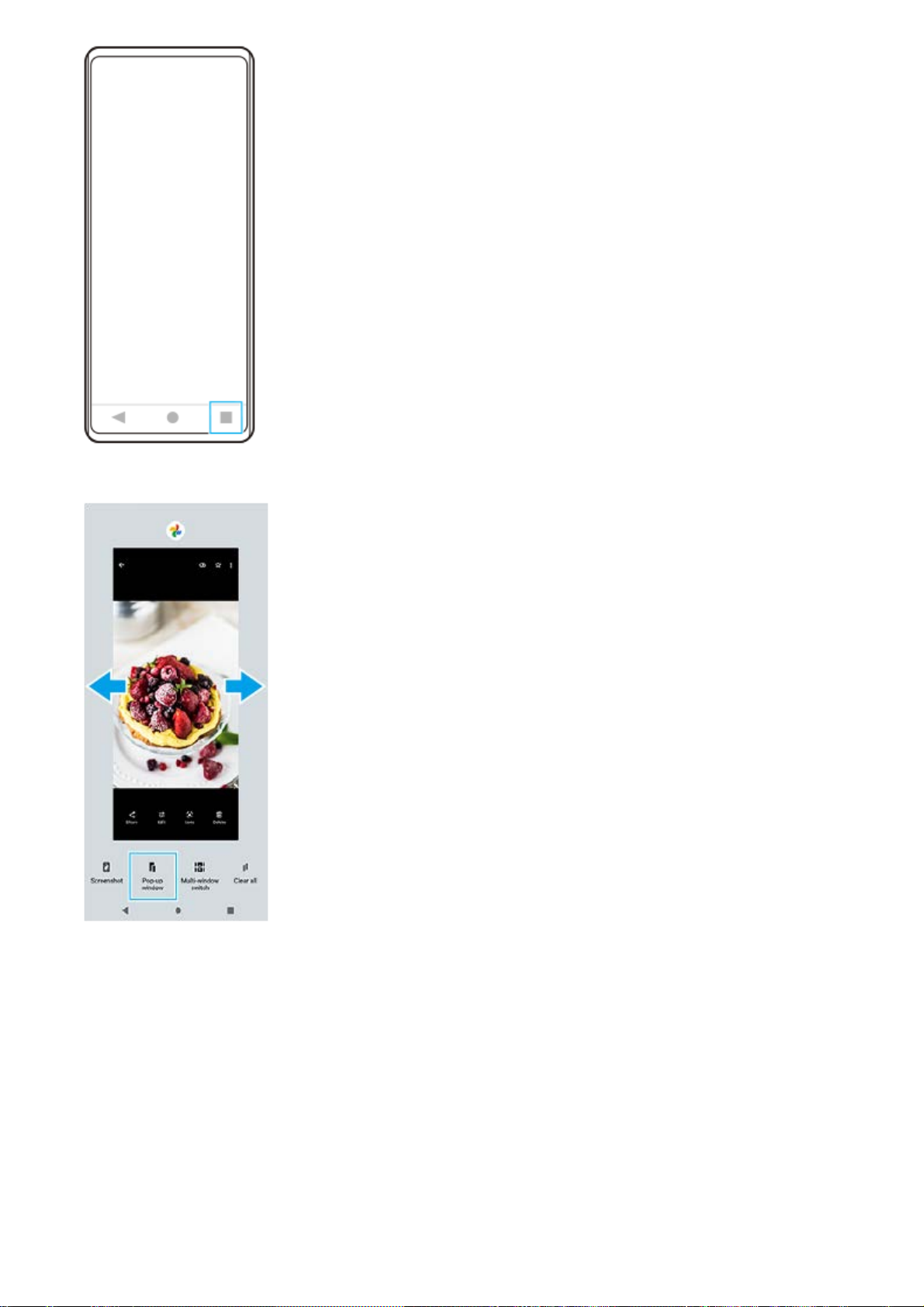

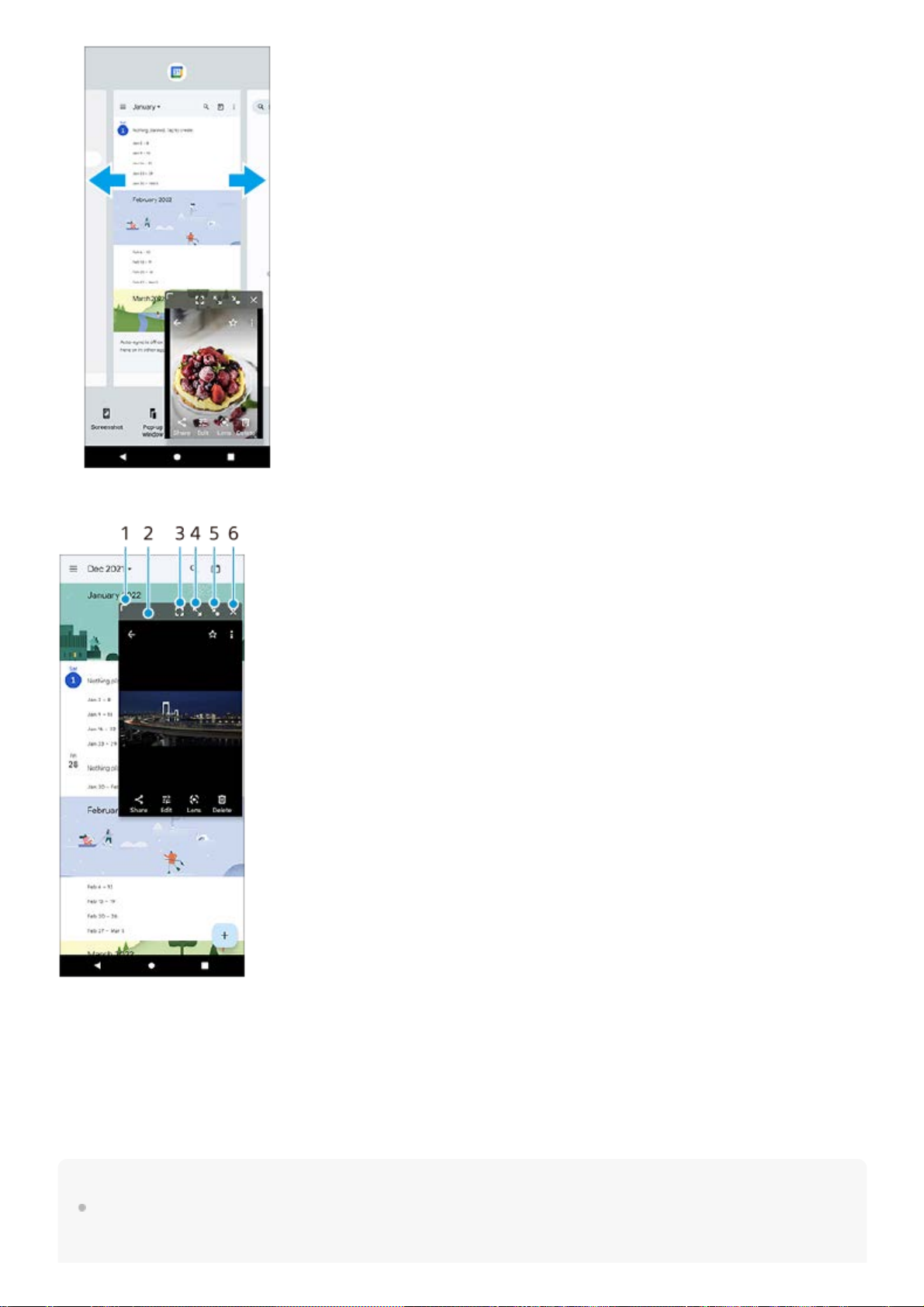

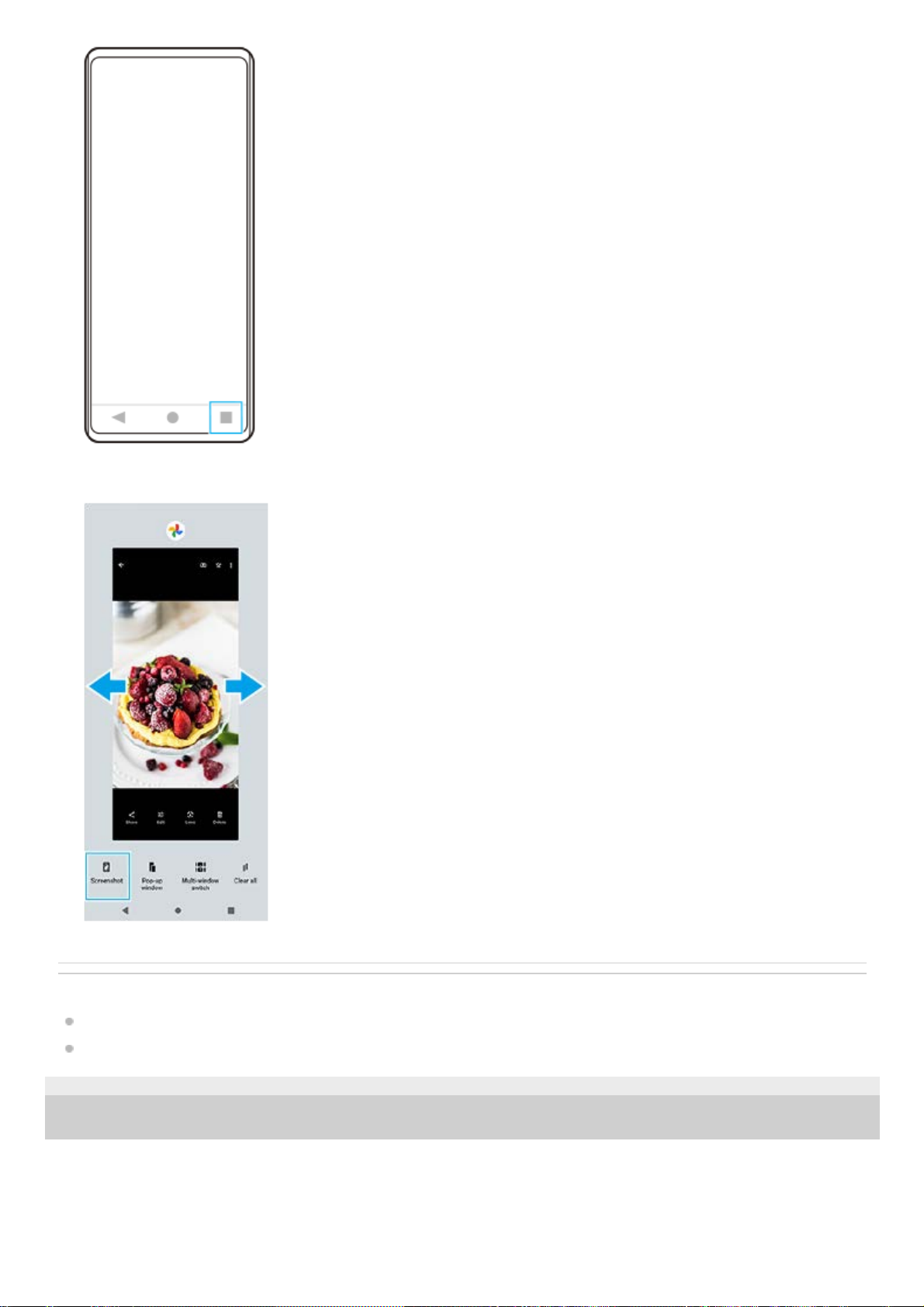

To take a screenshot of a recently used app

Drag the line to adjust the screenshot area, and then tap [Save].3.

Tap

(Overview button) in the navigation bar.1.

Page 28

Related Topic

Setting other Side sense options

Settings menu

G-441-100-11

Swipe left or right to select the app of which you want to take a screenshot, and then tap [Screenshot].2.

Page 29

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Recording your device screen

You can record a video of your device screen. Recorded videos are automatically saved in your device’s internal storage.

Note

You may not be able to record your device screen depending on the application design.

Related Topic

Home screen

G-441-100-11

Swipe down twice from the top of the screen to open the Quick settings panel.

Swipe left or right to find

(Screen Record icon), and then tap it.

If you cannot find the icon in the Quick settings panel, tap

(Edit icon), and then drag and drop (Screen

Record icon) into the upper part of the screen.

Follow the on-screen instructions to start recording the screen.

To stop recording, drag down the status bar to open the notification panel, and then tap the Screen recorder notification.

Page 30

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Scanning QR codes

You can scan QR codes using the Camera app.

To turn the [QR Code reader] function on

Hint

To display the QR code notification on the Camera app screen, find and tap [Settings] > [Apps] > [Camera] > [Notifications] > [QR Code reader], and then tap the [Pop on screen] switch to enable the function with [Default] selected.

Related Topic

Taking a photo or recording a video

Settings menu

G-441-100-11

Find and tap

(Camera icon).

Point the camera at the QR code, and then tap the notification that appears.

If the notification does not appear, drag down the status bar to open the notification panel, and then confirm it.

Find and tap

(Camera icon).1.

Tap

(Settings icon).2.

Tap the [QR Code reader] switch to enable the function.3. Close the settings menu. The setting is saved.

Page 31

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Adjusting the idle time before the screen turns off

When your device is on and left idle for a set period of time, the screen dims and turns off to save battery power. You can change how long your screen stays active before it turns off.

Related Topic

Settings menu

G-441-100-11

Find and tap [Settings] > [Display] > [Screen timeout].

Select an option.

Page 32

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Smart backlight control

The smart backlight control keeps the screen on as long as the device is held in your hand. Once you put down the device, the screen turns off according to your screen timeout setting.

Related Topic

Settings menu

Adjusting the idle time before the screen turns off

G-441-100-11

Find and tap [Settings] > [Display] > [Smart backlight control].

Tap the switch to enable or disable the function.

Page 33

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Using Side sense

You can tap the Side sense bar on the edge of the screen or slide it with one hand in order to use your device more easily. You can display the Side sense menu as a shortcut to applications and settings, or the Multi-window menu to select two applications in the split-screen mode. The Side sense menu and Multi-window menu can be switched by tapping each tab. You can also return to the previous screen by sliding down along the Side sense bar on the edge of the screen. Make sure to tap or slide your finger within the Side sense bar.

Note

Side sense may not be available depending on the apps and functions that you are using.

Customizing the Side sense bar

To move the Side sense bar up or down, touch and hold the Side sense bar, and then drag it up or down. To place the touch position anywhere you want on the screen, touch and hold the Side sense bar, and then drag it toward the center of the screen. The shape of the Side sense bar changes to a circle, and you can drag and place it anywhere you want on the screen.

Page 34

Hint

To return the Side sense bar to its original shape, drag the circle back to the edge of the screen.

Displaying the Side sense menu

To activate the Side sense menu, double-tap the Side sense bar or circle. Follow the on-screen instructions to select an app. You can also launch an app in a pop-up window.

Hint

To exit the Side sense menu, double-tap the Side sense bar or tap an empty area on the screen.

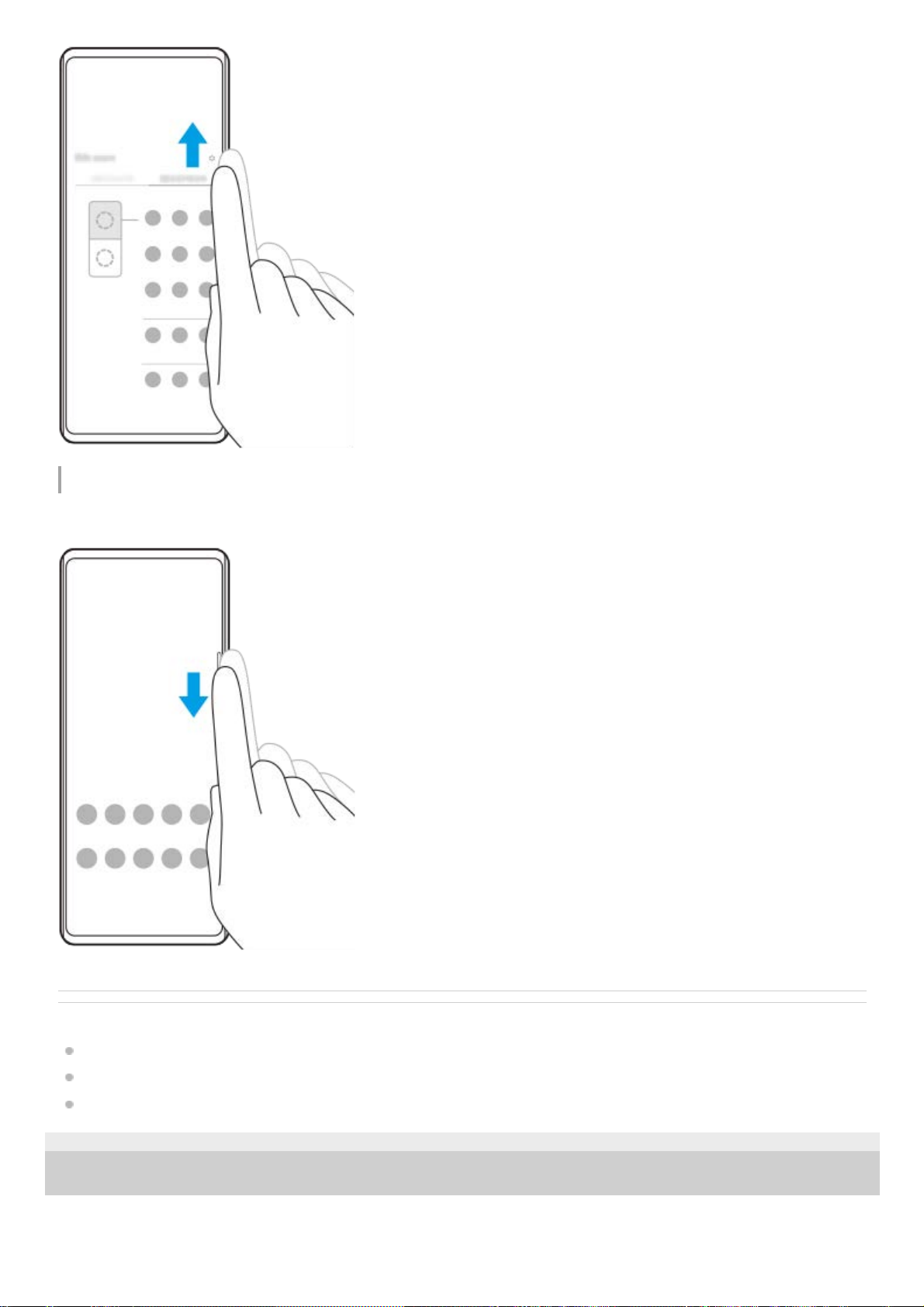

Displaying the Multi-window menu

Slide up the Side sense bar or circle to display the Multi-window menu. Follow the on-screen instructions to add apps to a split-screen.

Page 35

Returning to the previous screen using the Side sense bar

Slide down the Side sense bar or circle to return to the previous screen.

Related Topic

Setting other Side sense options

Split-screen mode

Pop-up window mode

G-441-100-11

Page 36

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Setting other Side sense options

You can configure how Side sense behaves or customize the menu, etc. For example, the following options are available for Side sense.

Whether to show the Side sense bar on one or both sides of your screen The screen actions for gesture

Hint

To assign a screen action, such as taking a screenshot, to a gesture, find and tap [Settings] > [Display] > [Side sense] > [Gesture function assignments], select a gesture from among [Double-tap], [Slide up], and [Slide down], and then select an option.

You can hide the Side sense bar by tapping the [Use Side sense bar] switch. Even when the Side sense bar is hidden, you can display the Side sense menu by tapping

(Window manager icon) on the Home screen.

Related Topic

Settings menu

Using Side sense

G-441-100-11

Find and tap [Settings] > [Display] > [Side sense].

Follow the on-screen instructions in the lower part of the screen to edit other Side sense options.

Page 37

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Split-screen mode

The Split-screen mode enables you to view two applications at once, such as when you want to view your photos and the Calendar at the same time.

Displaying apps in the Split-screen mode using

(Window manager icon)

Displaying apps in the Split-screen mode using

(Overview button)

Find and tap

(Window manager icon), and then tap the [21:9 Multi-window] tab. The Multi-window menu is displayed. You can also display the Multi-window menu by sliding up the Side sense bar or circle.

Select the apps you want to display in the top and bottom half of the screen.

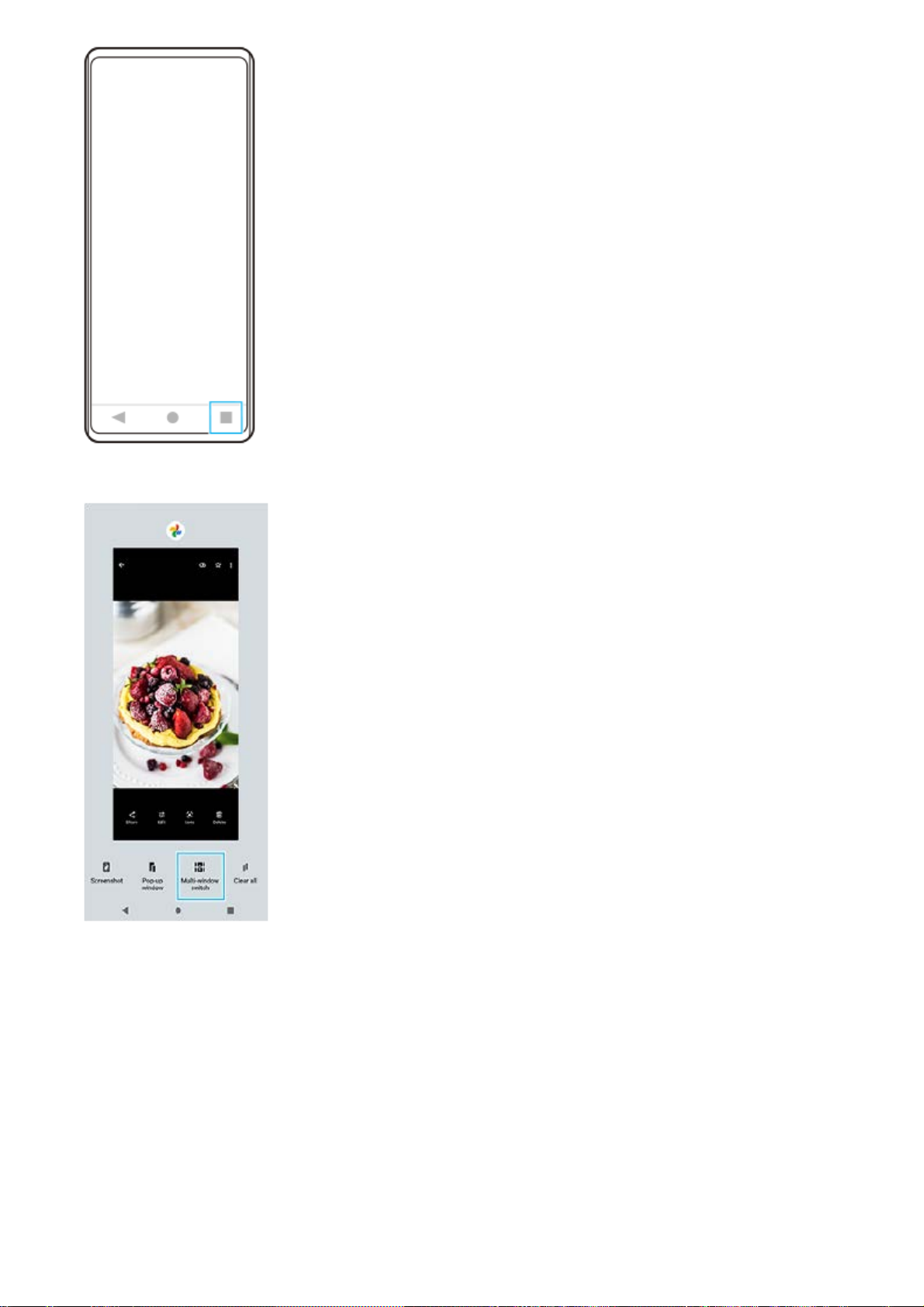

Tap

(Overview button) in the navigation bar.1.

Page 38

Tap [Multi-window switch].2.

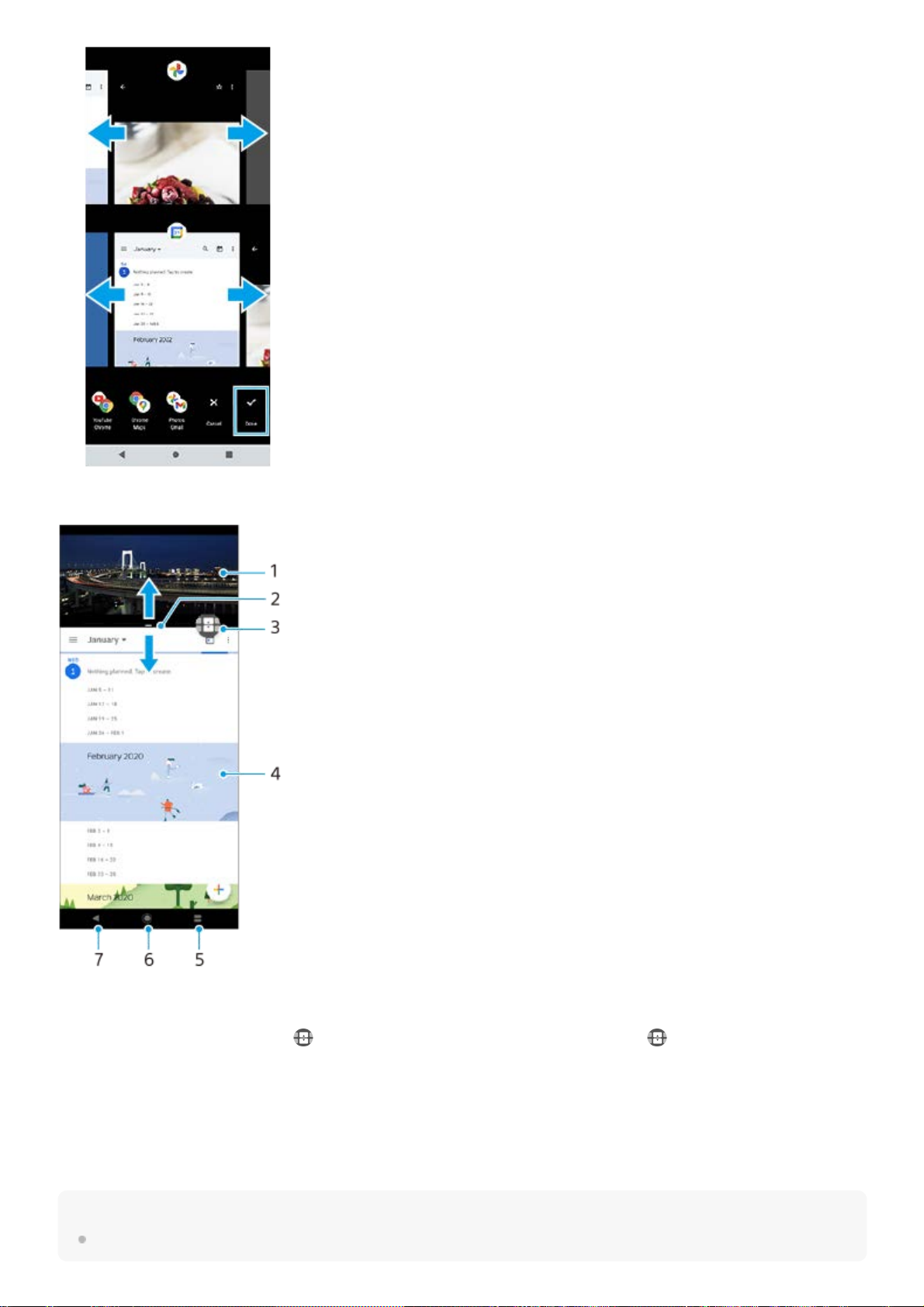

Swipe left or right to select the desired apps, and then tap [Done].3.

Page 39

Split-screen overview

Note

Not all applications support split-screen mode.

Application 11. Split-screen border – Drag to resize windows2. Multi-window switch icon – Tap

(Multi-window switch icon) to select applications. (Multi-window switch icon)

appears when you drag the split-screen border.

Application 24. Overview button – Select a recently used application for the lower window5. Home button – Go back to the Home screen6. Back button – Go back to the previous screen within an application or close the application7.

Page 40

To resize the split-screen windows

To exit the split-screen mode

Related Topic

Using Side sense

G-441-100-11

Drag the split-screen border in the center.1.

Drag the split-screen border to the top or bottom of the screen.1.

Page 41

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Pop-up window mode

You can display another app in a small window overlaid on top of an app running in the full-screen mode. You can also display a third app in the pop-up window while viewing two apps using the Split-screen mode.

Using the pop-up window mode

Displaying a recently used app in the pop-up window mode

Find and tap

(Window manager icon). The Side sense menu is displayed. You can also display the Side sense menu by double-tapping the Side sense bar or circle.

Tap the app you want to display in a small window.

Tap

(Overview button) in the navigation bar.1.

Page 42

Swipe left or right to select the app that you want to display in a small window, and then tap [Pop-up window].2.

Swipe left or right to select the app that you want to display in the full-screen, and then tap it.3.

Page 43

Pop-up window overview

Note

Not all apps support the pop-up window mode.

Drag to resize the window.1. Drag to move the window.2. Tap to exit the pop-up window mode and display the full-screen mode.3. Tap to maximize the window.4. Tap to iconize the window.5. Tap to close the window.6.

Page 44

The pop-up window mode may be unavailable depending on the function or app you are using, such as when using the Camera app.

Related Topic

Using Side sense

G-441-100-11

Page 45

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

One-handed mode

Enable One-handed mode to lower the entire screen so you can operate with one hand more easily.

Related Topic

Settings menu

G-441-100-11

Find and tap [Settings] > [Display] > [One-handed mode], and then tap the [Use one-handed mode] switch to enable the function.

To set other options, follow the on-screen instructions.

To use the one-handed mode, double-tap

(Home button).

To exit the one-handed mode, double-tap

(Home button) again or tap anywhere above the app.

Page 46

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Alarm

You can set one or several alarms and use any sound file saved on your device as the alarm signal. The alarm does not sound if your device is turned off.

Hint

To add a clock widget to the Home screen, touch and hold an empty area on the Home screen, tap [Widgets], and then touch and hold the desired clock.

Related Topic

Date and time

G-441-100-11

Find and tap [Clock] > [Alarm].

Tap

(Add item icon).

Set the time, and then tap [OK].

Select the desired value.

Page 47

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Notification light

The notification light informs you about battery status and some other events. The notification light is enabled by default but can be disabled manually.

Note

If the notification light is disabled, it only lights up or flashes when there is a battery status warning, such as when the battery level goes below 15 percent.

Related Topic

Settings menu

G-441-100-11

Find and tap [Settings] > [Notifications].

Tap the [Use LED light to show incoming notifications] switch to enable or disable the function.

Page 48

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Status bar and notification panel

Notification icons and status icons are displayed in the status bar at the top of the screen. Notification icons inform you of events, such as new messages. Status icons inform you of statuses, such as the condition of the battery and the signal strength of mobile or Wi-Fi network connections.

To view notification content

When you open the notification panel, you can view the content of the displayed notification icons.

Hint

To expand and view more information about a notification, tap

(Expand more icon). Not all notifications are expandable.

To open the app in the pop-up window from the notification, tap

(Pop-up window icon). Not all apps can be opened in the

pop-up window.

To dismiss a notification from the notification panel, swipe the notification left or right. Not all notifications can be dismissed.

To change the notification settings, touch and hold the notification to make

(Settings icon) appear and then tap it.

Related Topic

Notification icons

Status icons

G-441-100-11

Notification icons1. Status icons2. Status bar3.

Drag down the status bar to open the notification panel.1.

Page 49

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Status icons

(Signal strength icon): The mobile network mode is also displayed when sending and downloading mobile data.

(No signal icon)

(Data roaming icon): International roaming is in use.

(Wi-Fi signal icon): A Wi-Fi connection is enabled and data is being transmitted.

The number displayed to the left of the icon differs according to the Wi-Fi standard of the current connection.

(Wi-Fi connection error icon): A Wi-Fi connection is enabled but there is no internet connection. This icon also appears when you are trying to connect to a captive portal network. After a successful login, the cross mark disappears. If Google is blocked in your area, the cross mark may appear even when the device is connected to a network and there is a Wi-Fi working internet connection.

(Battery status icon)

(Charging battery icon)

(STAMINA mode icon)

(Data Saver icon)

(Airplane mode icon)

(Bluetooth icon): Your device is connected to a Bluetooth compatible device.

(Microphone muting icon)

(Speakerphone icon)

(Do Not Disturb icon)

(Muting icon)

(Vibrate icon)

(Alarm icon)

(GPS icon)

Note

Not all icons that may appear on your device are listed here. This list is for reference purposes only, and changes may be made without notice.

Related Topic

Charging your device

Page 50

STAMINA mode

Controlling data usage

Turning the Bluetooth function on or off

Volume and vibration

Alarm

Using location services

Notification icons

G-441-100-11

Page 51

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Notification icons

(New SMS icon)

(Ongoing call icon)

(Missed call icon)

(Phone call on hold icon)

(Call forward icon): Call forwarding is turned on

(Downloading data icon)

(Uploading data icon)

(Software setup icon): A basic setup of your device is available

(Install latest software icon): A software update is available

(System update icon): System updates are available

(Downloading system update icon)

(Installing downloaded system update icon)

(Battery Care icon)

(More notifications icon): More undisplayed notifications

Note

Not all icons that may appear on your device are listed here. This list is for reference purposes only, and changes may be made without notice.

Related Topic

Battery Care

Status icons

G-441-100-11

Page 52

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Camera overview

Related Topic

Taking a photo or recording a video

Basic camera features

Selecting a capturing mode

Viewing photos and videos

Bokeh effect

Scanning QR codes

G-441-100-11

Tap to adjust color and brightness1. Switch between the front and main camera2. Camera settings3. Geotagging status4. Use the volume button to zoom in or out5. Tap the thumbnail to view, share, or edit photos and videos6. Switch between taking photos and videos7. Use the shutter button to take photos or record videos8. Go back or exit the camera9. Select a capturing mode10. Shortcut to the capturing mode last selected11. Tap to switch between the x1, x2, and x0.6 angles12. Select an HDR (High Dynamic Range) setting.13. Scene recognition icon and conditions icon These icons appear when the camera automatically recognizes a scene or condition.

14.

Tap to adjust the Bokeh effect15. Select a flash setting. The icon turns orange when the flash or flashlight activates.16. Front camera lens17.

Page 53

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Taking a photo or recording a video

This section explains basic camera operations.

Note

Note that some functions may not be available depending on the settings.

Hint

Make sure the lenses are clean. A fingerprint or a little dirt can diminish photo quality.

Use the self-timer when you need extra time to prepare, or to avoid blurred photos.

Check your device’s memory status often. High-resolution photos and videos consume more memory.

You can scan QR codes.

Shutter button

The shutter button is used differently depending on the capturing mode and activated features.

(Shutter button): Take a photo

(Record button): Record a video

(Pause button): Pause a video

(Record button): Resume recording

(Stop button): Stop recording a video

(Self-timer on icon): Self-timer is activated

(Touch capture on icon): Touch capture is activated

(Touch capture and Self-timer on icon): Touch capture and Self-timer are activated

Related Topic

Launch the camera.

Touch and hold

(Camera icon) from the lock screen.

Tap

(Camera icon) from the app drawer. Press the power button twice. Find and tap [Settings] > [System] > [Gestures] > [Quickly open camera], and then tap the switch to enable this function.

Swipe the screen to select a photo or video mode.

Tap the shutter button.

Page 54

Scene and condition recognition

Settings menu

Viewing photos and videos

Self-timer

Basic camera features

Scanning QR codes

G-441-100-11

Page 55

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Scene and condition recognition

The camera detects the type of scene and conditions, such as food, a portrait, a night scene, etc., and shoots still images with automatically adjusted settings.

Scene recognition

When the camera recognizes certain scenes, the following icons and guides are displayed.

: Gourmet

: Macro

: Soft snap

: Infant

: Backlight portrait

: Backlight

: Night portrait

: Night scene

: Low light

: Landscape

: Spotlight

: Document

: Pets

Condition recognition

When the camera recognizes conditions, the following icons are displayed.

: Motion

: Walking

: Tripod

Related Topic

Camera overview

Taking a photo or recording a video

Page 56

Page 57

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Taking a photo using the flash

Use the flash according to the subject and lighting conditions.

Note

Available settings depend on the capturing mode, photo mode, and video mode.

Hint

When the background is brighter than the object, use Fill flash to remove unwanted dark shadows.

G-441-100-11

While using the camera, tap the flash icon displayed on the screen, for example

(Auto flash icon).

If required, change the flash setting.

Tap the shutter button to take a photo or record a video.

Page 58

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Scanning QR codes

You can scan QR codes using the Camera app.

To turn the [QR Code reader] function on

Hint

Related Topic

Taking a photo or recording a video

Settings menu

G-441-100-11

Find and tap

(Camera icon).

Point the camera at the QR code, and then tap the notification that appears.

If the notification does not appear, drag down the status bar to open the notification panel, and then confirm it.

Find and tap

(Camera icon).1.

Tap

(Settings icon).2.

Tap the [QR Code reader] switch to enable the function.3. Close the settings menu. The setting is saved.

Page 59

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Basic camera features

Use basic camera features that help you to take photos or record videos.

Adjusting the camera settings

Note

Available settings differ between the photo and video modes.

Hint

Tap

(Introduction to features icon) to check information on various functions.

Changing the still image size

Switching between the main and front camera

Hint

While using the camera, tap

(Settings icon).1.

Swipe the list to view the available settings and select a setting. 2.

While using the camera, tap

(Settings icon) > [Still image size].1.

Select a setting.2.

While using the camera, tap

(Switch camera icon) to switch between the main and front camera.1.

Page 60

You can also switch between cameras by swiping down on the camera screen (in the portrait orientation) or swiping right on the camera screen (in the landscape orientation).

Switching lenses and zooming

You can switch lenses while using the main camera.

Hint

You can seamlessly zoom in and out without switching lenses.

When the Manual mode is selected, the zoom bar is displayed. Tap the angle name repeatedly to switch lenses, and then pinch in or out on the camera screen or use the volume button to zoom in on the image.

To zoom using digital processing that preserves more of the original image quality, tap

(Settings icon) > [Digital zoom settings]

> [Super resolution zoom].

Related Topic

Taking a photo or recording a video

Scanning QR codes

G-441-100-11

While using the main camera, tap one of the angle buttons.

(Ultra-wide button) (Wide button) (Telephoto button)

Zoom in on the image.

Drag the angle button to the left and right (in the portrait orientation) or up and down (in the landscape orientation). Pinch in or out on the camera screen. Use the volume button.

Page 61

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Viewing photos and videos

View or share photos and videos in the Google Photos app after taking photos or recording videos.

Viewing photos and videos while using the Camera app

You can also edit photos or videos, such as by adjusting the colors or cropping photos.

Hint

Tap

(Share icon) to share a photo or a video, or (Edit icon) to edit it. To hide or show icons, tap the screen.

Viewing previously taken photos or recorded videos

Hint

For more information about the Google Photos app, go to support.google.com/photos.

Related Topic

Taking a photo or recording a video

G-441-100-11

While using the camera, tap the thumbnail (A) to open a photo or video.

Swipe left or right to view your photos and videos.2.

Launch the Google Photos app.1.

Page 62

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Selecting a capturing mode

You can select a capturing mode according to the subject or your purpose.

Capturing modes overview

The following are some of the main capturing modes.

(Night mode icon): Take clear photos even at night or under dark conditions

(Slow motion icon): Add a slow-motion effect after recording a video

(Manual mode icon): Take photos with manually adjusted camera settings

(Portrait selfie icon): Take better-looking selfies

(Creative effect icon): Take photos with effects and color filters

(Panorama icon): Take wide-angle and panoramic photos

Note

Available settings depend on the capturing mode selected.

Related Topic

Night mode

Slow motion videos

Portrait selfie

Creative effect

Panorama

G-441-100-11

While using the camera, tap [Mode], and then select a capturing mode.

Page 63

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Various methods to take photos

Take photos using the method that suits your situation.

Taking a photo by tapping the screen

Hint

This feature can also be used for videos.

Taking a photo when recording a video

G-441-100-11

While using the camera, tap

(Settings icon), and then tap [Touch capture] > [On] or [Only front camera].1.

Close the settings menu. The setting is saved in all capturing modes.

Tap anywhere on the screen to take a photo.3.

When recording a video, tap

(Camera icon).

The photo is taken as soon as you release the shutter button.

Page 64

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Self-timer

Use the Self-timer to get more time to prepare for a photo. It also helps to keep your device steady and avoid blurred photos.

G-441-100-11

While using the main camera, tap

(Settings icon) > [Self-timer], select the delay time, and then close the

settings menu.

The Self-timer setting is saved. While using the front camera, tap (Self-timer icon), and then select a delay time.

Tap the shutter button to take a photo.

A series of beeps marks the countdown until the photo is taken.

Page 65

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Adjusting the exposure, color, and light conditions

Good exposure for your photos requires the right amount of light. Different exposures are required, for example, when taking photos of faces, moving objects or in low light.

To optimize light conditions

Look for light with direction and color that gives a scene shape and depth. This type of light occurs just before sunrise and at sunset. Natural light from a window is also good. Even if light conditions are poor, try to take photos with and without the flash. Sometimes the quality is better without the flash.

Related Topic

Color and brightness

Self-timer

Taking a photo using the flash

G-441-100-11

Page 66

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Color and brightness

Your camera automatically adjusts the color and brightness value by detecting the light conditions and estimating the color temperature of ambient light. Digital cameras can only estimate the color temperature, so you may need to adjust the settings to get it correct. If you experience yellow-colored photos in indoor environments or bluish photos when using the flash, try adjusting the color.

G-441-100-11

While using the camera, tap

(Color and brightness icon).

Drag the sliders to adjust the color and brightness.

Tap

(Cancel icon) to reset and close the color setting.

Tap the shutter button to take a photo or record a video.

Page 67

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Exposure

To achieve better exposures in low-light environments, change the brightness for photos and videos. If you are using Manual mode for photos, change the exposure value.

G-441-100-11

While using the camera, tap [Mode] >

(Manual mode icon).

Tap [EV] and drag the slider to adjust the exposure value.

To hide or show the settings menu, tap

(Manual mode icon).

Tap the shutter button to take a photo.

Page 68

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Shutter speed

Shutter speed refers to how long the shutter is open and the camera sensor is exposed to light. A fast shutter speed helps to freeze motion, while a slow shutter speed can create an effect called “motion blur”, where moving objects appear blurred along their line of motion. The shutter speed is automatically adjusted, but it can also be set manually.

Note

This setting is only available for the main camera.

G-441-100-11

While using the camera, tap [Mode] >

(Manual mode icon).

Tap [SS] and drag the slider to adjust the shutter speed.

To hide or show the settings menu, tap

(Manual mode icon).

Tap the shutter button to take the photo.

Page 69

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

ISO

ISO determines how sensitive your camera is to light. A low ISO number means lower sensitivity, and a high ISO number means higher sensitivity. Higher sensitivity can add blur to your photos. A higher ISO value is used when taking photos of moving objects or when taking photos in low-light conditions without the flash. If there is too much light, the lowest ISO setting is used to achieve a higher image quality. ISO is automatically adjusted when taking photos and videos.

Note

This setting is only available for the main camera.

G-441-100-11

While using the camera, tap [Mode] >

(Manual mode icon).

Tap [ISO] and drag the slider to adjust the ISO value.

To hide or show the settings menu, tap

(Manual mode icon).

Tap the shutter button to take a photo.

Page 70

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

HDR (High Dynamic Range)

HDR (High Dynamic Range) is automatically adjusted when taking photos in high-contrast situations, such as when there is strong backlighting. You can also enable/disable HDR.

G-441-100-11

While using the camera, swipe the screen to select a photo mode.

Tap

(HDR icon), and then select an option.

Tap the shutter button to take a photo.

Page 71

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Video backlight correction

You can record videos with the optimal exposure, even in backlit situations.

G-441-100-11

While using the camera, swipe the screen to select a video mode.

Tap

(Settings icon).

Tap [Video backlight correction] > [On].

Close the settings menu.

The setting is saved.

Tap the shutter button to record a video.

Page 72

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

White balance

White balance adjusts the color balance of the ambient light conditions. White balance is automatically adjusted when taking photos and videos. In Manual mode, you can adjust the white balance manually.

White balance settings

(Auto white balance icon): Adjust the color balance automatically

(Cloudy white balance icon): Adjust the color balance for a cloudy sky

(Daylight white balance icon): Adjust the color balance for sunny outdoor conditions

(Fluorescent white balance icon): Adjust the color balance for fluorescent lighting

(Incandescent white balance icon): Adjust the color balance for warm lighting conditions, such as under light

bulbs

G-441-100-11

While using the camera, tap [Mode] >

(Manual mode icon).

Tap [WB] and select one of the pre-defined light conditions, for example

(Cloudy white balance icon).

To hide or show the settings menu, tap

(Manual mode icon).

Tap the shutter button to take a photo.

Page 73

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Metering

Exposure metering measures the amount of light that strikes an object, to optimize exposure. Exposure metering is automatically adjusted when taking photos and videos. You can adjust the exposure manually in Manual mode, for example for a specific part of a photo.

Note

This setting is only available for the main camera.

Metering settings

Face: Measures the amount of light on a face, and adjusts the exposure so that the face is neither too dark nor too

bright

Center: Determines the center of the image, and sets the exposure based on the brightness of the object Spot: Adjusts the exposure for a very small part of the object Average: Measures the average brightness of the entire screen

G-441-100-11

While using the camera, tap [Mode] >

(Manual mode icon).

Tap

(Settings icon) > [Metering], and then select an exposure option.

Close the settings menu.

The setting is saved.

Tap the shutter button to take a photo.

Page 74

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Setting the right focus

The camera automatically sets the focus and detects faces in all capturing modes.

Focusing automatically

Note

This option depends on the capturing mode selected.

Setting the focus distance

Note

The focus distance setting is available only when using the main camera.

The focus distance setting may not be available depending on the capturing mode selected.

Setting the focus by touching the viewfinder

You can select a subject on which to focus by touching it in the viewfinder. There are several options that the camera adjusts automatically when you touch the viewfinder.

While using the main camera, tap the area where you want to focus.

(Set focus icon) appears and the camera focuses on the tapped area.

To change the focus area, tap the screen.

Tap the shutter button to take a photo.2.

While using the camera, tap [Mode] >

(Manual mode icon).1.

Tap

(Set focus icon).2.

Drag the slider to adjust the focus distance. To hide or show the settings menu, tap (Manual mode icon).

Tap the shutter button to take a photo.4.

While using the camera, tap [Mode] > (Manual mode icon).1. Tap (Settings icon) > [Touch to adjust], and then select [Focus only] or [Focus and brightness].

Focus only: Focuses automatically on the specified position. Focus and brightness: Automatically focuses on the specified position and adjusts the brightness.

Close the settings menu. The setting is saved.

Page 75

Page 76

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Taking photos and videos of people

Faces in focus are indicated with a colored frame.

Hint

Place the camera on a solid surface and use the self-timer to prevent blurred photos.

G-441-100-11

Page 77

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Softening the skin tone

You can take photos with softer skin tones.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap the [Soft skin effect] switch to enable the effect.

Close the settings menu.

The setting is saved.

Page 78

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Sharpening faces

You can take photos with sharpened faces by making the features of the faces clearer. The [Sharpen faces] effect is available only when using the front camera.

G-441-100-11

While using the camera, tap

(Switch camera icon) to activate the front camera.

Tap

(Settings icon).

Tap the [Sharpen faces] switch to enable the effect.

Close the settings menu.

The setting is saved.

Page 79

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Taking a selfie

Switch to the front camera and take a photo of yourself. To avoid blurred photos in low-light conditions, place your device on a solid surface and use the self-timer to keep the device steady.

G-441-100-11

While using the camera, select a photo or video capturing mode for your selfie.

Tap

(Switch camera icon) to activate the front camera.

Tap

(Self-timer icon) if you want to use the self-timer.

Tap the shutter button to take a selfie.

Page 80

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Taking a selfie using Hand shutter

Use Hand shutter to automatically take a photo a certain period of time after the camera detects your hand. The Hand Shutter feature is available only when using the front camera.

Hint

When the self-timer is set, the timer starts after the camera detects your hand.

G-441-100-11

While using the camera, tap

(Switch camera icon) to activate the front camera.

Tap

(Settings icon).

Tap [Auto capturing] > [Hand Shutter].

Close the settings menu.

The setting is saved.

Turn your palm with your fingers straight up towards the camera.

After the camera detects your hand and a certain period of time has elapsed, a selfie is taken.

Page 81

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Tracking an object

The camera can detect and track a moving object. A yellow frame indicates faces or moving objects that are in focus.

Hint

To turn the [Object tracking] function on in the Manual mode, tap

(Settings icon) > [Touch to adjust] > [Object tracking].

G-441-100-11

While using the main camera, tap

(Settings icon).

Tap the [Object tracking] switch to enable.

Close the settings menu.

The setting is saved.

Select an object to track by touching it in the viewfinder.

Tap the shutter button to take a photo or record a video.

Page 82

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Recording a steady video

When recording videos, you can use Video stabilization to compensate for camera movements and steady the frame.

G-441-100-11

While using the camera, swipe the screen to select a video mode.

Tap

(Settings icon).

Tap the [Video stabilization] switch to compensate camera movement.

Close the settings menu.

The setting is saved.

Tap the shutter button to record a video.

Page 83

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Bokeh effect

You can take pictures with the Bokeh effect when using the main camera on your device. The Bokeh effect decreases focus in the background of a photo to emphasize objects at the foreground, for an artistic effect.

Note

Zooming is not available while using the Bokeh effect.

Hint

If you get too close to or too far to an object while using the Bokeh effect, a warning message appears. If this happens, adjust the distance between your camera and the object to take the photo with Bokeh effect.

G-441-100-11

While using the main camera, tap

(Bokeh icon).

Drag the slider to adjust.

Tap the shutter button to take a photo.

Page 84

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Night mode

Night mode allows you to take clear photos even at night or under dark conditions.

G-441-100-11

While using the camera, tap [Mode] >

(Night mode icon).

Tap the shutter button.

Hold the camera still until the capturing process is complete.

Page 85

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Slow motion videos

The Slow motion video mode adds powerful effects to your videos. The Slow motion effect is added after a video is recorded at normal speed.

Note

Good lighting conditions are essential when you record slow motion videos.

Adding slow motion effect after recording a video

G-441-100-11

While using the camera, tap [Mode] >

(Slow motion icon).1.

Tap the shutter button to record a video.2. Tap

(Stop button) to stop recording.3.

Tap the thumbnail to open the video.4. Drag the handles on the slow motion timeline to the positions where you want the slow motion effect to appear.

(A): Handles (B): Slow motion timeline (C): Tap to turn the sound on or off.

Page 86

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Portrait selfie

Portrait selfie allows you to take better-looking selfies.

Portrait selfie overview

(Bokeh icon): Applies a blurring effect around a person

(Soft skin icon): Softens skin tones

(Skin brightness icon): Brightens skin tones

(Eye enlargement icon): Enlarges eyes

(Slender face icon): Makes your face look slimmer

Hint

You can save your portrait in the same direction as the preview by tapping

(Mirror icon) > [On].

You can take a photo by tapping anywhere on the screen. Tap

(Touch capture icon) > [On].

G-441-100-11

While using the camera, tap [Mode] >

(Portrait selfie icon).

Tap the icon for the effect you want to apply, and drag the slider to adjust the effect.

If desired, adjust the other effects in the same way.

Tap the shutter button to take a photo.

Page 87

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Creative effect

With the Creative effect app you can preset effects and color filters before taking a photo or recording a video.

Hint

Tap

(Switch filter icon) to switch filters.

G-441-100-11

While using the camera, tap [Mode] >

(Creative effect icon).

Swipe to browse filters, or tap a filter to preview the effect.

Tap

(Apply creative effect icon) to apply the filter and return to the camera screen.

Tap the shutter button to take a photo or record a video.

Page 88

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Panorama

Use the Panorama app to take wide-angle and panoramic photos.

G-441-100-11

While using the camera, tap [Mode] >

(Panorama icon).

Tap the shutter button.

Move the camera slowly and steadily in the direction of movement indicated on the screen.

Tap the shutter button again at the position where you want to stop.

Page 89

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Resolution and memory

The number of photos and videos you can store depends on the resolution or MP (megapixel) value used and video length. High-resolution photos and videos take up more memory, so keep in mind that a lower resolution can be suitable for everyday use. Check the memory status from time to time. When the memory is full, you can transfer photos and videos to another storage device to free up memory. Choose whether to store photos and videos on your device’s internal storage or on an SD card using the [Data storage] option in the camera settings menu.

Note

Available settings depend on the capturing mode selected.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap [Still image size] or [Video size].

Select the resolution and close the settings menu.

The setting is saved for the selected capturing mode.

Page 90

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Geotagging

You can save your photos and videos with the location where they were taken, this is called geotagging. The option to geotag your photos and videos requires a wireless network and that the GPS function is enabled.

Geotagging status icons

(Acquired GPS icon): The geographical position is saved.

(GPS not found icon): The geographical position is not found.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap the [Save location] switch to enable.

The setting is saved.

Page 91

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Grid lines

With Grid lines, you can apply the “Rule of Thirds” and place important objects along the grid lines or their intersections. By not always having the object in the middle of the frame, you can make your photos and videos more interesting.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap the [Grid lines] switch to enable or disable.

The setting is saved.

Page 92

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

1:1 Frame lines

You can preview the 1:1 composition when you take photos to later be edited in the 1:1 aspect ratio.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap the [1:1 Frame lines] switch to enable the function.

The setting is saved.

Page 93

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Zoom composition assist

Before taking photos, you can preview what it will look like when you zoom in. The [Zoom composition assist] function is only available for the main camera in a photo mode.

G-441-100-11

While using the main camera, swipe the screen to select a photo mode.

Tap

(Settings icon).

Tap [Zoom composition assist] > [On].

Close the settings menu.

Frames with zoom ratios are displayed.

Center the subject in a frame, and then tap the zoom ratio to zoom in.

You can also zoom in or out by dragging the angle button, pinching in or out on the camera screen, or using the volume button.

Page 94

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Photo preview settings

You can choose to preview photos as soon as you take them.

Previewing settings

On: After you take a photo, a preview appears in the lower right corner of the screen for three seconds before it is

saved. Only front camera: After you take a photo with the front camera, a preview appears in the lower right corner of the screen for three seconds before it is saved. Off: No preview appears. The photo is saved directly.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap [Auto photo preview] and select an option.

The setting is saved.

Page 95

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Different ways to use the volume button

You can change the way you use the volume button.

Volume button settings

Zoom: Use the volume button to zoom in or out. Volume: The volume button is deactivated for the camera. Shutter: Use the volume button as a shutter button for photos and videos.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap [Use Volume button as] and select an option.

The setting is saved.

Page 96

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Sound

When Sound is activated, the camera makes a sound when you take a photo or when you start or stop a video recording. Additionally, when you use the self-timer the countdown is indicated by a series of beeps.

G-441-100-11

While using the camera, tap

(Settings icon).

Tap the [Sound] switch to enable or disable.

The setting is saved.

Page 97

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Transferring music from a computer to your device

There are two ways to transfer music from a computer to your device:

Connect your device to a computer using a USB cable. Drag down the status bar, tap the USB connection setting notification, and then tap [Tap for more options.] > [File Transfer]. On the computer, drag and drop the music data to a folder on your device, such as the Music folder.

On the computer, save your media files using Google Drive. Then, synchronize the data on your device by logging in to the Google account.

Note

The Music app may not support all music file formats.

Related Topic

Connecting your device to USB accessories

Setting up a Google account on your device

Listening to music

Music app features

G-441-100-11

Page 98

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Listening to music

Use the Music app to listen to your favorite music.

Music player overview

Music home screen

Minimize the full screen player1. Search all songs saved to your device2. View the play queue3. View more options4. Album art (if available)5. Add or remove a song as a favorite6. Elapsed time of current song7. Add a song to a playlist8. Progress indicator – drag or tap along the line to fast-forward or rewind9. Length of current song10. Repeat the current song or all songs in the play queue11. Tap to go to the next song, touch and hold to fast-forward the current song12. Play or pause a song13. Tap to go to the beginning of the current song, touch and hold to rewind the current song14. Shuffle songs in the play queue15.

Page 99

Note

You might not be able to play copyright-protected items.

Related Topic

Transferring music from a computer to your device

Music app features

Personalizing sound quality using 360 Reality Audio

Enhancing the sound output using 360 Upmix

Upscaling the quality of compressed music files (DSEE Ultimate)

G-441-100-11

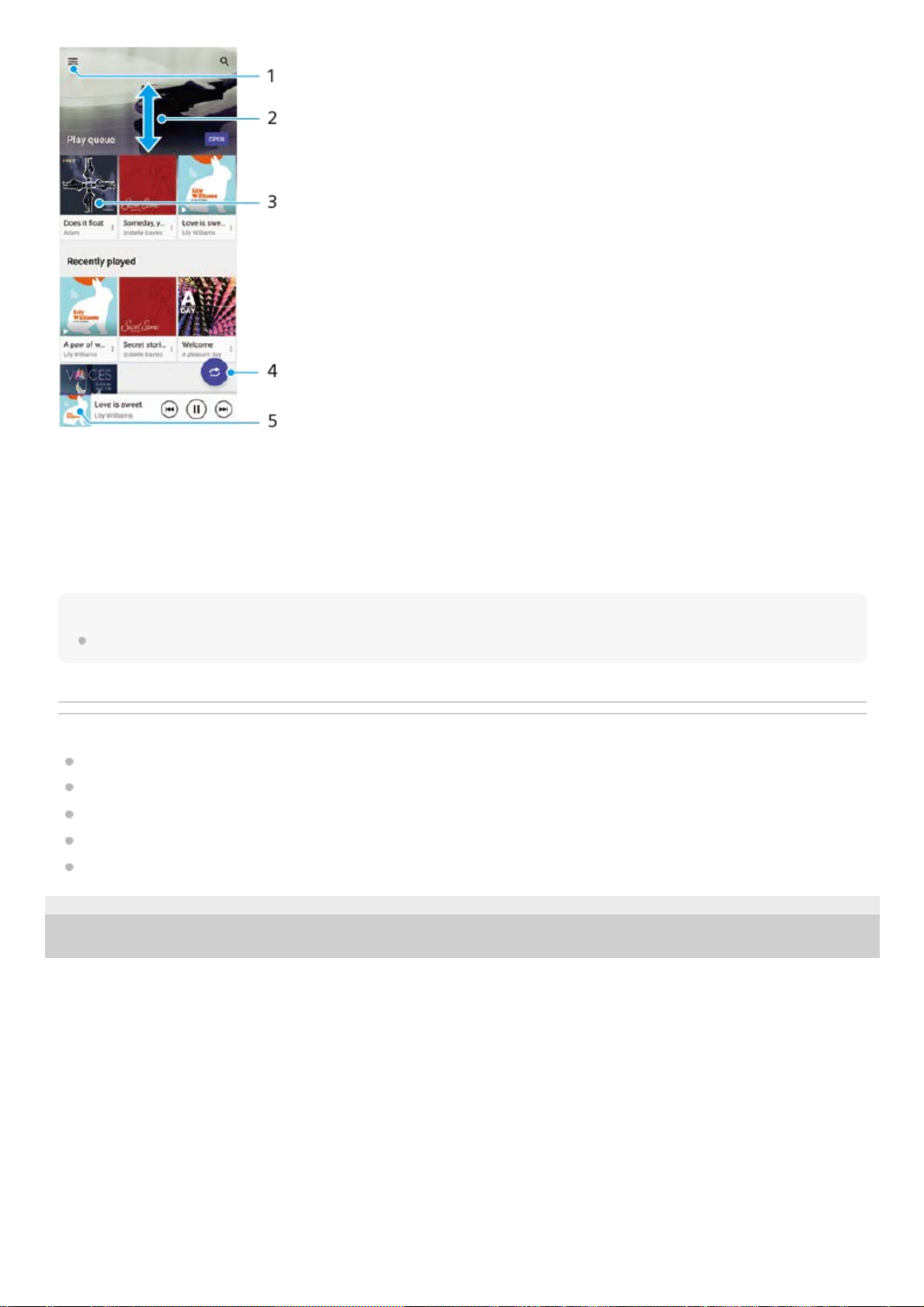

Open the Music menu1. Scroll up or down to view content2. Tap to start playing a song in the play queue3. Play all songs in shuffle mode4. Go to the music player screen5.

Page 100

Help Guide

Smartphone

Xperia 10 IV XQ-CC54/XQ-CC72

Music app features

This section explains features that are useful when using the Music app.

Editing music information

Playing music in the background

Related Topic

Transferring music from a computer to your device

Listening to music

G-441-100-11

While a song is playing in the Music app, tap the album art in the music player screen and then tap [Edit music info].1. Edit the information as desired.2. To set album art, tap

(Edit icon) > [Set image].3.

When you are finished, tap [SAVE].4.

When a song is playing, tap

(Home button) to go to the Home screen. The Music app keeps running in the background. To open the Music app again, drag the status bar downwards and tap the Music notification. Alternatively, find and tap

(Music icon).

100
