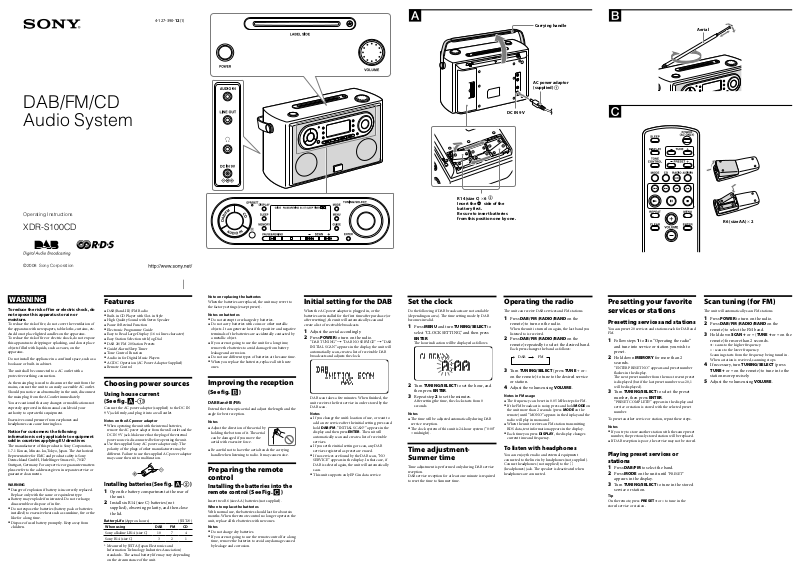

Sony XDR-S100CD Operating Manual

DAB/FM/CD Audio System
4-127-390-12(1)
©2008 Sony Corporation
XDR-S100CD
Operating Instructions
AC power adaptor (supplied)
DC IN 9 V
R14 (size C) 6
Insert the side of the battery first. Be sure to insert batteries from this position one by one.
Carrying handle
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the ventilation of the apparatus with newspapers, tablecloths, curtains, etc. And do not place lighted candles on the apparatus. To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
The unit shall be connected to a AC outlet with a protective earthing connection.
As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Excessive sound pressure from earphones and headphones can cause hearing loss.
Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
WARNING
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Battery may explode if mistreated. Do not recharge,
disassemble or dispose of in fire.
Do not expose the batteries (battery pack or batteries
installed) to excessive heat such as sunshine, fire or the like for a long time.
Dispose of used battery promptly. Keep away from
children.
Features
DAB(Band-III)/FM Radio
Built-in CD Player with Slot-in Style
High Quality Sound with Stereo Speaker
Pause & Rewind Function
Electronic Programme Guide
Easy to Read Large Display (16 x 4 lines character)
Easy Station Selection with Jog Dial
DAB 20/ FM 20 Station Presets
Guide/Alarm/Sleep Timer
Tone Control Function
Audio in for Digital Music Players
AC/DC Operation (AC Power Adaptor Supplied)
Remote Control
Choosing power sources
Using house current (See fig. -)
Connect the AC power adaptor (supplied) to the DC IN 9 V jack firmly, and plug it into a wall outlet.
Notes on the AC power adaptor
When operating the unit with the internal batteries, remove the AC power adaptor from the wall outlet and the DC IN 9 V jack. Make sure that the plug of the external power source is disconnected before operating the unit.
Use the supplied Sony AC power adaptor only. The
polarity of the plugs of other manufacturers may be different. Failure to use the supplied AC power adaptor may cause the unit to malfunction.
Installing batteries (See fig. -
)
1 Open the battery compartment at the rear of
the unit.
2 Install six R14 (size C) batteries (not
supplied), observing polarity, and then close the lid.
Battery Life (Approx. hours) (JEITA*)
When using DAB FM CD
Sony alkaline LR14 (size C) 10 7 4
Sony R14 (size C) 3 2 1
* Measured by JEITA (Japan Electronics and
Information Technology Industries Association) standards. The actual battery life may vary depending on the circumstance of the unit.
Note on replacing the batteries
When the batteries are replaced, the unit may revert to the factory settings (except preset).
Notes on batteries
Do not attempt to recharge dry batteries.
Do not carry batteries with coins or other metallic
objects. It can generate heat if the positive and negative terminals of the batteries are accidentally contacted by a metallic object.
If you are not going to use the unit for a long time,
remove the batteries to avoid damage from battery leakage and corrosion.
Do not use different types of batteries at the same time.
When you replace the batteries, replace all with new
ones.
Improving the reception
(See fig. )
DAB Band-III/FM:
Extend the telescopic aerial and adjust the length and the angle for best reception.
Notes
Adjust the direction of the aerial by
holding the bottom of it. The aerial can be damaged if you move the aerial with excessive force.
Be careful not to have the aerial touch the carrying
handle when listening to radio. It may cause noise.
Preparing the remote control
Installing the batteries into the remote control (See Fig. )
Insert two R6 (size AA) batteries (not supplied).
When to replace the batteries
With normal use, the batteries should last for about six months. When the remote control no longer operates the unit, replace all the batteries with new ones.
Notes
Do not charge dry batteries.
If you are not going to use the remote control for a long
time, remove the batteries to avoid any damage caused by leakage and corrosion.
Initial setting for the DAB
When the AC power adaptor is plugged in, or the batteries are installed for the first time after purchase (or after resetting), the unit will automatically scan and create a list of receivable broadcasts.
1 Adjust the aerial accordingly. 2 Press POWER to turn on the radio.
“DAB TUNING” “DAB NO SERVICE” “DAB INITIAL SCAN” appears in the display, the unit will automatically scan, create a list of receivable DAB broadcasts and adjusts the clock.
DAB scan takes a few minutes. When finished, the unit receives the first service in order stored by the DAB scan.
Notes
If you change the unit’s location of use, or want to
add a new service after the initial setting, press and hold DAB/FM. “INITIAL SCAN?” appears in the display and then press ENTER. The unit will automatically scan and create a list of receivable services.
If you set the initial setting or scan, any DAB
services registered as preset are erased.
If no services are found by the DAB scan, “NO
SERVICE” appears in the display. In that case, if DAB is selected again, the unit will automatically scan.
This unit supports only EPG in data service.
Set the clock
Do the following if DAB broadcasts are not available (depending on area). The time setting mode by DAB becomes invalid.
1 Press MENU and turn TUNING/SELECT to
select “CLOCK SETTING,” and then press ENTER.
The hour indication will be displayed as follows.
2 Turn TUNING/SELECT to set the hour, and
then press ENTER.
3 Repeat step 2 to set the minutes.
After setting the time, the clock starts from 0 seconds.
Notes
The time will be adjusted automatically during DAB service reception.
The clock system of this unit is 24-hour system (“0:00” = midnight).
Time adjustment­Summer time
Time adjustment is performed only during DAB service reception. DAB service reception for at least one minute is required to reset the time to Summer time.
Operating the radio
The unit can receive DAB services and FM stations.
1 Press DAB/FM (RADIO/BAND on the
remote) to turn on the radio.
When the unit is turned on again, the last band you listened to is received.
2 Press DAB/FM (RADIO/BAND on the
remote) repeatedly to select the desired band.
Each press changes the band as follows:
DAB FM
3 Turn TUNING/SELECT (press TUNE + or –
on the remote) to tune to the desired service or station.
4 Adjust the volume using VOLUME.
Notes in FM usage
The frequency can be set in 0.05 MHz steps for FM.
If the FM broadcast is noisy, press and hold MODE on the unit more than 2 seconds (press MODE on the remote) until “MONO” appears in the display and the radio will play in monaural.
When the unit receives an FM station transmitting RDS data, text information appears in the display.
Each time you press DISPLAY, the display changes current time and frequency.
To listen with headphones
You can enjoy the radio and external equipment connected to the line in by headphones (not supplied). Connect headphones (not supplied) to the (headphones) jack. The speaker is deactivated when headphones are connected.
Aerial
R6 (size AA) 2
Presetting your favorite services or stations
Presetting services and stations
You can preset 20 services and stations each for DAB and FM.
1 Follow steps 1 to 3 in “Operating the radio”
and tune into service or station you wish to preset.
2 Hold down MEMORY for more than 2
seconds.
“ENTER PRESET NO.” appears and preset number flashes in the display. The next preset number from the most recent preset is displayed (but if the last preset number was 20, 1 will be displayed).
3 Turn TUNING/SELECT to select the preset
number, then press ENTER.
“PRESET COMPLETE!” appears in the display and service or station is stored with the selected preset number.
To preset another service or station, repeat these steps.
Notes
If you try to store another station with the same preset number, the previously stored station will be replaced.
If DAB reception is poor, the service may not be stored.
Playing preset services or stations
1 Press DAB/FM to select the band. 2 Press MODE on the unit until “PRESET”
appears in the display.
3 Turn TUNING/SELECT to tune in the stored
service or station.
Tip
On the remote, press PRESET + or – to tune in the stored service or station.
Scan tuning (for FM)
The unit will automatically scan FM stations.
1 Press POWER to turn on the radio. 2 Press DAB/FM (RADIO/BAND on the
remote) to select the FM band.
3 Hold down SCAN + or – (TUNE + or – on the
remote) for more than 2 seconds.
+ : scans to the higher frequency. : scans to the lower frequency.
Scanning starts from the frequency being tuned in. When a station is received, scanning stops.
4 If necessary, turn TUNING/SELECT (press
TUNE + or on the remote) to tune in to the
station more precisely.
5 Adjust the volume using VOLUME.
Troubleshooting
Should any problem persist after you have made the following checks, consult your nearest Sony dealer.
Display is dim, or no indication is displayed.
The unit is being used in extremely high or low temperatures or in a place with excessive moisture.
Very weak or interrupted sound, or unsatisfactory reception.
If you are in a building, listen near a window.
A station or service cannot be received when a PRESET recalls.
The station or service has not been preset.
Another station or service is preset. Preset the station or service again.
The preset services and stations may be initialized, if a maintenance service is performed. Please note down of your settings in case you want to preset them again.
Specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Emission duration: Continuous Laser output: Less than 44.6 µW(This output is the value measurement at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.)
Number of channels
2
Frequency response
20 - 20 000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
Band Frequency Channel step
DAB (Band-III) 174.928 - 239.200 MHz
FM 87.5 - 108 MHz 0.05 MHz
DAB (Band-III) frequency table (MHz)
No.
Channel Frequency
No.
Channel Frequency
1 5A 174.928 20 9D 208.064
2 5B 176.640 21 10A 209.936
3 5C 178.352 22 10B 211.648
4 5D 180.064 23 10C 213.360
5 6A 181.936 24 10D 215.072
6 6B 183.648 25 11A 216.928
7 6C 185.360 26 11B 218.640
8 6D 187.072 27 11C 220.352
9 7A 188.928 28 11D 222.064
10 7B 190.640 29 12A 223.936
11 7C 192.352 30 12B 225.648
12 7D 194.064 31 12C 227.360
13 8A 195.936 32 12D 229.072
14 8B 197.648 33 13A 230.784
15 8C 199.360 34 13B 232.496
16 8D 201.072 35 13C 234.208
17 9A 202.928 36 13D 235.776
18 9B 204.640 37 13E 237.488
19 9C 206.352 38 13F 239.200
General
Time display
24-hour system
Speaker:
Approx. 7.7 cm (3 1⁄8 in) dia. 6 Ω
Power output:
3W + 3 W (at 10 % harmonic distortion)
Output:
(headphones) jack (ø 3.5mm stereo mini jack) LINE OUT jack (ø 3.5mm stereo minijack)
Input:
AUDIO IN jack (ø 3.5mm stereo minijack)
Power requirements:
9 V DC, six R14 (size C) batteries
External power source:
DC IN 9 V
Dimensions:
Approx. 339 × 200 × 158 mm (w/h/d) (Approx. 13 3⁄8 × 7 7⁄8 × 6 1⁄4 in) incl. projecting parts and controls
Mass:
Approx. 3.8 kg (8 lb 6 oz) not incl. batteries
Supplied accessories:
AC power adaptor (1) Remote control (1)
Design and specifications are subject to change without notice.
Other useful functions for DAB
Changing the display
To change the display mode, press DISPLAY during DAB reception. The display can be up to 16 characters. Each time you press DISPLAY, the bottom of the display changes as follows:
: Dynamic: Signal strength and PTY: Ensemble: Frequency and bit rate: Clock and date
Note
The display mode returns to after several seconds. The display mode will be also displayed when you turn the unit off and on again, or change to another function.
Using the GUIDE
This unit downloads the EPG (electronic programme guide) included in the DAB data and displays it. The unit also enables you to perform timer operations, using the downloaded EPG (see “Setting the guide timer”).
To download the EPG
1 Follow steps 1 to 3 in “Operating the radio”
and tune into DAB service.
2 Press GUIDE for more than 2 seconds.
“GUIDE DOWNLOAD” appears in the display.
3 Turn TUNING/SELECT to select the
“CURRENT” or “ALL.”
“CURRENT”: Only the current station is downloaded.
“ALL”: All stations are downloaded in order.
4 Press ENTER.
“GUIDE DOWNLOADING” flashes in the display until “%” and current ensemble name appears.
When download is completed, the EPG is displayed as follows:
Day of the week Component (or secondary) label Programme name Programme start time
(currently broadcast programme is displayed as “NOWPLAYING”)
Programme end time
To display the EPG: Press GUIDE. To display the media description in EPG: Press DISPLAY. To check another station in EPG: Turn TUNING/SELECT. To check another programme time in EPG: Press SCAN + or –. To store the guide timer: Press ENTER.
Notes
Set this unit to receive DAB for about 2 minutes so as to download the EPG data.
If DAB reception is poor, time-out error may occur while downloading the EPG data. Perform the above operation where the reception is good.
If you move into a place with poor reception (in the building, etc.) after downloading the EPG, EPG may not be displayed.
If there is no data, or data cannot be displayed, “Not Available” appears in the display.
The downloaded EPG data will be erased if the either
of the following operations is executed: –When you operate the power saving mode. –When you turn off the unit during battery operation.
Pausing and rewinding radio
This unit always stores DAB data and you can pause and rewind the data. When the memory becomes full, new audio data will over write from the oldest one.
1 Press PAUSE & REWIND during DAB
reception.
The current broadcast mutes and the PAUSE & REWIND indicator and the rewind time* appear in the display.
Rewind time
* Rewind time: delay time from the current broadcast
2 Press PAUSE & REWIND again until the
desired rewind time appears.
You can also rewind the current broadcast by holding down   ( on the remote). You can adjust the rewind time by holding down   or ( or on the remote).
The operation is cancelled when you:
Change channels.
Select ALL on the GUIDE DOWNLOAD menu.
Press or POWER.
Hold down ( on the remote) until the rewind time displays “0:00” (current time).
Change a function.
Notes
When EPG is displayed, this operation is disabled. In this case, ,   can not be operated.
Rewind time is depending on bit rate of broadcast. 128kbps DAB data is storable for about 25 minutes.
If DAB reception is poor, this function may not operate properly.
When the memory becomes full during pause mode, this function will be playback automatically.
PTY (Programme type)
This function indicates services by programme type, such as NEWS, SPORTS, etc., in the PTY list, transmitted as DAB.
If the received service or station does not transmit the programme type, “None” appears.
Programme type Display
Undefined None
News News
Current Affairs Affairs
Information Info
Sport Sport
Education Educate
Drama Drama
Culture Culture
Science Science
Varied Varied
Pop Music Pop M
Rock Music Rock M
Easy Listening Music Easy M
Light Classical Light M
Serious Classical Classics
Other Music Other M
Weather Weather
Finance Finance
Children’s programmes Children
Social Affairs Social
Religion Religion
Phone In Phone In
Travel Travel
Leisure Leisure
Jazz Music Jazz
Country Music Country
National Music National M
Oldies Music Oldies
Folk Music Folk M
Documentary Document
Playing a CD
Insert a disc with the label side facing forward.
1 Press CD on the unit. 2 Slot the CD into the unit.
Total tracks and time appear in the display.
3 Press  (
on the remote).
The unit plays all the tracks once.
To Press
Pause playback
( or  on the remote)
Stop playback
Go to the next track
Turn TUNIG/SELECT or press ( on the remote)
Go back to the previous track
Turn TUNIG/SELECT or press ( on the remote)
Locate a point while listening to the sound
  (forward) or   (backward)
( or on the remote) while playing and hold it until you find the point.
Locate a point while observing the display
  (forward) or   (backward)
( or on the remote) in pause and hold it until you find the point.
Remove the CD
About CD-Rs/CD-RWs
This unit is compatible with CD-Rs/CD-RWs but playback capability may vary depending on the quality of the disc, the recording device and application software.
Music discs encoded with copyright protection technologies
This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.
To handle compact discs
Correct
Do not touch the surface.
Do not stick paper or tape on the surface.
Incorrect
Handle the disc by its edge.
Note on DualDiscs
A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.
Notes
Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.
To prevent a CD from being damaged while inserting/ removing it, set the carrying handle down when playing a CD.
When you eject a disc, handle the disc by its edge. Do not touch the surface.
Using the display
To check the total track number and playing time
In stop mode, press DISPLAY.
To check the remaining time
Press DISPLAY repeatedly while playing a CD. The display changes as follows:
The current track number and playing time
The current track number and the remaining time of the current track
The number of tracks left and remaining time on the CD
Clock display (current time)
Playing tracks repeatedly (repeat play)
You can play tracks repeatedly in normal, shuffle or program play modes.
1 Follow steps 1 and 2 in “Playing a CD” 2 Proceed as follows:
To repeat Do this
A single track
1 Press REPEAT on the remote until
“REPEAT 1” appears.
2 Press or to
select the track that you want to repeat.
3 Press  (
on the remote).
All tracks on the CD
1 Press REPEAT on the remote until
“REPEAT” appears.
2 Press  (
on the remote).
Tracks in random order
1 Start shuffle play (see “Playing
tracks in random order”).
2 Press REPEAT on the remote until
“REPEAT” appears.
3 Press  (
on the remote).
Programmed tracks files
1 Program tracks (see “Creating
your own programme”).
2 Press REPEAT on the remote until
“REPEAT” appears.
3 Press  (
on the remote).
To cancel repeat play
Press REPEAT on the remote until “REPEAT” disappears from the display.
Playing tracks in random order (shuffle play)
You can play tracks in random order.
1 Follow steps 1 and 2 in “Playing a CD” 2 Press MODE until “SHUFFLE” appears in the
display.
3 Press ( on the remote) to start shuffle
play.
To cancel Shuffle Play
Stop playing first. Then press MODE until “SHUFFLE” disappears from the display.
Tip
During shuffle play, you cannot select the previous track by pressing ( on the remote).
Creating your own programme (programme play)
You can arrange the playing order of up to 20 tracks on a CD.
1 Follow steps 1 and 2 in “Playing a CD” 2 Press MODE until “PROGRAM” appears in
the display.
3 Press or or turn
TUNING/SELECT to select the track and then
press ENTER to add it to the programme.
Repeat to programme other tracks in the order that you want. After programming the first track, “STEP 1” appears, followed by selected track. Each time you add a track, a step number is added.
4 Press ( on the remote) to start
Programme Play.
To cancel programme play
Stop playing first. Then press MODE until “PROGRAM” disappears from the display.
To clear the programme you set
Press CLEAR on the remote.
Stop playback first. Then press STOP .
Tip
You can play the same programme again, since the programme is saved until you eject the CD.
Connecting optional component
To enhance your system, you can connect optional components. Be sure to turn off the power of each component before making any connections. For details, refer to the instruction manual of the component to be connected.
To listen to the sound from optional components in the unit
1 Connect the AUDIO IN jack on the unit to
the line output jack of the portable digital music player or other components using an audio connecting cable* (not supplied).
*
For a PC: use a cable which fills the connector of your PC. For a TV or VCR: use a cable with a stereo­mini plug on one end and two phono plugs on the other end. For a portable digital music player: use a cable with a stereo-mini plug on both ends.
2
Turn the unit and the connected component on.
3 Press AUDIO IN and start playing sound on
the connected component.
The sound from the connected component is output from the speakers.
To listen to the sound of the unit by optional components
Connect the LINE OUT jack on the unit to the line in jack of the other components.
Note
The volume and tone adjusted on this unit does not affect the sound output from LINE OUT.
Using the timers
The unit offers three timer functions. If you use the alarm timer or guide timer with the sleep timer, the sleep timer has priority.
Setting the sleep timer
The sleep timer allows you to fall asleep to the sound of a CD, the radio, or input from the AUDIO IN function. It does this by automatically turning off the CD, the radio, or input from the AUDIO IN function after a preset duration.
1 Press SLEEP while the unit is turned on.
“SLEEP” appears in the display.
2 Press SLEEP to set the sleep timer duration.
Each time you press SLEEP, the duration changes as follows: “AUTO*”  “60”  “30”  “20”  “10”  “OFF”. * When you select “AUTO,” the CD stops playing in
90 minutes at most and the unit goes off automatically. When you are listening to the radio, the radio goes off in 90 minutes.
The unit automatically turns off when the duration time is passed. 4 seconds after you have finished the duration setting and released SLEEP, “SLEEP” appears in the display and back light will turn off, then the sleep timer starts. The unit will play for the duration you set, and then shut off.
Note
Even if the duration is passed, the optional component connected with AUDIO IN is not turned off.
To change the sleep timer setting
Repeat step 2 to select the desired sleep timer setting even after the sleep timer has been activated.
To deactivate the sleep timer
Press
POWER. The unit will turn off.
Press
SLEEP to set the sleep timer “OFF,” only the sleep
timer will be cancelled (the unit stays ON).
Setting the alarm timer
You can set the unit to turn on automatically at a preset time. The timer sound is selectable from DAB, FM, CD and BUZZER. Make sure you have set the clock.
To set the alarm timer
1 Press MENU to show the menu display. 2 Turn TUNING/SELECT ( or on the
remote) to select “TIMER SETTING,” then press ENTER.
3 Turn TUNING/SELECT ( or on the
remote) to select “TIMER A,” then press
ENTER.
4 Turn TUNING/SELECT ( or on the
remote) to select “SETTING,” then press
ENTER.
5 Turn TUNING/SELECT ( or on the
remote) to set the hour for on time, then press ENTER.
The minute flashes. Perform the procedure above to set the minute.
6 Repeat step 5 to set the time to stop playing. 7 Turn TUNING/SELECT ( or on the
remote) to select the desired sound from DAB, FM, CD and BUZZER, then press ENTER.
8 Turn TUNING/SELECT ( or on the
remote) to adjust the wake-up volume, then press ENTER.
If you select DAB or FM, turn TUNING/SELECT ( or on the remote) to select the desired preset number, then press ENTER. When you select the preset number “P--” during DAB service reception, the most recent reception service is received.
9 Press POWER to turn off the unit.
The unit turns on about 15 seconds before the preset time. If the unit is on at the preset time, the alarm timer will not play.
To stop the alarm timer
Press POWER.
To deactivate the alarm timer
Perform the same procedure as in step 4 to select “OFF.” “TIMER” and “A” turn off in the display.
Setting the guide timer
To set the guide timer
You can set up to 10 guide timers using the EPG display based on the downloaded DAB data. Make sure you have download the EPG.
1 Follow steps 1 and 2 in “To set the alarm
timer.”
2 Turn TUNING/SELECT ( or on the
remote) to select “GUIDE,” then press ENTER.
EPG appears in the display. “TIMER,” “B,” “GUIDE” and the lowest number of the guide timer on which a programme is not stored flash in the display.
3 Turn TUNING/SELECT ( or on the
remote) and press SCAN + or – to select the desired programme, then press ENTER.
4 Turn TUNING/SELECT ( or on the
remote) to adjust the volume, then press ENTER.
If you select the stored number in step 2, do the following:
1 Turn TUNIG/SELECT ( or on the
remote) and press SCAN + or – to select the desired programme, then press ENTER.
“SETTING” and “CANCEL” appear in the display.
2 Turn TUNIG/SELECT ( or on the
remote) to select “SETTING,” then press ENTER.
3 Turn TUNIG/SELECT ( or on the
remote) to adjust the volume, then press ENTER.
The setting is completed.
To erase the guide timer
1 Perform the same procedure as in steps 1 and
2 in “To set the guide timer,” turn TUNING/ SELECT ( or on the remote) to
select the desired number and then press ENTER.
“SETTING” and “CANCEL” appear in the display.
2 Turn TUNING/SELECT ( or on the
remote) to select “CANCEL,” then press ENTER.
To set the guide timer directly by EPG.
1 Following “To display the EPG” and display
the desired EPG to setting the timer.
2 Press ENTER.
“TIMER,” “B,” “GUIDE” and the lowest number of the guide timer on which a programme is not stored flash in the display.
3 Turn TUNING/SELECT ( or on the
remote) to adjust the volume, then press ENTER.
Notes
You cannot set the guide timer if the following indications appear.
– “TIMEOVERLAPPING”: On-time of two or more
guide timers overlap.
– “TIMER NG”: The on-time and off-time are the
same.
– “TIMER FULL”: Maximum numbers of guide timers
have been already set.
If a guide timer activates while the power is turned on, the power is not turned off when the off-time of the guide timer passes.
If another guide timer activates while a guide timer sounds, the latter one has priority.
If the on-time of the alarm timer and guide timer is same, guide timer has priority.
Other useful functions
Adjusting the tone
1 Press POWER to turn on the unit. 2 Press MENU to show the menu display. 3 Turn TUNING/SELECT to select “TONE
CONTROL,” then press ENTER to show the setting display.
4 Turn TUNING/SELECT to adjust “TREBLE,”
then press ENTER.
5 Turn TUNING/SELECT to adjust “BASS,” then
press ENTER.
Tips
The adjustable range of “TREBLE” and “BASS” is from –4 to +4.
You can adjust “TONE” directly by pressing TONE on the remote control. Press or to adjust the tone, then press ENTER.
Using the power saving mode
This unit has a power saving mode in AC operation. While the AC power adaptor is connected in power off, press DISPLAY for more than 2 seconds. The following will occur:
Time display is turned off
Remote control does not work
EPG is all erased
To reset the unit
If the radio fails to function properly, do the following:
Press and hold STOP, ENTER and POWER at the same time for a few seconds. “RESET” appears in the display and the unit will revert to the factory preset.
Precautions
Operate the unit only on the power sources specified in “Specifications”. For battery operation, use six R14 (size C) batteries. For AC operation, use only the supplied AC power adaptor. Do not use any other type of AC power adaptor.
The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
Use the unit within a temperature range of 0°C to 40°C (32°F to 104°F). If it is used in temperatures higher than this range, numbers may appear in the display which have nothing to do with the frequency being received. If it is used in temperatures lower than this range, the numbers displayed may change very slowly. (These irregularities will disappear and there will be no damage to the unit when the unit is used in the recommended temperature range.)
Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust or mechanical shock. Never leave in a car parked in the sun.
Should any solid object or liquid fall into the unit, disconnect the AC power adaptor and remove the batteries, and have the unit checked by a qualified personnel before operating it any further.
Do not drop objects such as clips or coins into the CD slot. If this happens, disconnect the AC power adaptor and remove the batteries, and have the unit checked by a qualified personnel before operating it any further.
Be careful of objects/people around you when carrying
the unit by its handle.
In vehicles or buildings, radio reception may be difficult or noisy. Try listening near a window.
Since a strong magnet is used for the speakers, keep away personal credit cards using magnetic coding or spring-wound watches from the unit to prevent possible damage from the magnet.
To clean the casing, use a soft cloth dampened with a mild detergent solution.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its
packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Applicable accessories: Remote control
Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of­life to the applicable collection point for the recycling of electrical and electronic equipment.
For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.
Loading...
