Television

Reference Guide

4-733-108-E1(1)

XBR-75X855F / 65X856F

Sony Customer Support

http://esupport.sony.com/ES/LA/

Please Do Not Return the Product to the Store

Page 2

Table of Contents

IMPORTANT NOTICE . . . . . . . . . . . . . . . . 2

Safety Information . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . 5

Parts and Controls . . . . . . . . . . . . . . . .7

Controls and Indicators . . . . . . . . . . . . . 7

Using Remote Control . . . . . . . . . . . . .8

Remote Control Parts Description. . . . . 8

Connection Diagram . . . . . . . . . . . . . 10

Installing the TV to the Wall . . . . . . . 12

Detaching the Table-Top Stand from

the TV. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing the TV against a wall or

enclosed area. . . . . . . . . . . . . . . . . . .14

Troubleshooting. . . . . . . . . . . . . . . . . 15

Troubles and Solutions. . . . . . . . . . . . . 15

Specifications . . . . . . . . . . . . . . . . . . .16

Introduction

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.

The 75 class has a 74.5 inch (189.3 cm) viewable image size and the 65 class has a 64.5 image size (measured diagonally).

inch (163.9 cm) viewable

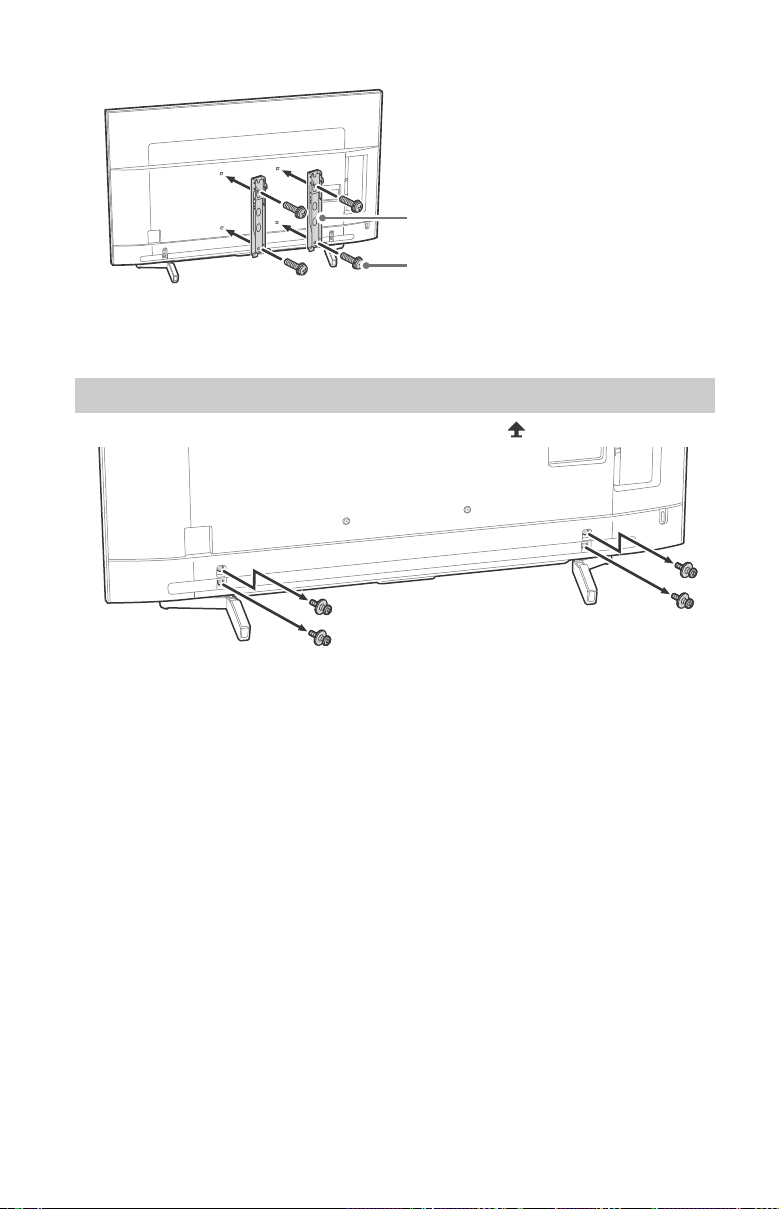

Attaching the Table-Top Stand to the TV

Refer to the Setup Guide on top of the cushion.

Help

Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword.

Help Guide (Manual)

For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the He lp Guide from your PC or smartphone (information provided on the back cover).

Location of the identification label

Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.

IMPORTANT NOTICE

Owner’s Record

The model and serial numbers are located at the side and/or rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

Page 3

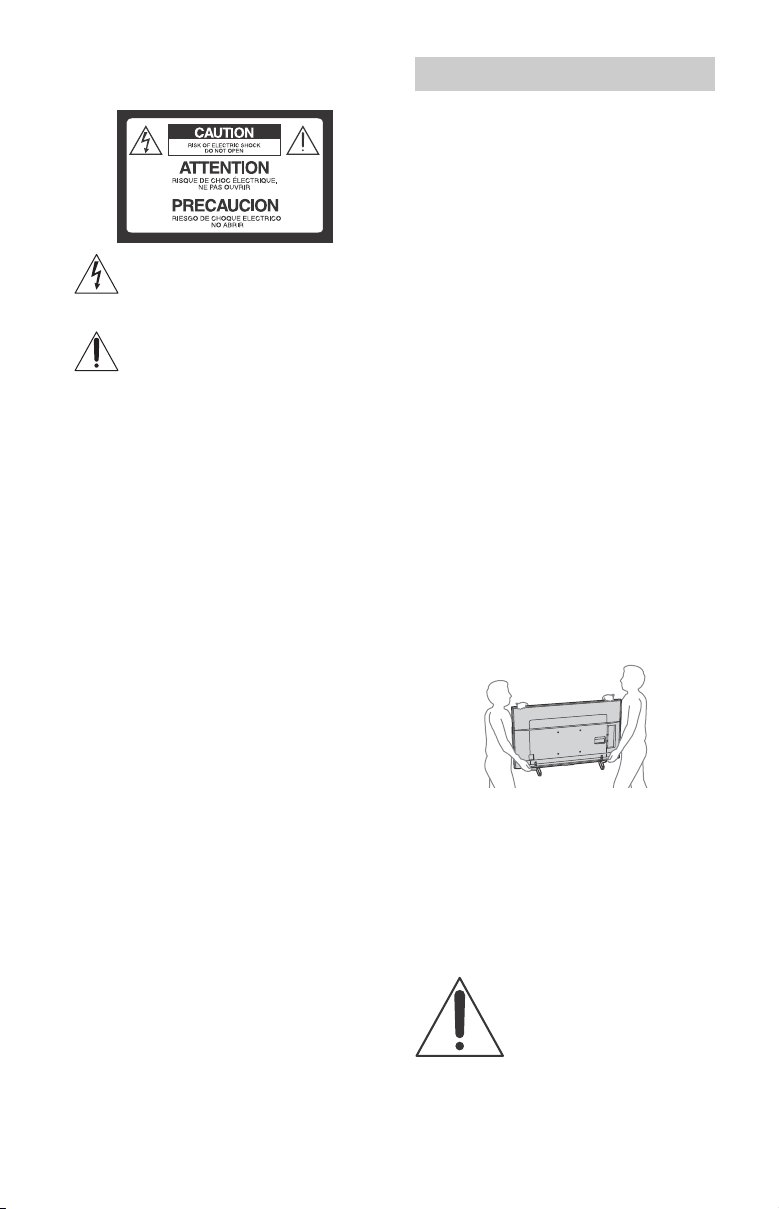

ADVERTENCIA

Para reducir el riesgo de incendio o descargas eléctricas, no exponga este producto a la humedad ni a la lluvia.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

El producto no debe estar expuesto a goteos ni salpicaduras, ni se deben colocar sobre él objetos con líquidos como floreros.

PRECAUCIÓN

Para evitar descargas eléctricas y exposición a contactos eléctricos, no utilice este enchufe de corriente alterna con un cable de extensión, receptáculo u otro tomacorriente a menos que los contactos eléctricos puedan ser introducidos completamente.

• Operate the TV only on 110 V – 240 V AC

Seguridad

• Utilice el cable de alimentación de ca especificado por Sony y que corresponda al voltaje de la zona donde vaya a utilizarlo.

• Por razones de seguridad, el enchufe está diseñado de tal forma que sólo puede conectarse en una dirección en los tomacorrientes de pared. Si no puede introducir completamente los contactos del enchufe en el tomacorriente, póngase en contacto con su distribuidor.

• Si se introduce algún objeto sólido o cae líquido en la unidad, desenchufe el televisor inmediatamente y haga que sea revisado por personal especializado antes de volver a operarlo.

• Desconecte el televisor si no va a utilizarlo durante algunos días. Para ello, tire del enchufe, nunca del cable.

• Consulte la información sobre seguridad en Folleto de instrucciones de seguridad.

Audio (Argentina models only)

Evite el uso prolongado del aparato con un volumen superior a 85 decibeles, porque esto podría perjudicar su sentido de audición.

Nota sobre Closed Captions (Argentina models only)

El uso del televisor con finalidades distintas a la visualización privada de emisiones de programas en UHF o VHF o transmisiones vía cable dirigidas al público en general puede requerir la autorización de la compañía de emisión por cable y/o del propietario del programa.

Safety Information

WARNING

Stability Hazard

The television set may fall, causing serious personal injury or death. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, p articularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Before setting up your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page

12 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task, refer to the Setup Guide. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger

size TVs require two or more people.

• Correct hand placement while carrying the TV is very

important for safety and to avoid damage.

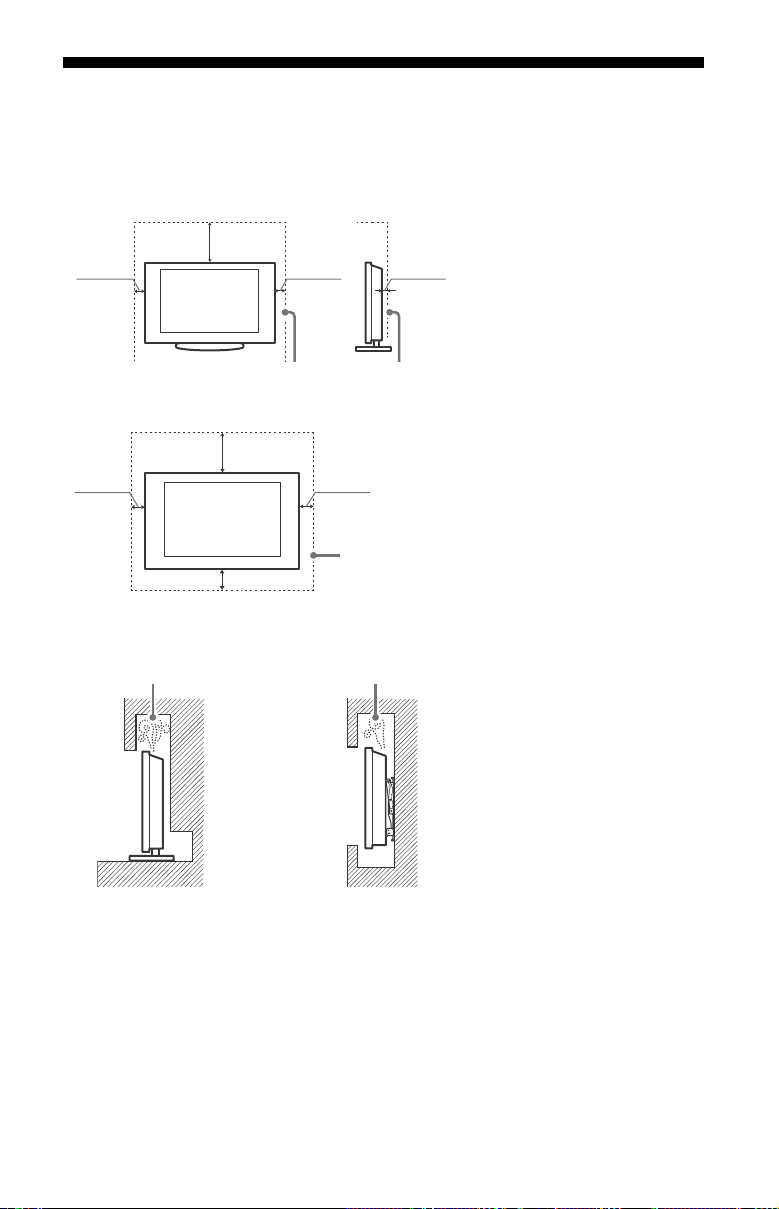

• Ensure your TV has adequate ventilation, see page 14.

• For best picture quality, do not expose the screen to direct

illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and

floor materials.

• Avoid moving the TV from a cold area to a warm area.

Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Page 4

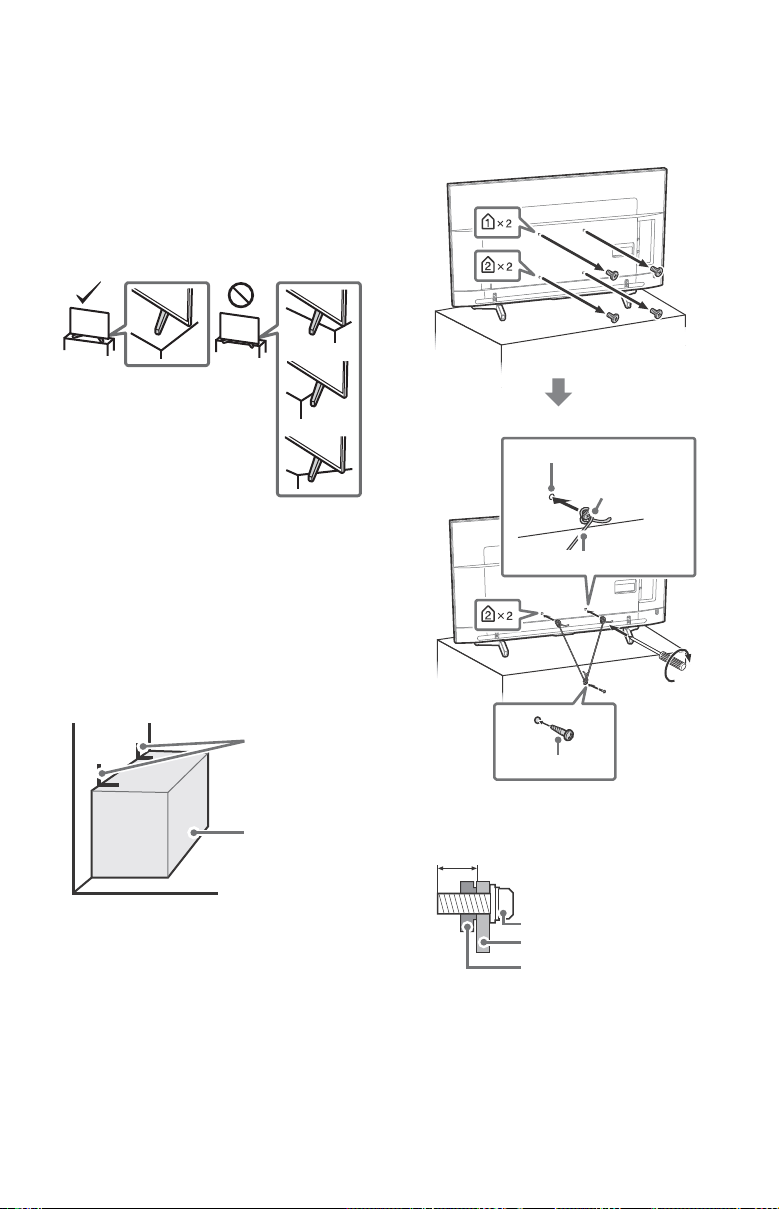

Preventing the TV from Toppling

Angle brace (not supplied)

Stand

Screw hole on the rear cover

M6 machine screw (not supplied)

Rope or chain (not supplied)

Screw (not supplied)

1.5 N·m/1,5 N·m {15 kgf·cm}

10 mm - 13 mm

Screw (M6)

TV’s rear co ver

Rope or chain

• Secure the TV to a wall and/or Stand.

• Do not allow children to play or climb on furniture and TV sets.

• Avoid placing or hanging items on the TV.

• Never install the TV on:

 Slippery, unstable and/or uneven surfaces.  Furniture that can easily be used as steps, such as a

chest of drawers.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV’s Table-Top Stand does not protrude out from the Stand (not supplied). If the Table-Top Stand protrudes out from the Stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Route all AC power cords and connecting cables so that they are not accessible to curious children.

Recommended Measures to Secure the TV

Consider the following measures when securing your TV to a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the Stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the Stand.

2 Secure the TV to the Stand.

Use the optional hardware listed as follows (not supplied):

• M6 machine screws (screwed into the TV’s rear cover).

• A screw or similar (attach it to the Stand).

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

The length of the M6 machine screw differs depending on the rope or chain diameter. Please refer to below illustration.

Page 5

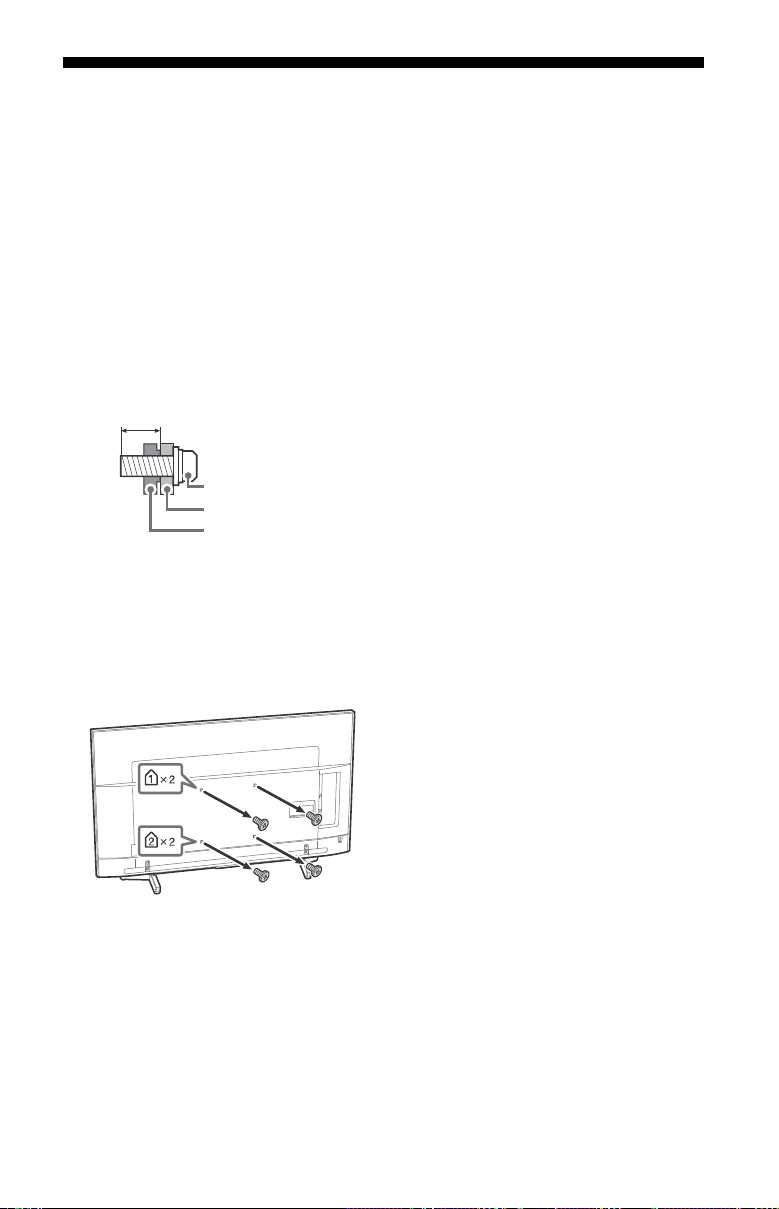

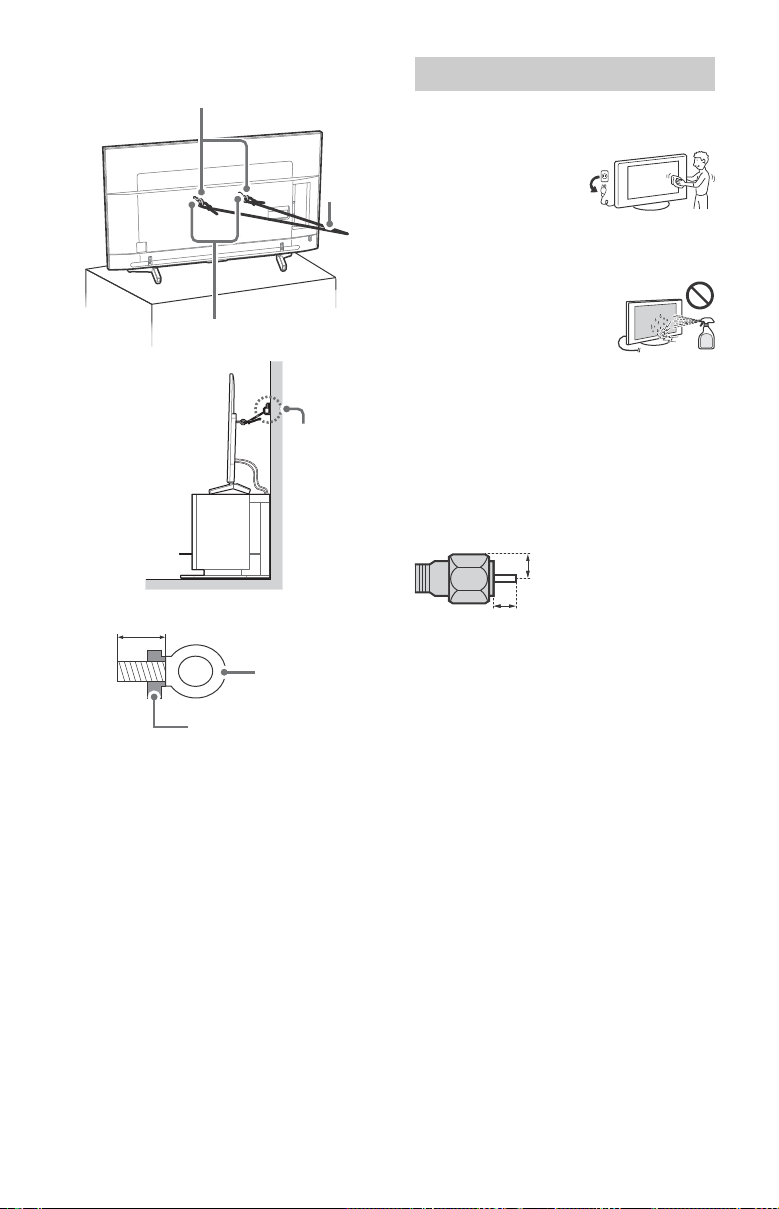

3 Anchor the TV to the wall by using bolts, wall anchor and

Wall-mount holes

Rope or chain (not supplied)

M6 eye bolts (not supplied)

Wall-anchor (not supplied)

10 mm - 13 mm

TV’s rear cov er

M6 eye bolt

7 mm max.

1.5 mm max.

chain (or rope).

Please see below illustration for M6 eye bolt length.

Precautions

How to care for your BRAVIA TV

Safety is very important. Please read and follow the safety documentation (Safety Booklet) separately provided. Unplug the TV and other connected equipment from the wall outlet before you begin cleaning your TV.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.

• If using a che mically pretreated cloth, pleas e follow the instruction provided on the package.

• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.

• Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated.

• Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock.

The TV should also be placed on a stable surface to prevent it from toppling over (see page children or pets at home, check regularly to ensure the TV is securely fastened.

Recommendation for an F type plug

Projection of the inner wire from the connection part must be less than 1.5

mm.

4). If you have young

Note

• Your TV is shipped with screws attached to the rear of the TV depending on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the Stand without securing the TV and the Stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

(Reference drawing for an F type plug)

Page 6

The BRAVIA® 4K TV Experience

Thank you for choosing Sony! Your new BRAVIA® TV opens the door to the “4K TV Experience”. This document will help you get the most out of your TV. Please take a moment to register your TV at:

http://esupport.sony.com/LA/perl/registration.pl

Four Steps to a 4K TV Experience

Set, Source, Sound, and Setup.

1 Set

Now that you have made the bes t selection in LED backlit LCD TV technology, be sure to remove all of the accessories from the packaging before setting up your TV.

2 Source

To experience the stunning detail of your BRAVIA TV, you need access to HD programming.

• Upgrade your signal or content source to high-definition (4K) by contacting your HD service provider.

• Bring the astonishing resolution of your Sony 4K Ultra HD TV to life with Sony 4K Ultra HD Blu-ray Player. (The availability depends on region)

• Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV. Visit http://www.antennaweb.org for more information on antenna selection and setup.

• Discover the wealth of entertainment now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.

3 Sound

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.

4 Setup

Install your TV and connect your sources. See page 10 for sample connection diagrams. To help assure the highest quality for your HD experience, use Premium High Speed HDMI (High-Definition Multimedia Interface) cables.

This TV displays all video input signals in a resolution of 3,840 dots × 2,160 lines.

Note

• For details of supported formats, refer to the “Specifications” in this manual.

• For supported PC formats, refer to the Help Guide.

Page 7

Parts and Controls



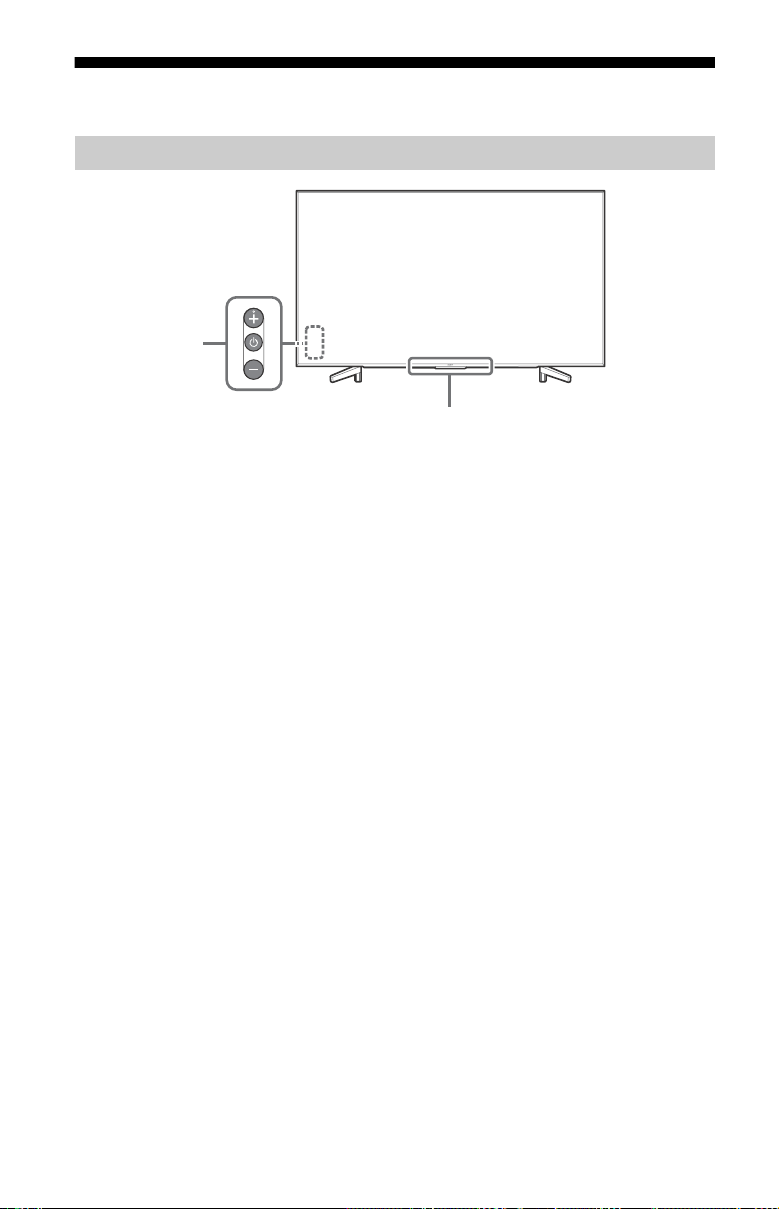

Controls and Indicators

 (Power) /+/–

When the TV is off,

Press  to power on.

When the TV is on,

Press and hold  to power off. Press  repeatedly to change the function, then press + or – button to:

• Adjust the volume.

• Select the channel.

• Select the input source of TV.

 Remote Control sensor* / Light

sensor* / Illumination LED

The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide.

* Do not place anything near the sensor.

Page 8

Using Remote Control

MIC

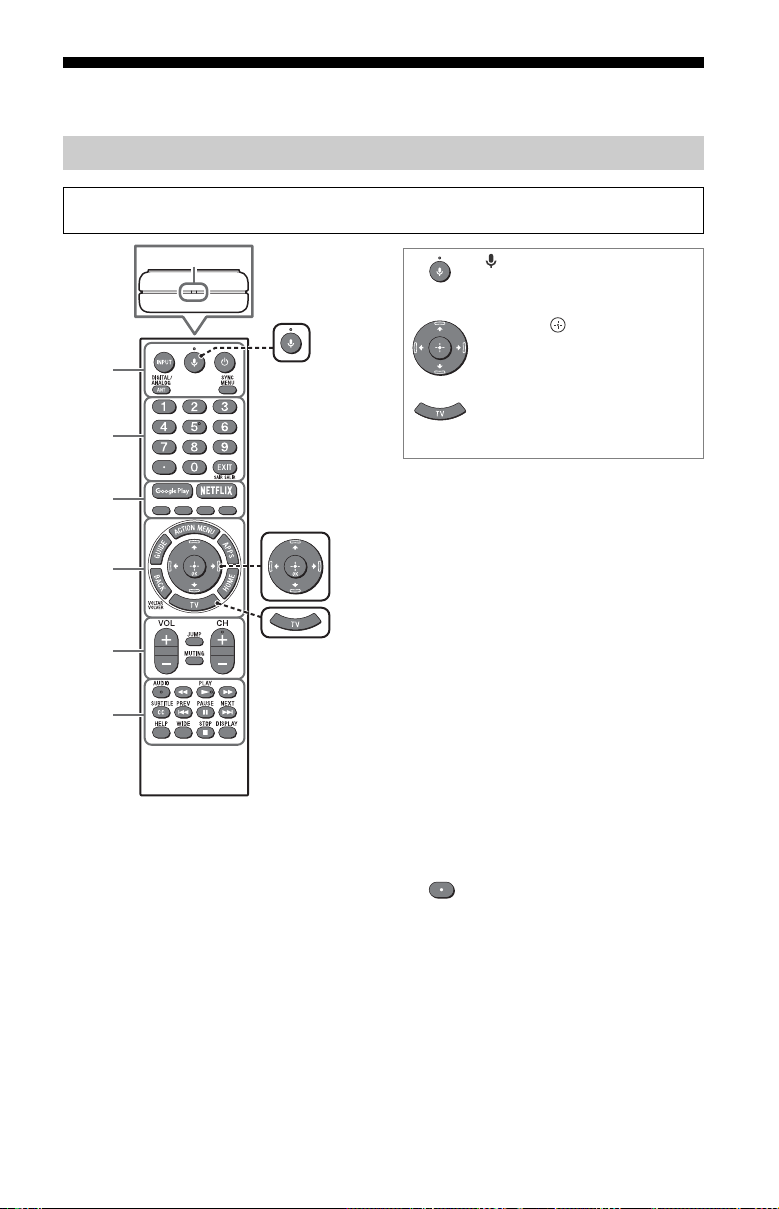

Remote Control Parts Description

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

(Microphone)

Use Voice Search. (e.g., Search various content by voice.)

//// (Navigation D-Pad)

On screen menu navigation and selection.

Switch to a TV channel or input and display the TV Menu Bar.

 INPUT

Display and select the input source.

 (TV standby)

Turn on or turn off the TV (standby mode).

ANT/DIGITAL/ANALOG

Switch between digital and analog mode.

SYNC MENU

Display the BRAVIA Sync Menu.

 Number buttons

Use with the 0-9 buttons to select digital channels.

EXIT/SAIR SALIR

Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.

 Google Play

Access the “Google Play” online service.

Page 9

NETFLIX (Only on limited region/ country/TV model)

Access the “NETFLIX” online service.

Color buttons

Execute corresponding function at that time.

 ACTION MENU

Display a list of contextual functions.

GUIDE

Display the digital program guide.

APPS

Access various services and applications.

BACK/VOLTAR VOLVER

Return to the previous screen.

HOME

Display the TV Home Menu.

 VOL +/– (Volume)

Adjust the volume.

JUMP

Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.

MUTING

Mute the sound. Press again to restore the sound.

CH +/– (Channel)

Select the channel.

 AUDIO

Change the language for the program currently being viewed.

///.//>/

Operate media contents on the TV and connected BRAVIA Sync-compatible device.

SUBTITLE/CC

Turn subtitles on or off (when the feature is available).

HELP

Display the Help menu. Help Guide can be accessed from here.

WIDE

Change the screen format.

DISPLAY

Display information about the channel/ program/input you are viewing.

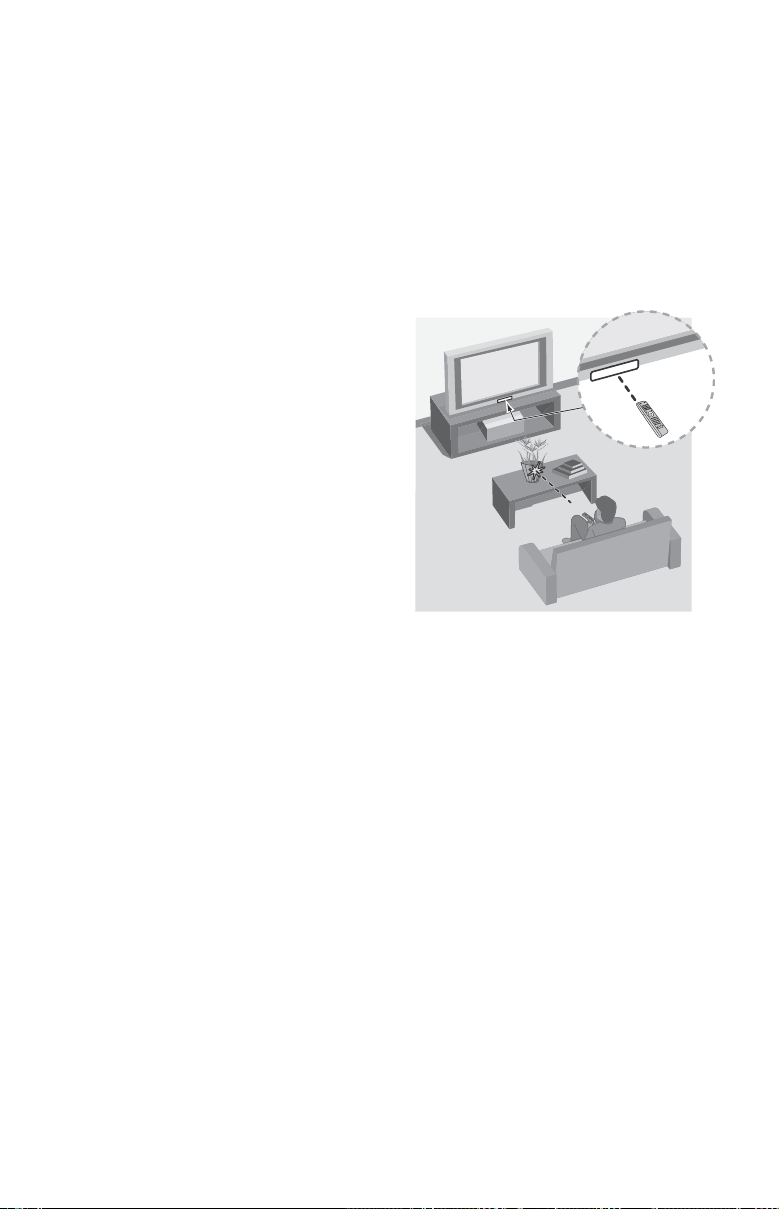

Guidelines for IR Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Page 10

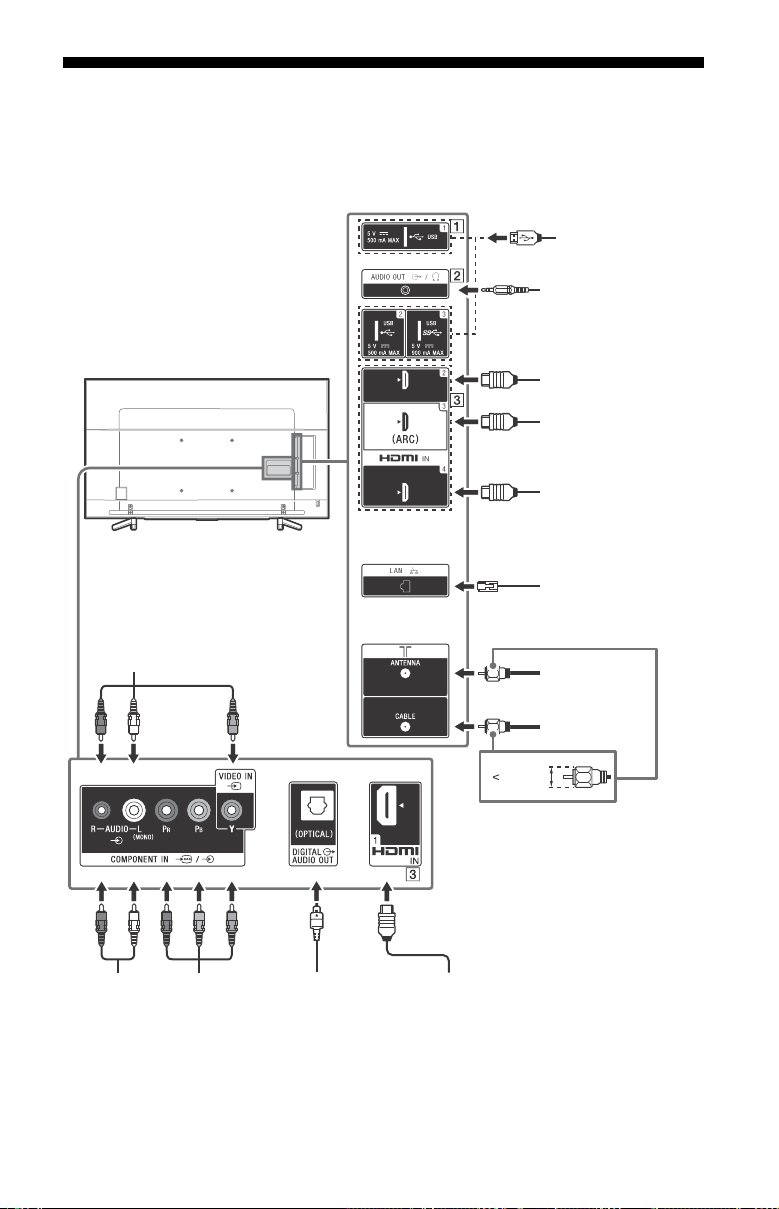

Connection Diagram

Headphone/Audio System/Subwoofer

Digital still camera/ Camcorder/USB storage media

DVD player with component output

Audio System with ARC/ HDMI Device

HDMI Device

VCR/Video game equipment/ DVD player/Camcorder

Cable

Router

HDMI Device

14 mm

HDMI Device

Antenna

Audio System with Optical Audio Input

For more information on connections, refer to the Help Guide by pressing HELP on the remote control.

Note

• When connecting the cable to the Cable/Antenna input, finger tighten only, over tightening the connection can damage the TV.

Page 11

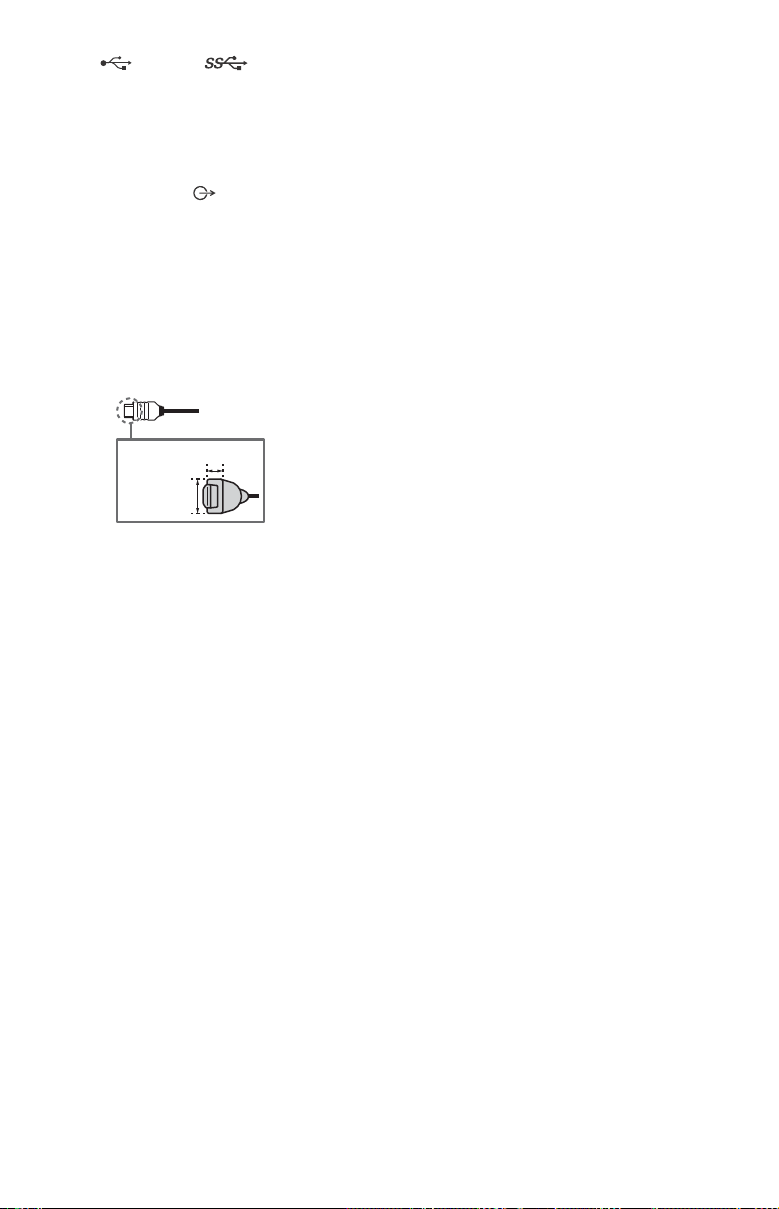

 USB 1/2, USB 3

12 mm

21 mm

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

 AUDIO OUT /

• Supports 3-pole stereo mini jack only.

• To listen to the TV’s sound through the connected equipment, press

HOME. Select [Settings] t [Sound] t [Headphone/Audio out] and then

select the desired item.

 HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.

•

• HDMI IN 2/3 To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format]. For details of supported formats, refer to the “Specifications” in this manual (page 16-17).

• HDMI IN 3 ARC (Audio Return

Channel)

Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

* When connecting mono equipment, connect to

the L (MONO) audio jack (socket).

Page 12

Installing the TV to the Wall

10 mm - 13 mm

Screw (M6)

Wall-Mount Bracket TV’s rear cover

This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see page 13 (Detaching the Table-Top Stand from the TV). Prepare the TV for the Wall-Mount Bracket before making cable connections.

For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please see below illustration.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

Note

• Read the supplied Safety Booklet for additional safety information.

1 Remove the screws from the rear of the TV.

Page 13

2 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied).

Wall-Mount Bracket (not supplied)

Screw (not supplied)

Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

Detaching the Table-Top Stand from the TV

To detach the Table-Top Stand from the TV, remove the screws .

Note

• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the

TV.

• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV

with the LCD panel facing down.

• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the

original holes on the rear of the TV.

Page 14

Installing the TV against a wall or enclosed area

10 cm

30 cm

10 cm 6 cm

Leave at least this much space around the set.

10 cm 10 cm

30 cm

10 cm

Leave at least this much space around the set.

Air circulation is blocked. Air circulation is blocked.

Wall Wall

Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space around the TV set as shown below.

Installed with stand

Installed on the wall

Never install the TV set as follows:

Note

• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a fire.

Page 15

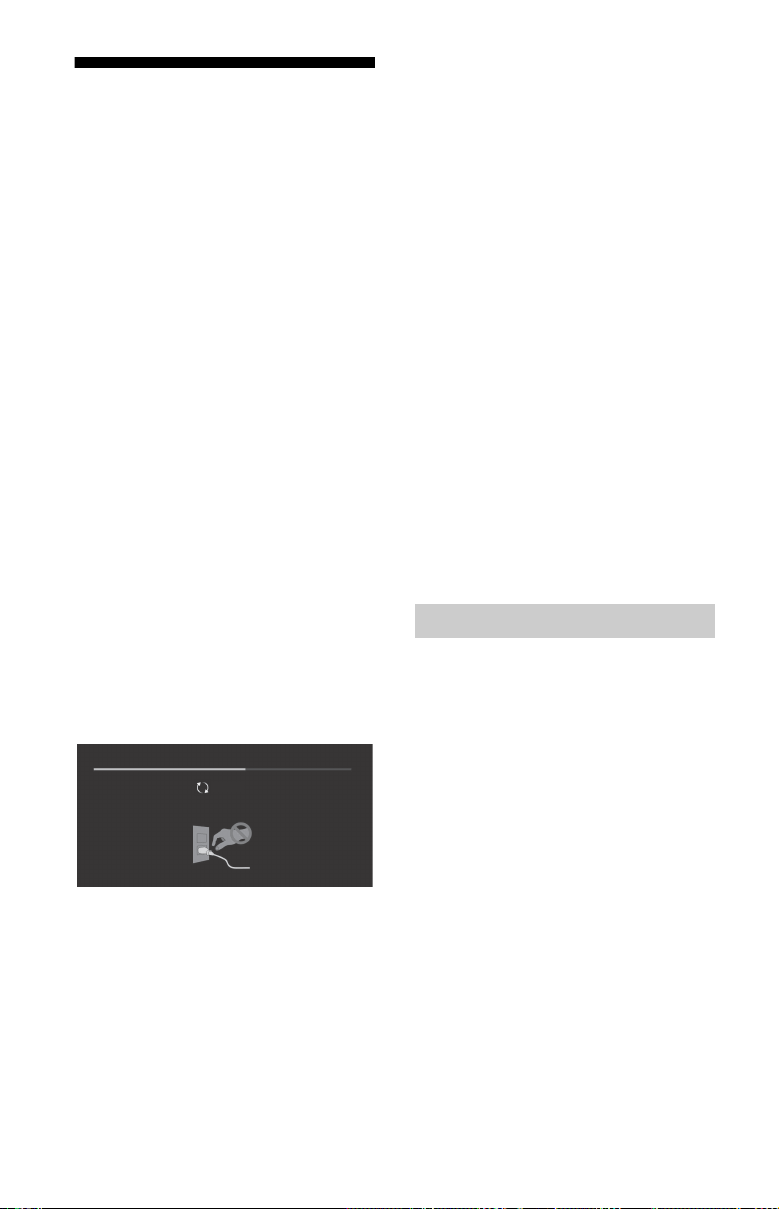

Troubleshooting

Updating...

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power

button on the remote control until a message appears. After twenty seconds, press the power button on the remote control. If the TV does not recover, try unplugging the TV from the AC power cord for two minutes and then plug it in again.

2 Refer to the Help menu by pressing HELP

on the remote control.

3 Connect your TV to the Internet and

perform a software update.

4 Visit Sony support website (information

provided on the front cover).

5 Perform the factory data reset. Refer to

“How to reset the TV to factory settings” (page 15).

When [A new TV system software update is available...] message is displayed.

Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating...] will appear and the illumination LED flashes white while software is updating.

Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes.

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

How to reset the TV to factory settings

WARNING: The reset will clear all of your customized settings including the parental lock for broadcast setting.

• Turn on the TV. You can reset the TV to factory settings by pressing HOME, then select [Settings] t [Storage & reset] t [Factory data reset].

• To force factory data reset, unplug the AC power cord. Press and hold both  and – buttons on the TV, then plug in the AC power cord. Release both buttons when the illumination LED blinks in green.

• For security purposes, be sure to remove all personal and account information before discarding, selling or passing your TV to someone else by: unlinking/ unregistering, signing out of and deactivating all network services as well as factory reset the TV.

Troubles and Solutions

When the illumination LED is flashing in red.

• Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the AC power cord from the TV for two minutes, then turn on the TV. If the problem persists, disconnect the AC power cord, and contact Sony Customer Support (information provided on the front cover) with the number of times the illumination LED flashes.

There is no picture (screen is dark) and no sound.

• Check the cable/antenna connection.

• Connect the TV to the AC power, and press the power button on the TV or the remote control.

Some programs cannot be tuned.

• Check the cable/antenna connection.

The remote control does not function.

• Replace the batteries.

Page 16

The parental lock for broadcast password has been forgotten.

• Enter 4357 for the password and select [Change password].

The restricted profile password has been forgotten.

• Perform the force factory data reset. Refer to “How to reset the TV to factory settings” (page 15).

The TV and its surroundings become warm.

• When the TV is used for an extended period of time, the TV and its surroundings may become warm to the touch. This is not a malfunction of the TV.

Specifications

System

Television system

Analog: NTSC/PAL-M/PAL-N Digital: ISDB-T/ISDB-T

Channel coverage

Depending on your country/area selection Analog: UHF/VHF/Cable Digital: UHF/VHF

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

Speaker output

10 W + 10 W

Wireless technology

Protocol IEEE802.11ac/a/b/g/n Bluetooth Version 4.1

Input/Output jacks

CABLE/ANTENNA

75 ohm external terminal for RF inputs

/ COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono pin jack)

VIDEO IN

Video input (common phono pin with Y input)

HDMI IN 1/2/3/4 (support 4K resolution, HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)*

(24 Hz)*

, 3840 × 2160p (50, 60 Hz)*2, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats*

*1 When 4096 × 2160p is input and [Wide

mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2].

*2 HDMI IN 2/3 only. To support 18 Gbps, set

[HDMI signal format] to [Enhanced format].

*3 Refer to the Help Guide for details.

Audio:

5.1 channel linear PCM: 32/44.1/48/88.2/ 96/176.4/192 kHz 16/20/24 bits, Dolby Digital, Dolby Digital Plus and DTS

ARC (Audio Return Channel) (HDMI IN 3 only)

(Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS)

1*2

, 4096 × 2160p

Page 17

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS)

AUDIO OUT / (Stereo mini jack)

Headphone, Audio output, Subwoofer

1, 2, 3

USB port 1 and 2 support High Speed USB (USB 2.0) USB port 3 supports Super Speed USB (USB

3.1 Gen 1)

LAN

10BASE-T/100BASE-TX connector (Connection speed may differ depending on the network environment. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Refer to the Help Guide for supported files and formats in Home Network.

Others

Operating temperature

0 ºC – 40 ºC

Power and others

Power requirement

110 V – 240 V AC, 50/60 Hz

Power consumption

in use

XBR-75X855F: 250 W XBR-65X856F: 196 W

in standby*

Less than 0.50 W

1*2

Screen size (measured diagonally) (Approx.)

XBR-75X855F: 189.3 cm / 74.5 inches (75 class) XBR-65X856F: 163.9 cm / 64.5 inches (65 class)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2

5 V , 500 mA MAX

USB 3

5 V , 900 mA MAX

Dimensions (Approx.)

with stand

XBR-75X855F: 1,673 × 1,031 × 371 mm XBR-65X856F: 1,450 × 900 × 315 mm

without stand

XBR-75X855F: 1,673 × 963 × 54 mm XBR-65X856F: 1,450 × 836 × 52 mm

wall-mount hole pattern

XBR-75X855F: 400 × 300 mm XBR-65X856F: 300 × 300 mm

wall-mount screw size (mm)

M6 (length: refer to diagram on page 12.)

Mass (Approx.)

with stand

XBR-75X855F: 40.1 kg XBR-65X856F: 26.5 kg

without stand

XBR-75X855F: 38.9 kg XBR-65X856F: 25.6 kg

*1 Specified standby power is reached after the

TV finishes necessary internal processes.

*2 Standby power consumption will increase

when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

Licensing Information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA”, and BRAVIA Sync are trademarks or registered marks of Sony Corporation.

• Gracenote, the Gracenote logo and logotype, “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

• ASTRO TV is a software developed by MIRAKULO Software Ltda that comprises a complete implementation of the Ginga Middleware Standard, compliant with Brazilian ABNT NBR-15606.

• GINGA® is a registered trademark of PUC-Rio/UFPB

• NCL® is a registered trademark of PUC-Rio

Page 18

• Google, Android TV, Google Play, Chromecast built-in, YouTube and other related marks and logos are trademarks of Google LLC.

• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Miracast® are registered trademarks of Wi-Fi Alliance.

• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.

• For DTS patents, see http:// patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Netflix is a registered trademark of Netflix, Inc.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

• All other trademarks are the property of their respective owners.

Resolución real: 3 840 x 2 160 píxeles

Page 19

Page 20

For Your Convenience

Help Guide

http://rd1.sony.net/help/tv/fusltn1/h_usltn/

Online Registration:

Be sure to register your TV. http://esupport.sony.com/LA/perl/registration.pl

Your TV is capable of receiving software updates. For the latest information about software updates for your TV, visit:

Software Updates:

http://esupport.sony.com/LA/

NOTE: If your TV is connected to the Internet, you can check for software updates by pressing HELP, and select [System software update].

Manufacturer or Importer’s name SONY ARGENTINA S.A.

Manufacturer SONY

Model XBR-65X856F XBR-75X855F

Energy efficiency class on a scale from A+ (more efficient) to F (less efficient)

On mode power consumption (W) 101 125

Annual power consumption in on mode (kWh) (Considering 4 hours a day for 365 days. Actual consumption depends on the conditions of use of the device)

Standby power consumption (W) 0.26 0.26

Visible diagonal (cm)

A+ A+

147 183

163.9 189.3

IRAM 62411 and IRAM 62301
