Sony XBR-55X800V User Manual

4-533-569-14(1)

Television Téléviseur

Operating Instructions (Setup Guide)

Mode d’emploi (Guide d’installation)

Sony Customer Support

U.S.A.: http://www.sony.com/tvsupport Canada: http://www.sony.ca/support

United States Canada

1.800.222.SONY 1.877.899.SONY Please Do Not Return

the Product to the Store

Service à la clientèle Sony

Canada : http://support.sony.ca/fr États-Unis : http://www.sony.com/tvsupport

Canada États-Unis

1.877.899.SONY 1.800.222.SONY Ne retournez pas le produit au magasin

XBR-70X850B / 65X850B / 65X800B / 55X850B / 55X800B / 49X850B KDL-70X830B / 65X830B / 55X830B

Owner’s Record

The model and serial numbers are located at the side and rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.

Model Name

Serial No.

CAUTION

To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted.

• Operate the TV only on 110-240 V AC (U.S.A./Canada 120 V AC)

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of any other device or media used with this television and (ii) our website (http://www.sony.com/tvsupport) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.

• Do not use, store, or leave the 3D Glasses or battery near a fire, or in places with a high temperature, e.g., in direct sunlight, or in sunheated cars.

• When using the simulated 3D function, please note that the displayed image is modified from the original due to the conversion done by this television.

Licensing Information

The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Fergason Patent Properties, LLC: U.S. Patent No. 5,717,422 U.S. Patent No. 6,816,141

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

“BRAVIA” and , S-Force, Motionflow, BRAVIA Sync, and are trademarks or registered marks of Sony Corporation.

DLNA

, the DLNA Logo and DLNA CERTIFIED marks, or certification marks of the Digital Living Network Alliance.

TrackID is a trademark or registered trademark of Sony Mobile Communications AB.

Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, Gracenote MusicID, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

“Sony Entertainment Network logo” and “Sony Entertainment Network” are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

are trademarks, service

Devices SDK from Opera

Designed with UEI Technology™ Under License from Universal Electronics Inc. Portions © UEI 2000 2013

The Bluetooth are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

word mark and logos

For models with supplied Touchpad Remote Control:

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

The 70 class has a 69.5 inch viewable image size, the 65 class has a 64.5 inch viewable image size, the 55 class has a 54.6 inch viewable image size and the 49 class has a 48.5 inch viewable image size (measured diagonally).

Location of the identification label

Labels for the Model No. and Power Supply rating are located on the rear of the TV.

• The illustrations of the remote control used in this manual are of the RMF-YD003 (Touchpad Remote Control) and RM-YD102 (IR (infrared) Remote Control) unless otherwise stated.

• The illustrations used in this manual may differ depending on your TV model.

• Retain this manual for future reference.

The BRAVIA® 4K TV Experience

Thank you for choosing Sony! Your new BRAVIA Experience”. This document will help you get the most out of your TV. Please take a moment to register your TV at:

U.S.A.: http://productregistration.sony.com Canada: http://www.sony.ca/registration

Four Steps to a 4K TV Experience

Set, Source, Sound, and Setup.

TV opens the door to the “4K TV

1 Set

Now that you have made the best selection in LED backlit LCD TV technology, be sure to remove all accessory contents from the packaging before setting up your TV.

2 Source

To experience the stunning detail of your BRAVIA TV, you need access to High-Definition programming.

• Upgrade your signal or content source to high-definition (4K) by contacting your HD service provider.

• Bring the astonishing resolution of your Sony 4K Ultra HD TV to life with Sony 4K Ultra HD Media Player. (The availability depends on region)

• Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV. Visit http://www.antennaweb.org for more information on antenna selection and setup.

• Discover the wealth of entertainment now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment.

3 Sound

Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony.

4 Setup

Install your TV and connect your sources. See page 13 for sample connection diagrams. To help assure the highest quality for your 4K experience, use Sony HDMI (High-Definition Multimedia Interface) cables.

To learn more about 4K TV, visit:

U.S.A.: http://www.sony.com/HDTV Canada: http://www.sony.ca/hdtv

This TV displays all video input signals in a resolution of 3,840 dots × 2,160 lines.

The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV inputs.

INPUT VIDEO AUDIO

HDMI

4K*11080/24p/

SUPPORTED FORMATS

1080p*11080i

30p

720/24p/

720p*1480p 480i PC*

30p

COMPONENT

Audio L/R

VIDEO

*1For details of supported formats, refer to the “Specifications” in this manual. *2For supported PC formats refer to the i-Manual.

Composite video

connection

Audio L/R

About this manual (Operating Instructions)

This manual explains how to setup your TV. For more information on how to use your BRAVIA TV, refer to the “Electronic manual”.

Operating Instructions

Electronic manual

(i-Manual)

Explains how to setup your TV such as connections, initial setup, and basic operations.

For more information, see the i-Manual

Explains how to use all the features. See page 30 on how to use the i-Manual.

Images and illustrations used in this manual may differ from the actual screen.

Table of Contents

Getting Started

Checking the accessories........................................................................8

Inserting batteries into the remote control................................................8

Before setting up your TV.........................................................................9

1: Attaching the Table-Top Stand ..........................................................10

2: Connecting the TV..............................................................................13

3: Securing the TV..................................................................................19

4: Bundling the cables ...........................................................................21

5: Connecting the TV to the Internet.......................................................22

6: Running initial setup...........................................................................23

Watching TV ...........................................................................................24

Using the remote control........................................................................25

Using Your BRAVIA TV

Discovering the contents you like (Discover).........................................27

Enjoying social networking while watching TV (Social Viewing) ............27

Selecting various contents and tools (Home Menu) ..............................28

Looking for Instructions

Looking for instructions in the electronic manual (i-Manual)

Additional Information

Troubleshooting......................................................................................32

How to care for your BRAVIA TV............................................................34

Specifications.........................................................................................35

Installing the TV to the Wall ....................................................................38

Installing the TV against a wall or enclosed area...................................39

Safety Information...................................................................................40

...e;

Getting Started

Checking the accessories

IR Remote Control (1)* Touchpad Remote Control (1)*

(XBR-70/65/55/49X850B only)

Size AAA batteries (4)

(XBR-70/65/55/49X850B only)

Size AAA batteries (2)

(except XBR-70/65/55/49X850B)

Stand cover (2)

(XBR-70X850B, KDL-70X830B only)

Table-Top Stand (2)

(except XBR-70X850B, KDL-70X830B)

Fixing screws for Table-Top Stand (M5 × 12) (4)

(except XBR-70X850B, KDL-70X830B)

Active 3D Glasses (battery included) (2)

(XBR-70X850B, KDL-70X830B only)

Passive 3D Glasses (2)

(except XBR-70X850B, KDL-70X830B, XBR-65/55X800B)

IR Blaster (1) Operating Instructions (this manual) and other documents

* Refer to the model name printed on the remote

control.

Inserting batteries into the remote control

Touchpad Remote Control (For models with supplied Touchpad Remote Control)

1 Remove the protection sheet. 2 Press the latch and lift the cover to open.

IR Remote Control

1 Remove the protection sheet. 2 Push and slide the cover to open.

x Guidelines for IR Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Before setting up your TV

Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page 38 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task. Look for the supplied Table-Top Stand instruction leaflet. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damage.

• Ensure your TV has adequate ventilation, see page 39.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and floor materials.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on.

(Continued)

• Ensure that there are no objects in front

IR Sensor

3D Sync Transmitter (XBR-70X850B, KDL-70X830B only)

of the TV.

1: Attaching the

Table-Top Stand

x Recommended (edge position)

(except XBR-70X850B, KDL-70X830B)

Refer to the supplied Table-Top Stand leaflet for proper attachment.

• Do not put stress on the LCD panel or the frame around the screen.

• Be careful to not pinch your hands or the AC power cord when you install the TV set to the Table-Top Stand.

• Two or more people are needed to carry out this installation.

• Be sure to store the unused stand covers in a safe place. Keep them away from small children.

1 Remove the cushion of the right side 1,

and attach the Table-Top Stand to the TV

2. Fix the TV to the Table-Top Stand using the supplied screws. The arrow marks indicate the location of the screw holes used for securing the TableTop Stand.





2 Repeat step 1 for the left side





Middle position

Thick cushion





x Alternative (middle position)

You can change the Table-Top Stand from the edge to the middle position by referring to the instructions below.

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

(Continued)

Detaching the Table-Top Stand from the TV

To detach the Table-Top Stand from the TV, remove the screws .

Repeat step 1-4 for the left side.

• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.

• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the LCD panel facing down.

• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.

Hiding the camera (except XBR-65/55X800B)

2: Connecting the TV

If you do not wish to use the camera, hide it as illustrated.

• Use an antenna cable connector no greater than 14 mm thick.

• When connecting the cable to the Cable/ Antenna, input finger tighten only, over tightening the connection can damage the TV.

• Before moving the TV, disconnect all of the cables connected to the TV to prevent damaging the TV when it is moved.

• Use an HDMI cable connector within 12 mm (thickness) × 21 mm (width).

• Use Sony HDMI cable with “High Speed” indication for HDMI connection.

• For more information on connections, refer to the i-Manual.

(Continued)

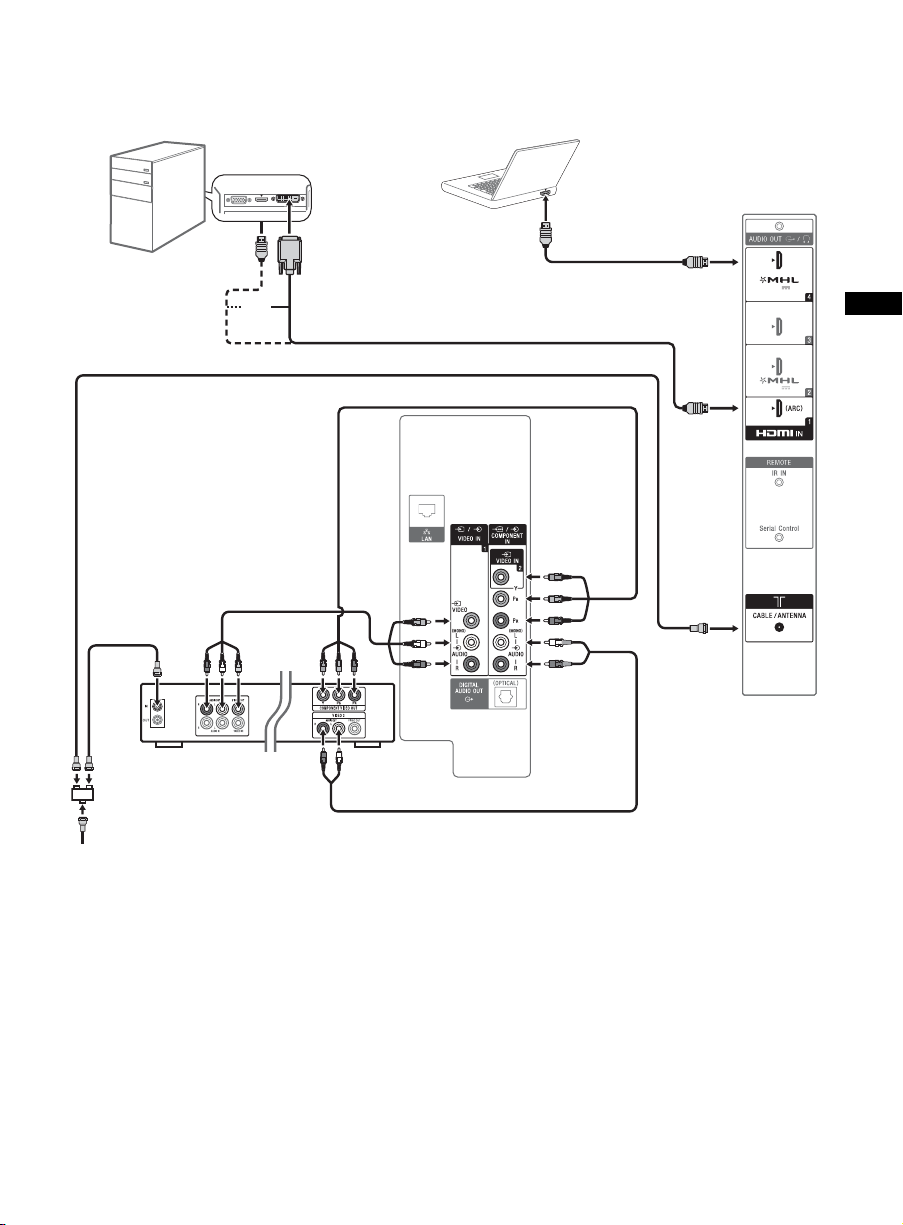

x Shown with a Set Top Box with

900 mA MAX

5 V

900 mA MAX

5 V

Set Top Box

(Reference drawing for an F type plug)

1.5 mm max.

7 mm max.

Set Top Box

HDMI connection

x Shown with a Set Top Box with

COMPONENT connection

• Connect 4K devices (4K Media Player, 4K Set Top Box, etc.) to the HDMI IN 2 or HDMI IN 1 jack of the TV to enjoy copyright protected content.

• For the FMP-X1, connect it to the HDMI IN 2 jack only (The availability depends on region).

Recommendation for an F type plug

Projection of the inner wire from the connection part must be less than 1.5 mm.

x Cable System or VHF/UHF Antenna

Cable or Antenna

900 mA MAX

5 V

900 mA MAX

5 V

Use authorized MHL 3 CABLE with MHL logo

MHL 3 device

Use authorized MHL 2 CABLE with MHL logo

MHL 2 device

System

x Shown with MHL device with MHL

connection

The TV simultaneously charges the MHLcompatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHL-compatible device.

• If Auto Input Change (MHL) is set to On, the

TV automatically switches to HDMI IN 2/MHL or HDMI IN 4/MHL from other input when MHL-compatible device is connected to HDMI IN 2/MHL or HDMI IN 4/MHL jack. The availability of Auto Input Change (MHL) depends on whether the MHL-compatible device can support this feature.

• If Charge MHL during Power Off is set to On, you can continue charging the MHL-

compatible device even when the TV is in standby mode.

• Connect the 4K smartphone or mobile devices to the HDMI IN 2/MHL jack.

• Use authorized MHL 3 CABLE with MHL logo for 4K smartphone or mobile devices.

(Continued)

*1Side Panel

Blu-ray Disc

HD Cable Box or HD Satellite Receiver

A/V Receiver

SAT (Dish) Cable/

Antenna

Optical Connection

Rear of TV

x Shown with HD BRAVIA® Sync™ Basic Connection

5 V

900 mA MAX

5 V

900 mA MAX

*1Signifies a BRAVIA Sync capable device. *2The optical connection is only needed for A/V receivers that do not support ARC (Audio Return Channel).

Set the speaker settings to audio out, press HOME, then select Audio System. Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for ARC connections.

*3XBR-70/65/55/49X850B only.

Settings t Sound t Speakers t

x Shown with HD Basic Connection with Home Theater System

VIDEO

900 mA MAX

5 V

900 mA MAX

5 V

Cable/ Antenna

Blu-ray Disc/DVD

SD Cable Box or SD Satellite Receiver

Cable/ SAT (Dish)

Home Theater System

*Optical

Connection

Rear of TV

Side Panel

* The optical connection is only needed for home theater system that do not support ARC (Audio Return Channel)

when connecting with HDMI. Set the speaker settings to audio out, press HOME, then select

Audio System. Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for ARC connections.

Settings t Sound t Speakers t

(Continued)

x Shown with PC Connection with SD VCR/DVD

900 mA MAX

5 V

900 mA MAX

5 V

Rear of TV

DVD

VCR

Splitter

Cable/Antenna

VCR/DVD Combo

Notebook PC

Side Panel

* DVI

* DVI does not support audio signals. Connect the audio output of the PC to the PC speakers or an A/V receiver to

listen to sound from the PC.

3: Securing the TV

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Preventing the TV from Toppling

• Secure the TV to a wall and/or stand.

• Do not allow children to play or climb on furniture and TV sets.

• Avoid placing or hanging items on the TV.

• Never install the TV on: – slippery, unstable and/or uneven

surfaces.

– furniture that can easily be used as

steps, such as a chest of drawers.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV's Table-Top Stand does not protrude out from the Stand (not supplied). If the Table-Top Stand protrudes out from the Stand, it may cause the TV set to topple over and fall down.

• Route all AC power cords and

connecting cables so that they are not accessible to curious children.

(Continued)

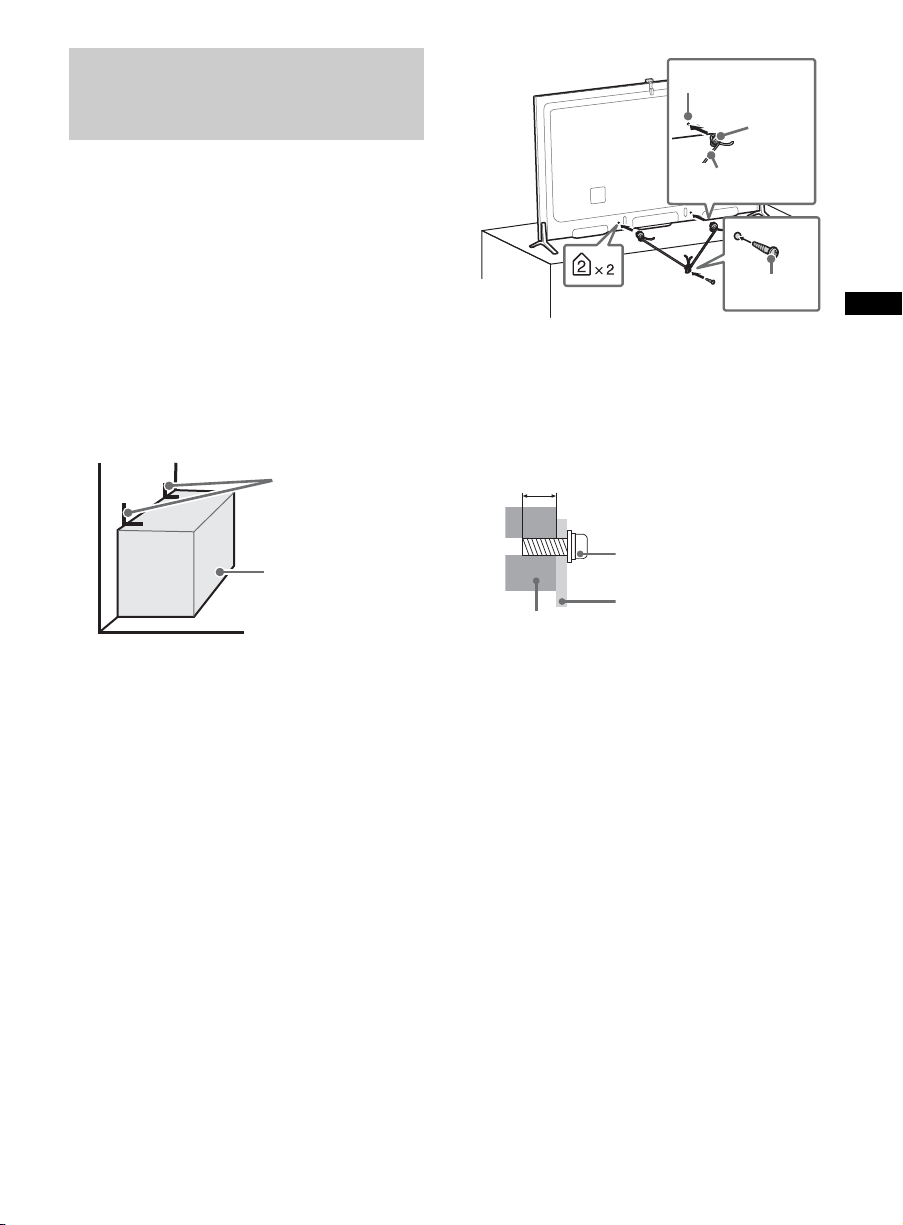

Recommended Measures

Stand

Angle brace (not supplied)

Screw hole on the rear cover

M4 machine screw (not supplied)

Rope or chain (not supplied)

Screw (not supplied)

Screw M4

Rope or chain

TV’s rear cover

8-12 mm

M6 eye bolts (not supplied)

Wallmount holes

Rope or chain (not supplied)

Wall-anchor (not supplied)

M6 eye bolt

TV’s rear cover

8-12 mm

to Secure the TV

Consider the following measures when securing your TV to a Stand (not supplied).

1 Secure the Stand for the TV.

Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the Stand.

2 Secure the TV to the Stand.

Use the optional hardware listed as follows (not supplied):

• M4 machine screw (screwed into the TV’s rear cover)

• A screw or similar (attach it to the Stand)

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

The length of the M4 machine screw differs depending on the rope or chain diameter. Please see below illustration.

3 Anchor the TV to the wall by using bolts,

wall anchor and chain (or rope).

Please see below illustration for M6 eye bolt length.



• Your TV is shipped with screws attached to the rear of the TV depending on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the stand without securing the TV and the stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

4: Bundling the

cables

Before bundling the cables, remove the cable holder from the AC cover. Reuse the cable holder to bundle the other cables.

• Do not bundle the AC power cord together with other cables.



* When the Table-top Stand is attached to middle

position, you can choose either hole to attach the cable holder.

5: Connecting the TV

Internet

Modem with router functions

Router

Modem

Internet

Wireless router (access point)

Modem

Internet

to the Internet

When you connect this TV to the Internet, you can enjoy multiple functions. For details on the functions, refer to the i-Manual.

• You will need to contract with an Internet service provider to connect to the Internet.

Preparing a wired network

Preparing a Wi-Fi connection

The built-in Wi-Fi device allows you to access the Internet and your home network. With this feature, you can connect to a wireless network and enjoy the benefits of networking in a cable-free environment. Before setting up the Wi-Fi function of the TV, be sure to set up a wireless router (access point).

• For LAN connections, use a Category 7 cable (not supplied).

6: Running initial





setup

1 Complete your cable connections before

proceeding with the Initial Setup. Connect the TV to your AC power outlet.

2 Press POWER on the Touchpad Remote

Control (for models with supplied Touchpad Remote Control) or IR Remote Control (for models without supplied Touchpad Remote Control). Illumination LED will light up in white. When you switch on the TV for the first time, the Language menu appears on the screen.

• The illumination LED lights up in different colors according to the status of the TV. If you do not wish to light up the illumination LED, you can turn it off later. Press HOME, then select Settings

t Preferences t Front Panel Illumination t Illumination LED t Off. You can also press OPTIONS, then select Illumination LED t Off.

3 Slide up/down/left/right to select an item,

then press the touchpad (press V/v/B/b, then press if using IR Remote Control).

Follow the instructions on the screen.

4 Set up the Internet connection by

selecting Wi-Fi or Wired LAN. If you will not be using the network features of the TV, or to set up later, select Skip.

• The TV will automatically detect and setup the network when a wired connection is made before the initial setup.

• For customers who need to setup their network connection with a Static IP address and/or a Proxy server, select Skip. After completing the initial setup, press HOME, then select Settings

Network t Network Setup t

t Set up network connection t Expert.

• If you use WEP security, select Wi-Fi t Connect by scan list. Then, select the

network name (SSID) you want to connect to. If you cannot find the required network name, select [Manual Entry] and press the touchpad (press if using IR Remote Control) to enter network name.

• To perform Network Setup later, press HOME, then select Settings t

Network t Network Setup.

• The TV will automatically search for a software update after the network is setup and will try to automatically detect your region.

5 Scan for available channels using the

TV’s built-in tuner by selecting Built-in Tuner t Auto. If you will be using a

cable box or satellite receiver and do not wish to use the TV’s built-in tuner select Set Top Box. If you do not wish to use the TV’s built-in tuner or a set top box, select Skip.

Watching TV

Screen Key Pad

1 Turn on the TV.

Press "/1 on the TV or POWER on the Touchpad Remote Control to turn on the TV.

3 Slide left/right to select a

TV channel or input, then press the touchpad.

x To select digital channels

Use 0-9 and point (.) on the Screen Key Pad. For example, to enter channel 2.1: Select 2, point (.) and 1, press the touchpad for each of them.

When using IR Remote Control

1 Press "/1 on the TV or POWER on the

remote control to turn on the TV.

2 Press CH +/-, 0-9 or INPUT to select a

TV channel or input.

Use 0-9 and point (.) to select digital channels. For example, to enter channel 2.1: Press 2, point (.) and 1, then press .

2 Press Control Bar (....).

The Screen Key Pad is displayed on the screen.

Using the remote

Touchpad Remote Control

IR Remote Control

control

You can operate the TV by using the supplied Touchpad Remote Control or IR Remote Control. The supplied Touchpad Remote Control depends on your TV model.

• Touchpad Remote Control can only be used after registration with the TV. You can register the Touchpad Remote Control by pressing HOME, then select Settings t

Preferences t Touchpad Remote

Control Setup.

Displaying the Touchpad Operation Guide

Touchpad Operation Guide allows you to see the main gesture commands that are available for the current TV screen.

1 Touch and keep your finger on the

center of the touchpad to display the Touchpad Operation Guide.

(Continued)

Launching the Touchpad Tutori al

1 Press HOME.

2 Slide to select Help, then press the

touchpad.

3 Slide up/down to select Touchpad

Tutorial, then press the touchpad.

Follow the instructions on the screen.

• You can also launch the Touchpad

Tutorial by pressing HOME, then select

Settings t Preferences t

Touchpad configurations t Start Tutorial.

+ 58 hidden pages
