Sony XAV-63 User Manual [en, es, it]

4-410-680-22(1)
AV Center
AV Center
XAV-64BT XAV-63
©2012 Sony Corporation
Operating Instructions
Manual de instrucciones
Istruzioni per l’uso
ES
IT
Be sure to install this unit in the dashboard of the car for safety. For installation and connections, refer to the supplied “Installation/Connections” guide.
About this manual
• This manual contains instructions for XAV­64BT and XAV-63.
• XAV-64BT is the model representatively used for illustration purposes.
• Bluetooth functions and descriptions apply only to XAV-64BT.
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
CAUTION
The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
This label is located on the bottom of the chassis.
Made in Thailand
Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.
The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
2
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or
0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of­life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Note on the lithium battery
Do not expose the battery to excessive heat such as direct sunlight, fire or the like.
The following applies only to XAV-64BT:
The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.
Warning if your car’s ignition has no ACC position
Be sure to set the Auto Off function (page 46). The unit will turn off automatically in the set time when no source is selected, which prevents battery drainage. If you do not set the Auto Off function, press and hold (SOURCE/OFF) until the display disappears each time you turn the ignition off.
To cancel the demonstration (Demo) display, see page 50.
Hereby, Sony Corp., declares that this XAV­64BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/
Italy: Use of the RLAN network is governed:
– with respect to private use, by the Legislative
Decree of 1.8.2003, no. 259 (“Code of Electronic Communications”). In particular Article 104 indicates when the prior obtainment of a general authorization is required and Art. 105 indicates when free use is permitted;
– with respect to the supply to the public of the
RLAN access to telecom networks and services, by the Ministerial Decree 28.5.2003, as amended, and Art. 25 (general authorization for electronic communications networks and services) of the Code of electronic communications.
Norway: Use of this radio equipment is not allowed in the geographical area within a radius of 20 km from the centre of Ny-Alesund, Svalbard.
3
Table of Contents
Notes on safety. . . . . . . . . . . . . . . . . . . . . . . . . .7
Notes on installation. . . . . . . . . . . . . . . . . . . . . .7
Copyrights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Notes on Bluetooth function
(XAV-64BT only) . . . . . . . . . . . . . . . . . . . . . . .9
Playable discs and symbols used in these
Operating Instructions . . . . . . . . . . . . . . . . . . .10
Location and function of
controls/terminals. . . . . . . . . . . . . . . . . . . . . . .11
Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . .11
RM-X170 Remote Commander . . . . . . . . . 13
Getting Started

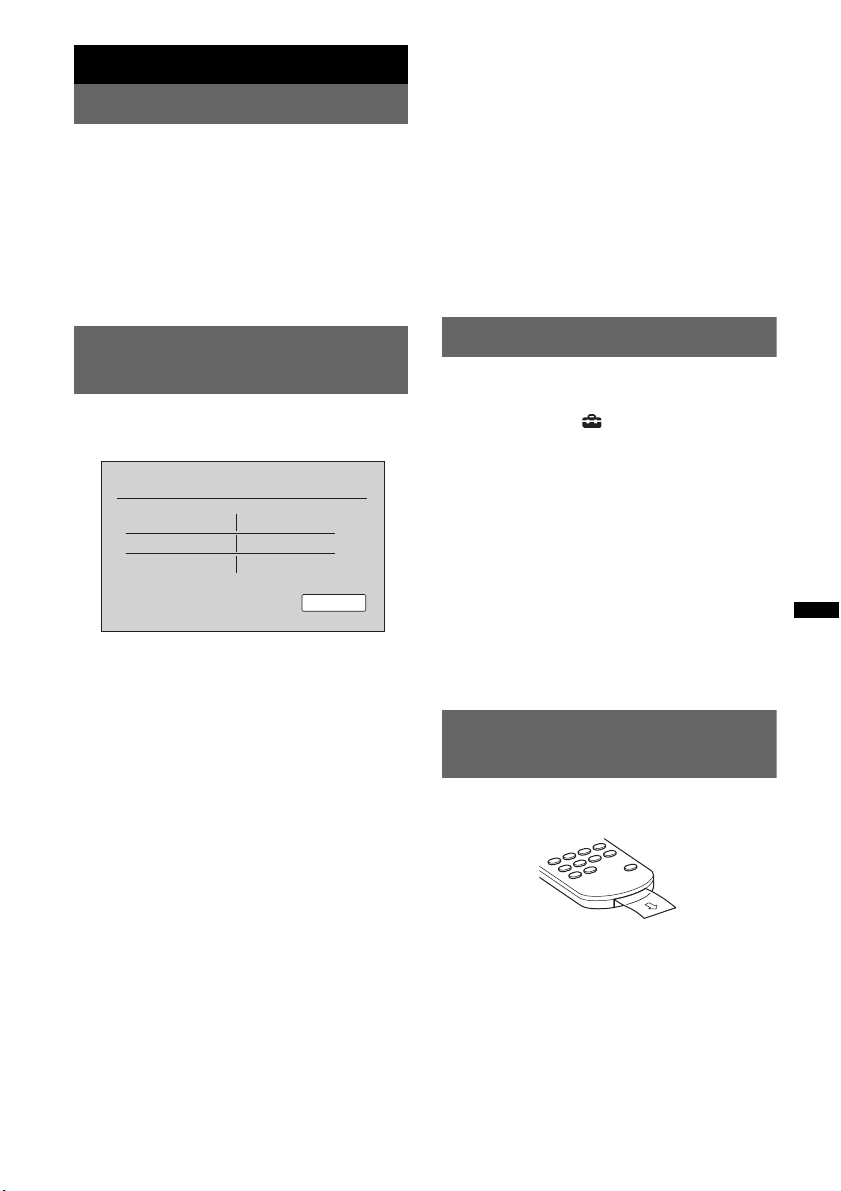

Resetting the unit . . . . . . . . . . . . . . . . . . . . . . .15
Performing initial settings . . . . . . . . . . . . . . . .15
Setting the clock. . . . . . . . . . . . . . . . . . . . . . . .15
Preparing the remote commander . . . . . . . . . .15
Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . .16
Reception controls. . . . . . . . . . . . . . . . . . . .16
Reception indications . . . . . . . . . . . . . . . . .17
Storing and receiving stations . . . . . . . . . . . . .17
Storing automatically — BTM . . . . . . . . . .17
Storing manually . . . . . . . . . . . . . . . . . . . . .17
Receiving stored stations. . . . . . . . . . . . . . .17
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Setting AF and TA. . . . . . . . . . . . . . . . . . . .18
Selecting PTY . . . . . . . . . . . . . . . . . . . . . . .19
Setting CT . . . . . . . . . . . . . . . . . . . . . . . . . .19
Discs
Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Playback controls . . . . . . . . . . . . . . . . . . . . 20
Playback indications . . . . . . . . . . . . . . . . . . 21
Using PBC (playback control) functions. . . . . 22
Configuring audio settings . . . . . . . . . . . . . . . 22
Changing the audio language/format . . . . . 22
Changing the audio channel . . . . . . . . . . . . 23
Adjusting the audio output level
— Dolby D level. . . . . . . . . . . . . . . . . . . . . 23
Repeat and shuffle play . . . . . . . . . . . . . . . . . . 23
Direct search play . . . . . . . . . . . . . . . . . . . . . . 24
USB Device Operations
Playing from a USB device. . . . . . . . . . . . . . . 25
Repeat and shuffle play . . . . . . . . . . . . . . . . . . 25
Enjoying music according to your mood
— SensMe™ . . . . . . . . . . . . . . . . . . . . . . . . . . 26

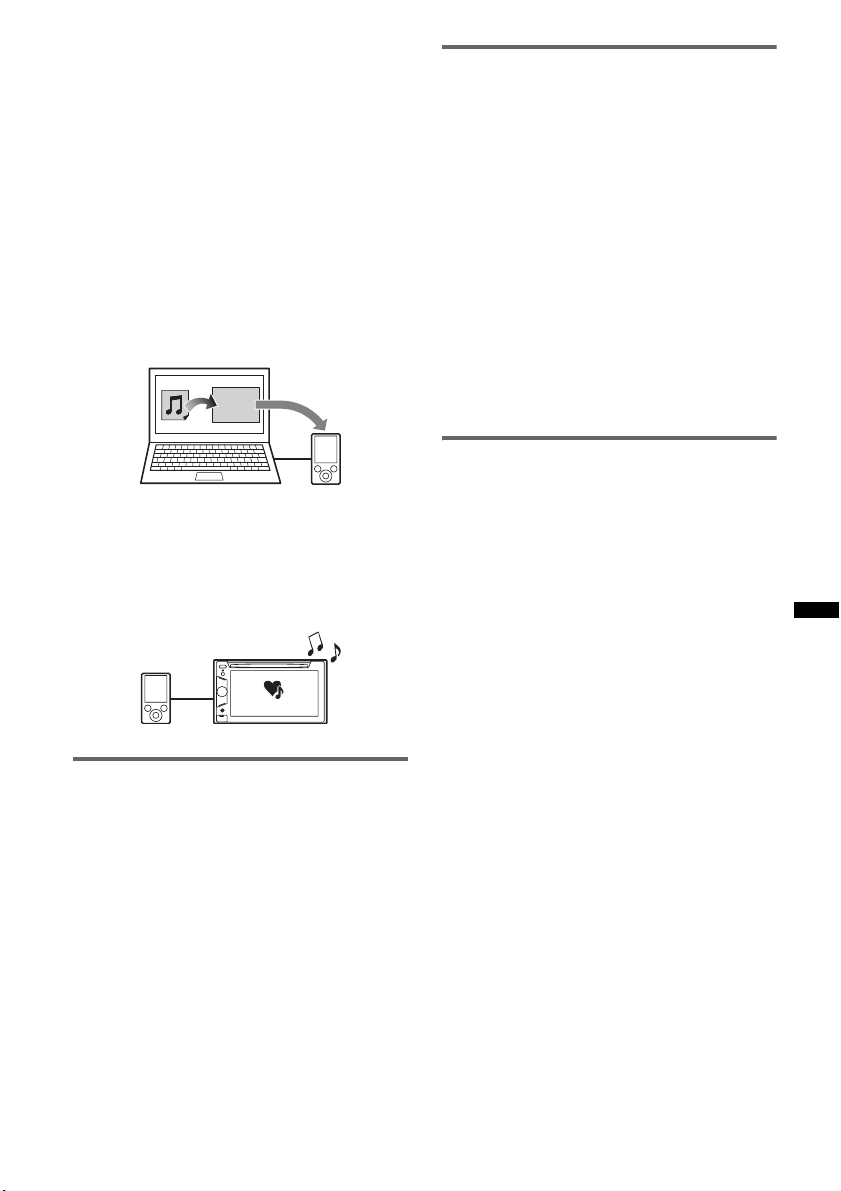

Before using the SensMe™ function . . . . . 26
Installing “SensMe™ Setup” and “Content
Transfer” on your computer . . . . . . . . . . . . 26
Registering a USB device using “SensMe™
Setup” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Transferring tracks to the USB device using
“Content Transfer” . . . . . . . . . . . . . . . . . . . 27
Playing tracks in channels
— SensMe™ channels . . . . . . . . . . . . . . . . 27
Playing tracks in mood maps
— SensMe™ mood. . . . . . . . . . . . . . . . . . . 29
Searching for a track by listening to track
passages — ZAPPIN™ . . . . . . . . . . . . . . . . . . 30
iPod Operations
Playing an iPod . . . . . . . . . . . . . . . . . . . . . . . . 30
Setting the play mode . . . . . . . . . . . . . . . . . . . 31
Repeat and shuffle play . . . . . . . . . . . . . . . . . . 31
Operating an iPod directly
— Passenger App Control. . . . . . . . . . . . . . . . 32
4
Useful Functions
Sound Adjustment
Listing up tracks/images/video files
— List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting a track/image/video file. . . . . . . . 32
Selecting a file type. . . . . . . . . . . . . . . . . . . 32
Using Gesture Command . . . . . . . . . . . . . . . . 33
Handsfree Calling and Audio Streaming — Bluetooth function (XAV-64BT only)
Before using the Bluetooth function . . . . . . . . 33
Basic procedure of the Bluetooth
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Bluetooth status indications . . . . . . . . . . . . 34

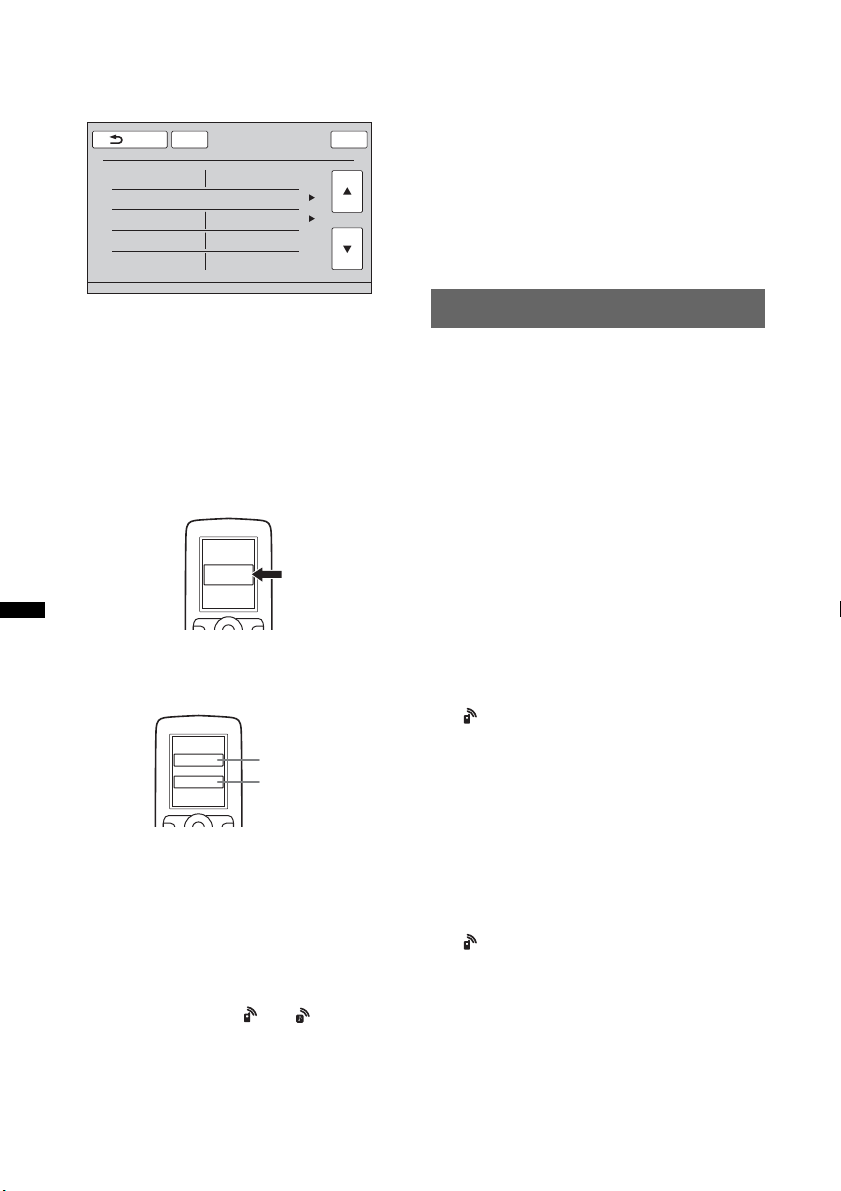

Installing the microphone . . . . . . . . . . . . . . 34
Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Handsfree calling. . . . . . . . . . . . . . . . . . . . . . . 36
Making calls . . . . . . . . . . . . . . . . . . . . . . . . 36
Receiving calls . . . . . . . . . . . . . . . . . . . . . . 37
Operations during a call . . . . . . . . . . . . . . . 37
Call data management . . . . . . . . . . . . . . . . . . . 38
Preset dial . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Audio streaming . . . . . . . . . . . . . . . . . . . . . . . 39
Listening to a Bluetooth device via
this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operating a Bluetooth device with
this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Bluetooth settings . . . . . . . . . . . . . . . . . . . . . . 39
Selecting the sound quality — EQ7 . . . . . . . . 40
Customizing the equalizer curve
— EQ7 Tune . . . . . . . . . . . . . . . . . . . . . . . 40
Adjusting the sound characteristics . . . . . . . . 40
Optimizing sound for the listening position
— Intelligent Time Alignment . . . . . . . . . . . . 41
Calibrating the listening position
— Intelligent Time Alignment Tune . . . . . 41

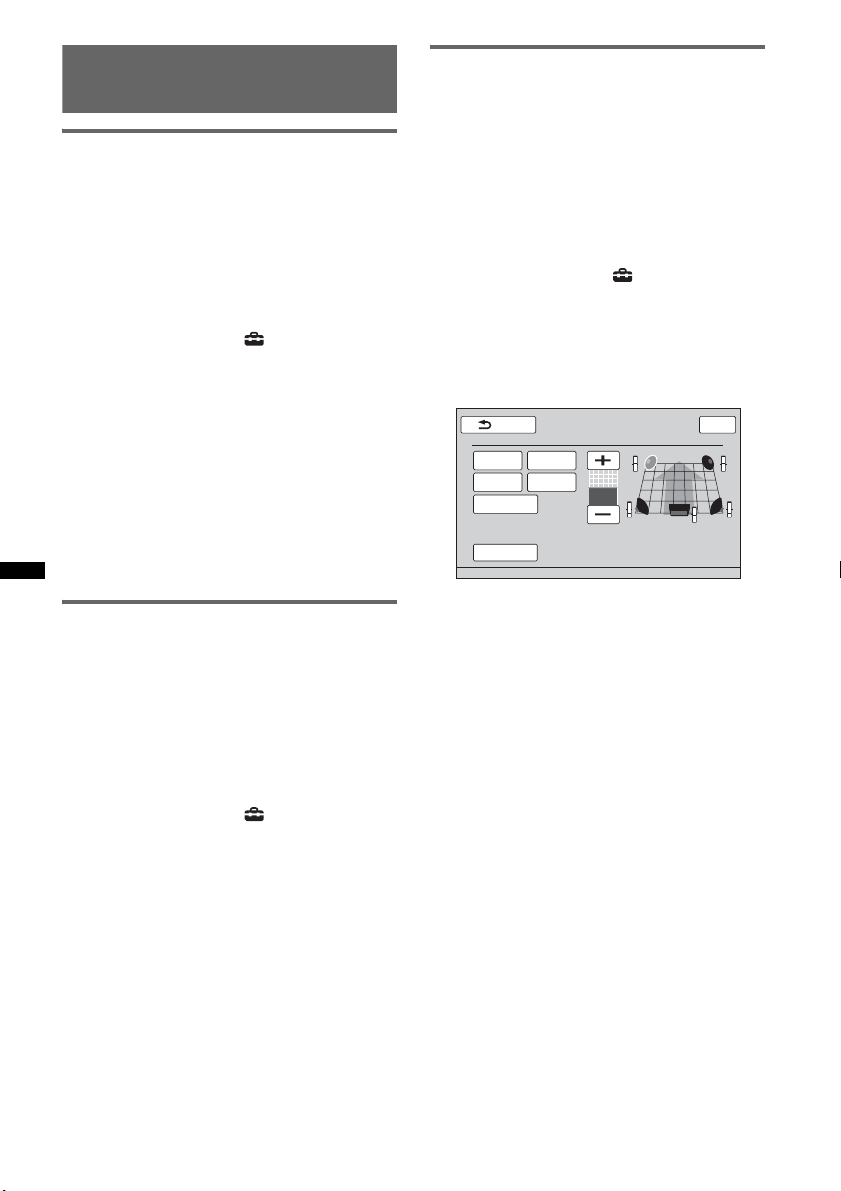

Speaker configuration and volume setup . . . . 42
Creating a virtual center speaker
— CSO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Using rear speakers like subwoofers
— Rear Bass Enhancer. . . . . . . . . . . . . . . . 42
Adjusting the speaker volume . . . . . . . . . . 42
Monitor Adjustment
Touch panel calibration . . . . . . . . . . . . . . . . . 43
Setting the background screen . . . . . . . . . . . . 43
Adjusting the picture — Picture EQ. . . . . . . . 43
Customizing the picture . . . . . . . . . . . . . . . 44
Selecting the aspect ratio . . . . . . . . . . . . . . . . 44
5
Settings
Basic setting operation. . . . . . . . . . . . . . . . . . .45
General settings . . . . . . . . . . . . . . . . . . . . . . . .46
Sound settings . . . . . . . . . . . . . . . . . . . . . . . . .48
Screen settings . . . . . . . . . . . . . . . . . . . . . . . . .50
DVD and other playback settings. . . . . . . . . . .51
Using Optional Equipment
Auxiliary audio/video equipment. . . . . . . . . . .53
Rear view camera. . . . . . . . . . . . . . . . . . . . . . .53
Rear view camera settings. . . . . . . . . . . . . .54
Additional Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Notes on LCD panel . . . . . . . . . . . . . . . . . .54
Notes on discs . . . . . . . . . . . . . . . . . . . . . . .55
Playback order of MP3/WMA/AAC/JPEG/
Xvid/MPEG-4 files . . . . . . . . . . . . . . . . . . .55
About MP3 files . . . . . . . . . . . . . . . . . . . . .56
About WMA files . . . . . . . . . . . . . . . . . . . .56
About AAC files . . . . . . . . . . . . . . . . . . . . .56
About JPEG files . . . . . . . . . . . . . . . . . . . . .56
About MPEG-4 files . . . . . . . . . . . . . . . . . .56
About iPod. . . . . . . . . . . . . . . . . . . . . . . . . .56
About Bluetooth function . . . . . . . . . . . . . .57
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the unit . . . . . . . . . . . . . . . . . . . . . .58
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .59
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .60
Error displays/messages . . . . . . . . . . . . . . .63
Language code/area code list . . . . . . . . . . . . . .65
6
Notes on safety
Notes on installation
• Comply with your local traffic rules, laws and regulations.
• While driving – Do not watch or operate the unit, as it may lead
to distraction and cause an accident. Park your car in a safe place to watch or operate the unit.
– Do not use the setup feature or any other
function which could divert your attention from the road.
When backing up your car, be sure to
look back and watch the surroundings carefully for your safety, even if the rear view camera is connected. Do not depend on the rear view camera exclusively.
• While operating – Do not insert your hands, fingers or foreign
object into the unit, as it may cause injury or
damage to the unit. – Keep small articles out of the reach of children. – Be sure to fasten seatbelts to avoid injury in the
event of a sudden movement of the car.
Preventing an accident
Pictures appear only after you park the car and set the parking brake. If the car starts moving during video playback, the picture is automatically switched to the background screen after displaying the caution below.
“Video blocked for your safety.”
The monitor connected to the REAR VIDEO OUT is active while the car is in motion. The picture on the display is switched to the background screen, but audio source can be heard.
Do not operate the unit or watch the monitor while driving.
• We recommend this unit should be installed by a qualified technician or service personnel. – If you try to install this unit by yourself, refer to
the supplied “Installation/Connections” guide and install the unit properly.
– Improper installation may cause battery drain or
a short circuit.
• If the unit does not work properly, check the connections first, referring to the supplied “Installation/Connections” guide. If everything is in order, check the fuse.
• Protect the unit surface from damage. – Do not expose the unit surface to chemicals,
such as insecticide, hair spray, insect repellent, etc.
– Do not leave rubber or plastic materials in
contact with the unit for a long time. Otherwise, the finish of the unit may be impaired, or deformation may occur.
• When installing, be sure to fix securely.
• When installing, be sure to turn the ignition off. Installing the unit with the ignition on may cause battery drain or a short circuit.
• When installing, be sure not to damage any car parts such as pipes, tubes, fuel tank or wiring by using a drill, as it may cause a fire or an accident.
7
Copyrights
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Microsoft, Windows, Windows Vista and Windows Media and logos are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
“DVD VIDEO,” “DVD-R,” “DVD-RW,” “DVD+R,” and “DVD+RW” are trademarks.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.
ZAPPIN is a trademark of Sony Corporation.
12 TONE ANALYSIS and its logo are trademarks of Sony Corporation.
“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.
SensMe and the SensMe logo are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.
Music recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.
CD, DVD, Blu-ray Disc, and music and video­related data from Gracenote, Inc., copyright © 2000 to present Gracenote. Gracenote Software, copyright © 2000 to present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a non-exhaustive list of applicable Gracenote patents.
Gracenote, CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.
This product uses font data which is licensed to Sony by Monotype Imaging Inc. or its affiliates.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
Apple, Macintosh and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON­COMMERCIAL USE OF A CONSUMER FOR DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM
All other trademarks are trademarks of their respective owners.
8
Notes on Bluetooth function (XAV-64BT only)
Caution
IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.
IMPORTANT NOTICE!
Safe and efficient use
Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment. Please check for exceptions, due to national requirement or limitations, in usage of Bluetooth equipment before using this product.
Driving
Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require.
Connecting to other devices
When connecting to any other device, please read its user guide for detailed safety instructions.
Radio frequency exposure
RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device. Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system. Check regularly that all wireless device equipment in your car is mounted and operating properly.
Emergency calls
This Bluetooth car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies). Remember, in order to make or receive calls, the handsfree and the electronic device connected to the handsfree must be switched on in a service area with adequate cellular signal strength. Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use. Check with your local service provider.
9
Playable discs and symbols used in these Operating Instructions
This unit can play various video/audio discs. The following chart helps you to check if a disc is supported by this unit, as well as what functions are available for a given disc type.
Disc symbol in manual Disc format
DVD VIDEO
DVD-R*
1
/DVD-R DL*1/DVD-RW*
(Video mode/VR mode)
VIDEO
DVD+R*
1
/DVD+R DL*1/DVD+RW*
Video CD
(Ver. 1.0/1.1/2.0)
Audio CD
AUDIO
*1 Audio files can also be stored. *2 Video/image files can also be stored.
Note
“DVD” may be used in these Operating Instructions as a general term for DVD VIDEOs, DVD-Rs/DVD-RWs, and DVD +Rs /DVD +RWs .
CD-ROM*
2
/CD-R*2/CD-RW*
The following chart shows the supported file types and their symbols. Available functions differ depending on the format, regardless of disc type. The format symbols below appear in these Operating Instructions next to the description of functions available for their corresponding file types.
Format symbol in manual File type
MP3 audio file
WMA audio file
AAC audio file
JPEG image file
Xvid video file
MPEG-4
Tip
For details on compression formats, see page 56.
Note
Even compatible discs may not be playable on this unit, depending on their recording condition.
MPEG-4 video file
1
1
2
10
Location and function of controls/terminals
Main unit
For details, see the pages listed below.
A Z (Eject) button page 19
B Reset button page 15
C Receptor for the remote commander
D Disc slot page 19
E TOP button
For XAV-64BT
Press to open the top menu.
For XAV-63
Press to open the source list.
F Front AUX terminal page 53
G USB terminal
Remove the cap to connect a USB device.
H Volume control dial
I SOURCE/OFF button
Press to turn on the power/change the source: “Tuner” (Radio), “Disc,” “iPod/USB,” “AUX” (Auxiliary equipment), “BT Audio” (Bluetooth Audio)*. Press and hold for 1 second to exit the source. Press and hold for more than 2 seconds to turn off.
J Display/touch panel
* Available on XAV-64BT only.
11
Screen displays
When no source is selected:
12
A “Source List” key
Touch to open the source list.
B “Top” key
XAV-64BT
Touch to open the top menu.
Source List Top
XAV-63
Touch to open the source list.
C Clock page 15, 50
D (Close) key
Touch to close the menu.
Top menu (XAV-64BT only):
45 67
ATT
89
Source list:
45 6
ATT Top
3
M.OFF
qa
E “ATT” (Attenuate) key*
1
Touch to attenuate the sound. To cancel, touch again.
F (Setting) key
Touch to open the setting menu.
G “M.OFF” (Monitor off) key
Touch to turn off the monitor and the button illumination. To turn back on, touch anywhere on the display.
H “AV Source” key*
2
Touch to open the source list.
I “BT Phone” key*
2
Touch to enter Bluetooth Phone mode.
J Source select keys
Touch to change the source: “Tuner” (Radio), “Disc,” “AUX” (Auxiliary equipment), “iPod/USB,” “SensMe™,” “BT Audio” (Bluetooth Audio)*
2
.
K “Top” key/“M.OFF” key
This key varies based on the model. XAV-64BT: “Top” key XAV-63: “M.OFF” key See above for the function of each key.
*1 Appears only when a source is selected. *2 Available on XAV-64BT only. *3 “BT Audio” appears on XAV-64BT only.
12
0
3
*
RM-X170 Remote Commander
1
2
8 9 q;
3 4
5
6
7
• The remote commander can be used to operate the audio controls. For menu operations, use the touch panel.
• For details, see the pages listed below.
• Remove the insulation film before use (page 15).
A OFF button
Press to exit the source/stop the source. Press and hold to turn off.
B MONITOR OFF button
Press to turn off the monitor and the button illumination. To turn back on, press again.
C POSITION button
Press to switch the listening position (“Front L”/“Front R”/“Front”/“All”/“Custom”/ “OFF”).
qa
qs qd
qf qg
qh
E EQ (Equalizer) button
Press to select an equalizer curve from 7 music types (“Xplod”/“Vocal”/“Edge”/ “Cruise”/“Space”/“Gravity”/“Custom”/ “OFF”).
F Number buttons page 24
Radio:
Press to receive stored stations. Press and hold to store stations.
Disc/USB:
Press to locate a title/chapter/track.
G CLEAR button
Press to delete an entered number.
H ATT (Attenuate) button
Press to attenuate the sound. To cancel, press again.
D O (Return) button
Press to return to the previous display/return to the menu on a VCD*
1
.
I u (Play/Pause) button
13
J .m/M> buttons
Radio:
Press to tune to stations automatically. Press and hold to find a station manually.
2
Disc*
/USB:
Press to skip a chapter/track/scene/file. Press and hold momentarily to reverse/ fast-forward video. Press and hold to reverse/fast-forward a track. Bluetooth Audio*
3*4
:
Press to skip a track. Press and hold to reverse/fast-forward a track.
K DVD playback setting buttons
(AUDIO):
Press to change the audio language/format. (For a VCD/CD/MP3/WMA/AAC/MPEG­4, to change the audio channel.)
(SUBTITLE):
Press to change the subtitle language.
(ANGLE):
Press to change the viewing angle.
(TOP MENU):
Press to open the top menu on a DVD.
(MENU):
Press to open the menu on a disc.
L ZAP button
Press to enter ZAPPIN™ mode.
*1 When playing with PBC functions. *2 Operation differs depending on the disc (page 20). *3 Operation differs depending on the connected
Bluetooth device.
*4 Applies to XAV-64BT only. *5 Available on XAV-64BT only. *6 When two auxiliary devices are used.
Note
The remote commander will not operate when the unit is turned off and the display has disappeared. Press (SOURCE/OFF) on the main unit, or insert a disc to activate the unit and enable operation via the remote commander.
M </M/m/, (Cursor)/ENTER buttons
page 19
Press to control the menu on a DVD.
N SRC (Source) button
Press to turn on/change the source: “Tuner” (Radio), “Disc,” “iPod/USB,” “AUX” (Auxiliary equipment), “BT Audio” (Bluetooth Audio)*
5
.
O MODE button
Press to select the radio band (FM/MW/LW)/ select an auxiliary device (Front AUX/Rear
6
AUX)*
.
P VOL (Volume) +/– buttons
14
Getting Started
Setting the clock
Resetting the unit
Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Press the reset button (page 11) with a pointed object, such as a ballpoint pen.
Note
Pressing the reset button will erase the clock setting and some stored contents.
Performing initial settings
After resetting, the display for the initial settings appears.
Initial Setting
Rear/Sub Out
Listening Position
Language
1 Touch “Rear/Sub Out” to set the
subwoofer connection status.
If a subwoofer is connected, select “Sub.” If a power amplifier is connected, select “Rear.” If neither a subwoofer or power amplifier is connected, you can select either “Sub” or “Rear.”
2 Touch “Listening Position” to set the
listening position.
Set to “Front L” if your listening position is front left, or “Front R” if front right.
3 Touch “Language” to set the display
language.
Touch repeatedly until the desired language (English/Spanish/Russian) appears.
4 Tou ch “ OK.”
The setting is complete.
This setting can then be further configured in the setting menu.
• For details on setting the subwoofer connection status, see page 49.
• For details on setting the listening position, see “Optimizing sound for the listening position — Intelligent Time Alignment” on page 41.
• For details on setting the display language, see page 46.
Rear / Sub
Front L / Front R
English
OK
The clock uses a 24-hour indication.
1 Touch “Source List,” then .
The general setting menu appears. If not, touch “General.”
2 Touch “Clock Adjust.”
The setting display appears.
3 Set the hour and minute.
For example, to set to 8:30, touch “0830.”
4 Touch “OK.”
The setting is complete.
To delete an entered number, touch “Clear.” To return to the previous display, touch “Back.”
Preparing the remote commander
Before using the remote commander for the first time, remove the insulation film.
15
Radio
Listening to the radio
1 Touch “Source List,” then “Tuner.”
(For XAV-64BT only: From the top menu, touch “AV Source,” then “Tuner.”) The radio reception display appears, and the preset list is displayed automatically.
ATTSource List
TA AF To p
P1 P2 P3
P4 P5 P6
Receive
Band
Menu
2 Touch “Band.”
The band list appears.
ATT
Source List
FM1
TA AF To p
FM2 FM3 LW
Receive
Band
Menu
3 Touch the desired band (“FM1,” “FM2,”
“FM3,” “MW,” or “LW”).
Touch “Band” again to close the band list.
4 Perform tuning.
To tune automatically
Tou ch
./>.
Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.
To tune manually
Tou ch
m/M repeatedly until the desired
frequency is received. To skip frequencies continuously, touch and hold
m/M.
BTM
Memory
Preset
PTY
List
List
MW
Preset
PTY
List
List
Reception controls
Touch the display if the reception controls are not displayed.
1
2 3 4 5
ATT
Source List
678
1 “Source List”
Touch to open the source list. (page 12)
2 “ATT”
Touch to attenuate the sound. To cancel, touch again.
3 “TA”
Touch to set TA in RDS. (page 18)
4 “AF”
Touch to set AF in RDS. (page 18)
5 “Top”
XAV-64BT
Touch to open the top menu. (page 12)
XAV-63
Touch to open the source list. (page 12)
6 m/M
Touch to tune manually. Touch and hold to continuously skip frequencies.
7 ./>
Touch to tune automatically.
8 “Band”
Touch to open the band list and change the band.
9 “Receive Menu”
Touch to open the receive menu, which contains the following items.
“Regional” (page 18)
0 “Preset List”
Touch to list up stored stations, or store stations. (page 17)
qa “PTY List”
Touch to open the PTY list. (page 19)
TA AF To p
Receive
Menu
Preset
List
Band
9 0 qa
PTY List
16
Reception indications
Storing and receiving stations
C
B
ATT
TA AF To p
Band
15
1
Receive
Menu
D
Preset
List
PTY List
A
Source List
A Current source icon* B Band name, preset number*2, frequency*3/
status
C Volume level*
4
D EQ7 setting status
*1 Appears only when the controls are displayed. *2 Appears only when a preset station is received. *3 While receiving an RDS station, the program
service name appears. For details, see “RDS” on page 18.
*4 When ATT is activated, appears.
Caution
When tuning to stations while driving, use Best Tuning Memory (BTM) to prevent an accident.
Storing automatically — BTM
1 Touch “Source List,” then “Tuner.”
To change the band, touch “Band,” then select the desired band (“FM1,” “FM2,” “FM3,” “MW,” or “LW”).
2 Touch “Preset List,” then “BTM.”
The unit stores the first six available stations in the preset list (“P1” to “P6”). A beep sounds when the setting is stored.
Storing manually
1 While receiving the station that you
want to store, touch “Preset List.”
2 Touch “Memory,” then touch a number
in the list (“P1” to “P6”).
The number and the confirmation display appear.
3 Touch “Yes.”
The station is stored.
Note
If you try to store another station to the same number, the previously stored station will be replaced.
Tip
When an RDS station is stored, the AF/TA setting is also stored (page 18).
Receiving stored stations
1 Select the band, then touch “Preset
List.”
2 Touch the desired number (“P1” to
“P6”).
17
RDS
Overview
FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.
Display items
A
ATT
TA AF To pSource List
Receive
Preset
Band
Menu
B
A Band name, preset number, frequency
(program service name), RDS data, TA*
B RDS*2, TP*
3
C Clock
*1 During traffic information. *2 During RDS reception. *3 During traffic program reception.
RDS services
This unit automatically provides RDS services as follows:
PTY
List
List
C
1
Notes
Depending on the country/region, not all RDS functions may be available.
RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.
Setting AF and TA
1 During reception/playback, touch “AF”
or “TA” to activate either function.
When activated, the key color changes. To deactivate, touch again.
Storing RDS stations with the AF and TA setting
You can preset RDS stations along with the AF/ TA setting. If you use the BTM function, only RDS stations are stored using the same AF/TA setting. If you preset manually, you can preset both RDS and non-RDS stations with the AF/TA setting for each.
1 Set AF/TA, then store the station with BTM or
manually.
Receiving emergency announcements
With AF or TA on, emergency announcements will automatically interrupt the currently selected source.
Tip
If you adjust the volume level during a traffic announcement, that level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.
AF (Alternative Frequencies)
Selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same program during a long-distance drive without having to retune the same station manually.
TA (Traffic Announcement)/TP (Traffic Program)
Provides current traffic information/programs. Any information/program received will interrupt the currently selected source.
PTY (Program Types)
Displays the currently received program type. Also searches for a designated program type.
CT (Clock Time)
The CT data from the RDS transmission sets the clock.
18
Staying with one regional program — Regional
When the AF function is on, this unit’s factory setting restricts reception to a specific region, so you will not be switched to another regional station with a stronger frequency.
If you leave this regional program’s reception area, deactivate the regional function during FM reception. Touch “Receive Menu,” then the “Regional” box to set to “OFF.”
Note
This function does not work in the UK and in some other areas.
Local Link function (UK only)
This function enables you to select other local stations in the area, even if they are not stored on numbers.
1 During FM reception, touch “Preset List,” then
a number (“P1” to “P6”) to which a local station is stored.
2 Within 5 seconds, touch the number of the
local station again. Repeat this procedure until the local station is received.
Selecting PTY
1 During FM reception, touch “PTY List.”
The PTY list appears if the station is transmitting PTY data. To scroll the list, touch v/V.
2 Touch the desired program type.
The unit searches for a station broadcasting the selected program type.
To close the PTY list, touch “PTY List.”
Type of programs
“News” (News), “Current Affairs” (Current Affairs), “Information” (Information), “Sport” (Sports), “Education” (Education), “Drama” (Drama), “Cultures” (Culture), “Science” (Science), “Varied Speech” (Varied), “Pop Music” (Pop Music), “Rock Music” (Rock Music), “Easy Listening”
(M.O.R. Music), “Light Classics M” (Light classical), “Serious Classics” (Serious classical), “Other Music” (Other Music), “Weather & Metr” (Weather), “Finance” (Finance), “Children’s Progs” (Children’s program), “Social Affairs” (Social Affairs), “Religion” (Religion), “Phone In” (Phone In), “Travel & Touring” (Travel), “Leisure & Hobby” (Leisure), “Jazz Music” (Jazz Music), “Country Music” (Country Music),
“National Music” (National Music), “Oldies Music” (Oldies Music), “Folk Music” (Folk Music), “Documentary” (Documentary)
Notes
You cannot use this function in countries/regions where no PTY data is available.
You may receive a different radio program from the one you select.
Discs
Playing discs
Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.
1 Insert the disc (label side up).
Playback starts automatically.
If the DVD menu appears
Touch the item in the DVD menu. You can also use the menu control panel, which can be displayed by touching outside of the DVD menu. Touch b/v/V/B to move the cursor, then touch “ENTER” to confirm. If the menu control panel does not appear by touching the display, use the remote commander.
About the DVD menu
A DVD is divided into several sections, which make up a picture or music feature. These sections are called “titles.” When you play a DVD that contains several titles, you can select a desired title using the DVD’s top menu. For DVDs that allow you to select items such as subtitle/sound language(s), select these items using the DVD menu.
If the disc contains JPEG files
The slide show starts automatically.
To stop playback
Press and hold (SOURCE/OFF) for 1 second.
Note
Discs in DTS format are not supported. The sound is not output if the DTS format is selected.
To eject the disc
1 Press Z on the main unit.
Setting CT
1 Set “CT” to “ON” in setting (page 47).
Notes
The CT function may not work even though an RDS station is being received.
There may be a difference between the time set by the CT function and the actual time.
19
Playback controls
Touch the display if the playback controls are not displayed.
Common to all discs/formats
1
2 3
MPEG-4
ATT
TA AF
TopSource List
Source List
ATT TA AF Top
45
Source List
Source List
ATT TA AF Top
ATT TA AF Top
PBC Panel
DVD
Control
DVD
Control
7
8
Play Menu
6
Play Menu
Play Menu
Album
Play Menu
9
1 “Source List”
Touch to open the source list. (page 12)
2 “ATT”
Touch to attenuate the sound. To cancel, touch again.
3 “Top”
XAV-64BT
Touch to open the top menu. (page 12)
XAV-63
Touch to open the source list. (page 12)
4 ./>
Touch to skip a chapter/track/scene/ image/file.
Touch and hold momentarily to reverse/ fast-forward the video; and then repeatedly to switch the speed (× 2 t ×12 t × 120 t ×2…)*
1
touch u.
Touch and hold to reverse/fast-forward the audio track.
During pause, touch and hold down > to play the video in slow motion. To cancel, release the key.
5 u
Touch to pause/resume play after pause.
6 “Play Menu”
Touch to open the play menu, which contains the following items.
“Repeat”/“Shuffle” (page 23)
“Dolby D Level” (DVD VIDEO
playback only) (page 23)
“Image Turn” (JPEG playback only):
Touch to rotate an image left/right.
“Audio” (page 23)
0
. To cancel,
20
7 “DVD Control”
Touch to open the DVD control menu, which contains the following items.
“Audio”: Touch repeatedly to select
the audio language/format. (page 22)*
“Subtitle”: Touch repeatedly to turn
off/select the subtitle language.*
“Angle”: Touch repeatedly to change
the viewing angle.*
“Top Menu”: Touch to open the top
menu on the DVD.*
“Menu”: Touch to open the menu on
the disc.*
2
2
2
2
2*3
8 “PBC Panel”
Touch to display the control panel for the PBC menu. (page 22)
9 “Album” –/+
Touch to skip an MP3/WMA/AAC/JPEG/ Xvid/MPEG-4 album (folder).
0 (List)
Touch to list up tracks/images/video files. (page 32)
*1 The speed depends on the format or the recording
method.
*2 Availability depends on the disc. *3 When the 4-digit input prompt appears, input the
language code (page 65) for the desired language.
Note
If the disc contains multiple file types, only the selected file type (audio/video/image) can be played. For details on how to select the file type, see “Selecting a file type” on page 32.
Notes on JPEG playback
If a large-sized image is rotated, it may take longer to display.
Progressive JPEG files cannot be displayed.
Playback indications
Touch the display if the indications are not displayed. For audio discs, some indications are always displayed during playback.
MPEG-4
A
Source List
A Current source icon B Volume level* C Format, playback status, elapsed playback
time* number* status, play mode status (repeat/shuffle)
D Playback status, elapsed playback time* E Track name, artist name, album name F Album artwork display* G Format, track number, album number*7, EQ7
setting status, play mode status (repeat/ shuffle)
*1 When ATT is activated, appears. *2 During JPEG playback or VCD playback with PBC
functions, no indication appears.
*3 Indications differ depending on the disc/format. *4 When playing a VCD with PBC functions
(page 22), no indication appears.
*5 DVD only. *6 The recommended size is from 240 × 240 to 960 ×
960 pixels.
*7 MP3/WMA/AAC only.
ATT TA AF Top
DVD
Play Menu
15
Control
B C
D E
ATT
Album
TA AF
F
Play Menu
G
1
2
, chapter/title/album (folder)/track
3*4
, audio format*5, EQ7 setting
6
TopSource List
2
21
Using PBC (playback control) functions
The PBC menu interactively assists with operations while a PBC-compatible VCD is played.
1 Start playing a PBC-compatible VCD.
The PBC menu appears.
2 Touch “PBC Panel.”
The menu control panel appears.
3 Touch the number keys to select the
desired item, then touch “ENTER.”
4 Follow the instructions in the menu for
interactive operations.
To return to the previous display, press O. To hide the controls, touch “Close.”
Playing without PBC functions
1 While no source is selected, touch
“Source List,” then .
2 Touch “Visual.”
The visual setting menu appears.
3 Touch v/V to scroll, then touch “Video
CD PBC” to set to “OFF.”
4 Start playing a VCD.
The PBC menu does not appear during playback.
Notes
The items on the menu, and operation procedures differ depending on the disc.
During PBC playback, the track number, playback item, etc., do not appear on the playback display.
Resume playback is unavailable during playback without PBC.
Configuring audio settings
Note
Discs in DTS format are not supported. The sound is not output if the DTS format is selected.
Changing the audio language/ format
The audio language can be changed if the disc is recorded with multilingual tracks. You can also change the audio format when playing a disc recorded in multiple audio formats (e.g., Dolby Digital).
1 During playback, touch “DVD Control.” 2 Touch “Audio” repeatedly until the
desired audio language/format appears.
Audio language
Source List
Audio 1: English Dolby D 3/2.1
Audio Subtitle Angle MenuTop Menu
The audio language switches among the available languages. When the 4-digit input prompt appears, input the language code (page 65) for the desired language. When the same language is displayed two or more times, the disc is recorded in multiple audio formats.
* The format name and channel numbers appear as
follows: Example: Dolby Digital 5.1 ch
ATT TA AF Top
DVD
Play Menu
Control
Audio format/channel numbers*
Rear channel × 2
22
Dolby D 3 / 2 . 1
Front channel × 2 + Center channel × 1
To close the DVD control menu, touch “DVD Control.”
LFE channel × 1
Changing the audio channel
MPEG-4
When playing a VCD/CD/MP3/WMA/AAC/ Xvid/MPEG-4, you can listen to both the right and left channel, only the right channel, or only the left channel via both the right and left speakers. The options are indicated below.
“Stereo”: Standard stereo sound (default) “1/Left”: Left channel sound (monaural) “2/Right”: Right channel sound (monaural)
1 During playback, touch “Play Menu,”
then “Audio” repeatedly until the desired audio channel appears.
To close the play menu, touch “Play Menu.”
Note
You may not be able to change the audio setting depending on the disc.
Tip
Operation via the remote commander by pressing (AUDIO) repeatedly is also available.
Adjusting the audio output level — Dolby D level
You can adjust the audio output level for a DVD recorded in Dolby Digital format, to reduce the volume level differences between discs.
1 During playback, touch “Play Menu.” 2 Touch the “Adjust” box to set to “ON.” 3 Touch –/+ repeatedly to adjust the
output level.
The output level is adjustable in single steps, between –10 and +10.
To close the play menu, touch “Play Menu.”
Repeat and shuffle play
1 During playback, touch “Play Menu,”
then the “Repeat” or “Shuffle” box repeatedly until the desired option appears.
Source List
Chapter OFF ON
Repeat Shuffle Adjust Dolby D Level 0
Repeat or shuffle play starts.
To close the play menu, touch “Play Menu.”
The repeat options and switching order of each disc/format are indicated below.
Disc/format Options
MPEG-4
ATT TA AF Top
“OFF”: Returns to normal play mode. “Chapter”: Repeats the current chapter. “Title”: Repeats the current title.
“OFF”: Returns to normal play
1
*
mode. “Track”: Repeats the current track.
“OFF”: Returns to normal play mode. “Track”: Repeats the current track. “Album”: Repeats the current album (folder).
“OFF”: Returns to normal play mode. “Image”: Repeats the current image. “Album”: Repeats the current album.
“OFF”: Returns to normal play mode. “Movie”: Repeats the current video file. “Album”: Repeats the current album (folder).
MPEG-4
DVD
Control
Play Menu
23
The shuffle options and switching order of each disc/format are indicated below.
Disc/format Options
“OFF”: Returns to normal play
mode.
2
*
“Title”: Plays chapters in the current title in random order.
“OFF”: Returns to normal play
1
*
mode. “Disc”: Plays tracks in the current disc in random order.
“OFF”: Returns to normal play mode. “Album”: Plays tracks/images/ video files in the current album (folder) in random order.
MPEG-4
*1 Available only when playing a version 1.0/1.1 VCD,
or a version 2.0 VCD without PBC functions.
*2 Excluding a DVD-R/DVD-R DL/DVD-RW in VR
mode.
Direct search play
You can directly locate a desired point by specifying the title number, chapter number, etc.
1 During playback, press the number
buttons on the remote commander to enter an item (track, title, etc.) number, then press (ENTER).
Playback starts from the beginning of the selected point.
The search items for a disc/format are as follows:
DVD: Title or chapter* VCD*2/CD/MP3/WMA/AAC: Track JPEG: Image Xvid/MPEG-4: Movie
*1 The search item depends on the setting. *2 Available only when playing a VCD without PBC
functions.
Setting the search item (DVD only)
You can set the search item (title or chapter) for DVD playback.
1 Touch “Source List,” then touch . 2 Touch “Visual.”
The visual setting menu appears.
3 Touch v/V to scroll, then touch “DVD
Direct Search” to set to “Chapter” or “Title.”
The setting is complete.
To return to the previous display, touch “Back.”
MPEG-4
1
24
USB Device Operations
• MSC (Mass Storage Class) and MTP (Media
Transfer Protocol) type USB devices compliant with the USB standard can be used.
• Compatible codecs are MP3 (.mp3), WMA
(.wma), AAC (.m4a), JPEG (.jpg), Xvid (.avi), and MPEG-4 (.mp4).
• Backup of data in a USB device is
recommended.
For details on the compatibility of your USB device, visit the support site on the back cover.
Notes
Connect the USB device after starting the engine.
Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine.
A large-sized file may take time to start playing.
Playing from a USB device
1 Remove the cap from the USB
connector, and connect the USB device to the USB connector.
Playback starts automatically. If a USB device is already connected, touch “Source List,” then “iPod/USB” to start playback.
For details on the location of the USB connector, see “Location and function of controls/terminals” (page 11).
About the playback controls and indications
You can control USB playback in the same way as disc playback. For details, see “Playback controls” on page 20. For details on playback indications, see “Playback indications” on page 21.
To stop playback
Press and hold (SOURCE/OFF) for 1 second.
To disconnect the USB device
Stop playback, then disconnect. Do not disconnect during playback, as data in the USB device may be damaged.
Notes on use
Do not use USB devices so large or heavy that they may fall down due to vibration, or cause a loose connection.
Do not leave a USB device in a parked car, as malfunction may result.
This unit cannot recognize USB devices via a USB hub.
Be sure to use the USB cable supplied with the device if a cable is needed when making a USB connection.
Notes on playback
If a USB device contains multiple file types, only the selected file type (audio/video/image) can be played. For details on how to select the file type, see “Selecting a file type” on page 32.
Displayed indications will differ, depending on the USB device, recorded format and settings. For details, visit the suppor t site on the back cover.
The maximum number of displayable data is as follows: – folders (albums): 256 – files (tracks): 2,000
It may take time for playback to begin, depending on the amount of recorded data.
DRM (Digital Rights Management) files may not be played.
During playback or reverse/fast-forward of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.
Playback of a lossless compression file is not supported.
Repeat and shuffle play
1 During playback, touch “Play Menu,”
then the “Repeat” or “Shuffle” box repeatedly until the desired option appears.
Repeat or shuffle play starts.
The repeat options are as follows:
“OFF”: Returns to normal play mode. “Track”/“Image”/“Movie”*
current track/image/video file.
“Album”: Repeats the current album (folder). “Drive”*
2
: Repeats the current drive.
The shuffle options are as follows:
“OFF”: Returns to normal play mode. “Album”: Plays tracks/images/video files in the
current album (folder) in random order.
*1 Options depend on the file type. *2 When two or more drives exist on the USB device.
To close the play menu, touch “Play Menu.”
1
: Repeats the
25
Enjoying music according to your mood — SensMe™
Sony’s unique “SensMe™ channels” and “SensMe™ mood” features automatically group tracks by channel or mood, and allow you to enjoy music intuitively.
4 Connecting the USB device and
enjoying the SensMe™ function on the unit
Connect the set up USB device. You can then enjoy “SensMe™ channels” or “SensMe™ mood” on this unit.
Before using the SensMe™ function
The following is the basic procedure required to enjoy the SensMe™ function on the unit.
1Installing “SensMe™ Setup” and
“Content Transfer” to your computer
First download the “SensMe™ Setup” and “Content Transfer” software from the support site on the back cover.
2Registering a USB device using
“SensMe™ Setup”
Connect a USB device to your computer, and perform registration using “SensMe™ Setup” to enable the SensMe™ function on this unit.
SensMe
Setup
Tip
Registration can be performed either along with the installation procedure or after installation.
3Transferring tracks to the USB device
using “Content Transfer”
In order to group tracks by channel or mood, track sound patterns need to be analyzed by 12 TONE ANALYSIS, which is loaded with “Content Transfer.” With the USB device connected to your computer, drag and drop tracks from Windows Explorer or iTunes, etc., to “Content Transfer.” Both analysis and transfer of tracks will be performed by “Content Transfer.”
SensMe™
Installing “SensMe™ Setup” and “Content Transfer” on your computer
The software (“SensMe™ Setup” and “Content Transfer”) is required to enable the SensMe™ function on this unit.
1 Download the “SensMe™ Setup” and
“Content Transfer” software from the support site.
2 Install the software in your computer.
For more details on the installation, visit the support site on the back cover.
Registering a USB device using “SensMe™ Setup”
USB device registration is required to enable the SensMe™ function on the unit.
If registration is not performed along with the installation procedure, follow the steps below.
1 Start “SensMe™ Setup” on your
computer.
2 Connect a USB device to your
computer.
3 Complete registration following the
on-screen instructions.
Tip
If you connect a registered USB device containing analyzed tracks, the USB device can be unregistered again.
26
Content Transfer
Transferring tracks to the USB device using “Content Transfer”
To enable the SensMe™ function on this unit, tracks need to be analyzed and transferred to the registered USB device using “Content Transfer.”
1 Connect the registered USB device to
your computer.
For “WALKMAN,” connect via MTP mode. For USB devices other than “WALKMAN,” connect via MSC mode. “Content Transfer” starts automatically. If a message appears, follow the on-screen instructions to proceed.
2 Drag and drop tracks from Windows
Explorer or iTunes, etc., to “Content Transfer.”
The analysis and transfer of tracks starts.
For details on operations, refer to the Help of “Content Transfer.”
Note
The track analysis by 12 TONE ANALYSIS may take time, depending on the computer environment.
Tip
Not only audio files but also image or video files can be transferred using “Content Transfer.” For details, refer to the Help of “Content Transfer.”
Playing tracks in channels — SensMe™ channels
“SensMe™ channels” automatically group tracks into channels by their tunes. You can select and play a channel that fits your mood, activity, etc.
1 Connect a USB device set up for the
SensMe™ function.
2 Touch “Source List,” then “SensMe™.” 3 Touch “channels.”
The channel list appears.
Shuffle All
Energetic
Relax
ZAP
4 Touch v/V to scroll the channel list.
Playback of the first track in the current channel starts from the track’s most melodic or rhythmical section*.
* May not be detected correctly.
5 Touch the desired channel.
Playback of tracks in the selected channel starts.
Notes
Depending on the track, it may not be detected correctly or may be grouped in a channel not suited to the track’s mood.
If the connected USB device contains many tracks, it may take time for “SensMe™ channels” to start, due to data reading.
Tip
Tracks are played in random order. The order will vary with each channel selection.
27
Channel list
x Recommended, Shuffle All
“Morning” (5:00 – 9:59) “Daytime” (10:00 – 15:59) “Evening” (16:00 – 18:59) “Night” (19:00 – 23:59) “Midnight” (24:00 – 4:59)
Plays tracks recommended for each time of day. Set the clock (page 15) for the channel to be displayed accurately.
“Shuffle All”: Plays all analyzed tracks in random order.

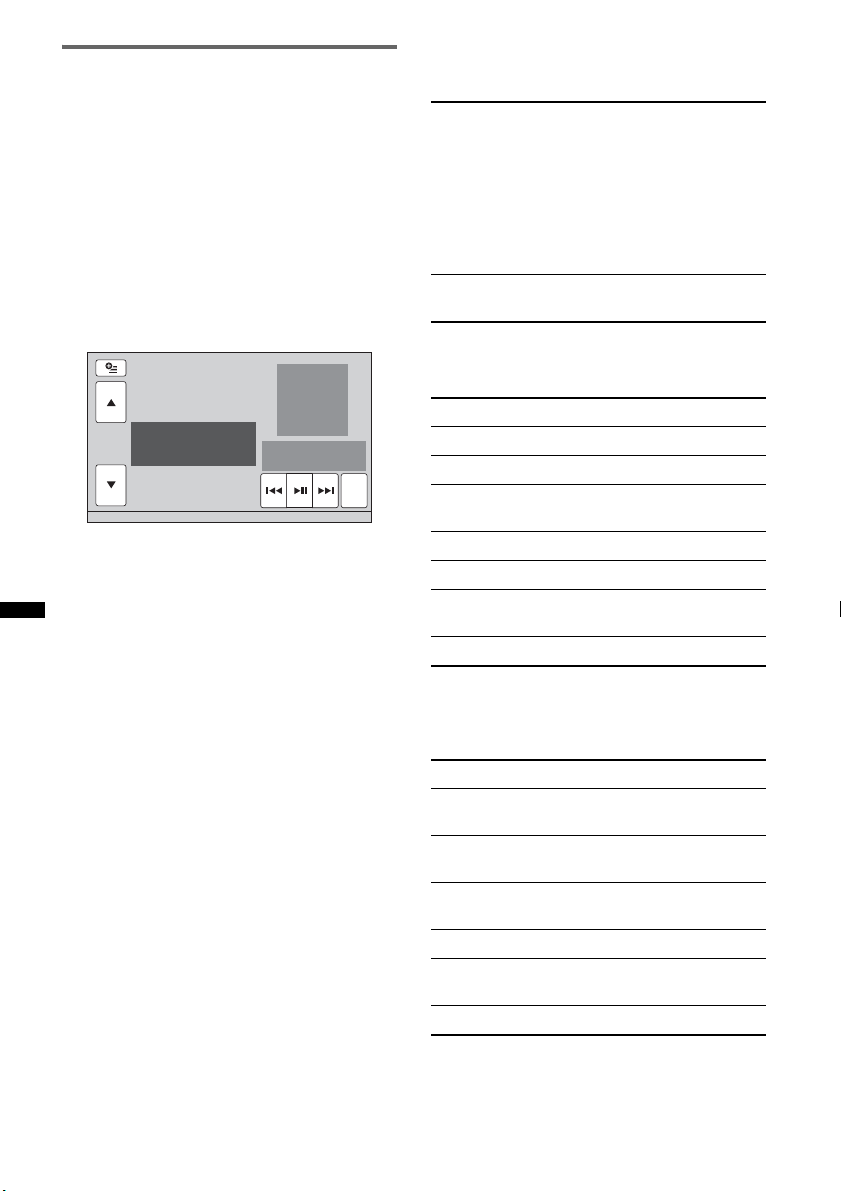

“SensMe™ channels” playback controls and indications
A C D E
B
Shuffle All
Energetic
Relax
ZAP
x Basic channels
Plays tracks according to the music type.
“Energetic”: High-spirit tracks.
“Relax”: Calm tracks.
“Mellow”: Mellow, melancholy tracks.
“Upbeat”: Happy tracks to improve your
mood.
“Emotional”: Ballad tracks.
“Lounge”: Lounge tracks.
“Dance”: Rhythm and rap, rhythm and blues
tracks.
“Extreme”: Intense rock tracks.
x In-car channels
Plays tracks that are suitable while driving.
“Freeway”: Speedy, high-spirit tracks.
“Chillout Drive”: Intoned, healing ballad
tracks.
“Weekend Trip”: Delightful, bright and happy tracks.
“Midnight Cruise”: Jazz or piano-featured tracks with a mature mood.
“Party Ride”: Up-tempo and lively tracks.
“Morning Commute”: Bright and breezy
tracks.
“Goin’ Home”: Warm and relaxing tracks.
HGF
A To display the control keys: “Source List,”
“ATT,” “TA,” “AF,” “Top.” (page 20)
B To scroll the list and select another channel. C Indicates the current channel. D Indicates the album artwork display*
1
.
E Indicates the playback status, elapsed
playback time, zappin status, progress bar, track name and artist name.
F To pause/resume play after pause. G To skip a track. H To enter ZAPPIN mode. (page 30)
During ZAPPIN playback of “SensMe™ channels,” the most melodic or rhythmical sections*
*1 The recommended size is from 240 × 240 to 960 ×
960 pixels.
*2 May not be detected correctly.
2
of the tracks are played.
28
Playing tracks in mood maps — SensMe™ mood
“SensMe™ mood” distributes tracks as dots on a two-axis mood map, based on the characteristics of the individual tracks.
By touching the point on the map according to your mood, a circle appears around the touched point, and the tracks inside the circle are played.
1 Connect a USB device set up for the
SensMe™ function.
2 Touch “Source List,” then “SensMe™.” 3 Touch “mood.”
The two-axis mood map appears.
Circle
Slow
Fast
Happy
ZAP
Mood
Type
Sad
Style
Time
Dots representing tracks
4 Touch the desired point on the map.
A circle appears around the touched point, and playback of tracks inside the circle starts. Playback of the first track starts from its most melodic or rhythmical section*.
* May not be detected correctly.
Notes
Only the 200 most recently transferred tracks using “Content Transfer” are mapped.
Depending on the track, it may not be detected correctly or may be mapped in a position not suited to the track’s mood.
If the connected USB device contains many tracks, it may take time for “SensMe™ mood” to start, due to data reading.
Tips
In the mood map, the currently played track is indicated as a green dot.
Tracks are played from the circle’s center outward.

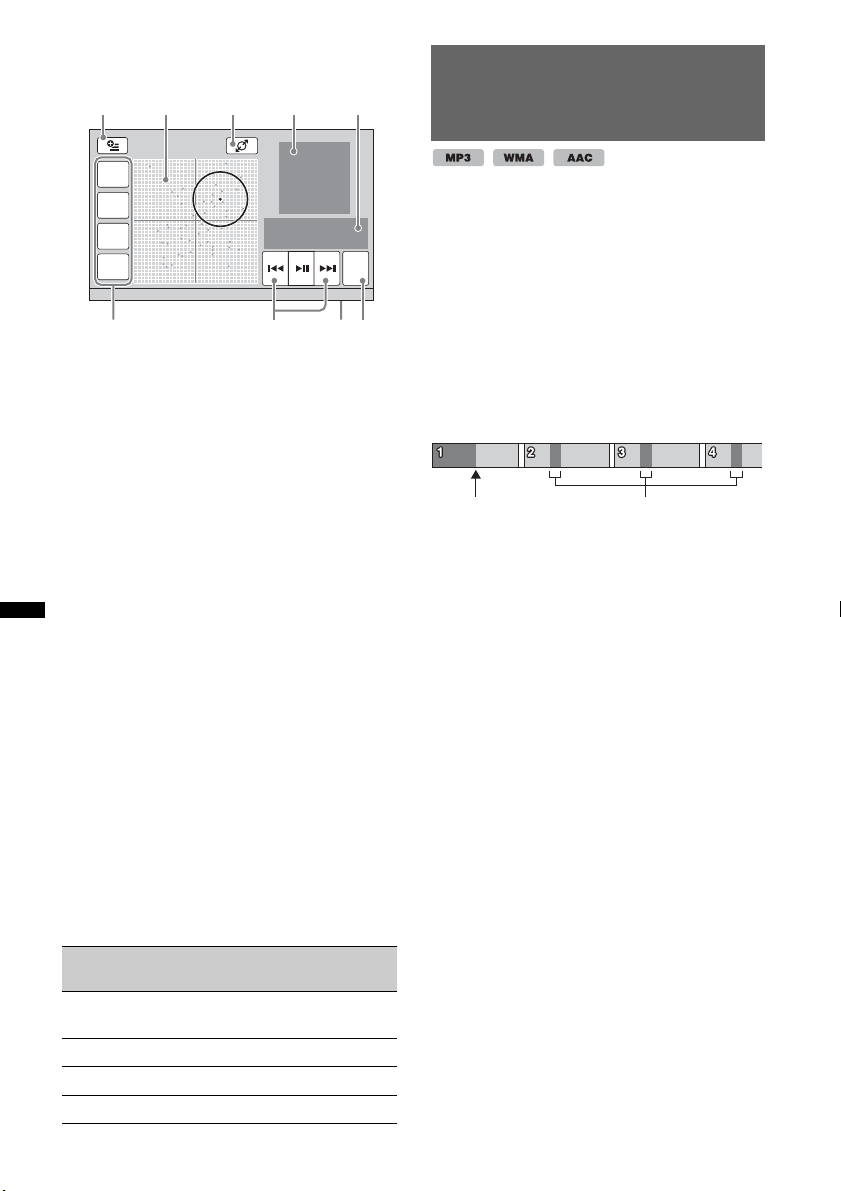

“SensMe™ mood” playback controls and indications
A B C D E
Mood
Type
Style
Time
Sad
Fast
Slow
Happy
ZAP
IFGH
A To display the control keys: “Source List,”
“ATT,” “TA,” “AF,” “Top.” (page 20)
B To move the circle and regroup tracks. C To change the size of the circle: small,
medium, or large.
D Indicates the album artwork display*
1
.
E Indicates the playback status, elapsed
playback time, zappin status, progress bar, track name and artist name.
F To change parameters on the horizontal axis. G To skip a track. H To pause/resume play after pause. I To enter ZAPPIN mode. (page 30)
During ZAPPIN playback of “SensMe™ mood,” the most melodic or rhythmical sections*
*1 The recommended size is from 240 × 240 to 960 ×
960 pixels.
*2 May not be detected correctly.
2
of the tracks are played.
Changing parameters on the horizontal axis
In the mood map, you can change parameters on the horizontal axis. Tracks are remapped according to the characteristics of the parameters.
Do this To change parameters to
Touch “Mood” “Sad” – “Happy”
Tou ch “ Ty pe” “Acoustic” – “Electronic”
Tou ch “ Sty le” “Soft” – “Hard”
Tou ch “ Tim e” “Morning” – “Midnight”
29
Searching for a track by listening to track passages — ZAPPIN™
While playing short track passages from a USB device in sequence, you can search for a track you want to listen to. This function is convenient, for example, when searching for a track in shuffle or shuffle repeat mode.
1 During audio playback, touch “ZAP.”
Playback starts from a passage of the next track. You can select the playback time (page 46), but cannot select the track passage to play.
iPod Operations
For details on the compatibility of your iPod, see “About iPod” on page 56 or visit the support site on the back cover.
In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.
Playing an iPod
1 Reduce the volume on this unit. 2 Remove the cap from the USB
connector, and connect the iPod to the USB connector.
Use of the optional USB connection cable RC-202IPV is recommended.*
1
“ZAP” touched.
The playback section of each track in ZAPPIN mode.
2 Touch “ZAP” when a track you want to
listen to is played.
The track that you select returns to normal play mode from the beginning. To search for a track via ZAPPIN mode again, repeat steps 1 and 2.
In the case of “SensMe™ channels” or “SensMe™ mood” playback
If you enter ZAPPIN mode during “SensMe™ channels” or “SensMe™ mood” playback, the most melodic or rhythmical sections* of tracks are played. For details on the SensMe™ function, see “Enjoying music according to your mood — SensMe™” on page 26.
* May not be detected correctly.
Tip
The ZAPPIN function is also available during iPod playback.
While the iPod is connected, a device connected to the front AUX terminal becomes unavailable, and “Front AUX” cannot be selected when changing the source.
The following display appears on the iPod
2
screen*
, then playback starts from the item last played. If an iPod is already connected, to start playback, touch “Source List,” then “iPod/ USB.”
*1 To play videos from an iPod with video, use of
the RC-202IPV is required.
*2 May not appear in the case of an iPod touch or
iPhone being connected, or when the iPod was last played using Passenger App Control.
3 Adjust the volume on this unit.
30
About playback controls and indications
You can control iPod playback in the same way as disc playback. For details, see “Playback controls” on page 20. For details on playback indications, see “Playback indications” on page 21.
To skip items of the selected play mode
During playback, touch –/+ of the selected play mode.
Repeat and shuffle play
To stop playback
Press and hold (SOURCE/OFF) for 1 second.
To disconnect the iPod
Stop playback, then disconnect. Do not disconnect during playback, as data in the iPod may be damaged.
About resuming mode
When the iPod currently playing is connected to the dock connector, the mode of this unit changes to resuming mode and playback starts in the mode set by the iPod. In resuming mode, repeat/shuffle play are not available.
Caution for iPhone
When you connect an iPhone via USB, telephone volume is controlled by the iPhone itself. In order to avoid emitting sudden loud sound after a call, do not increase the volume on the unit during a call.
Note
This unit cannot recognize an iPod via a USB hub.
Tips
When the ignition key is turned to the ACC position with the unit on, the iPod will be recharged.
If the iPod is disconnected during playback, “USB device is not connected.” appears on the display of the unit.
Setting the play mode
You can set one of the following play modes.
For audio playback
“ALBUM,” “TRACK,” “GENRE,” “PLAYLIST,” “ARTIST,” “MUSIC PODCAST”*
For video playback
“MOVIE,” “RENTAL,” “TV SHOW,” “MUSIC VIDEO,” “VIDEO PLAYLIST,” “VIDEO PODCAST”
* May not appear depending on iPod setting.
1 During playback, touch . 2 Touch “MUSIC” or “VIDEO.” 3 Touch the desired play mode.
To start playback, touch the desired item(s) in the list. To scroll the list, touch v/V.
*
1 During playback, touch “Play Menu,”
then the “Repeat” or “Shuffle” box repeatedly until the desired option appears.
Repeat or shuffle play starts.
To close the play menu, touch “Play Menu.”
The repeat options are as follows:
For audio playback
“OFF”: Returns to normal play mode. “Track”: Repeats the current track. “Album”/“Podcast”/“Artist”/“Playlist”/ “Genre”*: Repeats the current item of the
selected play mode.
For video playback
“OFF”: Returns to normal play mode. “Track”: Repeats the current video. “RENTAL”/“TV SHOW”/“MUSIC VIDEO”/ “Playlist”/“Podcast”*: Repeats the current
item of the selected play mode.
The shuffle options are as follows:
For audio playback
“OFF”: Returns to normal play mode. “Album”/“Podcast”/“Artist”/“Playlist”/ “Genre”*: Plays tracks of the selected play
mode in random order. “Device”: Plays all tracks in an iPod in random order.
* Differs depending on the selected play mode.
Note
Displayed options may not conform to actual operation.
31
Operating an iPod directly — Passenger App Control
You can directly operate an iPod connected to this unit.
1 During playback, touch “Play Menu,”
then the “Passenger App Control” box to set to “ON.”
Deactivating Passenger App Control
Touch the “Passenger App Control” box to set to “OFF.” The play mode changes to resuming mode.
To close the play menu, touch “Play Menu.”
Notes
App image and Video can only be displayed on this unit while the parking brake is applied.
App and Video are only controllable from iPhone and iPod.
Apps compatible with Passenger App Control are limited.
To output video to this unit, you need to activate the video output of the iPod.
The volume can be adjusted only by this unit.
The repeat and shuffle settings will be off if the
Passenger App Control mode is canceled.
Useful Functions

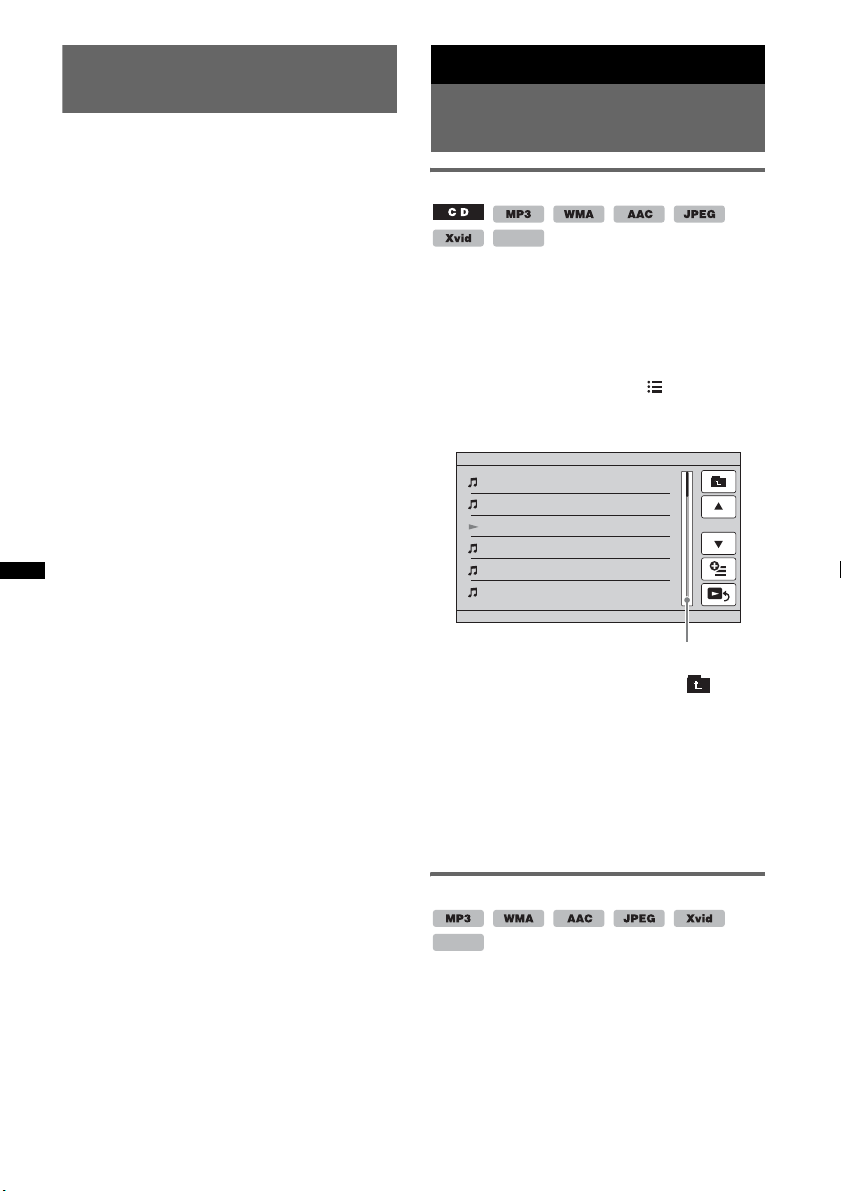

Listing up tracks/images/video files — List
Selecting a track/image/video file
MPEG-4
You can list up albums/folders/tracks/images/ video files, and select a desired one to play. This function is convenient especially for the disc in MP3/WMA/AAC/JPEG/Xvid/MPEG-4 format or USB device containing many albums/ tracks, etc.
1 During playback, touch .
The list of categories or files from the currently played item appears.
Contents List
File 01
File 02
File 03
File 04
File 05
File 06
32
Page position bar
To move to the upper level, touch *. To scroll the list line by line, touch v/V. To scroll the list continuously, touch and hold v/V. To jump pages, touch the page position bar.
* When playing an audio CD (CD-DA), this control
does not appear.
2 Touch the desired item.
Playback starts.
Selecting a file type
MPEG-4
If the disc/USB device contains multiple file types, only the selected file type (audio/video/ image) can be played. The playback priority order of file type is initially set to audio, video, then image (e.g., if the disc contains video files and image files, only video files are played). You can select the file type to list up, then select the desired file to play.
1 During playback, touch . 2 Touch , then “Audio,” “Image,” or
“Video” to select the file type.
3 Touch the desired file.
Playback of the selected file starts.
Using Gesture Command
You can perform frequently-used operations by drawing the following command stroke on the reception/playback display.
Do this To
Radio reception:
seek forward stations.
Draw a
horizontal line
(left to right)
Draw a
horizontal line
(right to left)
Draw a vertical
line
(upwards)
Draw a vertical
line
(downwards)
(The same as >.)
DVD/VCD playback:
skip forward a chapter/track. (The same as >.)
JPEG/Xvid/MPEG-4/audio playback:
skip forward a file/track. (The same as >.)
Radio reception: seek backward stations. (The same as ..)
DVD/VCD playback:
skip backward a chapter/track. (The same as ..)
JPEG/Xvid/MPEG-4/audio playback:
skip backward a file/track. (The same as ..)
Radio reception: receive stored stations (go forward).
DVD/VCD/Xvid/MPEG-4 playback:
fast-forward the video.
JPEG/audio playback: skip forward an album (folder). (The same as “Album” +.)
Radio reception: receive stored stations (go backward).
DVD/VCD/Xvid/MPEG-4 playback:
reverse the video.
JPEG/audio playback: skip backward an album (folder). (The same as “Album” –.)
Handsfree Calling and Audio Streaming — Bluetooth function (XAV-64BT only)
Before using the Bluetooth function
Bluetooth functions and descriptions apply only to XAV-64BT.
Basic procedure of the Bluetooth function
1 Pairing
When connecting Bluetooth devices for the first time, mutual registration is required. This is called “pairing.” This registration (pairing) is required only for the first time, as this unit and the other devices will recognize each other automatically from the next time.
Note
If you delete the device registration from this unit by initializing, you need to perform pairing again.
2 Connecting
After pairing is made, connect this unit and the Bluetooth device. Depending on the device, connection is automatically made along with the pairing.
33
3Handsfree calling/audio streaming
You can make/receive a handsfree call, or listen to audio through this unit.
Installing the microphone
To capture your voice during handsfree calling, you need to install the microphone (supplied).
For details on how to connect the microphone, refer to the supplied “Installation/Connections” guide.
Pairing
For details on the compatibility of your device, visit the support site on the back cover.
Bluetooth status indications
Calling...
ATT
Name 0123456789
Calling...
Bluetooth status indications
None: Bluetooth signal is off. Lit: Bluetooth signal is on.
None: No device is connected for
audio streaming.
Flashing: Connection is in progress. Lit: A device is connected.
None: No cellular phone is connected
for handsfree calling.
Flashing: Connection is in progress. Lit: A cellular phone is connected.
Indicates the signal strength status of the connected cellular phone.
Indicates the remaining battery status of the connected cellular phone.
None: No unread SMS messages Lit: Unread SMS message(s)
Pairing is required only the first time you connect to a Bluetooth device (cellular phone, etc.).*
To pair this unit to a Bluetooth device, you need to enter the same passkey*
2
on this unit and on
1
the Bluetooth device. The passkey can be either your own selected number or the number determined by the Bluetooth device. For details, refer to the manual of the Bluetooth device.
*1 If you delete the device registration from this unit
by initializing, you need to perform pairing again.
*2 Passkey may be called “passcode,” “PIN code,”
“PIN number,” “password,” etc., depending on the Bluetooth device.
1 Select the Bluetooth source.
To select Bluetooth Phone, press (TOP), then touch “BT Phone” in the top menu. To select Bluetooth Audio, touch “Source List,” then “BT Audio.”
2 Touch “BT Menu.”
In the case of Bluetooth Audio, touch “Play Menu,” then “BT Menu.” The Bluetooth setting menu appears.
BT Menu
Signal
Pairing
Auto Answer
Ringtone
EC/NC Mode
ATTBack Top
OFF / ON
OFF
Default / Cellular
Mode 1 / Mode 2
1/2
3 Touch “Pairing.”
Pairing starts.*
* If the Bluetooth signal of this unit is off, it
activates automatically when pairing starts.
34
4 Operate the Bluetooth device to
search for this unit.
A device list appears on the display of the device. This unit is displayed as “Sony Automotive.”
DR-BT30Q
Sony
Automotive XXXXXXX
5 If passkey input is required on the
display of the device, input “0000.”
Input passkey.
XXXX
“0000”
This unit and the Bluetooth device memorize each other’s information, and when pairing is made, this unit is ready for connection to the device.
6 Operate the Bluetooth device to
connect to this unit.
“Bluetooth device connected.” appears and connection is complete. “ ” or “ ” appears when the connection is made.
Notes
While connecting to a Bluetooth device, this unit
cannot be detected from another device. To enable detection, enter the pairing mode and search for this unit from another device.
It may take time to pair or connect.
Depending on the device, the confirmation display of
the connection appears before inputting the passkey.
The time limit for inputting the passkey differs
depending on the device.
This unit cannot be connected to a device that
supports only HSP (Head Set Profile).
Connecting
When the ignition is turned to on with the Bluetooth signal activated, this unit searches for the last-connected Bluetooth device, and connection is made automatically if possible.
This chapter explains how to connect manually to registered Bluetooth devices.
Before starting, be sure to activate the Bluetooth signal both on this unit (page 39) and the other Bluetooth device.
Connecting a cellular phone
1 Make sure the Bluetooth signal of this
unit and the cellular phone is turned on.
2 Operate the cellular phone to connect
to this unit.
“ ” flashes while the connection is being made, then stays lit while connected.
Connecting to the cellular phone last-connected from this unit
1 Make sure the Bluetooth signal of this
unit and the cellular phone is turned on.
2 Press (TOP), then touch “BT Phone”
in the top menu.
“ ” flashes while the connection is being made, then stays lit while connected.
Note
Some cellular phones require permission to access their phonebook data during handsfree connection to this unit. Obtain permission via the cellular phone.
Tip
With Bluetooth signal on: when the ignition is switched to on, this unit reconnects automatically to the last­connected cellular phone. But automatic connection also depends on the cellular phone’s specification. If this unit does not reconnect automatically, connect manually.
Connecting an audio device
1 Make sure the Bluetooth signal of this
unit and the audio device is turned on.
2 Operate the audio device to connect to
this unit.
“ ” flashes while the connection is being made, then stays lit while connected.
Connecting to the audio device last­connected from this unit
1 Make sure the Bluetooth signal of this
unit and the audio device is turned on.
2 Touch “Source List,” then “BT Audio.” 3 Touch “Connect.”
“ ” flashes while the connection is being made, then stays lit while connected.
Note
If connection is made during audio streaming, noise may occur over playback sound.
Tip
You can connect a cellular phone for audio streaming if it supports A2DP (Advanced Audio Distribution Profile).
35
To disconnect
1 Press (TOP) then touch “BT Phone,” or touch
“Source list” then “BT Audio.”
2 Touch “BT Menu.” 3 Touch “Signal,” then “Yes” on the
confirmation display to turn off the signal.
To delete all registrations
1 Press (TOP) then touch “BT Phone,” or touch
“Source list” then “BT Audio.”
2 Touch “BT Menu.” 3 Touch “Initialize,” then “Yes” on the
confirmation display to start initializing.
3 Touch the number keys to enter the
phone number, then touch .
To delete an entered number, touch . The call is made and the calling display appears until the other party answers.
Calling...
ATT
0123456789
Calling...
Handsfree calling
Once the unit is connected to the cellular phone, you can make/receive handsfree calls by operating this unit.
Making calls
By dialing a phone number
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
Back
ATT
Easy Dial
Preset Dial
P1
P4
BT Phone
BT Menu
P2
P3
P5
P6
Call Menu
2 Touch “Call Menu,” then “Dial.”
The number input display appears.
ATT
Back
Dial
Please input phone number.
1 2 3 4 5
6 7 8 9 0
Top
Redial
Voice Dial
Top
By the phonebook of the connected cellular phone
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
2 Touch “Call Menu,” then “Phonebook
Browsing.”
The phonebook appears.
3 Select the desired contact.
1In the initial list, touch the initial of the
contact.
2In the name list, touch the name of the
contact.
3In the number list, touch the phone
number.
The contact confirmation display appears.
4 Touch “Call.”
The call is made and the calling display appears until the other party answers.
By the call history of the connected cellular phone
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
2 Touch “Call Menu,” then “Recent Call
Browsing.”
The call history list appears. To scroll the list, touch v/V.
3 Touch the desired item in the list.
The contact confirmation display appears.
4 Touch “Call.”
The call is made and the calling display appears until the other party answers.
36
By the preset dial
You can store up to 6 contacts in the preset dial. For details on how to store, see “Preset dial” on page 38.
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
2 Touch the number in the list (“P1” to
“P6”).
The contact confirmation display appears.
3 Tou ch “ Cal l.”
The call is made and the calling display appears until the other party answers.
By the voice dial function
You can make a call using the voice tag stored on the connected cellular phone.
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
2 Touch “Voice Dial.” 3 Say the voice tag stored on the cellular
phone.
Your voice is recognized, then the call is made. The calling display appears until the other party answers.
By the redial function
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
2 Touch “Redial.”
The call is made and the calling display appears until the other party answers.
Notes
Say the voice tag in the same way as you stored it
on the cellular phone.
If the voice dial function is activated on the
connected cellular phone, it may not work via this unit.
Do not use the voice dial function on the cellular
phone while it is connected to this unit.
Noises such as the engine running may interfere
with sound recognition. In order to improve recognition, operate under conditions where noise is minimized.
Voice dial may not work depending on the
recognition specification of the cellular phone. For details, visit the suppor t site on the back cover.
To adjust the talker’s voice volume
Turn the volume control dial while making a call. The level of the talker’s voice volume will be stored into memory, independently from the regular volume level.
Receiving calls
With the unit connected to the cellular phone, you can receive a call in any status. The following display indicates an incoming call, along with the ringtone.
Incoming call...
ATT
Name 0123456789
Incoming call...
To answer the call
Touch .
To adjust the ringtone volume
Turn the volume control dial while receiving a call. The level of ringtone volume will be stored into memory, independently from the regular volume level.
To reject a call
Touch .
Note
The ringtone and talker’s voice are output only from the front speakers.
Tips
You can set to answer a call automatically (page 39).
You can set to use the ringtone of the cellular phone
or this unit (page 39).
Operations during a call
The following display appears during a call.
ATT
On the Line.
BT Menu
Name 0123456789
Open KeypadHandsfree OFF
10:59
Top
37
To adjust the talker’s voice volume
Turn the volume control dial during a call. The level of the talker’s voice volume will be stored into memory, independently from the regular volume level.
To send DTMF (Dual Tone Multiple Frequency) tones
Touch “Open Keypad,” then the required number keys.
To transfer the current call to the cellular phone
Touch “Handsfree OFF.” To transfer back to the handsfree call, touch “Handsfree ON.”
Note
Depending on the cellular phone, connection may be cut off when call transfer is attempted.
To adjust the volume for the other party
1 Touch “BT Menu.” 2 Touch v/V to display “MIC Gain.” 3 Touch “Low/Middle/High” repeatedly
to select the desired setting.
To return to the previous display, touch “Back.”
To end a call
Touch .
Call data management
Preset dial
You can store contacts in the phonebook or call history into the preset dials.
To store from the phonebook
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
2 Touch “Call Menu,” then “Phonebook
Browsing.”
The phonebook appears.
3 Select the contact to store in the
preset dial.
1In the initial list, touch the initial of the
contact.
2In the name list, touch the name of the
contact.
3In the number list, touch the phone
number.
The contact confirmation display appears.
4 Touch “Preset Memory,” then the
desired preset number (“P1” to “P6”).
The contact is stored to the selected preset number.
To store from the call history
1 Press (TOP), then touch “BT Phone”
in the top menu.
The Bluetooth Phone display appears.
2 Touch “Call Menu,” then “Recent Call
Browsing.”
The call history list appears. To scroll the list, touch v/V.
3 Touch the desired item in the list.
The contact confirmation display appears.
4 Touch “Preset Memory,” then the
desired preset number (“P1” to “P6”).
The contact is stored to the selected preset number.
38
To change the registration of the preset dial
Follow the procedure above and overwrite a registered preset dial.
Audio streaming
Bluetooth settings
Listening to a Bluetooth device via this unit
If the other device supports A2DP (Advanced Audio Distribution Profile), you can listen to the playback sound via this unit.
1 Connect this unit and the Bluetooth
device (page 35).
2 Reduce the volume on this unit. 3 Touch “Source List,” then “BT Audio.”
The Bluetooth Audio display appears.
4 Operate the other Bluetooth device to
start playback.
5 Adjust the volume on this unit.
Operating a Bluetooth device with this unit
If the other device supports AVRCP (Audio Video Remote Control Profile), you can control playback via this unit.
Operations can be performed in the same way as disc playback (page 20), except for the following:
Do this To
Touch “Play Menu” c “BT Menu”
Touch –/+ in the “Level” box
Touch “Connect”
Notes
The available operation differs depending on the
Bluetooth device. Perform unavailable operations on the Bluetooth device.
Depending on the Bluetooth device, it may be
necessary to touch u twice to start/pause the playback.
During audio streaming, some indications such as
track name, etc., may not appear on this unit.
open the Bluetooth setting menu (page 39).
reduce the volume level differences between this unit and the other Bluetooth device. The level is adjustable in single steps, between –8 and +18.
connect to the last­connected device from this unit.
The Bluetooth settings can be configured in “BT Menu.”
1 Select the Bluetooth source.
To select Bluetooth Phone, press (TOP), then touch “BT Phone” in the top menu. To select Bluetooth Audio, touch “Source List,” then “BT Audio.”
2 Touch “BT Menu.”
In the case of Bluetooth Audio, touch “Play Menu,” then “BT Menu.” The Bluetooth setting menu appears.
3 Touch the desired item in the list and
configure the setting.
The items in the Bluetooth setting menu are as follows:
“Signal”*
Activates the Bluetooth signal: “ON,” “OFF.”
“Pairing”*
Turns the pairing mode on/off, and memorizes the information between this unit and the Bluetooth device.
“Auto Answer”*
Answers an incoming call automatically. – “Short”: to answer automatically after 3
– “Long”: to answer automatically after 10
– “OFF”: to not answer automatically.
“Ringtone”*
Uses the ringtone of this unit or the connected cellular phone: “Default,” “Cellular.”
“EC/NC Mode” (Echo Canceller/Noise Canceller Mode)
Reduces echo and noise during a call. For normal use, set to “Mode 1.” If the outgoing sound quality is unsatisfactory, set to “Mode 2.”
“MIC Gain” (page 38)
Adjust the microphone volume for the other party: “Low,” “Middle,” “High.”
“Initialize”*
Initializes all Bluetooth related settings. Touch “Yes” to confirm.
*1 Cannot be configured during a handsfree call. *2 Depending on the cellular phone, this unit’s
Note
For details on the setting of other Bluetooth devices, refer to their respective manuals.
1
1
1
seconds.
seconds.
1*2
1
ringtone may be output even if set to “Cellular.”
39
Sound Adjustment
Tip
Other equalizer types are also adjustable.
Selecting the sound quality — EQ7
You can select an equalizer curve from 7 music types (“Xplod,” “Vocal,” “Edge,” “Cruise,” “Space,” “Gravity,” “Custom,” or “OFF”).
1 During reception/playback, touch
“Source List,” then .
2 Touch “Sound.”
The sound setting menu appears.
3 Touch “EQ7.”
The options appear.
4 Touch the desired equalizer curve.
The setting is complete.
To cancel the equalizer curve, select “OFF.” To return to the previous display, touch “Back.”
Customizing the equalizer curve — EQ7 Tune
The EQ7 “Custom” curve allows you to make your own equalizer settings. You can adjust the level of 7 different bands: 63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, and 16 kHz.
1 During reception/playback, touch
“Source List,” then .
2 Touch “Sound,” then “EQ7.” 3 Touch “Custom,” then “Tune.”
The tuning display appears.
Back
EQ7 Tune : Custom
63 Hz0160 Hz0400 Hz01 kHz02.5 kHz06.3 kHz016 kHz
ATT
Reset OK
Top
0
Adjusting the sound characteristics
The sound balance between left and right speakers (“Balance”) and front and rear speakers (“Fader”) can be adjusted to your preference. You can also adjust the volume level of the subwoofer if it is connected.
1 During reception/playback, touch
“Source List,” then .
2 Touch “Sound.”
The sound setting menu appears.
3 Touch “Balance/Fader.”
The setting display appears.
Balance/Fader/Subwoofer Level Adjust
ATTBack
Fader : 0
Balance : 0
4 Touch B/V/v/b to adjust the balance/
fader.
The level is adjustable in single steps between –15 and +15 (Balance)/–15 and +15 (Fader).
5 Touch +/– to adjust the volume level of
the subwoofer.
This setting is adjustable only when a subwoofer is connected and “Rear/Sub Out” is set to “Sub” (page 49). The level is adjustable in single steps, between –6 and +6.
To return to the previous display, touch “Back.”
0
Subwoofer
Top
4 Touch +/– of each frequency to adjust
their levels.
The level is adjustable in single steps, between –8 and +8. To restore the factory-set equalizer curve, touch “Reset.”
5 Touch “OK.”
The setting is complete.
To return to the previous display, touch “Back.”
40
Optimizing sound for the listening position — Intelligent Time Alignment
The unit can change the localization of sound by delaying the sound output from each speaker to suit your position, and simulate a natural sound field with the feeling of being in the center of it wherever you sit in the car. The options for “Listening Position” are indicated below.
“Front L” (1): Front left “Front R” (2): Front right “Front” (3): Center front “All” (4): In the center of
your car “Custom”: Precisely
calibrated position (page 41) “OFF”: No position set
You can also set the approximate subwoofer position from your listening position if: – the subwoofer is connected and “Rear/Sub
Out” is set to “Sub” (page 49).
– the listening position is set to “Front L,” “Front
R,” “Front,” or “All.”
1 During reception/playback, touch
“Source List,” then .
2 Touch “Sound.”
The sound setting menu appears.
3 Touch “Listening Position.”
The setting display appears.
4 Touch “Select Preset.”
The listening positions become available for selection.
5 Set the listening position.
Touch “Front L,” “Front R,” “Front,” “All,” or “Custom.”
6 Set the subwoofer position.
If “Rear/Sub Out” is set to “Sub” (page 49) and you select “Front L,” “Front R,” “Front,” or “All” in step 4 above, you can set the subwoofer position. Touch “Near,” “Normal,” or “Far.” The setting is complete.
To cancel Intelligent Time Alignment, select “OFF.” To return to the previous display, touch “Back.”
12
3
4
Calibrating the listening position — Intelligent Time Alignment Tune
You can precisely calibrate your listening position from each speaker so that the sound delay reaches the listener more correctly.
Before starting, measure the distance between your listening position and each speaker.
1 During reception/playback, touch
“Source List,” then .
2 Touch “Sound,” then “Listening
Position.”
3 Touch “Custom,” then “Custom Tune.”
The setting display appears.
Back
Position Tune
100 100 100 100 100
(cm)
Note
The subwoofer appears and the subwoofer custom setting keys are available only when “Rear/Sub Out” is set to “Sub” (page 49).
ATT
Reset OK
Top
4 Touch +/– of each speaker to set the
distance between your listening position and the speakers.
The distance is adjustable in 2 cm ( steps, between 0 and 400 cm (0 and 13 To restore the default setting, touch “Reset.”
13
/16 in)
1
/10 ft).
5 Touch “OK.”
The setting is complete.
To return to the previous display, touch “Back.”
Note
The setting is applied only after “OK” is touched.
41
Speaker configuration and volume setup
Creating a virtual center speaker — CSO
To fully enjoy surround sound, it is preferable to have 5 speakers (front left/right, rear left/right, center) and 1 subwoofer. CSO (Center Speaker Organizer) allows you to create a virtual center speaker even though a real center speaker is not connected.
1 During disc/USB playback, touch
“Source List,” then .
2 Touch “Sound.”
The sound setting menu appears.
3 Touch “CSO.”
The options appear.
4 Touch “CSO1,” “CSO2,” or “CSO3.”
The setting is complete.
To return to the previous display, touch “Back.”
Note
“CSO” is effective only when “Multi Ch Output” is set to “Multi” (page 51), as it is effective only for playback of multi-channel sources.
Adjusting the speaker volume
You can adjust the volume level of each connected speaker. The adjustable speakers are “Front R” (Front Right), “Front L” (Front Left), “Surround L” (Rear Left), “Surround R” (Rear Right) and “Subwoofer*.”
* Adjustable only when a subwoofer is connected and
“Rear/Sub Out” is set to “Sub” (page 49).
1 While no source is selected, touch
“Source List,” then .
2 Touch “Sound.”
The sound setting menu appears.
3 Touch v/V to scroll, then touch “4.1ch
Speaker Level.”
The setting display appears.
Back
4.1ch Speaker Level
Front L
Surround L
Subwoofer
Reset
Front R
Surround R
0
Top
Using rear speakers like subwoofers — Rear Bass Enhancer
Rear Bass Enhancer enhances the bass sound by applying the low pass filter setting (page 49) to the rear speakers. This function allows the rear speakers to work like a pair of subwoofers if one is not connected.
1 During reception/playback, touch
“Source List,” then .
2 Touch “Sound.”
The sound setting menu appears.
3 Touch v/V to scroll, then touch “RBE.”
The options appear.
4 Touch “RBE1,” “RBE2,” or “RBE3.”
The setting is complete.
To return to the previous display, touch “Back.”
42
4 Touch the speaker, then +/– to adjust
the level.
Repeat this step to adjust each speaker’s volume. To restore the default setting, touch “Reset.”
To return to the previous display, touch “Back.”
Monitor Adjustment
Touch panel calibration
Touch panel calibration is required if the touching position does not correspond with the proper item.
1 Touch “Source List,” then . 2 Touch “General.”
The general setting menu appears.
3 Tou ch v/V to scroll, then touch “Touch
Panel Adjust.”
The setting display appears.
4 Touch the targets in sequence.
The calibration is complete.
To cancel calibration, touch “Cancel.”
Setting the background screen
You can select your preferred screen theme.
1 Touch “Source List,” then . 2 Touch “Screen.”
The screen setting menu appears.
3 Touch “Screen Theme.”
The screen theme selection display appears.
4 Select the screen theme.
Touch “Screen Theme,” then the desired type.
To return to the previous display, touch “Back.”
Adjusting the picture — Picture EQ
You can adjust the picture to suit the interior brightness of the car. The options are indicated below.
“Dynamic”: Vivid picture with bright, clear colors.
“Standard”: Standard picture. “Theater”: Brightens the monitor; suitable for
darkly-lit movies.
“Sepia”: Applies a sepia tone to the picture. “Custom 1,” “Custom 2”: User-adjustable
settings (page 44).
1 During video/image playback, touch
“Source List,” then .
2 Touch “Screen.”
The screen setting menu appears.
3 Touch “Picture EQ.”
The options appear.
4 Touch the desired option.
To return to the previous display, touch “Back.”
Note
This setting is available only when the parking brake is set.
43
Customizing the picture
The options “Custom 1” and “Custom 2” of Picture EQ allow you to make your own picture setting by adjusting the picture tones.
1 During video/image playback, touch
“Source List,” then .
2 Touch “Screen,” then “Picture EQ.” 3 Touch “Custom 1” or “Custom 2,” then
“Custom Tune.”
The setting display appears.
Picture EQ : Custom Tune
Color Tone Brightness0Color
ATTBack
Warm
Normal
Cool
0
Top
4 Touch “Warm,” “Normal,” or “Cool” to
select “Color Tone.”
5 Touch +/– of “Brightness” and “Color”
to adjust their levels.
To return to the previous display, touch “Back.”
Note
The picture of the rear view camera cannot be adjusted.
Selecting the aspect ratio
You can change the screen aspect ratio. The options are indicated below.
“Normal”: Picture with 4:3 aspect ratio (regular picture).
“Wide”: Picture with 4:3 aspect ratio enlarged to the left and right edges of the screen, with overflowing parts of the top and bottom cut off to fill the screen.
“Full”: Picture with 16:9 aspect ratio.
“Zoom”: Picture with 4:3 aspect ratio enlarged to the left and right edges of the screen.
1 During video/image playback, touch
“Source List,” then .
2 Touch “Screen.”
The screen setting menu appears.
3 Touch “Aspect.”
The options appear.
4 Touch the desired option.
To return to the previous display, touch “Back.”
Notes
This setting is available only when the parking brake is set.
The screen aspect ratio of the rear view camera cannot be changed.
44
Settings
The setting menu includes the following categories.
“General”: General settings (page 46)
“Sound”: Sound settings (page 48)
“Screen”: Screen settings (page 50)
“Visual”: DVD and other playback settings
(page 51)
Basic setting operation
You can set items in the menu via the following procedure.
For example, when setting the demonstration:
1 While no source is selected, touch
“Source List,” then .
(For XAV-64BT only: From the top menu, touch .) The setting menu appears.
Back Top
Language
Clock Adjust
Auto OF F
Beep
ZAPPIN Time
General Sound Screen Visual
2 Touch “Screen.”
The screen setting display appears.
Back Top
Screen Theme
Picture EQ
Aspect
Clock
Demo
General Sound Screen Visual
English
No
OFF / ON
OFF / ON
OFF / ON
1/4
1/1
3 Touch “Demo” to set to “ON” or “OFF.”
The setting is complete.
To scroll the options (only when required), touch v/V. To return to the previous display, touch “Back.”
45
General settings
Touch c “General” c the desired item c the desired option. For details on this procedure, see “Basic setting operation” on page 45.
For details, see the pages listed below. “z” indicates the default setting.
Item Option Purpose Unit status
Language
Clock Adjust (page 15)
Auto OFF
Shuts off automatically after a desired time when no source is selected.
Beep
ZAPPIN Time (page 30)
Dimmer
Changes the display brightness.
Dimmer Level
Sets the brightness level when the dimmer is activated.
Touch Panel Adjust (page 43)
No Signal
Changes the screen automatically when no external video signal is detected.
Output Color System
Changes the color system according to the connected monitor. (SECAM is not supported.)
English (z), Español,
Русский
No (z)
30sec, 30min, 60min
OFF
ON (z)
6sec, 15sec (z), 30sec
Auto (z)
ON
–5 ~ +5 0 (z)
Through
Blank (z)
NTSC
PAL (z)
To select the display language.
No source selected
–Any status
To deactivate the Auto Off function.
Any status
To select the desired time.
To deactivate the operation sound.
Any status To activate the operation sound.
To select the playback time for the ZAPPIN function.
During USB/
iPod audio
playback
To dim the display automatically when you turn lights on. (Available only when the illumination
Any status control lead is connected.)
To dim the display.
To select the level.
Any status
Any status
To display the no signal screen.
No source To display the audio
selected playback screen with no signal notification.
To set to NTSC.
To set to PAL.
No source
selected
46
Item Option Purpose Unit status
Front AUX Input (page 53)
Sets whether or not an audio device’s input signals are detected via the front AUX
OFF
Audio (z)
To deactivate the AUX input.
To activate the AUX input.
No source selected
input.
Rear AUX Input (page 53)
Sets the type of device connected to the rear AUX terminals to switch the background screen accordingly.
OFF
Audio
Video (z)
To deactivate the AUX input.
To display this unit’s background screen.
To display the picture from
No source selected
the connected device.
Rotary Commander
Changes the operative direction of rotary commander controls.
Camera Input
Activates the video input from the connected rear view camera.
Default (z)
Reverse
OFF
ON (z)
To use in the factory-set position.
To use on the right side of the steering column.
To deactivate the input.
To display the picture from the rear view camera when the back lamp lights up (or
Any status
Any status
the shift lever is set to the R (reverse) position).
Rear View Camera Setting (page 54)
CT (Clock Time) (page 18, 19)
OFF (z)
ON
To deactivate the CT function.
To activate the CT function.
Any status
Any status
47
Sound settings
Touch c “Sound” c the desired item c the desired option. For details on this procedure, see “Basic setting operation” on page 45.
For details, see the pages listed below. “z” indicates the default setting.
Item Option Purpose Unit status
EQ7 (page 40)
Balance/Fader (page 40)
Listening Position (page 41)
Sets the listening position and subwoofer position.
CSO (Center Speaker Organizer) (page 42)
Sets the virtual center speaker mode.
OFF (z)
Xplod, Vocal, Edge, Cruise, Space, Gravity, Custom
Balance: –15 ~ +15 Fader: –15 ~ +15 0 (z)
Subwoofer: –6 ~ +6 0 (z)
OFF (z)
Front L
Front R
Front
All
Custom
Subwoofer: Near, Normal (z), Far
OFF (z), CSO1, CSO2, CSO3
To cancel the equalizer curve.
To select the equalizer curve; customize the equalizer curve.
To adjust the level.
To adjust the volume level of the subwoofer. (Available only when “Subwoofer” is set to “ON.”)
To not set the listening position.
To set to front left.
To set to front right.
To set to center front.
To set to the center of your car.
To precisely calibrate the listening position (page 41).
To select the subwoofer position. (Available only when “Rear/Sub Out” is set to “Sub” (page 49), and the listening position is set to “Front L,” “Front R,” “Front,” or “All.”)
To select the mode.
During reception/
playback
During reception/
playback
During reception/
playback
During disc/USB
playback
48
Item Option Purpose Unit status
Rear/Sub Out
Switches the audio output between the rear speakers and subwoofer.
Rear
Sub (z)
To output audio signals to the rear speakers (amplifier).
To output audio signals to
No source selected
the subwoofer.
RBE (Rear Bass Enhancer) (page 42)
Uses rear speakers like
OFF (z), RBE1, RBE2, RBE3
To select the mode.
During reception/ playback
subwoofers.
Crossover Filter
Selects the cut-off frequency of the front/rear speakers (HPF) and subwoofer (LPF).
4.1ch Speaker Level (page 42)
LPF: 50 Hz, 60 Hz, 80 Hz, 100 Hz (z), 120 Hz
HPF: OFF (z)
HPF: 50 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
Subwoofer Phase: Normal (z), Reverse
To select the cut-off frequency. (Available only when “Subwoofer” is set to “ON.”)
To not cut out the frequencies.
To select the cut-off
During reception/ playback
frequency.
To select the subwoofer phase. (Available only when “Subwoofer” is set to “ON.”)
No source
selected
49
Screen settings
To uc h c “Screen” c the desired item c the desired option. For details on this procedure, see “Basic setting operation” on page 45.
For details, see the pages listed below. “z” indicates the default setting.
Item Option Purpose Unit status
Screen Theme (page 43)
Picture EQ* (page 43)
Aspect* (page 44)
Clock
Displays/hides the clock in the bottom right corner of the display.
Demo
* This setting is available only when the parking brake is set.
Dynamic (z), Standard, Theater, Sepia
Custom 1, Custom 2
Normal, Wide, Full (z), Zoom
OFF
ON (z)
OFF
ON (z)
–Any status
To select the picture quality.
To customize the picture quality.
To select the screen aspect ratio.
To hide the clock.
To display the clock.
To deactivate the demonstration.
To activate the demonstration.
During video/
image playback
During video/
image playback
Any status
No source
selected
50
DVD and other playback settings
Touch c “Visual” c the desired item c the desired option. For details on this procedure, see “Basic setting operation” on page 45.
For details, see the pages listed below. “z” indicates the default setting.
Item Option Purpose Unit status
DVD Menu Language
DVD Audio Language
DVD Subtitle Language
Audio DRC
Makes the sound clear when the volume is low. Only for a DVD* conforming to Audio DRC (Dynamic Range Control).
* Excluding DVD-R/DVD-R DL/
DVD-RW in VR mode.
Multi Ch Output
Switches the method of outputting multi channel sources.
DVD Playlist Play
(For DVD-R/DVD-R DL/ DVD-RW in VR mode only)
DVD Direct Search
(page 24)
Sets the search item for DVD direct search play.
Standard (z)
Wide
Multi (z)
Stereo
Original (z)
Playlist
Chapter (z)
Title
To change the disc’s menu language.
To change the soundtrack language.
To change the subtitle language recorded on the disc.
To select the standard setting.
To obtain the feeling of being at a live performance.
To output in 4.1 channels.
To downmix to 2 channels.
To play titles as they were originally recorded.
To play an edited playlist.
To search for a chapter.
To search for a title.
No source selected
No source selected
No source selected
No source selected
No source selected
No source selected
Any status
51
Item Option Purpose Unit status
Monitor Type
Selects an aspect ratio suitable for the connected monitor. (The screen aspect ratio of this unit also changes.)
Depending on the disc, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan,” and vice versa.
16:9 (z)
4:3 Letter Box
To display a wide picture. Suitable when connecting to a wide-screen monitor or a monitor with a wide mode function.
To display a wide picture with bands on the upper and lower positions of the screen.
No source
selected Suitable when connecting to a 4:3 screen monitor.
4:3 Pan Scan
To display a wide picture on the entire screen and automatically cut off the portions that do not fit.
Multi Disc Resume
USB Resume
JPEG Slide Show
Video CD PBC (page 22)
OFF
ON (z)
OFF
ON (z)
5sec (z), 20sec, 60sec, Fixed
OFF
ON (z)
To not store the resume settings in memory. Resume playback is available only for the current disc in the unit.
To store the resume settings in memory for up to 5 video* discs.
* DVD VIDEO/VCD/Xvid/
MPEG-4 only.
To not store the resume settings in memory.
To store resume settings in memory for Xvid/MPEG-4 files in the USB device.
To select the slide show interval.
To play a VCD without PBC functions.
To play a VCD with PBC functions.
No source
selected
No source
selected
No source
selected
No source
selected
52
Using Optional Equipment
Auxiliary audio/video equipment
You can connect up to 2 optional devices, such as a portable media player, game console, etc., to the front AUX terminal and rear AUX terminals on the unit. (The front AUX terminal is for audio only.)
Selecting an auxiliary device
1 Touch “Source List,” then “AUX.”
The AUX playback display appears.
ATT
TA AF To pSource List
Front AUX Rear AUX
2 Touch “Front AUX” or “Rear AUX” to
select the device.
Operate via the portable device itself.
Adjusting the volume level
Be sure to adjust the volume for each connected device before playback. The volume level is common to “Front AUX” and “Rear AUX.”
1 Reduce the volume on the unit. 2 Touch “Source List,” then “AUX.”
The AUX playback display appears.
3 Start playback of the portable device
at a moderate volume.
4 Set your usual listening volume on the
unit.
5 If there are differences in volume level
between playback sources, touch –/+ in the “Level” box.
The level is adjustable in single steps, between –8 and +18.
Level 0
Setting the type of device
By setting the type (video or audio) of each connected device, the background screen can be switched accordingly.
1 While no source is selected, touch
“Source List,” then .
The general setting menu appears. If not, touch “General.”
2 Touch v/V to scroll, then touch “Front
AUX Inpu t” or “Rear AUX Input.”
3 Touch “Audio” or “Video.”
“Audio” is available for “Front AUX Input” or “Rear AUX Input,” while “Video” is available only for “Rear AUX Input.” The setting is complete.
To deactivate the AUX input, select “OFF.” To return to the previous display, touch “Back.”
Rear view camera
By connecting the optional rear view camera to the CAMERA IN terminal, you can display the picture from the rear view camera.
The picture from the rear view camera appears when the back lamp lights up (or the shift lever is set to the R (reverse) position).
Notes
When backing up your car, watch the surroundings carefully for safety. Do not depend on the rear view camera exclusively.
The picture from a rear view camera does not appear in the rear monitor.
Tip
Even if a rear view camera is connected, you can set the unit to not display the picture from a rear view camera by deactivating the camera input (page 47).
53

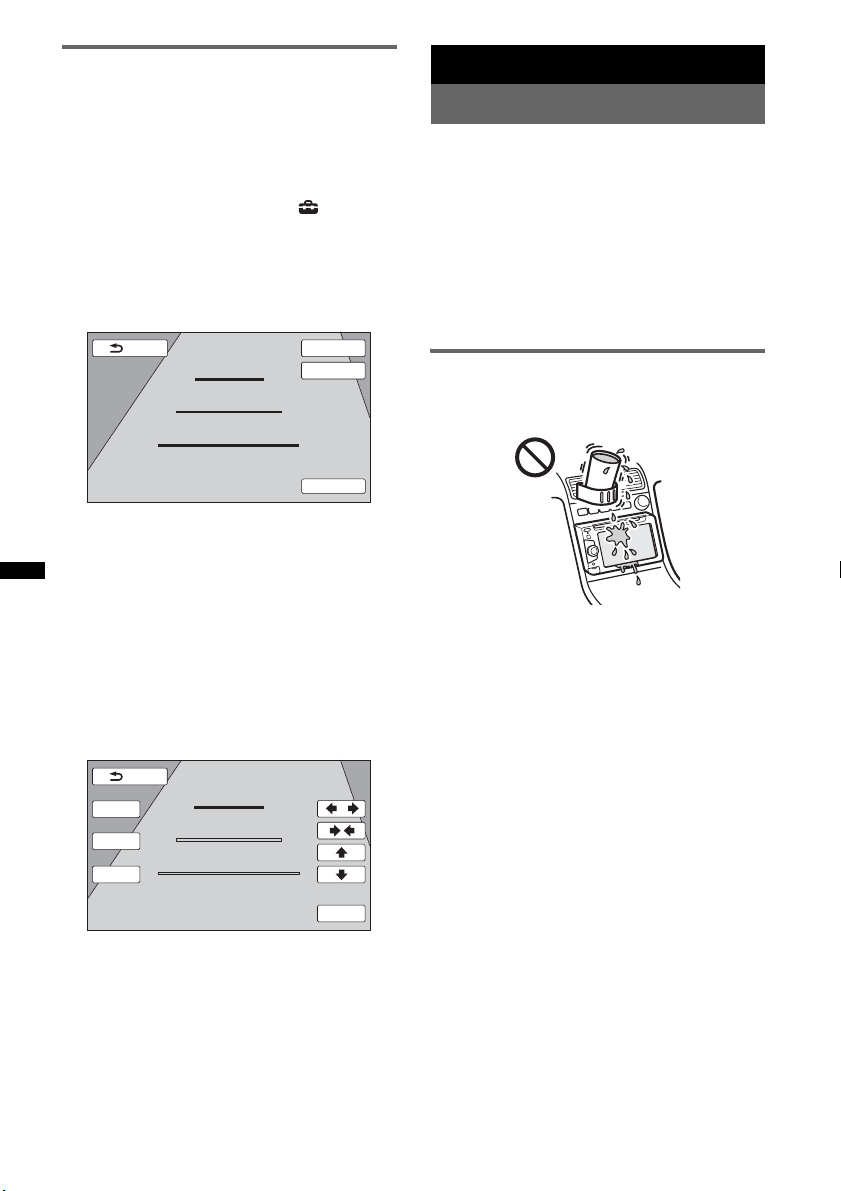

Rear view camera settings
You can display setting items on the picture from the rear view camera to assist operation.
This setting is available only when: – “Camera Input” is set to “ON” (page 47). – the parking brake is applied.
1 Touch “Source List,” then .
The general setting menu appears. If not, touch “General.”
2 Touch v/V to scroll, then touch “Rear
View Camera Setting.”
The setting items appear.
Back
Marker
Mirror
1
2
3
Additional Information
Precautions
• Cool off the unit beforehand if your car has been parked in direct sunlight.
• Power antenna (aerial) extends automatically.
Moisture condensation
Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.
To maintain high sound quality
Do not splash liquid onto the unit or discs.
Notes on LCD panel
Do not wet the LCD panel or expose it to liquids. This may cause a malfunction.
Turn off engine but keep the key in the “IGN” position.
Displaying marker lines
Touch “Marker.” Touch “Marker” again to hide the marker lines.
Reversing the picture
Touch “Mirror.” A mirror-reversed picture appears.
Editing lines
1 Touch “Line Edit.”
Back
1 Edit
2 Edit
3 Edit
Turn off engine but keep the key in the “IGN” position.
2 Select the line to edit.
Touch “1 Edit,” “2 Edit,” or “3 Edit” corresponding to the line to edit.
3 Edit the line.
To increase the length, touch B b. To reduce the length, touch bB. To adjust the position, touch V or v. To restore the default setting, touch “Reset.”
To return to the previous display, touch “Back.”
54
1
2
3
Line Edit
Reset
• Do not press on the LCD panel as doing so can distort the picture or cause a malfunction (i.e., the picture may become unclear, or the LCD panel may be damaged).
• Do not touch other than with the finger, as it may damage or break the LCD panel.
• Clean the LCD panel with a dry soft cloth. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray.
• Do not use this unit outside the temperature range 5 – 45 ºC (41 – 113 ºF).
• If your car was parked in a cold or hot place, the picture may not be clear. However, the monitor is not damaged, and the picture will become clear after the temperature in your car becomes normal.
• Some stationary blue, red or green dots may appear on the monitor. These are called “bright spots,” and can happen with any LCD. The LCD panel is precision-manufactured with more than
99.99% of its segments functional. However, it is possible that a small percentage (typically 0.01%) of the segments may not light up properly. This will not, however, interfere with your viewing.
Notes on discs
• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.
• This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.
Discs that this unit CANNOT play – Discs with labels, stickers, or sticky tape or
paper attached. Doing so may cause a malfunction, or may ruin the disc.
– Discs with non-standard shapes (e.g., heart,
square, star). Attempting to do so may damage the unit.
1
–8 cm (3
/4 in) discs.
Note on playback operations of DVDs and VCDs
Some playback operations of DVDs and VCDs may be intentionally set by software producers. Since this unit plays DVDs and VCDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VCDs.
Notes on DATA CDs and DATA DVDs
• Some DATA CDs/DATA DVDs (depending on the equipment used for its recording, or the disc condition) may not play on this unit.
• Finalization is required for some discs (page 55).
• The unit is compatible with the following standards. For DATA CDs – ISO 9660 level 1/level 2 format, Joliet/Romeo in
the expansion format – Multi Session For DATA DVDs – UDF Bridge format (combined UDF and ISO
9660)
–Multi Border
• The maximum number of: – folders (albums): 256 (including root and empty
folders).
– files (tracks/images/videos) and folders
contained in a disc: 2,000 (if a folder/file names contain many characters, this number may become less than 2,000).
– displayable characters for a folder/file name: 64
(Joliet/Romeo).
Notes on finalizing discs
The following discs are required to be finalized to play on this unit.
• DVD-R/DVD-R DL (in video mode/VR mode)
• DVD-RW in video mode
• DVD+R/DVD+R DL
•CD-R
•CD-RW
The following discs can be played without finalization.
• DVD+RW – automatically finalized.
• DVD-RW in VR mode – finalization not required.
For details, refer to the manual supplied with the disc.
Notes on Multi Session CDs/Multi Border DVDs
This unit can play Multi Session CDs/Multi Border DVDs under the following conditions. Note that the session must be closed and the disc must be finalized.
• When CD-DA (Compact Disc Digital Audio) is recorded in the first session: The unit recognizes the disc as CD-DA and only CD-DA of the first session is played, even if another format (e.g., MP3) is recorded in other sessions.
• When CD-DA is recorded other than in the first session: The unit recognizes the disc as a DATA CD or DATA DVD, and all CD-DA sessions are skipped.
• When an MP3/WMA/AAC/JPEG/Xvid/MPEG-4 is recorded: Only the sessions containing the selected file type (audio/video/image)* are played (if CD-DA or other data exists in other sessions, they are skipped).
* For details on how to select the file type, see
page 32.
Playback order of MP3/WMA/AAC/ JPEG/Xvid/MPEG-4 files
MP3/WMA/AAC/ JPEG/Xvid/ MPEG-4
Folder (album)
MP3/WMA/AAC/ JPEG/Xvid/ MPEG-4 file (track/image/ video)
55
About MP3 files
• MP3, which stands for MPEG-1 Audio Layer-3, is a music file compression format standard. It compresses audio CD data to approximately 1/10 of its original size.
• ID3 tag versions 1.0, 1.1, 2.2, 2.3 and 2.4 apply to MP3 only. ID3 tag is 15/30 characters (1.0 and
1.1), or 63/126 characters (2.2, 2.3 and 2.4).
• When naming an MP3 file, be sure to add the file extension “.mp3” to the file name.
• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3 file, elapsed playback time may not display accurately.
Note on MP3
If you play a high-bit-rate MP3, such as 192 kbps, sound may be intermittent.
About WMA files
• WMA, which stands for Windows Media Audio, is a music file compression format standard. It compresses audio CD data to approximately 1/22* of its original size.
• WMA tag is 63 characters.
• When naming a WMA file, be sure to add the file extension “.wma” to the file name.
• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) WMA file, elapsed playback time may not display accurately.
* only for 64 kbps
Note on WMA
Playback of the following WMA files is not supported. – lossless compression – copyright-protected
About AAC files
• AAC tag is 126 characters.
• When naming an AAC file, be sure to add the file extension “.m4a” to the file name.
About JPEG files
• JPEG, which stands for Joint Photographic Experts Group, is an image file compression format standard. It compresses still images approximately 1/10 to 1/100 of original size.
• When naming a JPEG file, be sure to add the file extension “.jpg” to the file name.
Note on JPEG
Playback of progressive JPEG files is not supported.
About MPEG-4 files
MPEG-4 files meeting the following requirements can be played. Playback is not be guaranteed for all MPEG-4 files meeting the requirements.
• Profile: MPEG-4 Simple profile
• Bit rate: Max. 7 Mbps on USB FS, 10 Mbps on DVD, 7 Mbps on CD
• Frame rate: Max. 30 fps
• Image size: Max. 720 × 480 pixels
• Audio: Max. 320 kbps (AAC-LC)
• File extension: .mp4
About iPod
• You can connect to the following iPod models. Update your iPod devices to the latest software before use.
Made for – iPod touch (4th generation) – iPod touch (3rd generation) – iPod touch (2nd generation) – iPod classic – iPod nano (6th generation) – iPod nano (5th generation) – iPod nano (4th generation) – iPod nano (3rd generation) – iPod nano (2nd generation) – iPod nano (1st generation)* – iPhone 4S –iPhone 4 – iPhone 3GS – iPhone 3G
* Passenger App Control is not available for iPod nano
(1st generation).
• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
56
About Bluetooth function
The following applies only to XAV-64BT.
What is Bluetooth technology?
• Bluetooth wireless technology is a short-range wireless technology that enables wireless data communication between digital devices, such as a cellular phone and a headset. Bluetooth wireless technology operates within a range of about 10 m (about 33 feet). Connecting two devices is common, but some devices can be connected to multiple devices at the same time.
• You do not need to use a cable for connection since Bluetooth technology is a wireless technology, neither is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket.
• Bluetooth technology is an international standard supported by millions of companies all over the world, and employed by various companies worldwide.
On Bluetooth communication
• Bluetooth wireless technology operates within a range of about 10 m. Maximum communication range may vary depending on obstacles (person, metal, wall, etc.) or electromagnetic environment.
• The following conditions may affect the sensitivity of Bluetooth communication. – There is an obstacle such as a person, metal, or
wall between this unit and Bluetooth device.
– A device using 2.4 GHz frequency, such as a
wireless LAN device, cordless telephone, or microwave oven, is in use near this unit.
• Because Bluetooth devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and result in communication speed deterioration, noise, or invalid connection if this unit is used near a wireless LAN device. In such as case, perform the following. – Use this unit at least 10 m away from the
wireless LAN device.
– If this unit is used within 10 m of a wireless
LAN device, turn off the wireless LAN device.
– Install this unit and Bluetooth device as near to
each other as possible.
• Microwaves emitting from a Bluetooth device may affect the operation of electronic medical devices. Turn off this unit and other Bluetooth devices in the following locations, as it may cause an accident. – where inflammable gas is present, in a hospital,
train, airplane, or petrol station
– near automatic doors or a fire alarm
• This unit supports security capabilities that comply with the Bluetooth standard to provide a secure connection when the Bluetooth wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using Bluetooth wireless technology.
• We do not take any responsibility for the leakage of information during Bluetooth communication.
• Connection with all Bluetooth devices cannot be guaranteed. – A device featuring Bluetooth function is
required to conform to the Bluetooth standard specified by Bluetooth SIG, and be authenticated.
– Even if the connected device conforms to the
above mentioned Bluetooth standard, some devices may not be connected or work correctly, depending on the features or specifications of the device.
– While talking on the phone handsfree, noise may
occur, depending on the device or communication environment.
• Depending on the device to be connected, it may require some time to start communication.
Others
• Using the Bluetooth device may not function on cellular phones, depending on radio wave conditions and location where the equipment is being used.
• If you experience discomfort after using the Bluetooth device, stop using the Bluetooth device immediately. Should any problem persist, consult your nearest Sony dealer.
If you have any questions or problems concerning your unit that are not covered in these Operating Instructions, consult your nearest Sony dealer.
57
Maintenance
Removing the unit
Replacing the lithium battery of the remote commander
Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.
+ side up
c
Notes on the lithium battery
Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
Wipe the battery with a dry cloth to assure a good contact.
Be sure to observe the correct polarity when installing the battery.
Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.
WARNING
Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.
Fuse replacement
When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.
Fuse (10A)
1 Remove the protection collar.
x
2 Insert both release keys
simultaneously until they click.
Hook facing inwards.
3 Pull the release keys to unseat the
unit.
4 Slide the unit out of the mounting.
58
Specifications
Monitor section
Display type: Wide LCD color monitor Dimensions: 6.1 in System: TFT active matrix Number of pixels:
1,152,000 pixels (800 × 3 (RGB) × 480)
Color system:
PAL/NTSC/SECAM/PAL-M automatic select
Tuner section
FM
Tuning range: 87.5 – 108.0 MHz Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz Usable sensitivity: 8 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 80 dB (stereo) Separation: 50 dB at 1 kHz Frequency response: 20 – 15,000 Hz
MW/LW
Tuning range:
MW: 531 – 1,602 kHz LW: 153 – 279 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
9,115 kHz or 9,125 kHz/5 kHz
Sensitivity: MW: 26 µV, LW: 46 µV
DVD/CD Player section
Signal-to-noise ratio: 120 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit Harmonic distortion: 0.01% Region code: Labeled on the bottom of the unit
USB Player section
Interface: USB (Full-speed) Maximum current: 1 A
Wireless Communication*
Communication System:
Bluetooth Standard version 2.1 + EDR
Output:
Bluetooth Standard Power Class 2 (Max. +4 dBm)
Maximum communication range:
Line of sight approx. 10 m (33 ft)*
Frequency band:
2.4 GHz band (2.4000 – 2.4835 GHz)
Modulation method: FHSS Compatible Bluetooth Profiles*
A2DP (Advanced Audio Distribution Profile) AVRCP (Audio Video Remote Control Profile) 1.3 HFP (Handsfree Profile) 1.5 PBAP (Phone Book Access Profile) OPP (Object Push Profile)
1
2
3
:
*1 Applies to XAV-64BT only. *2 The actual range will vary depending on factors
such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s performance, operating system, software application, etc.
*3 Bluetooth standard profiles indicate the purpose of
Bluetooth communication between devices.
Power amplifier section
Outputs: Speaker outputs Speaker impedance: 4 – 8 ohms Maximum power output: 52 W × 4 (at 4 ohms)
General
Outputs:
Video output terminal (rear) Audio output terminals (rear/sub switchable) Power antenna (aerial) relay control terminal Power amplifier control terminal
Inputs:
Illumination control terminal Remote controller input terminal Antenna (aerial) input terminal Parking break control terminal Microphone input terminal (XAV-64BT only) Reverse input terminal Camera input terminal AUX audio input terminals (front/rear) AUX video input terminal USB signal input connector
Power requirements: 12 V DC car battery
(negative ground (earth))
Dimensions: Approx. 178 × 100 × 170 mm
1
(7
/8 × 4 × 63/4 in) (w/h/d)
Mounting dimensions: Approx. 182 × 111 × 164 mm
1
(7
/4 × 43/8 × 61/2 in) (w/h/d)
Mass: Approx. 1.9 kg (4 lb 3 oz) Quantity of main unit (1) Supplied accessories:
Remote Commander (1): RM-X170 Parts for installation and connections (1 set) Microphone (1) (XAV-64BT only)
Optional accessories/equipment:
USB and Video connection cable for iPod: RC-202IPV Rear View Camera: XA-R800C
Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.
US and foreign patents licensed from Dolby Laboratories.
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
Design and specifications are subject to change without notice.
59
Region code
The region system is used to protect software copyrights. The region code is located on the bottom of the unit, and only DVDs labeled with an identical region code can be played on this unit.
DVDs labeled can also be played.
If you try to play any other DVD, the message “Playback prohibited by region code.” will appear on the monitor screen. Depending on the DVD, no region code may be labeled even though playing the DVD is prohibited by area restrictions.
ALL
System requirements for using SensMe™
Computer
•CPU/RAM – IBM PC/AT compatible machine – CPU: Intel Pentium III Processor 450 MHz or
higher
– RAM: 256 MB or more (For Windows XP), 512
MB or more (For Windows Vista or later)
• USB port
OS
Windows XP, Windows Vista, Windows 7 For details on compatible editions or Service Packs,
visit the support site on the back cover.
Monitor
High color (16-bit) or more, 800 × 600 pixels or more
Other
Internet connection
Notes
The following system environments are not supported. – Non IBM PC type computers, such as Macintosh,
etc. – Homemade computers – OS upgraded computers – Multi-display environment – Multi-boot environment – Virtual machine environment
Depending on the computer condition, operation may not be possible even with the recommended environment.
60
Troubleshooting
The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.
If the problem is not solved, visit the support site on the back cover.
General
No power is being supplied to the unit.
• Check the connection or fuse.
• If the unit is turned off and the display disappears, it cannot be operated with the remote commander.
t Turn on the unit.
The power antenna (aerial) does not extend.
The power antenna (aerial) does not have a relay box.
There is no beep sound.
• The beep sound is canceled (page 46).
• An optional power amplifier is connected and you are not using the built-in amplifier.
The contents of the memory have been erased.
• The reset button has been pressed.
t Store again into the memory.
• The power supply lead or battery has been disconnected or it is not connected properly.
Stored stations and correct time are erased. The fuse has blown. The unit makes noise when the position of the ignition is switched.
The leads are not matched correctly with the car’s accessory power connector.
The display disappears from/does not appear on the monitor.
• The dimmer is set to “ON” (page 46).
• The display disappears if you press and hold (SOURCE/OFF).
t Press (SOURCE/OFF) on the unit until the
display appears.
• “M.OFF” is set to on and the Monitor Off function is activated (page 12).
t Touch anywhere on the display to turn the display
back on.
The display does not respond to your touch correctly.
• Touch one part of the display at a time. If two or more parts are touched simultaneously, the display will not operate correctly.
• Calibrate the touch panel of the display (page 43).
The Auto Off function does not operate.
The unit is turned on. The Auto Off function activates after turning off the unit. t Exit the source.
Operation of the remote commander is not possible.
If the Monitor Off function is activated (no lighting), operation of the remote commander is not possible (page 12).
The menu items cannot be selected.
Unavailable menu items are displayed in gray.
AUX cannot be selected as the source.
All AUX input settings are set to “OFF.” tSet “Front AUX Input” to “Audio” or “Rear AUX
Input” to “Video” or “Audio” (page 53).
“Front AUX” cannot be selected.
An iPod is connected via the USB connector. tDisconnect the iPod (page 31).
Radio reception
The stations cannot be received. The sound is hampered by noises.
The connection is not correct.
t Connect a power antenna (aerial) control lead
(blue) or accessory power supply lead (red) to the power supply lead of a car’s antenna (aerial) booster (only when your car has built-in radio antenna (aerial) in the rear/side glass).
t Check the connection of the car antenna (aerial). t If the auto antenna (aerial) will not extend, check
the connection of the power antenna (aerial) control lead.
Preset tuning is not possible.
• Store the correct frequency in the memory.
• The broadcast signal is too weak.
Automatic tuning is not possible.
The broadcast signal is too weak.
t Perform manual tuning.
RDS
Seek starts after a few seconds of listening.
The station is non-TP or has weak signal. tDeactivate TA (page 18).
There are no traffic announcements.
• Activate TA (page 18).
• The station does not broadcast any traffic announcements despite being TP.
t Tune in another station.
PTY displays “None.”
• The current station is not an RDS station.
• RDS data has not been received.
• The station does not specify the program type.
The program service name flashes.
There is no alternative frequency for the current station. tTo uch ./> while the program service name
is flashing. “PI Seek” appears and the unit starts searching for another frequency with the same PI (Program Identification) data.
There is no picture/picture noise occurs.
• A connection has not been made correctly.
• Check the connection to the connected equipment, and set the input selector of the equipment to the source corresponding to this unit.
• The disc is defective or dirty.
• Installation is not correct.
t Install the unit at an angle of less than 45° in a
sturdy part of the car.
• The parking cord (light green) is not connected to the parking brake switch cord, or the parking brake is not applied.
The picture does not fit in the screen.
The aspect ratio is fixed on the DVD.
There is no picture/picture noise occurs in the rear monitor.
• A source/mode which is not connected is selected. If there is no input, no picture appears in the rear monitor.
• The color system setting is incorrect.
t Set the color system to “PAL” or “NTSC”
according to the connected monitor (page 46).
• The picture of the rear view camera is displayed on this unit.
t No picture appears in the rear monitor if the
picture of the rear view camera is displayed on this unit.
Sound
There is no sound/sound skips/sound cracks.
• A connection has not been made correctly.
• Check the connection to the connected equipment, and set the input selector of the equipment to the source corresponding to this unit.
• The disc is defective or dirty.
• Installation is not correct.
t Install the unit at an angle of less than 45° in a
sturdy part of the car.
• The MP3 file sampling rate is not 32, 44.1, or 48 kHz.
• The WMA file sampling rate is not 32, 44.1, or 48 kHz.
• The AAC file sampling rate is not 44.1 or 48 kHz.
• The MP3 file bit rate is not 48 to 192 kbps.
• The WMA file bit rate is not 64 to 192 kbps.
• The AAC file bit rate is not 40 to 320 kbps.
• The unit is in pause/reverse/fast-forward mode.
• The settings for the outputs are not made correctly.
• The DVD output level is too low (page 23).
• The volume is too low.
• The ATT function is activated.
• The position of the fader control “Fader” is not set for a 2-speaker system.
• The format is not supported (such as DTS).
t Check if the format is supported by this unit
(page 10).
Sound is noisy.
Keep cords and cables away from each other.
61
Disc operation
The disc cannot be loaded.
• Another disc is already loaded.
• The disc has been forcibly inserted upside down or in the wrong way.
The disc does not play.
• The disc is defective or dirty.
• The disc is not playable.
• The DVD is not playable due to the region code.
• The disc is not finalized (page 55).
• The disc format and file version are incompatible with this unit (page 10, 55).
• Press Z to remove the disc.
MP3/WMA/AAC/JPEG/Xvid/MPEG-4 files do not play.
• Recording was not performed according to the ISO 9660 level 1 or level 2 format or the Joliet or Romeo expansion format (DATA CD), or the UDF Bridge format (DATA DVD) (page 55).
• The file extension is incorrect (page 56).
• Files are not stored in MP3/WMA/AAC/JPEG/Xvid/ MPEG-4 format.
• If the disc contains multiple file types, only the selected file type (audio/video/image) can be played.
tSelect the appropriate file type using the list
(page 32).
MP3/WMA/AAC/JPEG/Xvid/MPEG-4 files take longer to play than others.
The following discs take a longer time to start playback. – a disc recorded with a complicated tree structure. – a disc recorded in Multi Session/Multi Border. – a disc to which data can be added.
The disc does not start playing from the beginning.
Resume playback or multi-disc resume playback (page 52) has taken effect.
Certain functions cannot be performed.
Depending on the disc, you may not be able to perform operations such as stop, search, or repeat/shuffle play. For details, refer to the manual supplied with the disc.
The soundtrack/subtitle language or angle cannot be changed.
• Use the DVD menu instead of the direct selection button on the remote commander (page 19).
• Multilingual tracks, multilingual subtitles, or multi­angles are not recorded on the DVD.
• The DVD prohibits changing.
The operation buttons do not function. The disc will not eject.
Press the reset button (page 15).
USB playback
Items cannot be played via a USB hub.
This unit cannot recognize USB devices via a USB hub.
Items cannot be played.
Reconnect the USB device.
62
The USB device takes longer to play.
The USB device contains large-sized files or files with a complicated tree structure.
A beep sounds.
During playback, the USB device has been disconnected. t Before disconnecting a USB device, make sure to
stop playback first for data protection.
The sound is intermittent.
The sound may be intermittent at a high bit rate of more than 320 kbps.
Bluetooth function (XAV-64BT)
The other Bluetooth device cannot detect this unit.
• Set “Signal” to “ON” (page 39).
• While connecting to a Bluetooth device, this unit cannot be detected from another device. Disconnect the current connection and search for this unit from the other device. The disconnected device can be reconnected by selecting from the list of registered devices.
This unit cannot detect the other Bluetooth device.
Check the Bluetooth setting of the other device.
Connection is not possible.
• Depending on the other device, searching from this unit may not be possible.
t Search for this unit from the other device.
• Depending on the status of the other device, searching from this unit may not be possible.
t Search for this unit from the other device.
• Check the pairing and connection procedures in the manual of the other device, etc., and perform the operation again.
The name of the detected device does not appear.
Depending on the status of the other device, it may not be possible to obtain the name.
There is no ringtone.
• Raise the volume while receiving a call.
• Depending on the connecting device, the ringtone may not be sent properly.
t Set “Ringtone” to “Default” (page 39).
The talker’s voice volume is low.
Raise the volume during a call.
The other party says that the volume is too low or high.
Adjust the “MIC Gain” level (page 38).
Echo or noise occurs during call conversations.
• Reduce the volume.
• “EC/NC Mode” is set to “Mode 1.”
t Set “EC/NC Mode” to “Mode 2” (page 39).
• If ambient noise other than the phone call sound is loud, try reducing this noise.
t Shut the window if road noise is loud. t Lower the air conditioner if the air conditioner is
loud.
The phone sound quality is poor.
Phone sound quality depends on reception conditions of the cellular phone. tMove your car to a place where you can enhance
the cellular phone’s signal if the reception is poor.
The volume of the connected Bluetooth device is low or high.
Volume level will differ depending on the Bluetooth device. tReduce the volume level differences between this
unit and the Bluetooth device (page 39).
No sound is output during audio streaming.
The connected Bluetooth device is paused. tCancel pause of the Bluetooth device.
The sound skips during audio streaming.
• Reduce the distance between the unit and the Bluetooth device.
• If the Bluetooth device is stored in a case which interrupts the signal, remove the case while using the device.
• Several Bluetooth devices or other devices which emit radio waves are used nearby.
t Turn off the other devices. t Increase the distance from the other devices.
• The playback sound stops momentarily when this unit is connecting to a cellular phone. This is not a malfunction.
You cannot control the connected Bluetooth device during audio streaming.
Check that the connected Bluetooth device supports AV R C P .
Some functions do not work.
Check that the connecting device supports the functions in question.
The name of the other party does not appear when a call is received.
• The other party is not stored in the phonebook.
t Add the other party to the phonebook of the
connected cellular phone.
• The calling phone is not set to send the phone number.
A call is answered unintentionally.
• The connecting phone is set to start a call automatically.
• “Auto Answer” of this unit is set to “Short” or “Long” (page 39).
Pairing failed due to time out.
Depending on the connecting device, the time limit for pairing may be short. Try completing the pairing within the time by inputting the passkey “0000.”
The Bluetooth function cannot be operated.
Exit the source by pressing and holding (SOURCE/OFF) for 1 second, then turn on the unit.
No sound is output from the car speakers during a handsfree call.
If the sound is output from the cellular phone, set the cellular phone to output the sound from the car speakers.
Error displays/messages
Cannot read.
• The unit cannot read the data due to some problem.
• The data is damaged or corrupted.
• The disc is corrupted.
• The disc is incompatible with this unit.
• The disc is not finalized.
Disc Error
• The disc is dirty or inserted upside down.
t Clean or insert the disc correctly.
• A blank disc has been inserted.
• The disc cannot play due to a problem.
t Insert another disc.
• The disc is not compatible with this unit.
t Insert a compatible disc.
• Press Z to remove the disc.
Disc Reading...
The unit is reading all file/album (folder) information on the disc. t Wait until reading is complete and playback starts
automatically. Depending on the disc structure, it may take more than a minute.
Error
For XAV-64BT and XAV-63
• The USB device was not automatically recognized.
t Reconnect it again.
For XAV-64BT only
• Phonebook content has changed during cellular phone access.
t Access the phonebook again.
• Phonebook access was disconnected by the cellular phone.
t Access the phonebook again.
• Phonebook browsing from the cellular phone failed due to a problem.
t Retry browsing (page 36).
• Phonebook listing from the cellular phone failed due to a problem.
t Retry listing (page 36).
Handsfree device is not available.
A cellular phone is not connected. t Connect a cellular phone (page 35).
Hubs not supported.
USB hubs are not supported on this unit.
Local Seek +/Local Seek –
The local seek mode is on during automatic tuning.
No AF
There is no alternative frequency for the current station.
No playable data.
The disc does not contain playable data.
No SensMe™ data on device.
The connected USB device does not contain data for the SensMe™ function, or the data has been moved to an improper location on the USB device.
No TP
The unit will continue searching for available TP stations.
63
Offset
There may be an internal malfunction. t Check the connection. If the error indication
remains on the display, consult your nearest Sony dealer.
Output connection failure.
The connection of speakers/amplifiers is incorrect. t See the supplied “Installation/Connections” guide
to check the connection.
Overcurrent Caution on USB
The USB device is overloaded. t Disconnect the USB device, then change the source
by pressing (SOURCE/OFF).
t Indicates that the USB device is out of order, or an
unsupported device is connected.
Playback prohibited by region code.
The DVD’s region code differs from the unit’s region code.
Please push reset.
This unit or USB device cannot be operated due to a problem. t Press the reset button (page 15).
SensMe™ data Reading...
The unit is reading all data for the SensMe™ function in the connected USB device. t Wait until reading is complete. Depending on the
amount of data, etc., it may take time.
The connected USB device is not supported.
For details on the compatibility of your USB device, visit the support site on the back cover.
The SensMe™ data is corrupted.
The data for the SensMe™ function has a problem, such as altered file name, information, etc.
USB device is not connected.
USB is selected as source without a USB device connected. A USB device or a USB cable has been disconnected during playback. t Be sure to connect a USB device and USB cable.
USB Reading...
The unit is reading all file/album (folder) information in the connected USB device. t Wait until reading is complete and playback starts
automatically. Depending on the structure, it may take time.
“” or “”
During reverse or fast-forward, you have reached the beginning or the end of the disc and you cannot go any further.
“”
The character cannot be displayed with the unit.
If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of disc playback trouble, bring the disc that was used at the time the problem began.
64
Language code/area code list
Language code list
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language Code Language Code Language Code Language
1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali;
Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian
1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian;
Lettish
1345 Malagasy
1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan)Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto;
Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-
Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-
Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian
1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu
1703 Not specified
65
Asegúrese de instalar esta unidad en el tablero del automóvil por razones de seguridad. Para realizar la instalación y las conexiones, consulte la guía “Instalación/Conexiones” suministrada.
Acerca de este manual
• Este manual contiene instrucciones para los modelos XAV-64BT y XAV-63.
• XAV-64BT es el modelo que se utiliza de manera representativa con fines ilustrativos.
• Las descripciones y las funciones de Bluetooth corresponden sólo al modelo XAV-64BT.
Advertencia
Para evitar el riesgo de incendio o electrocución, no exponga la unidad a la lluvia ni a la humedad. Para evitar recibir descargas eléctricas, no abra el aparato. Solicite asistencia técnica únicamente a personal especializado.
PRECAUCIÓN
El uso de instrumentos ópticos con este producto aumenta el riesgo de sufrir daños oculares. No intente desmontar la carcasa, puesto que el haz láser utilizado en este reproductor de CD/DVD es perjudicial para los ojos. Solicite asistencia técnica únicamente a personal especializado.
Aviso para los clientes: la información siguiente resulta de aplicación solo a los equipos comercializados en países afectados por las directivas de la UE.
El fabricante de este producto es Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japón. El representante autorizado para EMC y seguridad en el producto es Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Alemania. Para cualquier asunto relacionado con servicio o garantía por favor diríjase a la dirección indicada en los documentos de servicio o garantía adjuntados con el producto.
Tratamiento de los equipos eléctricos y electrónicos al final de su vida útil (aplicable en la Unión Europea y en países europeos con sistemas de tratamiento selectivo de residuos)
Este símbolo en el equipo o en su embalaje indica que el presente producto no puede ser tratado como residuos doméstico normal. Debe entregarse en el correspondiente punto de recogida de equipos eléctricos y electrónicos. Al asegurarse de que este producto se desecha correctamente, usted ayuda a prevenir las consecuencias potencialmente negativas para el medio ambiente y la salud humana que podrían derivarse de la incorrecta manipulación en el momento de deshacerse de este producto. El reciclaje de materiales ayuda a conservar los recursos naturales. Para recibir información detallada sobre el reciclaje de este producto, póngase en contacto con el ayuntamiento, el punto de recogida más cercano o el establecimiento donde ha adquirido el producto.
Esta etiqueta está situada en la parte inferior del chasis.
2
Tratamiento de las baterías al final de su vida útil (aplicable en la Unión Europea y en países europeos con sistemas de tratamiento selectivo de residuos)
Este símbolo en la batería o en el embalaje indica que la batería proporcionada con este producto no puede ser tratada como un residuo doméstico normal. En algunas baterías este símbolo puede utilizarse en combinación con un símbolo químico. El símbolo químico del mercurio (Hg) o del plomo (Pb) se añadirá si la batería contiene más del 0,0005% de mercurio o del 0,004% de plomo. Al asegurarse de que estas baterías se desechan correctamente, usted ayuda a prevenir las consecuencias potencialmente negativas para el medio ambiente y la salud humana que podrían derivarse de la incorrecta manipulación en el momento de deshacerse de la batería. El reciclaje de materiales ayuda a conservar los recursos naturales. En el caso de productos que por razones de seguridad, rendimiento o mantenimiento de datos sea necesaria una conexión permanente con la batería incorporada, esta batería solo deberá ser reemplazada por personal técnico cualificado para ello. Para asegurarse de que la batería será tratada correctamente, entregue el producto al final de su vida útil en un punto de recogida para el reciclado de aparatos eléctricos y electrónicos. Para las demás baterías, consulte la sección donde se indica cómo extraer la batería del producto de forma segura. Deposite la batería en el correspondiente punto de recogida para el reciclado de baterías. Para recibir información detallada sobre el reciclaje de este producto o de la batería, póngase en contacto con el ayuntamiento, el punto de recogida más cercano o el establecimiento donde ha adquirido el producto.
Nota sobre la pila de litio
No exponga la pila a fuentes de calor excesivo como luz solar directa, fuego o similar.
Advertencia: si el encendido del coche no dispone de una posición ACC
Asegúrese de ajustar la función de desconexión automática (página 48). La unidad se apagará automáticamente a la hora programada si no se selecciona ninguna fuente, lo que evitará que se consuma la pila. Si no ajusta la función de desconexión automática, mantenga pulsado (SOURCE/OFF) hasta que se apague la pantalla cada vez que apague el encendido del coche.
Para cancelar la pantalla de demostración (Demo), consulte la página 52.
El apartado siguiente hace referencia únicamente al modelo XAV-64BT:
La placa de características que indica el voltaje de funcionamiento, etc., está situada en la parte inferior del chasis.
Por medio de la presente, Sony Corp. declara que el XAV-64BT cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Para mayor información, por favor consulte el siguiente URL: http://www.compliance.sony.de/
Italia: La utilización de la red RLAN está regida por:
– en lo relacionado con el uso privado, por el
decreto legislativo del 1/8/2003, n.º 259 (“Code of Electronic Communications” (Código de comunicaciones electrónicas)). En particular, el artículo 104 indica los casos en los que es necesario obtener una autorización general previa y el artículo 105 indica cuándo se permite un uso libre;
– en lo relacionado con el suministro al público
en general del acceso RLAN a redes y servicios de telecomunicaciones, por el decreto ministerial del 28/5/2003, enmendado por el artículo 25 (autorización general de las redes y servicios de comunicaciones electrónicas) del código de comunicaciones electrónicas.
Noruega: La utilización de este equipo de radio no está permitida en el área geográfica situada en un radio de 20 km desde el centro de Ny-Alesund, Svalbard.
3
Tabla de contenido
Notas sobre seguridad . . . . . . . . . . . . . . . . . . . .7
Notas sobre la instalación. . . . . . . . . . . . . . . . . .7
Derechos de autor. . . . . . . . . . . . . . . . . . . . . . . .8
Notas sobre la función Bluetooth
(XAV-64BT únicamente). . . . . . . . . . . . . . . . . .9
Discos que se pueden reproducir y símbolos utilizados en este Manual de instrucciones . . .10
Ubicación y funcionamiento de los controles/
terminales . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Unidad principal . . . . . . . . . . . . . . . . . . . . .11
RM-X170 Mando a distancia . . . . . . . . . . .13
Procedimientos iniciales
Restablecimiento de la unidad . . . . . . . . . . . . .15
Configuración de los ajustes iniciales . . . . . . .15
Ajuste del reloj. . . . . . . . . . . . . . . . . . . . . . . . .15
Preparación del mando a distancia. . . . . . . . . .15
Radio
Escuchar la radio . . . . . . . . . . . . . . . . . . . . . . .16
Controles de recepción . . . . . . . . . . . . . . . .16
Indicaciones de recepción . . . . . . . . . . . . . .17
Almacenamiento y recepción de emisoras. . . .17
Almacenamiento automático — BTM . . . .17
Almacenamiento manual. . . . . . . . . . . . . . .17
Recepción de emisoras almacenadas . . . . . . 17
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Descripción general. . . . . . . . . . . . . . . . . . .18
Ajuste de AF y TA . . . . . . . . . . . . . . . . . . .18
Selección de PTY . . . . . . . . . . . . . . . . . . . .19
Ajuste de CT . . . . . . . . . . . . . . . . . . . . . . . .19
Discos
Reproducción de discos. . . . . . . . . . . . . . . . . . 20
Controles de reproducción . . . . . . . . . . . . . 20
Indicaciones de reproducción . . . . . . . . . . . 22
Uso de las funciones PBC (control de
reproducción). . . . . . . . . . . . . . . . . . . . . . . . . . 22
Configuración de los ajustes de audio . . . . . . . 23
Cambio del idioma/formato de audio. . . . . 23
Cambio del canal de audio . . . . . . . . . . . . . 23
Ajuste del nivel de salida de audio
— Nivel de Dolby D. . . . . . . . . . . . . . . . . . 23
Reproducción aleatoria y repetición . . . . . . . . 24
Reproducción de búsqueda directa . . . . . . . . . 25
Operaciones con el dispositivo USB
Reproducción desde un dispositivo USB . . . . 25
Reproducción aleatoria y repetición . . . . . . . . 26
Disfrute de la música según su estado de ánimo
— SensMe™ . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Antes de utilizar la función SensMe™. . . . 26
Instalación de “SensMe™ Setup” y “Content
Transfer” en el ordenador. . . . . . . . . . . . . . 27
Registro de un dispositivo USB mediante
“SensMe™ Setup” . . . . . . . . . . . . . . . . . . . 27
Transferencia de pistas al dispositivo USB
mediante “Content Transfer” . . . . . . . . . . . 27
Reproducción de pistas en canales
— canales SensMe™ . . . . . . . . . . . . . . . . . 28
Reproducción de pistas en mapas de ánimo
— ánimo SensMe™ . . . . . . . . . . . . . . . . . . 29
Búsqueda de una pista escuchando pasajes de
pistas — ZAPPIN™ . . . . . . . . . . . . . . . . . . . . 30
Operaciones con el iPod
Reproducción de un iPod. . . . . . . . . . . . . . . . . 31
Ajuste del modo de reproducción . . . . . . . . . . 31
Reproducción aleatoria y repetición . . . . . . . . 32
Control directo de un iPod
— Aplicación de control de pasajero . . . . . . . 32
4
Funciones útiles
Ajuste del sonido
Obtención de una lista de archivos de pistas/
imágenes/vídeo — Lista . . . . . . . . . . . . . . . . . 33
Selección de un archivo de pistas/imágenes/
vídeo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Selección de un tipo de archivo . . . . . . . . . 33
Uso de Comando por movimientos. . . . . . . . . 33
Llamada de manos libres y transmisión de audio — La función Bluetooth (XAV-64BT únicamente)
Antes de utilizar la función Bluetooth. . . . . . . 34
Procedimiento básico de la función
Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Indicaciones de estado de Bluetooth. . . . . . 35
Instalación del micrófono . . . . . . . . . . . . . . 35
Emparejamiento. . . . . . . . . . . . . . . . . . . . . . . . 35
Conexión . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Llamada de manos libres. . . . . . . . . . . . . . . . . 37
Realización de llamadas . . . . . . . . . . . . . . . 37
Recepción de llamadas . . . . . . . . . . . . . . . . 39
Operaciones durante una llamada. . . . . . . . 39
Administración de datos de llamada . . . . . . . . 40
Marcación predefinida . . . . . . . . . . . . . . . . 40
Transmisión de audio . . . . . . . . . . . . . . . . . . . 40
Escuchar un dispositivo Bluetooth a través de
esta unidad . . . . . . . . . . . . . . . . . . . . . . . . . 40
Funcionamiento del dispositivo Bluetooth con
esta unidad . . . . . . . . . . . . . . . . . . . . . . . . . 40
Ajustes de Bluetooth . . . . . . . . . . . . . . . . . . . . 41
Selección de la calidad de sonido — EQ7 . . . 42
Personalización de la curva de ecualizador —
Sintonía EQ7 . . . . . . . . . . . . . . . . . . . . . . . 42
Ajuste de las características del sonido. . . . . . 42
Optimización del sonido para la posición de escucha — Alineamiento inteligente de
tiempo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Calibración de la posición de escucha
— Ajuste de Alineamiento inteligente de
tiempo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Configuración del altavoz y ajuste de
volumen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Creación de un altavoz central virtual
— CSO. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Uso de los altavoces posteriores como
altavoces de subgraves
— Potenciador de graves posterior . . . . . . 44
Ajuste del volumen del altavoz . . . . . . . . . 44
Ajuste del monitor
Calibración del panel táctil. . . . . . . . . . . . . . . 45
Ajuste de la pantalla de fondo. . . . . . . . . . . . . 45
Ajuste de la imagen — Picture EQ. . . . . . . . . 45
Personalización de la imagen. . . . . . . . . . . 46
Selección de la relación de aspecto. . . . . . . . . 46
5
Ajustes
Operación de ajuste básica. . . . . . . . . . . . . . . .47
Ajustes generales . . . . . . . . . . . . . . . . . . . . . . .48
Ajustes de sonido . . . . . . . . . . . . . . . . . . . . . . .50
Ajustes de pantalla . . . . . . . . . . . . . . . . . . . . . .52
Ajustes de DVD y de otros tipos de
reproducción. . . . . . . . . . . . . . . . . . . . . . . . . . .53
Uso de un equipo opcional
Equipo de audio/vídeo auxiliar . . . . . . . . . . . .55
Cámara de visualización posterior . . . . . . . . . .55
Ajustes de la cámara de visualización
posterior. . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Información adicional
Precauciones. . . . . . . . . . . . . . . . . . . . . . . . . . .57
Notas sobre el panel LCD . . . . . . . . . . . . . .57
Notas sobre los discos . . . . . . . . . . . . . . . . .57
Orden de reproducción de los archivos MP3/
WMA/AAC/JPEG/Xvid/MPEG-4 . . . . . . .58
Acerca de los archivos MP3 . . . . . . . . . . . .58
Acerca de los archivos WMA . . . . . . . . . . .58
Acerca de los archivos AAC . . . . . . . . . . . .59
Acerca de los archivos JPEG. . . . . . . . . . . .59
Acerca de los archivos MPEG-4 . . . . . . . . .59
Acerca de iPod. . . . . . . . . . . . . . . . . . . . . . .59
Acerca de la función Bluetooth . . . . . . . . . . 59
Mantenimiento . . . . . . . . . . . . . . . . . . . . . . . . .61
Extracción de la unidad . . . . . . . . . . . . . . . . . .61
Especificaciones. . . . . . . . . . . . . . . . . . . . . . . .62
Solución de problemas. . . . . . . . . . . . . . . . . . .63
Mensajes/indicaciones de error . . . . . . . . . .67
Código de idioma/lista de códigos de zona . . .69
6
Notas sobre seguridad
Notas sobre la instalación
• Cumpla con las normas, leyes y regulaciones de tráfico locales.
• Durante la conducción – No observe ni manipule la unidad, ya que puede
ser motivo de distracción y causar un accidente. Estacione el vehículo en un lugar seguro para observar o manipular la unidad.
– No utilice la función de configuración ni
ninguna otra función que pudiera desviar su atención de la carretera.
Cuando conduzca marcha atrás,
asegúrese de mirar atrás y de observar los alrededores cuidadosamente para su seguridad, incluso si la cámara de visualización posterior está conectada. No confíe exclusivamente en la cámara de visualización posterior.
• Durante el funcionamiento de la unidad – No introduzca manos, dedos ni ningún objeto
extraño en la unidad, ya que podría causar desperfectos o daños a la unidad.
– Mantenga los elementos pequeños fuera del
alcance de los niños.
– Abróchese los cinturones de seguridad para
evitar lesiones en caso de movimiento brusco del vehículo.
Prevención de accidentes
Las imágenes solamente aparecen cuando el vehículo está estacionado y con el freno de mano puesto. Si el vehículo se mueve durante la reproducción de vídeos, la imagen se envía automáticamente a la pantalla de fondo tras mostrar el siguiente mensaje de precaución.
“Video bloqueado por su seguridad.”
El monitor conectado a la salida REAR VIDEO OUT está activo mientras el vehículo está en movimiento. La imagen del monitor se envía a la pantalla de fondo, pero la fuente de audio continúa oyéndose.
No manipule la unidad ni observe el monitor mientras conduzca.
• Se recomienda que un técnico o personal de servicio cualificado instale esta unidad. – Si intenta instalar esta unidad por su cuenta,
consulte la guía “Instalación/Conexiones” suministrada e instale la unidad correctamente.
– Una instalación incorrecta puede causar un
cortocircuito o agotar la batería.
• Si la unidad no funciona correctamente, compruebe las conexiones en primer lugar; para ello, consulte la guía “Instalación/Conexiones” suministrada. Si todo está en orden, compruebe el fusible.
• Proteja la superficie de la unidad de posibles daños. – No exponga la superficie de la unidad a
productos químicos, como insecticidas, lacas, repelentes de insectos, etc.
– No deje materiales de goma o plástico en
contacto con la unidad durante mucho tiempo. De lo contrario, el acabado de la unidad podría resultar dañado o deformarse.
• Durante la instalación, asegúrese de fijar la unidad con seguridad.
• Durante la instalación, asegúrese de desactivar el encendido. Si instala la unidad con el encendido activado, podría causar un cortocircuito o agotar la batería.
• Durante la instalación, asegúrese de no dañar ninguna pieza del vehículo como, por ejemplo, los conductos, los tubos, el depósito de combustible o el cableado mediante el uso del taladro, ya que podría causar un incendio o un accidente.
7
Derechos de autor
Fabricado con la licencia de Dolby Laboratories. Dolby y el símbolo de la doble D son marcas comerciales de Dolby Laboratories.
Microsoft, Windows, Windows Vista y Windows Media y los logotipos son marcas comerciales o marcas comerciales registradas de Microsoft Corporation en los Estados Unidos y en otros países.
Este producto incluye tecnología sujeta a derechos de propiedad intelectual de Microsoft. Queda prohibido el uso o distribución de esta tecnología fuera de este producto sin las licencias correspondientes de Microsoft.
“DVD VIDEO”, “DVD-R”, “DVD-RW”, “DVD+R” y “DVD+RW” son marcas comerciales.
La marca de la palabra y logotipos de Bluetooth son propiedad de Bluetooth SIG, Inc. y Sony Corporation posee licencia para utilizar cualquiera de dichas marcas. Otras marcas registradas y nombres comerciales pertenecen a sus respectivos propietarios.
ZAPPIN es una marca comercial de Sony Corporation.
12 TONE ANALYSIS y su logotipo son marcas comerciales de Sony Corporation.
“WALKMAN” y el logotipo de “WALKMAN” son marcas comerciales registradas de Sony Corporation.
SensMe y el logotipo SensMe son marcas comerciales o marcas comerciales registradas de Sony Ericsson Mobile Communications AB.
La tecnología de reconocimiento de música y los datos afines son proporcionados por Gracenote®. Gracenote es la norma de la industria en tecnología de reconocimiento de música y entrega de contenidos afines. Si desea más información, visite www.gracenote.com.
Los derechos de autor de CD, DVD, discos Blu-ray y datos relacionados con la música y los vídeos de Gracenote, Inc. (copyright © 2000) son propiedad ahora de Gracenote. Los derechos de autor de Gracenote Software (copyright © 2000) son propiedad ahora de Gracenote. Una o varias patentes propiedad de Gracenote son aplicables a este producto y servicio. Consulte el sitio web de Gracenote para acceder a una lista no exhaustiva de las patentes de Gracenote aplicables.
Gracenote, CDDB, MusicID, MediaVOCS, el logotipo Gracenote y el logotipo “Powered by Gracenote” son marcas comerciales registradas o marcas comerciales de Gracenote en Estados Unidos y otros países.
Este producto utiliza datos de fuente con licencia de Sony, otorgada por Monotype Imaging Inc. o sus filiales.
iPhone, iPod, iPod classic, iPod nano y iPod touch son marcas comerciales de Apple Inc., registradas en Estados Unidos y otros países.
Apple, Macintosh y iTunes son marcas comerciales de Apple Inc., registradas en Estados Unidos y otros países.
ESTE PRODUCTO HA SIDO CONCEDIDO BAJO LICENCIA DE ACUERDO CON EL CONTRATO DE LICENCIA DE CARTERA DE PATENTES MPEG-4 VISUAL, PARA EL USO PERSONAL CON FINES NO COMERCIALES POR PARTE DE UN CONSUMIDOR PARA LA DESCODIFICACIÓN DE VÍDEOS MPEG-4 QUE HAYAN SIDO CODIFICADOS POR UN CONSUMIDOR QUE REALICE UNA ACTIVIDAD PERSONAL CON FINES NO COMERCIALES Y/O SE HAYA OBTENIDO DE UN PROVEEDOR DE VÍDEO AL CUAL SE LE HAYA CONCEDIDO UNA LICENCIA DE MPEG­4, OTORGADA POR MPEG LA. NO SE CONCEDE LICENCIA ALGUNA PARA NINGÚN OTRO USO. PARA OBTENER MÁS INFORMACIÓN, LO QUE INCLUYE LA INFORMACIÓN RELACIONADA CON LA CONCESIÓN DE LICENCIAS Y LOS USOS PROMOCIONALES, INTERNOS Y COMERCIALES, CONSULTE LA PÁGINA WEB DE MPEG LA, LLC. CONSULTE HTTP://WWW.MPEGLA.COM.
Todas las demás marcas comerciales son marcas comerciales de sus respectivos propietarios.
8
Notas sobre la función Bluetooth (XAV-64BT únicamente)
Precaución
EN NINGÚN CASO, SONY SERÁ RESPONSABLE DE NINGÚN DAÑO INCIDENTAL, INDIRECTO O RESULTANTE NI DE OTROS DAÑOS, INCLUIDOS, A TÍTULO MERAMENTE ENUNCIATIVO, PÉRDIDA DE BENEFICIOS, PÉRDIDA DE INGRESOS, PÉRDIDA DE DATOS, PÉRDIDA DE USO DEL PRODUCTO O CUALQUIER EQUIPO ASOCIADO, TIEMPO DE INACTIVIDAD Y TIEMPO DEL COMPRADOR RELACIONADO O QUE SURJA DEL USO DE ESTE PRODUCTO, SU HARDWARE Y/O SU SOFTWARE.
¡AVISO IMPORTANTE!
Uso seguro y eficaz
Los cambios o modificaciones realizados a esta unidad que no sean expresamente aprobados por Sony podrían invalidar el permiso del usuario para utilizar el equipo. Compruebe las excepciones, debido a requisitos o limitaciones nacionales, en el uso del equipo de Bluetooth antes de utilizar este producto.
Conducción
Verifique las leyes y regulaciones sobre el uso de teléfonos móviles y equipos de manos libres en las áreas donde conduzca. Siempre preste toda su atención cuando maneje, salga del camino y estaciónese antes de realizar o contestar una llamada si las condiciones de conducción así lo requieren.
Conexión a otros dispositivos
Cuando se conecte a cualquier otro dispositivo, lea la guía del usuario para obtener instrucciones detalladas sobre seguridad.
Exposición a radiofrecuencia
Las señales de radiofrecuencia pueden afectar a los sistemas electrónicos instalados en forma incorrecta o mal protegidos en los automóviles, como sistemas de inyección electrónica de combustible, sistemas de freno electrónico antideslizante (antibloqueo), sistemas de control electrónico de la velocidad o sistemas de bolsas de aire. Para obtener información sobre la instalación o servicio de este dispositivo, consulte con el fabricante o con el representante de su automóvil. Una instalación o servicio defectuosos podría ser peligrosa e invalidar cualquier garantía que se aplicara a este dispositivo. Consulte con el fabricante del automóvil para asegurarse de que el uso del teléfono móvil en el automóvil no afectará su sistema electrónico. Compruebe periódicamente que todos los equipos del dispositivo inalámbrico en el vehículo estén instalados y que funcionen correctamente.
Llamadas de emergencia
Este sistema de manos libres Bluetooth para automóvil y el dispositivo electrónico conectado a dicho sistema funcionan con señales de radio, redes de telefonía celular y fija, así como con una función programada por el usuario, la cual no puede garantizar una conexión en todas las condiciones. Por lo tanto, no confíe únicamente en un dispositivo electrónico para comunicaciones esenciales (como emergencias médicas). Recuerde, a fin de realizar o recibir llamadas, el sistema de manos libres y el dispositivo electrónico conectado a éste se deben activar en un área de servicio con intensidad de señal celular adecuada. Tal vez no se puedan realizar llamadas de emergencia en todas las redes de telefonía celular o cuando ciertos servicios de redes y/o funciones telefónicas estén en uso. Verifique con el proveedor de servicio local.
9
Discos que se pueden reproducir y símbolos utilizados en este Manual de instrucciones
Esta unidad puede reproducir distintos tipos de discos de vídeo o audio. La siguiente tabla le ayudará a comprobar si un disco en particular es compatible con esta unidad, así como las funciones disponibles para un tipo de disco determinado.
Símbolo del disco en el manual Formato del disco
DVD VIDEO
DVD-R*
1
/DVD-R DL*1/DVD-RW*
(modo vídeo/modo VR)
VÍDEO
DVD+R*
1
/DVD+R DL*1/DVD+RW*
Video CD
(Ver. 1.0/1.1/2.0)
Audio CD
AUDIO
*1 Los archivos de audio también se pueden almacenar. *2 Los archivos de vídeo/imagen también se pueden almacenar.
Nota
El término “DVD” se utiliza a veces en este Manual de instrucciones como término genérico para discos DVD VIDEO, DVD-R/DVD-RW y DVD+R/DVD+RW.
CD-ROM*
2
/CD-R*2/CD-RW*
La tabla siguiente presenta los tipos de archivo admitidos y sus símbolos. Las funciones disponibles varían en función del formato, independientemente del tipo de disco. Los siguientes símbolos de formato aparecen en este Manual de instrucciones junto a la descripción de las funciones disponibles con los tipos de archivo correspondientes.
1
1
2
Símbolo del formato en el manual Tipo de archivo
Archivo de audio MP3
Archivo de audio WMA
Archivo de audio AAC
Archivo de imagen JPEG
Archivo de vídeo Xvid
MPEG-4
Sugerencia
Para obtener más información sobre los formatos de compresión, consulte la página 58.
Nota
Es posible que incluso los discos compatibles no puedan reproducirse en esta unidad, en función de sus condiciones de grabación.
Archivo de vídeo MPEG-4
10
Ubicación y funcionamiento de los controles/terminales
Unidad principal
Para obtener más información, consulte las páginas indicadas a continuación.
A Botón Z (expulsión) página 20
B Botón Restablecer página 15
C Receptor del mando a distancia
D Ranura del disco página 20
E Botón TOP
Para el modelo XAV-64BT
Presione este botón para abrir el menú superior.
Para el modelo XAV-63
Presione este botón para abrir la lista de fuentes.
F Terminal AUX frontal página 55
G Terminal USB
Extraiga la tapa para conectar un dispositivo USB.
H Rueda de control del volumen
I Botón SOURCE/OFF
Presione para encender/cambiar la fuente: “Sintonizador” (radio), “Disco”, “iPod/ USB”, “AUX” (equipo auxiliar), “Audio BT” (audio Bluetooth)*. Mantenga el botón pulsado durante 1 segundo para salir de la fuente. Mantenga el botón pulsado durante más de 2 segundos para apagar la unidad.
J Pantalla/panel táctil
* Disponible sólo en XAV-64BT.
11
Visualizaciones de pantalla
Sin ninguna fuente seleccionada:
12
A Tecla “Lista fuentes”
Toque esta tecla para abrir la lista de fuentes.
B Tecla “Arriba”
XAV-64BT
Toque esta tecla para abrir el menú superior.
Lista fuentes Arriba
XAV-63
Toque esta tecla para abrir la lista de fuentes.
C Reloj página 15, 52
D Tecla (Cerrar)
Toque esta tecla para cerrar el menú.
Menú superior (sólo el modelo XAV-64BT):
45 67
ATT
89
Lista de fuentes:
45 6
ATT Top
3
M.OFF
qa
E Tecla “ATT” (Atenuar)*
1
Toque esta tecla para atenuar el sonido. Para cancelar esta función, vuelva a tocar la tecla.
F Tecla (Ajuste)
Toque esta tecla para abrir el menú de ajustes.
G Tecla “M.OFF” (Monitor desactivado)
Toque esta tecla para apagar el monitor y la iluminación del botón. Para volver a encenderlos, toque cualquier parte de la pantalla.
H Tecla “Fuente AV”*
2
Toque para abrir la lista de fuentes.
I Tecla “Teléfono BT”*
2
Toque para entrar en el modo Teléfono Bluetooth.
J Teclas de selección de fuentes
Toque para cambiar la fuente: “Sintonizador” (radio), “Disco”, “AUX” (equipo auxiliar), “iPod/USB”, “SensMe™”, “Audio BT” (audio Bluetooth)*
2
.
K Tecla “Arriba”/tecla “M.OFF”
Esta tecla cambia según el modelo. XAV-64BT: Tecla “Arriba” XAV-63: Tecla “M.OFF” Consulte más arriba para ver la función de cada tecla.
*1 Sólo aparece cuando se selecciona una fuente. *2 Disponible sólo en el modelo XAV-64BT. *3 “Audio BT” aparece sólo en el modelo XAV-64BT.
12
0
3
*
RM-X170 Mando a distancia
1
2
8 9 q;
3 4
5
6
7
• El mando a distancia se puede usar para utilizar los controles de audio. Para utilizar el menú, use el panel táctil.
• Para obtener más información, consulte las páginas indicadas a continuación.
• Retire la película de aislamiento antes de utilizar el mando a distancia de tarjeta (página 15).
A Botón OFF
Pulse este botón para salir de la fuente o detenerla. Manténgalo pulsado para apagar la unidad.
B Botón MONITOR OFF
Pulse este botón para apagar el monitor y la iluminación del botón. Para volver a encenderlos, vuelva a pulsar el botón.
C Botón POSITION
Pulse este botón para cambiar la posición de escucha (“Delant. I”/“Delant. D”/“Delant.”/ “Todo”/“Personaliz.”/“DESACT.”).
qa
qs qd
qf qg
qh
D Botón O (Volver)
Pulse este botón para volver a la pantalla anterior o volver al menú de un VCD*
E Botón EQ (Ecualizador)
Puede seleccionar una curva de ecualizador entre 7 tipos de música (“Xplod”/“Vocal”/ “Vanguar”/“Vuelo”/“Espacial”/“Gravedad”/ “Personal”/“DESACT.”).
F Botones numéricos página 25
Radio:
Pulse este botón para recibir las emisoras almacenadas. Manténgalo pulsado para almacenar las emisoras.
Disc/USB:
Pulse este botón para ir a un título/capítulo/ pista.
G Botón CLEAR
Pulse este botón para eliminar un número previamente introducido.
1
.
13
H Botón ATT (Atenuar)
Pulse este botón para atenuar el sonido. Para cancelar esta función, vuelva a pulsar el botón.
I Botón u (Reproducir/Pausa)
J Botones .m/M>
Radio:
Pulse este botón para sintonizar emisoras automáticamente. Manténgalo pulsado para buscar una emisora manualmente.
2
Disco*
/USB:
Pulse este botón para saltar un capítulo/pista/ escena/archivo. Manténgalo pulsado momentáneamente para retroceder o avanzar rápidamente en el vídeo. Manténgalo pulsado para retroceder o avanzar rápidamente en una pista. Audio Bluetooth*
3*4
:
Presione para omitir una pista. Mantenga presionado para retroceder/ avanzar rápidamente la pista.
K Botones de configuración de
reproducción del DVD
(AUDIO):
Pulse este botón para cambiar el idioma/ formato de audio. (En un VCD/CD/MP3/WMA/AAC/ MPEG-4, permite cambiar el canal de audio.)
(SUBTITLE):
Pulse este botón para cambiar el idioma de los subtítulos.
(ANGLE):
Pulse este botón para modificar el ángulo de visión.
(TOP MENU):
Pulse este botón para abrir el menú superior de un DVD.
(MENU):
Pulse este botón para abrir el menú de un disco.
N Botón SRC (Fuente)
Presione para encender/cambiar la fuente: “Sintonizador” (radio), “Disco”, “iPod/ USB”, “AUX” (equipo auxiliar), “Audio BT” (audio Bluetooth)*
5
.
O Botón MODE
Pulse este botón para seleccionar la banda de radio (FM/MW/LW) o un dispositivo auxiliar (AUX Frontal/AUX Posterior)*
6
.
P Botones VOL (Volumen) +/–
*1 Cuando la reproducción se realiza con las
funciones PBC.
*2 El funcionamiento varía en función del tipo de
disco (página 21).
*3 El funcionamiento difiere en función del dispositivo
Bluetooth conectado.
*4 Corresponde sólo al modelo XAV-64BT. *5 Disponible sólo en XAV-64BT. *6 Cuando se utilizan dos dispositivos auxiliares.
Nota
El mando a distancia no funciona cuando la unidad está apagada y la pantalla ha desaparecido. Pulse (SOURCE/OFF) en la unidad principal o inserte un disco para activar la unidad y poder controlar su funcionamiento mediante el mando a distancia.
L Botón ZAP
Pulse este botón para acceder al modo ZAPPIN™.
M Botones </M/m/, (Cursor)/ENTER
página 20
Pulse estos botones para controlar el menú de un DVD.
14
Procedimientos iniciales
Restablecimiento de la unidad
Antes de utilizar la unidad por primera vez o después de sustituir la batería del vehículo o de cambiar las conexiones, debe restablecerla. Pulse el botón Restablecer (página 11) con un objeto puntiagudo como, por ejemplo, un bolígrafo.
Nota
Si pulsa el botón Restablecer, se borrará el ajuste del reloj y algunos contenidos almacenados.
Este ajuste se puede configurar más adelante y con más precisión en el menú de ajustes.
• Para obtener información detallada sobre el ajuste del estado de la conexión del altavoz de subgraves, consulte la página 51.
• Para obtener información detallada sobre el ajuste de la posición de escucha, consulte “Optimización del sonido para la posición de escucha — Alineamiento inteligente de tiempo” en la página 43.
• Para obtener información detallada sobre el ajuste del idioma de la pantalla, consulte la página 48.
Configuración de los ajustes iniciales
Una vez restablecida la unidad, aparece la pantalla de los ajustes iniciales.
Ajuste inicial
Salida Post / Sub
Posición escuchar
Idioma
1 Toque “Salida Post/Sub” para
configurar el estado de la conexión del altavoz de subgraves.
Si tiene un altavoz de subgraves conectado, seleccione “Sub”. Si tiene conectado un amplificador de potencia, seleccione “Post”. Si no tiene conectado un altavoz de subgraves ni un amplificador de potencia, puede seleccionar “Sub” o “Post”.
2 Toque “Posición escuchar” para
ajustar la posición de escucha.
Elija “Delant. I” si su posición de escucha se encuentra en la parte delantera izquierda o bien “Delant. D” si se encuentra en la parte delantera derecha.
3 Toque “Idioma” para ajustar el idioma
de la pantalla.
Tóquelo varias veces hasta que aparezca el idioma deseado (Inglés/Español/Ruso).
4 Toque “OK”.
El ajuste se ha guardado.
Post / Sub
Delant. I / Delant. D
Español
OK
Ajuste del reloj
El reloj utiliza una indicación de 24 horas.
1 Toque “Lista fuentes” y, a
continuación, .
Aparece el menú de ajustes general. De lo contrario, toque “General”.
2 Toque “Ajuste del reloj”.
Aparece la pantalla de ajustes.
3 Ajuste la hora y los minutos.
Por ejemplo, para ajustarlo en 8:30, toque “0830”.
4 Toque “OK”.
El ajuste se ha guardado.
Para eliminar un número previamente introducido, toque “Borrar”. Para volver a la pantalla anterior, toque “Atrás”.
Preparación del mando a distancia
Antes de utilizar por primera vez el mando a distancia, retire la película de aislamiento.
15
Radio
Escuchar la radio
1 Toque “Lista fuentes” y, a
continuación, “Sintonizador”.
(Sólo para el modelo XAV-64BT: En el menú superior, toque “Fuente AV” y, a continuación, toque “Sintonizador”). Aparece la pantalla de recepción de radio y se muestra automáticamente la lista de emisoras presintonizadas.
ATTLista fuentes
TA AF Arriba
Controles de recepción
Si los controles de recepción no aparecen, toque la pantalla.
1
2 3 4 5
ATT
Lista fuentes
TA AF Arriba
Menú re-
cepción
Lista
presint.
Banda
Lista
PTY
P1 P2 P3
P4 P5 P6
Menú re-
Banda
cepción
Lista
presint.
BTM
Memoria
2 Toque “Banda”.
Aparecerá la lista de bandas.
ATT
Lista fuentes
FM1
TA AF Arriba
FM2 FM3 LW
Banda
Menú re­cepción
MW
Lista
presint.
3 Toque la banda deseada (“FM1”,
“FM2”, “FM3”, “MW” o “LW”).
Toque “Banda” para cerrar la lista de bandas.
4 Efectúe la sintonización.
Para sintonizar automáticamente
Toq ue
./>.
La búsqueda se detiene cuando la unidad recibe una emisora. Repita este procedimiento hasta recibir la emisora deseada.
Para sintonizar manualmente
Toq ue
m/M varias veces hasta recibir la
frecuencia deseada. Para ir saltando frecuencias, mantenga pulsado
m/M.
Lista
Lista
678
9 0 qa
1 “Lista fuentes”
Toque esta tecla para abrir la lista de
PTY
fuentes. (página 12)
2 “ATT”
Toque esta tecla para atenuar el sonido. Para cancelar esta función, vuelva a tocar la tecla.
3 “TA”
Toque esta tecla para ajustar TA en RDS. (página 18)
4 “AF”
Toque esta tecla para ajustar AF en RDS. (página 18)
PTY
5 “Arriba”
XAV-64BT
Toque esta tecla para abrir el menú superior. (página 12)
XAV-63
Toque esta tecla para abrir la lista de fuentes. (página 12)
6 m/M
Toque estas teclas para sintonizar emisoras manualmente. Manténgalas pulsadas para ir saltando las frecuencias.
7 ./>
Toque estas teclas para sintonizar emisoras automáticamente.
8 “Banda”
Toque esta tecla para abrir la lista de bandas y cambiar de banda.
16
9 “Menú recepción”
Toque esta tecla para abrir el menú de recepción, que incluye las siguientes opciones.
“Regional” (página 19)
0 “Lista presint.”
Toque esta tecla para obtener una lista de las emisoras almacenadas o para almacenar emisoras. (página 17)
qa “Lista PTY”
Toque esta tecla para abrir la lista PTY. (página 19)
Indicaciones de recepción
ATT
15
C
3
/estado
B
TA AF Arriba
Menú re-
Banda
cepción
D
1
4
Lista
presint.
Lista PTY
A
Lista fuentes
A Icono de fuente actual* B Nombre de banda, número de presintonía*2,
frecuencia*
C Nivel de volumen* D Estado del ajuste EQ7
*1 Aparece solamente cuando se muestran los
controles.
*2 Aparece únicamente cuando se recibe una
emisora presintonizada.
*3 Durante la recepción de una emisora RDS,
aparece el nombre del servicio del programa. Para obtener información detallada, consulte “RDS” en la página 18.
*4 Si ATT está activado, aparece .
Almacenamiento y recepción de emisoras
Precaución
Para sintonizar emisoras mientras conduce, utilice la función Memoria de la mejor sintonía (BTM) para evitar accidentes.
Almacenamiento automático — BTM
1 Toque “Lista fuentes” y, a
continuación, “Sintonizador”.
Para cambiar de banda, toque “Banda” y, a continuación, seleccione la banda que desee (“FM1”, “FM2”, “FM3”, “MW” o “LW”).
2 Toque “Lista presint.” y, a
continuación, “BTM”.
La unidad almacena las seis primeras emisoras disponibles en la lista de emisoras presintonizadas (“P1” - “P6”). La unidad emite un pitido al almacenar el ajuste.
Almacenamiento manual
1 Mientras recibe la emisora que desea
almacenar, toque “Lista presint.”.
2 Toque “Memoria” y, a continuación,
toque un número de la lista (“P1” ­“P6”).
Aparecerá el número y la pantalla de confirmación.
3 Toque “Sí”.
La emisora quedará almacenada.
Nota
Si intenta almacenar otra emisora en el mismo número, se reemplazará la que estaba almacenada previamente.
Sugerencia
Si almacena una emisora RDS, el ajuste de AF/TA también se almacenará (página 18).
Recepción de emisoras almacenadas
1 Seleccione la banda y, a continuación,
toque “Lista presint.”.
2 Toque el número deseado (“P1” -
“P6”).
17
RDS
Descripción general
Las emisoras FM con servicio de sistema de datos de radio (RDS) envían información digital inaudible junto con la señal del programa de radio normal.
CT (hora del reloj)
Los datos CT de la transmisión RDS ajustan la hora del reloj.
Notas
En función del país o región, no todas las funciones del servicio RDS estarán disponibles.
El servicio RDS no funcionará si la señal es demasiado débil o si la emisora que sintoniza no transmite datos RDS.
Elementos de la pantalla
A
ATT
TA AF ArribaLista fuentes
Menú re-
Lista
presint.
Lista
PTY
C
B
Banda
cepción
A Nombre de banda, número de presintonía,
frecuencia (nombre de servicio de programa), datos RDS, TA*
B RDS*2, TP*
1
3
C Reloj
*1 Durante la información del tráfico. *2 Durante la recepción de RDS. *3 Durante la recepción de programas de tráfico.
Servicios RDS
Esta unidad proporciona servicios RDS automáticamente del modo que se indica a continuación:
AF (frecuencias alternativas)
Selecciona y vuelve a sintonizar la emisora que tiene la señal más intensa de la red. Mediante esta función, podrá escuchar sin interrupciones el mismo programa durante trayectos de larga distancia sin tener que volver a sintonizar la misma emisora manualmente.
TA (anuncio de tráfico)/TP (programa de tráfico)
Proporciona la información/los programas actuales de tráfico. Cualquier información/ programa recibido interrumpirá la fuente seleccionada en ese momento.
PTY (tipos de programa)
Muestra el tipo de programa que se recibe en ese momento. También busca el tipo de programa indicado.
Ajuste de AF y TA
1 Durante la recepción o reproducción,
toque “AF” o “TA” para activar la función deseada.
Cuando está activada, la tecla cambia de color. Para desactivar esta función, vuelva a tocar la tecla.
Almacenamiento de emisoras RDS con el ajuste de las funciones AF y TA
Es posible almacenar emisoras RDS junto con el ajuste AF/TA. Si utiliza la función BTM, solo se almacenan las emisoras RDS con el mismo ajuste AF/TA. Es posible almacenar ambos tipos de emisoras manualmente, tanto si son RDS como si no, con el ajuste AF/TA que corresponda.
1 Ajuste AF/TA y, a continuación, almacene la
emisora con BTM o manualmente.
Recepción de anuncios de emergencia
Con las funciones AF o TA activadas, los anuncios de emergencia interrumpirán automáticamente la fuente seleccionada en ese momento.
Sugerencia
Si ajusta el nivel de volumen durante un anuncio de tráfico, ese nivel se guardará en la memoria para los siguientes anuncios de tráfico, independientemente del nivel de volumen normal.
18
Permanencia en un programa regional — Regional
Si la función AF está activada, la configuración de fábrica de la unidad limita la recepción a una región específica, por lo que no cambiará a otra emisora regional con una frecuencia más intensa.
Si abandona la zona de recepción de dicho programa regional, desactive la función regional durante la recepción de FM. Toque “Menú recepción” y, a continuación, la casilla “Regional” para ajustarla en “DESACT.”.
Nota
Esta función no está disponible en el Reino Unido ni en algunas otras zonas.
Función Local Link (solo en el Reino Unido)
Esta función permite seleccionar otras emisoras locales de la zona, aunque no estén almacenadas en los números.
1 Durante la recepción de FM, toque “Lista
presint.” y, a continuación, un número (“P1” ­“P6”) en el cual esté almacenada una emisora local.
2 Cuando hayan pasado 5 segundos, vuelva a
tocar el número de la emisora local. Repita este procedimiento hasta recibir la emisora local.
Tipos de programas
“News” (Noticias), “Current Affairs” (Magazín), “Information” (Información), “Sport” (Deportes), “Education”
(Educación), “Drama” (Arte), “Cultures” (Cultura), “Science” (Ciencia), “Varied Speech” (Varios), “Pop Music” (Música pop), “Rock Music” (Música rock), “Easy
Listening” (Grandes éxitos), “Light Classics M” (Música clásica ligera), “Serious Classics” (Música clásica), “Other Music” (Otros tipos de música), “Weather & Metr” (Información meteorológica), “Finance” (Economía), “Children’s Progs”
(Programa infantil), “Social Affairs” (Sociedad), “Religion” (Religión), “Phone In” (Entrada de teléfono), “Travel & Touring” (Viajes), “Leisure & Hobby” (Ocio), “Jazz Music” (Música jazz), “Country Music” (Música country), “National Music” (Música nacional), “Oldies Music” (Música nostálgica), “Folk Music” (Música folk), “Documentary” (Documentales)
Notas
No es posible utilizar esta función en países y
regiones en los que no estén disponibles los datos PTY.
Es posible que reciba un programa de radio
diferente del seleccionado.
Selección de PTY
1 Durante la recepción de FM, toque
“Lista PTY”.
La lista PTY aparecerá si la emisora transmite datos PTY. Para desplazarse por la lista, toque v/V.
2 Toque el tipo de programa deseado.
La unidad busca emisoras que ofrezcan el tipo de programa seleccionado.
Para cerrar la lista PTY, toque “Lista PTY”.
Ajuste de CT
1 Ajuste “CT” en “ACTIV.” al configurar
esta opción (página 49).
Notas
Es posible que la función CT no pueda utilizarse
aunque se reciba una emisora RDS.
Puede haber alguna diferencia entre la hora de la
función CT y la hora real.
19
Discos
Reproducción de discos
En función del disco, es posible que algunas operaciones sean diferentes o estén restringidas. Consulte el manual de instrucciones suministrado con el disco.
1 Inserte el disco (con la etiqueta hacia
arriba).
La reproducción se inicia automáticamente.
Controles de reproducción
Si los controles de reproducción no aparecen, toque la pantalla.
Información común para todos los discos/ formatos
1
2 3
Lista fuentes
ATT Arriba
TA AF
Si aparece el menú DVD
Toque la opción en el menú DVD. Otra opción es utilizar el panel de control del menú, que aparece al tocar fuera del menú DVD. Toque b/v/V/B para desplazar el cursor y, a continuación, “ENTER” para confirmar. Si el panel de control del menú no aparece al tocar la pantalla, utilice el mando a distancia.
Acerca del menú DVD
Un DVD se divide en varias secciones, que conforman una función de imagen o música. Estas secciones se denominan “títulos”. Si reproduce un DVD que contiene varios títulos, puede seleccionar el título que desee mediante el menú superior del DVD. En los DVD que permiten seleccionar opciones como, por ejemplo, el idioma de los subtítulos o del sonido, seleccione estos elementos mediante el menú DVD.
Si el disco contiene archivos JPEG
La presentación de diapositivas se inicia automáticamente.
Para detener la reproducción
Mantenga pulsado (SOURCE/OFF) durante 1 segundo.
Nota
Los discos con formato DTS no son compatibles. El sonido no se emitirá si el formato DTS está seleccionado.
Para expulsar el disco
1 Pulse Z en la unidad principal.
45
Lista fuentes
Lista fuentes
ATT Arriba
TA AF
ATT Arriba
TA AF
Panel PBC
Control
DVD
Control
DVD
7
8
Menú reprod.
6
Menú reprod.
Menú reprod.
20
MPEG-4
ATT
TA AF
Álbum
Menú reprod.
9
1 “Lista fuentes”
Toque esta tecla para abrir la lista de fuentes. (página 12)
2 “ATT”
Toque esta tecla para atenuar el sonido. Para cancelar esta función, vuelva a tocar la tecla.
3 “Arriba”
XAV-64BT
Toque esta tecla para abrir el menú superior. (página 12)
XAV-63
Toque esta tecla para abrir la lista de fuentes. (página 12)
4 ./>
Toque una de estas teclas para saltar un capítulo/pista/escena/imagen/archivo.
Manténgala pulsada momentáneamente para retroceder o avanzar rápidamente en el vídeo; a continuación, púlsela varias veces para cambiar la velocidad (× 2 t ×12 t × 120 t ×2…)*
1
. Para
cancelar esta función, toque u. Manténgala pulsada para retroceder o
avanzar rápidamente en una pista de audio.
Durante una pausa, manténgala pulsada > para reproducir el vídeo a cámara lenta. Para cancelar esta función, suelte la tecla.
5 u
Toque esta tecla para poner en pausa o reanudar la reproducción tras la pausa.
6 “Menú reprod.”
Toque esta tecla para abrir el menú de reproducción, que incluye las siguientes
ArribaLista fuentes
opciones.
“Repetir”/“Aleatoria” (página 24)
“Nivel de Dolby D” (solamente para
la reproducción de DVD VIDEO) (página 23)
“Giro imagen” (solamente para la
reproducción de JPEG): toque esta tecla para girar una imagen hacia la izquierda o la derecha.
q;
“Audio” (página 23)
7 “Control DVD”
Toque esta tecla para abrir el menú del DVD, que incluye las siguientes opciones.
“Audio”: toque esta tecla varias veces
para seleccionar el idioma/formato de audio. (página 23)*
2
“Subtítulo”: toque esta tecla varias
veces para desactivar/seleccionar el idioma de los subtítulos.*
“Ángulo”: toque esta tecla varias veces
para cambiar el ángulo de visión.*
“Menú super.”: toque esta tecla para
abrir el menú superior del DVD.*
“Menú”: toque esta tecla para abrir el
menú del disco.*
2*3
2
2
2
8 “Panel PBC”
Toque esta tecla para mostrar el panel de control del menú PBC. (página 22)
9 “Álbum” –/+
Toque esta tecla para saltar un álbum (carpeta) de MP3/WMA/AAC/JPEG/ Xvid/MPEG-4.
0 (Lista)
Toque esta tecla para ver una lista de archivos de pistas/imágenes/vídeo. (página 33)
*1 La velocidad depende del formato o del método de
grabación.
*2 Esta opción estará disponible o no en función del
disco.
*3 Cuando aparezca el cuadro para la introducción de
4 dígitos, introduzca el código de idioma (página 69) del idioma deseado.
Nota
Si el disco contiene varios tipos de archivo, solamente se puede reproducir el tipo de archivo seleccionado (audio/vídeo/imagen). Para obtener información detallada acerca de cómo seleccionar el tipo de archivo, consulte “Selección de un tipo de archivo” en la página 33.
21
Notas sobre la reproducción de JPEG
Si se gira una imagen de gran tamaño, es posible que tarde un tiempo en aparecer en pantalla.
Los archivos JPEG progresivos no se pueden mostrar en esta unidad.
Indicaciones de reproducción
Si las indicaciones no aparecen, toque la pantalla. En el caso de los discos de audio, siempre se muestran algunas indicaciones durante la reproducción.
A
Lista fuentes
ATT Arriba
TA AF
Control
15
DVD
B C
D E
ATT
Álbum
TA AF
F
Menú reprod.
G
A Icono de fuente actual B Nivel de volumen* C Formato, estado de la reproducción, tiempo
de reproducción transcurrido* título/álbum (carpeta)/número de pista* formato de audio*
1
2
, capítulo/
5
, estado del ajuste EQ7, estado del modo de reproducción (repetir/ reproducción aleatoria)
D Estado de la reproducción, tiempo de
reproducción transcurrido*
2
E Nombre de la pista, nombre del artista,
nombre del álbum
F Visualización del material gráfico del
álbum*
6
22
MPEG-4
Menú reprod.
ArribaLista fuentes
3*4
G Formato, número de pista, número de
7
álbum*
, estado del ajuste EQ7, estado del modo de reproducción (repetir/reproducción aleatoria)
*1 Si ATT está activado, aparece . *2 Durante la reproducción de JPEG o de VCD con
las funciones PBC, no aparece ninguna indicación.
*3 Las indicaciones difieren en función del disco o
formato.
*4 Cuando se reproduce un VCD con las funciones
PBC (página 22), no aparece ninguna indicación.
*5 Solo DVD. *6 El tamaño recomendado es de 240 × 240 a 960 ×
960 píxeles.
*7 Solamente MP3/WMA/AAC.
Uso de las funciones PBC (control de reproducción)
El menú PBC ayuda interactivamente a realizar las operaciones mientras se reproduce un VCD compatible con PBC.
1 Active la reproducción de un VCD
compatible con PBC.
Aparece el menú PBC.
2 Toque “Panel PBC”.
Aparece el panel de control del menú.
3 Toque una tecla del teclado numérico
para seleccionar la opción que desee y, a continuación, toque “ENTER”.
4 Siga las instrucciones del menú para
realizar operaciones interactivas.
Para volver a la pantalla anterior, pulse O. Para ocultar los controles, toque “Cerrar”.
Reproducción sin las funciones PBC
1 Sin ninguna fuente seleccionada,
toque “Lista fuentes” y, a continuación, .
2 Toque “Visu al”.
Aparece el menú de ajustes visual.
3 Toque v/V para desplazarse por el
,
menú y, a continuación, toque “PBC CD video” para ajustarlo en “DESAC.”.
4 Reproduzca un VCD.
El menú PBC no aparece durante la reproducción.
Notas
Las opciones del menú y los procedimientos de funcionamiento difieren en función del disco.
Durante la reproducción PBC, el número de pista, el elemento reproducido, etc., no aparecen en la pantalla de reproducción.
La función de reanudar la reproducción no está disponible durante la reproducción sin PBC.
Configuración de los ajustes de audio
Nota
Los discos con formato DTS no son compatibles. El sonido no se emitirá si el formato DTS está seleccionado.
Cambio del idioma/formato de audio
El idioma del audio se puede cambiar si el disco se graba con pistas multilingües. También puede cambiar el formato de audio cuando reproduzca un disco grabado en varios formatos de audio (por ejemplo, Dolby Digital).
1 Durante la reproducción, toque
“Control DVD”.
2 Toque “Audio” varias veces hasta que
aparezca el idioma/formato de audio deseado.
Idioma de audio
Lista fuentes
Audio 1: English Dolby D 3/2.1
Audio Subtítulo Ángulo MenúMenú super.
ATT Arriba
TA AF
Cambio del canal de audio
MPEG-4
Al reproducir un VCD/CD/MP3/WMA/AAC/ Xvid/MPEG-4, puede escuchar el canal izquierdo y derecho, solo el canal derecho o solo el canal izquierdo a través de los altavoces derecho e izquierdo. Las opciones se indican a continuación.
“Estéreo”: sonido estéreo estándar (predeterminado) “1/Izquierda”: sonido del canal izquierdo (monoaural) “2/Derecha”: sonido del canal derecho (monoaural)
1 Durante la reproducción, toque “Menú
reprod.” y, a continuación, “Audio” varias veces hasta que aparezca el canal de audio deseado.
Para cerrar el menú de reproducción, toque “Menú reprod.”.
Nota
Es posible que no pueda cambiar el ajuste de audio en función del disco.
Sugerencia
Estas operaciones también pueden realizarse a través del mando a distancia pulsando (AUDIO) varias veces.
Control
Menú reprod.
DVD
Formato de audio/números de canal*
El idioma de audio se cambia entre los idiomas disponibles. Cuando aparezca el cuadro para la introducción de 4 dígitos, introduzca el código de idioma (página 69) del idioma deseado. Si se muestra el mismo idioma dos veces o más, significa que el disco está grabado en varios formatos de audio.
* El nombre del formato y los números de canal
aparecen de la manera siguiente: Ejemplo: Dolby Digital 5.1 canales
Canal posterior × 2
Dolby D 3 / 2 . 1
Canal frontal × 2 + Canal central × 1
Para cerrar el menú de control del DVD, toque “Control DVD”.
Canal LFE × 1
Ajuste del nivel de salida de audio — Nivel de Dolby D
Puede ajustar el nivel de salida de audio de un DVD grabado en formato Dolby Digital, para reducir las diferencias de nivel de volumen entre los discos.
1 Durante la reproducción, toque “Menú
reprod”.
2 Toque la casilla “Ajustar” para
ajustarla en “ACTIVAR”.
3 Toque –/+ varias veces para ajustar el
nivel de salida.
El nivel de salida se puede ajustar en pasos individuales entre –10 y +10.
Para cerrar el menú de reproducción, toque “Menú reprod.”.
23
Reproducción aleatoria y repetición
1 Durante la reproducción, toque “Menú
reprod.” y, a continuación, la casilla “Repetir” o “Aleatoria” varias veces hasta que aparezca la opción deseada.
Lista fuentes
Capítulo DESACT. ACTI VAR
Repetir Aleatoria Ajustar Nivel de Dolby D 0
Se inicia la reproducción aleatoria o la repetición.
Para cerrar el menú de reproducción, toque “Menú reprod.”.
A continuación se indican las opciones de repetición y el orden de cambio de cada disco o formato.
Disco/ formato
ATT Arriba
Opciones
“DESACT.”: vuelve al modo
de reproducción normal. “Capítulo”: repite el capítulo actual. “Título”: repite el título actual.
1
“DESACT.”: vuelve al modo
*
de reproducción normal.
“Pista”: repite la pista actual. “DESACT.”: vuelve al modo
de reproducción normal.
“Pista”: repite la pista actual. “Álbum”: repite el álbum
actual (carpeta). “DESACT.”: vuelve al modo
de reproducción normal. “Imagen”: repite la imagen actual. “Álbum”: repite el álbum actual.
MPEG-4
TA AF
Control
DVD
Menú reprod.
Disco/ formato
Opciones
“DESACT.”: vuelve al modo
de reproducción normal. “Película”: repite el archivo de
MPEG-4
vídeo actual. “Álbum”: repite el álbum actual (carpeta).
A continuación se indican las opciones de reproducción aleatoria y el orden de cambio de cada disco o formato.
Disco/ formato
Opciones
“DESACT.”: vuelve al modo
de reproducción normal.
2
*
“Título”: reproduce los capítulos del título actual en orden aleatorio.
“DESACT.”: vuelve al modo
1
*
de reproducción normal. “Disco”: reproduce las pistas del disco actual en orden aleatorio.
“DESACT.”: vuelve al modo de reproducción normal. “Álbum”: reproduce pistas/ imágenes/archivos de vídeo del álbum actual (carpeta) en orden aleatorio.
MPEG-4
*1 Solamente está disponible al reproducir las
versiones 1.0/1.1 de VCD o bien la versión 2.0 de VCD sin las funciones PBC.
*2 Excepto DVD-R/DVD-R DL/DVD-RW en modo VR.
24
Reproducción de búsqueda directa
Puede localizar directamente el punto que desee especificando el número de título, el número de capítulo, etc.
1 Durante la reproducción, pulse los
botones numéricos del mando a distancia para introducir el número de un elemento (pista, título, etc.) y, a continuación, pulse (ENTER).
La reproducción se inicia desde el principio del punto seleccionado.
Los elementos que pueden buscarse de un disco/ formato son los siguientes.
DVD: título o capítulo* VCD*2/CD/MP3/WMA/AAC: pista JPEG: imagen Xvid/MPEG-4: película
*1 El elemento de búsqueda depende del ajuste. *2 Solamente está disponible al reproducir un VCD
sin las funciones PBC.
Ajuste del elemento de búsqueda (solamente DVD)
Puede ajustar el elemento de búsqueda (título o capítulo) para la reproducción de DVD.
1 Toque “Lista fuentes” y, a
continuación, toque .
2 Toque “Visual”.
Aparece el menú de ajustes visual.
3 Toq ue v/V para desplazarse por el
menú y, a continuación, toque “Búsqueda directa DVD” para ajustarla en “Capítulo” o “Título”.
El ajuste se ha guardado.
Para volver a la pantalla anterior, toque “Atrás”.
MPEG-4
1
Operaciones con el dispositivo USB
• Se pueden utilizar los dispositivos USB de tipo
MSC (Clase de almacenamiento masivo) y MTP (Protocolo de transferencia multimedia) que cumplan con el estándar USB.
• Los códecs compatibles son MP3 (.mp3),
WMA (.wma), AAC (.m4a), JPEG (.jpg), Xvid (.avi) y MPEG-4 (.mp4).
• Es recomendable realizar una copia de
seguridad de los datos en un dispositivo USB.
Para obtener información detallada sobre la compatibilidad de su dispositivo USB, visite el sitio web de soporte técnico.
Notas
Conecte el dispositivo USB después de poner en
marcha el motor. En función del dispositivo USB, es posible que se produzcan daños o fallos de funcionamiento si se conecta antes de poner en marcha el motor.
Es posible que los archivos de gran tamaño tarden
algún tiempo en iniciar la reproducción.
Reproducción desde un dispositivo USB
1 Extraiga la tapa del conector USB y
conecte el dispositivo USB al conector USB.
La reproducción se inicia automáticamente. Si el dispositivo USB ya está conectado, toque “Lista fuentes” y, a continuación, “iPod/USB” para iniciar la reproducción.
Para obtener información sobre la ubicación del conector USB, consulte “Ubicación y funcionamiento de los controles/terminales” (página 11).
Acerca de los controles y las indicaciones de reproducción
Puede controlar la reproducción de USB del mismo modo que la reproducción de discos. Para obtener información detallada, consulte “Controles de reproducción” en la página 20. Para obtener información detallada sobre las indicaciones de reproducción, consulte “Indicaciones de reproducción” en la página 22.
Para detener la reproducción
Mantenga pulsado (SOURCE/OFF) durante 1 segundo.
25
Para desconectar el dispositivo USB
Detenga la reproducción y, a continuación, desconéctelo. No desconecte el dispositivo USB durante la reproducción, porque sus datos se podrían dañar.
Notas sobre el uso
No utilice dispositivos USB tan grandes o pesados que puedan caerse debido a la vibración o que puedan causar una pérdida de conexión.
No deje dispositivos USB en el interior de un vehículo estacionado, ya que podría provocar un fallo de funcionamiento.
Esta unidad no reconoce dispositivos USB conectados a través de un concentrador USB.
Asegúrese de usar el cable USB suministrado con el dispositivo si se necesita un cable al establecer una conexión USB.
Notas sobre la reproducción
Si un dispositivo USB contiene varios tipos de archivo, solamente se puede reproducir el tipo de archivo seleccionado (audio/vídeo/imagen). Para obtener información detallada acerca de cómo seleccionar el tipo de archivo, consulte “Selección de un tipo de archivo” en la página 33.
Las indicaciones que se muestran variarán en función del dispositivo USB, el formato de grabación y los ajustes. Para obtener información detallada, visite el sitio web de soporte técnico que aparece en la contraportada.
El número máximo de datos que se pueden visualizar es: – carpetas (álbumes): 256 – archivos (pistas): 2.000
Es posible que la reproducción tarde algún tiempo en empezar, en función de la cantidad de datos grabados.
Los archivos DRM (gestión de derechos digitales) no siempre se reproducen.
Durante la reproducción o el avance rápido/ retroceso de un archivo MP3/WMA/AAC grabado en VBR (velocidad de bits variable), es posible que el tiempo de reproducción transcurrido no coincida con la realidad.
No se garantiza la reproducción de archivos de compresión sin pérdidas.
Reproducción aleatoria y repetición
1 Durante la reproducción, toque “Menú
reprod.” y, a continuación, la casilla “Repetir” o “Aleatoria” varias veces hasta que aparezca la opción deseada.
Se inicia la reproducción aleatoria o la repetición.
Las opciones de repetición son: “DESACT.”: vuelve al modo de reproducción
normal. “Pista”/“Imagen”/“Película”*
1
: repite la
pista/la imagen/el archivo de vídeo actual.
“Álbum”: repite el álbum actual (carpeta). “Unidad”*
2
: repite la unidad actual.
Las opciones de reproducción aleatoria son: “DESACT.”: vuelve al modo de reproducción
normal. “Álbum”: reproduce pistas/imágenes/archivos de vídeo del álbum actual (carpeta) en orden aleatorio.
*1 Las opciones dependen del tipo de archivo. *2 Cuando existen dos unidades o más en el
dispositivo USB.
Para cerrar el menú de reproducción, toque “Menú reprod.”.
Disfrute de la música según su estado de ánimo — SensMe™
Las exclusivas funciones “canales SensMe™” y “ánimo SensMe™” de Sony agrupan pistas automáticamente en función del canal o del estado de ánimo y le permiten disfrutar de la música de manera intuitiva.
Antes de utilizar la función SensMe™
A continuación se indica el procedimiento básico necesario para disfrutar de la función SensMe™ en la unidad.
1 Instalación de “SensMe™ Setup” y
“Content Transfer” en el ordenador
En primer lugar, descargue el software “SensMe™ Setup” y “Content Transfer” desde el sitio web de soporte técnico que aparece en la contraportada.
2 Registro de un dispositivo USB
mediante “SensMe™ Setup”
Conecte un dispositivo USB al ordenador y lleve a cabo el registro mediante “SensMe™ Setup” para activar la función SensMe™ en esta unidad.
26
SensMe
Setup
Sugerencia
El registro se puede llevar a cabo junto con el procedimiento de instalación o bien después de la instalación.
3 Transferencia de pistas al dispositivo
USB mediante “Content Transfer”
A fin de agrupar pistas por canal o ánimo, es necesario analizar los patrones de sonido de pista mediante 12 TONE ANALYSIS, que está cargado en “Content Transfer”. Con el dispositivo USB conectado a su ordenador, podrá arrastrar y soltar pistas desde el Explorador de Windows o iTunes, etc. hasta “Content Transfer”. Tanto los análisis como la transferencia de pistas se llevarán a cabo mediante “Content Transfer”.
Content Transfer
4 Conexión del dispositivo USB y uso de
la función SensMe™ en la unidad
Conecte el dispositivo USB configurado. A continuación, puede disfrutar de “canales SensMe™” o “ánimo SensMe™” en esta unidad.
SensMe™
Instalación de “SensMe™ Setup” y “Content Transfer” en el ordenador
El software (“SensMe™ Setup” y “Content Transfer”) es necesario para habilitar la función SensMe™ en esta unidad.
1 Descargue el software “SensMe™
Setup” y “Content Transfer” desde el sitio web de soporte técnico.
2 Instale el software en el ordenador.
Para obtener más información detallada sobre la instalación, visite el sitio web de soporte técnico que aparece en la contraportada.
Registro de un dispositivo USB mediante “SensMe™ Setup”
Es necesario registrar el dispositivo USB para activar la función SensMe™ en la unidad.
Si no se lleva a cabo el registro junto con el procedimiento de instalación, siga los siguientes pasos.
1 Ejecute “SensMe™ Setup” en el
ordenador.
2 Conecte un dispositivo USB al
ordenador.
3 Siga las instrucciones en pantalla para
completar el registro.
Sugerencia
Si conecta un dispositivo USB registrado que contenga pistas analizadas, el dispositivo USB puede volver a eliminarse del registro.
Transferencia de pistas al dispositivo USB mediante “Content Transfer”
Para activar la función SensMe™ en esta unidad, es necesario analizar y transferir las pistas al dispositivo USB registrado mediante “Content Transfer”.
1 Conecte el dispositivo USB registrado
al ordenador.
Para “WALKMAN”, conecte el dispositivo con el modo MTP. Para dispositivos USB que no sean “WALKMAN”, conecte el dispositivo con el modo MSC. “Content Transfer” se ejecuta automáticamente. Si aparece un mensaje, siga las instrucciones en pantalla para continuar.
2 Arrastre y suelte pistas desde el
Explorador de Windows o iTunes, etc. hasta “Content Transfer”.
Se inicia el análisis y la transferencia de pistas.
Para obtener información detallada sobre las operaciones, consulte la ayuda de “Content Transfer”.
Nota
Es posible que 12 TONE ANALYSIS tarde algún tiempo en analizar las pistas, en función del entorno informático.
Sugerencia
Con “Content Transfer”, se pueden transferir no solo archivos de audio, sino también archivos de imagen o de vídeo. Para obtener información detallada, consulte la ayuda de “Content Transfer”.
27
Reproducción de pistas en canales — canales SensMe™
“canales SensMe™” agrupa pistas en canales automáticamente en función de su melodía. Puede seleccionar y reproducir el canal que se adapte a su estado de ánimo, actividades, etc.
1 Conecte un dispositivo USB
configurado para la función SensMe™.
2 Toque “Lista fuentes” y, a
continuación, “SensMe™”.
3 Toque “canales”.
Aparece la lista de canales.
Mezclar todo
Enérgica
Relajante
ZAP
4 Toque v/V para desplazarse por la
lista de canales.
La reproducción de la primera pista del canal actual se inicia desde la sección más melódica o rítmica de la pista*.
* Es posible que no se detecte correctamente.
5 Toque el canal que desee.
Se inicia la reproducción de las pistas del canal seleccionado.
Notas
En función de la pista, es posible que no se detecte correctamente o que se agrupe en un canal que no se ajuste al ánimo de la pista.
Si el dispositivo USB conectado contiene muchas pistas, es posible que tarde algún tiempo en iniciar “canales SensMe™”, debido a la lectura de los datos.
Sugerencia
Las pistas se reproducen en orden aleatorio. El orden variará con cada selección de canal.
Lista de canales
x Recomendado, Mezclar todo
“Mañana” (5:00 – 9:59) “Día” (10:00 – 15:59) “Tarde” (16:00 – 18:59) “Noche” (19:00 – 23:59) “Medianoche” (24:00 – 4:59)
Reproduce las pistas recomendadas para cada momento del día. Ajuste el reloj (página 15) para que el canal se visualice correctamente.
“Mezclar todo”: reproduce todas las pistas analizadas en orden aleatorio.
x Canales básicos
Reproduce las pistas según el tipo de música.
“Enérgica”: pistas alegres. “Relajante”: pistas tranquilas. “Suave”: pistas suaves y melancólicas. “Optimista”: pistas positivas para levantar el
ánimo.
“Emocional”: pistas de baladas. “De salón”: música de salón. “Baile”: pistas de Rhythm&Rap,
Rhythm&Blues. “Extrema”: pistas de rock intenso.
x Canales para conducir
Reproduce las pistas más adecuadas durante la conducción.
“Autopista”: pistas alegres y rápidas. “Conducción relajada”: pistas de baladas
reconfortantes y entonadas. “Viaje de fin de semana”: pistas positivas,
vivas y agradables. “Recorrido nocturno”: pistas de jazz o
interpretadas al piano con un ánimo maduro.
“Fiesta”: pistas bailables y de tempo rápido. “Desplazam.matutino”: pistas vivas y
ligeras. “Rumbo a casa”: pistas cálidas y relajantes.
28
Controles e indicaciones de reproducción de “canales SensMe™”
A C D E
B
Shuffle All
Enérgica
Relax
A Para visualizar las teclas de control: “Lista
fuentes”, “ATT”, “TA”, “AF”, “Arriba”. (página 20)
B Para desplazarse por la lista y seleccionar otro
canal.
C Indica el canal actual. D Indica la visualización del material gráfico
del álbum*
1
.
E Indica el estado de reproducción, el tiempo de
reproducción transcurrido, el estado de ZAPPIN, la barra de progreso, el nombre de pista y el nombre del artista.
F Para poner en pausa/reanudar la reproducción
tras la pausa.
G Para saltar una pista. H Para acceder al modo ZAPPIN. (página 30)
Durante la reproducción en modo ZAPPIN de los “canales SensMe™”, se reproducen las secciones más melódicas o rítmicas* pistas.
*1 El tamaño recomendado es de 240 × 240 a 960 ×
960 píxeles.
*2 Es posible que no se detecte correctamente.
ZAP
HGF
2
de las
Reproducción de pistas en mapas de ánimo — ánimo SensMe™
“ánimo SensMe™” distribuye las pistas a modo de puntos en un mapa de ánimo de dos ejes, basado en las características de las pistas individuales.
Al tocar el punto del mapa acorde con su estado de ánimo, aparece un círculo alrededor del punto que ha tocado y se reproducen las pistas que hay en el interior del círculo.
1 Conecte un dispositivo USB
configurado para la función SensMe™.
2 Toque “Lista fuentes” y, a
continuación, “SensMe™”.
3 Toque “ánimo”.
Aparecen los dos ejes del mapa de ánimo.
Círculo
Ánimo
Tipo
Triste
Estilo
Hora
Puntos que representan pistas
Rápido
Lento
Feliz
ZAP
4 Toque el punto del mapa que desee.
Aparece un círculo alrededor del punto que ha tocado y se inicia la reproducción de las pistas del interior del círculo. Se inicia la reproducción de la primera pista desde la sección más melódica o rítmica*.
* Es posible que no se detecte correctamente.
Notas
Solamente se trabaja con las últimas 200 pistas transferidas mediante “Content Transfer”.
En función de la pista, es posible que no se detecte correctamente o que se sitúe en el mapa en una posición poco adecuada para el ánimo de la pista.
Si el dispositivo USB conectado contiene muchas pistas, es posible que tarde algún tiempo en iniciar “ánimo SensMe™” debido a la lectura de los datos.
Sugerencias
En el mapa de ánimo, la pista reproducida en esos momentos se indica con un punto verde.
Las pistas se reproducen desde el exterior del centro del círculo.
29
Controles e indicaciones de reproducción de “ánimo SensMe™”
A B C D E
Búsqueda de una pista escuchando pasajes de pistas — ZAPPIN™
Ánimo
Tipo
Estilo
Hora
Triste
Rápido
Feliz
Lento
A Para visualizar las teclas de control: “Lista
fuentes”, “ATT”, “TA”, “AF”, “Arriba”. (página 20)
B Para trasladar el círculo y reagrupar pistas. C Para cambiar el tamaño del círculo: pequeño,
mediano o grande.
D Indica la visualización del material gráfico
del álbum*
1
.
E Indica el estado de reproducción, el tiempo de
reproducción transcurrido, el estado de ZAPPIN, la barra de progreso, el nombre de pista y el nombre del artista.
F Para cambiar los parámetros del eje
horizontal.
G Para saltar una pista. H Para poner en pausa/reanudar la reproducción
tras la pausa.
I Para acceder al modo ZAPPIN. (página 30)
Durante la reproducción en modo ZAPPIN de “ánimo SensMe™”, se reproducen las secciones más melódicas o rítmicas* pistas.
*1 El tamaño recomendado es de 240 × 240 a
960 × 960 píxeles.
*2 Es posible que no se detecte correctamente.
Cambio de parámetros del eje horizontal
En el mapa de ánimo, puede cambiar los parámetros del eje horizontal. Las pistas se vuelven a situar en el mapa según las características de los parámetros.
Haga esto
Toqu e
Para seleccionar los parámetros
“Triste” – “Feliz”
“Ánimo” Toqu e “Tip o ” “Acúst.” – “Electr.” Toque “Estilo” “Suave” – “Pesado” Toqu e “Hora ” “Mañana” – “Medianoche”
30
Mientras reproduce pasajes de pista cortos en un dispositivo USB en secuencia, puede buscar la pista que desee escuchar. Esta función es muy práctica, por ejemplo,
ZAP
cuando se busca una pista en modo aleatorio o repetir aleatorio.
1 Durante la reproducción de audio,
IFGH
2 Toque “ZAP” cuando se reproduzca
En el caso de la reproducción de
2
de las
“canales SensMe™” o “ánimo SensMe™”
Si accede al modo ZAPPIN durante la reproducción de “canales SensMe™” o “ánimo SensMe™”, se reproducen las secciones más melódicas o rítmicas* de las pistas. Para obtener información detallada sobre la función SensMe™, consulte “Disfrute de la música según su estado de ánimo — SensMe™” en la página 26.
* Es posible que no se detecte correctamente.
Sugerencia
La función ZAPPIN también está disponible durante la reproducción desde un iPod.
toque “ZAP”.
La reproducción se inicia desde un pasaje de la pista siguiente. Puede seleccionar el tiempo de reproducción (página 48), pero no puede seleccionar el pasaje de la pista que va a reproducirse.
“ZAP” tocado.
La sección reproducida de cada pista en modo ZAPPIN.
una pista que desee escuchar.
La pista que seleccione vuelve al modo de reproducción normal desde el principio. Para volver a buscar una pista mediante el modo ZAPPIN, repita los pasos 1 y 2.
Operaciones con el iPod
Para obtener información detallada sobre la compatibilidad de su iPod, consulte “Acerca de iPod” en la página 59 o visite el sitio web de soporte técnico que aparece en la contraportada.
En este Manual de instrucciones, “iPod” se utiliza como referencia general para las funciones de iPod en el iPod y el iPhone, a menos que se indique lo contrario en el texto o las ilustraciones.
Reproducción de un iPod
1 Baje el volumen de esta unidad. 2 Extraiga la tapa del conector USB y
conecte el iPod al conector USB.
Se recomienda el uso del cable de conexión USB opcional RC-202IPV.*
Si tiene un iPod conectado, no podrá utilizar un dispositivo conectado al terminal AUX frontal y no podrá seleccionar “AUX Frontal” al cambiar de fuente.
La siguiente imagen aparece en la pantalla del
2
iPod*
y, a continuación, se inicia la reproducción desde el último elemento reproducido. Cuando el iPod ya esté conectado, para iniciar la reproducción, toque “Lista fuentes” y, a continuación, “iPod/USB”.
1
Acerca de los controles y las indicaciones de reproducción
Puede controlar la reproducción del iPod del mismo modo que la reproducción de discos. Para obtener información detallada, consulte “Controles de reproducción” en la página 20. Para obtener información detallada sobre las indicaciones de reproducción, consulte “Indicaciones de reproducción” en la página 22.
Para detener la reproducción
Mantenga pulsado (SOURCE/OFF) durante 1 segundo.
Para desconectar el iPod
Detenga la reproducción y, a continuación, desconéctelo. No desconecte el iPod durante la reproducción, ya que sus datos se podrían dañar.
Acerca del modo de reanudación
Cuando el iPod que se reproduce está conectado al conector Dock, el modo de esta unidad pasa al modo de reanudación y la reproducción se inicia en el modo del iPod. En el modo de reanudación, la reproducción aleatoria/repetición no está disponible.
Advertencia para el iPhone
Al conectar un iPhone a través de USB, el volumen del teléfono se controla a través del iPhone. A fin de evitar sonidos altos e inesperados después de una llamada, no aumente el volumen de la unidad durante las llamadas telefónicas.
Nota
Esta unidad no reconoce los iPod conectados a través de un concentrador USB.
Sugerencias
Si la llave de encendido se coloca en la posición ACC con la unidad activada, el iPod se recargará.
Si se desconecta el iPod durante la reproducción, “El dispositivo USB no está conectado.” aparece en la pantalla de la unidad.
Ajuste del modo de reproducción
*1 Para reproducir vídeos desde un iPod con
vídeo, hace falta el RC-202IPV.
*2 Es posible que no aparezca si se conecta un
iPod touch o un iPhone, o si el iPod se ha reproducido por última vez mediante el uso de la aplicación de control de pasajero.
3 Ajuste el volumen de esta unidad.
Puede ajustar uno de los siguientes modos de reproducción.
Para la reproducción de audio
“ALBUM”, “TRACK”, “GENRE”, “PLAYLIST”, “ARTIST”, “MUSIC PODCAST”*
31
Para la reproducción de vídeo
“MOVIE”, “RENTAL”, “TV SHOW”, “MUSIC VIDEO”, “VIDEO PLAYLIST”, “VIDEO PODCAST”*
* Es posible que no aparezcan en función del ajuste
del iPod.
1 Durante la reproducción, toque . 2 Toque “MUSIC” o “VIDEO”. 3 Toque el modo de reproducción que
desee.
Para iniciar la reproducción, toque los elementos que desee de la lista. Para desplazarse por la lista, toque v/V.
Para saltar elementos del modo de reproducción seleccionado
Durante la reproducción, toque –/+ del modo de reproducción seleccionado.
Reproducción aleatoria y repetición
1 Durante la reproducción, toque “Menú
reprod.” y, a continuación, la casilla “Repetir” o “Aleatoria” varias veces hasta que aparezca la opción deseada.
Se inicia la reproducción aleatoria o la repetición.
Para cerrar el menú de reproducción, toque “Menú reprod.”.
Las opciones de repetición son:
Para la reproducción de audio
“DESACT.”: vuelve al modo de reproducción
normal.
“Pista”: repite la pista actual. “Álbum”/“Podcasts”/“Artistas”/ “Listas repr.”/“Géneros”*: repite el elemento actual
del modo de reproducción seleccionado.
Para la reproducción de vídeo
“DESACT.”: vuelve al modo de reproducción
normal.
“Pista”: repite el vídeo actual. “RENTAL”/“TV SHOW”/“MUSIC VIDEO”/ “Listas repr.”/“Podcasts”*: repite el
elemento actual del modo de reproducción seleccionado.
Las opciones de reproducción aleatoria son:
Para la reproducción de audio
“DESACT.”: vuelve al modo de reproducción
normal.
“Álbum”/“Podcasts”/“Artistas”/ “Listas repr.”/“Géneros”*: reproduce pistas del modo
de reproducción seleccionado en orden aleatorio. “Dispositivo”: reproduce todas las pistas de un iPod en orden aleatorio.
* Varía en función del modo de reproducción
seleccionado.
Nota
Es posible que las opciones que se muestran en pantalla no se ajusten al funcionamiento real.
Control directo de un iPod — Aplicación de control de pasajero
Puede controlar directamente un iPod conectado a esta unidad.
1 Durante la reproducción, toque “Menú
reprod.” y, a continuación, la casilla “Control de APP para Pasajeros” para ajustarla en “ACTIVAR”.
Desactivación de aplicación de control de pasajero
Toque la casilla “Control de APP para Pasajeros” para ajustarla en “DESACT.”. El modo de reproducción cambia a modo de reanudación.
Para cerrar el menú de reproducción, toque “Menú reprod.”.
Notas
La imagen y el vídeo de la app solo aparecen en esta unidad con el freno de estacionamiento accionado.
La app y el vídeo solo pueden controlarse desde el iPhone y el iPod.
Las apps compatibles con Aplicación de control de pasajero son limitadas.
Para ver vídeo en esta unidad, es necesario que active la salida de vídeo del iPod.
El volumen solamente se puede ajustar mediante esta unidad.
Los ajustes de repetición y reproducción aleatoria se desactivarán si se cancela el modo de aplicación de control del pasajero.
32
Funciones útiles
Obtención de una lista de archivos de pistas/imágenes/ vídeo — Lista
Selección de un archivo de pistas/ imágenes/vídeo
MPEG-4
Puede obtener una lista de archivos de álbumes/ carpetas/pistas/imágenes/vídeo y seleccionar el que desee para reproducirlo. Esta función es muy práctica, especialmente para discos en formato MP3/WMA/AAC/JPEG/Xvid/ MPEG-4 o dispositivo USB que contengan varios álbumes/pistas, etc.
1 Durante la reproducción, toque .
Aparece la lista de categorías o archivos del elemento que se reproduce en esos momentos.
Lista de contenidos
File 01
File 02
File 03
File 04
File 05
File 06
Barra de posición de la página
Para trasladarse al nivel superior, toque *. Para desplazarse línea a línea por la lista, toque v/V. Para desplazarse por la lista de forma continua, mantenga pulsada v/V. Para saltar páginas, toque la barra de posición de la página.
* Al reproducir un CD de audio (CD-DA), este
control no aparece.
2 Toque el elemento que desee.
Se inicia la reproducción.
Selección de un tipo de archivo
MPEG-4
Si el disco/dispositivo USB contiene varios tipos de archivo, solamente se puede reproducir el tipo de archivo seleccionado (audio/vídeo/imagen). El orden de prioridad de reproducción de tipos de archivo, inicialmente, se ajusta en audio, vídeo y, a continuación, en imagen (por ejemplo, si el disco contiene archivos de vídeo y archivos de imagen, solamente se reproducen archivos de vídeo). Puede seleccionar el tipo de archivo para realizar una lista y, a continuación, seleccionar el archivo que desee para reproducirlo.
1 Durante la reproducción, toque . 2 Toque y, a continuación, “Audio”,
“Imagen” o “Video” para seleccionar el tipo de archivo.
3 Toque el archivo que desee.
Se inicia la reproducción de los archivos seleccionados.
Uso de Comando por movimientos
Para llevar a cabo las operaciones utilizadas con más frecuencia, puede usar el siguiente grupo de comandos en la pantalla de recepción/ reproducción.
Haga esto Para
Recepción de radio:
búsqueda de emisoras hacia
Trazar una
línea horizontal
(de izquierda a
derecha)
delante. (Funciona igual que >.)
Reproducción de DVD/ VCD:
salta un capítulo/pista hacia delante. (Funciona igual que >.)
Reproducción de JPEG/ Xvid/MPEG-4/audio:
salta un archivo/pista hacia delante. (Funciona igual que >.)
33
Haga esto Para
Recepción de radio:
búsqueda de emisoras hacia
Trazar una
línea horizontal
(de derecha a
izquierda)
Trazar una
línea vertical
(ascendente)
Trazar una
línea vertical
(descendente)
atrás. (Funciona igual que ..)
Reproducción de DVD/ VCD:
salta un capítulo/pista hacia atrás. (Funciona igual que ..)
Reproducción de JPEG/ Xvid/MPEG-4/audio:
salta un archivo/pista hacia atrás. (Funciona igual que ..)
Recepción de radio: recepción de emisoras almacenadas (búsqueda hacia delante).
Reproducción de DVD/ VCD/Xvid/MPEG-4:
avance rápido del vídeo.
Reproducción de JPEG/ audio:
salta un álbum hacia delante (carpeta). (Funciona igual que “Álbum” +.)
Recepción de radio: recepción de emisoras almacenadas (búsqueda hacia atrás).
Reproducción de DVD/ VCD/Xvid/MPEG-4:
retroceso del vídeo.
Reproducción de JPEG/ audio:
salta un álbum hacia atrás (carpeta). (Funciona igual que “Álbum” –.)
Llamada de manos libres y transmisión de audio — La función Bluetooth (XAV-64BT únicamente)
Antes de utilizar la función Bluetooth
Las descripciones y las funciones de Bluetooth corresponden sólo al modelo XAV-64BT.
Procedimiento básico de la función Bluetooth
1 Emparejamiento
Al conectar dispositivos Bluetooth por primera vez, se requiere registro mutuo. Esto se llama “emparejamiento”. Este registro (emparejamiento) se requiere solamente la primera vez, puesto que en una próxima ocasión esta unidad y los otros dispositivos se reconocerán automáticamente.
Nota
Si elimina el registro del dispositivo de esta unidad al inicializar, debe realizar el emparejamiento nuevamente.
2 Conexión
Una vez efectuada la asociación, conecte esta unidad y el dispositivo Bluetooth. Dependiendo del dispositivo, la conexión se realiza en forma automática junto con el emparejamiento.
34
3 Llamada de manos libres/transmisión
de audio
A través de esta unidad, puede realizar/recibir una llamada de manos libres o escuchar audio.
Para obtener más información acerca de la compatibilidad del dispositivo, visite el sitio web de soporte técnico que figura en la cubierta posterior.
Indicaciones de estado de Bluetooth
Llamando
ATT
Name 0123456789
Llamando
Indicaciones de estado de Bluetooth
Ninguno: la señal de Bluetooth está
desactivada. Encendido: la señal de Bluetooth está activada.
Ninguno: no hay ningún dispositivo conectado para la transmisión de audio. Parpadeando: la conexión está en progreso. Encendido: un dispositivo está conectado.
Ninguno: no hay ningún teléfono móvil conectado para las llamadas de manos libres. Parpadeando: la conexión está en progreso. Encendido: un teléfono móvil está conectado.
Indica el estado de intensidad de la señal del teléfono móvil conectado.
Indica el estado restante de la batería del teléfono móvil conectado.
Ninguno: no hay mensajes SMS sin leer
Encendido: mensaje(s) SMS sin leer
Instalación del micrófono
Para captar su voz durante una llamada de manos libres, necesita instalar el micrófono (suministrado).
Para obtener más información sobre cómo conectar el micrófono, consulte el manual de “Instalación/Conexiones” suministrado.
Emparejamiento
El emparejamiento solamente se requiere la primera vez que se conecta a un dispositivo Bluetooth (teléfono móvil, etc.).*
Para asociar esta unidad a un dispositivo Bluetooth, necesita introducir la misma clave* en esta unidad y en el dispositivo Bluetooth. La clave puede ser un número seleccionado por usted o el número determinado en el dispositivo Bluetooth. Para obtener más información, consulte el manual del dispositivo Bluetooth.
*1 Si elimina el registro del dispositivo de esta unidad
al inicializar, debe realizar el emparejamiento nuevamente.
*2 La clave se puede llamar “código de acceso”,
“Código PIN”, “Número PIN”, “contraseña”, etc., dependiendo del dispositivo Bluetooth.
1 Seleccione la fuente de Bluetooth.
Para seleccionar el Teléfono Bluetooth, presione (TOP) y, a continuación, toque “Teléfono BT” en el menú superior. Para seleccionar Audio Bluetooth, toque “Lista fuentes” y, a continuación, “Audio BT”.
1
2
35
2 Toque “Menú BT”.
En el caso de Audio Bluetooth, toque “Menú reprod.” y, a continuación, “Menú BT”. Aparece el menú de ajuste de Bluetooth.
Menú BT
Señal
Conectar
Resp. automatica
Tono de llamada
Modo EC/NC
ATTAtrás Arriba
DESAC. / ACTIV.
DESACT.
Predet. / Celular
Modo 1 / Modo 2
Notas
Mientras se conecta a un dispositivo Bluetooth, esta unidad no puede detectarse desde otro dispositivo. Para habilitar la detección, acceda al modo de emparejamiento y busque esta unidad desde otro dispositivo.
Es posible que el emparejamiento o la conexión demoren un poco.
Según el dispositivo, la pantalla de confirmación de la conexión aparece antes de introducir la clave.
1/2
El plazo para introducir la clave varía según el dispositivo.
Esta unidad no puede conectarse a un dispositivo que sólo admite HSP (Head Set Profile).
3 Toque “Conectar”.
Comienza el emparejamiento.*
* Si la señal Bluetooth de esta unidad está
apagada, se activa automáticamente cuando comienza el emparejamiento.
4 Use el dispositivo Bluetooth para
buscar esta unidad.
Una lista de dispositivos aparece en la pantalla del dispositivo. Esta unidad aparece como “Sony Automotive”.
DR-BT30Q
Sony
Automotive XXXXXXX
5 Si se requiere una clave en la pantalla
del dispositivo, introduzca “0000”.
Introduzca la clave.
XXXX
“0000”
Esta unidad y el dispositivo Bluetooth memorizan la información entre sí y, después de realizar el emparejamiento, la unidad estará preparada para conectarse al dispositivo.
6 Use el dispositivo Bluetooth para
conectarse a esta unidad.
“Dispositivo Bluetooth conectado.” aparece para indicar que la conexión se ha completado. Aparece “ ” o “ ” cuando la conexión está establecida.
Conexión
Cuando el encendido está activado con la señal de Bluetooth activada, esta unidad busca el último dispositivo Bluetooth conectado y la conexión se realiza de forma automática, dentro de lo posible.
En este capítulo se explica cómo conectarse manualmente a los dispositivos Bluetooth registrados.
Antes de comenzar, asegúrese de activar la señal de Bluetooth tanto en esta unidad (página 41) como en el otro dispositivo Bluetooth.
Conexión a un teléfono móvil
1 Asegúrese de la que la señal
Bluetooth de esta unidad y del teléfono móvil están encendidas.
2 Use el teléfono móvil para conectarse
a esta unidad.
“ ” parpadea mientras se establece la conexión. Luego se queda encendido mientras la conexión esté habilitada.
Conexión del último teléfono móvil conectado desde esta unidad
1 Asegúrese de la que la señal
Bluetooth de esta unidad y del teléfono móvil están encendidas.
2 Presione (TOP), luego toque
“Teléfono BT” en el menú superior.
“ ” parpadea mientras se establece la conexión. Luego se queda encendido mientras la conexión esté habilitada.
Nota
Algunos teléfonos móviles requieren autorización para acceder a los datos de su agenda telefónica durante la conexión del manos libres con esta unidad. La autorización se obtiene mediante el teléfono móvil.
36
