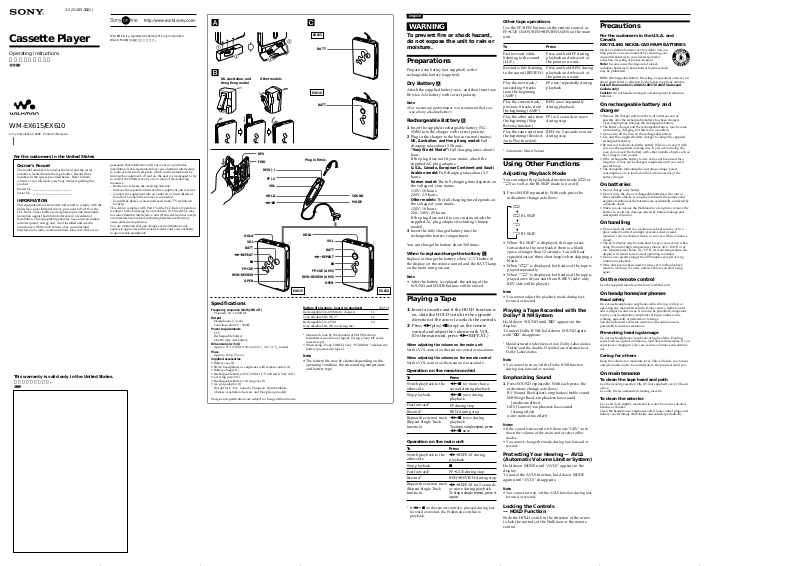

Sony WM-EX615 User Manual

3-222-185-11(1)

Cassette Player

Operating instructions

使用說明書（反面）

####

WM-EX615/EX610

For the customers in the United States

Owner’s Record

The model number is located at the front and the serial number is located inside the tape holder. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. _________________________ Serial No. _________________________

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

This warranty is valid only in the United States.

本保証限在美國有效/

###

WALKMAN is a registered trademark of Sony Corporation.

WALKMAN 是 Sony 公司的註冊商標-

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician

for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

UK, Australian, and Hong Kong model

HOLD

BATT

Y•REPEAT

FF•CUE

REW•REVIEW

OPEN

Specifications

Frequency response (Dolby NR off)

Playback: 30 - 18 000 Hz

Output

Headphones (i jack) Load impedance 8 - 300 Ω

Power requirements

1.5 V Rechargeable battery One R6 (size AA) battery

Dimensions (w/h/d)

Approx. 77.1 × 108.6 × 20.6 mm (3

Mass

Approx. 160 g (5.7 oz)

Supplied accessories

• Battery case (1)

• Stereo headphones or earphones with remote control (1)

• Battery charger (1)

• Rechargeable battery (NC-6WM, 1.2 V, 600 mAh, Ni-Cd) (1)

• Carrying pouch (1)

• Rechargeable battery carrying case (1)

• AC plug adaptor (1) (Except for U.S.A., Canada, European, Saudi Arabian, Chinese, Australian, Korean, and Hong Kong model)

Design and specifications are subject to change without notice.

VOL

Other models

REV FWD

REW (–)

FF (+)

VOL

HOLD

Y•x

⁄8 × 4 3⁄8 × 13⁄16 inches)

EX615

BATT

EX610

BATT

Plug in firmly.

SOUND MODE

HOLD

VOL

BATT

Y•REPEAT

FF•CUE (AMS)

REW•REVIEW (AMS)

OPEN

EX615

Battery life (Approx. hours) (in playback) (EIAJ*)

Rechargeable NC-6WM fully charged 16

Sony alkaline LR6 (SG)** 44

Rechargeable NC-6WM 60 Sony alkaline LR6 (SG) used together

* Measured value by the standard of EIAJ (Electronic

Industries Association of Japan). (Using a Sony HF series cassette tape)

**When using a Sony LR6(SG) Sony “STAMINA” alkaline dry

battery (produced in Japan).

Note

• The battery life may be shorter depending on the operating condition, the surrounding temperature and battery type.

EX610

English

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Preparations

Prepare a dry battey (not supplied) or the rechargeable battery (supplied).

Dry Battery A

Attach the supplied battery case, and then insert one R6 (size AA) battery with correct polarity.

Note

• For maximum performance we recommend that you use a Sony alkaline battery.

Rechargeable Battery B

1 Insert the supplied rechargeable battery (NC-

6WM) into the charger with correct polarity.

2 Plug in the charger to the house current (mains).

UK, Australian, and Hong Kong model: Full

charging takes about 3.5 hours. “Sony World Model”: Full charging takes about 1 hour. If the plug does not fit your mains, attach the supplied AC plug adaptor.

U.S.A., Canada, European Continent and Saudi Arabian model: Full charging takes about 2.5

hours. Korean model: The full charging time depends on the voltage of your mains. 110 V: 10 hours 220 V: 2.5 hours Other models: The full charging time depends on the voltage of your mains. 120 V: 10 hours 220 – 240V: 2.5 hours If the plug does not fit to your mains, attach the supplied AC plug adaptor (excluding Chinese model).

3 Insert the fully charged battery into the

rechargeable battery compartment.

You can charge the battery about 300 times.

When to replace/charge the battery C

Replace or charge the battery when “e” flashes in the display on the remote control and the BATT lamp on the main unit goes out.

Note

• After the battery is replaced, the setting of the

SOUND and MODE buttons will be erased.

Playing a Tape

1 Insert a cassette and if the HOLD function is

on, slide the HOLD switch in the opposite direction of the arrow to unlock the controls.

2 Press Y(play)•x(stop) on the remote

control and adjust the volume with VOL. (On the main unit, press Y•REPEAT.)

When adjusting the volume on the main unit

Set the VOL control on the remote control at maximum.

When adjusting the volume on the remote control

Set the VOL control on the main unit to around 6.

Operation on the remote control

Switch playback to the other side

Stop playback

Fast forward*

Rewind*

Repeat the current track (Repeat Single Track function)

Operation on the main unit

Switch playback to the other side

Stop playback

Fast forward*

Rewind*

Repeat the current track (Repeat Single Track function)

Press

Y•x for more than a second during playback

Y•x once during playback

FF during stop

REW during stop

Y•x twice during playback

To stop a single repeat, press Y•x once

Press

Y•REPEAT during playback

FF•CUE during stop

REW•REVIEW during stop

Y•REPEAT for 2 seconds or more during playback

To stop a single repeat, press it again.

Other tape operations

Use the FF/REW buttons on the remote control, or FF•CUE (AMS)/REW•REVIEW(AMS) on the main unit.

Fast forward while listening to the sound (CUE)

Rewind while listening to the sound (REVIEW)

Press

Press and hold FF during playback and release it at the point you want.

Press and hold REW during playback and release it at the point you want.

Play the next track/ succeeding 9 tracks

FF once/repeatedly during

playback from the beginning (AMS*)

Play the current track/ previous 8 tracks from

REW once/repeatedly

during playback the beginning (AMS*)

Play the other side from the beginning (Skip

FF for 2 seconds or more

during stop Reverse function)

Play the same side from the beginning (Rewind

REW for 2 seconds or more

during stop Auto Play function)

* Automatic Music Sensor

Using Other Functions

Adjusting Playback Mode

You can adjust the playback direction mode (s or d) as well as the BL SKIP mode (on or off).

1 Press MODE repeatedly. With each press the

indications change as follows:

s BL SKIP

d BL SKIP

• When “BL SKIP” is displayed, the tape is fast-

forwarded to the next track if there is a blank space of longer than 12 seconds. You will hear repeated sets of three short beeps when skipping a blank.

• When “s” is displayed, both sides of the tape is

played repeatedly.

• When “d” is displayed, both sides of the tape is

played once (if you start from R (REV) side, only REV side will be played).

Note

• You cannot adjust the playback mode during fast-

forward or rewind.

Playing a Tape Recorded with the Dolby* B NR System

Hold down SOUND until “;” appears in the display. To cancel Dolby B NR, hold down SOUND again until “;” disappears.

* Manufactured under license from Dolby Laboratories.

“Dolby”and the double-D symbol are trademarks of Dolby Laboratories.

Note

• You cannot turn on/off the Dolby B NR function

during fast-forward or rewind.

Emphasizing Sound

1 Press SOUND repeatedly. With each press, the

indications change as follows: RV (Sound Revitalizer): emphasizes treble sound MB (Mega Bass): emphasizes bass sound

(moderate effect)

GRV (Groove): emphasizes bass sound

(strong effect)

none: normal (no effect)

Notes

• If the sound is distorted with the mode “GRV”, turn

down the volume of the main unit or select other modes.

• You cannot change the mode during fast-forward or

rewind.

Protecting Your Hearing — AVLS (Automatic Volume Limiter System)

Hold down MODE until “AVLS” appears in the display. To cancel the AVLS function, hold down MODE again until “AVLS” disappears.

Note

• You cannot turn on/off the AVLS function during fast-

forward or rewind.

Precautions

For the customers in the U.S.A. and Canada

RECYCLING NICKEL-CADMIUM BATTERIES

Nickel-Cadmium batteries are recyclable. You can help preserve our environment by returning your unwanted batteries to your nearest point for collection, recycling or proper disposal. Note: In some areas the disposal of nickelcadmium batteries in household or business trash may be prohibited.

RBRC (Rechargeable Battery Recycling Corporation) advises you about spent battery collection by the following phone number.

Call toll free number: 1-800-822-8837 (United States and Canada only) Caution: Do not handle damaged or leaking nickel-cadmium

batteries.

On rechargeable battery and charger

• Remove the charger unit from the wall outlet as soon as possible after the rechargeable battery has been charged. Overcharging may damage the rechargeable battery.

• The battery charger and the rechargeable battery may become warm during charging, but this is not a problem.

• Do not tear off the film on the rechargeable battery.

• Use only the supplied battery charger to charge the supplied rechargeable battery.

• Be sure not to short-circuit the battery. When you carry it with you, use the supplied carrying case. If you are not using the case, do not carry the battery with other metallic objects such as keys rings in your pocket.

• If the rechargeable battery is new or has not been used for a long time, it may not be charged completely until you use it several times.

• The nameplate indicating the operating voltage, power consumption, etc. is located on the bottom exterior of the battery charger.

On batteries

• Do not charge a dry battery.

• Do not carry the dry or rechargeable batteries with coins or other metallic objects. It can generate heat if the positive and negative terminals of the batteries are accidentally contacted by a metallic object.

• When you do not use the Walkman for a long time, remove the battery to avoid any damage caused by battery leakage and subsequent corrosion.

On handling

• Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, or in a car with its windows closed.

• The LCD display may become hard to see or slow down when using the unit at high temperatures (above 40˚C/104°F) or at low temperatures (below 0˚C/32°F). At room temperature, the display will return to its normal operating condition.

• Do not use cassettes longer than 90 minutes except for long continuous playback.

• If the unit has not been used for long, set it in the playback mode to warm up for a few minutes before you start using again.

On the remote control

Use the supplied remote control only with this unit.

On headphones/earphones

Road safety

Do not use headphones/earphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headphones/earphones at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Do not use headphones/earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume to a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

On maintenance

To clean the tape head and path

Use the cleaning cassette CHK-1W (not supplied) every 10 hours of use. Use only the recommended cleaning cassette.

To clean the exterior

Use a soft cloth slightly moistened in water. Do not use alcohol, benzine or thinner. Clean the headphones/earphones and remote control plugs and battery case terminals (both inside and outside) periodically.

* If Y•x on the remote control is pressed during fast

forward or rewind, the Walkman switches to playback.

Locking the Controls — HOLD Function

Slide the HOLD switch in the direction of the arrow to lock the controls of the Walkman or the remote control.
