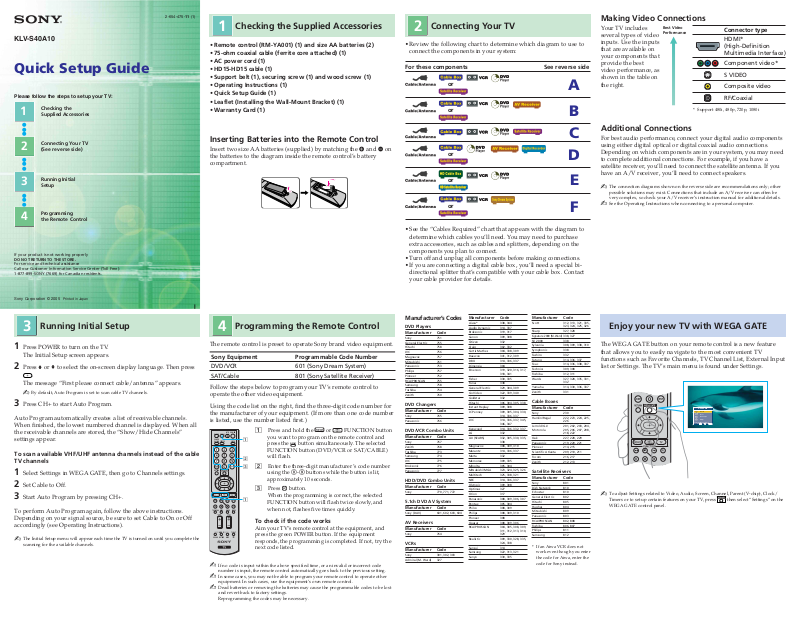

Sony WEGA KLV-S40A10 Quick setup guide
KLV-S40A10
Quick Setup Guide
Please follow the steps to setup your TV:
Checking the
1
Supplied Accessories
2-654-475-11 (1)
12
• Remote control (RM-YA001) (1) and size AA batteries (2)
• 75-ohm coaxial cable (ferrite core attached) (1)
Checking the Supplied Accessories
•Review the following chart to determine which diagram to use to
connect the components in your system:
Connecting Your TV
• AC power cord (1)
• HD15-HD15 cable (1)
For these components See reverse side
• Support belt (1), securing screw (1) and wood screw (1)
• Operating Instructions (1)
or
A
• Quick Setup Guide (1)
• Leaflet (Installing the Wall-Mount Bracket) (1)
•Warranty Card (1)
or
B
Making Video Connections
Your TV includes
several types of video
inputs. Use the inputs
that are available on
your components that
provide the best
video performance, as
shown in the table on
the right.
Best Video
Performance
* Support 480i, 480p, 720p, 1080i
Connector type
HDMI*
(High-Definition
Multimedia Interface)
Component video*
S VIDEO
Composite video
RF/Coaxial
zzz
Connecting Your TV
2
(See reverse side)
zzz
Running Initial
3
Setup
zzz
Programming
4
If your product is not working properly
DO NOT RETURN TO THE STORE.
For service and technical assistance
Call our Customer Information Service Center (Toll Free):
1-877-899-SONY (7669) for Canadian residents.
the Remote Control
Inserting Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching the e and E on
the batteries to the diagram inside the remote control’s battery
compartment.
C
or
or
or
•See the “Cables Required” chart that appears with the diagram to
determine which cables you’ll need. You may need to purchase
extra accessories, such as cables and splitters, depending on the
components you plan to connect.
•Turn off and unplug all components before making connections.
•If you are connecting a digital cable box, you’ll need a special bidirectional splitter that’s compatible with your cable box. Contact
your cable provider for details.
D
E
F
Additional Connections
For best audio performance, connect your digital audio components
using either digital optical or digital coaxial audio connections.
Depending on which components are in your system, you may need
to complete additional connections. For example, if you have a
satellite receiver, you’ll need to connect the satellite antenna. If you
have an A/V receiver, you’ll need to connect speakers.
The connection diagrams shown on the reverse side are recommendations only; other
possible solutions may exist. Connections that include an A/V receiver can often be
very complex, so check your A/V receiver’s instruction manual for additional details.
See the Operating Instructions when connecting to a personal computer.
Sony Corporation © 2005 Printed in Japan
3
Running Initial Setup
1 Press POWER to turn on the TV.
The Initial Setup screen appears.
2 Press V or v to select the on-screen display language. Then press
.
The message “First please connect cable/antenna” appears.
By default, Auto Program is set to scan cable TV channels.
3 Press CH+ to start Auto Program.
Auto Program automatically creates a list of receivable channels.
When finished, the lowest numbered channel is displayed. When all
the receivable channels are stored, the “Show/Hide Channels”
settings appear.
To scan available VHF/UHF antenna channels instead of the cable
TV channels
1 Select Settings in WEGA GATE, then go to Channels settings.
2 Set Cable to Off.
3 Start Auto Program by pressing CH+.
To perform Auto Program again, follow the above instructions.
Depending on your signal source, be sure to set Cable to On or Off
accordingly (see Operating Instructions).
The Initial Setup menu will appear each time the TV is turned on until you complete the
scanning for the available channels.
4
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
Sony Equipment Programmable Code Number
DVD/VCR 601 (Sony Dream System)
SAT/Cable 801 (Sony Satellite Receiver)
Follow the steps below to program your TV’s remote control to
operate the other video equipment.
Using the code list on the right, find the three-digit code number for
the manufacturer of your equipment. (If more than one code number
is listed, use the number listed first.)
MTS/
POWER
SAP
MUTING DISPLAY
POWER
SAVING
RETURN
TOP MENU MENU GUIDE SLEEP
FREEZE
WEGA GATE
FUNCTION
TV/
VIDEO
F1
F2
1 Press and hold the or FUNCTION button
1
you want to program on the remote control and
press the
DISPLAY
button simultaneously. The selected
FUNCTION button (DVD/VCR or SAT/CABLE)
2
3
will flash.
2 Enter the three-digit manufacturer’s code number
using the --9 buttons while the button is lit,
approximately 10 seconds.
button.
1
3 Press
When the programming is correct, the selected
FUNCTION button will flash twice slowly, and
when not, flashes five times quickly.
To check if the code works
MODE
SOUND PICTURE WIDE
TV/SAT
If no code is input within the above specified time, or an invalid or incorrect code
number is input, the remote control automatically goes back to the previous setting.
In some cases, you may not be able to program your remote control to operate other
equipment. In such cases, use the equipment’s own remote control.
Dead batteries or removing the batteries may cause the programmable codes to be lost
and revert back to factory settings.
Reprogramming the codes may be necessary.
Aim your TV’s remote control at the equipment, and
press the green POWER button. If the equipment
responds, the programming is completed. If not, try the
next code listed.
Manufacturer’s Codes
DVD Players
Manufacturer Code
Sony 751
General Electric 755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Panasonic 753
Philips 757
Pioneer 752
RCA/PROSCAN 755
Samsung 758
Toshiba 754
Zenith 760
DVD Changers
Manufacturer Code
Sony 765
Panasonic 766
DVD/VCR Combo Units
Manufacturer Code
Sony 767
Zenith 768
Toshiba 773
Samsung 774
JVC 775
Broksonic 776
Panasonic 777
HDD/DVD Combo Units
Manufacturer Code
Sony 770, 771, 772
5.1ch DVD AV System
Manufacturer Code
Sony (DAV) 601, 602, 603, 604
AV Receivers
Manufacturer Code
Sony 764
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral (M. Ward) 327
Manufacturer Code
Aiwa* 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317,
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305, 338
Instant Replay 309, 308
JC Penney 309, 305, 304, 330,
JVC 314, 336, 337, 345,
Kenwood 314, 336, 332, 337
LG 332
LXI (SEARS) 332, 305, 330, 335,
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/MGA 323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Orion 317
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/PROSCAN 304, 305, 308, 309,
Realistic 309, 330, 328, 335,
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
318, 341
314, 336, 337
346, 347
338
311, 312, 313, 310,
329
324, 338
Manufacturer Code
Scott 312, 313, 321, 335,
Sharp 327, 328
Signature 2000 (M.Ward)
SV 2000 338
Sylvania 308, 309, 338, 310
Symphonic 338
Tas hiro 332
Tatung 314, 336, 337
Teac 314, 336, 338, 337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335, 331,
Yamaha 314, 330, 336, 337
Zenith 331
Cable Boxes
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224, 225,
Jerrold/G.I./ 201, 202, 203, 204,
Motorola 205, 206, 207, 208,
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Satellite Receivers
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General Electric 802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
RCA/PROSCAN 802, 808
Toshiba 806, 807
Philips 811
Samsung 812
* If an Aiwa VCR does not
work even though you enter
the code for Aiwa, enter the
code for Sony instead.
323, 324, 325, 326
338, 327
332
226
218, 222
Enjoy your new TV with WEGA GATE
The WEGA GATE button on your remote control is a new feature
that allows you to easily navigate to the most convenient TV
functions such as Favorite Channels, TV Channel List, External Input
list or Settings. The TV’s main menu is found under Settings.
WEGA GATE
Favorites
TV List
External Inputs
Settings
Show your Favorite Channels
WEGA GATE
Select: Set: Exit:
To adjust Settings related to Video, Audio, Screen, Channel, Parent (V-chip), Clock/
Timers or to set up certain features on your TV, press
WEGA GATE control panel.
WEGA GATE
then select “Settings” on the
Use this diagram if you have;
S VIDEO
VIDEO
AUDIO
(MONO)
L
Y
P
B
P
R
L
R
R
AUDIO
L
R
VIDEO IN
HD/DVD IN
(1080i/720p/480p/480i)
13
4
AUDIO
OUT
PC
AUDIO
IN
VHF/UHF
Rear of TV
DVD Player
LINE IN
OUT
IN
LINE OUT
AUDIO
VIDEO
VCR
RL
OUT
IN
Cable Box
LINE OUT
AUDIO
VIDEO
RL
Satellite Receiver
SAT IN
ANT IN
CABLE IN
OUT TO TV
IN
AUDIO IN
L
R
PC IN
(RGB IN)
5
6
Right side
of TV
Splitter
Cable
Satellite
Antenna
Cable
or
Cables Required
Splitter 1
Coaxial 4
Composite 2
Component 1
Audio 1
BAC
Use this diagram if you have;
or
Cables Required
Splitter 1
Coaxial 4
Composite 3
Component 1
Audio 2
Use this diagram if you have;
Cables Required
Splitter 1
Coaxial 6
Composite 3
Component 1
HDMI 1
Audio 1
If your DVD player or satellite
receiver has an HDMI jack, use that
instead of the video connections
shown here.
DVD Player
Rear of TV
Y
B
P
S VIDEO
VIDEO
P
R
L
L
(MONO)
AUDIO
AUDIO
R
13
VIDEO IN
VHF/UHF
R
HD/DVD IN
(1080i/720p/480p/480i)
If you are not using a cable box
or satellite receiver, connect
your cable or antenna to the
VCR’s RF IN jack.
If your DVD player or satellite
receiver has an HDMI jack, use that
instead of the video connections
shown here.
Cable
Splitter
PC
AUDIO
IN
Cable Box or
L
R
4
AUDIO
OUT
Satellite Receiver*
IN
OUT
VCR
RL
AUDIO
LINE IN
LINE OUT
VIDEO
IN
OUT
DVD Player
INPUT DVD VCR TV
A/V Receiver
VIDEO
VIDEO
LINE IN
OUT
L
AUDIO
OUT
R
Rear of TV
Y
B
P
S VIDEO
VIDEO
P
R
L
L
(MONO)
AUDIO
AUDIO
R
13
VIDEO IN
VHF/UHF
R
HD/DVD IN
(1080i/720p/480p/480i)
PC
AUDIO
IN
L
R
4
AUDIO
OUT
If you are not using a cable box
or satellite receiver, connect
your cable or antenna to the
VCR’s RF IN jack.
Cable
Splitter
Cable Box or
Satellite Receiver*
IN
OUT
RL
AUDIO
LINE IN
LINE OUT
VIDEO
IN
OUT
VCR
The DVI-HDTV VIDEO connector does
not provide audio, so audio cables
must be connected to provide sound
when a DVI to HDMI adaptor is used.
Do not connect
a PC to the TV’s
HDMI input.
If you are not using a
cable box, connect your
cable or antenna to the
VCR’s RF IN jack.
DE F
Use this diagram if you have;
or
Cables Required
Splitter 1
Coaxial 3
Composite 3
Component 1
Audio 2
Use this diagram if you have;
or
Cables Required
Splitter 1
Coaxial 3
Composite 2
Component 1
HDMI 1
Use this diagram if you have;
or
Audio 1
If your DVD player or satellite receiver
has an HDMI jack, use that instead of
the video connections shown here.
Cable
If you are not using
a cable box or
satellite receiver,
connect your cable
or antenna to the
VCR’s RF IN jack.
The DVI-HDTV VIDEO connector does
not provide audio, so audio cables
must be connected to provide sound
when a DVI to HDMI adaptor is used.
If your cable box has a
DVI jack, use that instead
of the video connections
shown here.
Cable
Cables Required
Splitter 1
Coaxial 4
Composite 2
Composite 1
(without Audio)
Component 1
If you are not using a cable
box or satellite receiver,
connect your cable or
antenna to the VCR’s RF IN
jack.
Cable
DVD Player
Digital Recorder
IN
OUT
LINE IN
RL
LINE OUT
AUDIO
VIDEO
Rear of TV
13
VIDEO IN
VHF/UHF
S VIDEO
VIDEO
L
(MONO)
AUDIO
R
Y
B
P
P
R
L
AUDIO
R
4
HD/DVD IN
(1080i/720p/480p/480i)
PC
AUDIO
IN
L
R
AUDIO
OUT
Splitter
Cable Box or
Satellite Receiver*
IN
OUT
DVD Player
Do not connect
a PC to the TV’s
HDMI input.
Right side
of TV
PC IN
(RGB IN)
6
IN
5
L
AUDIO IN
R
Rear of TV
Y
B
P
S VIDEO
VIDEO
P
R
L
(MONO)
L
AUDIO
AUDIO
R
13
VIDEO IN
VHF/UHF
R
HD/DVD IN
(1080i/720p/480p/480i)
Splitter
Splitter
Rear
PC
Sony Dream System
AUDIO
IN
HD Cable Box or
L
R
4
AUDIO
OUT
HD Satellite Receiver*
IN
OUT
VIDEO 1
AUDIO OUT
LR
LR
AUDIO IN
VIDEO OUT
VIDEO IN
VIDEO 2
VIDEO INAUDIO IN
LR
Y PB/CBPR/C
COMPONENT VIDEO OUT
MONITOR OUT
R
S VIDEO
of TV
Y
B
P
S VIDEO
VIDEO
P
R
L
L
(MONO)
AUDIO
AUDIO
R
VIDEO IN
VHF/UHF
R
HD/DVD IN
(1080i/720p/480p/480i)
13
PC
AUDIO
IN
Cable Box or
L
R
4
AUDIO
OUT
Satellite Receiver*
IN
OUT
VCR
VCR
LINE IN
LINE OUT
INPUT DVD VCR TV
VIDEO
LINE IN
L
R
A/V
Receiver
VIDEO
OUT
AUDIO
OUT
RL
AUDIO
VIDEO
LINE IN
LINE OUT
IN
OUT
RL
AUDIO
VIDEO
IN
OUT
If your DVD player or satellite receiver
has an HDMI jack, use that instead of
the video connections shown here.
* Satelite Antenna Cable not shown.
Loading...
