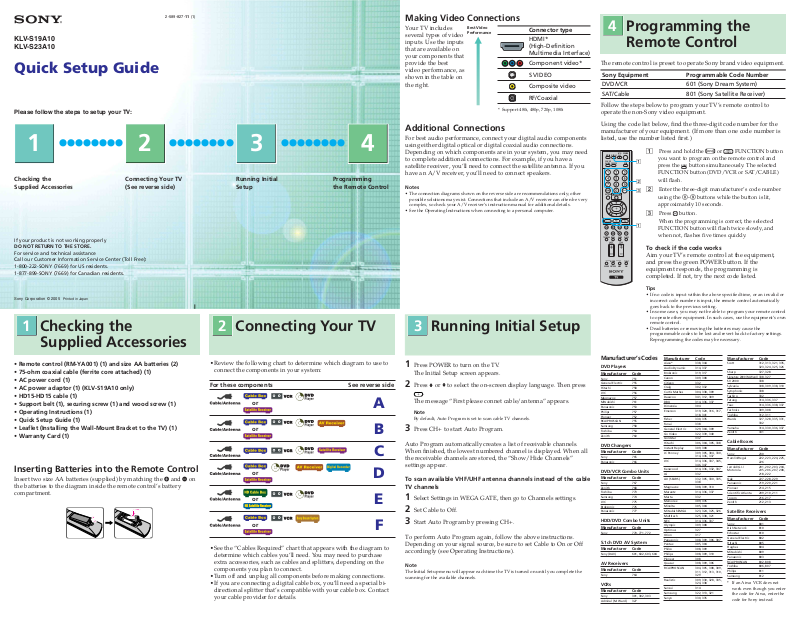

Sony WEGA KLV-S19A10, WEGA KLV-S23A10 Quick setup guide
KLV-S19A10
KLV-S23A10
Quick Setup Guide
Please follow the steps to setup your TV:
2-589-827-11 (1)
Making Video Connections
Your TV includes
several types of video
inputs. Use the inputs
that are available on
your components that
provide the best
video performance, as
shown in the table on
the right.
Best Video
Performance
* Support 480i, 480p, 720p, 1080i
Connector type
HDMI*
(High-Definition
Multimedia Interface)
Component video*
S VIDEO
Composite video
RF/Coaxial
4 Programming the
Remote Control
The remote control is preset to operate Sony brand video equipment.
Sony Equipment Programmable Code Number
DVD/VCR 601 (Sony Dream System)
SAT/Cable 801 (Sony Satellite Receiver)
Follow the steps below to program your TV’s remote control to
operate the non-Sony video equipment.
1 2 3 4
zzzzzzzz zzzzzzzz zzzzzzzz
Checking the
Supplied Accessories
Connecting Your TV
(See reverse side)
If your product is not working properly
DO NOT RETURN TO THE STORE.
For service and technical assistance
Call our Customer Information Service Center (Toll Free):
1-800-222-SONY (7669) for US residents.
1-877-899-SONY (7669) for Canadian residents.
Running Initial
Setup
Programming
the Remote Control
Additional Connections
For best audio performance, connect your digital audio components
using either digital optical or digital coaxial audio connections.
Depending on which components are in your system, you may need
to complete additional connections. For example, if you have a
satellite receiver, you’ll need to connect the satellite antenna. If you
have an A/V receiver, you’ll need to connect speakers.
Notes
• The connection diagrams shown on the reverse side are recommendations only; other
possible solutions may exist. Connections that include an A/V receiver can often be very
complex, so check your A/V receiver’s instruction manual for additional details.
• See the Operating Instructions when connecting to a personal computer.
Using the code list below, find the three-digit code number for the
manufacturer of your equipment. (If more than one code number is
listed, use the number listed first.)
MTS/
POWER
SAP
MUTING DISPLAY
POWER
SAVING
RETURN
TOP MENU MENU GUIDE SLEEP
FREEZE
WEGA GATE
FUNCTION
TV/
VIDEO
F1
F2
1 Press and hold the or FUNCTION button
1
you want to program on the remote control and
DISPLAY
press the
button simultaneously. The selected
FUNCTION button (DVD/VCR or SAT/CABLE)
2
3
will flash.
2 Enter the three-digit manufacturer’s code number
using the --9 buttons while the button is lit,
approximately 10 seconds.
3 Press
1
When the programming is correct, the selected
FUNCTION button will flash twice slowly, and
button.
when not, flashes five times quickly.
To check if the code works
Aim your TV’s remote control at the equipment,
MODE
TV/SAT
SOUND PICTURE WIDE
and press the green POWER button. If the
equipment responds, the programming is
completed. If not, try the next code listed.
Sony Corporation © 2005 Printed in Japan
1 Checking the
Supplied Accessories
• Remote control (RM-YA001) (1) and size AA batteries (2)
• 75-ohm coaxial cable (ferrite core attached) (1)
• AC power cord (1)
• AC power adaptor (1) (KLV-S19A10 only)
• HD15-HD15 cable (1)
• Support belt (1), securing screw (1) and wood screw (1)
•Operating Instructions (1)
•Quick Setup Guide (1)
• Leaflet (Installing the Wall-Mount Bracket to the TV) (1)
•Warranty Card (1)
Inserting Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching the e and E on
the batteries to the diagram inside the remote control’s battery
compartment.
2 Connecting Your TV 3 Running Initial Setup
•Review the following chart to determine which diagram to use to
connect the components in your system:
For these components See reverse side
or
or
A
B
C
or
or
or
•See the “Cables Required” chart that appears with the diagram to
determine which cables you’ll need. You may need to purchase
extra accessories, such as cables and splitters, depending on the
components you plan to connect.
•Turn off and unplug all components before making connections.
•If you are connecting a digital cable box, you’ll need a special bidirectional splitter that’s compatible with your cable box. Contact
your cable provider for details.
D
E
F
1 Press POWER to turn on the TV.
The Initial Setup screen appears.
2 Press V or v to select the on-screen display language. Then press
.
The message “First please connet cable/antenna” appears.
Note
By default, Auto Program is set to scan cable TV channels.
3 Press CH+ to start Auto Program.
Auto Program automatically creates a list of receivable channels.
When finished, the lowest numbered channel is displayed. When all
the receivable channels are stored, the “Show/Hide Channels”
settings appear.
To scan available VHF/UHF antenna channels instead of the cable
TV channels
1 Select Settings in WEGA GATE, then go to Channels settings.
2 Set Cable to Off.
3 Start Auto Program by pressing CH+.
To perform Auto Program again, follow the above instructions.
Depending on your signal source, be sure to set Cable to On or Off
accordingly (see Operating Instructions).
Note
The Initial Setup menu will appear each time the TV is turned on until you complete the
scanning for the available channels.
Tips
• If no code is input within the above specified time, or an invalid or
incorrect code number is input, the remote control automatically
goes back to the previous setting.
• In some cases, you may not be able to program your remote control
to operate other equipment. In such cases, use the equipment’s own
remote control.
• Dead batteries or removing the batteries may cause the
programmable codes to be lost and revert back to factory settings.
Reprogramming the codes may be necessary.
Manufacturer’s Codes
DVD Players
Manufacturer Code
Sony 751
General Electric 755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Panasonic 753
Philips 757
Pioneer 752
RCA/PROSCAN 755
Samsung 758
Toshiba 754
Zenith 760
DVD Changers
Manufacturer Code
Sony 765
Panasonic 766
DVD/VCR Combo Units
Manufacturer Code
Sony 767
Zenith 768
Toshiba 773
Samsung 774
JVC 775
Broksonic 776
Panasonic 777
HDD/DVD Combo Units
Manufacturer Code
Sony 770, 771, 772
5.1ch DVD AV System
Manufacturer Code
Sony (DAV) 601, 602, 603, 604
AV Receivers
Manufacturer Code
Sony 764
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral (M. Ward) 327
Manufacturer Code
Aiwa* 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316, 317,
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305, 338
Instant Replay 309, 308
JC Penney 309, 305, 304, 330,
JVC 314, 336, 337, 345,
Kenwood 314, 336, 332, 337
LG 332
LXI (SEARS) 332, 305, 330, 335,
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/MGA 323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Orion 317
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/PROSCAN 304, 305, 308, 309,
Realistic 309, 330, 328, 335,
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
318, 341
314, 336, 337
346, 347
338
311, 312, 313, 310,
329
324, 338
Manufacturer Code
Scott 312, 313, 321, 335,
Sharp 327, 328
Signature 2000 (M.Ward)
SV 2000 338
Sylvania 308, 309, 338, 310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338, 337
Technics 309, 308
Toshiba 312, 311
Wards327, 328, 335, 331,
Yamaha 314, 330, 336, 337
Zenith 331
Cable Boxes
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224, 225,
Jerrold/G.I./ 201, 202, 203, 204,
Motorola 205, 206, 207, 208,
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Satellite Receivers
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General Electric 802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
RCA/PROSCAN 802, 808
Toshiba 806, 807
Philips 811
Samsung 812
* If an Aiwa VCR does not
work even though you enter
the code for Aiwa, enter the
code for Sony instead.
323, 324, 325, 326
338, 327
332
226
218, 222
Use this diagram if you have;
S VIDEO
VIDEO
AUDIO
(MONO)
L
Y
P
B
P
R
L
R
R
AUDIO
L
R
VIDEO IN
HD/DVD IN
(1080i/720p/480p/480i)
13
4
AUDIO
OUT
PC
AUDIO
IN
VHF/UHF
Rear of TV
IN
AUDIO IN
L
R
PC IN
(RGB IN)
5
6
Right side
of TV
DVD Player
LINE IN
OUT
IN
LINE OUT
AUDIO
VIDEO
VCR
RL
OUT
IN
Cable Box
LINE OUT
AUDIO
VIDEO
RL
Satellite Receiver
SAT IN
ANT IN
CABLE IN
OUT TO TV
Splitter
Cable
Satellite
Antenna
Cable
or
Cables Required
Splitter 1
Coaxial 4
Composite 2
Component 1
Audio 1
BAC
Use this diagram if you have;
or
Cables Required
Splitter 1
Coaxial 4
Composite 3
Component 1
Audio 2
Use this diagram if you have;
Cables Required
Splitter 1
Coaxial 6
Composite 3
Component 1
HDMI 1
Audio 1
If your DVD player or satellite
receiver has an HDMI jack, use that
instead of the video connections
shown here.
DVD Player
VHF/UHF
Rear of TV
S VIDEO
VIDEO
L
(MONO)
AUDIO
13
R
VIDEO IN
Y
B
P
P
R
L
AUDIO
R
4
HD/DVD IN
(1080i/720p/480p/480i)
PC
AUDIO
L
R
AUDIO
OUT
If you are not using a cable box
or satellite receiver, connect
your cable or antenna to the
VCR’s RF IN jack.
Cable
Splitter
If your DVD player or satellite
receiver has an HDMI jack, use that
instead of the video connections
shown here.
DVD Player
If you are not using a cable box
or satellite receiver, connect
your cable or antenna to the
VCR’s RF IN jack.
Cable
Splitter
The DVI-HDTV VIDEO connector does
not provide audio, so audio cables
must be connected to provide sound
when a DVI to HDMI adaptor is used.
If you are not using a
cable box, connect your
cable or antenna to the
VCR’s RF IN jack.
Rear of TV
PC
B
R
HD/DVD IN
AUDIO
IN
Cable Box or
Satellite Receiver*
L
R
4
AUDIO
OUT
IN
OUT
Do not connect
a PC to the TV’s
HDMI input.
VCR
RL
AUDIO
LINE IN
LINE OUT
VIDEO
IN
OUT
IN
Cable Box or
Satellite Receiver*
IN
OUT
VHF/UHF
VCR
INPUT DVD VCR TV
RL
AUDIO
LINE IN
LINE OUT
VIDEO
IN
OUT
A/V Receiver
VIDEO
VIDEO
LINE IN
OUT
L
AUDIO
OUT
R
13
VIDEO IN
S VIDEO
VIDEO
L
(MONO)
AUDIO
AUDIO
R
(1080i/720p/480p/480i)
Y
P
P
L
R
DE F
Use this diagram if you have;
or
Cables Required
Splitter 1
Coaxial 3
Composite 3
Component 1
Audio 2
Use this diagram if you have;
or
Cables Required
Splitter 1
Coaxial 3
Composite 2
Component 1
HDMI 1
Use this diagram if you have;
or
Audio 1
If your DVD player or satellite receiver
has an HDMI jack, use that instead of
the video connections shown here.
Cable
If you are not using
a cable box or
satellite receiver,
connect your cable
or antenna to the
VCR’s RF IN jack.
The DVI-HDTV VIDEO connector does
not provide audio, so audio cables
must be connected to provide sound
when a DVI to HDMI adaptor is used.
If your cable box has a
DVI jack, use that instead
of the video connections
shown here.
Cable
Cables Required
Splitter 1
Coaxial 4
Composite 2
Composite 1
(without Audio)
Component 1
If you are not using a cable
box or satellite receiver,
connect your cable or
antenna to the VCR’s RF IN
jack.
Cable
DVD Player
Digital Recorder
IN
OUT
AUDIO
LINE IN
RL
LINE OUT
VIDEO
INPUT DVD VCR TV
Rear of TV
VHF/UHF
Y
B
P
S VIDEO
VIDEO
P
R
L
L
(MONO)
AUDIO
AUDIO
R
13
VIDEO IN
R
HD/DVD IN
(1080i/720p/480p/480i)
A/V
Receiver
VIDEO
VIDEO
LINE IN
OUT
L
AUDIO
OUT
R
4
PC
AUDIO
IN
L
R
AUDIO
OUT
Splitter
Cable Box or
Satellite Receiver*
IN
OUT
DVD Player
If your DVD player or satellite receiver
has an HDMI jack, use that instead of
the video connections shown here.
Do not connect
a PC to the TV’s
HDMI input.
Right side
of TV
PC IN
(RGB IN)
6
IN
5
L
AUDIO IN
R
VHF/UHF
Rear of TV
S VIDEO
VIDEO
L
(MONO)
AUDIO
13
R
VIDEO IN
Y
B
P
P
R
L
AUDIO
R
4
HD/DVD IN
(1080i/720p/480p/480i)
PC
AUDIO
L
R
AUDIO
OUT
Splitter
Rear
Sony Dream System
VIDEO 1
AUDIO OUT
IN
HD Cable Box or
HD Satellite Receiver*
IN
OUT
LR
LR
AUDIO IN
VIDEO OUT
VIDEO IN
VIDEO 2
VIDEO INAUDIO IN
LR
Y PB/CBPR/C
COMPONENT VIDEO OUT
MONITOR OUT
R
S VIDEO
VHF/UHF
of TV
S VIDEO
VIDEO
L
(MONO)
AUDIO
13
R
VIDEO IN
Y
P
B
P
R
L
AUDIO
R
4
HD/DVD IN
(1080i/720p/480p/480i)
PC
AUDIO
L
R
AUDIO
OUT
IN
OUT
Splitter
Cable Box or
Satellite Receiver*
IN
VCR
VCR
RL
AUDIO
VIDEO
LINE IN
LINE OUT
RL
AUDIO
LINE IN
LINE OUT
VIDEO
IN
OUT
IN
OUT
* Satelite Antenna Cable not shown.
Loading...
