Sony VPL-VW590ES Users guide

Video Projector

5-022-950-11 (1)

Operating Instructions

Before operating the unit, please read this manual and supplied Quick
Reference Manual thoroughly and retain them for future reference.

VPL-VW590ES
VPL-VW715ES

Table of Contents

Location of Controls

Front/Right Side ................................ 3

Rear/Left Side/Bottom ...................... 4

Remote Control ................................. 5

Connections and
Preparations

Installing the Unit .............................. 6

Adjusting the Picture Position ........... 7

Connecting to Video Equipment or a

Computer ...................................... 12

Projecting

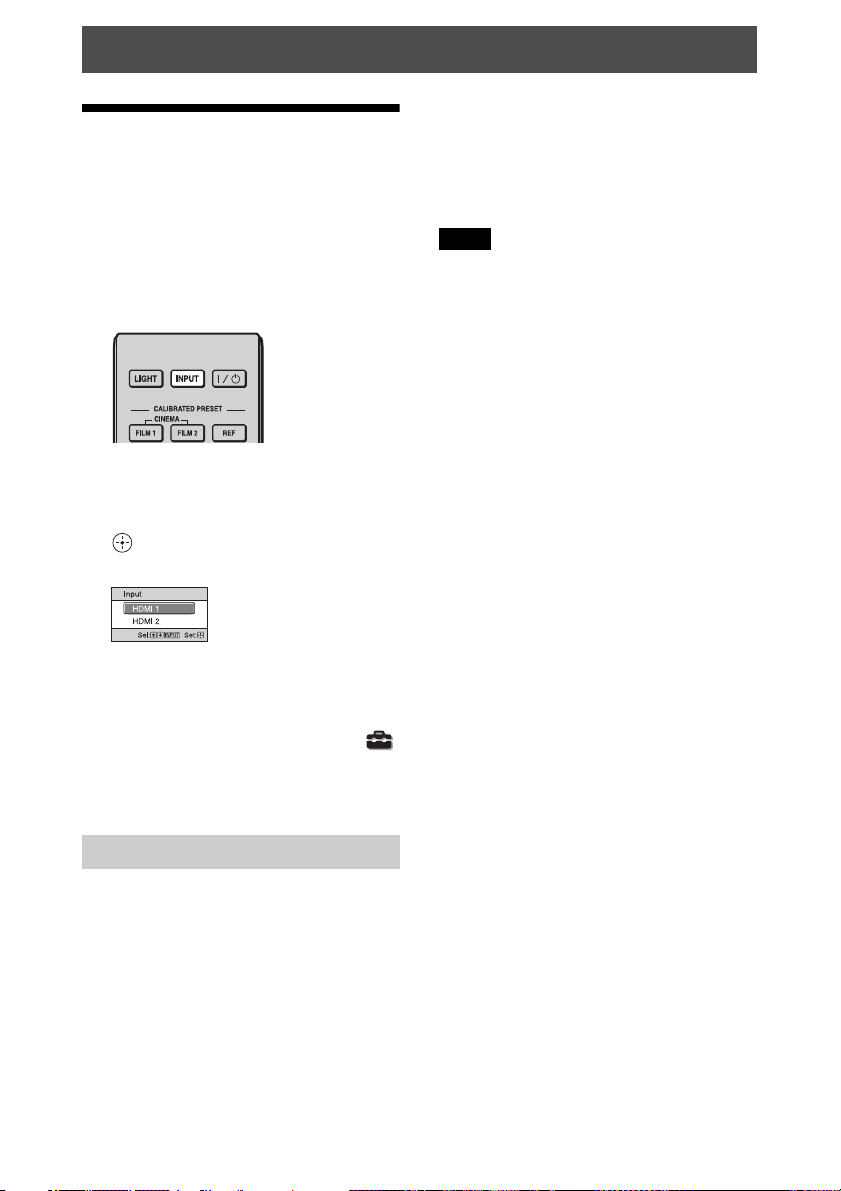

Projecting the Picture ...................... 14

Turning Off the Power ............... 14

Watching 3D Video Images ............. 15

Using the 3D Glasses ................. 15

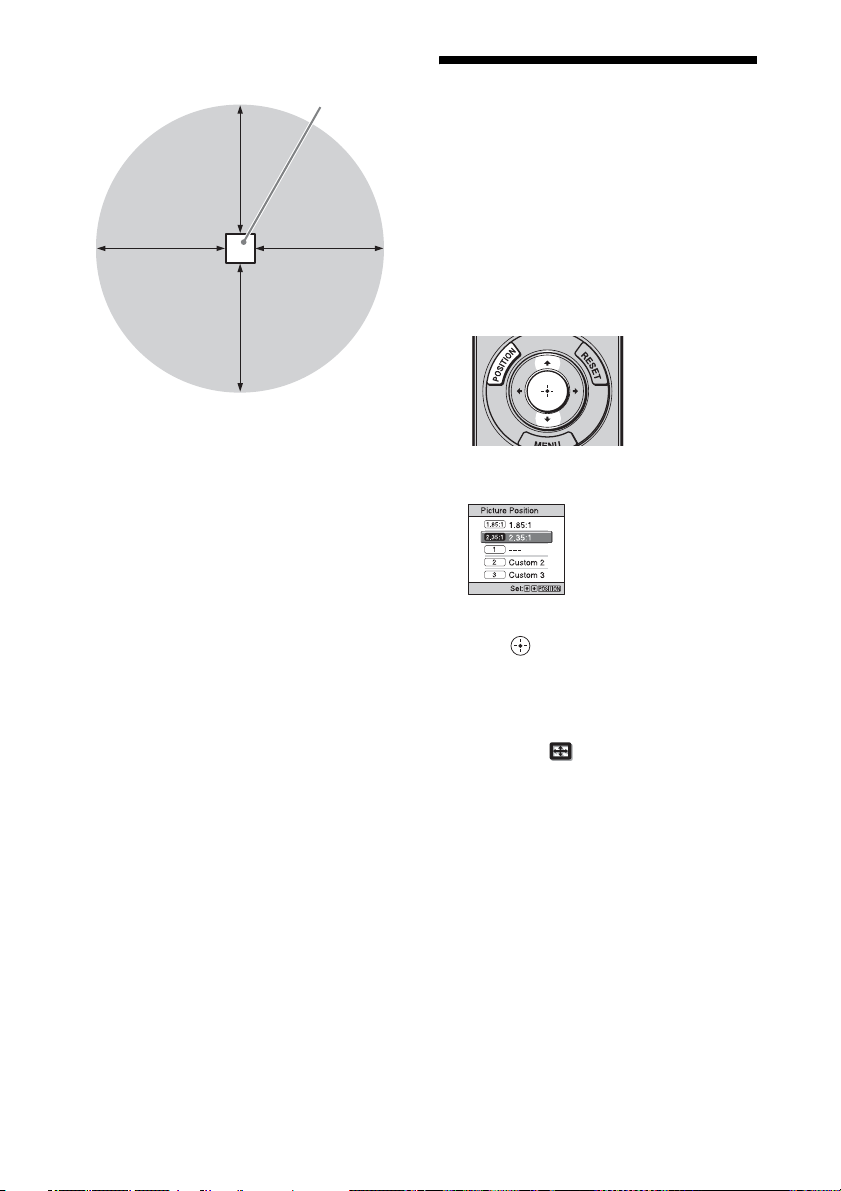

Using the Picture Position ............... 16

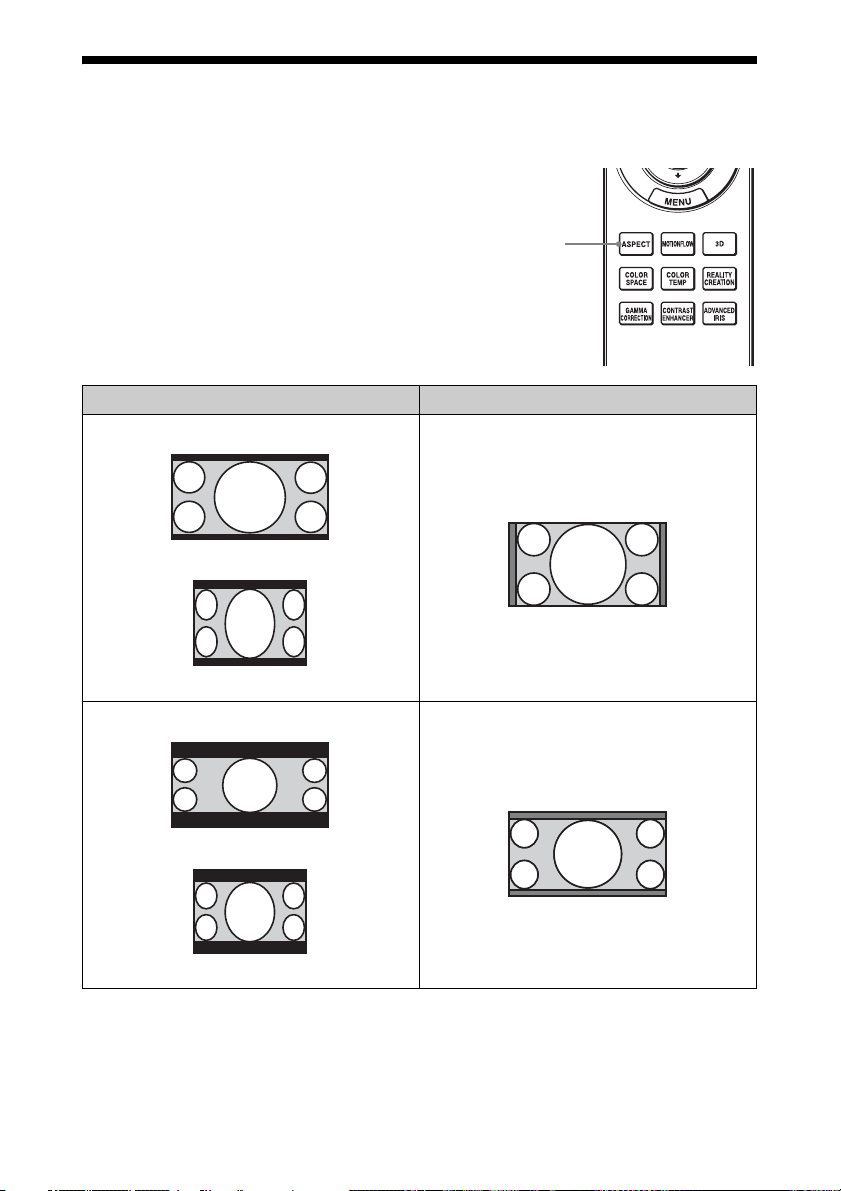

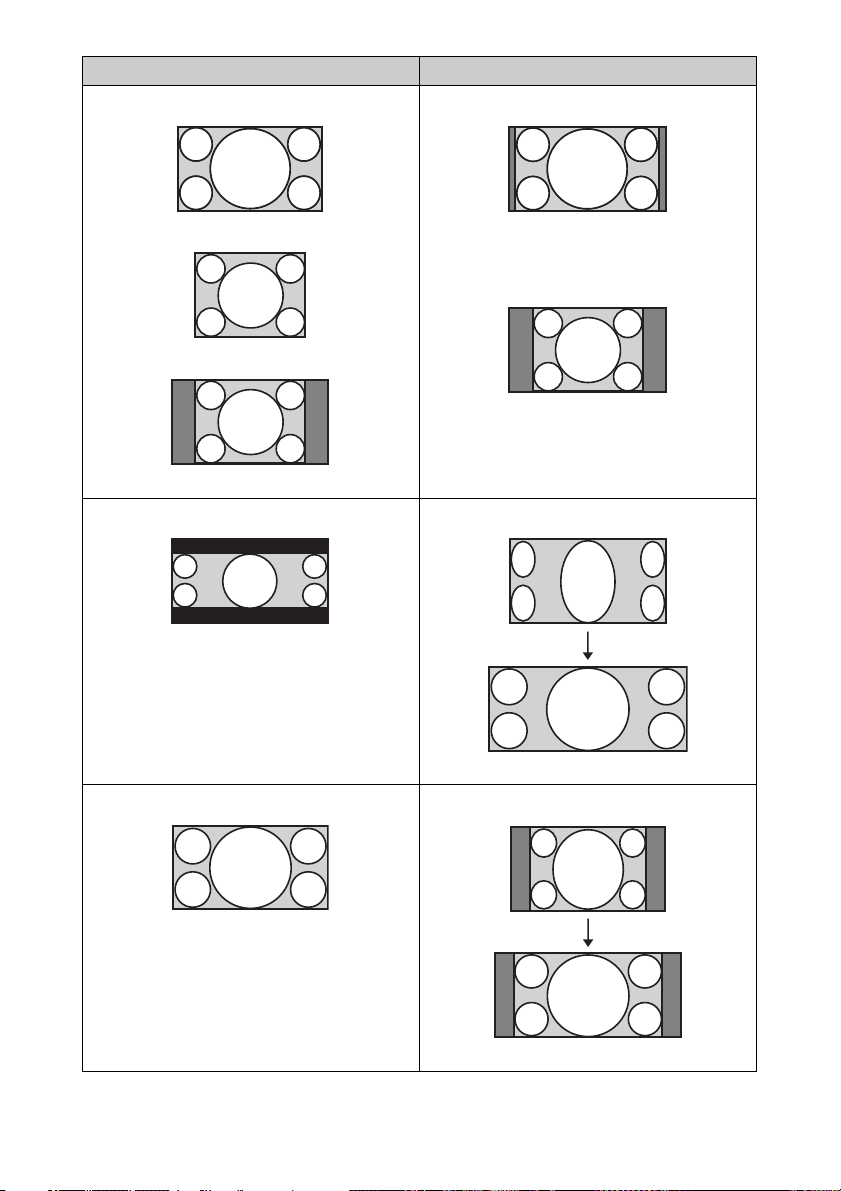

Selecting the Aspect Ratio According

to the Video Signal ....................... 18

Selecting the Picture Viewing

Mode ............................................ 21

Using the Menus

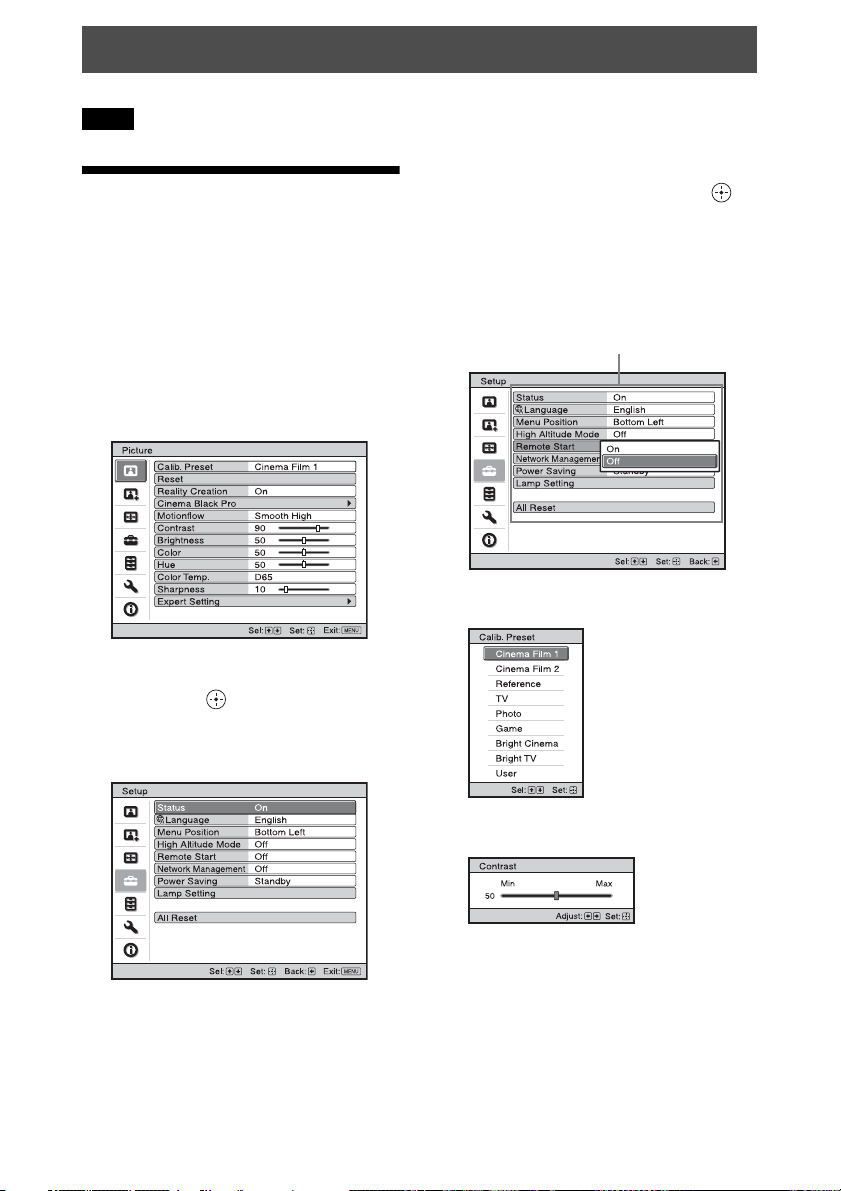

Operation through the Menus .......... 22

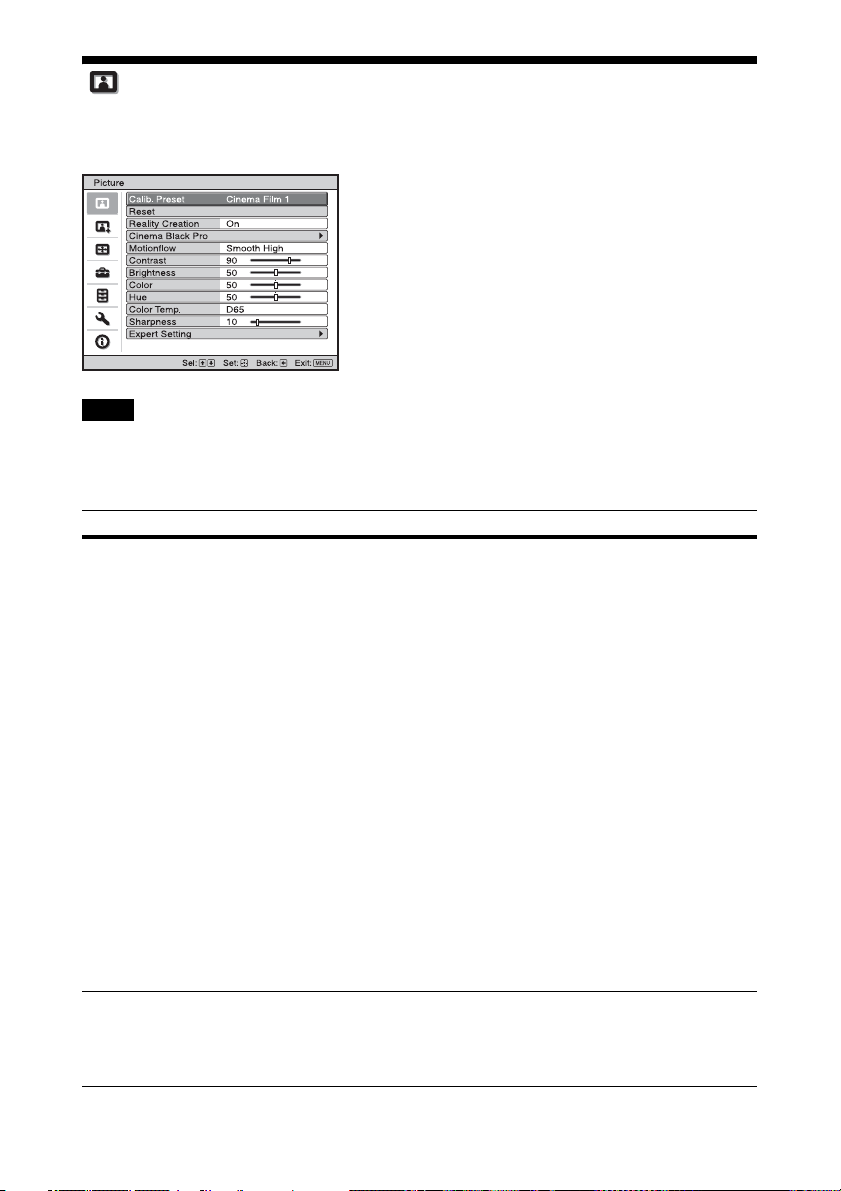

Picture Menu ................................... 24

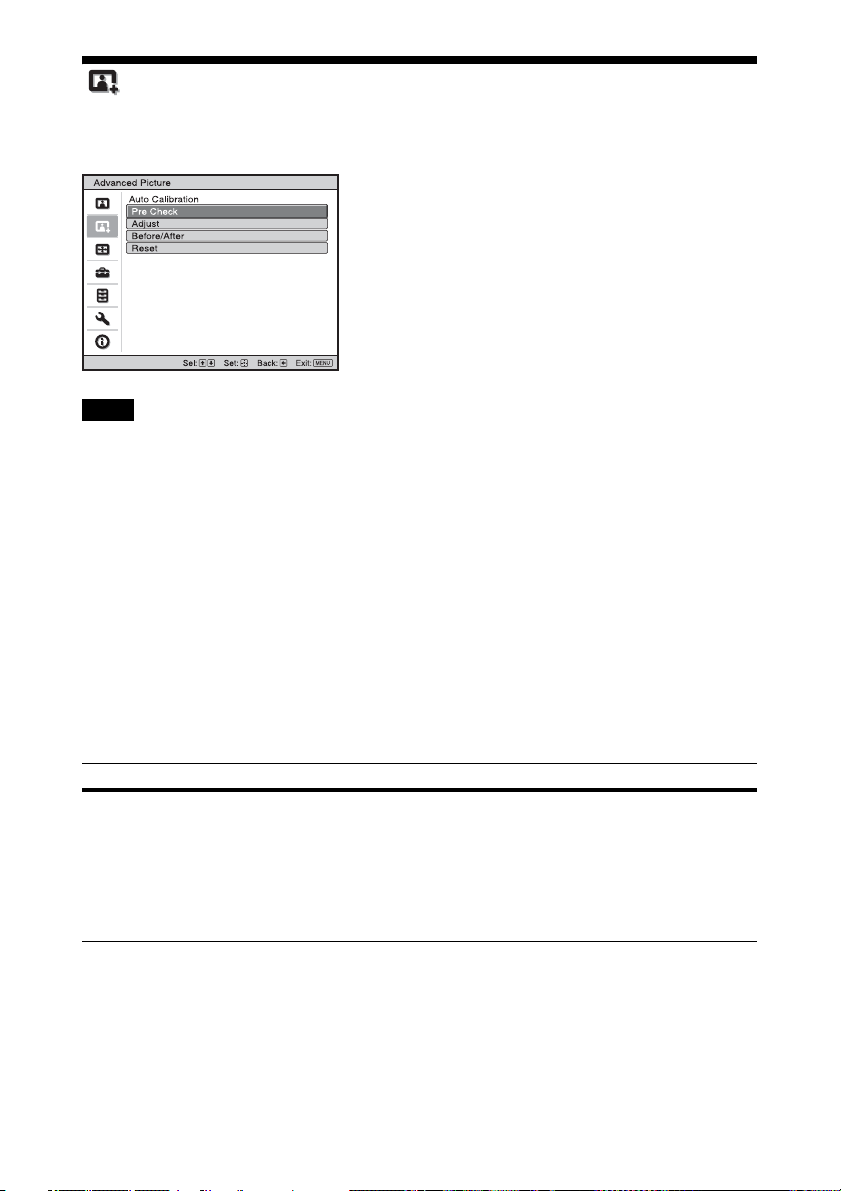

Advanced Picture Menu .................. 30

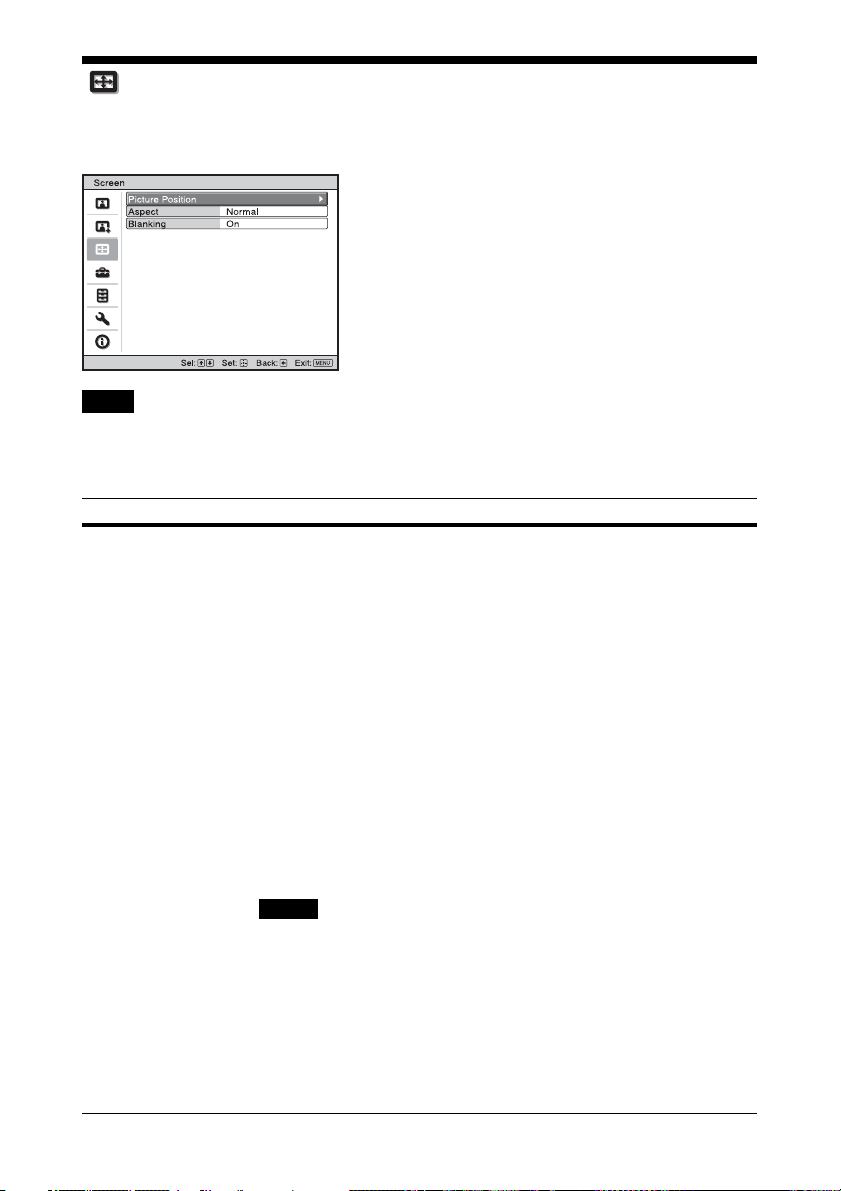

Screen Menu .................................... 31

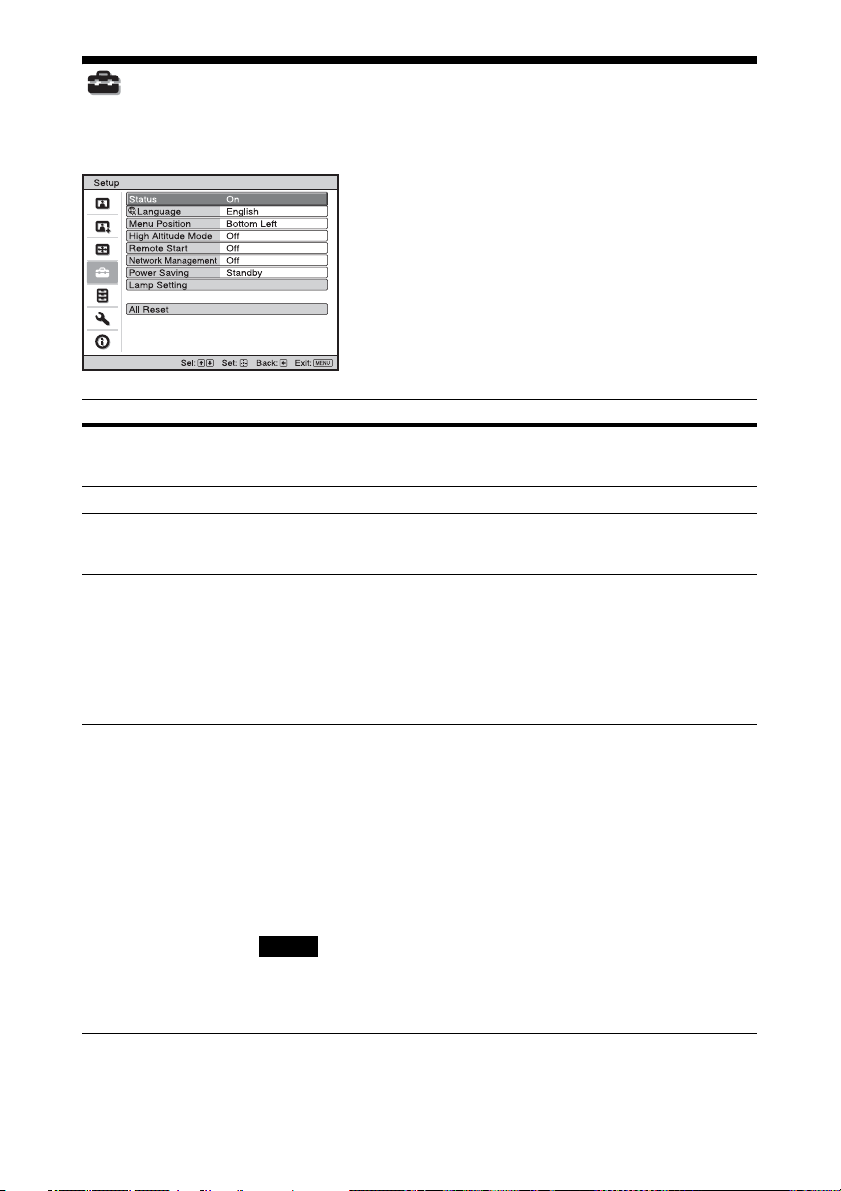

Setup Menu ...................................... 33

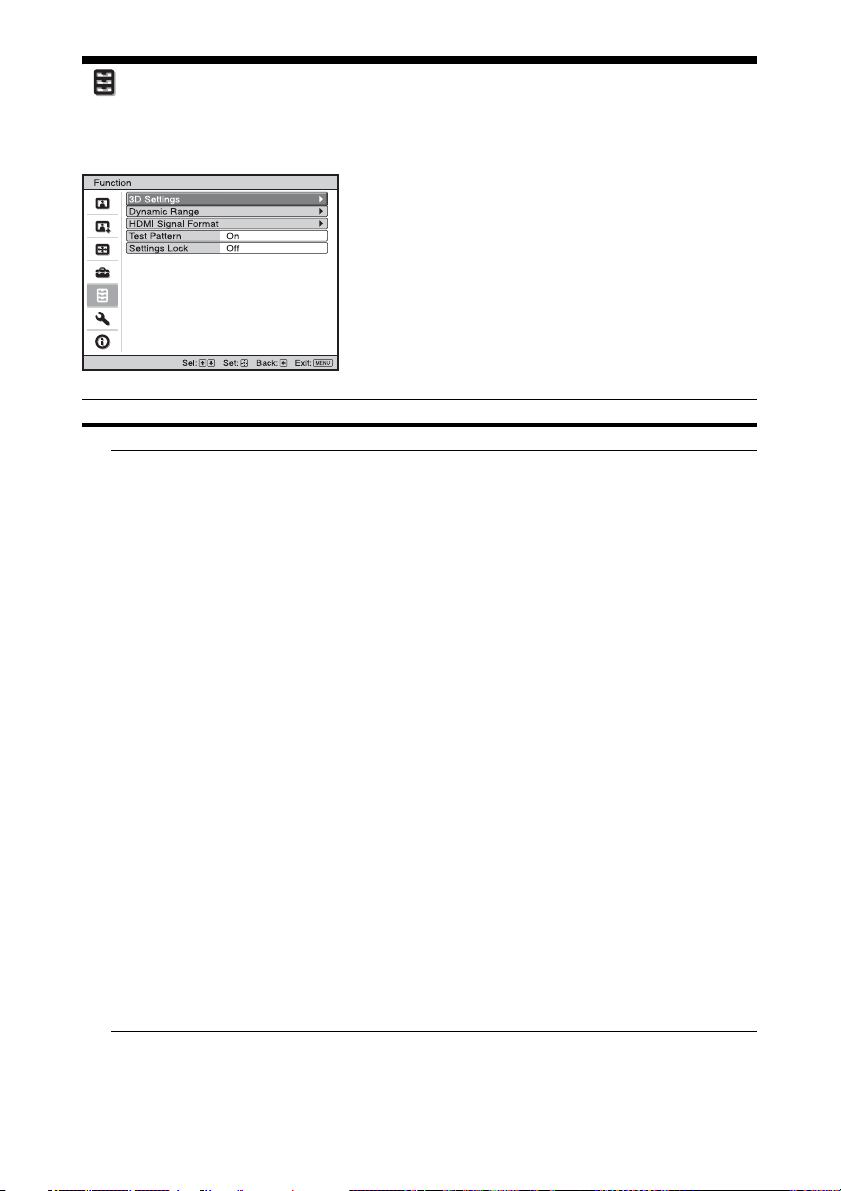

Function Menu ................................ 35

Items Locked by Settings

Lock ........................................ 37

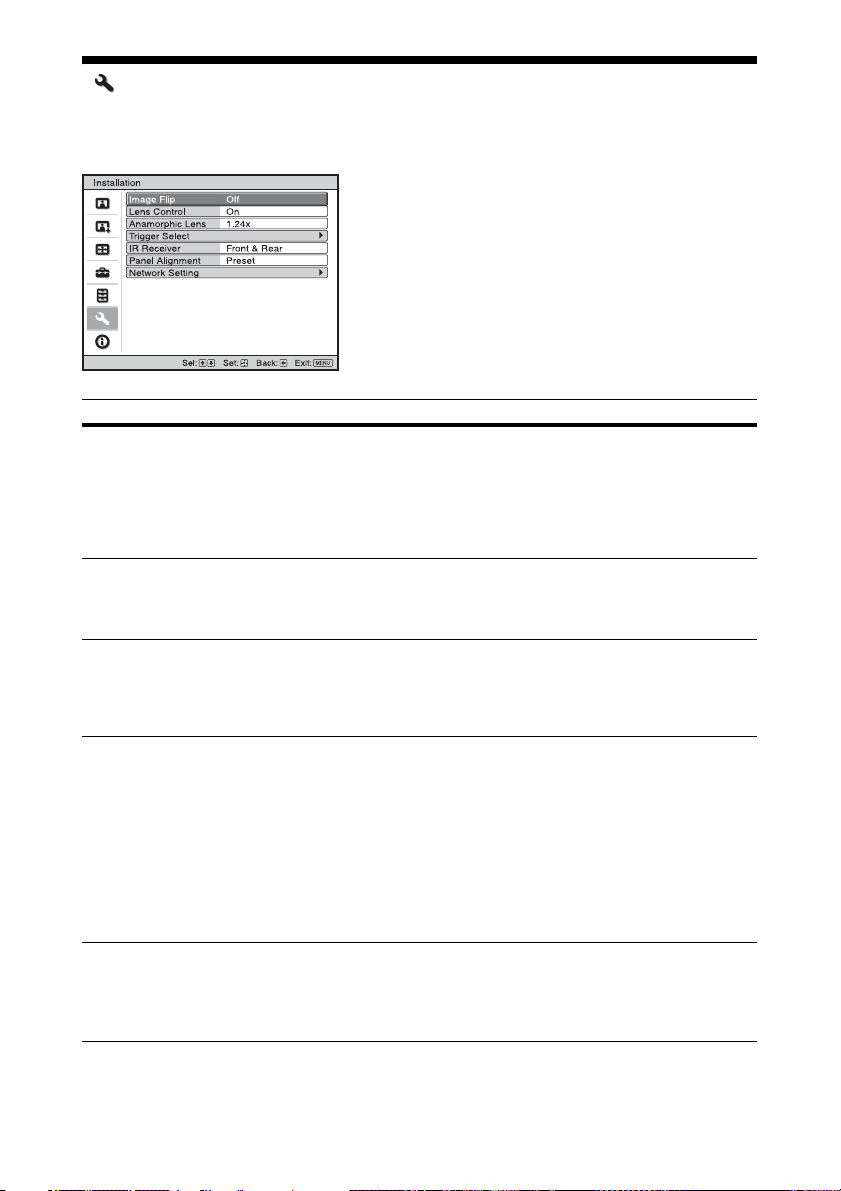

Installation Menu ............................. 38

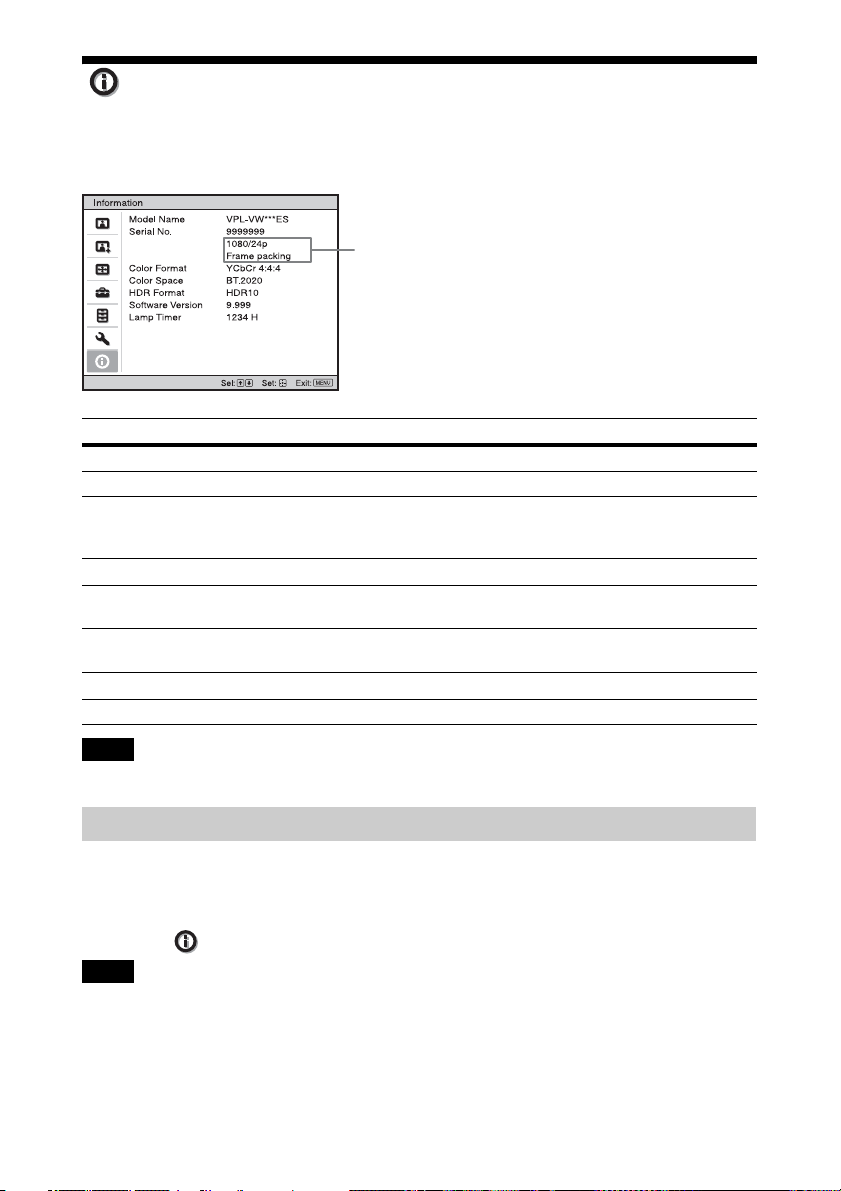

Information Menu ............................ 41

About the Preset Memory .......... 41

Using Network Features

Displaying the Control Window of

the Unit with a Web Browser ........42

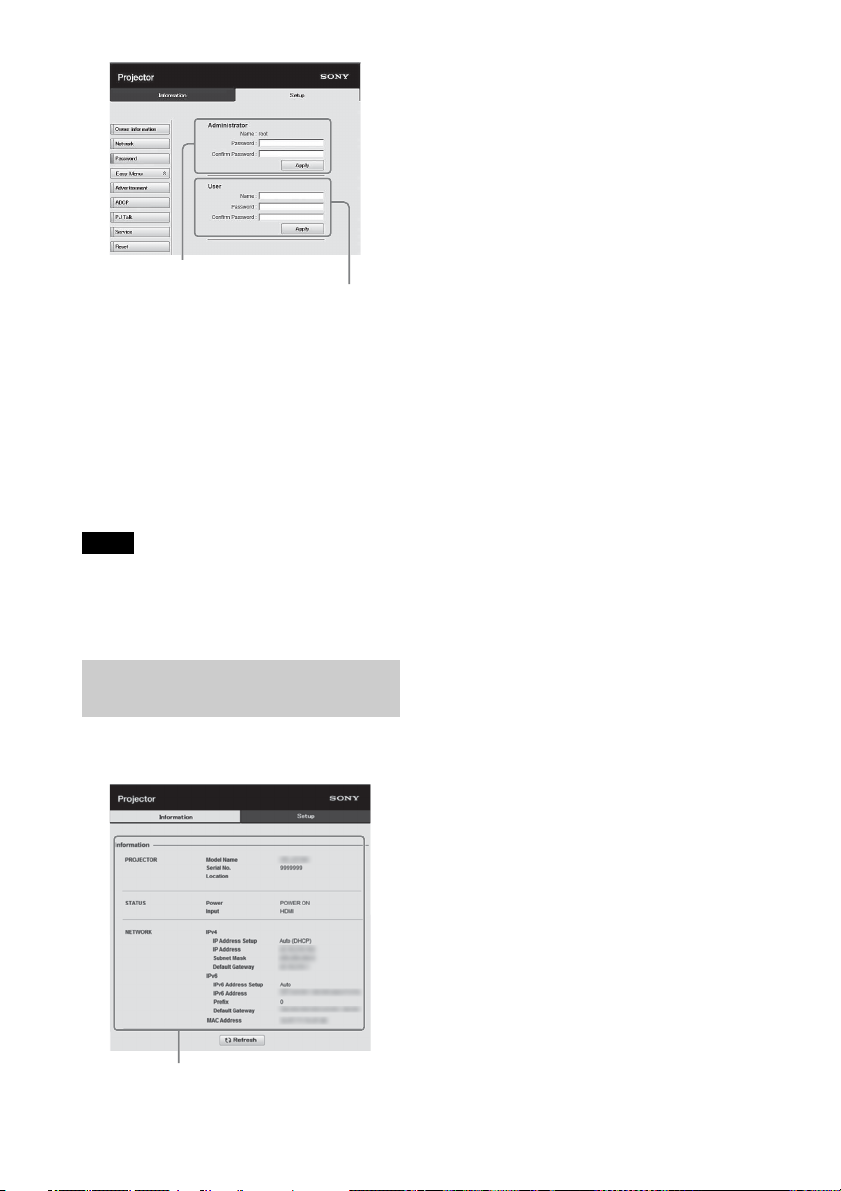

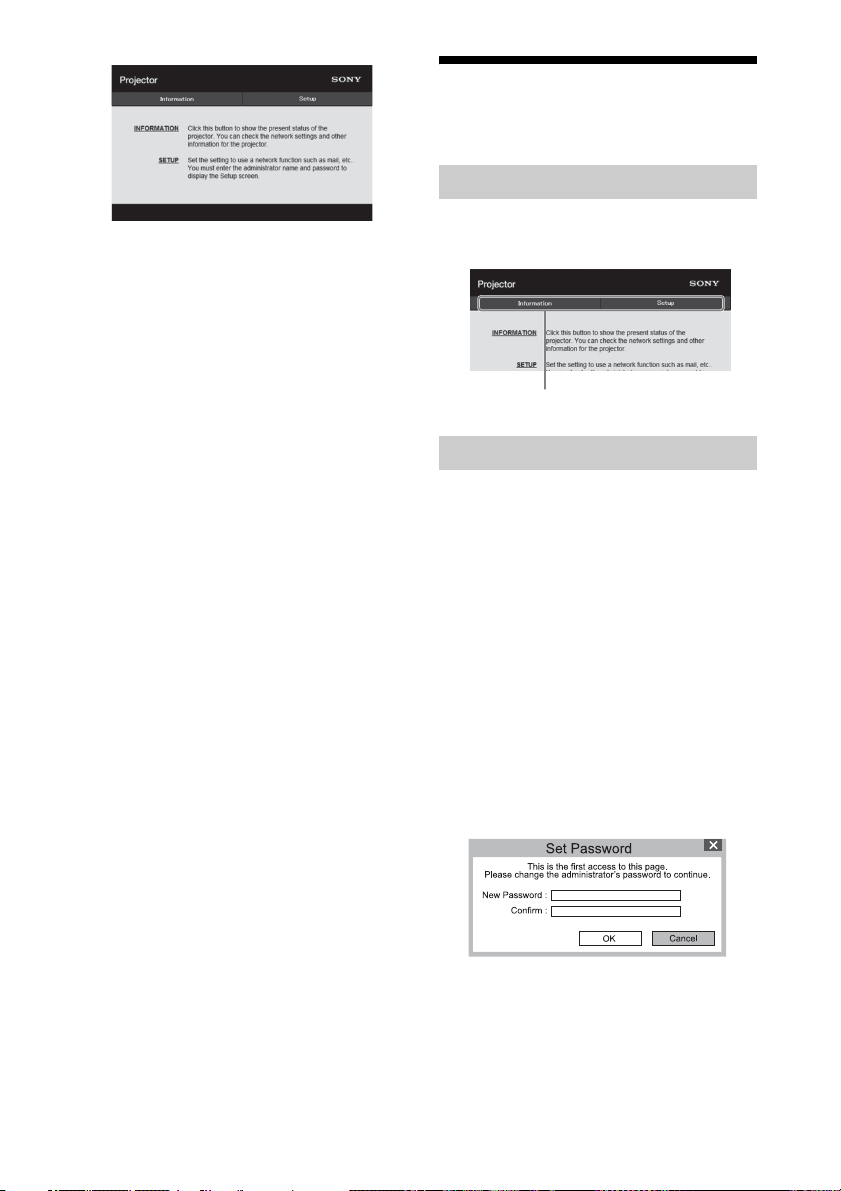

Operating the Control Window ........43

Switching the Page .....................43

Setting the Access Limitation ....43

Confirming the Information

Regarding the Unit .................. 44

Error Handling

Troubleshooting ...............................45

Warning Indicators ...........................48

Message Lists ...................................49

Others

Updating the Software .....................50

About HDR (high dynamic range) ...50

About the simulated 3D feature ....... 50

NOTICES AND LICENSES FOR

SOFTWARE USED IN THIS

PRODUCT .................................... 50

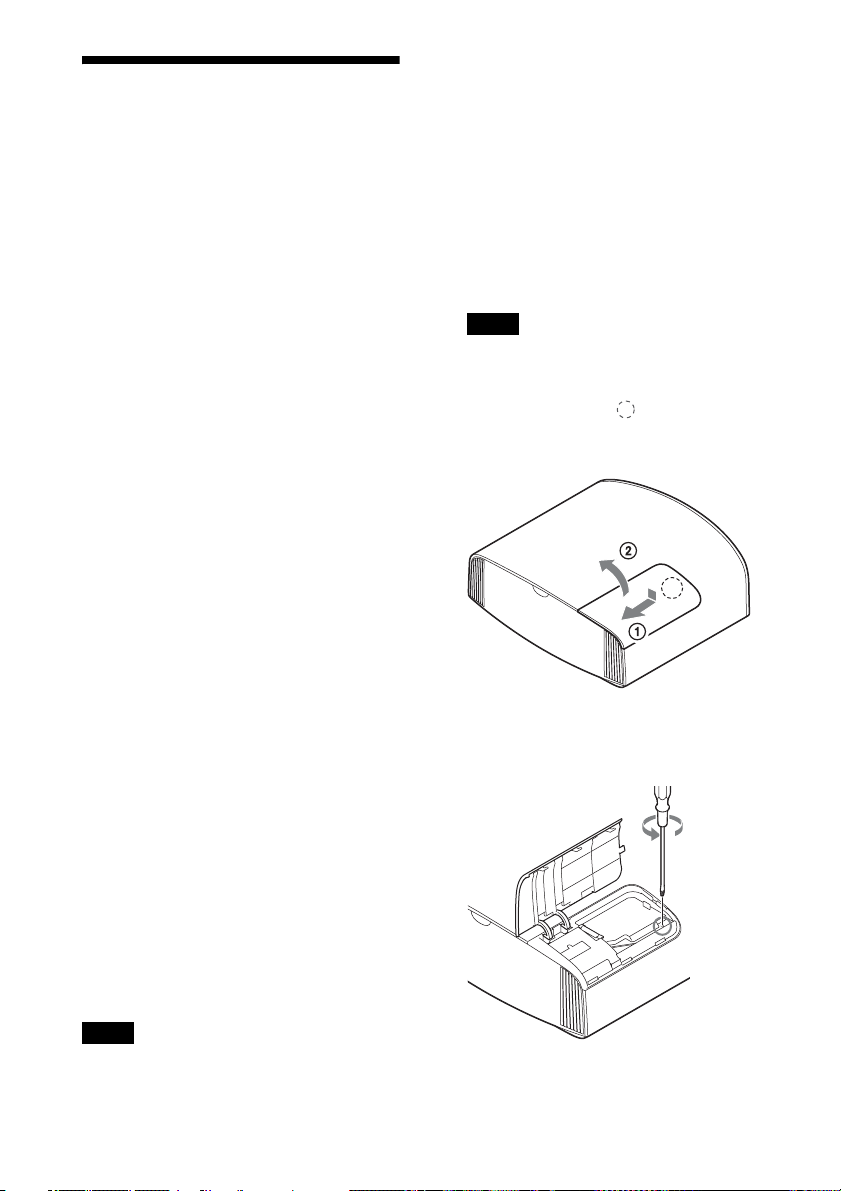

Replacing the Lamp .........................51

Cleaning ........................................... 54

Specifications ................................... 55

Preset Signals ............................. 56

Input Signals and Adjustable/

Setting Items ........................... 58

Compatible 3D Signals ...............59

3D Signals and Adjustable/Setting

Items ........................................ 59

Aspect Mode .............................. 61

Motionflow ................................. 62

Storage Conditions of Adjustable/

Setting Items ........................... 62

Projection Distance and Lens Shift

Range ............................................ 65

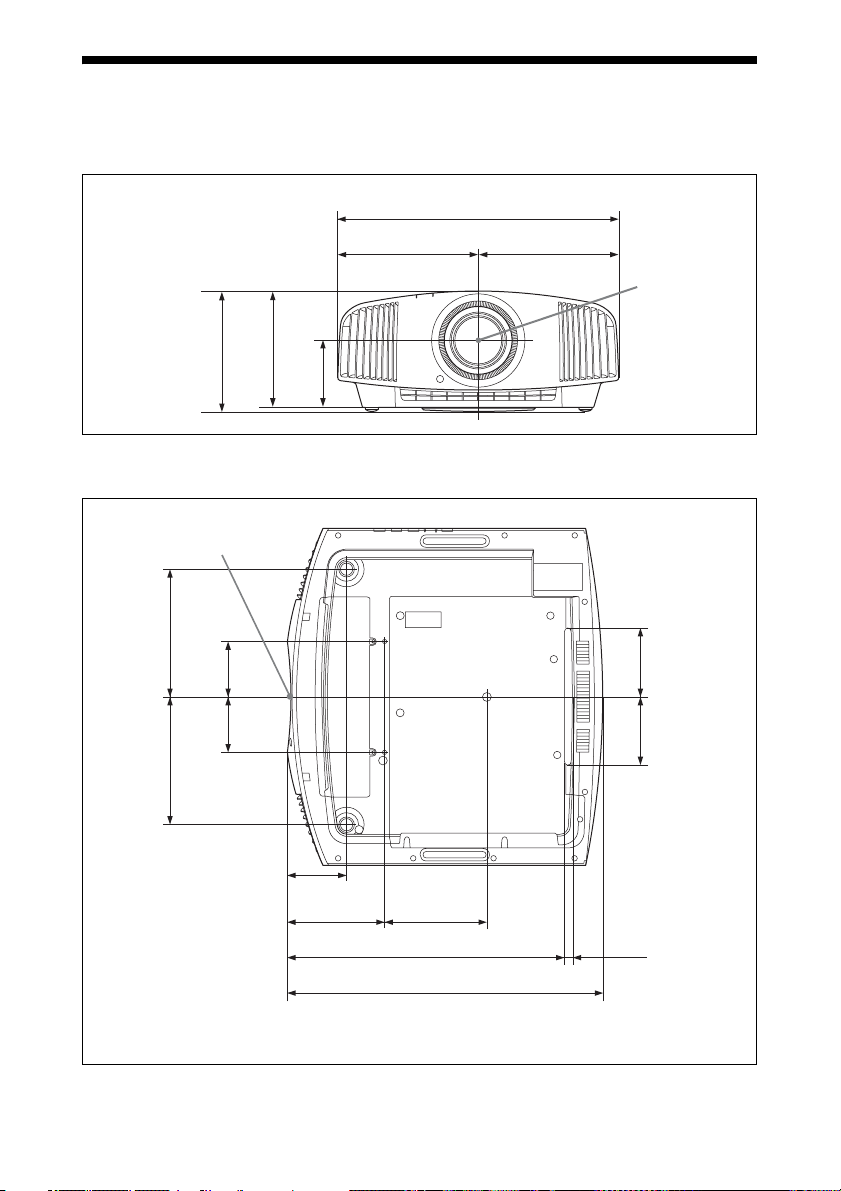

Dimensions ...................................... 69

2

Location of Controls

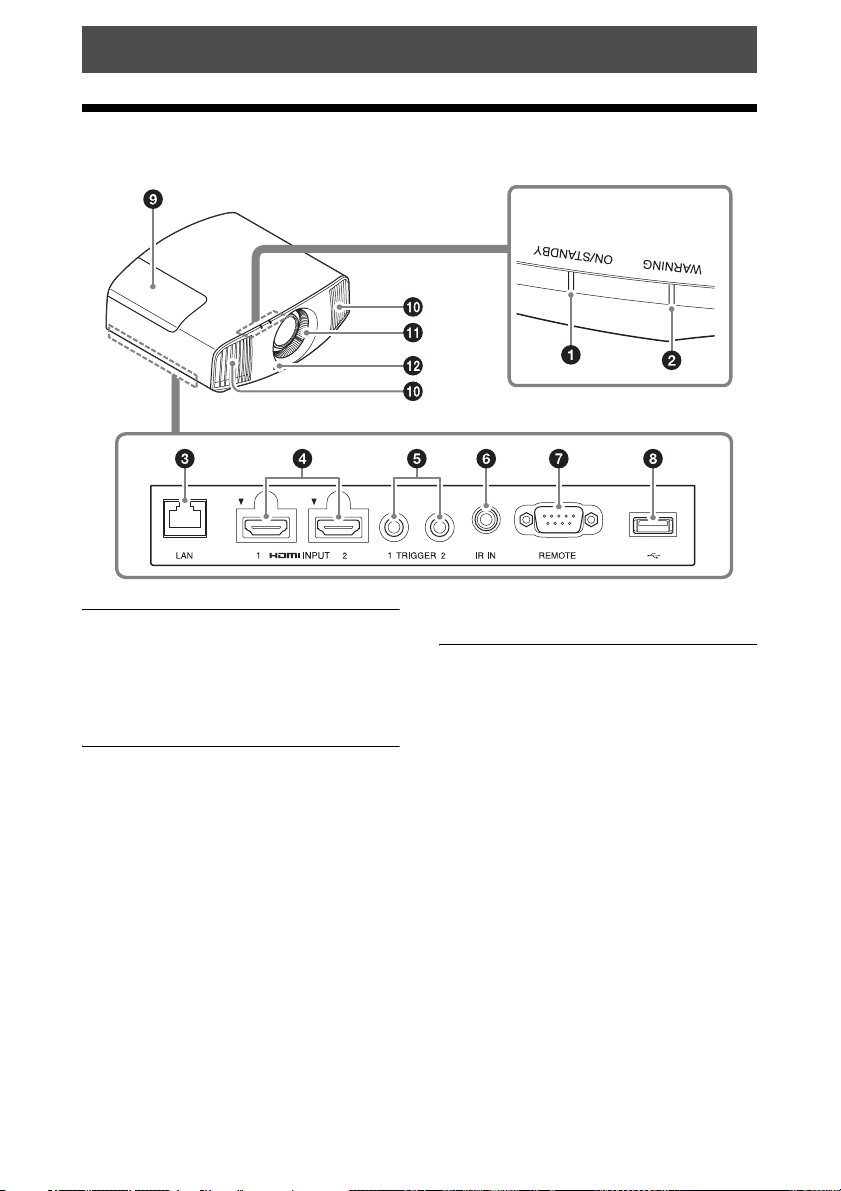

Front/Right Side

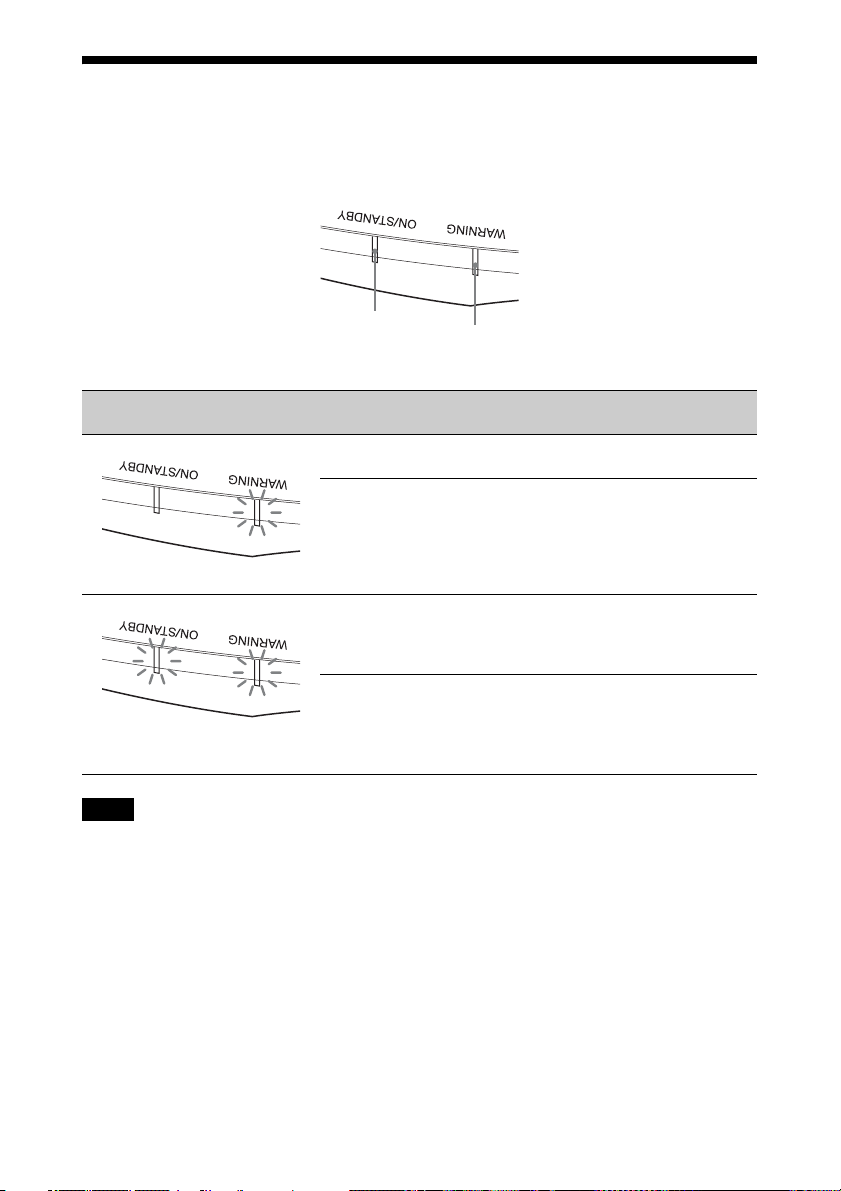

Warning indicators

Warning indicators

a ON/STANDBY indicator

(page 48)

b WARNING indicator (page 48)

Connectors

c LAN connector (page 42)

d HDMI 1/HDMI 2 connector

(page 12)

e TRIGGER 1/TRIGGER 2

connector (page 38)

f IR IN connector

Inputs signals to control the unit.

g REMOTE connector

Connects to a computer, etc. for remote
control.

h USB connector (page 50)

Others

i Lamp cover (page 51)

j Ventilation holes (exhaust)

k Ventilation holes (intake)

(page 53)

l Remote control detector

(page 7)

3

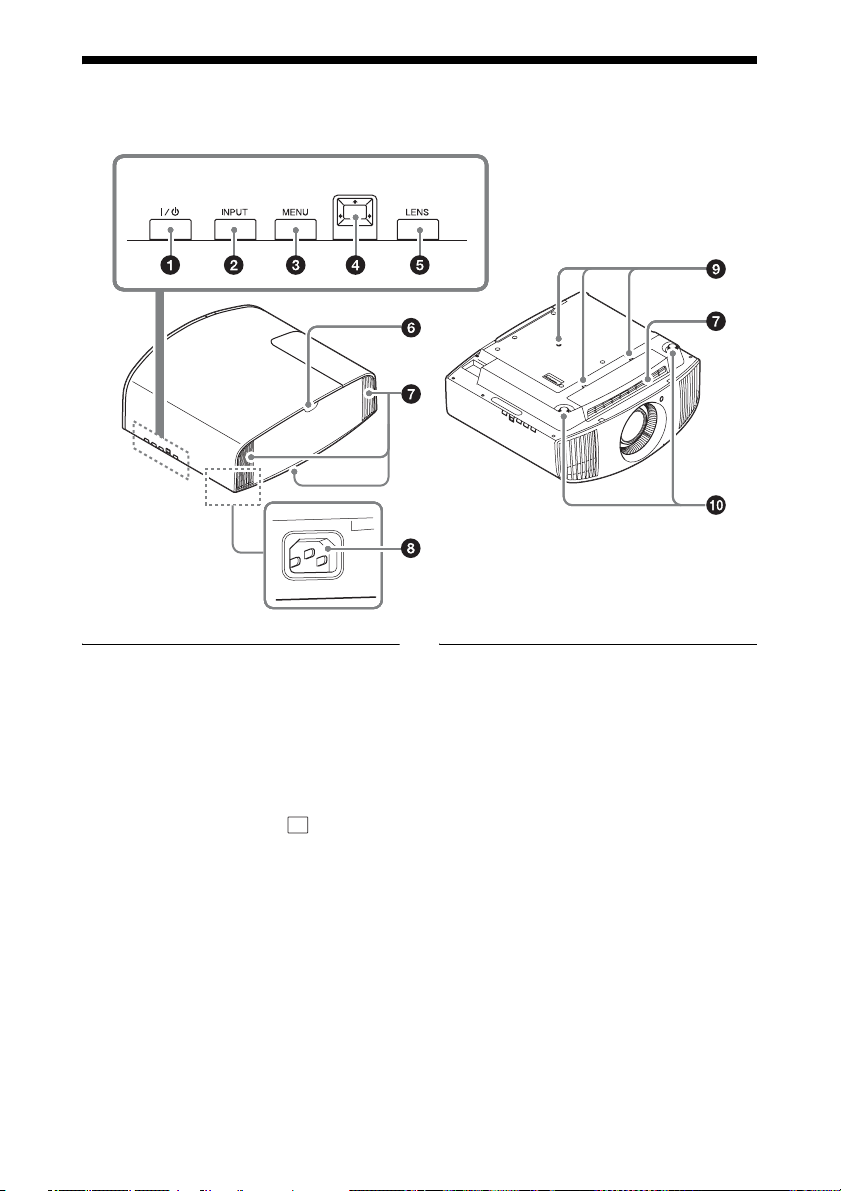

Rear/Left Side/Bottom

The buttons on the control panel have the same names as those on the remote control.

Control panel

Control panel

a ?/1 (ON/STANDBY) button

(page 7)

b INPUT button (page 14)

c MENU button (page 22)

d M/m/</, (arrow)/ (enter)

button (page 22)

e LENS button (page 7)

Others

f Remote control detector

(page 7)

g Ventilation holes (intake)

(page 53)

h AC IN socket (page 7)

i Projector suspension support

attaching hole (page 70)

j Front feet (adjustable) (page 10)

4

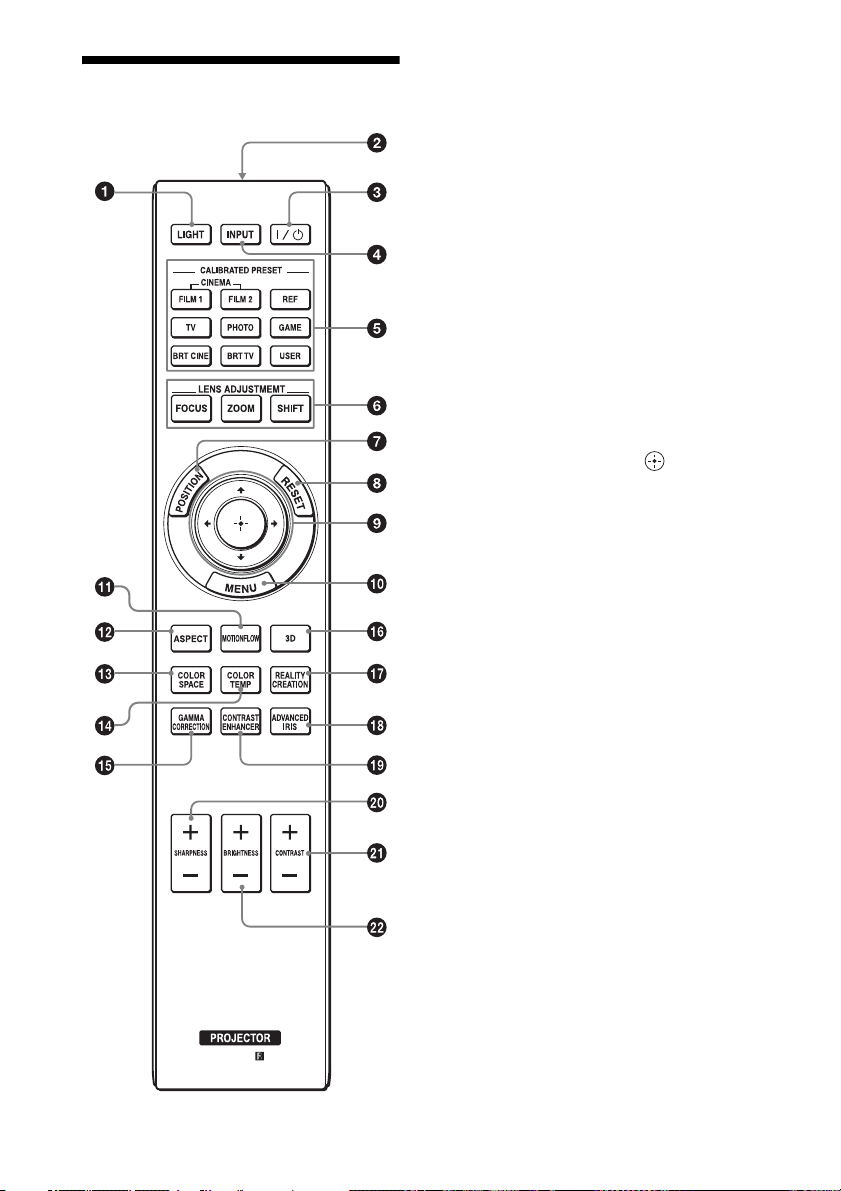

Remote Control

a LIGHT button

Illuminates the buttons on the remote
control.

b Infrared transmitter

c ?/1 (ON/STANDBY) button

(page 7)

d INPUT button (page 14)

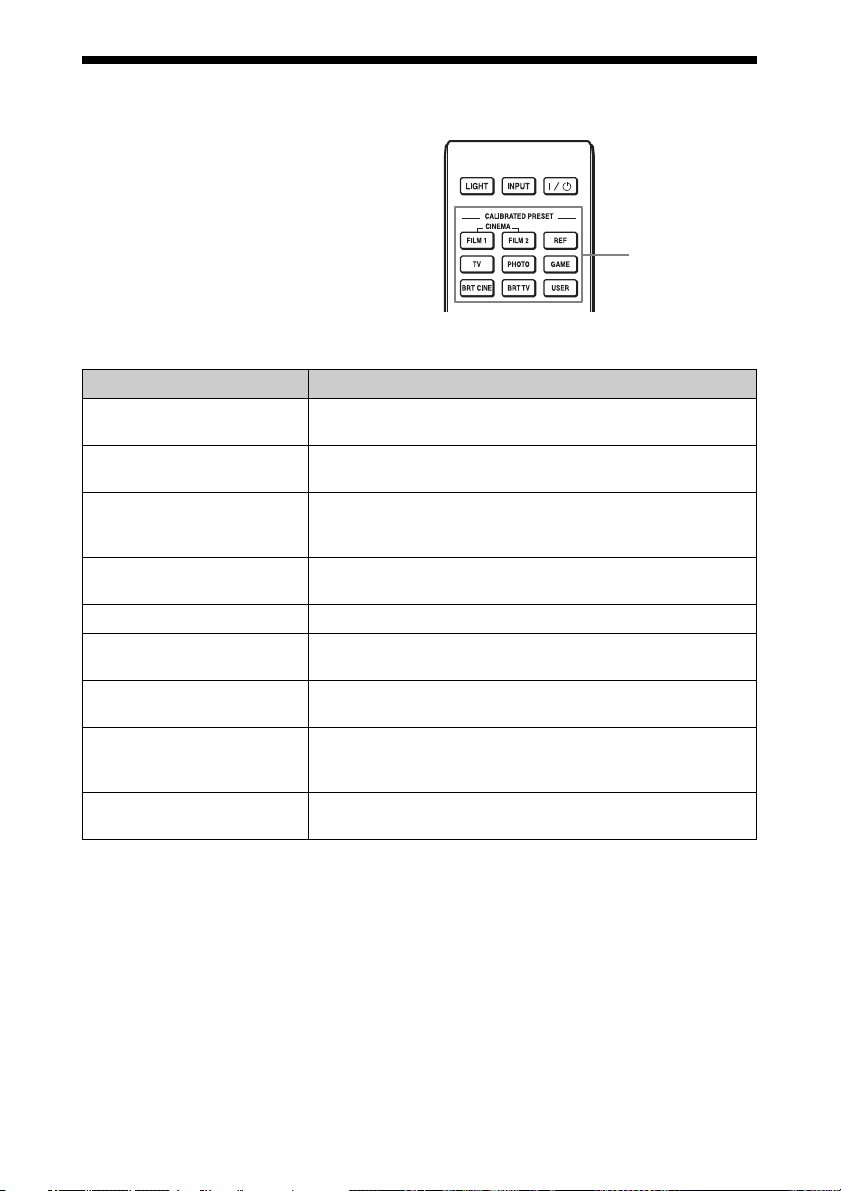

e CALIBRATED PRESET buttons

(page 21)

f LENS ADJUSTMENT buttons

(page 8)

g POSITION button (page 16)

h RESET button (page 23)

i M/m/</, (arrow)/ (enter)

buttons (page 22)

j MENU button (page 22)

k MOTIONFLOW button (page 26)

l ASPECT button (page 18)

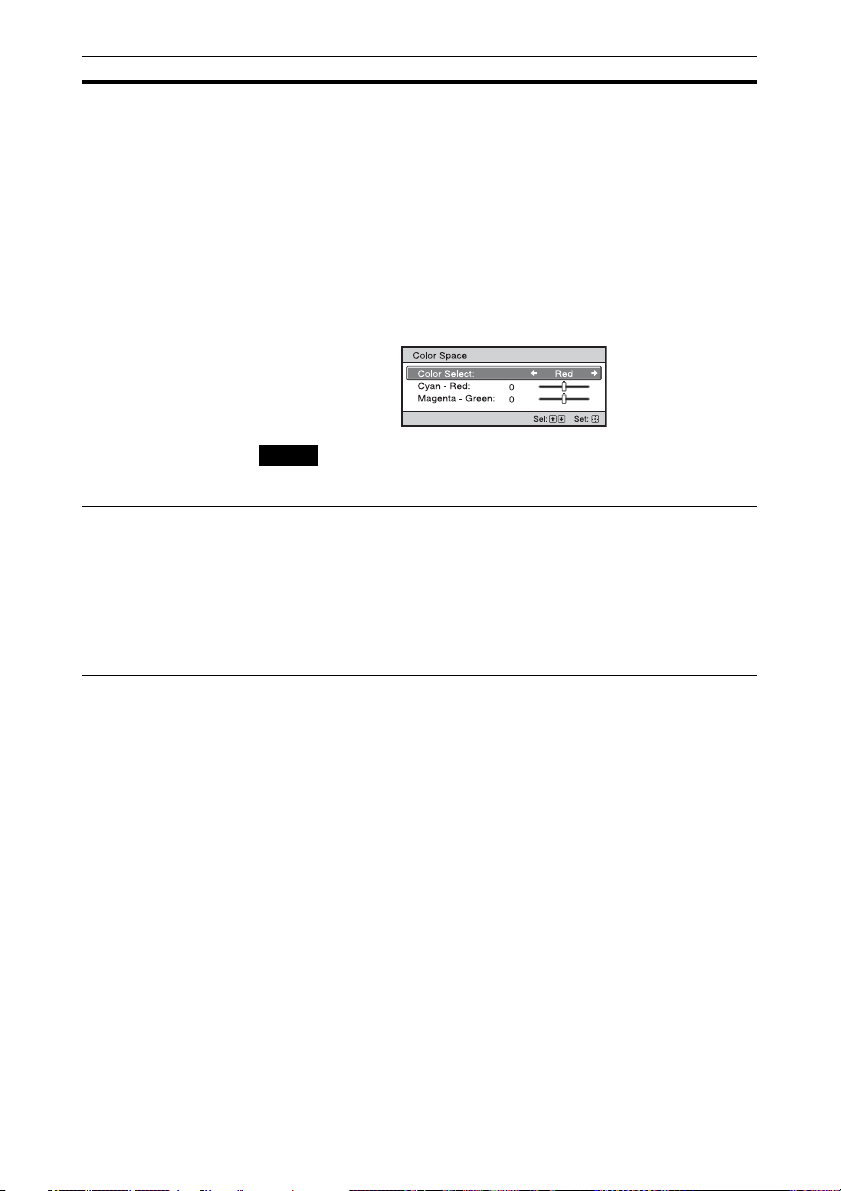

m COLOR SPACE button (page 29)

n COLOR TEMP button (page 26)

o GAMMA CORRECTION button

(page 27)

p 3D button (page 15)

q REALITY CREATION button

(page 25)

r ADVANCED IRIS button

(page 25)

s CONTRAST ENHANCER button

(page 25)

t SHARPNESS +/– button

(page 27)

u CONTRAST +/– button (page 26)

v BRIGHTNESS +/– button

(page 26)

5

Connections and Preparations

Installing the Unit

The installation distance between the unit
and a screen varies depending on the size of
the screen or whether or not you use the lens
shift features. Install this unit so that it fits
the size of your screen. For details on the
distance between the unit and the screen (the
projection distance) and the size of projected
video, see “Projection Distance and Lens
Shift Range” (page 65).

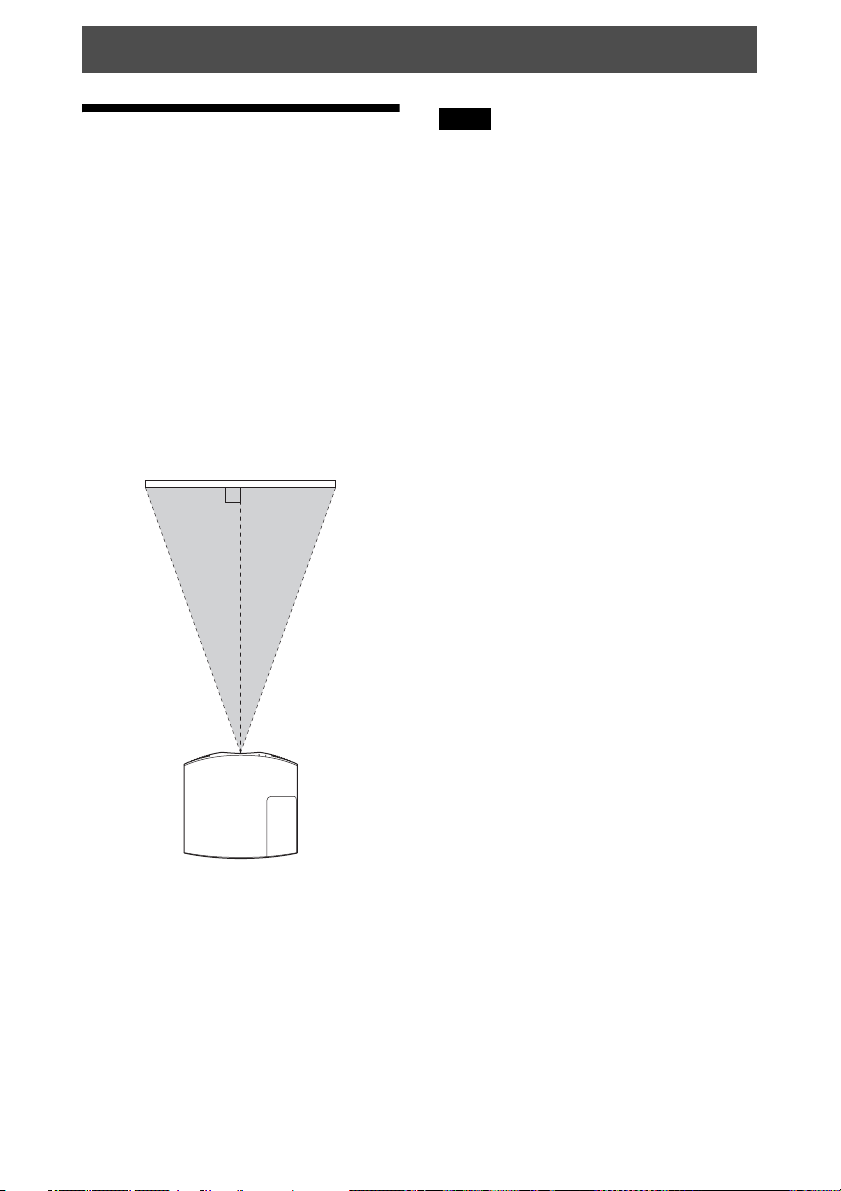

1 Position the unit so that the lens is

parallel to the screen.

Top view

Screen

Note

When using a screen with an uneven surface,
stripes pattern may rarely appear on the screen
depending on the distance between the screen
and the unit or the zooming magnifications.
This is not a malfunction of the unit.

2 Project an image on the screen and

adjust the picture so that it fits the
screen (page 7).

6

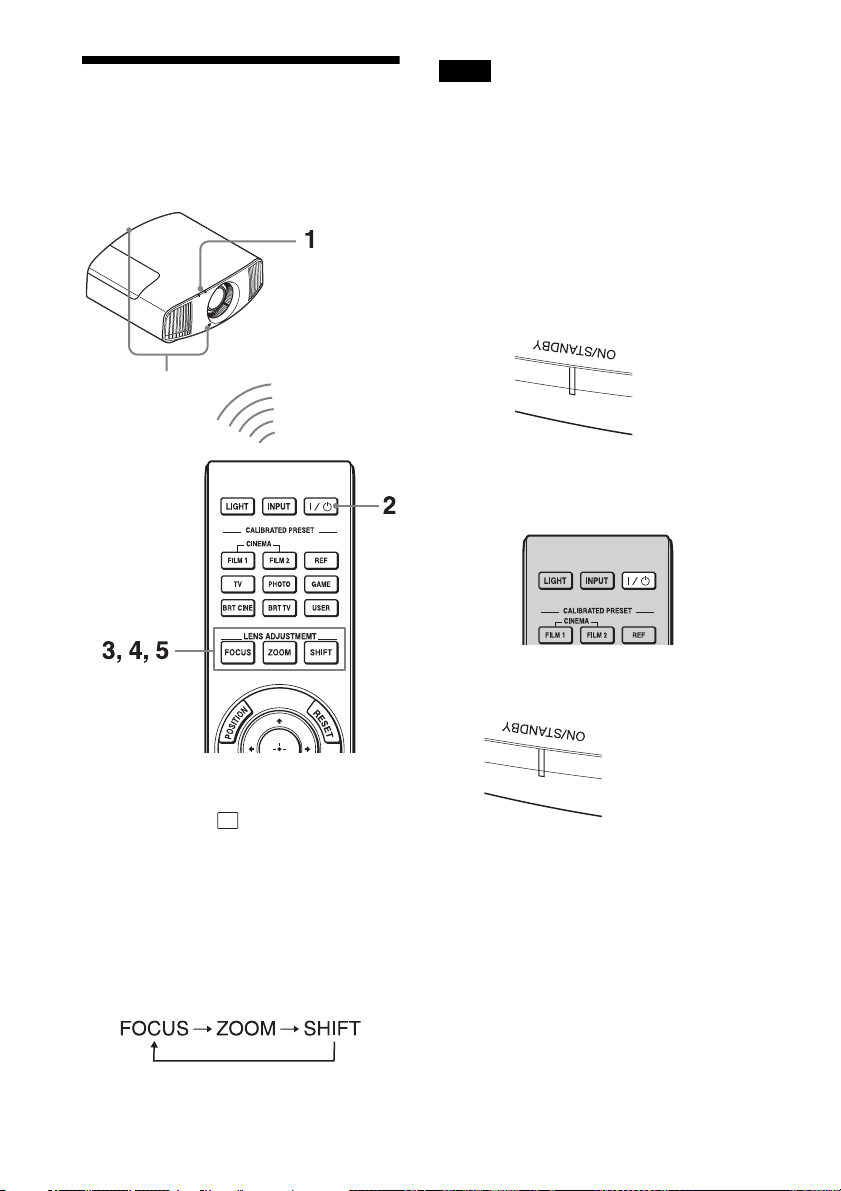

Adjusting the Picture Position

Project an image on the screen and then
adjust the picture position.

Note

Depending on the installation location of the
unit, you may not be able to control it with the
remote control. In this case, point the remote
control at the remote control detector of the
unit or the screen.

1 After connecting the AC power cord to

the unit, plug the AC power cord into
a wall outlet.

The ON/STANDBY indicator lights in
red and the unit goes into standby mode.

Remote control
detector

Tips

?/1 (ON/STANDBY), INPUT, MENU,

• The

and M/m/</,/ (joystick) buttons on
the side panel of the unit function the same as
those on the remote control. The LENS
button functions in the same way as the
LENS ADJUSTMENT (FOCUS, ZOOM,
SHIFT) buttons of the remote control.

• When adjusting the lens, each time you press
the LENS button on the unit, the lens
adjustment function switches between “Lens
Focus,” “Lens Zoom” and “Lens Shift.”

Lights in red.

2 Press the ?/1 (ON/STANDBY) button

to turn on the unit.

The ON/STANDBY indicator flashes in
green, and then lights in green.

Flashes in green for
tens of seconds and
then lights in green.

7

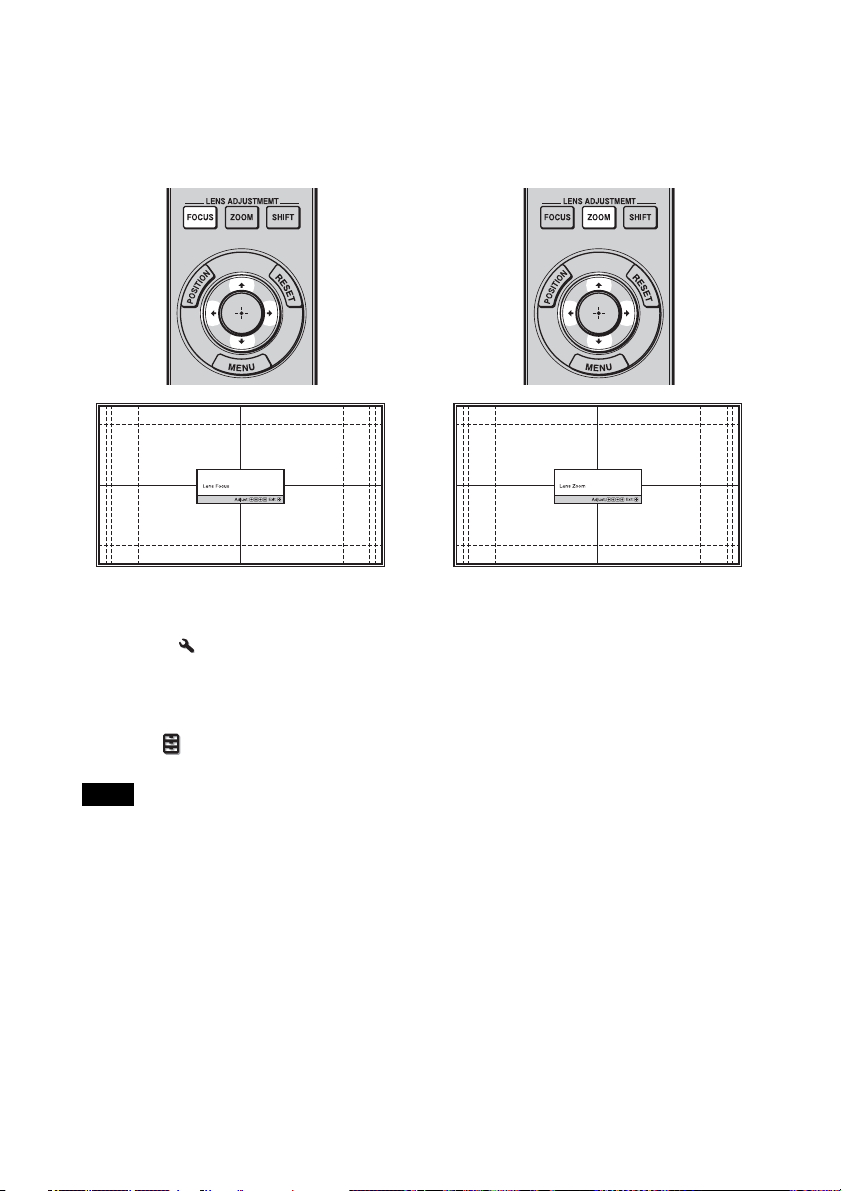

3 Adjust the focus.

Press the LENS ADJUSTMENT
(FOCUS) button to display the Lens
Focus adjustment window (test pattern).
Then adjust the focus of the picture by
pressing the M/m/</, buttons.

4 Adjust the picture size.

Press the LENS ADJUSTMENT
(ZOOM) button to display the Lens
Zoom adjustment window (test pattern).
Then adjust the size of the picture by
pressing the M/m/</, buttons.

Tips

• When “Lens Control” is set to “Off” on the
Installation menu, you cannot adjust the
focus, the picture size or the proper position
by pressing the FOCUS, ZOOM or SHIFT
buttons (page 38).

• When “Test Pattern” is set to “Off” on the
Function menu, the test pattern is not
displayed (page 36).

Note

Adjust the lens by using buttons on the remote
control or the control panel of the unit. Never
make adjustments by directly turning the lens
with your hands, which may cause damage or
malfunction to the unit.

To make the picture larger, press M/,.
To make the picture smaller, press m/
<.

8

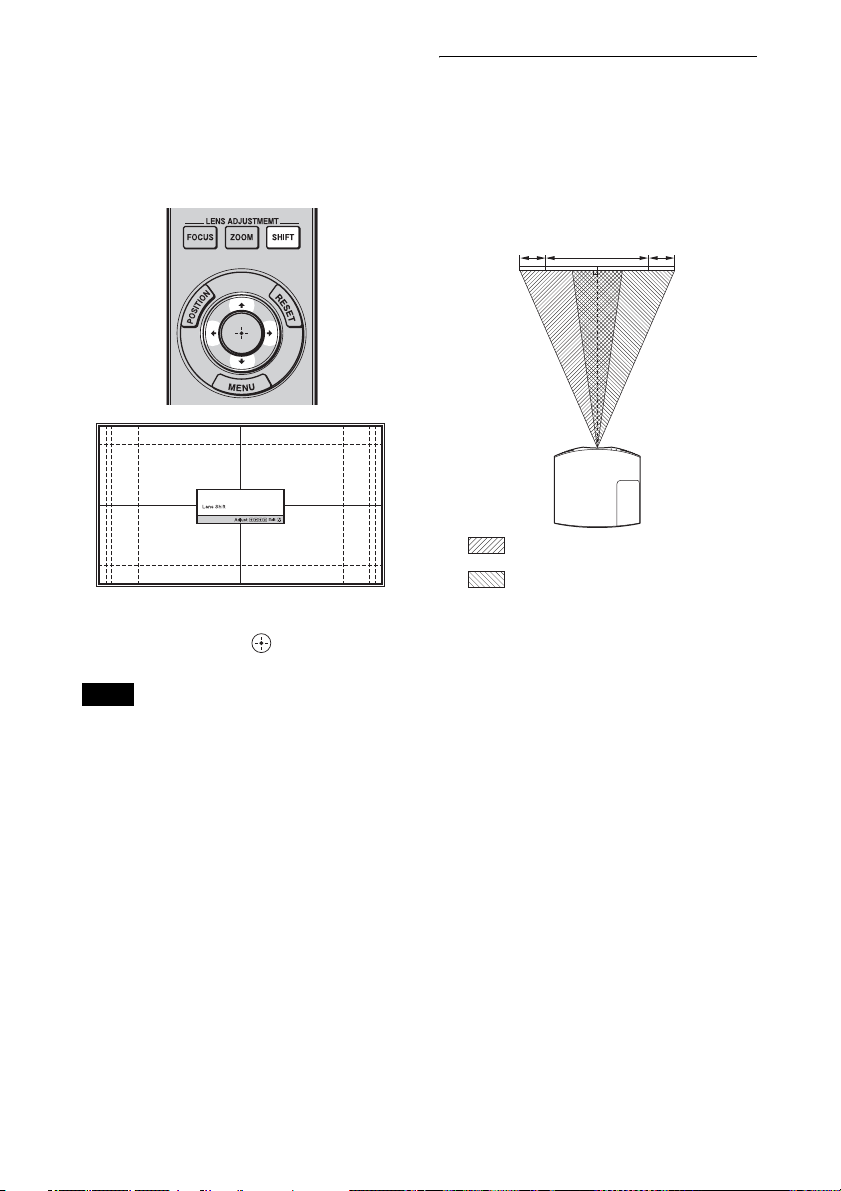

5 Adjust the picture position.

Press the LENS ADJUSTMENT
(SHIFT) button to display the Lens Shift
adjustment window (test pattern). Then
adjust to the proper position of the
picture by pressing the M/m/</,
buttons.

Tip

Whenever you press the button, the test
pattern disappears.

Note

When adjusting the window position, do not
touch the lens unit, otherwise your fingers may
be pinched by the moving parts.

To adjust the horizontal position

Press </,.

The picture projected on the screen moves
right or left by a maximum of 31% of the
screen width from the center of the lens.

Top view

31% 31%1 screen width

: Picture position when moving the

picture to the left at maximum

: Picture position when moving the

picture to the right at maximum

Press the RESET button on the remote
control while the Lens Shift adjustment
window is displayed, the horizontal position
returns to the center of the lens (factory
default position). The zoom and focus are
not changed.

9

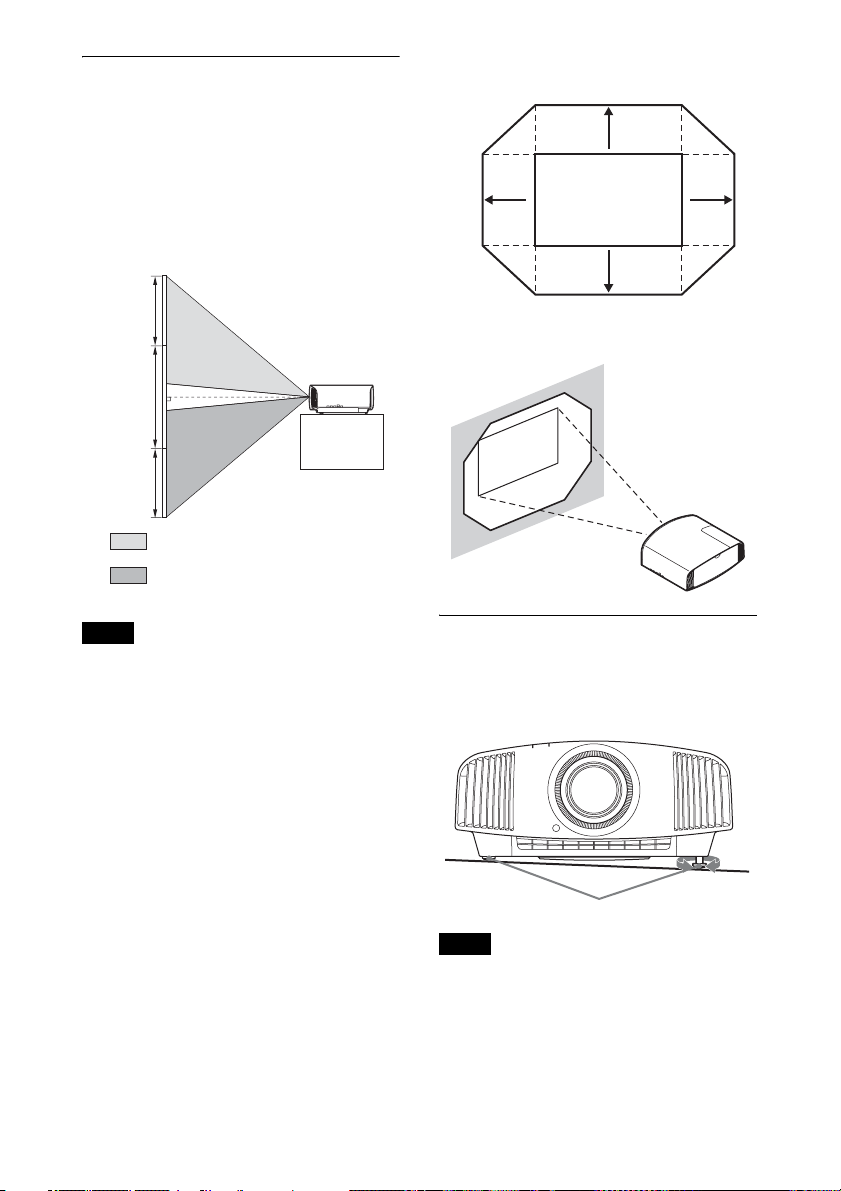

To adjust the vertical position

Press M/m.

The picture projected on the screen moves
up by a maximum of 85% or moves down by
a maximum of 80% of the screen height
from the center of the lens.

Side view

Range of movement of the projected

0.85V

0.31H
Projected Picture

0.8V

0.31H

85%

1 screen
height

80%

: Picture position when moving the

picture upward at maximum

: Picture position when moving the

picture downward at maximum

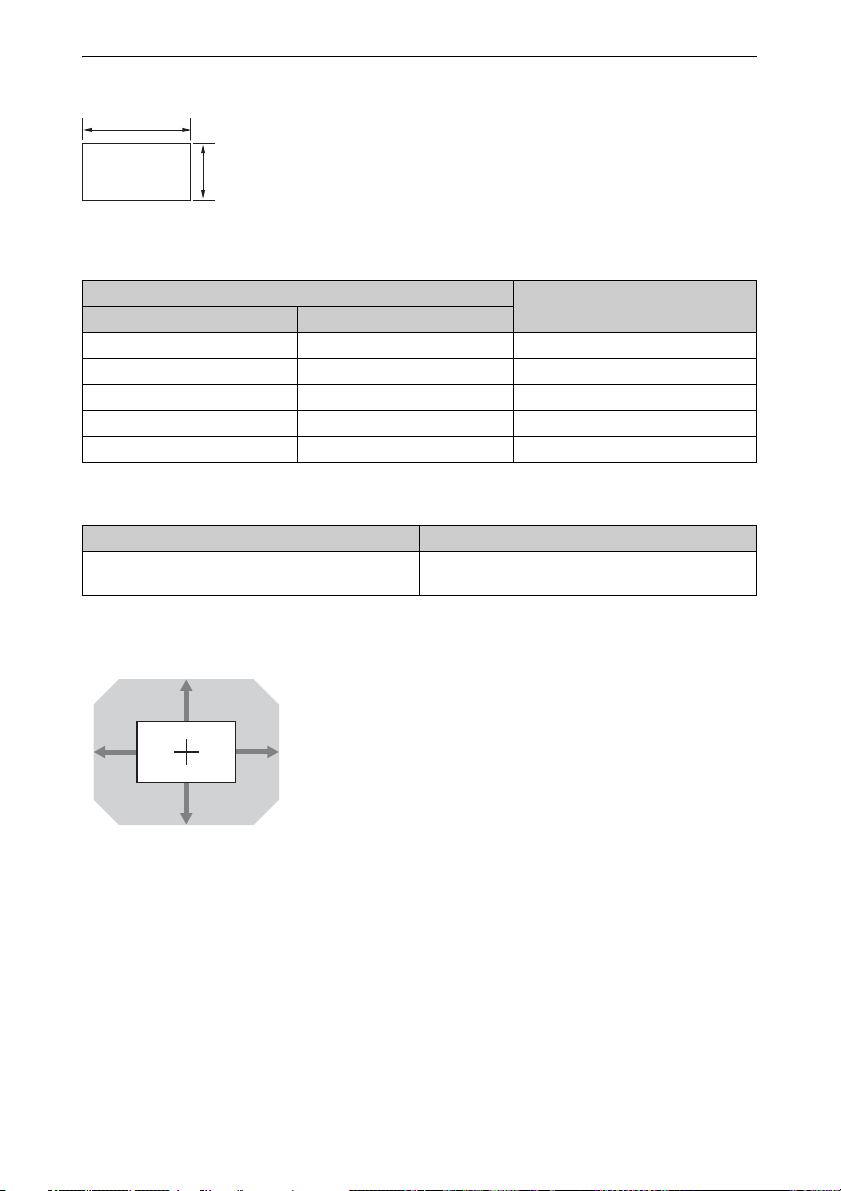

Note

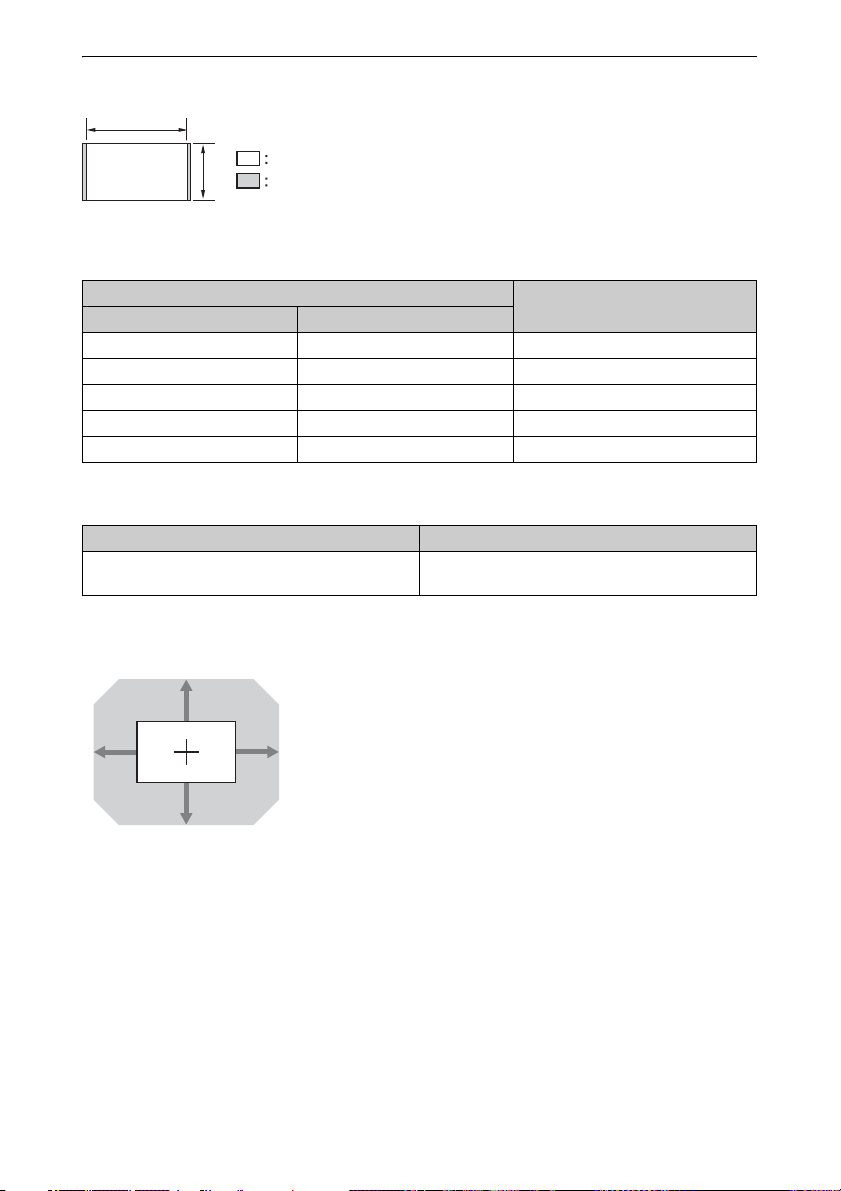

The range to move the picture projected on the
screen can be adjusted only within the octagon
area illustrated below. For details, see
“Projection Distance and Lens Shift Range”
(page 65).

H: Width of the projected picture
V: Height of the projected picture

To adjust the tilt of the installation
surface

If the unit is installed on an uneven surface,
use the front feet (adjustable) to keep the unit
level.

Turn to

Front feet (adjustable)

adjust.

Notes

• If the unit is tilted up or down, the projected
image may be trapezoidal.

• Be careful not to catch your finger when
turning the front feet (adjustable).

10

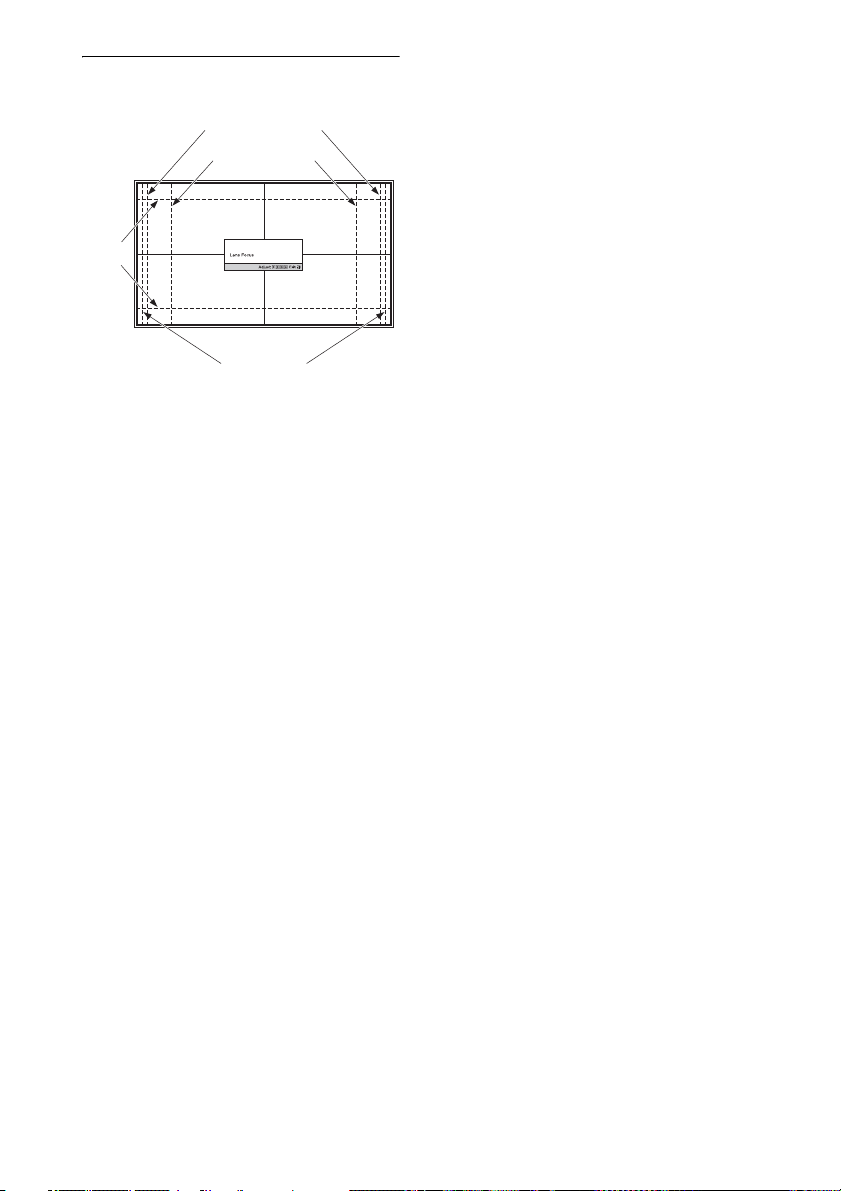

Lens adjustment window (test
pattern)

1.78:1 (16:9)

1.33:1 (4:3)

2.35:1

1.85:1

The dashed lines show the screen sizes of each
aspect ratio.

11

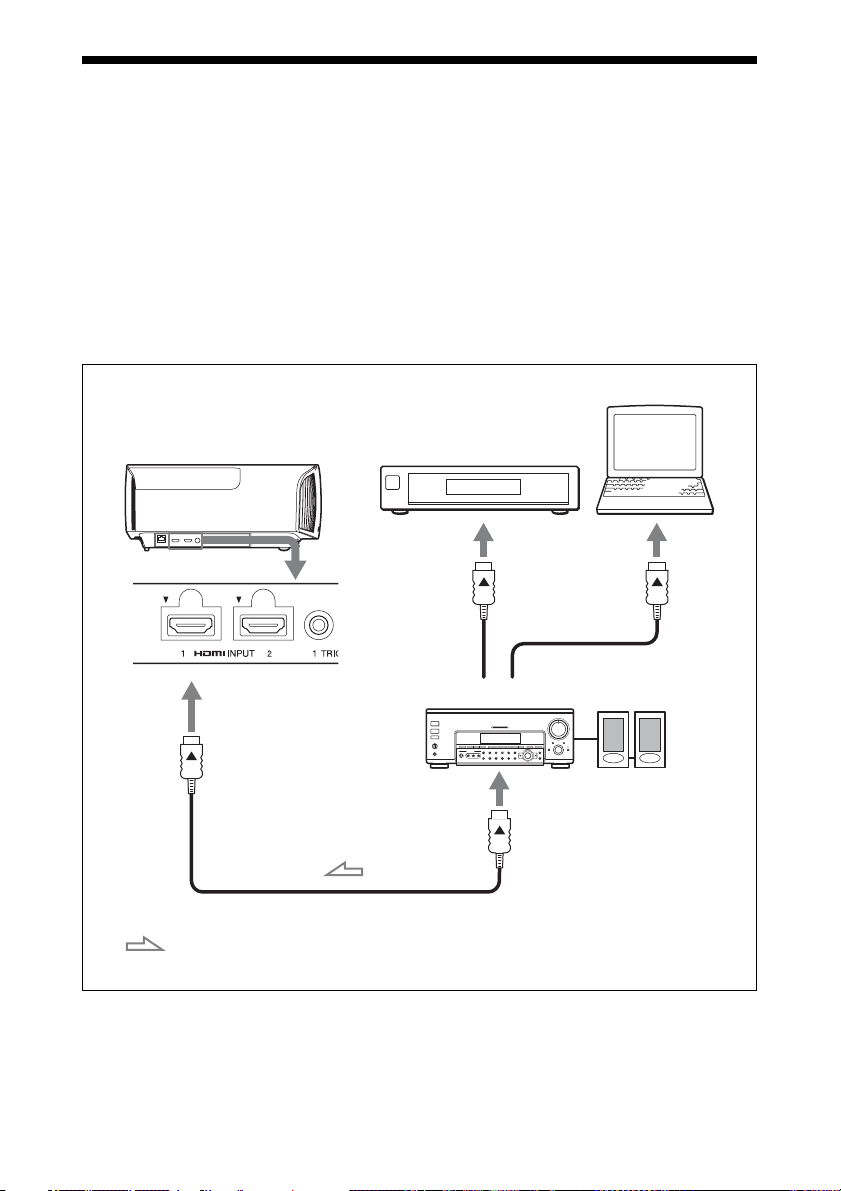

Connecting to Video Equipment or a Computer

You can enjoy high picture quality by connecting a DVD player/recorder, Blu-ray Disc player/
recorder, or PlayStation

®

equipped with HDMI output to the HDMI input of the unit.

When making connections, be sure to do the following:

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or poor
picture quality. When pulling out a cable, be sure to pull it out from the plug, not the cable
itself.

• Refer to the operating instructions of the connected equipment.

Computer

Right side of the unit

Equipment with HDMI
output connectors

AV amplifier

Speakers

to HDMI output

HDMI cable (not supplied)

: Video signal flow Use a Premium High Speed HDMI cable on which the cable

type logo is specified.

12

Notes

• Use a Premium High Speed HDMI cable. If you use other types of cables, 4K video may not be
displayed appropriately.

• When connecting an HDMI cable to the unit, make sure the

V mark on the upper part of the HDMI

input of the unit and the v mark on the connector of the cable is set at the same position.

• If the picture from equipment connected to the unit with an HDMI cable is not correct, check the
settings of the connected equipment.

• If you set your computer, such as a notebook type, to output the signal to both computer’s display
and this equipment, the picture of the equipment may not appear properly. Set your computer to
output the signal to only the external monitor. For details, refer to the computer’s operating
instructions supplied with your computer. For settings of the computer, consult with the
manufacturer of the computer.

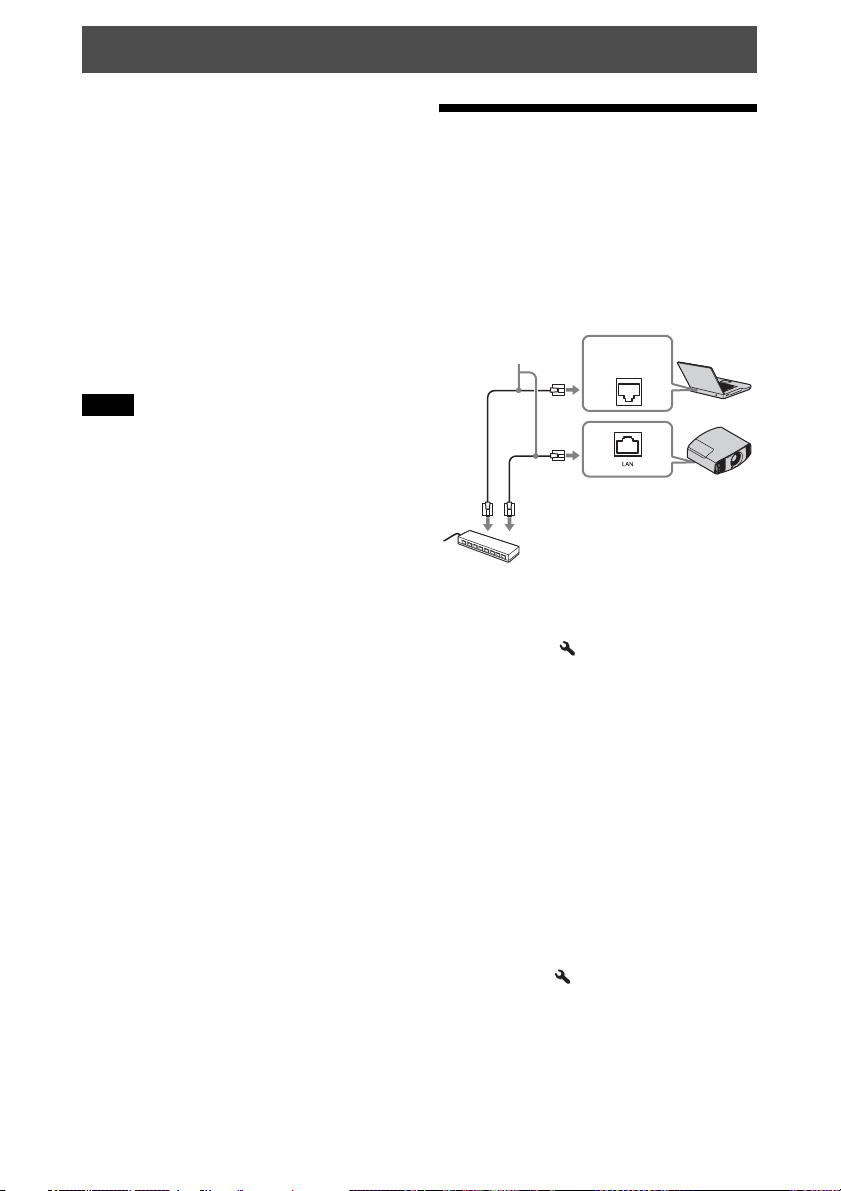

When you monitor and control the projector via the network, access the Setup page of the projector
(page 42) via a Web browser and enable the desired control protocol.

13

Projecting

Projecting the Picture

1 Turn on both the unit and the

equipment connected to the unit.

2 Press INPUT to display the input

palette on the screen.

3 Select the equipment from which you

want to display images.

Press INPUT repeatedly or press M/m/

(enter) to select the equipment from

which to project.

The fan stops and the ON/STANDBY
indicator changes from flashing green to
remaining red.

The power is turned off completely, and you
can disconnect the AC power cord.

Note

Never disconnect the AC power cord while the
indicator is flashing.

Tip

You can turn off the unit by holding the ?/1
(ON/STANDBY) button for about 1 second,
instead of performing the above steps.

Example: To view the picture from the
video equipment connected to the HDMI
1 connector of this unit.

Tip

When “Status” is set to “Off” on the Setup
menu, the input palette does not appear. Press
the INPUT button to switch between input
terminals in sequence.

Turning Off the Power

1 Press the ?/1 (ON/STANDBY)

button.

A message “POWER OFF?” appears on
the screen.

2 Press the ?/1 (ON/STANDBY) button

again before the message disappears.

The ON/STANDBY indicator flashes in
green and the fan continues to run to
reduce the internal heat.

14

Watching 3D Video

menu. For details, see “3D Settings”
(page 35).

Images

You can enjoy powerful 3D video images,
such as from 3D games and 3D Blu-ray
Discs, using the Active 3D Glasses.

1 Turn on the HDMI equipment for 3D

compatibility connected to the unit,
then play the 3D content.

For details on how to play 3D content,
refer to the operating instructions for the
connected equipment.

2 Turn on the unit and project the 3D

video image onto the screen.

For details on how to project the image,
see “Projecting the Picture” (page 14).

3 Turn on the 3D glasses, and then put

them on so that they fit comfortably.

For details on how to use the 3D glasses,
see “Using the 3D Glasses” (page 15).

Tip

The factory default setting for ”2D-3D Display
Sel.” is “Auto” to allow projecting 3D video
images automatically when the unit detects 3D
signals.

Notes

• It may not be possible to display 3D video
image, depending on the type of signal. Set
the “2D-3D Display Sel.” to “3D,” and “3D
Format” to “Side-by-Side” or “Over-Under”
to suit the format of the 3D content you want
to watch (page 35).

• Use the 3D glasses within the
communication range (page 15).

• There are differences in perception of 3D
video images among individuals.

• When the temperature of the usage
environment is low, the 3D effect may be
diminished.

Using the 3D Glasses

1 Turn on the 3D glasses, and register

them on the unit.

For details on how to register the 3D
glasses, refer to the operating
instructions supplied with the 3D
glasses.

2 Put on the 3D glasses.

3 Turn toward the screen.

Precautions for use

Misoperation may occur if:

• The viewing position is too far from the
projector

• There are other communication devices,
such as a wireless LAN (IEEE802.11 b/g/
n) or a microwave with a bandwidth of 2.4
GHz, near the unit

3D glasses communication range

Figure below indicate the communication
range of the 3D glasses. If you try to watch
3D video images from a distance greater
than the communication range or install the
unit outside the communication range, the
3D glasses may not be able to display the
images properly. Also, the distance varies
depending on the environment of the room
and installation environment of the unit.

Adjusting/Setting the 3D functions

You can adjust/set the 3D functions by
pressing the 3D button on the remote control
or with the “3D Settings” of the Function

15

Top or side view

Projector

Using the Picture Position

10 m

10 m

You can store up to five combinations of lens
settings (focus, picture size, picture
position), aspect ratio, and blanking. These

10 m 10 m

settings can be recalled.
In the factory preset setting, the Picture
Position is not stored.

1 Press POSITION.

The Picture Position selecting palette is
displayed.

2 Press POSITION repeatedly, or press

M/m/ to select the position.

The settings of the position selected is
recalled.
Store or delete lens settings, aspect ratio,
and blanking in the “Picture Position” of
the Screen menu (page 31).
The position where the lens settings,
aspect ratio, and blanking are not stored
is displayed as “---.”

16

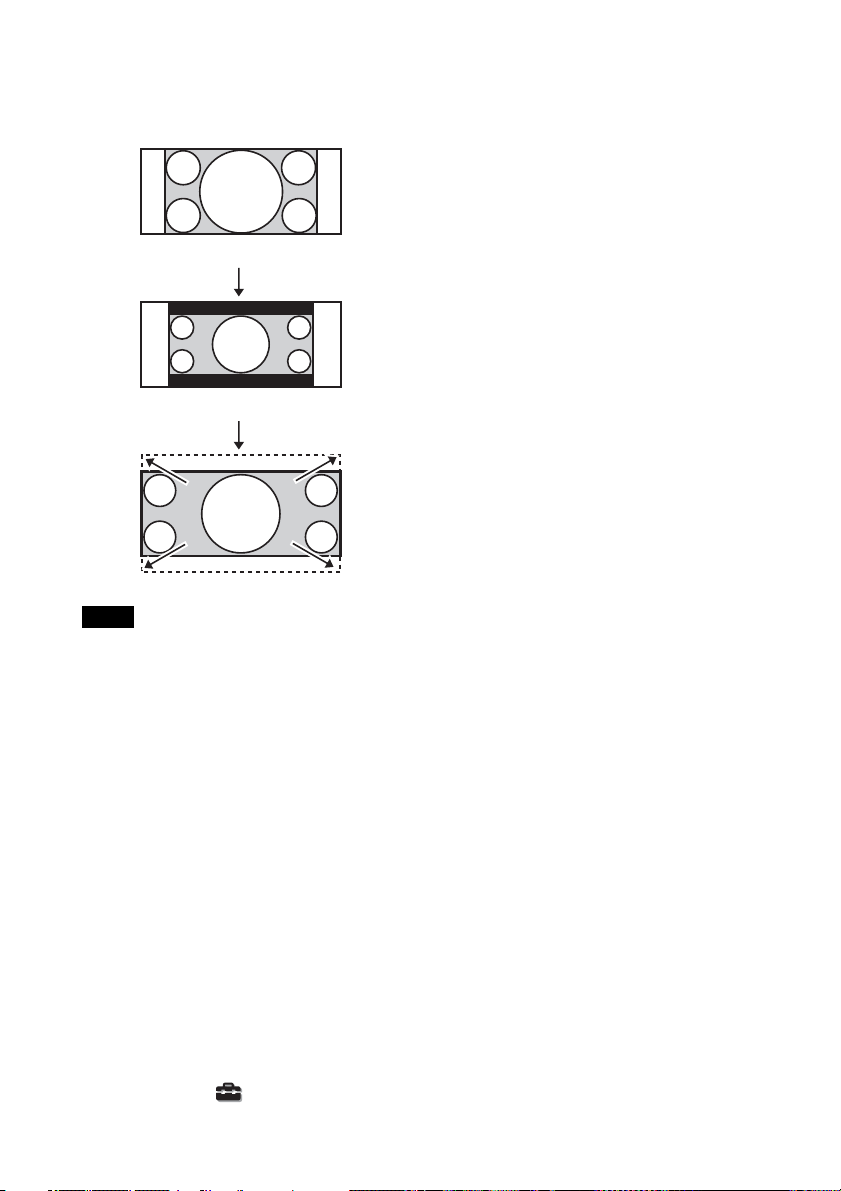

Image of the lens moving

In the example below, the images with
aspect ratio of 1.78:1 (16:9) and 2.35:1 are
projected on a 2.35:1 screen.

When a 1.78:1 (16:9) image is input

When a 2.35:1 image is input

Press the POSITION
button.

The 2.35:1 image expands to fill the screen.

Notes

• After you have selected and confirmed the
lens position, the lens starts to move. Do not
touch, or place anything near, the lens,
otherwise it may cause injury or a
malfunction.

• If you press any button on the remote control
or the unit while the lens is moving, the lens
stops. In this case, select the lens position
again or adjust the lens manually.

• The Picture Position function is not
guaranteed to reproduce the lens settings
precisely.

• When you use the subtended screen angle of
two or more aspects using lens zoom, install
the unit within the specified parameters
referring to “Projection distance” (page 66).
With some setting positions, the range of lens
shift may be restricted, even though the unit
is installed within the specified parameters.

Tip

To hide the reminder displayed on the screen
when the position is read out, set “Status” to
“Off” on the Setup menu.

17

Selecting the Aspect Ratio According to the Video Signal

You can select an aspect ratio best suited for
the video signal received.

Press ASPECT.

Each time you press the button, you can
select the “Aspect” setting.You can also
select it using the menu (page 32).

Original image Recommended setting and resultant images

1.85:1

Squeezed 1.85:1

ASPECT
button

1.85:1 Zoom

2.35:1 Zoom

2.35:1

Squeezed 2.35:1

18

Original image Recommended setting and resultant images

Normal

1.78:1 (16:9)

1.33:1 (4:3)

1.33:1 (4:3) with side panels

V Stretch

2.35:1

16:9

When using an anamorphic lens

Squeeze

When using an anamorphic lens

19

Original image Recommended setting and resultant images

Stretch

Squeezed

Notes

• Selectable aspect modes vary depending on
the input signal (page 61).

• The aspect modes cannot be selected when a
computer signal is input.

Notes on switching the “Aspect”
setting

• Select the aspect mode taking into account
that changing the aspect ratio of the
original picture will provide a different
look from that of the original image.

• Note that if the unit is used for profit or for
public viewing, modifying the original
picture by switching the aspect may
constitute an infringement of the rights of
authors or producers, which are legally
protected.

20

Selecting the Picture Viewing Mode

You can select the picture viewing mode that
best suits the type of video source or room
conditions.
You can save and use different preset modes
for 2D/3D respectively.

Press one of the CALIBRATED PRESET
buttons.

Setting items Description

CINEMA FILM 1 Picture quality suited to reproducing the highly dynamic and

clear images typical of master positive film.

CINEMA FILM 2 Picture quality suited to reproducing the rich tone and color

typical of a movie theater, based on the Cinema Film 1.

REF A picture quality setup suitable for when you want to reproduce

faithfully the original image quality, or for enjoying image
quality, without any adjustment.

TV Picture quality suited for watching TV programs, sports,

concerts, and other video images.

PHOTO Ideal for projecting still images taken with a digital camera.

GAME Picture quality suited to gaming, with well-modulated colors

and fast response.

BRT CINE Picture quality suited for watching movies in a bright

environment, such as a living room.

BRT TV Picture quality suited for watching TV programs, sports,

concerts, and other video images in a bright environment, such
as a living room.

USER Adjusts the picture quality to suit your taste then saves the

setting. The factory default setting is the same as “REF.”

CALIBRATED
PRESET buttons

21

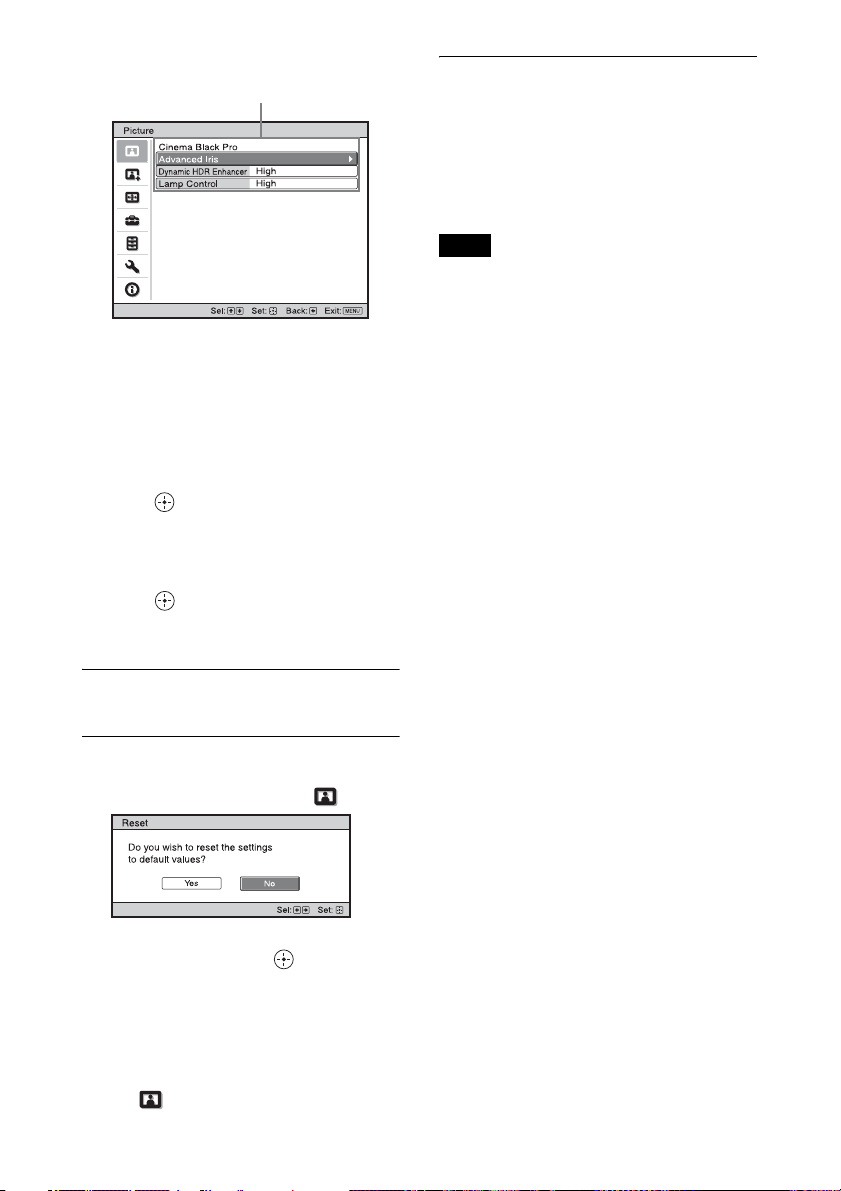

Using the Menus

Note

The menu displays used for the explanation may be different from the actual menu display.

3 Press M/m to select an item you want

Operation through the Menus

The unit is equipped with an on-screen menu
for making various adjustments and settings.
If you select an item name followed by an
arrow (B), the next menu window with
setting items appears.

1 Press MENU.

The menu window appears.

to set or adjust and press , or .

The setting items are displayed in a pop­up menu, in a setting menu, in an
adjustment menu or in the next menu
window.

Pop-up menu

Setting items

Setting menu

2 Press M/m to select a menu item, and

press , or .

The items that can be set or adjusted
with the selected menu appear. The item
presently selected is shown in white.

Adjustment menu

22

Next menu window

Setting items

4 Make the setting or adjustment of an

item.

When changing the adjustment
level

Press M/, to increase the value, and
press m/< to decrease the value.
Press to store the setting and restore
the original menu screen.

When changing the setting

Press M/m to change the setting.
Press to restore the original screen.
You can restore the original screen using
< depending on the selected item.

To reset the items that have been
adjusted

Select an item in the menu screen, and
display the pop-up menu, the setting menu,
or the adjustment menu.
Press RESET on the remote control to reset
only the selected settings to its factory preset
value.

Note

The RESET button on the remote control is
available only when the adjustment menu or
the setting menu is selected.

To clear the menu

Press MENU.

To reset the picture that has been
adjusted

Select “Reset” from the Picture menu.

When the screen display appears, select
“Yes” using < and press .
All of the following settings are reset to its
factory preset value:
“Reality Creation,” “Cinema Black Pro,”
“Motionflow,” “Contrast,” “Brightness,”
“Color,” “Hue,” “Color Temp.,”
“Sharpness,” and “Expert Setting” on the
Picture menu

23

Picture Menu

The Picture menu is used for adjusting the picture.

Note

These items may not be adjustable or configurable, depending on the type of input signal. For details,
see “Input Signals and Adjustable/Setting Items” (page 58).

Item names in brackets represent those printed on the remote control.

Setting items Description

Calib. Preset
[CALIBRATED
PRESET]

Reset Resets all currently selected Calib. Preset mode settings to their default

You can select the picture viewing mode that best suits the type of video
source or the environment.
You can save and use different preset modes for 2D/3D respectively.
Cinema Film 1: Picture quality suited to reproducing the highly
dynamic and clear images typical of master positive film.
Cinema Film 2: Picture quality suited to reproducing the rich tone and
color typical of a movie theater, based on the Cinema Film 1.
Reference: A picture quality setup suitable for when you want to
reproduce faithfully the original image quality, or for enjoying image
quality, without any adjustment.
TV: Picture quality suited for watching TV programs, sports, concerts,
and other video images.

Photo: Ideal for projecting still images taken with a digital camera.
Game: Picture quality suited to gaming, with well-modulated colors and

fast response.
Bright Cinema: Picture quality suited for watching movies in a bright
environment, such as a living room.
Bright TV: Picture quality suited for watching TV programs, sports,
concerts, and other video images in a bright environment, such as a
living room.
User: You can adjust the picture quality to suit your taste, and save the
setting. The factory default setting is the same as “Reference.”

Tip

Any adjustments to picture quality settings are saved for each input.

values (page 23).

Tip

Reset does not affect settings saved for items of “Color Temp.”

24

Setting items Description

Reality Creation
[REALITY
CREATION]

Adjusts the detail and noise processing of images. (Super-resolution
function)

On: Adjusts the settings of “Reality Creation.”

Database: Select “Normal” or “Mastered in 4K.”

“Mastered in 4K” provides image quality suitable for Blu-ray Disc™
“Mastered in 4K” releasing from Sony Pictures Home Entertainment.
Resolution: When you increase the setting value, the texture and detail
of the picture become sharper.
Noise Filtering: When you increase the setting value, the noise
(picture roughness) becomes less prominent.
D.Focus Optimizer: When you set to “On,” it optimizes the projected
image. It achieves enhanced texture and picture details and sharpens
the picture.
Test: On/Off: Changes “On” and “Off” at a certain frequency to check
the effect of “Reality Creation.”

Tip

The display position of status during the test works together with the
“Menu Position” setting (page 33).

Off: The “Reality Creation” function is not applied.

Cinema Black Pro

Advanced Iris
[ADVANCED
IRIS]

Dynamic Control: Adjusts the range of movement of the iris (aperture).

Full: Automatically optimizes the iris (aperture) and signal processing

according to the brightness level of the input source. This results in a
bright and high contrast image.
Limited: Provides a slower movement of the iris (aperture) and lower
brightness than “Full,” making the picture quality suitable for viewing
in a dark room.

Off: The “Dynamic Control” function is not applied.

Brightness: The higher the setting, the brighter the picture. The lower

the setting, the darker the picture.

Tip

After adjusting “Brightness,” set “Dynamic Control” according to the
brightness of the room and the picture itself.

Dynamic HDR
Enhancer
[CONTRAST
ENHANCER]

For HDR content, automatically adjusts the range of movement of the
iris (aperture) and the signal level of bright and dark parts to optimize
contrast according to a scene.
Increases image sharpness and makes the image dynamic.
“Contrast Enhancer” appears instead of “Dynamic HDR Enhancer” and
performs the image processing suitable for the SDR signal in the
following cases:

- When the SDR signal is input with “Auto” set for “HDR”

- When “HDR” is set to “Off”
High/Middle/Low: You can adjust the Dynamic HDR Enhancer/
Contrast Enhancer.
Off: The Dynamic HDR Enhancer function is not applied.

Lamp Control Switches the lamp output.

High: Increases the brightness, and projects brighter images.
Low: Decreases the brightness, and enhances blacks by minimizing

brightness.

Tip

Setting “Low” reduces fan noise, while also reducing energy
consumption for longer lamp life.

25

Setting items Description

Motionflow
[MOTIONFLOW]

Smooth High: Provides smoother picture movement; especially
effective for film-based content.

Smooth Low: Provides smoother picture movement for standard use.
Tru e Ci ne ma: Images, such as a movie created in 24 frames per second,

are reproduced at the original framerate.
Off: The “Motionflow” function is not applied.

Tips

• Select “Off” if the selected “Smooth High,” “Smooth Low,” or “True
Cinema” results in a distorted picture.

• Depending on the picture content, you may not see the effect visually
even if you have changed the settings.

Contrast
[CONTRAST]

Adjusts the contrast.
Higher values increase the sharpness in images, while lower values
decrease the sharpness.
You can make adjustments by pressing the CONTRAST +/- on the
remote control.
“Contrast(HDR)” appears instead of “Contrast” for the following cases:

- When the HDR signal is input with “Auto” set for HDR

- When “HDR” is set to “HDR10,” “HDR Reference,” or “HLG”

Brightness
[BRIGHTNESS]

Adjusts the brightness of the picture.
The higher the setting, the brighter the picture. The lower the setting, the
darker the picture.
You can make adjustments by pressing the BRIGHTNESS +/- on the
remote control.

Color Adjusts the color density.

The higher the setting, the greater the intensity. The lower the setting, the
lower the intensity.

Hue Adjusts the color tone.

The higher the setting, the more greenish the picture becomes. The lower
the setting, the more reddish the picture becomes.

Color Temp.
[COLOR TEMP]

Adjusts the color temperature.
D93: Equivalent to 9,300 K color temperature normally used in TVs.
Gives white colors a blue tint.
D75: Equivalent to 7,500 K color temperature used as an ancillary
standard illuminant. Gives a neutral tint between “D93” and “D65.”
D65: Equivalent to 6,500 K color temperature used as a standard
illuminant. Gives white colors a red tint.
D55: Equivalent to 5,500 K color temperature used as an ancillary
standard illuminant. Gives white colors an even redder tint.
Custom 1 to 5: Enables you to adjust, set, and store your favorite color
temperature.
The factory default settings are as follows.

Custom 1: Same as “D93” color temperature setting.
Custom 2: Same as “D75” color temperature setting.
Custom 3: Same as “D65” color temperature setting.
Custom 4: Same as “D55” color temperature setting.
Custom 5: Setting that prioritizes brightness.

Tip

You can adjust each item to a color temperature according to your
preference.

26

Setting items Description

Sharpness
[SHARPNESS]

Sharpens the outline of the picture, or reduces the noise.
The higher the setting, the sharper the picture. The lower the setting, the
softer the picture, thus reducing the noise.
You can make adjustments by pressing the SHARPNESS +/- on the
remote control.

Expert Setting

NR (Noise
Reduction)

Reduces the roughness or noise of the picture.
Auto: Detects the noise level to reduce the roughness or noise of the
picture automatically.
High/Middle/Low: Select a setting according to the roughness or noise
of the input signal source.
Off: The NR (noise reduction) function is not applied.

Tip

The noise level may not be detected accurately with “Auto” depending
on the input signal source. If the picture is unacceptable with “Auto,”
select a setting from among “High,” “Middle,” “Low” or “Off.”

MPEG NR
(MPEG Noise
Reduction)

Reduces block noise and mosquito noise, in particular in digital signals.
Auto: Detects the noise level to reduce the block noise and mosquito
noise of the picture automatically.
High/Middle/Low: Select a setting according to the block noise and
mosquito noise of the input signal source.
Off: The MPEG NR (MPEG noise reduction) function is not applied.

Tip

The noise level may not be detected accurately with “Auto” depending
on the input signal source. If the picture is unacceptable with “Auto,”
select a setting from among “High,” “Middle,” “Low” or “Off.”

Smooth Gradation Smooths the gradation of the flat parts of images.

High/Middle/Low: You can adjust the smooth gradation effect.
Off: The smooth gradation function is not applied.

Film Mode According to the film source you have selected, make a setting for

playback.
Auto: Suitable for reproducing the original picture movement.
Normally, set this to “Auto.”
Off: Plays back the picture in progressive format without detecting
video signals automatically.

Gamma
Correction
[GAMMA
CORRECTION]

Adjusts the response characteristics of the tone of the picture.
Select a favorite tone from 10 options.

1.8: Bright Produces a brighter picture overall.

2.0

2.1

2.2

2.4

2.6: Dark Produces a darker picture overall.

Gamma 7: Produces a sharper picture by emphasizing darker parts.
Gamma 8: Produces a brighter picture than Gamma 7. Select this when

you watch in a bright environment, such as a living room.

Gamma 9: Produces a brighter picture than Gamma 8.
Gamma 10: Increases the sharpness in images. Select this when you

watch TV programs, etc., in a bright environment, such as a living room.
Off: The “Gamma Correction” function is not applied.

27

Setting items Description

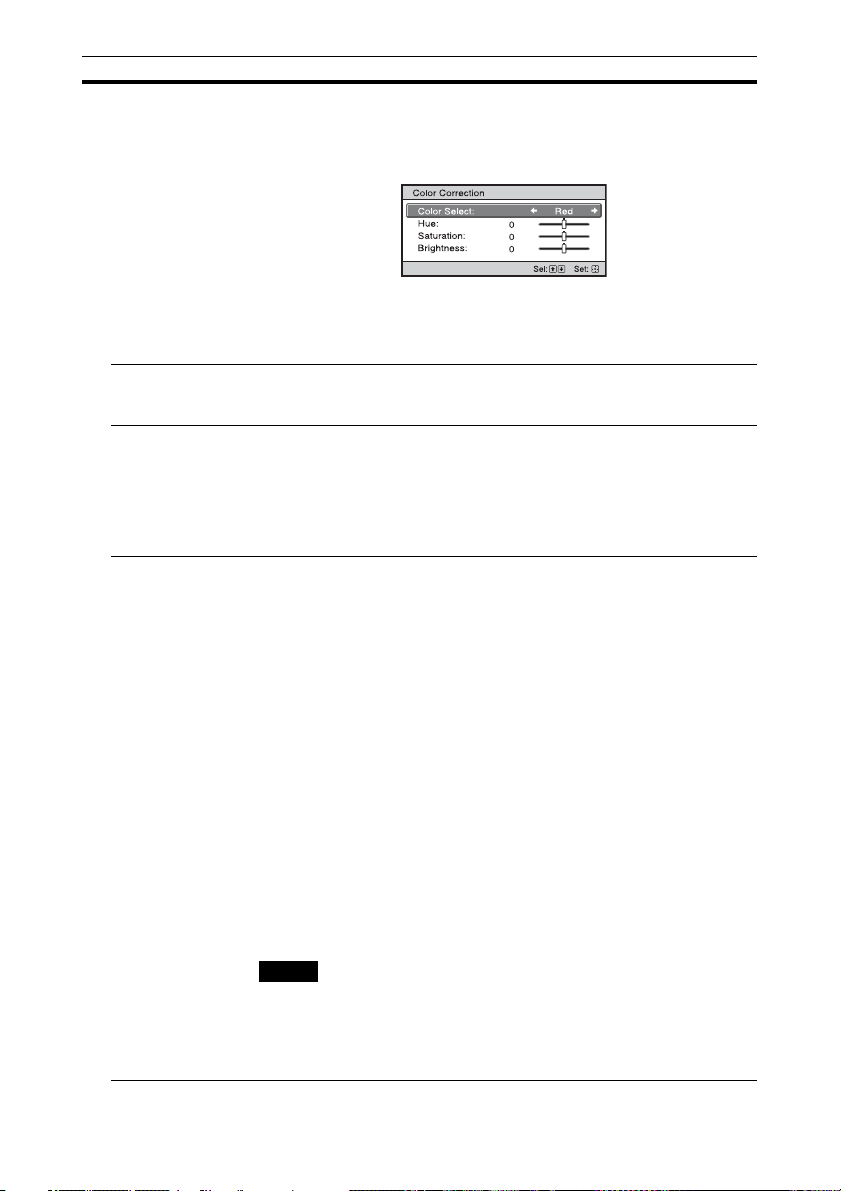

Color Correction On: Adjusts Hue, Saturation or Brightness of the selected colors.

Repeat steps 1 and 2 described below to specify the target color.
1 Press M/m to select “Color Select,” then press </, to select the

color you want to adjust among “Red,” “Yellow,” “Green,” “Cyan,”
“Blue” and “Magenta.”

2 Press M/m to select “Hue,” “Saturation” or “Brightness,” then adjust

them to suit your taste using </, while watching the projected
picture.

Off: The “Color Correction” effect is not applied.

Clear White Emphasizes vivid whites.

High/Low: You can adjust the “Clear White” effect.
Off: The “Clear White” effect is not applied.

x.v.Color Set this item when connecting the unit with equipment that supports

x.v.Color and playing back an x.v.Color video signal.

On: You can play back an x.v.Color video signal.
Off: The “x.v.Color” function is not applied.

Tip

Setting x.v.Color to “On” disables gamma adjustment.

HDR Sets how to play back HDR content.

Auto: Distinguishes HDR content automatically and applies the optimal
picture quality. You can change the HDR setting that is automatically
selected when HDR10-compatible content is distinguished.

HDR10/HLG: When an input signal supports HDR10, the “HDR10”
setting is applied, and when it supports HLG, the “HLG” setting is
applied.
HDR Reference/HLG: When an input signal supports HDR10, the
“HDR Reference” setting is applied, and when it supports HLG, the
“HLG” setting is applied.

When an input signal supports BT.2020, the “Color Space” is set to
“BT.2020” automatically. When a signal other than BT.2020 is input, the
mode set in “Color Space” is applied. (“BT.2020” is not available in this
case.)

HDR10: Set when playing back HDR10-compatible content.
HDR Reference: This mode is suitable for playing back HDR10-

compatible content with a maximum brightness of 1,000 nit.

HLG: Set when playing back HLG-compatible content.
Off: Set when playing back content other than HDR content.

All of the modes of “Color Space” are selectable when “HDR10,” “HDR
Reference,” “HLG,” or “Off” is selected.

Notes

• If the setting is not correct for the input content, the bright and dark
areas of the video may appear too bright or too dark.

• When setting “HDR10” or “HDR Reference,” compare the picture
quality in both modes, and select the one that optimally displays the
average brightness and tone of the bright parts.

28

Setting items Description

Color Space
[COLOR SPACE]

Converts the color space.
BT.709: An ITU-R BT.709 color space, which is used for high­definition television broadcast or Blu-ray Disc. The color space is
equivalent to sRGB.
BT.2020: The color space is wider than BT.709. Use this setting when
playing back HDR content.
Color Space 1: The color space suited for watching TV programs and
video images, such as sport, concerts, etc.
Color Space 2: The color space suited for watching TV programs, sport,
concerts, and other video images in a bright environment, such as a
living room.
Color Space 3: The color space suited for watching movies in a bright
environment, such as a living room.
Custom: You can adjust the color space setting.

Note

When “HDR” is set to “Auto,” the selectable mode changes according to
the signal type (page 28).

Input Lag
Reduction

Reduces the delay of the display for a video.
On: Shortens the time to display the input video image; effective for
increasing the performance of the display reaction speed when using an
external controller, etc.
Off: Turns the Input Lag Reduction function off.

Tip

When “Input Lag Reduction” is set to “On,” “Motionflow,” “NR,” and
“MPEG NR” cannot be set.

29

Advanced Picture Menu

You can adjust the gaps in color that have occurred after a long period of use.

Notes

• Auto Calibration results in relatively coarse calibration. No warranty is given for the color settings
to be the same as the factory default values.

• While performing “Pre Check” or “Adjust,” the colors are projected automatically. This is not a
malfunction.

• Do not turn off the power or operate the remote control or control panel during “Pre Check” or
“Adjust”, as the process may be canceled.

Tips

• dE is an indicator of changing color. The smaller the value of dE, the fewer the changes caused by
the color.

• Perform the calibration after the power has been on for more than 30 minutes.

• It takes a few minutes for “Pre Check” or “Adjust” to complete.

• When “Pre Check” or “Adjust” starts, the screen position may shift, as the lens returns to its factory
default position. After completion, the screen returns to its previous position automatically.

• If the environment changes, such as the brightness of the room, while performing “Pre Check” or
“Adjust”, measurement may be affected.

• If the “Pre Check” or “Adjust” function fails, try it once again.

Setting items Description

Auto Calibration Pre Check: Checks the color difference against the factory default

settings, before calibration starts.

Adjust: Performs Auto Calibration.
Before/After: Toggles the factory default setting and the setting after the

calibration at a certain frequency. You can check the effect of the
calibration by monitoring the actual image.
Reset: Resets the calibration results, and returns to the factory default
settings.

30

Screen Menu

You can set the picture size, aspect mode, etc.

Note

These items may not be available, depending on the type of input signal. For details, see “Input
Signals and Adjustable/Setting Items” (page 58).

Item names in brackets represent those printed on the remote control.

Setting items Description

Picture Position
[POSITION]

You can store up to five combinations of lens settings, aspect ratio, and
blanking.
After setting the lens, aspect, and blanking, select from “1.85:1,”
“2.35:1,” “Custom 1,” “Custom 2,” or “Custom 3” depending on the
subtended screen angle, and after confirming, continue by selecting
“Save,” “Delete,” or “Select.”
Save: Stores the current lens settings (focus, window size, window
position) in the selected position. If a setting is already stored in that
position, it is overwritten.
Delete: Deletes the stored setting. After the setting is deleted, “1.85:1,”
“2.35:1,” “Custom 1,” “Custom 2,” or “Custom 3” in the display change
to “---.”
Select: Recalls the settings of the selected position.

Tips

• The optimal aspect ratio is preset for each picture position. The aspect
ratio can be changed and saved for each picture position.

• When saving the Picture Position, temporarily move the picture from the
saving point down 5 cm or more. Move the picture up again and save.
This improves the precision of the Picture Position when calling it.

Notes

• After you have selected and confirmed the lens position, the lens starts
to move. Do not touch the lens and the area around the lens, otherwise
it may cause injury or a malfunction.

• If you press any button on the unit while the lens is moving, the lens stops.
In this case, select the lens position again or adjust the lens manually.

• When you use a 2.35:1 or a 16:9 subtended screen angle with the
Picture Position function, make sure that the installation position is
suitable (page 16).

• The Picture Position function is not guaranteed to reproduce the lens
settings precisely.

31

Setting items Description

Aspect
[ASPECT]

You can set the aspect ratio of the picture to be displayed for the current
input signal (page 18).
You can set the function only when a video signal is input.

1.85:1 Zoom: A 1.85:1 aspect ratio picture is displayed in its original

aspect ratio, enlarged so that black bands do not appear at the top and
bottom of the screen.

2.35:1 Zoom: A 2.35:1 aspect ratio picture is displayed in its original

aspect ratio, enlarged so that black bands at the top and bottom of the
screen are as small as possible.
When you select “2.35:1 Zoom” from “Trigger Select 1/2” on the
Installation menu, a 12 V signal is output from the TRIGGER 1 or
TRIGGER 2 connector (page 38).
Normal: Input video is displayed in its original aspect ratio, enlarged to
fill the screen. This mode is suitable for viewing 1.78:1 (16:9) and 1.33:1
(4:3) video.
V Stretch: This is the most suitable mode for using a 2.35:1 screen to
view 2.35:1 video with a commercially available anamorphic lens.
When you select “V Stretch” from “Trigger Select 1/2” on the
Installation menu, a 12 V signal is output from the TRIGGER 1 or
TRIGGER 2 connector (page 38).
Squeeze: With this setting, 1.78:1 (16:9) and 1.33:1 (4:3) video will be
displayed in their correct aspect ratios when you use a commercially
available anamorphic lens.
Stretch: Displays video that has been squeezed to 1.33:1 (4:3) as 1.78:1
(16:9) aspect ratio.

Tips

• When you select “V Stretch” or “Squeeze,” select the anamorphic lens
type from “Anamorphic Lens” in the Installation menu.

• Selectable aspect modes vary depending on the input signal (page 61).

• The aspect cannot be selected for an input signal from a computer, or
an input signal with a resolution of 4096 × 2160 (pages 56, 57, 61).

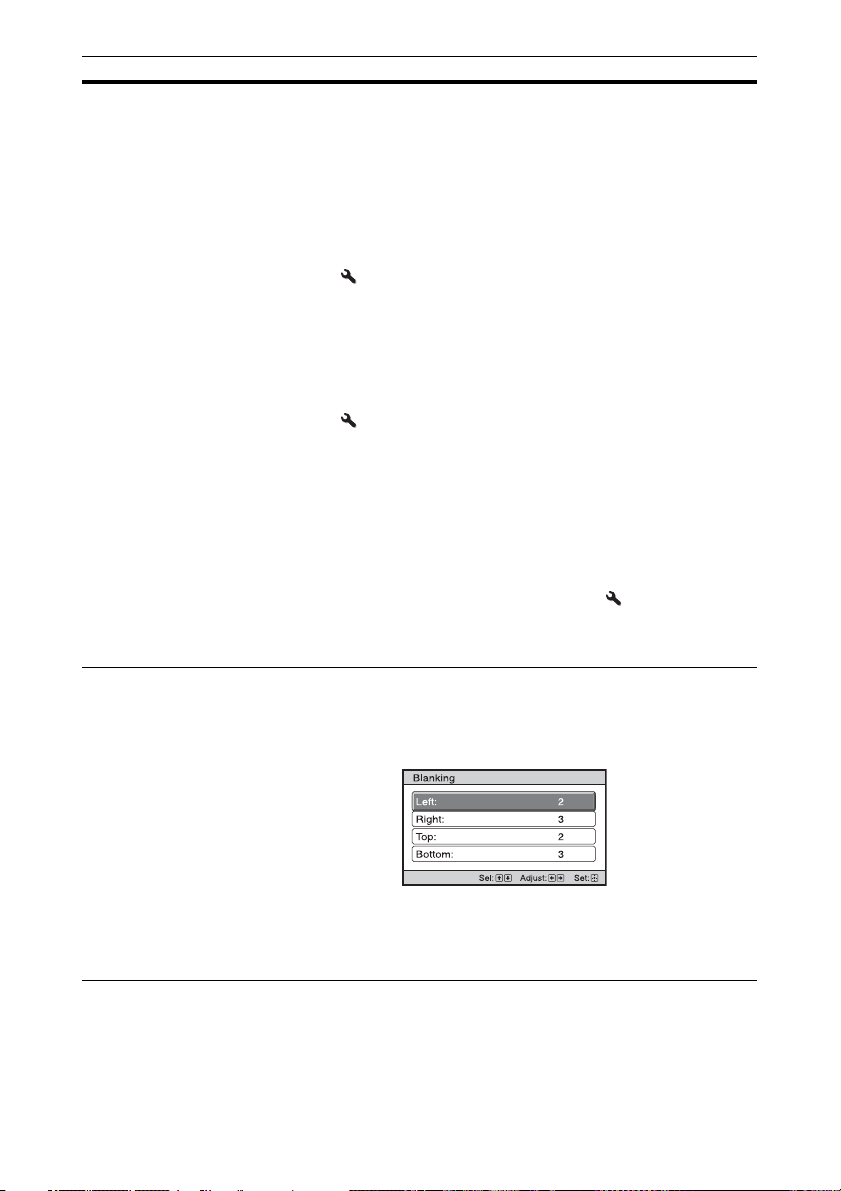

Blanking This feature allows you to adjust the displayable region within the four

directions of the screen.
On: Select the edge to adjust by highlighting Left, Right, Top, or Bottom
using the M/m buttons.
Adjust the amount of blanking using the </, buttons.

Off: Turns off the Blanking function.

Tip

Depending on the aspect ratio setting, right/left blanking may not be
available.

32

Setup Menu

The Setup menu is used to change the factory preset settings, etc.

Setting items Description

Status Sets whether or not the on-screen display is displayed.

Language Selects the language used in the menu and on-screen displays.

Menu Position You can change the position to display the menu on the screen.

High Altitude Mode Sets the unit to operate at the prevailing atmospheric pressure.

Remote Start Sets the Remote Start settings.

Set to “Off” to turn off the on-screen displays except for certain menus,
message when turning off the power, and warning messages.

Bottom Left: Displays the menu on the bottom left area of the screen.
Center: Displays the menu on the center of the screen.

On: Use this setting when using the unit at an altitude of 1,500 m

(approx. 4,900 ft) or higher.
Off: Use this setting when using the unit at normal altitudes.

Tip

When this item is set to “On,” the fan noise becomes slightly louder
since the fan speed increases.

On: You can turn on the power from a PC or a terminal which is
connected to a network.
Off: Turns off the Remote Start function.

Tips

• To use the function, the unit should be connected to the network in
advance (page 40).

• To turn on the power with the Remote Start function, a special
command should be sent from a PC or a terminal. For details, consult
with qualified Sony personnel.

Note

When Remote Start is set to “On,” the standby power requirement will
increase. When Network Management is set to “On,” the Remote Start
setting is set to “On” automatically, and you cannot change the setting.
Also, this is not displayed on the menu.

33

Setting items Description

Network Management On: Set when connected to the network and continuously

communicating with the projector control equipment.

Note

When Network Management is set to “On,” the network function is
continuously enabled. Set Network Management to “Off” when the unit
is not continuously connected to the network. If you set to “On,” the
power consumption increases.

Power Saving Sets the power saving mode.

Standby: If no signal is input for 10 minutes, power is turned off
automatically and the projector goes into standby mode.
Off: Disables the power saving function.

Lamp Setting When replacing the lamps, set the desired lamp setting

(page 51).

All Reset All settings are initialized to their factory preset values.

The “Lamp Timer” in the Information menu is not reset.

34

Function Menu

The Function menu is used for changing the settings of the various functions of the unit.

Setting items Description

3D Settings You can change the settings of the 3D function.

2D-3D Display
Sel.

For Switching the video images to “2D” or “3D.”
Auto: Displays 3D video images when HDMI signals with 3D
information* are input. Displays 2D video images when other signals
are input.
3D: Displays 3D video images according to the 3D system selected in
“3D Format.” However, when HDMI signals with 3D information are
input to the unit, displays 3D video images according to the 3D system
of those HDMI signals.
* The 3D information is additional information to discriminate 3D.

Some HDMI signals have additional information to discriminate 3D
and some HDMI signals have none.

3D Format: Set the 3D system when the input HDMI signals do not
include 3D information.

Simulated 3D: Converts 2D video images to 3D video images. The
setting can be made only for input the HD signals.
The simulated 3D feature may have limited effect, depending on the
video source.
There are differences in perception of 3D video images among
individuals.
Side-by-Side: Select this to display 3D images as two similar images,
side-by-side.
Over-Under: Select this to display 3D images as two similar images,
one above the other.

Tips

• “2D-3D Display Sel.” cannot be set to “3D” for some video sources.
For available 3D signals, see “Compatible 3D Signals” (page 59).

• The simulated 3D feature may have limited effect, depending on the
screen size (100 to 120 inches recommended) and the video source.

• The menu display has a ghost while a 3D video image is displayed and
is best viewed with the 3D glasses.

35

Setting items Description

3D Depth Adjust For adjusting the depth of the 3D video images on the screen. The

setting can be made only when a 3D Format other than “Simulated 3D”
is selected.

Depth

NormalFront Depth

We recommend that “3D Depth Adjust” be set to “0.” The 3D video
images may be difficult to perceive, depending on the setting of “3D
Depth Adjust.”

Simulated 3D
Effect

For adjusting the 3D effect when 2D content is converted to 3D video
images. You can select the effect from among “High,” “Middle,” and
“Low.”

Tip

There are differences in perception of 3D video images converted by the
simulated 3D function among individuals.

Dynamic Range Sets the video input level for HDMI 1 and HDMI 2 connectors.

Auto: Sets the video input level automatically.
Limited: The video input level is set for signals that are equivalent to

16-235.
Full: The video input level is set for signals that are equivalent to 0-255.

Note

If the video output setting of the connected HDMI device is not set
correctly, light and dark parts of the video may appear too light or too
dark.

HDMI Signal Format Switches the video signal formats for 4K.

Standard Format: Displays a picture in the standard HDMI format.
Enhanced Format: Displays a picture in a more detailed HDMI format.

Tips

• A picture or sound may not be output normally when “Enhanced
Format” is selected. In this case, set to “Standard Format.”

• It may take time to display a picture after switching the video signal
formats.

Test Pattern Displays a test pattern according to the setting.

On: A test pattern appears on the screen to be used when adjusting the
lens with “Lens Focus,” “Lens Zoom,” and “Lens Shift.”
Off: A test pattern does not appear.

Tip

While the test pattern is displayed, it is only displayed in green to allow
you to adjust the focus easily.

Settings Lock Locks menu item settings to prevent operational error (page 37).

Off: Cancels the Settings Lock.
Level A: Group 1 items (below) are not displayed on the menu, and are

not available.
Level B: Group 1 and Group 2 items (below) are not displayed on the
menus, and are not available.

36

Items Locked by Settings Lock

Group 1 Group 2

Picture menu

Reset
Reality Creation
Advanced Iris
Dynamic HDR Enhancer
Lamp Control
Motionflow
Contrast
Brightness
Color
Hue
Color Temp.
Sharpness
NR
MPEG NR
Smooth Gradation
Film Mode
Gamma Correction
Color Correction
Clear White
x.v.Color
HDR
Color Space
Input Lag Reduction

Advanced Picture menu

Auto Calibration

Setup menu

Status
Language
Menu Position
High Altitude Mode
Remote Start
Network Management
Power Saving
Lamp Setting

Function menu

Dynamic Range
Test Pattern

Installation menu

Image Flip
Lens Control
Anamorphic Lens
Trigger Select
IR Receiver
Panel Alignment
Network Setting

37

Installation Menu

The Installation menu is used for changing the installation settings.

Setting items Description

Image Flip Flips the picture on the screen horizontally and/or vertically.

Lens Control Avoids any operation of the lens such as “Lens Focus,” “Lens Zoom,”

Anamorphic Lens Select a setting to match the anamorphic lens conversion ratio.

Trigger Select Switches the output function of the TRIGGER 1/TRIGGER 2 connector.

IR Receiver Selects the remote control detectors (IR Receiver) on the front and rear

HV: Flips the picture horizontally and vertically.
H: Flips the picture horizontally.
V: Flips the picture vertically.
Off: The picture does not flip.

Use this item for installation for the backside projection or ceiling
installation.

and “Lens Shift,” by mistake.

On: Enables adjustment of the lens.
Off: Prevents any adjustment of the lens.

1.24x: Select this when you use an anamorphic lens with a horizontal

rate of 1.24×.

1.32x: Select this when you use an anamorphic lens with a horizontal

rate of 1.32×.

Off: Turns off the TRIGGER connector function.
Power: Outputs 12 V signals from the TRIGGER 1/TRIGGER 2

connectors when the unit is on. The TRIGGER 1/TRIGGER 2
connectors do not output any signals when the unit is in standby.
V Stretch: Works with the “Aspect” setting’s “V Stretch”
(page 32) and outputs a 12 V signal from the TRIGGER 1 or TRIGGER
2 connector.

2.35:1 Zoom: Works with the “Aspect” setting’s “2.35:1 Zoom”

(page 32) and outputs a 12 V signal from the TRIGGER 1 or TRIGGER
2 connector.

of the unit.

Front & Rear: Activates both the front and rear detectors.
Front: Activates the front detector only.
Rear: Activates the rear detector only.

38

Setting items Description

Panel Alignment This feature allows you to adjust the gaps in the color of characters or

the picture on the screen.
Adjust: Adjusts the gaps in the colors selecting “Adjust Color” or
“Adjust Item.”

Adjust Item: Selects how to make adjustments from below.

Shift: Shifts the whole picture and makes adjustments.
Zone: Selects the desired range and makes adjustments.

Adjust Color: Assigns the desired color to adjust the gaps in color.

Select “R” (Red) or “B” (Blue) to make adjustments based on “G”
(Green).
Pattern Color: Select “R/G” (Red and Green) or “R/G/B” (White, all
colors) when “Adjust Color” is “R” (Red). Select “B/G” (Blue and
Green) or “R/G/B” (White, all colors) when the “Adjust Color” is “B”
(Blue).

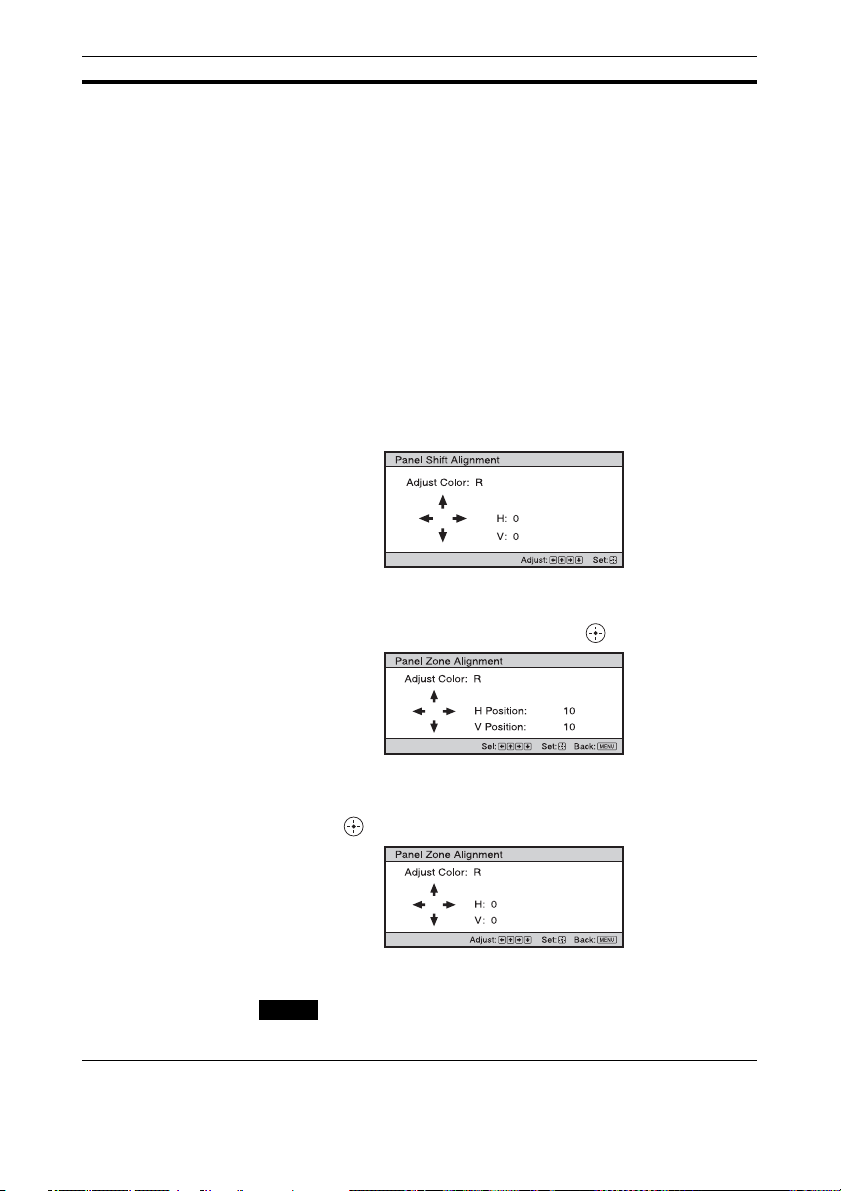

Adjust: The shift adjustment and zone adjustment of the color selected
in “Adjust Color” can be made with </,, M/m buttons.

When “Shift” is selected: Assign the settings of the horizontal
direction (H) with </, buttons and the vertical direction (V) with
M/m buttons on the shift adjustment screen.

When “Zone” is selected: Select the position to adjust with </,
buttons for the horizontal position (H position) and M/m buttons for
the vertical position (V position), then press .

Set the amount to adjust with </, buttons for the horizontal
direction (H direction) and with M/m buttons for the vertical
direction (V direction). You can select the position to adjust again by
pressing .

Reset: Returns to the factory settings.

Preset: The optimized data has been preset.

Note

Depending on the adjustments made above, colors may become uneven
or the resolution may change.

39

Setting items Description

Network Setting Perform internet protocol settings.

IPv4 Setting IP Address Setup: Selects the IP address setting method.

Auto (DHCP): The IP address is assigned automatically from the
DHCP server such as a router.
Manual: Specifies the IP address manually.
When “Manual” is selected for “IP Address Setup,” input “IP
Address,” “Subnet Mask,” and “Default Gateway.” Select each item
with the M/m buttons, then press button. Select the frame to input
with the </, buttons and input the value with the M/m buttons.
When all items are entered, select “Apply,” and then press the
button. The entered settings will be registered.

IP Address: Sets the unit’s IP address.
Subnet Mask: Sets the unit’s subnet mask.
Default Gateway: Sets the unit’s default gateway.
MAC Address: Displays the unit’s MAC address. This cannot be

changed.
Apply: Enables the IP address that is set manually.

IPv6 Information Displays the IPv6 information.

When you set the IPv6 IP address, set it on a Web browser (page 42).

40

Information Menu

The Information menu displays the model name, serial number, input signal type/format,
software version and the cumulated hours of usage of the lamp.

Signal type

Items Description

Model Name Displays the model name

Serial No. Displays the serial number.

Signal type Displays the resolution of the input signal which you are selecting.

Color Format Displays the color format of the input signal which you are selecting.

Color Space Displays the color space of the input signal which you are selecting

HDR Format When the input signal is compatible with HDR, “HDR10” or “HLG” is

Software Version Displays the software version.

Lamp Timer Indicates how long the lamp has been turned on (total usage).

When input signals with 3D information are input, the type of input
signals and the 3D format are displayed.

(“BT.601,” “BT.709,” or “BT.2020”).

displayed according to the input signal.

Note

You cannot adjust or change the displays listed above.

About the Preset Memory

This unit has default image data to adjust preset data for input signals appropriately according
to the signals shown in “Preset Signals” (page 56) (the preset memory). When the preset signal
is input, the unit automatically detects the signal type and recalls the data for the signal from
the preset memory to adjust it to an optimum picture. The signal type is displayed in the
Information menu.

Note

Depending on the computer input signal, parts of screen may be hidden or displayed incorrectly.

41

Using Network Features

Connection to the network allows you to
operate the following features.
Use the projector with only necessary
functions enabled.

• Checking the current status of the unit
via a Web browser.

• Making the network settings for the
unit.

• Network monitoring and controlling
with control protocol (Advertisement,
ADCP, AMX DDDP (Dynamic Device
Discovery Protocol), Crestron
RoomView, Control4).

Notes

• When connecting this projector with the
network, consult with the person who sets up
the network. The network must be secured.

• When using this projector connected with the
network, access the Control window via a
Web browser and change the access
limitation of the factory preset values
(page 44). It is recommended to change the
password regularly.

• When the setting on the Web browser is
completed, close the Web browser to log out.

• The menu displays used for the explanation
below may be different depending on the
model you are using.

• Supported Web browsers are Internet
Explorer (version 11 or later), Safari, and
Chrome.

• The menu displays only English.

• If the browser of your computer is set to [Use
a proxy server] when you have access to the
unit from your computer, click the check
mark to set accessing without using a proxy
server.

• AMX DDDP is not compatible with IPv6.

• These network functions are available when
the unit is turned on.

Displaying the Control Window of the Unit with a Web Browser

1 Connect the LAN cable.

LAN cable
(straight type)
(not supplied)

Hub, router, etc.

2 Set the network settings for the unit

using “Network Setting” on the
Installation menu

3 Start a Web browser on the computer,

enter the following in the address field,
then press the Enter key on your
computer.

http://xxx.xxx.xxx.xxx
(xxx.xxx.xxx.xxx: IP address for the
unit)

When connecting by the IPv6
address

http://[xxxx:xxxx:- xxxx]

You can confirm the IP address of the
unit under “Network Setting” on the
Installation menu.

LAN
Connector

(page 40).

The following window appears in the
Web browser:

42

Once you make the network settings,
you can open the Control window only
by performing step 3 of this procedure.

Operating the Control Window

Switching the Page

Click one of the Page Switching buttons to
display the desired setting page.

Page Switching buttons

Setting the Access Limitation

You can limit a user for accessing any
particular page.

Administrator: Allowed access to all

pages

User: Allowed access to all pages

except the Setup page
When you access the Setup page for the first
time, input “root” as the user name and
“Projector” as the password in the
authentication dialog.
When you log in for the first time, the
window that prompts you to change the
password is displayed. Follow the
instructions on the screen to change the
password.
The name of the administrator is preset to
“root.”

43

Entry area for [Administrator]

Entry area for [User]

The password can be changed in the
Password page in the Setup page.
When you change the password, enter a new
password.
The password of the administrator and user
should be 8 to 16 characters that includes
both alphabet and numeric characters.
Alphabet is case-sensitive.
The default password “Projector” cannot be
set as a new password.

Note

If you forget your password, consult with
qualified Sony personnel.
The password will be reset with your
permission.

Confirming the Information Regarding the Unit

You can confirm the current settings for the
unit on the Information page.

Information area

44

Error Handling

Troubleshooting

If the unit appears to be operating erratically, try to diagnose and correct the problem using the
following instructions. If the problem persists, consult with qualified Sony personnel.

Power

Symptom Cause and Remedy Page

The power is not turned
on.

The power is suddenly
turned off.

The power may not turn on if you turn the power off with ?/

1 (ON/STANDBY) button and turn it on again in a short

time. After about 1 minute, turn the power on.

Close the lamp cover securely, then tighten the screws
securely.

Check warning indicators. 48

Check that “Power Saving” in the Setup menu is set to
“Standby.”

Set “Power Saving” to “Off.” 34


Symptom Cause and Remedy Page

No picture. Check that the connecting cable is connected to the external

The picture has ghosts. Video images are displayed in 3D. Watch the 3D video

Bright or dark area of the
video appears too bright
or too dark.

The picture is too dark. Adjust “Contrast” or “Brightness” on the Picture menu

The picture is not clear. Adjust the focus. 8

The color of characters or
the picture is not
appropriate.

equipment properly.

Select the input source correctly using the INPUT button. 14

Check that the computer signal is set for output to an
external monitor.
If the notebook computer, etc., signal is output to its display
and an external monitor, the external monitor’s image may
not be displayed correctly. Set your computer to output the
signal to only an external monitor.

images using the 3D glasses, and set “2D-3D Display Sel.”
to “3D.”

This symptom may occur when signal level other than those
of HDMI standard is input. Switch the output level of the
connected equipment, or switch the Dynamic Range on the
Function menu of the unit.

properly.

If the lens is clouded with dew condensation, leave the unit
for about 2 hours with the power on.

Select the desired color registration in “Panel Alignment” of
the Installation menu.

–

52

34

12

–

15, 35

36

26

–

39

45

Symptom Cause and Remedy Page

Image is left on the
screen. (image retention)

Pink or green coloring
appears on parts of the
picture about 1 to
3 minutes after startup.

When high contrast non-moving images are displayed for a
long period of time, there may be some image retention on
the screen. This is only a temporary condition. Turning off
the power for a while will eliminate the retained image.

This may be due to the usage environment.
Wait for about 5 minutes with the power on. The color will
disappear on its own.

On-screen display

Symptom Cause and Remedy Page

On-screen display does
not appear.

The model name does not
disappear from the
screen.

Set “Status” on the Setup menu to “On.” 33

Check if the ON/STANDBY indicator should light in green.
When the ON/STANDBY indicator blinks in green, the unit
is starting up. Wait until it stops blinking and remains lit in
green.

The display mode of the unit may be set at the time of
purchase. Consult with your local dealer or qualified Sony
personnel.

Remote control

Symptom Cause and Remedy Page

The remote control does
not work.

Batteries could be weak. Replace them with new batteries. –

Insert the batteries with the correct polarities. –

If there is a fluorescent lamp near the remote control
detector, the unit may work improperly or inadvertently.

Confirm the position of the remote control detector on the
unit.

Set “IR Receiver” to “Front & Rear” on the Installation
menu.

Make sure that the cable is not connected to the IR IN
connector.

–

–

7

–

–

3, 4

38

3

46

3D video images

Symptom Cause and Remedy Page

The video image does not
seem like 3D video
images.

Check if the 3D glasses are turned on. 15

Make sure that the battery in the 3D glasses could be weak
or is sufficiently charged.

Set “2D-3D Display Sel.” to “Auto” or “3D.” 35

Check if the input signals are compatible 3D signals. 59

The 3D signals may not be input depending on the
specifications of the connected AV selector/AV amplifier/
external equipment. If the 3D signal is not input, confirm
the specifications and/or settings of the AV selector/AV
amplifier/external equipment.

When the viewing position is too far from the unit, the 3D
glasses may not be able to display the images properly.

The screen size is not appropriate. Set the zooming
magnification to low or watch the image from farther away
from the screen.

For details, see “Precautions for use” of “Using the 3D
Glasses.”

Others

Symptom Cause and Remedy Page

The fan is noisy. Check the setting of “High Altitude Mode” on the Setup

The lens shift cannot be
adjusted.

menu.

Make sure that the room temperature is not too high. –

Check the installation requirements of the unit.
Fan speed increases to maintain the product reliability of the
projector’s components in a room, where the temperature is
higher than normal. The fan noise becomes slightly louder.
The approximate normal temperature is 25°C (77°F).

The lens shift cannot be adjusted over the range of
movement. Adjust the lens shift within the range of
movement.

10, 65

–

–

15

65

15

33

–

47

Warning Indicators

The ON/STANDBY or WARNING indicator lights up or flashes if there is any trouble with
your projector.

ON/STANDBY
indicator

Flashing/Lighting indicators The number of

(Flashes in red)(Lights in red)

(Flashes in red)

Both indicators flash

Note

If the symptom persists even after carrying out the above methods, consult with qualified Sony
personnel.
If the indicator starts flashing in a way of other than the above, turn off, and then turn on the power
with the [/1 (On/Standby) button on the remote control or control panel of the unit.
If the symptom is shown again, consult with qualified Sony personnel.

(Flashes in red)

flashes

Twice Close the lamp cover securely, then tighten

Three times The temperature of lamp is unusually high.

Twice The internal temperature is unusually high.

Three times The fan is broken. Consult with qualified

WARNING
indicator

Cause and Remedy

the screws securely (page 52).

Turn off the power and wait for the lamp to
cool, then turn on the power again.
If the symptom persists, the lamp may be at
the end of its service life. In this case,
replace the lamp with a new one (page 51).

Check to ensure that if nothing is blocking
the ventilation holes or whether or not the
unit is being used at high altitudes.

Sony personnel.

48

Message Lists

Warning messages

Symptom Cause and Remedy Page

High temp.! Lamp off in
1 min.

Frequency is out of
range!

Please replace the Lamp. It is time to replace the lamp. Replace the lamp.

Projector temperature is
high. High Altitude
Mode should be “On” if
projector is being used at
high altitude.

Power Saving Mode is
set. Projector will
automatically enter
Standby Mode in 1
minute.

Turn off the power. –

Check to ensure that nothing is blocking the ventilation
holes.

Frequency is out of range. Input a signal that is within the
acceptable frequency range of the unit.

If this message appears again after you replace the lamp, the
lamp replacement process is not complete. Check the lamp
replacement process.

Note

To clear this message, press any button either on the remote
control or the control panel of the unit once.

Check to ensure that nothing is blocking the ventilation
holes.

When using the unit at high altitude, set “High Altitude
Mode” to “On.”

Note

When temperature inside the unit remains high, “High
Altitude Mode” is switched to “On” in 1 minute, then the
fan speed increases.

“Power Saving” is set to “Standby.”

Note

If no signal is input, the power turns off after 1 minute, and
the projector goes into standby mode.

3, 4

56

51

3, 4

33

34

Caution messages

Symptom Cause and Remedy Page

x

Not applicable! Press the appropriate button.

Settings Lock enabled. “Settings Lock” is set to “Level A” or “Level B.” 36

No signal is input in the selected input. Check connections. 12

The operation to be activated by the button is currently
prohibited.

49

–

Others

Updating the Software

You can download files to update the
software of the unit. Copy the downloaded
files to your USB memory, insert the USB
memory to the USB terminal of the unit,
then perform the update.
To use the features updated, insert a USB
memory device into a PC connected to the
internet.
Download the update files from the
following Sony website:
http://www.pro.sony.eu/
The website also explains how to install the
update.

Note

Some USB memories may not be supported
for use. For details, refer to the website
above.

About HDR (high dynamic range)

HDR is a video expression which improves
the ability to express dark places and bright
places compared to previous video
expressions.

About the simulated 3D feature

• Use the simulated 3D function taking into

account that the picture will provide a
different look from the original images,
because this function converts the video
images.

• Note that if the unit is used for profit or for

public viewing, displaying 2D video
images as 3D video images by converting
to the simulated 3D may constitute an
infringement of the rights of authors or
producers, which are legally protected.

NOTICES AND LICENSES FOR SOFTWARE USED IN THIS PRODUCT

Refer to “Software License Information”
supplied separately.

50

Replacing the Lamp

The lamp used for the light source has a
certain lifespan. When the lamp dims, the
color balance of the picture becomes
strange, or “Please replace the Lamp.”
appears on the screen, the lamp may be
exhausted. Replace the lamp with a new one
(not supplied) without delay.

Tip

The lifespan of the lamp used for the light
source changes depending on the installation
environment or use conditions. You can use the
lamp longer by avoiding turning the lamp off
until several minutes pass after turning the
lamp on.

Tools you need to get started:

• Projector Lamp LMP-H280 (Optional)

• Standard Phillips screwdriver

• Cloth (for scratch protection)

Caution

• The lamp remains hot after the unit is

turned off with the ?/1 (ON/STANDBY)
button. If you touch the lamp, you may
burn your fingers. When you replace the
lamp, wait for at least 1 hour for the lamp
to cool.

• Do not touch the surface of the lamp. If
you touch it, wipe off the fingerprints with
a soft cloth.

• Pay special attention to replacing the lamp
when the unit is installed on the ceiling.

• When replacing the lamp of a unit which is
on the ceiling, do not stand directly under
the lamp cover. When removing the lamp
door (inner cover), avoid twisting it. If the
lamp explodes, fragments may cause
injury.

• When removing the lamp unit, make sure
it remains horizontal, then pull straight up.
Do not tilt the lamp unit. If you pull out the
lamp unit while tilted and if the lamp
breaks, the pieces may scatter, causing
injury.

Notes

• Be sure to use an LMP-H280 Projector Lamp
for replacement. If you use lamps other than
the LMP-H280, the unit may malfunction.

• Be sure to turn off the unit and unplug the
power cord before replacing the lamp, then
check the ON/STANDBY indicator has
already been turned off.

1 Turn off the unit and unplug the AC

power cord.

2 When setting the unit on a flat surface

such as a desk etc., put a cloth to
prevent the surface from being
scratched. Place the unit on the cloth.

Note

Be sure that the unit is placed on a stable
surface.

3 While pressing the part indicated

in the lamp cover illustration, slide 1
and then open 2 the lamp cover.

4 Loosen the lamp door (inner cover)

screw with a Phillips screwdriver, and
then open the lamp door.

51

5 Loosen the 3 screws on the lamp with

the Phillips screwdriver. Hold up the
handle, then pull the lamp straight out.

6 Push in the new lamp by the handle

securely until it reaches the end, and
then tighten the 3 screws.

Note

Be careful not to touch the optical block
inside the unit.

7 Close the lamp door (inner cover), and

then tighten the screw.

Handle

Notes

• Do not loosen other screws except the 3
specified screws.

• Hold the lamp by the handle to remove
and attach it.

8 Close the lamp cover.

52

9 Wipe dust off the ventilation holes

(intake) with a soft cloth.

Ventilation holes
(intake)

10Turn on the unit, then select the lamp

setting item on the Setup menu.

The menu screen below will be
appeared.

• The unit will not turn on unless the lamp
cover are securely closed.

• To clear a message displayed on the screen,
press any button either on the remote control
or the control panel of the unit once.

Note on replacing the lamp when
broken, in the case of a ceiling
installation

If the lamp breaks, broken lamp pieces may
scatter and cause injury.
When the unit is on the ceiling, remove the
lamp door (inner cover) by sliding it
horizontally slowly after raising it with 30
degree opened. Avoid twisting the lamp door
(inner cover).

Tip

If “Settings L ock” is set to “Level B,” set to
“Off” once.

11Select “Yes.”

Caution

Do not put your hands into the lamp
replacement slot, and do not allow any liquid
or other objects into the slot to avoid
electrical shock or fire.

Notes

• The unit will not turn on unless the lamp is
securely installed in place.

Note

The lamp contains mercury. The disposal
rules for used fluorescent tubes depend on
where you live. Follow the waste disposal
policy in your area.

53

Cleaning

Cleaning the cabinet

• To remove dust from the cabinet, wipe
gently with a soft cloth. If dust is
persistent, wipe with a soft cloth slightly
moistened with a diluted mild detergent
solution.

• Never use any type of abrasive pad,
alkaline/acid cleaner, scouring powder, or
volatile solvent, such as alcohol, benzene,
thinner or insecticide.

• Clean the unit with a cleaning cloth.
Wiping with a dirty cloth may scratch the
unit.

• Using such materials or maintaining
prolonged contact with rubber or vinyl
materials may result in damage to the
screen surface and cabinet material.

Trademark Information

• “PlayStation” is a registered trademark
of Sony Interactive Entertainment Inc.

• The terms HDMI and HDMI High­Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered
trademarks of HDMI Licensing
Administrator, Inc. in the United States
and other countries.

• “Blu-ray” and “Blu-ray Disc” are
trademarks of Blu-ray Disc Association.

• “x.v.Color (x .v.Colour),” “Motionflow, ”
and their respective logos are trademarks
of Sony Corporation.

........................................................................

This projector supports DeepColor,
x.v.Color, LipSync, computer input signal,
3D signal and 4K signal of HDMI standards.
It also supports HDCP.

54

Specifications

Item Description

Display system SXRD panel, projection system

Display device Size of effective

Projection lens 2.06 times zoom lens (motorized)

Light source Ultra High Pressure Lamp 280 W type

Screen size 60 inches to 300 inches (1,524 mm to 7,620 mm)

Accepted digital signals

HDMI (2 inputs), HDCP compliant RGB

Other inputs/
outputs

Outside dimensions (w/h/d) 495.6 mm × 205.3 mm × 463.6 mm (19

Mass Approx. 14 kg (31 lb)

Power requirements AC 100 V to 240 V, 4.6 A to 2.0 A, 50/60 Hz

Power consumption 460 W

Power consumption Standby 0.4 W (when “Remote Start” is set to “Off”)

Operating temperature 5°C to 35°C (41°F to 95°F)

Operating humidity 35% to 85% (no condensation)

Storage temperature –20°C to +60°C (–4°F to +140°F)

Storage humidity 10% to 90%

Supplied accessories See “Checking the Supplied Accessories” in the

Optional accessories Projector Lamp: LMP-H280 (for replacement)

display area

Number of pixels 26,542,080 pixels (8,847,360 pixels × 3)

TRIGGER
(2 connectors)

REMOTE RS-232C: D-sub 9-pin (male)

LAN RJ45, 10BASE-T/100BASE-TX

IR IN Minijack

USB DC 5 V, Max. 500 mA

Networked
Standby

0.74-inch (18.8 mm) SXRD

f = 21.7 mm to 44.7 mm
F3.0 to F4.0

(measured diagonally)

See “Preset Signals” (page 56).

Y P

B/CB PR/CR

Minijack, DC 12 V Max. 100 mA

1

1

18

/4 inches) (without protrusions)

1.0 W (LAN) (when “Remote Start” is set to “On”)
When a LAN terminal is not connected, it becomes a
low power consumption mode (0.5 W).

supplied Quick Reference Manual.

Projector Suspension Support: PSS-H10

/2 × 8 3/32 ×

55

Notes

• The values for mass and dimensions are approximate.

• Not all optional accessories are available in all countries and area. Please check with your local
Sony Authorized Dealer.

• Information on accessories in this manual is current as of September 2020.

Design and specifications of this unit and its optional accessories are subject to change without
notice.

Preset Signals

The following table shows the signals and video formats which you can project using this unit.
When a signal other than the preset signal shown below is input, the picture may not be
displayed properly.

Preset

memory no.

5 480/60p 480/60p

6 576/50p 576/50p

7 1080/60i 1080/60i

8 1080/50i 1080/50i

10 720/60p 720/60p

11 720/50p 720/50p

12 1080/60p 1080/60p

13 1080/50p 1080/50p

14 1080/24p 1080/24p

18 720/60p

19 720/50p

20 1080/24p

26 640 × 480 VESA 60 31.469 59.940 H-NEG, V-NEG

32 800 × 600 VESA 60 37.879 60.317 H-POS, V-POS

37 1024 × 768 VESA 60 48.363 60.004 H-NEG, V-NEG

45 1280 × 960 VESA 60 60.000 60.000 H-POS, V-POS

47 1280 × 1024 VESA 60 63.974 60.013 H-POS, V-POS

50 1400 × 1050 SXGA+ 65.317 59.978 H-NEG, V-POS

55 1280 × 768 1280 × 768/60 47.776 59.870 H-NEG, V-POS

71 1920 × 1080/60i

(Frame packing)

(Frame packing)

(Frame packing)

(Frame packing)

Preset signal (resolution) fH (kHz) fV (Hz) Sync

(Progressive NTSC)
(720 × 480p)

(Progressive PAL)
(720 × 576p)

(1920 × 1080i)

(1920 × 1080i)

(1280 × 720p)

(1280 × 720p)

(1920 × 1080p)

(1920 × 1080p)

(1920 × 1080p)

720/60p
(1280 × 720p)

720/50p
(1280 × 720p)

1080/24p
(1920 × 1080p)

1080/60i
(1920 × 1080i)

31.470 60.000 –

31.250 50.000 –

33.750 60.000 –

28.130 50.000 –

45.000 60.000 –

37.500 50.000 –

67.500 60.000 –

56.260 50.000 –

26.973 23.976 –

90.000 60.000 –

75.000 50.000 –

53.946 23.976 –

67.500 60.000 –

56

Preset

memory no.

72 1920 × 1080/50i

74 3840 × 2160/60p 3840×2160/60p

75 3840 × 2160/50p 3840 × 2160/50p

76 4096 × 2160/60p 4096 × 2160/60p

77 4096 × 2160/50p 4096 × 2160/50p

78 4096 × 2160/30p 4096 × 2160/30p

79 4096 × 2160/25p 4096 × 2160/25p

93 3840 × 2160/24p 3840 × 2160/24p

94 3840 × 2160/25p 3840 × 2160/25p

95 3840 × 2160/30p 3840 × 2160/30p

96 4096 × 2160/24p 4096×2160/24p

(Frame packing)

Preset signal (resolution) fH (kHz) fV (Hz) Sync

1080/50i
(1920 × 1080i)

(3840 × 2160)

(3840 × 2160)

(4096 × 2160)

(4096 × 2160)

(4096 × 2160)

(4096 × 2160)

(3840 × 2160)

(3840 × 2160)

(3840 × 2160)

(4096 × 2160)

56.250 50.000 –

135.000 60.000 –

112.500 50.000 –

135.000 60.000 –

112.500 50.000 –

67.500 30.000 –

56.250 25.000 –

53.946 23.976 –

56.250 25.000 –

67.433 29.970 –

54.000 24.000 –

Preset memory numbers for each input signal

Digital signal

Signal Preset memory number

Component signal (HDMI 1, 2 connectors) 5 to 8, 10 to 14, 18 to 20, 71, 72, 74 to 79, 93 to

96

Video GBR signal (HDMI 1, 2 connectors) 5 to 8, 10 to 14, 18 to 20, 71, 72, 74 to 79, 93 to

96

Computer signal (HDMI 1, 2 connectors) 10*, 12*, 26, 32, 37, 45, 47, 50, 55

* Some digital signals input from computers may be displayed as preset memory number of

Component or Video GBR signal.

57

Input Signals and Adjustable/Setting Items

The items in the menus available to adjust differ depending on the input signal. The following
tables indicate them. The items that cannot be adjusted/set are not displayed in the menu.

Picture menu

Item

Reality Creation

Advanced Iris

Component signal Video GBR signal Computer signal

zz–

zzz

Dynamic HDR Enhancer zz–

Lamp Control

Motionflow*

Contrast

1

zzz

zz–

zzz

Brightness zzz

Color zz–

Hue zz–

Color Temp.

zzz

Sharpness zz –

NR

z (excluding preset

memory numbers 18

to 20, 71, and 72)

MPEG NR

z (excluding preset

memory numbers 18

to 20, 71, and 72)

Smooth Gradation

z (excluding preset

memory numbers 18

to 20, 71 and 72)

Film Mode

z (excluding preset

memory numbers 5,

6, 10 to 14, 18 to 20,

74 to 79, and 93 to

96)

Gamma Correction

zzz

Color Correction zzz

Clear White zzz

x.v.Color z ––

HDR

z (preset memory

numbers 74 to 79 and

93 to 96 only)

Color Space

zzz

Input signal

z (excluding preset

memory numbers 18

to 20, 71, and 72)

z (excluding preset

memory numbers 18

to 20, 71, and 72)

z (excluding preset

memory numbers 18

to 20, 71 and 72)

z (excluding preset

memory numbers 5,

6, 10 to 14, 18 to 20,

74 to 79, and 93 to

96)

z (preset memory

numbers 74 to 79 and

93 to 96 only)

–

–

–

–

–

z: Adjustable/can be set

–: Not adjustable/cannot be set
*1: For further details, refer to the tables in “Motionflow” (page 62).

58

Screen menu

Item

1

Aspect*

z: Adjustable/can be set

Component signal Video GBR signal Computer signal

z z –

Input signal

–: Not adjustable/cannot be set
*1: For further details, refer to the tables in “Aspect Mode” (page 61).

Note

When connecting a cable such as an HDMI cable, etc., check the type of the signal in the Information

menu (page 41) and “Digital signal” (page 57), and check items that are adjustable/can be set.

Compatible 3D Signals

This unit accepts the following types of 3D signals.

Resolution 3D signal format

720/60p, 720/50p Side-by-Side format

Over-Under format*

Frame packing*

1080/60i, 1080/50i Side-by-Side format*

Frame packing

1080/24p Side-by-Side format

Over-Under format*

Frame packing*

1080/60p, 1080/50p Side-by-Side format

Over-Under format

*: Mandatory 3D format of the HDMI standards.

3D Signals and Adjustable/Setting Items

Some items on the menus may not be available to adjust/set, depending on the 3D signals.
The items that cannot be adjusted are not displayed on the menu. The following tables indicate
those items.

3D signals

Item

Reality Creation

Advanced Iris – – – –

Lamp Control

Motionflow zzzz

NR ––––

MPEG NR ––––

Smooth Gradation – – – –

720/60p,

720/50p

zzzz

zzzz

59

1080/60i,

1080/50i

1080/24p 1080/60p,

1080/50p

3D signals

Item

Film Mode –

x.v.Color

720/60p,

720/50p

zzzz

1080/60i,

1080/50i

z ––

1080/24p 1080/60p,

1080/50p

HDR – – – –

1

Aspect*

z: Adjustable/can be set

zzzz

–: Not adjustable/cannot be set
*1: For further details, refer to the tables in “Aspect Mode” (page 61).

When the unit is set to convert 2D video images to 3D video images, some items on the menus
may be not available to adjust/set, depending on the “3D Format” settings on the Function
menu. The items that cannot be adjusted are not displayed on the menu. The following tables
indicate these items.

Item

Reality Creation

Over-Under Side-by-Side Simulated 3D

zzz

3D signals

Advanced Iris – – –

Lamp Control

zzz

Motionflow zzz

NR – – z

MPEG NR – – z

Smooth Gradation zzz

Film Mode*

1

– zz

x.v.Color zzz

HDR – – –

2

Aspect*

zzz

z: Adjustable/can be set

–: Not adjustable/cannot be set
*1: This item is available only when the 1080/60i or 1080/50i signal is input.
*2: For further details, refer to the tables in “Aspect Mode” (page 61).

60

Aspect Mode

Selectable items vary depending on the type of input signal or 3D format.
For details, see the tables below. Items that cannot be selected are not displayed in the menu.

2D

Acceptable signals 4096 × 2160 3840 × 2160

Preset memory
number (page 56)

76 to 79, 96

74, 75, 93 to

95

1920 × 1080

1280 × 720

7, 8, 10 to 14 5, 6

1.85:1 Zoom – zzz –

2.35:1 Zoom –

Normal

zzzzz*

zzz –

V Stretch zzzz –

Squeeze

zzzz –

Stretch – – –

*1: Not displayed in the menu as fixed at Normal.

3D

Acceptable signals 1920 × 1080, 1280 × 720

3D format Side-by-Side Over-Under Frame packing Simulated 3D

Preset memory number
(page 56)

7, 8, 10 to 14 10 to 14 18 to 20, 71, 72 7, 8, 10 to 14

1.85:1 Zoom zzzz

2.35:1 Zoom zzzz

Normal zzzz

V Stretch zzzz

Squeeze zzzz

Stretch – – – –

720 × 480
720 × 576

z –

Others

26, 32, 37, 45,

47, 50, 55

1

61

Motionflow

Selectable items vary depending on the type of input signal or 3D format.
For details, see the tables below. Items that cannot be selected are not displayed in the menu.

2D

1920 × 1080

Acceptable signals

Preset memory number (page 56) 5 to 8, 10 to 14 74, 75, 93 to 95 76 to 79, 96

Smooth High z

Smooth Low

True Cinema

1280 × 720

720 × 480
720 × 576

z

z

3840 × 2160 4096 × 2160 Others

26, 32, 37, 45,

47, 50, 55

z –

z –

z –

–

–

–

3D

Acceptable
signals

3D format Frame packing Over-Under Side-by-Side Simulated 3D

Preset memory
number (page 56)

18 19

20, 71,

72

1920 × 1080, 1280 × 720

10, 12 11, 13 14 7, 8, 10 to 14 7, 8, 10 to 14

Smooth High – – z ––zz z

Smooth Low – zz – zz z z

True Cinema –––––– – –

Storage Conditions of Adjustable/Setting Items

Each adjustable/setting item is individually stored for each input connector. For further details,
see the tables below.

Preset memory numbers for each input signal

Input Preset memory numbers

HDMI 1 (2D) 5 to 8, 10 to 14, 26, 32, 37, 45, 47, 50, 55, 74 to 79, 93 to 96

HDMI 2 (2D)

HDMI 1 (3D) 7, 8, 10 to 14, 18 to 20, 71, 72

HDMI 2 (3D)

62

Picture menu

Item Storage conditions

Calib. Preset For each input connector and 2D/3D

Reset For each input connector, 2D/3D, HDR/SDR *1, and Calib. Preset

Reality Creation

Advanced Iris

Dynamic HDR Enhancer

Lamp Control

Motionflow

Contrast

Brightness

Color

Hue

Color Temp.

D93-D55

Custom 1-5

Gain R For each Color Temp., D93-D55 and Custom 1-5

Gain G

Gain B

Bias R

Bias G

Bias B

*1

Sharpness For each input connector, 2D/3D, HDR/SDR

, and Calib. Preset

NR

MPEG NR

Smooth Gradation

Film Mode

Gamma Correction

Color Correction

Clear White

x.v.Color

HDR For each input connector and Calib. Preset

*1

Color Space For each input connector, 2D/3D, HDR/SDR

, and Calib. Preset

Cyan - Red For each Color Space

Magenta - Green

*1

Input Lag Reduction For each input connector, 2D/3D, HDR/SDR

, and Calib. Preset

*1: HDR/SDR
HDR: When the HDR signal is input with “Auto” set for HDR

When “HDR” is set to “HDR10,” “HDR Reference,” or “HLG”

SDR : Settings other than the above

63

Screen menu

Item Storage conditions

Aspect For Picture Position 1.85:1, 2.35:1, or Custom 1-3

Blanking

64

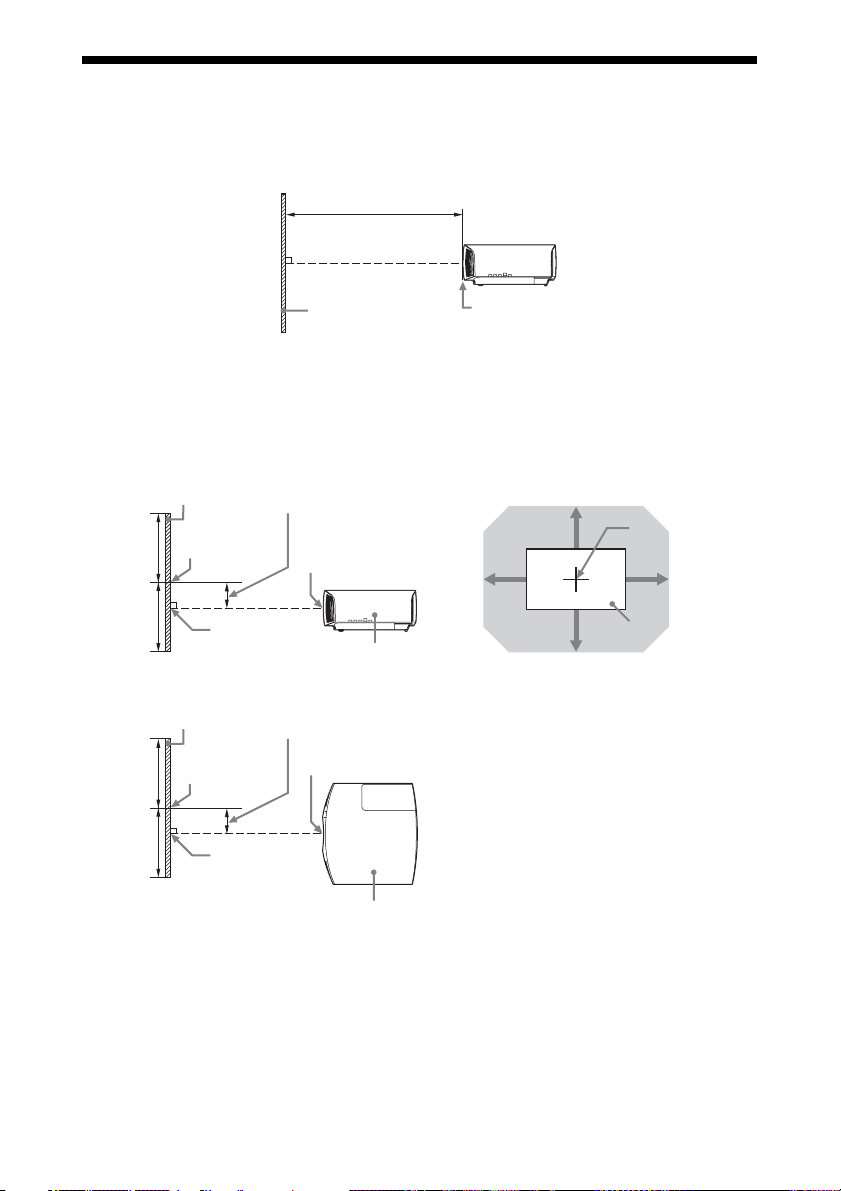

Projection Distance and Lens Shift Range

The projection distance refers to the distance between the front of the lens and the projected
surface.

Projection distance L

Projected image

Front of the lens

The lens shift range represents the distance in percent (%) by which the lens can be shifted from
the center of the projected image. The lens shift range is regarded as 0% when the point A in
the illustration (point where a line drawn from the center of the lens and the projected image
cross at right angles) is aligned with the center of the projected image and full width or full
height of the projected image is regarded as 100%.

Projected image

50%

50%

Projected image

50%

50%

Center of the
projected image

A

Center of the
projected image

A

Lens shift range

Center of the lens

Side of the unit

Lens shift range

Center of the lens

VS +

HS – HS +

VS –

Shaded region: Lens shift range

Center of the lens

Projected image

Top of the unit

VS +: Vertical lens shift range (up) [%]
VS –: Vertical lens shift range (down) [%]
HS +: Horizontal lens shift range (right) [%]
HS –: Horizontal lens shift range (left) [%]

65

When projecting in 1.90:1 (Native Full Display 17:9) format

1.90

1

Projection distance

Unit: m (inches)

Projection image size

Diagonal Width × Height

80" (2.03 m) 1.80 × 0.95 (71 × 37) 2.32 – 4.77 (91 – 187)

100" (2.54 m) 2.25 × 1.18 (88 × 47) 2.90 – 5.97 (115 – 235)

120" (3.05 m) 2.70 × 1.42 (106 × 56) 3.49 – 7.18 (138 – 282)

150" (3.81 m) 3.37 × 1.78 (133 × 70) 4.38 – 8.98 (173 – 353)

200" (5.08 m) 4.49 × 2.37 (177 × 93) 5.85 – 11.99 (231 – 472)

Projection distance L

Projection distance formula

D: Projected image size (Diagonal) Unit: m (inches)

Projection distance L (minimal length) Projection distance L (maximal length)

L = 0.029432 × D – 0.0434

(L = 1.158727 × D – 1.7084)

L = 0.060197 × D – 0.0420

(L = 2.369978 × D – 1.6545)

Lens shift range

85%

31% 31%

80%

VS + = 85 – 2.742 × (HS + or HS –) [%]
VS – = 80 – 2.742 × (HS + or HS –) [%]
HS + = HS – = 31 – 0.365 × (VS + or VS –) [%]

66

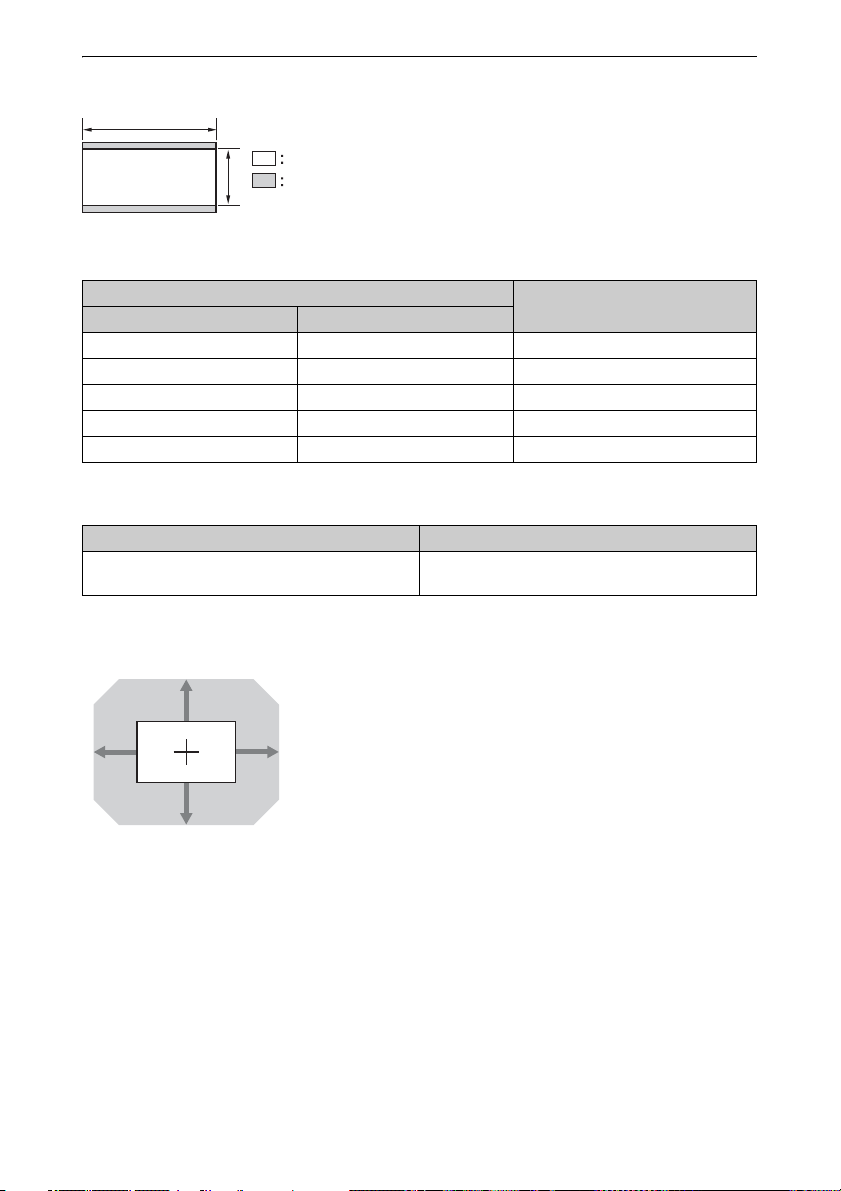

When projecting in 1.78:1 (16:9) format

1.78

1

Video display area

Projection area

Projection distance

Unit: m (inches)

Projection image size

Diagonal Width × Height

Projection distance L

80" (2.03 m) 1.77 × 1.00 (70 × 39) 2.44 – 5.01 (96 – 197)

100" (2.54 m) 2.21 × 1.25 (87 × 49) 3.05 – 6.28 (121 – 247)

120" (3.05 m) 2.66 × 1.49 (105 × 59) 3.67 – 7.55 (145 – 297)

150" (3.81 m) 3.32 × 1.87 (131 × 74) 4.60 – 9.44 (181 – 371)

200" (5.08 m) 4.43 × 2.49 (174 × 98) 6.15 – 12.61 (242 – 496)

Projection distance formula

D: Projected image size (Diagonal) Unit: m (inches)

Projection distance L (minimal length) Projection distance L (maximal length)

L = 0.030934 × D – 0.0434

(L = 1.217856 × D – 1.7084)

L = 0.063269 × D – 0.0420

(L = 2.490916 × D – 1.6545)

Lens shift range

85%

33% 33%

VS + = 85 – 2.576 × (HS + or HS –) [%]
VS – = 80 – 2.576 × (HS + or HS –) [%]
HS + = HS – = 33 – 0.388 × (VS + or VS –) [%]

80%

67

When projecting in 2.35:1 format

2.35

Video display area

1

Projection area

Projection distance

Unit: m (inches)

Projection image size

Diagonal Width × Height

Projection distance L

80" (2.03 m) 1.87 × 0.80 (74 × 31) 2.41 – 4.96 (95 – 195)

100" (2.54 m) 2.34 × 0.99 (92 × 39) 3.02 – 6.22 (119 – 244)

120" (3.05 m) 2.80 × 1.19 (110 × 47) 3.64 – 7.47 (143 – 294)

150" (3.81 m) 3.51 × 1.49 (138 × 59) 4.55 – 9.35 (180 – 368)

200" (5.08 m) 4.67 × 1.99 (184 × 78) 6.08 – 12.48 (240 – 491)

Projection distance formula

D: Projected image size (Diagonal) Unit: m (inches)

Projection distance L (minimal length) Projection distance L (maximal length)

L = 0.030617 × D – 0.0434

(L = 1.205377 × D – 1.7084)

L = 0.062621 × D – 0.0420

(L = 2.465393 × D – 1.6545)

Lens shift range

105%

31% 31%

99%

VS + = 105 – 3.387× (HS + or HS –) [%]
VS – = 99 – 3.387 × (HS + or HS –) [%]
HS + = HS – = 31 – 0.295 × (VS + or VS –) [%]

68

Dimensions

Front

)

32

/

11

212.3 (8

Bottom

Front of the cabinet

)

32

/

13

)

187.9 (7

)
/

13

32

/

7

81.5
(3

)

32

/

7

81.5

32

(3

Unit: mm (inches)

495.6 (19 1/2)

247.8 (9 3/4) 247.8 (9 3/4)

Center of the

)

32

/

3

)

32

/

21

205.3 (8

118

(4

lens

Unit: mm (inches)

)

32

/

27

98 (3

)

32

/

27

98 (3

187.9 (7

87.4 (3 7/16)

142.9 (5 5/8) 150.6 (5 15/16)

409.3 (16 1/8)

463.6 (18 1/4)

7.5 (9/32)

69

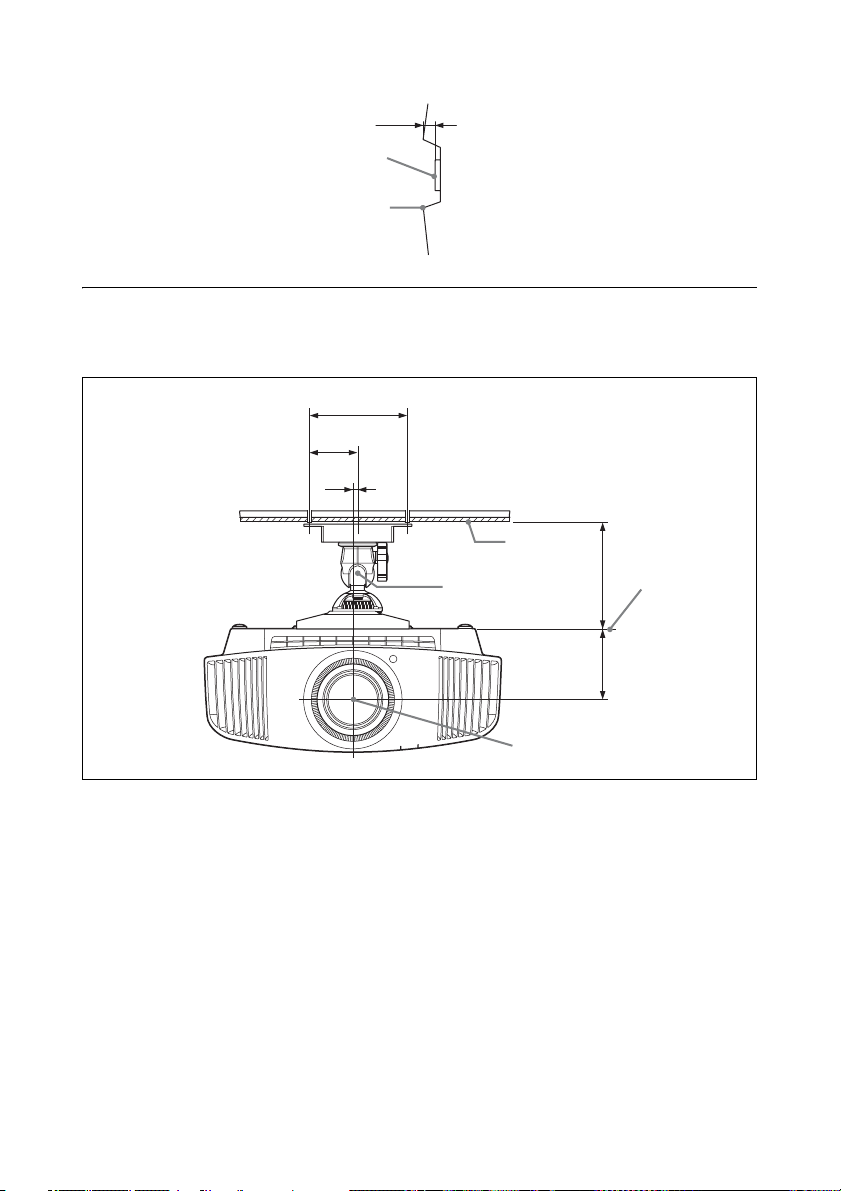

The distance between the front of the lens and the front of the cabinet

Unit: mm (inches)

36.8 (1 7/16)

Front of the lens

Front of the cabinet

Attaching the PSS-H10 projector suspension support

Front view

Unit: mm (inches)

150 (5 29/32)

75

(2 15/16)

8

(5/16)

Ceiling

Center of the
supporting pole

Center of the lens

)118 (4

8

/

7

175 (6

)

32

/

21

The bottom
surface of the
mount bracket

70

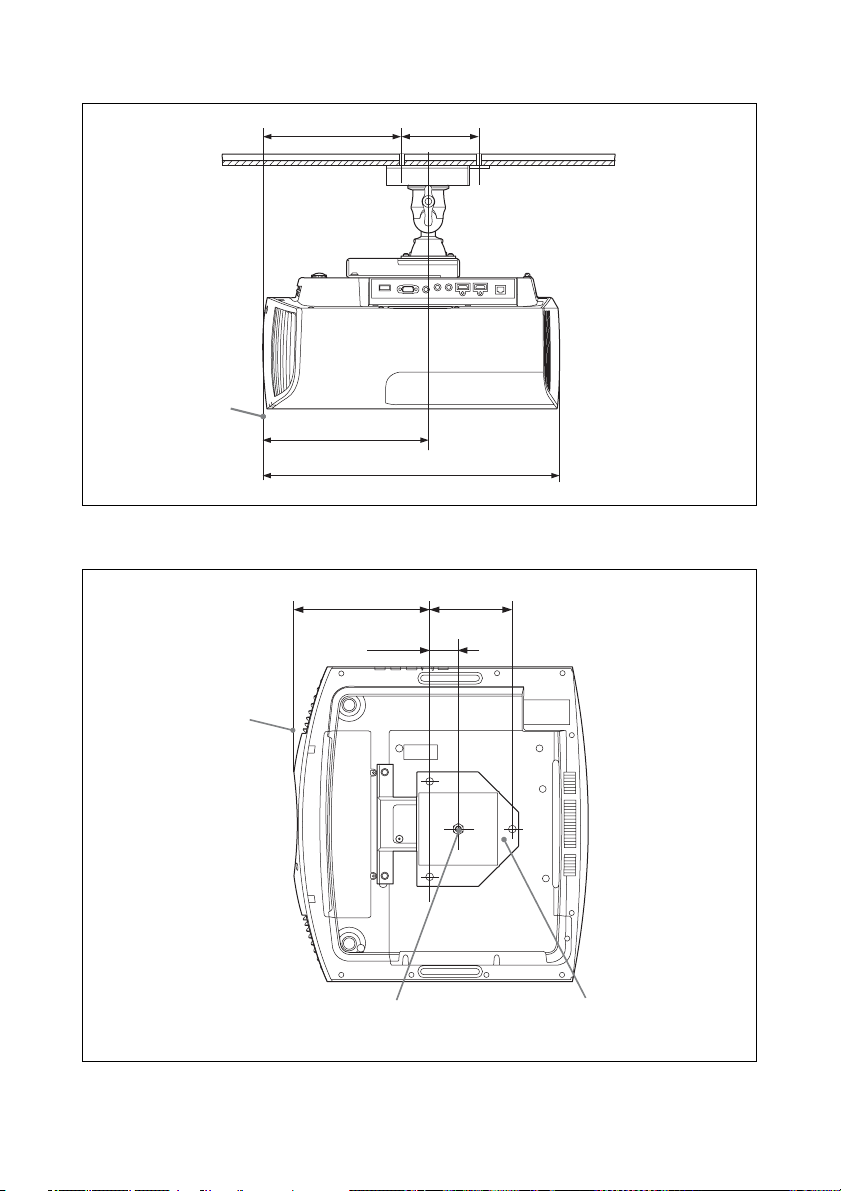

Side view

Front of the cabinet

Top view

Unit: mm (inches)

213.4 (8 13/32) 130 (5 1/8)

258.4 (10 3/16)

463.6 (18 1/4)

Unit: mm (inches)

213.4 (8 13/32) 130 (5 1/8)

45 (1 25/32)

Front of the cabinet

Center of the supporting pole (The center of the
supporting pole is different from that of the unit.)

Upper ceiling mount bracket

71

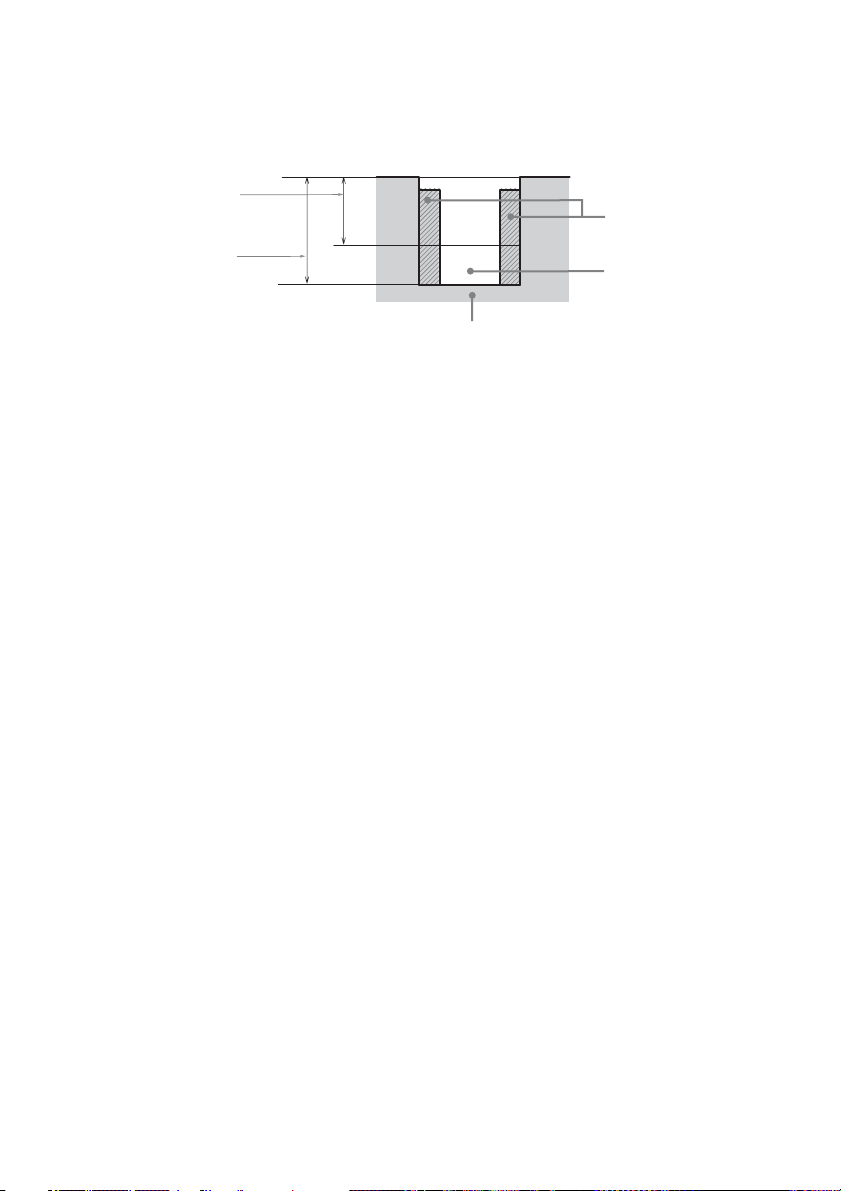

Holes for the ceiling mount

Use the screws with a length of 5.3 mm (

7

/32 inches, minimum) to 7.6 mm (5/16 inches,
maximum) for the ceiling mount.
Recommended tightening torque (tension when turning a screw towards the direction of
rotation): 1.4 ± 0.2 N-m

The minimum

length of screw

Insert nut (M5)

The maximum

length of screw

Screw hole

Unit

Unit: mm (inches)

72

© 2020 Sony Corporation
