Sony VPL-FHZ700 User guide

Data
Projector

4-544-271-13 (1)

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual
thoroughly and retain it for future reference.

VPL-FHZ700L

Table of Contents

Overview

Location and Function of Controls .... 3

Main Unit .....................................3

Terminals ...................................... 4

Remote Commander and Control

Panel ..........................................5

Preparation

Connecting the Projector ................... 8

Connecting a Computer ................8

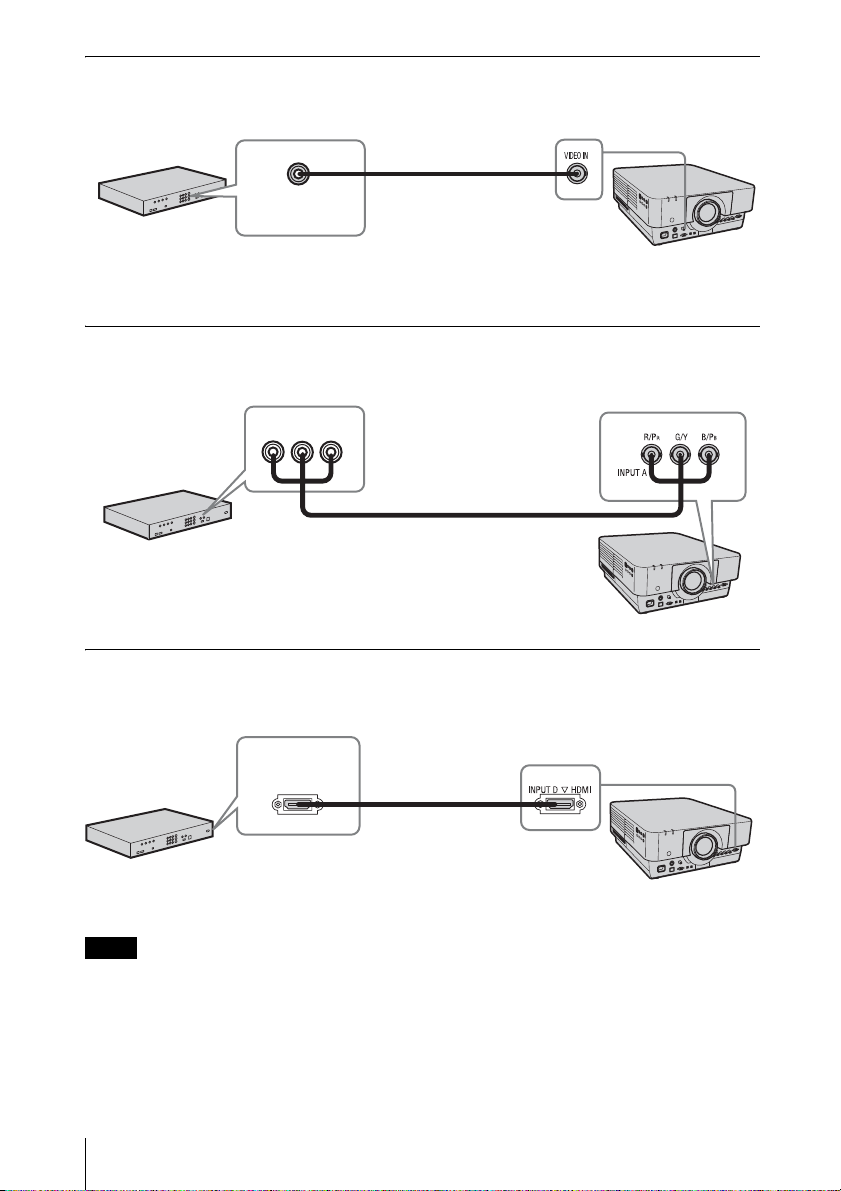

Connecting Video Equipment ...... 9

Connecting an External

Monitor ................................... 11

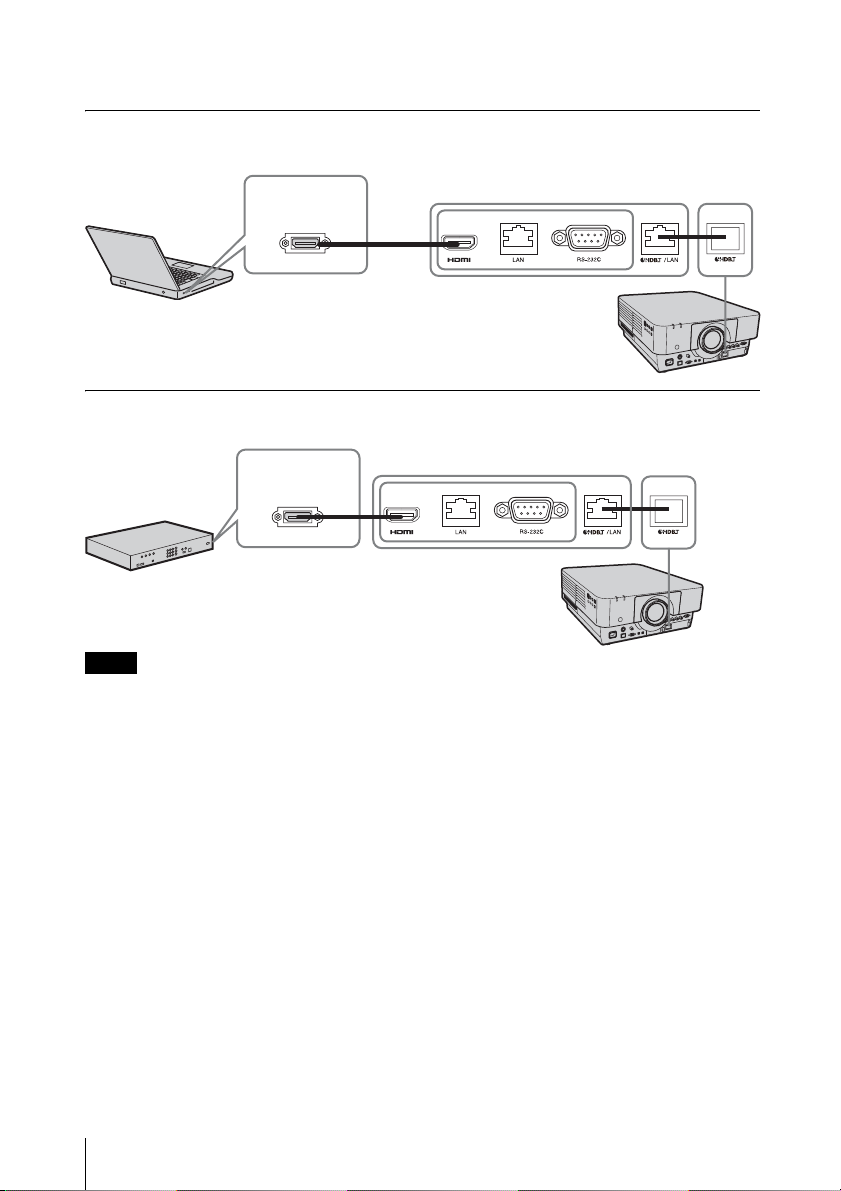

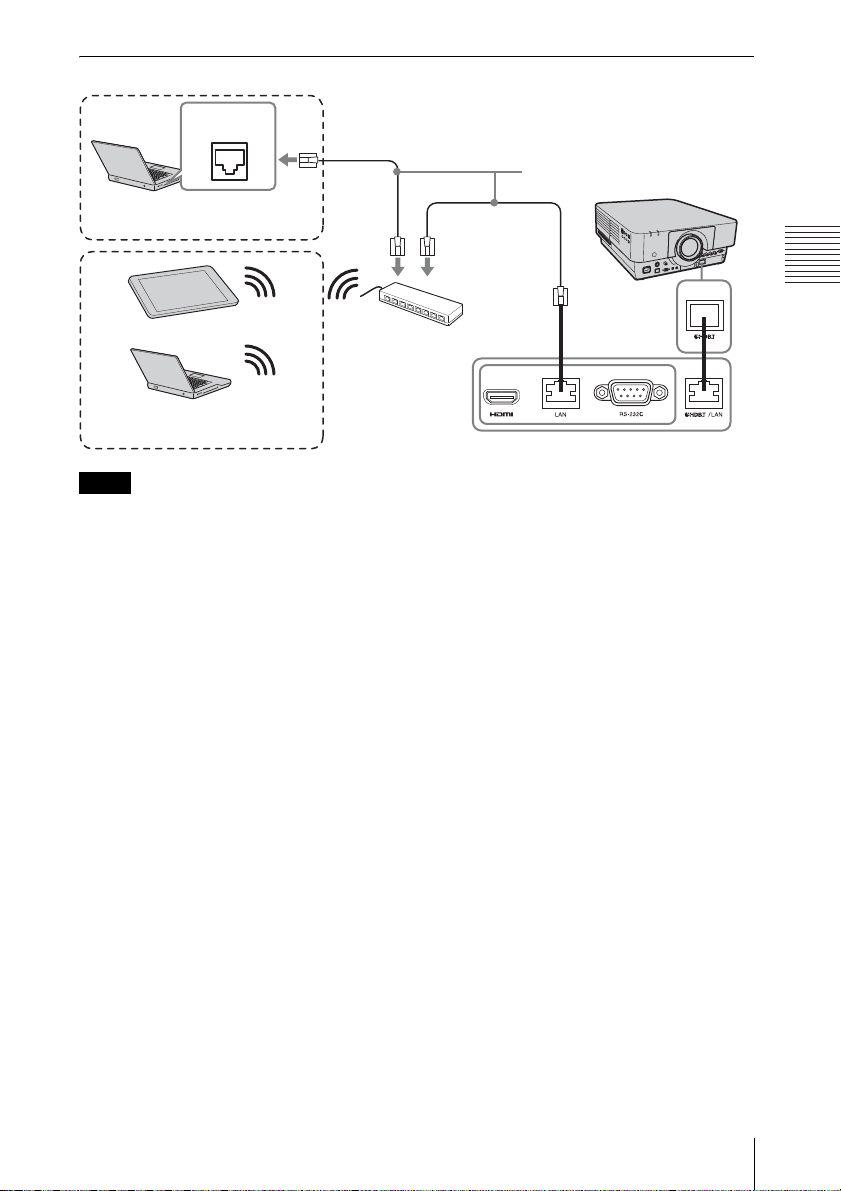

Connecting to HDBaseT™

equipment ................................ 11

Projecting/Adjusting an

Projecting an Image ......................... 14

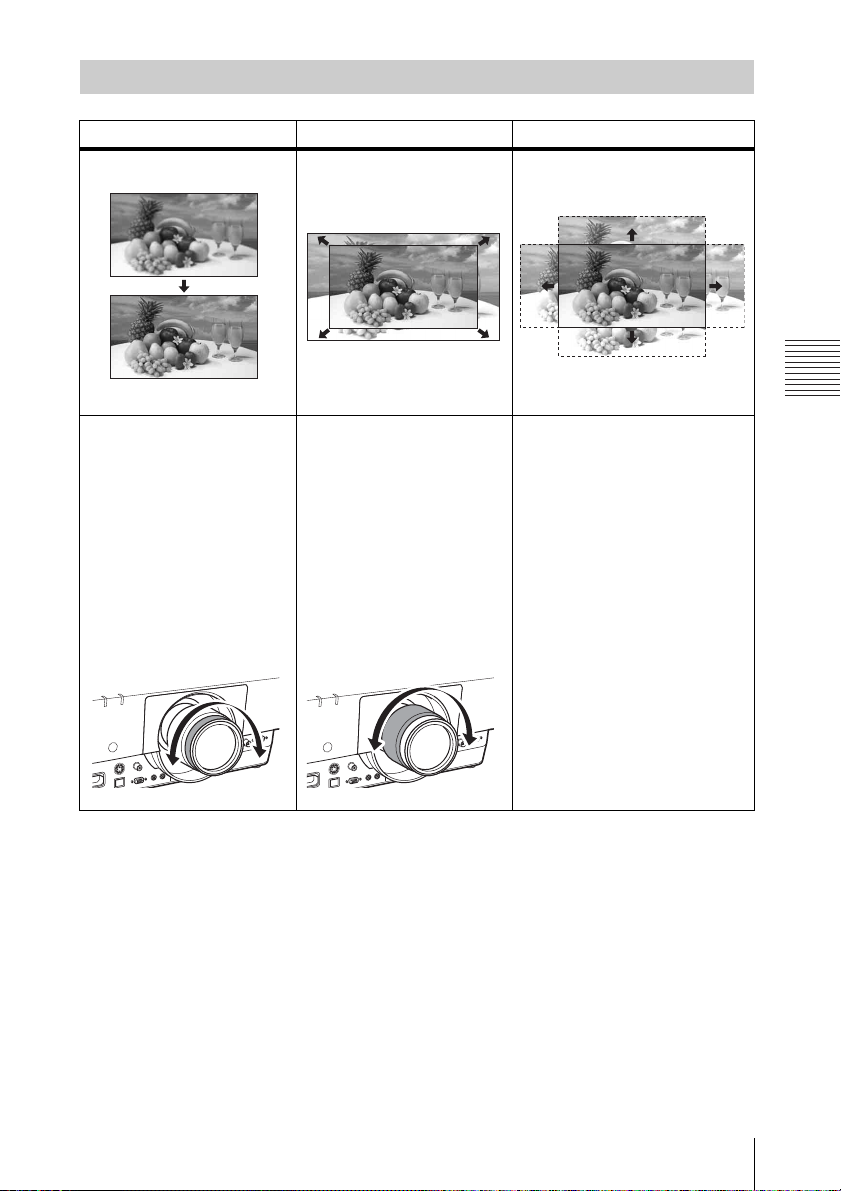

Adjusting the Focus, Size, and

Position of the Projected

image ....................................... 15

Turning Off the Power ................ 19

The Information Menu .....................35

Network

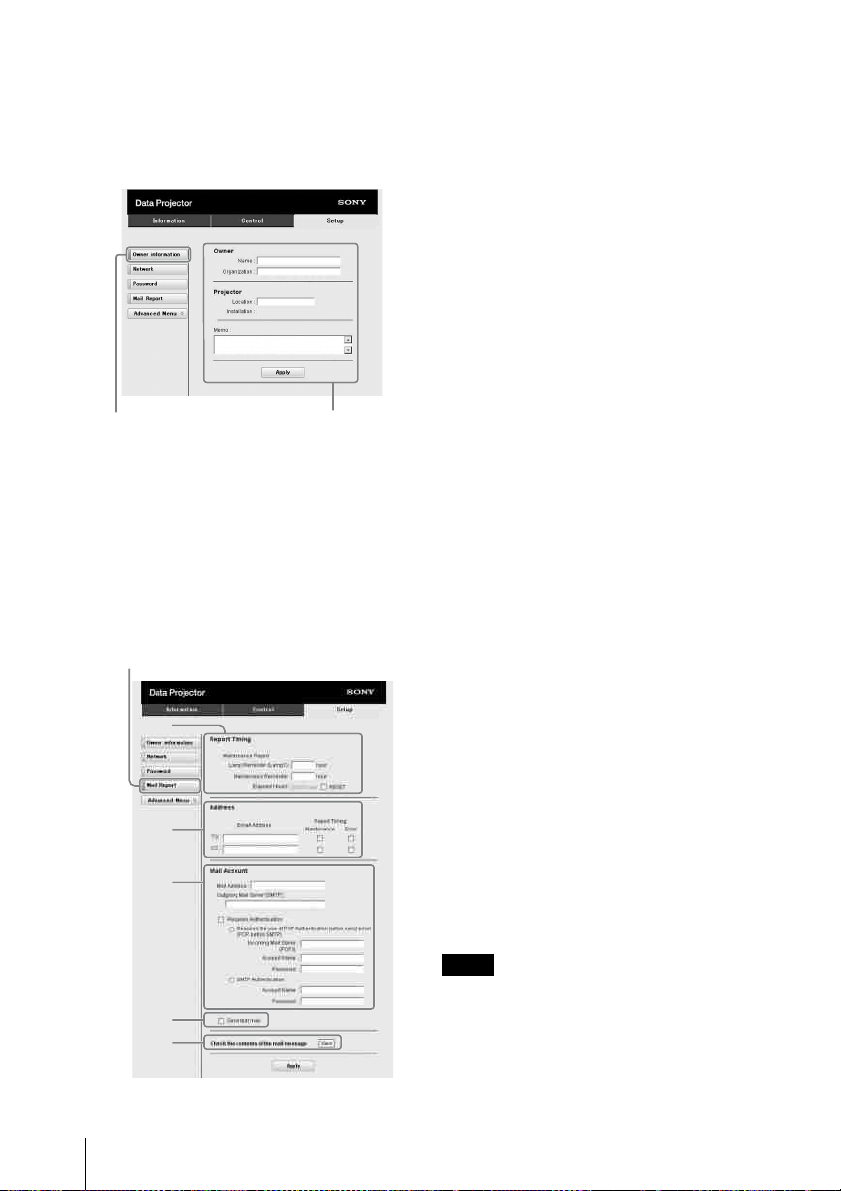

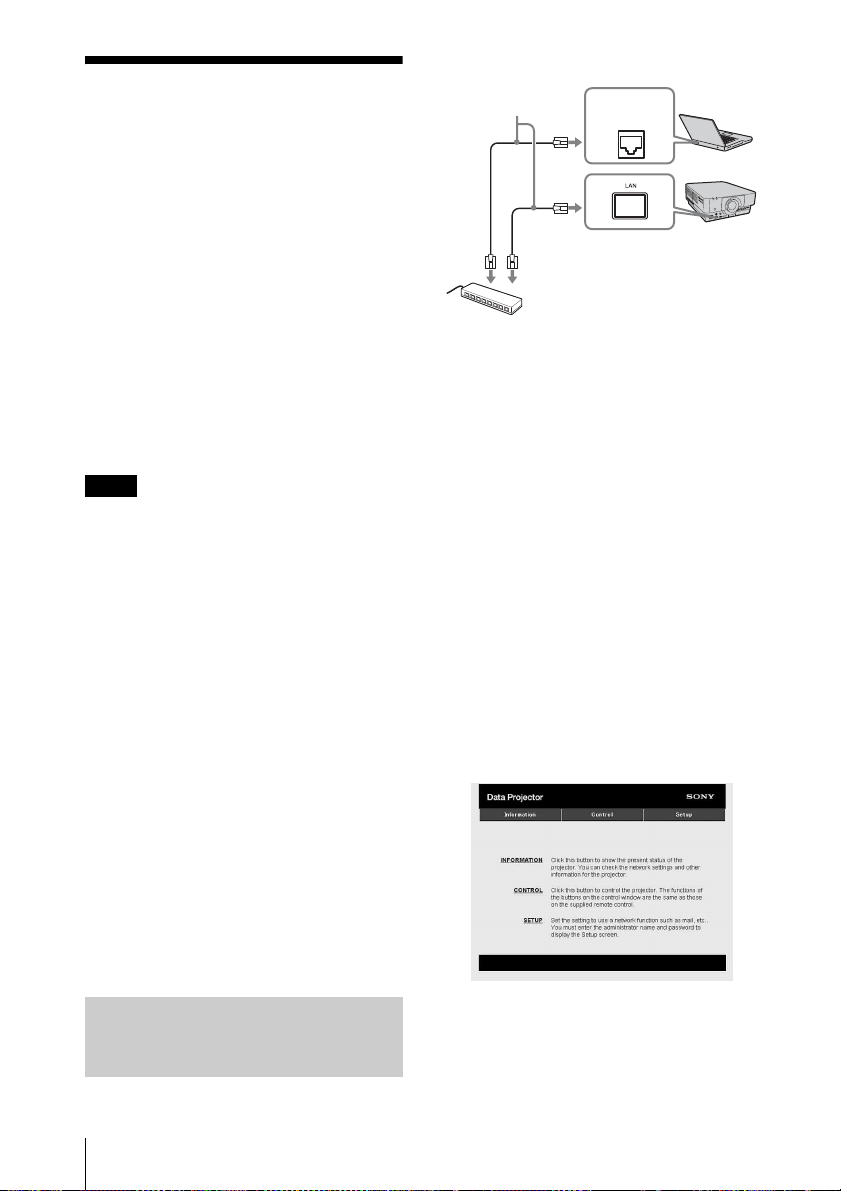

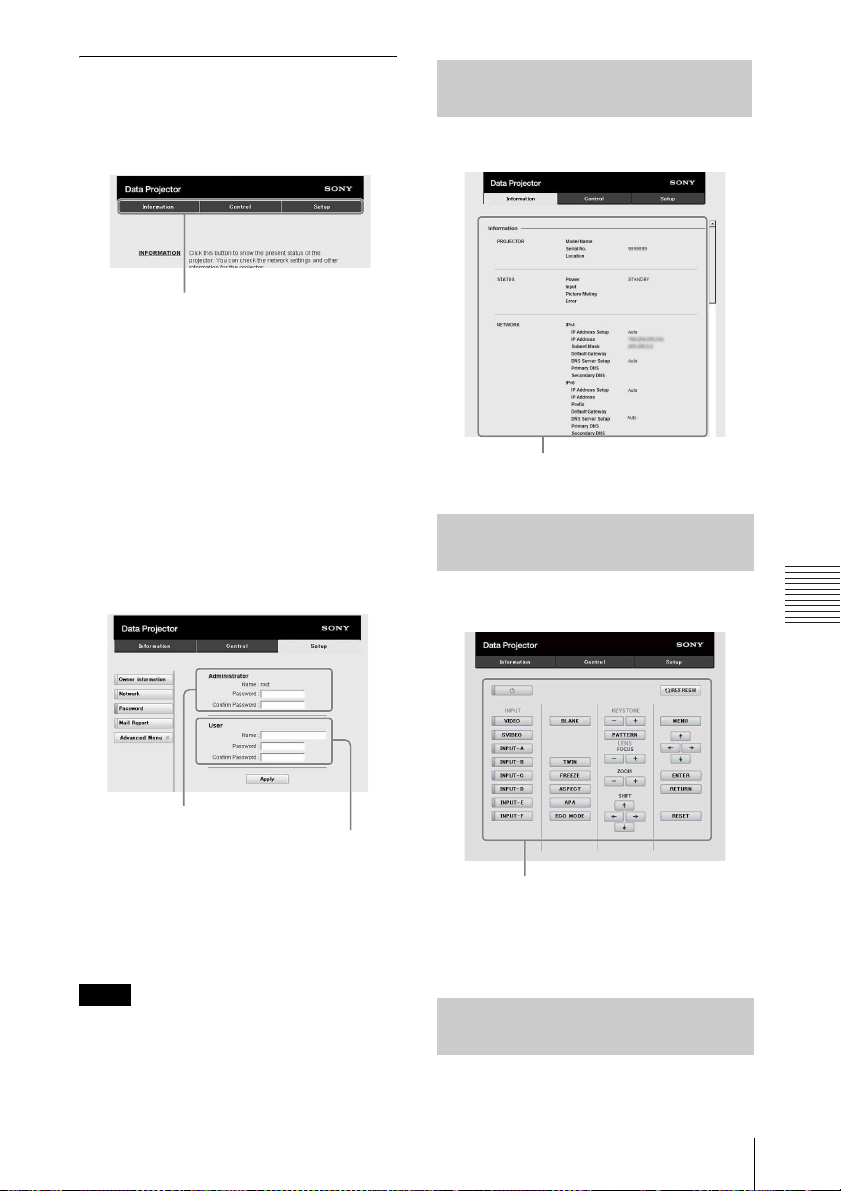

Using Network Features ...................36

Displaying the Control Window of

the Projector with a Web

Browser ...................................36

Confirming the Information

regarding the Projector ............37

Operating the Projector from a

Computer .................................37

Using the e-mail report

Function ...................................37

Others

Indicators ..........................................39

Messages List ...................................40

Troubleshooting ................................41

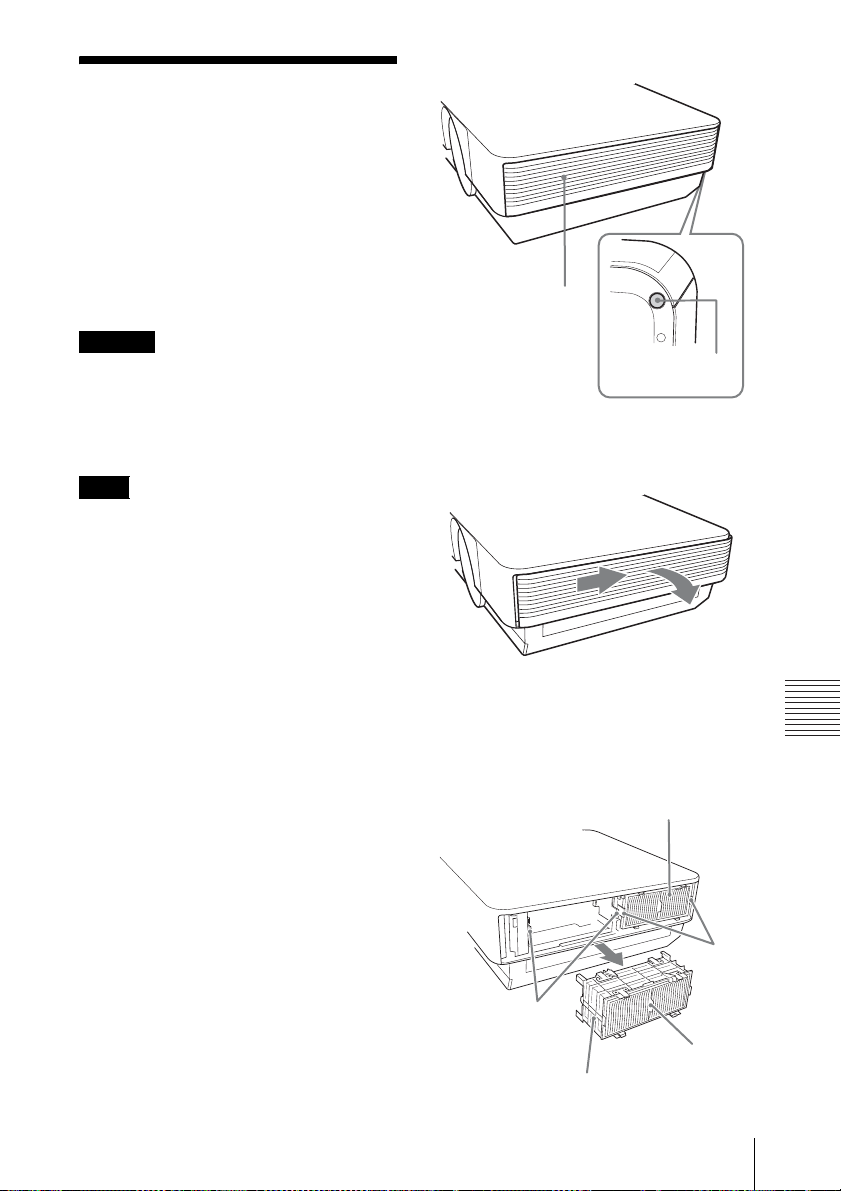

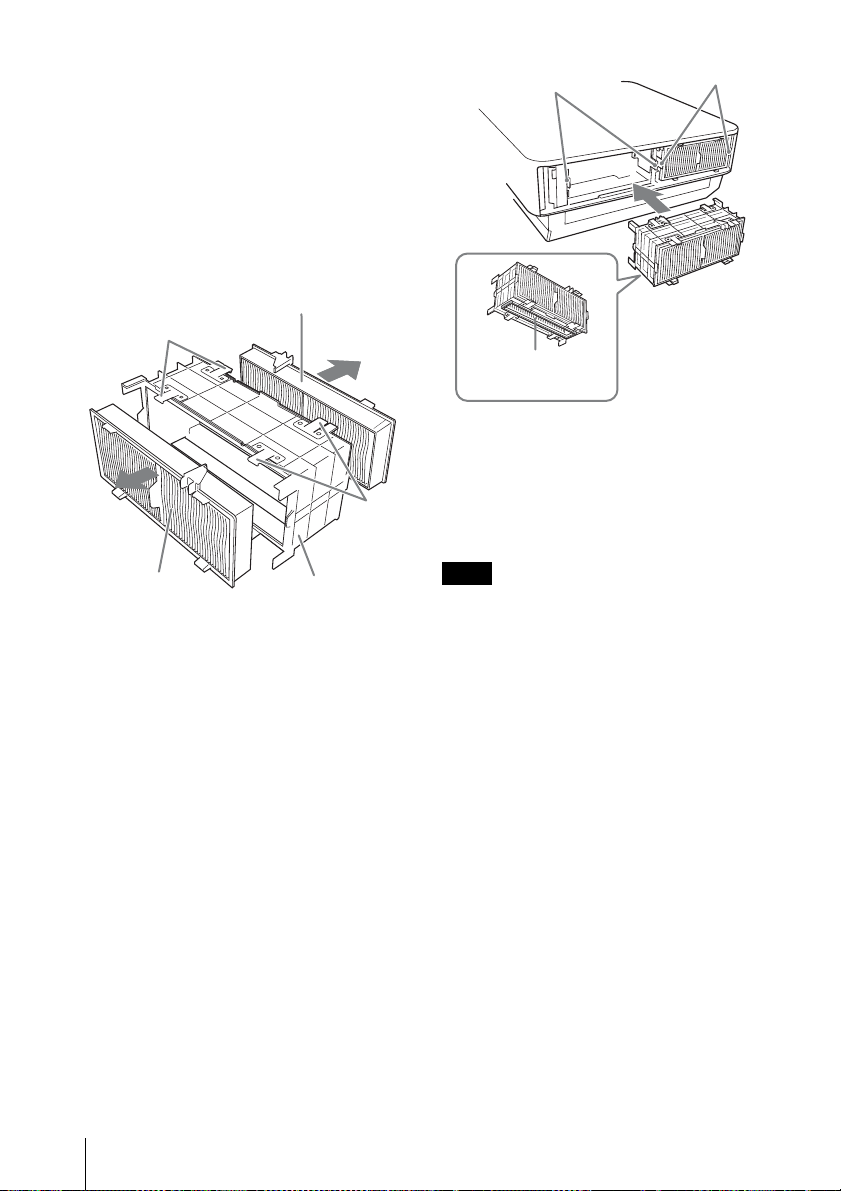

Cleaning the Air Filter ......................43

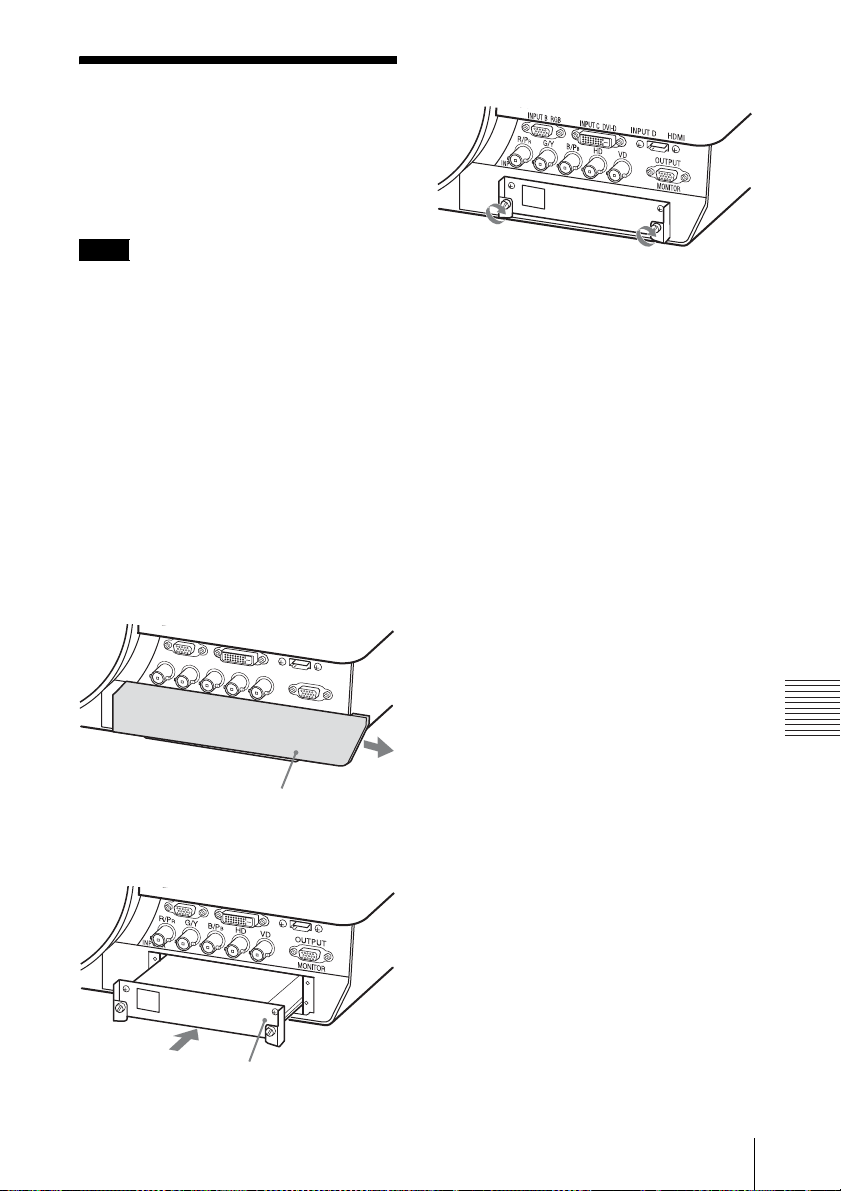

Installing the Optional Adaptor ........45

Specifications ...................................46

Projection Distance and Lens Shift

Range ............................................53

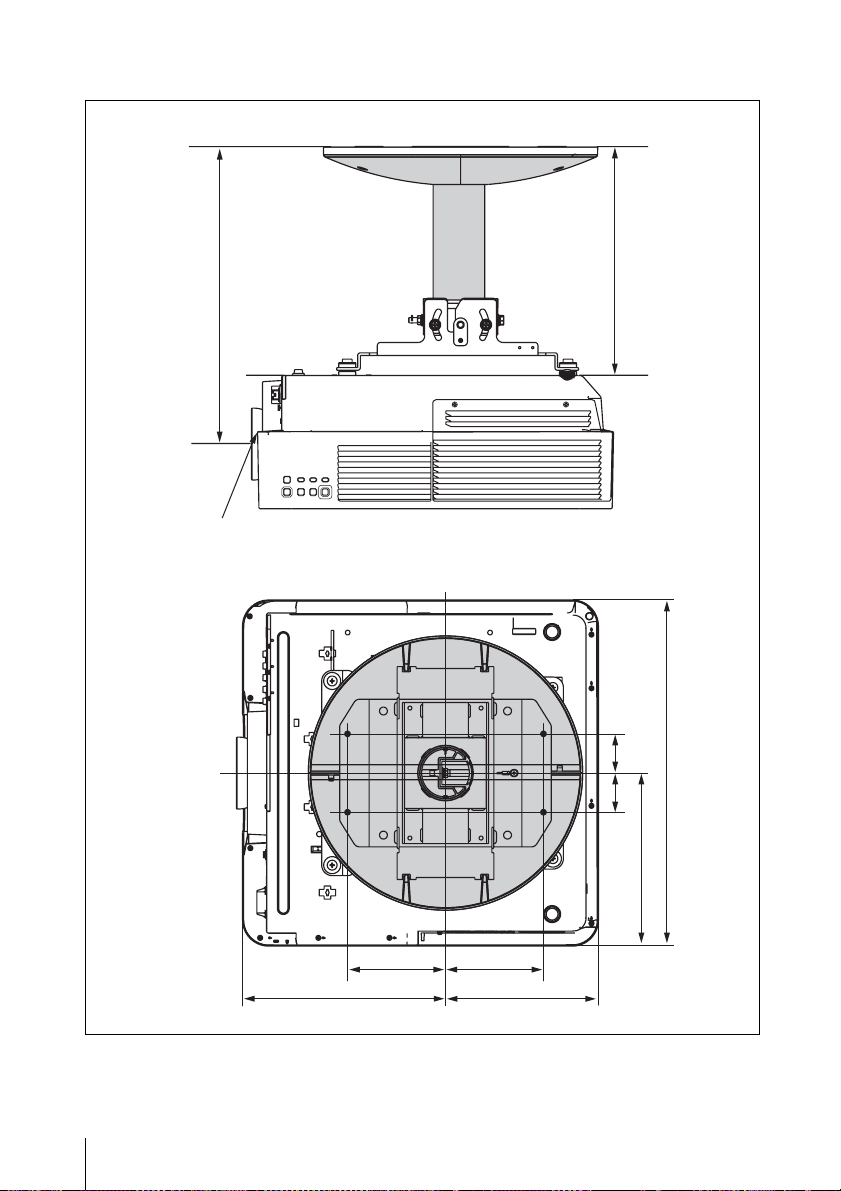

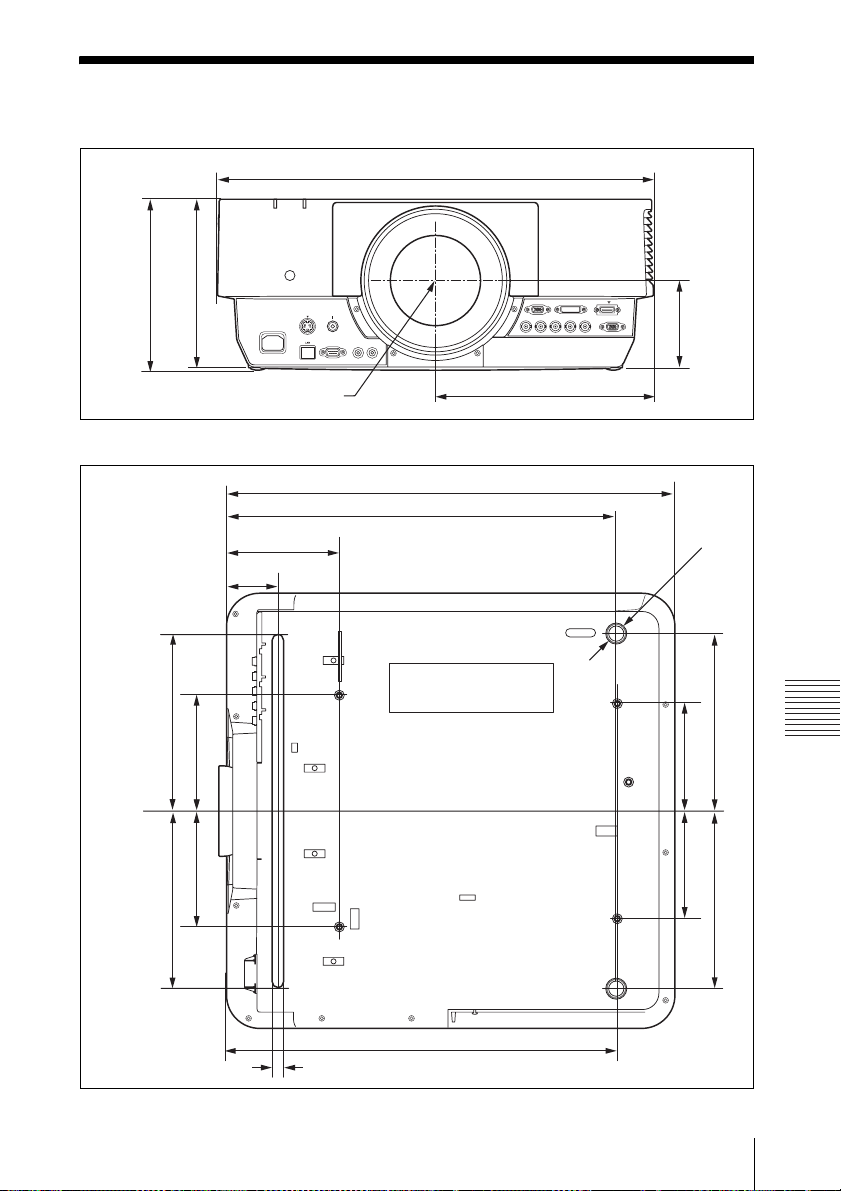

Dimensions .......................................57

Index .................................................61

Adjustments and Settings
Using a Menu

Using a MENU ................................ 21

The Picture Menu .............................22

The Screen Menu .............................24

The Function Menu .......................... 27

The Operation Menu ........................ 28

The Connection/Power Menu .......... 29

The Installation Menu ...................... 32

2

Table of Contents

B Overview

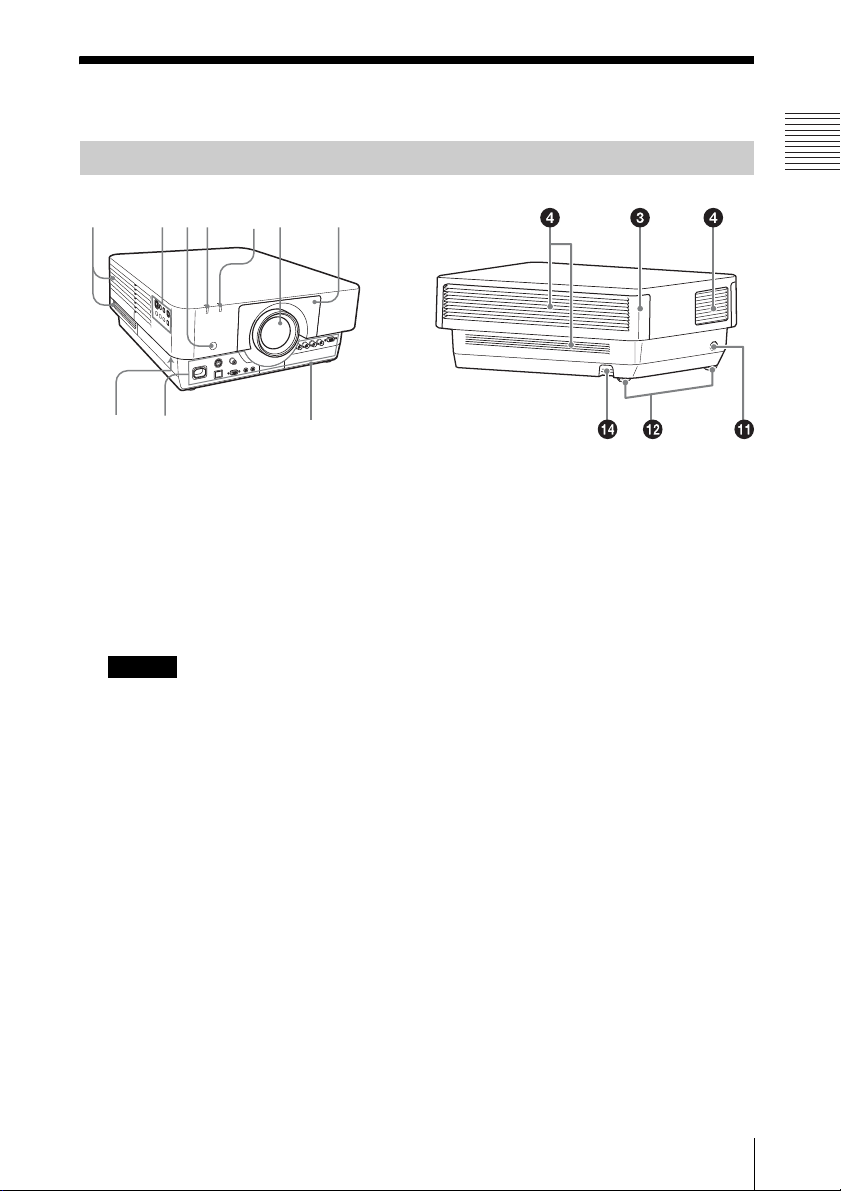

Location and Function of Controls

Main Unit

1276qa85

qd 9 0

a Lens (not supplied) (page 47)

b Front panel

c Air filter cover (page 43)

d Ventilation holes (intake)

e Ventilation holes (exhaust)

Caution

Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes (exhaust) and the
circumference as this may cause injury.

Overview

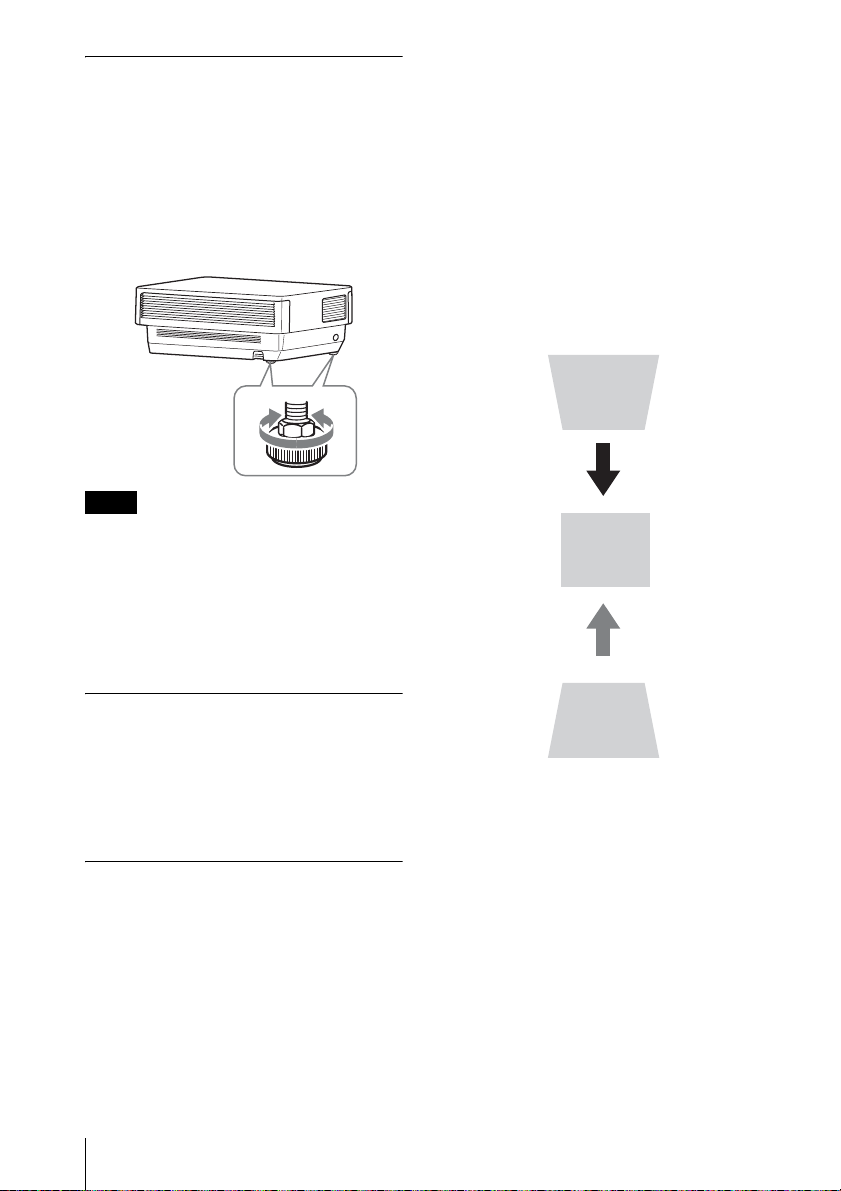

l Rear feet (adjustable) (page 16)

m Antitheft lock

Connects to an optional antitheft cable
manufactured by Kensington.
For details, visit the Kensington’s web
site.
http://www.kensington.com/

n Antitheft bar

Connects to a commercially available
antitheft chain or wire.

f ON/STANDBY indicator

(page 39)

g WARNING indicator (page 39)

h Control panel (page 5)

i Terminals (page 4)

j Optional adaptor slot (page 45)

Install an optional adaptor (not
supplied).

k Remote control receiver

The remote control receivers are located
at the front and rear of the projector.

Location and Function of Controls

3

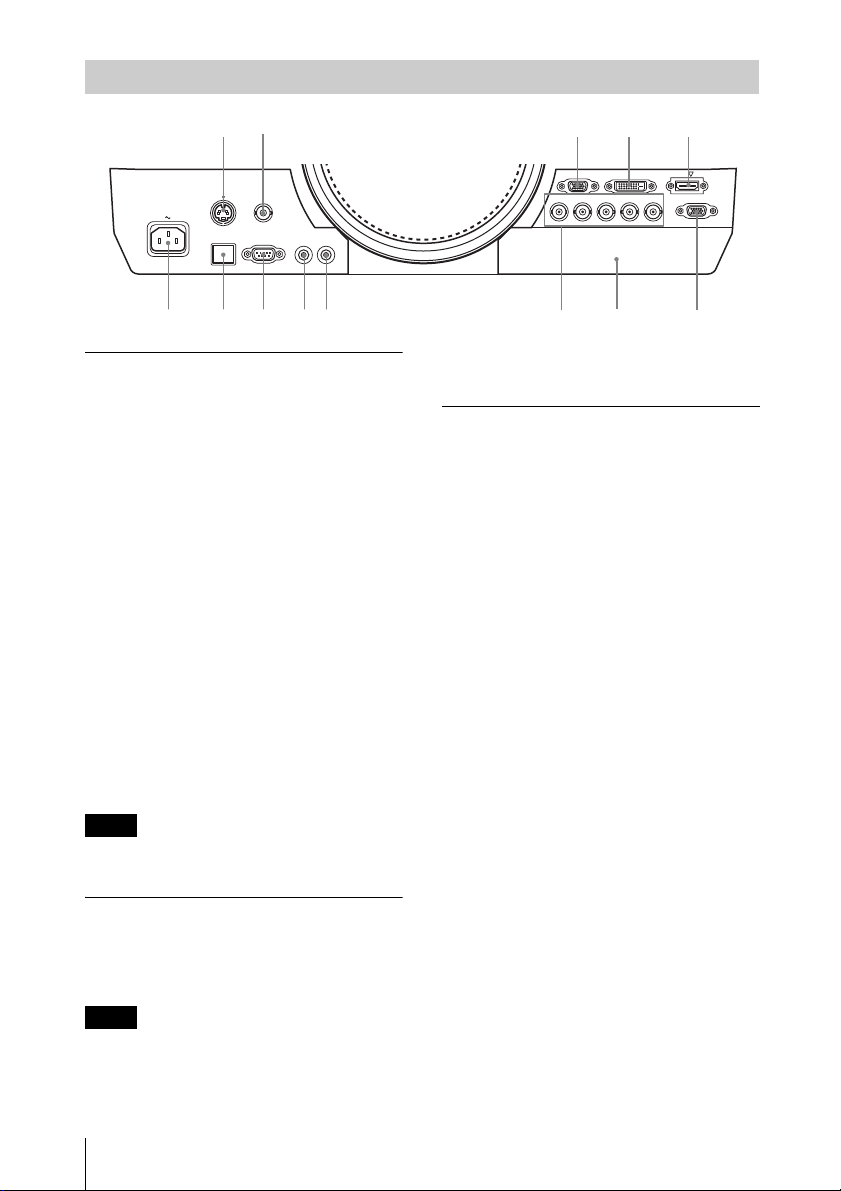

Terminals

q

q;9q

18

6

7

23

4

S VIDEO IN

VIDEO IN

RS-232C

CONTROL S
IN OUT

PLUG INPOWER

a5qs

LAN

d

Input (page 8)

a INPUT A

Video: RGB/YPBPR input terminal

(RGB HD VD/YP

BPR)

b INPUT B

Video: RGB input terminal (RGB)

c INPUT C

Video: DVI-D input terminal (DVI-D)

d INPUT D

Video: HDMI input terminal (HDMI)

e INPUT E

Video: Optional adaptor slot*

f S VIDEO (S VIDEO IN)

Video: S video input terminal

g VIDEO (VIDEO IN)

Video: Video input terminal

Note

* Regarding attachable optional adaptor,

consult with qualified Sony personnel.

Output (page 11)

h OUTPUT

Video: Monitor output terminal

(MONITOR)

Note

This terminal outputs the image. Output as a
computer signal input from the RGB input
terminal (INPUT A, INPUT B) or a video

INPUT B RGB INPUT C DVI-D

R/PR G/Y HD VD

INPUT A

INPUT E

signal input from the YP

B/P

INPUT D HDMI

B

BPR input terminal

OUTPUT

MONITOR

(INPUT A).

Others

i RS-232C terminal

RS-232C compatible control terminal

j LAN terminal (page 36)

k CONTROL S input terminal (DC

power supply) (CONTROL S IN
PLUG IN POWER)

Connects to the CONTROL S output
terminal on the supplied Remote
Commander with a connecting cable
(stereo mini plug (not supplied)) when
using it as a wired Remote Commander.
You do not need to install batteries in the
Remote Commander, as the power is
supplied from this terminal.

l CONTROL S output terminal

(CONTROL S OUT)

For coupling control of multiple
projectors with the wired Remote
Commander.

m AC IN (-) socket

Connects the supplied AC power cord.

4

Location and Function of Controls

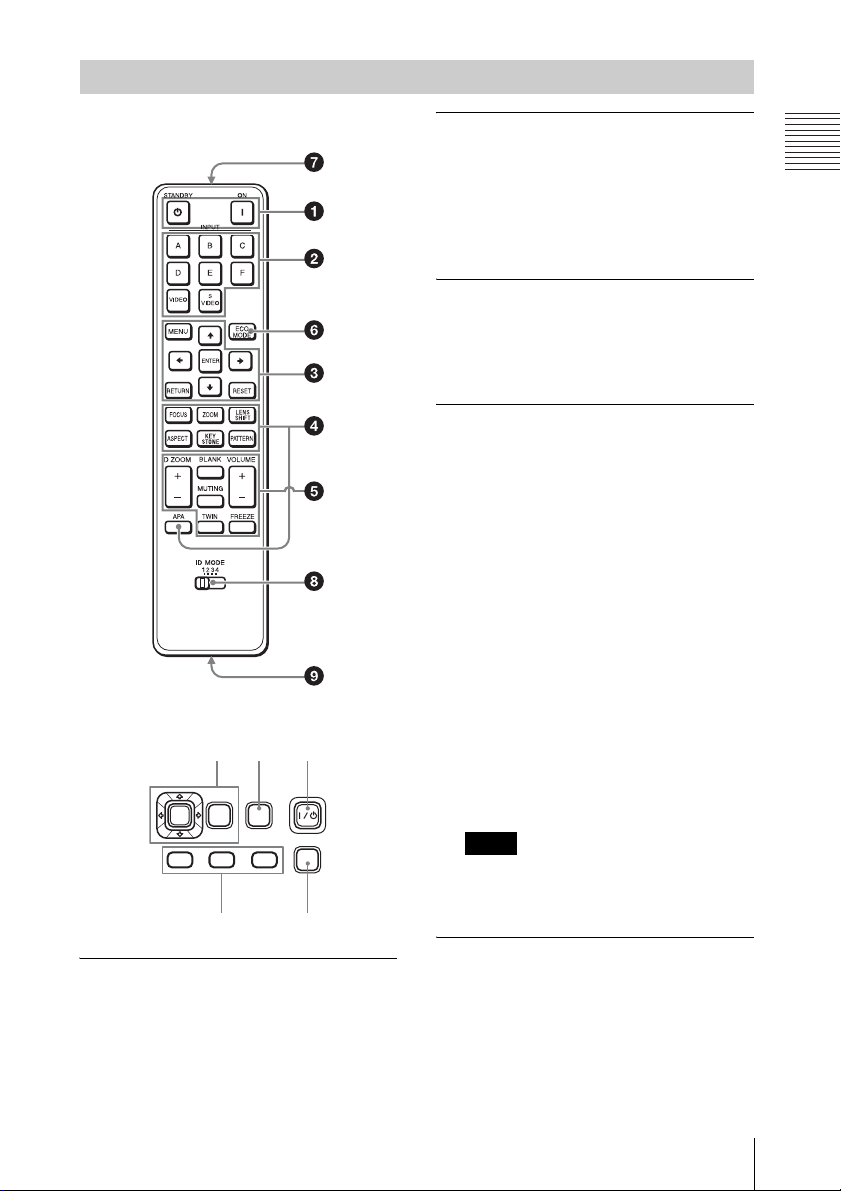

Remote Commander and Control Panel

46

Remote Commander

Control Panel

312

ENTER

MENU

SHIFT ZOOM

INPUT

FOCUS

ECO

MODE

b Selecting an input signal

(page 14)

INPUT key (main unit)
Direct input select keys (Remote
Commander)

The F key is not provided in this
projector.

c Operating a menu (page 21)

ENTER /V/v/B/b (arrow) keys
MENU key
RETURN key
RESET key

d Adjusting the image (page 15)

FOCUS key

Use this key when attaching the power
focus lens.

ZOOM key

Use this key when attaching the power
zoom lens.

LENS SHIFT/SHIFT key

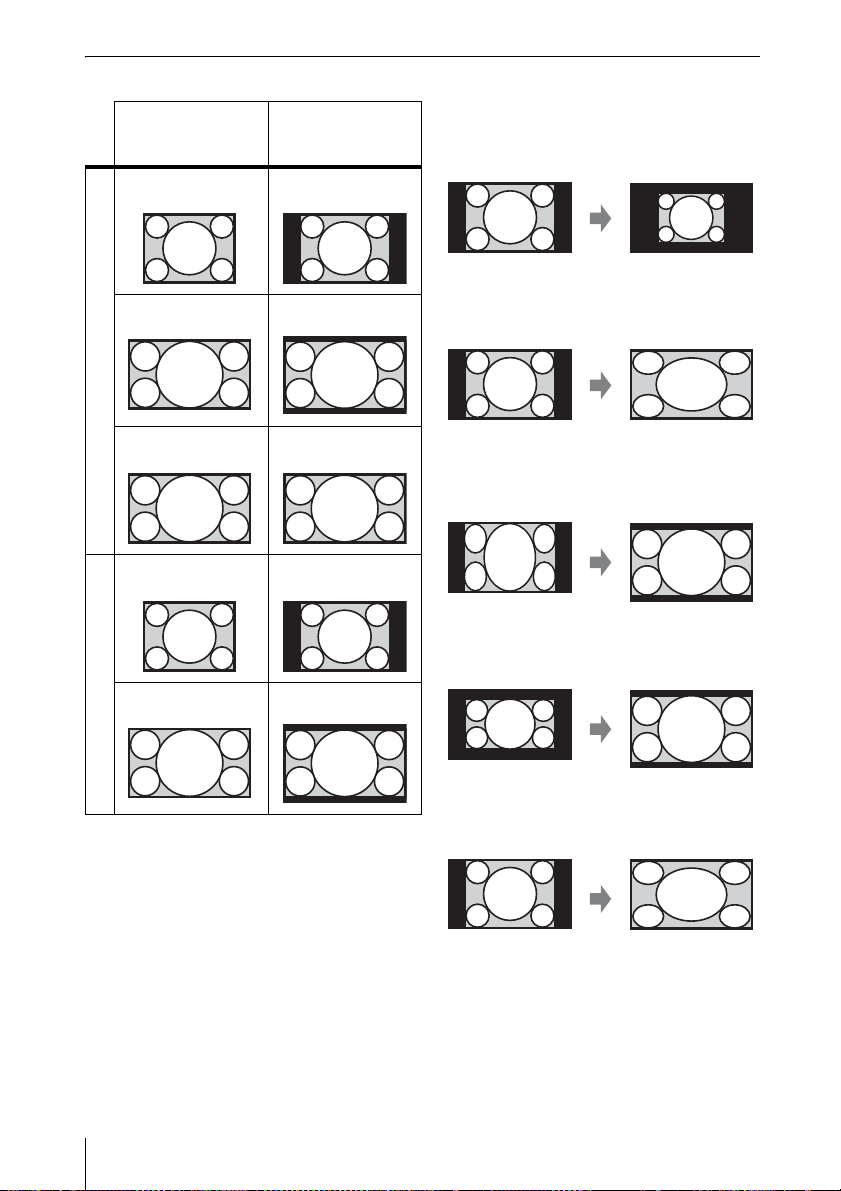

ASPECT key (pages 24, 26)

Changes the aspect ratio of the projected
image.

KEYSTONE key (page 16)
PATTERN key (page 16)
APA (Auto Pixel Alignment) key

Automatically adjusts a picture to its
clearest while a signal is input from a
computer. You can cancel the adjustment
by pressing the APA key again while
adjusting.

Note

Use this key when inputting a computer

*

signal via the RGB input terminal
(INPUT A, INPUT B).

Overview

*

a Turning on the power/Going to

standby

? (On) key
1 (Standby) key

e Using various functions during

projecting

D ZOOM (Digital Zoom) +/– key

*1

Enlarges a portion of the image while
projecting.

1 Press the D ZOOM + key to display

the digital zoom icon on the projected
image.

Location and Function of Controls

5

2 Press the V/v/B/b keys to move the

digital zoom icon to the point on the
image you wish to enlarge.

3 Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the
enlargement ratio. The image can be

enlarged up to 4 times.
Press the RESET key to restore the
previous image.

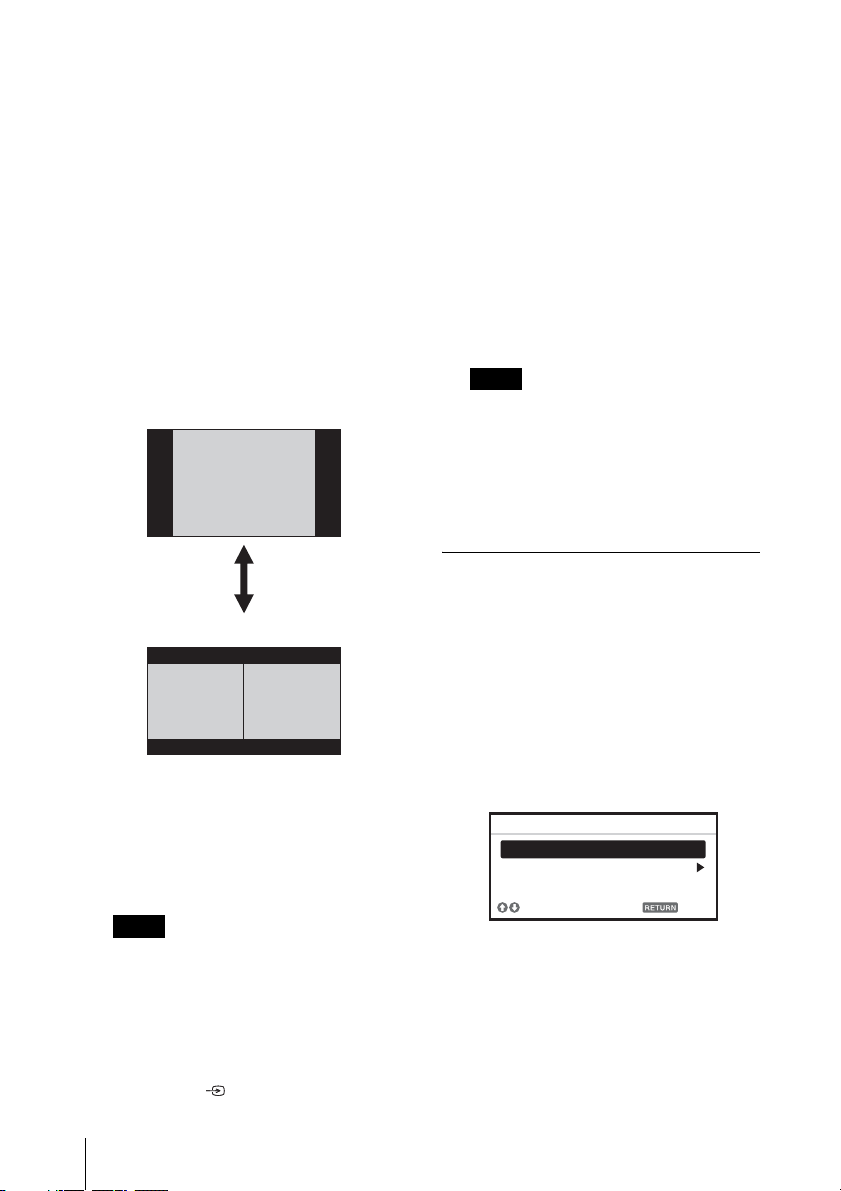

TWIN (Twin Picture) key

You can project the images from two
input signals on the screen as a main
picture and subpicture at the same time.
To switch between one and two pictures,
press the TWIN key on the Remote
Commander.

One picture display

• Picture settings set for one picture may
not be reflected as two pictures.

BLANK key

Cuts off the image. Press again to restore
the image.

MUTING key

This function is not provided in this
projector.

VOLUME +/– key

This function is not provided in this
projector.

FREEZE key

*2

Pauses a projected image. Press again to
restore the image.

Notes

*1: Use this key when inputting a

computer signal. But it may not be
enabled, depending on the resolution
of the input signal and when
displaying two pictures.

*2: Use this key when inputting a

computer signal.

TWIN key

Two pictures display

(A) Main picture (B) Subpicture

You can select the image to project to the
main picture.
The subpicture is preset to display the
image from INPUT B.
For details on combinations of input
signals, see “Combinations of Input
Signals” on page 52.

Notes

• When displaying two pictures, the ? (On)
key, 1 (standby) key, INPUT key, and
BLANK key are available.

• When “Screen Aspect” (page 33) is set
to “4:3,” the two picture function is not
available.

• When displaying two pictures, the input
signal icon does not appear in the
input select window (page 14).

f Setting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily.
Energy-saving mode consists of “Light
Output Mode,” “Constant Brightness,”
“With No Input,” “With Static Signal”
and “Standby Mode.”

1 Press the ECO MODE key to display

the ECO Mode menu.

ECO Mode Menu

ECO Mode

ECO

User

Sel Back

2 Press the V/v key or ECO MODE key

to select ECO or User mode.
ECO: Sets each mode to the optimum

energy-saving value.
Light Output Mode: Standard
Constant Brightness: On
With No Input: Standby
With Static Signal: Light

6

Location and Function of Controls

Dimming
Standby Mode: Low
(go to step 6)

User: Sets each item of the energy-

saving mode menu as you desire
(go to step 3).

3 Select “User” then press the b key.

The setting items appear.

User

Light Output Mode Standard

Constant Brightness Off

Auto Power Saving

With No Input Off

With Static Signal Light Dimming

Standby Mode Standard

Set

Sel Back

4 Press the V/v key to select the ECO

Mode item then press the b key or the
ENTER key.

5 Press the V/v key to select the setting

value.

6 Press the RETURN key to restore the

previous image.
For details on ECO Mode settings, see
“Light Output Mode”, “With No Input”,
“With Static Signal” and “Standby
Mode” on the Connection/Power menu
(page 29).

About Remote Commander operation

• Direct the Remote Commander toward the
remote control receiver.

• The shorter the distance between the
Remote Commander and the projector is,
the wider the angle within which the
Remote Commander can control the
projector becomes.

• If there is any obstruction between the
Remote Commander and the remote
control receiver on the projector, the
projector may not be able to receive
signals from the Remote Commander.

Overview

Others

g Infrared transmitter

h ID MODE 1/2/3/4 switch

(page 28)

Sets an ID mode of the Remote
Commander. If you assign a different ID
number to each projector when multiple
projectors are used, you can control only
the projector with the same ID mode as
that of the Remote Commander.

i CONTROL S output terminal

Connects to the CONTROL S input
terminal on the projector with a
connecting cable (stereo mini plug (not
supplied)) when using the Remote
Commander as a wired one.
You do not need to install batteries in the
Remote Commander, as the power is
supplied from the projector.

Location and Function of Controls

7

B Preparation

Connecting the Projector

Notes

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

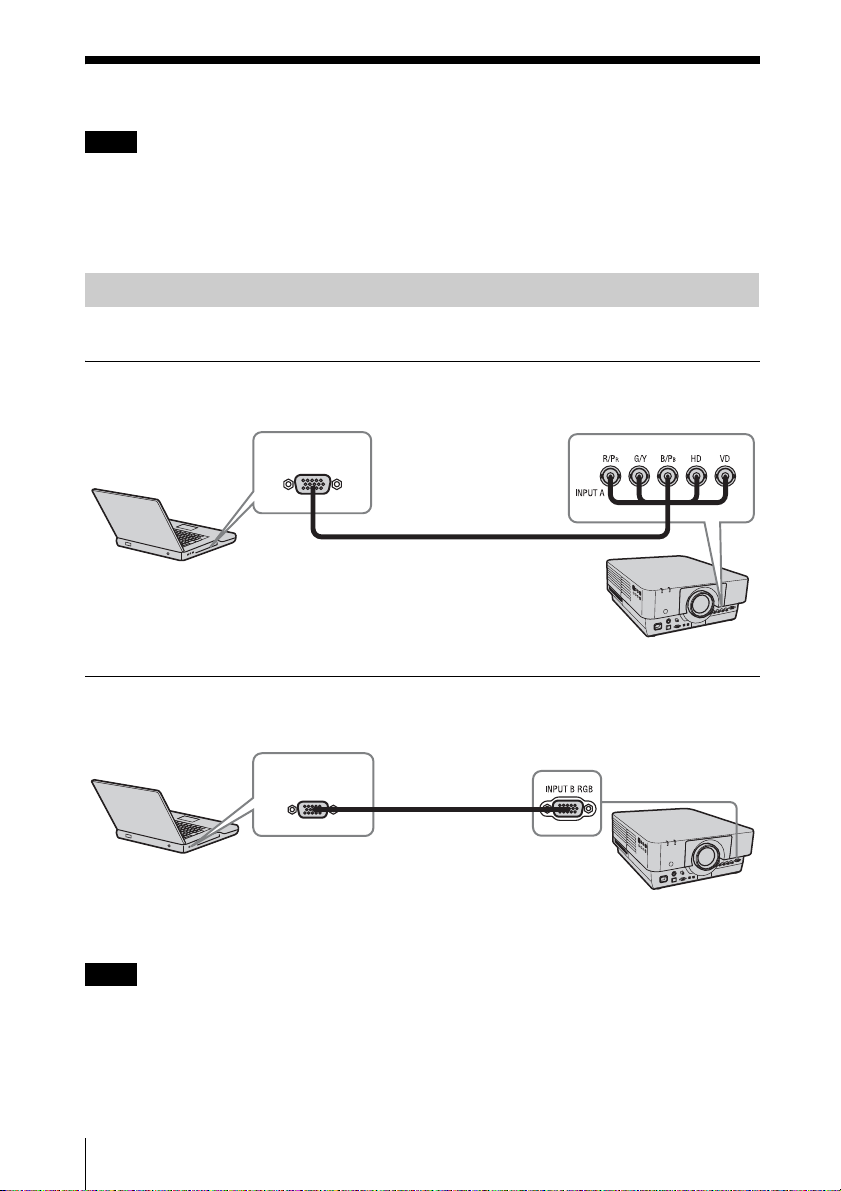

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A

For connection when there is a long distance between a computer and the projector.

RGB output

terminal

Mini D-sub 15-pin – BNC cable

Computer

(not supplied)

INPUT B

For connecting a computer with an RGB output terminal.

RGB output

terminal

Mini D-sub 15-pin
cable (not supplied)

Computer

Note

It is recommended that you set the resolution of your computer to 1920 × 1200 pixels for the external
monitor.

8

Connecting the Projector

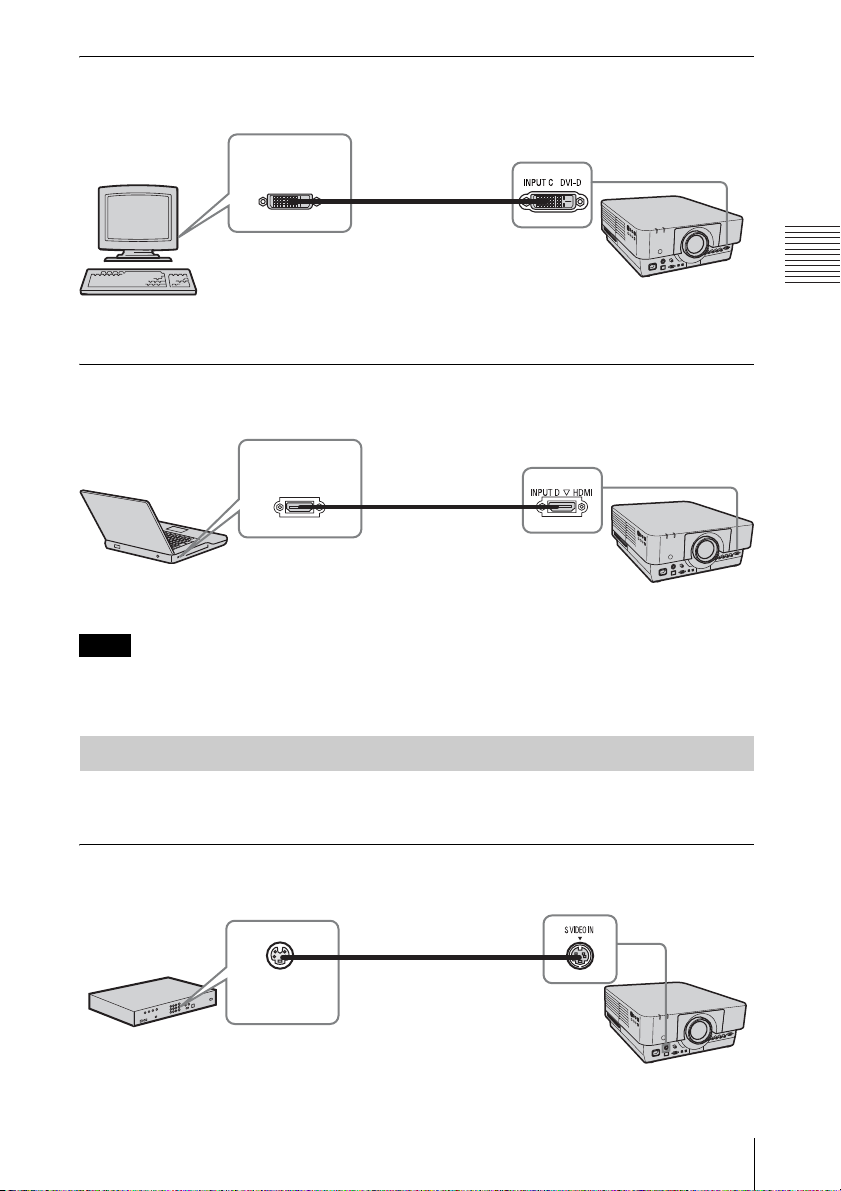

INPUT C

For connecting a computer with a DVI-D output terminal.

DVI-D output

terminal

DVI-D cable
(not supplied)

Computer

INPUT C DVI-D

INPUT D

For connecting a computer with an HDMI output terminal.

HDMI output

terminal

HDMI cable
(not supplied)

Computer

Notes

• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.

• Be sure to use the HDMI cable with an HDMI logo.

Preparation

Connecting Video Equipment

Connections with a VHS videocassette recorder, DVD player, or BD player are explained for
each input signal.

S VIDEO IN

For connecting video equipment with an S-video output terminal.

S video output

terminal

Video equipment

S video cable (not supplied)

Connecting the Projector

9

VIDEO IN

For connecting video equipment with a video output terminal.

Video – BNC cable
(not supplied)

Video equipment

Video output

terminal

INPUT A

For connection when there is a long distance between the video equipment and projector.

BPR output

YP

terminal

Component – BNC cable (not supplied)

Video equipment

INPUT D

For connecting video equipment with an HDMI output terminal.

HDMI output

terminal

HDMI cable
(not supplied)

Video equipment

Notes

• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.

• Be sure to use the HDMI cable with an HDMI logo.

10

Connecting the Projector

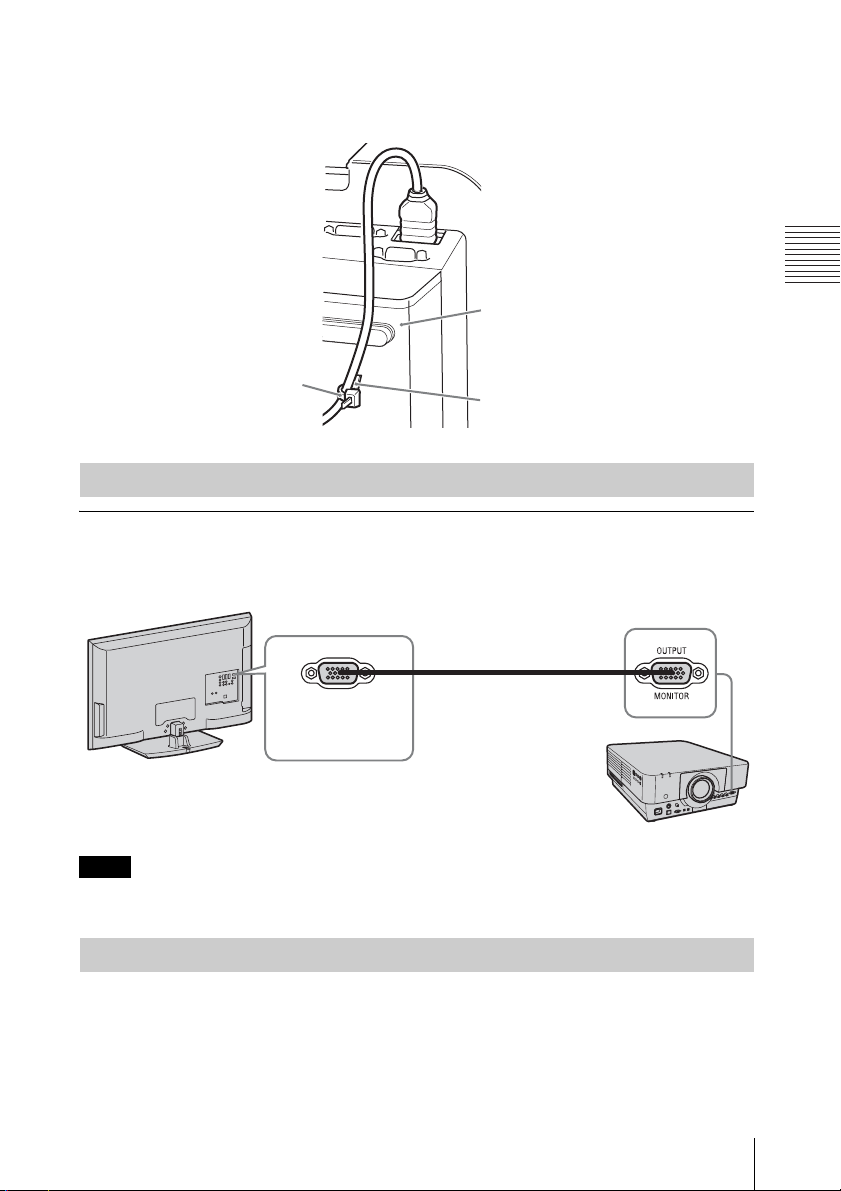

To fix the HDMI cable

Fix the cable to the cable tie holder at the bottom of the projector, using a commercially
available cable tie, as in the illustration.
Use a cable tie of less than 1.9 mm × 3.8 mm in thickness.

Bottom of the projector

Cable tie
(commercially available)

Cable tie holder

Connecting an External Monitor

OUTPUT

Projected images can be output to display equipment such as a monitor.

Display equipment

RGB input

terminal

Note

This terminal outputs the image. Output as a computer signal input from the RGB input terminal
(INPUT A, INPUT B) or a video signal input from the YP

Mini D-sub 15-pin cable
(not supplied)

BPR input terminal (INPUT A).

Preparation

Connecting to HDBaseT™ equipment

• You can connect HDBaseT equipment by attaching the Digital Interface Adaptor BKM-PJ10
(not supplied).

• When the Digital Interface Adaptor BKM-PJ10 (not supplied) is attached to the main unit,
image transmission to the main unit, LAN communication, and RS-232C control are enabled
with the commercially available HDBaseT transmitter. Not compatible with voice
communication and power connection.

Connecting the Projector

11

• Use a straight LAN cable (commercially-available) with a shield of CAT5e or CAT6 to
connect the main unit and HDBaseT equipment.

Connecting to the computer

INPUT E

HDMI output

terminal

HDMI cable (not supplied)

Computer

HDBaseT transmitter

Connecting to video equipment

INPUT E

HDMI output

terminal

HDMI cable (not supplied)

Video equipment

Note

HDBaseT transmitter

Connect HDBaseT transmitter and the main unit directly without a hub or router.

12

Connecting the Projector

Connecting to network equipment

LAN
terminal

Computer

Wired connection

LAN cable (straight type)
(not supplied)

Preparation

Tablet PC/Smartphone

Computer

Wireless connection

Note

Hub, Wireless router

HDBaseT transmitter

When using network features, be sure to check if “LAN Setting” is set to “via HDBaseT” (page 29).

Connecting the Projector

13

B Projecting/Adjusting an Image

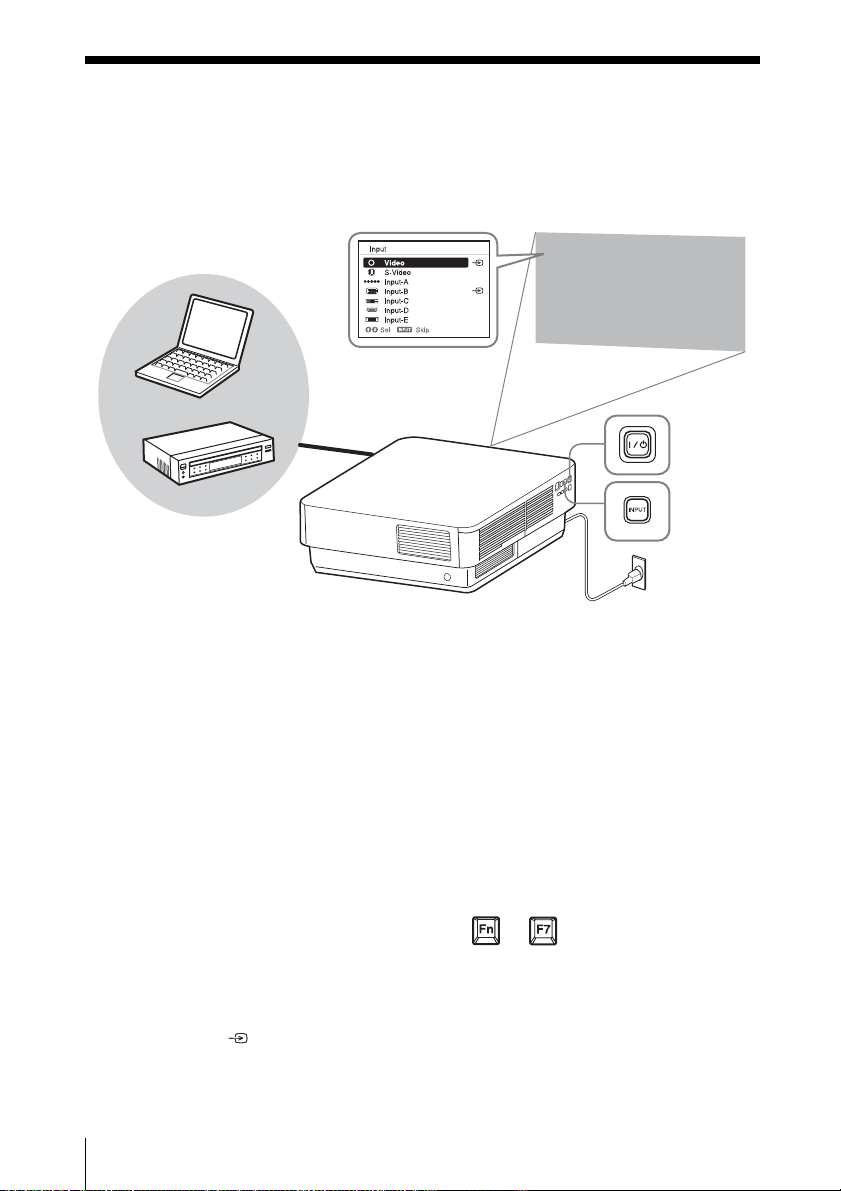

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install
the projector so that the projected image fits the screen size. For details on projection distances
and projected image sizes, see

4

Computer

“Projection Distance and Lens Shift Range” (page 53).

Input select window

5

6

2

Video equipment

1 Plug the AC power cord into a wall

outlet.

2 Connect all equipment to the projector

(page 8).

3 Turn on the projector.

Press the ?/1 key on the main unit or the
? key on the Remote Commander.

4 Turn on the connected equipment.

5 Select the input source.

Press the INPUT key on the projector to
display the input select window. Press
the INPUT key repeatedly or the V/v
key to select an image to be projected.
The signal icon appears on the right
side in the input select window when a
signal is input.

3

5

Projector

You can select the input source using
Direct input select keys on the Remote
Commander

1

Wall outlet

(page 5).

6 Switch your computer to output to

external display by changing your
computer’s setting.

How to switch the computer to output to
the projector varies, depending on the
type of computer.

(Example)

+

7 Adjust the focus, size, and position of

the projected image (page 15).

14

Projecting an Image

Adjusting the Focus, Size, and Position of the Projected image

Focus Size (Zoom) Position (Lens shift)

When attaching the Electric
focus lens

Press the FOCUS key on the
projector or the Remote
Commander then press the B/
bkey (or V/v key) to adjust
the focus.

When attaching the Manual
focus lens

Turn the Focus Ring to adjust
the focus.

When attaching the Electric
zoom lens

Press the ZOOM key on the
projector or the Remote
Commander then press the B/
bkey (or V/v key) to adjust
the size.

When attaching the Manual
zoom lens

Turn the Zoom Ring to adjust
the size.

Press the LENS SHIFT/SHIFT
key on the projector or the
Remote Commander then press
the V/v/B/b key to adjust the
position.

To return the lens to the center
position of the projected image

Press the RESET key on the
Remote Commander while
adjusting.

Projecting/Adjusting an Image

Projecting an Image

15

Adjusting the tilt of the projector
with the rear feet (adjustable)

When the projector is installed on an uneven
surface, you can adjust using the rear feet
(adjustable). To correct any trapezoidal
distortion of the projected image, use the
Keystone correction feature (pages 16, 32).
You can also broaden the adjustment range
by removing the nuts from the rear feet
(adjustable).

Notes

• Be careful not to let the projector down on
your fingers.

• Do not push hard on the top of the projector
with the rear feet (adjustable) extended. It
may cause a malfunction.

• Keystone adjustment is an electronic
correction. Consequently the image quality
may deteriorate.

If the projected image is
trapezoidally-distorted in the vertical
plane

1 Press the KEYSTONE key on the

Remote Commander once or select “V
Keystone” in the Installation menu to
display the adjustment menu.

2 Adjust the value using V/v/B/b.

The higher the setting, the narrower the
top of the projected image. The lower
the setting, the narrower the bottom of
the projected image.

Increase setting

Decrease setting

Displaying a pattern for adjusting
an image

You can display a pattern for adjusting the
projected image with the PATTERN key on
the Remote Commander. Press the
PATTERN key again to restore the previous
image.

Correcting for trapezoidal
distortion of the projected image
(Keystone adjustment)

If the screen is tilted, or you are projecting
from an oblique angle, perform keystone
adjustment.

16

Projecting an Image

Press the RESET key to restore the
projected image before adjustment.

If the projected image is
trapezoidally-distorted in the lateral
plane

1 Press the KEYSTONE key on the

Remote Commander twice, or select
“H Keystone” in the Installation menu
to display the adjustment menu.

2 Adjust the value using V/v/B/b.

The higher the setting, the narrower the
right side of the projected image. The
lower the setting, the narrower the left
side of the projected image.

Increase the setting

Decrease setting

Press the RESET key to restore the
projected image before adjustment.

Notes

• Keystone adjustment is an electronic
correction. Consequently the image quality
may deteriorate.

• Depending on the position adjusted with the
lens shift feature, using the Keystone feature
may change the aspect ratio of the original
image, or the projected image may be
distorted.

• If keystone correction is performed using the
KEYSTONE key, the Warp correction
feature (if enabled) will be canceled.

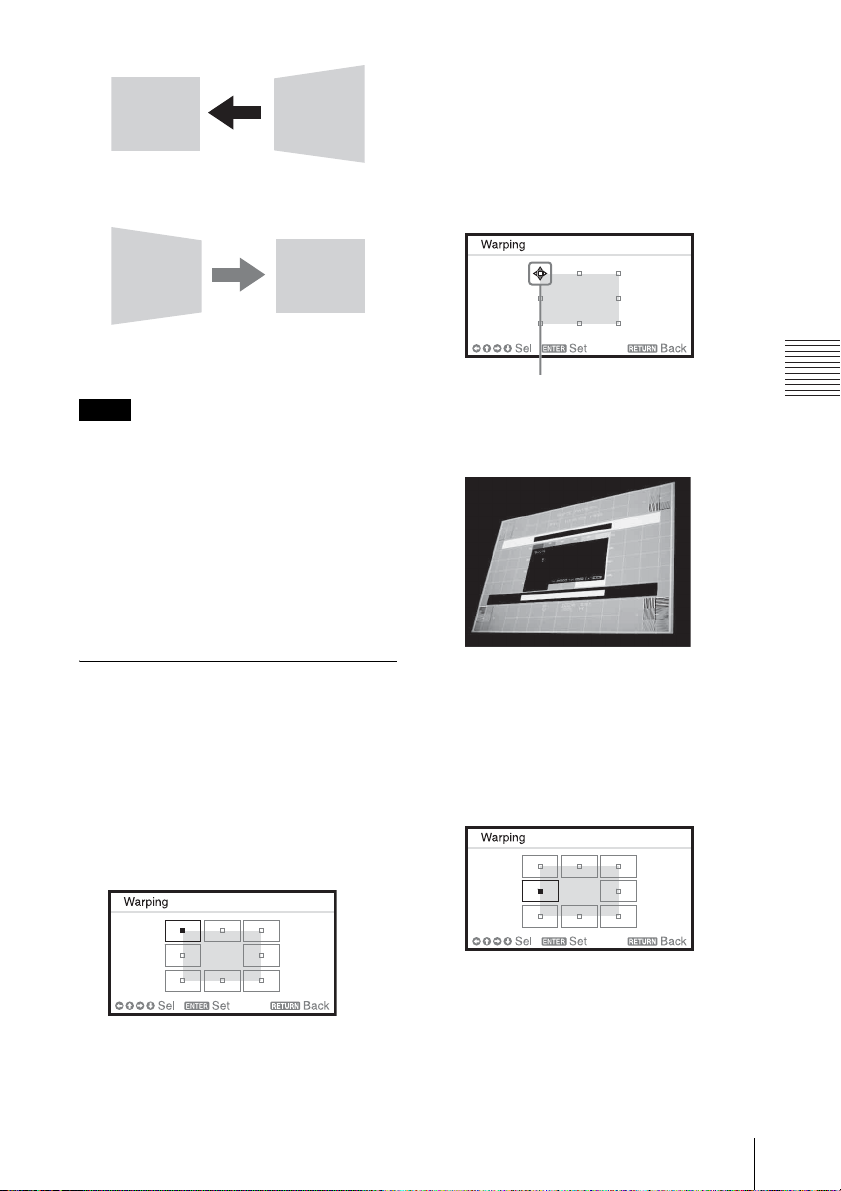

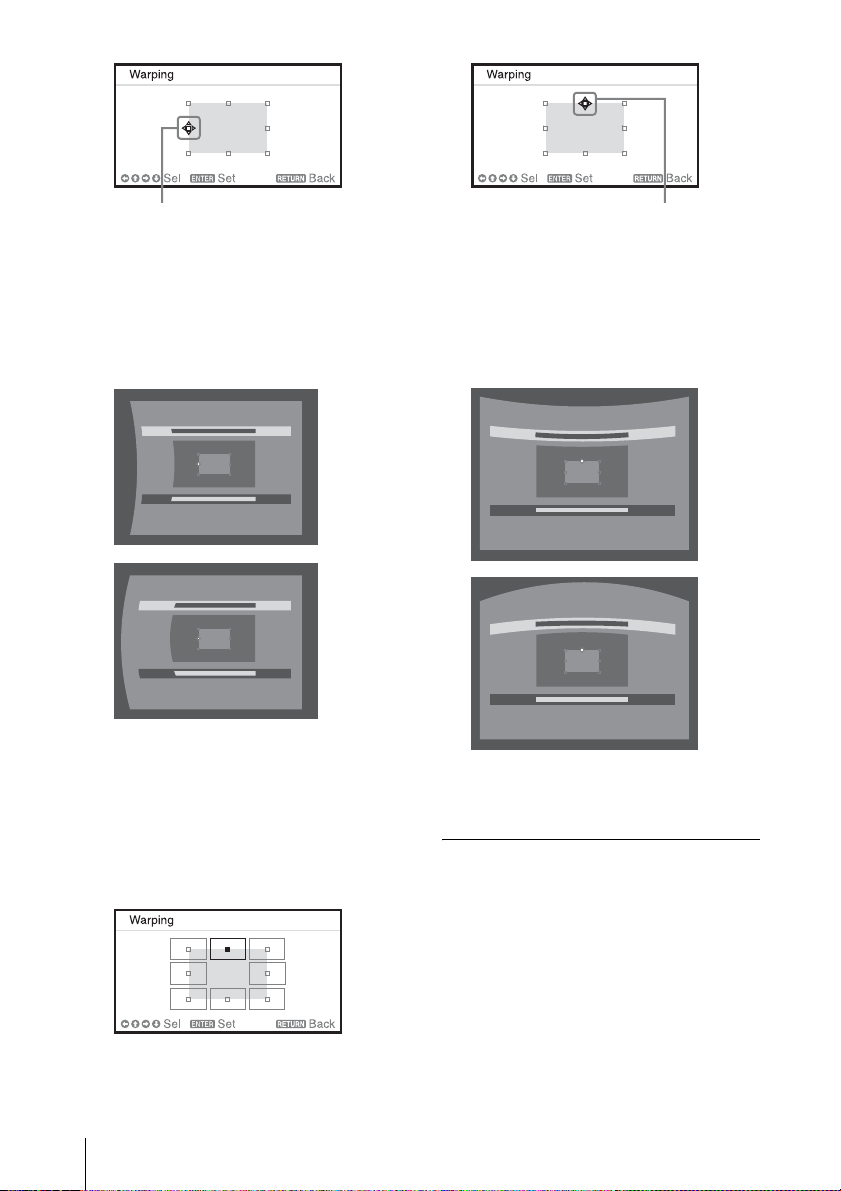

Correcting image twist (Warp
correction feature)

You can correct image twist with the warp
correction feature.

Selecting the corner(s) of the image
to be corrected

1 Move x using V/v/B/b to select the

corner you want to correct.

2 Press the ENTER key.

The cursor appears.

Adjust using this cursor

Projecting/Adjusting an Image

3 Adjust the position of the corner you

want to correct, using V/v/B/b.

Press the RESET key to restore the
projected image before adjustment.

Correcting deflection 1 – left/right
sides of the image

1 Press the KEYSTONE key on the

Remote Commander three times, or
select “Warping” in the Installation
menu, then select “Adjust.”

The guide is displayed.

1 Move x using V/v/B/b to select the

side you want to correct.

2 Press the ENTER key.

The cursor appears.

Projecting an Image

17

Adjust using this cursor Adjust using this cursor

3 You can adjust the deflection of the

side, using V/v/B/b.

You can adjust the center point of
deflection using V/v. For the range of
deflection, use B/b. You can adjust the
left/right side independently.

Press the RESET key to restore the
projected image before adjustment.

Correcting deflection 2 – top/bottom
sides of the image

1 Move x using V/v/B/b to select the

side you want to correct.

3 You can adjust the deflection of the

side, using V/v/B/b.

You can adjust the center point of
deflection using B/b. For the range of
deflection, use V/v. You can adjust the
top/bottom independently.

Press the RESET key to restore the
projected image before adjustment.

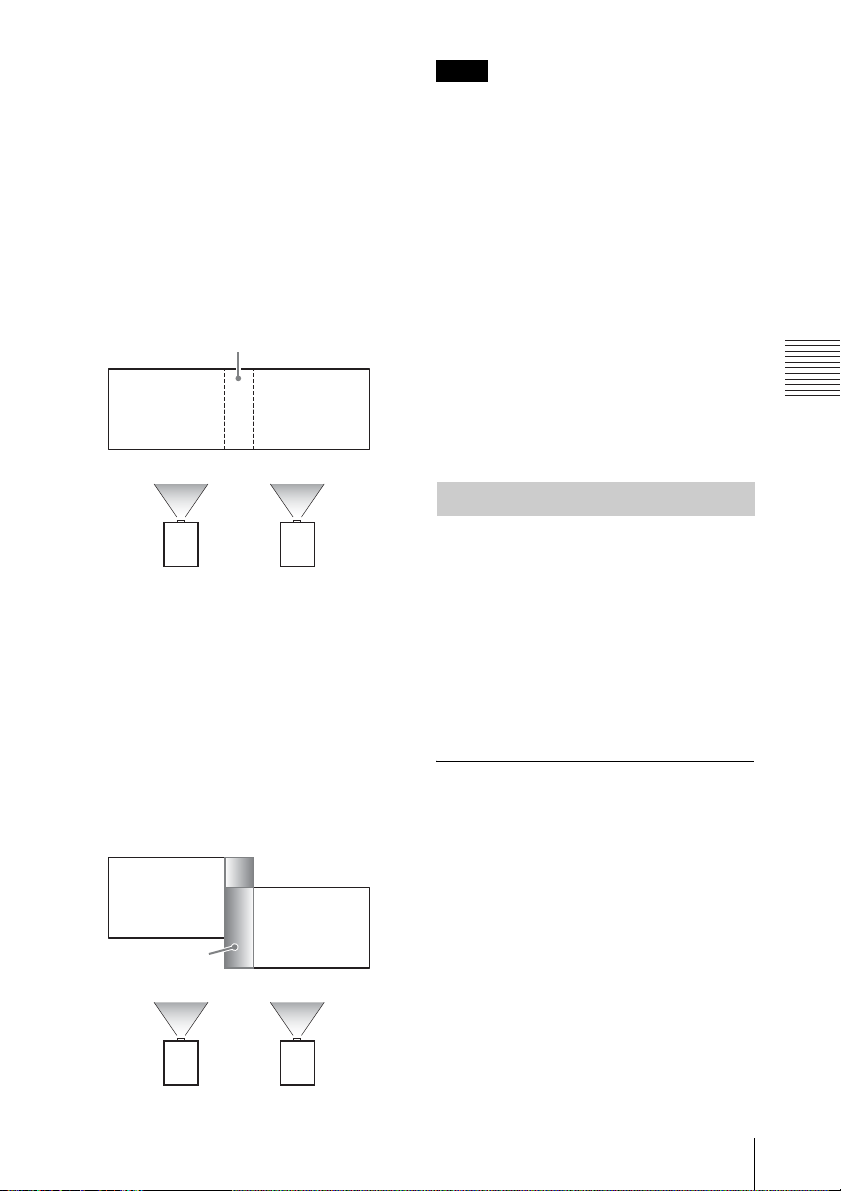

Setting the blending function to
project from multiple projectors

1 Install the projectors.

Input a pattern, etc., to adjust the
projected positions from multiple
projectors.
Set a different ID mode for each
projector (page 28).

2 Press the ENTER key.

The cursor appears.

18

Projecting an Image

2 Enable the Edge Blending function.

Display the main menu to set “Edge
Blending” to “On” in the Installation
menu.

3 Set the position of blending.

Choose the position (top/bottom/left/
right) for blending.

4 Assign the blending width.

Set the blending width according to the
overlapping range for the source signal.

Assign the position and width here.

5 Adjust using “Zone Black Level Adj.”

Adjust each correction zone by “Zone
Black Level Adj.” for the most uniform
black level between each zone.
During this adjustment, a black image is
automatically projected.

6 Set “Blend Gamma.”

Select the gamma mode in which the
overlapping of images is least
noticeable.

Notes

• The procedure shown above is for general
guidance. Your own installation may vary
according to the situation.

• In case of multiple projectors, use the color
matching function (page 34) to adjust for
differences in color and brightness.
Note that more detailed adjustment for Edge
Blending is possible using a PC application.
For more details, consult with qualified Sony
personnel.

• When multiple projectors are set up in a line,
the temperature inside the projectors may
increase due to exhaust vent proximity, and
an error indication may result.
In this case, space the projectors farther apart
and/or install deflection partitioning between
them.
For more details, consult with qualified Sony
personnel.

Turning Off the Power

1 Press the ?/1 key on the main unit or

the 1 key on the Remote Commander.

The projector starts shutdown and turns
off. If you press the ?/1 key on the main
unit or the ? key on the Remote
Commander within 5 seconds again,
shutdown is cancelled.

2 Unplug the AC power cord from the

wall outlet.

To turn off without displaying
confirmation message

Press and hold the ?/1 key on the main unit
for a few seconds (page 40).

Projecting/Adjusting an Image

Blend Gamma
correction

Projecting an Image

19

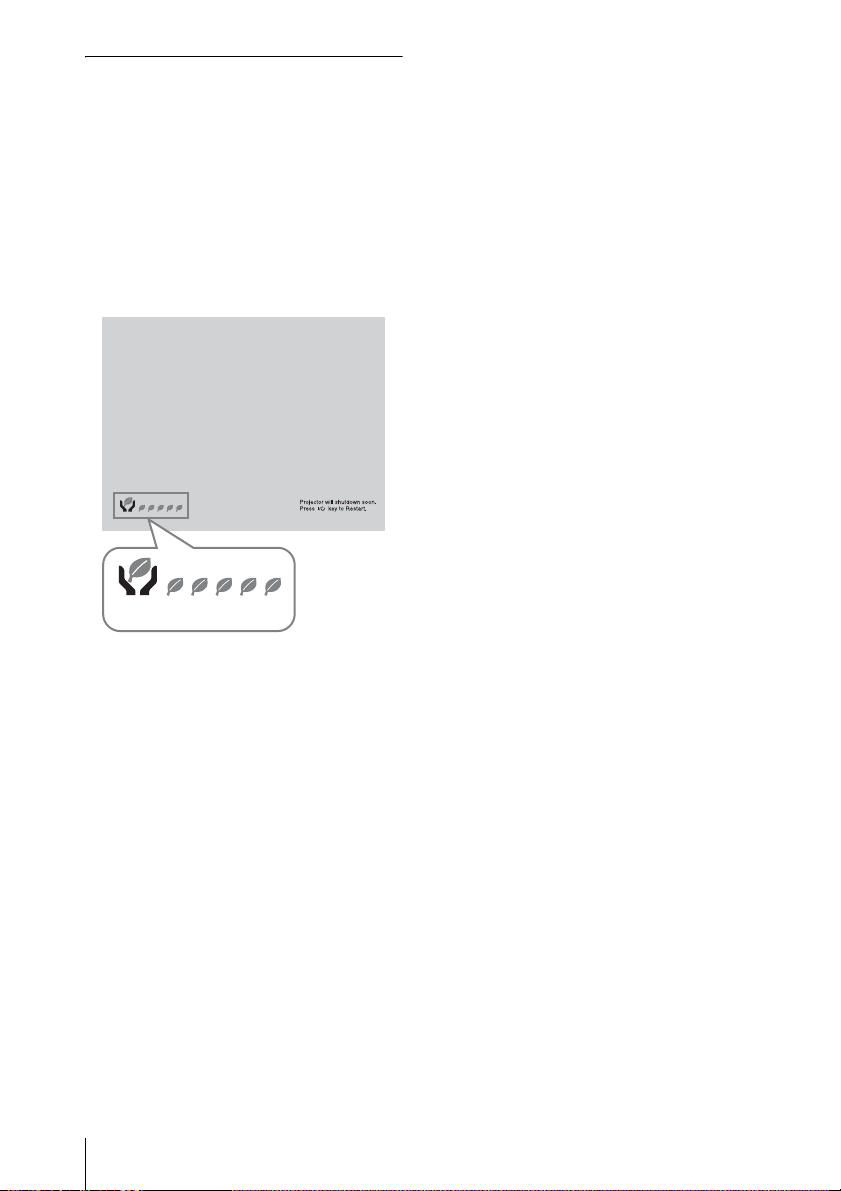

ECO gauge

This gauge indicates the current
effectiveness of the projector’s ECO
function. (For details on the ECO function,
see “ECO MODE key” (page 6) and “ECO”
(page 29).)
The leaf icons are displayed when the
projector is shut down. The number of
displayed icons varies according to how
much energy is saved as a result of using the
ECO function.

ECO gauge

20

Projecting an Image

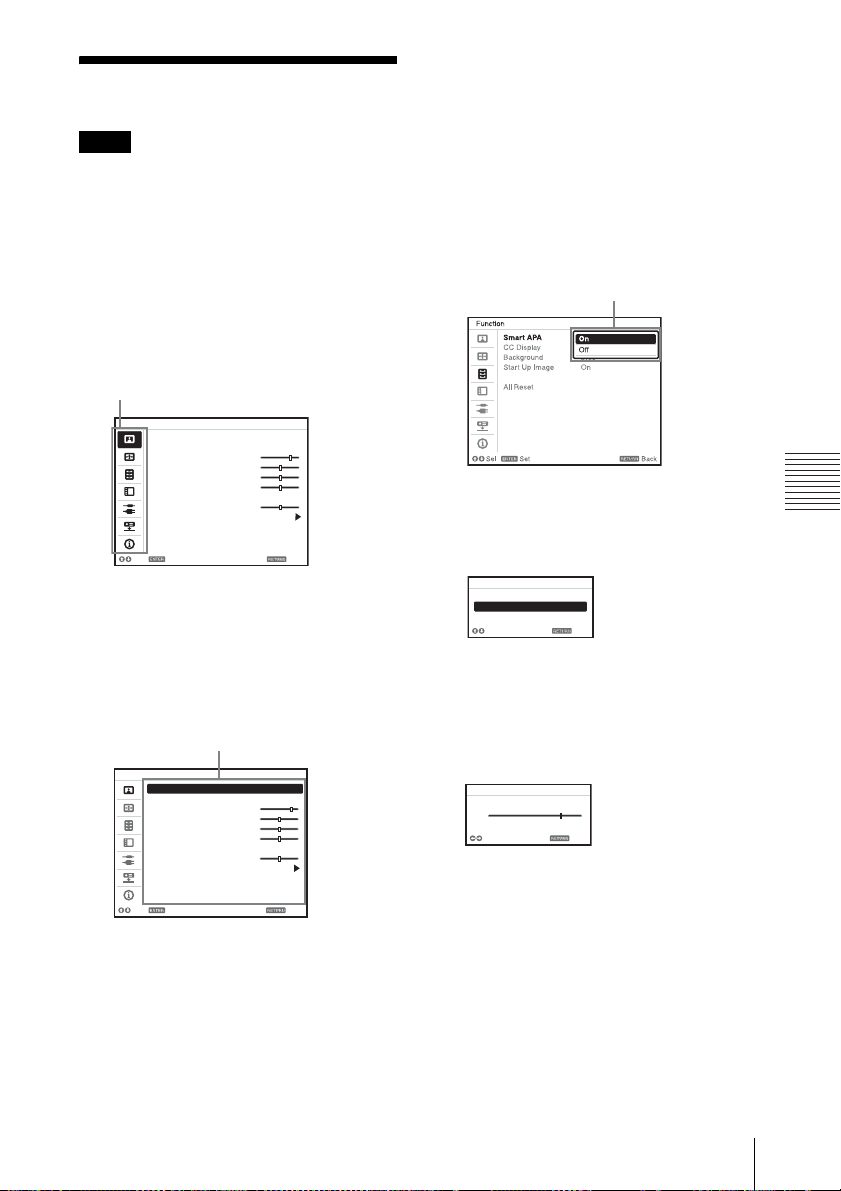

B Adjustments and Settings Using a Menu

To return to the selection screen of the

Using a MENU

setting items, press the B key or the
RETURN key. Also, to reset the setting
value of an item to its factory preset

Note

The menu displays used for the explanation
below may be different depending on the
model you are using.

value, press the RESET key during
setting or adjusting.

Using a pop-up menu

Press the V/v/B/b key to select an item.
Press the ENTER key to register the

1 Press the MENU key to display the

setting. The previous screen is restored.

menu.

2 Select the setting menu.

Use the V or v key to select the setting
menu, then press b or ENTER

Setting menu


Picture Mode Standard
Reset
Contrast 80
Brightness 50
Color 50
Hue 50
Color Temp. Middle
Sharpness 50
Expert Setting

Sel Set Back

3 Select the setting item.

Use the V or v key to select the setting
menu, then press b or ENTER
To return to the selection screen of the
setting menu, press the B key or the
RETURN key.

Setting items


Picture Mode Standard

Reset
Contrast 80
Brightness 50
Color 50
Hue 50
Color Temp. Middle
Sharpness 50
Expert Setting

key.

key.

Using the setting menu

Press the V or v key to select the item.
Press the ENTER key to register the
setting. The previous screen is restored.

Picture Mode

Dynamic

Standard

Presentation

Sel Back

Using the adjustment menu

To increase the number, press the V or b
key and to decrease the number, press
the v or B key. Press the ENTER key to
register the setting. The previous screen
is restored.

Contrast

Min

80

Adjust Back

5 Press the MENU key to clear the

Sel Set Back

4 Make the setting or adjustment for the

selected item.

Menu operation differs depending on the
setting item. If the next menu window is
displayed, select the item according to
the operations in step 3 and then press
the ENTER key to register the setting.

menu.

The menu disappears automatically if no
key is pressed for a while.

Selecting items

On

Off

Max

Adjustments and Settings Using a Menu

Using a MENU

21

The Picture Menu

For adjusting the picture for each input signal.

Setting items Description

Picture Mode Dynamic: Emphasizes the contrast to produce a “dynamic” picture.

Reset The picture settings are initialized to their factory preset values.

Contrast The higher the setting, the greater the contrast. The lower the setting, the lower

Brightness The higher the setting, the brighter the picture. The lower the setting, the darker

*1 *3

Color

*1 *3 *4

Hue

Color Temp.

Sharpness The higher the setting, the sharper the picture. The lower the setting, the softer

Expert Setting

Film
Mode

Black Level
Adj.
(Adjust)

Gamma
Mode

Standard: Makes the picture be natural and well balanced.
Presentation: Makes the picture bright to suit for a presentation.

However, “Picture Mode” and “Custom1,” “Custom2,” and “Custom3” of
“Color Temp.” do not return to the factory preset values.

the contrast.

the picture.

The higher the setting, the greater the intensity. The lower the setting, the lower
the intensity.

The higher the setting, the more greenish the picture becomes. The lower the
setting, the more reddish the picture becomes.

*2

High/Middle/Low: The higher the temperature, the more bluish the picture.
The lower the temperature, the more reddish the picture.
Custom1/ Custom2/ Custom3: An adjusted color temperature setting can be
stored for each item.
The factory settings are Custom1: High, Custom2: Middle, Custom3: Low.

the picture.

Auto: Precisely reproduces the image from a film source to suit the original

*1 *5

film source. Normally, select this option.
Off: Select this option if the images are rough around the edges when “Auto” is
selected.

High/Low/Off: Emphasizes dark portions of the projected image to suit your
taste.

*1

Graphics1: Improves the correction of halftones to give a brighter image. This
can be useful when projecting colored images, such as photos, in a bright
location.
Graphics2: Improves the reproduction of halftones. This reproduces colored
images, such as photos, in more natural tones.

Text: Contrasts black and white. Suitable for images that contain lots of text.
DICOM GSDF Sim.

Standard Display Function (GSDF) of the Digital Imaging and
Communications in Medicine (DICOM) standards.

*6

: Gamma setting is in accordance with the Grayscale

Notes

*1: When a video signal is input, this option is available.
*2: When “Picture Mode” is set to the item other than “Presentation,” this option is available.
*3: When a B & W signal is input, this option is not available.
*4: When an analog TV signal is input, this option may not available, depending on the color system.

22

The Picture Menu

*5: When a progressive signal is input, this option is not available.
*6: Available when a computer signal is input from the DVI-D input terminal (INPUT C), HDMI

input terminal (INPUT D), or optional adaptor (INPUT E). This projector is not to be used as a
device for medical diagnosis.

Adjustments and Settings Using a Menu

The Picture Menu

23

The Screen Menu

For adjusting the size, position, and aspect ratio of the projected image for each input signal.

Setting items Description

*1

Aspect

When the
computer
signal is
input

When the
video signal
is input

V Center

*2 *3

Vertical Size

Over Scan

*2

Adjust Signal

*4 *5

APA

Phase

Pitch

Shift

*4

*6

Changes the aspect ratio of the projected image (page 26).

Full1: Displays the image to fit the maximum projected image size without
changing the aspect ratio of the input signal.

Full2: Displays the image to fit the maximum projected image size.

Normal: Displays the image on the center point of the projected image

without changing the resolution of the input signal or enlarging the image.

4:3: Displays the image to fit the maximum projected image size with an
aspect ratio fixed to 4:3.
16:9: Displays the image to fit the maximum projected image size with an
aspect ratio fixed to 16:9.

Full: Displays the image to fit the maximum projected image size.
Zoom: Display the center point of the projected image to zoom.

Adjust the whole projected image by moving up and down on the screen.
As the selected number increases, the screen moves up, and as the selected
number decreases, the projected image moves down.

*2 *3

Reduces or enlarges the image vertically.
The projected image is enlarged as the setting increases and reduced as the
setting decreases. If the subtitle of a movie, etc. cannot be seen, use this
together with “V Center.”

On/Off: Hides the outline of the image when set to “On.” Select “On” if
noise appears along the edge of the image.

*6

Adjusts the image of a computer signal. Use this item if the edge of the
image is cut and reception is bad.

Automatically adjusts the projected image to an optimum quality when you
press the ENTER key.

*4

Adjusts the dot phase of the display pixel and the input signal. Set to the
value where looks clearest.

The higher the setting, the wider the horizontal image elements (pitch). The
lower the setting, the narrower the horizontal image elements (pitch).

H: The higher the setting, the farther right the image is projected on the
screen. The lower the setting, the image farther left.
V: The higher the setting, the farther up the image is projected on the screen.
The lower the setting, the image farther down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture

by switching to the aspect mode may constitute an infringement of the rights of authors or
producers, which are legally protected.

• Depending on the input signal, setting items for aspect ratio or some other setting items cannot
be set in some cases, or changing the aspect ratio setting may have no effect.

• A part of the image may be displayed in black, depending on the setting item.

*2: Available when a video signal is input from the YP

BPR input terminal (INPUT A), DVI-D input

terminal, HDMI input terminal, and optional adaptor.

24

The Screen Menu

*3: Available when “Aspect” is “Zoom” and “Screen Aspect” is 16:10 or 16:9.
*4: Available when a computer signal is input from the RGB input terminal (INPUT A, INPUT B).
*5: If the projected image includes a large amount of black portion around it, the APA function will

not work properly and a part of the image may not be displayed on the screen. In addition, an
optimum image cannot be obtained, depending on the type of input signal. In this case, adjust
the “Phase,” “Pitch,” and “Shift” items manually.

*6: Available when a computer signal is input from the RGB input terminal (INPUT A, INPUT B)

or a video signal is input from the YP
only when “Aspect” is set to “Zoom.”

BPR input terminal (INPUT A). This option is available

Adjustments and Settings Using a Menu

The Screen Menu

25

Aspect

Input signal Recommended

setting value and

projected image

(4:3) (Full1)

*1 *2

*1: If you select “Normal,” the image is

projected in the same resolution as the
input signal without changing the aspect
ratio of the original image.

*2: If you select “Full2,” the image is projected

(16:9) (Full1)

*1 *2

to fit the projected image size, regardless
of the aspect ratio of the image.

Computer signal

(16:10) (Full1)

*1

*3: Depending on the input signal, the

projected image may be projected as
illustrated below. In this a case, select
“16:9.”

(4:3) (4:3)

*3 *5

*4: Depending on the input signal, the image

may be projected as illustrated below. In
this a case, select “Zoom.”

(16:9) (16:9)

*4 *5

Video signal

*5: If you select “Full,” the image is projected

to fit the projected image size, regardless
of the aspect ratio of the image.

26

The Screen Menu

The Function Menu

The Function menu is used for setting various functions of the projector.

Setting items Description

Smart APA On/Off: When set to “On,” executes APA automatically when a signal is

CC Display CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed caption

Background

Start Up Image On/Off: When set to “On,” the Start Up Image is displayed on the screen

All Reset All settings are initialized to their factory preset values.

Notes

*1: Executes APA when a computer signal is input via the RGB input terminal (INPUT A, INPUT

B).

*2: When using the Twin Picture display mode and there is no input signal, the background will be

black if you set this item to “Image”.

*2

*1

input.

service (Captions or Text).

Off: Closed caption does not appear.

Blue/Black/Image: Sets the background for when there is no input signal.

When set to “Image,” the Start Up Image is displayed.

upon startup of the projector.

Adjustments and Settings Using a Menu

The Function Menu

27

The Operation Menu

The Operation menu is used for setting for the operations by using the menu or the Remote
Commander.

Setting items Description

Language Selects the language used in the menu and on-screen displays.

Menu Position Bottom Left/Center: For selecting the position of the menu displayed on the

Status On: All on-screen statuses are enabled.

IR Receiver Front & Rear/Front/Rear: Selects the remote control receivers (IR Receiver)

ID Mode All/1/2/3/4: Assigns an ID number to the projector. When set to “All,” you can

Security Lock

Panel Key Lock On/Off: When set to “On,” locks all the control panel keys of the projector.

Lens Control On/Off: When set to “On,” you can adjusts the lens (focus, zoom, and lens

projected image.

Off: Displays only the menus, the message when turning off the power, and
warning messages.

on the front and rear of the projector.

control the projector with the Remote Commander independently of the
assigned ID Mode. Refer also to “ID MODE 1/2/3 switch” of the Remote
Commander on page 7.

*1

On/Off: This function enables restriction of the projector to authorized users
by password. The setting procedures for security locking are as follows:

1 Select “On” then press the ENTER key to display the setting menu.
2 Input the password with the MENU, V/v/B/b, and ENTER keys. (The

default password setting is “ENTER, ENTER, ENTER, ENTER.”)

3 Input a new password with the MENU, V/v/B/b, and ENTER keys.
4 Enter the password again to confirm.

Enter the password when you turn on the projector after disconnecting and
reconnecting the AC power cord.
When it is set to “Off,” you can cancel the security lock. You are required to
input the password again.
If you fail to enter the correct password after three consecutive times, the
projector cannot be used. In this case, press the ?/1 key to go standby mode
then turn on the power again.

However, you can enable operation by performing the following even when
“Panel Key Lock” is set to “On.”

• Press and hold the ?/1 key for approximately 10 seconds during standby

mode.
c The projector turns on.

• Press and hold the MENU key for approximately 10 seconds during power
on.
c “Panel Key Lock” is set to “Off” and enables operation of all control panel

keys on the projector.

shift) from the Remote commander or the projector. To prevent unintentional
operation, set it to “Off” after adjusting the lens.

Note

*1: You will not be able to use the projector if you forget your password. If you call qualified Sony

personnel because you have forgotten the password, you will be asked to verify the projector’s
serial number and your identity. (This process may differ in other countries/regions.) Once your
identity has been confirmed, we will provide you with the password.

28

The Operation Menu

The Connection/Power Menu

The Connection/Power menu is used for setting for the connections and power.

Setting items Description

Network Setting

IPv4 Setting

IP Address Setup Aut o (D HC P): The IP address is assigned automatically from the

IP Address/ Subnet
Mask/ Default
Gateway/Primary
DNS/Secondary
DNS

IPv6 Information Displays the IPv6 address information.

HDBaseT Settings

LAN Setting via HDBaseT/LAN: You can select either via the LAN

RS-232C Setting via HDBaseT/RS-232C: You can select either via the RS-232C

Dynamic Range

Input-A Signal Sel. Auto/Computer/Video GBR/Component: When set to “Auto,”

Color System Auto/ NTSC3.58/PAL/SECAM/NTSC4.43/PAL-M/PAL-N: When set

ECO

Light Output Mode High/Standard/Auto/Custom/Extended: When set to “High,” the

Constant
Brightness

*3

*5

DHCP server such as a router.
Manual: To specify the IP Address manually.

When “Manual” is selected for “IP Address Setup,” select the item
with the B or b key and input the value with V or v key. When all
items are entered, select “Apply” then press the ENTER key. The
entered settings will be registered.

When setting the address of IPv6, set it from the browser.

*1

HDBaseT equipment connected to the Digital Interface Adaptor
BKM-PJ10 or via the network connection with the LAN terminal of
the main unit.

the Digital Interface Adaptor BKM-PJ10 or via the connection with
the RS-232C terminal of the main unit.

Sets the image input level of the INPUT C/D/E terminal.

Auto: Distinguishes the image input level automatically.
Limited: Set when the image input level is 16-235.
Full: Set when the image input level is 0-255.

selects the type of video signal input automatically when “Input-A” is
selected with the INPUT key.

to “Auto,” selects the color system automatically when “S-Video” or
“Video” is selected with the INPUT key.

image becomes brighter, and power consumption becomes higher.
When set to “Standard,” power consumption becomes lower; however,
the image will be darker. When set to “Auto,” brightness is adjusted
automatically according to image content. Dark images are projected
with brightness adjusted, leading to energy-saving. Bright images are
projected brightly, without adjusting brightness. When set to
“Custom,” you can adjust brightness as prefer. If you select
“Extended,” images become dark but extended projection is enabled.

On/Off: Available when Light Output Mode is set to “High” or
“Standard.” Brightness is constant at about 75% light output when
Light Output Mode is set to “High,” and at about 60% when Light
Output Mode is set to “Standard.”

*4

*4

of the

*2

Adjustments and Settings Using a Menu

of

The Connection/Power Menu

29

Setting items Description

Auto Power Saving

With No Input Light Cutoff: The light turns off automatically and power

consumption is reduced if no signal is input for about two minutes.
The light turns on again when a signal is input or any key is pressed. In
Light Cutoff, the ON/STANDBY indicator lights in orange. (page 39)
If Light Cutoff continues for about 30 minutes, the power will cut off
automatically and the projector will go to standby mode.

Standby

*6

: If no signal is input to the unit for about two minutes, the

power turns off automatically, and the unit enters standby mode.
Off: The “With No Input” function is disabled.

With Static Signal Light Dimming

seconds, light output is gradually reduced (approximately 10% to

9

15%*

) from that set in the Light Output Mode. This setting provides a

*7 *8

: If an image does not change for about 10

convenient way to reduce power consumption. Automatically the light
slowly darkens to approximately 5% of its light output according to
the selected time (with no change to input signal) “5,” “10,” “15,” “ 20”
minutes or “Demo.” While dimming the light, the message “Light
Dimming” appears. If you select “Demo.,” the image will start to
darken about 40 seconds later. When any change in signal is detected,
or an operation (remote control or control panel) is performed, normal
brightness is restored.
Off: The “With Static Signal” function is disabled.

Standby Mode

*10

Standard/Low: When set to “Low,” lowers power consumption in
standby mode.

Quick Reboot Off/10/30: After you turn off the power, the projector is in standby

mode for a quick start within the specified time (10 minutes or 30
minutes). The ON/STANDBY indicator lights in orange when the
projector is in standby mode. (page 39)

Direct Power On On/Off: When set to “On,” you can turn the power on without going

to standby mode when the AC power cord is connected to a wall
outlet. You can also unplug the AC power cord without going to
standby mode when you turn off the projector.
You may unplug the AC power cord without going to standby mode.

Notes

*1: When using the Digital Interface Adaptor BKM-PJ10, the connection is only via 100BASE-TX.

When using the LAN terminal of the main unit, you can connect with the 10BASE-T/100BASE­TX.

*2: When using the Digital Interface Adaptor BKM-PJ10, the connection is at 9,600 bps. When

using the RS-232C terminal of the main unit, you can connect at 38,400 bps.

*3: If the image input setting of the HDMI connection equipment is not correct, the brighter part

becomes too bright and the darker part becomes too dark.

*4: The image may not be adjusted properly depending on the type of input signal. In such a case,

adjust it manually to suit to the connected equipment.

*5: The projector may not be able to maintain the brightness in an environment with a lot of dust and

dirt.
*6: Select “Off” to avoid entering standby mode when there is no input signal.
*7: A change in signal may not be detected depending on the input image. If “With No Input” is set,

it takes priority.
*8: As the light is dimmed gradually, you may not notice any change in brightness.
*9: This varies depending on the “Light Output Mode” setting.

30

The Connection/Power Menu

*10:When “Standby Mode” is set to “Low,” the network and network control function cannot be

operated while the projector is in standby mode.

Adjustments and Settings Using a Menu

The Connection/Power Menu

31

The Installation Menu

The Installation menu is used for installing the projector.

Setting items Description

Edge Blending On/Off: When set to “On,” the Edge Blending function is enabled. Set to

Blending
Range

Zone Black
Level Adj.

*2

Blend
Gamma

Reset Resets the adjusted values to their default values.

Image Split

Screen Fitting

V Keystone

H Keystone

Warp in g

*5 *6

*5 *6

*6

Image Flip HV/H/V/Off: Flips the projected image horizontally and/or vertically

“Off” when you do not project using multiple projectors.

Sets the edge blending width.
After selecting the blending position, a marker will be displayed.

To p: Adjusts the top width of the screen.
Bottom: Adjusts the bottom width of the screen.
Left: Adjusts the left width of the screen.
Right: Adjusts the right width of the screen.

Adjust so that the overlapped part is not noticeably bright when a dark

*1

image is displayed.
Select the correction zone “Adjust Zone 1” through “Adjust Zone 9,” and
set the adjustment values.

Sets the mode of the gamma curve of the overlapped area.

Mode 1: Provides a gentle gamma correction curve.
Mode 2:
Mode 3:
Mode 4:
Mode 5: Provides a sharp gamma correction curve.

Off/Left-side Area/Right-side Area:

computer in half, and displays an enlarged image of the left-side or right-side
area on the screen.

*4

HV Keystone/Warping: You can choose the way to correct image twist.

*3

Divides the input signal from the

This is displayed when “HV Keystone” is selected in “Screen Fitting.”
The higher the setting, the narrower the top of the projected image. The
lower the setting, the narrower the bottom of the projected image.

This is displayed when “HV Keystone” is selected in “Screen Fitting.”
The higher the setting, the narrower the right side of the projected image.
The lower the setting, the narrower the left side of the projected image.

This is displayed when “Warping” is selected in “Screen Fitting.”

Adjust: Corrects image twist.
Reset: Resets the adjusted values to their default values.

according to the installation method.

32

The Installation Menu

Setting items Description

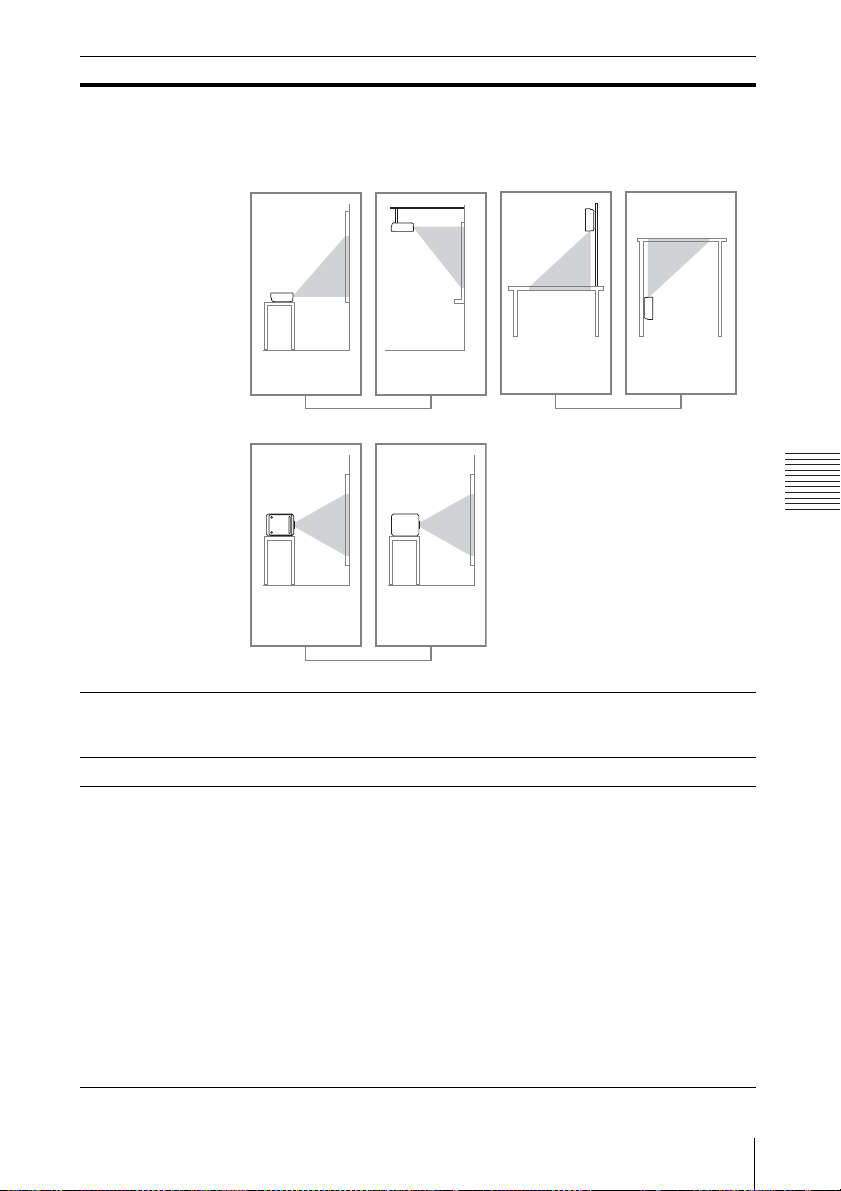

Installation Attitude Link to Image Flip/Right Side Up/Upside Down/Front Down/Front Up/

Portrait 1/Portrait 2: Change the cooling setting to suit to the installation

attitude. When set to “Link to Image Flip,” the cooling setting changes
based on the setting of “Image Flip.”

*7

Continuing to use the wrong setting

may affect component reliability.

Right Side Up

Horizontal installation

8

Por tr ait 1*
buttons of the
unit face up)

(The

Portrait installation

Upside Down

Por trai t 2*8 (The
buttons of the
unit face down)

Front Down
(Projects
downward)

Vertical installation

Front Up
(Projects
upward)

High Altitude Mode On/Off: Set to “On” when using the projector at an altitude of 1,500 m or

higher. Continuing to use the wrong setting may affect component
reliability.

Screen Aspect 16:10/16:9/4:3: For switching the display area to suit to the screen.

Panel Alignment

*9

This feature allows you to adjust the gaps in the color of characters or the
picture.
When set to “On,” “Adjust Color” and “Pattern Color” can be assigned and
adjusted.

Adjust Item: Selects how to make adjustments from below.

Shift: Shifts the whole picture and makes adjustments.
Zone: Selects the desired range and makes adjustments.

Adjust Color: Assigns the desired color to adjust the gaps in color. Select

“R” (Red) or “B” (Blue) to make adjustments based on “G” (Green).
Pattern Color: Select “R/G” (Red and Green) or “R/G/B” (White, all
colors) when “Adjust Color” is “R” (Red). Select “B/G” (Blue and Green)
or “R/G/B” (White, all colors) when the “Adjust Color” is “B” (Blue).
Adjust: The shift adjustment and zone adjustment of the color selected in
“Adjust Color” can be made with V/v/B/b keys.
Reset: The panel alignment settings are initialized to their factory preset
values.

Adjustments and Settings Using a Menu

The Installation Menu

33

Setting items Description

Color Matching

Notes

*1: You cannot adjust anything other than the targeted adjustment zones in “Zone Black Level Adj.”
*2: When selecting the correction zone of “Zone Black Level Adj.,” the targeted correction zone

flashes twice.
*3: If the Screen Aspect is set to 16:10 and input signal is 16:10 or 16:9, the image will be projected

at the correct aspect. This function is not available when displaying two pictures.
*4: When “Edge Blending” is set to “On,” “Screen Fitting” (HV Keystone/Warping) is not

displayed.
*5: Depending on the position adjusted with the lens shift feature, the aspect ratio of the image may

change from the original or projected image may be distorted with Keystone adjustment.
*6: Since the HV Keystone/Warping adjustment is an electronic correction, the image may

deteriorate.
*7: Select “Link to Image Flip” only for horizontal installation. Be sure to select “Front Down” or

“Front Up” for a vertical installation, or “Portrait 1” or “Portrait 2” for a portrait installation, to

match the installation direction of the projector. (Refer to the figures.)
*8: In the case of a portrait installation, pay attention not to block the ventilation holes (exhaust/

intake).
*9: Depending on the adjustment value of “Panel Alignment,” the color and resolution may be

changed.
*10:The brightness and color of the projected image may not match completely, even after you adjust

“Brightness” and “Color.”

*10

Adjust/Reset: For correcting the brightness and color of the whole
projected image manually from the signal level in six steps.

34

The Installation Menu

The Information Menu

The Information menu enables you to confirm various information on the projector, such as the
total usage hours of a light.

Items Description

Model Name Displays the model name.

Serial No. Displays the serial number.

fH / fV (horizontal
frequency/vertical
frequency)

Light Timer Indicates the total usage time of a light.

Note

*1: These items may not be displayed depending on the input signal.

*1

Displays the horizontal frequency/vertical frequency/signal type of the
current input signal.

Adjustments and Settings Using a Menu

The Information Menu

35

B Network

Using Network Features

Connection to the network allows you to
operate the following features:

• Checking the current status of the

projector via a Web browser.

• Remotely controlling the projector via a

Web browser.

• Receiving the e-mail report for the

projector.

• Making the network settings for the

projector.

• Supports network monitoring and control

protocol (Advertisement, PJ Talk, PJ Link,
SNMP, AMX DDDP [Dynamic Device
Discovery Protocol], Crestron
RoomView).

Notes

• When connecting this projector with the

network, consult with the network
administrator. The network must be secured.

• When using this projector connected with the

network, access the Control window via a
Web browser and change the access
limitation of the factory preset values
(page 37). It is recommended to change the
password regularly.

• When the setting on the Web browser is

completed, close the Web browser to log out.

• The menu displays used for the explanation

below may be different depending on the
model you are using.

• Supported Web browsers are Internet

Explorer 8/9/10.

• The menu displays only English.

• If the browser of your computer is set to [Use

a proxy server] when you have access to the
projector from your computer, click the
check mark to set accessing without using a
proxy server.

• SNMP, AMX DDDP, and Crestron

RoomView do not support IPv6.

Displaying the Control Window of the Projector with a Web Browser

LAN cable
(straight type)
(not supplied)

Hub, router, etc

LAN

terminal

2 Set the network settings for the

projector using “Network Setting” on
the Connection/Power menu
(page 29).

3 Start a web browser on the computer,

enter the following in the address field,
then press the Enter key on your
computer.

http://xxx.xxx.xxx.xxx
(xxx.xxx.xxx.xxx: IP address for the
projector)

When connecting with IPv6
addresses

http://[xxxx:xxxx:••• xxxx]
You can confirm the IP address of the
projector under “Network Setting” on
the Connection/Power menu (page 29).

The following window appears in the
Web b r owser :

Once you make the network settings, you
can open the Control window only by
performing step 3 of this procedure.

1 Connect the LAN cable.

36

Using Network Features

How to operate the Control window

Switching the page

Click one of the Page Switching buttons to
display the desired setting page.

Page Switching buttons

Setting the access limitation

You can limit a user for accessing any
particular page.

Administrator: Allowed access to all

pages

User: Allowed access to all pages except

the Setup page
Set under [Password] of the Setup page.
When you access the Setup page for the first
time, enter “root” for the user name and
enter “Projector” for the password.
The name of the administrator is preset to
“root.”

Confirming the Information regarding the Projector

You can confirm the current settings for the
projector on the Information page.

Information area

Operating the Projector from a Computer

You can control the projector from the
computer on the Control page.

Network

Entry area for [Administrator]

Entry area for [User]

When you change the password, input a new
password after deleting the password
(*****) that was set.
The password of the administrator and user
can be set using up to 16 characters for each.

Note

If you forget your password, consult with
qualified Sony personnel.

Operation area

The functions of the buttons shown in the
operation area are the same as those of the
keys on the supplied Remote Commander.

Using the e-mail report Function

Set the e-mail report function on the Setup
page.

Using Network Features

37

Entered values will not be applied unless
you click on [Apply].

1 Click on [Owner information] to enter

the owner information recorded in the

mail report.

Owner information button

1

2 Set the timing of the e-mail report.

Click on [Mail Report] to open the Mail
Report page.
Maintenance Reminder: Set the timing

for maintenance. To reset
Maintenance Reminder, check the
RESET check box and then click on
[Apply].

Mail Report button

2

3

3 Enter the outgoing e-mail address in

the Email Address box then check the
Report Timing check box of the e-mail
report to be sent.

e-

4 Set the mail account for sending e-

mail reports.

Mail Address: Enter the e-mail address.
Outgoing Mail Server (SMTP): Enter

the address of outgoing mail server
(SMTP).

Required Authentication: Check this

check box if authentication is required
for sending e-mail.

Requires the use of POP

Authentication before send email
(POP before SMTP): Check this

check box to arrange for POP
authentication to be performed before
sending e-mail.

Incoming Mail Server (POP3): Enter

the address of the incoming-mail
server (POP3) to be used for POP3
authentication.

Account Name: Enter the mail account.
Password: Enter the password.
SMTP Authentication: Check this

check box to arrange for SMTP
authentication to be performed before
sending e-mail.

Account Name: Enter the mail account.
Password: Enter the password.

5 Confirm the contents of the e-mail

report.

When you click on [View] is pressed, the
contents of the e-mail report are
displayed.

38

Using Network Features

4

6
5

Check on the Send test mail check box
then click on [Apply] to send your test
mail to the e-mail address you set.

Notes

• The e-mail report function is not available
because the network which Outbound Port25
Blocking is used cannot be connected to the
SMTP server.

• You cannot use the following characters to
enter the characters in the text box: “ ' ”, “ “
”, “ \ ”, “ & ”, “ < ”, “ > ”

6 Send the test mail.

B Others

Indicators

The indicators allow checking the status and notify you of abnormal operation of the projector.
If the projector exhibits abnormal status, address the problem in accordance with the table
below.

ON/STANDBY indicator

Status Meaning/Remedies

Lights in red The projector is in standby mode.

Flashes in green • The projector is ready to operate after having been turned on.

Lights in green The projector’s power is on.

Lights in orange The projector is in With No Input (Light Cutoff), or Quick Reboot

Flashes in red The projector is in abnormal status. Symptoms are indicated by

Flashes twice The internal temperature is unusually high. Check the items below.

Flashes six times Unplug the AC power cord from a wall outlet. After checking that the

Other number of
flashes

• The light source cools after the projector is turned off.

standby mode.

number of flashes. Address the problem in accordance with the
following. If the symptom is shown again, consult with qualified Sony
personnel.

• Check to see if nothing is blocking the ventilation holes.

• Check to see if the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is correctly
selected.

ON/STANDBY indicator goes out, plug the power cord to a wall
outlet again then turn on the projector.

Consult with qualified Sony personnel.

WARNING indicator

Status Meaning/Remedies

Flashes in red Symptoms are indicated by number of flashes. Address the problem in

accordance with the following.

Flashes twice The air filter units are not attached securely.

Flashes three times The light source does not light. Turn off the power and consult with

qualified Sony personnel.

Flashes six times The lens is not mounted on the projector.

Flashes eight times Drop impact has been detected.

If you detect an abnormal condition, consult with qualified Sony
personnel. If no abnormality is detected, unplug the AC power cord
from a wall outlet. After checking that the ON/STANDBY indicator
goes out, plug the power cord to a wall outlet again then turn on the
projector.

Indicators

Others

39

Messages List

When any of the messages listed below appears on the projected image, address the problem in
accordance with the table below.

Message Meaning/Remedy Page

Clean the filter.
Projector temperature is
high. The light will turn
off in 1 minute.

Frequency is out of
range!

Please check Input-A
Signal Sel.

Clean the filter.
Projector temperature is
high.
Switching to High
Altitude Mode.

Not applicable! Invalid key pressed. 5

The panel keys are
locked!

Lens Control is locked! “Lens Control” is set to “Off.” 28

Function is locked! The function is locked by external control. 5, 16,

Projector will shutdown
soon.
Press ?/1 Key to
Restart.

Light Dimming Reduces light output when “With Static Signal” is set. When

Constant Brightness
cannot be maintained.

Check the items below.

• Check to see if nothing is blocking the ventilation holes.

• Check to see if the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is
correctly selected.

Change the output setting of the connected equipment to one
for signals supported by the projector.

Set “Input-A Signal Sel.” to “Auto” or select the input signal
type to suit to the input signal.

At an altitude of 1,500 m or higher, if you are not using the
projector, check the items below.

• Check that nothing is blocking the ventilation holes.

• Check that the air filter is not clogged.

• Check if “Installation Attitude” on the Installation menu is
correctly selected.

“Panel Key Lock” is set to “On.” 28

The ?/1 key was pressed and the projector will be shut down
soon. To cancel shutdown, press the ?/1 key again (the
projector will remain on). To turn off the projector directly,
press and hold the ?/1 key.

any change in signal is detected, or an operation (remote
control or control panel) is performed, normal brightness is
restored.

Although “Constant Brightness” is selected, the brightness that
is set cannot be maintained due to the lifetime of the light
source. Consult with qualified Sony personnel.

3, 33,
43

51

29

3, 33,
43

17,
18,
32, 32

20

30

29

40

Messages List

Troubleshooting

Before asking to have the projector repaired, try to diagnose the problem, following the
instructions below.

Symptom Remedy Page

The power is not turned
on.

No image. Check if the connecting cable is connected to external

On-screen display does
not appear.

The aspect ratio of the
display is not right/the
image is displayed
smaller /a portion of
image does not appear.

The image is a
trapezoid.

Edges of the image are
cut off or dark.

The image is distorted. Warping is set.

Check if the AC power cord is firmly connected. –

When the “Panel Key Lock” is set to “On,” you cannot turn on
the projector using the ?/1 key on the projector.

If the air filter cover or air filter unit is not attached securely,
the projector cannot be turned on.

equipment properly.

Check if the computer signal is set for output to an external
monitor. If you set your computer, such as a notebook
computer, to output the signal to both your computer’s display
and an external monitor, the picture of the external monitor
may not appear properly. Set your computer to output the
signal to only an external monitor.

Check if the input source is correctly selected. 14

Check if the picture is muted. 6

During “Zone Black Level Adj.” adjustment, a black image is
automatically projected.

The on-screen display does not appear when “Status” in the
Operation menu is set to “Off.”

The image may not be displayed correctly with an input signal
the projector cannot interpret correctly. In such a case, set
“Aspect” manually.

Check if “Screen Aspect” is correctly selected. 33

The images become trapezoidal because of the projection
angle. In such a case, you can correct the trapezoidal
distortion, using a Keystone feature.

If you use the Lens Shift function with a setting outside the
recommended range, edges of the image may be cut off or
appear dark. Use a setting within the normal range for the Lens
Shift function.

Disable the warp correction feature.

24, 26

5, 16,
32

17, 32

28

43

8

14

18

28

Others

53

Troubleshooting

41

Symptom Remedy Page

The image is dark/too
bright.

The image is not clear. Check if the projector is in focus. 15

The image is noisy. Check if the connecting cable is connected to external

The Remote
Commander does not
work.

The fan is noisy. The sound from the fan is often greater than normal to cool the

Cannot adjust the
keystone setting.

Cannot adjust the Warp
setting.

The settings for “Brightness,” “Contrast,” and “Light Output
Mode” affect brightness of the image. Check if the value is
appropriate.

The image will be dark when the light source is burnt out.
Check “Light Timer,” and consult with qualified Sony
personnel.

“With Static Signal” is set to “On.” 30

When video signal is not input, the light is dimmed to reduce
power consumption.

When the temperature around the unit is high, the brightness
will be reduced to protect the unit.

The picture will not be clear if condensation has accumulated
on the lens. In such a case, let the projector sit for about two
hours with the power on.

equipment properly.

Check that the batteries are installed correctly. –

Check that the batteries are not exhausted. –

Check if the “ID Mode” of the projector corresponds to that of
the Remote Commander.

Check the setting for “IR Receiver.” 28

light source in the following cases.

• When “Light Output Mode” is set to “High.”

• The projector is in at high altitude (“High Altitude Mode” is
set to “On”)

• Temperature is very high.

• The air filter is clogged.

If the ventilation holes are blocked, the internal temperature of
the projector rises and the fan noise becomes larger.

Disable the Edge Blending setting. 16, 32

Select “HV Keystone” in “Screen Fitting.” 16, 32

Disable the Edge Blending setting. 17, 32

Select “Warping” in “Screen Fitting.” 17, 32

22, 29

35

30

–

–

8

7, 28

29,

33, 43

3

42

Troubleshooting

Cleaning the Air Filter

When a message appears on the projected
image indicating time for a filter cleaning,
clean the air filter (pages 39, 40).
If the dust cannot be removed from the air
filter even after cleaning, replace the air filter
with a new one.
For details on a new air filter, consult with
qualified Sony personnel.

Caution

If you continue to use the projector even
after the message is displayed, dust may
accumulate, clogging it. As a result, the
temperature may rise inside the unit,
leading to a possible malfunction or fire.

Note

Turn off the projector and disconnect the AC
power cord from a wall outlet before cleaning
the air filter.

1 Turn off the projector and disconnect

the AC power cord from a wall outlet.

Rear

Front

Air filter cover

Lock button

v

2 Slide the air filter cover slightly to the

rear while holding the lock button to
remove the air filter cover.

3 Pull out the air filter cartridge straight

by the grab of the air filter unit while
pushing out one tab at a time on both
sides.

Air filter unit (right)

Ta bs
(right)

Tabs (left)

Grab

Air filter unit (left)

Cleaning the Air Filter

Others

43

4 Remove the four air filter cartridges

(two in each air filter unit) from the air
filter units and clean the air filter with
a vacuum cleaner.

When attaching the air filter cartridge to
the cartridge holder, push the air filter
cartridge in fully until the tabs of the
cartridge holder click (4 points each air
filter cartridge, a total of 8 points).
The two air filter units are installed in the
right and left positions.

Air filter cartridge

Ta bs

Ta bs

Tabs (left)

Bottom (side with a
grooved section)

Tabs (right)

Slide the air filter unit in fully until the
tabs on the projector click to hold it in
place (2 points each air filter unit, a total
of 4 points).

6 Close the air filter cover.

Air filter
cartridge

5 Return the air filter units to the

projector.

The top and bottom of the air filter unit
have different shapes, as illustrated
below. Be careful of orientation when
installing them.

44

Cleaning the Air Filter

Cartridge
holder

Note

Be sure to attach the air filter unit firmly; the
power cannot be turned on if it is not closed
securely.

Installing the Optional Adaptor

You can install the optional adaptor in
INPUT E of the terminals section of the
projector.

Notes

• Turn off the projector and disconnect the AC
power cord from a wall outlet before
installing the optional adaptor.

• Be sure to retain the slot cover removed when
installing the optional adaptor. When
removing the optional adaptor, attach the
cover.

• For details on how to use, also refer to the
operating instructions of the optional
adaptor.

1 Turn off the power of the projector and

disconnect the power cord.

2 Slide the slot cover for the optional

adaptor attached to the terminals to the
right and remove it.

INPUT B RGB

INPUT C DVI-D

R/P

R

G/Y

IN

B/P

PUT A

INPUT D HDMI

B

HD

VD

OUTPUT

MONITOR

4 Tighten the two screws on the optional

adaptor.

Slot cover

3 Insert the optional adaptor as far as it

goes.

Example: BKM-PJ10 Digital Interface

Adaptor (not supplied)

Installing the Optional Adaptor

Others

45

Specifications

Item Description

Model name VPL-FHZ700L

Display system 3 LCD system

Display device Size of effective

display area

Number of pixels 6,912,000 (1920 × 1200 × 3) pixels

Light source Laser diode

Light output 7,000 lm

Displayable
scanning
frequency

*2

Display resolution Computer signal

input

Video signal
input

Color system NTSC

Computer and

INPUT A RGB/YP

video signal input/
output

INPUT B RGB input terminal: Mini D-sub 15-pin female, RGB:

INPUT C DVI-D input terminal: DVI-D 24-pin (Single link), DVI

INPUT D HDMI input terminal: Digital RGB/YP

INPUT E For an optional adaptor

S VIDEO IN S video input terminal: Mini DIN 4-pin, Y: 1 Vp-p ± 2

VIDEO IN Video input terminal: BNC, 1 Vp-p ± 2 dB, sync

OUTPUT MONITOR output terminal: Mini D-sub 15-pin

0.95" (24.1 mm) × 3, Aspect ratio 16:10

*1

Horizontal: 14 kHz to 93 kHz, Vertical: 47 Hz to 93 Hz

Maximum display resolution: 1920 × 1200 dots
Panel display resolution: 1920 × 1200 dots

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/
50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p,
1080/50p, 1080/24p, 1080/30p

3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N,

PA L6 0

BPR input terminal: 5BNC female, G with

sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms
terminated, RGB/P
terminated, Sync signal: TTL level high impedance,
positive/negative

0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal: TTL
level high impedance, positive/negative

1.0 compliant, HDCP support

dB, sync negative, 75 ohms terminated, C: (burst signal)

0.286 (NTSC)/0.3 (PAL/SECAM) Vp-p ± 2 dB, 75 ohms
terminated

negative, 75 ohms terminated

female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75
ohms terminated, RGB/P
terminated, Sync signal: HD, VD 4 V (open), 1 Vp-p (75
ohms), positive/negative

(when “Light Output Mode” is set to “High”)

BPR: 0.7 Vp-p ± 2 dB, 75 ohms

BPR

BPR: 0.7 Vp-p ± 2 dB, 75 ohms

46

Specifications

Item Description

Model name VPL-FHZ700L

Control signal
input/output

RS-232C terminal: D-Sub 9 pin male

LAN terminal: RJ45, 10BASE-T/100BASE-TX

CONTROL S input terminal (DC power supply):

Stereo mini jack, 5 Vp-p, Plug in power DC 5 V

CONTROL S output terminal: Stereo mini jack

Operating
temperature/

0 °C to 40 °C (32 °F to 104 °F)/35% to 85% (no

condensation)
Operating
humidity

Storage
temperature/

–10 °C to +60 °C (14 °F to +140 °F)/ 10% to 90% (no

condensation)
Storage humidity

Power required AC 100 V to 240 V, 5.0 A to 2.1 A, 50/60 Hz

Power
consumption

AC 100 V to
120 V

AC 220 V to

497 W

476 W

240 V

Power
consumption
(Standby Mode)

AC 100 V to
120 V

AC 220 V to

0.1 W (when “Standby Mode” is set to “Low”)

0.5 W (when “Standby Mode” is set to “Low”)

240 V

Power
consumption
(Networked
Standby Mode)

AC 100 V to
120 V

AC 220 V to
240 V

12.2 W (LAN)

13.8 W (optional HDBaseT adaptor)

13.8 W (All Terminals and Networks Connected)

(when “Standby Mode” is set to “Standard”)

8.4 W (LAN)

10.0 W (optional HDBaseT adaptor)

10.0 W (All Terminals and Networks Connected)

(when “Standby Mode” is set to “Standard”)

Heat dissipation AC 100 V to

1,696 BTU/h

120 V

AC 220 V to

1,624 BTU/h

240 V

Outside
dimensions

530 × 213 × 545 mm (20

D)

530 × 204 × 545 mm (20

7

/8" × 83/8" × 2115/32") (W/H/

7

/8" × 81/32" × 2115/32") (W/H/

D) (without protrusions)

Mass Approx. 22 kg (47 lb)

Supplied
accessories

Optional
accessories

*3 *4

See “Checking the Supplied Accessories” in the supplied

Quick Reference Manual.

Projector Suspension Support PSS-630

Projector Suspension Support Joint Pole PSS-630P

Others

Specifications

47

Item Description

Model name VPL-FHZ700L

Projection Lens VPLL-FM22

Projected image size: 40" to 300" (1.02 m to 7.62 m),
Maximum external dimensions (W × H × D): 88 × 88 ×
169 mm (3

15

1 kg (2.1 lb)

Projection Lens VPLL-ZM42

zoom, Projected image size: 40" to 300" (1.02 m to 7.62
m), Maximum external dimensions (W × H × D): 88 × 88
× 159 mm (3

0.7 kg (1.4 lb)

Projection Lens VPLL-ZM102*5 *6: Manual focus/
zoom, Projected image size: 40" to 300" (1.02 m to 7.62
m), Maximum external dimensions (W × H × D): 88 × 88
× 198 mm (3

1.5 kg (3.3 lb)

Projection Lens VPLL-Z4007*6: Manual focus/zoom,
Projected image size: 60" to 300" (1.52 m to 7.62 m),
Maximum external dimensions (W × H × D): 157× 150 ×
217 mm (6

3

kg (4.4 lb)

Projection Lens VPLL-4008: Manual focus, Projected
image size: 40" to 600" (1.02 m to 15.24 m), Maximum
external dimensions (W × H × D): 148 × 133 × 240 mm

13

(5

/16" × 5 1/4" × 9 7/16"), Mass: Approx. 2.6 kg (5.6 lb)

Projection Lens VPLL-Z4011

Projected image size: 60" to 600" (1.52 m to 15.24 m),
Maximum external dimensions (W × H × D): 157 × 150
× 265 mm (6
(8 lb)

Projection Lens VPLL-Z4015: Electric focus/zoom,
Projected image size: 40" to 600" (1.02 m to 15.24 m),
Maximum external dimensions (W × H × D): 148 × 133
× 231 mm (5
3 kg (6.6 lb)

Projection Lens VPLL-Z4019: Electric focus/zoom,
Projected image size: 40" to 600" (1.02 m to 15.24 m),
Maximum external dimensions (W × H × D): 148 × 133
× 212 mm (5

3.1 kg (6.7 lb)

Projection Lens VPLL-Z4025: Electric focus/zoom,
Projected image size: 40" to 600" (1.02 m to 15.24 m),
Maximum external dimensions (W × H × D): 148 × 133
× 243 mm (5

2.8 kg (6.2 lb)

Projection Lens VPLL-Z4045: Electric focus/zoom,
Projected image size: 60" to 600" (1.52 m to 15.24 m),
Maximum external dimensions (W × H × D): 148 × 133
× 235 mm (5
(6.6 lb)

*5 *6

: Manual focus,

/32" × 3 15/32" × 6 21/32"), Mass: Approx.

*5 *6

: Manual focus/

15

/32" × 3 15/32" × 61/4"), Mass: Approx.

15

/32" × 3 15/32" × 725/32"), Mass: Approx.

/16" × 5 29/32" × 8 19/32"), Mass: Approx. 2.0

*6

: Electric focus/zoom,

3

/16" × 5 29/32" × 10 7/16"), Approx. 3.7 kg

13

/16" × 5 1/4" × 93/32"), Mass: Approx.

13

/16" × 5 1/4" × 811/32"), Mass: Approx.

13

/16" × 51/4" × 99/16"), Mass: Approx.

13

/16" × 51/4" × 9 1/4"), Mass: Approx. 3 kg

48

Specifications

Item Description

Model name VPL-FHZ700L

Projection Lens Adapter PK-F500LA2

Digital Interface Adaptor BKM-PJ10

3G-SDI INPUT Adaptor BKM-PJ20

Notes

The values for mass and dimensions are approximate.
*1: When attaching the VPLL-Z4019.
*2: For details, refer to “Acceptable Input Signals” on page 51.
*3: Not all optional accessories are available in all countries and area. Please check with your local

Sony Authorized Dealer.
*4: Information on accessories in this manual is current as of February 2015.
*5: To attach the projection lens to the projector, the PK-F500LA2 projection lens adapter is

required.
*6: Before attaching the projection lens to the projector, it is required to remove the compensating

glass from the lens mounting part of the projector.
*7: When the Digital Interface Adaptor BKM-PJ10 is attached to the main unit, the image

transmission to the main unit, the LAN communication, and the RS-232C control are enabled

with the commercially available HDBaseT transmitter. Not compatible with voice

communication and power connection.

Design and specifications of the unit, including the optional accessories, are subject to change
without notice.

*7

Specifications

Others

49

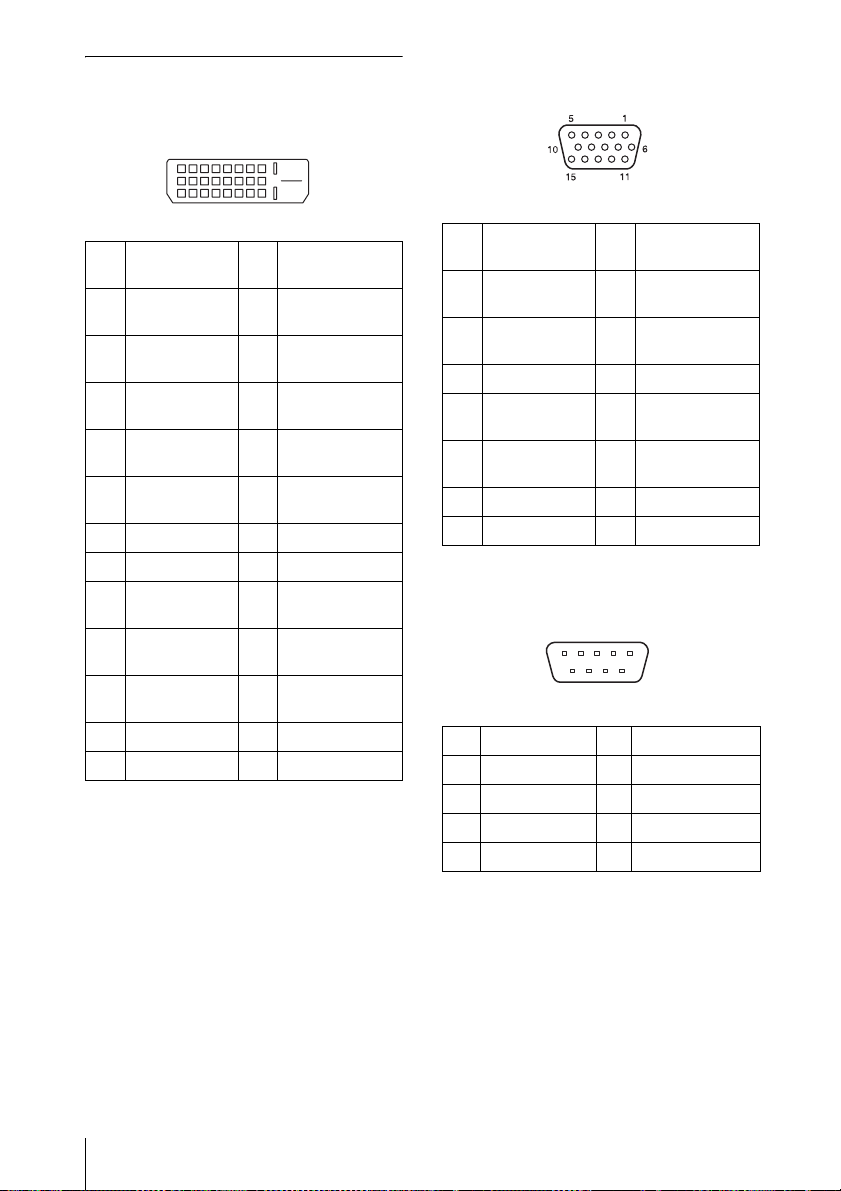

Pin assignment

DVI-D terminal (DVI-D, female)

RGB input terminal (Mini D-sub 15­pin, female)

1

9

17

1 T.M.D.S.

8

16

24

14 +5 V Power

Data2–

2 T.M.D.S.

Data2+

3 T.M.D.S.

Data2 Shield

15 Ground (return

for +5 V)

16 Hot Plug

Detect

4 NC 17 T.M.D.S

Data0–

5 NC 18 T.M.D.S

Data0+

6 DDC Clock 19 T.M.D.S

Data0 Shield

7 DDC Data 20 NC

8NC 21NC

9 T.M.D.S.

Data1–

10 T.M.D.S.

Data1+

11 T.M.D.S.

Data1 Shield

22 T.M.D.S

Clock Shield

23 T.M.D.S

Clock+

24 T.M.D.S

Clock–

12 NC

13 NC

1 Video input

(red) R

2 Video input

9Power supply

input for DDC

10 GND

(green) G

3Video input

11 GND

(blue) B

4 GND 12 DDC/SDA

5 RESERVE 13 Horizontal sync

signal

6 GND (R) 14 Vertical sync

signal

7 GND (G) 15 DDC/SCL

8 GND (B)

RS-232C terminal (D-Sub 9-pin, male)

51

9

6

1NC 6NC

2RXDA 7RTS

3TXDA 8CTS

4DTR 9NC

5 GND

50

Specifications

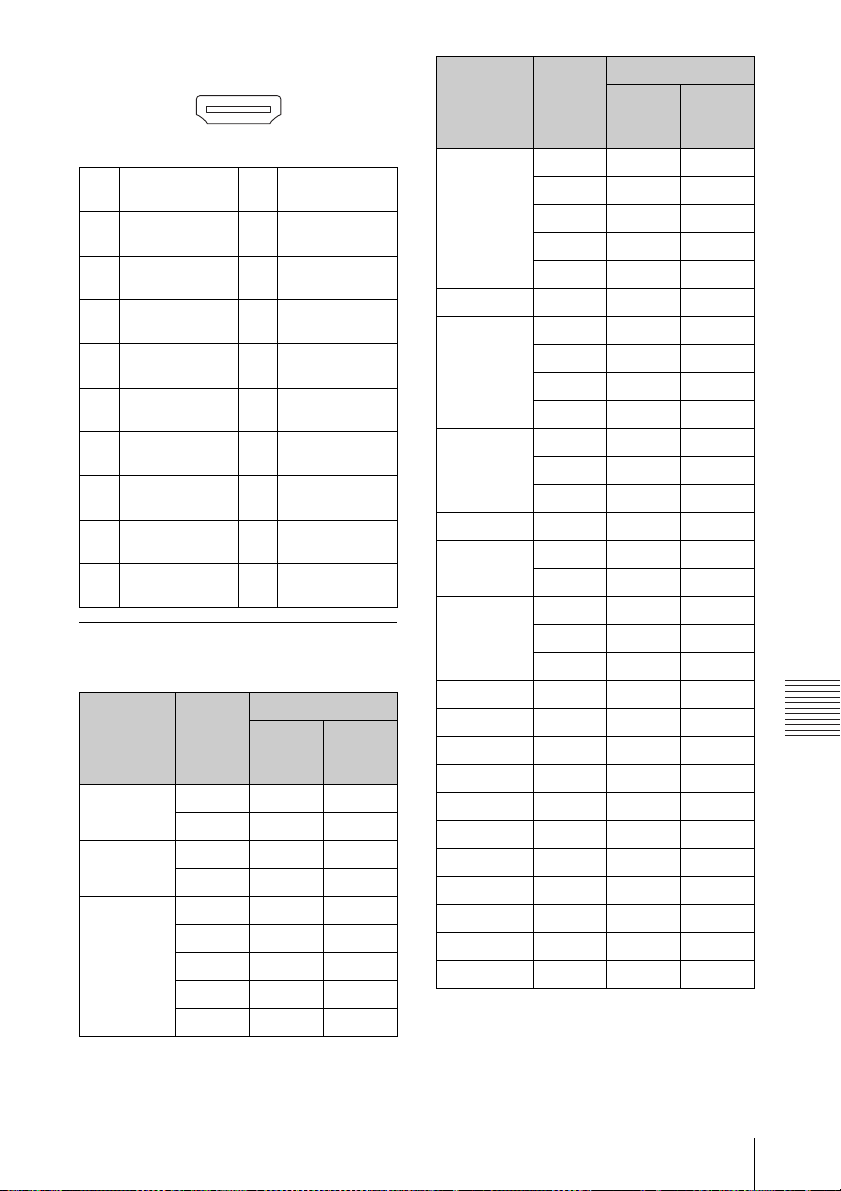

HDMI terminal (HDMI, female)

1 T.M.D.S.

Data2+

2 T.M.D.S.

Data2 Shield

3 T.M.D.S.

11 T.M.D.S.

Clock Shield

12 T.M.D.S.

Clock–

13 NC

Data2–

4 T.M.D.S.

Data1+

5 T.M.D.S.

14 RESERVED

(N.C.)

15 SCL

Data1 Shield

6 T.M.D.S.

16 SDA

Data1–

7 T.M.D.S.

17 GND

Data0+

8 T.M.D.S.

18 +5V Power

Data0 Shield

9 T.M.D.S.

Data0–

19 Hot Plug

Detect

10 T.M.D.S.

Clock+

Acceptable Input Signals

Computer signal

Input terminal

Resolution

640 × 350 31.5/70

640 × 400 31.5/70

640 × 480 31.5/60

fH [kHz]/

fV [Hz]

37.9/85

37.9/85

INPUT A/

INPUT B

z –

z –

z –

z –

zz

35.0/67 z –

37.9/73

37.5/75

43.3/85

z –

z –

z –

INPUT C/

INPUT D/

INPUT E

Input terminal

Resolution

fH [kHz]/

fV [Hz]

INPUT A/

INPUT B

INPUT C/
INPUT D/

INPUT E

800 × 600 35.2/56 z –

37.9/60

zz

48.1/72 z –

46.9/75

53.7/85

832 × 624 49.7/75

1024 × 768 48.4/60

z –

z –

z –

zz

56.5/70 z –

60.0/75

68.7/85

1152 × 864 64.0/70

67.5/75

77.5/85

1152 × 900 61.8/66

1280 × 960 60.0/60

z –

z –

z –

z –

z –

z –

zz

75.0/75 z –

1280 × 1024 64.0/60

zz

80.0/75 z –

91.1/85

1400 × 1050 65.3/60

z –

zz

1600 × 1200 75.0/60 zz

1280 × 768 47.8/60 zz

1280 × 720 45.0/60 zz

1920 × 1080 67.5/60 – z

*2

*2

1366 × 768 47.7/60 zz

1440 × 900 55.9/60 zz

1680 × 1050 65.3/60 zz

1280 × 800 49.7/60 zz

1920 × 1200 74.0/60 z

1600 × 900 60.0/60 z

*1

*1

*1

z

*1

z

Others

Specifications

51

Video signal

Input terminal

Signal fV [Hz]

NTSC 60

PA L/

50

VIDEO/

S VIDEO

INPUT A

z ––

z ––

INPUT C/
INPUT D/

INPUT E

SECAM

480i 60 –

zz

576i 50 – zz

480p 60 – zz

576p 50 – zz

*4

*4

1080i 60 – zz

1080i 50 – zz

720p 60 – zz

*2

720p 50 – zz

1080p 60 – – z

*2

1080p 50 – – z

1080p 24 – – z

1080p 30 – – z

Notes

*3

*1: Available for VESA Reduced Blanking

signals only.

*2: INPUT C/INPUT E (when the BKM-PJ10

is installed) is determined as a computer
signal; INPUT D/INPUT E (when the
BKM-PJ20 is installed) is determined as a

video signal.
*3: Available for the BKM-PJ20 only.
*4: Not available for the BKM-PJ20.

• When a signal other than the signals listed in

table is input, the picture may not be
displayed properly.

• An input signal meant for screen resolution

different from that of the panel will not be
displayed in its original resolution. Text and
lines may be uneven.

• Some actual value may differ slightly from

the design values given in the table.

Combinations of Input Signals

Main picture Sub picture

INPUT A
(RGB/YP

BPR)

INPUT B (RGB) –

INPUT C (DVI-D)

INPUT D (HDMI)

INPUT E (Optional
adaptor)

S VIDEO

VIDEO

INPUT B (RGB)

INPUT B (RGB)

52

Specifications

Projection Distance and Lens Shift Range

5

5

5

5

The projection distance refers to the distance between the front of the lens and the projected
surface.

Projection distance L

Projected image

Front of the lens

The lens shift range represents the distance in percent (%) by which the lens can be shifted from
the center of the projected image. The lens shift range is regarded as 0% when the point (A) in
the illustration (point where a line drawn from the center of the lens and the projected image
cross at right angles) is aligned with the center of the projected image and full width or full
height of the projected image is regarded as 100%.

Projected image

Center of the

0%

0%

Projected image

0%

0%

projected

A

Center of the
projected

A

Lens shift range

Center of the lens

Side of the projector

Lens shift range

Center of the lens

VS

+

HS

– HS +

VS –

Shaded region: Lens shift range

Center of the lens

Projected image

Others

Top of the projector

+: Vertical lens shift range (up) [%]

VS

–: Vertical lens shift range (down) [%]

VS

+: Horizontal lens shift range (right) [%]

HS
HS –: Horizontal lens shift range (left) [%]

Projection Distance and Lens Shift Range

53

Projection distance

Projection image size Projection distance L

Diagonal Width × Height VPLL-FM22 VPLL-ZM42 VPLL-ZM102

80" (2.03 m) 1.72 × 1.08

(68 × 42)

100" (2.54 m) 2.15 × 1.35

(85 × 53)

120" (3.05 m) 2.58 × 1.62

(102 × 64)

150" (3.81 m) 3.23 × 2.02

(127 × 79)

200" (5.08 m) 4.31 × 2.69

(170 × 106)

Projection image size Projection distance L

Diagonal VPLL-Z4007 VPLL-4008 VPLL-Z4011 VPLL-Z4015

80" (2.03 m) 1.13 – 1.35

(45 – 53)

100" (2.54 m) 1.43 – 1.72

(57 – 67)

120" (3.05 m) 1.73 – 2.09

(68 – 82)

150" (3.81 m) 2.17 – 2.65

(86 – 104)

200" (5.08 m) 2.91 – 3.57

(115 – 140)

1.48
(58)

1.87
(74)

2.25
(89)

2.83

(111)

3.79

(149)

1.80
(71)

2.27
(89)

2.74

(108)

3.44

(135)

4.61

(182)

3.17 – 3.98

(125 – 157)

3.98 – 4.99

(157 – 196)

4.78 – 6.00

(188 – 236)

5.99 – 7.51

(236 – 296)

8.01 – 10.03
(315 – 395)

2.36 – 3.56
(93 – 140)

2.96 – 4.47

(117 – 176)

3.57 – 5.38

(141 – 211)

4.48 – 6.74

(177 – 265)

6.00 – 9.01

(236 – 354)

Unit: m (inches)

5.62 – 8.33
(221 – 328)

7.07 – 10.46
(278 – 412)

8.52 – 12.58
(335 – 495)

10.69 – 15.77
(421 – 621)

14.31 – 21.09
(563 – 830)

3.36 – 4.42
(132 – 174)

4.22 – 5.55
(166 – 219)

5.09 – 6.68
(200 – 263)

6.38 – 8.38
(251 – 330)

8.55 – 11.20
(337 – 441)

Projection image size Projection distance L

Diagonal VPLL-Z4019 VPLL-Z4025 VPLL-Z4045

80" (2.03 m)

100" (2.54 m) 5.48 – 6.99

120" (3.05 m) 6.60 – 8.41

150" (3.81 m) 8.29 – 10.55

200" (5.08 m) 11.09 – 14.10

4.36 – 5.57

(172 – 219)

(216 – 275)

(260 – 331)

(326 – 415)

(437 – 555)

5.48 – 10.14
(216 – 399)

6.88 – 12.71
(271 – 500)

8.29 – 15.28
(326 – 602)

10.40 – 19.14
(409 – 754)

13.92 – 25.57

(548 – 1007)

10.09 – 17.46
(397 – 687)

12.66 – 21.88
(498 – 861)

15.23 – 26.30

(600 – 1035)

19.10 – 32.93

(752 – 1296)

25.53 – 43.99

(1005 – 1732)

Projection distance formula

D: Projected image size (Diagonal) Unit: m (inches)

Lens Projection distance L (minimal length) Projection distance L (maximal length)

VPLL-FM22 L = 0.0192 × D – 0.0524

54

Projection Distance and Lens Shift Range

(L = 0.7556 × D – 2.0633)

–

Lens Projection distance L (minimal length) Projection distance L (maximal length)

VPLL-ZM42 L = 0.0403 × D – 0.0558

(L = 1.5861 × D – 2.1962)

VPLL-ZM102

L = 0.0724 × D – 0.1755

(L = 2.8508 × D – 6.9075)

VPLL-Z4007

L = 0.0148 × D – 0.0584

(L = 0.5841 × D – 2.3005)

VPLL-4008 L = 0.0234 × D – 0.0777

L = 0.0504 × D – 0.0524

(L = 1.9861 × D – 2.0625)

L = 0.1063 × D – 0.1635

(L = 4.1842 × D – 6.4371)

L = 0.0186 × D – 0.1354

(L = 0.7312 × D – 5.3296)

–

(L = 0.9229 × D – 3.0591)

VPLL-Z4011 L = 0.0303 × D – 0.0739

(L = 1.1940 × D – 2.9096)

VPLL-Z4015 L = 0.0433 × D – 0.1100

(L = 1.7030 × D – 4.3315)

VPLL-Z4019

L = 0.0561 × D – 0.1260

(L = 2.2066 × D – 4.9594)

VPLL-Z4025

L = 0.0704 × D – 0.1611

(L = 2.7714 × D – 6.3404)

VPLL-Z4045

L = 0.1287 × D – 0.2160

(L = 5.0674 × D – 8.5019)

L = 0.0454 × D – 0.0651

(L = 1.7871 × D – 2.5635)

L = 0.0565 × D – 0.1029

(L = 2.2269 × D – 4.0525)

L = 0.0711 × D – 0.1200

(L = 2.8008 × D – 4.7225)

L = 0.1286 × D – 0.1510

(L = 5.0650 × D – 5.9456)

L = 0.2211 × D – 0.2269

(L = 8.7050 × D – 8.9328)

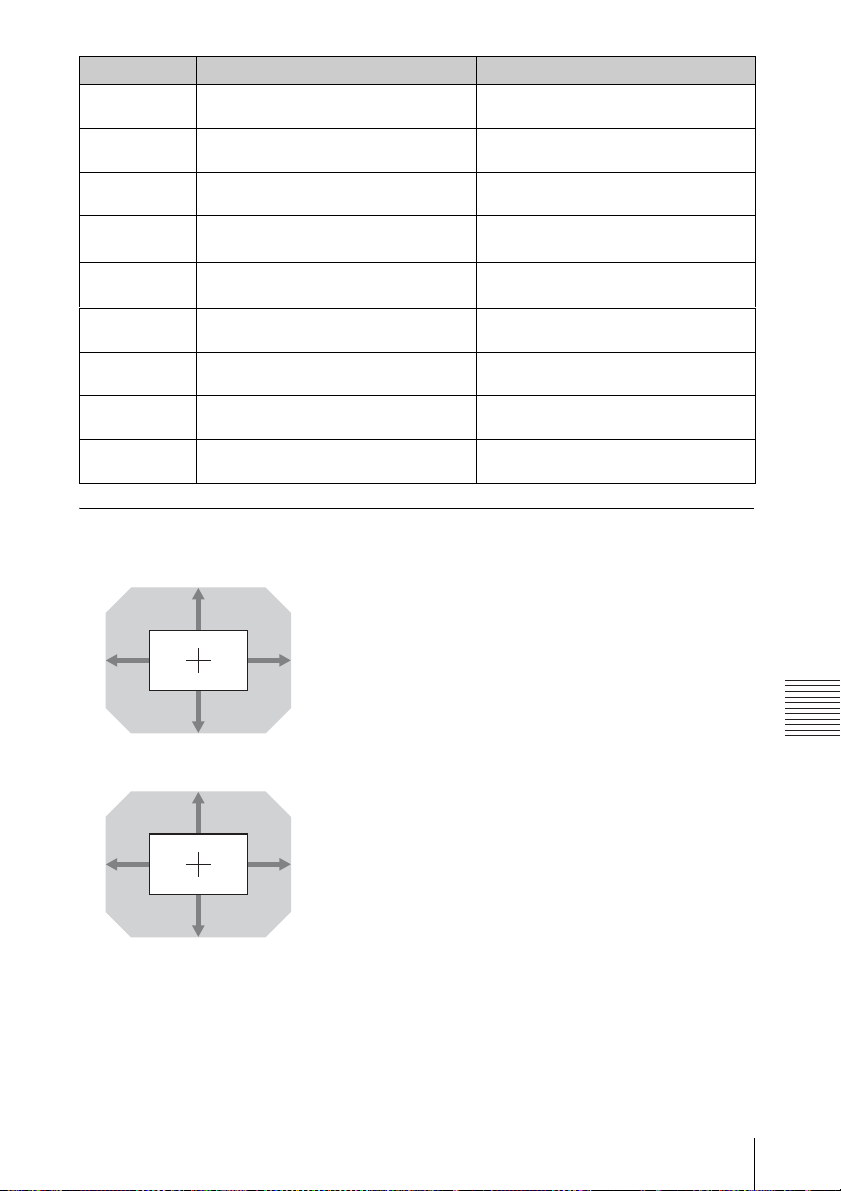

Lens shift range

x VPLL-ZM42, VPLL-ZM102

VS

59%

31%31%

+ = VS – = 59 – 1.903 × (HS + or HS –) [%]
+ = HS – = 31 – 0.525 × (VS + or VS –) [%]

HS

59%

x VPLL-Z4019, VPLL-Z4025, VPLL-Z4045

VS

113%

63%63%

113%

+ = VS – = 113 – 1.794 × (HS + or HS –) [%]
+ = HS – = 63 – 0.558 × (VS + or VS –) [%]

HS

Projection Distance and Lens Shift Range

Others

55

x VPLL-Z4007

x VPLL-4008

x VPLL-Z4011

15%

15%

41%

41%

110%

110%

VS

+ = VS – = 15 – 2.500 × (HS + or HS –) [%]
+ = HS – = 6 – 0.400 × (VS + or VS –) [%]

HS

6%6%

+ = VS – = 41 – 2.158 × (HS + or HS –) [%]

VS

+ = HS – = 19 – 0.463 × (VS + or VS –) [%]

HS

19%19%

+ = VS – = 110 – 1.930 × (HS + or HS –) [%]

VS
HS

+ = HS – = 57 – 0.518 × (VS + or VS –) [%]

57%57%

x VPLL-Z4015

109%

57%57%

109%

56

Projection Distance and Lens Shift Range

+ = VS – = 109 – 1.912 × (HS + or HS –) [%]

VS

+ = HS – = 57 – 0.523 × (VS + or VS –) [%]

HS

Dimensions

Front Unit: mm (inches)

7

545 (21

/8)

INPUT E

15

/32)

INPUT B

INPUT C INPUT D HDMI

RGB

R G/Y HD VD

B/PB

R/P

INPUT A

265 (10 7/16)

DVI-D

OUTPUT

MONITOR

/8)

1

105 (4

ø24

530 (20

/8)

/32)

3

1

213 (8

204 (8

S VIDEO IN VIDEO IN

RS-232C

CONTROL S
IN OUT

PLUG IN POWER

Center of the lens

Bottom Unit: mm (inches)

474 (18 21/32)

137.2

13

/32)

(5

62.5

15

(2

/32)

Center
of the
lens

/32)

15

215 (8

/32)

15

215 (8

14 (

/16)

9

141 (5

/16)

9

141 (5

9

/16 )

475.2 (18

/2)

1

/32)

5

Others

216 (8

131 (5

/32)

5

/2)

1

131 (5

216 (8

23

/32)

Dimensions

57

When using the PSS-630 projector suspension support

455 (18)

1

485 (19
515 (20
545 (21
575 (22
605 (23

Center of
the lens

/8)

3

/8)

1

/2)

3

/4)

7

/8)

Front of the cabinet

Unit: mm (inches)

350 (13 7/8)
380 (15)

1

410 (16
440 (17
470 (18
500 (19

/4)

3

/8)

5

/8)

3

/4)

58

Center of
the lens

Dimensions

150 (5

311 (12 1/4)

/8)

3

/8)

7

60 (2

/8)

3

530 (20

/16)

60 (2

7

265 (10

29

/32)

150 (5

29

/32)

234 (9 7/32)

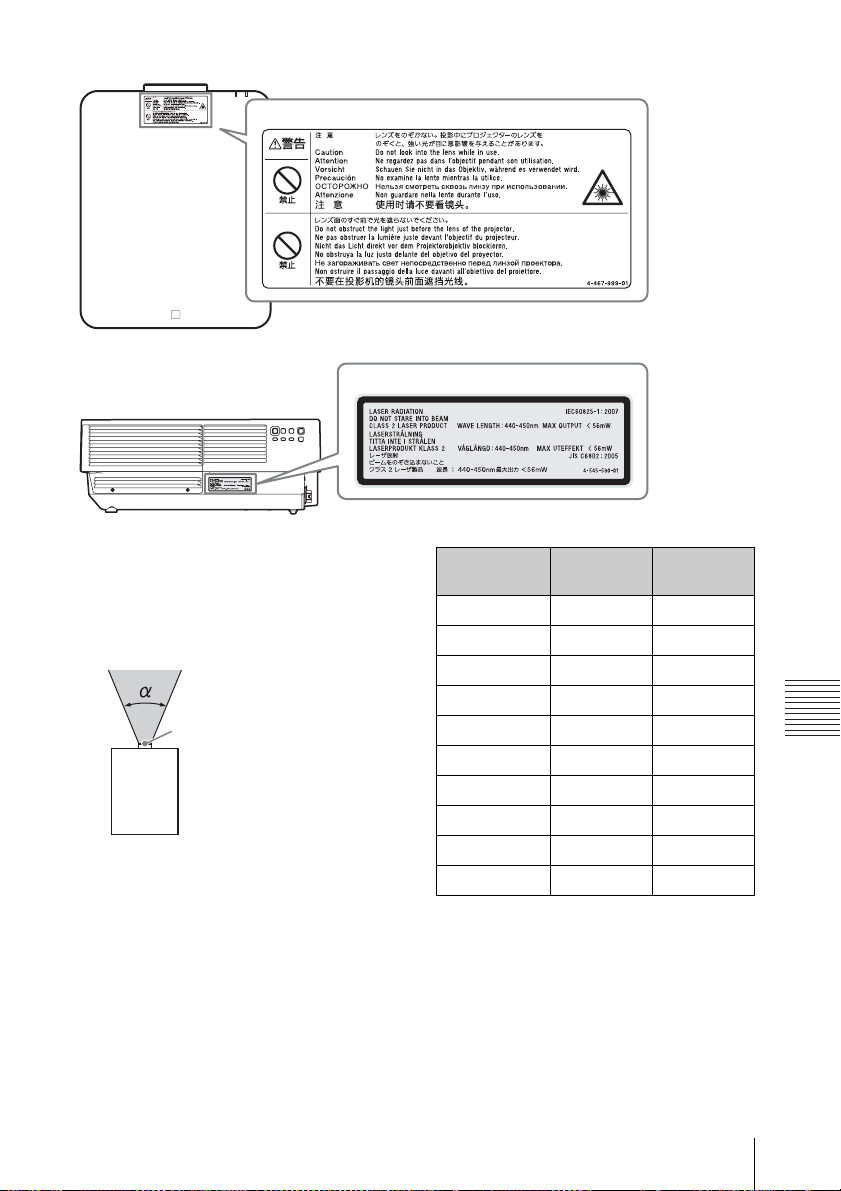

Location information of the labels

Warning label

Explanatory label

Light source specifications

4.0 W laser diodes × 48
Wavelength: 440 - 450 nm

Beam divergence angle from lens of
this unit

Laser emission port

Lens Zoom

maximum: α

VPLL-FM22 68° –

VPLL-ZM42 36° 29°

VPLL-ZM102 20° 14°

VPLL-Z4007 82° 73°

VPLL-4008 57° –

VPLL-Z4011 46° 31°

VPLL-Z4015 33° 25°

VPLL-Z4019 25° 20°

VPLL-Z4025 20° 11°

VPLL-Z4045 11° 6°

Zoom

minimum: α

Others

Dimensions

59

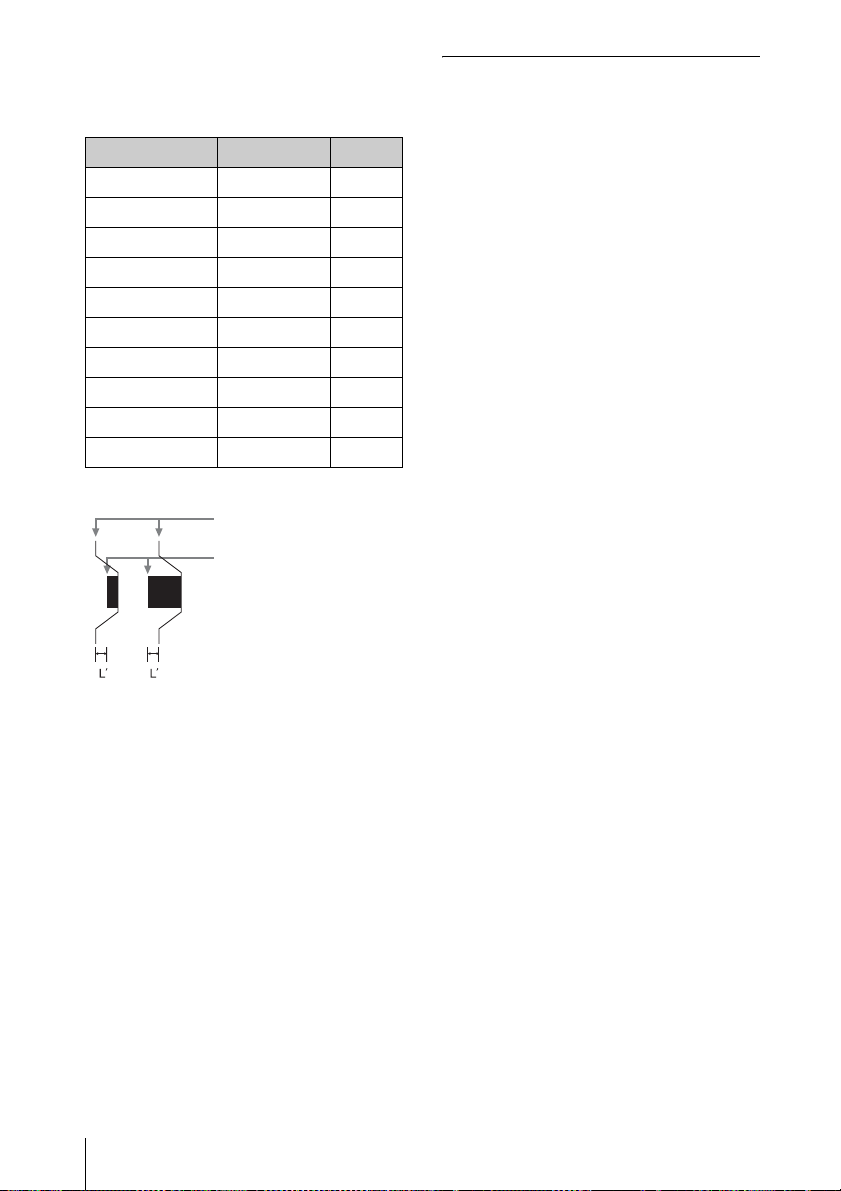

The distance L’ between the front of
the lens (center) and the front of the
cabinet

Unit: mm (inches)

Lens L’ Type

VPLL-FM22 30.9 (1

VPLL-ZM42 40.1 (1

VPLL-ZM102 3.0 (

VPLL-Z4007 15.0 (

VPLL-4008 57.8 (2

VPLL-Z4011 75.5 (2

VPLL-Z4015 47.8 (1

VPLL-Z4019 26.7 (1

VPLL-Z4025 55.4 (2

VPLL-Z4045 53.0 (2

12

7

/32) 1

19

/32) 1

1

/8) 1

19

/32) 2

9

/32) 2

31

/32) 2

7

/8) 2

1

/16) 2

3

/16) 2

3

/32) 2

Front of the cabinet

Front of the lens

About Trademarks

• Adobe Acrobat is a trademark of Adobe
Systems Incorporated.

• Kensington is a registered trademark of
Kensington Technology Group.

• Internet Explore is registered trademarks
of Microsoft Corporation in the United
States and/or other countries.

• PJLink is a registered trademark of Japan
Business Machine and Information
System Industries Association.

• AMX is a trademark of AMX Corporation.

• The terms HDMI and HDMI High­Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in
the United States and other countries.

• Crestron RoomView is a trademark of
Crestron Corporation.

• HDBaseT™ and the HDBaseT Alliance
logo are trademarks of the HDBaseT
Alliance.

• All other trademarks and registered
trademarks are trademarks or registered
trademarks of their respective holders. In
this manual,

™

and ® marks are not

specified.

60

Dimensions

Index

A

AC IN socket .............................................4

Acceptable input signal ...........................51

Adjust Signal ...........................................24

Air filter cover ...........................................3

All Reset ..................................................27

Antitheft bar ..............................................3

Antitheft lock .............................................3

APA .....................................................5, 24

Aspect ............................................5, 24, 26

Auto Power Saving ..................................30

B

Background .............................................27

Black Level Adj. ......................................22

Blend Gamma ..........................................32

Blending function ....................................18

Blending Range .......................................32

Brightness ................................................22

C

CC Display ..............................................27

Cleaning the air filter ...............................43

Color ........................................................22

Color Matching .......................................34

Color System ...........................................29

Color Temp. .............................................22

Combinations of input signals .................52

Connecting a computer ..............................8

Connecting an external monitor ..............11

Connecting to HDBaseT equipment .......11

Connecting video equipment .....................9

Connection/Power menu .........................29

Constant Brightness .................................29

Contrast ...................................................22

Control panel .............................................5

CONTROL S input terminal .....................4

CONTROL S output terminal ...............4, 7

Control window .......................................36

D

Default Gateway ......................................29

Digital Zoom .............................................5

Dimensions ..............................................57

Direct Power On ......................................30

Dynamic Range .......................................29

E

ECO ........................................................ 29

ECO MODE (Energy-saving mode) ......... 6

Edge Blending ........................................ 32

E-mail report ........................................... 37

Expert Setting ......................................... 22

F

fH ............................................................ 35

Film Mode .............................................. 22

Focus ................................................... 5, 15

FREEZE .................................................... 6

Front panel ................................................ 3

Function menu ........................................ 27

fV ............................................................ 35

G

Gamma Mode ......................................... 22

H

H Keystone .............................................. 32

HDBaseT Settings .................................. 29

High Altitude Mode ................................ 33

Hue .......................................................... 22

I

ID Mode .................................................. 28

ID MODE 1/2/3/4 switch .......................... 7

Image Flip ............................................... 32

Image Split .............................................. 32

Information menu ................................... 35

Input .......................................................... 4

Input-A Signal Sel. ................................. 29

Installation Attitude ................................ 33

Installation menu .................................... 32

Installing the optional adaptor ................ 45

IP Address ............................................... 29

IP Address Setup ..................................... 29

IR Receiver ............................................. 28

K

Keystone adjustment ............................... 16

L

LAN terminal ...................................... 4, 36

Language ................................................. 28

Lens Control ........................................... 28

Lens shift range ....................................... 55

Light Output Mode ................................. 29

Others

Index

61

Light Timer .............................................35

Location and function of controls .............3

M

Main unit ................................................... 3

Menu Position .........................................28

Messages list ...........................................40

Model Name ............................................35

N

Network Setting ...................................... 29

Security Lock ...........................................28

Selecting an input signal ............................5

Serial No. .................................................35

Sharpness .................................................22

Shift ...................................................15, 24

Smart APA ...............................................27

Specifications ...........................................46

Standby ......................................................5

Standby Mode ..........................................30

Start Up Image .........................................27

Status .......................................................28

Subnet Mask ............................................29

O

ON/STANDBY indicator .................... 3, 39

Operation menu ....................................... 28

Optional adaptor slot ....................... 3, 4, 45

Output ....................................................... 4

Over Scan ................................................ 24

P

Panel Alignment ...................................... 33

Panel Key Lock ....................................... 28

Pattern ................................................. 5, 16

Phase ....................................................... 24

Picture menu ...........................................22

Picture Mode ........................................... 22

Pin assignment ........................................ 50

Pitch ........................................................ 24

Primary DNS ...........................................29

Projecting an image .................................14

Projection distance ..................................54

Projection distance and lens shift range .. 53

Projection distance formula .................... 54

Q

Quick Reboot .......................................... 30

R

Rear feet (adjustable) .......................... 3, 16

Remote commander .................................. 5

Remote control receiver ............................ 3

Reset .................................................. 22, 32

RS-232C terminal .....................................4

T

Terminals ...............................................3, 4

Troubleshooting .......................................41

Turn off ....................................................19

Turn on ................................................5, 14

Twin picture ...............................................6

U

Using a menu ...........................................21

Using network features ............................36

V

V Center ...................................................24

V Keystone ..............................................32

Ventilation holes ........................................3

Vertical Size .............................................24

W

WARNING indicator ...........................3, 39

Warp correction .......................................17

Warping ...................................................32

With No Input ..........................................30

With Static Signal ....................................30

Z

Zone Black Level Adj. .............................32

Zoom ....................................................5, 15

S

Screen Aspect .......................................... 33

Screen Fitting ..........................................32

Screen menu ............................................24

Secondary DNS .......................................29

62

Index

Sony Corporation
