Operating Instructions

VPL-FE100U
VPL-FE100E
VPL-FE100M

GB

English

WARNING

To prevent fire or shock hazard, do not
expose the unit to rain or moisture.

To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.

This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.

This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

For the customers in the United Kingdom

WARNING
THIS APPARATUS MUST BE EARTHED

IMPORTANT

The wires in this mains lead are coloured in accordance with
the following code:

Green-and-yellow : Earth
Blue : Neutral

Brown : Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol Y or coloured green or
green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

Voor de klanten in Nederland

Bij dit produkt zijn batterijen geleverd.
Wanneer deze leeg zijn, moet u ze niet
weggooien maar inleveren als KCA.

The socket-outlet should be installed near the equipment
and be easily accessible.

For the customers in the USA

This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.

You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-

003.

2 (GB)

Table of Contents

Overview

Setting up and projecting

Adjustments and settings
using the menu

Precautions ............................................................... 4 (GB)

Features..................................................................... 5 (GB)

Location and Function of Controls......................... 6 (GB)

Front .............................................................................. 6 (GB)

Rear ............................................................................. 10 (GB)

Remote Commander ................................................... 12 (GB)

Precautions on Installation.................................... 15 (GB)

Installing the Projector on the Floor..................... 16 (GB)

Connecting with a Computer or a VCR................. 17 (GB)

Projecting ................................................................ 18 (GB)

Using the Menu....................................................... 21 (GB)

The PICTURE CTRL Menu ..................................... 22 (GB)

The INPUT SETTING Menu .................................... 23 (GB)

The SET SETTING Menu ........................................ 26 (GB)

The SIGNAL SELECT Menu ................................... 27 (GB)

GB

English

Connection examples/
Index number setting

Maintenance

Others

Connection Examples ............................................ 28 (GB)

Connecting 15k RGB/Component Equipment............ 28 (GB)

Connecting the Switcher ............................................. 29 (GB)

Confirming the System Construction.......................... 30 (GB)

Setting the Index Numbers .................................... 31 (GB)

Maintenance............................................................ 33 (GB)

Replacing the Lamp .................................................... 33 (GB)

Cleaning the Air Filter................................................. 34 (GB)

Troubleshooting...................................................... 35 (GB)

Specifications ......................................................... 37 (GB)

Index ........................................................................ 40 (GB)

3 (GB)

Precautions

On safety

•Check that the operating voltage of your unit is
identical with the voltage of your local power supply.
If voltage adaptation is required, consult with
qualified Sony personnel.

•Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by qualified Sony
personnel before operating it further.

•Unplug the unit from the wall outlet if it is not to be
used for several days.

•To disconnect the cord, pull it out by the plug. Never
pull the cord itself.

•The wall outlet should be near the unit and easily
accessible.

•The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.

•Do not look into the lens while the lamp is on.

•Do not place your hand or objects near the ventilation
holes — the air coming out is hot.

•It is desirable to install the projector in a room where
floor and walls are not of light-reflecting material. If
the floor and walls are of reflecting material, it is
recommended that the carpet and wall paper be
changed to a dark color.

On preventing internal heat build-up

After turning off the power, the cooling fan runs for
about six minutes while the ON indicator flashes in
green. The indicator flashes quickly for one minute.
During that time, you will not be able to turn the
power back on with the ON key.

Caution

The projector is equipped with ventilation holes
(intake) at the bottom/front side and ventilation holes
(exhaust) at the left/right side.
Do not block or place anything near these holes, or
internal heat build-up may occur, causing picture
degradation or damage to the projector.

On installation

•When the projector is mounted on the ceiling, the
Sony PSS-2000 Projector Suspension Support must
be used for installation.

•Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains, draperies)
that may block the ventilation holes. Leave space of
more than 30 cm (11
the projector. Be aware that room heat rises to the
ceiling; check that the temperature near the
installation location is not excessive.

•Do not install the unit in a location near heat sources
such as radiators or air ducts, or in a place subject to
direct sunlight, excessive dust or humidity,
mechanical vibration or shock.

7

/8 inches) between the wall and

On illumination

•To obtain the best picture, the front of the screen
should not be exposed to direct lighting or sunlight.

•Ceiling-mounted spot lighting is recommended. Use a
cover over fluorescent lamps to avoid lowering the
contrast ratio.

•Cover any windows that face the screen with opaque
draperies.

On cleaning

•To keep the cabinet looking new, periodically clean it
with a soft cloth. Stubborn stains may be removed
with a cloth lightly dampened with a mild detergent
solution. Never use strong solvents, such as thinner,
benzene, or abrasive cleansers, since these will
damage the cabinet.

•Avoid touching the lens. To remove dust on the lens,
use a soft dry cloth. Do not use a damp cloth,
detergent solution, or thinner.

•Clean the air filter in every 100 hours.

On repacking

Save the original shipping carton and packing material;
they will come in handy if you ever have to ship your
unit. For maximum protection, repack your unit as it
was originally packed at the factory.

4 (GB)

Features

Overview

High brightness, high picture quality

• High brightness

Adopting four 120 W UHP lamps and newly
developed optical system povides high brightness
(light output 3,500 of ANSI lumen) and excellent
uniformity on the picture.

• High resolution

1)

Thanks to use of three 1.8-inch SXGA

panels with

approximately 1,300,000 pixels, the projector can
project the sharp picture with the resolution of 1280 ×
1024 pixels.

• DRC (Digital Reality Creation)

The DRC technology allows you to obtain a finer,
more detailed picture with four-times higher density
than the conventional video picture.

Accepts various input signals

This projector has a built-in high performance scan
converter which converts the input signals to display
the 15 k RGB, DTV, HDTV, VGA

1)

SXGA

and UXGA1) (fV = up to 75 Hz) signals as
well as the video signals of the composite, S video and
component.
The projector accepts a wide range of HDTV/DTV
signals as shown in the chart below.

Format

1035/60i
1080/60i

480/60P
575/50P
1080/24PSF
1080/50i
720/60P
720/50P

* Each of the frame rates is also compatible with 1/1.001.

Scanning
rate (kHz)

33.75

33.75

31.5

31.25
27

28.13
45

37.5

Frame
rate (Hz)*

30
30

60
50
24
25
60
60

Scanning
format

2:1 interlace
2:1 interlace

Progressive
Progressive
2:1 interlace
2:1 interlace
Progressive
Progressive

1)

, SVGA1), XGA1),

Standard

Aspect
ratio

BTA S-001B

16:9

SMPTE 274M/

16:9

BTA S-001B

16:9/4:3

SMPTE 293M

16:9/4:3

16:9
16:9
16:9
16:9

–

–
SMPTE 274M
SMPTE 293M

–

System expandability and versatility

The projector has RS-232C/422A/PJ COM interface
connectors for communication.
By combining the interface boards and signal interface
switcher (not supplied), VPL-FE100U/FE100E/
FE100M projection systems can be greatly expanded.
This projector also has the group and device index
functions for using multiple projectors in one system.

Easy and flexible setup

• Sony’s original APA (Auto Pixel Alignment)
function

You can obtain the clearest picture automatically by
simply pressing the APA key when the signal is input
from a computer.

• Easy setup with external equipment

This projector has 48 preset data for input signals in
the memory. You can get a picture properly on the
screen by connecting equipment and pressing the APA
key.

• Flexible setup

The lens shift function allows you to install the
projector in a wide range of locations, without
worrying about keystone distortion (the picture going
out of square). The power focus and power zoom
functions also let you change the size of the projection
screen without having to move the projector.

• Stack installation

Thanks to the lens shift function, up to three projectors
can be stacked, which improves the brightness of the
image.

• Fail safe function

The projector uses four lamps for light source. Even if
one of them has burnt out, you can still use the
projector. If two lamps have burnt out, the projector
will automatically enter into standby mode.

..........................................................................................................................................................................................................

1) VGA, SVGA, XGA, SXGA and UXGA are the registered
trademarks of the International Business Machines
Corporation, U.S.A.

5 (GB)

Location and Function of Controls

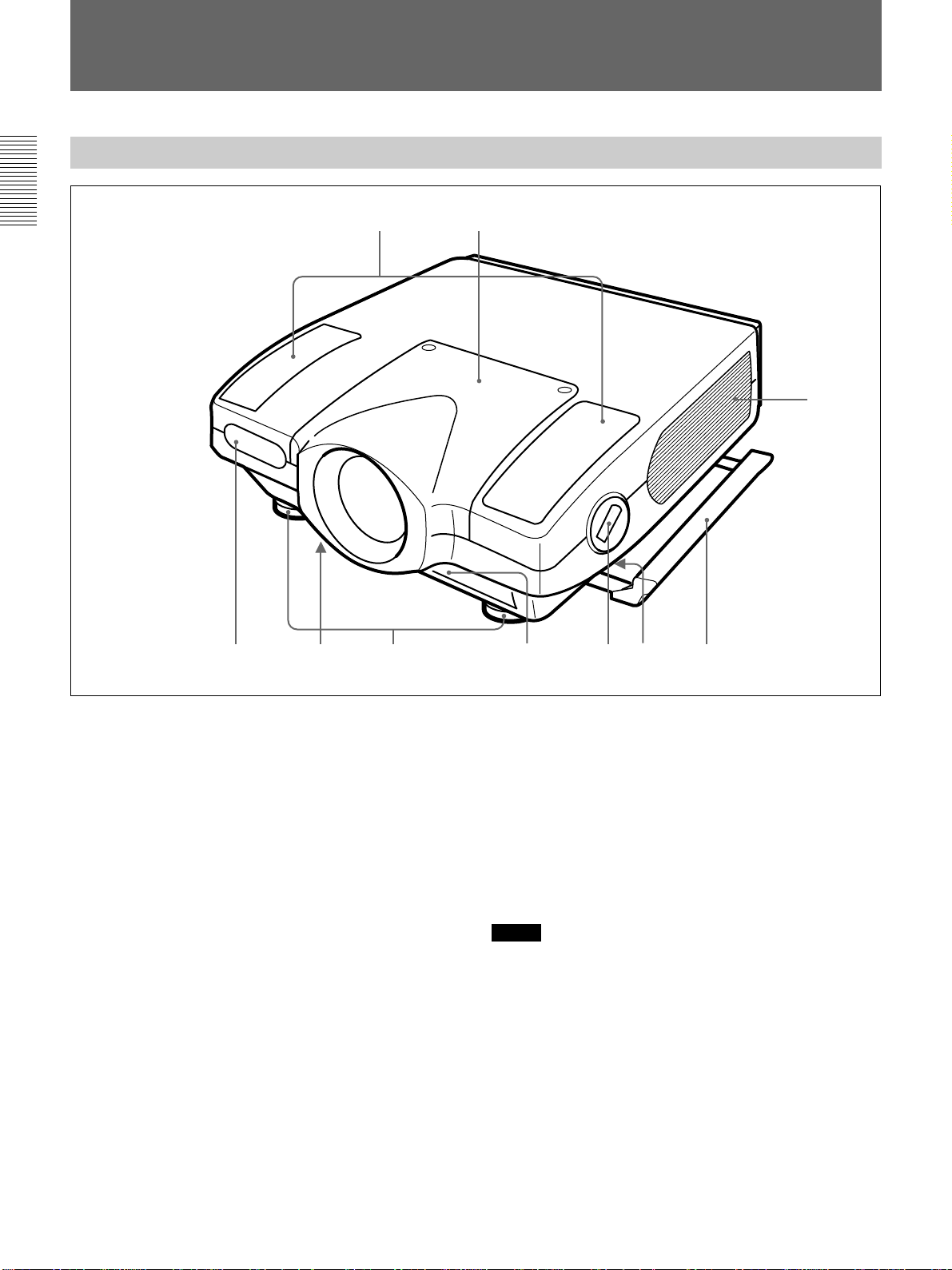

Front

12

!º

379

1 Lens mount part

When attaching the optional lens, consult with the
Sony service personnel.

2 Speaker

3 Front remote control (SIRCS) detector

4 Bottom ventilation holes (intake)

Do not block the holes.

5 Adjusters

Use the adjusters to keep the projector level if it is
installed on an uneven surface.

6 Front ventilation holes (intake)

Do not block the holes.

7 Adjuster button and lever

Press the button to raise the lever for adjusting the
height of the adjuster.

8546

8 Handle lever (left and right sides)

Use the lever for putting away the carrying handle.

9 Carrying handle (left and right sides)

Pull out the handle for carrying the projector.

!º Left and right side ventilation holes (exhaust)

Do not place anything within the 30 cm (11
range from these holes or block them.

Notes

•Do not block the ventilation holes, or internal heat
build-up may occur, causing fire or damage to the
projector.

•Do not place anything near the ventilation holes or
touch these holes as the temperature will be very
high.

7

/8 inches)

6 (GB)

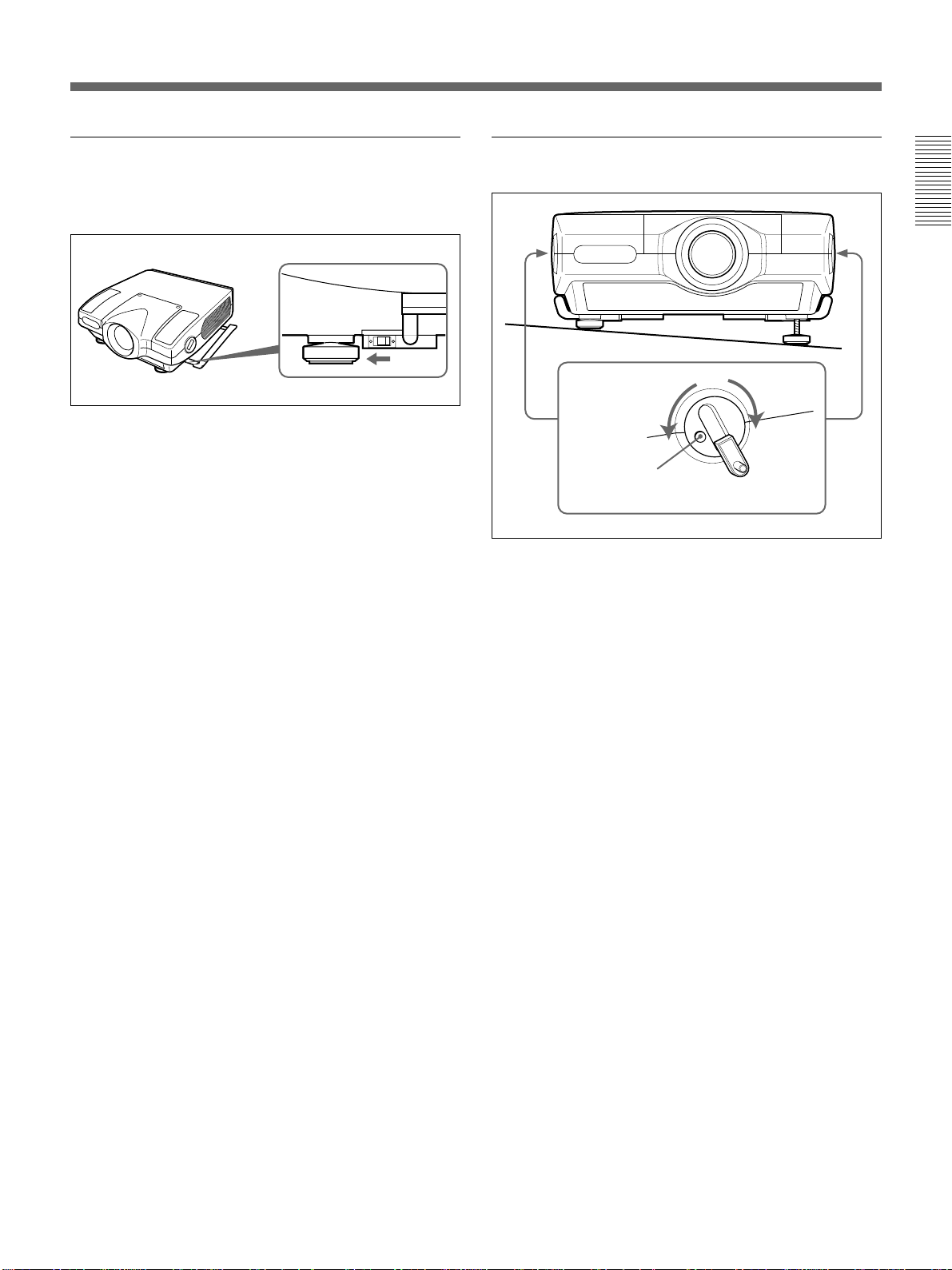

Using the carrying handles

Pull out to use for carrying the projector. To put away
the handle, slide the handle lever forward.

Using the adjusters

To lower the
projector

To raise the
projector

Adjuster button

1 Press the adjuster button.

The adjuster lever comes out.

2 Turn the lever to adjust the height so that the

projector becomes level.

3 Replace the adjuster lever after use.

7 (GB)

Location and Function of Controls

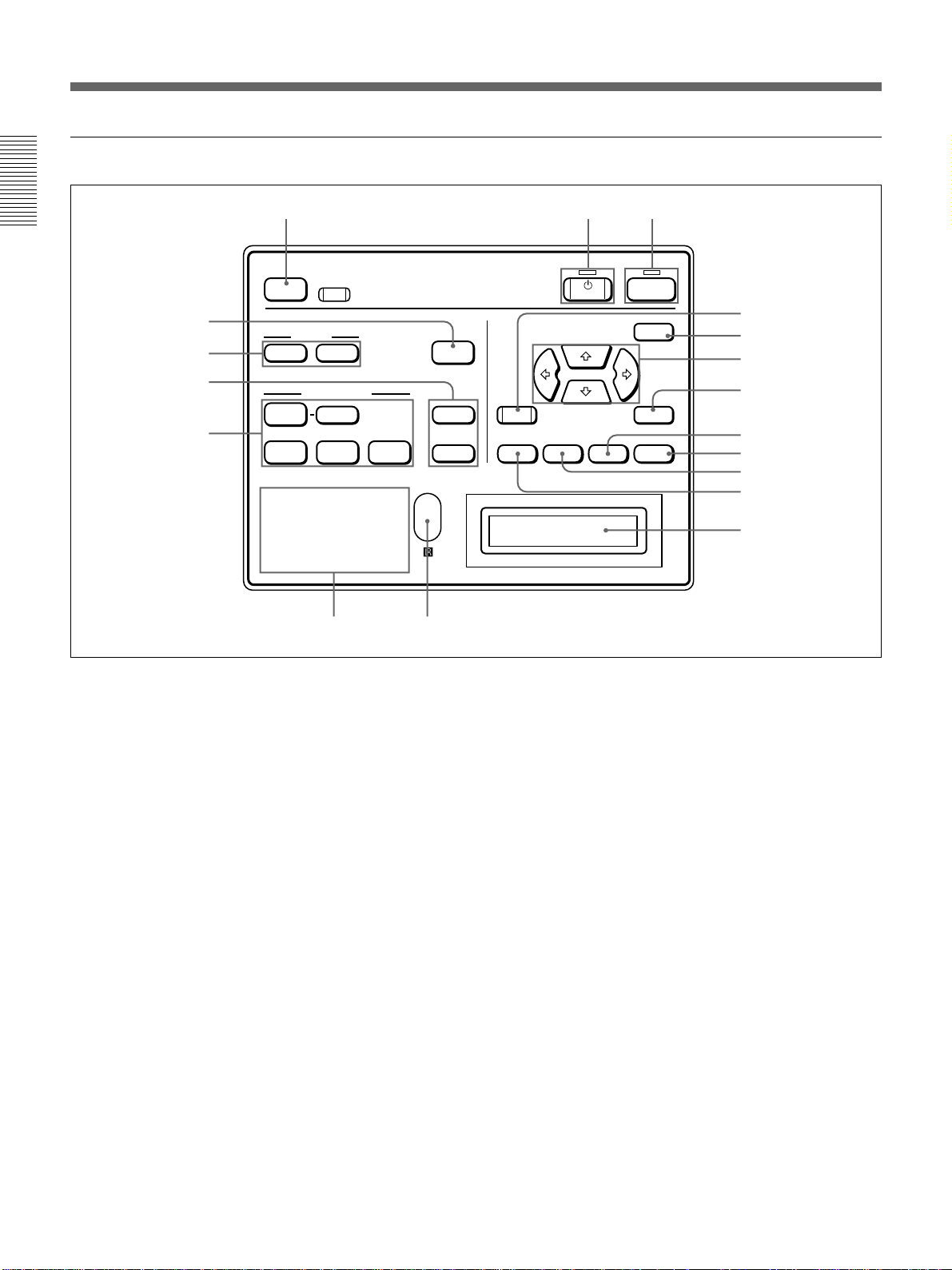

Control panel

123

LIGHT

4

5
6

VIDEO

7

INPUT A INPUT B INPUT C

POWER SAVING

COVER FAIL

HIGH TEMP

RESET

+

MUTING

PIC AUDIO

INPUT SELECT

SELECT

FAN FAIL

SYS SET

APA

VOLUME

LAMP FAIL

12
34

89

1 ON key and indicator

Press to turn on the power of the projector.
The indicator lights when the key is pressed.
The indicator flashes for about six minutes after the
power is turned off by pressing the STANDBY key, as
the fan runs for six minutes to cool down the inside of
the projector. The indicator flashes quickly for one
minute, during which you will not be able to turn the
power back on with the ON key.

2 STANDBY key and indicator

Press to make the projector enter standby mode.
The indicator lights to indicate that the projector is in
standby mode.

3 LIGHT key

Illuminates the key indicators in orange when the
projector is turned on. Illuminates the indicators for the
relative keys in green when this key is pressed during
operation. Press again to turn off the indicators.



STANDBY

ON

!•

MENU

!¶
!§

!∞

+

ENTERRESET

!¢

–

PATTERN

ZOOM SHIFT FOCUS

!£
!™
!¡

!º

4 APA (Auto Pixel Alignment) key

Adjusts the position of the picture on the screen
automatically so that the picture is clearly visible when
the signals are input from a computer.

5 MUTING keys

Cut off the picture or sound temporarily.

PIC: Press to cut off the picture. Press again to

restore the picture.

AUDIO: Press to cut off the sound output from the

speakers or the AUDIO OUT jacks. Press again or
press the VOLUME + key to restore the sound.

6 VOLUME +/– keys

Adjust the volume of the built-in speakers and output
level of the AUDIO OUT jacks.

+ : Increases the volume.
– : Decreases the volume.

Pressing this key and the RESET key simultaneously
has the same function as the SYS SET key on the
Remote Commander. Use when the PC-3000 signal
interface switcher is used in the system or the system
connections are changed.

8 (GB)

7 INPUT SELECT keys

Select the input signal.

VIDEO: Selects the video signal input from the

VIDEO or S VIDEO connectors and the audio
signal input from the AUDIO IN L/R jacks. To
switch the S VIDEO and VIDEO connectors, use
the SELECT key.

SELECT: Each time you press this key, the input

video signal is switched between the VIDEO and
S VIDEO connectors.

INPUT A: Selects the audio and video signals input

from the INPUT A connectors.

INPUT B: Selects the signal input from the

connectors on the optional interface board which
is installed in the INPUT B section. When the
IFB-12A interface board is installed and the
output mode is selected on the IFB-12A, the key
does not function.

INPUT C: Selects the signal input from the

connectors on the optional interface board which
is installed in the INPUT C section.

Note on the VPL-FE100E model

The optional IFB-X2000E interface board is required
to select VIDEO.

8 Indicators

POWER SAVING: Lights when the projector is in

power saving mode. When POWER SAVING in
the SET SETTING menu is set to ON, the
projector goes into the power saving mode if no
signal is input for 10 minutes. Although the lamp
goes out, the cooling fan keeps running. In the
power saving mode, only the STANDBY key
functions for the first 30 seconds. The power
saving mode is canceled when a signal is input or
any key is pressed.

COVER FAIL: Lights when the lamp cover or air

filter cover is not secured firmly.

FAN FAIL: Lights when the fan is broken.
HIGH TEMP: Lights when temperature inside the

projector becomes unusually high.

LAMP FAIL: When the lamp life has reached the

end, the indicator of that lamp lights.

!¡ PATTERN key

Displays a HATCH pattern on the screen for focus,
zoom, and shift adjustments. Press again to turn off the
HATCH pattern.

!™ ZOOM key

Enters the zoom adjustment mode. When the key is
pressed, the relative keys light in green.
Next adjust the zoom using the arrow keys.

V: Enlarges the picture size.
v: Reduces the picture size.

Note

If the VPLL-2075, VPLL-2014, VPLL-2009 or VPLL­3050 optional lens is installed, you cannot adjust the
zoom.

!£ FOCUS key

Enters the focus adjustment mode. When the key is
pressed, the relative keys light in green.
Next adjust the focus using the arrow keys.

V: Focuses on a forward picture.
v: Focuses on a picture further back.

!¢ SHIFT (lens shift) key

Enters the shift adjustment mode. When the key is
pressed, the relative keys light in green.
Next adjust the vertical position of the picture using
the arrow keys.

V: Moves the picture upward.
v: Moves the picture downward.

!∞ ENTER key

Stores the settings in the menu.

!§ Arrow keys (V/v/B/b)

Used to adjust the picture after pressing the ZOOM,
FOCUS or SHIFT key. Also used to move the cursor
or adjust the value in the menu.

!¶ MENU key

Displays the menu on the screen. When the key is
pressed, the relative keys light in green.
Press again to turn off the menu.

9 Rear remote control (SIRCS) detector

!º Message display window

Displays the signal status, timer and error messages
about the input signals.

!• RESET key

Resets the adjusted value of an item to its factory
preset value. This key functions when the menu or a
setting item is displayed on the screen.

9 (GB)

Location and Function of Controls

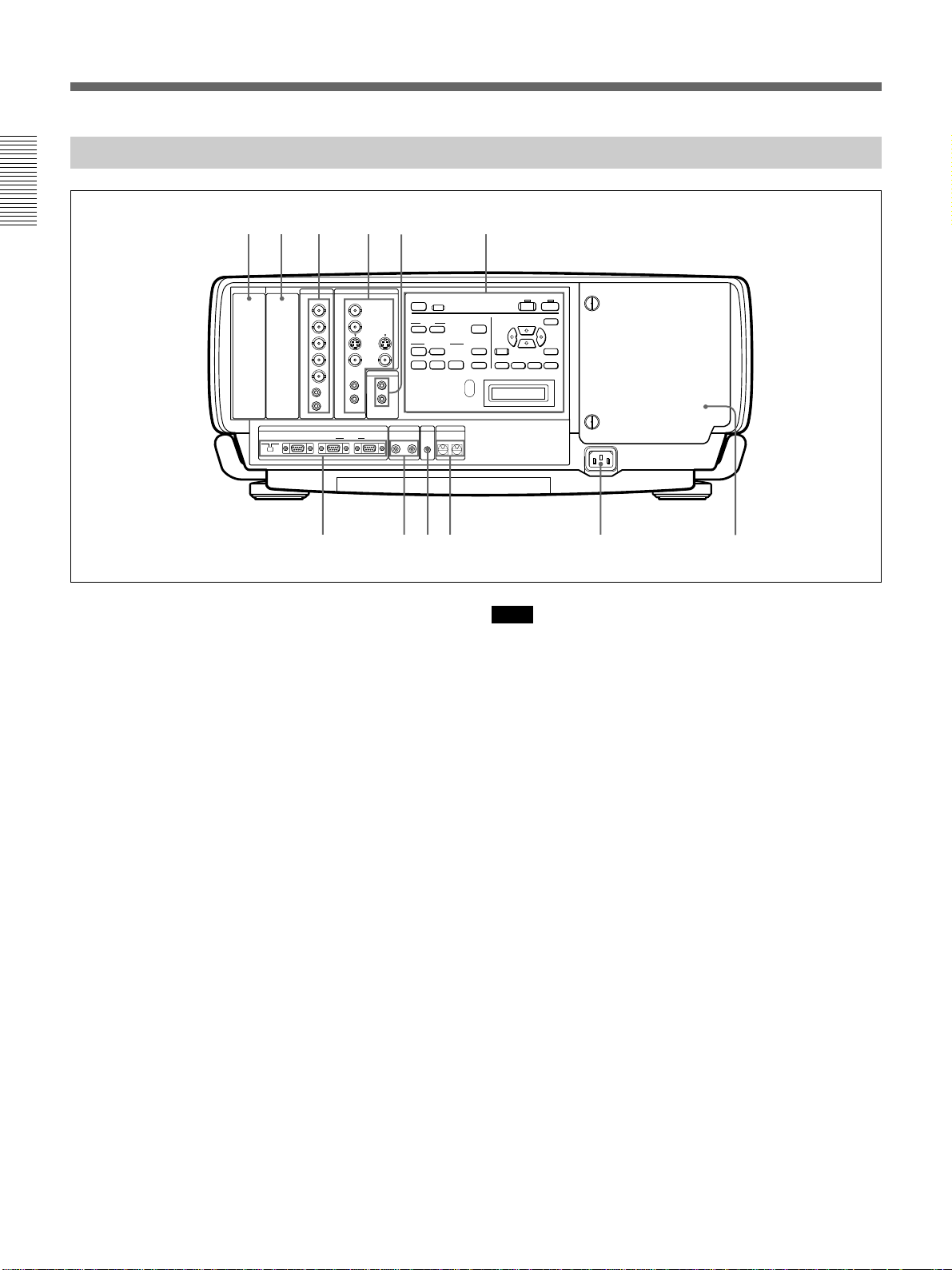

Rear

6 5 4 3 12

INPUT C INPUT B

232C

INPUT A VIDEO

R/R-Y Y

G/Y

B/B-Y

SYNC

/HD

VD

AUDIO

IN

RS-

RS-

RS-232C/422A RS-485IN OUT IN OUT

422A

IN

C

8

VIDEO8VIDEO

VIDEO

LRL

(MONO)

AUDIO

L

(MONO)

IN

R

REMOTE CONTROL S TRIG

VIDEO

AUDIO OUT

LIGHT

+

MUTING

OUT

PCI AUDIO

INPUT SELECT

VIDEO

SELECT

INPUT A INPUT B INPUT C

POWER SAVING

COVER FAIL

FAN FAIL

R

HIGHT TEMP

PLUG IN POWER

789!º !¡ !™

1 Control panel

For details, see pages 8 (GB) and 9 (GB).

2 AUDIO OUT L/R jacks (phono type)

Connect to external active speakers.
The volume of the speakers can be controlled by the
VOLUME keys on the Remote Commander or the
control panel.

3 VIDEO connectors

Connect to external video equipment, such as a VCR.

Y IN/C IN (BNC type): Connect to the Y and C

video outputs of the video equipment.

S VIDEO IN (mini DIN 4-pin): Connects to the Y/C

video output of the video equipment.

S VIDEO OUT (mini DIN 4-pin): Used as loop-

through output via the Y/C IN connectors or the S
VIDEO IN connector.

VIDEO IN (BNC type): Connects to the composite

video output connector of the video equipment.

VIDEO OUT (BNC type): Used as loop-through

output of the VIDEO IN connector.

AUDIO IN L (MONO)/R jacks (phono type):

Connect to the audio output jacks of equipment,
such as a VCR. For stereo equipment, use both the
L and R jacks; for monaural equipment, use the L
(MONO) jack only.

VIDEO/
S VIDEO

LAMP FAIL

12
34

DEVICE INDEX

0 0

MENU

ENTER

FOCUSSHIFTZOOM

VOLUME

APA

+

RESET

PATTERN

–

Note

If you have video equipment connected to both the Y/
C IN and S VIDEO IN connectors, the signal from the
Y/C IN connectors are selected prior to the S VIDEO
IN connector. When projecting video connected to the
S VIDEO IN connector, be sure not to connect any
cable to the Y/C IN connectors.

Note on the VPL-FE100E model

The optional IFB-X2000E interface board is required
for using the VIDEO connectors.

4 INPUT A connectors

RGB input connectors (R/R-Y/P

R, G/Y, B/B-Y/PB,

SYNC/HD, VD) (BNC type): Connect to the

video outputs of equipment such as a computer or
a video camera.
According to the connected equipment, the RGB,
component (R-Y, Y, B-Y), HDTV (YP
GBR) or DTV (YP

BPR or GBR) signal is selected.

BPR or

AUDIO IN L (MONO)/R jacks (phono type):

Connect to the audio output jacks of equipment
such as a computer or a video camera. For stereo
equipment, use both the L and R jacks; for
monaural equipment, use the L (MONO) jack
only.

10 (GB)

Note

The INPUT A connectors do not function when the
PC-3000 signal interface switcher is connected.

5 Signal interface board attachment part
(INPUT B)

Optional signal interface board can be attached
according to your requirements. If you install the IFB­12A interface board to this section and select the
output mode, you can output the signal input through
the INPUT A connectors.

For details on installing the interface boards, consult with
qualified Sony personnel.

6 Signal interface board attachment part
(INPUT C)

Optional signal interface board can be attached
according to your requirements.

Note

You cannot select the output mode when attaching the
IFB-12A interface board.

7 REMOTE connectors

Used to expand system capability.

RS-232C/RS-422A select switch: Selects according

to the interface connected to the RS-232C/RS­422A connector.

RS-232C/RS-422A connector (D-sub 9-pin,

female): Connect to a computer to operate the

projector from the computer.

PJ COM IN/OUT connectors (D-sub 9-pin,

female): The connectors conform to the RS-485

standards and are used to expand system
capability for Sony projectors.

For details on connections, see the PJ COM protocol
manual for Sony projectors.

8 CONTROL S IN/OUT jacks (stereo minijack)

Connect to the control S jacks of other Sony
equipment.

CONTROL S IN/PLUG IN POWER (DC 5 V

output) jack: Connects to the CONTROL S OUT

jack of the supplied Remote Commander when
using as a wired Remote Commander. In this case,
you do not need to install the batteries in the
Remote Commander, since the power is supplied
from this jack.

CONTROL S OUT jack: Outputs the control S

signal.

Note

When connecting the remote commander cable to the
CONTROL S IN jack, the remote control detectors
will not function.

9 TRIG (trigger output) jack (monaural minijack)

The signal is transmitted from this jack to the
connected equipment whether the projector is on or
off. (This is not a power source for external
equipment.) Approximately 12 V DC signal is output
when the projector power is on. The signal is 0 volt
level output when the projector power is off.

!º DEVICE INDEX switch

Set the device index number of the projector when
using multiple projectors. You can set the numbers
between “01” and “99”. It is set to “01” at the factory.
You can also set the group index number in the menu
for system setup.

Note

Do not set the device index number to “00”. If you do,
the projector will be operated only with the keys on the
control panel.

!¡ AC IN socket

Connect the supplied AC Power cord.

!™ Lamp cover

11 (GB)

Location and Function of Controls

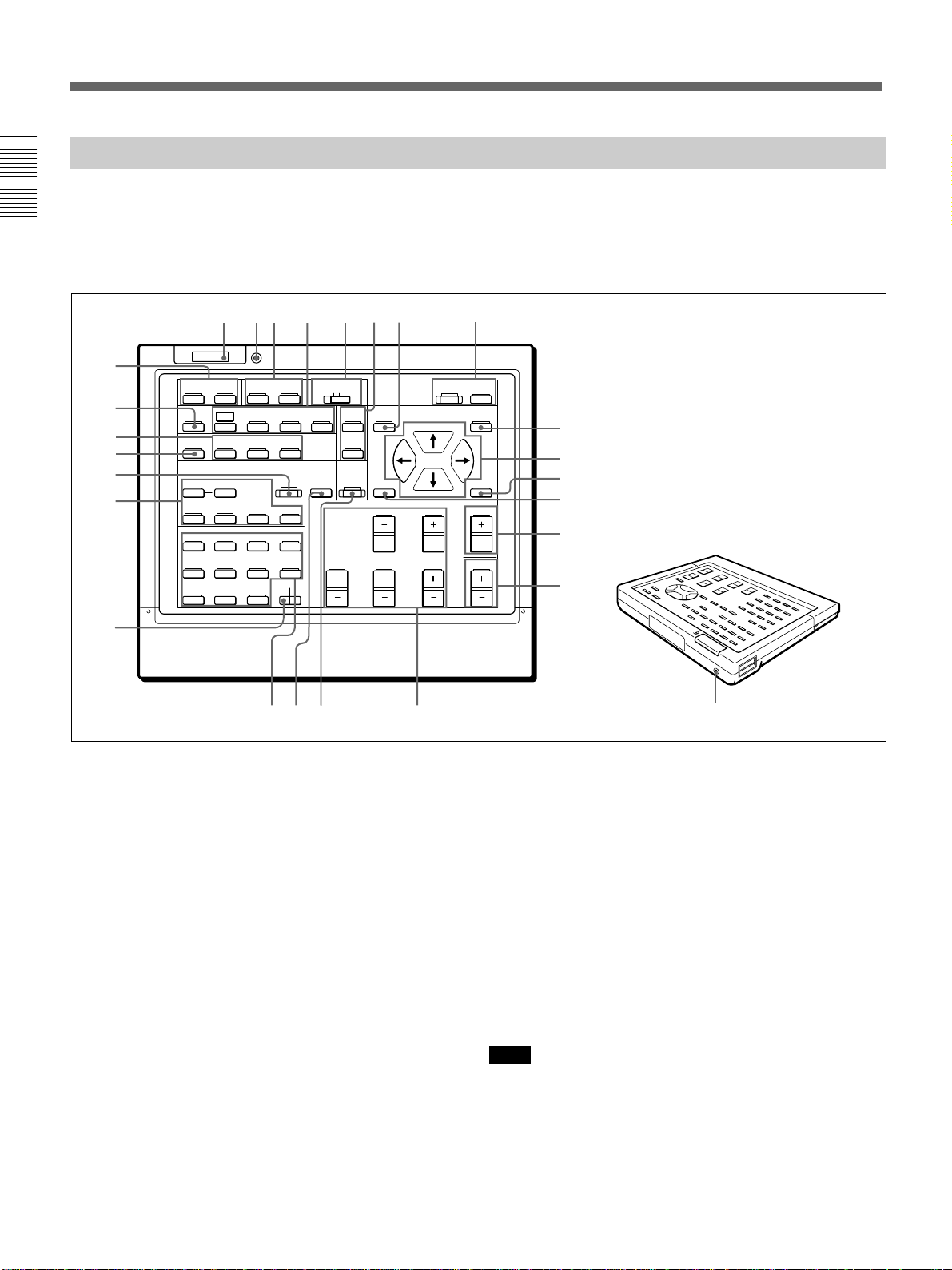

Remote Commander

The Remote Commander can be used as a wireless or wired Remote
Commander. The keys on the Remote Commander with the same names
function the same as those on the control panel of the projector.

For details on control panel keys on the projector, see pages 8 (GB) and 9 (GB).

ON

CENT

2

3

R

MEMORY

B

9

!º
!¡

LIGHT

MUTING

PIC ONAUDIO OFF

NORMAL

APA

LCD LENS CONTROL

ZOOM

PATTERN

STATUS

RGB

DOT PHASE

SHIFT

56784

COMMAND

OFF

SIZE

SHIFT

FOCUS

!™
!£

!¢

INPUT SELECT

VIDEO

SELECT

VIDEO/S VIDEO

ADBC

SWITCHER/VIDEO MEMORY/INDEX

1423

5867

SW NO/

9

10/0(ALL)

OFF/GROUP

SWITCHER INDEX

SYS SET

VIDEO MEMORY

BLKG

SHARP

RESET

FUNCTION

PICTURE CONTROL

BRIGHT

HUE

CONTR

COLOR

!∞

!§

!¶

!•

!ª

1 ON/STANDBY keys
2 MEMORY key

The key does not function with this projector.

3 CENT R/B keys

The keys do not function with this projector.

4 COMMAND ON/OFF key

No keys except for the LIGHT button on the Remote
Commander function when this switch is set to OFF.
This saves battery power.

5 RGB keys

Adjust the picture.

APA: The key functions the same as the APA key on

the control panel.

DOT PHASE: Press to adjust the phase of the LCD

panels and the input signals (except for 15k RGB/
video/HDTV/DTV signals). After pressing this
key, adjust the position of the picture using the
four arrow keys so that the clearest picture is
obtained.

12 (GB)

1

ONSTANDBY

MENU

@∞

@¢

ENTER

POSITION

@£
@™

@¡

VOL

@º

@§

SIZE: Enters the size adjustment mode for the input

signal. Next adjust the horizontal size of the
picture using the arrow keys.

B: to reduce horizontal size
b: to expand horizontal size

SHIFT: Enters the shift adjustment mode for the

input signal. Next adjust the position of the picture
using the four arrow keys. The picture shifts in the
direction of the arrow on the pressed key.

6 STATUS ON/OFF keys

Press OFF to eliminate the on-screen display.
Press ON to restore the on-screen display.

Note

The menus and warning messages appear even if the
OFF key is pressed.

7 Transmission indicator

The light goes on each time a key is pressed. If the
indicator does not light, replace the batteries.

8 LIGHT button

Illuminates the key indicators when the COMMAND
switch is set to ON. If the switch is set to OFF, only
the COMMAND switch is illuminated.
If you do not press any key on the Commander for
more than 30 seconds, the key indicators turn off
automatically. The indicators also turn off if you press
the LIGHT button again.

9 MUTING keys

To select an input when multiple switchers are
connected, press the SW NO/OFF/GROUP key. Next
press the switcher number (1 to 8) and the input
number (1 to 8) in sequence. Be sure to press the keys
one after another within 2 seconds.
e.g. To select input 4 of switcher 2, press the keys as
follows: SW NO n 2 n 4.

When the SWITCHER/VIDEO MEMORY/
INDEX select switch is set to INDEX

!º NORMAL key

The key does not function with this projector.

!¡ LCD LENS CONTROL keys

Press one of the ZOOM, SHIFT and FOCUS keys and
then the arrow keys (V or v).

!™ PATTERN key
!£ SYS SET (system set) key

When the PC-3000 signal interface switcher is used in
the system or the system connections are changed,
press this key.

Note

After connecting the PC-3000 switcher and pressing
the SYS SET key, the input channel is set to SW1-1
when connecting a single switcher, or to SW1-2 when
connecting two or more switchers.

!¢ INPUT SELECT keys

The D key does not function with this projector.

!∞ SWITCHER/VIDEO MEMORY/INDEX select
switch

Selects the function of the SWITCHER/VIDEO
MEMORY/INDEX keys.

SWITCHER: selects the input from the PC-3000

switcher.

VIDEO MEMORY: The position does not function

with this projector.

INDEX: selects a projector by its index number

when multiple projectors are used.

!§ SWITCHER/VIDEO MEMORY/INDEX keys

When the SWITCHER/VIDEO MEMORY/
INDEX select switch is set to SWITCHER

When the PC-3000 switcher is connected to the
projector, press a number key (1 to 8) to select the
input from the switcher. Number key 9 does not
function.

Used to specify the device or group index number.

!¶ BLKG (blanking) adjustment key

Enters the blanking adjustment mode.
Next, press the V/v key to select the position to be
adjusted on the screen, and then adjust the position
using the B/b keys.

!• RESET key

!ª PICTURE CONTROL +/– keys

Adjust the picture conditions: CONTR (contrast),
BRIGHT (brightness), COLOR, HUE and SHARP
(sharpness).

@º VOL (volume) +/– keys

@¡ POSITION +/– keys

These keys do not function with this projector.

@™ FUNCTION key

The key does not function with this projector.

@£ ENTER key

@¢ Arrow keys

@∞ MENU key

@§ CONTROL S OUT jack

Connect the supplied remote control cable to this jack
and to the CONTROL S IN jack of the projector for
wired remote control operation.
When the Commander is connected to the CONTROL
S IN/PLUG IN POWER jack of the projector via the
remote control cable (stereo), the power for the
Remote Commander is supplied from the projector.

13 (GB)

Location and Function of Controls

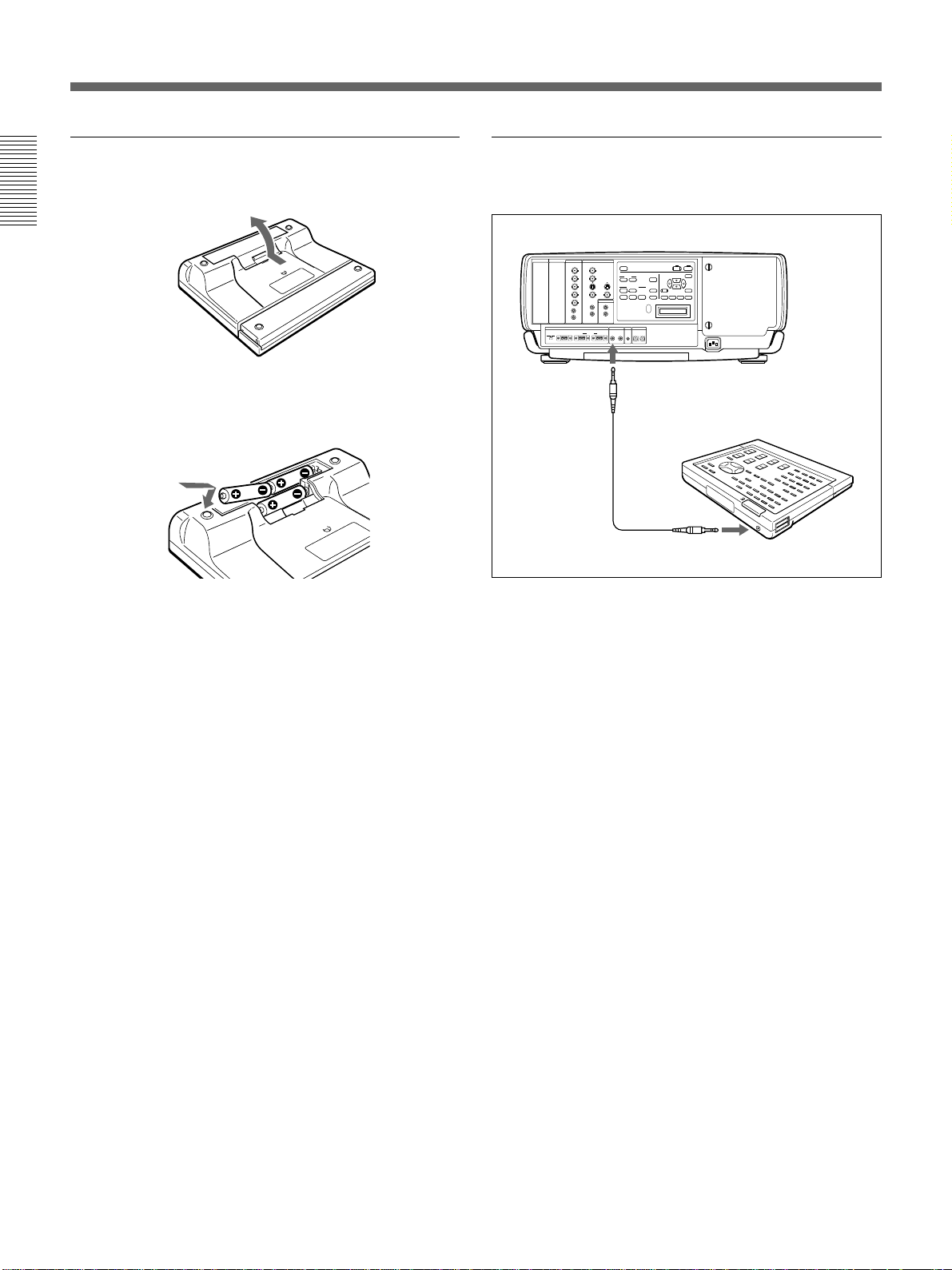

Battery installation

1 Push to open the lid.

2 Install three R6 (size AA) batteries (supplied) with

the polarities correctly aligned.

Be sure to install the battery
from the ’ side.

3 Replace the lid.

Notes on batteries

•Make sure that the battery orientation is correct when
inserting batteries.

•Do not mix old battery with new one, or different
types of batteries.

•If you will not use the Remote Commander for a long
time, remove the batteries to avoid damage from
battery leakage. If batteries have leaked, remove
them, wipe the battery compartment dry and replace
the batteries with new ones.

To connect the Remote Commander to the
projector

Rear

INPUT C INPUT B

INPUT A VIDEO

+

AUDIO OUT

REMOTE CONTROL S TRIG

to CONTROL
S IN

Remote
commander
cable (supplied)

Note on wired Remote Commander operation
using the supplied remote commander cable
(stereo)

You do not need to install the batteries since the power
is supplied from the CONTROL S IN jack on the
projector. In this case, the batteries are not consumed.

–

DEVICE INDEX

0 0

Remote Commander

to CONTROL S OUT

Notes on wireless Remote Commander
operation

•Be sure that there is nothing to obstruct the infrared
beam between the Remote Commander and the
projector.

•The operation range is limited. The shorter the
distance between the Remote Commander and the
projector, the wider the angle within which the
commander can control the projector.

•The remote control detectors on the projector do not
operate when connecting the remote commander
cable to the CONTROL S IN jack. If you wish to use
the Remote Commander as a wireless Remote
Commander, be sure to remove the remote
commander cable from both the Remote Commander
and the projector.

14 (GB)

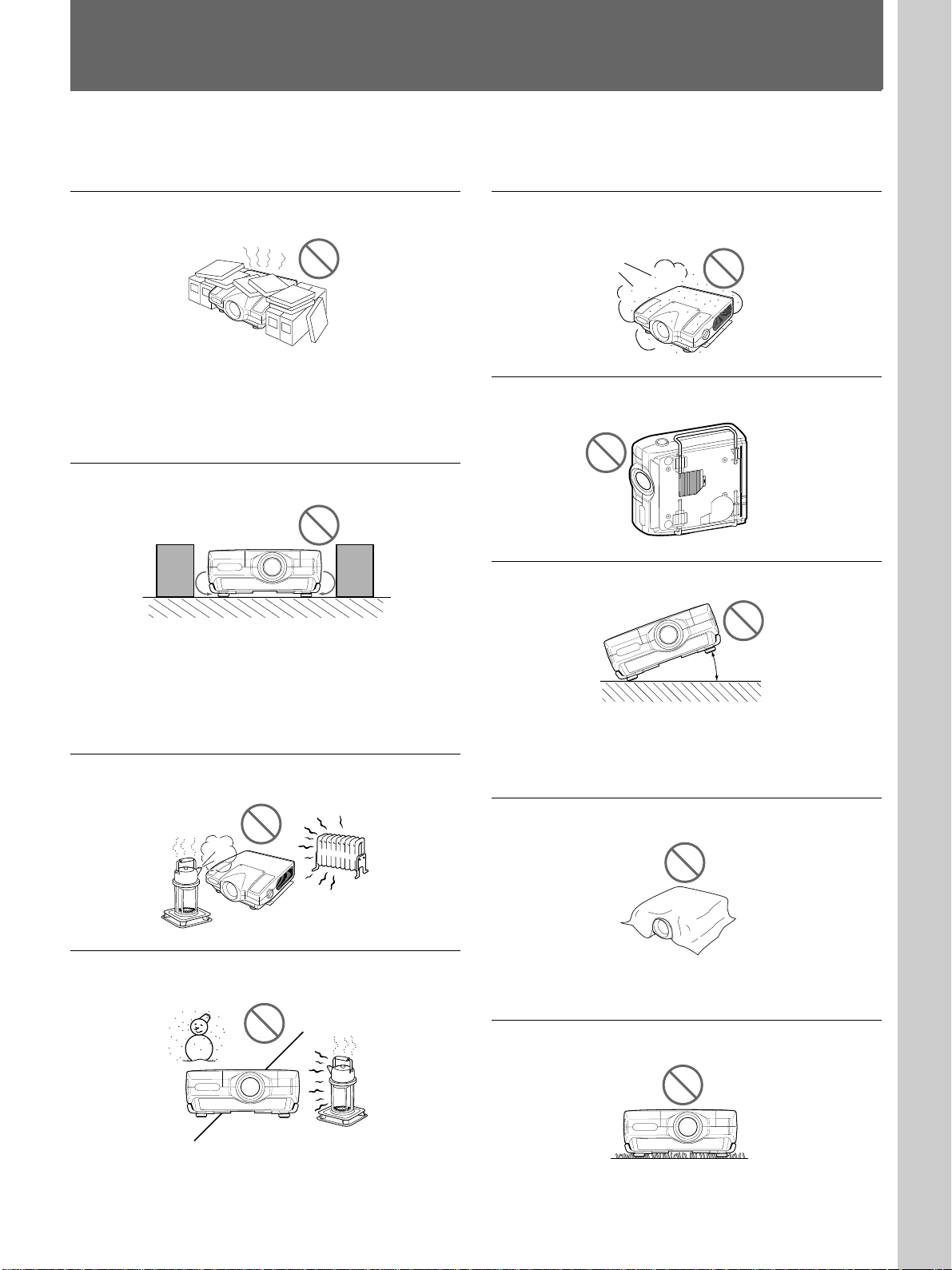

Precautions on Installation

Do not install the projector in the following situations. These installations
may cause malfunction or damage to the projector.

Setting up and projecting

Do not install the projector in an ill­ventilated place

The projector is equipped with ventilation holes for intake
on the bottom and front and ventilation holes for exhaust on
the left and right sides to prevent internal heat build-up. Do
not block these ventilation holes and allow adequate air
circulation at an installation location.

Do not place any object beside the
projector

If you put something beside the ventilation holes on the
sides, the exhaust may be inhaled into the projector through
the ventilation holes (intake) at the bottom, causing the
internal temperature to rise and thereby activating the
protection circuit. Install the projector so that the exhaust is
not blocked.

Do not install the projector in a location
where temperature or humidity is very high

Avoid installing the projector in a location
subject to excessive dust

Do not use the projector while laying it on
its side

Do not tilt the projector when in use

20°

Avoid tilting the projector more than 20 degrees or installing
it other than on the floor and ceiling. Such installations may
cause malfunctions such as color irregularity or shortening
of lamp life.

Do not cover the ventilation holes
(exhaust)

Avoid installing the projector in a location
where temperature may rise or fall rapidly

Be careful of air-conditioning and heating in a room where
the projector is installed, as sudden changes in temperature
may lead to moisture condensation and cause damage to the
projector.

Do not cover the front ventilation holes; otherwise, internal
heat may build up.

Do not install the projector on a deep-pile
carpet

If you install the projector on a deep-pile carpet, the
ventilation holes (intake) at the bottom may be blocked,
causing an internal heat build-up.

15 (GB)

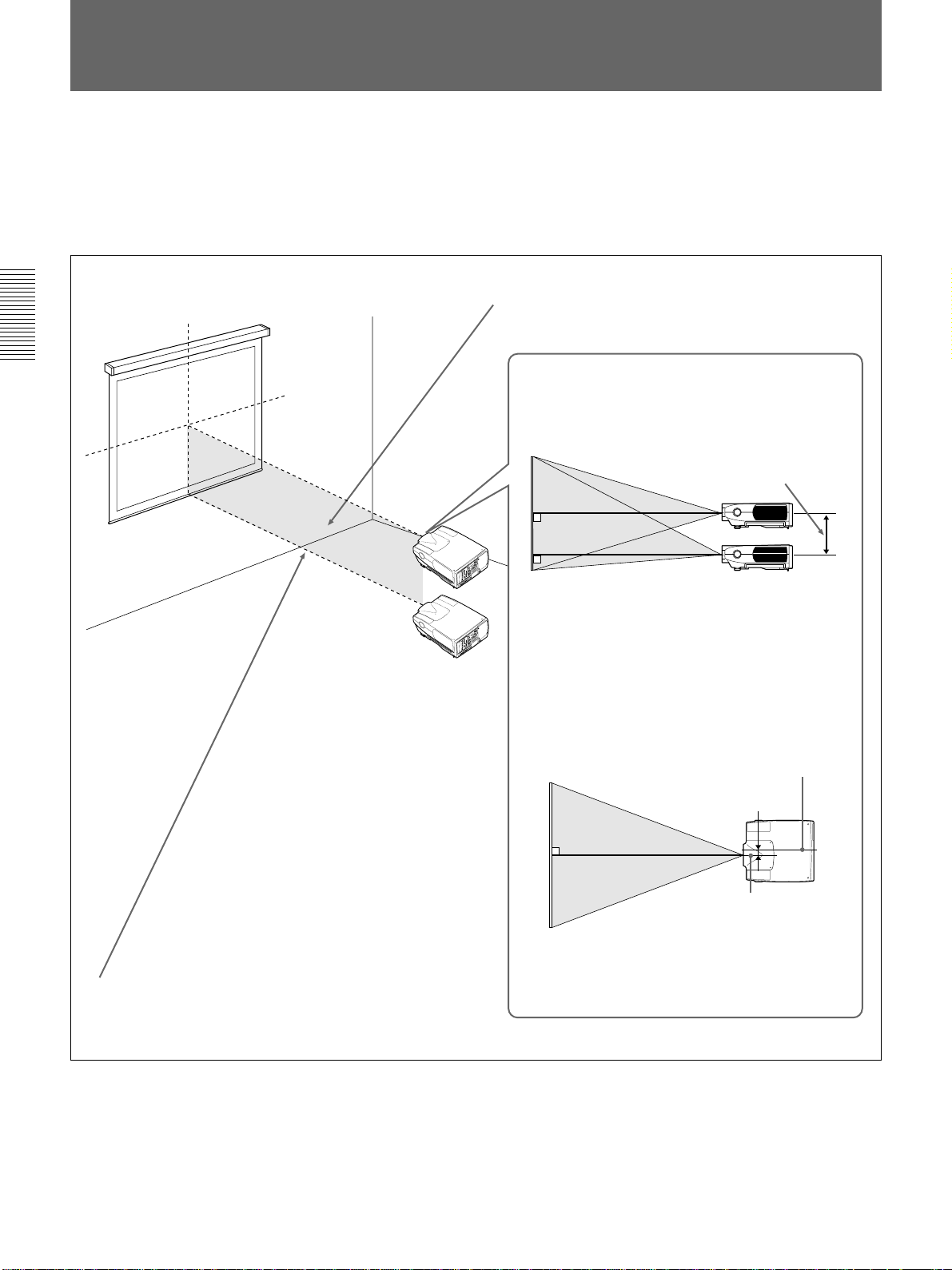

Installing the Projector on the Floor

This section describes the installation arrangements for installing the
projector on the floor.
For ceiling installation, consult with qualified Sony personnel.

For details on installation examples with projection distances, see the supplied
“Projection Distance Charts.”

Horizontal center of the screen

Vertical center
of the screen

Installation
area

Projection
distance

Install the projector so that the tip of the lens is within this area.

Adjust the vertical and horizontal positioning of the
projector.

Vertical positioning (side view)

Screen

Adjustable range

U
N
E
M

R

E
T
N
E

S

U
C

A

O

P

F

A

T
F
I
H

T

T

S

H

E
S
E

LIG

R

M
O
O
Z

G
IN

IO

T

D

+

U

U
M
A

E

PATTERN

M
LU

I

T

O

C

C

V

/

P

E

O
L
E

O
E

IN

–

E
S
VID
T
ID

U

V

P

S
T

IN

C
E
L

C
E

T

S

U

P

OUT

IN

INPUT A VIDEO

O

Y

E
ID
V

T B
U
P
IN

IL

A

A

F

T

P

U

M

C

P

A

8

L

IN

Y

O

­E

/R

ID

R

V

G
IN
V
A

12

S
R
E
W

IL

8

O

O
A

O

E

P
F

INPUT C INPUT B

E

/Y

ID

R

ID

E

V

G

V

34

V

O
IL

C
A
F
N
A

P
F

O

M

AUDIO OUT

E

E

T

-Y
ID

T

V

H

/B
B

IG

X

H

E

L

D
IN

E
IC
V

C

E

N

D

Y
S
D
/H

R

L

)
O

0

N
O
(M

IO

D

U

0

A

N

I

D
V

R

)
O
N

T

O

U

(M

L

NO

I
IO
D
U
A
IN

R

E

T

R

W

U

O

P

IN

G

U

L

P

5

8

-4
S
R

REMOTE CONTROL S TRIG

IN O

A
2
2
/4
C
2
3
2

­S
R

­S
R
A

­2
2
S
4
R
C
2
3
2

You can adjust the angle of projection by performing
the shift adjustment (page 20 (GB)).

U
N
E
M

R

E
T
N
E

S
U

C

A

O

P

F

A

T
F
I
H

T

T

S

H

E
S
E

LIG

R

M
O
O
Z

G
IN

IO

T

D

+

U

U
M
A

E

PATTERN

M
U
L

I

T

O

C

C

V

/

P

E

O
L
E

O
E

IN

–

E
ID
S
V
T
ID

U

V

P

S
T

IN

C
E
L

C
E

T

S

U

P

OUT

IN

INPUT A VIDEO

O

Y

E
ID

B

V

T
U
P
IN

IL

A

A

F

T

P

U

M

C

P

A

8

L

IN

Y

O

­E

/R

D
I

R

V

G
IN
V
A

12

S
R
E
W

IL

8

O

O
A

O

E

P
F

INPUT C INPUT B

E
Y
/

ID

R
E

ID

V

G

V

34

V

O
IL

C
FA
N
A

P

F

O

M

AUDIO OUT

E

E
Y

T

-

ID

T

B

V

H

/
B

IG

X

H

E

L

D
IN

E
IC
V

C

E

N

D

Y
S
D
/H

R

L

)
O

0

N
O
(M

IO

D

U

0

A

IN

D
V

R

)
O
N

T

O

U

(M

L

NO

I
O
I
D
U
A
IN

R

E

T

R

W

U

O

P

N

I

G

U

L

P

5
8
4

­S
R

REMOTE CONTROL S TRIG

IN O

A
2
2
4
/
C
2
3
2

­S
R

­S
R
A

­2
2
S
4
R
C
2
3
2

• Install the projector so that the center of the lens is
between just above the bottom edge of the screen
and the center of the screen.

• When using the VPLL-2009, make sure that the
center of the lens is aligned with the vertical center
of the screen.

Horizontal positioning (top view)

Screen

Center of the projector

The distance between the lens and the screen varies
depending on the size of the screen and the attached lens.
Use the charts for installation examples in the supplied
“Projection Distance Charts.”

16 (GB)

38 mm (1 1/2 inches)

Center of the lens

Adjust the horizontal positioning of the projector so
that the center of the lens is aligned with the
horizontal center of the screen.

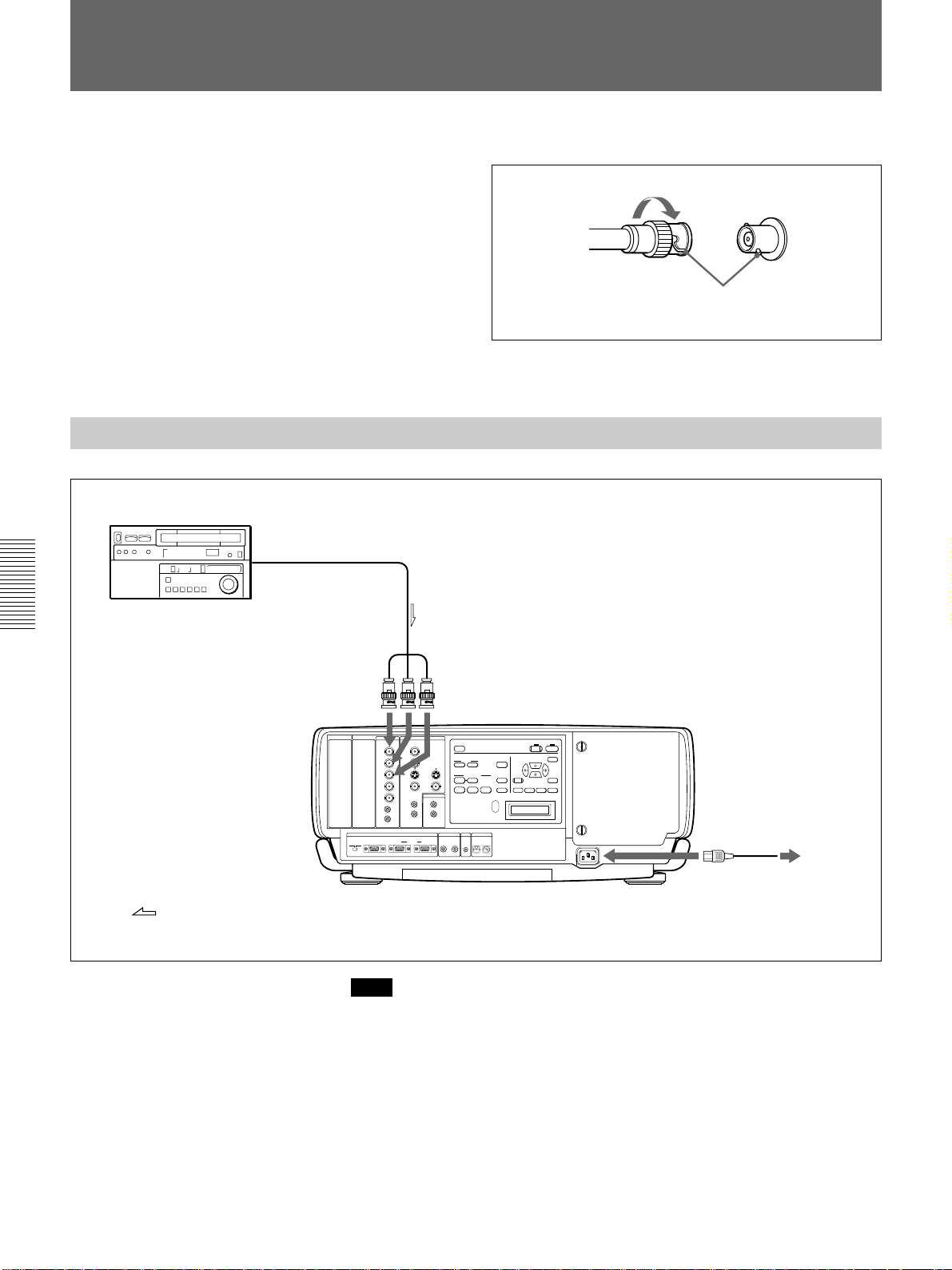

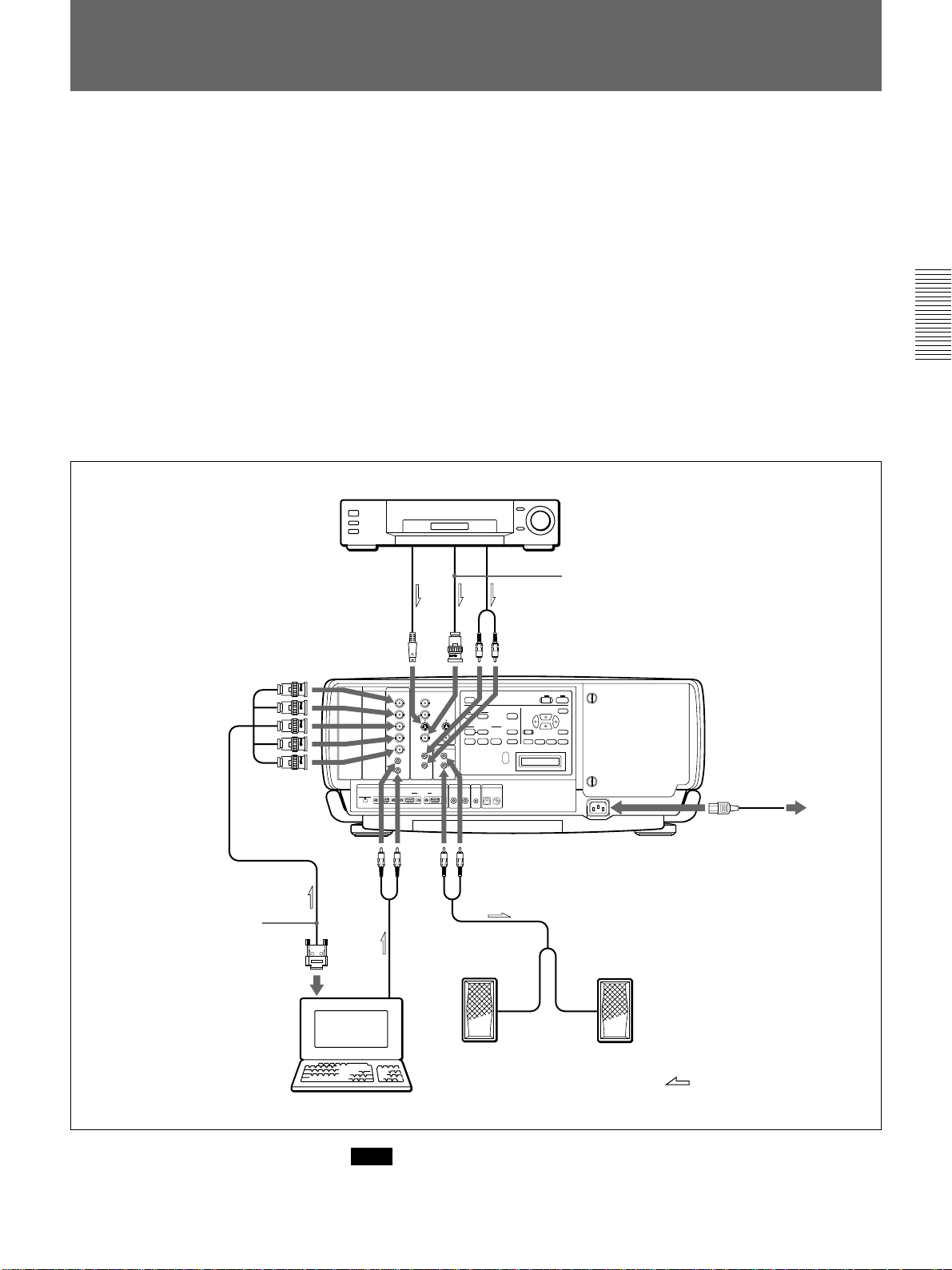

Connecting with a Computer or a VCR

This section describes how to connect the projector with a computer, VCR,
and external active speakers.

For details on how to connect other equipment, see pages 28 (GB) to 30 (GB).

Also refer to the instruction manuals of the equipment to be connected.

When making connections, be sure to:

•turn off all equipment before making any connections.

•use the proper cables for each connection.

•insert the plugs of the cables properly; plugs that are not fully inserted
often generate noise. When pulling out a cable, be sure to pull it out by
the plug, not the cable itself.

Note on the VPL-FE100E model

The optional IFB-X2000E interface board is required for using the VIDEO
connectors.

VCR

SMF-400 Monitor cable
(5BNC˜HD D-sub 15-pin)
(not supplied)
Use the optional ADP-20
Signal adapter (not supplied)
when connecting with a
Macintosh computer.

to S VIDEO OUT

S video cable
(not supplied)

Rear

INPUT C INPUT B

INPUT A VIDEO

REMOTE CONTROL S TRIG

Audio cable
(not supplied)

to
VIDEO
OUT

AUDIO OUT

to AUDIO OUT

Audio cable
(not supplied)

+

–

DEVICE INDEX

1

0

Audio cable
(not supplied)

Video cable (not supplied)

to AC IN

to a wall outlet

AC power cord
(supplied)

Active speakers

:

Signal flow

Computer

Note

Set INPUT-A in the SIGNAL SELECT menu to COMPUTER.

For details, see page 27 (GB).

17 (GB)

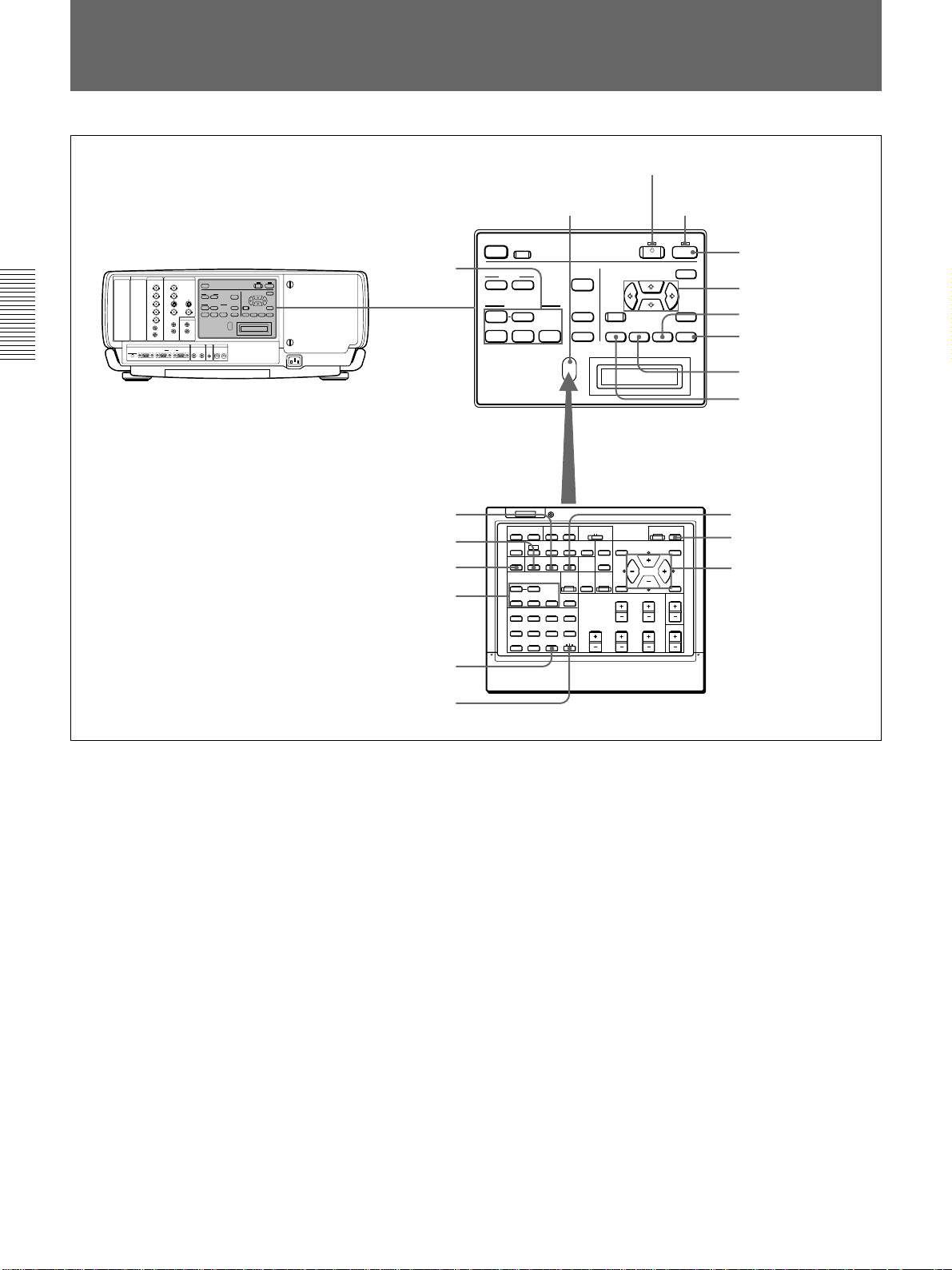

Projecting

STANDBY indicator

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

Rear remote control detector

LIGHT

RESET

SYS SET+

2

+

–

0 0

MUTING

PIC AUDIO

INPUT SELECT

VIDEO

SELECT

INPUT A INPUT B INPUT C

LAMP FAIL

POWER SAVING

COVER FAIL

12

FAN FAIL

34

HIGHT TEMP

APA

VOLUME

+

PATTERN

–

ON indicator



ON

STANDBY

MENU

ENTERRESET

ZOOM SHIFT FOCUS

1
4,5,6,7

7
4,6

5
3,8

7
5

3,8

2

LIGHT

MUTING

STATUS

PIC ONAUDIO OFF

RGB

NORMAL

DOT PHASE

APA

LCD LENS CONTROL

ZOOM

PATTERN

VIDEO

SWITCHER/VIDEO MEMORY /INDEX NO

SHIFT

INPUT SELECT

SELECT

VIDEO/S VIDEO

ADBC

1423

5867

SW NO/

9

10/0(ALL)

OFF/GBOUP

FOCUS

SYS SET

VIDEO MEMORY
SWITCHERINDEX

COMMAND

ON

OFF

CENT

R

SHIFT

BLKG

RESET

SHARP

MEMORY

B

PUNCTION

PICTURE CONTROL

BRIGHT

HUE

SIZE

CONTR

COLOR

ONSTANDBY

MENU

ENTER

POSITION

VOLUME

4,6
1

4,5,6,7

2
2

1 Press the ON key on the Remote Commander or the control panel.

The ON indicator lights in green.

2 Turn on the power of equipment connected to the projector. Press the

INPUT SELECT keys on the Remote Commander or the control panel
to select the input source.

VIDEO: Selects the video signal input from the VIDEO or S VIDEO

connectors and the audio signal input from the AUDIO IN L/R
jacks. To switch the VIDEO or S VIDEO connectors, use the
SELECT key.

SELECT: Each time you press this key, the input signal is switched

between VIDEO and S VIDEO.

INPUT A: Selects the audio and video signals input from the INPUT

A connectors.

INPUT B: Selects the signal input from the connectors on the optional

interface board which is installed in the INPUT B section.

INPUT C: Selects the signal input from the connectors on the optional

interface board which is installed in the INPUT C section.

18 (GB)

When you input the signal from equipment connected to the PC-3000
signal interface switcher (not supplied), set the SWITCHER/VIDEO
MEMORY/INDEX select switch on the Remote Commander to the
SWITCHER position and press the number keys to select the input.
When multiple switchers are connected, press the SW NO/OFF/
GROUP key, then press the number keys to select the input.

Note

Press the SYS SET key when you make the system connections using
the PC-3000 switcher.

Note on the VPL-FE100E model

The optional IFB-X2000E is required for selecting VIDEO.

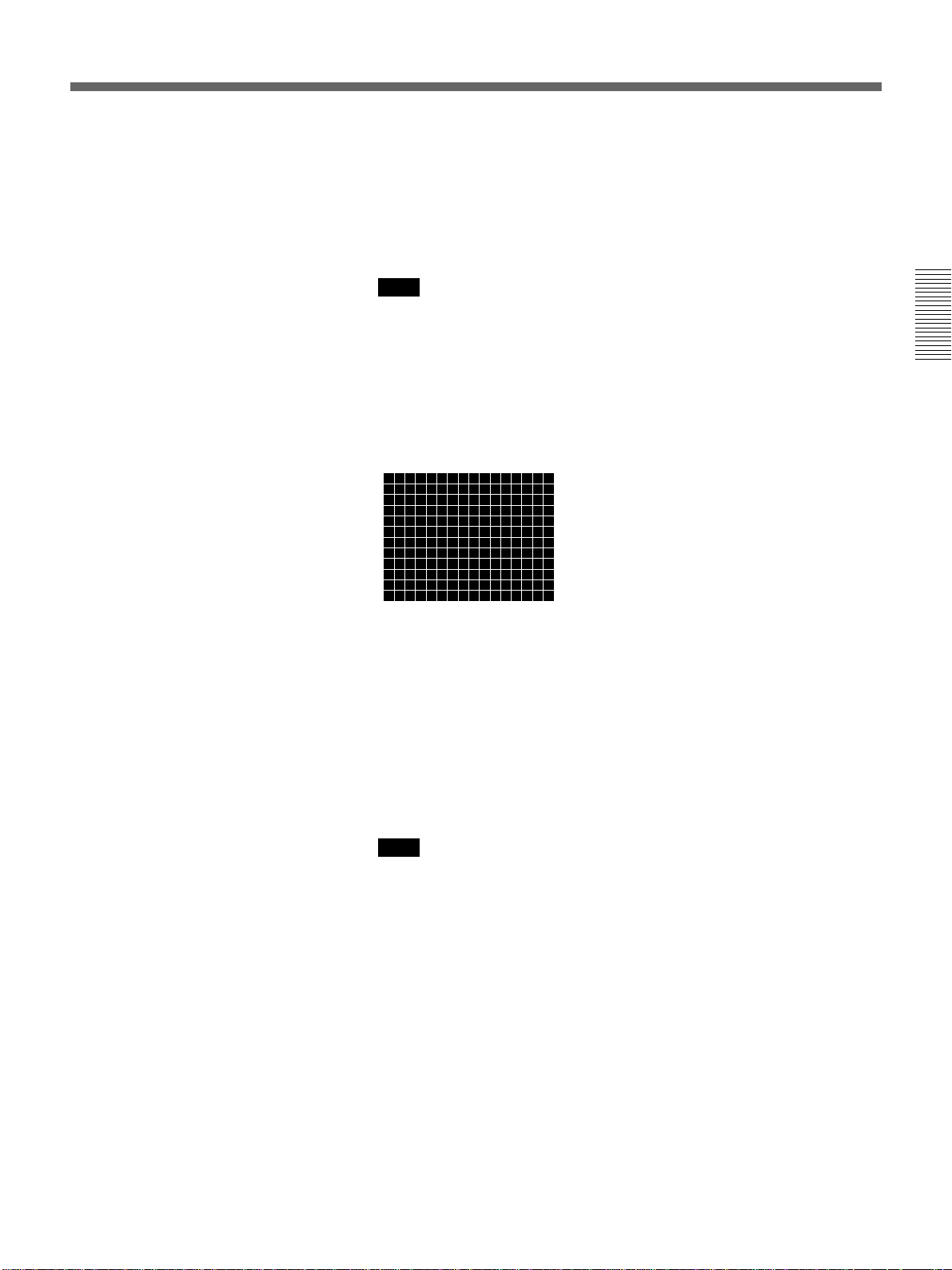

3 Press the PATTERN key on the Remote Commander or the control

panel to display the HATCH pattern.

4 Press the FOCUS key then the V or v key on the Remote Commander

or the control panel to adjust the focus.

“FOCUS” appears on the screen during adjustment.

5 Press the ZOOM key then the V or v key on the Remote Commander

or the control panel to adjust the picture size.

“ZOOM” appears on the screen during adjustment.

Note

If the optional VPLL-2075, VPLL-2014, VPLL-2009 or VPLL-3050
lens is installed, you cannot adjust the zoom.

6 Press the FOCUS and arrow keys on the Remote Commander or the

control panel to adjust the focus again.

“FOCUS” appears on the screen during adjustment.

(continued)

19 (GB)

Projecting

7 Press the SHIFT key then the arrow keys on the Remote Commander

or the control panel to adjust the vertical position of the picture.

“PICTURE SHIFT” appears on the screen during adjustment.

8 Press the PATTERN key again to clear the HATCH pattern.

To turn off the power

To

Adjust the volume
Cut off the sound

Cut off the picture

Note

Press

the VOLUME +/– keys.
the AUDIO MUTING key (also cuts off the signal output

from the AUDIO OUT jacks.)
To restore the sound, press the AUDIO MUTING key again
or press the VOLUME + key.

the PIC MUTING key.
To restore the picture, press the PIC MUTING key again.

Do not look into the lens when the projector lamp is on.

1 Press the STANDBY key on the Remote Commander or the control

panel.

The ON indicator flashes in green and the cooling fan keeps running
for about six minutes to reduce the internal heat. The ON indicator
flashes quickly for one minute. During this time, you will not be able
to turn the power back on. After about one minute, you can turn on the
power with the ON key.

20 (GB)

When the fan stops running, the STANDBY indicator lights in red.

Note

To extend the lamp life, do not turn off the power for at least 10
minutes after turning on the power.

Using the Menu

Adjustments and settings using the menu

The projector is equipped with an on-screen menu for
making various adjustments and settings.
Unadjustable items are not displayed in the menu.

To change the language used in the menu, see page
26 (GB).

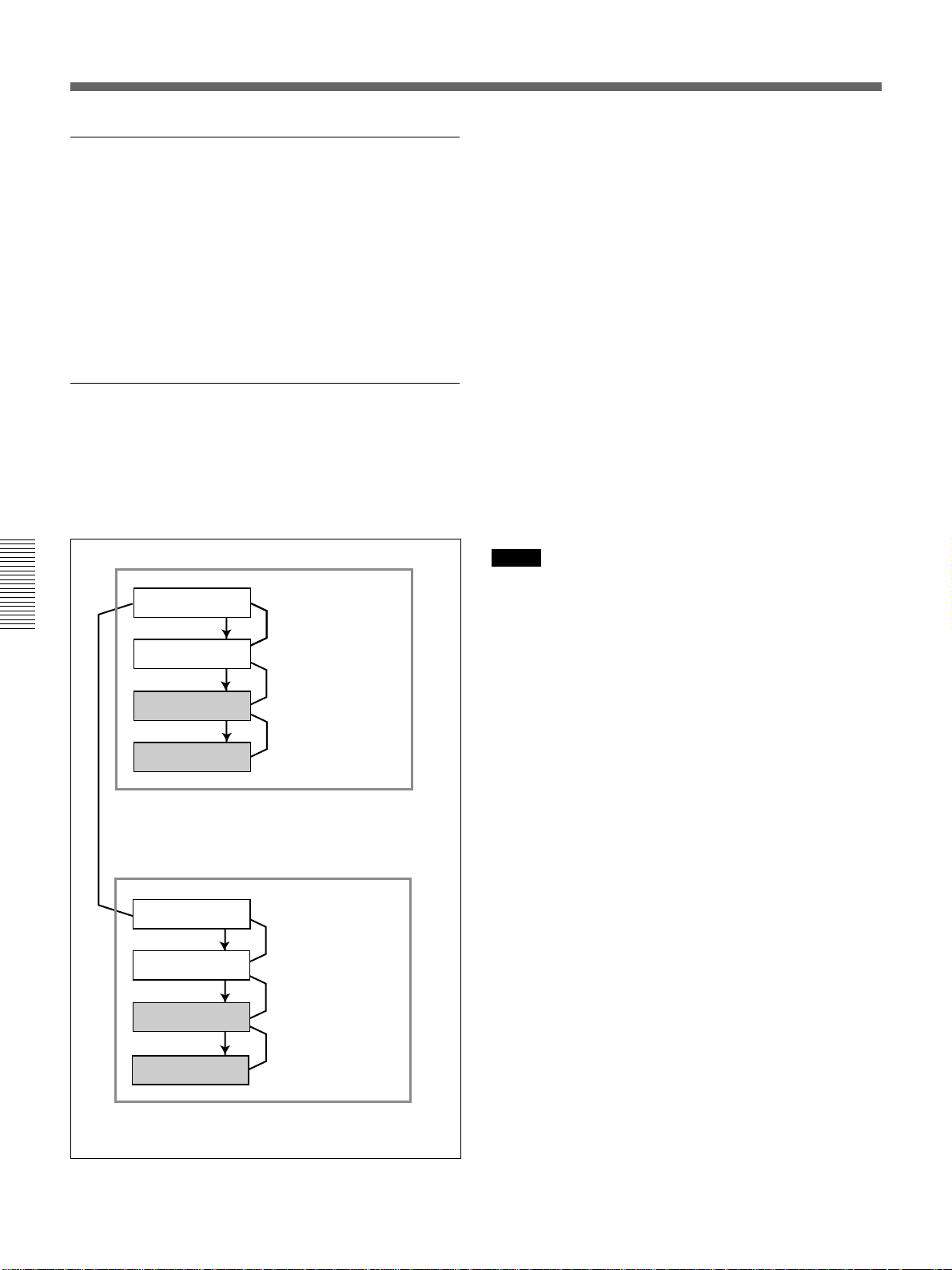

1 Press the MENU key.

The menu display appears.
The menu presently selected is highlighted in
yellow.

PICTURE CTRL

CONTRAST:
BRIGHT:
COLOR:
HUE:
SHARP:
D.PICTURE:
COLOR TEMP:
COLOR SYS: AUTO

80
50
50
50
50
OFF
LOW

VIDEO

2 Use the V or v key to select a menu, then press the

b or the ENTER key.

The setting items of the selected menu are
displayed.

Menus

Setting items

To erase the menu display

Press the MENU key. The menu display also
disappears automatically if no key is pressed for one
minute.

To reset settings that have been adjusted

Press the RESET key.
“Reset complete!” appears on the screen and the
settings appearing on the screen will be reset to their
factory preset values.

Items that can be reset are as follows:

CONTRAST, BRIGHT, COLOR, HUE, SHARP,
DOT PHASE, SIZE, SHIFT and BLANKING.

About the memory of the settings

The settings are automatically stored in the projector
memory.

SET SETTING

STATUS:
SPEAKER:
LANGUAGE:
INSTALLATION:
POWER SAVING
SIRCS RECEIVER
GROUP INDEX:
DEVICE INDEX:0101

ON
ON
ENGLISH
FLOOR-FRONT
OFF

:

FRONT&REAR

:

INPUT-A

3 Use the V or v key to select the item, then press the

b or the ENTER key.

4 Adjust an item.

•When changing the adjustment level:

To increase the number, press the V or b key.
To decrease the number, press the v or B key.
Press the ENTER key to restore the original
screen.

•When changing the setting:

Press the V or v key to change the setting, then
press the B or the ENTER key.
The original screen is restored.

For details on setting individual items, see the relevant
menu pages.

21 (GB)

The PICTURE CTRL Menu

The PICTURE CTRL menu is used for adjusting the
picture. Unadjustable items are not displayed in the
menu.

PICTURE CTRL

CONTRAST:
BRIGHT:
COLOR:
HUE:
SHARP:
D.PICTURE:
COLOR TEMP:
COLOR SYS: AUTO

80
50
50
50
50
OFF
LOW

VIDEO

CONTRAST

Adjusts the picture contrast.
The higher the setting, the greater the contrast.
The lower the setting, the lower the contrast.

BRIGHT (Brightness)

Adjusts the picture brightness.
The higher the setting, the brighter the picture.
The lower the setting, the darker the picture.

COLOR TEMP (temperature)

Adjusts the color temperature.

HIGH: Makes the white color bluish.
LOW: Makes the white color reddish.

COLOR SYS (system)

Selects the color system of the input signal.
Normally, set to AUTO.
If the picture is distorted or colorless, select the color
system (NTSC

3.58/PAL/SECAM/NTSC4.43/PAL-M)

according to the input signal.

GAMMA MODE

Select either position to obtain an optimum picture.

GRAPHICS: Improves the reproduction of half

tones. Photos can be reproduced in natural tones.

TEXT: Contrasts black and white. Suitable for

images with lots of text.

COLOR

Input signals and adjustable/setting items

Adjusts color intensity.

Component/
progressive
component

Y
Y
Y
Y

Y
N
Y

N

N

Input signal

RGB

(preset)

Y
Y
Y
Y

Y
Y
Y

N

N

Y
Y
N
N

N
N
Y

N

Y

RGB
(preset)
(HDTV,

DTV)

Y
Y
Y
Y

Y
N
Y

N

N

RGB

(not

preset)

Y
Y
N
N

N
N
Y

N

Y

The higher the setting, the greater the intensity.
The lower the setting, the lower the intensity.

HUE

Adjusts skin tones.
At high settings, the picture becomes greenish.
At low settings, the picture becomes purplish.

SHARP (Sharpness)

Adjusts the picture sharpness.
The higher the setting, the sharper the picture.
The lower the setting, the softer the picture.

D. (Dynamic) PICTURE

Emphasizes the black color.

ON: Emphasizes the black color to produce a bolder

Item

CONTRAST
BRIGHT
COLOR
HUE

SHARP
D. PICTURE
COLOR

TEMP
COLOR

SYS
GAMMA

MODE

Video

or

S video

Y
Y
Y
Y

(NTSC

3.58/

1)

4.43
only)

Y
Y
Y

Y

N

15k

RGB

“dynamic” picture.

OFF: Reproduces the dark portions of the picture

accurately, in accordance with the source signal.

...........................................................................................................................................................................................................

1) NTSC4.43 is the color system used when playing back a video recorded in
NTSC color system on a NTSC4.43 system VCR.

Y: Adjustable/can be set
N: Not adjustable/cannot be set

22 (GB)

The INPUT SETTING Menu

The INPUT SETTING menu is used to change the
settings of the input signal. Unadjustable items, which
vary according to the input signal, are not displayed in
the menu.

INPUT SETTING

DOT PHASE:
SIZE
SHIFT

8
H:1344
H:123 V:123

INPUT-A

1024x768
NO . 2 3
n 20

DOT PHASE

Adjusts the phase of the LCD panel and the input
signal when H FILTER is set to OFF.
Adjust the value to obtain the clearest picture.

SIZE

Adjusts the horizontal size of the picture.
As the setting for H increases, the horizontal size of
the picture becomes larger, and as the setting
decreases, the size becomes smaller. Adjust the setting
according to the input signal.
Use the B or b key to adjust the horizontal size.

SHIFT

Adjusts the position of the picture.
H adjusts the horizontal position of the picture, and
V adjusts the vertical position. As the setting for H
increases, the picture moves to the right, and as the
setting decreases, it moves to the left.
As the setting for V increases, the picture moves up,
and as the setting decreases, it moves down.
Use the B or b key to adjust the horizontal position
and the V or v key for the vertical position.

SCAN CONV (converter)

Converts the signal to display the picture so that it fits
the screen size.

ON: Displays the picture to fill the 4:3 screen. The

picture will lose some clarity.

OFF: Displays the picture while matching one pixel

of input picture element to that of the LCD. The
picture will be clear but the picture size will be
smaller.

Note

The function does not work for signals in Memory No.
32 and 33.

ASPECT

Sets the aspect ratio of the picture.
When inputting 16:9 (squeezed) signal from
equipment such as a DVD player, set to 16:9.

4:3: When the picture with ratio 4:3 is input
16:9: When the picture with ratio 16:9 (squeezed) is

input

H FILTER

Corrects the vertical bands that appear on the picture.
The vertical bands may occur when an RGB signal
with horizontal resolution of more than 1280 × 1024
pixels is input. In such cases, set to ON. The picture
will loose some clarity, but the vertical bands will be
reduced. Set to OFF to associate a dot of the input
signal with a pixel of the LCD.

BLANKING

Adjusts if excess signals are seen with the picture, or
the whole picture is not seen clearly.
Select BLANKING, then press the ENTER key to
display the blanking adjustment screen.
Use the V or v key to select the part to be adjusted
(TOP, BOTOM, RIGHT or LEFT), and the B or b key
to adjust.

23 (GB)

The INPUT SETTING Menu

Input signals and adjustable/setting items

Input signal

Item

DOT PHASE

SIZE
SHIFT
SCAN CONV

ASPECT
H FILTER

BLANKING

Video or

S video

N

N
Y
N

Y
N

Y

(TOP

and

BOTTOM

only)

15k

RGB

N

N
Y
N

Y
N

Y
(TOP and
BOTTOM

only)

Component/
Progressive
component

N

Y
Y
N

Y
N

Y

(TOP

and

BOTTOM

only)

RGB

(preset)

Y

(except

for

HDTV,

DTV)

Y
Y
Y

(Only for

lower

resolution

than

SXGA)

N
Y

(UXGA

only)

Y

(HDTV,

DTV

only)

RGB

(not preset)

Y

Y
Y
Y

(Only for

lower

resolution

than SXGA)

N

Y

(UXGA only)

Y

Y: Adjustable/can be set
N: Not adjustable/cannot be set

INPUT MEMORY No.

The upper number indicates the memory number of the
current input signal. The lower number indicates the
user memory number.

INPUT SETTING

DOT PHASE:
SIZE
SHIFT

8
H:1048
H:123 V:123

INPUT-A

1024x768
NO. 1
n 23

Type of input signal

Memory number

User memory
number

About the memory function

The adjustment data for 48 types of input signals are
preset at the factory (preset memory).
When a signal is input to the projector, the signal type
is automatimally detected and the data for the signal is
called from the memory to display an optimum picture.
The data can be adjusted in the INPUT SETTING
menu and the adjusted data will be saved as user
memory.
When you save more than 200 user memories, the
newest one always overwrites the oldest one.
The saved user memory number is displayed in the
INPUT SETTING menu as n NO. ππ.
When an RGB signal other than the preset signals is
input to the projector, the memory number is displayed
as 0 and the closest option is automatically selected
from the preset 48 types of signals.

Notes

•When an RGB signal is input with sync on Green
including external sync, the picture tone may be
greenish. In this case, disconnect the external sync
signal.

•When an HDTV 1035/60i signal is input, the picture
will appear smaller. Adjust SIZE, SHIFT and
BLANKING referring to the following levels as a
standard.

SIZE H: 1479
SHIFT H: 321

V: 41

BLANKING TOP: 167

BOTTOM: 167
RIGHT: 27
LEFT: 27

•If SCAN CONV is set to ON when a signal in

Memory No. 34–38 is input, the picture will appear
widened. Adjust SIZE and SHIFT, referring to the
following levels as a standard.

Memory No. 34 35 36 37 38
SIZE 1590 1575 1590 1582 1620

SHIFT

H 181 170 182 146 154
V 18 32 36 36 42

24 (GB)

Memory
No.

Preset signal

1 Video 60 Hz 15.73 59.94 — —
2 Video 50 Hz 15.63 50.00 — —
3 15k RGB (60 Hz) 15.73 59.94 S on G —
4 15k RGB (50 Hz) 15.63 50.00 S on G —
5 HDTV 33.75 60.00 S on Y/G 1543
6 640 × 350 VGA-1 (VGA350) 31.47 70.09 H-pos V-neg 800
7 VESA* 85(VGA350) 37.86 85.08 H-pos V-neg 832
8 640 × 400 NEC PC98 24.82 54.42
9 VGA-2 (TEXT)

10 VESA 85 (VGA400) 37.86 85.08
11 640 × 480 VGA VESA60 31.47 59.94
12 Mac 13 35.00 66.67
13 VGA VESA 72 37.86 72.81
14 VGA VESA 75

15 VGA VESA 85

16 800 × 600 SVGA VESA 56 35.16 56.25
17 SVGA VESA 60 37.88 60.32
18 SVGA VESA 72 48.08 72.19
19 SVGA VESA 75

20 SVGA VESA 85 53.67 85.06
21 832 × 624 Mac 16 49.72 74.55
22

1024 × 768

23 XGA VESA 60 48.36 60.00
24 XGA VESA 70 56.48 69.96
25 XGA VESA 75 60.02 75.03
26 XGA VESA 85 68.68 85.00
27

1152 × 864
28 VESA 75 67.50 75.00
29 VESA 85 77.49 85.06
30

1152 × 900
31 SUN HI 71.71 76.05
32

1280 × 960
33 VESA 75 75.00 75.00
34

1280 × 1024
35 SGI-5 53.32 50.06
36 SXGA VESA 60 63.97 60.01
37 SXGA VESA 75 79.98 75.03 H-pos V-pos 1688
38 SXGA VESA 85 91.15 85.02

/VESA70

(IBM M3)

(IBM M4)

(IBM M5)

XGA VESA 43
(8514)

VESA 70 64.00 70.02

SUN LO 61.80 65.96

VESA 60 60.00 60.00

SXGA VESA 43 46.43 86.87

fH fV
(kHz) (Hz) size

31.47 70.09

37.50 75.00

43.27 85.01

46.88 75.00

35.52 86.96

Sync

H-neg V-neg
H-neg V-pos 800
H-neg V-pos 832

H-neg V-neg 800
S on G 864
H-neg V-neg 832

H-neg V-neg

H-neg V-neg 832
H-pos V-pos 1024

H-pos V-pos 1056
H-pos V-pos 1040

H-pos V-pos 1056
H-pos V-pos 1048

H-neg V-neg 1152
H-pos V-pos 1264
H-neg V-neg 1344

H-neg V-neg 1328
H-pos V-pos 1312
H-pos V-pos 1376
H-pos V-pos 1472
H-pos V-pos 1600
H-pos V-pos 1568
H-neg V-neg 1504
C-neg 1472
H-pos V-pos 1800
H-pos V-pos 1728
H-pos V-pos 1696
H-neg V-neg
S on G 1696

H-pos V-pos 1728

Horizontal

848

840

1680

Memory
No.

Preset signal

39

1600 × 1200
40 UXGA VESA 65 81.91 65.53
41 UXGA VESA 75 93.75 75.00
43

480/60p (Progressive component)
44

575/50p (Progressive component)
45 1080/50i 28.13 50.00 — 1852
47 720/60p 45.00 60.00 — 1736
48 720/50p 37.50 50.00 — 2084
49 1080/24P

UXGA VESA 60 75.00 60.00

S

F 27.00 48.00 — 1929

fH fV
(kHz) (Hz) size

31.47 60.00

31.25 50.00

Sync

H-pos V-pos 1689
H-pos V-pos 1689
H-pos V-pos 1689
S on G 1605
S on G 1616

* VESA is a registered trademark of Video Electronics

Standard Association.

Horizontal

25 (GB)

The SET SETTING Menu

The SET SETTING menu is used for changing the
initial settings of the projector. Unadjustable items are
not displayed in the menu.

SET SETTING

STATUS:AT
SPEAKER:
LANGUAGE:
INSTALLATION:
POWER SAVING
SIRCS RECEIVER
GROUP INDEX:
DEVICE INDEX:

ON
ON
ENGLISH
FLOOR-FRONT
OFF

:
:

FRONT&REAR
01
01

INPUT-A

STATUS

Sets up the on-screen display.

ON: Shows all of the on-screen displays.
OFF: Turns off the on-screen displays except for the

menus and warning messages.

SPEAKER

Set to OFF to cut off the sound of the internal speaker
when external speakers are connected. When set to
OFF, “SPEAKER OFF” appears on the screen when
you turn on the power.

LANGUAGE

Selects the language used in the menu and on-screen
displays.
Available languages are: English, French, German,
Italian, Spanish, Japanese and Chinese.

POWER SAVING

When set to ON, the projector goes into the power
saving mode and the lamp for light source turns off if
no signal is input for about 10 minutes.
The power saving mode is canceled when a signal is
input or any key is pressed.

SIRCS RECEIVER

Selects the remote control detectors to be activated.
Change the setting if the wireless Remote Commander
does not work properly due to the influence of the
fluorescent lamp, etc.

FRONT & REAR: Activates both the front and rear

detectors.

FRONT: Activates the front detector only.
REAR: Activates the rear detector only.
OFF: Activates neither the front nor rear detector.

Note

When set to OFF, the wireless Remote Commander
does not function. Use the keys on the control panel or
the wired Remote Commander.

GROUP INDEX

Groups multiple projectors or switchers to operate
them simultaneously.
You can set the group index number to the desired
number between 01 and 99.

For details for setting the group index, see pages 31 (GB)
and 32 (GB).

INSTALLATION

Reverses the picture horizontally or vertically.

FLOOR-FRONT: The picture is not reversed.
CEILING-FRONT: The picture is reversed

horizontally and vertically.

FLOOR-REAR:

The picture is reversed horizontally.

CEILING-REAR: The picture is reversed

vertically.

Note

In case of using a mirror, be careful of installation
since the picture may be reversed.

26 (GB)

DEVICE INDEX

Displays the index number set with the INDEX
switches on the rear of the projector. You can check
the device index number but cannot set it with this
menu.

For details for setting the number, see page 31 (GB).

The SIGNAL SELECT Menu

The SIGNAL SELECT Menu is used for selecting the
input signal.
Depending on the interface board installed in the
projector, some items may not be displayed in the
menu.

SIGNAL SELECT

INPUT-A:
INPUT-B:
INPUT-C:

DTV-GBR
DTV-GBR
DTV-GBR

INPUT-A

Use the V or v key to select the input, then press the
ENTER key.

INPUT-A

Selects audio and video signals input from the INPUT
A connectors.

COMPUTER: Inputs the signal from a computer or

the RGB signal for a still picture.

COMPONENT: Inputs the component signal.
DTV-YP

DTV-GBR: Inputs the DTV (GBR) or HDTV

BPR: Inputs the DTV (YPBPR) or HDTV

BPR) signal.

(YP

(GBR) signal.

Note

This item is not displayed when the optional interface
board other than the IFB-12A is installed in the INPUT
B section, or when the output mode is selected on the
IFB-12A.

INPUT-C

Selects the input signal from the connectors on the
optional IFB-12A interface board installed in the
INPUT C section.

COMPUTER: Inputs the signal from a computer or

the RGB signal for a still picture.

COMPONENT: Inputs the component signal.
DTV-YP

DTV-GBR: Inputs the DTV (GBR) or HDTV

VIDEO: Inputs the composite video signal.
S-VIDEO: Inputs the S video signal.

Note

This item is not displayed when the optional interface
board other than the IFB-12A is installed in the INPUT
C section.

BPR: Inputs the DTV (YPBPR) or HDTV

BPR) signal.

(YP

(GBR) signal.

Note

When the PC-3000 signal interface switcher is
connected to the INPUT A connectors, you cannot
select the item.

INPUT-B

Selects the input signal from the connectors on the
optional IFB-12A interface board installed in the
INPUT B section.

COMPUTER: Inputs the signal from a computer or

the RGB signal for a still picture.

COMPONENT: Inputs the component signal.
DTV-YP

DTV-GBR: Inputs the DTV (GBR) or HDTV

VIDEO: Inputs the composite video signal.
S-VIDEO: Inputs the S video signal.

BPR: Inputs the DTV (YPBPR) or HDTV

BPR) signal.

(YP

(GBR) signal.

27 (GB)

Connection Examples

For details on how to connect a computer, VCR or external

Connecting a BNC connector

active speakers, see page 17 (GB). Also refer to the
instruction manual of the equipment to be connected.

2 Turn to the right.

When making connections, be sure to:

•turn off all equipment before making any
connections.

•use the proper cables for each connection.

•insert the plugs of the cables properly; plugs that are
not fully inserted may generate noise. When pulling
out a cable, be sure to pull it out from the plug, not
the cable itself.

Connecting 15k RGB/Component Equipment

15k RGB/component
equipment

to RGB/component output

1 Align the pins with the pin holes

and push in the plug into the
socket.

:

Signal flow

Monitor cable
(not supplied)

Rear

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

0

+

–

1

AC power cord

to AC IN

(supplied)

Note

Switch the input signal with the INPUT-A item in the SIGNAL SELECT
menu.

For details, see page 27 (GB).

to a wall outlet

28 (GB)

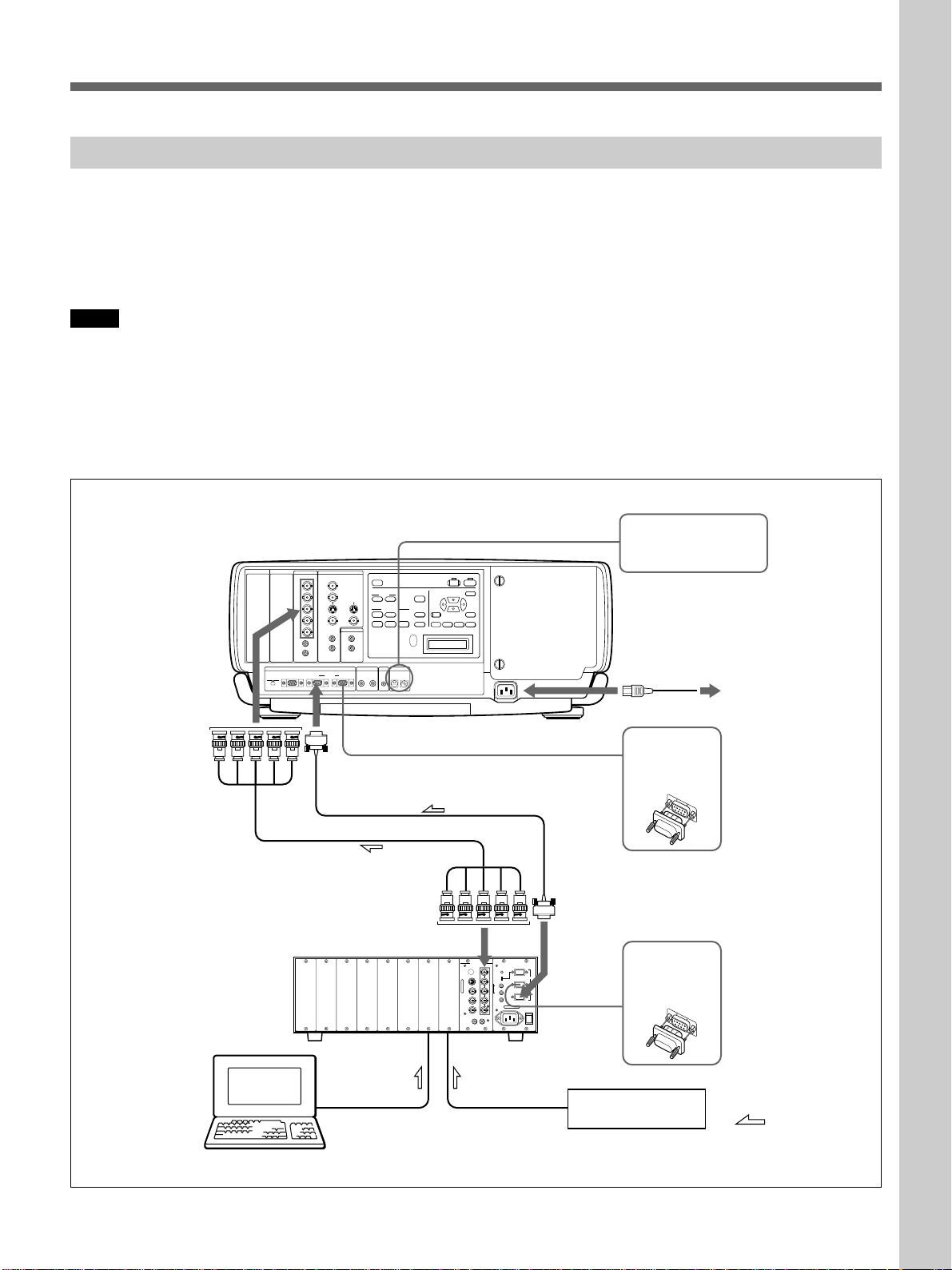

Connecting the Switcher

Connection examples/Index number setting

Use the optional PC-3000 Signal Interface Switcher
for connecting various video equipment. The input can
be selected by pressing the SWITCHER/VIDEO
MEMORY/INDEX keys on the Remote Commander.

For selecting the input from the switcher, see page 13 (GB).

Notes

•When you select the input from the switcher, be sure
to set the SWITCHER/VIDEO MEMORY/INDEX
select switch to the SWITCHER position.

Rear

INPUT C INPUT B

INPUT A VIDEO

AUDIO OUT

REMOTE CONTROL S TRIG

DEVICE INDEX

0

+

–

1

•When connecting the switcher, use the wired Remote
Commander. If you use the wireless Remote
Commander, activate the remote control detector on
only one unit of the equipment connected through the
PJ COM connector. For the other equipment, set
SIRCS RECEIVER in the SET SETTING menu to
OFF to deactivate the remote control detectors.

For details, see page 26 (GB).

•After all the connections are complete, attach the
terminator (supplied) to the PJ COM connector on
both the projector and switcher to which nothing is
connected.

Device index number: 01

AC power cord
(supplied)

to the wall outlet

to INPUT A

to PJ COM IN

SIC-10 connecting cable
(5BNC ˜ 5BNC)
(not supplied)

PC-3000 switcher

Computer, etc.

to OUTPUT

to AC IN

RCC-5G/10G/30G
connecting cable
(not supplied)

OUT PUT

RS-232C/422A

SW NO

RS-232C

REMOTE

RS-422A

RS-485 IN

RS-485 OUT

Attach the
supplied
terminator.

to PJ COM OUT

Attach the
terminator
(supplied with
the PC-3000).

VCR, etc.

:

Signal flow

29 (GB)

Connection Examples

Confirming the System Construction

After all the connections are complete, confirm that equipment of the
system is properly setup.

1 Connect the AC cords of all equipment to the AC outlets.
2 Press the SYS SET key on the Remote Commander.

You can also press the LIGHT and RESET keys simultaneously on the
control panel for the same effect.
Information on the system construction and the settings of the interface
boards, etc. are automatically confirmed. Then the message disappears.

Note

When you want to use the projector without connecting the switcher after
using the switcher in the system connections, it is necessary to confirm the
system construction again by pressing the SYS SET key or the LIGHT and
RESET keys after all the connections are complete. If you press the key(s),
“Master Switcher not exist” appears, but the system construction is
automatically recognized.

When a system error is detected

The following messages are displayed on the screen and display window:

If the switcher is in standby mode, the message appears only in the
message display window.

Message

Master Switcher not exist.

Same DEVICE INDEX for Projector
detected.

Same DEVICE INDEX for Switcher
detected.

Note

Remedy

Set the switcher that outputs the signal to
the projector to number 1.

Change either number of the projectors
that have the same number.

Change either number of the switchers
that have the same number.

30 (GB)

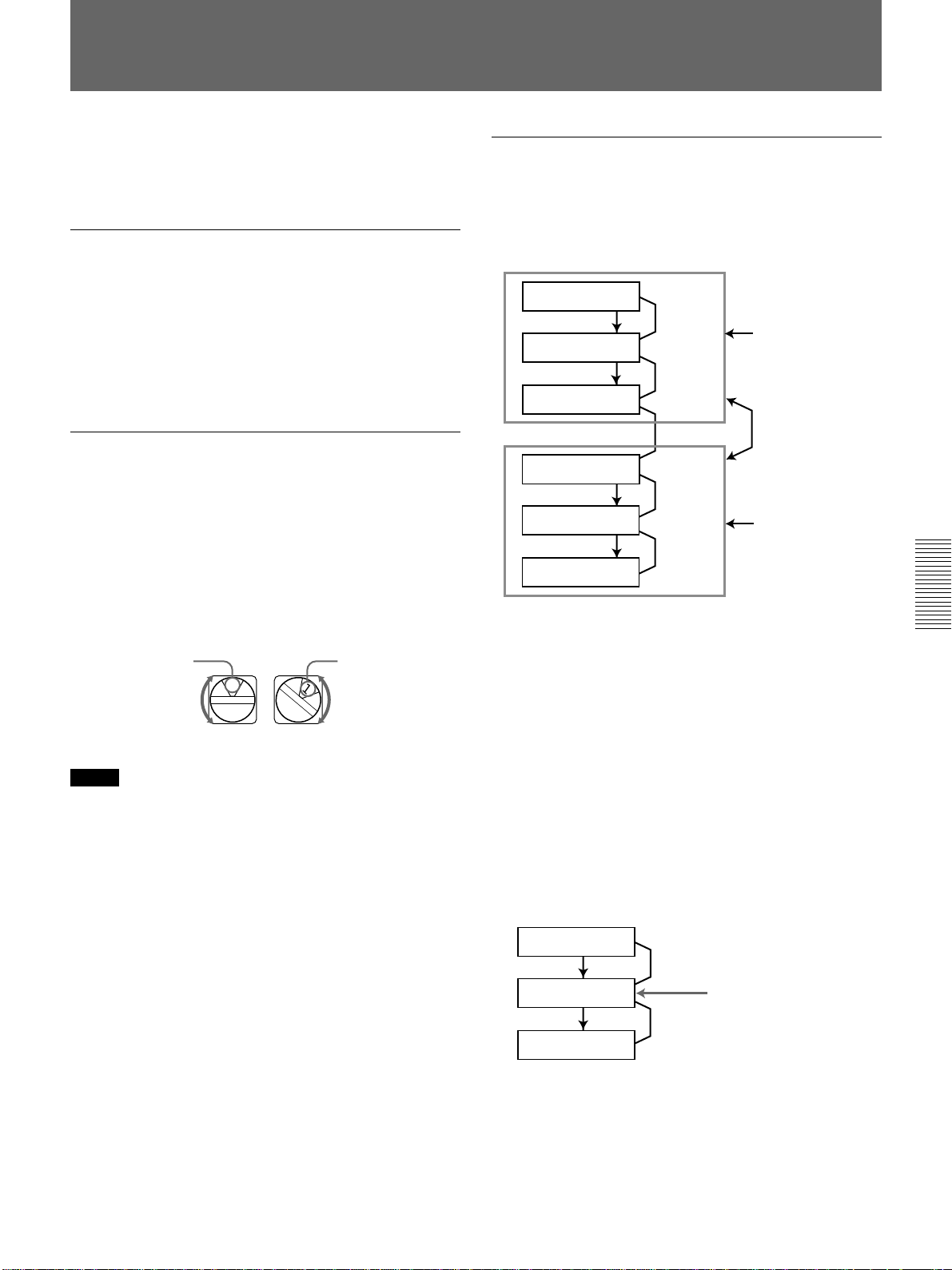

Setting the Index Numbers

When you connect multiple projectors in your system,
you have to set the group index and device index
numbers for each projector.

To set the group index number

If you set the same group index number for multiple
projectors, you can operate multiple projectors and
switchers simultaneously (such as input selection) by
designating the number.
The group index number can be set in the menu.

For group index number setting, see page 26 (GB).

To set the device index number

If you set the device index number, you can control
each projector individually with the supplied Remote
Commander.
The device index number can be set with the DEVICE
INDEX switches on the rear of the projector. It is set to
“01” at the factory.
If only one projector is connected, set it to “01.”

Ten’s digit Unit’s digit

0

Notes

•Do not set the same device index number for the
projectors in the same system.

•Do not set the number to “00.” If you do, the
projector will be operated only with the keys on the
control panel. It cannot be controlled with the wired
or wireless Remote Commander, or with an external
equipment to which the PJ COM connectors are
connected.

1

Notes on setting of the index number

•Set the same group index number for all
equipment of the same system connection (those
on the signal route between the signal source and
the projector).

PC-3000

Signal flow

PC-3000

Signal flow

Projector

PC-3000

Signal flow

Projector

Signal flow

Projector

For setting the group index number, see “GROUP INDEX”
on page 26 (GB).

•Set the correct group and device index numbers
and the switcher number.

Do not set the same device index number or the same
switcher number in one group.
For example, if there are different pieces of
equipment with the switcher number 1, the error
message will appear when the SYS SET key is
pressed.

•Set the switcher that outputs the signal to the
projector to number 1.

PC-3000

PJ COM

Set the same group
index number.

PJ COM

Set the different
group index number
for two systems.

PJ COM

Set the same group
index number.

PJ COM

PC-3000

Projector

Set this switcher to 1.

31 (GB)

Setting the Index Numbers

Notes on connections when two or more
switchers are used

•Mount the IFB-12A interface board to the slot 1 of
the number n switcher and connect the output
connector of the number (n+1) switcher to the
IFB-12A.

•You can attach the IFB-12A signal interface board
(when the IN/OUT switch is set to OUT) only to
the number 1 switcher.

To select the projector by designating the
index numbers

When the switchers and projectors are connected as
illustrated, select the desired projector by pressing the
keys on the Remote Commander as shown below.

PC-3000

Signal flow

PC-3000

Signal flow

Projector A

Signal flow

Projector B

Group index 01

PJ COM

Number 2 switcher

PJ COM

Number 1 switcher

PJ COM

Device index 01

PJ COM

Device index 02

Example:

To select all the projectors

GROUP n ALL n ENTER n ALL n
ENTER
Projectors A, B, C and D are selected.

To select projectors with device index 01 from all the

groups
GROUP n ALL n ENTER n 1 n ENTER
Projectors A and C are selected.

To select a projector with device index 01 from group

index 02
GROUP n 2 n ENTER n 1 n ENTER
Projector C is selected.

To select all the projectors from group index 02

GROUP n 2 n ENTER n ALL n ENTER
Projectors C and D are selected.

Notes

•Set the group index and device index numbers
correctly. If more than two projectors are set to the
same group index and device index numbers, an error
message will be displayed when the SYS SET key is
pressed.

•If the group index is a tens digit number, press the
GROUP key before each press of the number key.

Example:

To select a projector with device index 13 of group
index 12
GROUP n 1 n GROUP n 2 n ENTER n
1 n 3 n ENTER

32 (GB)

PC-3000

Signal flow

PC-3000

Signal flow

Projector C

Signal flow

Projector D

Number 2 switcher

PJ COM

Number 1 switcher

PJ COM

Device index 01

PJ COM

Device index 02

Group index 02

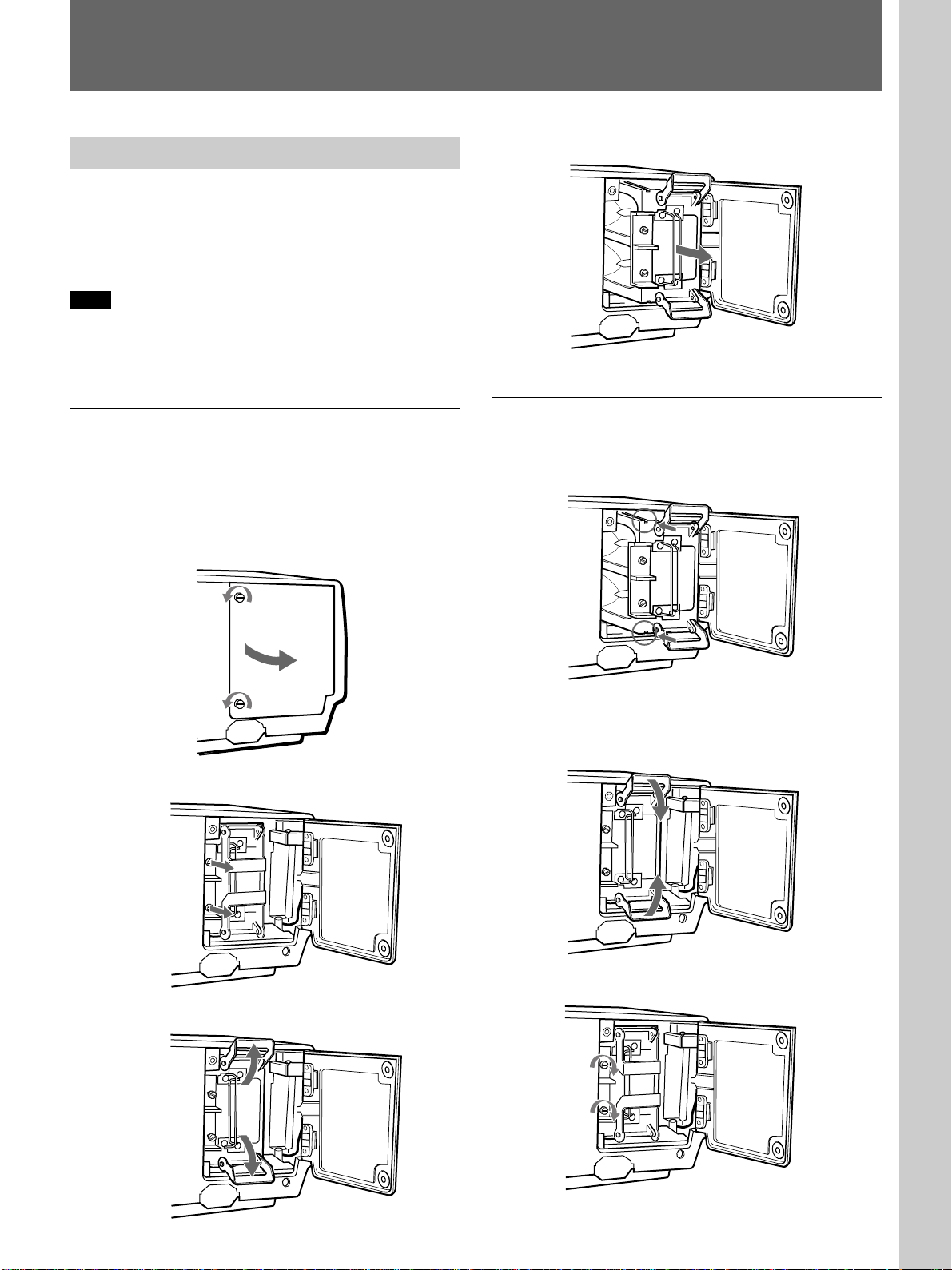

Maintenance

Maintenance

Replacing the Lamp

When the lamp has burnt out, the LAMP FAIL
indicators at the rear of the projector light. In this case,
replace the lamp with a new LMP-Q120 Projector
Lamp (not supplied).

Note

Immediately after turning off the power, the lamp is
extremely hot. Wait at least one hour before changing
the lamp to give it enough time to cool down.

To remove the lamp

1 Press the STANDBY key to set the projector to

standby mode, and unplug the power cord.

2 Remove the two screws with a coin or similar

object, or a screwdriver, to open the lamp cover.

5 Pull out the lamp by holding the handles.

To install a new lamp

1 Mount the lamp with the grooves on the top and

bottom aligned with the guides on the projector.

3 Loosen the two screws that fasten the lamp.

4 Fold out the levers up and down.

2 Push the lamp completely until it clicks.

Fold down the levers to fix the lamp to the
projector.

3 Tighten the two screws to secure the lamp.

(continued)

33 (GB)

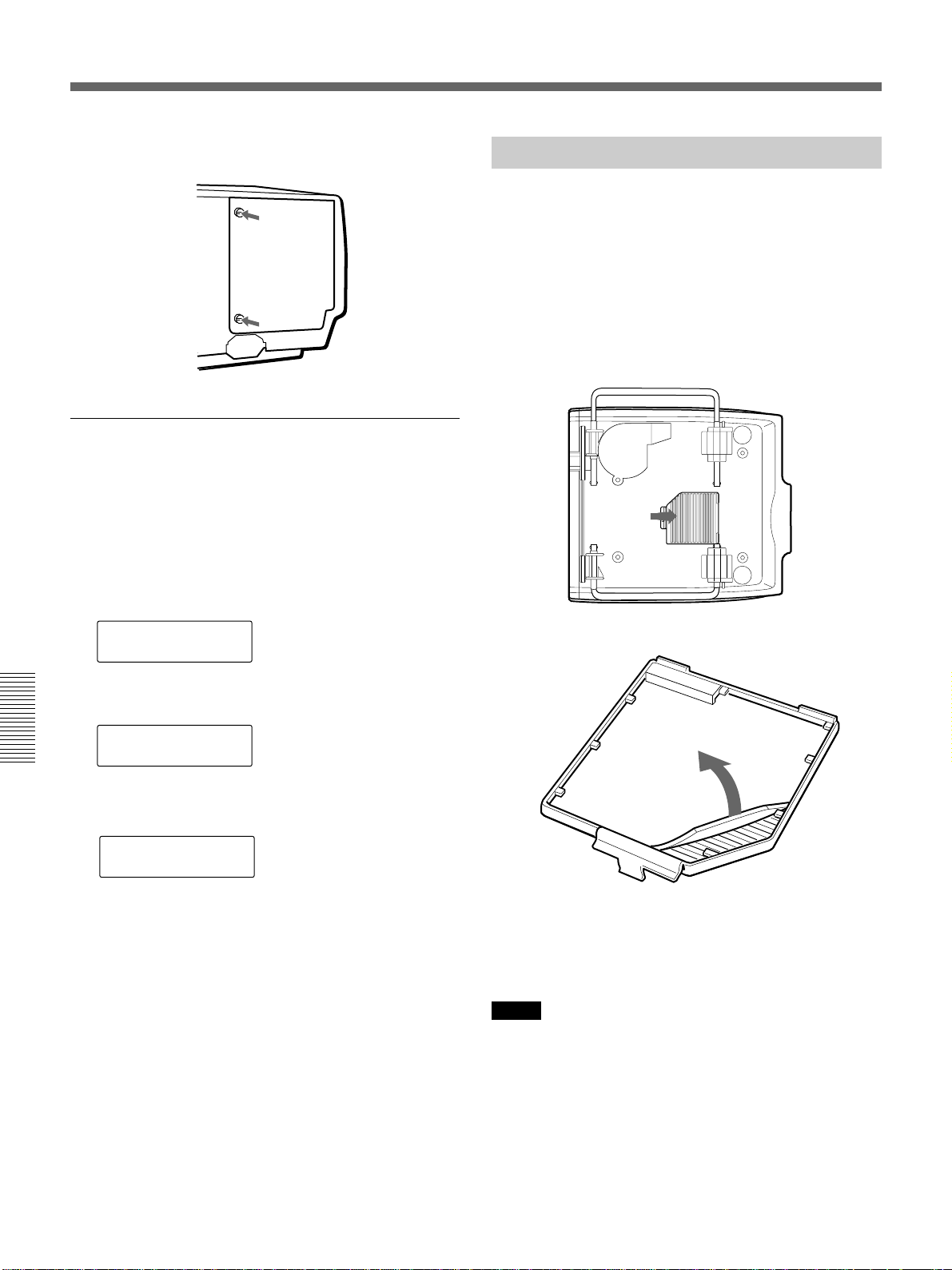

TIMER RESET?
LAMP: 1

TIMER RESET?
LAMP: ALL

TIMER RESET??
LAMP: ALL

Maintenance

4 Replace the lamp cover and push to tighten the two

screws to fix the cover.

To reset the use time of the lamps in the
message display window

1 Plug in the power cord and set the projector to

standby mode.

2 Press the LIGHT, B, b and ENTER keys on the

control panel in sequence. Press each key within 5
seconds.

Cleaning the Air Filter

The air filter should be cleaned in every 100 hours.
When it becomes difficult to remove the dust from the
filter, replace the filter with a new one.

1 Turn off the power of the projector and unplug the

power cord.

2 Remove the air filter cover on the bottom of the

projector.

3 Press the V or v key to display ALL.

4 Press the ENTER key.

5 Press the ENTER key again to reset the time.

The reset mode will be automatically cancelled.

3 Remove the air filter.

4 Remove the dust from the filter with a vacuum

cleaner.

5 Attach the air filter and replace the cover.

Notes

•If the air filter is excessively dirty, wash it with mild
detergent solution and dry it in a shaded place.

•Be sure to attach the air filter cover firmly; the power
will not be turned on if it is not closed securely.

34 (GB)

Troubleshooting

If the projector appears to be operating erratically, try to diagnose and
correct the problem, using the following guide. If the problem still persists,
consult with qualified Sony personnel.

Symptom

The power is not turned on.

No picture and no sound.

No picture or no sound.

The picture is noisy.

When inputting sound through the
INPUT A/B/C connector, sound
comes through one channel only.

The picture from INPUT A/B/C
connector is colored strange.

“Please check INPUT-A in SIGNAL
SELECT” appears in spite of
inputting the correct signal from
INPUT A.

“Please check INPUT-B in SIGNAL
SELECT” appears in spite of
inputting the correct signal from
INPUT B.

“Please check INPUT-C in SIGNAL
SELECT” appears in spite of
inputting the correct signal from
INPUT C.

“NO INPUT” appears when 15k RGB
or component signal is input.

On-screen displays do not appear.

Color balance is not correct.

The picture is too dark.

The picture is not clear.

Cause

The power has been turned off and on
with the ON key at a short interval.

The lamp cover is detached.
The air filter cover is detached.

Cable is disconnected.

Input selection is not correct.

Either the picture or the sound is cut
off.

Noise may appear on the background
depending on the combination of the
numbers of dot input from the
connector and numbers of pixel on the
LCD panel.

Monaural sound is being input through
the INPUT A/B/C connector.

Setting for INPUT-A, INPUT-B or
INPUT-C in the SIGNAL SELECT
menu is incorrect.

Setting for INPUT-A in the SIGNAL
SELECT menu is incorrect.

Setting for INPUT-B in the SIGNAL
SELECT menu is incorrect.

Setting for INPUT-C in the SIGNAL
SELECT menu is incorrect.

The sync signal is incorrect.

STATUS in the SET SETTING menu is
set to OFF.

Picture has not been adjusted
properly.

The color system of the input signal is
not set correctly.

The lamp is nearing the end of its life.

Contrast or brightness has not been
adjusted properly.

The picture is out of focus.
Moisture condensation has occurred

on the lens.

Remedy

Wait for about one minute before turning on
the power

Attach the lamp cover securely.
Attach the air filter cover securely

34 (GB))

Check that the proper connections have been
made

(GB))

Select the input source correctly in the
SIGNAL SELECT menu

Press the MUTING key to cancel the muting
function

Change the desktop pattern on the connected
computer.

Input stereo sound.

Set INPUT-A, INPUT-B or INPUT-C in the
SIGNAL SELECT menu correctly according to
the input signal

Set INPUT-A in the SIGNAL SELECT menu
correctly according to the input signal

page 27 (GB))

Set INPUT-B in the SIGNAL SELECT menu
correctly according to the input signal

page 27 (GB))

Set INPUT-C in the SIGNAL SELECT menu
correctly according to the input signal

page 27 (GB))

Input the correct sync singal (composite sync
or sync on G singal (sync on Y for component
singal)).

Set STATUS in the SET SETTING menu to
ON

Adjust the picture

Set COLOR SYS in the PICTURE CTRL menu
to match the color system of the input

(see page 22 (GB))

Replace the lamp with a new one

33 (GB))

Adjust CONTRAST or BRIGHT in the
PICTURE CTRL menu properly

(GB))

Adjust the focus
Leave the projector for about two hours with

the power on

(see page 8 (GB))

.

(see page

.

(see pages 17 (GB), 28 (GB) and 29

.

(see page 27 (GB))

(see page 20 (GB))

(see page 27 (GB))

.

.

.

(see page 26 (GB))

.

.

.

(see page 22 (GB))

.

(see page

.

(see page 22

.

(see page 19 (GB))

(see page 15 (GB))

.

.

.

(see

(see

(see

.

signal

35 (GB)

Troubleshooting

Symptom

The Remote Commander does not
work.

The wireless Remote Commander
does not function.

INPUT A cannot be selected.

The COVER FAIL indicator lights.

The LAMP FAIL indicator lights.

The FAN indicator lights.

Cause

The batteries are exhausted.

The remote commander cable is
connected to the Remote Commander
although you are using it as a wireless
Remote Commander.

The fluorescent lamp influences on the
Remote Commander detector.

You have selected a wrong index
number.

You have set the index number to “00”.

The SIRCS RECEIVER setting is not
correct.

The switcher is not connected, but is
recognized to be connected.

The lamp cover or air filter cover is
detached.

The lamp with the same number of the
indicator has reached the end of its
life.

The fan is broken.

Remedy

Replace the batteries with new ones

page 14 (GB))

.

(see

Disconnect the remote control cable.

Change the setting of SIRCS RECEIVER in
the SET SETTING menu

Select the correct index number

(GB) and 31 (GB))

Select the correct index number

(GB) and 31 (GB))

(see page 26 (GB))

(see pages 26

.

(see pages 26

.

Change the setting of SIRCS RECEIVER in
the SET SETTING menu

(see page 26 (GB))

If the PJ COM connector is connected to
something other than the terminator, remove it
then press the SYS SET key, or LIGHT and
RESET keys on the control panel.

Attach the lamp cover or air filter cover
securely

(see pages 33 (GB) and 34 (GB))

Replace the lamp

(see page 33 (GB))

.

.

Consult with qualified Sony personnel.

.

.

The HIGH TEMP indicator lights.

When you press the ZOOM, SHIFT
or FOCUS key, “LENS CONTROL
is locked! Do you wish to unlock ?”
appears.

Caution messages

Message

High Temperature!
Power off in 1 min.

Frequency is out of range!

Please check INPUT-A in SIGNAL
SELECT.

Please check INPUT-B in SIGNAL
SELECT.

Please check INPUT-C in SIGNAL
SELECT.

36 (GB)

The internal temperature is unusually
high.

The lens control function is locked.

Check to see if nothing is blocking the
ventilation holes.

Consult with qualified Sony service personnel.

Use the list below to check the meaning of the messages displayed on the
screen.

Meaning

Internal temperature becomes too high.

The frequency of the input signal is out of
the acceptable range.

You have input the RGB signal from the
computer when INPUT-A in the SIGNAL
SELECT menu is set to COMPONENT,
DTV-GBR or DTV-YP

You have input the RGB signal from the
computer when INPUT-B in the SIGNAL
SELECT menu is set to COMPONENT,
VIDEO, S-VIDEO, DTV-GBR or DTV­YP

BPR.

You have input the RGB signal from the
computer when INPUT-C in the SIGNAL
SELECT menu is set to COMPONENT,
VIDEO, S-VIDEO, DTV-GBR or DTV­YP

BPR.

BPR.

Turn off the power. (If not, the power is
automatically turned off about one minute later.)
Check to see if nothing is blocking the ventilation
holes.

Input a signal that is within the range of the
frequency.

Set INPUT-A correctly.

Set INPUT-B correctly.

Set INPUT-C correctly.

Remedy

Specifications

Others

Optical characteristics

Projection system 3 LCD panels, 1 lens, 3-primary

color optical shutter system

LCD panel 1.8-inch SXGA LCD panel,

3,932,160 pixels
(1,310,720 pixels × 3)

Lens Option
Light output ANSI lumen
Lamp 120 W UHP × 4

1)

3,500 lm

Electrical characteristics

Color system NTSC3.58/PAL/SECAM/NTSC4.43/

PAL-M system, switched
automatically

Resolution 600 horizontal TV lines (video

input)

1280 × 1024 dots (RGB input)

Acceptable computer signal

fH: 15 to 100 kHz
fV: 40 to 120 Hz

Speakers Max. 5 W + 5 W, 90 × 50 mm

5

(3

/8 × 2 inches), stereo

Input/Output

CONTROL S IN/PLUG IN POWER: Stereo

minijack, 5 Vp-p, plug in power,
DC 5 V, maximum output 60 mA

OUT: Stereo minijack, 5 Vp-p

REMOTE RS-232C/422A

D-sub 9-pin (female)

(For details, see “Pin assignment”
on page 39 (GB).)

PJ COM IN: D-sub 9-pin (male)

OUT: D-sub 9-pin (female)

(For details, see “Pin assignment”
on page 39 (GB).)

TRIG Minijack

Power on: DC 12 V, output

impedance: 4.7 kilohms

Power off: 0 V

S VIDEO (priority to Y IN/C IN) (only for VPL­FE100U/FE100M)

IN: Mini DIN 4-pin type (male)

Y (luminance): 1 Vp-p ± 2 dB
sync negative, 75 ohms
terminated
C (chrominance): Burst 0.286
Vp-p ± 2 dB (NTSC), 75 ohms
terminated
Burst 0.3 Vp-p ± 2 dB (PAL), 75
ohms terminated

OUT: Loop-through mini DIN 4-

pin type (male)
Loop-through output from the S
VIDEO IN connector

Y IN: BNC type

1 Vp-p ± 2 dB sync negative, 75
ohms terminated

C IN: BNC type

Burst 0.286 Vp-p ± 2 dB
(NTSC), 75 ohms terminated
Burst 0.3 Vp-p ± 2 dB (PAL), 75
ohms terminated

VIDEO (only for VPL-FE100U/FE100M)

IN: BNC type

Composite video, 1 Vp-p ± 2 dB
sync negative, 75 ohms
terminated

OUT: Loop-through BNC type

Loop-through output from the
VIDEO IN connector

AUDIO IN (only for VPL-FE100U/FE100M)

Phono type (stereo)

500 mVrms, impedance more
than 47 kilohms

INPUT A Analog RGB/component: BNC

type

R/R-Y: 0.7 Vp-p ± 2 dB positive,

75 ohms terminated

G: 0.7 Vp-p ± 2 dB positive, 75

ohms terminated

G with sync/Y: 1 Vp-p ± 2 dB sync

negative, 75 ohms
terminated

B/B-Y: 0.7 Vp-p ± 2 dB positive,

75 ohms terminated

SYNC/HD: Composite sync: 0.6–8

Vp-p, high impedance, sync
positive/negative
Horizontal sync: 0.6–8 Vp-p,
high impedance, sync positive/
negative

(continued)

...........................................................................................................................................................................................................

1) ANSI lumen is a measuring method of American National Standard IT 7.228.

37 (GB)

Specifications

VD: Vertical sync: 0.6–8 Vp-p,

high impedance, sync positive/
negative

AUDIO IN: Phono type (stereo)

500 m Vrms, impedance more
than 47 kilohms

HDTV/DTV (YP

BPR): BNC type

Y: 1 Vp-p ± 2dB positive,
75 ohms terminated
Tri-level sync: ± 0.3 Vp-p
Bi-level sync: 0.3 Vp-p
P

B/PR: 0.35 Vp-p ± 2dB positive,

75 ohms terminated

HDTV/DTV (GBR): BNC type

G with sync: 1 Vp-p ± 2 dB,
75 ohms terminated
Tri-level sync: ± 0.3 Vp-p
Bi-level sync: 0.3 Vp-p
B/R: 0.7 Vp-p ± 2dB positive,
75 ohms terminated

(For HDTV/DTV signals see
“Acceptable HDTV/DTV
signals” on page 39 (GB).)

AUDIO OUT (variable out)

Phono type, Max. 1 Vrms

When input is 500 mVrms:
impedance less than 5 kilohms

Safety regulations

VPL-FE100U: UL1950, CSA No.

950 (c-UL), FCC Class A, IC
Class A

VPL-FE100E/FE100M: EN60 950

(TÜV), CE, C-Tick

General

Dimensions 562 × 237 × 649 mm (22 1/4 × 9 3/8

× 25 5/8 inches) (w/h/d)

Mass Approx. 34.5 kg (76 lb 1 oz)

(excluding the optional lens)

Power requirements

VPL-FE100U: AC 100 to 120 V/

220 to 240 V, 50/60 Hz

VPL-FE100E/FE100M: AC 220 to

240 V, 50/60 Hz

Power consumption

Approx. 770 W (Standby mode:

15W for
VPL-

FE1
Heat dissipation 2628 BTU
Operating temperature

0°C to 40°C (32°F to 104°F)

VPL-

00E/

FE1

FE1

1)

00U, 20 W for

00M)

Operating humidity

35% to 85% (no condensation)

Storage temperature

–20°C to +60°C (–4°F to +140°F)
Storage humidity 10% to 90%
Supplied Accessories

Remote Commander RM-PJ1001 (1)

Size AA (R6) batteries (3)

Remote commander cable (stereo)

(15 m) (1)
AC power cord (1)
Terminator for the PJ COM

connector (1)
Lens ring (1)
Operating Instructions (1)
Installation Manual for Dealers (1)
Warranty (only for VPL-FE100U)

(1)

Design and specifications are subject to change
without notice.

Optional accessories

Projector Lamp LMP-Q120 (for replacement)
Projector Lamp LMP-S120 (for replacement)
Interface Board

IFB-12A (Analog RGB/component/HDTV/

composite video/S video input with 5BNC type
connectors)

IFB-20 (Analog RGB input with D-sub 9-pin type

connector)

IFB-21 (Analog RGB input/output with HD D-sub

15-pin type connector)

IFB-30 (Digital RGB input with D-sub 9-pin type

connector)

IFB-50 (serial digital video input/output with BNC

type connector)

IFB-1000 (Composite video input with BNC type

connector/S video input with mini DIN 4-pin
type connector)

IFB-X2000E (Composite video input with phono

jacks/S video input with mini DIN 4-pin type

connector) (only for VPL-FE100E)
Signal Interface Switcher PC-3000
Interface Unit IFU-1271/1271M
SIC Cable

SIC-10/20A/20C/21/22/23/24/24A/25/26/26A/30/
31/M1/M5/M15/M25/M50

9-pin remote cable (for PJ COM)

RCC-5G/10G/30G

...........................................................................................................................................................................................................

1) UL listed for 120 V operation.

38 (GB)

Monitor Cable

12345

6789

SMF-400 (HD D-sub 15-pin (female) ˜ 5BNC

(female))

SMF-401 (HD D-sub 15-pin (female) ˜ HD D-

sub 15-pin (female))

Signal Adapter

ADP-10 (D-sub 9-pin ˜ HD D-sub 15-pin (for

SIC Cable))

ADP-20 (Macintosh ˜ VGA)
Remote Commander RM-PJ3000S
Remote Control Receiver RM-PJ10
Projection Lens

Fixed short focus lens VPLL-2009

Fixed short focus lens VPLL-2014

1.3-times zoom standard focus lens VPLL-Z3020

1.6-times zoom long focus lens VPLL-Z2025

1.5-times zoom long focus lens VPLL-Z2039

Fixed long focus lens VPLL-3050

Fixed long focus lens VPLL-2075

1.3-times zoom standard focus lens VPLL-Z2019
Projector Stand SU-PJ2000 (for stacking)
Projector Suspension Support PSS-2000
Screens

VPS-80FH (80-inch, flat)
VPS-100FH (100-inch, flat)
VPS-120FH (120-inch, flat)

Some of the items may not be available in some areas.
For details, please consult your nearest Sony office.

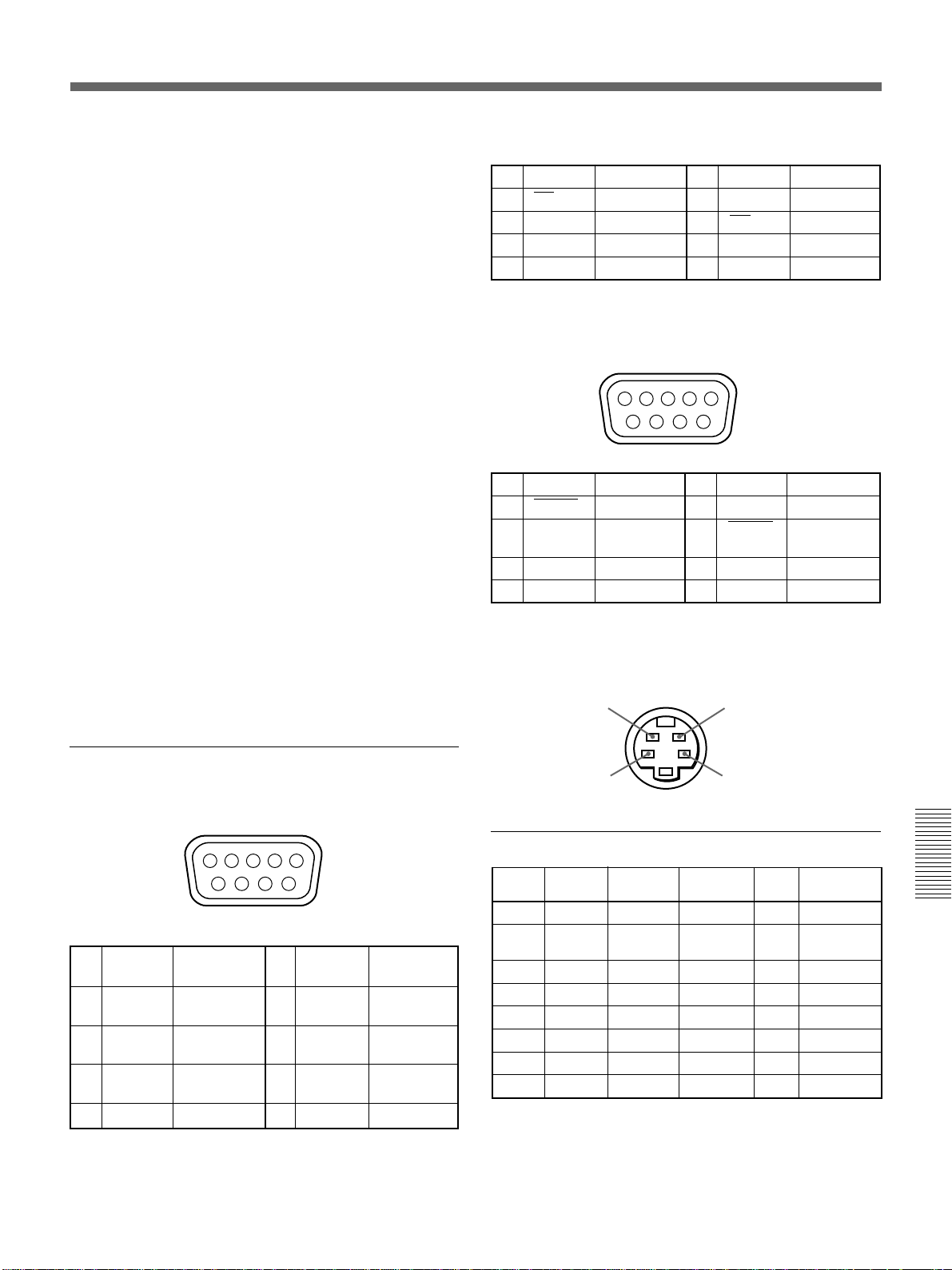

RS-422A

1 GND Ground 6 GND Ground
2

TX

3 RX Receive 8

Transmit 7 TX Transmit

RX

Receive
4 GND Ground 9 GND Ground
5NC

PJ COM connector (D-sub 9-pin, female)

1 GND Ground 6 GND Ground
2 BUSY Busy 7 Busy
3 TX/RX 8

Tramsmit/
Receive

BUSY

TX/RX

Tramsmit/

Receive
4 GND Ground 9 GND Ground
5NC

S VIDEO connector (mini DIN 4-pin)

Chrominance

Luminance

Pin assignment

RS-232C/422A connector (D-sub 9-pin, female)

12345

6789

RS-232C

1 NC 6 DSR* Data Set

Ready

2

RD

3TD

4 DTR*

5 GND Ground

* Circuit between pins 4 and 6 is short-circuited in the

projector.

** Circuit between pins 7 and 8 is short-circuited in the

projector.

Receive Data

Transmit Data

Data Terminal
Ready

7 RTS** Request

to Send

8

** Clear to

CTS

Send

9NC

GND

GND

Acceptable HDTV/DTV formats

Format

1035/60i
1080/60i

480/60P
575/50P
1080/24PSF
1080/50i
720/60P
720/50P

* Each of the frame rates is also compatible with 1/1.001.

Scanning
rate (kHz)

33.75

33.75

31.5

31.25
27

28.13
45

37.5

Frame
rate (Hz)*

30
30

60
50
24
25
60
60

Scanning
format

2:1 interlace
2:1 interlace

Progressive
Progressive
2:1 interlace
2:1 interlace
Progressive
Progressive

Aspect
ratio

16:9
16:9

16:9/4:3
16:9/4:3

16:9
16:9
16:9
16:9

Standard

BTA S-001B

SMPTE 274M/

BTA S-001B

SMPTE 293M

–

–
SMPTE 274M
SMPTE 293M

–

39 (GB)

Index

A

Adjusters 7 (GB)
Adjusting

picture 22 (GB)
picture size/shift 23 (GB)

zoom 19 (GB)
Air filter 34 (GB)
ASPECT 23 (GB)
AUDIO MUTING 20 (GB)

B

Battery

Installation 14 (GB)

notes 14 (GB)
BLANKING 23 (GB)
BNC connector 28 (GB)
BRIGHT 22 (GB)

C

Carrying handles 7 (GB)
Caution messages 36 (GB)
COLOR 22 (GB)
COLOR SYS (System) 22 (GB)
COLOR TEMP 22 (GB)
Connections

active speakers 17 (GB)

BNC connector 28 (GB)

computer 17 (GB)

15k RGB/component equipment

28 (GB)
Remote Commander 14 (GB)
switcher 29 (GB)
VCR 17 (GB)

CONTRAST 22 (GB)
Cut off

the picture 20 (GB)
the sound 20 (GB)

D, E

D. (Dynamic) PICTURE 22 (GB)
Device index 26 (GB), 31 (GB)
DOT PHASE 23 (GB)
DRC (Digital Reality Creation) 5 (GB)

G

GAMMA MODE 22 (GB)
Group index 26 (GB), 31 (GB)

H

Handle lever 7 (GB)
H FILTER 23 (GB)
HUE 22 (GB)

I, J, K

INPUT-A 27 (GB)
INPUT-B 27 (GB)
INPUT-C 27 (GB)
INPUT MEMORY No. 24 (GB)
INPUT SETTING menu 23 (GB)
Input signal selection 18 (GB)
Installation on a floor 16 (GB)

L

Lamp replacement 33 (GB)
LANGUAGE 26 (GB)
Location and function of controls

control panel 8 (GB)
front 6 (GB)
rear 10 (GB)
Remote Commander 12 (GB)

M, N

Menu

Clearing the menu display 21 (GB)
INPUT SETTING menu 23 (GB)
PICTURE CTRL menu 22 (GB)
SET SETTING menu 26 (GB)
SIGNAL SELECT menu 27 (GB)
Using the menu 21 (GB)

Moisture condensation 15 (GB)

O

On-screen display 26 (GB)
On-screen messages 36 (GB)
Optional accessories 38 (GB)

PICTURE SHIFT 20 (GB)
Pin assignment 39 (GB)
PJ COM connector 29 (GB)
Power

turn off 20 (GB)

turn on 18 (GB)
POWER SAVING 26 (GB)
Precautions 4 (GB)
Precautions on installation 15 (GB)
Projecting 18 (GB)

R

Remote Commander

battery installation 14 (GB)

connecting to the projector 14 (GB)

location and function of controls

12 (GB)

notes 14 (GB)
Remote control (SIRCS) detector

front 6 (GB)

rear 9 (GB)
Reset

resetting the item 21 (GB)
RS-232C/422A connector 11 (GB)

S

SCAN CONV 23 (GB)
SET SETTING menu 26 (GB)
SHARP 22 (GB)
SHIFT 23 (GB)
SIGNAL SELECT menu 27 (GB)
SIRCS RECEIVER 26 (GB)
SIZE 23 (GB)
SPEAKER 26 (GB)
Specifications 37 (GB)
STATUS 26 (GB)
Supplied accessories 38 (GB)

T, U, V, W, X, Y

Troubleshooting 35 (GB)

Z

ZOOM 19 (GB)

F

fH (Horizontal frequency) 25 (GB)
FOCUS 19 (GB)
fV (Vertical frequency) 25 (GB)

40 (GB)

P, Q

PC-3000 Signal Interface Switcher

29 (GB)
PIC MUTING 20 (GB)
PICTURE CTRL menu 22 (GB)
