Operating Instructions - Hardware Guide

Personal Computer

VPCW12 Series

Contents

Before Use.......................................................................... 4

Finding More about Your VAIO Computer .................... 5

Ergonomic Considerations ............................................ 7

Getting Started.................................................................... 9

Locating Controls and Ports........................................ 10

About the Indicator Lights ........................................... 16

Connecting a Power Source ....................................... 17

Using the Battery Pack................................................ 18

Shutting Down Your Computer Safely ........................ 25

Using the Power Saving Modes .................................. 26

Updating Your Computer ............................................ 28

Using Your VAIO Computer.............................................. 29

Using the Keyboard..................................................... 30

Using the Touch Pad................................................... 32

Using the Built-in Camera ........................................... 33

Using "Memory Stick".................................................. 34

Using Other Modules / Memory Cards........................ 40

Using the Internet ........................................................ 44

Using the Network (LAN) .............................................45

Using the Wireless LAN ...............................................46

Using the Bluetooth Function ......................................53

Using Peripheral Devices..................................................59

Connecting an Optical Disc Drive................................60

Connecting External Speakers or Headphones ..........61

Connecting an External Display ..................................62

Selecting Display Modes .............................................64

Using the Multiple Monitors Function ..........................65

Connecting an External Microphone ...........................67

Connecting a USB Device ...........................................68

Customizing Your VAIO Computer....................................70

Setting the Password...................................................71

Using the VAIO Control Center ...................................76

Using the VAIO Power Management...........................77

Precautions....................................................................... 78

Safety Information ....................................................... 79

Care and Maintenance Information............................. 82

Handling Your Computer............................................. 83

Handling the LCD Screen ........................................... 85

Using the Power Source ............................................. 86

Handling the Built-in Camera ...................................... 87

Handling Discs ............................................................ 88

Using the Battery Pack................................................ 89

Handling "Memory Stick"............................................. 90

Handling the Built-in Storage Device .......................... 91

Troubleshooting ................................................................ 92

Computer .................................................................... 93

System Security ........................................................ 100

Battery....................................................................... 101

Built-in Camera ......................................................... 103

Networking ................................................................ 105

Bluetooth Technology ............................................... 108

Display ...................................................................... 112

Printing ...................................................................... 116

Microphone ............................................................... 117

Speakers ...................................................................118

Touch Pad .................................................................119

Keyboard ...................................................................120

Floppy Disks ..............................................................121

Audio/Video ...............................................................122

"Memory Stick" ..........................................................123

Peripherals ................................................................124

Trademarks .....................................................................125

Notice ..............................................................................126

Before Use >

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen Hardware Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide a state-of-the-art personal computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

How to find specifications

Some features, options, and supplied items may not be available on your computer.

To find out about the configuration of your computer, see the Specifications (supplied with your computer).

About Models with Windows 7 Starter

On models with the Windows 7 Starter operating system, you cannot use some of the features available on models with other editions of the Windows 7 operating system. Among those described in this Hardware Guide, for example, you cannot use the following:

❑ Ad-hoc connections of the Wireless LAN function

❑ Multiple Monitors function

❑ Long Battery Life Wallpaper Setting of the VAIO Control Center

Before Use > Finding More about Your VAIO Computer

Finding More about Your VAIO Computer

This section provides support information about your VAIO computer.

1. Printed Documentation

❑ Quick Start Guide — An overview of components connection, set-up information, etc.

❑ Specifications — The hardware configurations of your VAIO computer.

❑ Recovery and Troubleshooting Guide

❑ Safety Regulations

2. On-screen Documentation

❑ VAIO Manual — General information and technical assistance for your VAIO computer.

To access VAIO Manual, double-click VAIO Manual on the desktop.

❑ Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you

learn to use your computer.

To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows key and press the F1 key.

Before Use > Finding More about Your VAIO Computer

3. Support Web Sites

If you have any problem with the computer, you can visit the following VAIO online web sites for troubleshooting:

❑ http://www.sony-asia.com/support/vaio/

❑ http://scs.sony.co.kr/

❑ http://service.sony.com.tw/

Before contacting VAIO Helpdesk by telephone, try to solve the problem by reading the supplied documentation and visiting other Sony web sites.

❑ For other Sony products, visit the web site at http://www.sony.net

❑ For available optional accessories, visit the following web sites:

❑ http://vaio-online.sony.com/

❑ http://vaio-online.sony.co.kr/

❑ http://www.sonystyle.com.tw/vaio/

(Korean)

(Traditional Chinese)

(English)

(Korean)

(English)

(Traditional Chinese)

Before Use > Ergonomic Considerations

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists

in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use > Ergonomic Considerations

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started >

Getting Started

This section describes how to get started using your VAIO computer.

❑ Locating Controls and Ports (page 10)

❑ About the Indicator Lights (page 16)

❑ Connecting a Power Source (page 17)

❑ Using the Battery Pack (page 18)

❑ Shutting Down Your Computer Safely (page 25)

❑ Using the Power Saving Modes (page 26)

❑ Updating Your Computer (page 28)

Getting Started > Locating Controls and Ports

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

Front

A Built-in MOTION EYE camera (page 33) B Built-in MOTION EYE camera indicator (page 16) C Built-in microphone (monaural) D LCD screen (page 85) E Keyboard (page 30) F Touch pad (page 32) G Left button (page 32) H Right button (page 32) I Num lock indicator (page 16) J Caps lock indicator (page 16) K Scroll lock indicator (page 16)

Getting Started > Locating Controls and Ports

A WIRELESS switch (page 46), (page 53) B WIRELESS indicator (page 16) C "Memory Stick Duo" slot* (page 34) D Media Access indicator (page 16) E SD memory card slot (page 40) F Charge indicator (page 16) G Disc drive indicator (page 16) H Power switch I Power indic ator (page 16)

* Your computer supports only Duo-size "Memory Stick".

Getting Started > Locating Controls and Ports

Back

A Battery connector (page 18)

Getting Started > Locating Controls and Ports

Right

A Hi-Speed USB (USB 2.0) ports B Network (LAN) por t (page 45) C Security slot

* Support high-/full-/low- speeds.

(page 68)

Getting Started > Locating Controls and Ports

Left

A DC IN port (page 17) B Air vent C Monitor port (page 62) D Microphone jack (page 67) E Headphones jack (page 61)

Getting Started > Locating Controls and Ports

Bottom

A Built-in speakers (stereo) B Air vent

Getting Started > About the Indicator Lights

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green while the computer is on, blinks slowly in orange while the computer is in Sleep mode, and

Charge

Built-in MOTION EYE camera Illuminates while the built-in camera is in use.

Media Access Illuminates while data access to a memor y card, such as "Memory Stick" and an SD memory card, is in

Disc drive

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates while one or more wireless options are enabled.

goes out when the computer is turned off or enters Hibernate mode.

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 22) for more information.

progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the indicator light is unlit, the memory card is not in use.

Illuminates while data access to the built-in storage device is in progress. Do not place the computer into Sleep mode or turn it off while this indicator light is lit.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator light is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes when the Caps lock indicator light is turned off.

Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Getting Started > Connecting a Power Source

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

While your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page

27).

Getting Started > Using the Battery Pack

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing/Removing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) outward.

Getting Started > Using the Battery Pack

3 Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery

compartment fits into the cut (3) on either side of the battery pack.

Getting Started > Using the Battery Pack

4 Push the battery pack down into the compartment until it clicks into place.

5 Slide the battery LOCK switch inward to secure the battery pack on the computer.

Getting Started > Using the Battery Pack

To remove the battery pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) outward.

3 Slide the battery RELEASE latch (2) outward.

The battery pack is unlocked and its front-side edge is slightly raised.

4 Put your fingertip on the raised edge, lift the battery pack in the direction of the arrow, and slide it away from the computer.

For your safety, it is highly recommended that you use genuine Sony rechargeable battery packs and AC adapters that meet the quality assurance standards and supplied by Sony for your VAIO computer. Some VAIO computers may operate only with genuine Sony battery packs.

Getting Started > Using the Battery Pack

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the computer to a power source with the AC adapter.

The charge indicator light is on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected with the battery charge functions, the charge indicator turns off.

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power indicator

Blinks along with the orange power indicator

Blinks fast in orange A battery error has occurred due to a failed battery

Charge the battery pack as described in this manual from your first battery charge.

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Getting Started > Using the Battery Pack

✍

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

When the battery pack is running out of power and both the charge and power indicator lights blink, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the life of battery.

You can extend the life of your battery pack if you enable the battery care function of the Battery Charge Functions with the VAIO Control Center.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life becomes short. To avoid loss of data while the computer is running on the battery, you should save your data frequently and manually activate a power

management mode, such as Sleep or Hibernate.

If the battery pack runs out of power while the computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Getting Started > Using the Battery Pack

Extending Your Battery Life

When your computer is running on battery power, you can extend your battery life using the following methods.

❑ Decrease the LCD brightness of your computer screen.

❑ Use the power saving mode. See Using the Power Saving Modes (page 26) for more information.

❑ Change the power saving settings on the Power Options. See Using the VAIO Power Management (page 77) for more

information.

❑ Set the wallpaper in Long Battery Life Wallpaper Setting as your desktop background with the VAIO Control Center.

Getting Started > Shutting Down Your Computer Safely

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start and the Shut down button.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Getting Started > Using the Power Saving Modes

Using the Power Saving Modes

You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, your computer has two distinct power saving modes to suit your preference: Sleep and Hibernate.

If you do not intend to use your computer for an extended period of time while it is disconnected from AC power, place the computer into Hibernate mode or turn it off.

If the battery pack runs out of power while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Mode Description

Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the

computer is in this mode.

Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power

Hibernate mode While your computer is in Hibernate mode, the state of the system is saved on the built-in storage device(s) and

consumption mode. The orange power indicator light blinks slowly while your computer is in this mode. Your computer comes out of Sleep mode quicker than out of Hibernate mode. However, Sleep mode uses more power than Hibernate mode.

power is turned off. Even when the battery pack runs out of power, no data will be lost. The power indicator light is unlit while your computer is in this mode.

Getting Started > Using the Power Saving Modes

Using Sleep Mode

To activate Sleep mode

Click Start, the arrow next to the Shut down button, and Sleep.

To return to Normal mode

❑ Press any key. ❑ Slide the power switch (in the direction of G on the switch).

If you slide (in the direction of G on the switch) and hold the power switch for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.

Using Hibernate Mode

To activate Hibernate mode

Press the Fn+F12 keys.

Alternatively, you can click Start, the arrow next to the Shut down button, and Hibernate.

Do not move your computer before its power indicator light turns off.

To return to Normal mode

Slide the power switch (in the direction of G on the switch).

If you slide (in the direction of G on the switch) and hold the power switch for more than four seconds, your computer will turn off automatically.

Getting Started > Updating Your Computer

Updating Your Computer

Be sure to install the latest updates on your computer with the following software applications so that the computer can run more efficiently.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 4

Click Start, All Programs, VAIO Update 4, and Go to VAIO Web Support and then follow the on-screen instructions.

Your computer must be connected to the Internet to download the updates.

Using Your VAIO Computer >

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 30)

❑ Using the Touch Pad (page 32)

❑ Using the Built-in Camera (page 33)

❑ Using "Memory Stick" (page 34)

❑ Using Other Modules / Memory Cards (page 40)

❑ Using the Internet (page 44)

❑ Using the Network (LAN) (page 45)

❑ Using the Wireless LAN (page 46)

❑ Using the Bluetooth Function (page 53)

Using Your VAIO Computer > Using the Keyboard

Using the Keyboard

Your keyboard has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system is finished launching.

Combination/Feature Function

Fn + % (F2): muting Turns on and off the built-in speakers or the headphones.

Fn + 2 (F3/F4): volume control Changes the volume level.

Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.

Fn + /T (F7): display output

To increase the volume, keep pressing the Fn+F4 keys or press the Fn+F4 keys and then the

M or , key. To decrease the volume, keep pressing the Fn+F3 keys or press the Fn+F3 keys and then the m or < key.

To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then the M or , key. To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then the m or < key.

Switches the display output between your computer screen, an external display, simultaneous output to both, and multiple displays with both that function as a single desktop. Press the Enter key to select the display output.

If you disconnect a display cable from your computer while an external display is selected as the display output destination, the computer screen goes blank. In such a case, press the F7 key twice while holding down the Fn key, and then press the Enter key to switch the display output to the computer screen.

Multiple displays may not be supported depending on the operating system on your computer.

Using Your VAIO Computer > Using the Keyboard

Combination/Feature Function

Fn + (F12): hibernation

Provides the lowest level of power consumption. When you execute this command, the states of the system and the connected peripheral devices are saved to the built-in storage device and the system power is turned off. To return the system to its original state, use the power switch to turn on the power. For details on power management, see Using the Power Saving Modes (page 26).

Using Your VAIO Computer > Using the Touch Pad

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice in a row.

Right-click Press the right button (4) once. With many applications, this action displays a context-sensitive shortcut menu (if any).

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

✍

You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, use the VAIO Control Center.

Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad before connecting a mouse, you will be able to use only the keyboard for pointer operations.

Using Your VAIO Computer > Using the Built-in Camera

Using the Built-in Camera

Your computer is equipped with a built-in MOTION EYE camera.

With the preinstalled image capture software, you can perform the following:

❑ Capture still images and movies

❑ Sense and capture object movements for monitoring purposes

❑ Edit captured data

✍

Turning on the computer activates the built-in camera.

Video conferences are possible with the appropriate software.

Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.

Do not place your computer into Sleep or Hibernate mode while you are using the built-in camera.

To use the preinstalled image capture software

1 Click Start, All Programs, ArcSoft WebCam Companion 3, and WebCam Companion 3.

2 Click your desired icon in the main window.

For detailed information on how to use the software, see the help file included with the software.

✍

When capturing an image or a movie in a dark place, click the Capture icon in the main window, and then click the WebCam Settings icon and select the low light or low light compensation option in the properties window.

Using Your VAIO Computer > Using "Memory Stick"

Using "Memory Stick"

"Memory Stick" is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.

Before You Use "Memory Stick"

The "Memory Stick Duo" slot on your computer can accommodate the following sizes and types of media:

❑ "Memory Stick Duo"

❑ "Memory Stick PRO Duo"

❑ "Memory Stick PRO-HG Duo"

Your computer supports only Duo-size "Memory stick", and does not support standard-size "Memory Stick".

The "Memory Stick Duo" slot on your computer does not support 8-bit parallel data transfer (high-speed data transfer).

For the latest information about "Memory Stick", visit [memorystick.com] at http://www.memorystick.com/en/.

Using Your VAIO Computer > Using "Memory Stick"

Inserting and Removing "Memory Stick"

To insert "Memory Stick"

1 Locate the "Memory Stick Duo" slot.

2 Hold "Memory Stick" with the arrow facing upward and pointing toward the slot.

3 Carefully slide "Memory Stick" into the slot until it clicks into place.

✍

"Memory Stick" is automatically detected by your system and the contents of "Memory Stick" are displayed. If nothing appears on the desktop, click Start, Computer, and double-click the "Memory Stick" icon.

The "Memory Stick" icon will appear in the Computer window after you insert "Memory Stick" into the slot.

Using Your VAIO Computer > Using "Memory Stick"

Be sure to hold "Memory Stick" with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the media, do not force "Memory Stick" into the slot if you cannot insert it smoothly.

Before using "Memory Stick Micro" ("M2"), be sure to insert it into an "M2" Duo adaptor. If you insert the media directly into the "Memory Stick Duo" slot without the adaptor, you may not be able to remove it from the slot.

To remove "Memory Stick"

Do not remove "Memory Stick" while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load, so make sure the indicator light is unlit before removing "Memory Stick".

1 Locate the "Memory Stick Duo" slot.

2 Check that the Media Access indicator light is unlit.

3 Push in "Memory Stick" toward the computer and release.

"Memory Stick" ejects.

4 Pull "Memory Stick" out of the slot.

Be sure to remove "Memory Stick" gently, or it may pop out unexpectedly.

Using Your VAIO Computer > Using "Memory Stick"

Formatting "Memory Stick"

To format "Memory Stick"

"Memory Stick" has been formatted by default and is ready for use.

If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports "Memory Stick" when formatting the media.

Formatting "Memory Stick" erases the entire data stored on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove "Memory Stick" from the slot while formatting. This could cause a malfunction.

1 Locate the "Memory Stick Duo" slot.

2 Carefully slide "Memory Stick" into the slot until it clicks into place.

3 Click Start and Computer to open the Computer window.

4 Right-click the "Memory Stick" icon and select Format.

5 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

Using Your VAIO Computer > Using "Memory Stick"

6 Click Start.

7 Follow the on-screen instructions.

It may take time to format "Memory Stick" depending on the media type.

Using Your VAIO Computer > Using "Memory Stick"

Notes on Using "Memory Stick"

❑ Your computer has been tested and found compatible with Sony branded "Memory Stick" with capacity of up to 16 GB

that are available as of May 2009. However, not all "Memory Stick" are guaranteed of compatibility.

❑ Inserting "Memory Stick" with multiple conversion adaptors is not guaranteed of compatibility.

❑ "MagicGate" is the general name of the copyright protection technology developed by Sony. Use "Memory Stick" with the

"MagicGate" logo to take advantage of this technology.

❑ Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior

consent from the respective copyright holders. Accordingly, "Memory Stick" with such copyrighted data can be used only within the law.

❑ Do not insert more than one "Memory Stick" into the slot. Improper insertion of the media may damage both your

computer and the media.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Using Other Modules / Memory Cards

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Before you use the SD memory card

The SD memory card slot on your computer supports the following memory cards:

❑ SD memory card

❑ SDHC memory card

For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the appropriate support web site.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To insert an SD memory card

1 Locate the SD memory card slot.

2 Hold the SD memory card with the arrow facing upward and pointing toward the slot.

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

The SD memory card icon will appear in the Computer window after you insert the card into the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To remove an SD memory card

1 Locate the SD memory card slot.

2 Check that the Media Access indicator light is unlit.

3 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

4 Pull the SD memory card out of the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Notes on Using Memory Cards

General notes on using the memory card

❑ Be sure to use memory cards that are compliant with the standards supported by your computer.

❑ Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.

❑ Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.

❑ Do not attempt to insert a memory card or memory card adaptor of a different type into the memory card slot. An

incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage to your computer.

Notes on using the SD memory card

❑ Your computer has been tested and found compatible only with major memory cards available as of May 2009. However,

not all memory cards that meet the same specifications as the compatible media are guaranteed of compatibility.

❑ SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested

and found compatible with your computer.

❑ The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory

card and the SDHC memory card.

Using Your VAIO Computer > Using the Internet

Using the Internet

Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for connecting your computer to the Internet.

The following types of Internet connection services may be available from your ISP:

❑ Fiber to the Home (FTTH)

❑ Digital Subscriber Line (DSL)

❑ Cable modem

❑ Satellite

❑ Dial-up

For detailed information on devices required for Internet access and how to connect your computer to the Internet, ask your ISP.

✍

To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN

(page 46) for more information.

When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.

Depending on the service contract with your ISP, you may need to connect an external modem device, for example a USB telephone modem, a DSL modem, or a cable modem, to your computer to connect to the Internet. For the detailed instructions on connection setups and modem configuration,

see the manual that came with your modem.

Using Your VAIO Computer > Using the Network (LAN)

Using the Network (LAN)

You can connect your computer to 100BASE-TX/10BASE-T type networks with a LAN cable. Connect one end of a LAN cable (not supplied) to the network (LAN) port on the computer and the other end to your network. For detailed settings and devices required for LAN access, ask your network administrator.

✍

You can connect your computer to any network without changing the default settings.

Do not plug a telephone cable into the network (LAN) port on your computer. If the network (LAN) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage, overheating, or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- Private branch exchange (PBX)

Using Your VAIO Computer > Using the Wireless LAN

Using the Wireless LAN

Using the Wireless LAN (WLAN), all your digital devices with the built-in WLAN function communicate freely with each other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio) connection.

The WLAN supports all normal LAN connectivity, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.

You can communicate without an access point, which means that you can communicate with a limited number of computers (ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the WLAN function, read the Safety Regulations carefully.

WLAN uses the IEEE 802.11a the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access

(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication using

802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.

* See the specifications to find out about the configuration of your computer.

/b/g standard or the IEEE 802.11n* draft standard, which specifies the type of technology used. The standard includes

The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz band. The IEEE 802.11g standard provides higher-speed communications than the IEEE 802.11b standard.

Using Your VAIO Computer > Using the Wireless LAN

The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz band.

The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 GHz or 5 GHz band.

Wireless LAN devices using the 2.4 GHz band cannot communicate with devices using the 5 GHz band because the frequencies are different.

The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from other devices that use the same band are employed on wireless LAN compatible devices, such interference may cause lower communication speed,

narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Actual communication speed may not be as fast as the one displayed on your computer.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference. Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

Using Your VAIO Computer > Using the Wireless LAN

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a LAN is created only by wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.

Using Your VAIO Computer > Using the Wireless LAN

To communicate without an access point (ad-hoc)

The IEEE 802.11a standard, using the 5 GHz band, and the IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, are not available on ad-hoc networks.

1 Turn on the WIRELESS switch.

2 Click the VAIO Smart Network icon on the taskbar.

3 Click the switch next to your desired wireless option(s) to toggle it to On in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

4 Click Start and Control Panel.

5 Click View network status and tasks under Network and Internet.

6 Click Set up a new connection or network.

7 Select an option to specify the ad-hoc network settings and click Next.

8 Follow the on-screen instructions.

Using Your VAIO Computer > Using the Wireless LAN

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied). The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN network. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

The access point will select which channel to use on an infrastructure network.

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

Using Your VAIO Computer > Using the Wireless LAN

To connect to a wireless network

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Turn on the WIRELESS switch.

3 Click the VAIO Smart Network icon on the taskbar.

4 Click the switch next to your desired wireless option(s) to toggle it to On in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

5 Click or on the taskbar.

6 Select the desired access point and click Connect.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and 63 characters in length or a hexadecimal string of 64 characters.

Using Your VAIO Computer > Using the Wireless LAN

Stopping Wireless LAN Communications

To stop wireless LAN communications

Click the switch next to Wireless LAN to toggle it to Off in the VAIO Smart Network window.

Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.

Using Your VAIO Computer > Using the Bluetooth Function

Using the Bluetooth Function

You can establish wireless communications between your computer and other Bluetooth® devices such as another computer or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Using Your VAIO Computer > Using the Bluetooth Function

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

Using Your VAIO Computer > Using the Bluetooth Function

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the Bluetooth function, search Windows Help and Support for Bluetooth information.

1 Turn on the WIRELESS switch.

2 Click the VAIO Smart Network icon on the taskbar.

3 Click the switch next to Bluetooth to toggle it to On in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

Using Your VAIO Computer > Using the Bluetooth Function

Stopping Bluetooth Communications

To stop Bluetooth communications

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the switch next to Bluetooth to toggle it to Off in the VAIO Smart Network window.

Using Your VAIO Computer > Using the Bluetooth Function

Notes on Using the Bluetooth Function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard and

electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may not be possible in all situations.

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in reduced communication speeds and distances than the standard values.

Using Your VAIO Computer > Using the Bluetooth Function

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and is not a malfunction.

Using Peripheral Devices >

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting an Optical Disc Drive (page 60)

❑ Connecting External Speakers or Headphones (page 61)

❑ Connecting an External Display (page 62)

❑ Selecting Display Modes (page 64)

❑ Using the Multiple Monitors Function (page 65)

❑ Connecting an External Microphone (page 67)

❑ Connecting a USB Device (page 68)

Using Peripheral Devices > Connecting an Optical Disc Drive

Connecting an Optical Disc Drive

To use optical disc media with your computer, connect an external optical disc drive (not supplied) to your computer.

Connecting an Optical Disc Drive

Be sure to connect an external optical disc drive before you launch any preinstalled disc operation program.

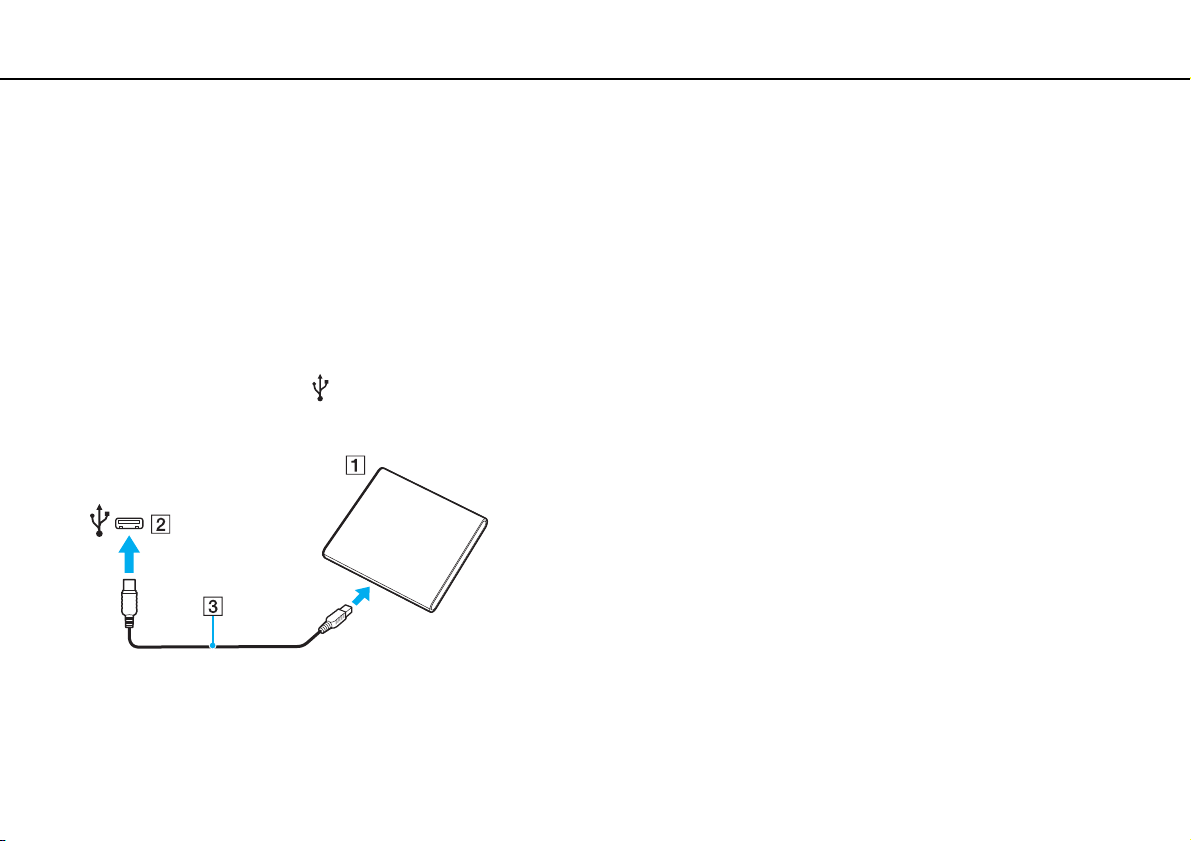

To connect an optical disc drive

1 Plug the power cord (if any) of your external optical disc drive (1) into an AC outlet.

2 Choose the USB port (2) you prefer to use.

3 Plug one end of a USB cable (3) into the USB port, and the other end to the optical disc drive.

✍

See the manual that came with your external optical disc drive for detailed instructions on connecting the USB cable to the drive.

Disconnecting the drive while the computer is in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction.

Using Peripheral Devices > Connecting External Speakers or Headphones

Connecting External Speakers or Headphones

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

To connect external speakers

✍

Make sure your speakers are designed for computer use.

Turn down the volume of the speakers before you turn them on.

Connect external speakers (1) to the headphones jack (2) i with a speaker cable (3) (not supplied).

Using Peripheral Devices > Connecting an External Display

Connecting an External Display

You can connect an external display to your computer. For example, you can use the computer with a computer display or a projector.

Features and options in this section may not be available on your computer.

Using Peripheral Devices > Connecting an External Display

Connecting a Computer Display or a Projector

You can connect an external display, such as a computer display or a projector, to your computer.

To connect a computer display or a projector

1 Plug the power cord (1) of your external display or the projector into the AC outlet.

2 Connect the external display or the projector to the monitor port (2) on the computer with a display cable (3).

✍

If necessary, connect the headphones jack on the projector and the headphones jack (4) i on the computer with a speaker cable (5).

Using Peripheral Devices > Selecting Display Modes

Selecting Display Modes

When an external display is connected, you can select either your computer screen or the connected display to use as the primary monitor.

✍

You may not be able to display the same content on your computer screen and the external display or projector at the same time, depending on the type of your external display or projector.

Turn on the external display before turning on your computer.

To select a display mode with the Fn+F7 keys

You can select a display mode with the Fn+F7 keys. See Combinations and Functions with the Fn Key (page 30) for more information.

To select a display mode from the display settings

1 Right-click on the desktop and select Screen resolution.

2 Click the drop-down list next to Multiple Displays, select your desired setting, and then click OK.

Using Peripheral Devices > Using the Multiple Monitors Function

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display connected to the monitor port, your computer screen and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

Using Peripheral Devices > Using the Multiple Monitors Function

To use the Multiple Monitors function

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function, or the computer may not return to Normal mode.

If you set different colors on each display, do not expand a single window across two displays, or your software may not work properly.

1 Right-click on the desktop and select Screen resolution.

2 Click the drop-down list next to Multiple Displays, select Extend these displays, and then click OK.

✍

You can set the display colors and resolution for each display and customize the Multiple Monitors function.

Set fewer colors or a lower resolution for each display.

Using Peripheral Devices > Connecting an External Microphone

Connecting an External Microphone

You can connect an external microphone (not supplied) to your computer.

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

Using Peripheral Devices > Connecting a USB Device

Connecting a USB Device

You can connect a Universal Serial Bus (USB) device to your computer, such as a mouse, floppy disk drive, speaker, and printer.

To connect a USB device

1 Choose the USB port (1) you prefer to use.

2 Plug the USB device cable (2) into the USB port.

Using Peripheral Devices > Connecting a USB Device

Notes on connecting a USB device

❑ You may need to install the driver software supplied with your USB device before use. See the manual that came with the

USB device for more information.

❑ Be sure to use a USB printer compatible with your version of Windows to print documents.

❑ For information on how to remove a USB device, see the manual that came with the device.

❑ To protect your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.

❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

❑ The optional USB floppy disk drive may not be available in some countries or regions.

Customizing Your VAIO Computer >

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities.

❑ Setting the Password (page 71)

❑ Using the VAIO Control Center (page 76)

❑ Using the VAIO Power Management (page 77)

Customizing Your VAIO Computer > Setting the Password

Setting the Password

Use one of the BIOS functions to set the password.

Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your computer. The power-on password allows you to protect your computer from unauthorized access.

Adding the Power-on Password

The power-on password is provided to protect your computer from unauthorized access.

There are two types of the power-on passwords: the machine password and the user password. The machine password is provided for users with administrative rights on the computer to change all the setup options in the BIOS setup screen, as well as to start the computer. The user password is provided for the standard users to allow for changing some of the BIOS setup options, as well as starting the computer. To set the user password, you must first set the machine password.

Once you have set the power-on password, you cannot start your computer without entering the password. Be sure not to forget the password. Write down your password and keep it safe and private from other people.

If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in for service to reset the password.

Customizing Your VAIO Computer > Setting the Password

To add the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

4 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters (including spaces) long.

5 Select Password when Power On under Security and press the Enter key.

6 Change the setting from Disabled to Enabled. 7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

To add the power-on password (user password)

Make sure you set the machine password before setting the user password.

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the machine password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters (including spaces) long.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

Changing/Removing the Power-on Password

To change or remove the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the machine password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

To change or remove the power-on password (user password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the user password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Using the VAIO Control Center

Using the VAIO Control Center

The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior.

To use the VAIO Control Center

1 Click Start, All Programs, and VAIO Control Center.

2 Select your desired control item and change the settings.

3 Once finished, click OK.

The setting of the desired item has been changed.

✍

For more information about each option, see the help file included with the VAIO Control Center.

Some of the control items will not be visible if you open the VAIO Control Center as a standard user.

Customizing Your VAIO Computer > Using the VAIO Power Management

Using the VAIO Power Management

Power management helps you set up power plans for running on AC or battery power to suit your requirements for power consumption.

The VAIO Power Management function is added to the Windows Power Options. With this software application, you can enhance the Windows power management functions to ensure better operation of your computer and longer battery life.

Selecting a Power Plan

When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source you are currently using. Click this icon to display the window that shows your power status.

To select a power plan

1 Right-click the power status icon on the taskbar and select Power Options.

2 Select your desired power plan.

To change the power plan settings

1 Click Change plan settings on the right of your desired power plan in the Power Options window.

Change the Sleep mode and display settings as needed.

2 If you need to change the advanced settings, click Change advanced power settings and go to step 3.

Otherwise, click Save changes.

3 Click the VAIO Power Management tab.

Change the settings for each item.

4 Click OK.

✍

You can check the current power plan settings with the VAIO Power Management Viewer in the VAIO Control Center.

Precautions >

Precautions

This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage.

❑ Safety Information (page 79)

❑ Care and Maintenance Information (page 82)

❑ Handling Your Computer (page 83)

❑ Handling the LCD Screen (page 85)

❑ Using the Power Source (page 86)

❑ Handling the Built-in Camera (page 87)

❑ Handling Discs (page 88)

❑ Using the Battery Pack (page 89)

❑ Handling "Memory Stick" (page 90)

❑ Handling the Built-in Storage Device (page 91)

Precautions > Safety Information

Safety Information

Computer

❑ Use your computer on a solid, stable surface.

❑ Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as

rugs, blankets, couches, beds, or near draperies that may block its air vents.

❑ Do not use your computer directly on your lap. The temperature of the base of the unit will rise during normal operation

and over time could result in discomfort or burns.

❑ Use only specified peripheral equipment and interface cables.

Power Source

❑ Do not place heavy objects on the power cord, or this could cause a fire.

❑ To disconnect the cord, pull it out by holding the plug. Never pull the cord itself.

❑ Unplug your computer from the AC outlet if you are not planning to use the computer for an extended period of time.

❑ When the AC adapter is not used, unplug it from the AC outlet.

❑ Make sure that the AC outlet is easily accessible.

Precautions > Safety Information

Battery Pack

❑ Do not leave battery packs in temperatures above 60°C, such as in a car parked in the sun or under direct sunlight.

❑ For your safety, it is highly recommended that you use genuine Sony rechargeable battery packs and AC adapters that

meet the quality assurance standard, supplied by Sony for your VAIO computer. Some VAIO computers may only function with a genuine Sony battery pack.

❑ Keep the battery pack away from all sources of heat.

❑ Keep the battery pack dry.

❑ Do not open or try to disassemble the battery pack.

❑ Do not expose the battery pack to any mechanical shock, such as dropping it on a hard surface.

❑ If you are not using your computer for an extended period of time, remove the battery pack from the computer to prevent

damage to the battery pack.

❑ If you have not used the battery pack for a considerable amount of time, the remaining battery life may become short.

This is normal and does not indicate a malfunction. The battery pack will gradually discharge over time even while not in use. Connect the AC adapter to your computer and recharge the battery pack before using the computer again.

Precautions > Safety Information

Headphones

❑ Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic

hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.

❑ Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud

and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.

"Memory Stick"

Keep “Memory Stick” and “Memory Stick” adaptors out of reach of children. There is a risk of swallowing them.

Precautions > Care and Maintenance Information

Care and Maintenance Information

Computer

❑ Clean the cabinet with a soft, dry or lightly moistened cloth with a mild detergent solution. Do not use an abrasive pad,

scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.

❑ Make sure you unplug the AC adapter and remove the battery pack before cleaning your computer.

LCD Screen

Use a soft, dry cloth to wipe the surface of the LCD screen. Rubbing the surface could damage the screen.

Built-in Camera

Clean the lens protection cover of the built-in camera with a blower brush or a soft brush. If the cover is extremely dirty, wipe it off with a soft dry cloth. Do not rub the cover, as it is sensitive to pressure.

Discs

❑ Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol,

commercially available cleaners, or anti-static spray) which may cause damage to the disc.

❑ For normal cleaning, hold the disc by its edges and use a soft cloth to wipe the surface from the center out.

❑ If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from

the center out. Wipe off any remaining moisture with a dry soft cloth.

Precautions > Handling Your Computer

Handling Your Computer

❑ If you drop a solid object or any liquid onto your computer, shut down the computer, unplug it, and remove the battery

pack. You may want to have the computer checked by qualified personnel before operating it again.

❑ Do not drop your computer or place any objects on top of the computer.

❑ Do not place your computer in a location subject to:

❑ Heat sources, such as radiators or air ducts

❑ Direct sunlight

❑ Excessive dust

❑ Moisture or rain

❑ Mechanical vibration or shock

❑ Strong magnets or speakers that are not magnetically shielded

❑ Ambient temperature of more than 35°C or less than 5°C

❑ High humidity

❑ Do not place electronic equipment near your computer. The electromagnetic field of the equipment may cause the

computer to malfunction.

❑ Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,

relocate the computer a suitable distance away from the set.

❑ Do not use cut or damaged connection cables.

❑ If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In

such a case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact VAIO Helpdesk.

❑ To avoid losing data when your computer is damaged, back up your data regularly.

Precautions > Handling Your Computer

❑ Do not exert pressure on the LCD screen or its edges when opening the LCD screen lid or lifting your computer. The LCD

screen may be sensitive to pressure or added stress, and exerting pressure may damage the screen or cause it to malfunction. To open the computer, hold the base with one hand and gently lift the LCD screen lid with the other. To carry the computer with the lid open, be sure to hold the computer with both hands.

❑ Use a carrying case specially designed to carry your computer.

Precautions > Handling the LCD Screen

Handling the LCD Screen

❑ Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be sure to block direct sunlight when

using your computer near a window.

❑ Do not scratch the surface of the LCD screen or exert pressure on it. This could cause a damage.

❑ Using your computer in low temperature conditions may produce a residual image on the LCD screen. This is not a

malfunction. When the computer returns to normal temperature, the screen returns to normal.

❑ A residual image may appear on the LCD screen if the same image is displayed for an extended period of time. The

residual image disappears after a while. You can use a screen saver to prevent residual images.

❑ The LCD screen becomes warm during operation. This is normal and does not indicate a malfunction.

❑ The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright

points (red, blue, or green) that continuously appear on the LCD screen. This is a normal result of the manufacturing process and does not indicate a malfunction.

❑ Do not change the LCD screen orientation setting in the Tablet PC Settings window even when there are change options

available for selection, as this may make your computer unstable. Sony assumes no liability for any malfunctions arising from changes to the settings.

❑ Do not exert pressure on the LCD screen lid with the lid closed as it may scratch the LCD screen or soil it.

Precautions > Using the Power Source

Using the Power Source

See the specifications to find out about the configuration of your computer.

❑ Do not share the AC outlet with other power-consuming equipment, such as a photocopier or a shredder.

❑ You can purchase a power strip with a surge protector. This device helps prevent damage to your computer caused by

sudden power surges, in an electrical storm, for example.

❑ Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may

cause a malfunction.

Precautions > Handling the Built-in Camera

Handling the Built-in Camera

❑ Do not touch the lens protection cover of the built-in camera, as it may cause scratches on the cover and such scratches

will appear on the captured images.

❑ Do not let the direct sunlight get into the lens of the built-in camera regardless of your computer's power state, as it may

cause the camera to malfunction.

Precautions > Handling Discs

Handling Discs

❑ Fingerprints and dust on the surface of a disc may cause read errors. Be sure to hold the disc by its edges and central

hole, as shown below:

❑ Never affix an adhesive label to a disc. This will affect the use of the disc and may result in irreparable damage.

Precautions > Using the Battery Pack

Using the Battery Pack

❑ Battery life is shorter in a cold environment. This is due to decreased battery efficiency at low temperatures.

❑ Charge battery packs at temperatures between 10°C to 30°C. Lower temperatures require longer charging time.

❑ While the battery pack is in use or being charged, heat builds up in the battery pack. This is normal and is not cause for

concern.

❑ You do not need to discharge the battery pack before recharging.

❑ If the battery pack quickly runs out of power after being fully charged, it may be reaching the end of its life and should be

replaced.

Precautions > Handling "Memory Stick"

Handling "Memory Stick"

❑ Do not touch the "Memory Stick" connector with your finger or metallic objects.

❑ Use only the adhesive label supplied with "Memory Stick" as a label.

❑ Do not bend, drop, or expose "Memory Stick".

❑ Do not disassemble or modify "Memory Stick".

❑ Do not let "Memory Stick" get wet.

❑ Do not use or store "Memory Stick" in a location subject to:

❑ Static electricity

❑ Electrical noise

❑ Extremely high temperatures, such as in a car parked in the sun

❑ Direct sunlight

❑ High humidity

❑ Corrosive substances

❑ Use the storage case supplied with "Memory Stick".

❑ Be sure to make a backup copy of your valuable data.

❑ When using "Memory Stick Duo", do not use a fine-tipped pen to write on the label adhered to "Memory Stick Duo".

Exerting pressure on the media may damage internal components.

Precautions > Handling the Built-in Storage Device

Handling the Built-in Storage Device

The built-in storage device (hard disk drive or solid state drive) has a high storage density and reads or writes data in a short time. However, it can be easily damaged if improperly used. If the built-in storage device is damaged, the data cannot be restored. To prevent losing data, you should be careful when handling your computer.

Features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

To avoid damaging your hard disk drive

❑ Do not subject your computer to sudden movements.

❑ Keep your computer away from magnets.

❑ Do not place your computer in a location subject to mechanical vibration or in an unstable position.

❑ Do not move your computer while the power is on.

❑ Do not turn off the power or restart your computer while reading or writing data to the hard disk drive.

❑ Do not use your computer in a place subject to extreme changes in temperature.

❑ Do not remove the hard disk drive from your computer.

To avoid damaging your solid state drive

❑ Do not turn off the power or restart your computer while reading or writing data to the solid state drive.

❑ Do not remove the solid state drive from your computer.

Troubleshooting >

Troubleshooting

This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before contacting VAIO Helpdesk.

Features and options in this section may not be available on your computer.

❑ Computer (page 93)

❑ System Security (page 100)

❑ Battery (page 101)

❑ Built-in Camera (page 103)

❑ Networking (page 105)

❑ Bluetooth Technology (page 108)

❑ Display (page 112)

❑ Printing (page 116)

❑ Microphone (page 117)

❑ Speakers (page 118)

❑ Touch Pad (page 119)

❑ Keyboard (page 120)

❑ Floppy Disks (page 121)

❑ Audio/Video (page 122)

❑ "Memory Stick" (page 123)

❑ Peripherals (page 124)

Troubleshooting > Computer

Computer

What should I do if my computer does not start?

❑ Make sure your computer is securely plugged into a power source and turned on and the power indicator light is lit.

❑ Make sure the battery pack is installed properly and charged.

❑ Disconnect all connected USB devices (if any), and then restart your computer.

❑ If your computer is plugged into a power strip or an uninterruptible power supply (UPS), make sure the power strip or UPS

is plugged into a power source and turned on.

❑ If you are using an external display, make sure it is plugged into a power source and turned on. Make sure the brightness

and contrast controls are adjusted correctly. See the manual that came with your display for more information.

❑ Unplug the AC adapter and remove the battery pack. Wait three to five minutes. Reinstall the battery pack, plug the AC

adapter, and then slide the power switch (in the direction of G on the switch) to turn on your computer.

❑ Condensation may cause your computer to malfunction. If this occurs, do not use the computer for at least one hour.

❑ Check that you are using the supplied Sony AC adapter. For your safety, use only the genuine Sony rechargeable battery

pack and AC adapter, which are supplied by Sony for your VAIO computer.

Troubleshooting > Computer

What should I do if the green power indicator light turns on but my screen remains blank?

❑ Press the Alt+F4 keys several times to close the application window. An application error may have occurred.

❑ If the Alt+F4 keys do not work, click Start, the arrow next to the Shut down button, and Restart to restart your computer.

❑ If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down

button and Restart. If the Windows Security window appears, click Restart.

❑ If this procedure does not work, slide (in the direction of G on the switch) and hold the power switch for more than four

seconds to shut down your computer. Unplug the AC adapter and leave the computer for about five minutes. Then plug the AC adapter and turn on the computer again.

Turning off your computer with the Ctrl+Alt+Delete keys or the power switch may cause loss of unsaved data.

Troubleshooting > Computer

What should I do if my computer or software stops responding?

❑ If your computer stops responding while a software application is running, press the Alt+F4 keys to close the application

window.

❑ If the Alt+F4 keys do not work, click Start and the Shut down button to turn off your computer.

❑ If your computer does not turn off, press the Ctrl+Alt+Delete keys and click the Shut down button.

If the Windows Security window appears, click Shut Down.

❑ If this procedure does not work, slide (in the direction of G on the switch) and hold the power switch until the computer

turns off.

Turning off your computer with the Ctrl+Alt+Delete keys or the power switch may cause loss of unsaved data.

❑ Unplug the AC adapter and remove the battery pack. Wait three to five minutes. Reinstall the battery pack, plug the AC

adapter, and then slide the power switch (in the direction of G on the switch) to turn on your computer.

❑ Try reinstalling the software.

❑ Contact the software publisher or designated provider for technical support.

Troubleshooting > Computer

Why doesn't my computer enter Sleep or Hibernate mode?

Your computer may become unstable if the operating mode is changed before the computer completely enters Sleep or Hibernate mode.

To restore your computer to Normal mode

1 Close all open programs.

2 Click Start, the arrow next to the Shut down button, and Restart.

3 If your computer does not restart, press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and

Restart. If the Windows Security window appears, click Restart.

4 If this procedure does not work, slide (in the direction of G on the switch) and hold the power switch until the computer

turns off.

Turning off your computer with the Ctrl+Alt+Delete keys or the power switch may cause loss of unsaved data.

What should I do if the charge indicator light is blinking fast and my computer does not start?

❑ This problem could be due to the battery pack not being installed properly. To solve this problem, turn off your computer

and remove the battery pack. Then reinstall the battery pack to the computer. For details, see Installing/Removing the Battery Pack (page 18).

❑ If the problem persists after performing the above, it means the installed battery pack is not compatible. Remove the

battery pack and contact VAIO Helpdesk.

Troubleshooting > Computer

What should I do if a message appears notifying of either incompatibility or the improper installation of the battery pack and my computer then enters Hibernate mode?

❑ This problem could be due to the battery pack not being installed properly. To solve this problem, turn off your computer

and remove the battery pack. Then reinstall the battery pack to the computer. For details, see Installing/Removing the Battery Pack (page 18).

❑ If the problem persists after performing the above, it means the installed battery pack is not compatible. Remove the

battery pack and contact VAIO Helpdesk.

Why does the System Properties window display a slower CPU speed than the maximum?

This is normal. Because your computer's CPU utilizes a type of CPU speed controlling technology for power conservation purposes, System Properties may display the current CPU speed instead of the maximum speed.

What should I do if my computer does not accept my password and returns a message, Enter Onetime Password?

If you enter a wrong power-on password three times consecutively, the Enter Onetime Password message appears and Windows will not start. Slide (in the direction of G on the switch) and hold the power switch for more than four seconds to check that the power indicator light turns off. Wait for 10 or 15 seconds, then restart your computer and enter the correct password. When entering the password, check that the Num lock and Caps lock indicator lights are unlit. If both or either of the lights is lit, press the Num Lk (or Num Lock) key or the Caps Lock key to turn off the indicator light before entering the password.

Troubleshooting > Computer

What should I do if my game software does not work or it keeps crashing?

❑ Check the web site of the game if there are any patches or updates to download.

❑ Make sure you have installed the latest video driver software.

❑ On some VAIO models, the graphics memory is shared with the system. The optimal graphic performance in such a case

is not guaranteed.

What should I do if I cannot remember the power-on password?

If you have forgotten the power-on password, contact VAIO Helpdesk to reset it. A reset fee will be charged.

How can I change the boot device order?

You can use one of the BIOS functions to change the boot device order. Follow these steps:

1 Turn on your computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Press the < or , key to select Boot. 4 Press the M or m key to select the drive whose boot device order you want to change.

5 Press the F5 or F6 key to change the boot device order. 6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Troubleshooting > Computer

Why doesn't my screen turn off after the automatic turn-off time has passed?

Some software applications or screen savers are designed to temporarily disable the feature of your operating system that turns off the computer screen or places the computer into Sleep mode after a certain period of inactivity. To solve this problem, exit the running software application(s) or change the current screen saver.

What should I do if I cannot boot my computer from the external device connected to the computer?

To boot your computer from the external device, for example the USB floppy disk drive or the USB optical disc drive, you need to change the boot device.

Turn on your computer and press the F11 key when the VAIO logo appears.

How do I check the volume of the recovery partition?

Your built-in storage device contains the recovery partition where the data for the system recovery is stored. To check the volume of the recovery partition, follow these steps:

1 Click Start, right-click Computer, and select Manage.

2 Click Disk Management under Storage in the left pane.

The volume of the recovery partition and the total volume of the C drive are displayed in the Disk 0 row in the center pane.

Troubleshooting > System Security

100

System Security

How can I protect my computer against security threats, such as viruses?

The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly.

You can get important Windows updates by doing the following:

Your computer must be connected to the Internet to download the updates.

1 Click Start and Control Panel.

2 Click System and Security.

3 Click Action Center.

4 Follow the on-screen instructions to set up automatic or scheduled updates.

How do I keep my antivirus software updated?

You can keep the McAfee software program current with the latest updates from McAfee, Inc.

To download and install the latest security updates, follow these steps:

Your computer must be connected to the Internet to download the updates.

1 Click Start, All Programs, McAfee, and McAfee SecurityCenter.

2 Click the button located at the upper left corner of the window to update the software.

3 Follow the on-screen instructions to download updates.

See the help file included with your software program for more information.

Sony VPCW125AG Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual
