User Guide

Personal Computer

VPCS13 Series

Contents

Before Use.......................................................................... 4

Finding More about Your VAIO Computer .................... 5

Ergonomic Considerations.......................................... 10

Getting Started.................................................................. 12

Locating Controls and Ports........................................ 13

About the Indicator Lights ........................................... 18

Connecting a Power Source ....................................... 19

Using the Battery Pack................................................ 21

Shutting Down Your Computer Safely ........................ 28

Using the Power Saving Modes.................................. 29

Keeping Your Computer in Optimum Condition .......... 32

Using Your VAIO Computer.............................................. 35

Using the Keyboard.....................................................36

Using the Touch Pad................................................... 39

Using Special-function Buttons ...................................40

Using the Built-in Camera ........................................... 41

Using the Optical Disc Drive ....................................... 42

Using "Memory Stick".................................................. 49

Using Other Modules / Memory Cards........................ 56

Using the Internet ........................................................ 63

Using the Network (LAN) ............................................ 64

Using the Wireless LAN ..............................................65

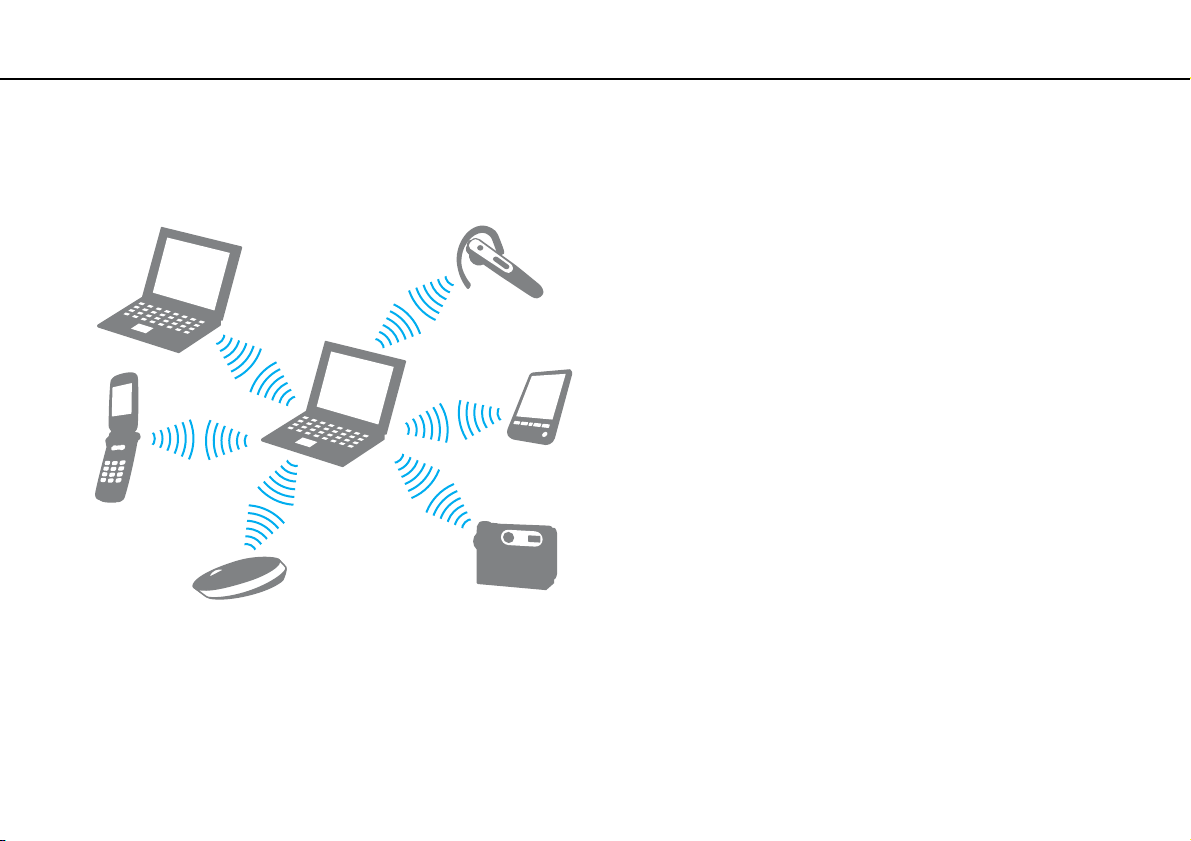

Using the Bluetooth Function ......................................71

Using Fingerprint Authentication .................................77

Using Peripheral Devices..................................................84

Connecting a Docking Station .....................................85

Connecting External Speakers or Headphones ..........93

Connecting an External Display ..................................94

Selecting Display Modes .............................................99

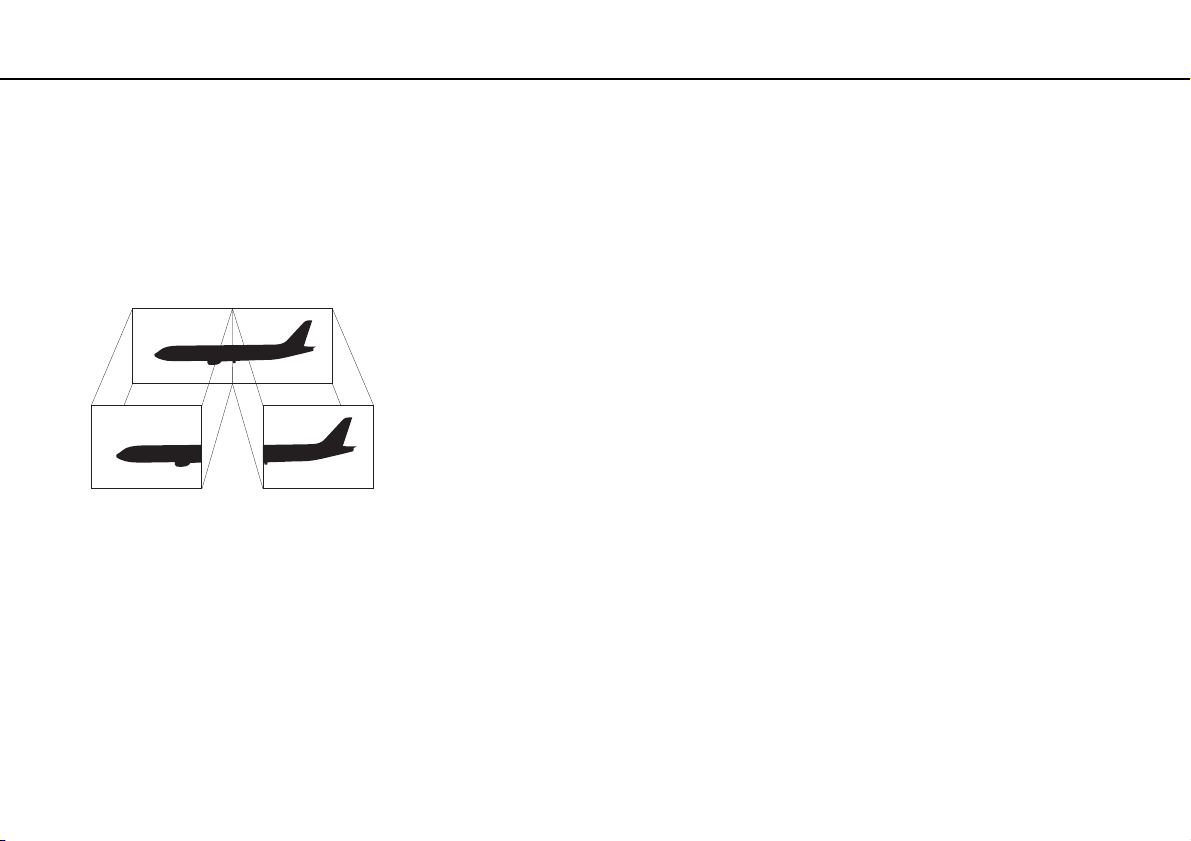

Using the Multiple Monitors Function ........................100

Connecting an External Microphone .........................102

Connecting a USB Device .........................................103

Connecting an i.LINK Device.....................................105

Customizing Your VAIO Computer..................................107

Setting the Password.................................................108

Using Intel(R) VT .......................................................119

Using the VAIO Control Center .................................120

Using the VAIO Power Management.........................121

Protecting the Hard Disk ............................................122

Upgrading Your VAIO Computer.....................................123

Adding and Removing Memory .................................124

Precautions..................................................................... 130

Safety Information ..................................................... 131

Care and Maintenance Information........................... 134

Handling Your Computer...........................................135

Handling the LCD Screen ......................................... 137

Using the Power Source ........................................... 138

Handling the Built-in Camera .................................... 139

Handling Discs ..........................................................140

Using the Battery Pack..............................................141

Handling "Memory Stick"........................................... 142

Handling the Built-in Storage Device ........................ 143

Using Fingerprint Authentication............................... 144

Troubleshooting .............................................................. 145

Computer Operations ................................................ 147

System Update / Security..........................................153

Recovery ................................................................... 154

Battery Pack.............................................................. 156

Built-in Camera ......................................................... 158

Networking (LAN/Wireless LAN) ...............................160

Bluetooth Technology ............................................... 164

Optical Discs ............................................................. 168

Display ...................................................................... 172

Printing ...................................................................... 176

Microphone ............................................................... 177

Speakers ...................................................................178

Touch Pad .................................................................180

Keyboard ...................................................................181

Floppy Disks ..............................................................182

Audio/Video ...............................................................183

"Memory Stick" ..........................................................185

Peripherals ................................................................186

Docking Station .........................................................187

Trademarks .....................................................................188

Notice ..............................................................................191

Before Use >

Before Use

Congratulations on your purchase of this Sony VAIO® computer and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

How to find specifications

Some features, options, and supplied items may not be available on your computer.

To find out about the configuration of your computer, visit the Sony online support web site at the following URLs:

❑ For customers in USA

http://esupport.sony.com/EN/VAIO/

❑ For customers in Canada

http://www.sony.ca/support/ http://www.fr.sony.ca/support

❑ For customers in Spanish-speaking Latin American countries or areas

http://esupport.sony.com/ES/VAIO/LA

❑ For customers in Brazil

http://esupport.sony.com/PT/VAIO/BR/

(English)

(French)

Before Use > Finding More about Your VAIO Computer

Finding More about Your VAIO Computer

This section provides support information about your VAIO computer.

1. Printed Documentation

❑ Quick Start Guide — An overview of components connection, set-up information, etc.

❑ Recovery, Backup and Troubleshooting Guide

❑ Safety Information — Safety guidelines and owner information.

✍

Before activating the wireless functions such as the wireless LAN and Bluetooth technology, read the Safety Information carefully.

Before Use > Finding More about Your VAIO Computer

2. On-screen Documentation

❑ VAIO User Guide — General information of your VAIO computer including support and troubleshooting information.

To access VAIO User Guide, click Start , All Programs, and VAIO Manual.

❑ Help and Support — General information and technical assistance for your VAIO computer.

To access Help and Support:

1 Click Start and Help and Support.

2 Choose from the following categories to find the answers you need.

Get started with my VAIO Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, creating

Use my VAIO Get assistance with your VAIO computer by accessing useful information such as interactive VAIO tutorials,

Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with the VAI O C are, system restore, backup and recovery,

Recovery Media, and more.

how-to articles, the VAIO technology page, specifications, and system and software information. The available information varies depending on the model you purchased. You can find useful documentation such as general and model specific user guide on your VAIO computer.

and contact Sony support.

Before Use > Finding More about Your VAIO Computer

❑ Program help files — May be included with the preinstalled software programs on your computer. You may be able to

access the help files from the help menu on a specific program.

™

❑ SmartWi

Connection Utility Help (On selected models only) — Information about setting up Bluetooth®, wireless LAN,

GPS, and wireless WAN functions.

Some features and options may not be available on your computer. See the specifications to find out about the configuration of your computer.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility.

2 Click SmartWi Connection Utility Help.

Before Use > Finding More about Your VAIO Computer

3. Support Web Sites

❑ Sony online support web site

The Sony online support web site provides instant access to information on commonly encountered problems. Type a description of the problem and the Knowledge Database searches for the corresponding solutions online.

❑ For customers in USA

http://esupport.sony.com/EN/VAIO/

❑ For customers in Canada

http://www.sony.ca/support/ http://www.fr.sony.ca/support

❑ For customers in Spanish-speaking Latin American countries or areas

http://esupport.sony.com/ES/VAIO/LA

❑ For customers in Brazil

http://esupport.sony.com/PT/VAIO/BR/

❑ Operating system online support web site

Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can visit Microsoft customer support at http://support.microsoft.com/directory/

(English)

(French)

Before Use > Finding More about Your VAIO Computer

4. Customer Information Center

If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information readily available:

1 Your VAIO computer model

You can find it at the lower right corner of the display on the computer.

2 Your computer's serial number

You can find it on the bottom, the back panel, or inside the battery compartment of your Sony VAIO computer. The serial number is the last 7 digits of the number below the barcode.

3 The operating system on your computer

4 The hardware component or the software program that is causing the problem

5 A brief description of the problem

5. In Store Service & Support (available in USA only)

Make an appointment with a Sony certified technician at a U.S. Sony Style store and get personalized service and support for your VAIO computer. Sony Style Backstage Technicians can assist with the setup of your new VAIO computer, system optimization, data rescue, and any repair service you might need. Visit the web site at www.sonystyle.com/backstage

to find the nearest location.

Before Use > Ergonomic Considerations

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists

in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use > Ergonomic Considerations

❑ Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at or slightly below eye level when you are sitting in front of the monitor.

Getting Started >

Getting Started

This section describes how to get started using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.

❑ Locating Controls and Ports (page 13)

❑ About the Indicator Lights (page 18)

❑ Connecting a Power Source (page 19)

❑ Using the Battery Pack (page 21)

❑ Shutting Down Your Computer Safely (page 28)

❑ Using the Power Saving Modes (page 29)

❑ Keeping Your Computer in Optimum Condition (page 32)

Getting Started > Locating Controls and Ports

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.

Front

A Built-in MOTION EYE camera (page 41) B Built-in MOTION EYE camera indicator (page 18) C LCD screen (page 137) D VAI O button (page 40)

E ASSIST button F Ambient light sensor (page 38), (page 174)

Measures ambient light intensity for automatically adjusting the LCD brightness to an optimum level.

G Wireless Display button H Built-in speakers (stereo) I Built-in microphone (monaural) J Keyboar d (page 36) K Touch pad (page 39) L Right button(page 39)

M Fingerprint sensor N Left button (page 39)

Your computer is equipped with either of the buttons.

On selected models only.

(page 40)

(page 77)

(page 40)

Getting Started > Locating Controls and Ports

A Num lock indicator (page 18) B Caps lock indicator (page 18) C Scroll lock indicator (page 18) D SD memory card slot (page 59) E Media Access indicator (page 18)

F "Memory Stick Duo" slot

(page 49)

G WIRELESS indicator (page 18) H Charge indicator (page 18) I Disc drive indicator (page 18) J WIRELESS switch (page 65), (page 71) K Headphones jack (page 93) L Microphone jack (page 102) M Drive eject button (page 40), (page 42)

* Your computer supports only Duo-size "Memory Stick".

Getting Started > Locating Controls and Ports

Right

A Optical disc drive (page 42) B Manual eject hole (page 168) C ExpressCard/34 slot (page 56)

D USB ports E Network (LAN) por t (page 64) F Power button/Power indicator (page 18)

* Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

(page 103)

Getting Started > Locating Controls and Ports

Left

A DC IN port (page 19) B Air vent C Security slot

D HDMI output port E Monitor port F USB port

(page 97)

(page 94)

(page 103)

G i.LINK 4-pin (S400) port (page 105)

On models with the NVIDIA video controller, there may be no sound from an output device connected to the HDMI output port for the first few seconds after playback starts. This does not indicate a malfunction.

Not functional when your computer is attached to the docking station.

Compliant with the USB 2.0 standard and supports high-/full-/low- speeds.

Getting Started > Locating Controls and Ports

Back/Bottom

A Air vents B Battery connector (page 21)

C Docking station connector D Memory module compartment cover (page 124)

* On selected models only.

(page 87)

Getting Started > About the Indicator Lights

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green while the computer is in Normal mode, blinks slowly in orange while the computer is in Sleep

Charge

Media Access Illuminates while data access to a memor y card, such as "Memory Stick" and an SD memory card, is in

Built-in MOTION EYE camera Illuminates while the built-in camera is in use.

Disc drive

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates while one or more wireless options are enabled.

mode, and turns off when the computer is turned off or enters Hibernate mode.

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 24) for more information.

progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the indicator light is unlit, the memory card is not in use.

Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place the computer into Sleep mode or turn it off while this indicator light is lit.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator light is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes when the Caps lock indicator light is turned off.

Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Getting Started > Connecting a Power Source

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the AC outlet.

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.

The shape of the DC In plug varies depending on the AC adapter.

Getting Started > Connecting a Power Source

✍

To disconnect your computer completely from an AC power source, unplug the AC adapter from the AC outlet.

Make sure that an AC outlet is easily accessible.

If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page

31).

Getting Started > Using the Battery Pack

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing/Removing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

Getting Started > Using the Battery Pack

3 Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery

compartment fits into the U-shaped cut (3) on either side of the battery pack.

4 Push the battery pack down into the compartment until it clicks into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

Getting Started > Using the Battery Pack

To remove the battery pack

You will lose all unsaved data if you remove the battery pack while your computer is on and not connected to the AC adapter.

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and

lift the battery pack in the direction of the arrow, and then slide it away from the computer.

This computer is designed to operate only with genuine Sony battery packs.

Getting Started > Using the Battery Pack

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the computer to a power source with the AC adapter.

The charge indicator light is on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected, the charge indicator turns off.

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power indicator

Blinks along with the orange power indicator

Blinks fast in orange A battery error has occurred due to a failed battery

Charge the battery pack as described in this manual from your first battery charge.

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Getting Started > Using the Battery Pack

✍

Keep the battery pack in your computer while it is directly connected to an AC power source. The battery pack continues to charge while you are using the computer.

When the battery pack is running out of power and both the charge and power indicator lights blink, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the life of battery.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life becomes short. To avoid loss of data while the computer is running on the battery, you should save your data frequently and manually activate a power

management mode, such as Sleep or Hibernate.

If the battery pack runs out of power while the computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Getting Started > Using the Battery Pack

Checking the Battery Charge Capacity

The battery charge capacity gradually decreases as the number of battery charging increases or the duration of use of the battery pack extends. To get the most out of the battery pack, check the battery charge capacity and change the battery settings.

To check the battery charge capacity

1 Click Start, All Programs, and VAIO Control Center.

2 Click Power Management and Battery.

✍

Additionally, you can enable the battery care function to extend the life of the battery pack.

Getting Started > Using the Battery Pack

Extending the Battery Life

When your computer is running on battery power, you can extend the battery life using the following methods.

❑ Decrease the LCD brightness of your computer screen.

❑ Use the power saving mode. See Using the Power Saving Modes (page 29) for more information.

❑ Change the power saving settings on the Power Options. See Using the VAIO Power Management (page 121) for more

information.

❑ Set the wallpaper in Long Battery Life Wallpaper Setting as your desktop background with the VAIO Control Center.

Getting Started > Shutting Down Your Computer Safely

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Save your data and close all running software applications.

3 Click Start and the Shut down button.

After a short time, the computer automatically turns off. Make sure the power indicator light turns off.

Getting Started > Using the Power Saving Modes

Using the Power Saving Modes

You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, your computer has two distinct power saving modes to suit your preference: Sleep and Hibernate.

If you do not intend to use your computer for an extended period of time while it is disconnected from an AC power source, place the computer into Hibernate mode or turn it off.

If the battery pack runs out of power while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Mode Description

Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the

computer is in this mode.

Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power

Hibernate mode While your computer is in Hibernate mode, the state of the system is saved on the built-in storage device(s) and

consumption mode. The orange power indicator light blinks slowly while your computer is in this mode. Your computer comes out of Sleep mode quicker than out of Hibernate mode. However, Sleep mode uses more power than Hibernate mode.

power is turned off. Even when the battery pack runs out of power, no data will be lost. The power indicator light is unlit while your computer is in this mode.

Getting Started > Using the Power Saving Modes

Using Sleep Mode

To activate Sleep mode

Click Start, the arrow next to the Shut down button, and Sleep.

To return to Normal mode

❑ Press any key.

❑ Press the power button on your computer.

If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.

Getting Started > Using the Power Saving Modes

Using Hibernate Mode

To activate Hibernate mode

Press the Fn+F12 keys.

Alternatively, you can click Start, the arrow next to the Shut down button, and Hibernate.

Do not move your computer before its power indicator light turns off.

To return to Normal mode

Press the power button.

If you press and hold the power button for more than four seconds, your computer will turn off automatically.

Getting Started > Keeping Your Computer in Optimum Condition

Keeping Your Computer in Optimum Condition

Updating Your Computer

Be sure to update your VAIO computer with the following software applications for enhancing your computer's efficiency, security, and functionality.

The VAIO Update automatically notifies you of new updates available on the Internet, and downloads and installs them on the computer.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 5

Click Start, All Programs, and VAIO Update 5 and then follow the on-screen instructions.

Your computer must be connected to the Internet to download the updates.

Getting Started > Keeping Your Computer in Optimum Condition

Keeping the Antivirus Software Updated

You can keep the Internet security software programs current with the latest updates by downloading and installing the updates from the web site of the manufacturer.

Your computer must be connected to the Internet to download the updates.

❑ When using the McAfee:

1 Click Start, All Programs, McAfee, and McAfee SecurityCenter.

2 Click the update tab and select the option to check for updates.

3 Follow the on-screen instructions to complete the updates.

❑ When using the Norton Internet Security:

1 Click Start, All Programs, Norton Internet Security, and LiveUpdate or Norton Internet Security.

2 Follow the on-screen instructions to complete the updates.

✍

See the help file included with your software program for more information.

The actual procedure may be different from the above depending on updates installed on your computer. In such a case, follow the on-screen instructions.

Getting Started > Keeping Your Computer in Optimum Condition

Using the VAIO Care

With the VAIO Care, you can regularly conduct performance checks and tune-ups on your computer to keep it running at an optimum level. Launch the VAIO Care whenever a problem is found on your computer. The VAIO Care will provide appropriate measures to solve the problem.

To launch the VAIO Care

❑ On models with the ASSIST button

Press the ASSIST button while your computer is on.

❑ On models without the ASSIST button

Click Start, All Programs, VAIO Care, and VAIO Care.

Do not press the ASSIST button while the computer is in Hibernate mode.

✍

See the help file included with the VAIO Care for more information.

On models with the ASSIST button, pressing the ASSIST button while the computer is off launches the VAIO Care Rescue. The VAIO Care Rescue can be used to recover your computer in case of emergency, for example, when the Windows does not start.

Using Your VAIO Computer >

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 36)

❑ Using the Touch Pad (page 39)

❑ Using Special-function Buttons (page 40)

❑ Using the Built-in Camera (page 41)

❑ Using the Optical Disc Drive (page 42)

❑ Using "Memory Stick" (page 49)

❑ Using Other Modules / Memory Cards (page 56)

❑ Using the Internet (page 63)

❑ Using the Network (LAN) (page 64)

❑ Using the Wireless LAN (page 65)

❑ Using the Bluetooth Function (page 71)

❑ Using Fingerprint Authentication (page 77)

Using Your VAIO Computer > Using the Keyboard

Using the Keyboard

Your keyboard has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system is finished launching.

Combination/Feature Function

Fn + % (F2): muting Turns on and off the built-in speakers or the headphones.

Fn + 2 (F3/F4): volume control Changes the built-in speaker volume level.

Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.

Fn + /T (F7): display output

To increase the volume, keep pressing the Fn+F4 keys or press the Fn+F4 keys and then the

M or , key. To decrease the volume, keep pressing the Fn+F3 keys or press the Fn+F3 keys and then the m or < key.

To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then the M or , key. To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then the m or < key.

Switches the display output between your computer screen and an external display. Press the

Enter key to select the display output.

If you disconnect a display cable from your computer while an external display is selected as the display output destination, the computer screen goes blank. In such a case, press the F7 key twice while holding down the Fn key, and then press the Enter key to switch the display output to the computer screen.

Use of multiple monitors may not be supported depending on the connected external display.

Using Your VAIO Computer > Using the Keyboard

Combination/Feature Function

Fn + / (F9/F10): zooming

Fn + (F12): hibernation

Changes the size of an image or a document displayed on some software. To make the view look smaller and further away (zoom out), press the Fn+F9 keys. To make the view look bigger and closer (zoom in), press the Fn+F10 keys. See the help file included with the VAIO Control Center for more information.

Provides the lowest level of power consumption. When you execute this command, the states of the system and the connected peripheral devices are saved to the built-in storage device and the system power is turned off. To return the system to its original state, use the power button to turn on the power. For details on power management, see Using the Power Saving Modes (page 29).

Using Your VAIO Computer > Using the Keyboard

Changing the Backlit Keyboard Settings

Some features and options may not be available on your computer.

If your computer is equipped with a backlit keyboard, you can set the keyboard light to automatically turn on and off according to ambient light intensity.

Additionally, you can set a time period to turn off the keyboard backlight after inactivity of keyboard operations.

To change the backlit keyboard settings

1 Click Start, All Programs, and VAIO Control Center.

2 Click Keyboard and Mouse and Backlit KB.

✍

Ambient light intensity is measured by the ambient light sensor. Blocking the ambient light sensor may turn on the keyboard backlight.

Using Your VAIO Computer > Using the Touch Pad

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice in a row.

Right-click Press the right button (4) once. With many applications, this action displays a context-sensitive shortcut menu (if any).

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally. Once vertical or horizontal scrolling is engaged, you can move your finger in circles on the touch pad to keep scrolling without taking the finger off the touch pad (the scroll function is available only with applications that support a touch pad scroll feature).

Flick Slide two fingers linearly in quick motion on the touch pad. On web browser software or image viewer software, you can

flick left to move backward and flick right to move forward.

Pinch With some software applications, you can pinch on the touch pad with two fingers for zooming. Pinch open to zoom in

or pinch close to zoom out.

✍

You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, use the VAIO Control Center.

Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad before connecting a mouse, you will be able to use only the keyboard for pointer operations.

Using Your VAIO Computer > Using Special-function Buttons

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

Special-function button Functions

VAI O button

ASSIST button

Wireless Display button* Launches the Intel® Wireless Display. When used with a wireless display adapter unit (not supplied), you

Intel

Z Drive eject button Ejects the drive tray.

* Your computer is equipped with either of the buttons.

Launches the Media Gallery or turns the volume on and off, depending on your model.

Launches the VAIO Care while the computer is on. While the computer is off, the ASSIST button launches the VAIO Care Rescue.

Do not press the ASSIST button while the computer is in Hibernate mode.

can wirelessly connect your computer with a TV or projector.

Using Your VAIO Computer > Using the Built-in Camera

Using the Built-in Camera

Your computer is equipped with a built-in MOTION EYE camera.

With the appropriate image capture software, you can perform the following operations:

❑ Capture still images and movies

❑ Sense and capture object movements for monitoring purposes

❑ Edit captured data

✍

Turning on the computer activates the built-in camera.

Video calls are possible with the appropriate software.

Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.

Do not place your computer into Sleep or Hibernate mode while you are using the built-in camera.

To use the image capture software

1 Click Start, All Programs, ArcSoft WebCam Companion 3, and WebCam Companion 3.

2 Click your desired icon in the main window.

For detailed information on how to use the software, see the help file included with the software.

✍

When capturing an image or a movie in a dark place, click the Capture icon in the main window, and then click the WebCam Settings icon and select the low light or low light compensation option in the properties window.

Using Your VAIO Computer > Using the Optical Disc Drive

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

To insert a disc

1 Turn on the computer.

2 Press the drive eject button (1) to open the drive.

The drive tray slides out.

Using Your VAIO Computer > Using the Optical Disc Drive

3 Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks

into place.

Do not exert pressure on the drive tray. Be sure to hold the bottom of the drive tray when placing/removing a disc onto/from the tray.

4 Close the drive tray by pushing it in gently.

Do not remove the optical disc while your computer is in a power saving mode (Sleep or Hibernate). Be sure to bring the computer back into Normal mode before removing the disc.

Using Your VAIO Computer > Using the Optical Disc Drive

Supported Discs

Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased.

See the reference chart below to find out which type of optical disc drive supports which types of media.

PR: playable and recordable P: playable but not recordable –: not playable or recordable

CD-ROM CD-R/RW DVD-ROM DVD-R/RW DVD+R/RWDVD+R DL

DVD SuperMulti Drive P

Blu-ray Disc™ Drive with DVD SuperMulti

Blu-ray Disc™ ROM Drive with DVD SuperMulti

The DVD SuperMulti Drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported. DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

Supports writing data to BD-R Part1 Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Part1 Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

Writing data to Ultra Speed CD-RW discs is not supported.

P PRPRPRPRPR– –

P PRPRPRPRPRP

P PRPRPRPRPRP P

(Double Layer)

DVD-R DL (Dual Layer)

DVD-

RAM

BD-ROM

*1 *2

BD-R/RE

Using Your VAIO Computer > Using the Optical Disc Drive

This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard. Therefore, these discs may not be compatible with this unit.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO COMPUTER OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING. For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.

Region settings are required for some contents of DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the region coding on the disc, playback is not possible.

Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents of copyright protected Blu-ray Disc media.

Some content may restrict video output to standard definition or prohibit analog video output. When you output video signals through digital connections, such as an HDMI connection or a DVI connection, it is strongly recommended that a digital HDCP compliant environment be implemented

for optimum compatibility and viewing quality.

Exit all memory-resident utility software before playing or writing a disc as it may cause the computer to malfunction.

Using Your VAIO Computer > Using the Optical Disc Drive

Notes on Using the Optical Disc Drive

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.

❑ Do not plug or unplug the power cord or the AC adapter while the optical disc drive is writing data to a disc.

❑ Do not attach or disconnect your computer to or from the docking station

data to a disc.

* Available only for models with a docking station connector. See the specifications to find out whether your model is equipped with the docking station

connector.

(optional) while the optical disc drive is writing

Notes on playing discs

To achieve optimum performance of disc playback, you should follow these recommendations:

❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media.

❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ When your computer is equipped with a Blu-ray Disc drive, Blu-ray Disc playback is available on your computer. However,

the drive may not be able to play some Blu-ray Disc content, or the computer may become unstable during Blu-ray Disc playback. To play content normally, download and install the latest updates for the WinDVD BD using the VAIO Update. For information on how to use the VAIO Update, see Updating Your Computer (page 32).

❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.

❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.

Using Your VAIO Computer > Using the Optical Disc Drive

Notes on region codes

Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you can play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code for your residence area is different from the label, you cannot play the disc on your computer.

Using Your VAIO Computer > Using the Optical Disc Drive

Playing Discs

To play a disc

1 Insert a disc into the optical disc drive.

Connect the AC adapter to the computer and close all running software applications before playing a disc.

2 If nothing appears on the desktop, click Start, All Programs, and your desired software to play the disc.

For instructions on how to use the software, see the help file included with the software.

Copying Files to Discs

To copy files to a disc

1 Insert a recordable disc into the optical disc drive.

Connect the AC adapter to the computer and close all running software applications before copying files to a disc.

2 If nothing appears on the desktop, click Start, All Programs, and your desired disc burning software to copy files to the

disc. For instructions on how to use the software, see the help file included with the software.

Using Your VAIO Computer > Using "Memory Stick"

Using "Memory Stick"

"Memory Stick" is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.

Before You Use "Memory Stick"

The "Memory Stick Duo" slot on your computer can accommodate the following sizes and types of media:

❑ "Memory Stick Duo"

❑ "Memory Stick PRO Duo"

❑ "Memory Stick PRO-HG Duo"

Your computer supports only Duo-size "Memory stick", and does not support standard-size "Memory Stick".

For the latest information about "Memory Stick", visit http://www.sony.net/memorycard/.

Using Your VAIO Computer > Using "Memory Stick"

Inserting and Removing "Memory Stick"

To insert "Memory Stick"

1 Locate the "Memory Stick Duo" slot.

2 Hold "Memory Stick" with the arrow pointing toward the slot.

Using Your VAIO Computer > Using "Memory Stick"

3 Carefully slide "Memory Stick" into the slot until it clicks into place.

Do not force the media into the slot.

✍

If "Memory Stick" does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

When you insert "Memory Stick" into the slot for the first time, you may be prompted to install driver software. If prompted, follow the on-screen instructions to install the software.

"Memory Stick" is automatically detected by your system and the contents of "Memory Stick" are displayed. If nothing appears on the desktop, click Start, Computer, and double-click the "Memory Stick" icon.

The "Memory Stick" icon will appear in the Computer window after you insert "Memory Stick" into the slot.

Before using "Memory Stick Micro" ("M2"), be sure to insert it into an "M2" Duo adaptor. If you insert the media directly into the "Memory Stick Duo" slot without the adaptor, you may not be able to remove it from the slot.

Using Your VAIO Computer > Using "Memory Stick"

To remove "Memory Stick"

Do not remove "Memory Stick" while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load, so make sure the indicator light is unlit before removing "Memory Stick".

1 Locate the "Memory Stick Duo" slot.

2 Check that the Media Access indicator light is unlit.

3 Push in "Memory Stick" toward the computer and release.

"Memory Stick" ejects.

4 Pull "Memory Stick" out of the slot.

Be sure to remove "Memory Stick" gently, or it may pop out unexpectedly.

Using Your VAIO Computer > Using "Memory Stick"

Formatting "Memory Stick"

To format "Memory Stick"

"Memory Stick" is formatted by default and is ready for use.

If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports "Memory Stick" when formatting the media.

Formatting "Memory Stick" erases the entire data stored on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove "Memory Stick" from the slot while formatting. This could cause a malfunction.

1 Locate the "Memory Stick Duo" slot.

2 Carefully slide "Memory Stick" into the slot until it clicks into place.

3 Click Start and Computer.

4 Right-click the "Memory Stick" icon and select Format.

5 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

Using Your VAIO Computer > Using "Memory Stick"

6 Click Start.

7 Follow the on-screen instructions.

It may take time to format "Memory Stick" depending on the media type.

Using Your VAIO Computer > Using "Memory Stick"

Notes on Using "Memory Stick"

❑ Your computer has been tested and found compatible with Sony branded "Memory Stick" with capacity of up to 32 GB

that are available as of May 2010. However, not all "Memory Stick" are guaranteed of compatibility.

❑ Be sure to hold "Memory Stick" with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force "Memory Stick" into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing "Memory Stick" from the slot. Do not force it in or out of the slot.

❑ Inserting "Memory Stick" with multiple conversion adaptors is not guaranteed of compatibility.

❑ "MagicGate" is the general name of the copyright protection technology developed by Sony. Use "Memory Stick" with the

"MagicGate" logo to take advantage of this technology.

❑ Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior

consent from the respective copyright holders. Accordingly, "Memory Stick" with such copyrighted data can be used only within the law.

❑ Do not insert more than one "Memory Stick" into the slot. Improper insertion of the media may damage both your

computer and the media.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Using Other Modules / Memory Cards

Using the ExpressCard Module

Your computer is equipped with an ExpressCard/34 slot* for transferring data among digital cameras, camcorders, music players, and other audio/video devices. This slot can only accommodate an ExpressCard/34

* Referred to as the ExpressCard slot and the ExpressCard module in this manual.

(34 mm wide) module*.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To insert an ExpressCard module

Your computer is supplied with a slot protector in the ExpressCard slot. Remove the slot protector before you use the slot.

1 Locate the ExpressCard slot.

2 Push the ExpressCard slot protector so that the protector pops out.

3 Gently take hold of the ExpressCard slot protector and pull it out of the slot.

4 Hold the ExpressCard module with the arrow pointing toward the slot.

5 Carefully slide the ExpressCard module into the slot until it clicks into place.

Do not force it into the slot.

✍

If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Make sure you use the most recent driver software provided by the ExpressCard module manufacturer.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To remove an ExpressCard module

Insert the ExpressCard slot protector to block any particles from entering the slot when not using an ExpressCard module. Before moving your computer, be sure to insert the ExpressCard slot protector into the slot.

✍

You can skip steps 1 to 4 when:

- your computer is off.

- the Safely Remove Hardware and Eject Media icon is not displayed on the taskbar.

- the hardware you want to unplug is not displayed in the Safely Remove Hardware and Eject Media window.

1 Locate the ExpressCard slot.

2 Click the Safely Remove Hardware and Eject Media icon on the taskbar.

3 Select the hardware you want to unplug.

4 Follow the on-screen instructions for removing the ExpressCard module.

5 Push in the ExpressCard module toward the computer so that the module pops out.

6 Gently take hold of the ExpressCard module and pull it out of the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Before you use the SD memory card

The SD memory card slot on your computer can accommodate the following memory cards:

❑ SD memory card

❑ SDHC memory card

❑ SDXC memory card

For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the appropriate support web site.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To insert an SD memory card

1 Locate the SD memory card slot.

2 Hold the SD memory card with the arrow pointing toward the slot.

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

When you insert the SD memory card into the slot for the first time, you may be prompted to install driver software. If prompted, follow the on-screen instructions to install the software.

The SD memory card icon will appear in the Computer window after you insert the card into the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To remove an SD memory card

1 Locate the SD memory card slot.

2 Check that the Media Access indicator light is unlit.

3 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

4 Pull the SD memory card out of the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Notes on Using Memory Cards

General notes on using the memory card

❑ Be sure to use memory cards that are compliant with the standards supported by your computer.

❑ Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.

❑ Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.

❑ Do not attempt to insert a memory card or memory card adaptor of a different type into the memory card slot. An

incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage to your computer.

Notes on using the SD memory card

❑ Your computer has been tested and found compatible only with major memory cards available as of May 2010. However,

not all memory cards are guaranteed of compatibility.

❑ SD memory cards (up to 2 GB), SDHC memory cards (up to 32 GB), and SDXC memory cards (up to 64 GB) have been

tested and found compatible with your computer.

❑ The SD memory card slot on your computer does not support the high-speed data transfer feature of the SDXC memory

card.

Using Your VAIO Computer > Using the Internet

Using the Internet

Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for connecting your computer to the Internet.

The following types of Internet connection services may be available from your ISP:

❑ Fiber to the Home (FTTH)

❑ Digital Subscriber Line (DSL)

❑ Cable modem

❑ Satellite

❑ Dial-up

For detailed information on devices required for Internet access and how to connect your computer to the Internet, ask your ISP.

✍

To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN

(page 65) for more information.

When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.

Depending on the service contract with your ISP, you may need to connect an external modem device, for example a USB telephone modem, a DSL modem, or a cable modem, to your computer to connect to the Internet. For detailed instructions on connection setups and modem configuration, see

the manual that came with your modem.

Using Your VAIO Computer > Using the Network (LAN)

Using the Network (LAN)

You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T type networks with a LAN cable. Connect one end of a LAN cable (not supplied) to the network (LAN) port on the computer or the optional docking station and the other end to your network. For detailed settings and devices required for LAN access, ask your network administrator.

✍

You can connect your computer to any network without changing the default settings.

When your computer is attached to the optional docking station, you need to select which network (LAN) port to use. Follow the on-screen instructions.

Do not plug a telephone cable into the network (LAN) port on your computer. If the network (LAN) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage, overheating, or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- Private branch exchange (PBX)

Using Your VAIO Computer > Using the Wireless LAN

Using the Wireless LAN

The Wireless LAN (WLAN) allows your computer to connect to a network through a wireless connection.

The WLAN uses the following IEEE 802.11a/b/g/n standard, which specifies the type of technology used. See the specifications to find out about the configuration of your computer.

WLAN standard Frequency band Remarks

IEEE 802.11a 5 GHz -

IEEE 802.11b/g 2.4 GHz The IEEE 802.11g standard provides higher-speed communications than the IEEE 802.11b

standard.

IEEE 802.11n 5 GHz/2.4 GHz On models compliant with the IEEE 802.11b/g/n standard, only the 2.4 GHz band can be used.

Using Your VAIO Computer > Using the Wireless LAN

Notes on Using the Wireless LAN Function

General notes on using the wireless LAN function

❑ In some countries or regions, using WLAN products may be restricted by the local regulations (e.g. limited number of

channels).

❑ The IEEE 802.11a standard and the IEEE 802.11n standard are not available on ad-hoc networks.

❑ The 2.4 GHz band, with which wireless LAN devices work, is used by various devices. Although the wireless LAN devices

use the technology to minimize radio interference from other devices that use the same band, such radio interference may cause slower communication speeds and narrower communication ranges or communication failures.

❑ The communication speed and range may vary depending on the following conditions:

❑ Distance between communication devices

❑ Existence of obstacles between devices

❑ Device configuration

❑ Radio conditions

❑ Ambient environment that includes existence of walls and materials of such walls

❑ Software in use

❑ Communications may be cut off depending on radio conditions.

❑ Actual communication speed may not be as fast as the one displayed on your computer.

❑ Deploying WLAN products compliant with different standards that use the same band on the same wireless network may

reduce the communication speed due to radio interference. Taking this into consideration, WLAN products are designed to reduce the communication speed to ensure communications with another WLAN product if it is compliant with a different standard that uses the same band. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

Using Your VAIO Computer > Using the Wireless LAN

Note on the data encryption

The WLAN standard includes the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access (WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication using 802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n standards, multi-band and multi-mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.

Using Your VAIO Computer > Using the Wireless LAN

Starting Wireless LAN Communications

You first need to establish wireless LAN communications between your computer and an access point (not supplied). See

Windows Help and Support for more information.

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

To start wireless LAN communications

The following wireless connection utilities may not be installed on the model you purchased.

❑ On models with the VAIO Smart Network

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Turn on the WIRELESS switch.

3 Click the VAIO Smart Network icon on the taskbar.

4 Click the switch next to your desired wireless option(s) to toggle it to On in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

5 GHz band wireless LAN communications, available on selected models only, are disabled by default. To enable 5 GHz band communication, you need to select the option to use the 5 GHz band or both the 2.4 GHz and 5 GHz bands from the drop-down list for Wireless LAN Settings in the VAIO Smart Network settings window.

5 Click or on the taskbar.

6 Select the desired access point and click Connect.

Using Your VAIO Computer > Using the Wireless LAN

❑ On models with the SmartWi Connection Utility

Be sure to turn on the WIRELESS switch before starting the wireless LAN function.

To start the wireless LAN function, you first need to set up the wireless LAN function. Use the SmartWi Connection Utility to set up the wireless LAN function. See the SmartWi Connection Utility Help for more information.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility.

2 Click SmartWi Connection Utility Help.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and 63 characters in length or a hexadecimal string of 64 characters.

Using Your VAIO Computer > Using the Wireless LAN

Stopping Wireless LAN Communications

To stop wireless LAN communications

The following wireless connection utilities may not be installed on the model you purchased.

❑ On models with the VAIO Smart Network

Click the switch next to Wireless LAN to toggle it to Off in the VAIO Smart Network window.

❑ On models with the SmartWi Connection Utility

Click the switch next to Wi-Fi to toggle it to OFF in the SmartWi Connection Utility window.

Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.

Using Your VAIO Computer > Using the Bluetooth Function

Using the Bluetooth Function

You can establish wireless communications between your computer and other Bluetooth® devices such as another computer or a mobile phone. You can transfer data between these devices without cables at a range of up to 33 feet / 10 meters in an open area.

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Using Your VAIO Computer > Using the Bluetooth Function

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

Using Your VAIO Computer > Using the Bluetooth Function

To communicate with another Bluetooth device

The following wireless connection utilities may not be installed on the model you purchased.

❑ On models with the VAIO Smart Network

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For information on setting up and using the Bluetooth function, see Windows Help and Support.

1 Turn on the WIRELESS switch.

2 Click the VAIO Smart Network icon on the taskbar.

3 Click the switch next to Bluetooth to toggle it to On in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

❑ On models with the SmartWi Connection Utility

Be sure to turn on the WIRELESS switch before starting the Bluetooth function.

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. Use the SmartWi Connection Utility to set up the Bluetooth function. See the SmartWi Connection Utility Help for more information.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility.

2 Click SmartWi Connection Utility Help.

Using Your VAIO Computer > Using the Bluetooth Function

Stopping Bluetooth Communications

To stop Bluetooth communications

The following wireless connection utilities may not be installed on the model you purchased.

❑ On models with the VAIO Smart Network

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the switch next to Bluetooth to toggle it to Off in the VAIO Smart Network window.

❑ On models with the SmartWi Connection Utility

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the switch next to Bluetooth to toggle it to OFF in the SmartWi Connection Utility window.

Using Your VAIO Computer > Using the Bluetooth Function

Notes on Using the Bluetooth Function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard and

electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may not be possible in all situations.

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and does not indicate a malfunction.

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Although

Bluetooth devices use the technology to minimize radio interference from other devices that use the same band, such radio interference may cause slower communication speeds and shorter distances or communication failures.

Using Your VAIO Computer > Using the Bluetooth Function

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and does not indicate a malfunction.

❑ High-speed communications between your computer and Bluetooth devices are available when they are compliant with

Bluetooth Core Specification Version 3.0 High Speed (HS). For the high-speed communications, enable both the wireless LAN and Bluetooth functions on the computer.

See the specifications to find out about the configuration of your computer.

Using Your VAIO Computer > Using Fingerprint Authentication

Using Fingerprint Authentication

Your computer may be equipped with a fingerprint sensor to provide you with additional convenience.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

Once you have registered your fingerprint(s), the fingerprint authentication function offers:

❑ A substitute for password entry

❑ Logging onto Windows (page 82)

If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for password entry when logging onto Windows.

❑ Power-on Security feature (page 82)

If you have set the power-on password (page 110), you can substitute fingerprint authentication for password entry when starting your computer.

❑ Password Bank for quick web site access

Once you have registered your user information (user accounts, passwords, etc.) for web sites in the Password Bank, you can substitute fingerprint authentication for entering information required to access the password-protected web sites. For detailed information, see the help file included with the Protector Suite.

You may not be able to use the Password Bank feature depending on the web site you access.

Using Your VAIO Computer > Using Fingerprint Authentication

❑ Archive encryption

❑ File Safe feature to encrypt/decrypt data

With the File Safe feature, you can create an encrypted archive to include a file and/or folder for protection against unauthorized access. The encrypted archive can be decrypted or unlocked for included file/folder access by swiping your finger across the fingerprint sensor or entering the backup password you specified for encryption.

❑ Personal Safe feature

With the Personal Safe feature, you can encrypt contents of any protected folder on the desktop or the built-in storage device. The encrypted folder will be hidden from other users sharing your computer.

❑ Application launcher function for quick application access

The application launcher feature is available on your computer for launching your preferred application (executable file) that is assigned to one of your fingers with a registered fingerprint. Once you have assigned an application to your finger, you can launch the assigned application simply by swiping the finger across the fingerprint sensor.

❑ Strong Password Generator function

The Strong Password Generator function allows you to enhance computer security by generating a strong password resistant to dictionary attacks. The generated password can be registered in the Password Bank.

Using Your VAIO Computer > Using Fingerprint Authentication

Registering a Fingerprint

To use the fingerprint authentication function, you must register your fingerprint(s) in your computer.

✍

Set the Windows password on your computer before registration. See Setting the Windows Password (page 114) for the detailed instructions.

To register a fingerprint

1 Click Start, All Programs, Protector Suite, and Control Center.

2 Read an end user license agreement thoroughly and click Accept.

3 Follow the on-screen instructions.

✍

For detailed information, see the help file.

Using Your VAIO Computer > Using Fingerprint Authentication

If you have failed to register a fingerprint, follow these steps to try again.

1 Place the top joint of your finger on the fingerprint sensor (1).

2 Swipe your finger perpendicularly across the fingerprint sensor.

Using Your VAIO Computer > Using Fingerprint Authentication

Place your fingertip flat in the center of the fingerprint sensor.

Scan your fingerprint from the top joint of the finger to the fingertip.

Keep your finger in contact with the fingerprint sensor while swiping.

Fingerprint registration may fail if you move your finger too quickly or too slowly. Let the fingerprint sensor take about one second to scan your fingerprint.

You may not be able to register and/or have your fingerprint(s) recognized if your finger is too dry or wet, wrinkled, injured, dirty, etc.

Be sure to clean your fingertip(s) and the fingerprint sensor before swiping in order to keep good recognition performance.

You can register only the limited number of fingerprints for logging onto your system using the Power-on Security feature (page 82). The maximum number of fingerprints you can register varies depending on the data amount of each fingerprint.

You can also select the fingerprint you want to use for the Power-on Security feature later.

Using Your VAIO Computer > Using Fingerprint Authentication

Logging Onto Your System

To use the fingerprint authentication function in place of a password entry to log onto your system, you need to set the poweron, hard disk, and Windows passwords and configure your computer for fingerprint authentication.

For setting the power-on, hard disk, and Windows passwords, see Setting the Password (page 108).

For detailed information, see the help file included with the Protector Suite.

Logging onto Windows

If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for Windows password entry. To log onto Windows, swipe the registered finger across the fingerprint sensor when the Windows log-on screen appears.

Power-on Security feature

If you have set the power-on password (page 110) and/or the hard disk password (page 116), you can substitute fingerprint authentication for password entry when starting your computer.

Using Your VAIO Computer > Using Fingerprint Authentication

Erasing the Registered Fingerprints

Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprint data registered on the fingerprint sensor after erasing the data stored on your built-in storage device.

To erase the registered fingerprints

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Press the < or , key to select Security to display the Security tab.

4 Press the

5 At the confirmation prompt, select Continue and press the Enter key.

The fingerprint data registered on the fingerprint sensor is erased automatically after your system restarts.

m key to select Clear Fingerprint Data and press the Enter key.

Using Peripheral Devices >

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting a Docking Station (page 85)

❑ Connecting External Speakers or Headphones (page 93)

❑ Connecting an External Display (page 94)

❑ Selecting Display Modes (page 99)

❑ Using the Multiple Monitors Function (page 100)

❑ Connecting an External Microphone (page 102)

❑ Connecting a USB Device (page 103)

❑ Connecting an i.LINK Device (page 105)

Using Peripheral Devices > Connecting a Docking Station

Connecting a Docking Station

Attaching a docking station enables you to connect additional peripherals to your computer, such as a printer and an external display.

Your computer may not be equipped with a docking station connector depending on the model you purchased. See the specifications to find out about the configuration of your computer.

A docking station is not supplied with your computer and is available as an optional accessory.

Using Peripheral Devices > Connecting a Docking Station

Locating Ports on the Docking Station

A DC IN indicator

Illuminates while the docking station is powered.

B IN USE indicator (page 90) C UNDOCK button (page 90) D DC IN port (page 87)

E USB ports F Network (LAN) port (1000BASE-T / 100BASE-TX / 10BASE-T)

G DVI-D port H MONITOR port (page 94)

Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

Functional only on models with the NVIDIA video controller.

The docking station can be powered only through the AC adapter supplied with the docking station. Do not unplug the AC adapter from the docking station and the AC outlet while using the docking station. This may cause data damage or hardware malfunctions.

(page 103)

(page 94)

Simultaneous use of the following ports is not possible.

- HDMI output port on your computer

- DVI-D port on the docking station

- MONITOR port on the docking station

Using Peripheral Devices > Connecting a Docking Station

Attaching Your Computer to the Docking Station

Be sure to install the battery pack before attaching your computer to the docking station.

To attach your computer to the docking station

Be sure to use the AC adapter supplied with the docking station.

Do not move your computer when it is attached to the docking station. This may detach the docking station and cause damage to both units.

1 Disconnect all peripherals from the computer.

2 Plug one end of the power cord (1) into the AC adapter (2) and the other end into an AC outlet.

3 Plug the cable connected to the AC adapter (2) into the DC IN port (3) on the docking station (4).

Using Peripheral Devices > Connecting a Docking Station

4 Slide open the docking station connector cover on the bottom of the computer.

5 Align the rear bottom corners of the computer with the guides on the docking station.

Using Peripheral Devices > Connecting a Docking Station

6 Gently push down the computer until it clicks into place.

7 Turn on the computer.

Using Peripheral Devices > Connecting a Docking Station

Disconnecting Your Computer from the Docking Station

Make sure that no devices connected to the docking station are in use before disconnecting your computer.

Do not disconnect your computer from the docking station while the IN USE indicator light is lit. Disconnecting the computer while the IN USE indicator is lit may result in loss of unsaved data or a failure of the computer.

When the battery pack is running out of power, disconnecting your computer from the docking station may result in loss of unsaved data.

Do not disconnect your computer from the docking station during video playback. Be sure to close video playback software before disconnection.

Once you have completed the steps in To disconnect your computer from the docking station (page 91), be sure to take your computer off the docking station. Use of the computer while on the docking station may cause unstable operations.

Using Peripheral Devices > Connecting a Docking Station

To disconnect your computer from the docking station

1 Press the UNDOCK button (1) and wait until the IN USE indicator light (2) turns off.

✍

If the IN USE indicator is unlit, you do not have to press the UNDOCK button.

Pressing the UNDOCK button while your computer is in a power saving mode brings the computer to Normal mode first, and then initiates the disconnection process.

Once you have placed your computer back in Normal mode, be sure to take your computer off the docking station. Use of the computer while on the docking station may cause unstable operations.

Using Peripheral Devices > Connecting a Docking Station

2 Lift the computer off the docking station.

3 Close the docking station connector cover on the bottom of the computer.

Alternatively, you can disconnect the computer from the docking station as follows:

1 Click Start, the arrow next to the Shut down button, and Undock.

2 Make sure that a message balloon appears and the IN USE indicator light turns off. Then lift the computer off the docking

station.

3 Close the docking station connector cover on the bottom of the computer.

It is extremely important that you close the docking station connector cover after disconnecting your computer from the docking station. If the cover is left open, dust may get inside and damage the computer.

✍

To disconnect the docking station completely from AC power, unplug the AC adapter.

Using Peripheral Devices > Connecting External Speakers or Headphones

Connecting External Speakers or Headphones

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

To connect external speakers

✍

Make sure your speakers are designed for computer use.

Turn down the volume of the speakers before you turn them on.

Connect external speakers (1) to the headphones jack (2) i with a speaker cable (3) (not supplied).

Using Peripheral Devices > Connecting an External Display

Connecting an External Display

Some features and options in this section may not be available on your computer.

Connecting a Computer Display or a Projector

You can connect an external display, such as a computer display or a projector, either directly to your computer or via the

optional docking station

* Available only for models with a docking station connector. See the specifications to find out whether your model is equipped with the docking station connector.

Using Peripheral Devices > Connecting an External Display

To connect a computer display or a projector

The monitor port on your computer is not functional when the computer is attached to the docking station.

The DVI-D port on the docking station is functional only on models with the NVIDIA video controller.

1 Plug the power cord (1) of your external display or the projector into an AC outlet.

2 Connect the external display or the projector to the monitor port (2) on the computer or the docking station with a display

cable (3).

✍

If necessary, connect the headphones jack on the projector and the headphones jack (4) i on the computer with a speaker cable (5).

Using Peripheral Devices > Connecting an External Display

Your computer is compliant with the HDCP standard and capable of encrypting the transmission channel of digital video signals for the purpose of copyright protection, which enables you to play and view a wide variety of copyright protected and high-quality content. To view the copyright protected content, connect an HDCP-compliant monitor to the HDMI output port on your computer or the DVI-D port on the docking station. If your computer has a non-compliant monitor connected, you will not be able to play or view any copyright protected content.

✍

If the external computer display is equipped with an HDMI input port, plug one end of an HDMI cable into the HDMI output port on the computer and the other end into the HDMI input port on the computer display.

To connect a TFT/DVI monitor, use an HDMI to DVI-D adapter to connect it to the HDMI output port on the computer; or use a display cable to connect it to the DVI-D port on the docking station.

DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI port that supports only digital video signals (no analog video signals). It has 24 pins.

A DVI-I (Digital Visual Interface - Integrated) port supports digital video and analog video signals. It has 29 pins.

The HDMI cable carries both video and audio signals.

Using Peripheral Devices > Connecting an External Display

Connecting a TV with an HDMI Input Port

You can connect a TV with an HDMI input port to your computer.

To connect a TV to your computer

To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How do I change the sound output device? (page 183).

1 Plug the power cord of your TV (1) into an AC outlet.

2 Plug one end of an HDMI cable (2) to the HDMI output port (3) on the computer and the other end to the TV.

3 Switch the input channel of the TV to external input.

4 Set up the TV configuration system.

If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device driver provided by Sony for updates.

Using Peripheral Devices > Connecting an External Display

✍

See the manual that came with your TV for more information on installation and use.

The HDMI cable carries both video and audio signals.

To connect a high-quality digital sound output device between your computer and a TV

You can connect a high-quality home theater receiver or other surround sound decoder devices between your computer and TV using an HDMI connection.

Before connecting the device to the computer, make sure the HDMI connection has been set up between the TV and the home theater receiver or surround sound decoder device first.

To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How do I change the sound output device? (page 183).

1 Turn on the TV and set its input to the HDMI input.

2 Turn on the home theater receiver or surround sound decoder device and set its input to the HDMI input.

3 Plug one end of an HDMI cable to the HDMI input port on the home theater receiver or surround sound decoder device

and the other end to the HDMI output port on the computer.

✍

You can adjust the screen resolution of the connected TV with your computer. See Why doesn't my screen display a video? (page 174) for more information.

With the HDMI connection, the volume can be adjusted by the connected audio device only. Your computer has no control over the output volume of any connected devices.

Using Peripheral Devices > Selecting Display Modes

Selecting Display Modes

When an external display is connected, you can select either your computer screen or the connected display to use as the primary monitor.

The monitor port on your computer is not functional when the computer is attached to the docking station.

✍

You may not be able to display the same content on your computer screen and the external display or projector at the same time, depending on the type of your external display or projector.

Turn on the external display before turning on your computer.

To select a display mode with the Fn+F7 keys

You can select a display mode with the Fn+F7 keys. See Combinations and Functions with the Fn Key (page 36) for more information.

To select a display mode from the display settings

1 Right-click on the desktop and select Screen resolution.

2 Click the drop-down list next to Multiple Displays, select your desired setting, and then click OK.

Using Peripheral Devices > Using the Multiple Monitors Function

100

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display connected to the monitor port, your computer screen and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

Sony VPCS131FM, VPCS131FM/S, VPCS132FX, VPCS132FX/B, VPCS132FX/S User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Use

Finding More about Your VAIO Computer

Ergonomic Considerations

Getting Started

Locating Controls and Ports

About the Indicator Lights

Connecting a Power Source

Using the Battery Pack

Shutting Down Your Computer Safely

Using the Power Saving Modes

Keeping Your Computer in Optimum Condition

Using Your VAIO Computer

Using the Keyboard

Using the Touch Pad

Using Special-function Buttons

Using the Built-in Camera

Using the Optical Disc Drive

Using "Memory Stick"

Using Other Modules / Memory Cards

Using the Internet

Using the Network (LAN)

Using the Wireless LAN

Using the Bluetooth Function

Using Fingerprint Authentication

Using Peripheral Devices

Connecting a Docking Station

Connecting External Speakers or Headphones

Connecting an External Display

Selecting Display Modes

Using the Multiple Monitors Function
