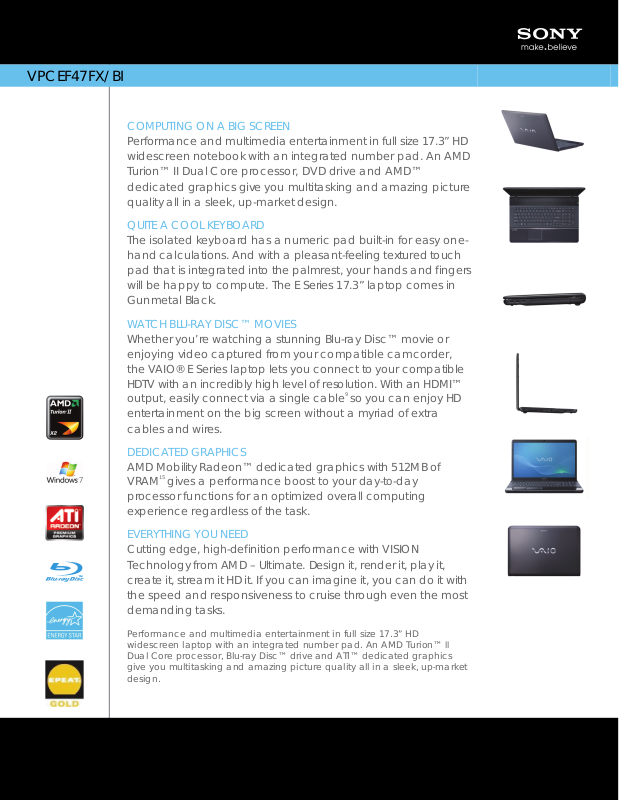

Sony VPCEF47FX, VPCEF47FBI User Manual

VPCEF47FX/BI

COMPUTING ON A BIG SCREEN

Performance and multimedia entertainment in full size 17.3” HD widescreen notebook with an integrated number pad. An AMD Turion™ II Dual Core processor, DVD drive and AMD™ dedicated graphics give you multitasking and amazing picture quality all in a sleek, up-market design.

QUITE A COOL KEYBOARD

The isolated keyboard has a numeric pad built-in for easy onehand calculations. And with a pleasant-feeling textured touch pad that is integrated into the palmrest, your hands and fingers will be happy to compute. The E Series 17.3” laptop comes in Gunmetal Black.

WATCH BLU-RAY DISC™ MOVIES

Whether you’re watching a stunning Blu-ray Disc™ movie or enjoying video captured from your compatible camcorder, the VAIO® E Series laptop lets you connect to your compatible HDTV with an incredibly high level of resolution. With an HDMI™

output, easily connect via a single cable so you can enjoy HD entertainment on the big screen without a myriad of extra cables and wires.

DEDICATED GRAPHICS

AMD Mobility Radeon™ dedicated graphics with 512MB of VRAM gives a performance boost to your day-to-day

processor functions for an optimized overall computing experience regardless of the task.

EVERYTHING YOU NEED

Cutting edge, high

-definition performance with VISION Technology from AMD – Ultimate. Design it, render it, play it, create it, stream it HD it. If you can imagine it, you can do it with the speed and responsiveness to cruise through even the most demanding tasks.

Performance and multimedia entertainment in full size 17.3” HD widescreen laptop with an integrated number pad. An AMD Turion™

II Dual Core processor, Blu-ray Disc™ drive and ATI™ dedicated graphics give you multitasking and amazing picture quality all in a sleek, up-market design.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 04/27/2011

VPCEF47FX/BI

Specifications

General

Action Buttons: ASSIST, Wireless On/Off Pointing Device: Electrostatic Touchpad

(Multi-Finger)

Hardware

Keyboard: QWERTY, 103 keys with 2.0mm

stroke and 19.05mm pitch

Camera: Built-in MOTION EYE® camera and

microphone

10-Key Numeric Pad: Yes

Processor

Type: AMD® Turion™ II Dual-Core Mobile

Processor P560

Speed: 2.50GHz Technology:

Dual Core

Cache:

2MB

Memory

Installed: 4GB (2GB x 2) Type/Speed: DDR3-1066MHz Max. Memory:

8GB

Optical Drive

Type: Blu-ray Disc™ ROM Drive

Audio

Sound System: Intel® High Definition Audio

Display

Screen Size:

17.3"

Resolution: 1600 x 900 Back Light Technology: LED

Graphics

Graphics Processor: AMD Mobility

Radeon

™ HD 5145

Graphics Video RAM: 512MB dedicated

Inputs and Outputs

Memory Stick® Media Slot: 1 Microphone Input: 1 VGA Output(s): 1 DC-In:

HDMI™ Output(s): 1 Express Card®/

34 Slot: 1 Secure Digital (SD) Slot: 1 USB 2.0:

Headphone Output: 1

Power

Battery Type: Standard Capacity Lithium

Ion Battery

Start-up Times

Average Boot Time: 60 seconds Average Resume Time from Suspend: 2

seconds

First Boot Time: 5 minutes

Wireless/Networking

Ethernet Protocol:

10baseT/100baseTX/1000baseT

Bluetooth® Technology:

Bluetooth

Integrated Stereo A2DP (2.1 + EDR)

WiFi Adapter: Atheros® 802.11b/g/n

Software

Operating System: Genuine Windows® 7

Home Premium 64-bit

Supplied Software: Microsoft® Office

Starter with reduced-functionality versions of Word and Excel, VAIO Care™

Media Gallery™, PMB - VAIO Edition

Anti-Virus Software: Norton Internet

Security™ 2011 30-Day Trial Offer

Service and Warranty Information

Onsite/In-Home Service: Yes International Service: Yes

Limited Warranty Term: 1 Year Limited

Warranty. See actual warranty for details.

Environmental Information

EPEAT™: Gold RoHS®:

Compliant

ENERGY STAR®:

5.0

Dimensions

Weight: 6.7 lbs. (with Standard Capacity

Battery)

Measurements: 16.1" (W) x 1.29-1.50" (H) x

10.79" (D)

Supplied Accessories

Standard Capacity Lithium-Ion Battery

(3500mAh), AC Adapter, Power Cord

Color:

Gunmetal Black

UPC Code:

027242818330

1. GHz denotes microprocessor internal clock speed and may vary.

2. 1 GB = 1 billion bytes. Actual formatted capacity will be less.

3. Viewable area measured diagonally.

4. Estimates only based upon Sony engineering testing. Actual performance will vary based on notebook settings, environmental conditions, and usage. Battery capacity decreases over time and use.

5. For certain third party software applications, Sony provides first level phone support. Additional telephone support may be available from the applicable 3rd party vendor. Availability and schedule for any such support is determined by the aplicable software vendor. Long distance charges may apply.

6 5 7

6.This PC is preloaded with reduced-functionality versions of Word and Excel that include advertising. Purchase an Office 2010 Product Key to activate full-featured Office software on this PC.

7. Norton Internet Security™ 2011 30-day subscription is pre-installed on your Sony VAIO PC. You need to activate the software for the product to work. After your 30-days are finished, buy Norton Internet Security to continue to be protected from viruses, hackers and identify theft.

8.Availability may be limited. See limited warranty for details.

9. HDMI cable sold separately.

10. Excluding end user interaction.

11. Requires TV adapter and compatible television. Does not support Blu

ray®

disc or other protected content playback.

12. Requires a system with Intel®

Turbo Boost Technology capability. Intel

Turbo Boost Technology 2.0 is available only on 2nd generation Intel

Core™

i5 and i7 processors. Performance varies depending on

hardware, software and system configuration.

13. Available on select Intel

® Core™

processors. Requires an Intel® HT Technology enabled system. Performance will vary depending on the specific hardware and software used.

14. Mobile broadband service sold separately.

15. Compatible camera and supporting media sold separately.

16. Allocation of system memory to graphics varies depending on operating condition, version of device driver and total system memory size.
