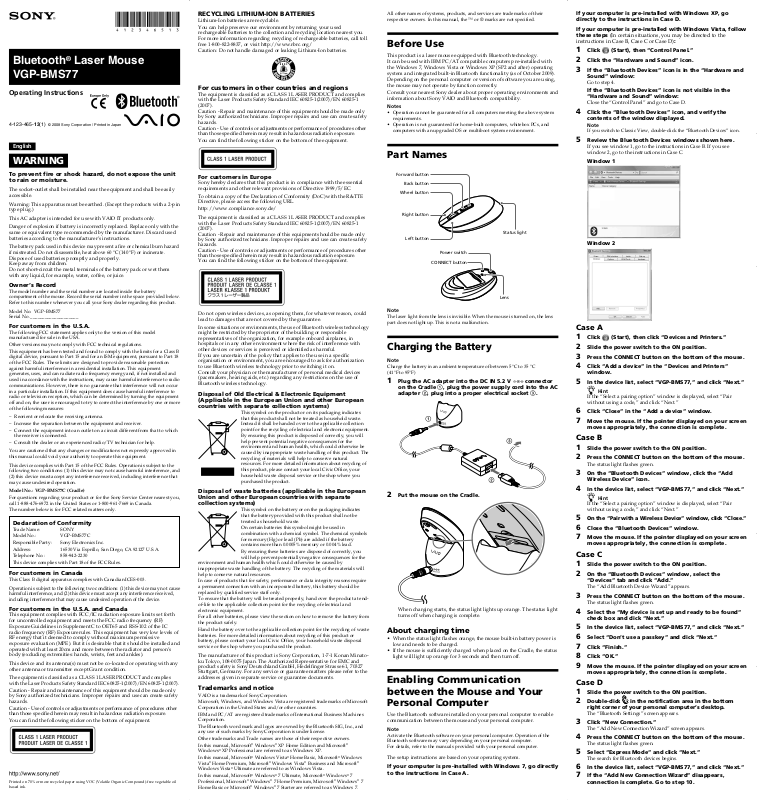

Sony VGP-BMS77 User Manual

Bluetooth® Laser Mouse
VGP-BMS77

Operating Instructions

4-123-465-13(1)

English

WARNING

© 2008 Sony Corporation / Printed in Japan

RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.
You can help preserve our environment by returning your used

rechargeable batteries to the collection and recycling location nearest you.
For more information regarding recycling of rechargeable batteries, call toll

free 1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.

For customers in other countries and regions

The equipment is classified as a CLASS 1 LASER PRODUCT and complies
with the Laser Products Safety Standard IEC 60825-1(2007)/EN 60825-1
(2007).

Caution - Repair and maintenance of this equipment should be made only
by Sony authorized technicians. Improper repairs and use can create safety
hazards.

Caution - Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.

You can find the following sticker on the bottom of the equipment.

All other names of systems, products, and services are trademarks of their
respective owners. In this manual, the ™ or ® marks are not specified.

Before Use

This product is a laser mouse equipped with Bluetooth technology.
It can be used with IBM PC/AT compatible computers pre-installed with

the Windows 7, Windows Vista or Windows XP (SP2 and after) operating
system and integrated built-in Bluetooth functionality (as of October 2009).

Depending on the personal computer or version of software you are using,
the mouse may not operate by function correctly.

Consult your nearest Sony dealer about proper operating environments and
information about Sony VAIO and Bluetooth compatibility.

Notes

• Operation cannot be guaranteed for all computers meeting the above system
requirements.

• Operation is not guaranteed for home-built computers, whitebox PCs, and
computers with an upgraded OS or multiboot system environment.

Part Names

If your computer is pre-installed with Windows XP, go
directly to the instructions in Case D.

If your computer is pre-installed with Windows Vista, follow
these steps (In certain situations, you may be directed to the
instructions in Case B, Case C or Case D):

1 Click (Start), then “Control Panel.”
2 Click the “Hardware and Sound” icon.
3 If the “Bluetooth Devices” icon is in the “Hardware and

Sound” window:

Go to step 4.

If the “Bluetooth Devices” icon is not visible in the
“Hardware and Sound” window:

Close the “Control Panel” and go to Case D.

4 Click the “Bluetooth Devices” icon, and verify the

contents of the window displayed.

Note

If you switch to Classic View, double-click the “Bluetooth Devices” icon.

5 Review the Bluetooth Devices windows shown here.

If you see window 1, go to the instructions in Case B. If you see
window 2, go to the instructions in Case C.

Window 1

To prevent fire or shock hazard, do not expose the unit
to rain or moisture.

The socket-outlet shall be installed near the equipment and shall be easily
accessible.

Warning: This apparatus must be earthed. (Except the products with a 2-pin
type plug.)

This AC adapter is intended for use with VAIO IT products only.

Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.

The battery pack used in this device may present a fire or chemical burn hazard
if mistreated. Do not disassemble, heat above 60 °C (140 °F) or incinerate.
Dispose of used batteries promptly and properly.
Keep away from children.
Do not short-circuit the metal terminals of the battery pack or wet them
with any liquid, for example, water, coffee, or juice.

Owner’s Record

The model number and the serial number are located inside the battery
compartment of the mouse. Record the serial number in the space provided below.
Refer to this number whenever you call your Sony dealer regarding this product.

Model No. VGP-BMS77
Serial No. ____________________

For customers in the U.S.A.

The following FCC statement applies only to the version of this model
manufactured for sale in the USA.

Other versions may not comply with FCC technical regulations.
This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 and for an ISM equipment, pursuant to Part 18
of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

Model No.: VGP-BMS77C (Cradle)

For questions regarding your product or for the Sony Service Center nearest you,
call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada.

The number below is for FCC related matters only.

Declaration of Conformity

Trade Name: SONY
Model No.: VGP-BMS77C
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 18 of the FCC Rules.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation of the device.

For customers in the U.S.A. and Canada

This equipment complies with FCC/IC radiation exposure limits set forth
for uncontrolled equipment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC
radio frequency (RF) Exposure rules. This equipment has very low levels of
RF energy that it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and
operated with at least 20cm and more between the radiator and person’s
body (excluding extremities: hands, wrists, feet and ankles).

This device and its antenna(s) must not be co-located or operating with any
other antenna or transmitter except Grant condition.

The equipment is classified as a CLASS 1 LASER PRODUCT and complies
with the Laser Products Safety Standard IEC 60825-1(2007)/EN 60825-1(2007).

Caution - Repair and maintenance of this equipment should be made only
by Sony authorized technicians. Improper repairs and use can create safety
hazards.

Caution - Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.

You can find the following sticker on the bottom of equipment.

Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil
based ink.

For customers in Europe

Sony hereby declares that this product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.

To obtain a copy of the Declaration of Conformity (DoC) with the R&TTE
Directive, please access the following URL.

http://www.compliance.sony.de/

The equipment is classified as a CLASS 1 LASER PRODUCT and complies
with the Laser Products Safety Standard IEC 60825-1(2007)/EN 60825-1
(2007).
Caution - Repair and maintenance of this equipment should be made only
by Sony authorized technicians. Improper repairs and use can create safety
hazards.
Caution - Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
You can find the following sticker on the bottom of the equipment.

Do not open wireless devices, as opening them, for whatever reason, could
lead to damages that are not covered by the guarantee.

In some situations or environments, the use of Bluetooth wireless technology
might be restricted by the proprietor of the building or responsible
representatives of the organization, for example onboard airplanes, in
hospitals or in any other environment where the risk of interference with
other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies to the use in a specific
organisation or environment, you are encouraged to ask for authorization
to use Bluetooth wireless technology prior to switching it on.

Consult your physician or the manufacturer of personal medical devices
(pacemakers, hearing aids, etc.) regarding any restrictions on the use of
Bluetooth wireless technology.

Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)

This symbol on the product or on its packaging indicates
that this product shall not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more detailed information about recycling of
this product, please contact your local Civic Office, your
household waste disposal service or the shop where you
purchased the product.

Disposal of waste batteries (applicable in the European
Union and other European countries with separate
collection systems)

This symbol on the battery or on the packaging indicates
that the battery provided with this product shall not be
treated as household waste.

On certain batteries this symbol might be used in
combination with a chemical symbol. The chemical symbols
for mercury (Hg) or lead (Pb) are added if the battery
contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you

environment and human health which could otherwise be caused by
inappropriate waste handling of the battery. The recycling of the materials will
help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require
a permanent connection with an incorporated battery, this battery should be
replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end­of-life to the applicable collection point for the recycling of electrical and
electronic equipment.

For all other batteries, please view the section on how to remove the battery from
the product safely.

Hand the battery over to the applicable collection point for the recycling of waste
batteries. For more detailed information about recycling of this product or
battery, please contact your local Civic Office, your household waste disposal
service or the shop where you purchased the product.

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato­ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and
product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or guarantee matters please refer to the
addresses given in separate service or guarantee documents.

will help prevent potentially negative consequences for the

Trademarks and notice

VAIO is a trademark of Sony Corporation.
Microsoft, Windows, and Windows Vista are registered trademarks of Microsoft

Corporation in the United States and/or other countries.
IBM and PC/AT are registered trademarks of International Business Machines

Corporation.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and

any use of such marks by Sony Corporation is under license.
Other trademarks and Trade names are those of their respective owners.
In this manual, Microsoft® Windows® XP Home Edition and Microsoft

Windows® XP Professional are referred to as Windows XP.
In this manual, Microsoft® Windows Vista® Home Basic, Microsoft® Windows

Vista® Home Premium, Microsoft® Windows Vista® Business and Microsoft
Windows Vista® Ultimate are referred to as Windows Vista.

In this manual, Microsoft® Windows® 7 Ultimate, Microsoft® Windows® 7
Professional, Microsoft® Windows® 7 Home Premium, Microsoft® Windows® 7
Home Basic or Microsoft® Windows® 7 Starter are referred to as Windows 7.

®

®

Forward button

Back button

Wheel button

Right button

Status light

Left button

Power switch

CONNECT button

Lens

Note

The laser light from the lens is invisible. When the mouse is turned on, the lens
part does not light up. This is not a malfunction.

Charging the Battery

Note

Charge the battery in an ambient temperature of between 5°C to 35 °C
(41°F to 95°F)

1 Plug the AC adapter into the DC IN 5.2 V ! connector

on the Cradle 1, plug the power supply cord into the AC
adapter 2, plug into a proper electrical socket 3.

2 Put the mouse on the Cradle.

When charging starts, the status light lights up orange. The status light
turns off when charging is complete.

About charging time

• When the status light flashes orange, the mouse built-in battery power is
low and needs to be charged.

• If the mouse is sufficiently charged when placed on the Cradle, the status
light will light up orange for 3 seconds and then turn off.

Enabling Communication
between the Mouse and Your
Personal Computer

Use the Bluetooth software installed on your personal computer to enable
communication between the mouse and your personal computer.

Note

Activate the Bluetooth software on your personal computer. Operation of the
Bluetooth software may vary depending on your personal computer.
For details, refer to the manuals provided with your personal computer.

The setup instructions are based on your operating system.

If your computer is pre-installed with Windows 7, go directly
to the instructions in Case A.

Window 2

Case A
1 Click (Start), then click “Devices and Printers.”
2 Slide the power switch to the ON position.
3 Press the CONNECT button on the bottom of the mouse.
4 Click “Add a device” in the “Devices and Printers”

window.

5 In the device list, select “VGP-BMS77,” and click “Next.”

z Hint

If the “Select a pairing option” window is displayed, select “Pair
without using a code,” and click “Next.”

6 Click “Close” in the “Add a device” window.
7 Move the mouse. If the pointer displayed on your screen

moves appropriately, the connection is complete.

Case B
1 Slide the power switch to the ON position.
2 Press the CONNECT button on the bottom of the mouse.

The status light flashes green.

3 On the “Bluetooth Devices” window, click the “Add

Wireless Device” icon.

4 In the device list, select “VGP-BMS77,” and click “Next.”

z Hint

If the “Select a pairing option” window is displayed, select “Pair
without using a code,” and click “Next.”

5

On the “Pair with a Wireless Device” window, click “Close.”

6 Close the “Bluetooth Devices” window.
7 Move the mouse. If the pointer displayed on your screen

moves appropriately, the connection is complete.

Case C
1 Slide the power switch to the ON position.
2 On the “Bluetooth Devices” window, select the

“Devices” tab and click “Add.”

The “Add Bluetooth Device Wizard” appears.

3 Press the CONNECT button on the bottom of the mouse.

The status light flashes green.

4 Select the “My device is set up and ready to be found”

check box and click “Next.”

5 In the device list, select “VGP-BMS77,” and click “Next.”
6 Select “Don’t use a passkey” and click “Next.”
7 Click “Finish.”
8 Click “OK.”
9 Move the mouse. If the pointer displayed on your screen

moves appropriately, the connection is complete.

Case D
1 Slide the power switch to the ON position.
2 Double-click in the notification area in the bottom

right corner of your personal computer’s desktop.

The “Bluetooth Settings” screen appears.

3 Click “New Connection.”

The “Add New Connection Wizard” screen appears.

4 Press the CONNECT button on the bottom of the mouse.

The status light flashes green.

5 Select “Express Mode” and click “Next.”

The search for Bluetooth devices begins.

6 In the device list, select “VGP-BMS77,” and click “Next.”
7 If the “Add New Connection Wizard” disappears,

connection is complete. Go to step 10.

8 If the prompt to connect the HID (Human Interface

5

Device) device appears, click “OK.”

9 Verify the contents of the window displayed, and click

“Next.”

10 Move the mouse. If the pointer displayed on your screen

moves appropriately, the connection is complete.

Disconnecting

Slide the power switch to the OFF position.

Operating distance of the mouse

The mouse can normally be operated within about a 32 ft. (10 m) radius around
the personal computer. Depending on the usage environment, sometimes the
usable distance may be notably shorter, preventing normal operation.

In such a case, take the following measures:

• Use the mouse as far away from other wireless devices as possible.

• Use the mouse closer to the personal computer.

• Use a mouse pad.

Using the Mouse

When you move the mouse, the pointer displayed on your screen moves in
the same direction. This section describes basic mouse operations.

Notes

• Due to the characteristics of the laser sensor, the mouse may not work
properly on transparent surfaces or on a mouse pad that has a clear surface.
Avoid using on such materials, or use a commercially available mouse pad
that is compatible with a laser sensor mouse.

• The fluoropolymer used for the soles of the mouse (PTFE, or
polytetrafluoroethylene) is designed for low frictional resistance, but the
mouse may slide differently depending on what material your desk or
mousepad is made of.

z Hint

If necessary, you can adjust the mouse pointer speed under “Mouse Properties.”
To display “Mouse Properties” with the Windows 7 operating system, click
“Hardware and sound,” and then “Mouse” in the “Control Panel.”
To display “Mouse Properties” with Windows Vista and Windows XP operating
systems, click “Mouse” in the “Control Panel.” (If you use Windows XP operating
system, switch to Classic View.)

Basic operations

1

3

2

1

2

4

Left button

Right button

CONNECT button

Power switch

Slide the power switch to the ON position.

1 Wheel button

Use the wheel button to easily scroll up and down in a window. You can
also use auto scroll by pressing the wheel button.

2 Left button

Use to open saved documents, pictures, files, and programs.
Most mouse functions are performed using this button.

3 Right button

Use this button to display shortcut menus that allow you to copy saved
documents, pictures, files, view file details, and access various
commands and settings.

4 Forward button / 5 Back button

Move to next/previously displayed screen of Internet Explorer.

Changing resolution

The resolution is 800dpi (when shipped). You can change the resolution by
doing the following:

Note

You must slide the power switch to the OFF position before attempting to
change the resolution.

1 While pushing and holding down the left and right

buttons 1, push the CONNECT button on the bottom of
the mouse 2.

2 While holding down all 3 buttons, slide the power

switch to the ON position.

The status light flashes on and off in green and orange.

3 When the status light flashes on and off in green and

orange, push the following buttons depending on
resolution.

300 dot/cm (800 dpi): Left button
450 dot/cm (1200 dpi): Back button
600 dot/cm (1600 dpi): Right button

Precautions

Safety If any solid object or liquid falls onto the mouse, disconnect

it and have it checked by qualified personnel before
continuing its use.

Location Do not place the mouse in a location where it is:

• On an unstable surface

• In very humid areas or where there is no ventilation

• Subject to excessive dust

• Subject to direct sunlight or extreme heat

• Extremely cold

Operation If the mouse is brought directly from a cold to a warm

location or is placed in a very damp room, moisture may
condense on the inside of the mouse. If this occurs, the
mouse may not work properly.
In this case, wait about 30 minutes for the moisture to
evaporate. If the mouse does not work properly after one
hour, consult your nearest Sony dealer.

Bluetooth communications

• The 2.4 GHz band used by Bluetooth and wireless LAN devices is also
used by various other devices. Bluetooth devices incorporate technology
that minimizes interference from other devices using the same
wavelength. However, communication speed and achievable distances
may be reduced. Interference from other devices can also stop
communications altogether.

• The data transfer rate will vary depending on distance and obstacles
between devices, device configuration, radio interference, operating
system, software application, and so on. In some cases, communication
may be interrupted.

• Communication range will vary according to whether walls or other
obstacles are located between devices, the material used in walls, the
presence of radio frequency interference and other environmental
conditions, and the type of software being used.

• If wireless LAN and Bluetooth functionality are used at the same time on
the same personal computer, communication speed may be reduced due
to electromagnetic interference, and other unwanted effects may occur.

Cleaning the outside of the mouse

Clean the mouse with a soft, dry cloth or a soft cloth lightly moistened with
a mild detergent solution. Do not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or benzine.

To remove the built-in rechargeable battery

Notes

• Do not remove the battery, except when disposing of the mouse. If the
battery is accidentally removed, replace it correctly, observing the
polarity mark in the battery compartment.

• Do not use any other battery except this built-in rechargeable battery, and
do not use it with other devices.

1 Open the battery cover on the bottom of the mouse.

2 Pull the battery cover lightly.

How to replace the battery

1 Open the battery cover on the bottom of the mouse.

2 Replace the battery on the tab, matching the polarity

marks in the battery compartment.

Battery tab

Specifications

x Mouse

Communication method Bluetooth Standard Ver. 2.0
Position tracking method Laser sensor
Adjustable Resolutions 300/450/600 dot/cm (800/1200/1600 dpi)
Frequency band 2.4 GHz
Power requirements 3.7 V DC (Built-in rechargeable lithium-ion

battery)

Battery life Approx. 4 weeks (fully charged)
Communication distance 10 m (32 ft.) max. line of sight*
Dimensions Approx. 56.4 × 34.1 × 122 mm

(2.3 × 1.4 × 4.9 in.) (w × h × d)

Mass Approx. 80 g (2.9 oz.) (including battery)

x Cradle

Dimensions Approx. 62.1 × 57.0 × 75.7 mm

(2.5 × 2.3 × 3.0 in.) (w × h × d)

Mass Approx. 50 g (1.8 oz.)

x Rechargeable battery (built-in)

Model number SP60BITA9C
Maximum charge current 1065 mA
Maximum charge voltage 4.2 V

x Miscellaneous

Power supply (AC adapter) Input: AC 100 - 240 V 50/60Hz

Operating temperature 5 °C to 35 °C (41 °F to 95 °F) (temperature

Operating humidity

Storage temperature –20 °C to 60 °C (–4 °F to 140 °F) (temperature

Storage humidity

Accessories Cradle

* Communication range will vary according to whether walls or other

obstacles are located between devices, the material used in walls, the
presence of radio frequency interference and other environmental
conditions, and the type of software being used.

Design and specifications are subject to change without notice.

Output: DC 5.2 V

gradient less than 10 °C (18 °F)/hour)
20% to 80% (not condensed), provided that
humidity is less than 65% at 35 °C (95 °F)
(hygrometer reading of less than 29 °C (84 °F))

gradient less than 10 °C (18 °F)/hour)
10% to 90% (not condensed), provided that
humidity is less than 20% at 60 °C (140 °F)
(hygrometer reading of less than 35 °C (95 °F))

AC adapter
Power cord
Rechargeable battery (built-in lithium-ion
battery)
Operating Instructions (this document)
Warranty Card

Troubleshooting

If you experience any of the following difficulties while using the mouse,
use this troubleshooting guide to solve the problem. If a problem persists,
consult your nearest Sony dealer.

The mouse does not turn on when I slide the power switch to the ON
position.

❒ The mouse built-in battery power is low.

c If the power does not come on when the power switch is set to ON,

charge the battery. For details, see “Charging the Battery”.

Nothing happens when I press a mouse button.

❒ The software is not compatible.

c Use a supported software.

❒ The mouse built-in battery power is low.

c Charge the battery. For details, see “Charging the Battery”.

❒ The mouse and the personal computer are not communicating.

c Perform the steps in “Enabling Communication between the Mouse and

Your Personal Computer” to ensure that proper communication is
possible.

c Turn off the mouse, wait a few seconds, turn on the mouse, and then

reestablish communication.

c In some operating environments, the usable distance may be notably

shorter, preventing normal operation. In such case, use the mouse farther
away from other electronic devices such as other computers and displays.

c If the mouse is too far from your personal computer, communication is

not possible. Bring the mouse and your personal computer closer
together.

❒ The mouse is being used on an unsuitable surface.

c Due to the characteristics of the laser sensor, the mouse may not work

properly on transparent surfaces or on a mouse pad that has a clear
surface. Avoid using on such materials, or use a commercially available
mouse pad that is compatible with a laser sensor mouse.

❒ The CONNECT button is pressed while operating the mouse.

c When the CONNECT button is pressed while operating the mouse, the

mouse goes into a standby state for about 1 minute and cannot be
operated during this time. If you press the CONNECT button, reset the
power switch of the mouse once to ON before beginning operation.

❒ The mouse may have difficulty communicating in an environment with

2.4 GHz wireless LAN or other Bluetooth communication.

c It is best to use the mouse in a location with low interference from

wireless devices.

Pressing the CONNECT button does not establish a connection.

c If the power switch on the mouse is set to OFF, communication with

the personal computer is not possible. Check the power switch setting
on the bottom of the mouse.

c If the power does not come on when the power switch is set to ON, the

mouse built-in battery power may be low. Under normal operating
conditions, a set of batteries lasts about a month. For details, see
“Charging the Battery”.

c Communication between the mouse and your personal computer may

not have been properly established. If the CONNECT button on the
mouse is not pressed within 30 seconds after the Bluetooth device
search begins, mouse communication is canceled. In such a case,
perform the procedure again to enable communication. For details, see
“Enabling Communication between the Mouse and Your Personal
Computer”.

c If the mouse and personal computer are too far apart, communication

is not possible. The maximum communication distance between the
mouse and personal computer is about 10 m (32 ft.). If used on a metal
table or if obstacles lie between the mouse and personal computer, the
usable distance may be less.

c Make sure your personal computer is set as below.

- The WIRELESS switch is set to ON.

- Bluetooth function is in operation.
For details on how to set the WIRELESS switch or Bluetooth function,
refer to the manuals provided or included with your personal computer.

The scrolling features do not work.

❒ The operating system is not compatible.

c Use a supported operating system.

❒ The program you are using is not compatible with the scrolling

features.

The pointer does not move when I move the mouse.

c Processing performed by Windows or other software may temporarily

disable the mouse. Wait a few moments for the processing to finish
before using the mouse.

c You may find some useful solutions in your personal computer’s

operating instructions. Refer to the manuals provided with your
personal computer.

❒ The mouse built-in battery power is low.

c If the power does not come on when the power switch is set to ON,

charge the battery. For details, see “Charging the Battery”.

❒ The mouse is not set to ON.

c Slide the power switch to the ON position.

❒ The mouse and your personal computer are not communicating.

c Perform the steps in “Enabling Communication between the Mouse and

Your Personal Computer” to ensure that proper communication is
possible.

c In some operating environments, the usable distance may be notably

shorter, preventing normal operation. In such case, use the mouse farther
away from other electronic devices such as other computers and displays.

c If the mouse is too far from your personal computer, communication is

not possible. Bring the mouse and your personal computer closer
together.

❒ The mouse is being used on an unsuitable surface.

c Due to the characteristics of the laser sensor, the mouse may not work

properly on transparent surfaces or on a mouse pad that has a clear
surface. Avoid using on such materials, or use a commercially-available
mouse pad that is compatible with a laser sensor mouse.

When I am using the mouse, the display goes dark or the personal
computer enters power-saving mode.

❒ The personal computer enters power-saving mode even while the

mouse is in use.

c Change the power management settings for the personal computer to

prevent it from entering power-saving mode. For details, refer to the
manuals provided with your personal computer.

c Touch the touchpad or press any key on the keyboard to exit power-

saving mode.

The personal computer does not return from Standby mode.

c Touch the touchpad or press any key on the keyboard to exit this mode.

The mouse pointer does not move smoothly across the screen.

c Due to the characteristics of the laser sensor, the mouse may not work

properly on transparent surfaces or on a mouse pad that has a clear
surface. Avoid using on such materials, or use a commercially-available
mouse pad that is compatible with a laser sensor mouse.

Exiting power-saving mode with the mouse is not possible.

c Press any key or the power button on the keyboard.

The mouse does not move smoothly after returning from the power­saving mode.

c Deactivate the Bluetooth connection, wait a few seconds, and then

reestablish connection.

The mouse is not found when the Bluetooth device search is
performed.

❒ The mouse is unable to be detected.

c Press the CONNECT button located on the bottom of the mouse, and

then try the search again.

❒ The power switch on the mouse is set to OFF.

c Check the power switch setting on the bottom of the mouse.

❒ The Bluetooth function on your computer is not activated.

c Make sure that the Bluetooth function is activated. For details, refer to the

manuals provided with your personal computer.

I am asked to input a key at the time of authentication.

c Input “0000” as the key.
