Sony VGN-TT36MD Users guide

Operating Instructions - Hardware Guide

Personal Computer

VGN-TT Series

Contents

Before Use.......................................................................... 4

Finding More about Your VAIO Computer .................... 5

Ergonomic Considerations ............................................ 7

Getting Started.................................................................... 9

Locating Controls and Ports........................................ 10

About the Indicator Lights ........................................... 17

Connecting a Power Source ....................................... 18

Using the Battery Pack................................................ 19

Shutting Down Your Computer Safely ........................ 27

Updating Your Computer ............................................ 28

Using Your VAIO Computer.............................................. 29

Using the Keyboard..................................................... 30

Using the Touch Pad................................................... 31

Using Special-function Buttons ................................... 32

Using the Built-in Camera ........................................... 33

Using the Optical Disc Drive ....................................... 34

Using the Memory Stick .............................................. 42

Using Other Modules / Memory Cards ........................ 47

Using the Internet ........................................................ 54

Using the Network (LAN) ............................................ 56

Using the Wireless LAN .............................................. 57

Using the Bluetooth Function ...................................... 64

Using Fingerprint Authentication .................................69

Using the TPM .............................................................76

Using Peripheral Devices..................................................82

Using the Noise Canceling Headphones .....................83

Connecting a Docking Station .....................................89

Connecting External Speakers or Headphones ..........97

Connecting an External Display ..................................98

Selecting Display Modes ...........................................103

Using the Multiple Monitors Function ........................105

Connecting an External Microphone .........................108

Connecting a USB Device .........................................109

Connecting an i.LINK Device.....................................111

Customizing Your VAIO Computer..................................113

Setting the Password.................................................114

Using the VAIO Control Center .................................125

Using the Power Saving Modes ................................126

Using the VAIO Power Management.........................131

Configuring Your Modem...........................................133

Protecting the Hard Disk ............................................134

Upgrading Your VAIO Computer.....................................135

Adding and Removing Memory .................................136

Precautions..................................................................... 142

Handling the LCD Screen ......................................... 143

Using the Power Source ........................................... 144

Handling Your Computer........................................... 145

Handling the Built-in Camera .................................... 148

Handling Discs .......................................................... 149

Using the Battery Pack.............................................. 150

Using Headphones.................................................... 151

Handling the Memory Stick ....................................... 152

Handling the Built-in Storage Device ........................ 153

Using Fingerprint Authentication ............................... 154

Using the TPM .......................................................... 155

Troubleshooting .............................................................. 156

Computer .................................................................. 158

System Security ........................................................ 164

Battery....................................................................... 165

Built-in Camera ......................................................... 167

Internet ...................................................................... 169

Networking ................................................................ 171

Bluetooth Technology ............................................... 176

Optical Discs ............................................................. 180

Display ...................................................................... 184

Printing ...................................................................... 188

Microphone ............................................................... 189

Speakers ...................................................................190

Touch Pad .................................................................191

Keyboard ...................................................................192

Floppy Disks ..............................................................193

Audio/Video ...............................................................194

Memory Stick .............................................................197

Peripherals ................................................................198

Docking Station .........................................................199

Trademarks .....................................................................200

Notice ..............................................................................202

Before Use >

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

Information in the supplied manuals including this User Guide is intended for users of the VAIO computers with the Microsoft® Windows Vista® 32-bit operating system. You may find differences in the information when your computer comes preinstalled with the 64-bit operating system.

How to find specifications

Some features, options, and supplied items may not be available on your computer.

To find out about the configuration of your computer, see the Specifications (supplied with your computer).

Before Use > Finding More about Your VAIO Computer

Finding More about Your VAIO Computer

This section provides support information about your VAIO computer.

1. Printed Documentation

❑ Quick Start Guide — An overview of components connection, set-up information, etc.

❑ Specifications — The hardware configurations of your VAIO computer.

❑ Troubleshooting and Recovery Guide

❑ Safety Regulations

2. On-screen Documentation

❑ VAIO Manual — General information and technical assistance for your VAIO computer.

To access VAIO Manual, double-click VAIO Manual on the desktop.

❑ Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you

learn to use your computer.

To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows key and press the F1 key.

Before Use > Finding More about Your VAIO Computer

3. Support Web Sites

If you have any problem with the computer, you can visit the following VAIO online web sites for troubleshooting:

❑ http://www.sony-asia.com/support/vaio/

❑ http://scs.sony.co.kr/

❑ http://service.sony.com.tw/

Before contacting VAIO Helpdesk by telephone, try to solve the problem by reading the supplied documentation and visiting other Sony web sites.

❑ For other Sony products, visit the web site at http://www.sony.net

❑ For available optional accessories, visit the following web sites:

❑ http://vaio-online.sony.com/

❑ http://vaio-online.sony.co.kr/

❑ http://www.sonystyle.com.tw/vaio/

(Korean)

(Traditional Chinese)

(English)

(Korean)

(English)

(Traditional Chinese)

Before Use > Ergonomic Considerations

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard or the pointing device. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use > Ergonomic Considerations

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started >

Getting Started

This section describes how to get started with using your VAIO computer.

❑ Locating Controls and Ports (page 10)

❑ About the Indicator Lights (page 17)

❑ Connecting a Power Source (page 18)

❑ Using the Battery Pack (page 19)

❑ Shutting Down Your Computer Safely (page 27)

❑ Updating Your Computer (page 28)

Getting Started > Locating Controls and Ports

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some countries or areas.

Front

A Num lock indicator (page 17) B Caps lock indicator (page 17) C Scroll lock indicator (page 17) D Built-in MOTION EYE camera (page 33) E Built-in MOTION EYE camera indicator (page 17) F LCD screen (page 143) G Ambient light sensor (page 185)

Measures ambient light intensity for automatically adjusting the LCD brightness to the optimum level.

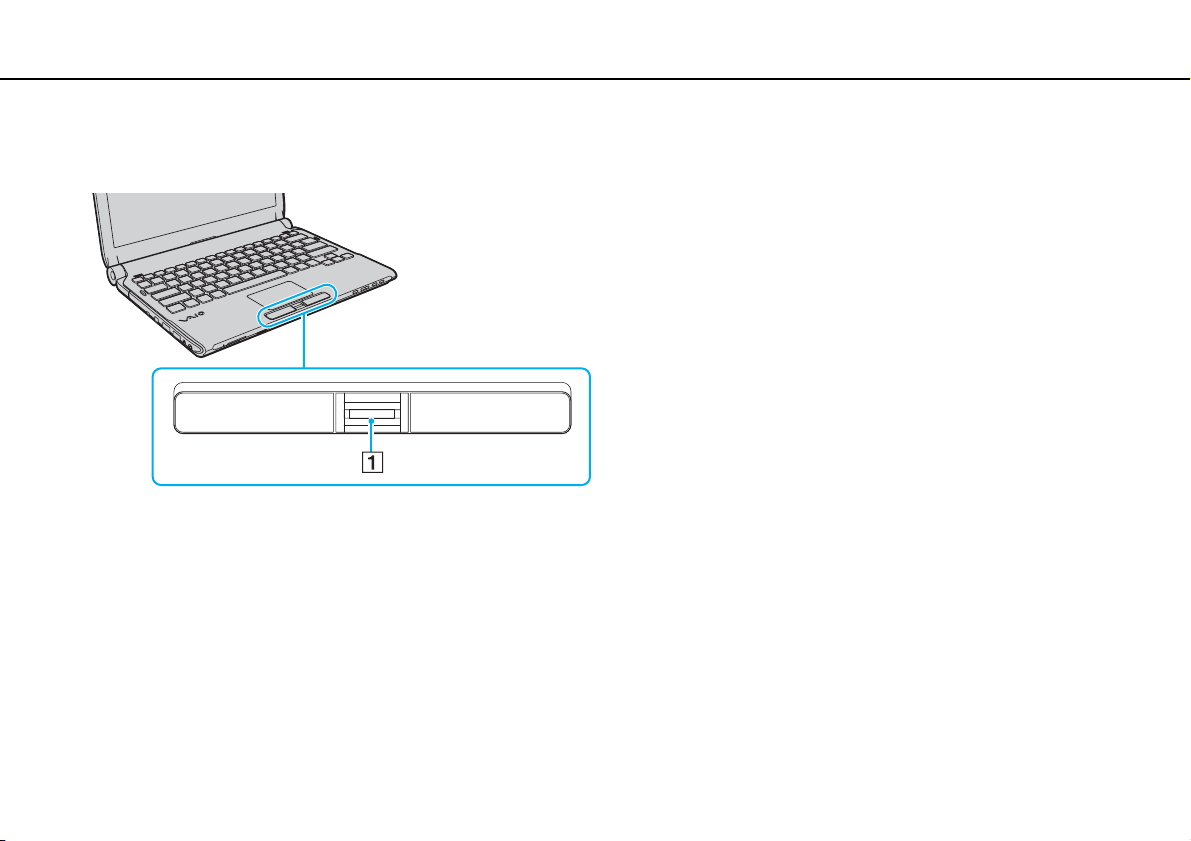

H Keyboard (page 30) I Touch pad (page 31) J Fingerprint sensor (page 69)

Getting Started > Locating Controls and Ports

A Media Access indicator (page 17) B Memory Stick slot

(page 42)

C WIRELESS indicator (page 17) D Charge indicator (page 17) E Disc drive indicator (page 17) F Built-in microphone (monaural) G SD memory card slot (page 50) H WIRELESS switch (page 57), (page 64) I Built-in speakers (stereo) J Muting button (page 32) K Volume control buttons (page 32) L S1 button (page 32) M Drive eject button (page 32), (page 34)

* Your computer supports both the standard-size Memory Stick and the Duo-

size Memory Stick.

Getting Started > Locating Controls and Ports

Back

A Battery connector (page 19)

Getting Started > Locating Controls and Ports

Right

A Optical disc drive (page 34) B Manual eject hole (page 180) C Optical disc drive indicator (page 17) D Substitute drive eject button (page 34) E Monitor port (page 99) F Power button/Power indicator (page 17)

Getting Started > Locating Controls and Ports

Left

A DC IN port (page 18) B Air vents C Security slot D ExpressCard/34 slot (page 47) E i.LINK 4-pin (S400) port (page 111)

F Hi-Speed USB (USB 2.0) ports

(page 109)

G Microphone jack (page 108) H Headphones jack

Support high-/full-/low- speeds.

Although you can connect headphones or speakers with a stereo mini-plug to the jack in this shape, it is recommended that you connect the supplied noise canceling headphones to take full advantage of the built-in noise canceling function.

(page 97), (page 83)

Getting Started > Locating Controls and Ports

A Port cover

Open the port cover to access the ports behind it. Push out the top edge of the port cover and gently pull the cover until it is completely out of the socket.

B Network (Ethernet) port (page 56) C Modem port (page 54)

Getting Started > Locating Controls and Ports

Bottom

A Air vents B Docking station connector (page 90) C Memory module compartment cover (page 136)

Getting Started > About the Indicator Lights

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and

Charge

Built-in MOTION EYE camera Illuminates while the built-in camera is in use.

Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep

Optical disc drive Illuminates while the drive is reading or writing data. When the indicator is unlit, the optical disc media is not in

Disc drive

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates when one or more wireless options are enabled.

turns off when the computer is off or in Hibernate mode.

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 22) for more information.

mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.

use.

Illuminates while the built-in storage device or the optical disc drive is running to read or write data. Do not place the computer into Sleep mode or turn it off when this indicator is lit.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps lock indicator is unlit.

Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Getting Started > Connecting a Power Source

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

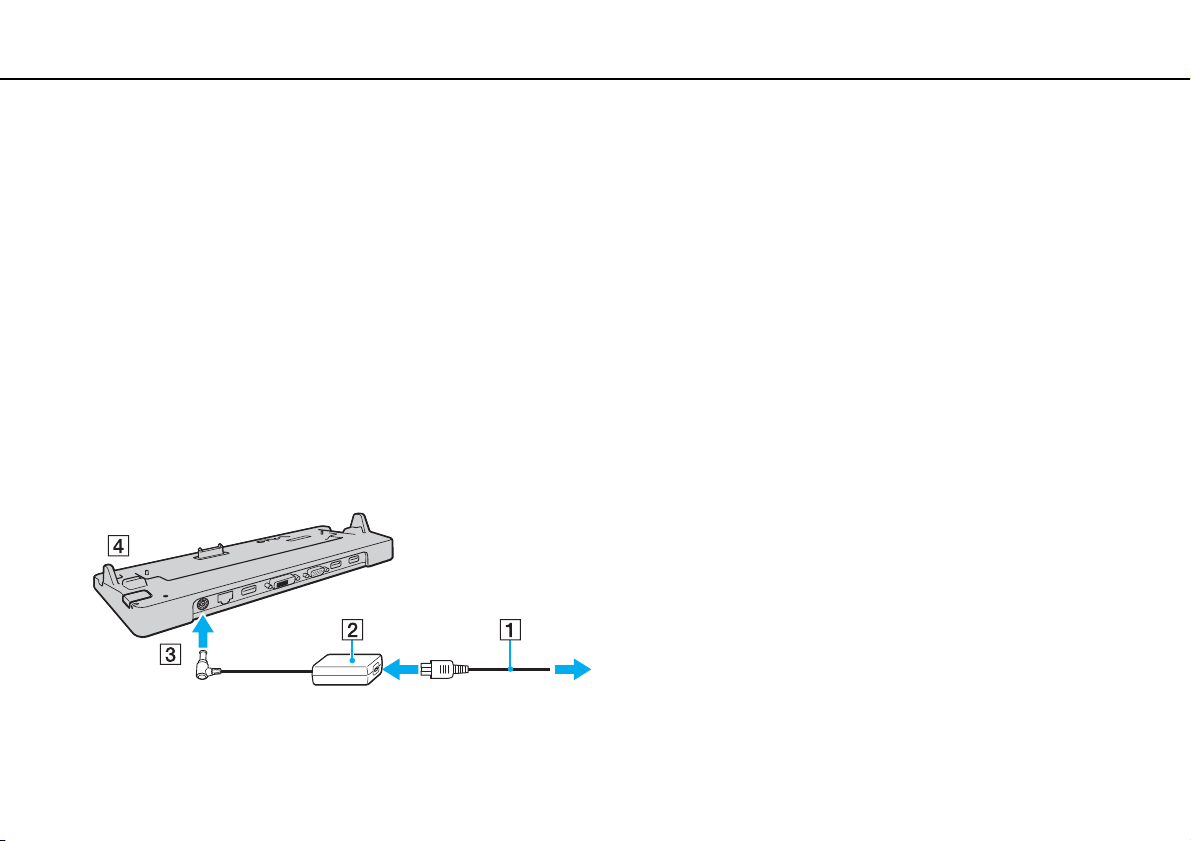

3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer or on the optional docking station.

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 129).

Getting Started > Using the Battery Pack

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

Getting Started > Using the Battery Pack

3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery

compartment fit into the U-shaped cuts (3) on either side of the battery pack.

Getting Started > Using the Battery Pack

4 Push the battery pack down into the compartment until it clicks into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

For your safety, it is highly recommended that you use genuine Sony rechargeable battery packs and AC adapters that meet the quality assurance standards and supplied by Sony for your VAIO computer. Some VAIO computers may operate only with genuine Sony battery packs.

Getting Started > Using the Battery Pack

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the computer to a power source with the AC adapter.

The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected with the battery charge functions, the charge indicator turns off. To select your desired maximum charge level, see Using the Battery Charge Functions (page 24).

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power indicator

Blinks along with the orange power indicator

Blinks fast in orange A battery error has occurred due to a failed battery

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Charge the battery pack as described in this manual from your first battery charge.

Getting Started > Using the Battery Pack

✍

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the life of battery.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life is short. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such

as Sleep or Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Getting Started > Using the Battery Pack

Using the Battery Charge Functions

You can customize the current battery charging method using the Battery Charge Functions: the battery care function and the quick charge function. The battery care function makes the life of battery longer, and the quick charge function allows you to charge your battery pack quickly.

To enable the battery care function and the quick charge function

1 Click Start, All Programs, and VAIO Control Center.

2 Click Power Management and then Battery Charge Functions.

3 Click to select the Enable Quick Charge Function check box in the right pane and click Apply.

4 Click Advanced.

5 Click to select the Enable Battery Care Function check box.

6 Select the desired maximum charge level.

7 Click OK.

✍

Alternatively, you can press the S1 button to launch the VAIO Power Management Viewer and enable the functions.

To check the battery charge capacity

Follow steps 1 and 2 in To enable the battery care function and the quick charge function above, click Advanced, and check detailed information. If the battery charge capacity is low, replace the battery pack with a new genuine Sony battery pack.

Getting Started > Using the Battery Pack

Using the Battery Life Conserving Wallpaper

You can conserve your battery life just by setting the specific wallpaper as your desktop background.

To set the battery life conserving wallpaper

1 Click Start, All Programs, and VAIO Control Center.

2 Click Display and then Long Battery Life Wallpaper Setting.

3 Click Set Long Battery Life Wallpaper.

At the confirmation prompt, click OK.

Getting Started > Using the Battery Pack

Removing the Battery Pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and

lift the battery pack in the direction of the arrow, and then slide it away from the computer.

Getting Started > Shutting Down Your Computer Safely

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and then Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Getting Started > Updating Your Computer

Updating Your Computer

Be sure to install the latest updates on your computer with the following software applications so that the computer can run more efficiently.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 4

Click Start, All Programs, VAIO Update 4, and VAIO Update Options and then follow the on-screen instructions.

Your computer must be connected to the Internet to download the updates.

Using Your VAIO Computer >

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 30)

❑ Using the Touch Pad (page 31)

❑ Using Special-function Buttons (page 32)

❑ Using the Built-in Camera (page 33)

❑ Using the Optical Disc Drive (page 34)

❑ Using the Memory Stick (page 42)

❑ Using Other Modules / Memory Cards (page 47)

❑ Using the Internet (page 54)

❑ Using the Network (LAN) (page 56)

❑ Using the Wireless LAN (page 57)

❑ Using the Bluetooth Function (page 64)

❑ Using Fingerprint Authentication (page 69)

❑ Using the TPM (page 76)

Using Your VAIO Computer > Using the Keyboard

Using the Keyboard

Your keyboard has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system is finished launching.

Combinations/Feature Functions

Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.

Fn + /T (F7): display output

Fn + / (F9/F10): zoom

Fn + (F12): hibernate

To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then the M or , key. To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then the m or < key.

Toggles among your computer screen, an external display, and simultaneous output to both.

Changes the size of an image or a document displayed on some software. To make the view look smaller and further away (zoom out), press the Fn+F9 keys. To make the view look bigger and closer (zoom in), press the Fn+F10 keys. See the help file included with the VAIO Control Center for more information.

Provides the lowest level of power consumption. When you execute this command, the states of the system and the connected peripheral devices are saved to the built-in storage device and the system power is turned off. To return the system to its original state, use the power button to turn on the power. For details on power management, see Using the Power Saving Modes (page 126).

+ 173 hidden pages

Sony VGN-TT36MD Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual
