User Guide

Personal Computer

VGN-BZ560 Series

Contents

Before Use .........................................................................................................................................................................6

Documentation .............................................................................................................................................................7

Ergonomic Considerations.........................................................................................................................................11

Getting Started .................................................................................................................................................................13

Locating Controls and Ports.......................................................................................................................................14

About the Indicator Lights ..........................................................................................................................................21

Connecting a Power Source ......................................................................................................................................22

Using the Battery Pack ..............................................................................................................................................23

Shutting Down Your Computer Safely .......................................................................................................................30

Using Your VAIO Computer .............................................................................................................................................31

Using the Keyboard ...................................................................................................................................................32

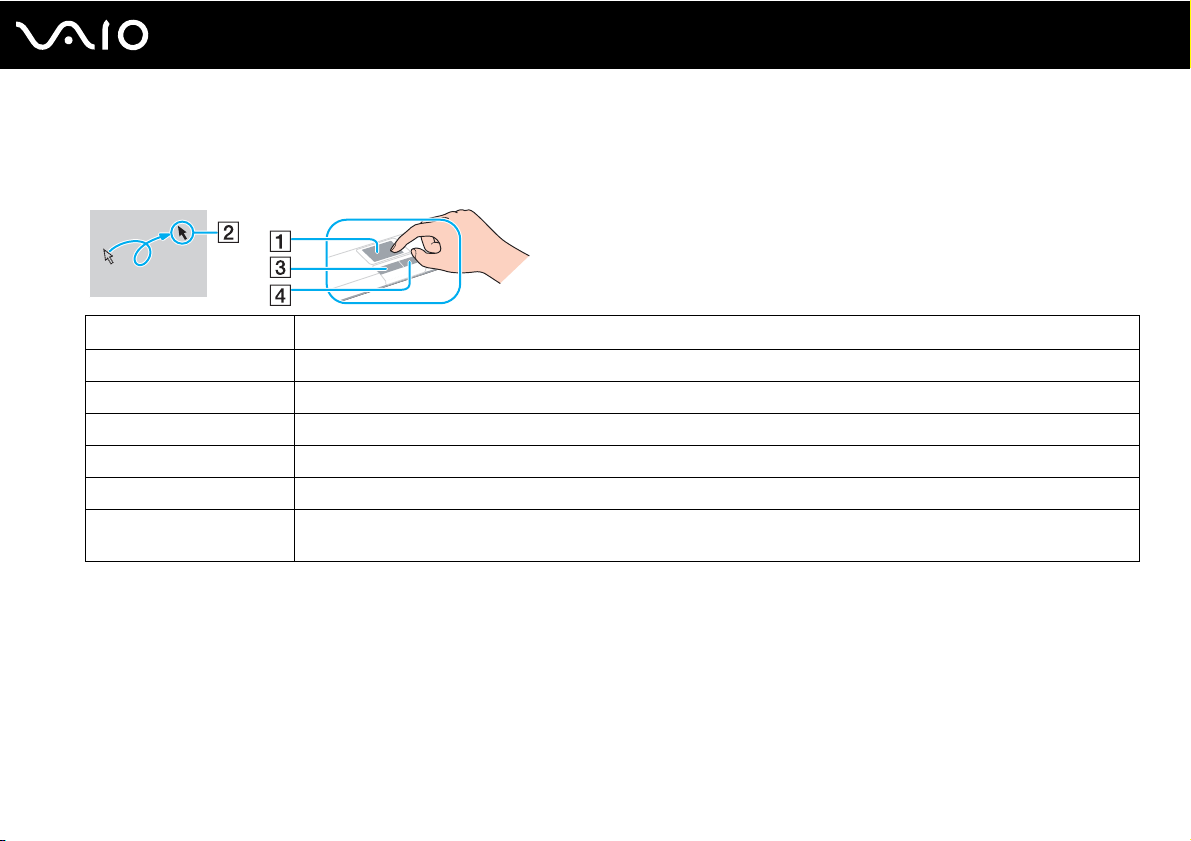

Using the Touch Pad .................................................................................................................................................33

Using Special-function Buttons ..................................................................................................................................34

Using the Built-in MOTION EYE Camera...................................................................................................................35

Using the Optical Disc Drive ......................................................................................................................................38

Using PC Cards .........................................................................................................................................................47

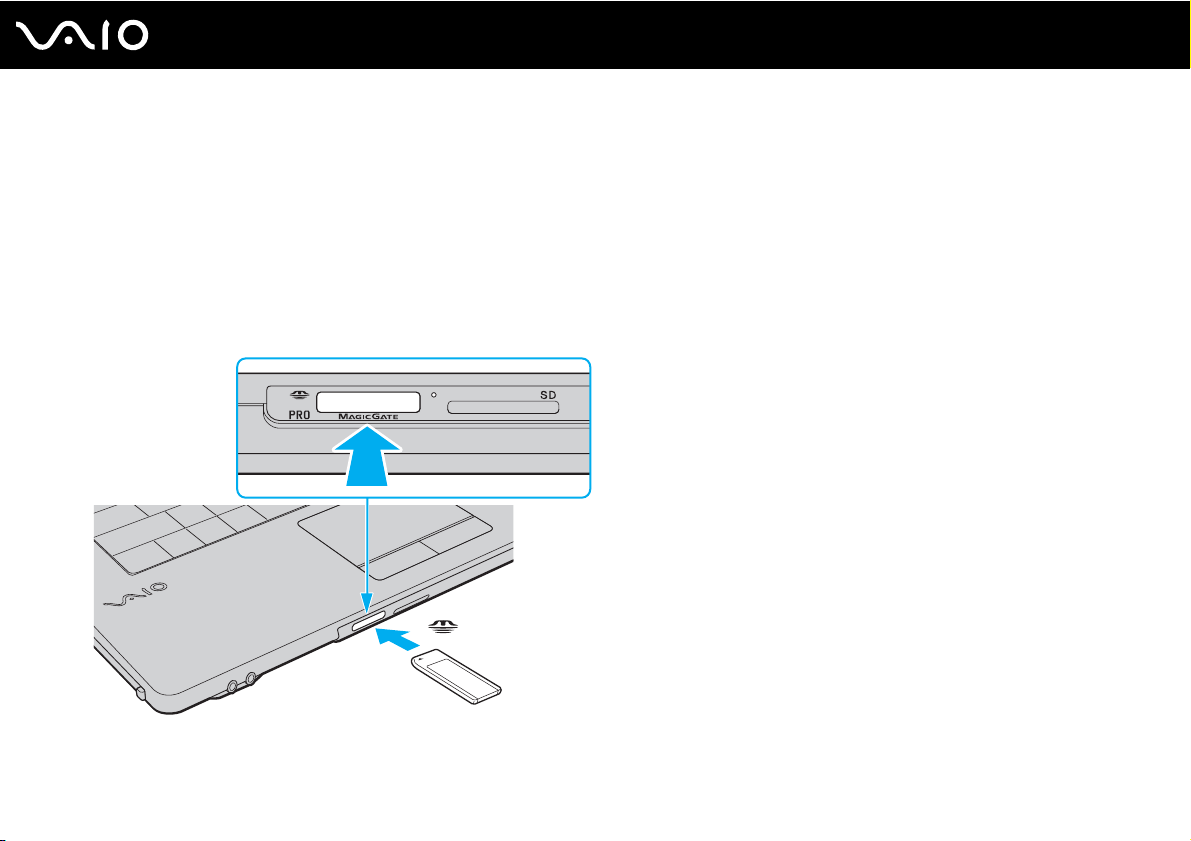

Using the Memory Stick Media ..................................................................................................................................50

Using Other Memory Cards .......................................................................................................................................56

Using the Internet.......................................................................................................................................................60

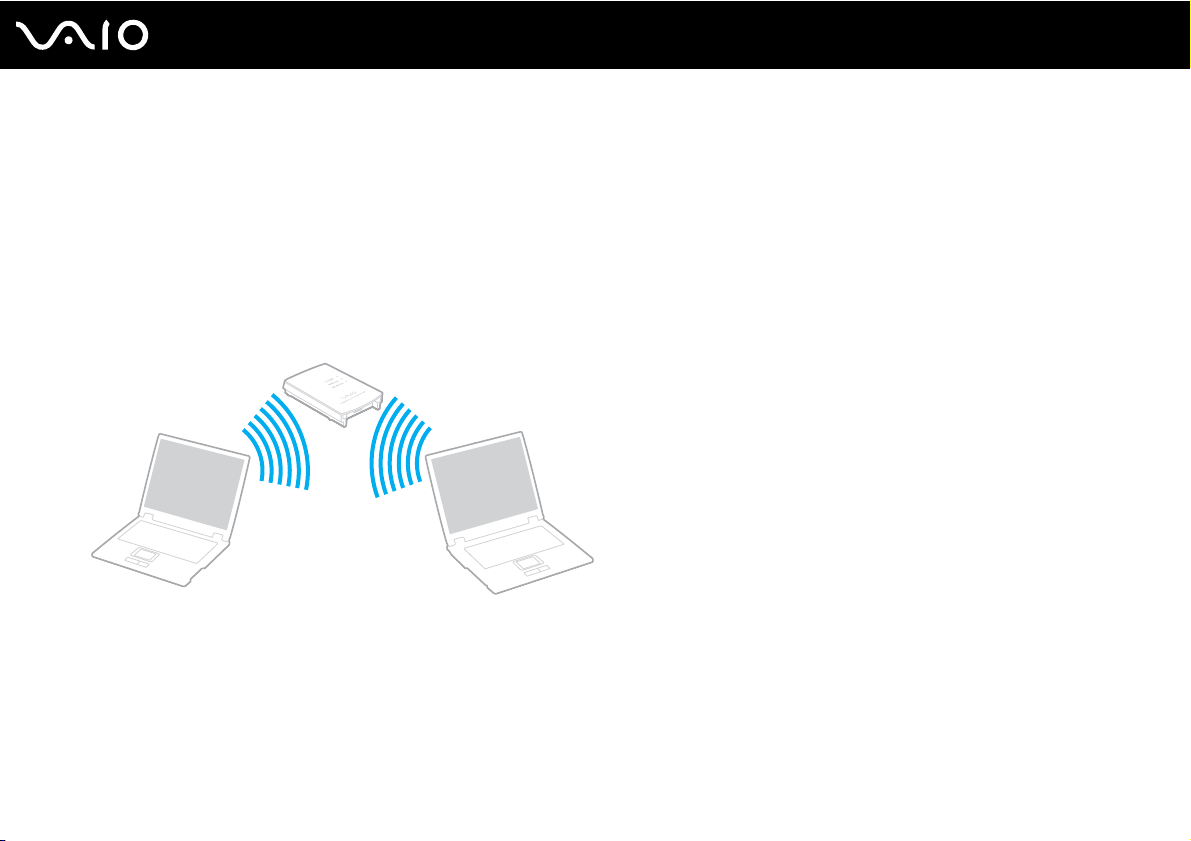

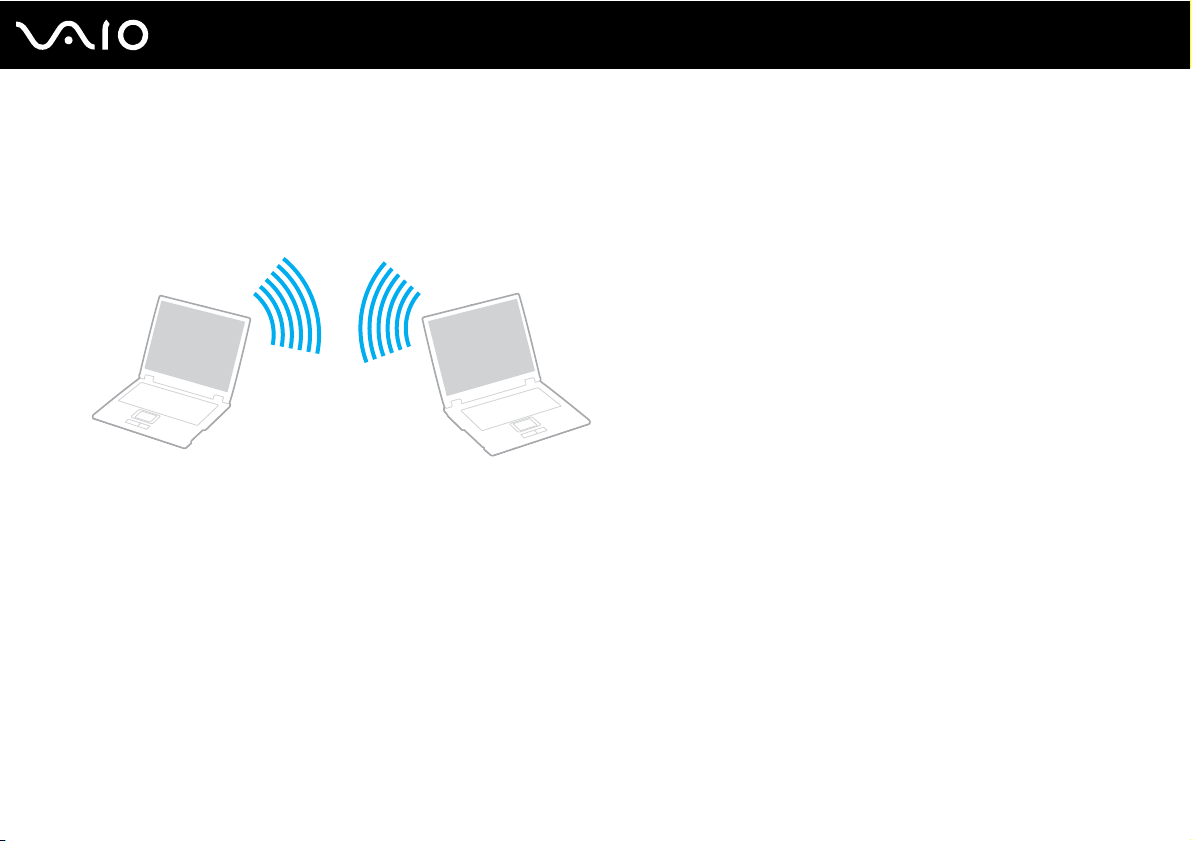

Using Wireless LAN (WLAN) .....................................................................................................................................61

Using the Bluetooth Functionality ..............................................................................................................................69

Using Peripheral Devices .................................................................................................................................................75

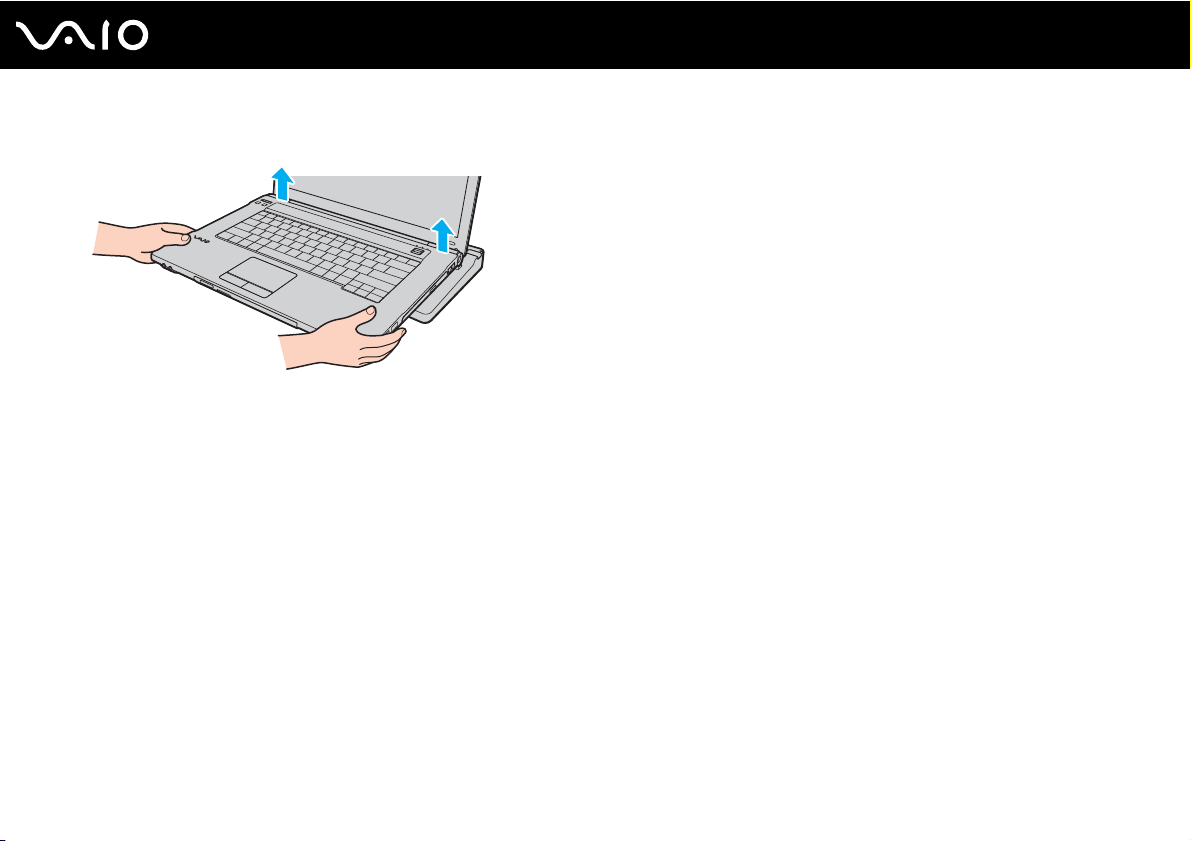

Connecting a Docking Station....................................................................................................................................76

Connecting External Speakers ..................................................................................................................................84

Connecting an External Display.................................................................................................................................85

Selecting Display Modes............................................................................................................................................90

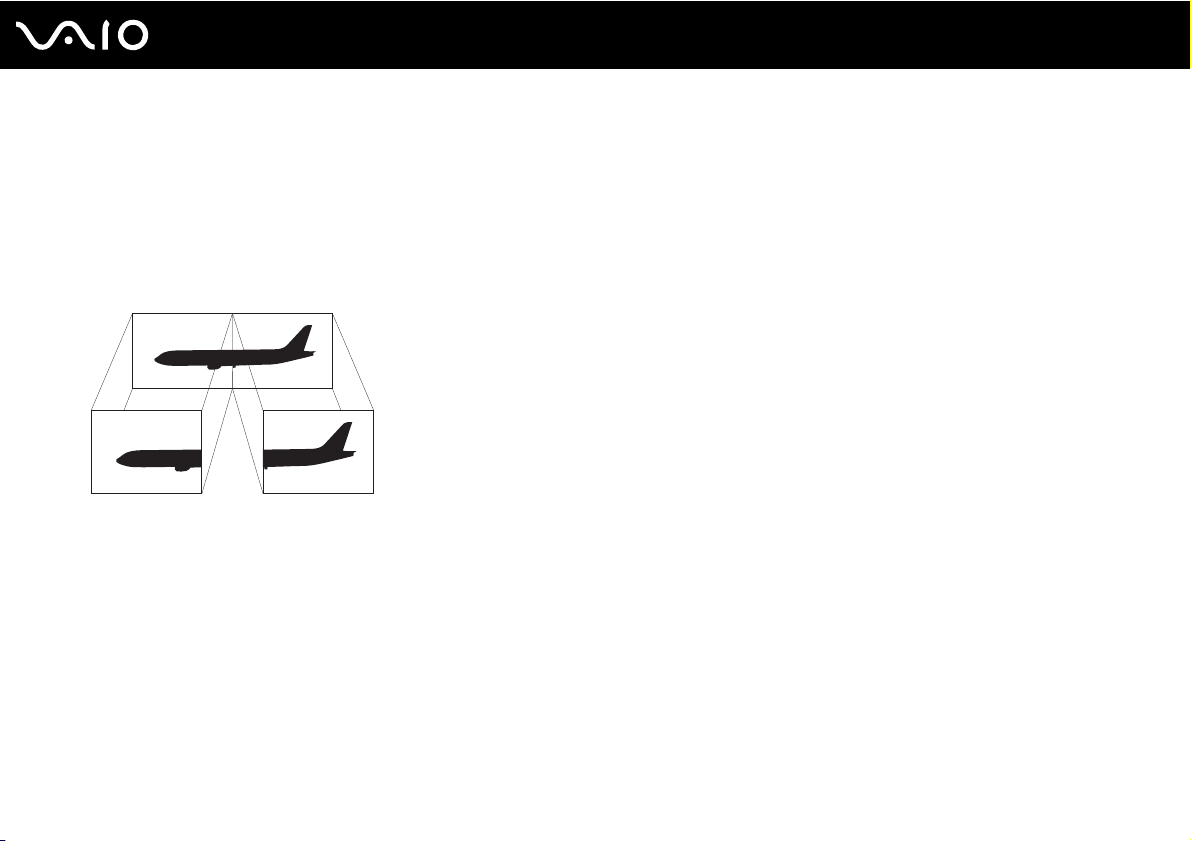

Using the Multiple Monitors Function .........................................................................................................................91

Connecting an External Microphone..........................................................................................................................93

Connecting a Universal Serial Bus (USB) Device......................................................................................................94

Connecting a Printer ..................................................................................................................................................97

Connecting an i.LINK Device .....................................................................................................................................98

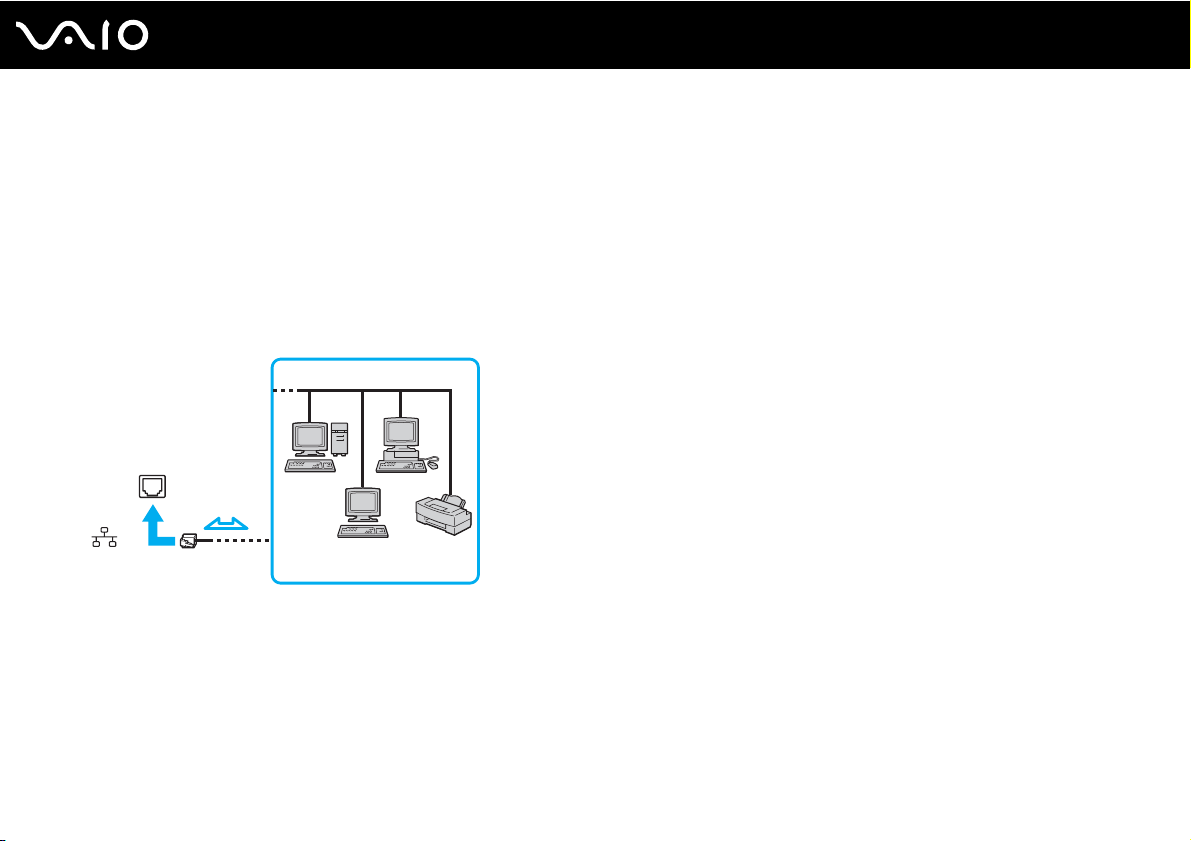

Connecting to a Network (LAN) ...............................................................................................................................100

Customizing Your VAIO Computer ................................................................................................................................102

Setting the Password ...............................................................................................................................................103

Using Fingerprint Authentication..............................................................................................................................114

Using Trusted Platform Module (TPM).....................................................................................................................122

Setting Up Your Computer with VAIO Control Center..............................................................................................129

Using the Power Saving Modes...............................................................................................................................130

Managing Power with VAIO Power Management ....................................................................................................135

Protecting Data from Unauthorized Use ..................................................................................................................137

Protecting the Hard Disk ..........................................................................................................................................140

Upgrading Your VAIO Computer....................................................................................................................................141

Adding and Removing Memory................................................................................................................................142

Precautions ....................................................................................................................................................................148

On Handling the LCD Screen ..................................................................................................................................149

On Using the Power Source ....................................................................................................................................150

On Handling Your Computer....................................................................................................................................151

On Using the Built-in MOTION EYE Camera...........................................................................................................153

On Handling Floppy Disks .......................................................................................................................................154

On Handling Discs ...................................................................................................................................................155

On Using the Battery Pack.......................................................................................................................................156

On Using Headphones.............................................................................................................................................158

On Handling Memory Stick Media............................................................................................................................159

On Handling the Hard Disk ......................................................................................................................................160

On Updating Your Computer ...................................................................................................................................161

Troubleshooting .............................................................................................................................................................162

Computer .................................................................................................................................................................164

System Security .......................................................................................................................................................170

Battery......................................................................................................................................................................171

Built-in MOTION EYE Camera.................................................................................................................................173

Internet.....................................................................................................................................................................176

Networking ...............................................................................................................................................................178

Bluetooth Technology ..............................................................................................................................................182

Optical Discs ............................................................................................................................................................186

Display .....................................................................................................................................................................190

Printing.....................................................................................................................................................................194

Microphone ..............................................................................................................................................................196

Mouse ......................................................................................................................................................................197

Speakers..................................................................................................................................................................198

Touch Pad................................................................................................................................................................200

Keyboard..................................................................................................................................................................201

Floppy Disks ............................................................................................................................................................202

PC Cards .................................................................................................................................................................203

Audio/Video..............................................................................................................................................................205

Memory Stick Media ................................................................................................................................................206

Peripherals ...............................................................................................................................................................208

Docking Station ........................................................................................................................................................209

Support Options .............................................................................................................................................................210

Sony Support Information ........................................................................................................................................211

Program Support Information...................................................................................................................................214

Trademarks ....................................................................................................................................................................226

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

Before Use

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of components connection, set-up information, etc. ❑ Safety Information — Contains safety guidelines and owner information.

Non-printed Documentation

❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems.

✍

To go to Web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.

❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.

To view the online specifications:

1 Connect to the Internet. 2 Go to the Sony online support Web site at the following URLs:

http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support/ http://esupport.sony.com/ES/VAIO/ http://esupport.sony.com/ES/VAIO/BR/

for customers in Canada

for customers in USA

for customers in Spanish speaking Latin American countries or areas

for customers in Brazil

Before Use

❑ VAIO Recovery Center User Guide — Provides information about restoring individual software programs, hardware

drivers, and drive partition(s) or your entire hard disk drive to the original factory installed settings. To access this on-screen guide:

1 Click Start and Help and Support. 2 Click Manuals & Specifications. 3 Click VAI O Recovery Center User Guide.

Before Use

Help and Support

Help and Support is easy to access and provides a single location for information and technical assistance for your VAIO computer. Choose from the following categories to find the answers you need.

To access Help and Support, click Start and Help and Support.

❑ Manuals & Specifications

Here you will find the on-screen User Guide, warranty information, other VAIO documents, and system and software information for your computer.

❑ VAIO Support

Access interactive help in the form of VAIO tutorials, an escalation page containing support and contact information, and various links to VAIO online support Web sites.

❑ Backup & Recovery

Find information on how to back up and restore your operating system, system software, and your personal data.

❑ Wireless & Networking

Learn about wireless connections including Bluetooth Wireless technology and Wireless LAN. Run utilities that include VAIO Media Setup and Windows Network and Sharing Center, and access to wireless tutorials.

❑ Security

Keep your data safe and your computer running efficiently with updates and maintenance programs from Microsoft and Sony.

❑ VAIO Sites

Contains links to other Internet sites you might find interesting and useful.

❑ VAIO Tutorials

Sony provides guided help tutorials that help you accomplish a task. It can either perform the task for you or show you how to do it step by step.

❑ VAIO Registration

Please take a moment to register your VAIO computer to enjoy the following benefits:

❑ Your computer will be registered with Sony Product Support. ❑ You will receive an e-coupon good for purchase of eligible accessories at SonyStyle.com.

❑ Extended Service Plan

Sony VAIO products come with a 1 year Limited Warranty. Protect your investment further by purchasing an optional Extended Service Plan.

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started

This section describes how to get started using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.

❑ Locating Controls and Ports (page 14)

❑ About the Indicator Lights (page 21)

❑ Connecting a Power Source (page 22)

❑ Using the Battery Pack (page 23)

❑ Shutting Down Your Computer Safely (page 30)

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some countries or areas.

Front

Getting Started

A Built-in microphone (monaural) B Built-in MOTION EYE camera indicator C Built-in MOTION EYE camera

(page 35)

(page 21)

D LCD screen (page 149) E Built-in speakers (stereo) F Keyboard (page 32) G Touch pad (page 33) H Headphones jack (page 84) I Microphone jack (page 93)

J Memory Stick slot

(page 50)

K Media Access indicator (page 21) L SD memory card slot (page 56) M Charge indicator (page 21) N Hard disk drive/Optical disc drive indicator (page 21) O WIRELESS indicator (page 21)

On selected models only.

Your computer supports both standard- and Duo-size Memory Stick media.

WIRELESS switch (page 61)

A B Muting button (page 34) C S1 button (page 34) D Num lock indicator (page 21) E Caps lock indicator (page 21) F Scroll lock indicator (page 21)

G Fingerprint sensor

* On selected models only.

(page 114)

Getting Started

Back

A Battery connector (page 23)

Getting Started

Right

A i.LINK 4-pin (S400) port (page 98) B Hi-Speed USB (USB 2.0) ports

C Optical disc drive (page 38) D Optical disc drive indicator (page 21) E Drive eject button (page 38) F Manual eject hole (page 186) G Network (Ethernet) port (page 100) H Modem port (page 60) I Power button/Power indicator (page 21)

* Support high-/full-/low- speeds.

(page 94)

Getting Started

Left

A DC IN port (page 22) B Security slot C Air vent

D Monitor port E Hi-Speed USB (USB 2.0) port

(page 86)

(page 94)

F PC Card slot (page 47) G PC Card release button (page 49)

Disabled when the computer is attached to the docking station.

Supports high-/full-/low- speeds.

Getting Started

Bottom

A Air vents B Docking station connector (page 78)

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions

Power 1 Illuminates in green when the computer is turned on, blinks slowly in orange while the computer is in Sleep

mode, and turns off when the computer is placed into Hibernate mode or turned off.

Charge

Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep

Built-in MOTION EYE camera

Optical disc drive Illuminates while data is being read from or written to the optical disc media. When the indicator is off, the optical

Hard disk drive/Optical disc drive

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates when the WIRELESS switch is turned on, provided that one or more wireless options are enabled

* On selected models only.

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 26) for more information.

mode or turn it off when this indicator is on.) When the indicator is off, the memory card is not in use.

Illuminates while the built-in MOTION EYE camera is in use.

disc media is not in use.

Illuminates while data is being read from or written to the hard disk drive or the optical disc media. Do not place the computer into Sleep mode or turn it off when this indicator is on.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is off.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps lock indicator is off.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

in the VAIO Smart Network window.

Getting Started

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.

Using the AC Adapter

✍

Be sure to use the AC adapter supplied with your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3). 2 Plug the other end of the power cord into an AC outlet (2). 3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer or on the optional docking station.

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 133). This power saving mode saves the time of shutting down and resuming.

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK switch (1) inward.

Getting Started

3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery

compartment fit into the U-shaped cuts (3) on either side of the battery pack.

4 Rotate the battery pack in the direction of the arrow, and push the battery pack down into the compartment until it clicks

into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

This computer is designed to operate only with genuine Sony batteries.

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack. 2 Connect the AC adapter to the computer.

The charge indicator turns on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected with the battery care function, the charge indicator turns off. To select your desired maximum charge level, see Using the Battery Care Function (page 28).

Charge indicator light status Meaning

Lit in orange The battery pack is charging.

Unlit The battery pack is in any of the following states:

Blinks along with the green power indicator light

Blinks along with the orange power indicator light

Blinks fast in orange A battery error has occurred due to a failed battery

- Fully charged.

- Completely out of power.

- Removed.

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Charge the battery pack as described in this manual from your first battery charge.

Getting Started

✍

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

The battery pack supplied with your computer is a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the battery life.

For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Getting Started

Using the Battery Care Function

You can select your desired maximum charge level to reduce battery degradation and check the battery wear level with the battery care function.

To use the battery care function

1 Click Start, All Programs, and VAIO Control Center. 2 Click Power Management and Battery Care Function. 3 Click to select the Enable Battery Care Function check box in the right pane. 4 Click Advanced. 5 Select the desired maximum charge level. 6 Click OK.

To check the battery wear level

Follow steps 1 and 4 in To use the battery care function above and check detailed information. If the battery wear level is high, replace the battery pack with a new genuine Sony battery pack.

Getting Started

Removing the Battery Pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK switch (1) inward. 3 Slide and hold the battery RELEASE latch (2) inward, hook your fingertip under the tab (3) on the battery pack, and turn

the battery pack in the direction of the arrow, and then slide it away from the computer.

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and Shut Down. 3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 32)

❑ Using the Touch Pad (page 33)

❑ Using Special-function Buttons (page 34)

❑ Using the Built-in MOTION EYE Camera (page 35)

❑ Using the Optical Disc Drive (page 38)

❑ Using PC Cards (page 47)

❑ Using the Memory Stick Media (page 50)

❑ Using Other Memory Cards (page 56)

❑ Using the Internet (page 60)

❑ Using Wireless LAN (WLAN) (page 61)

❑ Using the Bluetooth Functionality (page 69)

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system finished launching.

Combinations/Feature Functions

Fn + 2 (F3/F4): speaker volume Adjusts the built-in speaker volume.

To increase the volume, press Fn+F4 and then M or ,, or keep pressing Fn+F4. To decrease the volume, press Fn+F3 and then m or <, or keep pressing Fn+F3.

Fn + 8 (F5/F6): brightness control Adjusts the LCD brightness of your computer screen.

To increase lighting intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6. To decrease lighting intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.

Fn + /T (F7): display output

Fn + / (F9/F10): zoom

Fn + (F12): hibernate

Toggles among your computer screen, an external display, and simultaneous output to both.

Changes the view size of your screen. To make the screen view look smaller and further away (zoom out), press Fn+F9. To make the screen view look bigger and closer (zoom in), press Fn+F10. See the help file on VAIO Control Center for more information.

Provides for the lowest level of power consumption. When you execute this command, the states of the system and the connected peripheral devices are saved to the hard disk drive and the system power is turned off. To return the system to its original state, use the power button to turn on the power. For details on power management, see Using the Power Saving Modes (page 130).

Using Your VAIO Computer

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

✍

You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, click Start, All Programs, VAIO Control Center, Keyboard and Mouse and Pointing Device.

Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad without connecting a mouse, you will be able to use only the keyboard for pointer operations.

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.

Special-function button Functions

Muting button

S1 button

Turns the volume on and off.

By default, the S1 button places your computer into Presentation mode as indicated by the P mark. In Presentation mode, some functions of the computer that may disturb a presentation are disabled, such as a screen saver, the power saving modes, and system message generation. To bring the computer back into Normal mode, press this button once again.

✍

The default button assignment may be different from the above. In such a case, you can change the assignment in the window for changing the S1 button assignment. To display this window, press and hold the button or launch and navigate through VAIO Control Center. See the help file on VAIO Control Center for the S1 button assignment.

To change the Presentation mode settings, click Start, Control Panel, Mobile PC, and Adjust settings before giving a presentation under Windows Mobility Center, and change the settings in the Presentation Settings window.

Using Your VAIO Computer

Using the Built-in MOTION EYE Camera

Your computer may be equipped with a built-in MOTION EYE camera. See the online specifications to find out whether your model is equipped with the built-in MOTION EYE camera.

The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and enables you to capture still images and movies with the preinstalled image capture software.

Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using such software.

Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in MOTION EYE camera, respectively.

✍

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera.

The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a malfunction.

You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.

Using Your VAIO Computer

Capturing Still Images

To capture a still image

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch WebCam

Companion 2. 2 Click the Capture icon in the main window. 3 Turn the camera to your subject. 4 Click the Capture button below the displayed image.

The current image in the finder view is captured and its thumbnail image is added to the thumbnail view in the left pane

of the main window.

✍

When capturing an image in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the

properties window.

WebCam Companion 2 provides many more features. See the help file on the software for more information.

Using Your VAIO Computer

Capturing Movies

To capture a movie

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch WebCam

Companion 2. 2 Click the Record icon in the main window. 3 Turn the camera to your subject. 4 Click the Record Video button below the displayed image to start movie recording. 5 When finished, click the Record Video button once again to stop movie recording.

The first scene of the captured movie is added to the thumbnail view in the left pane of the main window.

✍

When capturing a movie in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the

properties window.

WebCam Companion 2 provides many more features. See the help file on the software for more information.

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

1 Turn on the computer. 2 Press the drive eject button (1) to open the drive.

The tray slides out. 3 Place a disc in the middle of the tray with the label side facing upward and gently push it down until the disc clicks into

place.

Using Your VAIO Computer

4 Close the tray by pushing it in gently.

Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction.

You cannot use optical discs if you disable the optical disc drive in the BIOS setup screen. To enable the drive, follow the steps and the tip in Disabling

Built-in Devices (page 137).

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.

Using Your VAIO Computer

Reading and Writing Optical Discs

Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model.

Use the table below to see which types of media your optical disc drive supports.

Using Your VAIO Computer

PR: playable and recordable P: playable but not recordable –: not playable or recordable

CDROM

DVD± RW/

PPPPPRPP–

±R DL/RAM

Blu-ray Disc P P P P

Blu-ray Disc

PPPP

Combo

Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.

Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported. DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.

Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

Writing data to Ultra Speed CD-RW discs is not supported on the models with certain types of the Blu-ray Disc drive.

BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.

*10

BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.

*11

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

Video CDMusic CDCD

Extra

CD-R/RWDVD-

ROM

PPP

DVDVideo

BDROM

DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-

RAM

*1 *2

*3 *4

*3 *4P*11

BD-R

*10

–

*7 *11

Using Your VAIO Computer

This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two

sided disc product with a DVD recorded layer on one side and a digital audio layer on the other side. Be aware that the audio side (non-DVD side) of a

DualDisc may not play on this product because it does not conform to the CD Standard.

Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices

on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee

the compatibility of VAIO CD drives with discs that are not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives,

or "Blu-ray Disc" standard in relation to Blu-ray Disc drives). USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR

CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.

For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8cm disc writing is not supported.

To play copyright protected Blu-ray Disc media continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support

movie playback on packaged media recorded in AVC or VC1 format at high bit rates.

Region settings are required for some contents on DVDs and BD-ROM Disc media. If the region setting on the optical disc drive does not match the

region coding on the disc, playback is not possible.

Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents

on copyright protected Blu-ray Disc media.

Some contents may restrict video output to be standard definition or prohibit analog video output at all. It is strongly recommended that digital HDCP-

compliant environment be implemented for optimum compatibility and viewing quality.

Using Your VAIO Computer

Notes on writing data to a disc

❑ Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc.

Other software programs may not be fully compatible and errors may result. ❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete

this process, follow the instructions included with your software. ❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while writing data to a disc. ❑ Deactivate the screen saver and exit anti-virus software before writing data to a disc. ❑ Do not use memory-resident utility software while writing data to a disc. This may cause your computer to malfunction. ❑ Before using your software application to burn discs, make sure you exit and close all other applications. ❑ Do not place your computer into either of the power saving modes while using the preinstalled software or any disc

burning software.

❑ Connect and use the AC adapter to power your computer or make sure your battery pack is at least 50% charged. ❑ Make sure you use the same disc burning software to add data to a used disc. Use of different disc burning software for

additional data burning may cause a failure. For example, if you have a disc with data that you burned with the Roxio

Easy Media Creator software, use the Roxio Easy Media Creator software to add more data to the same disc.

Using Your VAIO Computer

Notes on playing discs

To achieve optimum performance when playing discs, you should follow these recommendations. ❑ Some CD players and computers' optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media. ❑ Some DVD players and computers' optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-

R DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media. ❑ Do not use memory-resident utility software to speed up disc access when playing a disc. This may cause your computer

to malfunction.

❑ Do not place your computer into either of the power saving modes while your computer is playing a disc. ❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the

disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code for

your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on your

computer.

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert a disc into the optical disc drive. 2 If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD.

If the Audio CD window appears, click to select an option.

Copying Files to CDs

To copy files to a disc

Do not strike or shake your computer while writing data to a disc.

1 Insert a disc into the optical disc drive.

If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder

appears.

2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder. 3 Close the disc folder.

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all running software applications. 2 Insert a DVD into the optical disc drive. 3 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD.

For instructions on how to use the software, see the help file on your DVD software.

Copying Files to DVDs

To copy files to a disc

1 Connect the AC adapter to the computer. 2 Close all running software applications. 3 Insert a disc into the optical disc drive. 4 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD burning software to copy files to

the disc. For instructions on how to use the software, see the help file on your DVD burning software.

Using Your VAIO Computer

Using PC Cards

PC Cards allow you to connect portable external devices to your computer.

You cannot use PC Cards if you disable the PC Card slot in the BIOS setup screen. To enable the slot, follow the steps and the tip in Disabling Built-in

Devices (page 137).

Inserting a PC Card

Some PC Cards or their functions may not be compatible with your computer.

✍

You do not need to shut down your computer before inserting or removing a PC Card.

To insert a PC Card

1 Insert the PC Card into the PC Card slot with the front label facing upward. 2 Gently push the PC Card into the slot all the way to the end.

The PC Card is automatically detected by your system.

The Safely Remove Hardware icon appears on the taskbar.

Using Your VAIO Computer

✍

Some devices may not function properly if you continuously switch to Normal mode from Sleep or Hibernate mode. For some PC Cards, if you alternate

between Normal mode and Sleep or Hibernate mode while the card is inserted, you may find that the device connected to your system through the PC

Card is not recognized. Restart your system to correct the problem.

While the card is inserted, your computer may not enter Hibernate mode but Sleep mode. We recommend that you remove the card if you want the

computer to enter Hibernate mode.

Make sure you use the latest software driver provided by the PC Card manufacturer.

Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC

Card in the correct direction. See the manual that came with your PC Card for more information.

Using Your VAIO Computer

Removing a PC Card

Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly.

To remove a PC Card

✍

To remove a PC Card when your computer is off, skip steps 1 to 7.

1 Double-click the Safely Remove Hardware icon on the taskbar. 2 Select the hardware you want to unplug. 3 Click Stop.

The Stop a Hardware device window appears. 4 Confirm that the device can be safely removed from the system. 5 Click OK.

A message appears stating it is now safe to remove the hardware device.

6 Click OK. 7 Click Close to close the Safely Remove Hardware window. 8 Push the PC Card release button so that the release button pops out. 9 Push the PC Card release button a second time so that the PC Card pops out. 10 Gently take hold of the PC Card and pull it out of the slot. 11 If the PC Card release button is still out, push it back in all the way to the end.

Using Your VAIO Computer

Using the Memory Stick Media

Memory Stick media is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it can be used for external data storage.

Using Your VAIO Computer

Before You Use the Memory Stick Media

The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick PRO and Memory Stick PRO-HG Duo formats with high speed data transfer and large data capacity capabilities.

✍

You can insert a Duo-size Memory Stick media directly into the Memory Stick slot without using a Memory Stick Duo Adaptor.

Before using a Memory Stick Micro (M2) media, be sure to insert it into an M2 Standard-size or M2 Duo-size Adaptor. If you insert the media directly

into the Memory Stick slot without the Adaptor, you may not be able to remove it from the slot.

For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/.

Your computer has been tested and found compatible with Sony branded Memory Stick media with capacity of up to 16 GB that are available as of

January 2008. However, not all Memory Stick media that meet the same specifications as the compatible media are guaranteed of compatibility.

Inserting a Memory Stick media with multiple conversion adapters is not guaranteed of compatibility.

MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick media with the MagicGate logo to use

this feature.

Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective

The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high speed data transfer).

The Memory Stick Micro media in an M2 Duo-size Adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo Adaptor.

You cannot use Memory Stick media if you disable the Memory Stick slot in the BIOS setup screen. To enable the slot, follow the steps and the tip in

Disabling Built-in Devices (page 137).

Using Your VAIO Computer

Inserting a Memory Stick Media

To insert a Memory Stick media

1 Locate the Memory Stick slot. 2 Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick slot. 3 Carefully slide the Memory Stick media into the slot until it clicks into place.

The Memory Stick media is automatically detected by your system and the contents on the Memory Stick media are

displayed. If nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick media icon.

Using Your VAIO Computer

Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer

or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly.

Do not insert more than one Memory Stick media into the slot. Improper insertion of the media may damage both your computer and the media.

To view the contents on the Memory Stick media

1 Click Start and Computer to open the Computer window. 2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.

Using Your VAIO Computer

To format a Memory Stick media

The Memory Stick media has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media.

Formatting the Memory Stick media erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable

data.

Do not remove the Memory Stick media from the slot while formatting the media. This could cause a malfunction.

1 Carefully slide the Memory Stick media into the slot until it clicks into place. 2 Click Start and Computer to open the Computer window. 3 Right-click the Memory Stick media icon and select Format. 4 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

5 Click Start. 6 Follow the on-screen instructions.

It may take time to format the Memory Stick media depending on the media.

Using Your VAIO Computer

Removing a Memory Stick Media

To remove a Memory Stick media

1 Check that the Media Access indicator light is off. 2 Push in the Memory Stick media toward the computer.

The Memory Stick media ejects.

3 Pull the Memory Stick media out of the slot.

Always remove the Memory Stick media gently, or it may pop out unexpectedly.

Do not remove the Memory Stick media while the Media Access indicator light is on. If you do, you may lose data. Large volumes of data may take time

to load, so be sure the indicator is off before removing the Memory Stick media.

Using Your VAIO Computer

Using Other Memory Cards

In addition to the Memory Stick slot and the PC Card slot, your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Using Your VAIO Computer

Before You Use Memory Cards

The SD memory card slot on your computer supports the following memory cards:

❑ SD memory card ❑ SDHC memory card ❑ MultiMediaCard (MMC)

For the latest information on compatible memory cards, see Sony Support Information (page 211) to visit the appropriate support Web site.

Your computer has been tested and found compatible only with major memory card media available as of January 2008. However, not all memory card

media that meet the same specifications as the compatible media are guaranteed of compatibility.

Always insert the correct memory card into the SD memory card slot.

SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 16 GB have been tested and found compatible with your

computer.

The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory card and SDHC memory card.

Do not attempt to insert a memory card or memory card adapter of a different type into the SD memory card slot. An incompatible memory card or

memory card adapter may cause difficulty in removing from the slot and can cause damage to your computer.

Use care when inserting or removing a memory card from the SD memory card slot. Do not force the memory card in or out of the slot.

You cannot use memory cards if you disable the SD memory card slot in the BIOS setup screen. To enable the slot, follow the steps and the tip in

Disabling Built-in Devices (page 137).

Inserting a Memory Card

To insert a memory card

1 Locate the SD memory card slot. 2 Hold the memory card with the arrow facing upward and pointing toward the memory card slot.

Using Your VAIO Computer

3 Carefully slide the memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Removing a Memory Card

Do not remove a memory card while the Media Access indicator light is on. If you do, the card or its data may become damaged.

To remove a memory card

1 Check that the Media Access indicator light is off. 2 Push in the memory card toward the computer.

The memory card ejects. 3 Pull the memory card out of the slot.

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not supplied) and have an account with an Internet Service Provider (ISP).

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer. 2 Plug the other end into the wall jack (2).

✍

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a

private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

1 Click Start and Control Panel. 2 Click Connect to the Internet under Network and Internet.

The Connect to the Internet window appears. 3 Click Dial-up. 4 Follow the on-screen instructions.

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.

You can communicate without an access point, which means that you can communicate with a limited number of computers (ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.

You cannot access wireless networks if you disable the wireless LAN functionality in the BIOS setup screen. To enable the functionality, follow the steps

and the tip in Disabling Built-in Devices (page 137).

Using Your VAIO Computer

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the

WLAN functionality, read the Safety Information carefully.

WLAN uses the IEEE 802.11a

encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access

(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based, interoperable security

enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward

compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user

authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and

access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,

virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and

is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-

mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of

Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible

with WPA.

* See the online specifications to see whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.

The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed

communications, faster than the IEEE 802.11b standard.

The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps.

/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the

The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 150

(transmission) and up to 300 Mbps* (reception).

Mbps

* Actual communication speed varies depending on your access point settings and so on.

Your computer may employ the Intel

standard.

*Employed only on models that support the IEEE 802.11n draft standard.

Next-Gen Wireless-N technology* compliant with the IEEE 802.11a/b/g standard and the IEEE 802.11n draft

Using Your VAIO Computer

Wireless LAN devices using the 2.4 GHz bandwidth and the ones using the 5 GHz bandwidth cannot communicate with each other because the

frequencies are different.

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference

from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication

speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device

configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the

radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase

the communication speed.

Using Your VAIO Computer

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.

Using Your VAIO Computer

To communicate without an access point (ad-hoc)

You cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks.

The IEEE 802.11n draft standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.

1 Turn on the WIRELESS switch. 2 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.

Make sure the WIRELESS indicator is lit. 3 Click Start and Control Panel. 4 Click View network status and tasks under Network and Internet. 5 Click Set up a connection or network on the left pane.

The Set up a connection or network window appears. 6 Select an option to specify the ad-hoc network settings and click Next. 7 Follow the on-screen instructions.

✍

See the online specifications to see whether your model supports the Bluetooth functionality, the IEEE 802.11a/b/g standard, and/or the IEEE 802.11n

draft standard.

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

The access point will select which channel to use on an infrastructure network.

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Turn on the WIRELESS switch. 3 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.

Make sure the WIRELESS indicator is lit.

4 Right-click or on the taskbar and select Connect to a network. 5 Select the desired access point and click Connect.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be between 8 and 63

alphanumeric characters long or up to 64 characters long using numbers from 0 to 9 and letters from A to F.

See the online specifications to see whether your model supports the Bluetooth functionality, the IEEE 802.11a/b/g standard, and/or the IEEE 802.11n

draft standard.

Stopping Wireless LAN Communication

To stop wireless LAN communication

Click the button next to or above the WLAN icon in the VAIO Smart Network window.

Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.

Using Your VAIO Computer

Using the Bluetooth Functionality

The Bluetooth functionality is available on selected models only. See the online specifications to see whether your model supports the Bluetooth functionality.

You can establish wireless communication between your computer and other Bluetooth devices such as another computer or a mobile phone. You can transfer data between these devices without cables and up to 33 feet (10 meters) range in open space.

To start Bluetooth communications

1 Turn on the WIRELESS switch. 2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

Make sure the WIRELESS indicator is lit.

Using Your VAIO Computer

Notes on using the Bluetooth functionality

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functionalities at the same time on your computer

❑ Size of file being exchanged ❑ Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer

due to electromagnetic interference in the environment. ❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may

not be possible in all situations. ❑ As general characteristics of Bluetooth technology, video and audio may go out of synchronization if you play videos on

your computer with audio output from the connected Bluetooth device.

Using Your VAIO Computer

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous

use of the Bluetooth functionality and wireless communication devices, however, may cause radio interference and result

in poorer communication speeds and distances than the standard values. ❑ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party

companies. ❑ As general characteristics of Bluetooth technology, connecting multiple Bluetooth devices to your computer may cause

bandwidth congestion, resulting in poor performance of the devices.

Using Your VAIO Computer

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using the Bluetooth functionality, search for Bluetooth information using Windows Help and Support. To open Windows Help and Support, click Start and Help and Support.

Stopping Bluetooth Communications

To stop Bluetooth communications

1 Turn off the Bluetooth device that is communicating with your computer. 2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

Using Your VAIO Computer

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting a Docking Station (page 76)

❑ Connecting External Speakers (page 84)

❑ Connecting an External Display (page 85)

❑ Selecting Display Modes (page 90)

❑ Using the Multiple Monitors Function (page 91)

❑ Connecting an External Microphone (page 93)

❑ Connecting a Universal Serial Bus (USB) Device (page 94)

❑ Connecting a Printer (page 97)

❑ Connecting an i.LINK Device (page 98)

❑ Connecting to a Network (LAN) (page 100)

Using Peripheral Devices

Connecting a Docking Station

Attaching a docking station enables you to connect additional peripherals to your computer, such as a printer and an external display.

A docking station is not supplied with your computer and is available as an optional accessory.

Locating Ports on the Docking Station

Using Peripheral Devices

A DC IN indicator

Illuminates when the docking station is powered.

B IN USE indicator (page 81) C UNDOCK button (page 81) D DC IN port (page 78)

E Hi-Speed USB (USB 2.0) ports

(page 94)

F Network (Ethernet) port (1000BASE-T / 100BASE-TX /

10BASE-T) (page 100)

G DVI-D port (page 86) H MONITOR port (page 86) I Security slot

* Support high-/full-/low- speeds.

The docking station can be powered only through the AC adapter supplied with the docking station. Do not unplug the AC adapter from the docking

station and the AC outlet while using the docking station; this may cause data damage or hardware malfunctions.

Using Peripheral Devices

Attaching Your Computer to the Docking Station

Be sure to install the battery pack before attaching your computer to the docking station.

To attach your computer to the docking station

Be sure to use the AC adapter supplied with the docking station.

Do not move your computer while attached to the docking station; this may detach the docking station and cause damage to both units.

1 Disconnect all peripherals and the AC adapter from the computer. 2 Plug one end of the power cord (1) into the AC adapter (2) and the other end into an AC outlet. 3 Plug the cable connected to the AC adapter (2) into the DC IN port (3) on the docking station (4).

4 Slide open the docking station connector cover on the bottom of the computer.

5 Align the rear bottom corners of the computer with the guides on the docking station.

Using Peripheral Devices

6 Gently push down the computer until it clicks into place.

7 Turn on the computer.

Using Peripheral Devices

Disconnecting Your Computer from the Docking Station

Be sure that no devices connected to the docking station are in use before disconnecting your computer.

Do not disconnect your computer from the docking station when the IN USE indicator is lit. Disconnecting the computer while the IN USE indicator is

lit may result in loss of unsaved data or a failure of the computer.

When the battery pack is running out of power, disconnecting your computer from the docking station may result in loss of unsaved data.

Do not disconnect your computer from the docking station during video playback. Be sure to close video playback software before disconnection.

Once you have completed the steps in To disconnect your computer from the docking station (page 82), be sure to remove your computer from the

docking station. Use of the computer still on the docking station may cause unstable operations.

Using Peripheral Devices

To disconnect your computer from the docking station

1 Press the UNDOCK button (1) and wait until the IN USE indicator (2) turns off.

✍

If the IN USE indicator is unlit, you do not have to press the UNDOCK button.

Pressing the UNDOCK button while your computer is in a power saving mode returns the computer to Normal mode first, and then initiates the

disconnection process.

Once you have placed your computer back in Normal mode, be sure to remove your computer from the docking station. Use of the computer still on

the docking station may cause unstable operations.

Using Peripheral Devices

2 Lift the computer away from the docking station.

3 Close the docking station connector cover on the bottom of the computer.

Alternatively, you can disconnect the computer from the docking station as follows:

1 Click Start and Undock Computer. 2 Make sure that a message balloon appears and the IN USE indicator turns off; and then lift the computer away from the

docking station.

3 Close the docking station connector cover on the bottom of the computer.

It is extremely important to close the docking station connector cover after disconnecting your computer from the docking station. If the cover is left

open, dust may get inside and damage the computer.

✍

To disconnect the docking station completely from AC power, unplug the AC adapter.

Connecting External Speakers

You can enhance the sound quality of your computer by connecting external speakers (not supplied).

To connect external speakers

1 Plug the speaker cable (1) (not supplied) into the headphones jack (2) i. 2 Plug the other end of the speaker cable to the external speaker (3). 3 Turn down the volume of the speakers before you turn them on.

✍

Make sure your speakers are designed for computer use.

Using Peripheral Devices

Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.

Using Peripheral Devices

Connecting an External Display

You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer display or a projector.

✍

Connect the power cord of your external display after connecting all other cables.

Using Peripheral Devices

Connecting a Computer Display

You can connect a computer display (monitor) either directly to your computer or via the optional docking station.

To connect a computer display

The monitor port on your computer is disabled when the computer is attached to the docking station.

1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet. 2 If you want to connect an analog monitor, plug the display cable (2) (not supplied) into the monitor port (3) a on the

computer or on the docking station. 3 If you want to connect a TFT/DVI monitor, plug the display cable (not supplied) into the DVI-D port on the docking station.

✍

DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI connector that supports only digital video signals (no analog video signals). It has

24 pins.

A DVI-I (Digital Visual Interface - Integrated) connector supports digital video and analog video signals. It has 29 pins.

Using Peripheral Devices

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone either directly to your computer or via the optional docking station.

To connect a multimedia computer display

The monitor port on your computer is disabled when the computer is attached to the docking station.

1 Plug the power cord of your multimedia computer display (1) into an AC outlet. 2 Plug the display cable (2) (not supplied) into the monitor port (3) a on the computer or on the docking station. 3 Plug the speaker cable (4) (not supplied) into the headphones jack (5) i on the computer. 4 Plug the microphone cable (6) (not supplied) into the microphone jack (7) m on the computer.

Using Peripheral Devices

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) either directly to your computer or via the optional docking station.

To connect a projector

The monitor port on your computer is disabled when the computer is attached to the docking station.

1 Connect the power cord (1) of your projector into an AC outlet. 2 Plug a display cable (2) (not supplied) into the monitor port (3) a on the computer or on the docking station. 3 Plug an audio cable (4) (not supplied) into the headphones jack (5) i on the computer. 4 Plug the display cable and the audio cable into the jack and port on the projector (6).

Using Peripheral Devices

Selecting Display Modes

You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer.

If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 91) for more information.

To select a display

1 Right-click on the desktop and select Personalize. 2 Click Display Settings. 3 Follow the on-screen instructions to change the settings.

✍

You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the

type of your external display or projector.

Before turning on your computer, turn on the external display.

Using Peripheral Devices

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display connected to the monitor port, your computer screen and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that your computer does not enter Sleep or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not

return to Normal mode.

If you set different colors on each display, do not expand a single window across two displays; otherwise your software may not work properly.

Set fewer colors or a lower resolution for each display.

Using Peripheral Devices

To select the Multiple Monitors mode

1 Right-click on the desktop and select Personalize. 2 Click Display Settings. 3 Follow the on-screen instructions to change the settings.

✍

You can also change the S1 button assignment to activate the Multiple Monitors mode with the S1 button. To change the S1 button assignment, press

and hold the S1 button to display the window for changing the assignment. For details on the S1 button, see Using Special-function Buttons (page 34).

Using Peripheral Devices

Connecting an External Microphone

If you need to use a sound input device (for example, to chat over the Internet), you need to plug in an external microphone (not supplied).

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

Using Peripheral Devices

Connecting a Universal Serial Bus (USB) Device

To prevent your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports. ❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

You cannot use any connected USB devices if you disable the USB ports in the BIOS setup screen. To enable the ports, follow the steps and the tip in

Disabling Built-in Devices (page 137).

If the use of USB ports is restricted by the USB Access Restriction Setting utility, you may not be able to use any connected USB devices. For changing

the setting, see Restricting USB Access (page 139).

Connecting a USB Mouse

To connect a USB mouse

1 Choose the USB port (1) you prefer to use. 2 Plug the USB mouse cable (2) into the USB port.

You can now use your USB mouse (not supplied) (3).

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

To connect a USB floppy disk drive

1 Choose the USB port (1) you prefer to use. 2 Plug the USB floppy disk drive cable (2) into the USB port.

Your USB floppy disk drive (3) is now ready for use.

When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.

Using Peripheral Devices

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction.

To disconnect a USB floppy disk drive

✍

To disconnect a USB floppy disk drive when your computer is off, skip steps 1 to 5.

1 Close all programs accessing the floppy disk drive. 2 Double-click the Safely Remove Hardware icon on the taskbar. 3 Select the floppy disk drive you want to unplug. 4 Click Stop. 5 Follow the on-screen instructions to remove the floppy disk drive. 6 Disconnect the floppy disk drive from the computer.

Using Peripheral Devices

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

You cannot use the connected USB printer if you disable the USB ports in the BIOS setup screen. To enable the ports, follow the steps and the tip in

Disabling Built-in Devices (page 137).

If the use of USB ports is restricted by the USB Access Restriction Setting utility, you may not be able to use the connected USB printer. For changing

the setting, see Restricting USB Access (page 139).

To connect a printer using the USB port

1 Plug the power cord (1) of your printer into an AC outlet.

2 Choose the USB port (3) you prefer to use. 3 Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.

Using Peripheral Devices

Connecting an i.LINK Device

Notes on connecting i.LINK devices

❑ Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device, such as a digital video

camcorder.

❑ The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports. ❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of

the external device.

❑ The optional i.LINK cables may not be available in some countries or areas. ❑ An i.LINK connection with other compatible devices is not fully guaranteed. ❑ The i.LINK connection varies depending on the software applications, operating system, and i.LINK-compatible devices

you use. See the manual that came with your software for more information. ❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an

HDD or a CD-RW drive) before you connect them to your computer. ❑ You cannot use i.LINK devices if you disable the i.LINK port in the BIOS setup screen. To enable the port, follow the steps

and the tip in Disabling Built-in Devices (page 137).

Using Peripheral Devices

Connecting a Digital Video Camcorder

To connect a digital video camcorder

Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/ Out port (3) on the digital video camcorder.

✍

On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible.

The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently.

You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

100

Using Peripheral Devices

Connecting to a Network (LAN)

You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer or the optional docking station and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.

You cannot access Ethernet networks if you disable the network (Ethernet) port in the BIOS setup screen. To enable the port, follow the steps and the

tip in Disabling Built-in Devices (page 137).

✍

Your computer can be connected to the network with the default settings.

When your computer is attached to the optional docking station, you need to select which network (Ethernet) port to use. Follow the on-screen

instructions.

Sony VGN-BZ560, VGN-BZ560P, VGN-BZ560P20, VGN-BZ560P22, VGN-BZ560P28 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Use

Documentation

Ergonomic Considerations

Getting Started

Locating Controls and Ports

About the Indicator Lights

Connecting a Power Source

Using the Battery Pack

Shutting Down Your Computer Safely

Using Your VAIO Computer

Using the Keyboard

Using the Touch Pad

Using Special-function Buttons

Using the Built-in MOTION EYE Camera

Using the Optical Disc Drive

Using PC Cards

Using the Memory Stick Media

Using Other Memory Cards

Using the Internet

Using Wireless LAN (WLAN)

Using the Bluetooth Functionality

Using Peripheral Devices

Connecting a Docking Station

Connecting External Speakers

Connecting an External Display

Selecting Display Modes

Using the Multiple Monitors Function

Connecting an External Microphone

Connecting a Universal Serial Bus (USB) Device

Connecting a Printer

Connecting an i.LINK Device

Connecting to a Network (LAN)
