Sony VGN-BX740, VGN-BX740N, VGN-BX740P, VGN-BX760, VGN-BX760N User Guide

...

User Guide

Personal Computer

VGN-BX700 Series

Contents

Before Use .........................................................................................................................................................................6

Documentation .............................................................................................................................................................6

Ergonomic Considerations.........................................................................................................................................10

Getting Started .................................................................................................................................................................12

Locating Controls and Ports.......................................................................................................................................13

About the Indicator Lights ..........................................................................................................................................20

Connecting a Power Source ......................................................................................................................................21

Using the Battery Pack ..............................................................................................................................................23

Shutting Down Your Computer Safely .......................................................................................................................29

Using Your VAIO Computer .............................................................................................................................................30

Using the Keyboard ...................................................................................................................................................31

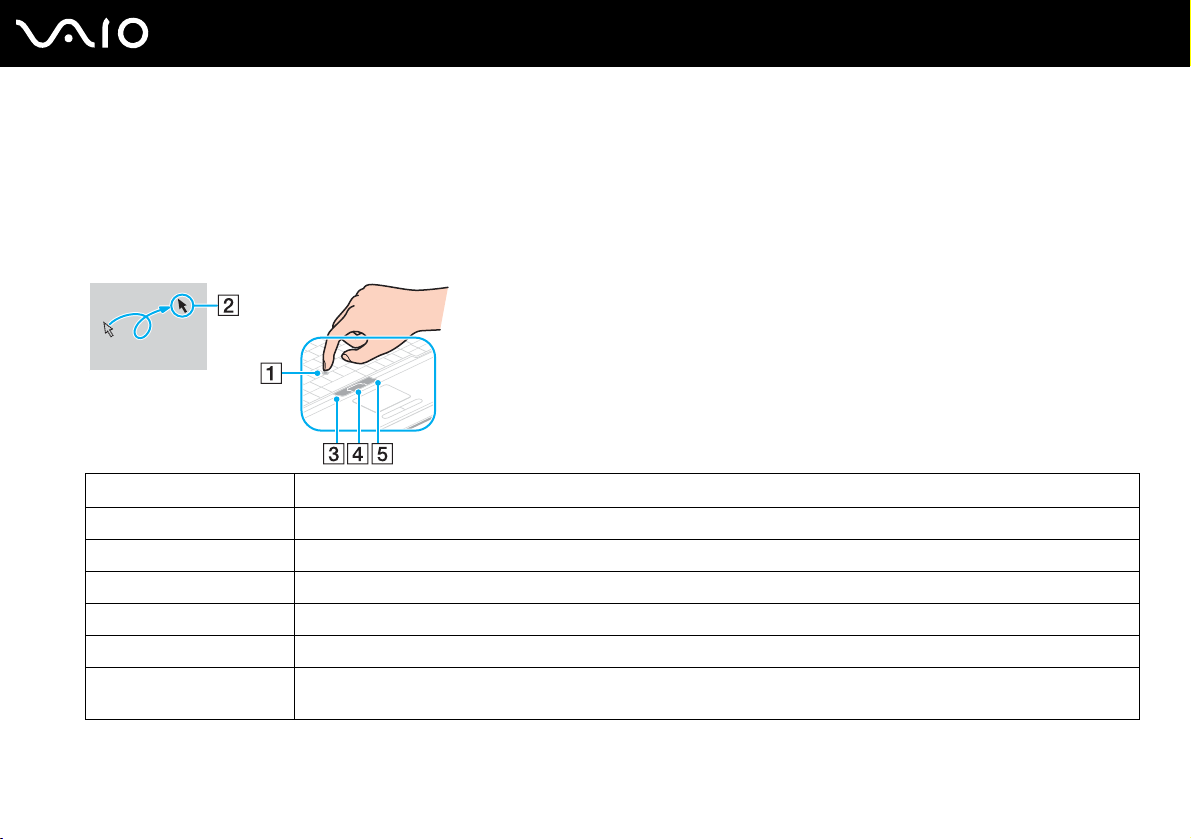

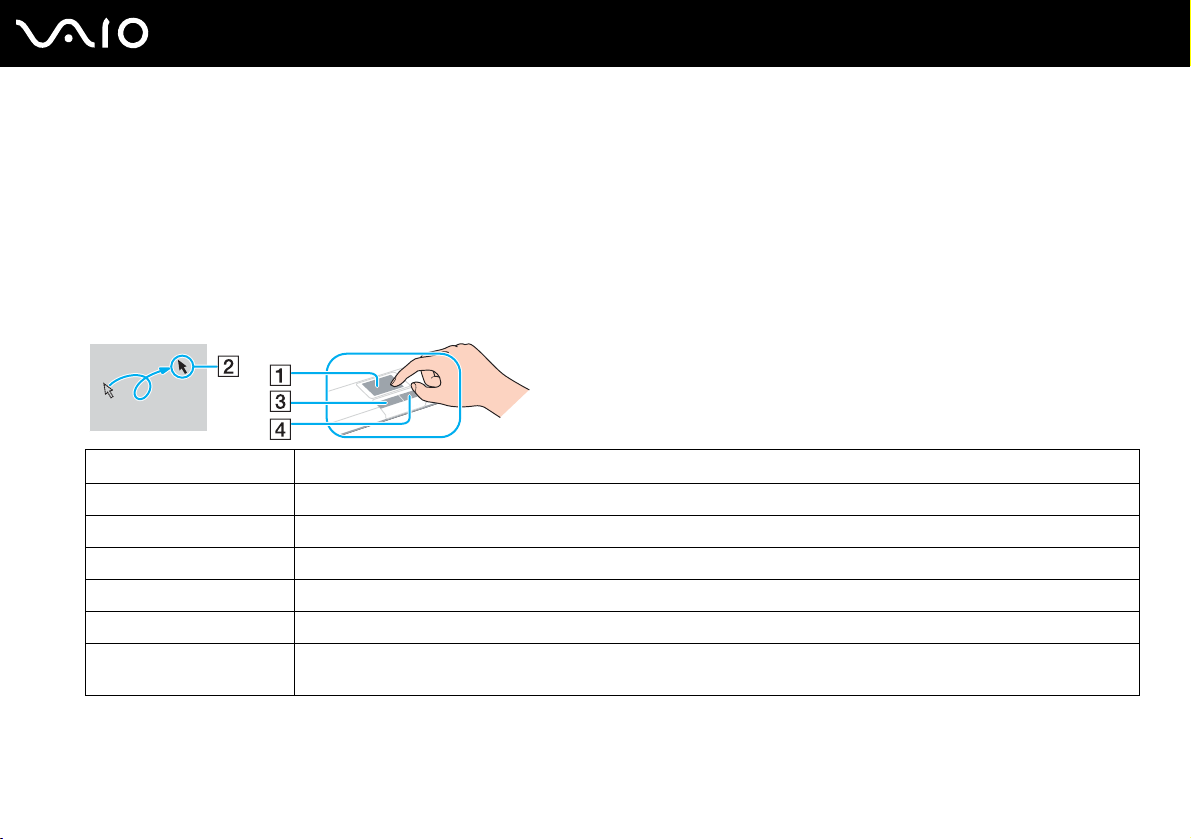

Using the Pointing Device..........................................................................................................................................33

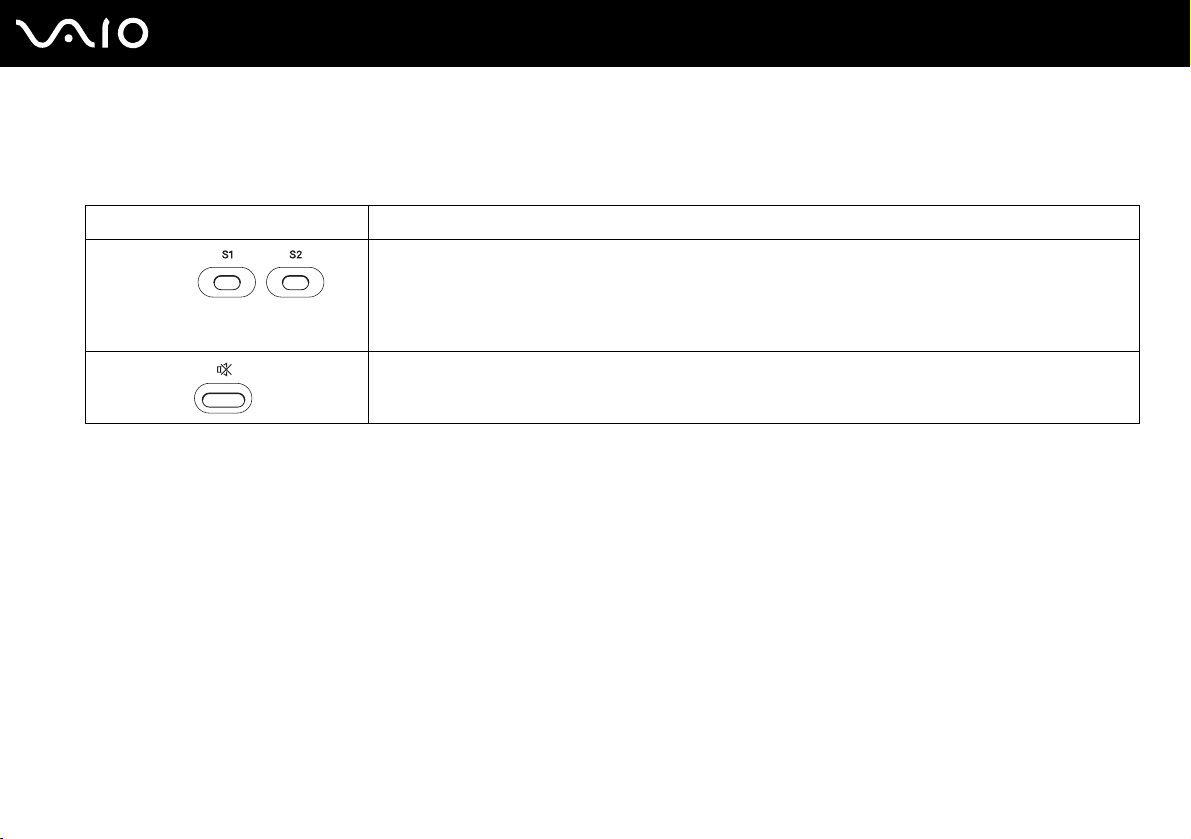

Using Special-function Buttons ..................................................................................................................................36

Using the Built-in MOTION EYE Camera...................................................................................................................37

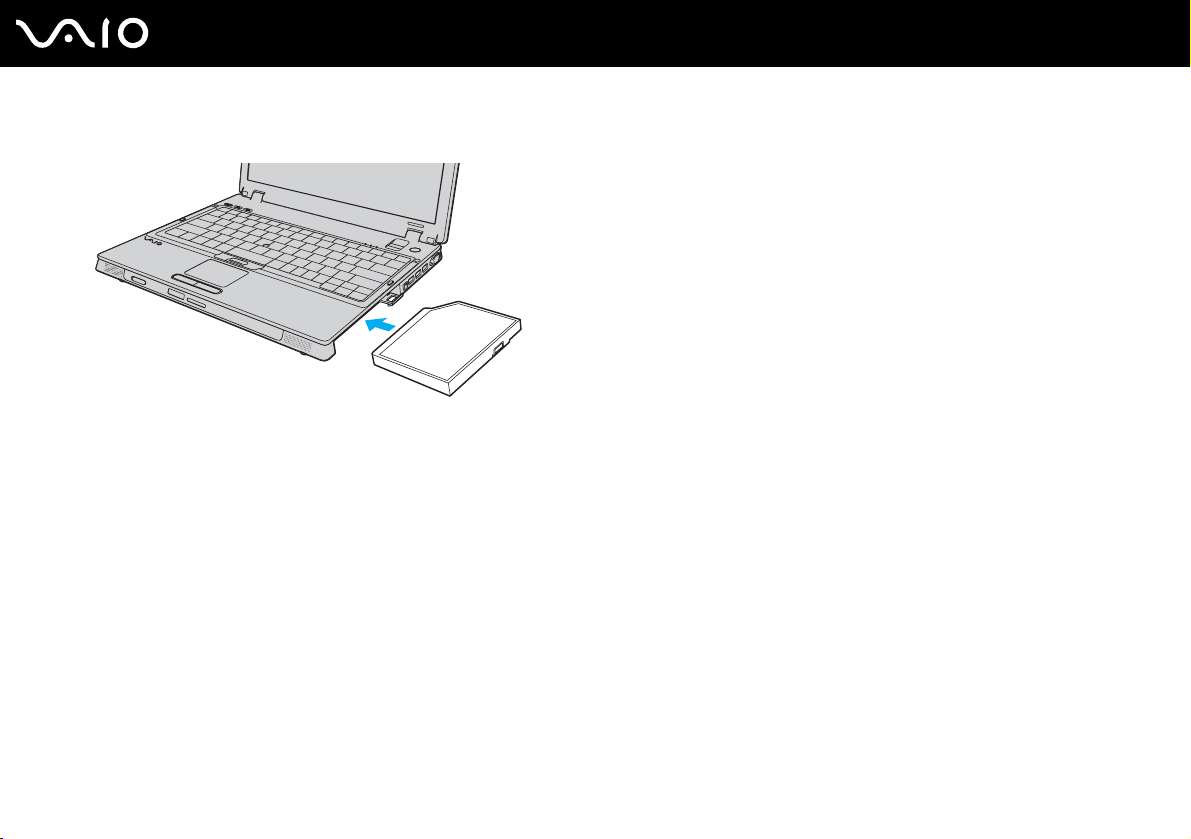

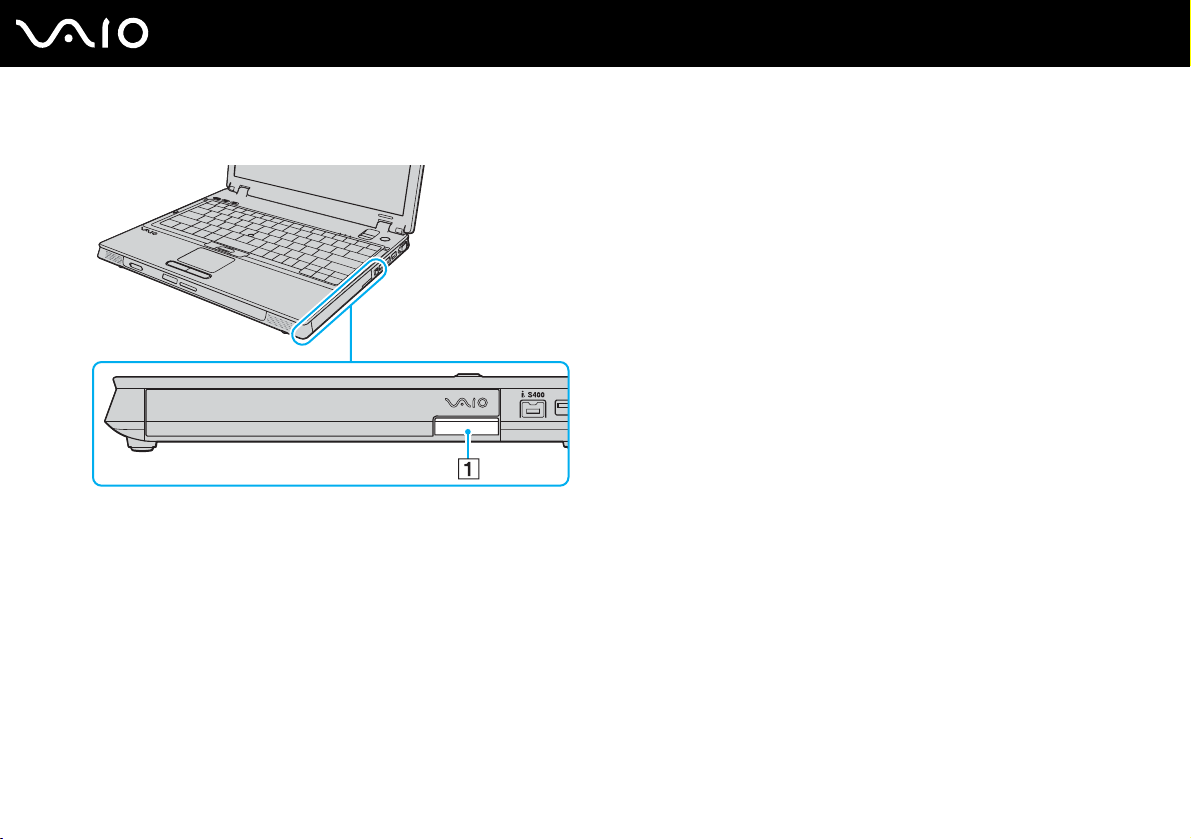

Using the Multi Function Bay .....................................................................................................................................38

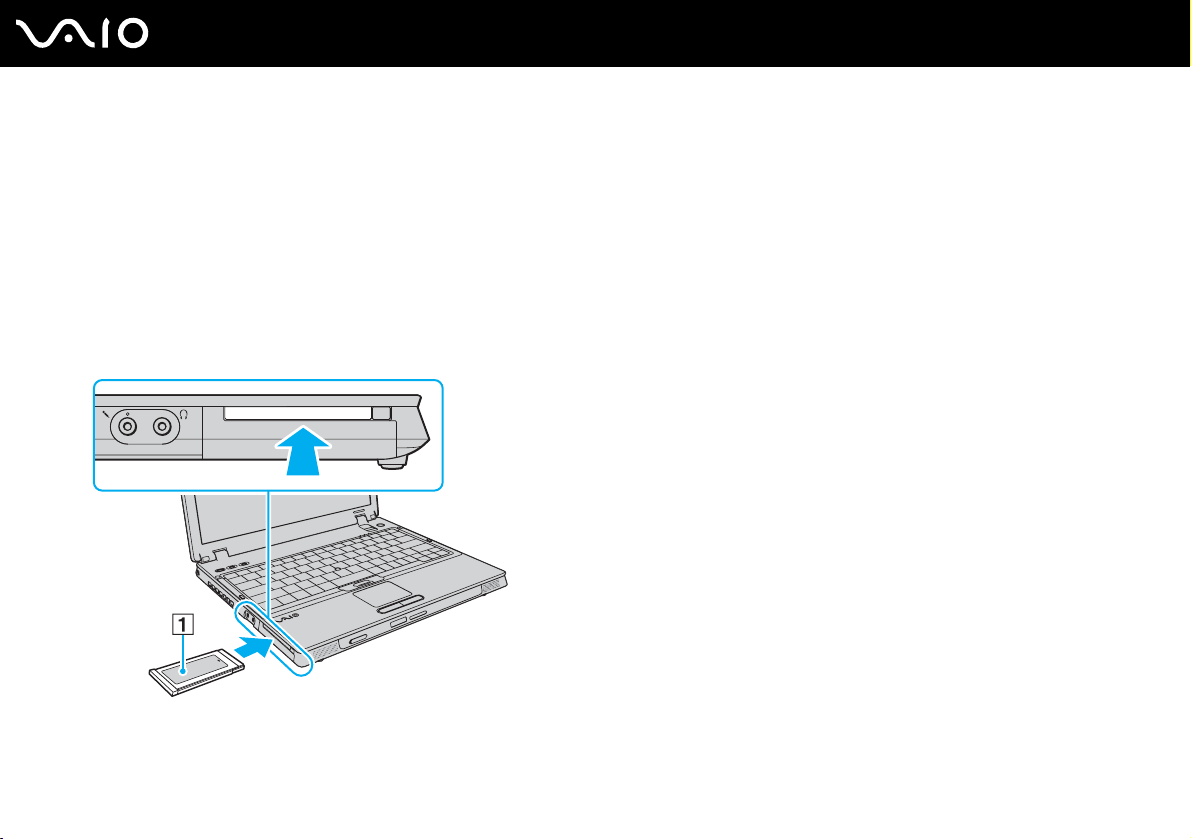

Using the ExpressCard Module .................................................................................................................................42

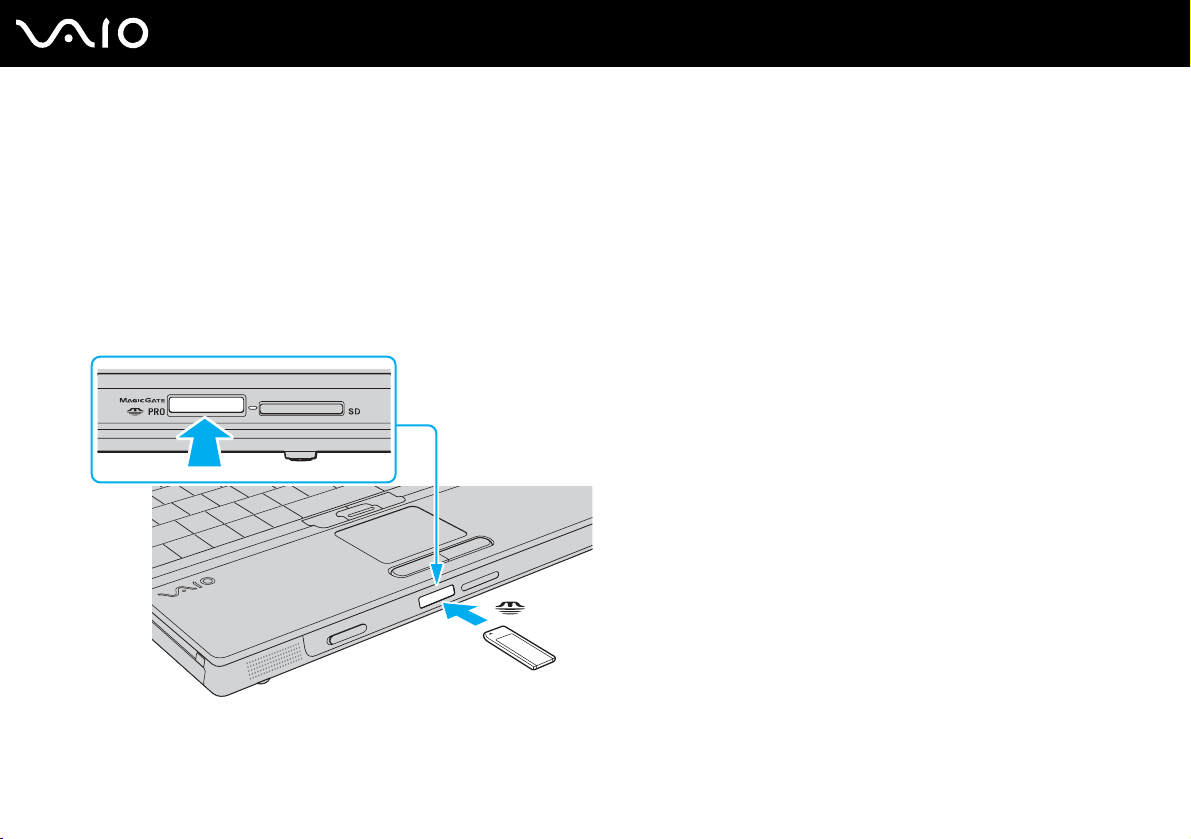

Using the Memory Stick Media ..................................................................................................................................45

Using Other Memory Cards .......................................................................................................................................51

Using the Internet.......................................................................................................................................................54

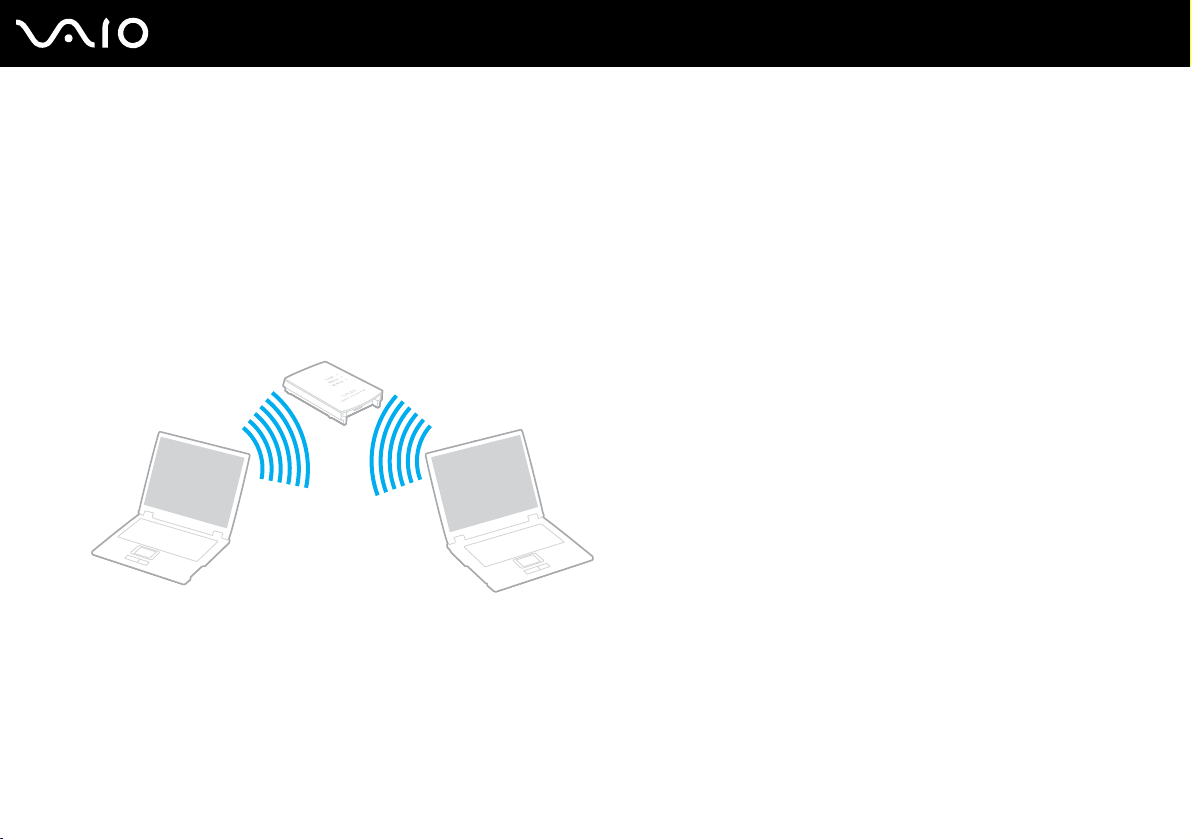

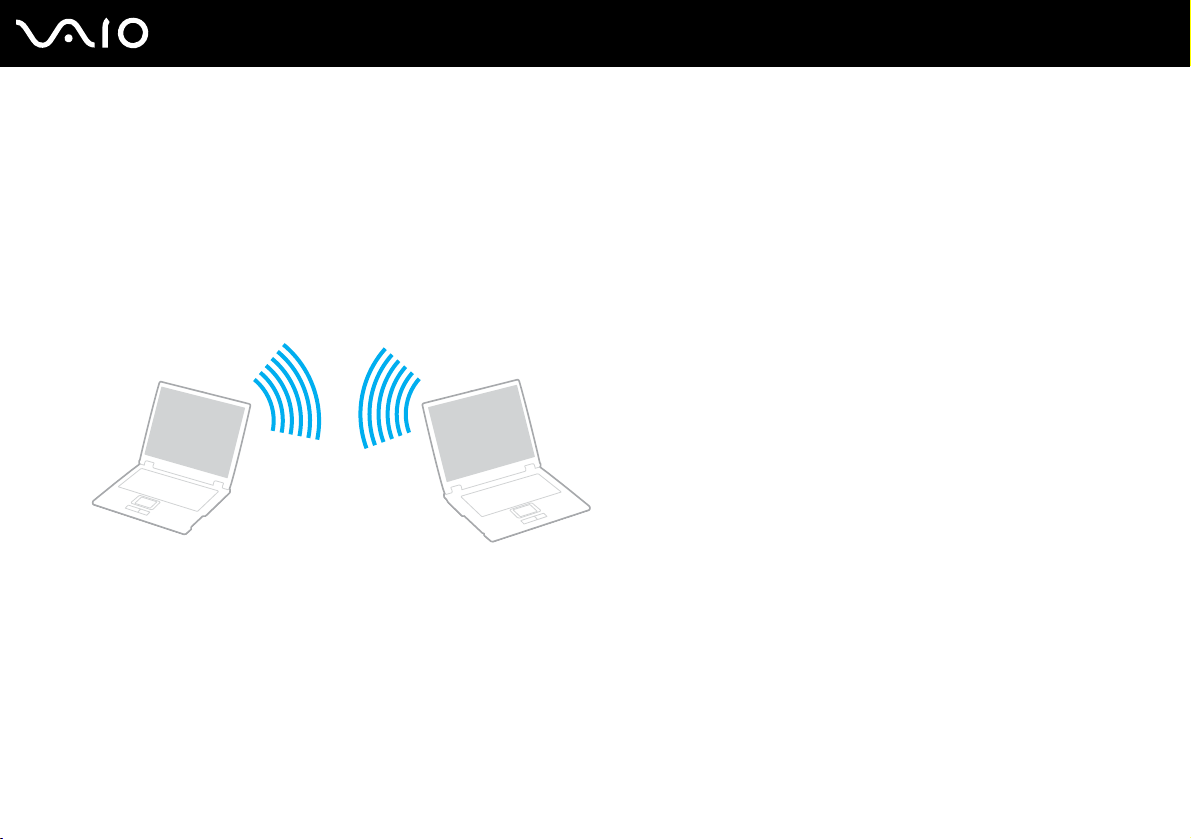

Using Wireless LAN (WLAN) .....................................................................................................................................55

Using the Bluetooth Functionality ..............................................................................................................................62

Using Peripheral Devices .................................................................................................................................................70

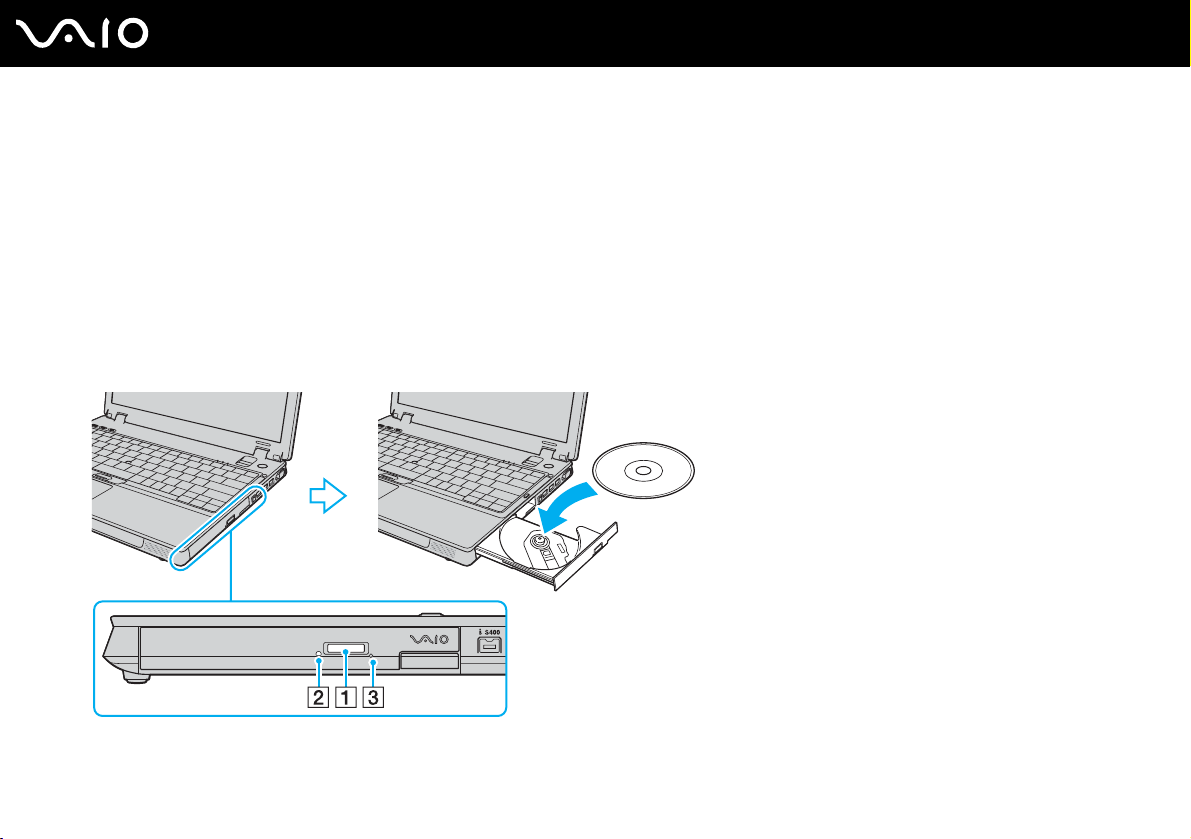

Using the Optical Disc Drive ......................................................................................................................................71

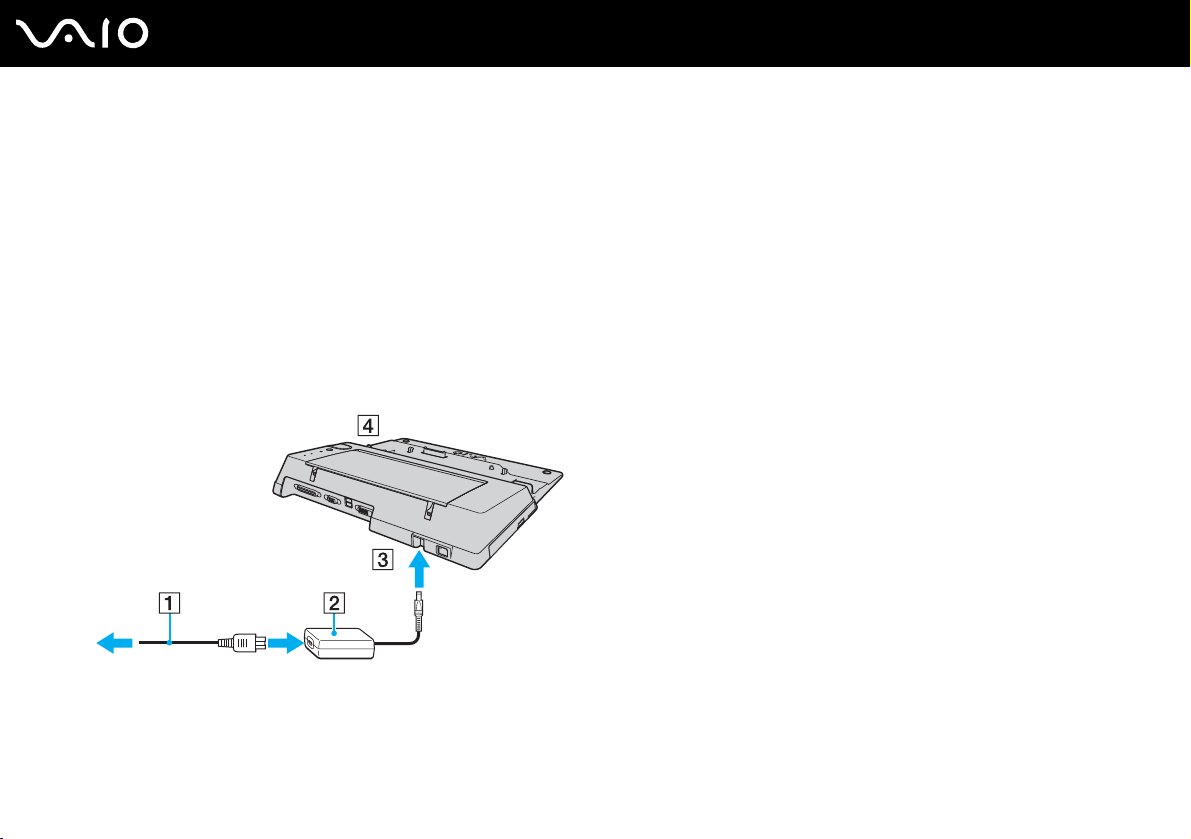

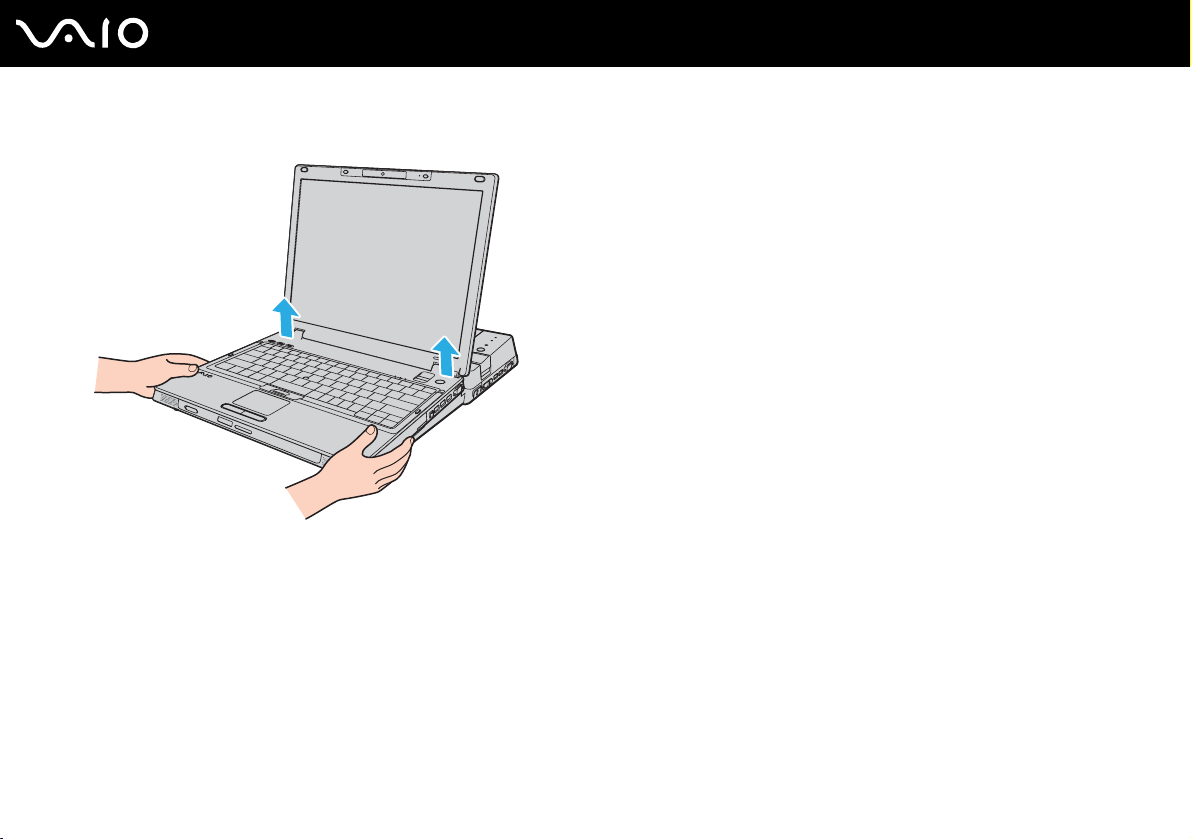

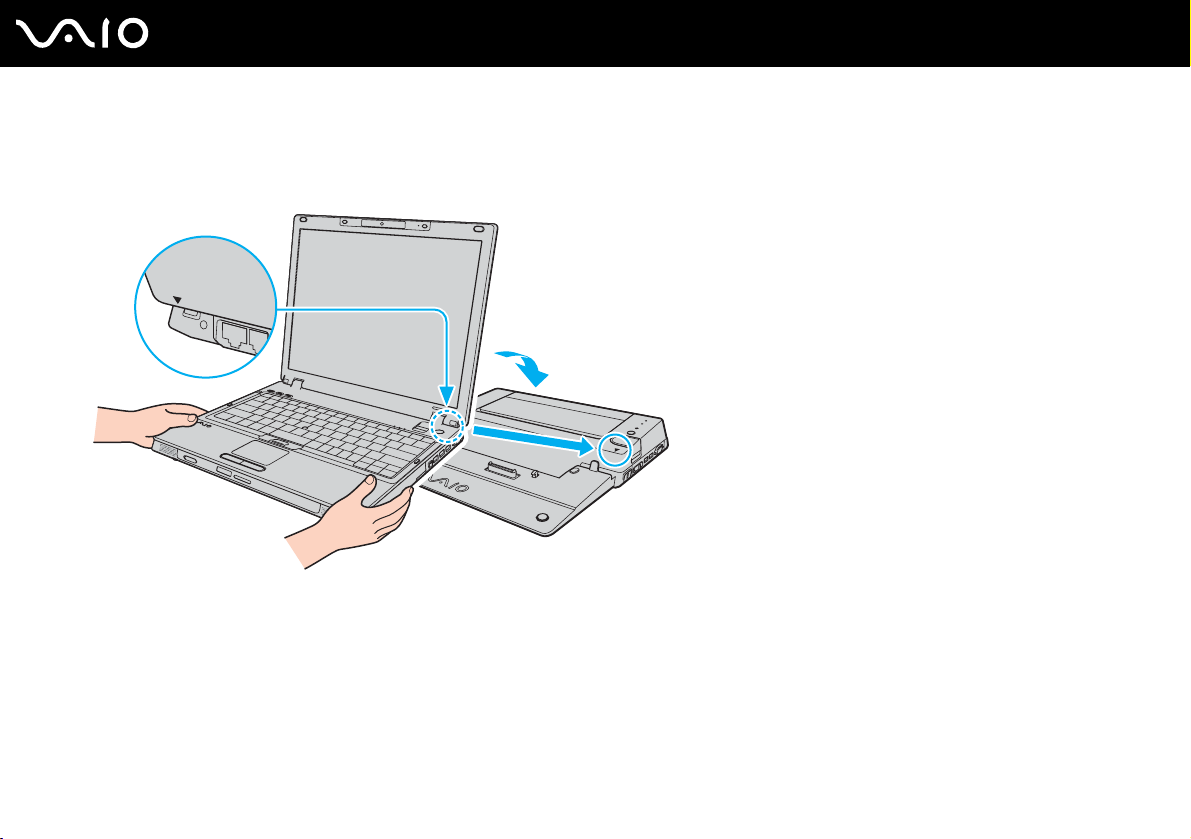

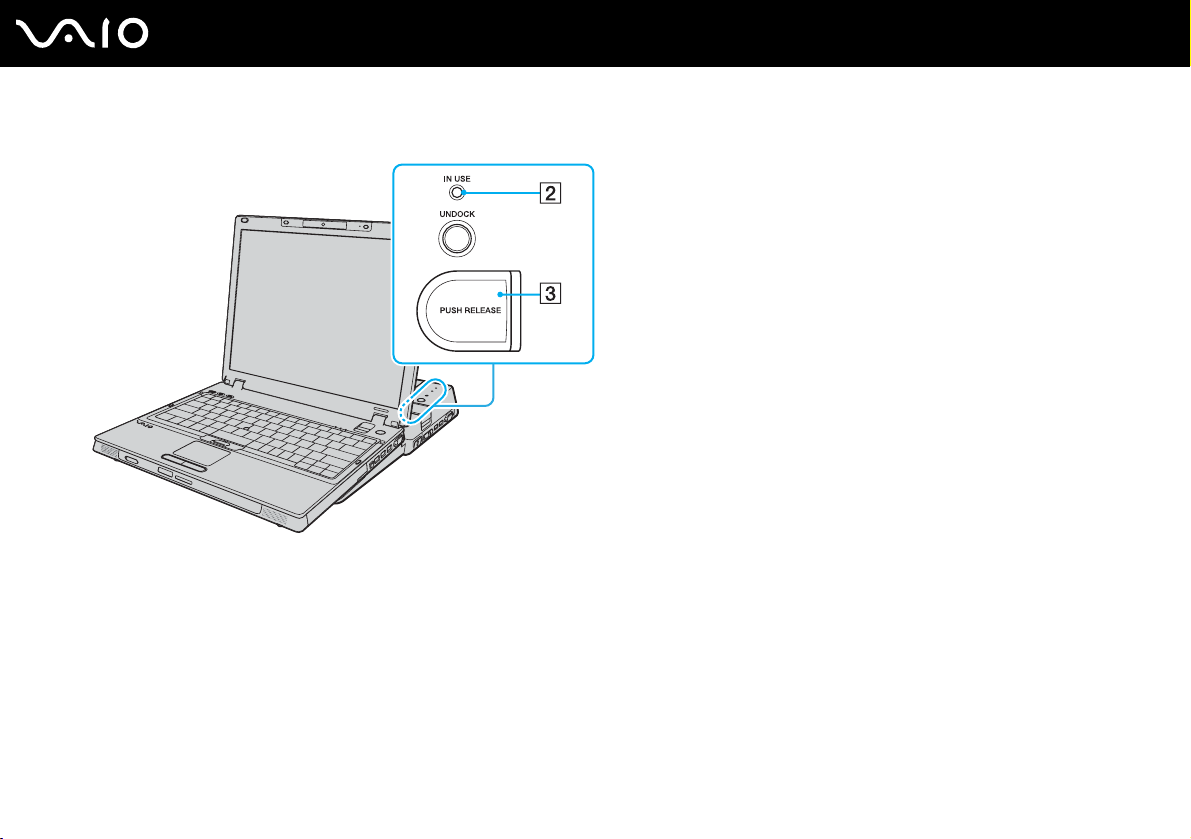

Connecting a Multi Function Bay Docking Station .....................................................................................................80

Connecting External Speakers ..................................................................................................................................93

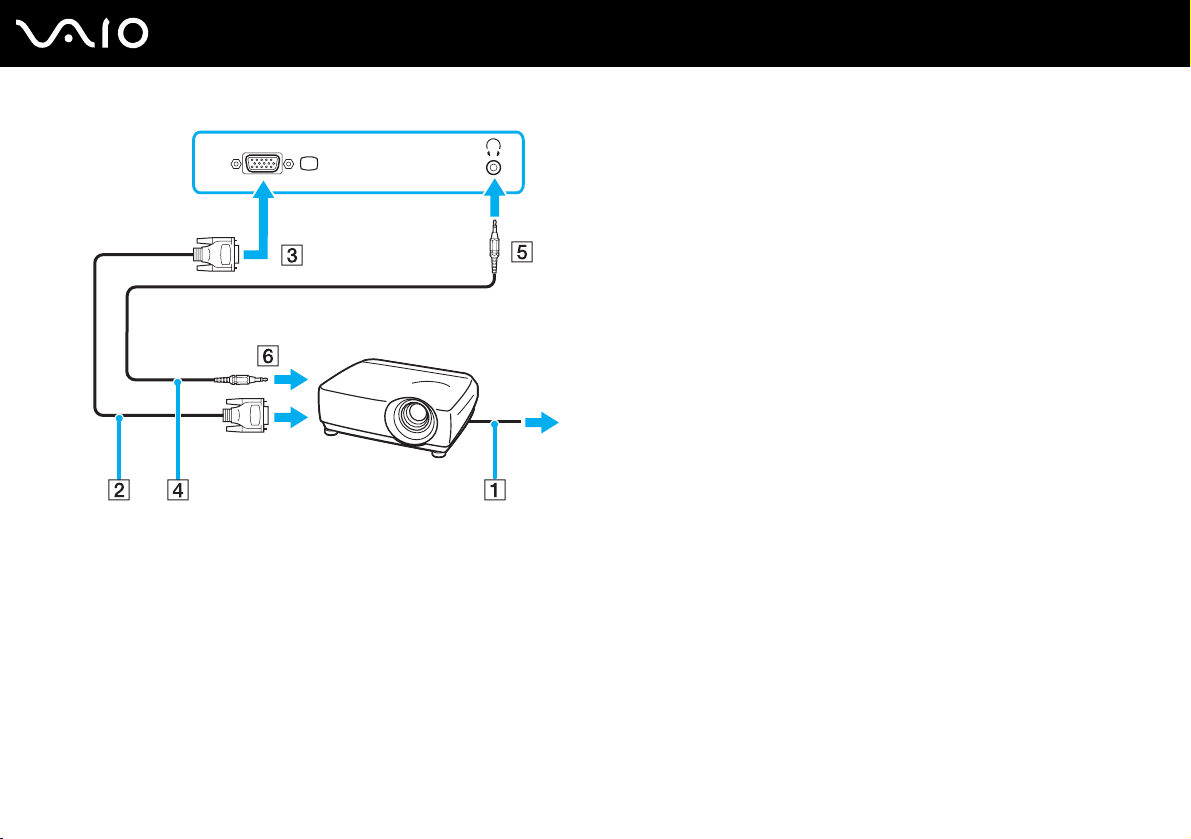

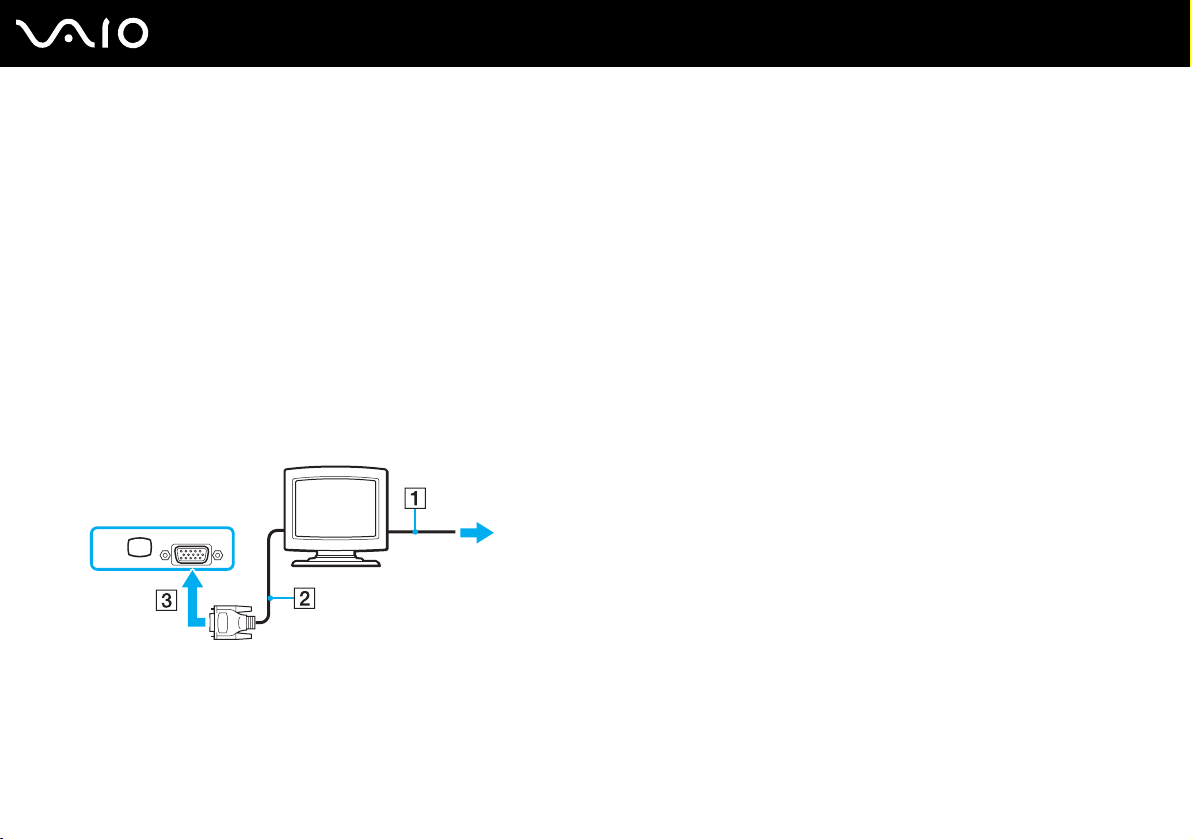

Connecting an External Display.................................................................................................................................94

Selecting Display Modes..........................................................................................................................................101

Using the Multiple Monitors Function.......................................................................................................................103

Connecting an External Microphone........................................................................................................................105

Connecting a Universal Serial Bus (USB) Device....................................................................................................106

Connecting a Printer ................................................................................................................................................109

Connecting an i.LINK Device ...................................................................................................................................111

Connecting to a Network (LAN) ...............................................................................................................................113

Customizing Your VAIO Computer ................................................................................................................................114

Setting the Password ...............................................................................................................................................115

Using Fingerprint Authentication..............................................................................................................................127

Using Trusted Platform Module (TPM).....................................................................................................................135

Setting Up Your Computer with VAIO Central .........................................................................................................142

Using the Power Saving Modes...............................................................................................................................143

Managing Power with VAIO Power Management ....................................................................................................147

Protecting the Hard Disk ..........................................................................................................................................149

Upgrading Your VAIO Computer....................................................................................................................................150

Adding and Removing Memory................................................................................................................................151

Precautions ....................................................................................................................................................................157

On Handling the LCD Screen ..................................................................................................................................158

On Using the Power Source ....................................................................................................................................159

On Handling Your Computer....................................................................................................................................160

On Using the Built-in MOTION EYE Camera...........................................................................................................162

On Handling Floppy Disks .......................................................................................................................................162

On Handling Discs ...................................................................................................................................................163

On Using the Battery Pack.......................................................................................................................................164

On Using Headphones.............................................................................................................................................165

On Handling Memory Stick Media............................................................................................................................166

On Handling the Hard Disk ......................................................................................................................................167

On Updating Your Computer ...................................................................................................................................168

Troubleshooting .............................................................................................................................................................169

Computer .................................................................................................................................................................171

System Security .......................................................................................................................................................178

Battery......................................................................................................................................................................179

Built-in MOTION EYE Camera.................................................................................................................................181

Internet.....................................................................................................................................................................184

Networking ...............................................................................................................................................................186

Bluetooth Technology ..............................................................................................................................................189

Optical Discs ............................................................................................................................................................193

Display .....................................................................................................................................................................197

Printing.....................................................................................................................................................................202

Microphone ..............................................................................................................................................................203

Speakers..................................................................................................................................................................204

Pointing Device ........................................................................................................................................................205

Keyboard..................................................................................................................................................................206

Floppy Disks ............................................................................................................................................................207

Audio/Video..............................................................................................................................................................208

Memory Stick Media ................................................................................................................................................209

Peripherals ...............................................................................................................................................................210

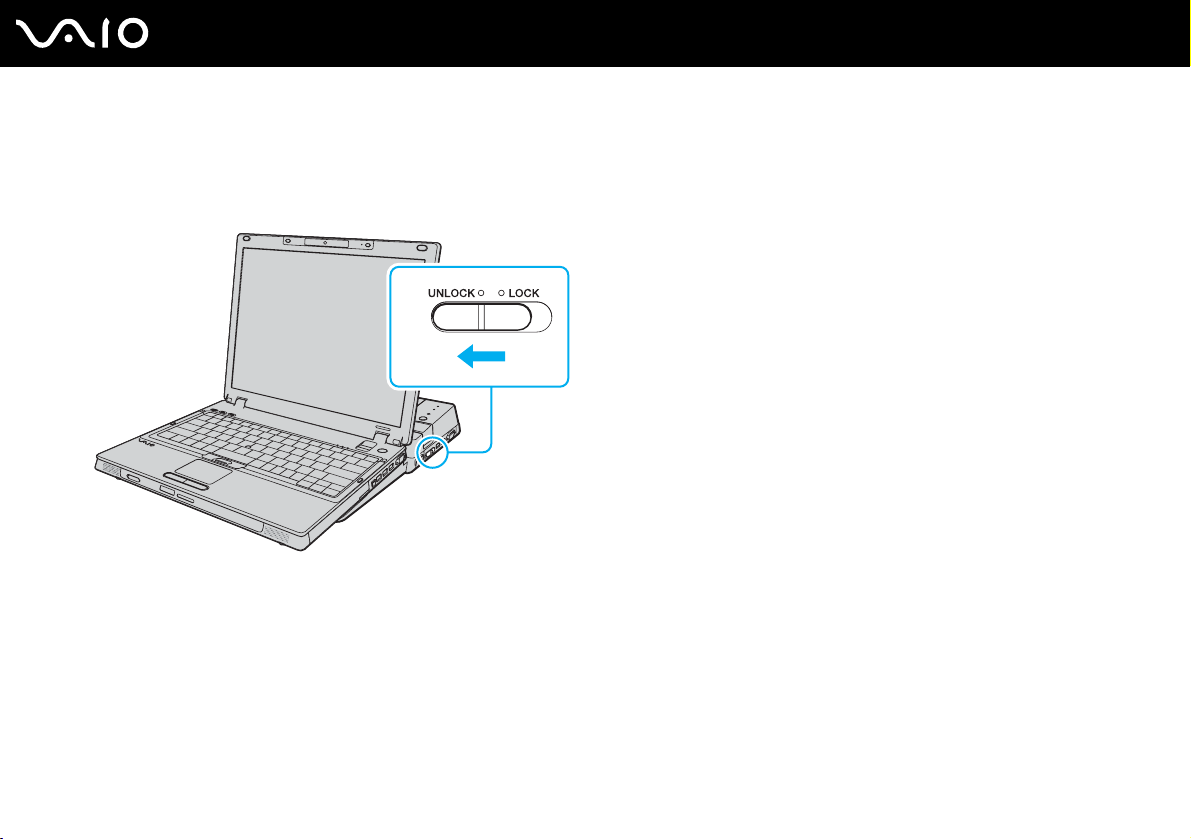

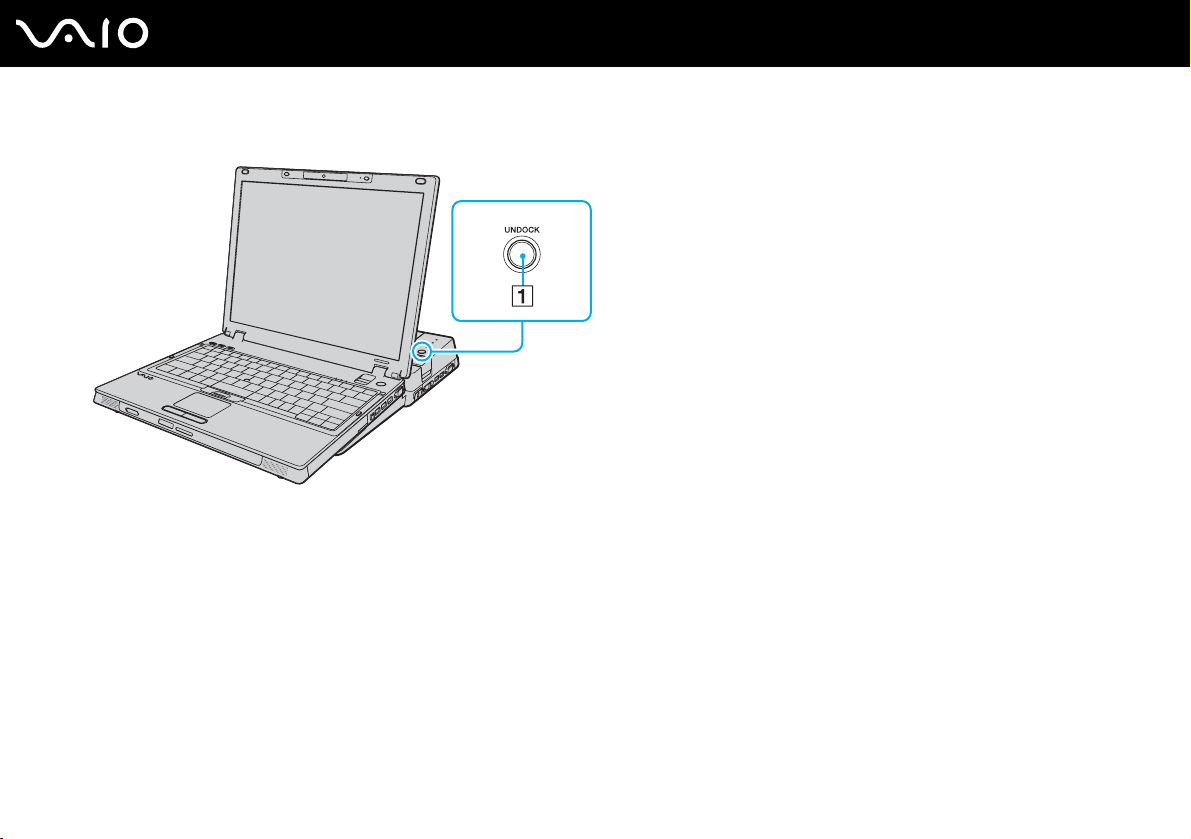

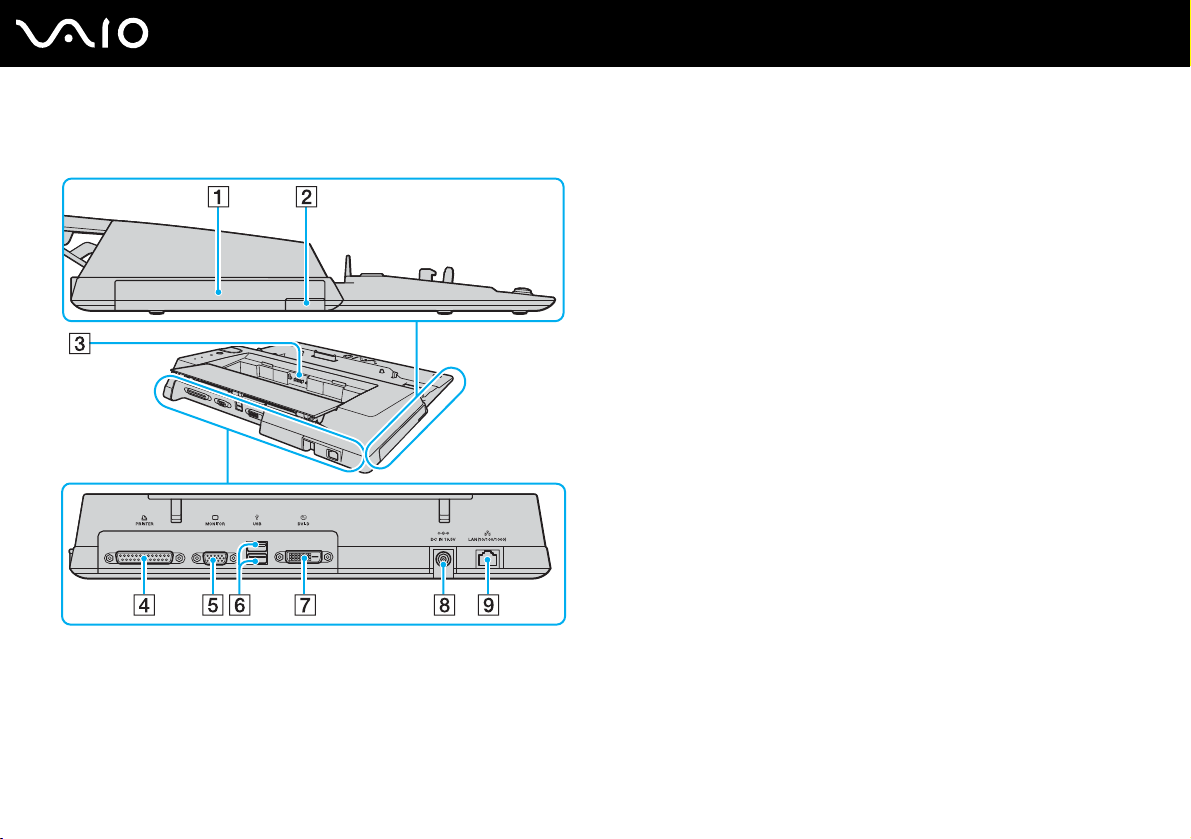

Multi Function Bay Docking Station .........................................................................................................................211

Support Options .............................................................................................................................................................215

Sony Support Information ........................................................................................................................................215

Program Support Information...................................................................................................................................219

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing.

External views illustrated in this manual may look slightly different from those of your computer.

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of connections, set-up information, etc. ❑ Safety Information — Contains safety guidelines and owner information.

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Contains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems.

❑ Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.

To view the online Specifications:

1 Connect to the Internet. 2 Go to the Sony online support Web site at:

http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support http://esupport.sony.com/ES/VAIO/ http://esupport.sony.com/ES/VAIO/BR/

❑ VAIO Recovery Center User Guide — Provides information about restoring individual software programs, software

drivers, and drive partition(s) or your entire hard disk drive to the original factory installed settings. To access this on-screen guide:

1 Click Start and Help and Support. 2 Click Manuals & Specifications. 3 Click VAI O Recovery Center User Guide.

for customers in Canada,

for customers in USA,

for customers in Spanish speaking Latin American countries or areas, or

for customers in Brazil.

Before Use

❑ SmartWi™ Connection Utility Help (Selected models only) — Provides information about setting up Bluetooth, wireless

LAN, and wireless WAN functionalities. To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility. 2 Click SmartWi Connection Utility Help.

Before Use

Help and Support

Help and Support is easy to access and provides a single location for information and technical assistance for your VAIO computer. Choose from the following categories to find the answers you need.

To access Help and Support, click Start and Help and Support.

❑ Manuals & Specifications

Here you will find the on-screen User Guide, warranty information, other VAIO documents, and system and software information for your computer.

❑ VAIO Support

Access interactive help in the form of VAIO tutorials, an escalation page containing support and contact information, and various links to VAIO online support Web sites.

❑ Backup & Recovery

Find information on how to back up and restore your operating system, system software, and your personal data.

❑ Wireless & Network

Learn about wireless connections including Bluetooth Wireless technology and Wireless LAN. Run utilities that include VAIO Media Setup and Windows Network and Sharing, and access to wireless tutorials.

❑ Security

Keep your data safe and your computer running efficiently with updates and maintenance programs from Microsoft and Sony.

❑ VAIO Sites

Contains links to other Internet sites you might find interesting and useful.

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain muscles or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.

❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work effectiveness.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started

This section describes how to get started using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.

❑ Locating Controls and Ports (page 13) ❑ About the Indicator Lights (page 20) ❑ Connecting a Power Source (page 21) ❑ Using the Battery Pack (page 23) ❑ Shutting Down Your Computer Safely (page 29)

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary depending on the country or area of your residency.

Front

Getting Started

A Built-in microphone (monaural) B Built-in MOTION EYE camera

(page 37)

C LCD screen (page 158) D Pointing stick (page 34) E Keyboard (page 31) F Power button G Touch pad (page 33) H Built-in speakers (stereo) I WIRELESS switch (page 55)

J Memory Stick PRO/Duo media slot

(page 46)

K Media Access indicator (page 20) L SD memory card slot (page 51) M Power indicator (page 20) N Battery indicator (page 20) O Hard disk drive indicator (page 20) P Bluetooth indicator (page 20) Q WLAN (Wireless LAN) indicator (page 20)

R WWAN (Wireless WAN) indicator

On selected models only.

Your computer supports Memory Stick PRO media and Memory Stick Duo media with high speed and high capacity capabilities.

(page 20)

Muting button (page 36)

A B S1/S2 buttons (page 36) C Num lock indicator (page 20) D Caps lock indicator (page 20) E Scroll lock indicator (page 20) F Fingerprint sensor (page 127)

Getting Started

Back

A Network (Ethernet) port (page 113) B Modem port (page 54) C Battery connector (page 23) D DC IN port (page 21)

Getting Started

Right

A Multi function bay (page 38) B Multi function bay unit eject button (page 38) C i.LINK (IEEE 1394) S400 port (page 111)

D Hi-Speed USB (USB 2.0) ports E Monitor (VGA) port (page 95)

* Supports high-/full-/low- speeds.

(page 106)

Getting Started

Left

A Security slot B Air vent C Microphone jack (page 105) D Headphones jack (page 93) E Universal ExpressCard slot (page 43)

F ExpressCard

module release button (page 44)

Getting Started

Bottom

Getting Started

A Air vents B Battery RELEASE latch (page 28) C Battery LOCK/UNLOCK switch (page 23) D Multi function bay docking station connector (page 83)

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions

Power 1 Illuminates when the power of the computer is on, blinks when the computer is in Sleep mode, and turns off

when the computer is in Hibernate mode or off.

Battery e Illuminates when the computer is using battery power, blinks when the battery pack is running out of power, and

Media Access Illuminates when data is read from or written to a memory card. (Do not enter Sleep mode or turn

Hard disk drive

Num lock

Caps lock

Scroll lock

Bluetooth technology

Wireless LAN Illuminates when the wireless LAN function is running.

Wireless WAN

* On selected models only.

double-blinks when the battery pack is charging.

off the computer when this indicator is on.) When the indicator is off, the memory card is not being used.

Illuminates when data is read from or written to the hard disk drive. Do not enter Sleep mode or turn off the computer when this indicator is on.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is off.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps lock indicator is off.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.

Illuminates when the wireless WAN function is enabled.

Getting Started

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.

Using the AC Adapter

✍

Use your computer only with the supplied AC adapter.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3). 2 Plug the other end of the power cord into an AC outlet (2). 3 Plug the cable attached to the AC adapter (3) into the DC IN port (4) on the computer or on the optional multi function bay

docking station.

The shape of the DC In plug varies depending on the AC adapter.

Getting Started

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 146). This power saving mode saves the time of shutting down or resuming.

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK/UNLOCK switch (1) on the bottom of the computer to the UNLOCK position.

Getting Started

3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery

compartment fit into the U-shaped cuts (3) on either side of the battery pack.

4 Rotate the battery pack in the direction of the arrow, and push the battery pack down into the compartment until it clicks

into place.

5 Slide the battery LOCK/UNLOCK switch to the LOCK position to secure the battery pack to the computer.

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

This computer is designed to operate only with genuine Sony batteries.

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

To charge the battery pack

1 Install the battery pack. 2 Connect the AC adapter to the computer.

The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the battery pack charges). When the battery pack is about 85% charged, the battery indicator turns off.

Battery indicator light status Meaning

On The computer is using battery power.

Blinks The battery pack is running out of power.

Double blinks The battery pack is charging.

Off The computer is using AC power.

Getting Started

✍

You can charge the battery pack in such a usual manner as mentioned in this manual from the first time.

When the battery pack is running out of power, both the battery and power indicator lights blink.

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

The battery pack supplied with your computer is a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect battery life.

The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly depleted, both the battery and power indicator lights start flashing.

For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose any unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Getting Started

Removing the Battery Pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK/UNLOCK switch (1) on the bottom of the computer to the UNLOCK position. 3 Slide and hold the battery RELEASE latch (2), hook your fingertip under the tab (3) on the battery pack, and turn the

battery pack in the direction of the arrow, and then slide it away from the computer.

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer. 2 Click Start, the arrow next to the Lock button, and Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 31) ❑ Using the Pointing Device (page 33) ❑ Using Special-function Buttons (page 36) ❑ Using the Built-in MOTION EYE Camera (page 37) ❑ Using the Multi Function Bay (page 38) ❑ Using the ExpressCard Module (page 42) ❑ Using the Memory Stick Media (page 45) ❑ Using Other Memory Cards (page 51) ❑ Using the Internet (page 54) ❑ Using Wireless LAN (WLAN) (page 55) ❑ Using the Bluetooth Functionality (page 62)

Using Your VAIO Computer

+ 201 hidden pages
