Page 1

User Guide

Personal Computer

VGN-AW100 Series

Page 2

Contents

Before Use .........................................................................................................................................................................6

Documentation .............................................................................................................................................................7

Ergonomic Considerations.........................................................................................................................................11

Getting Started .................................................................................................................................................................13

Locating Controls and Ports.......................................................................................................................................14

About the Indicator Lights ..........................................................................................................................................21

Connecting a Power Source ......................................................................................................................................23

Using the Battery Pack ..............................................................................................................................................24

Shutting Down Your Computer Safely .......................................................................................................................31

Using Your VAIO Computer .............................................................................................................................................32

Using the Keyboard ...................................................................................................................................................33

Using the Touch Pad .................................................................................................................................................34

Using Special-function Buttons ..................................................................................................................................35

Using the Built-in MOTION EYE Camera...................................................................................................................37

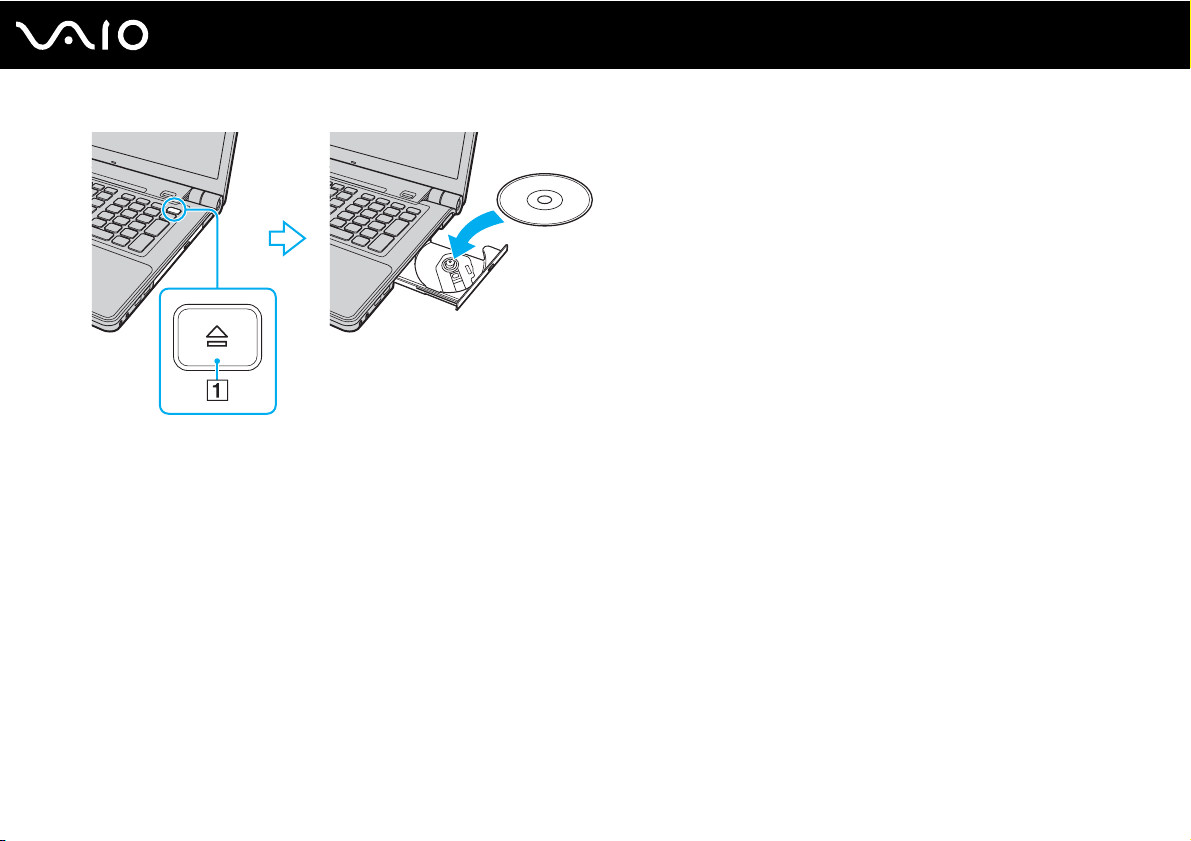

Using the Optical Disc Drive ......................................................................................................................................40

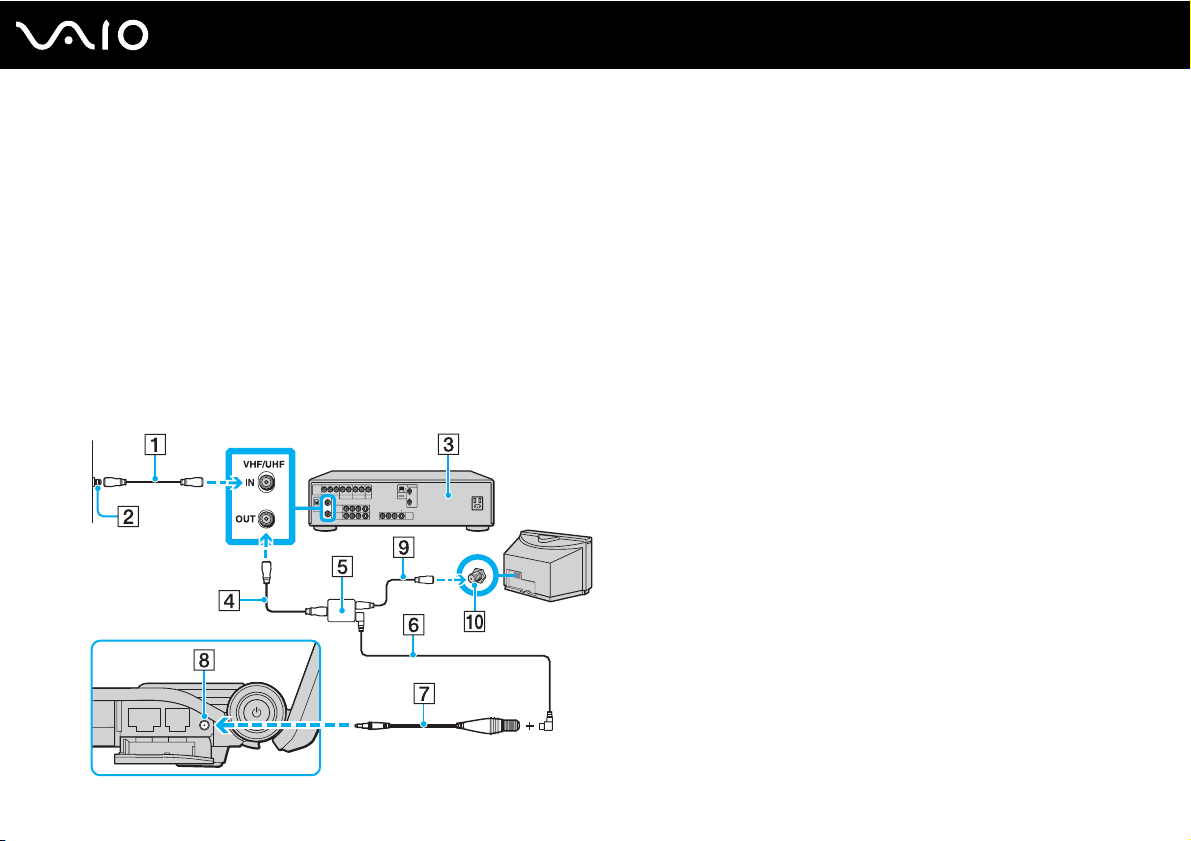

Using the TV Function ...............................................................................................................................................49

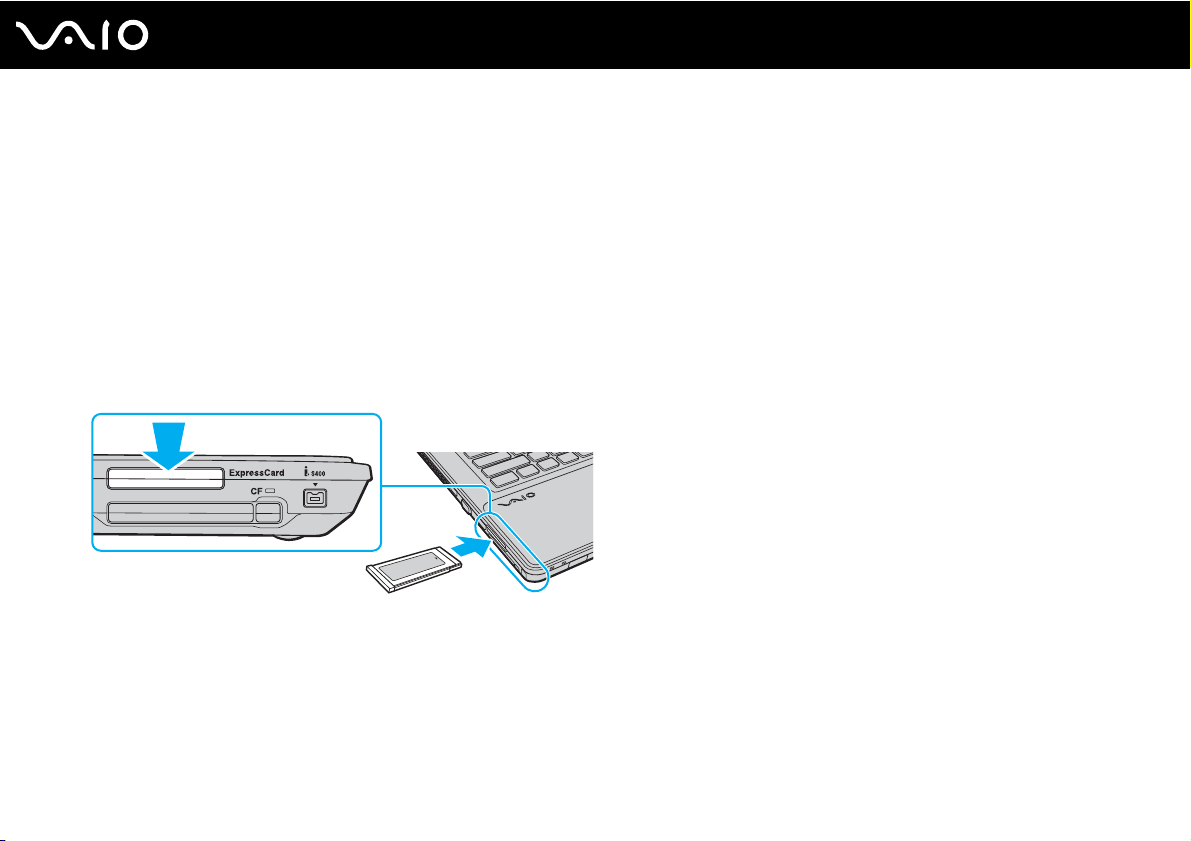

Using the ExpressCard Module .................................................................................................................................63

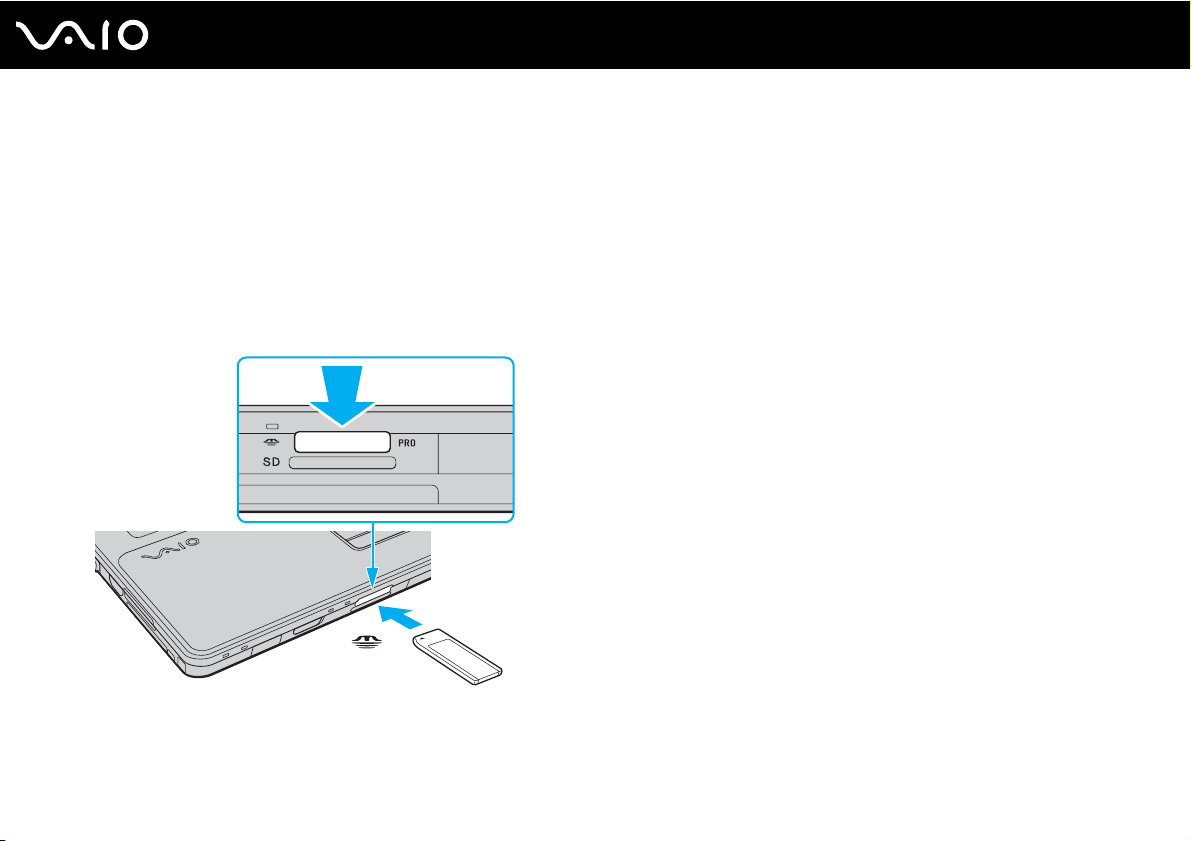

Using the Memory Stick .............................................................................................................................................66

Using the SD Memory Card .......................................................................................................................................72

Using the CF Memory Card .......................................................................................................................................76

Using the Internet.......................................................................................................................................................80

Page 3

Using Wireless LAN (WLAN) .....................................................................................................................................81

Using the Bluetooth Function.....................................................................................................................................84

Using Peripheral Devices .................................................................................................................................................89

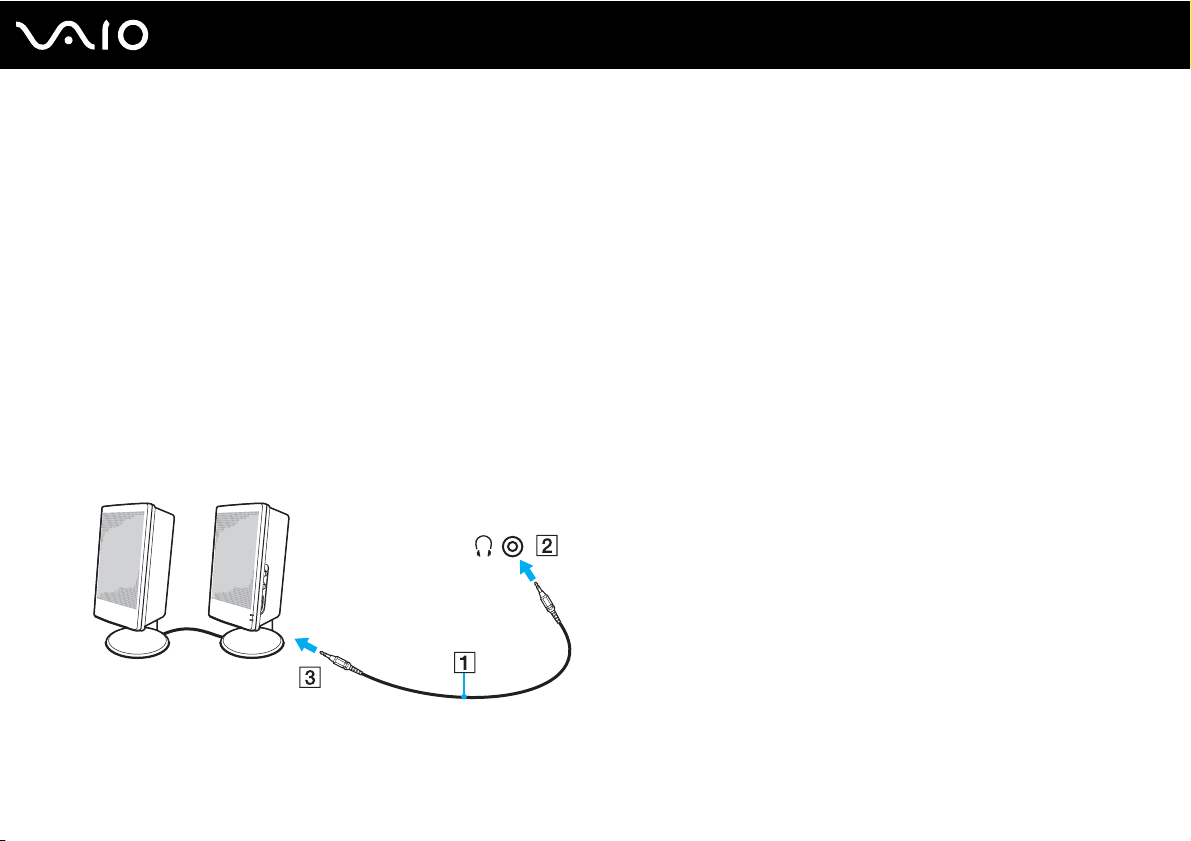

Connecting External Speakers ..................................................................................................................................90

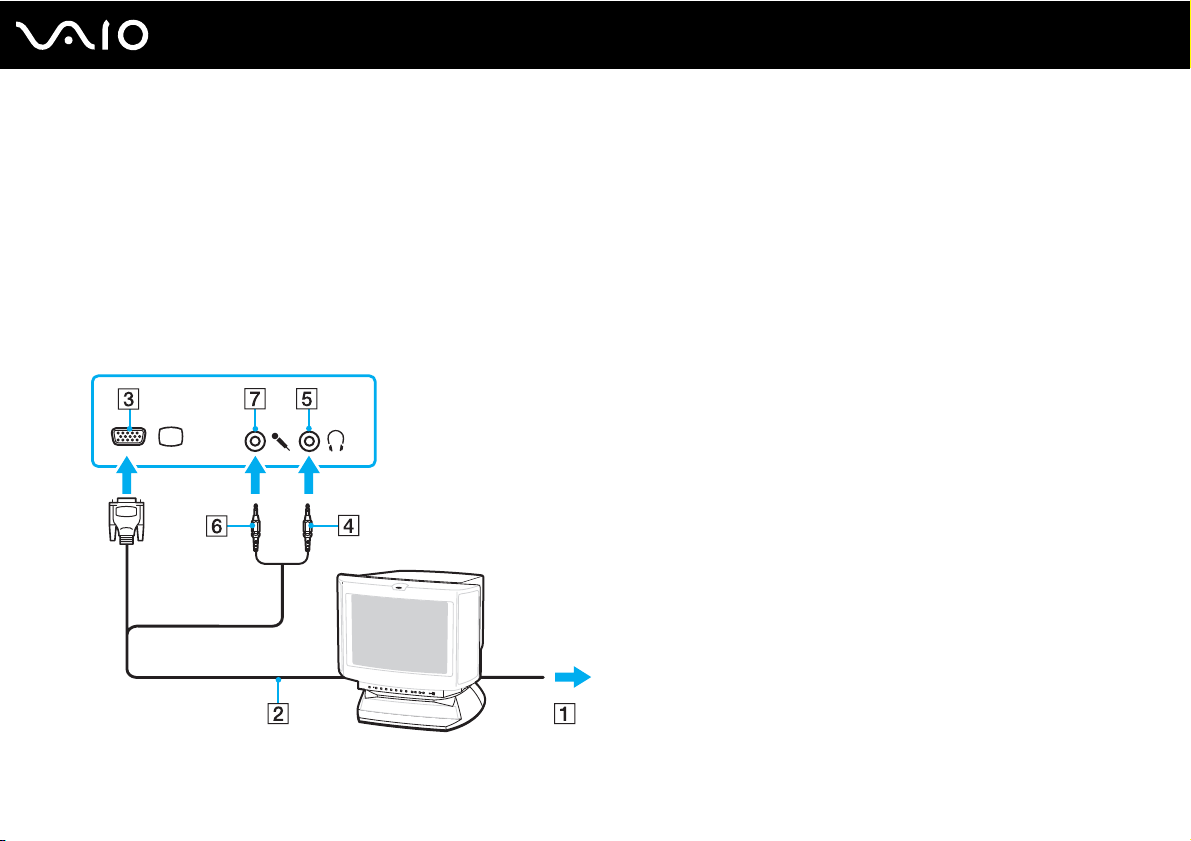

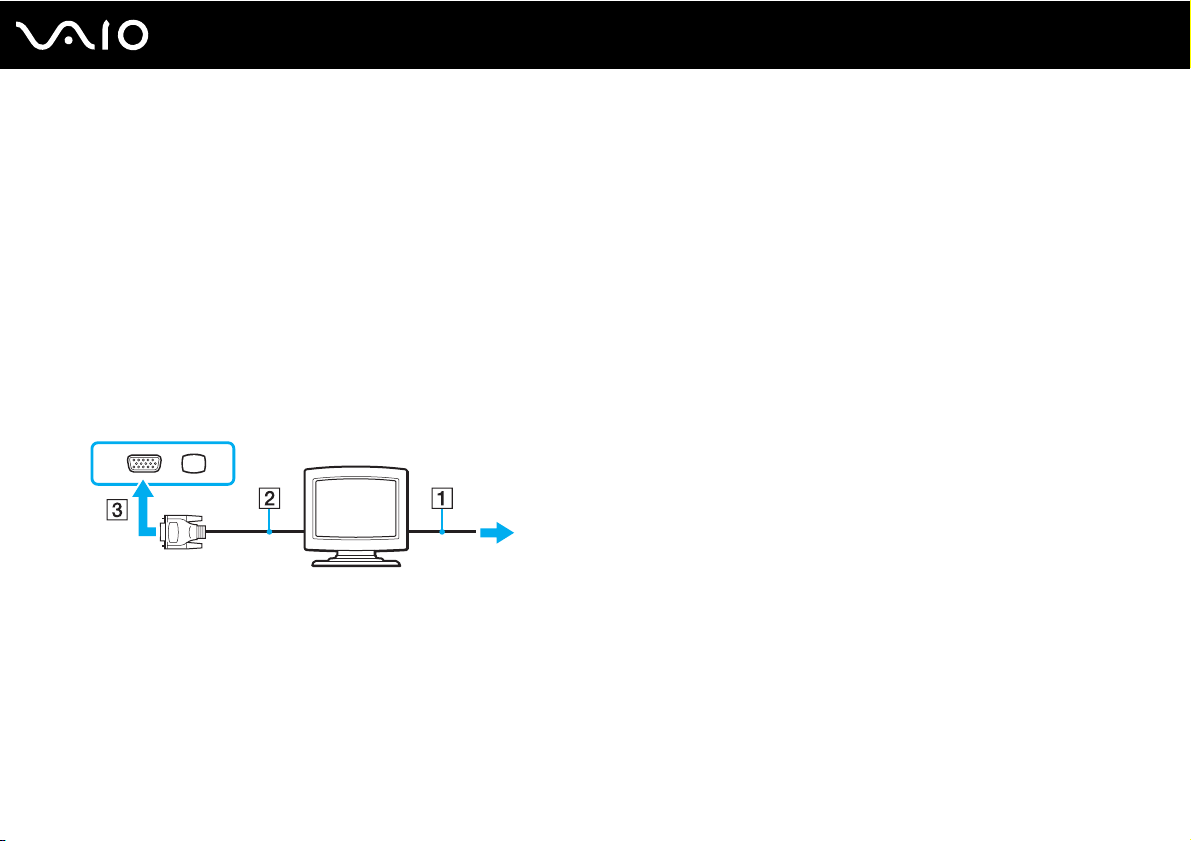

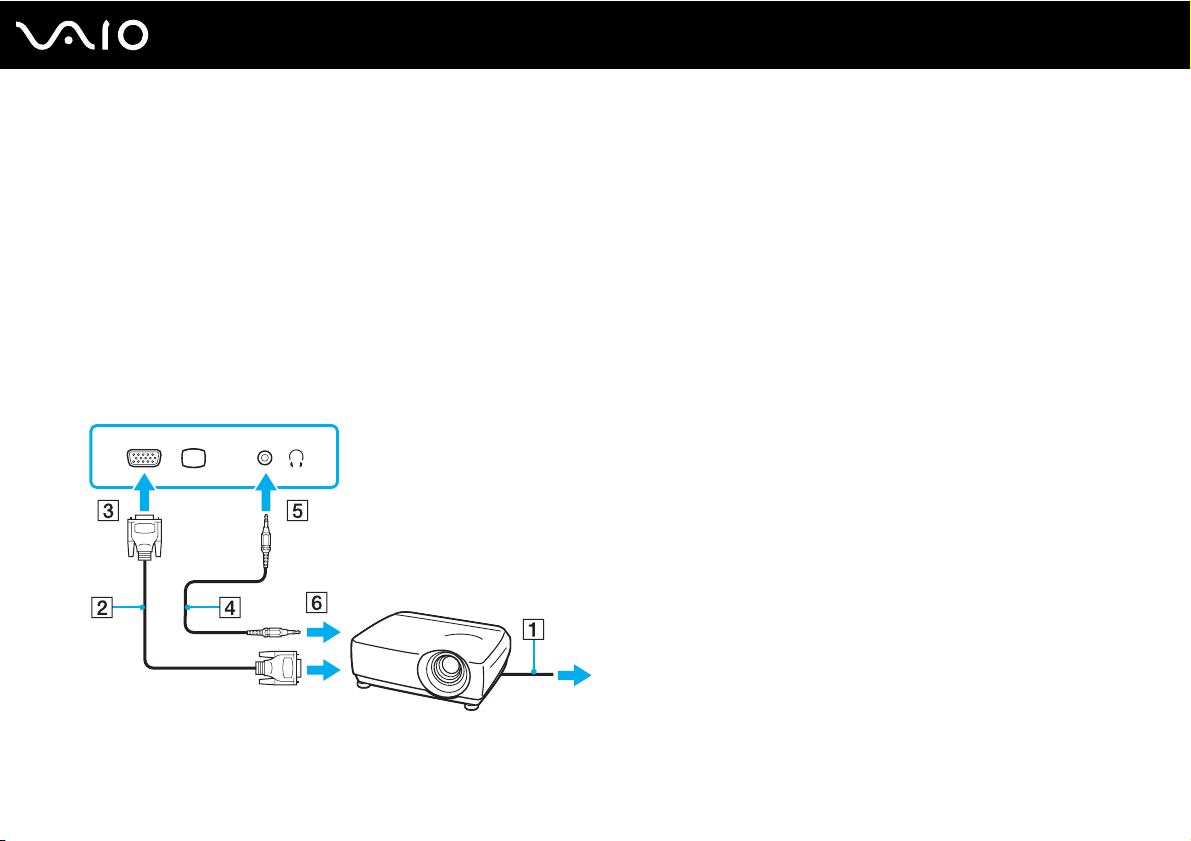

Connecting an External Display.................................................................................................................................92

Selecting Display Modes............................................................................................................................................97

Using the Multiple Monitors Function .........................................................................................................................98

Connecting an External Microphone........................................................................................................................100

Connecting a Universal Serial Bus (USB) Device....................................................................................................101

Connecting a Printer ................................................................................................................................................104

Connecting an i.LINK Device ...................................................................................................................................105

Connecting to a Network (LAN) ...............................................................................................................................107

Customizing Your VAIO Computer ................................................................................................................................108

Setting the Password ...............................................................................................................................................109

Using Fingerprint Authentication..............................................................................................................................116

Setting Up Your Computer with VAIO Control Center..............................................................................................124

Using the Power Saving Modes...............................................................................................................................125

Managing Power with VAIO Power Management ....................................................................................................130

Upgrading Your VAIO Computer....................................................................................................................................132

Adding and Removing Memory................................................................................................................................133

Page 4

Precautions ....................................................................................................................................................................139

Handling the LCD Screen ........................................................................................................................................140

Using the Power Source ..........................................................................................................................................141

Handling Your Computer .........................................................................................................................................142

Handling the Built-in MOTION EYE Camera............................................................................................................144

Handling Floppy Disks .............................................................................................................................................145

Handling Discs .........................................................................................................................................................146

Using the Battery Pack ............................................................................................................................................147

Using Headphones ..................................................................................................................................................149

Handling the Memory Stick ......................................................................................................................................150

Handling the Hard Disk ............................................................................................................................................151

Updating Your Computer .........................................................................................................................................152

Troubleshooting .............................................................................................................................................................153

Computer .................................................................................................................................................................155

System Security .......................................................................................................................................................164

Battery......................................................................................................................................................................165

Built-in MOTION EYE Camera.................................................................................................................................167

Internet.....................................................................................................................................................................170

Networking ...............................................................................................................................................................172

Bluetooth Technology ..............................................................................................................................................175

Optical Discs ............................................................................................................................................................180

Display .....................................................................................................................................................................184

Printing.....................................................................................................................................................................188

Microphone ..............................................................................................................................................................189

Page 5

Mouse ......................................................................................................................................................................190

Speakers..................................................................................................................................................................191

Touch Pad................................................................................................................................................................193

Keyboard..................................................................................................................................................................194

Floppy Disks ............................................................................................................................................................195

Audio/Video..............................................................................................................................................................196

Memory Stick ...........................................................................................................................................................199

Peripherals ...............................................................................................................................................................201

Support Options .............................................................................................................................................................202

Sony Support Information ........................................................................................................................................203

Program Support Information...................................................................................................................................207

Trademarks ....................................................................................................................................................................218

Page 6

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

Page 7

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of components connection, set-up information, etc. ❑ Safety Information — Contains safety guidelines and owner information.

Before Use

Page 8

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems.

✍

To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.

❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.

To view the online specifications:

1 Connect to the Internet. 2 Go to the Sony online support web site at the following URLs:

http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support/

for customers in Canada

http://esupport.sony.com/ES/VAIO/ http://esupport.sony.com/ES/VAIO/BR/

❑ VAIO Recovery Center User Guide — Provides information about restoring individual software programs, hardware

drivers, and drive partition(s) or your entire hard disk drive

* Your computer may be equipped with two built-in flash memory storage drives along with a hard disk drive depending on the model you purchased. See the online

specifications to find out about your storage device configuration.

To access this on-screen guide:

for customers in USA

for customers in Spanish-speaking Latin American countries or areas

for customers in Brazil

to the original factory settings.

1 Click Start and Help and Support. 2 Click Use My VAIO. 3 Click VAI O Recovery Center User Guide.

Page 9

Before Use

❑ SmartWi™ Connection Utility Help — Provides information about setting up Bluetooth*, wireless LAN, and wireless

WAN

functions.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility. 2 Click SmartWi Connection Utility Help.

* The Bluetooth and wireless WAN functions are available on selected models only. See the online specifications to find out whether your model

supports the functions.

❑ RAID Guide (Selected models only) — Provides information about using RAID systems.

To access this on-screen guide:

1 Click Start and Help and Support. 2 Click Use My VAIO. 3 Click Other Documents.

❑ Media Center User Guide (Selected models only) — Provides information about using Windows Media Center.

To access this on-screen guide:

1 Click Start and Help and Support. 2 Click Use My VAIO. 3 Click Media Center User Guide.

Page 10

Before Use

Help and Support

Help and Support is easy to access and provides a single location for general information and technical assistance for your VAIO computer. Choose from the following categories to find the answers you need.

To access Help and Support, click Start and Help and Support.

❑ Get started with my VAIO

Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, and creating recovery DVDs and more.

❑ Use my VAIO

Access your VAIO user guide, interactive help in the form of VAIO tutorials, how-to articles, the VAIO technology page, specifications, and system and software information.

❑ Troubleshoot my VAIO

Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and contact Sony support.

Page 11

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Page 12

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Page 13

Getting Started

This section describes how to get started using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.

❑ Locating Controls and Ports (page 14)

❑ About the Indicator Lights (page 21)

❑ Connecting a Power Source (page 23)

❑ Using the Battery Pack (page 24)

❑ Shutting Down Your Computer Safely (page 31)

Page 14

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some countries or areas.

Page 15

Front

Getting Started

A Built-in MOTION EYE camera (page 37) B Built-in MOTION EYE camera indicator (page 21) C Built-in microphone (monaural) D LCD screen (page 140) E Built-in speakers (stereo)

F Fingerprint sensor

(page 116)

G Numeric keypad

Use the numeric keypad to type numbers or to perform basic math calculations.

H Keyboard (page 33) I Touch pad (page 34) J Charge indicator (page 21) K Hard disk drive/Optical disc drive indicator (page 21) L WIRELESS indicator (page 21) M Media Access indicator (page 21)

N Memory Stick slot O Remote sensor

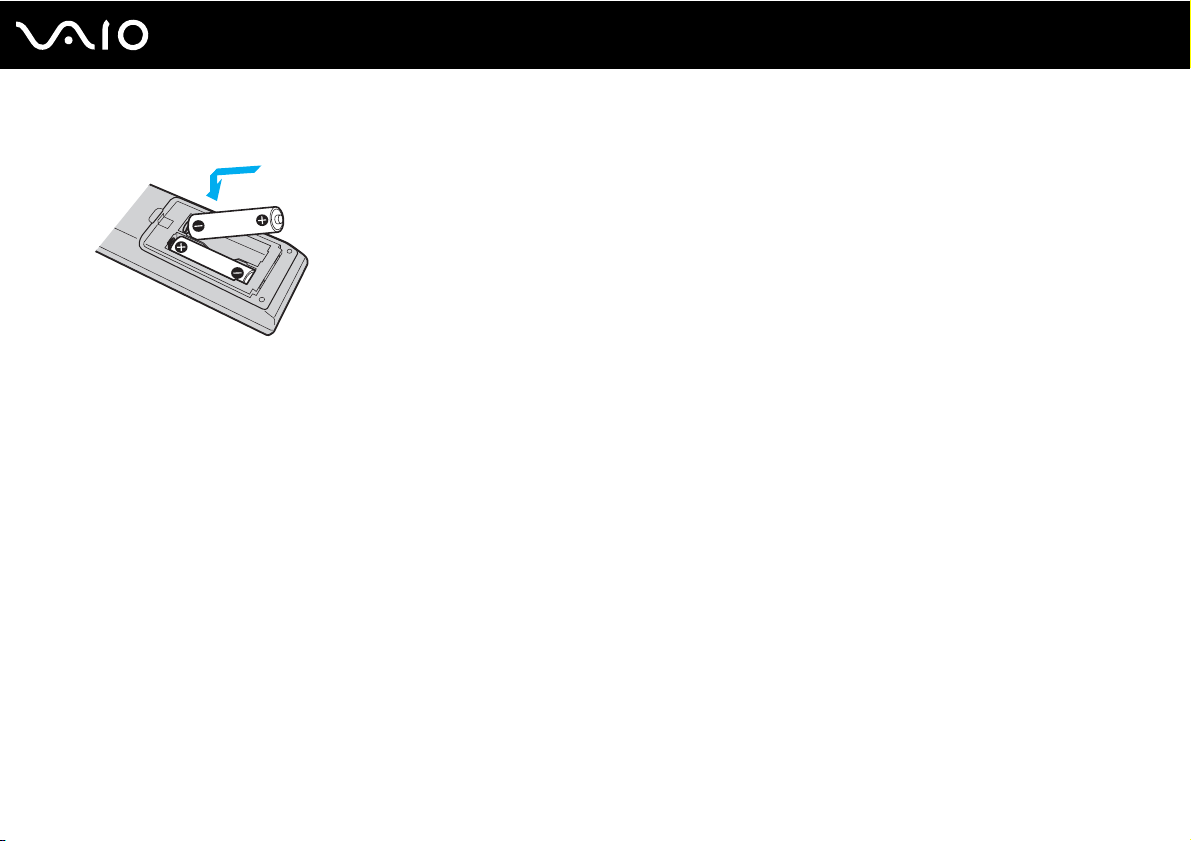

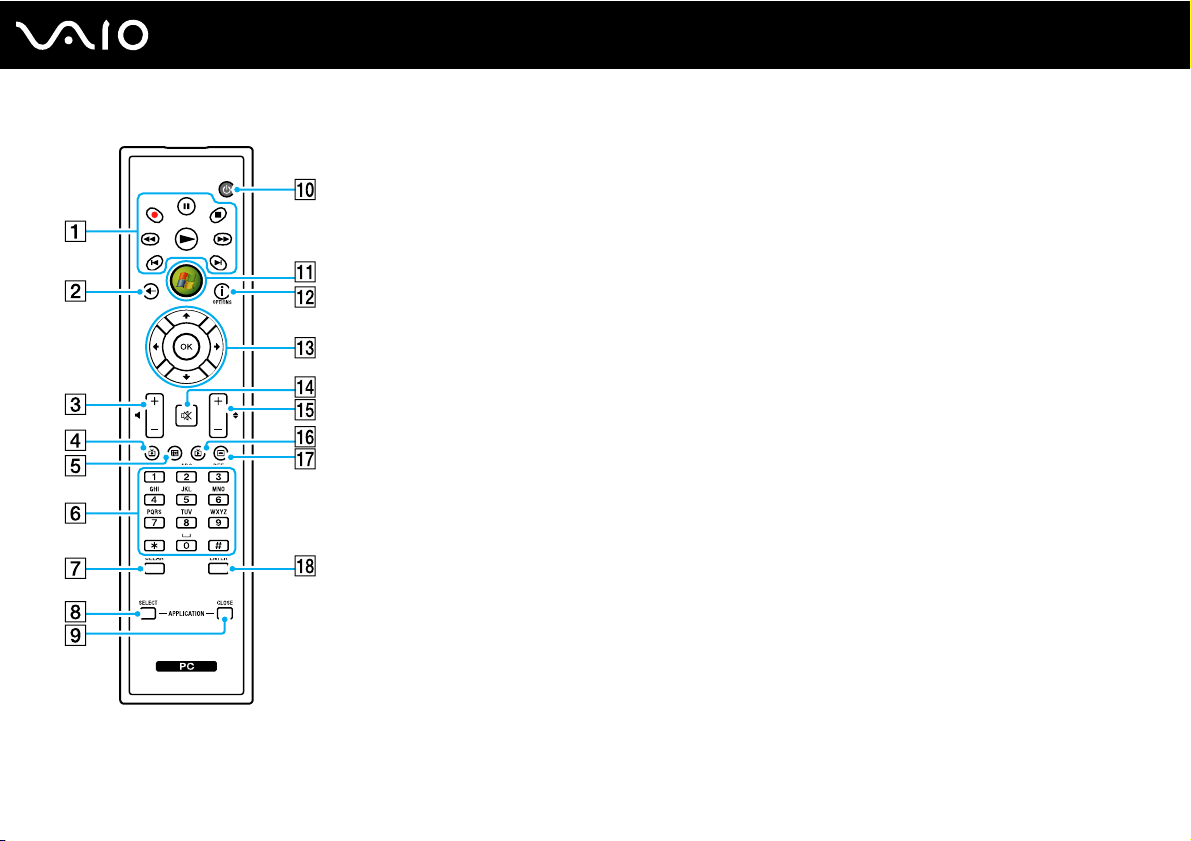

Point the supplied remote commander to this sensor for operations.

(page 66)

P WIRELESS switch (page 81) Q SD memory card slot (page 72)

On selected models only.

Your computer supports both standard- and Duo-size Memory Stick.

Page 16

S1/S2 buttons (page 35)

A B Play/Pause button (page 35) C Stop button (page 35) D Previous track button (page 35) E Next track button (page 35) F AV MODE button (page 35) G Num lock indicator (page 21) H Caps lock indicator (page 21) I Scroll lock indicator (page 21) J Muting button (page 36) K Volume control buttons (page 36) L Drive eject button (page 36), (page 40)

Getting Started

Page 17

Back

A Battery connector (page 24)

Getting Started

Page 18

Right

Getting Started

A Headphones/OPTICAL OUT jack (page 90)

(Optical Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)

B Microphone jack (page 100) C Hi-Speed USB (USB 2.0) ports

(page 101)

D Optical disc drive (page 40) E Optical disc drive indicator (page 21) F Substitute drive eject button (page 40) G Manual eject hole (page 180) H Network (Ethernet) port (page 107) I Modem port (page 80)

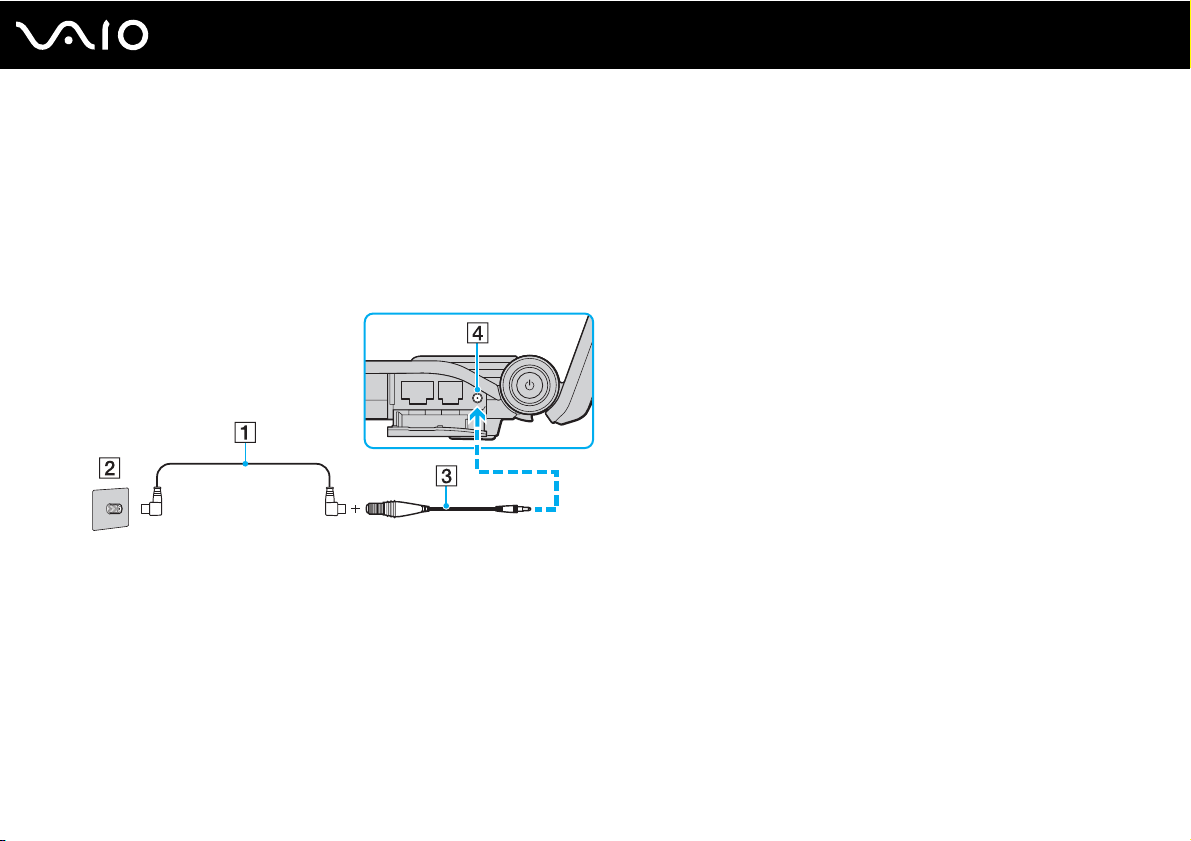

J VHF/UHF input port

(page 49)

K Power button/Power indicator (page 21)

Support high-/full-/low- speeds.

On selected models only.

Page 19

Left

Getting Started

A DC IN port (page 23) B Security slot C Air vent

D Hi-Speed USB (USB 2.0) port E Monitor port F HDMI port

(page 93)

(page 101)

G ExpressCard/34 slot (page 63) H CF (CompactFlash) memory card slot I CF memory card release button J CF memory card indicator

(page 21)

(page 76)

K i.LINK 4-pin (S400) port (page 105)

Supports high-/full-/low- speeds.

These two ports are mutually exclusive. When one port has an external display connected, the other is disabled.

On selected models only.

Page 20

Bottom

A Subwoofer speakers for bass frequencies B Air vents C Memory module compartment cover (page 133)

Getting Started

Page 21

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and

turns off when the computer is off or in Hibernate mode.

Charge

Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.

Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep

CF memory card

Optical disc drive Illuminates while the drive is reading or writing data. When the indicator is unlit, the optical disc media is not in

Hard disk drive

/Optical disc drive

Num lock

Caps lock

Scroll lock

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 27) for more information.

mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.

Illuminates while data is being read from or written to a CF memory card. (Do not place the computer into Sleep mode or turn it off when this indicator is lit.) When the indicator is unlit, the CF memory card is not in use.

use.

Illuminates while the drive is reading or writing data. Do not place the computer into Sleep mode or turn it off when this indicator is lit.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps lock indicator is unlit.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Page 22

Indicator Functions

WIRELESS Illuminates when the WIRELESS switch is turned on.

On selected models only.

Your computer may be equipped with two built-in flash memory storage drives along with a hard disk drive depending on the model you purchased. See the online specifications to find out about your storage device configuration.

Getting Started

Page 23

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3). 2 Plug the other end of the power cord into an AC outlet (2). 3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer.

Getting Started

The shape of the DC In plug varies depending on the AC adapter.

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 128). This power saving mode saves the time of shutting down and resuming.

Page 24

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK switch (1) inward.

Getting Started

Page 25

Getting Started

3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery

compartment fit into the U-shaped cuts (3) on either side of the battery pack.

4 Rotate the battery pack in the direction of the arrow, and push the battery pack down into the compartment until it clicks

into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

Page 26

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

This computer is designed to operate only with genuine Sony battery packs.

Getting Started

Page 27

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack. 2 Connect the AC adapter to the computer.

The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected with the battery charge functions, the charge indicator turns off. To select your desired maximum charge level, see Using the Battery Charge Functions (page 29).

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power indicator

Blinks along with the orange power indicator

Blinks fast in orange A battery error has occurred due to a failed battery

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Charge the battery pack as described in this manual from your first battery charge.

Page 28

Getting Started

✍

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the battery life.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or

Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Page 29

Getting Started

Using the Battery Charge Functions

You can select the battery charging method for your battery pack with the Battery Charge Functions. To make the battery life longer, enable the battery care function.

To enable the battery care function

1 Click Start, All Programs, and VAIO Control Center. 2 Click Power Management and then Battery Charge Functions. 3 Click to select the Enable Battery Care Function check box in the right pane. 4 Click Advanced. 5 Select the desired maximum charge level. 6 Click OK.

To check the battery wear level

Follow steps 1 and 4 in To enable the battery care function above and check detailed information. If the battery wear level is high, replace the battery pack with a new genuine Sony battery pack.

Page 30

Getting Started

Removing the Battery Pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the battery LOCK switch (1) inward. 3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and

turn the battery pack in the direction of the arrow, and then slide it away from the computer.

Page 31

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and then Shut Down. 3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Page 32

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 33)

❑ Using the Touch Pad (page 34)

❑ Using Special-function Buttons (page 35)

❑ Using the Built-in MOTION EYE Camera (page 37)

❑ Using the Optical Disc Drive (page 40)

❑ Using the TV Function (page 49)

❑ Using the ExpressCard Module (page 63)

❑ Using the Memory Stick (page 66)

❑ Using the SD Memory Card (page 72)

❑ Using the CF Memory Card (page 76)

❑ Using the Internet (page 80)

❑ Using Wireless LAN (WLAN) (page 81)

❑ Using the Bluetooth Function (page 84)

Using Your VAIO Computer

Page 33

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system is finished launching.

Combinations/Feature Functions

Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.

To increase lighting intensity, keep pressing Fn+F6 or press Fn+F6 and then M or ,. To decrease lighting intensity, keep pressing Fn+F5 or press Fn+F5 and then m or <.

Fn + /T (F7): display output

Fn + / (F9/F10): zoom

Fn + (F12): hibernate

* Your computer may be equipped with two built-in flash memory storage drives along with a hard disk drive depending on the model you purchased. See the online

specifications to find out about your storage device configuration.

Toggles among your computer screen, an external display, and simultaneous output to both.

Changes the view size of your screen. To make the screen view look smaller and further away (zoom out), press Fn+F9. To make the screen view look bigger and closer (zoom in), press Fn+F10. See the help file included with the VAIO Control Center for more information.

Provides the lowest level of power consumption. When you execute this command, the states of the system and the connected peripheral devices are saved to the hard disk drive* and the system power is turned off. To return the system to its original state, use the power button to turn on the power. For details on power management, see Using the Power Saving Modes (page 125).

Page 34

Using Your VAIO Computer

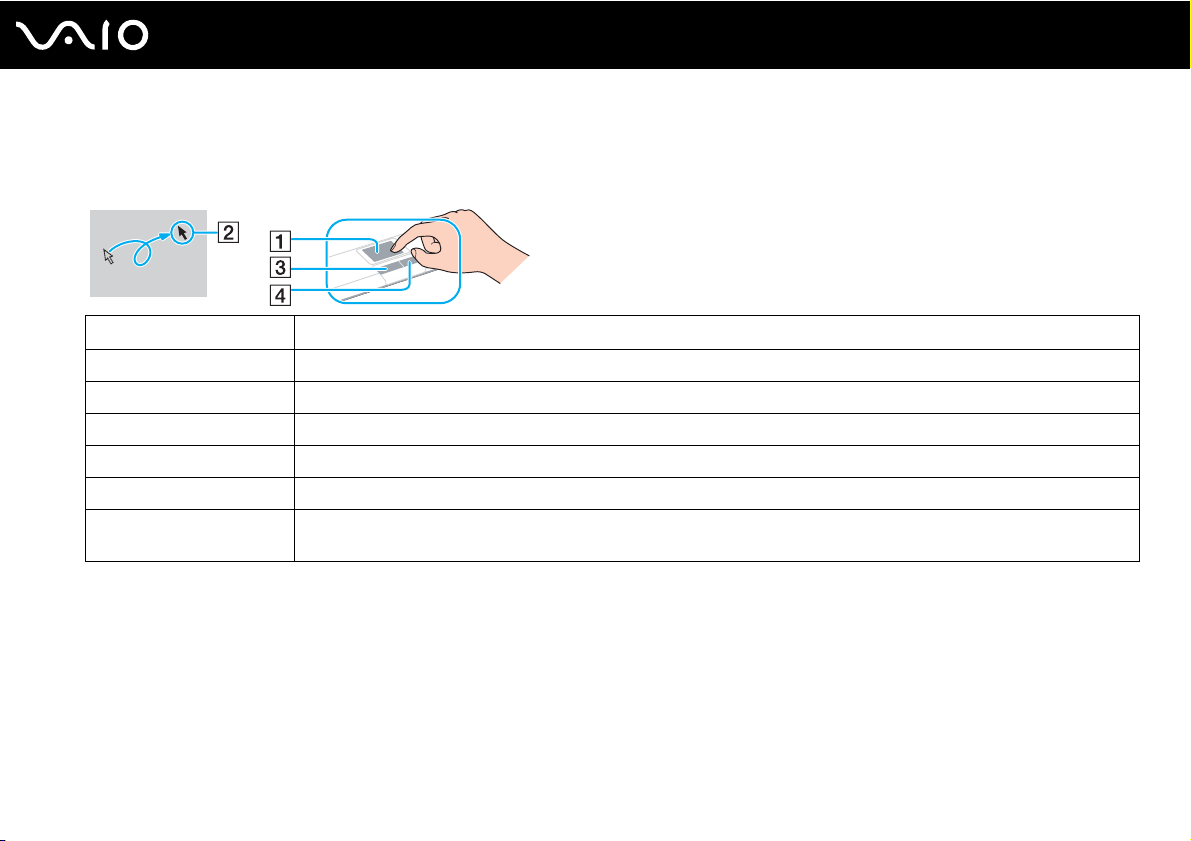

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

✍

You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, click Start, All Programs, VAIO Control Center, Keyboard and Mouse and Pointing Device.

Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad without connecting a mouse, you will be able to use only the keyboard for pointer operations.

Page 35

Using Your VAIO Computer

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.

Buttons on the touch panel

Special-function button Functions

S1/S2 buttons By default, the S1 button launches the VAIO Control Center and opens the Color Mode Setting page. The

u Play/Pause button

x Stop button

. Previous track button Plays the previous chapter/file during video playback or the previous song/file during audio playback.

> Next track button Plays the next chapter/file during video playback or the next song/file during audio playback.

AV M O DE button Launches the VAIO Launcher for selecting the desired software.

Use the WinDVD BD software for playback.

S2 button launches the Dolby Control Center.

✍

The default button assignments may be different from the above. To change the S button assignments, press and hold either button or launch and navigate through the VAIO Control Center to display the setup window. See the help file included with the VAIO Control Center for the S button assignments.

™ *1

Starts or pauses playback of a CD, DVD, or Blu-ray Disc disk drive

Stops playback of a CD, DVD, or Blu-ray Disc

You can change the default software options in the VAIO Launcher. To do so, press and hold the AV M O D E button to display the setup window.

media or a music/video file stored on the hard disk drive*2.

media or a music/video file stored on the hard

Page 36

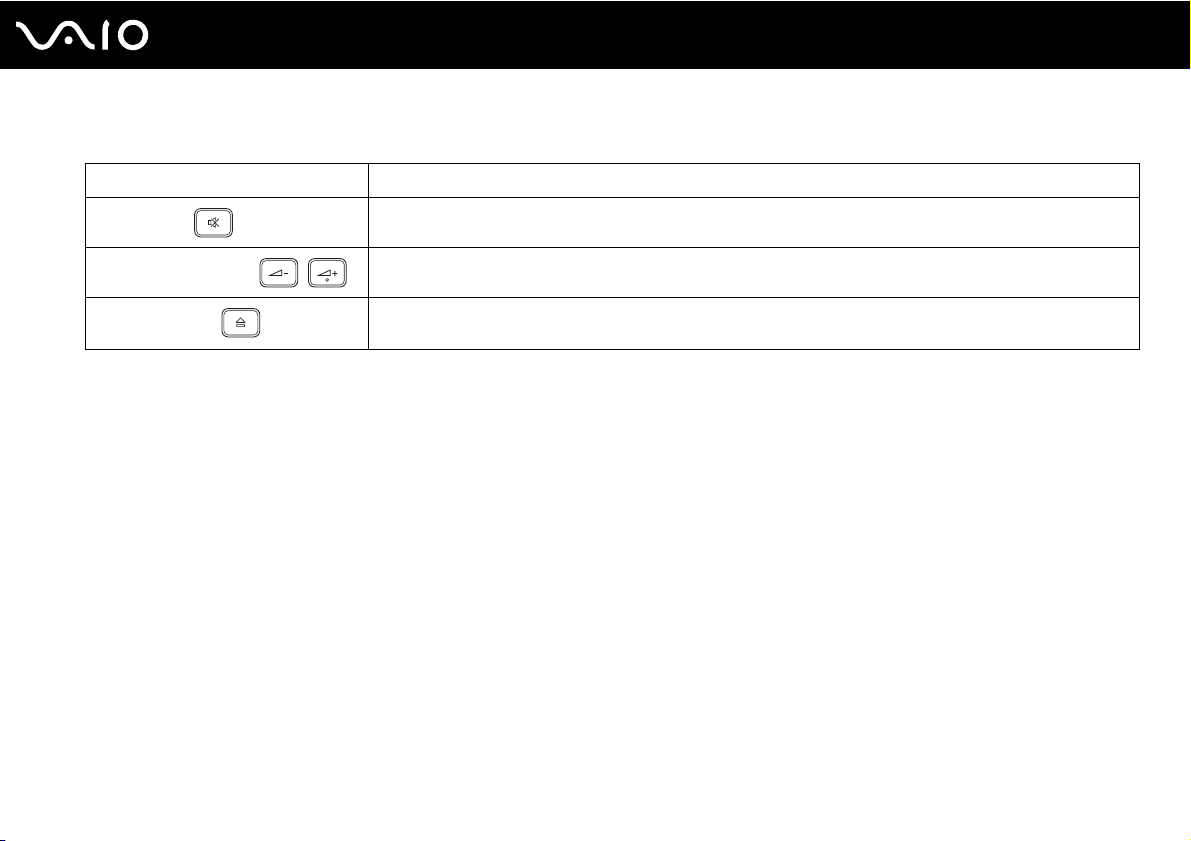

Buttons above the numeric keypad

Special-function button Functions

Muting button

Volume control buttons

Drive eject button

Turns the volume on and off.

Decrease (-) and increase (+) the volume.

Ejects the optical disc drive tray. If this button does not work, try the substitute drive eject button on the optical disc drive.

Using Your VAIO Computer

Page 37

Using Your VAIO Computer

Using the Built-in MOTION EYE Camera

Your computer is equipped with a built-in MOTION EYE camera. The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and

enables you to capture still images and movies with the preinstalled image capture software. Turning on the computer activates the built-in MOTION EYE camera. Video conference is possible with the appropriate

software. Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in

MOTION EYE camera, respectively.

✍

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera with your desired application.

The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a malfunction.

You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.

Page 38

Using Your VAIO Computer

Capturing Still Images

To capture a still image

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2. 2 Click the Capture icon in the main window. 3 Frame your subject in the viewfinder. 4 Click the Capture button below the displayed image.

The current image in the viewfinder is captured and its thumbnail image is added as a the thumbnail in the left pane of

the main window.

✍

When capturing an image in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the

properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

Page 39

Using Your VAIO Computer

Capturing Movies

To capture a movie

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2. 2 Click the Record icon in the main window. 3 Frame your subject in the viewfinder. 4 Click the Record Video button below the displayed image to start movie recording. 5 When finished, click the Record Video button once again to stop movie recording.

The first scene of the captured movie is added as a thumbnail in the left pane of the main window.

✍

When capturing a movie in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the

properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

Page 40

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

1 Turn on the computer. 2 Press the drive eject button (1) to open the drive.

The tray slides out.

✍

If the drive eject button does not work, try the substitute drive eject button on the optical disc drive.

If the power supply to the optical disc drive is disabled by the VAIO Power Management, it will take a while to eject the drive tray. Note that the substitute

drive eject button is disabled when the optical disc drive is not powered.

When recovering your system, turn on your computer and press the substitute drive eject button on the optical disc drive. Insert your recovery disc

into the optical disc drive, turn off the computer, and then turn on the computer again to start the recovery process.

3 Place a disc in the middle of the tray with the label side facing upward and gently push it down until the disc clicks into

place.

Page 41

Using Your VAIO Computer

4 Close the tray by pushing it in gently.

Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction.

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.

Page 42

Using Your VAIO Computer

Reading and Writing Optical Discs

Your computer plays and records CDs, DVDs, and Blu-ray Disc media, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model.

Use the table below to see which types of media your optical disc drive supports.

Page 43

Using Your VAIO Computer

PR: playable and recordable P: playable but not recordable –: not playable or recordable

CD-

Video CDMusic CDCD

DVD± RW/

ROM

PPPP PRP P –

Extra

±R DL/RAM

Blu-ray Disc

PPPP

Combo

Blu-ray Disc P P P P

Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.

Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported. DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.

Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

Writing data to Ultra Speed CD-RW discs is not supported on the models with certain types of the Blu-ray Disc drive.

BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.

*10

BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.

*11

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

*12

Playback of BD-R LTH TYPE media is supported only on the models with the Blu-ray Disc drive.

CD-R/RWDVD-

ROM

PPP

DVDVideo

BDROM

DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-

RAM

*1 *2

BD-R

*3 *4

–

*3 *4P*11 *12

*3 *4

*10

*7 *11 *12

Page 44

Using Your VAIO Computer

This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two

sided disc product with a DVD recorded layer on one side and a digital audio layer on the other side. Be aware that the audio side (non-DVD side) of a

DualDisc may not play on this product because it does not conform to the CD Standard.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both

playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE

TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.

For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

To play copyright protected Blu-ray Disc media continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support

movie playback on packaged media recorded in AVC or VC1 format at high bit rates.

Region settings are required for some contents on DVDs and BD-ROM Disc media. If the region setting on the optical disc drive does not match the

region coding on the disc, playback is not possible.

Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents

on copyright protected Blu-ray Disc media.

Some contents may restrict video output to standard definition or prohibit analog video output. It is strongly recommended that a digital HDCP-

compliant environment be implemented for optimum compatibility and viewing quality.

Page 45

Using Your VAIO Computer

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc. ❑ Do not use memory-resident utility software while the optical disc drive is writing data to a disc. This may cause your

computer to malfunction. ❑ Do not plug or unplug the AC adapter while the optical disc drive is writing data to a disc.

Notes on playing discs

To achieve optimum performance when playing discs, you should follow these recommendations. ❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media. ❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ Do not place your computer into either of the power saving modes while your computer is playing a disc. ❑ Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you

can play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code

for your residence area is different from the label, you cannot play the disc on your computer.

Page 46

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert a disc into the optical disc drive. 2 If nothing appears on the desktop, click Start, All Programs, and the desired CD software to play the CD.

If the Audio CD window appears, click to select an option.

Copying Files to CDs

To copy files to a disc

1 Insert a disc into the optical disc drive.

If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder

appears.

2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder. 3 Close the disc folder.

Page 47

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all running software applications. 2 Insert a DVD into the optical disc drive. 3 If nothing appears on the desktop, click Start, All Programs, and the desired DVD software to play the DVD.

For instructions on how to use the software, see the help file included with your DVD software.

Copying Files to DVDs

To copy files to a disc

1 Connect the AC adapter to the computer. 2 Close all running software applications. 3 Insert a disc into the optical disc drive. 4 If nothing appears on the desktop, click Start, All Programs, and the desired DVD burning software to copy files to the

disc. For instructions on how to use the software, see the help file included with your DVD burning software.

Page 48

Using Your VAIO Computer

Playing Blu-ray Disc Media

To play a Blu-ray Disc media

1 Close all running software applications. 2 Insert a Blu-ray Disc media into the optical disc drive. 3 If nothing appears on the desktop, click Start, All Programs, and the desired Blu-ray Disc software to play the disc.

For instructions on how to use the software, see the help file included with your software.

Copying Files to Blu-ray Disc Media

The Blu-ray Disc writing function is available on selected models only. See the online specifications to find out the type of your optical disc drive, and

then Reading and Writing Optical Discs (page 42) to find out about the supported disc media.

To copy files to a Blu-ray Disc media

1 Connect the AC adapter to the computer. 2 Close all running software applications. 3 Insert a Blu-ray Disc media into the optical disc drive. 4 If nothing appears on the desktop, click Start, All Programs, and the desired Blu-ray Disc burning software to copy files

to the disc. For instructions on how to use the software, see the help file included with your Blu-ray Disc burning software.

Page 49

Using Your VAIO Computer

Using the TV Function

Your computer may have a TV tuner board installed and may be supplied with an external digital cable tuner to enhance your audio and visual experience in conjunction with the Windows Media Center. See the online specifications to find out about your TV tuner board configuration.

For details on the external digital cable tuner, see the manual that came with the tuner.

The Windows Media Center provides you with a wide range of TV, DVD, and video viewing, as well as music recording and playback. This section describes how to set up your TV, set-top box, and other equipment. See the on-screen Media Center User Guide for more information on the Windows Media Center features.

To access this on-screen guide

1 Click Start and Help and Support. 2 Click Use My VAIO. 3 Click Media Center User Guide.

Page 50

Using Your VAIO Computer

Setting Up TV Connections

The following connections may not be available in some countries or areas.

The best method to connect your computer system, TV monitor or display, and cable service access, depends on the type of cable connection available in your home.

TV signal reception strength will vary widely depending on service availability in your area as well as the type of connection available.

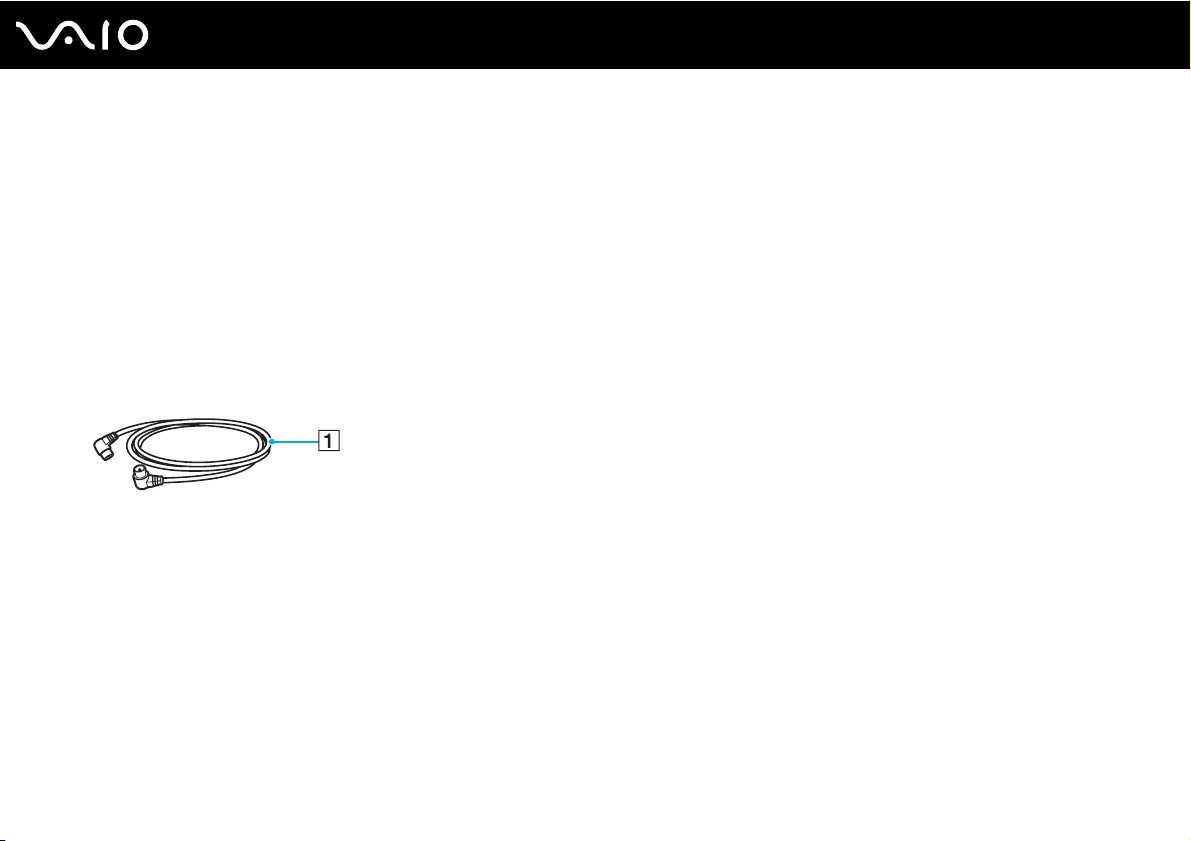

One primary cable to connect a computer to a cable service access or a TV antenna is the TV coaxial cable (1) (not supplied). One end connects to the VHF/UHF input port through the MMCX antenna converter cable (supplied), and the other end connects to the cable service access or to the antenna.

Page 51

Using Your VAIO Computer

Connecting to standard cable access (CATV)

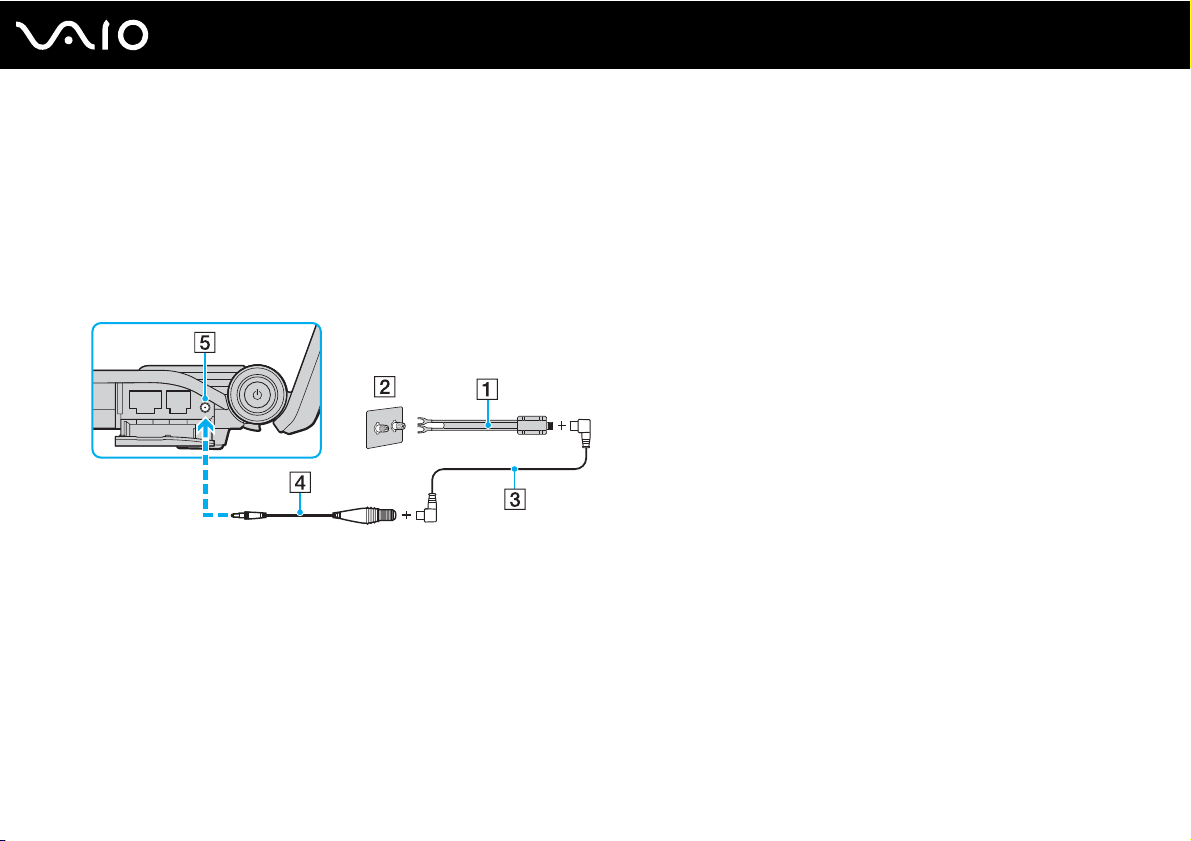

To connect in CATV mode (Option 1)

1 Connect one end of a TV coaxial cable (1) (not supplied) to your cable service access (wall outlet) (2). 2 Connect the other end to the MMCX antenna converter cable (3) (supplied). 3 Connect the MMCX antenna converter cable (3) to the VHF/UHF input port (4) on the computer.

Page 52

Using Your VAIO Computer

To connect in CATV mode (Option 2)

1 Connect the two metal hooks on a 75-ohm/300-ohm RCA transformer cable (1) (not supplied) to the screw-type grips at

your cable service access (wall outlet) (2).

2 Connect one end of a TV coaxial cable (3) (not supplied) to the transformer end of the RCA transformer cable (1). 3 Connect the other end to the MMCX antenna converter cable (4) (supplied). 4 Connect the MMCX antenna converter cable (4) to the VHF/UHF input port (5) on the computer.

Page 53

Using Your VAIO Computer

Connecting to a standard antenna

You can connect your computer to an indoor/outdoor antenna system, using Option 1 or Option 2 from the previous section, Connecting to standard cable access (CATV) (page 51). Depending on the type of antenna system in your home, your connection may require a VHF/UHF RF combiner/transformer (not supplied) to connect the computer and the indoor/outdoor antenna system.

✍

If you are connecting to an indoor/outdoor antenna, you may need to reorient the antenna for best reception. Move the antenna cable away from other

power sources or connectors to reduce signal interference.

Page 54

Using Your VAIO Computer

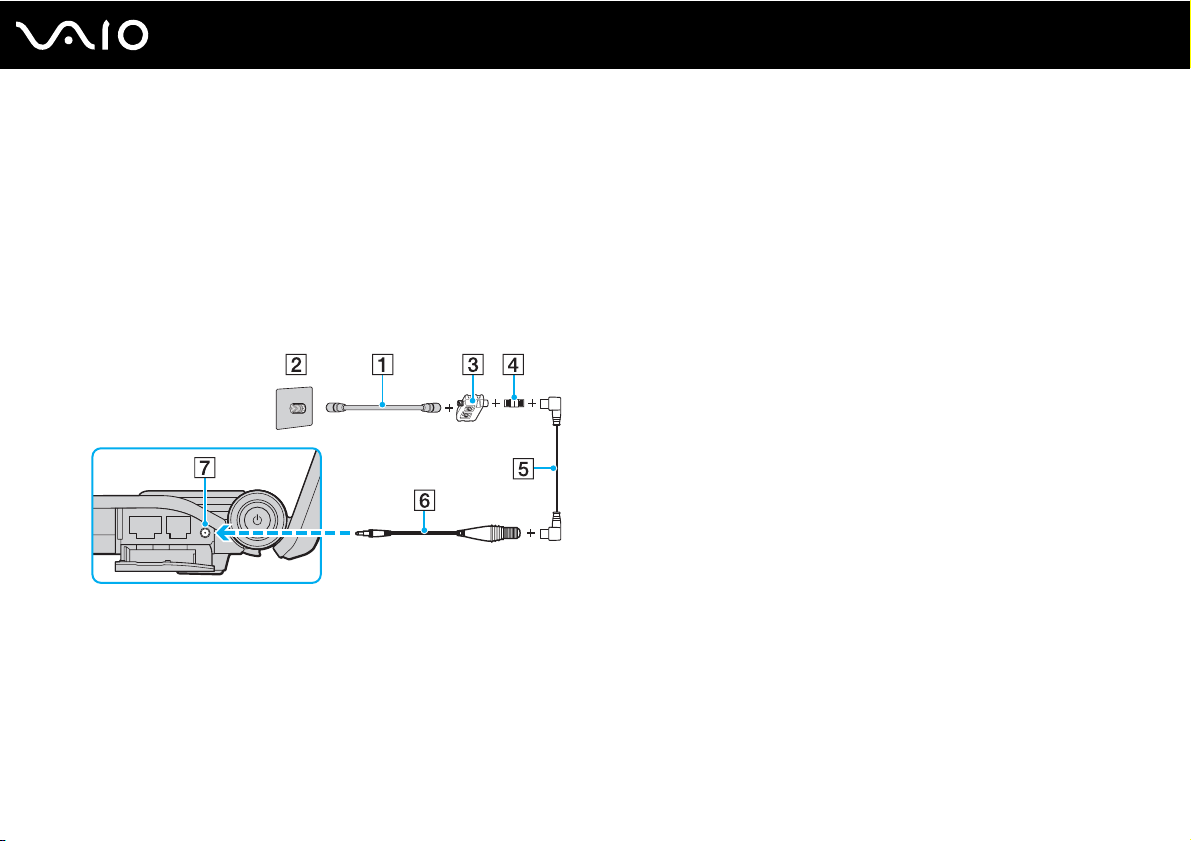

To connect in land-based (terrestrial) broadcasting mode (Option 1)

1 Connect one end of a TV coaxial cable (1) (not supplied) to your antenna outlet (2). Connect the other end to a VHF/UHF

RF combiner/transformer (3) (not supplied).

2 Connect a coaxial cable feed connector (4) (not supplied) to the VHF/UHF RF combiner/transformer (3). 3 Connect one end of another TV coaxial cable (5) (not supplied) to the feed connector (4). 4 Connect the other end to the MMCX antenna converter cable (6) (supplied). 5 Connect the MMCX antenna converter cable (6) to the VHF/UHF input port (7) on the computer.

Page 55

Using Your VAIO Computer

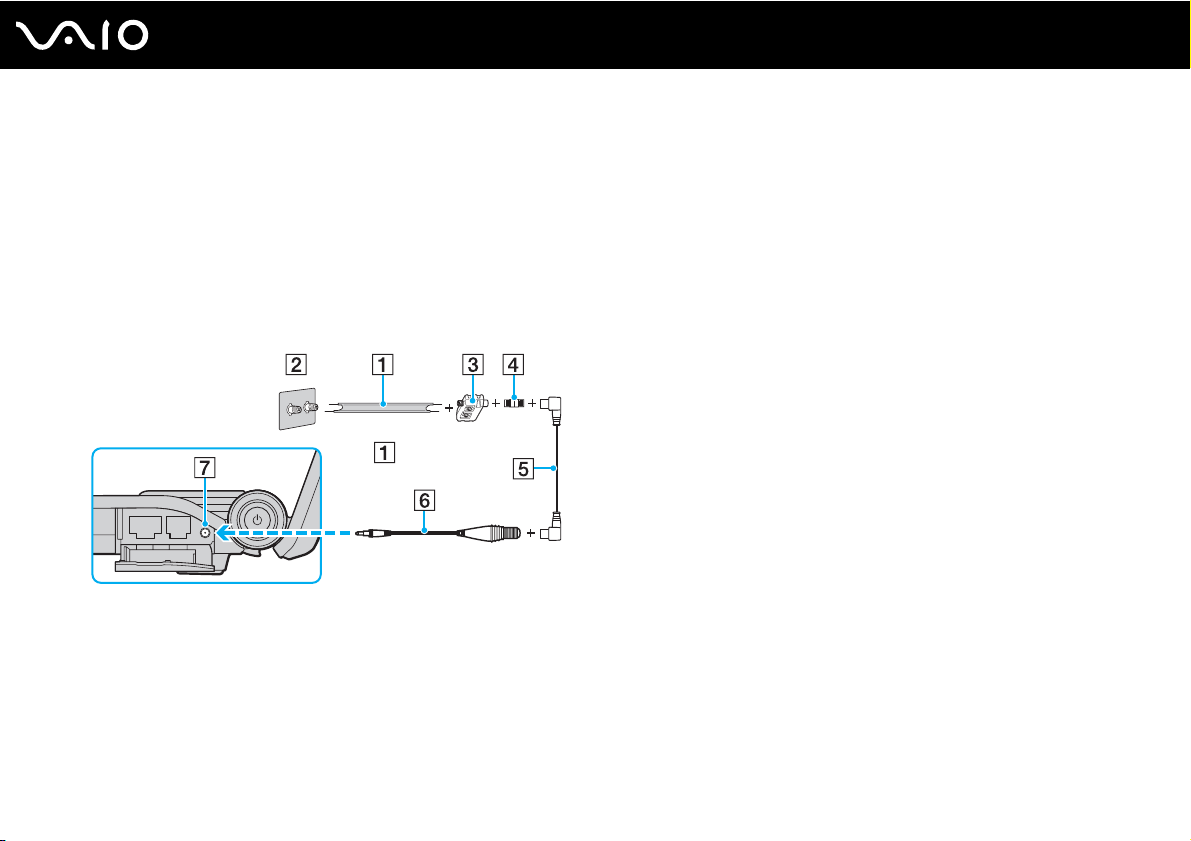

To connect in land-based (terrestrial) broadcasting mode (Option 2)

1 Connect one end of a 300-ohm twin lead cable (1) (not supplied) to the screw-type grips at your antenna outlet (2).

Connect the other end to the grips on a VHF/UHF RF combiner/transformer (3) (not supplied).

2 Connect a coaxial cable feed connector (4) (not supplied) to the VHF/UHF RF combiner/transformer (3). 3 Connect one end of a TV coaxial cable (5) (not supplied) to the feed connector (4). 4 Connect the other end to the MMCX antenna converter cable (6) (supplied). 5 Connect the MMCX antenna converter cable (6) to the VHF/UHF input port (7) on the computer.

Page 56

Using Your VAIO Computer

Connecting with a cable or satellite set-top box (STB)

You can connect your computer to cable service access that uses a set-top box (cable or satellite). When using the set-top box (STB) setup, you can change channels only through the STB, using its controls or the supplied remote commander.

When using the STB setup: ❑ A standard TV remote control cannot be used to change TV channels. You can use your TV remote control to set the TV

to the channel-out number (channel 3, 4, etc.) or direct video input specified by your cable or satellite service provider. ❑ You may be able to use a universal remote control or commander to change TV channels, if the device is capable of

controlling the STB.

Page 57

Using Your VAIO Computer

To connect in STB mode

1 Connect one end of a TV coaxial cable (1) (not supplied) to your cable service access (wall outlet) (2). Connect the other

end to the VHF/UHF input port on the back panel of your set-top box (STB) (3). 2 Connect a second TV coaxial cable (4) (not supplied) to the VHF/UHF output port on the set-top box (STB) (3). Connect

the other end to the single-connection end of a splitter device (5) (not supplied).

3 Connect a third TV coaxial cable (6) (not supplied) to the double-connection end of the splitter device (5). 4 Connect the other end to the MMCX antenna converter cable (7) (supplied). 5 Connect the MMCX antenna converter cable (7) to the VHF/UHF input port (8) on the computer. 6 Connect a fourth TV coaxial cable (9) (not supplied) to the double-connection end of the splitter device (5). Connect the

other end to the VHF/UHF input port (10) on your TV monitor or display.

Page 58

Using Your VAIO Computer

Using the Remote Commander

If your computer supports the TV function, then a remote commander is supplied with the computer for using a wide variety of AV related software applications, including Media Center.

Page 59

Using Your VAIO Computer

A Pause X button

Press to pause media playback. Press again to resume playback. Stop x button Press to stop media playback or TV recording session. Forward M button Press to fast-forward media at three speeds. Skip B? button Press to move media forward, for example, one audio track, one DVD chapter, and 30 seconds of recorded TV or video. Replay ?b button Press to move media backward, for example, one audio track, one DVD chapter, and 7 seconds of TV or video. Rewind m button Press to move media backward at three speeds. Record z button Press to begin recording. Play N button Press to begin media playback.

B Back button

Press to return to the previous window.

C Volume control buttons

Press to increase (+) or decrease (-) the volume.

D Recorded TV button

Press to view previously recorded TV programs.

✍

Illustrated above is the English remote commander as an example.

Page 60

Using Your VAIO Computer

Guide button

Press to view the TV program guide for your area.

F Alphanumeric buttons

Press to select specific channels or enter text. (Press ENTER or

OK to activate the channel selection.)

G CLEAR button

Press to backspace and delete entered text.

H APPLICATION SELECT button

Press to switch among open applications. This button works the

same as the Alt+Tab keys.

I APPLICATION CLOSE button

Press to close the active application window.

J Sleep button

Press to place the computer into Sleep mode to reduce power

consumption.

K Start button

Press to open the Media Center Start menu.

L More button / OPTIONS button

Press to view additional options that are available for features on

software applications, such as Media Center.

M Directional arrow buttons

Press the M, m, <, and , buttons to move the pointer on the

screen.

OK button

Press to select the desired action or window option. When

watching full-screen TV, press to return to the previous channel.

Press again to switch between channels.

N Muting button

Press to turn off the sound. Press again to restore the sound.

O Channel/Page buttons

Press to change or page up/down channels (no number input required).

P Live TV button

Press to view TV programs.

Q DVD menu button / MENU button

Press to open the main menu on the playback media, such as a DVD media.

R ENTER button

Press to activate a feature or an action, such as channel selection or a return to the previous channel. (This button's actions are similar to using the OK button.)

Page 61

Using Your VAIO Computer

Before you use the remote commander

Before using the remote commander, you need to insert the supplied AA manganese batteries to enable communication between the computer and the remote commander.

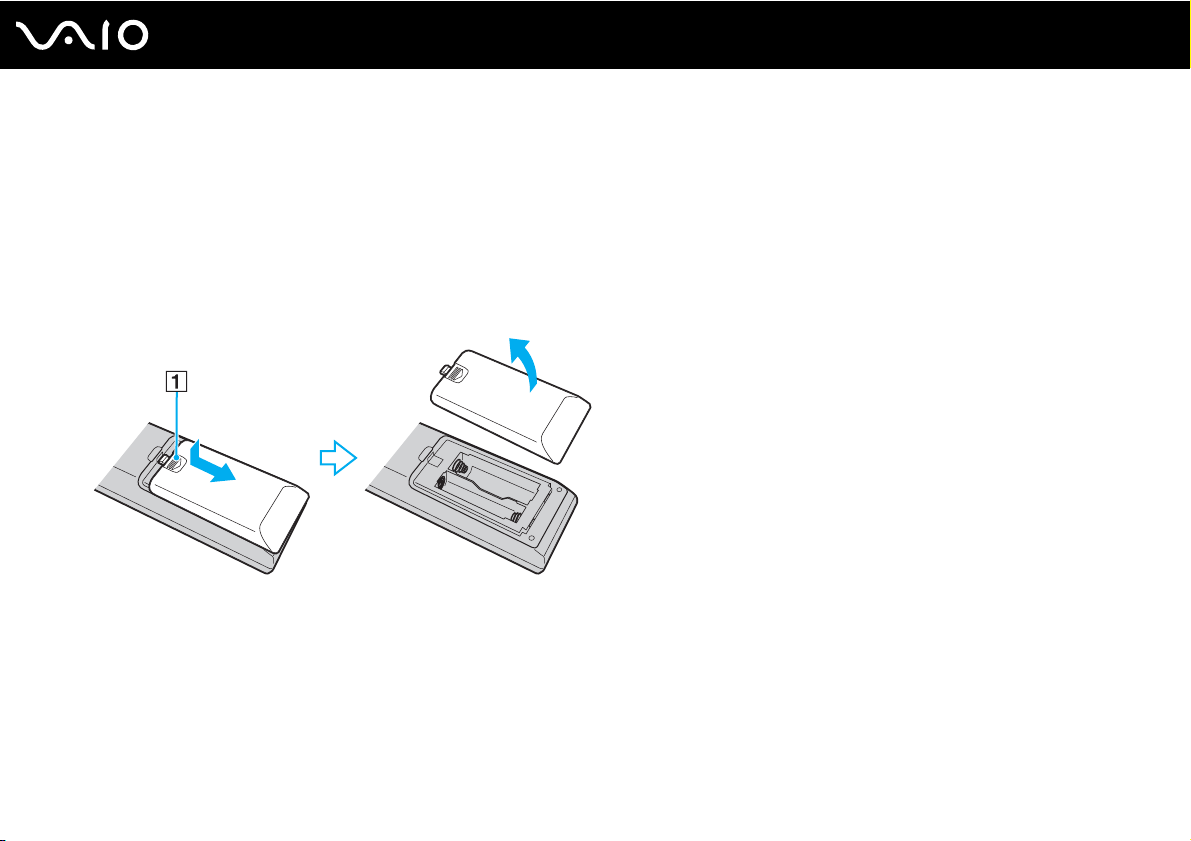

To insert batteries

1 Turn the remote commander over. 2 Slightly push down the dented area (1), slide the battery cover in the direction of the arrow, and remove the cover.

Page 62

Using Your VAIO Computer

3 Insert the supplied two AA batteries into the remote commander.

4 Put the battery cover back on the remote commander and slide it in the reverse direction of the arrow illustrated above

until the cover clicks into place.

✍

If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander is not going to be used for

an extended period of time, remove the batteries to avoid possible damage from battery leakage.

Page 63

Using Your VAIO Computer

Using the ExpressCard Module

Your computer is equipped with either a Universal ExpressCard slot* or an ExpressCard/34 slot* for transferring data among digital cameras, camcorders, music players, and other audio/video devices. The former ExpressCard/34 only an ExpressCard/34 module

(34 mm wide) or ExpressCard/54 (54 mm wide) module* as shown below and the latter can accommodate

only.

can accommodate either an

❑ ExpressCard/34 module

Your computer is equipped with an ExpressCard/34

* Referred to as the ExpressCard slot and the ExpressCard module in this manual.

❑ ExpressCard/54 module

slot*.

Page 64

Inserting an ExpressCard Module

Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot.

✍

You do not need to shut down your computer before inserting or removing the ExpressCard module.

To insert an ExpressCard module

1 Locate the ExpressCard slot. 2 Carefully slide the ExpressCard module into the slot until it clicks into place.

Do not force it into the slot.

Using Your VAIO Computer

✍

If the module or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.

Page 65

Using Your VAIO Computer

Removing an ExpressCard Module

Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your system may not work properly.

To remove an ExpressCard module

✍

To remove an ExpressCard module when your computer is off, skip steps 1 to 4.

1 Double-click the Safely Remove Hardware icon on the taskbar. 2 Select the hardware you want to unplug. 3 Click Stop. 4 Follow the on-screen instructions to remove the ExpressCard module. 5 Push in the ExpressCard module toward the computer so that the module pops out. 6 Gently take hold of the ExpressCard module and pull it out of the slot.

Page 66

Using Your VAIO Computer

Using the Memory Stick

Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.

Page 67

Using Your VAIO Computer

Before You Use the Memory Stick

The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick PRO and Memory Stick PRO-HG Duo formats with high speed data transfer and large data capacity capabilities.

✍

You can insert a Duo-size Memory Stick directly into the Memory Stick slot without using a Memory Stick Duo adaptor.

Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Standard-size adaptor or M2 Duo adaptor. If you insert the media directly into

the Memory Stick slot without the adaptor, you may not be able to remove it from the slot.

For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/.

Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that are available as of May 2008.

However, not all Memory Stick that meet the same specifications as the compatible media are guaranteed of compatibility.

Inserting a Memory Stick with multiple conversion adapters is not guaranteed of compatibility.

MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick with the MagicGate logo to use this

feature.

Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective

The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high speed data transfer).

The Memory Stick Micro in an M2 Duo adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo adaptor.

Page 68

Using Your VAIO Computer

Inserting a Memory Stick

To insert a Memory Stick

1 Locate the Memory Stick slot. 2 Hold the Memory Stick with the arrow facing upward and pointing toward the slot. 3 Carefully slide the Memory Stick into the slot until it clicks into place.

The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed. If

nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick icon.

Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the

Memory Stick, do not force the Memory Stick into the slot if you cannot insert it smoothly.

Do not insert more than one Memory Stick into the slot. Improper insertion of the media may damage both your computer and the media.

Page 69

Using Your VAIO Computer

To view the contents on the Memory Stick

1 Click Start and Computer to open the Computer window. 2 Double-click the Memory Stick icon to view the list of data files saved in the Memory Stick.

To format a Memory Stick

The Memory Stick has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports the Memory Stick when formatting the media.

Formatting the Memory Stick erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove the Memory Stick from the slot while formatting. This could cause a malfunction.

1 Carefully slide the Memory Stick into the slot until it clicks into place. 2 Click Start and Computer to open the Computer window. 3 Right-click the Memory Stick icon and select Format. 4 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

Page 70

5 Click Start. 6 Follow the on-screen instructions.

It may take time to format the Memory Stick depending on the media type.

Using Your VAIO Computer

Page 71

Using Your VAIO Computer

Removing a Memory Stick

Do not remove the Memory Stick while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to

load, so make sure the indicator is unlit before removing the Memory Stick.

To remove a Memory Stick

1 Check that the Media Access indicator light is unlit. 2 Push in the Memory Stick toward the computer and release.

The Memory Stick ejects.

3 Pull the Memory Stick out of the slot.

Always remove the Memory Stick gently, or it may pop out unexpectedly.

Page 72

Using Your VAIO Computer

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Page 73

Using Your VAIO Computer

Before You Use the SD Memory Card

The SD memory card slot on your computer supports the following memory cards:

❑ SD memory card ❑ SDHC memory card ❑ MultiMediaCard (MMC)

For the latest information on compatible memory cards, see Sony Support Information (page 203) to visit the appropriate support web site.

Your computer has been tested and found compatible only with major memory cards available as of May 2008. However, not all memory cards that

meet the same specifications as the compatible media are guaranteed of compatibility.

Always insert the correct memory card into the SD memory card slot.

SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested and found compatible with your

computer.

The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory card and the SDHC memory card.

Do not attempt to insert an SD memory card or SD memory card adapter of a different type into the SD memory card slot. An incompatible memory

card or memory card adapter may cause difficulty in removing from the slot and can cause damage to your computer.

Use care when inserting or removing an SD memory card from the SD memory card slot. Do not force the SD memory card in or out of the slot.

Page 74

Inserting an SD Memory Card

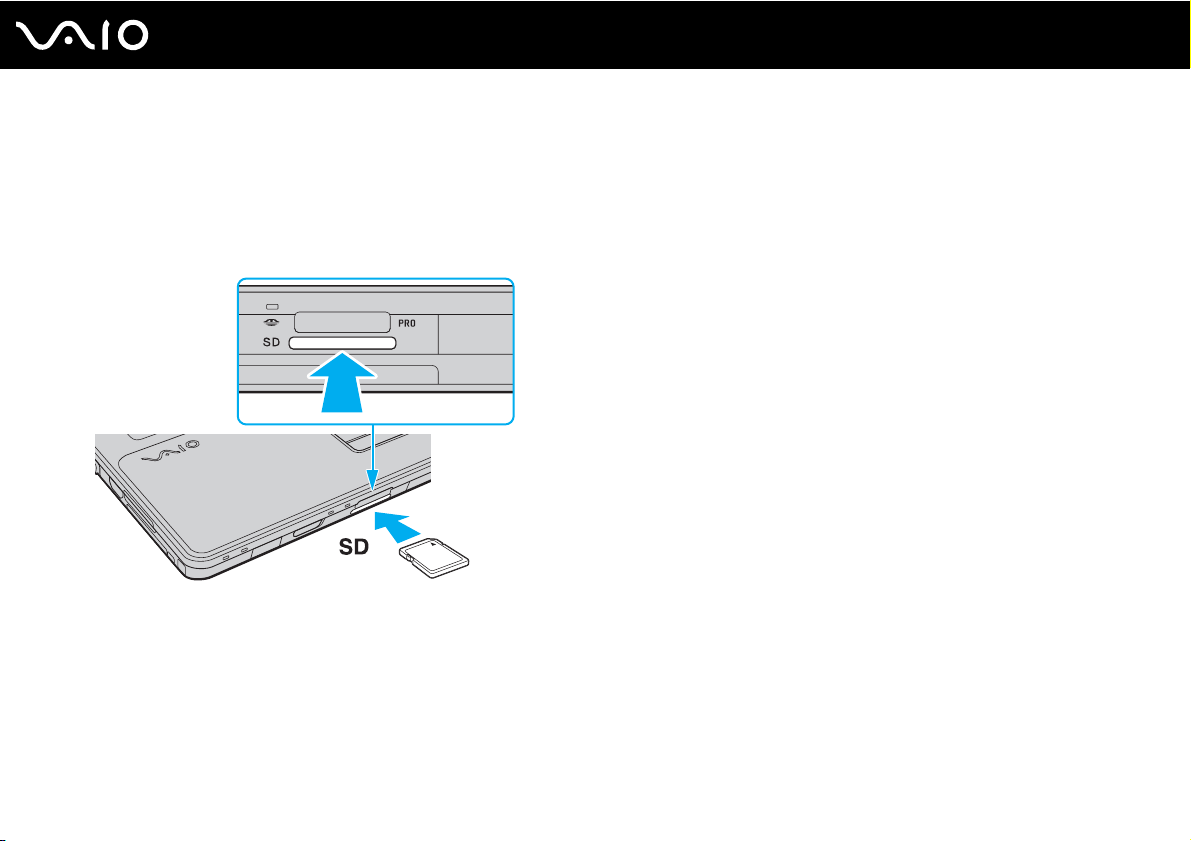

To insert an SD memory card

1 Locate the SD memory card slot. 2 Hold the SD memory card with the arrow facing upward and pointing toward the slot.

Using Your VAIO Computer

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Page 75

Removing an SD Memory Card

Do not remove an SD memory card while the Media Access indicator light is lit. If you do, the card or its data may become damaged.

To remove an SD memory card

1 Check that the Media Access indicator light is unlit. 2 Push in the SD memory card toward the computer and release.

The SD memory card ejects. 3 Pull the SD memory card out of the slot.

Using Your VAIO Computer

Page 76

Using Your VAIO Computer

Using the CF Memory Card

Your computer may be equipped with a CF (CompactFlash) memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

See the online specifications to find out whether your model is equipped with the CF (CompactFlash) memory card slot.

Your computer has been tested and found compatible only with major CF memory cards available as of May 2008. However, not all CF memory cards

that meet the same specifications as the compatible media are guaranteed of compatibility.

Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.

CF memory cards with capacity of up to 16 GB have been tested and found compatible with your computer.

The CF (CompactFlash) memory card slot on your computer does not support any wireless communication cards.

Page 77

Using Your VAIO Computer

Inserting a CF Memory Card

Your computer is supplied with a slot protector in the CF (CompactFlash) memory card slot. Remove the slot protector before you use the CF

(CompactFlash) memory card slot.

Use care when inserting or removing the CF memory card from the slot. Do not force it in or out of the slot.

To insert a CF memory card

1 Locate the CF (CompactFlash) memory card slot. 2 Push the CF memory card release button so that the release button pops out. 3 Push the CF memory card release button a second time so that the slot protector pops out. 4 Gently take hold of the slot protector and pull it out of the slot. 5 Hold the CF memory card with the arrow facing upward and pointing toward the slot. 6 Carefully slide the CF memory card into the slot until it clicks into place.

Do not force the card into the slot.

Page 78

Using Your VAIO Computer

Insert the CF (CompactFlash) memory card slot protector to block any particles from entering the slot when not using an CF memory card. Before

moving your computer, be sure to insert the CF (CompactFlash) memory card slot protector into the slot.

✍

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Page 79

Using Your VAIO Computer

Removing a CF Memory Card

Follow the steps below to remove the CF memory card while your computer is on. If it is not removed properly, your system may not work properly.

Do not remove the CF memory card while the CF memory card indicator light is lit. If you do, you may lose data. Large volumes of data may take time

to load, so make sure the indicator is unlit before removing the CF memory card.

To remove a CF memory card

1 Check that the CF memory card indicator light is unlit. 2 Push the CF memory card release button so that the release button pops out. 3 Push the CF memory card release button a second time so that the CF memory card pops out. 4 Gently take hold of the CF memory card and pull it out of the slot. 5 If the CF memory card release button is still out, push it back in all the way to the end.

Page 80

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not supplied) and have an account with an Internet Service Provider (ISP).

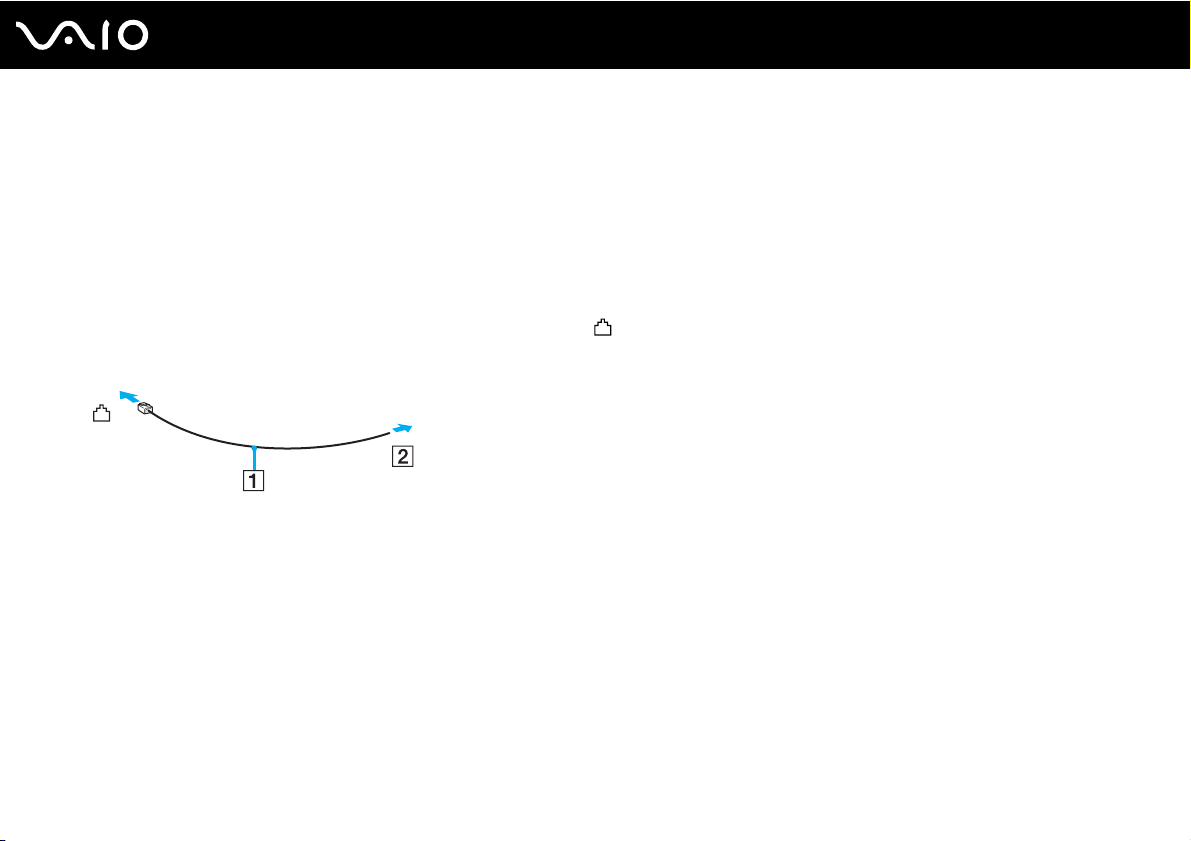

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer. 2 Plug the other end into the wall jack (2).

✍

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a

private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

1 Click Start and Control Panel. 2 Click Connect to the Internet under Network and Internet.

The Connect to the Internet window appears. 3 Click Dial-up. 4 Follow the on-screen instructions.

Page 81

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN function communicate freely with each other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio) connection. This eliminates the need to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.

You can communicate without an access point, which means that you can communicate with a limited number of computers (ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.

To use the wireless LAN function

You need to set up the wireless LAN network with the SmartWi Connection Utility. See the SmartWi Connection Utility Help for more information.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility. 2 Click SmartWi Connection Utility Help.

Be sure to turn on the WIRELESS switch before starting the SmartWi Connection Utility.

You cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks.

The IEEE 802.11n draft standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.

Page 82

Using Your VAIO Computer

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the

WLAN function, read the Safety Information carefully.

WLAN uses the IEEE 802.11a

encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access

(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security

enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward

compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user

authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and

access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,

virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and

is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-

mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of

Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible

with WPA.

* See the online specifications to find out whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.

The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed

communications, faster than the IEEE 802.11b standard.

The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz bandwidth.

/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the

The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth.

Wireless LAN devices using the 2.4 GHz bandwidth cannot communicate with devices using the 5 GHz bandwidth because the frequencies are different.

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference

from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication

speed, narrower communication range, or broken wireless connections.

Page 83

Using Your VAIO Computer

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device

configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the

radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Actual communication speed may not be as fast as the one displayed on your computer.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase

the communication speed.

Page 84

Using Your VAIO Computer

Using the Bluetooth Function

You can establish wireless communication between your computer and other Bluetooth devices such as another computer or a mobile phone. You can transfer data between these devices without cables at a range of up to 33 feet (10 meters) in an open area.

To use the Bluetooth function

You need to set up the Bluetooth function with the SmartWi Connection Utility. See the SmartWi Connection Utility Help for more information.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility. 2 Click SmartWi Connection Utility Help.

Be sure to turn on the WIRELESS switch before starting the SmartWi Connection Utility.

Page 85

Using Your VAIO Computer

Notes on using the Bluetooth function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged ❑ Note that large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard

and electromagnetic interference in the environment. ❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may

not be possible in all situations. ❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.

Page 86

Using Your VAIO Computer

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous

use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in

reduced communication speeds and distances than the standard values. ❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer. ❑ Connecting multiple Bluetooth devices to your computer may cause bandwidth congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and is not a malfunction.

Page 87

Using Your VAIO Computer

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Page 88

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the Bluetooth function, search for Bluetooth information using Windows Help and Support. To open Windows Help and Support, click Start and Help and Support.

Page 89

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting External Speakers (page 90)

❑ Connecting an External Display (page 92)

❑ Selecting Display Modes (page 97)

❑ Using the Multiple Monitors Function (page 98)

❑ Connecting an External Microphone (page 100)

❑ Connecting a Universal Serial Bus (USB) Device (page 101)

❑ Connecting a Printer (page 104)

❑ Connecting an i.LINK Device (page 105)

❑ Connecting to a Network (LAN) (page 107)

Using Peripheral Devices

Page 90

Using Peripheral Devices

Connecting External Speakers

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer. Since your computer is capable of outputting both analog and digital signals through the headphones/OPTICAL OUT jack,

you can alternately connect an S/PDIF device such as digital headphones or an AV amplifier to the jack and enhance the sound quality of your computer. For more information, see the manual that came with your S/PDIF device.

To hear sound from the S/PDIF device connected to the headphones/OPTICAL OUT jack, you need to change the sound output device. For the detailed

instructions, see How do I change the sound output device? (page 197).

To connect external speakers

1 Plug the speaker cable (1) (not supplied) into the headphones/OPTICAL OUT jack (2) i. 2 Plug the other end of the speaker cable to the external speaker (3). 3 Turn down the volume of the speakers before you turn them on.

Page 91

✍

Make sure your speakers are designed for computer use.

Do not place floppy disks on the speakers. Their magnetic field may damage the data on the disks.

Using Peripheral Devices

Page 92

Using Peripheral Devices

Connecting an External Display

You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer display or a projector.

✍

Connect the power cord of your external display after connecting all other cables.

Page 93

Using Peripheral Devices

Connecting a Computer Display

You can connect a computer display (monitor) to your computer.

To connect a computer display

The monitor port on your computer is disabled when an external display is connected to the HDMI port.

1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet. 2 If you want to connect an analog monitor, plug the display cable (2) (not supplied) into the monitor port (3) a on the

computer. 3 If you want to connect a TFT/DVI monitor, use an HDMI cable (supplied with selected models only) and an HDMI to DVI-

D adapter (not supplied) to connect the TFT/DVI monitor to the HDMI port on your computer.

Your computer is compliant with the HDCP standard and capable of encrypting the transmission channel of digital video signals for the purpose of

copyright protection, which enables you to play and view a wide variety of copyright protected, high-quality contents. Note that you need to connect an

HDCP-compliant monitor to your computer to view the copyright protected contents. If your computer has a non-compliant monitor connected, you

will not be able to play or view any copyright protected contents.

✍

DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI port that supports only digital video signals (no analog video signals). It has 24 pins.

A DVI-I (Digital Visual Interface - Integrated) port supports digital video and analog video signals. It has 29 pins.

Page 94

Using Peripheral Devices

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer.

To connect a multimedia computer display

1 Plug the power cord of your multimedia computer display (1) into an AC outlet. 2 Plug the display cable (2) (not supplied) into the monitor port (3) a on the computer. 3 Plug the speaker cable (4) (not supplied) into the headphones/OPTICAL OUT jack (5) i on the computer. 4 Plug the microphone cable (6) (not supplied) into the microphone jack (7) m on the computer.

Page 95

Using Peripheral Devices

Connecting a TV

You can connect a TV to your computer.

To connect a TV to your computer

To hear sound from the device connected to the HDMI port, you need to change the device for sound output. For the detailed instructions, see How do

I change the sound output device? (page 197).

The HDMI port on your computer is disabled when an external display is connected to the monitor port.

1 Plug the power cord of your TV into an AC outlet. 2 Plug one end of an HDMI cable (supplied with selected models only) to the HDMI port on the computer and the other end

to the TV.

3 Switch the input channel of the TV to external input. 4 Set up the TV configuration system.

If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device

driver provided by Sony for updates.

✍

See the manual that came with your TV for more information on installation and use.

You can connect the HDMI out to an AV amplifier and audio will be heard through the AV amplifier and then another HDMI cable can be connected from

the AV amplifier to the TV for the display.

The HDMI cable carries both video and audio signals.

Page 96

Using Peripheral Devices

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) to your computer.

To connect a projector

The monitor port on your computer is disabled when an external display is connected to the HDMI port.

1 Connect the power cord (1) of your projector into an AC outlet. 2 Plug a display cable (2) (not supplied) into the monitor port (3) a on the computer. 3 Plug an audio cable (4) (not supplied) into the headphones/OPTICAL OUT jack (5) i on the computer. 4 Plug the display cable and the audio cable into the jack and port on the projector (6).

Page 97

Using Peripheral Devices

Selecting Display Modes

You can select which display to use as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer.

If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 98) for more information.

To select a display

1 Click Start and Control Panel. 2 Click Additional Options. 3 Click NVIDIA Control Panel. 4 Select the display setup option under Display. 5 Follow the on-screen instructions to change the settings.

✍

You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the

type of your external display or projector.

Before turning on your computer, turn on the external display.

Page 98

Using Peripheral Devices

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display connected to the monitor port, your computer screen and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function. Otherwise, the computer

may not return to Normal mode.

If you set different colors on each display, do not expand a single window across two displays. Otherwise, your software may not work properly.

Set fewer colors or a lower resolution for each display.

Page 99

Using Peripheral Devices

To use the Multiple Monitors function

1 Click Start and Control Panel. 2 Click Adjust screen resolution under Appearance and Personalization. 3 Right-click the number 2 monitor and select Attached. 4 Click OK.

At the confirmation prompt, click Yes.

✍

You can also change one of the S button assignments to activate the Multiple Monitors function with the corresponding S button. To change the S

button assignments, press and hold either S button to display the window for changing the assignment. For details on the S buttons, see Using Special-

function Buttons (page 35).

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors function.

Page 100

100

Using Peripheral Devices

Connecting an External Microphone

If you need to use a sound input device (for example, to chat over the Internet), you need to plug in an external microphone (not supplied).

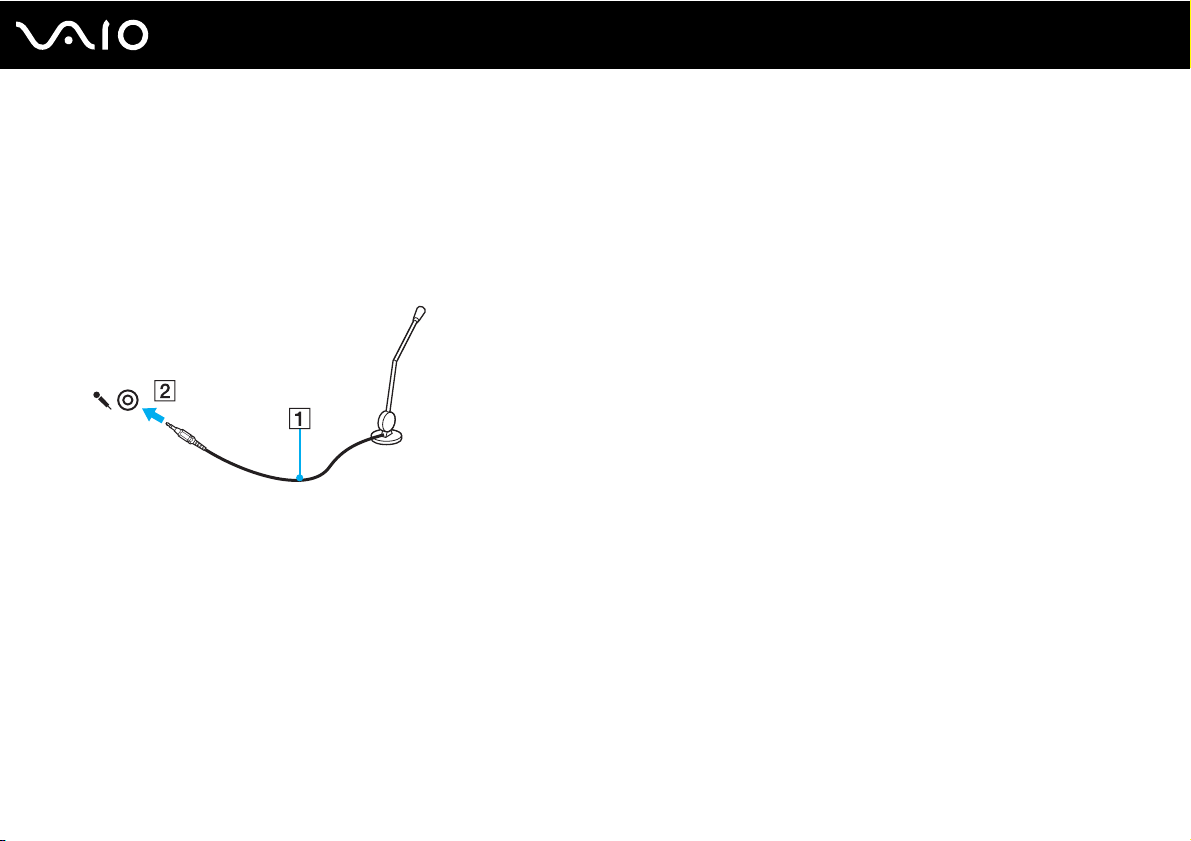

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

Sony VGN-AW110J, VGN-AW110J/H, VGN-AW110N, VGN-AW110N/H, VGN-AW120J User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Use

Documentation

Ergonomic Considerations

Getting Started

Locating Controls and Ports

About the Indicator Lights

Connecting a Power Source

Using the Battery Pack

Shutting Down Your Computer Safely

Using Your VAIO Computer

Using the Keyboard

Using the Touch Pad

Using Special-function Buttons

Using the Built-in MOTION EYE Camera

Using the Optical Disc Drive

Using the TV Function

Using the ExpressCard Module

Using the Memory Stick

Using the SD Memory Card

Using the CF Memory Card

Using the Internet

Using Wireless LAN (WLAN)

Using the Bluetooth Function

Using Peripheral Devices

Connecting External Speakers

Connecting an External Display

Selecting Display Modes

Using the Multiple Monitors Function

Connecting an External Microphone
