Sony VGC-VA10G User Guide

User Guide

Personal Computer

VGC-VA10G Series

N

Contents

Before Use .........................................................................................................................................................................5

Documentation .............................................................................................................................................................5

Ergonomic Considerations...........................................................................................................................................7

Getting Started ...................................................................................................................................................................9

Locating Controls and Ports.......................................................................................................................................10

About the Indicator Lights ..........................................................................................................................................14

Connecting the Power Cord.......................................................................................................................................15

Shutting Down Your Computer Safely .......................................................................................................................17

Using Your VAIO Computer .............................................................................................................................................18

Using the Keyboard ...................................................................................................................................................19

Using the Mouse ........................................................................................................................................................25

Using the Optical Disc Drive ......................................................................................................................................30

Using the TV Function ...............................................................................................................................................37

Using PC Cards .........................................................................................................................................................52

Using the Memory Stick Media ..................................................................................................................................55

Using Other Memory Cards .......................................................................................................................................60

Using the Internet.......................................................................................................................................................63

Using Wireless LAN (WLAN) .....................................................................................................................................64

2

nN

3

nN

Using Peripheral Devices .................................................................................................................................................73

Connecting an External Microphone..........................................................................................................................74

Connecting a Universal Serial Bus (USB) Device......................................................................................................75

Connecting a Printer ..................................................................................................................................................77

Connecting an i.LINK Device .....................................................................................................................................78

Connecting to a Network (LAN) .................................................................................................................................80

Customizing Your VAIO Computer ..................................................................................................................................82

Setting the Password .................................................................................................................................................83

Setting Up Your Computer with VAIO Central ...........................................................................................................86

Using the Power Saving Modes.................................................................................................................................87

Upgrading Your VAIO Computer......................................................................................................................................90

Before Upgrading Your Computer .............................................................................................................................91

Adding and Removing Memory..................................................................................................................................92

Installing the Hard Disk Drive...................................................................................................................................102

Precautions ....................................................................................................................................................................113

On Handling the LCD Screen ..................................................................................................................................114

On Using the Power Source ....................................................................................................................................115

On Handling Your Computer....................................................................................................................................116

On Handling Floppy Disks .......................................................................................................................................118

On Handling Discs ...................................................................................................................................................119

On Using Headphones.............................................................................................................................................119

On Handling Memory Stick Media............................................................................................................................120

On Handling the Hard Disk ......................................................................................................................................121

4

nN

Troubleshooting .............................................................................................................................................................122

Computer .................................................................................................................................................................123

System Security .......................................................................................................................................................130

Internet.....................................................................................................................................................................132

Networking ...............................................................................................................................................................134

CDs and DVDs.........................................................................................................................................................137

Display .....................................................................................................................................................................141

Printing.....................................................................................................................................................................142

Microphone ..............................................................................................................................................................143

Mouse ......................................................................................................................................................................144

Speakers..................................................................................................................................................................145

Keyboard..................................................................................................................................................................146

Floppy Disks ............................................................................................................................................................147

PC Cards .................................................................................................................................................................148

Audio/Video..............................................................................................................................................................149

Memory Stick Media ................................................................................................................................................150

Peripherals ...............................................................................................................................................................151

Support Options .............................................................................................................................................................152

Sony Support Information ........................................................................................................................................152

Program Support Information...................................................................................................................................155

nN

Before Use

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing.

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of connections, setting up information, etc.
❑ Safety information — Contains safety guidelines and owner information.

5

6

nN

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Contains features of your computer. It also includes information about the software

programs included with your computer, as well as information on solving common problems.

❑ Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.

To view the online Specifications:

1 Connect to the Internet.
2 Go to the Sony online support Web site at http://www.sony.com/pcsupport

at http://www.sony.ca/support

for customers in Canada, or at http://www.sony.com/lapcsupport for customers in Latin

American countries or areas.

❑ VAIO Recovery Guide — Provides information about restoring individual software programs, software drivers, and drive

partition(s) or your entire hard disk drive to the original factory installed settings.
To access this online VAIO Recovery Guide:

1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click VAI O Recovery Guide.

❑ MCE guide — Provides information about using the Windows XP Media Center Edition operating system.

To access this online MCE guide:

1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAI O Documentation.
3 Click MCE guide.

for customers in USA,

Ergonomic Considerations

Whenever possible, you should attempt to take account of the following ergonomic considerations:

7

nN

Before Use

❑ Position of your computer – Place the display directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, pointing device, or external mouse. Let your upper
arms hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may
strain muscles or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

8

nN

Before Use

❑ Viewing angle of the display – Use the display's tilting feature to find the best position. You can reduce eye strain and

muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.

❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.

❑ Ventilation – Make sure you leave at least 10 inches (25 cm) of space behind and on each side of the main unit.

!

When you lift the computer, grasp the computer on both sides, holding the bottom edges firmly.

Getting Started

This section describes how to get started with using your VAIO computer.

❑ Locating Controls and Ports (page 10)
❑ About the Indicator Lights (page 14)
❑ Connecting the Power Cord (page 15)
❑ Shutting Down Your Computer Safely (page 17)

9

nN

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

!

The following illustrations may appear different from your model, depending on the country or area of your residency.

10

nN

Getting Started

Front

11

nN

Getting Started

A Power indicator (page 14)
B Drive indicator (page 14)
C MONITOR OFF indicator (page 14)
D MONITOR OFF button for turning off the display output and the

speaker volume.

E Brightness buttons for increasing (+) or decreasing (-) the screen

brightness.

F LAMP ON/OFF switch for turning on and off all the indicator lights

on the computer.

G SM/xD-Picture Card slot (page 60)
H CF (CompactFlash

®

) memory card slot (page 60)

I Stereo speakers
J Manual eject hole (page 137)
K Optical disc drive (page 30)
L Drive eject button (page 30)
M SD memory card slot (page 60)

N Memory Stick media slot

*

(page 55)

O Media Access indicator (page 14)

* Your computer supports Memory Stick Duo media and Memory Stick Pro

high speed and high capacity capabilities.

Right

A Power button
B Hi-Speed USB (USB 2.0) port
C i.LINK

®

(IEEE1394) S400 port (page 78)

D AC Input port (page 15)

* Supports high-/full-/low- speeds.

*

(page 75)

12

nN

Getting Started

Left

13

nN

Getting Started

A Composite Audio In jacks (page 42)
B Composite Video In jack for connecting a cable or satellite set-

top box (STB) without the S Video Out jack.

C S Video In jack (page 42)
D VHF/UHF port (page 37)
E PC Card slot (page 52)
F WIRELESS LAN indicator (page 64)
G WIRELESS LAN switch (page 64)
H CONNECT button (page 19), (page 25)
I Network (Ethernet) port (page 80)
J Modem port (page 63)
K S/PDIF Optical Out port for connecting digital equipment such

as an AV amplifier.

L Line In jack for connecting audio equipment.
M Microphone jack (page 74)
N Headphones jack

O Hi-Speed USB (USB 2.0) ports

* Support high-/full-/low- speeds.

*

(page 75)

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions

Power 1 Illuminates in green when the power of the computer is on, illuminates in orange when the computer is in

Standby mode, and turns off when the computer is in Hibernate mode or off.

Media Access Illuminates when data is read from or written to a memory card. (Do not enter Standby mode or turn

MONITOR OFF Illuminates in orange when the display output and the speaker volume are turned off.

Drive

WIRELESS LAN Illuminates when the wireless LAN function is running.

off the computer when this indicator is on.) When the indicator is off, the memory card is not being used.

Illuminates when data is read from or written to the hard disk or optical disc drive. Do not enter Standby mode
or turn off the computer when this indicator is on.

14

nN

Getting Started

nN

Getting Started

Connecting the Power Cord

Your computer's power cord must be plugged into an AC power source, such as an AC wall outlet, surge protector, or
Uninterruptible Power Supply (UPS), before you can establish communication with your wireless keyboard and wireless
mouse.

!

Use only the power cord supplied with the computer.

To connect the power cord

1 Insert the power cord into the AC In port (1) on the right of the computer.
2 Insert the power cord plug into a grounded AC wall outlet, surge protector, or Universal Power Supply (UPS) (2).

15

Getting Started

✍

To disconnect the computer completely from AC power, unplug the power cord.

Make sure that the AC outlet is easily accessible.

If you are interrupted and need to leave your computer suddenly, place the computer into Hibernate mode. See Using Hibernate Mode (page 89). This
power saving mode saves the time of shutting down or resuming.

16

nN

17

nN

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.
2 Click Start and then Turn Off Computer.

The Turn off computer window appears.
3 Click Turn Off.
4 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically.

The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your computer.

❑ Using the Keyboard (page 19)
❑ Using the Mouse (page 25)
❑ Using the Optical Disc Drive (page 30)
❑ Using the TV Function (page 37)
❑ Using PC Cards (page 52)
❑ Using the Memory Stick Media (page 55)

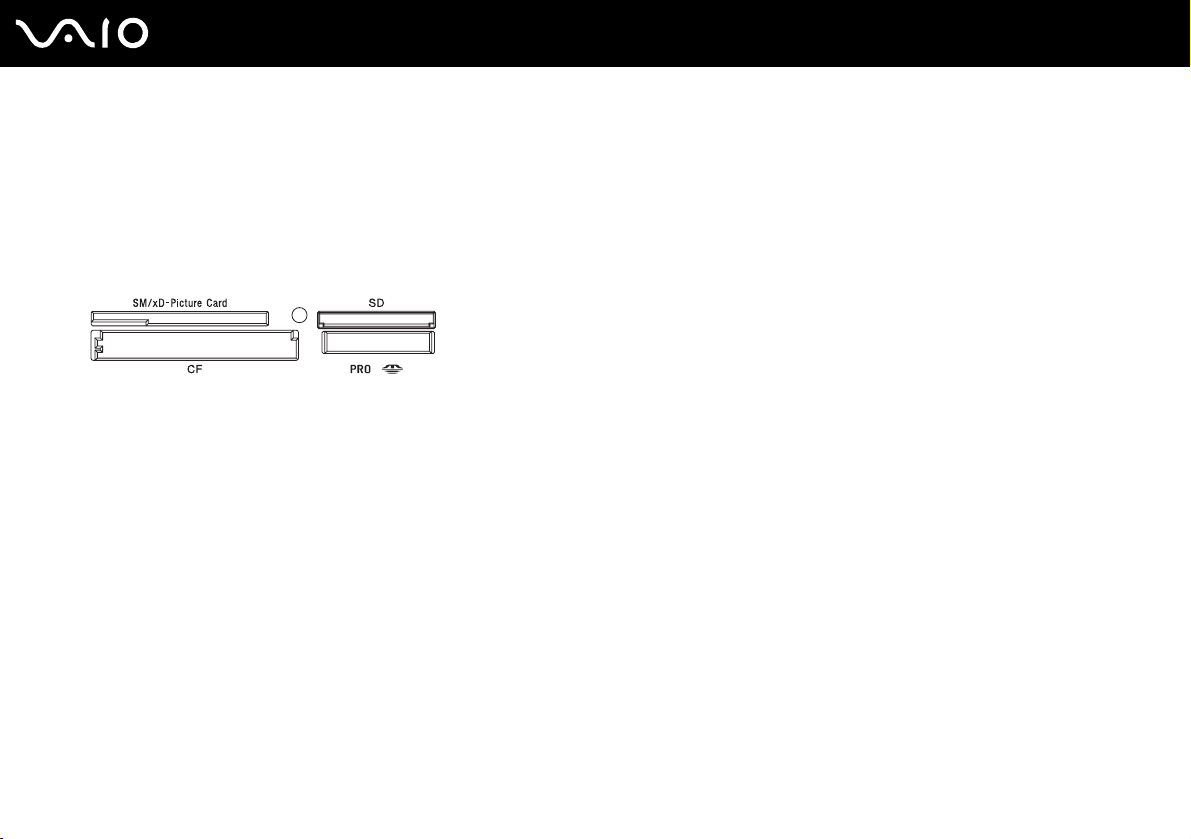

❑ Using Other Memory Cards (page 60)
❑ Using the Internet (page 63)
❑ Using Wireless LAN (WLAN) (page 64)

18

nN

Using Your VAIO Computer

Using Your VAIO Computer

Using the Keyboard

Your computer is supplied with a wireless keyboard.
The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions.

19

nN

✍

The above illustration shows the keyboard delivered with the models that are available
in USA and Canada. The keyboard for the models available in Latin American countries
and areas appears different from the above.

A Function keys

Perform certain tasks. The task associated with each function key

varies among software applications.

B Mute button

Turns the volume on and off.

C Volume control buttons

Increases (+) or decreases (-) the volume.

D Shortcut buttons

Launch the pre-assigned software.

Using Your VAIO Computer

E Standby button

Provides for the lowest level of power consumption.
For details on power management, see Using the Power
Saving Modes (page 87).

F POWER switch

Slide the POWER switch to turn on and off the wireless
keyboard.

G Indicators

(Battery): appears while the AA batteries for the

keyboard are sufficient and switches to when the
batteries wear out.

(Num lock): Appears while in the Num Lock state.

(Caps lock): Appears while in the Caps Lock state.
(Scroll lock): Appears while in the Scroll Lock state.

(Connect): Appears while connection between the computer
and the keyboard is in place to indicate that the keyboard is
ready for use (page 23).

H Windows key

Displays the Start menu.

I Applications key

Displays a shortcut menu in certain software applications.

J Direction arrows

Move the pointer on the computer screen.

K Numeric keypad

Use the numeric keypad to type numbers or to perform basic
math calculations.

20

nN

Using Your VAIO Computer

Keyboard feet

A

Extend to adjust the keyboard height.

B CONNECT button

Press to enable the keyboard to communicate with the main
unit.

C Battery compartment

Storage compartment for the AA batteries.

21

nN

22

nN

Using Your VAIO Computer

Before You Use the Keyboard

Two AA alkaline batteries are supplied with your computer for use in the wireless keyboard. Before attempting to use the
wireless keyboard, you must install the batteries and establish communication between the computer and the keyboard. To
connect your wireless keyboard, it must be located within a range of 11 inches from the computer.

!

To maintain good communication, operate the wireless keyboard within the distance limitation of keyboard: approximately 32 feet (approximately 10
m) from the computer.

Confirm that the supplied AA batteries are properly installed.

Press the CONNECT button located on the left of the computer first, and then press the CONNECT button on the bottom of the keyboard.

Avoid using radio-controlled toys or equipment, CB radios, and other wireless devices in the area near the wireless keyboard. These devices may cause
interference, causing the keyboard to stop working properly.

Do not place metal furniture near the computer or wireless keyboard, as this may create interference, causing the keyboard to stop working properly.

Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard. Always use the same type and manufacture of battery.

Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the keyboard.

Using Your VAIO Computer

To connect the wireless keyboard

1 Insert the supplied two AA batteries (1) into the battery compartment on the bottom of the wireless keyboard.
2 Turn on the computer.
3 Slide the POWER switch (2) at the top of the keyboard to turn on the keyboard.
4 Press the CONNECT button (3) on the left of the computer.
5 Press the CONNECT button (4) on the bottom of the keyboard.

The connect indicator appears in the LCD window on the keyboard when connection is established between the
computer and the keyboard. If not, repeat the procedure.

!

Steps 4 and 5 must be completed within 10 seconds of each other.

If the wireless keyboard is left unused for 20 minutes or more, the connect indicator will turn off. This could indicate that the connection between
the computer and the keyboard is lost. Press the Fn key to check that the connect indicator turns on before using the keyboard.

23

nN

24

nN

Using Your VAIO Computer

✍

You can check the battery indicator ( or ) in the LCD window on the keyboard for its battery power level.

If the wireless keyboard does not operate properly, the batteries may need to be replaced. If the wireless keyboard is not being used for an extended
period of time, remove the batteries to avoid possible damage from battery leakage.

If you want to put the keyboard in a more 'ergonomical' position, open the keyboard feet.

25

nN

Using Your VAIO Computer

Using the Mouse

Your computer may be supplied with a wireless optical mouse, which has no cables to plug in and uses a light-emitting diode
(LED) instead of a ball.

A Left button

Click or double-click the left button to select items. To drag and
drop items, hold the left button down while sliding the mouse,
then release the button to drop the item.

B Central wheel

Rotate the central wheel to scroll up or down a page. Press the
wheel once to lock the scroll action and control the movement
by moving the entire mouse (the scroll function is available only
with applications that support it).

C Right button

Press the right button once to display a context-sensitive
shortcut menu (not always an active function).

D Power switch

Slide the switch to turn the mouse on and off. This will help you
save battery power.

E CONNECT button

Press to enable communication between the computer and the
wireless mouse.

F Battery indicator

Blinks when the mouse batteries are running out of power.

26

nN

Using Your VAIO Computer

Before You Use the Mouse

Two AA alkaline batteries are supplied with your computer for use in the wireless mouse. Before using the wireless mouse,
you must install the batteries and establish communication between your computer and the mouse. To connect the wireless
mouse, it must be located within a range of 11 inches from the computer.

!

To maintain good communication, operate the wireless mouse within the distance limitations of the mouse: approximately 32 feet (10 m) from the
computer.

Confirm that the supplied AA batteries are properly installed.

Press the CONNECT button located on the left of the computer first, and then press the CONNECT button on the bottom of the mouse.

Avoid using radio-controlled toys or equipment, CB radios, and other wireless devices in the area near the wireless mouse. These devices may cause
interference, causing the mouse to stop working properly.

Use surfaces such as plain paper, card stock, or fabric that have minimal repetitive patterns.

Avoid surfaces such as mirrors, smooth glass, or magazines that have half- tone printing.

Do not place metal furniture near the computer or wireless mouse, as this may create interference, causing the mouse to stop working properly.

Do not mix old (used) and new batteries when replacing batteries in the wireless mouse. Always use the same type and manufacture of battery.

Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the mouse.

To connect the wireless mouse

1 Insert the supplied two AA batteries into the wireless mouse as shown below.

2 Turn on the computer.
3 Press the CONNECT button (1) on the left of the computer.

27

nN

Using Your VAIO Computer

Using Your VAIO Computer

4 Turn over the wireless mouse, slide the power switch to the ON position, and press the CONNECT button.

Communication between the wireless mouse and the computer should now be established.

!

Step 3 and 4 must be completed within 10 seconds of each other.

✍

If the wireless mouse does not operate properly, the batteries may need to be replaced. If the wireless mouse is not being used for an extended period
of time, remove the batteries to avoid possible damage from battery leakage.

28

nN

Adjusting the Mouse Functions

1 Click Start and then Control Panel.
2 Click Printers and Other Hardware.
3 Click Mouse.

The Mouse Properties window appears.

4 Change the settings.

29

nN

Using Your VAIO Computer

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

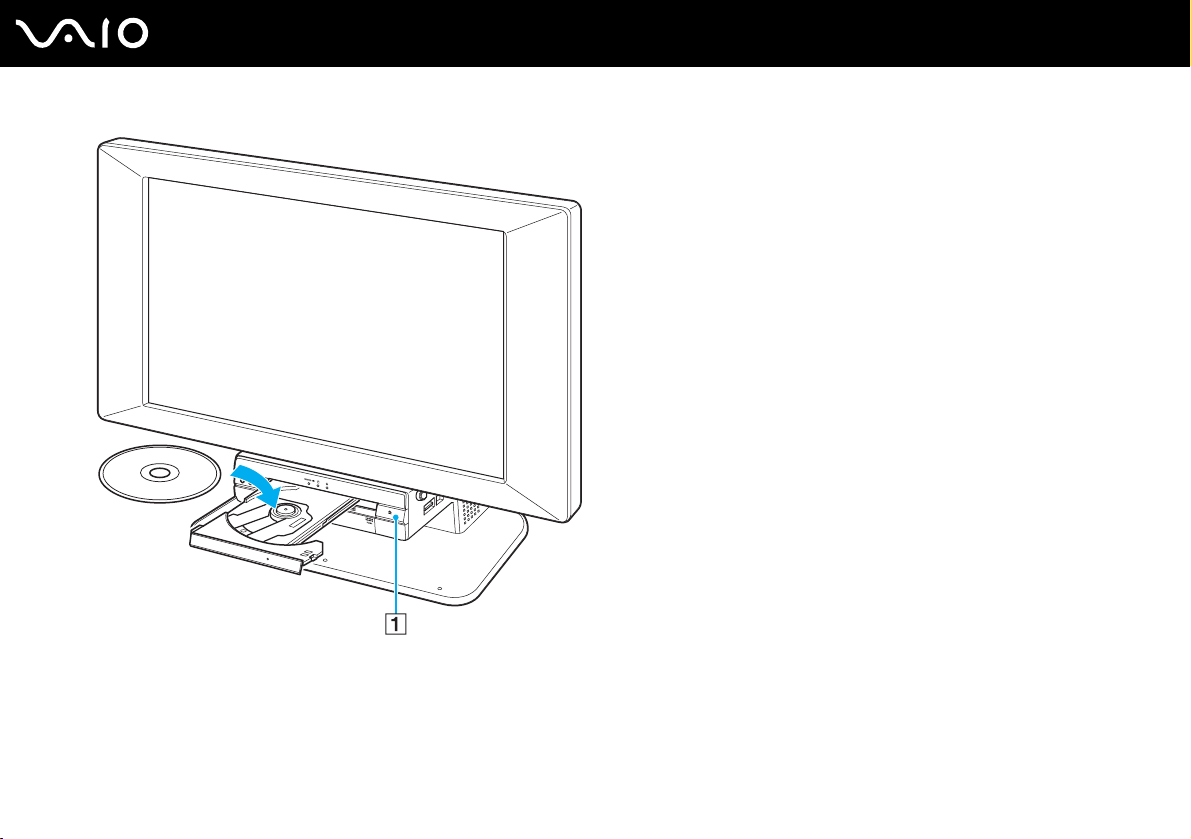

To insert a disc

1 Turn on the computer.
2 Press the drive eject button (1) to open the drive.

The tray slides out.

3 Place a disc in the middle of the tray with the label side facing up and gently push until the disc clicks into place.

30

nN

31

nN

Using Your VAIO Computer

4 Close the tray by pushing it in gently.

!

Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction.

32

nN

Using Your VAIO Computer

Reading and Writing CDs and DVDs

Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the
type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive
supports.

Optical disc drive Plays Records to

CD-ROM CD, CD-R, and CD-RW —

DVD-ROM CD, CD-R, CD-RW, DVD and most DVD-R, DVD-RW,

DVD+R, DVD+RW and DVD+R DL (Double Layer)

CD-RW/DVD-ROM CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD+R, DVD+R DL (Double Layer)

DVD±RW CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD+R, DVD+R DL (Double Layer)

* On selected models only.

*

and DVD+RW

*

and DVD+RW

!

This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side
(non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

—

*

CD-R and CD-RW

CD-R, CD-RW, DVD-R, DVD-RW, DVD+R,
DVD+R DL (Double Layer)* and DVD+RW

!

Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices
on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee
the compatibility of VAIO CD drives with discs that not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives).
USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

33

nN

Using Your VAIO Computer

✍

Supports writing to DVD-RW discs compliant with DVD-RW version 1.1/1.2.

Supports writing to DVD-R discs compliant with DVD-R for General version 2.0/2.1.

Supports 8cm disc reading, but does not support 8cm disc writing.

Writing to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Notes on writing data onto a disc

❑ To make the data on a disc readable on an optical disc drive, you need to close the session when you eject it. To complete

this process, follow the instructions included with your software.

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake the computer while writing data onto a disc.
❑ Deactivate the screen saver and exit anti-virus software before writing data onto a disc.
❑ Do not use memory-resident utility software while writing data to a disc. This may cause the computer to malfunction.
❑ When using your software application to burn discs, make sure you exit and close all other applications.
❑ Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors.
❑ Do not switch power modes while using the pre-installed software and while using the CD burning software.
❑ Never put stickers on discs. This will affect the use of the disc irreparably.

34

nN

Using Your VAIO Computer

Notes on playing DVDs

To achieve optimum performance when playing DVDs, you should follow these recommendations.

❑ Close all open applications before playing a DVD movie.
❑ Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer

to malfunction.

❑ Deactivate the screen saver and exit anti-virus software before playing a disc.
❑ Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may

damage your hearing and the speakers. Reduce the volume before playing a DVD.

❑ Do not switch power saving modes while the computer is playing a DVD.
❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the

disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code of
your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on this player.

Playing CDs

To play an audio CD

1 Insert the disc into the optical disc drive.
2 If nothing appears on the desktop once you insert an audio CD disc, then click Start, point to All Programs, and click to

open a CD program, such as the SonicStage software.
If the Audio CD window appears, click to select an option.

nN

Using Your VAIO Computer

Copying Files to CDs

To determine which type of CD your computer supports, see Reading and Writing CDs and DVDs (page 32).

To copy files to a CD-RW or CD-R

!

Do not strike or shake the computer while writing data onto a disc.

1 Insert a blank CD-R or CD-RW disc into the optical disc drive.

If the CD Drive window appears, click Take no action.

2 Open Windows Explorer by pressing the Windows key and the E key simultaneously.
3 In the Folders panel on the left, locate the file(s) or folder(s) you want to copy and either:

❑ Right-click the file(s) or folder(s), point to Send To, and click the optical disc drive
❑ Drag the file(s) or folder(s) onto the optical disc drive icon in the Files Stored on This Computer panel.

4 Close Windows Explorer.
5 Click Start and then My Computer.
6 Click the optical disc drive icon under Devices with Removable Storage. A new window appears with the file(s) or

folder(s) you want to copy listed under Files Ready to Be Written to the CD.
7 In the CD Writing Tasks box, click Write these files to CD.
8 Follow the instructions in the CD Writing Wizard.

* The read/write drive letter designation may vary, depending on your system's hardware configuration.

*

name.

35

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all open programs.
2 Insert the DVD into the optical disc drive.
3 Click Start and point to All Programs.
4 Select a DVD software program to play the DVD.

For instructions on how to use a program, see the help guide included with the DVD software program.

Copying Files to DVDs

To copy files to a DVD-R or DVD-RW

1 Insert the disc into the optical disc drive.
2 Click Start and point to All Programs.
3 Select a DVD software program you want to use from the submenu.

For instructions on how to use a program, see the help guide included with the DVD software program.

36

nN

37

nN

Using Your VAIO Computer

Using the TV Function

Your computer has a TV tuner board installed along with the Microsoft Windows XP Media Center Edition operating
system to enhance your computing experience.

Media Center provides you with a wide range of TV, DVD, and video viewing, as well as music recording and playback. This
section describes how to set up your TV, set-top box, and other equipment. See the online MCE guide for more information
on Media Center features.

To access the online MCE guide

1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click MCE guide.

38

nN

Using Your VAIO Computer

Setting Up TV Connections

!

The following connections may not be available depending on the country or area of your residency.

The best method of connecting your computer system, TV monitor or display, and cable service access, depends on the type
of cable connection available in your home.

TV signal reception strength will vary widely depending on service availability in your area as well as the type of connection
available.

✍

The computer is supplied with certain audio and video cables. Depending on your in-home cable access, you may need extra cables, adapters or

connection equipment.

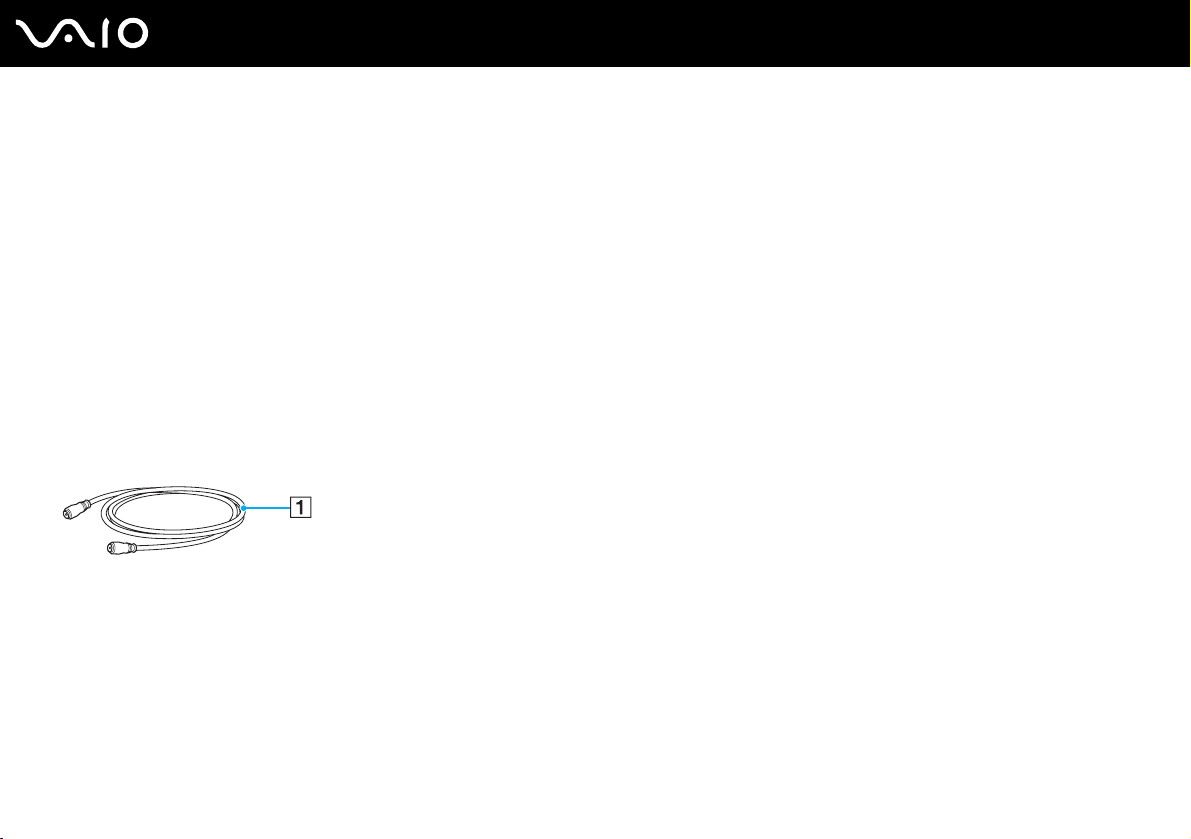

One primary cable to connect the computer to a TV cable or antenna is the TV coaxial cable (supplied with the computer).
One end connects to the computer's VHF/UHF port, and the other end connects to the cable service access or antenna.

A TV coaxial cable

39

nN

Using Your VAIO Computer

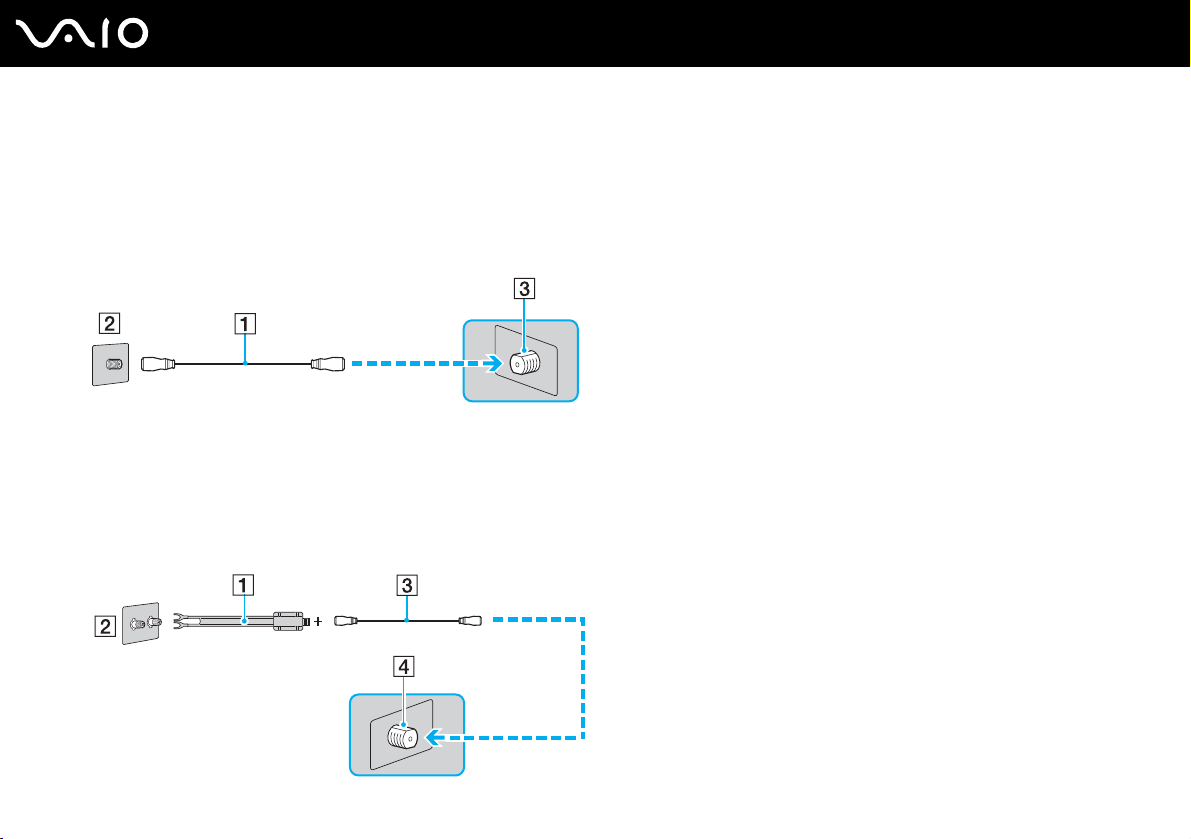

Connecting to standard cable access (CATV)

To connect in CATV mode (Option 1)

1 Connect one end of the TV coaxial cable (1) (supplied) to your cable service access (wall outlet) (2).
2 Connect the other end of the coaxial cable to the VHF/UHF port (3) on the computer.

To connect in CATV mode (Option 2)

1 Connect the two metal hooks on the 75-ohm/300-ohm RCA transformer cable (1) (not supplied) to your cable service

access (wall outlet) (2).
2 Connect the TV coaxial cable (3) (supplied) from the transformer end of the RCA transformer cable to the VHF/UHF port

(4) on the computer.

40

nN

Using Your VAIO Computer

Connecting to a standard antenna

You can connect your computer to an indoor/outdoor antenna system, using Option 1 or Option 2 from the previous section,
Connecting to standard cable access (CATV) (page 39). Depending on the type of antenna system in your home, your
connection may require a VHF/UHF RF combiner/transformer (not supplied) to connect the computer and the indoor/outdoor
antenna system.

✍

If you are connecting to an indoor/outdoor antenna, you may need to reorient the antenna for best reception. Move the antenna cable away from other

power sources or connectors to reduce reception interference.

The computer is supplied with certain audio and video cables. Depending on your in-home cable access, you may require extra cables, adapters or

connection equipment.

To connect in terrestrial mode (Option 1)

1 Connect one end of a TV coaxial cable (1) (not supplied) to your antenna outlet (2). Connect the other end to a VHF/UHF

RF combiner/transformer (3) (not supplied).

2 Connect the coaxial cable feed connector (4) (supplied) to the VHF/UHF RF combiner/transformer (3).
3 Connect the TV coaxial cable (5) (supplied) from the feed connector (4) to the VHF/UHF port (6) on the computer.

41

nN

Using Your VAIO Computer

To connect in terrestrial mode (Option 2)

1 Connect one end of the antenna's 300-ohm twin lead cable (1) to the screw-type grips at your antenna outlet (2). Connect

the other end to the grips on the VHF/UHF RF combiner/transformer (3).

2 Connect the coaxial cable feed connector (4) (supplied) to the VHF/UHF RF combiner/transformer (3).
3 Connect the TV coaxial cable (5) (supplied) from the feed connector (4) to the VHF/UHF port (6) on the computer.

42

nN

Using Your VAIO Computer

Connecting with a cable or satellite set-top box (STB)

You can connect your computer to cable service access that uses a set-top box (cable or satellite). When using the set-top
box (STB) setup, you can only change channels through the STB, using its controls or supplied remote commander.

When using the STB setup:
❑ A standard TV remote control cannot be used to change TV channels. You can use your TV remote control to set the TV

to the channel-out number (channel 3, 4, etc.) or direct video input specified by your cable or satellite service provider.
❑ You may be able to use a universal remote control or commander to change TV channels, if the device is able to control

the STB.

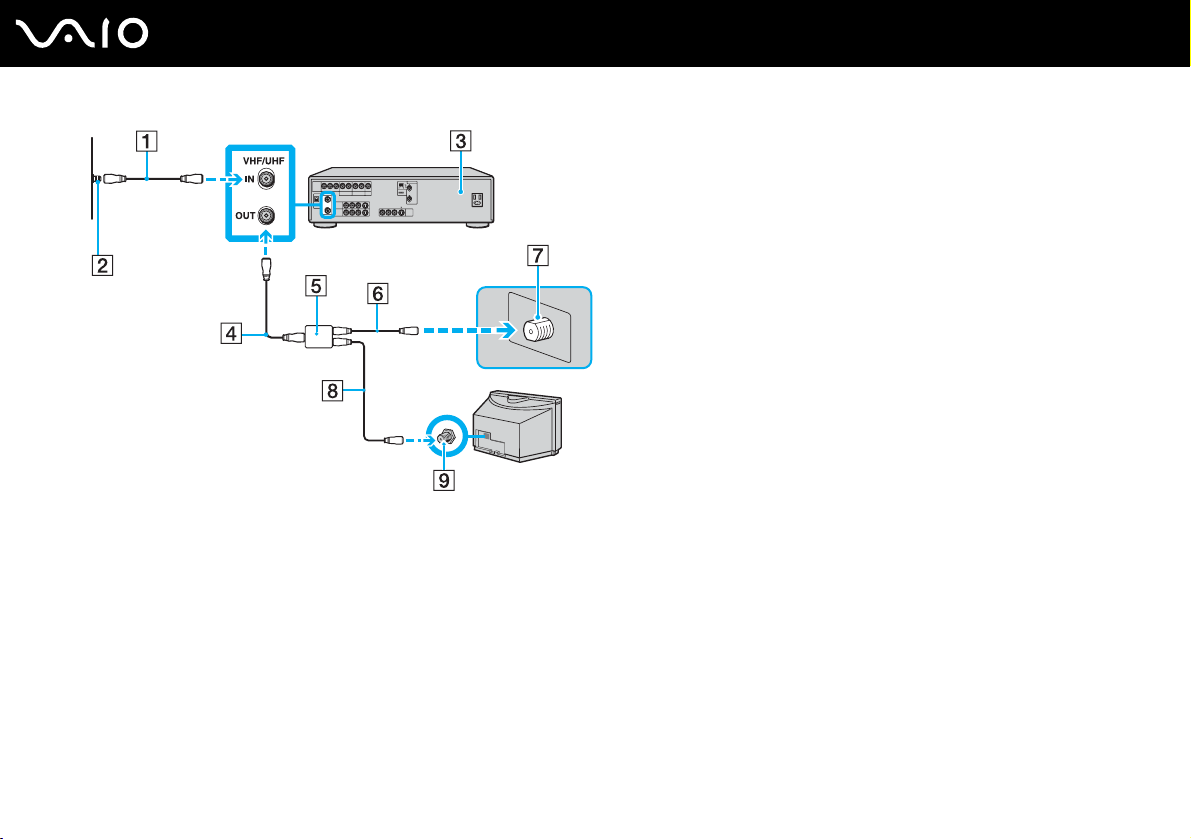

To connect in STB mode (Option 1)

1 Connect one end of a TV coaxial cable (1) (not supplied) to your cable service access (wall outlet) (2). Connect the other

end to the VHF/UHF IN jack on the back panel of your set-top box (STB) (3).
2 Connect a second TV coaxial cable (4) (not supplied) to the VHF/UHF OUT jack on your STB unit (3). Connect the other

end to the single-connection end of a splitter device (5) (not supplied).
3 Connect a third TV coaxial cable (6) (supplied) to the double-connection end of the splitter device (5). Connect the other

end to the VHF/UHF port (7) on the computer.
4 Connect a fourth TV coaxial cable (8) (not supplied) to the double-connection end of the splitter device (5). Connect the

other end to the VHF/UHF port (9) on the rear of your TV monitor or display.

43

nN

Using Your VAIO Computer

44

nN

Using Your VAIO Computer

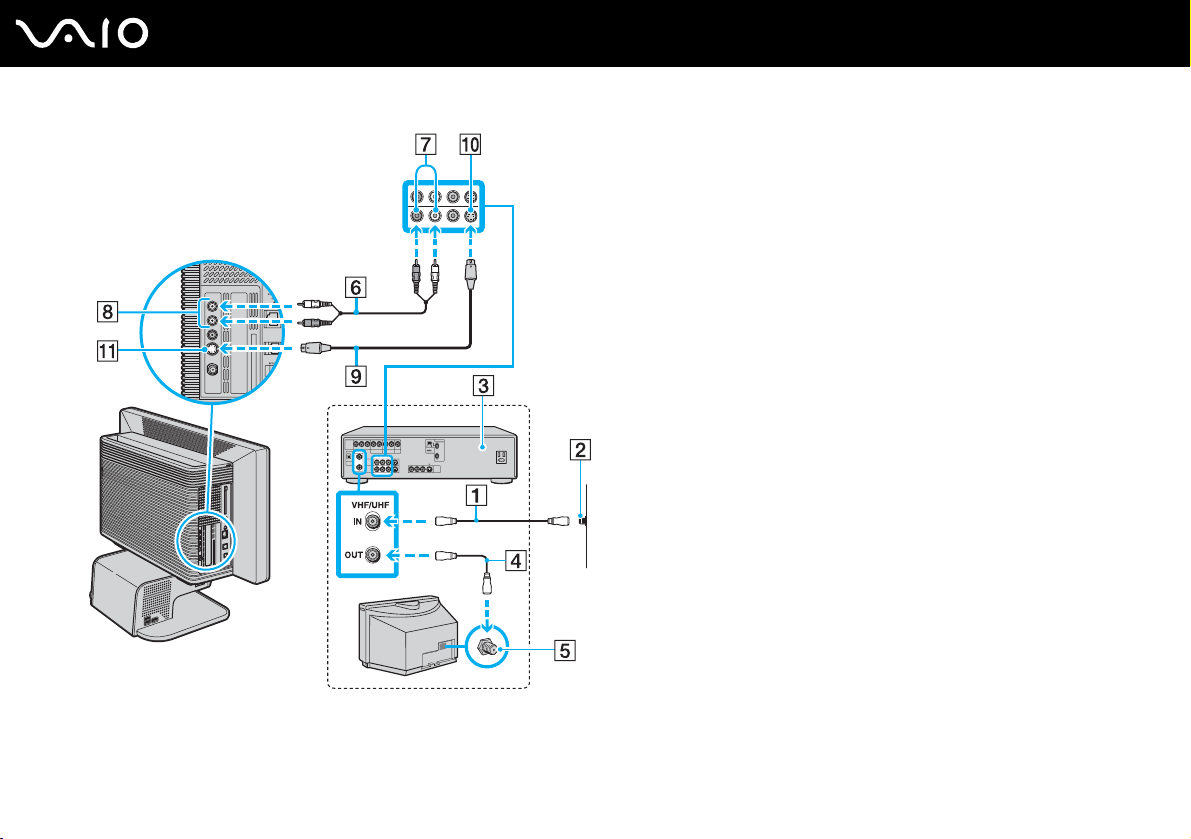

To connect in STB mode (Option 2)

1 Connect one end of the TV coaxial cable (1) (supplied) to your cable service access (wall outlet) (2). Connect the other

end to the VHF/UHF IN jack on the back panel of your set-top box (STB) (3).
2 Connect a second TV coaxial cable (4) (not supplied) to the VHF/UHF OUT jack on your STB unit (3). Connect the other

end to the VHF/UHF port (5) on the rear of your TV monitor or display.
3 Connect the double mini-plugs of the audio cable (6) (not supplied) to the Composite Audio Out (L/R) jacks (7) on the

back panel of your STB unit (3), matching the jack colors. Connect the other end of the audio cable (6) to the Composite

Audio In jack (8) on the computer.
4 Connect one end of the S Video cable (9) (not supplied) to the Composite Video Out jack (10) on the back panel of your

STB unit (3). Connect the other end of the same S Video cable to the S Video In jack (11) on the computer.

45

nN

Using Your VAIO Computer

nN

Using Your VAIO Computer

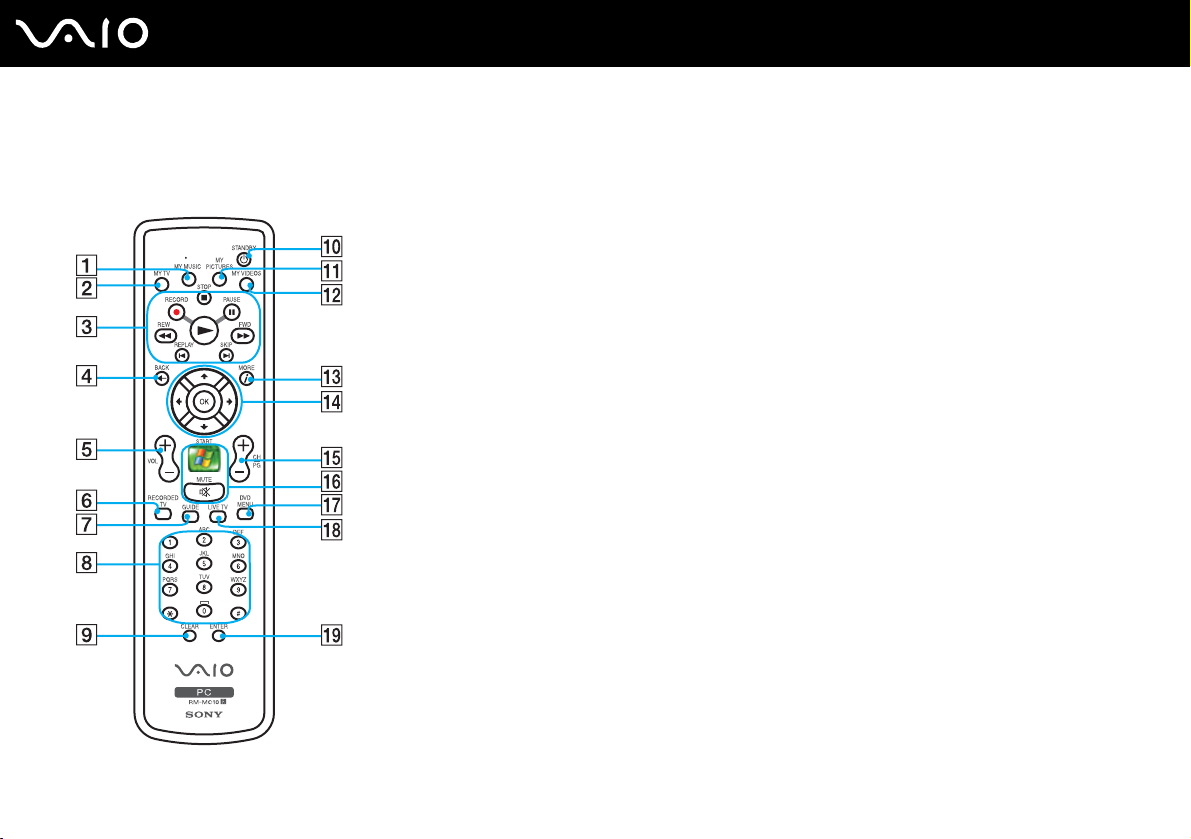

Using the Remote Commander

Your computer is supplied with a remote commander for using Media Center features, including TV channel selection.

A MY MUSIC button

Press to view and listen to your music playlists.

B MY TV button

Press to view the My TV menu.

C STOP button

Press to stop media playback or TV recording session.
PAU SE button
Press to pause media playback. Press again to resume
playback.
FWD button
Press to fast-forward media at three speeds.
SKIP button
Press to move media forward, for example, one audio track, one
DVD chapter, and 30 seconds of recorded TV or video.
REPLAY button
Press to move media backward, for example, one audio track,
one DVD chapter, and seven seconds of TV or video.
REW button
Press to move media backward at two speeds.
RECORD button
Press to begin recording.
PLAY N button
Press to begin media playback.

46

47

nN

Using Your VAIO Computer

BACK button

D

Press to return to the previous window.

E VOL button

Press to increase (+) or decrease (-) the volume.

F RECORDED TV button

Press to view previously recorded TV programs (In My TV

window).

G GUIDE button

Press to view the TV program guide for your area.

H Channel number buttons (0-9)

Press to select specific channels or enter text. (Press Enter or OK

to activate the channel selection.)

I CLEAR button

Use to backspace and delete entered text.

J STANDBY button

Press to place the computer in Standby mode to reduce power

consumption.

K MY PICTURES button

Press to view pictures or a slide show.

L MY VIDEOS button

Press to view videos from your video collection.

M MORE button

Press to view additional options that are available for Media

Center features.

N Directional arrow buttons

Press the M, m, <, and , buttons to move the pointer on the
screen.
OK button
Press OK to select the desired action or window option. When
watching full-screen TV, press OK to return to the previous
channel. Press OK again to switch between channels.

O CH/PG (Channel/Page) button

Press to change or page up/down channels (no number input
required).

P START button

Press to open the Media Center Start menu.
MUTE button
Press to turn off the sound. Press again to restore the sound.

Q DVD MENU button

Press to open the main menu on a DVD.

R LIVE TV button

Press to view TV programming.

S ENTER button

Press to activate feature or action, such as channel selection or
return to previous channel. (This button's actions are similar to
using the OK button.)

48

nN

Using Your VAIO Computer

Before you use the remote commander

Before using the remote commander, you need to insert the supplied AA manganese batteries and connect the remote sensor
to enable communication between the computer and the remote commander.

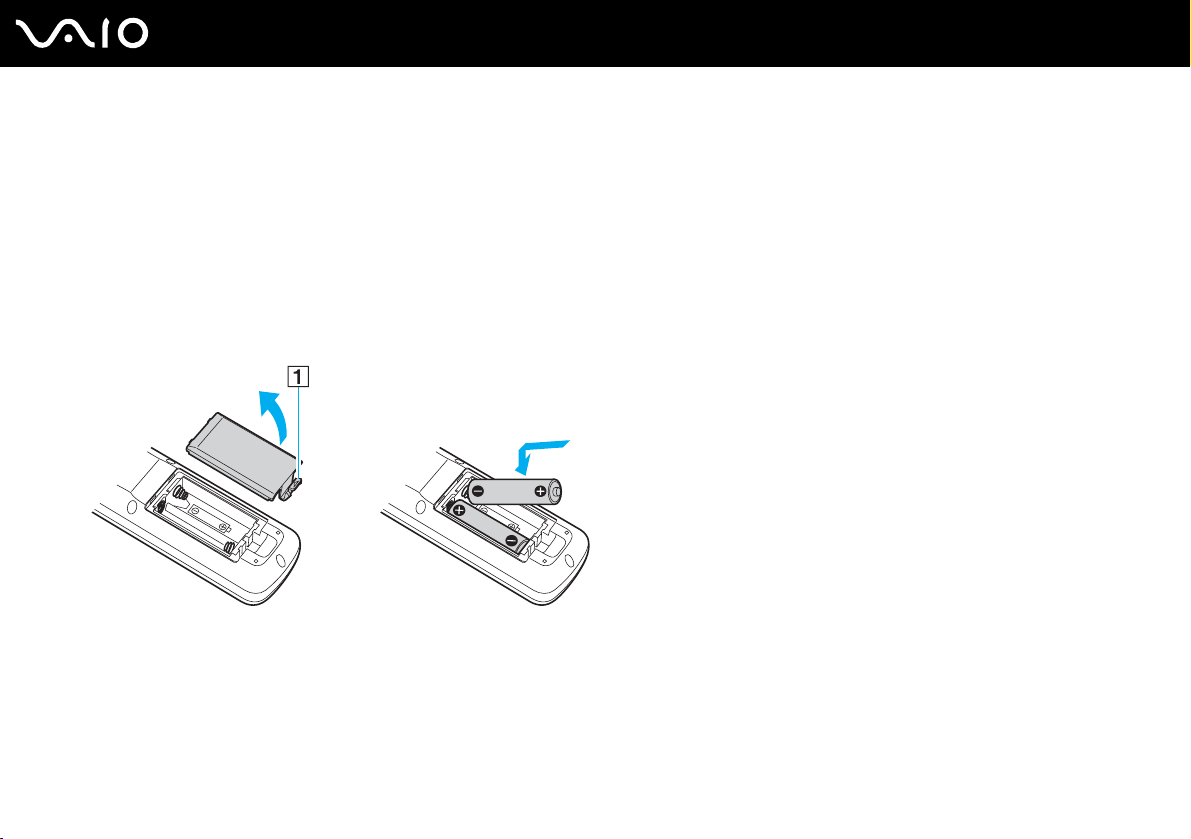

To insert batteries

1 Turn the remote commander over.
2 Press in the tab (1) and lift the battery cover up.
3 Insert the supplied two AA batteries into the remote commander.

4 Align the battery cover to the remote commander.
5 Press down until the cover clicks into place.

✍

If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander is not being used for extended

periods of time, remove the batteries to avoid possible damage from battery leakage.

49

nN

Using Your VAIO Computer

To connect the remote sensor

1 Choose the USB port (1) you prefer to use.
2 Plug the remote sensor cable (2) into the USB post.

3 Position the remote sensor (3) to enable unobstructed communication with the remote control.

If you are using a cable or satellite set-top box, you can attach the remote sensor control to the remote sensor, which enables
you to control the set-top box with the remote commander.

Using Your VAIO Computer

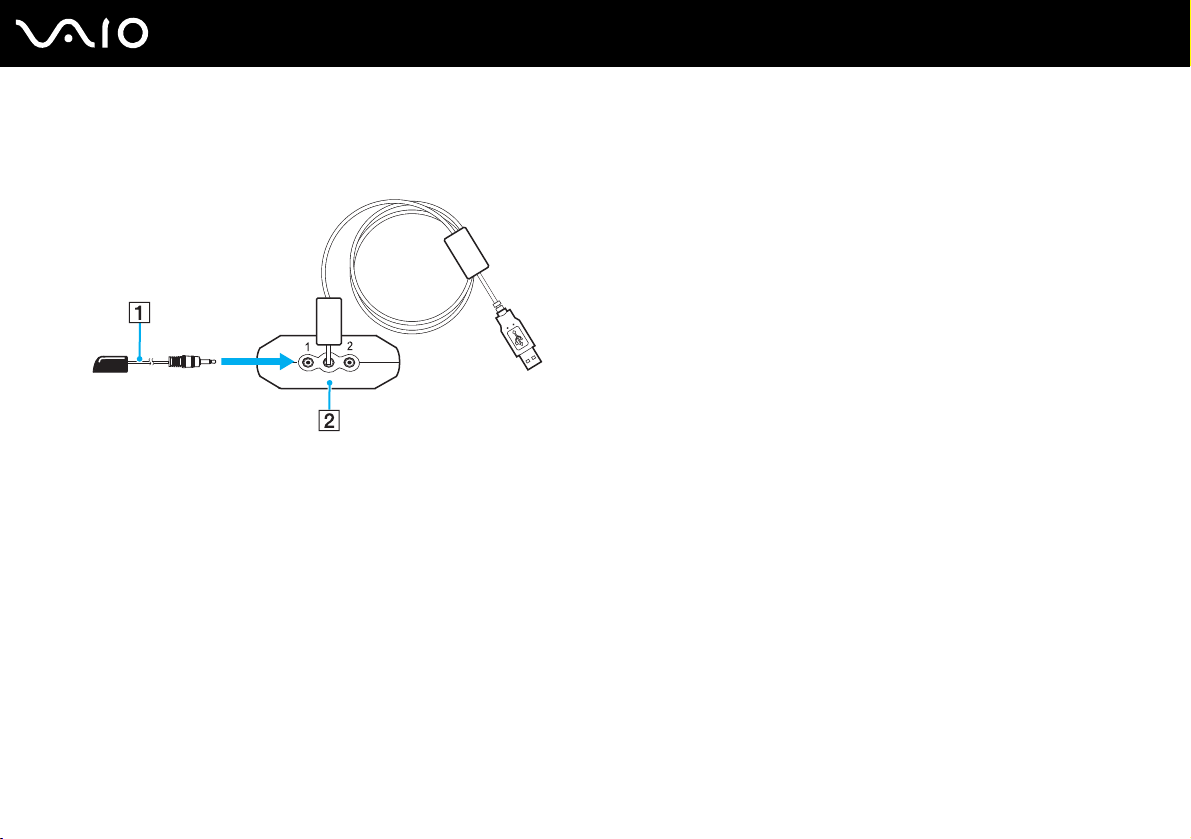

To connect the remote sensor control

1 Plug the remote sensor control cable (1) into either jack (1 or 2) on the back of the remote sensor (2).

2 Remove the adhesive tape cover from the bottom of the remote sensor control.

50

nN

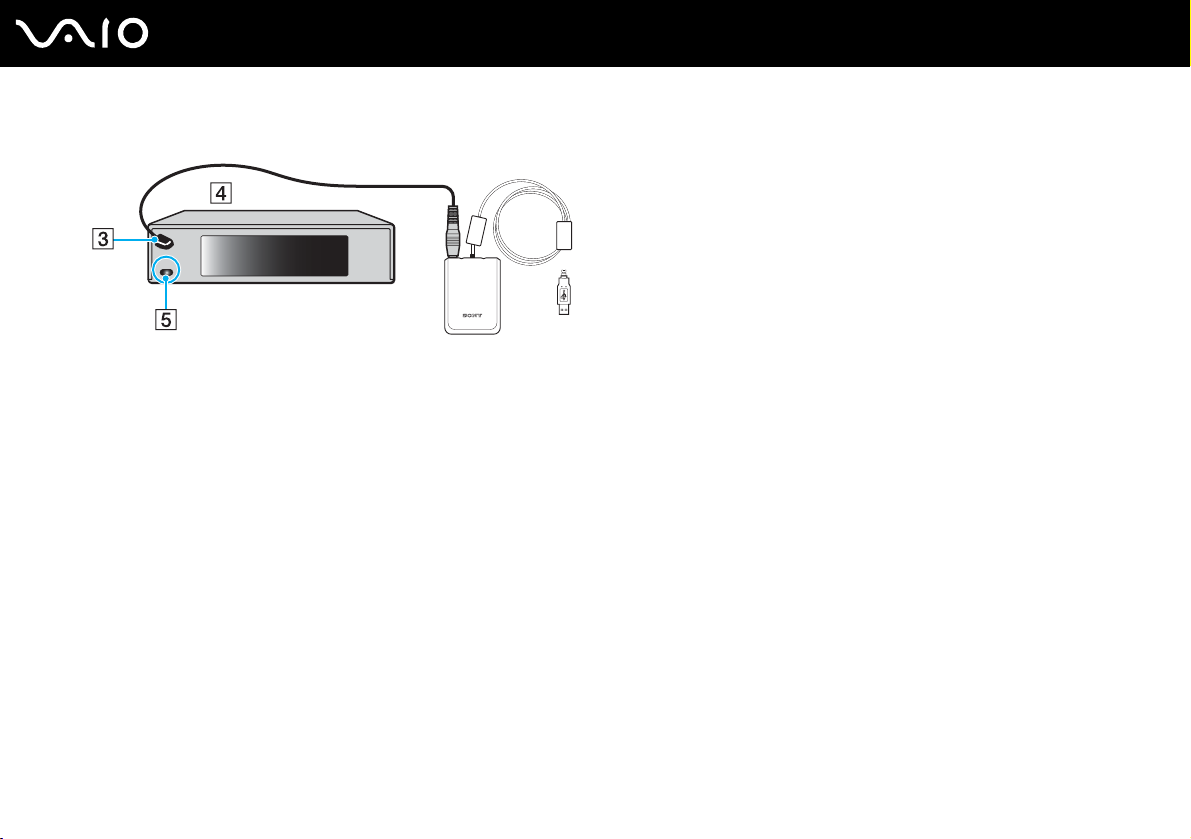

3 Attach the remote sensor control (3) onto the set-top box (4) near the infrared port (5).

!

Do not cover the infrared port when attaching the remote sensor control.

The remote sensor must be visible in a line-of-sight with the remote commander in order to function properly.

51

nN

Using Your VAIO Computer

Using PC Cards

PC Cards allow you to connect portable external devices to your computer.

Inserting a PC Card

!

Some PC Cards or their functions may not be compatible with the computer.

You do not need to shut down the computer before inserting or removing a PC Card.

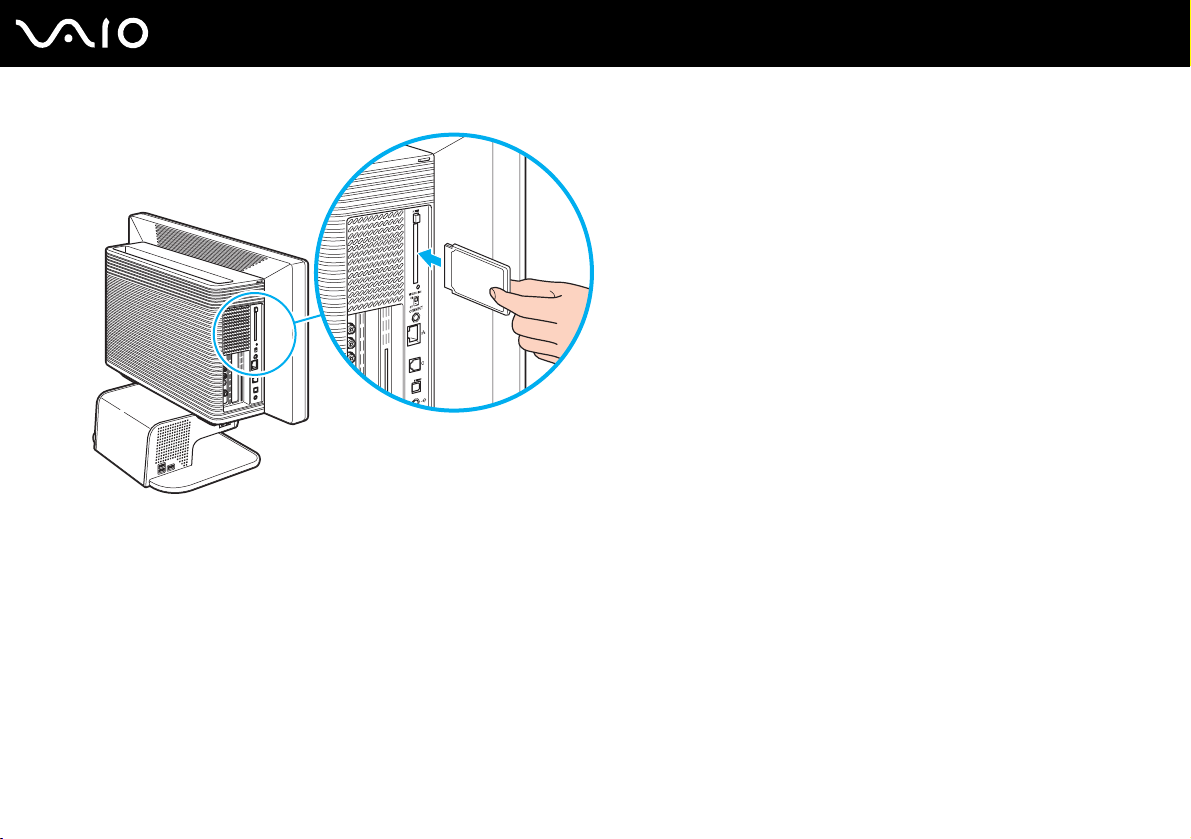

To insert a PC Card

1 Hold the PC Card with the label facing toward the front of the computer.
2 Gently push the PC Card into the PC Card slot.

The PC Card is automatically detected by your system.

The Safely Remove Hardware icon appears on the taskbar.

52

nN

Using Your VAIO Computer

53

nN

Using Your VAIO Computer

✍

Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you

alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not

recognized. Restart your system to correct the problem. Restarting will restore the original state of the computer.

While the card is inserted, the computer may not enter Hibernate power management mode. It may enter Standby mode. We recommend that you

remove the card before the computer enters Hibernate mode.

Make sure you use the most recent software driver provided by the PC Card manufacturer.

If an "!" mark appears on the Device Manager tab in the System Properties window, remove the software driver and then reinstall it.

Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC

Card in the correct direction. See the manual supplied with your PC Card for more information on use.

54

nN

Using Your VAIO Computer

Removing a PC Card

Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not
work properly.

To remove a PC Card

✍

To remove a PC Card when the computer is off, skip steps 1 to 7.

1 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.

2 Select the hardware you want to unplug.
3 Click Stop.

The Stop a Hardware Device window appears.
4 Confirm that the device can be safely removed from the system.
5 Click OK.

A window appears, explaining that it is safe to remove the device.

6 Click OK.
7 Click Close.
8 Push the PC Card release button so that the release button pops out.
9 Push the PC Card release button a second time so that the PC Card pops out.
10 Gently take hold of the Card and pull it out of the slot.
11 If the PC Card release button is still out, push it back in.

55

nN

Using Your VAIO Computer

Using the Memory Stick Media

Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile device especially
designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other
devices. Because it is removable, it can be used for external data storage.

For the latest information on Memory Stick media, visit the Sony online support Web site at http://www.sony.com/pcsupport
for customers in USA, at http://www.sony.ca/support
customers in Latin American countries or areas.

Write-protecting a Memory Stick Media

Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from
accidental erasure or overwriting.

Move the tab horizontally or vertically
be saved on the Memory Stick media. When the erasure prevention switch is on, data can be read from but not saved on the
Memory Stick media.

*

to set or release write-protection. When the erasure prevention switch is off, data can

for customers in Canada, or at http://www.sony.com/lapcsupport for

* Some versions of Memory Stick media do not have an erasure prevention switch.

56

nN

Using Your VAIO Computer

Inserting a Memory Stick Media

There are two ways you can insert a Memory Stick media into your computer:

❑ Using the Memory Stick media slot;
❑ Using a PC Card slot. To do this, you need an optional PC Card adapter.

The Memory Stick slot is located behind a protective cover on the front of the computer. You need to open the cover before

accessing the memory card slots.

To insert a Memory Stick media using the Memory Stick media slot

1 Flip the front panel down, using your fingertip.
2 Locate the Memory Stick media slot.
3 Hold the Memory Stick media with the arrow facing toward the front of the computer and insert it into the Memory Stick

media slot in the direction of the arrow.
4 Carefully slide the Memory Stick media into the slot until it clicks in place.

The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local

drive, under the appropriate letter (depending on the configuration of the computer).

57

nN

Using Your VAIO Computer

!

Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging the computer

or the Memory Stick media, do not force the Memory Stick media into the slot if it does not insert smoothly.

Do not insert more than one Memory Stick media into the Memory Stick media slot. Inserting the media improperly may damage the computer.

✍

The computer supports Memory Stick Duo media and is equipped with the Memory Stick combo slot that is compatible with both standard- and duo-

size media. For more information on Memory Stick Duo media, visit the Memory Stick web site at http://www.memorystick.com/en/

.

Using Your VAIO Computer

To view the contents of the Memory Stick media

1 Click Start and then My Computer to open the My Computer window.

2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.

To format a Memory Stick media

Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details.

58

nN

Using Your VAIO Computer

Removing a Memory Stick Media

To remove a Memory Stick media using the Memory Stick media slot

1 Check that the Media Access indicator is off.
2 Push the Memory Stick media in toward the computer.

The Memory Stick media ejects.

3 Pull the Memory Stick media out of the slot.

!

Always remove the Memory Stick media gently, or it may pop out unexpectedly.

Do not remove the Memory Stick media while the Media Access indicator is turned on. If you do, you may lose data. Large volumes of data may take

time to load, so be sure the indicator is off before removing the Memory Stick media.

59

nN

60

nN

Using Your VAIO Computer

Using Other Memory Cards

In addition to the Memory Stick media slot, your computer is equipped with three other memory card slots to accommodate
many popular types of memory cards. You can use these slots to transfer data between digital cameras, camcorders, music
players, and other audio/video devices.

The memory card slots are located behind a protective cover on the front of the computer. You need to open the cover before
accessing the memory card slots.

Before You Use Memory Cards

Your computer supports the following memory cards:

❑ CompactFlash
❑ Multi Media Card (MMC)
❑ Microdrive
❑ SmartMedia
❑ xD-PictureCards
❑ Secure Digital (SD)

For the latest information on compatible memory cards, visit the Sony online support Web site regularly.

!

Always insert the correct memory card into the appropriate memory card slot.

Do not attempt to insert a different memory card or memory card adapter into a different memory card slot. An incompatible memory card or adapter

may be difficult to remove from the wrong slot and can cause damage your computer.

Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.

Inserting a Memory Card

To insert a memory card

1 Flip the front panel down, using your fingertip.

Do not use force to open the cover.

2 Locate the appropriate slot for the memory card you want to use.

3 Hold the memory card with the arrow facing up and toward the memory card slot.
4 Carefully slide the memory card into the slot until it clicks in place.

Do not force the card into the slot.

✍

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

61

nN

Using Your VAIO Computer

62

nN

Using Your VAIO Computer

Removing a Memory Card

The correct way to remove a memory card from a memory card slot varies, depending on the media or slot. Use care when
removing a memory card to avoid damage to the slot or card.

!

Do not remove a memory card while the Media Access indicator light is on. The card or its data may become damaged.

To remove a memory card

1 Check that the Media Access indicator is off.
2 Firmly grasp the extended part of the memory card.
3 Carefully pull it out of the slot.

nN

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (not
supplied). Once you set up your telephone cable, you're ready to connect to the Internet.

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer.
2 Plug the other end into the wall jack (2).

✍

The computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a

private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

63

To set up a dial-up connection to the Internet

1 Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard.

The New Connection Wizard appears.

2 Click Next. If the Location Information window appears, follow the on-screen instructions.
3 If it is not already selected, click to select Connect to the Internet, and click Next.
4 Follow the on-screen instructions.

64

nN

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through
a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.

You can communicate without an Access Point, which means that you can communicate between a limited number of
computers (ad-hoc). Or you can communicate through an Access Point, which allows you to create a full infrastructure
network (infrastructure).

✍

WLAN uses the IEEE802.11b/g standard, which specifies the used technology. The standard includes the encryption method: Wired Equivalent Privacy

(WEP), which is a security protocol and WiFi Protected Access (WPA - Proposed jointly by the IEEE and Wi-Fi Alliance, WiFi Protected Access is a

specification of standards based, interoperable security enhancements that increase the level of data protection and access control for existing WiFi

networks. WPA has been designed to be forward compatible with the IEEE802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal

Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible Authentication Protocol)). Data encryption protects the

vulnerable wireless link between clients and Access Points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as:

password protection, end-to-end encryption, virtual private networks, and authentication.

Wireless LAN devices using the IEEE802.11a standard and the ones using the IEEE802.11b or g standard cannot communicate because the frequencies

are different.

IEEE802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up.

IEEE802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE802.11b standard.

65

nN

Using Your VAIO Computer

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other
central controller or Access Point. Each device communicates directly with other devices in the network. You can set up an
ad-hoc network easily at home.

To communicate without an Access Point (ad-hoc)

1 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

*1

On models with the Bluetooth functionality

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.
2 Click Start and then Control Panel.
3 Click Network and Internet Connections.
4 Click Network Connections.

The Network Connections window appears.
5 Right-click Wireless Network Connection, then click Properties.

The Wireless Network Connection Properties window appears.
6 Select the Wireless Networks tab.
7 Click the Add… button.

The Wireless network properties window appears.

*2

8 Enter a Network name (SSID)

.

You can choose a 32-digit alphanumeric name.

9 Select Open from the Network Authentication drop-down box.
10 Select WEP from the Data Encryption drop-down box.
11 Deselect the The key is provided for me automatically option button.

Some information becomes visible.
12 Enter the Network key

*2

.

The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal

whatever you want.

, double-click ( / ) on the taskbar to display the Wireless Device

nN

Using Your VAIO Computer

*3

characters long. You can choose

66

67

nN

Using Your VAIO Computer

13 Enter exactly the same Network key again, for confirmation.
14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the

bottom of the screen.
15 Click OK.

Your Network name appears in the Preferred networks.
16 Click Advanced.

The Advanced window appears.

17 Select the Computer-to-computer (ad hoc) networks only option button.
18 Click Close.
19 Click OK.

The computer is ready to communicate with another computer.

*1

See the online Specifications to see whether your model supports the Bluetooth functionality.

*2

If you want to communicate between two or more computers, you need to configure all these computers the exact same way. This means that you need to enter the same
Network name and the same Network key on all computers as on the first computer you configure.

*3

Hexadecimal: A number representation using the digits 0-9, with their usual meaning, plus the letters A-F (or a-f) to represent hexadecimal digits with values of (decimal)
10 to 15.

✍

An ad-hoc network does not support WPA.

Using Your VAIO Computer

To disconnect from a computer-to-computer (ad-hoc) network

1 Click Start and then Control Panel.
2 Click Network and Internet Connections.
3 Click Network Connections.

The Network Connections window appears.
4 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.

The Wireless Network Connection Status window appears.
5 Click Properties.

The Wireless Network Connection Properties window appears.
6 On the Wireless Networks tab, click Advanced.

The Advanced window appears.
7 Click to select Any available network (access point preferred), and click Close.
8 Click OK.
9 Click Close.
10 Turn off the WIRELESS or WIRELESS LAN switch.

68

nN

69

nN

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access
Point, for example the Sony Access Point. The Access Point bridges the wireless and wired LAN and acts as a central
controller for the Wireless LAN. The Access Point coordinates transmission and reception from multiple wireless devices
within a specific range.

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information.
2 Turn on the WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

3 Click Start and then Control Panel.
4 Click Network and Internet Connections.
5 Click Network Connections.
6 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.

The Wireless Network Connection window appears.
7 Follow the on-screen instructions.

70

nN

Using Your VAIO Computer

To connect to a wireless network (Models with the VAIO Wireless Utility software only)

Use the VAIO Wireless Utility software to guide you through the set up process and provide you with more detailed
information about wireless connections.

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information.
2 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

*

On models with the Bluetooth functionality

, double-click ( / ) on the taskbar to display the Wireless Device

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.
3 Click Start, point to All Programs, and click VAIO Wireless Utility.

The VAIO Wireless Utility appears.
4 Follow the on-screen instructions.

* See the online Specifications to see whether your model supports the Bluetooth functionality.

To disconnect from a wireless network

Turn off the WIRELESS or WIRELESS LAN switch.

!

Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.

71

nN

✍

The WPA key needs to contain at least 8 characters.

72

nN

Using Your VAIO Computer

Wireless LAN Channel Selection

In an 802.11b/g configuration, channel 1 to 11 can be used.

(a) With an Access Point ("Infrastructure")

❑ The channel used will be the channel selected by the Access Point.

!

For details on how to select the channel that will be used by the Access Point, see the access point manual.

(b) Without an Access Point ("ad-hoc")

❑ If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.
❑ If the Wireless connection is initiated by a peer Wireless LAN equipment, the Wireless LAN communication will make use

of the channel selected by the peer Wireless LAN equipment.

✍

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference

from other devices that uses the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower

communication speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device

configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the

radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Deploying IEEE802.11b and IEEE802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE802.11g products are designed to reduce the communication speed to ensure communications with

IEEE802.11b products.

When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

Using Peripheral Devices

You can add functionality to your computer by using the various ports on the computer.

❑ Connecting an External Microphone (page 74)
❑ Connecting a Universal Serial Bus (USB) Device (page 75)
❑ Connecting a Printer (page 77)
❑ Connecting an i.LINK Device (page 78)
❑ Connecting to a Network (LAN) (page 80)

73

nN

Using Peripheral Devices

nN

Using Peripheral Devices

Connecting an External Microphone

If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone.

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

74

Connecting a Universal Serial Bus (USB) Device

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

To connect a USB floppy disk drive

1 Choose the USB port you prefer to use.
2 Plug the USB floppy disk drive cable into the USB port.

Your USB floppy disk drive is now ready for use.

!

When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.

75

nN

Using Peripheral Devices

76

nN

Using Peripheral Devices

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in
a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

If the computer is off, you can unplug the USB cable directly from the computer.

To disconnect a USB floppy disk drive

1 Close all programs accessing the floppy disk drive.
2 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.
3 Select the floppy disk drive you want to unplug.
4 Click Stop.

The Stop a Hardware device window appears.
5 Make sure the floppy disk drive is selected, and click OK.

A message appears stating it is now safe to remove the hardware device.
6 Remove the floppy disk drive from the computer.

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

✍

You need to slide the back panel cover up to access the USB ports on the bottom panel.

To connect a printer using the USB port

1 Plug the printer power cord into an AC outlet (1).

2 Choose the USB port (3) you prefer to use.
3 Plug one end of a USB printer cable (2) into the USB port and the other end to your printer.

77

nN

Using Peripheral Devices

78

nN

Using Peripheral Devices

Connecting an i.LINK Device

Notes on connecting i.LINK devices

❑ The computer includes an i.LINK (IEEE1394) port, which you can use to connect to an i.LINK device such as a digital

video camera recorder or to connect two VAIO computers in order to copy, delete or edit files.

❑ The i.LINK port of the computer does not supply power to external devices generally powered by i.LINK ports.
❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of

the external device.
❑ i.LINK cables compatible with the computer include cables with the following part numbers:

VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end), VMC-IL4408 Series (a 0.8 meter cable with a 4-pin

connector at each end).

❑ The optional i.LINK cables may not be available, depending on the country or area of your residency.
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection varies depending on the software applications, operating system and i.LINK compatible devices

you use. Refer to the manual that came with your software for more information.
❑ Check the working conditions and OS compatibility of i.LINK-compatible PC peripherals (for example, an HDD or CD-RW

drive) before you connect them to the computer.

79

nN

Using Peripheral Devices

Connecting a Digital Video Camera Recorder

To connect a digital video camera recorder

1 Plug one end of the i.LINK cable (1) into the i.LINK port (2) on the computer and the other end into the DV In/Out ports

(3) on the digital video camera recorder.
2 Launch the DVgate Plus software.

✍

On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible.

The Sony digital video camera recorder shown here is an example; your digital video camera recorder may need to be connected differently.

You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

80

nN

Using Peripheral Devices

Connecting to a Network (LAN)

You can connect your computer to 100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end
of an optional network cable to the Network (Ethernet) port on the left of the computer and the other end to your network. For
detailed settings and devices needed to connect to the network, see your network administrator.

!

Your computer has a protective sticker covering the Network (Ethernet) port located on the left of the computer. Connect a 10BASE-T or

100BASE-TX cable to the Network (Ethernet) port. Using an incorrect cable or a phone cable may result in an electric current overload that can cause

a malfunction, excessive heat, or fire in the Network (Ethernet) port. For help on connecting to a network, see your network administrator.

✍

The computer can be connected to the network with the default settings.

Using Peripheral Devices

!

Telephone lines cannot be connected to the Network (LAN) connector on your computer.

If the Network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage,

overheating or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- PBX (private branch exchange)

!

Do not plug a telephone cable into the network port.

81

nN

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your computer.

❑ Setting the Password (page 83)
❑ Setting Up Your Computer with VAIO Central (page 86)
❑ Using the Power Saving Modes (page 87)

82

nN

Customizing Your VAIO Computer

83

nN

Customizing Your VAIO Computer

Setting the Password

Use one of the BIOS functions to set the password.
Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer.

The power-on password will allow you to protect your computer from unauthorized access.

nN

Customizing Your VAIO Computer

Adding the Power-on Password

!

Once you have set the power-on password, you cannot start the computer without entering the password. Make sure not to forget the password. Write

down your password and keep it safe and private from other people.

If you forget the power-on password and need assistance to reset, a password reset fee will be charged, and your computer may need to be sent in for

depot service for password reset.

To add the power-on password

1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears.

3 Use the < or , key to select Security on the Boot menu to display another screen, select Change Supervisor

Password, and then press the Enter key.
4 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 6 alphanumeric characters long.

✍

The following is to configure the computer to prompt password entry when you turn it on or display the BIOS setup screen.

5 Select Password Check under Security.

Press the Enter key to change the setting from Setup to Always.

6 Press the Esc key.
7 Use the < or , key to select Exit and select Exit (Save Changes); and then press the Enter key.

On the Setup Confirmation screen, make sure that OK is selected and then press the Enter key.

84

nN

Customizing Your VAIO Computer

Changing/Removing the Power-on Password

To change or remove the power-on password

1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
3 Enter the current password for Enter Current Password:

The BIOS setup screen appears.

4 Use the < or , key to select Security on the Boot menu to display another screen, select Change Supervisor

Password, and then press the Enter key.
5 On the password entry screen, enter a new password twice, and press the Enter key.

To remove the password, leave the Enter Password field blank and press the Enter key.
6 Press the Esc key.
7 Use the < or , key to select Exit and select Exit (Save Changes); and then press the Enter key.

On the Setup Confirmation screen, confirm that OK is selected and then press the Enter key.

85

Customizing Your VAIO Computer

Setting Up Your Computer with VAIO Central

The VAIO Central utility allows you to consult system information and specify preferences for system behavior.

To use VAIO Central

1 Click Start, point to All Programs, and click VAIO Central.

The VAIO Central window appears.

2 Select the desired control item and change the settings.
3 Once finished, click OK.

The setting of the desired item has been changed.

✍

Some of the control items will not be visible if you open VAIO Central as a limited user.

86

nN

87

nN

Customizing Your VAIO Computer

Using the Power Saving Modes

In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power
saving modes: Standby and Hibernate.

The color of the power indicator light behind the power button tells you which mode the computer is in.

Power indicator Mode

Green Computer is in Normal mode (on).

Amber Computer is in Standby mode.

No light Computer is turned off or in Hibernate mode.

To set the timer for the computer to automatically enter Standby or Hibernate mode after a certain amount of time, click Start
and Control Panel. Click Performance and Maintenance and Power Options, and then change the settings under Power
Schemes.

Using Normal Mode

This is the normal state of the computer when it is in use. The green power indicator light is on in this mode. To save power
while not working, you can turn off a specific device such as the LCD or the hard disk.

88

nN

Customizing Your VAIO Computer

Using Standby Mode

Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber
power light flashes in this mode.

To activate Standby mode

1 Click Start and then Turn Off Computer.
2 Click Stand By.

✍

Alternatively, you can press the Standby button on the keyboard to put the computer in Standby mode.

To return to Normal mode

Press any key.

!

If you press the power button for more than four seconds, the computer will switch off automatically. You will lose any unsaved data.

✍

When the computer is in Standby mode, you cannot insert a disc.

The computer comes out of Standby mode quicker than out of Hibernate mode.

Standby mode uses more power than Hibernate mode.

If the computer is not used for more than 20 minutes, it will enter Standby mode. To avoid this, you can change the Standby
mode settings.

89

nN

Customizing Your VAIO Computer

Using Hibernate Mode

In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. The power indicator light is off
in this mode.

To activate Hibernate mode

1 Click Start and then Turn Off Computer.
2 Click Hibernate.

To return to Normal mode

Turn on the computer by pressing the power button.
The computer returns to its previous state.

!

If you press the power button for more than four seconds, the computer will switch off automatically.

✍

If you do not use the computer for a long period of time, put the computer into Hibernate mode. This power saving mode saves you the time of shutting

down or resuming.

When the computer is in Hibernate mode, you cannot insert a disc.

Hibernate mode requires more time than Standby mode to be activated.

It takes more time to return to Normal mode from Hibernate mode than from Standby mode.

Hibernate mode uses less power than Standby mode.

!

Do not move the computer until its power indicator light turns off.

90

nN

Upgrading Your VAIO Computer

Upgrading Your VAIO Computer

Your computer and memory modules use high precision components and electronic connectors technology. To avoid the
invalidation of your guarantee due to mishandling, we recommend that:

❑ You contact your dealer to install a new memory module.
❑ You do not install it yourself, if you are not familiar with upgrading memory on a computer.
❑ You do not touch the connectors or open the memory panel.

For the type of module and amount of memory installed on your model, refer to the online Specifications.
For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support

Web site.

❑ Before Upgrading Your Computer (page 91)
❑ Adding and Removing Memory (page 92)
❑ Installing the Hard Disk Drive (page 102)

91

nN

Upgrading Your VAIO Computer

Before Upgrading Your Computer

The upgrading procedures described in this section assume that you are familiar with the general terminology associated with
personal computers, safety practices, required regulatory compliances, and the modification of electronic equipment.

Disconnect the computer from its power source and from telecommunications links, networks, or modems before you open
the computer or follow any procedures in this section.

!

Failure to disconnect the computer from its power source may result in personal injury or equipment damage. Always turn the power off before you

open the computer or connect peripheral equipment. Otherwise, damage may occur to the integrated circuits.

Electrostatic discharge (ESD) can damage disk drives and other components. Follow the procedures described here only at an ESD workstation. If such

a station is not available, do not work in a carpeted area and do not handle materials that produce or hold static electricity (for example, cellophane

wrappers). Ground yourself by maintaining continuous contact with an unpainted metal portion of the chassis while performing the procedure.

92

nN

Upgrading Your VAIO Computer

Adding and Removing Memory

If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules.
Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available
slots depends on the configuration of your model.

Notes on adding/removing memory modules

❑ Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This

damage may void your manufacturer's warranty.
❑ Only use memory modules that are compatible with the computer. If a memory module is not detected by the computer

or Windows becomes unstable, contact your sales dealer or the manufacturer of your memory module.

❑ Electrostatic discharge can damage electronic components. Before touching a memory module, ensure the following:

❑ The procedures described in this document assume familiarity with the general terminology associated with personal

computers and with the safety practices and regulatory compliance required for using and modifying electronic
equipment.

❑ Turn off the computer and disconnect the system from its power source and from any telecommunication links,

networks, or modems before you open the computer. Failure to do so may result in personal injury or equipment
damage.

❑ Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory module only

at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials
that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with
an unpainted metal portion of the chassis while performing the procedure.

❑ Do not open the memory module package until you are ready to change the module. The package protects the module

from ESD.

93

nN

Upgrading Your VAIO Computer

❑ Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic

discharge.
❑ Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the

computer, will result in damage to the computer and any repair costs will not be covered by the warranty.

❑ Do not place the memory module in places subject to:

❑ Heat sources such as radiators or air ducts

❑ Direct sunlight

❑ Excessive dust

❑ Mechanical vibration or shock

❑ Strong magnets or speakers that are not magnetically shielded

❑ Ambient temperature of more than 95°F (35°C) or less than 41°F (5°C)

❑ High humidity
❑ Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the

components and circuit boards inside the computer.

Upgrading Your VAIO Computer

Removing and Installing a Memory Module

!

If you remove the top panel immediately after you shut down the computer, the internal components may be too hot to touch. Wait about one hour to

let the components cool down before you attempt to remove the panel.

To change or add a memory module

1 Shut down the computer and turn off all peripheral devices, such as a printer.
2 Unplug the computer and disconnect any peripheral devices.

94

nN

nN

Upgrading Your VAIO Computer

3 Press and hold the release button (1), slide the top panel (2) toward the back of the computer, lift the panel, and set it

aside.

95

4 Unscrew the two screws on the memory cover (1), lift the cover, and set it aside.

5 Touch a metal object (such as the chassis frame) to discharge static electricity.

96

nN

Upgrading Your VAIO Computer

Upgrading Your VAIO Computer

6 Locate the memory module(s) you wish to remove.
7 Push down on the latches (1), located on both sides of the module, to gently eject it from the slot.

8 Grasp the memory module by the sides and remove from the computer. Store the module in a static-free bag.

97

nN

98

nN

Upgrading Your VAIO Computer

9 Locate the center notch (1) on the bottom edge of the memory module and align it to the center bump in the open module

slot.
10 Firmly insert the lower edge of the module (2) into the slot by pressing down evenly against the module's upper corners.

The side latches (3) snap into position, holding the memory module in place.

!

To avoid damaging a memory module or the memory module slot, move the side latches slightly outward to relieve pressure.

11 Replace the memory cover (1) and tighten the two screws.

99

nN

Upgrading Your VAIO Computer

12 Gently slide the top panel onto the computer until it snaps into place.

100

nN

Upgrading Your VAIO Computer
