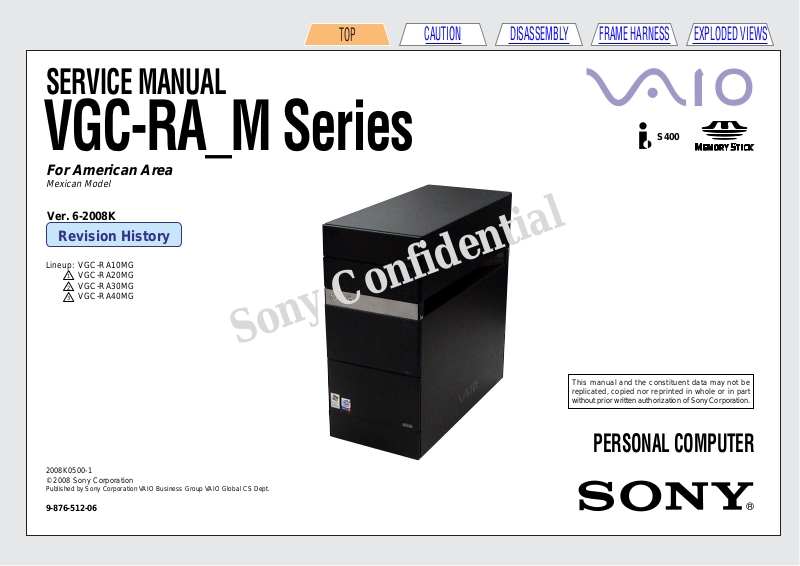

SERVICE MANUAL
VGC-RA_M Series
For American Area
Mexican Model
Ver. 6-2008K
Revision History
Lineup: VGC-RA10MG
1
VGC-RA20MG
VGC-RA30MG
2
VGC-RA40MG
3

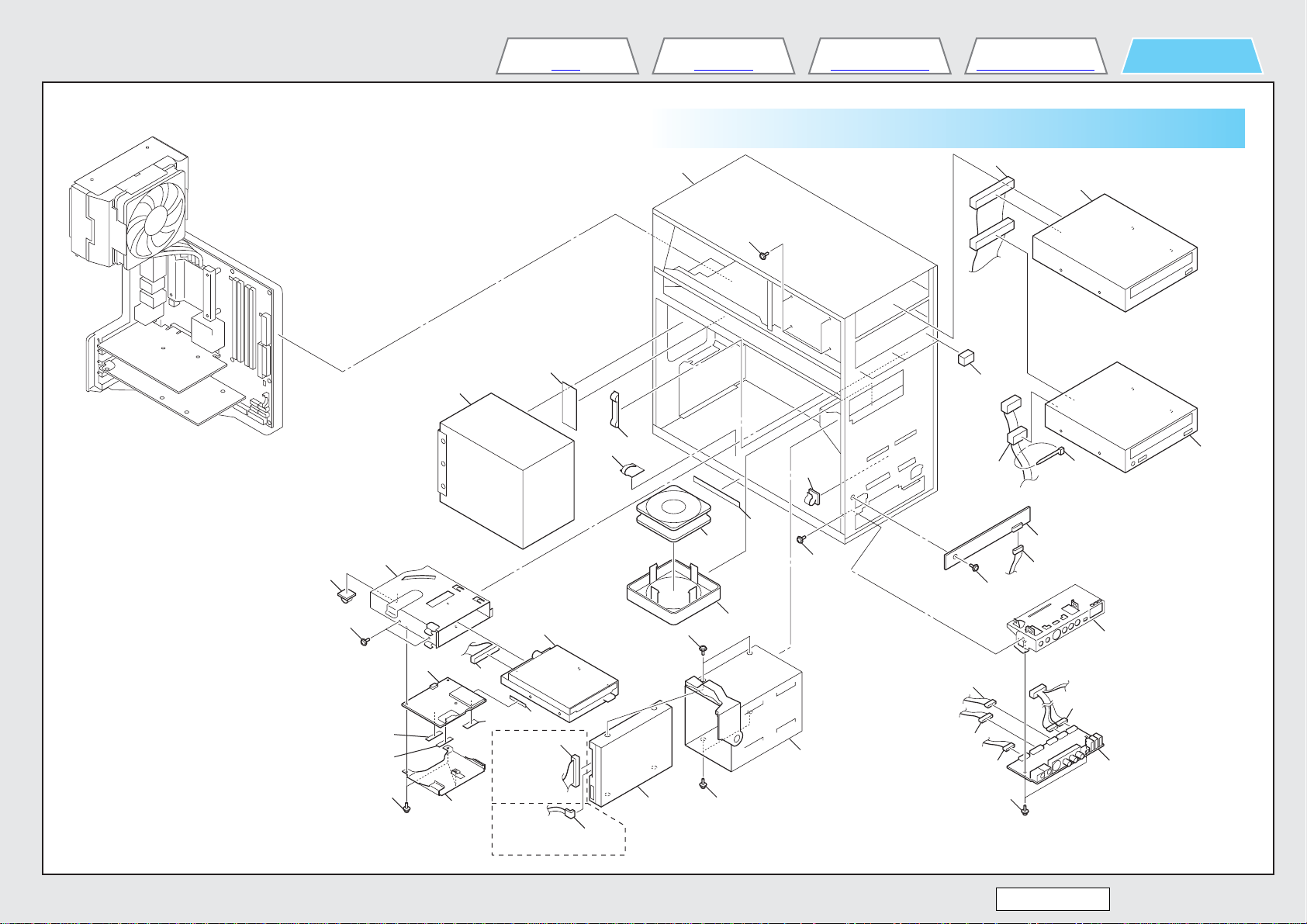

EXPLODED VIEWS
S400
Sony Confidential
2008K0500-1
© 2008 Sony Corporation
Published by Sony Corporation VAIO Business Group VAIO Global CS Dept.
9-876-512-06
This manual and the constituent data may not be
replicated, copied nor reprinted in whole or in part
without prior written authorization of Sony Corporation.
PERSONAL COMPUTER
Page 2
TOP

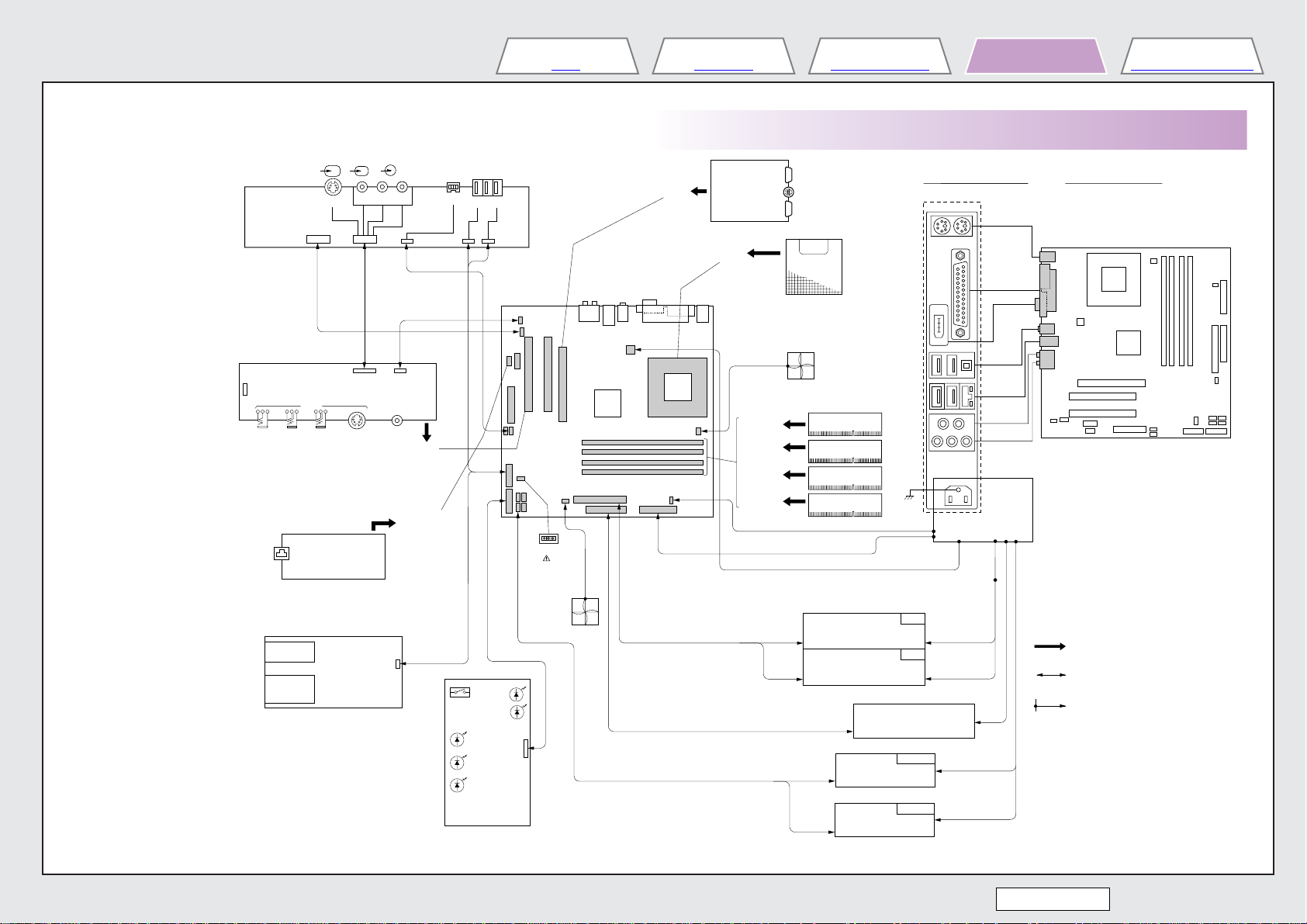

CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
Information in this document is subject to
change without notice.
Sony, VAIO and CLIE are trademarks or registered trademarks of Sony. Microsoft, Windows,
Windows Media, Outlook, Bookshelf and other
Microsoft products are trademarks or registered
trademarks of Microsoft Corporation in the
United States and other countries. The word
Bluetooth and the Bluetooth logo are trademarks
of Bluetooth SIG, Inc. AMD, the AMD logo, other
AMD product names and combinations thereof
are trademarks of Advanced Micro Devices, Inc.
Intel Inside logo, Pentium, Celeron and Core are
trademarks or registered trademarks of Intel Corporation. Transmeta, the Transmeta logo, Crusoe
Processor, the Crusoe logo and combinations
thereof are trademarks of Transmeta Corporation
in the USA and other countries. Graffi ti, HotSync, PalmModem, and Palm OS are registered
trademarks, and the Hotsync logo and Palm are
trademarks of Palm, Inc. or its subsidiaries. (M)
and Motrola are trademarks of Motrora, Inc. Other
Motrola products and services with (R) mark like
Dragonball are the trademarks of Motrola, Inc.
All other names of systems, products and services
in this manual are trademarks or registered trademarks of their respective owners. In this manual,
the (TM) or (R) mark are not specifi ed.
The components identified by mark contain
confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Caution Markings for Lithium/Ion Battery - The
following or similar texts shall be provided on
battery pack of equipment or in both the operating
and the service instructions.
CAUTION: Danger of explosion if battery is
incorrectly replaced. Replace only with the same
or equivalent type recommended by the manufacturer. Discard used batteries according to the
manufacturer’s instructions.
CAUTION: The battery pack used in this device
may present a fi re or chemical burn hazard if
mistreated. Do not disassemble, heat above 60°C
(140°F) or incinerate. Dispose of used battery
promptly. Keep away from children.
CAUTION: Changing the back up battery.
x Overcharging, short circuiting, reverse charg-
ing, multilation or incineration of the cells must
be avoided to prevent one or more of the following occurrences; release of toxic materials,
release of hydrogen and/or oxygen gas, rise in
surface temperature.
x If a cell has leaked or vented, it should be
replaced immediately while avoiding to touch
it without any protection.
Service and Inspection Precautions
1. Obey precautionary markings and
instructions
Labels and stamps on the cabinet, chassis, and
components identify areas requiring special precautions. Be sure to observe these precautions,
as well as all precautions listed in the operating
manual and other associated documents.
2. Use designated parts only
The set’s components possess important safety
characteristics, such as noncombustibility and
the ability to tolerate large voltages. Be sure that
replacement parts possess the same safety characteristics as the originals. Also remember that the
mark, which appears in circuit diagrams and
parts lists, denotes components that have particularly important safety functions; be extra sure to
use only the designated components.
3. Always follow the original design
when mounting parts and routing
wires
The original layout includes various safety features, such as inclusion of insulating materials
(tubes and tape) and the mounting of parts above
the printer board. In addition, internal wiring has
been routed and clamped so as to keep it away
from hot or high-voltage parts. When mounting
parts or routing wires, therefore, be sure to duplicate the original layout.
4. Inspect after completing service
After servicing, inspect to make sure that all
screws, components, and wiring have been
returned to their original condition. Also check
the area around the repair location to ensure that
repair work has caused no damage, and confi rm
safety.
5. When replacing chip components...
Never reuse components. Also remember that
the negative side of tantalum capacitors is easily
damaged by heat.
6. When handling flexible print
boards...
x The temperature of the soldering-iron tip
should be about 270°C.
x Do not apply the tip more than three times to
the same pattern.
x Handle patterns with care; never apply force.
Caution: Remember that hard disk drives are
easily damaged by vibration. Always handle
with care.
2
VGC-RA_M Series (AM)Confidential
Page 3
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
Left Chassis Assy
P4
Top Cover Assy
P4
Front Panel Assy
P5
CNX-268/287
Connector Board
P6
SWX-175
SW/LED Board
P10
HDD Assy
P7
VGA Card
P8
ENX-26 Board
P8
FDD Assy
P7

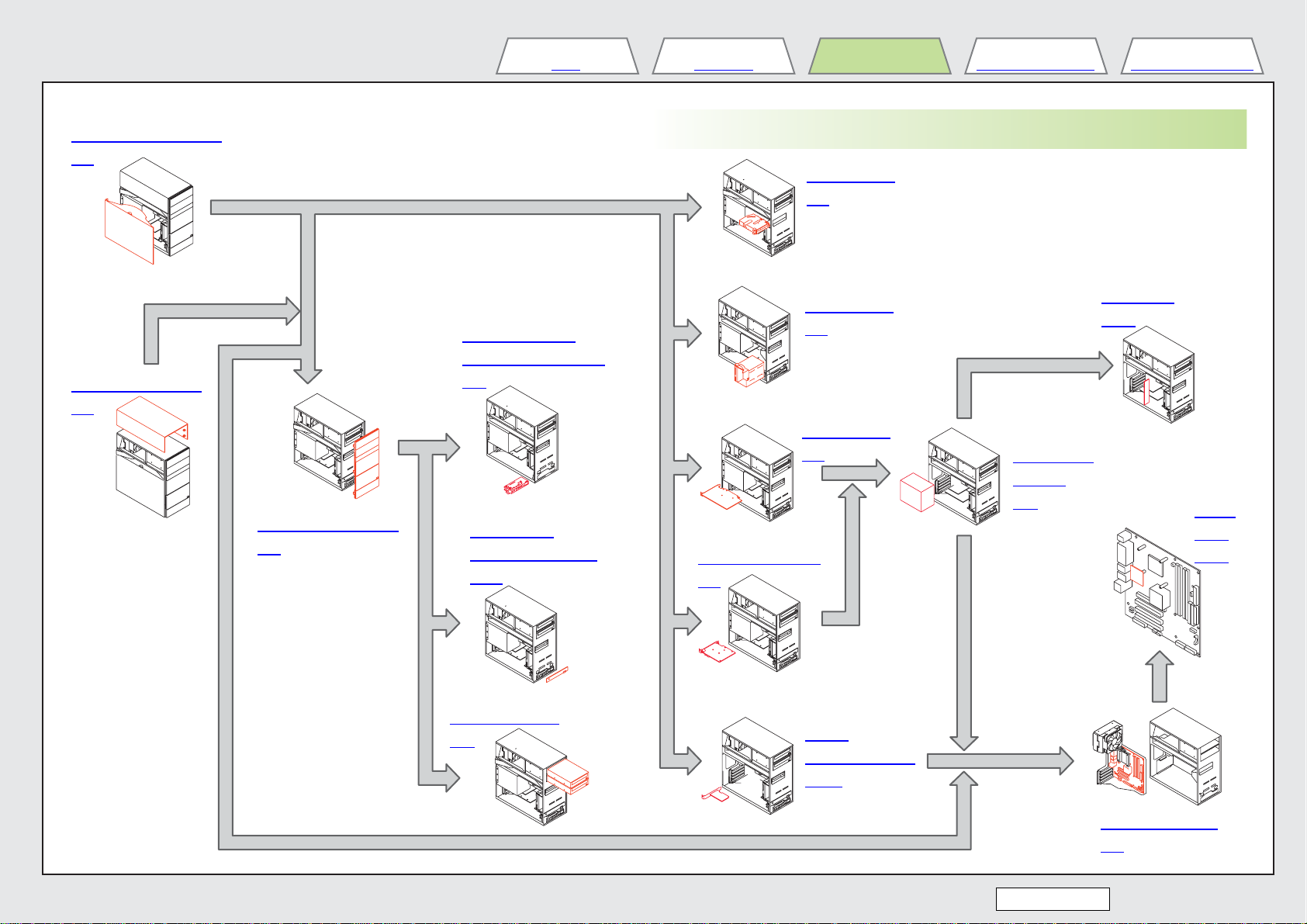

FLOWCHART
Memory
P12
Switching
Power
P9
CPU
P13
P14
Optical Drive
P6
CNR
Modem Card
P10
Mother Board
P11
3
VGC-RA_M Series (AM)Confidential
Page 4
FLOWCHART
1
2
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS

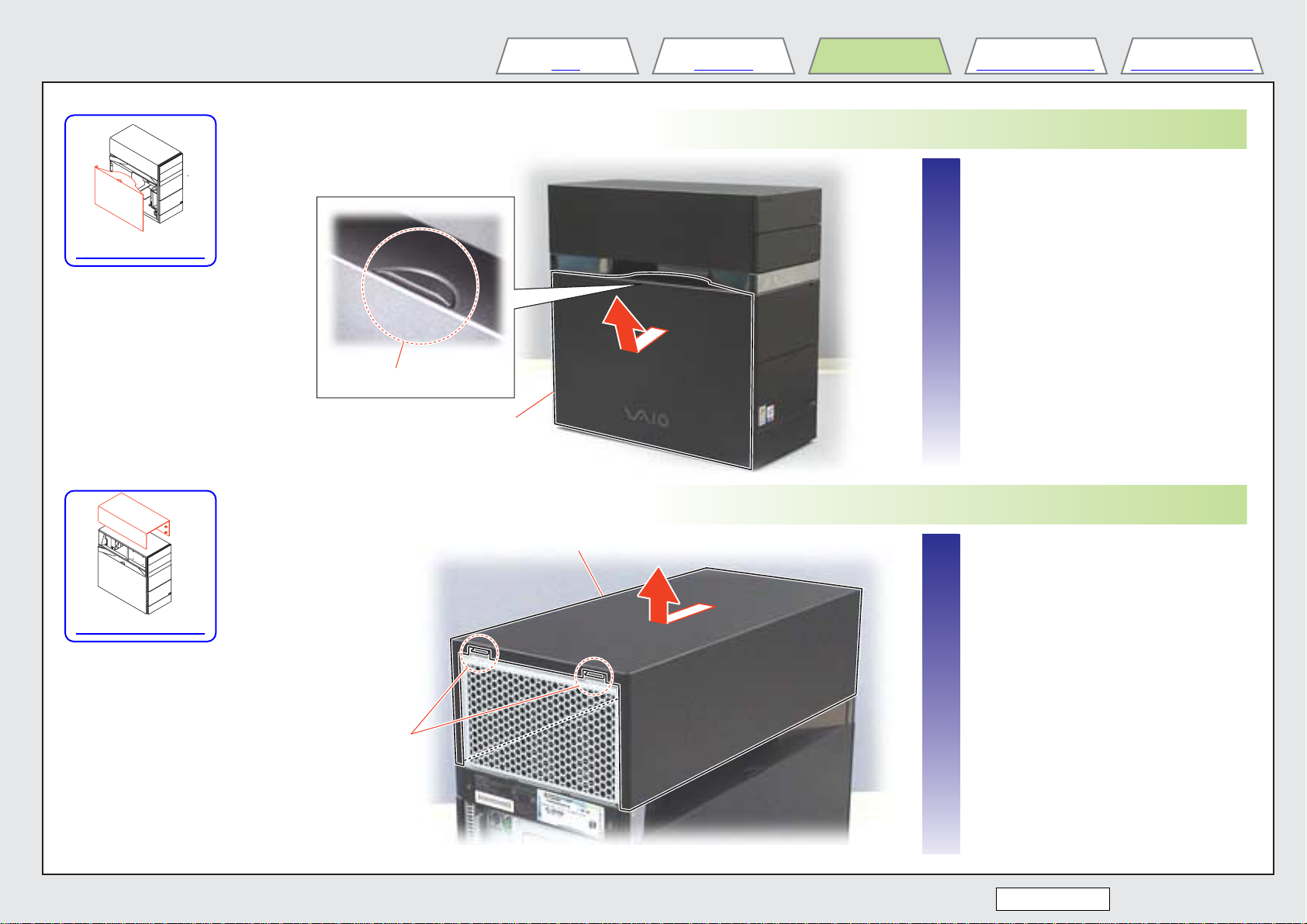

LEFT CHASSIS ASSY
Procedure to remove
1 Push the left button.
2 Remove the left chassis assy
in the direction of arrow.
FLOWCHART
1
2
TOP COVER ASSY
Procedure to remove
1 two claws
2 Remove the top cover assy
in the direction of arrow.
4
VGC-RA_M Series (AM)Confidential
Page 5
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
FLOWCHART
2
1
2
1
2
1
3
Note :Apply to the position of the figure using a swab.
Place to apply: Panel shaft and
holes of door's rib
(four places)
Place to apply: Applies together with panel from
the core side of front panel.
(two places)
Note :When DVD-ROM
(1-796-964-11)
is being used, in order
to mitigate the burden
to optical door (lower),
please apply oil to the
position of a figure
using a swab at the
time of exchange of
the optical door (lower).
Oil :LUBRICANT (SFL-9)
25G
Amount to apply
:properly

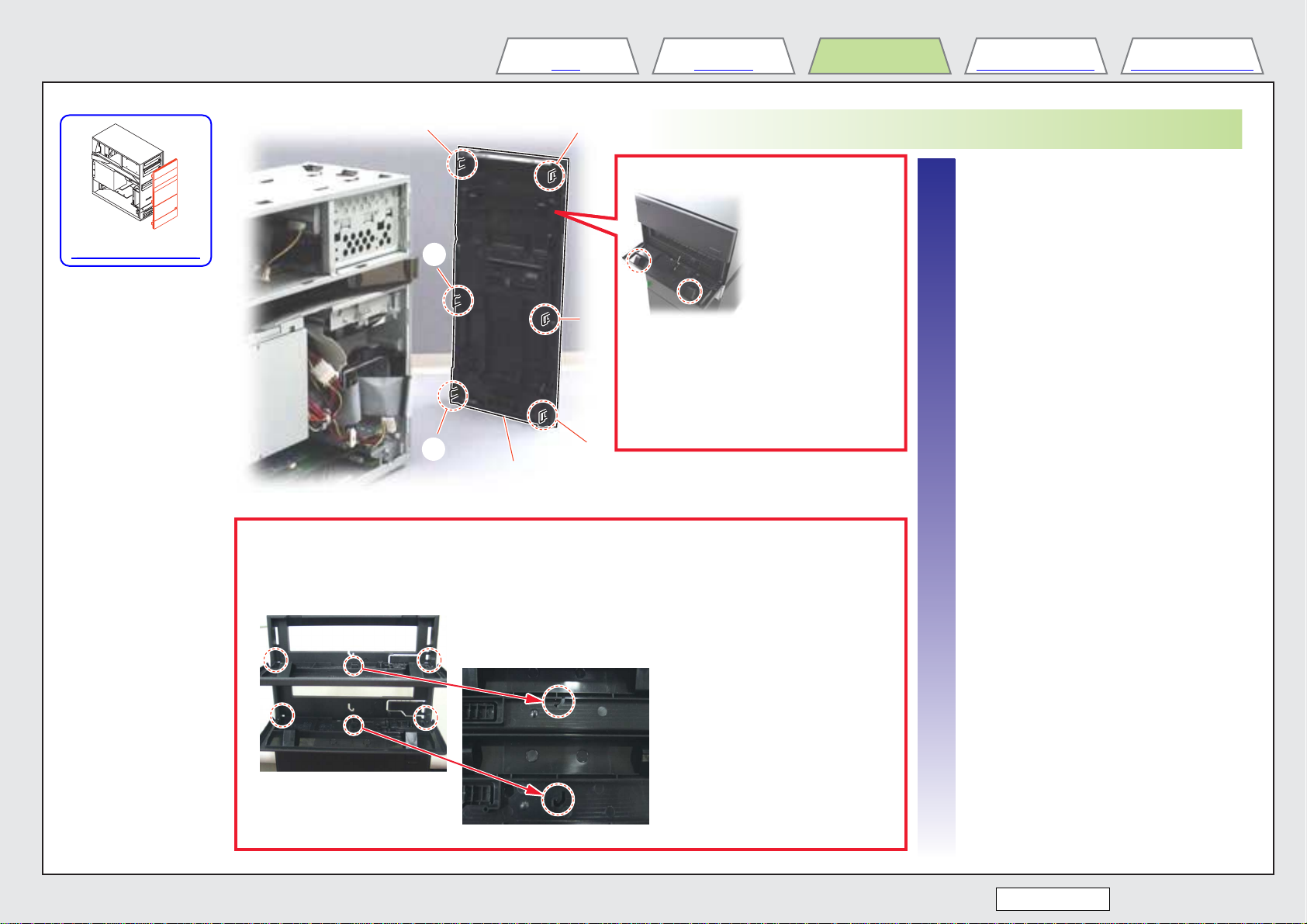

FRONT PANEL ASSY
Procedure to remove
1 3 claws
2 3 claws
3 front pannel assy
Oil :LUBRICANT (SFL-9)
25G
Amount to apply
:properly
5
VGC-RA_M Series (AM)Confidential
Page 6
FLOWCHART
2
TOP
1
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
OPTICAL DRIVE

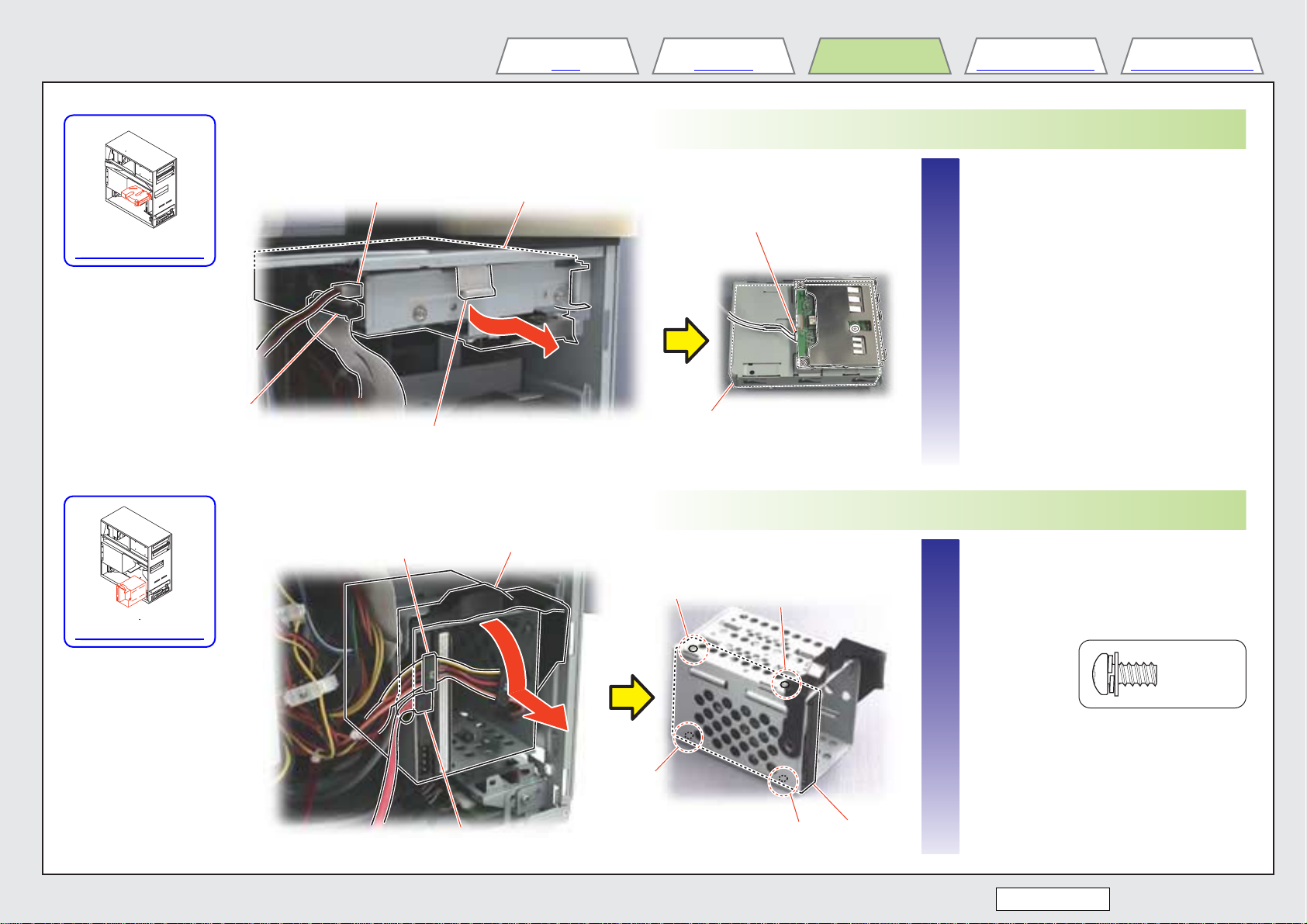

Procedure to remove
43
3
8
1 harness (power: Upper Side)
2 harness (IDE CD/DVD)
3 2 screws
4 Remove the optical drive
(upper) in thedirection of arrow.
5 harness (power: under Side)
6 harness (IDE CD/DVD)
7 2 screws
+PWH 3x5
4-680-025-01
+PWH 3x5
4-680-025-01
FLOWCHART
5
4
1
6
3
7
2
5
6
8
7
7
8 Remove the optical drive
(lower) in thedirection of arrow.
CNX-268/287 CONNECTOR BOARD
Procedure to remove
Procedure to remove
1 harness (MIC/HEADPHONE)
2 harness (AUDIO)
9
8
3 harness (1394)
4 harness (USB 2X3, HY)
5 harness (USB 2X3, HY)
6 screw
7 connector bracket assy
8 2 screws
9 CNX-268/287 connector board
SW
(No.6-32UNC)
4-645-944-22
Silver
SW
(No.6-32UNC)
4-645-944-22
Silver
6
VGC-RA_M Series (AM)Confidential
Page 7
FLOWCHART
1
4
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS

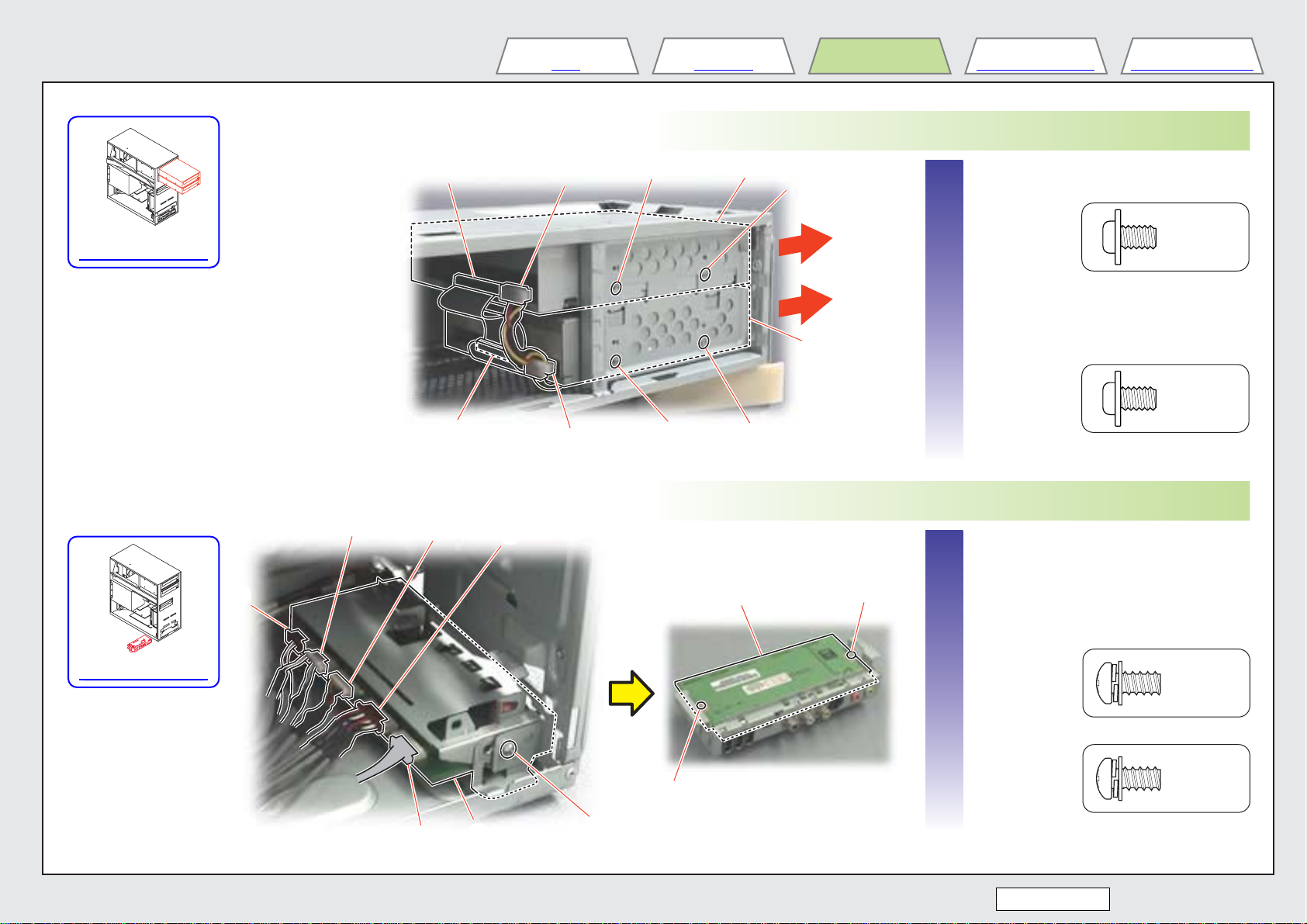

FDD ASSY
Procedure to remove
1 harness (power: P4)
2 harness (FDD)
5
3 Pull the lever.
4 Remove the FDD assy in the
direction of arrow.
Note: Since the cable is being fixed to
the bottom of HDD bracket with
a cable clamp, be careful in the
case of removal.
5 connector
6 FDD assy
FLOWCHART
2
1
3
2
3
4
4
6
4
4
5
HD DRIVE
Procedure to remove
1 harness (power: P5)
2 harness (SATA)
3 Pull the lever in the direction
of arrow.
4 4 screws
5 HD drive
SW
(No.6-32UNC)
4-645-944-22
Silver
7
VGC-RA_M Series (AM)Confidential
Page 8
1
3
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS

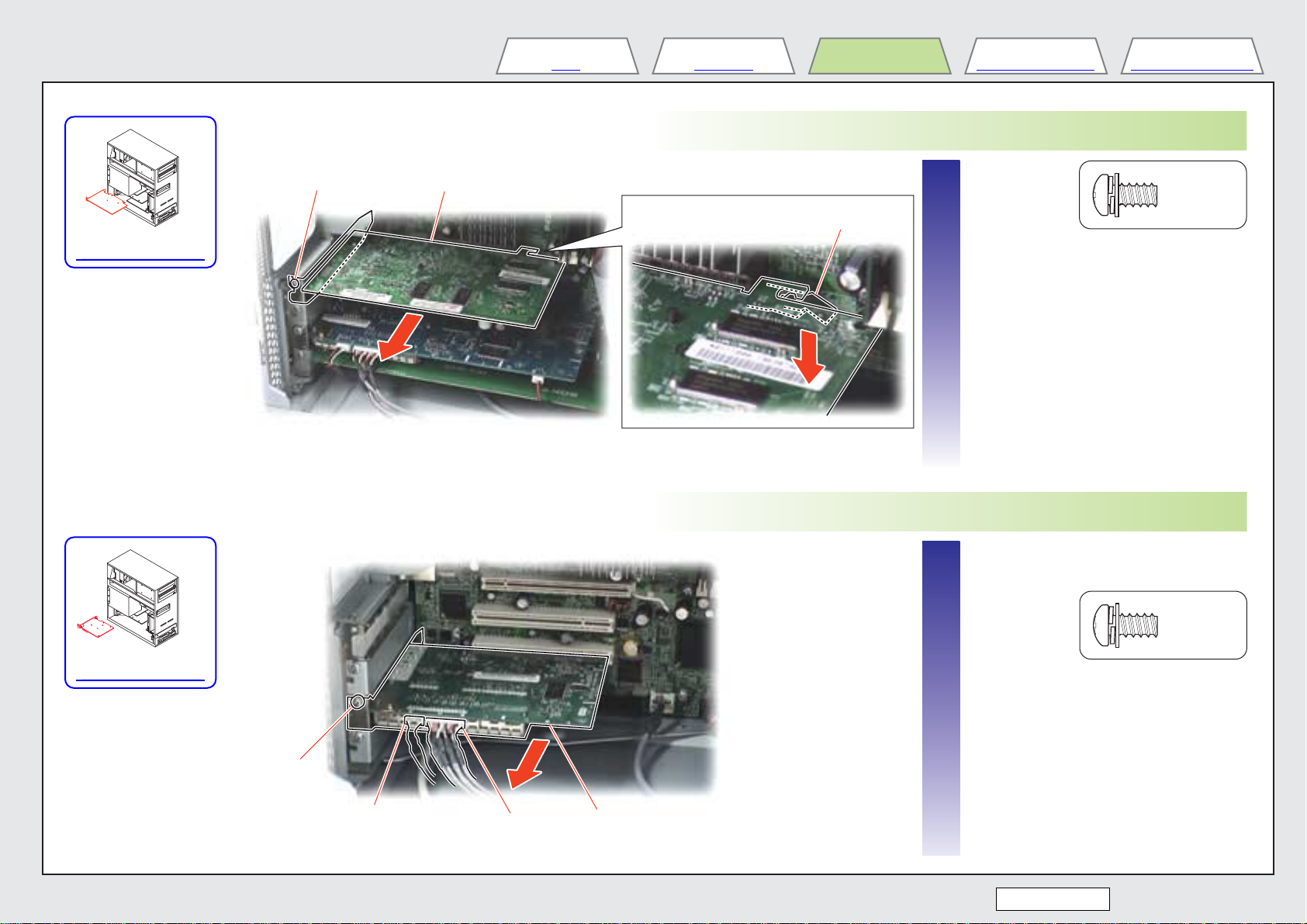

VGA CARD
Procedure to remove
1 screw
2
SW
(No.6-32UNC)
4-645-944-22
Silver
FLOWCHART
FLOWCHART
2 Pull the lever in the direction
of arrow.
3 Remove the VGA card in the
direction of arrow.

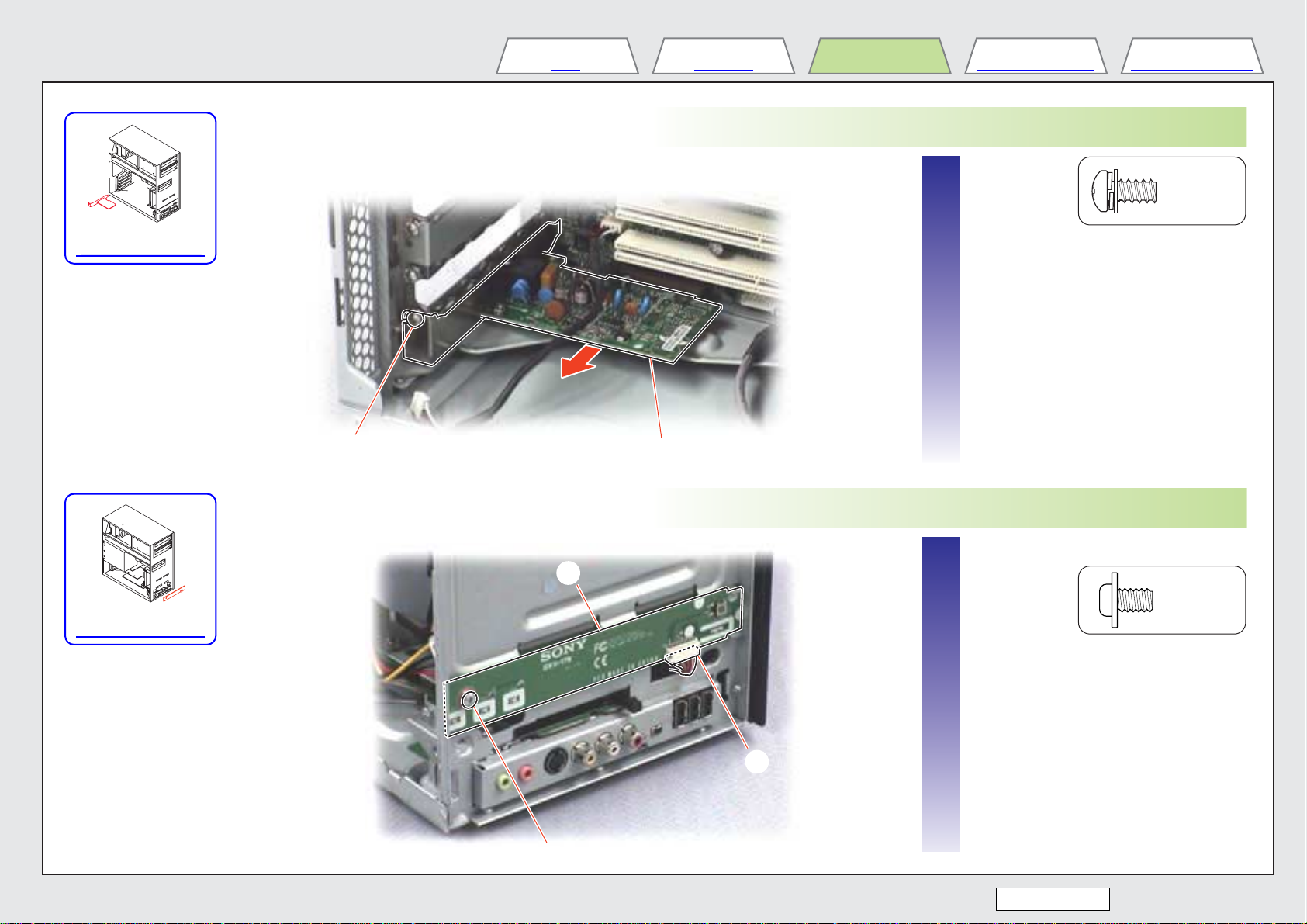

ENX-26 BOARD
Procedure to remove
1 Harness (YU AUDIO)
2 Harness (AUDIO)
3 screw
4 Remove the ENX-26 board
in the direction of arrow.
SW
(No.6-32UNC)
4-645-944-22
Silver
3
1
2
4
8
VGC-RA_M Series (AM)Confidential
Page 9
FLOWCHART
4
5
TOP
CAUTION DISASSEMBLY FRAME HARNESS

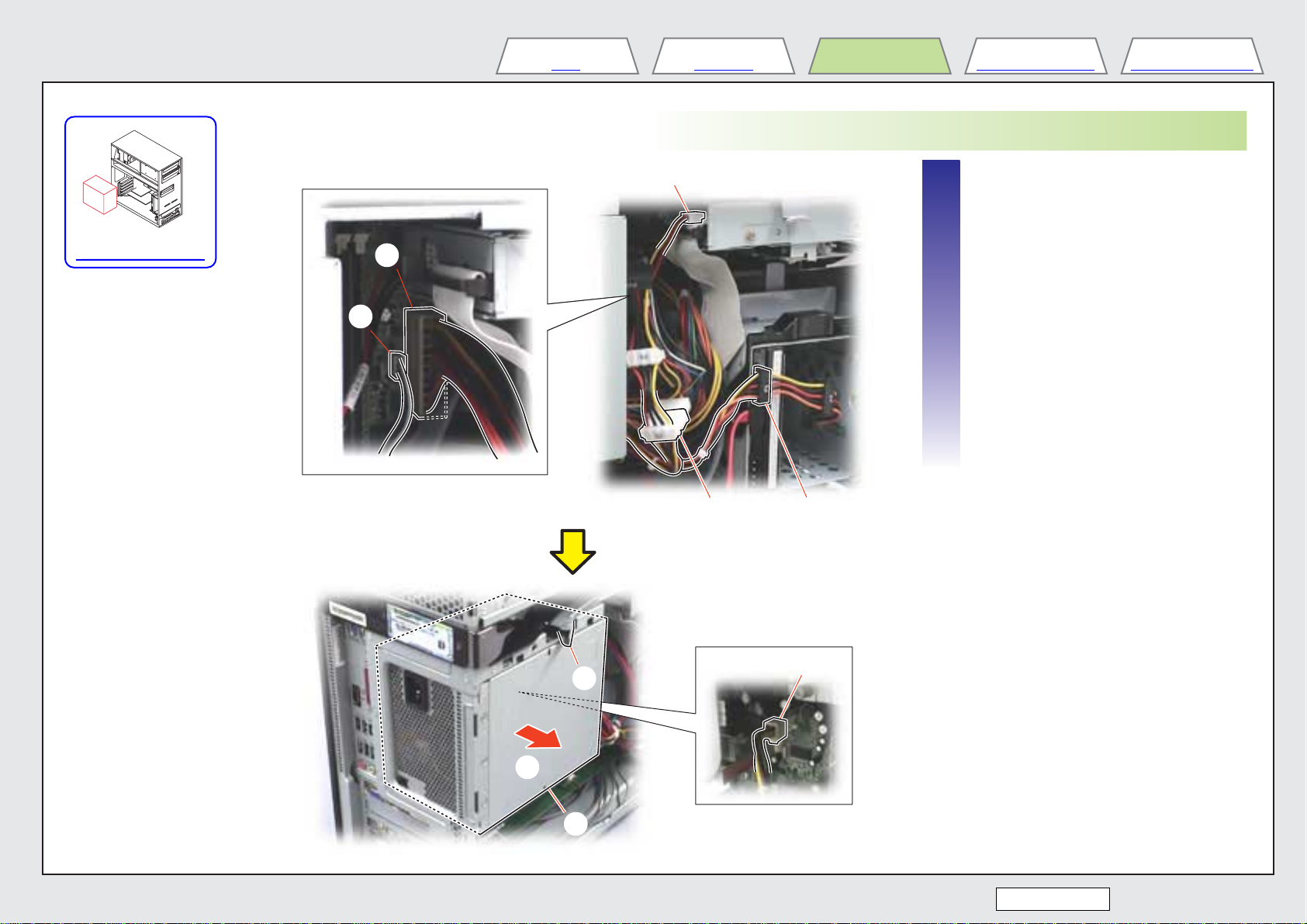

SWITCHING POWER
3
Procedure to remove
1 harness (power: P9)
2 harness (power: P6)
3 harness (power: P4)
4 harness (power: P2)
5 harness (power: P1)
6 Pull the lever.
7 Pull out the switching power
in the direction of arrow.
8 harness (power: P3)
9 switching power
EXPLODED VIEWS
7
6
9
1
2
8
9
VGC-RA_M Series (AM)Confidential
Page 10
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
CNR MODEM CARD
Procedure to remove
1 screw
SW
(No.6-32UNC)
4-645-944-22
Silver
FLOWCHART
FLOWCHART
1
3
2
2 Remove the CNR modem card
in the direction of arrow.
SWX-175 SW/LED BOARD
Procedure to remove
1 harness (SW/HA)
2 screw
3 SWX-175 SW/LED BOARD
+PWH 3x5
7-682-903-01
Gold
2
10
1
VGC-RA_M Series (AM)Confidential
Page 11
FLOWCHART
1
2
9
3
4
5
TOP
6
CAUTION DISASSEMBLY FRAME HARNESS

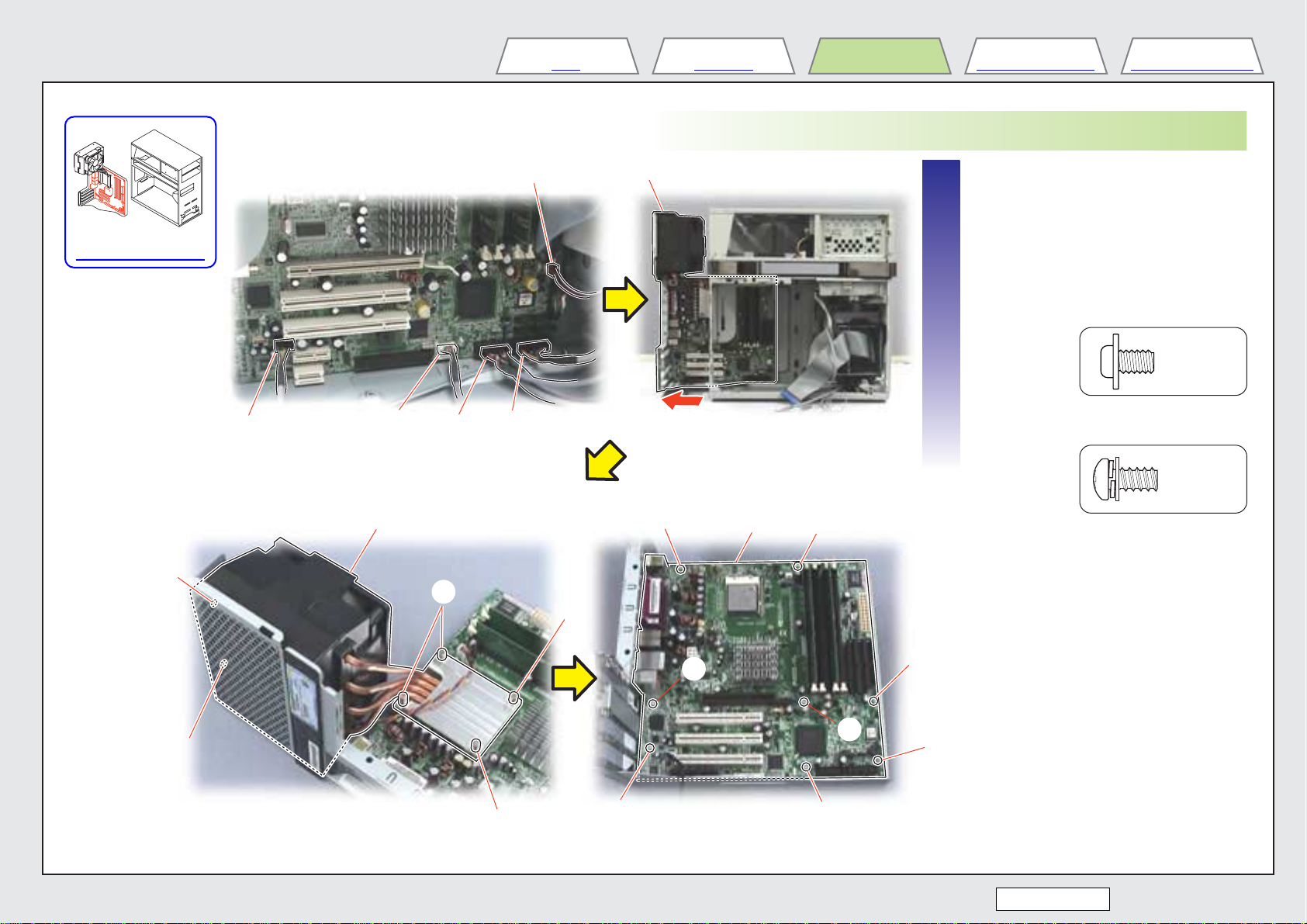

MOTHER BOARD
Procedure to remove
1 harness (MIC/HEADPHONE)
2 harness (1394)
3 harness (USB2x3, HY)
4 harness (SW/HA)
5 harness (FAN)
6 Pull out the MB chassis assy
in the direction of arrow.
7 2 screws
8 4 screws
9 DC fan (with heat sink)
0 8 screws
0
qa
0
qa mother board
EXPLODED VIEWS
+PWH 3x5
4-680-025-01
SW
(No.6-32UNC)
4-645-944-22
Silver
7
7
8
8
8
0
11
0
0
0
0
0
VGC-RA_M Series (AM)Confidential
Page 12
FLOWCHART
TOP
1
2
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS

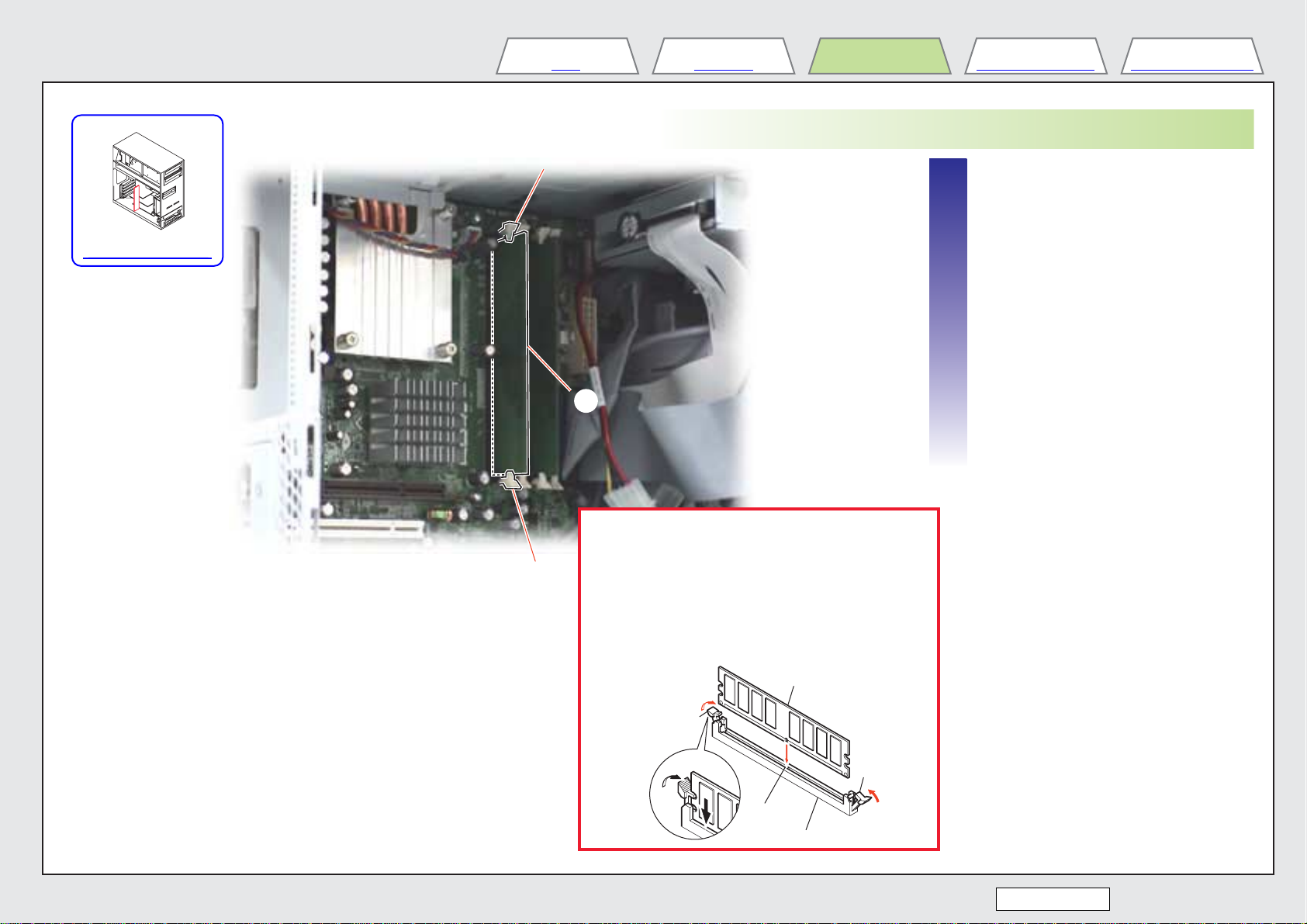

MEMORY
Procedure to remove
1 Open two clips same time.
2 Memory
1
MEMORY INSTALLATION
Note1 : With the clips left open, insert the memory
so that boss of DIMM socket engage with
slot of memory.
Note2 : Make sure that clips are closed when the
memory were inserted completely.
Note3 : Insert the memory, starting from the one
having smallest bank number.
memory
clip
clip
boss
DDR soket
12
VGC-RA_M Series (AM)Confidential
Page 13
FLOWCHART
TOP
CAUTION DISASSEMBLY FRAME HARNESS

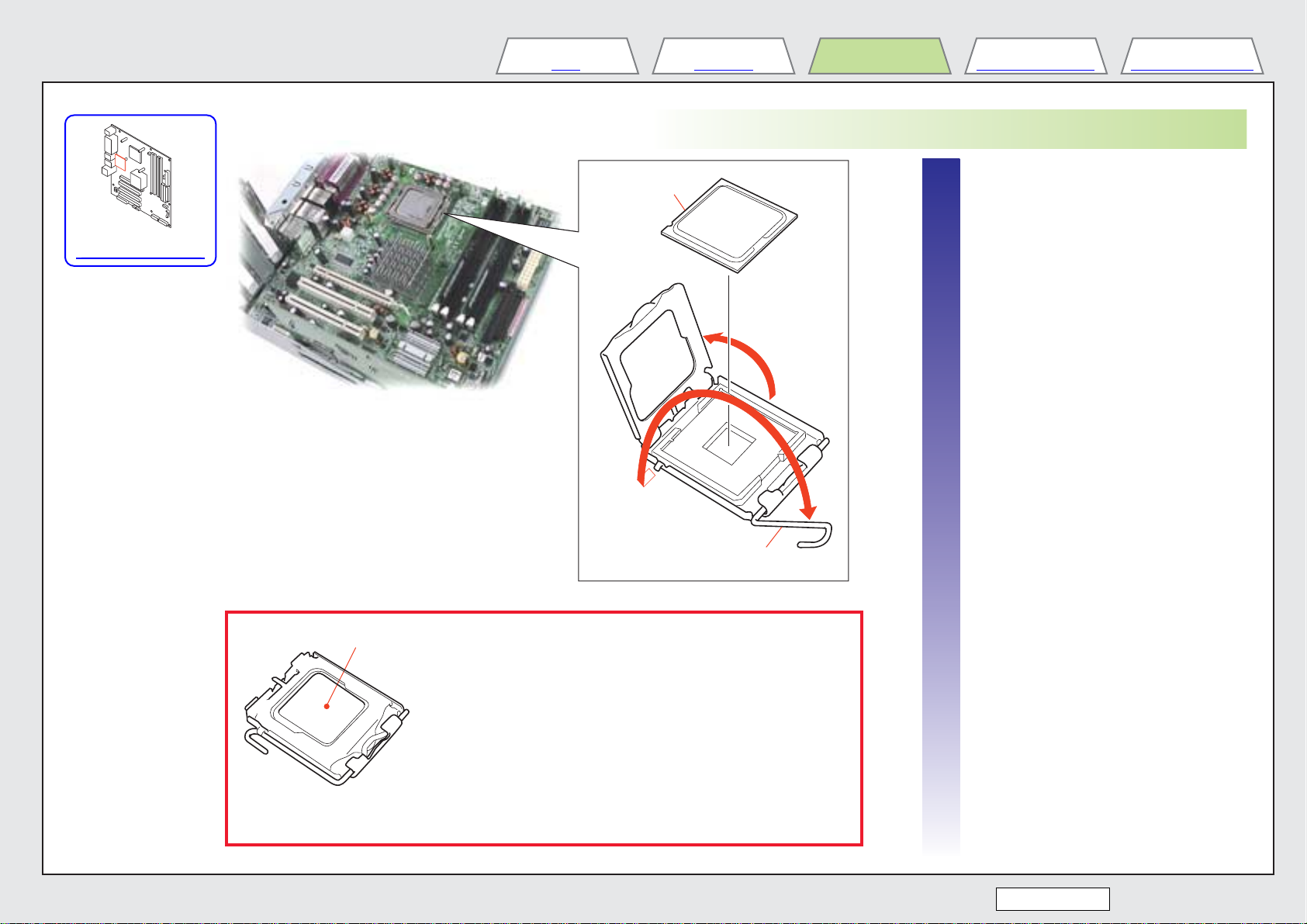

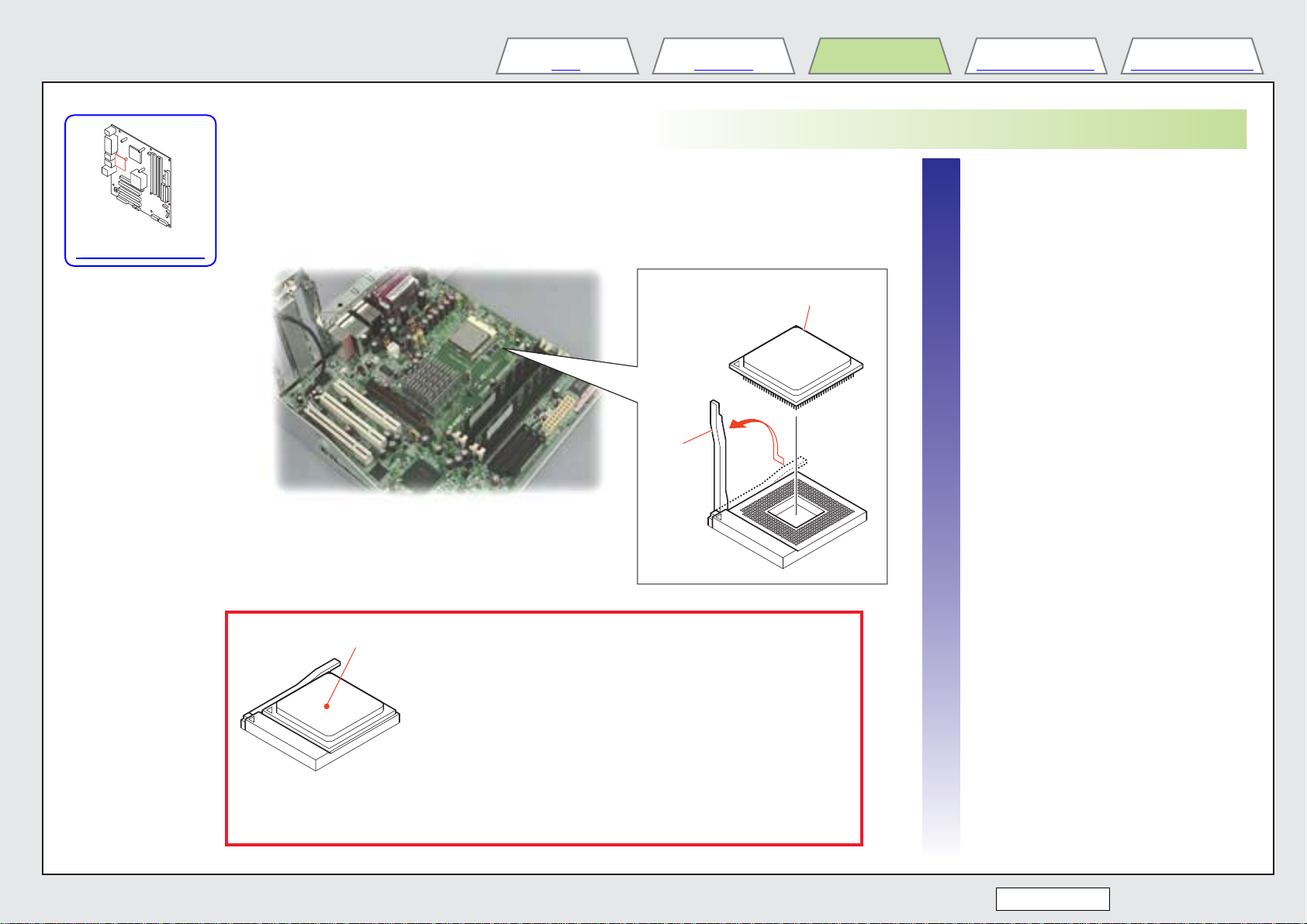

CPU (MOTHER BOARD: MU2)
Procedure to remove
1 Eject the lever in the direction
of arrow.
2 CPU
2
1
EXPLODED VIEWS
grease (in the surface at the splatter)
Note : When heat sink is removed from CPU, install new ones
after thermal diffusion grease is wiped off and silicon
compound is applied to the place shown in the figure.
Thermal diffusion grease : silicon compound (G-765) 90G
Amount to apply : 0.5 g (as the same size as the tip of
a match) (Pentium 4)
* Take care not to apply the grease to any other places because
it has high conductivity.
13
VGC-RA_M Series (AM)Confidential
Page 14
FLOWCHART
TOP
CAUTION DISASSEMBLY FRAME HARNESS
CPU (MOTHER BOARD: HA)
Procedure to remove
3
2
1 Eject the lever in the direction
of arrow.
2 Open the cover in the direction
of arrow.
3 CPU
EXPLODED VIEWS
grease (in the surface at the splatter)
Note : When heat sink is removed from CPU, install new ones
after thermal diffusion grease is wiped off and silicon
compound is applied to the place shown in the figure.
Thermal diffusion grease : silicon compound (G-765) 90G
Amount to apply : 0.5 g (as the same size as the tip of
a match) (Pentium 4)
* Take care not to apply the grease to any other places because
it has high conductivity.
14
1
VGC-RA_M Series (AM)Confidential
Page 15
CNX-268
CONNECTOR
BOARD
(Front Connector)
ENX-26 (US F S) BOARD
CN3
AUDIO INPUT
L
PHONE
The Mother board of service parts can be used without changing
factory jumper setting, when it was replaced for service.
LINE
J1
J2
MEMORY
STICK
PC CARD
0 CAUTION
Do not change the jumper with the power turned on.
Before changing the jumper, turn off the power and
disconnect the power cord from the set.
VIDEO
S VIDEO
S
CN2
AV
110
CN1
VIDEO 1 INPUT
S VIDEOVIDEOR
CNR MODEM
CARD (FCC)
USB_CON1
IFX-353 BOARD
LR
LINE
CN1
ILINK
Harness
(YU AUDIO)
Harness (AUDIO)
14
CN5
CP1
VHF/UHF
CNR Connector
CNR
USB56
PCI
PCI2
CNR
i.LINK
S400
4 pin
USB
U2
CN5
Harness (1394)
Harness (USB2×3, HY)
Harness (SW/MU)
Power
Switch
POWER
LED
REC LED
DVD-ROM/
CD-RW
LED
HDD
LED
SWX-175
SW/LED BOARD
USB7
1
16
3
1
CMOS CLR
1-2: CMOS CLR
2-3: NORMAL
CON1
TOP
XMM1
XMM2
XMM3
XMM4
140
1
1
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
MOTHER BOARD (MU2) ASSY
MONITOR
AGP
VGA CARD
SOCKET
478
MOTHER BOARD (MU2)
P4SD-VL
XMM Socket (×4)
XMM1
XMM2
XMM3
40
34
XMM4
Harness (IDE/ATA66)
TV OUT
DVI
CPU
HEATSINK WITH FAN
MEMORY BOARD
MEMORY BOARD
MEMORY BOARD
MEMORY BOARD
Harness
(IDE CD/DVD)
Harness (FDD)
KEYBOARD
P2
P1
P3
AUDIO
OPTICAL DRIVE
IDE
FDD IF
HDD
IDE
EXTENSION
HDD
IDE
i. LINK
S400
6 pin
USB×2
USB×2
MIC
FDD
(Rear side)
HDD Bay1
POWER
HDD Bay2
POWER
I/O Panel
POWER SUPPLY
P7
Harness
(IDE POWER
5inch Bay1
POWER
(Upper side)
POWER
P5
P6
(Front side)
MOUSE
PRINTER
OPTICAL
OUT
ACT
NETWORK
LINK
LINE IN
HEAD PHONES
AC INPUT
100V 4.5A
50/60Hz
EXTENSION)
P4
Rear
MOTHER BOARD (MU2)
P4SD-VL
From board to connector
(direct connection)
Harness
(with connectors on both ends)
Harness (soldering on either end)
15
VGC-RA_M Series (AM)Confidential
Page 16
CNX-287
CONNECTOR
BOARD
(Front Connector)
AUDIO
S VIDEO
S
CN2
AV
VIDEO
LR
LINE
CN1
ILINK
i.LINK
S400
4 pin
USB56
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
MOTHER BOARD (HA/HA2/AL) ASSY
USB
U2
CN5
USB7
PCI-e
VGA CARD
SOCKET
478
MONITOR
DVI
CPU
KEYBOARD
I/O Panel
MOUSE
Rear
MOTHER BOARD
(HA/HA2/AL)
PTGD-VX
Harness
(MIC/HEADPHONE)
ENX-26 (US F S) BOARD
CN4
CN3
AUDIO INPUT
L
PHONE
J1
AZ (HDA) MODEM
MEMORY
STICK
PC CARD
The Mother board of service parts can be used without changing
factory jumper setting, when it was replaced for service.
0 CAUTION
Do not change the jumper with the power turned on.
Before changing the jumper, turn off the power and
disconnect the power cord from the set.
110
CN1
VIDEO 1 INPUT
S VIDEOVIDEOR
USB_CON1
IFX-377 BOARD
Harness (AUDIO)
14
CN5
CP1
VHF/UHF
MODEM1
AZ Connector
CNR
Harness
(YU AUDIO)
PCI
PCI2
Harness (1394)
Harness (USB2×3, HY)
1
16
Harness (SW/HA)
Power
Switch
POWER
LED
REC LED
DVD-ROM/
CD-RW
CON1
LED
HDD
LED
SWX-175
SW/LED BOARD
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
1
3
CMOS CLR
1-2: CMOS CLR
2-3: NORMAL
CHASSIS FAN
PRINTER
MOTHER BOARD
(HA/HA2/AL)
PTGD-VX
HEATSINK WITH FAN
DIMM Socket (×4)
DIMM_A1
DIMM_A2
DIMM_B1
1
40
34
1
Harness (IDE CD/DVD)
DIMM_B2
Harness (SATA)
MEMORY BOARD
MEMORY BOARD
MEMORY BOARD
MEMORY BOARD
AUDIO
OPTICAL DRIVE
IDE
OPTICAL DRIVE
IDE
Harness (FDD)
IDE
EXTENSION
IDE
P2
P1
P3
FDD IF
HDD
HDD
i. LINK
S400
6 pin
USB×2
USB×2
WOOFER
/CENTER
MIC
(Upper side)
Bay1
POWER
Bay2
POWER
(Lower side)
FDD
(Rear side)
HDD Bay1
POWER
HDD Bay2
POWER
OPTICAL
OUT
ACT
NETWORK
LINK
REAR
HEAD PHONES
LINE IN
AC INPUT
100V 4.5A
POWER SUPPLY
P8
Harness
(IDE POWER
P4
POWER
P5
P6, P7
(Front side)
50/60Hz
EXTENSION)
From board to connector
(direct connection)
Harness
(with connectors on both ends)
Harness (soldering on either end)
16
VGC-RA_M Series (AM)Confidential
Page 17
TOP
CAUTION DISASSEMBLY FRAME HARNESS

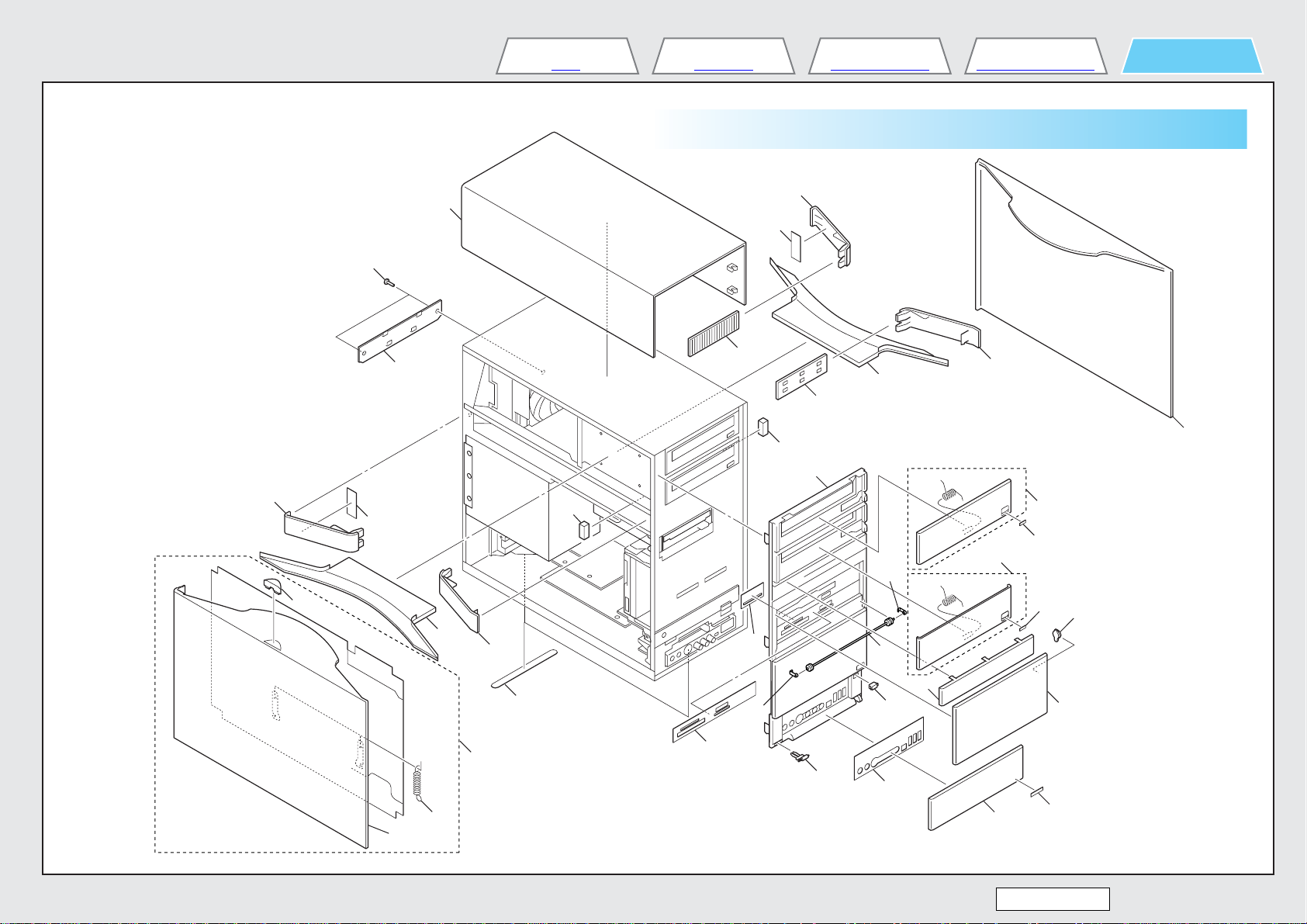

EXPLODED VIEWS
COVER SECTION
100
82
152
114
113
83
101
98
115
96
105
114
99
115
88
96
101
147
86
97
24
22
72
73
95
92
81
80
79
94
17
103
147
91
93
74
85
87
90
110
VGC-RA_M Series (AM)Confidential
Page 18
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
DRIVE SECTION
75
151
117
6
102
139
109
54
116
55
21
23
89
109
153
27
118
106
151
40
104
26
53
119
138
57
Serial ATA model
61
11
18
153
122
153
78
120
12
153
58
51
153
60
153
31
59
33
56
32
VGC-RA_M Series (AM)Confidential
Page 19
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS

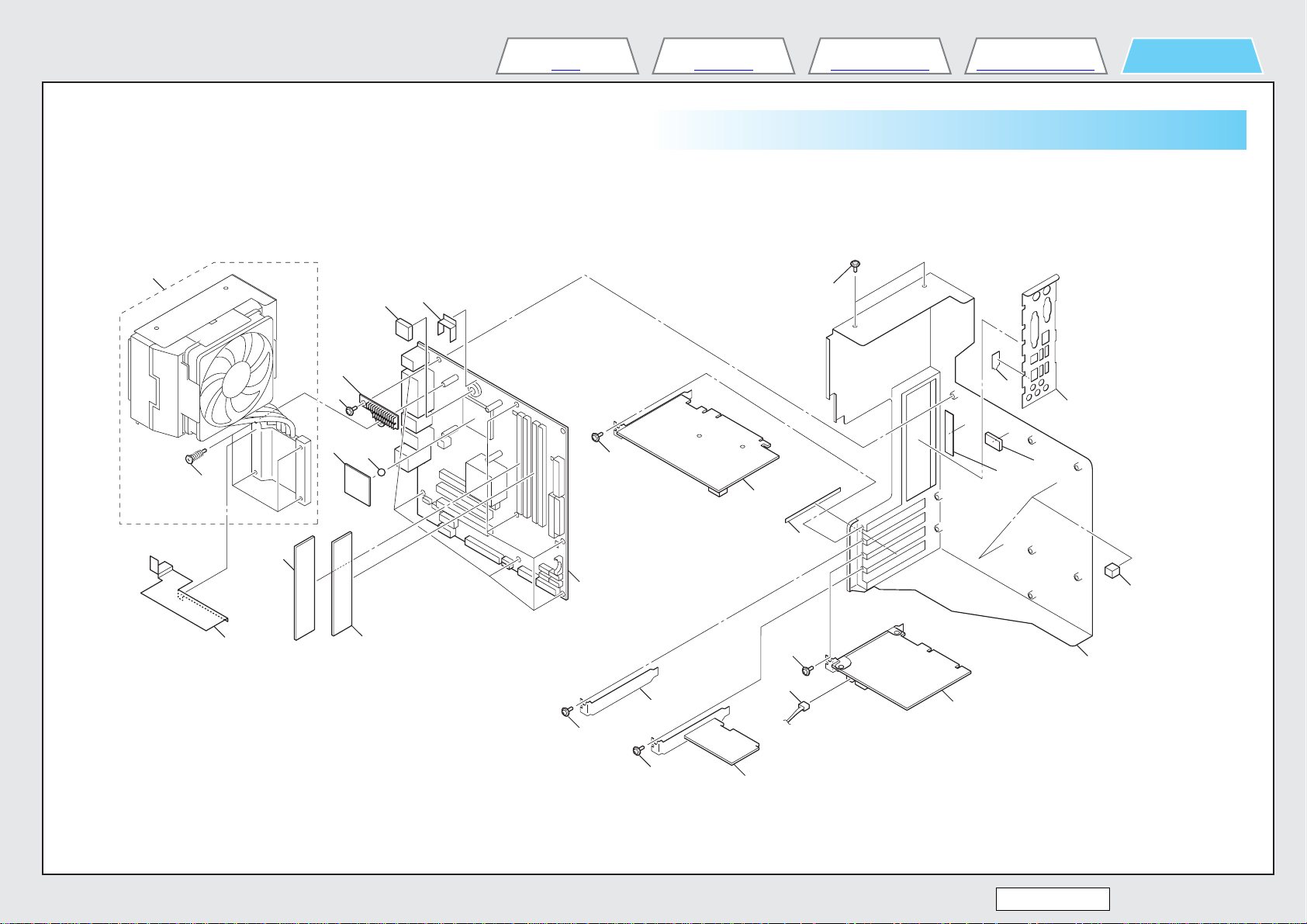

BOARD SECTION
3
154
133
153
2
135
5
134
153
37
151
111
125
107
132
136
4
1
4
76
153
153
19
71
108
153
77
52
34
36
VGC-RA_M Series (AM)Confidential
Page 20
TOP
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS

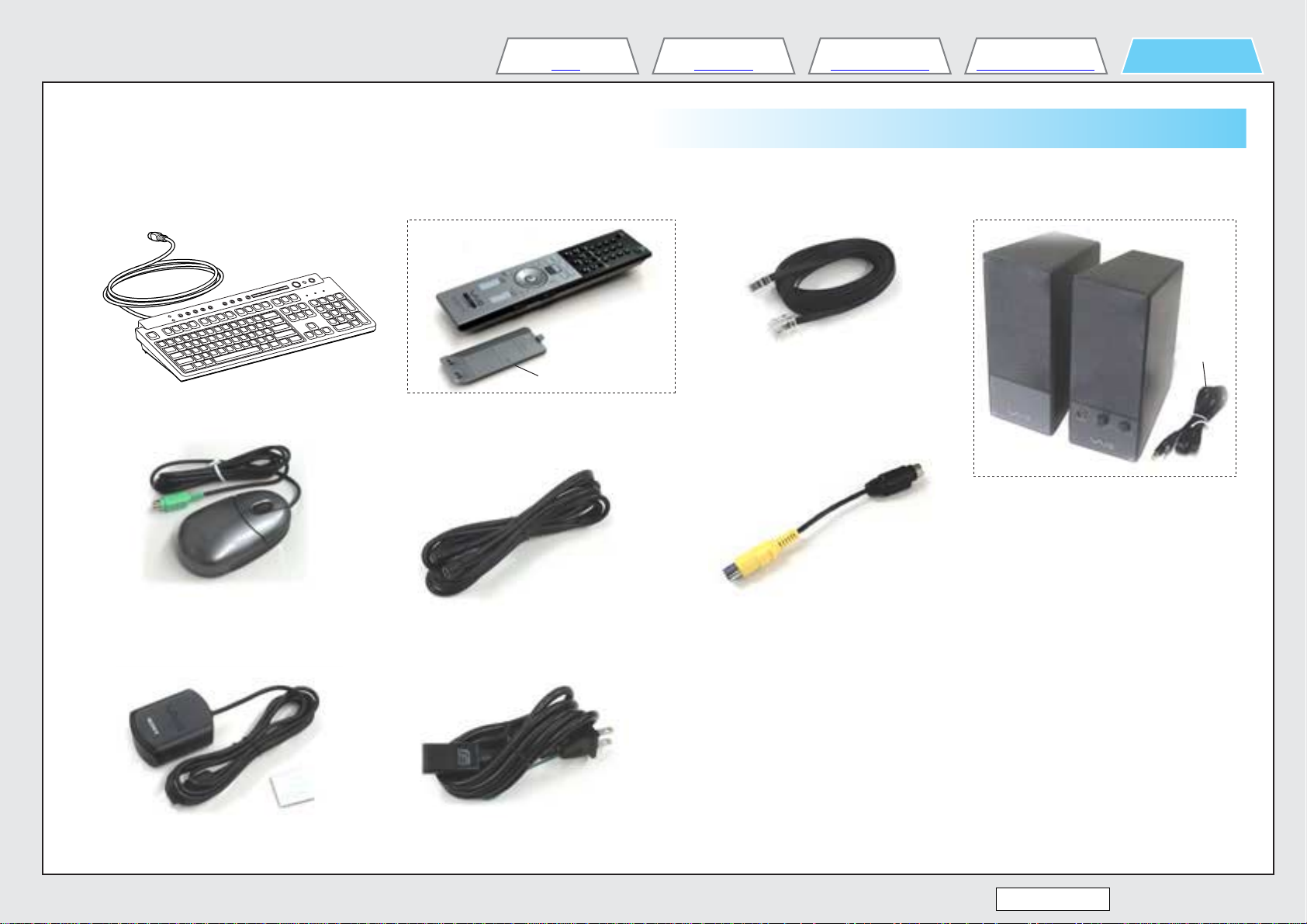

ACCESSORIES
201
KEYBOAD (LA)
202
MOUSE
203
RAY-CATCHER UNIT
204
IR COMMANDER RM-GP5U
219
206
CORD (F TYPE RF), CONNECTION
207
CORD, AC
208
CORD, CONNECTION
214
TV OUT CABLE
210
SPEAKER UNIT
230
20
VGC-RA_M Series (AM)Confidential
Page 21
NOTE:
Ref No. Part No. Description
RA10MG
RA20MG
RA30MG
RA40MG
Remarks Column
40 1-761-943-12 IFX-353 BOARD z
1-789-020-11 IFX-377 BOARD z
1-789-020-21 IFX-377 BOARD zz
51 1-959-225-61 HARNESS (AUDIO) zzzz
52 1-960-620-81 HARNESS (YU AUDIO) zzzz
53 1-962-127-31 HARNESS (FDD) zzzz
54 1-962-129-31 HARNESS (IDE CD/DVD) z
1-962-129-51 HARNESS (IDE CD/DVD) zzz
55 1-962-828-11 HARNESS (IDE POWER EXTENSION) z
1-962-828-12 HARNESS (IDE POWER EXTENSION) zzz
56 1-961-911-41 HARNESS (USB2X3,HYDRA) z
1-961-911-51 HARNESS (USB2X3,HYDRA) zzz
57 1-961-975-41 HARNESS (IDE/ATA66) z
58 1-959-197-71 HARNESS (1394) zzzz
59 1-962-824-21 HARNESS (SW/HA) zzz
60 1-962-827-21 HARNESS (MIC/HEADPHONE) zz z
61 1-962-826-11 HARNESS (SATA) zz
71 2-025-122-02 LABEL (AOI/KARIN), SLOT zzzz
72 2-024-979-02 LABEL (DVD+-RW), DRIVE zzz z
73 2-024-980-02 LABEL (DVD-ROM), DRIVE zzz z
74 2-024-986-02 LABEL (GP) (AU), CONNECTOR zz z
2-024-987-02 LABEL (GP), CONNECTOR z
75 A-1067-532-A MAIN CHASSIS ASSY z
A-1067-532-B MAIN CHASSIS ASSY z
A-1067-532-C MAIN CHASSIS ASSY zz
#764-666-950-01 PCI SLOT PANEL zzz z
77 X-2021-421-1 MB CHASSIS ASSY z
X-2021-421-2 MB CHASSIS ASSY zz
X-2021-421-3 MB CHASSIS ASSY z
78 4-666-952-02 BRACKET (80), FAN zzzz
79 A-1056-712-A PANEL ASSY, LEFT z
A-1086-892-A LEFT CHASSIS ASSY zz z
80 2-024-410-01 SPRING, LEFT zzzz
81 2-024-411-01 PANEL, LEFT z
2-024-411-11 PANEL, LEFT zz z
82 2-024-412-01 BUTTON, LEFT z
82 2-024-412-11 BUTTON, LEFT zzz
83 A-1056-713-A COVER ASSY, TOP z
A-1086-893-A TOP COVER ASSY zzz
85 X-2023-112-1 PILLAR PANEL ASSY zzzz
86 X-2021-431-1 SHAFT ASSY, FDD zzzz
#87X-2021-432-1 DOOR ASSY, CONNECTOR z
X-2025-104-1 CONNECTOR DOOR ASSY zz z
88 X-2021-433-1 PANEL SUB ASSY, FRONT z
X-2025-105-1 FRONT PANEL SUB ASSY z
X-2025-105-2 FRONT PANEL SUB ASSY zz
89 3-645-566-01 BAND, BINDING z
90 2-024-483-01 DOOR, FDD z
2-024-483-11 DOOR, FDD zzz
#914-045-250-11 DAMPER zzzz
92 3-953-235-01 DAMPER, OIL zz
3-953-235-11 DAMPER, OIL zz
• The parts listed here are for service, and theref ore the y ma y be different from
the parts shown in circuit diagrams or used in the set.
•# mark: The parts which can be sold for Customer, (exept for area).
• When you exchange the parts which the R mark attached, be sure to write in
firm ware etc.
• The number of the mark “ 2 ” is the quantity at the time of preinstallment.
BASIC LIST
Ref No. Part No. Description
1 1-761-940-61 MOTHER BOARD(MU2/H,PSC/100) z
1-789-017-21 MOTHER BOARD (HARRY2,DDR/RAID) z
1-789-017-31 MOTHER BOARD (HARRY2,DDR/NO-R) z
1-789-259-12 BOARD, MOTHER (AL) z
2A-8120-000-A CPU (P4/3.20EG/881M) ASSY (S) z 6-706-103-01
A-1089-578-A CPU(P4/3.40EG/7PY) ASSY (S) z 6-707-375-01
A-1089-577-A CPU(P4/3.60EG/7Q2) ASSY (S) z 6-707-374-01
6-708-344-01 CPU PD SMF 3G (HH80551PG0802MNSL88S) z
3 1-787-169-11 FAN, DC (WITH HEATSINK) z
1-787-168-21 FAN, DC (WITH HEATSINK) zz
1-787-168-31 FAN, DC (WITH HEATSINK) z
4 6-600-376-01 DDR 256MB (M368L3223FTN-CCC)
6-600-387-01 DDR 256MB (HYS64D32300HU-5-C)
6-600-427-01 DDR 256MB (M368L3223FUN-CCC) z
6-600-458-01 DDR 512MB (EBE51UD8AEFA-5C-E) 2
5 7-300-000-40 SILICON COMPOUND (G-765) 90G zzz
0 6 1-468-851-21 POWER, SWITCHING z
㸡
1-468-851-13 POWER, SWITCHING zz
1-468-851-14 POWER, SWITCHING z
11 A-1063-804-A HDD(W-CVXL80/WD1600BB98/160GB)ASSY(S) z
A-1085-235-A HDD(W-CVXL80-2-S/WD1600JD/160GB)ASSY(S) z
A-1085-234-A HDD(W-CVXL80-2-S/WD2000JD/200GB)ASSY(S) z
A-1129-630-A HDD (W-CVXL80-2-S/WD1600JD-98HBC0/160GB) ASSY (S) 2
12 X-2021-424-1 HDD BRACKET ASSY zzzz
21 8-457-579-21 DRIVE, DVD DW-D18A-VF z
1-797-062-11 DVD+-RW/P-108-F z
8-457-604-90 DRIVE, DVD DW-D22A-VG z
1-797-262-21 DVD+-RW/P-109-F z
22 X-2021-428-1 DOOR (UPPER) ASSY, OPTICAL z
X-2025-102-1 OPTICAL DOOR (UPPER) ASSY zzz
23 1-796-964-11 DVD-ROM/H-8162-F z
1-797-063-11 DVD-ROM/H-8163-F zzz
24 X-2021-429-1 DOOR (LOWER) ASSY, OPTICAL z
X-2025-103-1 OPTICAL DOOR (LOWER) ASSY zzz
26 1-796-903-11 FDD zzz
1-796-903-21 FDD z
27 X-2021-422-1 FDD BRACKET ASSY zz
X-2021-422-2 FDD BRACKET ASSY zz
31 1-761-935-11 BOARD, SWX-175 SWITCH /LED zzz z
32 1-761-934-11 BOARD, CNX-268 CONNECTOR z
1-789-040-11 CNX-287 CONNECTOR BOARD zzz
33 X-2021-423-1 CONNECTOR BRACKET ASSY z
X-2024-548-1 CONNECTOR BRACKET ASSY zzz
34 A-1057-183-A MOUNTED PWB ENX-26 (US F S) zzzz
36 1-761-576-15 CARD, CNR MODEM (FCC) z
1-478-750-11 AZALIA(HDA) MODEM zz
1-478-750-12 AZALIA(HDA) MODEM z
37 1-761-923-51 VGA CARD (GE FORCE FX 5200)
1-789-039-71 CARD, VGA (RADEON X300) zz z
RA10MG
2
z
RA20MG
22
RA30MG
RA40MG
Remarks Column
TOP
21
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
VGC-RA_M Series (AM)Confidential
Page 22
Ref No. Part No. Description
Ref No. Part No. Description
RA10MG
RA20MG
RA30MG
RA40MG
Remarks Column
151 4-680-025-01 +PWH3X5 zzz z
152 2-103-434-01 +K3X8 zzz z
# 153 4-645-944-22 SCREW (SW) (NO.6-32UNC) zzz z
154
2-179-720-01
SCREW, SPRING z
154 2-190-520-01 SCREW, SPRING zz z
C2 7-400-000-00 LUBRICANT (SFL-9) 25G zz
#942-024-407-01 FOOT zzz z
93 4-646-810-01 MAGNET zzz z
95 2-024-493-01 PANEL, LIGHT z
2-024-493-11 PANEL, LIGHT zzz
96 2-024-494-01 PILLAR (IN SIDE) zzzz
97 2-024-496-11 PILLAR (FRONT LIGHT) zzz z
98 2-024-497-11 PILLAR (FRONT LEFT) zzz z
99 2-024-498-11 PILLAR (REAR LIGHT) z
2-024-498-12 PILLAR (REAR LIGHT) zzz
100 2-024-499-11 PILLAR (REAR LEFT) z
2-024-499-12 PILLAR (REAR LEFT) zz z
101 2-025-227-01 COVER, CENTER zzzz
102 4-985-125-01 CLAMP (TR), CABLE zzzz
103 2-024-981-03 LABEL (HYDRA2) z
2-024-981-04 LABEL (HYDRA2) z
2-581-433-01 LABEL (HYDRA3) zz
104 2-048-591-02 MEMORY SHIELD z
2-048-591-11 MEMORY SHIELD z
2-048-591-12 MEMORY SHIELD zz
105 2-176-526-01 GASKET (XD PICTURE) z
106 2-148-645-01 GASKET (CF) z
2-148-645-03 GASKET (CF) zz
2-148-645-04 GASKET (CF) z
107 X-2021-434-3 IO BRACKET (H) ASSY zz z
X-2021-435-2 IO BRACKET (M) ASSY z
108 2-024-723-01 SPACER, MB zzz z
109 4-640-554-41 CABLE CLAMP zzz z
110 2-024-971-01 LABEL, ID z
2-188-202-01 LABEL, ID z
2-581-789-01 LABEL, ID z
2-631-717-01 LABEL, ID z
111 4-654-836-01 LABEL (ETHER), CAUTION zzzz
113 2-024-495-01 PILLAR (REAR) zzz z
114 2-149-359-01 TAPE (15X55), CONDUCTIVE zzz z
115 2-149-360-01 GASKET (13-13-23) zzz z
116 2-149-361-01 GASKET (10X10X20) zzz z
117 2-159-622-01 GASKET (21X2X67) z
118 2-177-811-01 GASKET (7-1-40) z
119 2-177-812-01 GASKET (7-1-16) z
120 2-177-813-01 GASKET (7-1-120) z
122 1-787-170-11 FAN, DC zz z
125 2-179-635-01 SHEET, HEAT CONDUCTION z
2-349-829-01 SHEET (T3), THERMAL zz z
132 2-349-830-01 SHEET (T7), THERMAL zz
2-630-099-01 SHEET (T6), THERMAL z
133 2-349-832-01 HEATSINK(FOR FET) zz
134 2-349-834-01 HOLDER (FOR COIL) zz
135 2-349-831-01 SHEET (T7), THERMAL zz
136 2-349-833-01 PLATE (FOR FET), RECTIFIER zz
138 2-546-521-01 GASKET (4-1-30) zzz
139 4-662-275-01 CLIP, COATING zz z
147 2-560-586-01 FDD GEAR SUPPORT zz
RA10MG
RA20MG
RA30MG
RA40MG
Remarks Column
TOP
22
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
VGC-RA_M Series (AM)Confidential
Page 23
TOP
Ref No. Part No. Description
RA10MG
RA20MG
RA30MG
RA40MG
Remarks Column
2A-1068-772-A CPU(P4/3.40EG/61M)ASSY(S) z 6-706-701-01
A-1068-781-A CPU(P4/3.20EG/7E5)ASSY(S) z 6-706-698-01
46-600-258-01 DDR 512MB (HYS64D32300GU-5-B) (256X2) z
6-600-379-01 DDR 512MB (V826632K24SAEW-D0) (256X2) z
6-600-380-01 DDR 512MB (MT8VDDT3264AY-40BGB) (256X2) z
6-600-453-01 DDR 512MB (M378T6553BZ0-CD5) 2
11 A-1063-770-A HDD (M-CALYPSO/6Y160L0/160GB) ASSY (S) z
A-8115-604-A HDD (S-AP/ST316002*A/160GB) ASSY (S) z
A-1063-779-A HDD (W-CVXL/WD1600BB98/160GB) ASSY (S) z
A-8117-838-A HDD/HG-VC3 (HDS722516VLAT20/160GB) ASSY (S) z
A-1063-780-A HDD (M-CAL-S/6Y160M0/160GB) ASSY (S) z
A-1063-781-A HDD (HG-VC3-S/HDS722516VLSA20/160GB) ASSY (S) z
A-1073-917-A HDD(S-AP/ST3160021A/160GB)ASSY(S) z
A-1063-771-A HDD (M-CAL-S/6Y200M0/200GB) ASSY (S) z
A-1111-341-A HDD (M-CALYPSO-S/6Y200*O/200GB)ASSY(S) z
A-1111-342-A HDD (S-APLUS-S/ST3200822AS/200GB) ASST (S) z
A-1142-654-A HDD(W-CVXL80-2-S/WD2000JD-98HBC0/200GB)ASSY(S) z 1-797-076-21
A-1129-629-A HDD (HG-VC3-S/HDS722516VLSA80/160GB) ASSY (S) 2
A-1129-630-A HDD(W-CVXL80-2-S/WD1600JD-98HBC0/160GB)ASSY(S) z 1-797-077-21
21 8-457-604-21 DRIVE, DVD DW-D22A-VF z
1-797-062-22 DVD+-RW/P-108-F z
8-457-654-30 DRIVE, DVD DW-Q28A-VG z
8-457-676-30 DRIVE, DVD DW-Q28A-VK z
23 1-796-963-11 DVD-ROM/SA-616-F z
1-796-963-21 DVD-ROM/SA-616-F z
8-449-651-10 DRIVE, DVD-ROM DDU1615-VF z
26 8-426-445-38 DRIVE, MFDD (MPF920-Z/EB3) zzz z
8-426-445-42 DRIVE, MFDD (MPF920-Z/EB3) zzz z
1-796-903-21 FDD z
1-796-903-11 FDD z
37 1-761-923-21 VGA CARD (GE FORCE FX 5200) z
1-789-039-31 CARD, VGA (RADEON X300) z
1-789-183-31 CARD, VGA (RADEON X300) z
CAUTION DISASSEMBLY FRAME HARNESS
EXPLODED VIEWS
ACCESSORIES & PACKING MATERIALS
Ref No. Part No. Description
# 201 1-478-682-11 KEYBOARD (LA) zz
# 202 1-796-511-31 MOUSE zz
# 203 1-477-218-51 RAY-CATCHER UNIT zz
# 204 1-478-300-21 IR COMMANDER RM-GP5U zz
# 206 1-757-518-11 CODE (F TYPE RF), CONNECTION zzz
0#207 1-827-445-11 CORD, AC zzzz
#208 1-782-207-12 CABLE, MODEM zz
#210 1-478-701-12 SPEAKER UNIT zzzz
#214 1-827-134-11 TV OUT CABLE z
# 219 9-885-067-84 BATTERY COVER (FOR SERVICE) zzz
# 230 9-885-070-71 FOR SERVICE (SPEAKER DC CORD) zzz
0# 2-055-277-01 QUICK START z
1-478-682-21 KEYBOARD (LA) zz
1-796-511-51 MOUSE zzz z
1-477-218-61 RAY-CATCHER UNIT zz
1-479-183-11 REMOTE COMMANDER (RM-VC10U) zz
1-783-801-32 CORD, CONNECTION zz
1-827-465-11 TV OUT CABLE zz
2-318-724-01 QUICK START (LA) z
2-585-348-01 QUICK START (RA)(SP) z
RA10MG
RA20MG
RA30MG
RA40MG
Remarks Column
SUBSTITUTION LIST
If the repair part in the “BASIC LIST” was not a vailab le, refer to order the “SUBSTITUTION LIST” if available.
23
VGC-RA_M Series (AM)Confidential
Page 24
Revision History
Suffix Ver. Date Contents QM No.
-01 Ver. 1 2004.06.30 First Edition —
-02 Ver. 2 2004.11.17
-03 Ver. 3 2005.03.02
-04 Ver. 4 2005.06.03
-05 Ver. 5 2006.09.11 QUICK MEMO (FIT-D2005_129, FIT-D2005_134) —
-06 Ver. 6 2008.11.12 QUICK MEMO (FIT-D2008_009) —
<Remarks>
1
2
3
reflection
reflection
Model Lineup FIT-D2004_288
Model Lineup FIT-D2005_039
Model Lineup FIT-D2005_053
[Confidential]
VGC-RA_M Series (AM)
Loading...
