User Guide

Personal Computer

VGC-JS series

Contents

Before Use .........................................................................................................................................................................5

Notice ...........................................................................................................................................................................6

Documentation .............................................................................................................................................................7

Ergonomic Considerations .........................................................................................................................................11

Getting Started .................................................................................................................................................................13

Locating Controls and Ports.......................................................................................................................................14

About the Indicator Lights ..........................................................................................................................................18

Setting Up Your Computer.........................................................................................................................................19

Shutting Down Your Computer Safely .......................................................................................................................22

Using Your VAIO Computer .............................................................................................................................................23

Using the Keyboard ...................................................................................................................................................24

Using the Built-in MOTION EYE Camera...................................................................................................................27

Using the Optical Disc Drive ......................................................................................................................................30

Using the Memory Stick .............................................................................................................................................38

Using the SD Memory Card .......................................................................................................................................44

Using the Internet.......................................................................................................................................................47

Using the Network (LAN) ...........................................................................................................................................48

Using the Wireless LAN (WLAN) ...............................................................................................................................49

Using the Bluetooth Function .....................................................................................................................................56

Using Peripheral Devices .................................................................................................................................................62

Connecting External Speakers ..................................................................................................................................63

Connecting a Universal Serial Bus (USB) Device......................................................................................................65

Connecting a Printer ..................................................................................................................................................67

Connecting an i.LINK Device .....................................................................................................................................68

Customizing Your VAIO Computer ..................................................................................................................................70

Setting the Password .................................................................................................................................................71

Setting Up Your Computer with the VAIO Control Center..........................................................................................76

Using the Power Saving Mode...................................................................................................................................77

Upgrading Your VAIO Computer......................................................................................................................................80

Adding and Removing Memory..................................................................................................................................81

Precautions ......................................................................................................................................................................87

Handling the LCD Screen ..........................................................................................................................................88

Using the Power Source ............................................................................................................................................89

Handling Your Computer ...........................................................................................................................................90

Handling the Built-in MOTION EYE Camera..............................................................................................................92

Handling Floppy Disks ...............................................................................................................................................93

Handling Discs ...........................................................................................................................................................94

Using Headphones ....................................................................................................................................................95

Handling the Memory Stick ........................................................................................................................................96

Handling the Hard Disk ..............................................................................................................................................97

Updating Your Computer ...........................................................................................................................................98

Troubleshooting ...............................................................................................................................................................99

Computer .................................................................................................................................................................100

System Security .......................................................................................................................................................105

Built-in MOTION EYE Camera.................................................................................................................................106

Networking ...............................................................................................................................................................108

Bluetooth Technology ..............................................................................................................................................113

Optical Discs ............................................................................................................................................................117

Display .....................................................................................................................................................................121

Printing .....................................................................................................................................................................122

Microphone ..............................................................................................................................................................123

Mouse ......................................................................................................................................................................124

Speakers ..................................................................................................................................................................125

Keyboard..................................................................................................................................................................127

Floppy Disks ............................................................................................................................................................128

Audio/Video..............................................................................................................................................................129

Memory Stick ...........................................................................................................................................................133

Peripherals ...............................................................................................................................................................134

Support Options .............................................................................................................................................................135

Sony Support Information ........................................................................................................................................136

e-Support .................................................................................................................................................................137

Trademarks ....................................................................................................................................................................139

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

Information in the supplied manuals including this User Guide is intended for users of the VAIO computers with the Microsoft® Windows Vista® 32-bit operating system. You may find differences in the information when your computer comes preinstalled with the 64-bit operating system.

Before Use

Notice

This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval.

Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information contained herein or the use thereof.

In the manual, the ™ or ® marks are not specified.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

Before Use

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Quick Start Guide — Describes the process from unpacking to starting up your VAIO.

❑ Troubleshooting and Recovery Guide — Contains solutions to problems other than those you encounter during normal

operation.

❑ Regulations, Guarantee, EULA and Service Support — Contains Sony guarantee conditions,

safety / regulations, modem regulations, wireless LAN regulations, wireless WAN regulations,

Bluetooth

regulations, end user software license agreement, and Sony support services information.

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Explains features of your computer. It also includes information on solving common

problems. The User Guide is provided in PDF format for easy browsing and printing.

To view this on-screen guide:

1 Double-click the Me&My VAIO icon on the desktop.

2 Click Menu, Me&My VAIO, I Need Help, and VAIO User Guide.

3 Open the folder for your language.

4 Select the guide you want to read.

✍

You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the folder for your language.

To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.

❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.

To view the online specifications:

1 Connect to the Internet.

2 Go to the Sony online support web site at http://www.vaio-link.com

✍

You may have a separate disc that includes documentation for the bundled accessories.

Before Use

Windows Help and Support

Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use your computer.

Use the search feature, index, or table of contents to view all Windows Help resources, including those on the Internet.

To access Windows Help and Support, click Start and Help and Support. Or go to Windows Help and Support by pressing and holding the Microsoft Windows key and pressing the F1 key.

Before Use

Further Sources

❑ Consult the help files included with the software you are using for detailed information on features and troubleshooting.

❑ Go to http://www.club-vaio.com

to find online tutorials about your favorite VAIO software.

Ergonomic Considerations

Whenever possible, you should attempt to take account of the following ergonomic considerations:

Before Use

❑ Position of your computer – Place the display directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, pointing device, or mouse. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use

❑ Viewing angle of the display – Use the display's tilting feature to find the best position. You can reduce eye strain and

muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

While adjusting the viewing angle, do not exert excessive pressure on your computer to eliminate a risk of mechanical damage.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Ventilation – Make sure you leave at least 10 cm of space behind and at least 20 cm of space on each side of the main

unit.

Getting Started

This section describes how to get started using your VAIO computer.

❑ Locating Controls and Ports (page 14)

❑ About the Indicator Lights (page 18)

❑ Setting Up Your Computer (page 19)

❑ Shutting Down Your Computer Safely (page 22)

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

Front

A LCD screen (page 88) B Built-in microphone (monaural) C Built-in MOTION EYE camera indicator (page 18) D Built-in MOTION EYE camera (page 27) E WIRELESS indicator (page 18) F Hard disk drive/Optical disc drive indicator (page 18) G Power indicator (page 18) H Power button I Built-in speakers (stereo) J Bottom chassis frame (page 91)

Getting Started

Back

The area around the air vent (1) becomes hot while your computer is on. Be sure to wait until the computer cools down before you touch it.

A Air vent B Cable clamps (page 19), (page 20) C Prop-up stand (page 91) D DC IN port (page 20) E Network (Ethernet) port (page 48)

F Hi-Speed USB (USB 2.0) ports

(page 65)

G OPTICAL OUT port (page 63)

(Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)

H i.LINK 4-pin (S400) port (page 68) I Memory module compartment cover (page 81)

* Support high-/full-/low- speeds.

Getting Started

Right

A Optical disc drive (page 30) B Manual eject hole (page 117) C Drive eject button (page 30)

Getting Started

Left

Getting Started

A Memory Stick slot

(page 38)

B Media Access indicator (page 18) C SD memory card slot (page 44)

D Hi-Speed USB (USB 2.0) ports

(page 65)

E Headphones jack (page 63) F Microphone jack

Connect an external microphone.

G Line In jack

Connect an external audio device for audio input.

H WIRELESS switch (page 49)

Your computer supports both the standard-size Memory Stick and the Duosize Memory Stick.

Support high-/full-/low- speeds.

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green when the computer is on, illuminates in orange while the computer is in Sleep mode, and

turns off when the computer is off.

Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.

Media Access Illuminates when data is read from or written to a memory card. (Do not place the computer into Sleep mode or

Hard disk drive/Optical disc drive

WIRELESS Illuminates when the WIRELESS switch is turned on, provided that one or more wireless options are enabled

turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.

Illuminates when the drive is reading or writing data. Do not place the computer into Sleep mode or turn it off when this indicator is lit.

in the VAIO Smart Network window.

Getting Started

Setting Up Your Computer

Connecting the Keyboard and the Mouse

A USB keyboard and a USB mouse are supplied with your computer.

To connect the keyboard and the mouse

1 Plug the keyboard cable (1) and the mouse cable (2) to your desired USB ports (3) on the back of the computer.

2 Route the mouse cable (2) through the cable clamp (4) on the back of your computer.

Connecting a Power Source

You need an AC adapter to connect your computer to an AC power source.

✍

Use only the supplied AC adapter for your computer.

To connect the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the AC adapter cable (4) into the DC IN port (5).

4 Route the AC adapter cable through the cable clamp (6).

Getting Started

The shape of the DC In plug varies depending on the AC adapter.

Getting Started

✍

To disconnect your computer completely from AC power, unplug the AC adapter when the computer is off.

Make sure that the AC outlets are easily accessible.

If you unplug the AC adapter from your computer while the computer is on or in Sleep mode, you may lose all unsaved data.

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and then Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 24)

❑ Using the Built-in MOTION EYE Camera (page 27)

❑ Using the Optical Disc Drive (page 30)

❑ Using the Memory Stick (page 38)

❑ Using the SD Memory Card (page 44)

❑ Using the Internet (page 47)

❑ Using the Network (LAN) (page 48)

❑ Using the Wireless LAN (WLAN) (page 49)

❑ Using the Bluetooth Function (page 56)

Using Your VAIO Computer

Using the Keyboard

A USB keyboard is supplied with your computer.

The keyboard uses a standard key arrangement with additional keys that perform specific functions.

The VAIO-Link web site (http://www.vaio-link.com

) also contains glossary information to help you use the keyboard.

Using Your VAIO Computer

A Function keys

Perform certain tasks. The task associated with each function key varies among software applications except the following combinations with the Fn key.

Fn+F5: Decreases lighting intensity of the LCD screen. Fn+F6: Increases lighting intensity of the LCD screen.

B Sleep button

Provides for the lower level of power consumption. For details on power management, see Using the Power Saving Mode (page 77).

C S1 button

By default, the S1 button launches the VAIO Guide.

✍

Illustrated above is the English keyboard as an example.

✍

The default S1 button assignment may be different from the above. In such a case, you can change the assignment with the VAIO Control Center. See Setting Up Your Computer with the VAIO Control Center (page 76) and find out more in its help file.

D Zoom buttons

Changes the size of an image or a document displayed on some software.

Press out).

Press See the help file included with the VAIO Control Center for more information.

to make the view look smaller and further away (zoom

to make the view look bigger and closer (zoom in).

Using Your VAIO Computer

E Muting button

Turns the volume on and off.

F Volume control buttons

Increase (+) or decrease (-) the volume.

G Windows key

Displays the Start menu.

H E key

Ejects the optical disc drive tray when used in combination with the Fn key.

I Applications key

Displays a shortcut menu in certain software applications.

J Directional arrow keys

Move the pointer on the computer screen.

K Indicator lights

(Num Lk): Turns on while in the Num Lock state.

(Caps Lock): Turns on while in the Caps Lock state.

(Scr Lk): Turns on while in the Scroll Lock state.

L Numeric keypad

Use the numeric keypad to type numbers or to perform basic math calculations.

Using Your VAIO Computer

Using the Built-in MOTION EYE Camera

Your computer is equipped with a built-in MOTION EYE camera.

The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and enables you to capture still images and movies with the preinstalled image capture software.

Turning on the computer activates the built-in MOTION EYE camera. Video conference is possible with the appropriate software.

Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in MOTION EYE camera, respectively.

✍

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera with your desired application.

The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a malfunction.

You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.

Using Your VAIO Computer

Capturing Still Images

To capture a still image

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2.

2 Click the Capture icon in the main window.

3 Frame your subject in the viewfinder.

4 Click the Capture button below the displayed image.

The current image in the viewfinder is captured and its thumbnail image is added as a thumbnail in the left pane of the main window.

✍

When capturing an image in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

Using Your VAIO Computer

Capturing Movies

To capture a movie

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2.

2 Click the Record icon in the main window.

3 Frame your subject in the viewfinder.

4 Click the Record Video button below the displayed image to start movie recording.

5 When finished, click the Record Video button once again to stop movie recording.

The first scene of the captured movie is added as a thumbnail in the left pane of the main window.

✍

When capturing a movie in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

1 Turn on the computer.

2 Press the drive eject button (1) or the Fn+E keys to open the drive.

The drive tray slides out.

3 Hold the back of the drive tray with one hand, place a disc in the middle of the drive tray with the label side facing toward

you, and gently push it toward the drive tray until the disc clicks into place.

Do not exert pressure on the drive tray. Be sure to hold the back of the drive tray when placing/removing a disc onto/from the drive tray.

4 Close the drive tray by pushing it in gently.

Using Your VAIO Computer

Do not remove the optical disc when your computer is in Sleep mode. Doing so may cause the computer to malfunction.

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.

Using Your VAIO Computer

Reading and Writing Optical Discs

Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model.

Use the table below to see which types of media your optical disc drive supports.

Using Your VAIO Computer

PR: playable and recordable P: playable but not recordable –: not playable or recordable

CD-

Video CDMusic CDCD

ROM

DVD± RW/

PPPPPRPP–

±R DL/RAM

Blu-ray Disc

PPPPPRPPP

Combo

Blu-ray DiscPPPPPRPPP

Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.

Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported. DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.

Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.

BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.

*10

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

Extra

CD-R/RWDVD-

ROM

DVDVideo

BD-

DVD-R /RWDVD+R/RWDVD+R DLDVD-R DLDVD-

ROM

*1 *2

*3 *4

BD-R

–

*7 *10

RAM

/RE

Using Your VAIO Computer

This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two sided disc product with a DVD recorded layer on one side and a digital audio layer on the other side. Be aware that the audio side (non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING. For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

To play copyright protected Blu-ray Disc media continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support movie playback on packaged media recorded in AVC or VC1 format at high bit rates.

Region settings are required for some contents on DVDs and BD-ROM Disc media. If the region setting on the optical disc drive does not match the region coding on the disc, playback is not possible.

Some contents may restrict video output to standard definition or prohibit analog video output. It is strongly recommended that a digital HDCPcompliant environment be implemented for optimum compatibility and viewing quality.

Do not use memory-resident utility software while the optical disc drive is playing a disc or writing data to a disc. This may cause your computer to malfunction.

Using Your VAIO Computer

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.

❑ Do not plug or unplug the AC adapter while the optical disc drive is writing data to a disc.

Notes on playing discs

To achieve optimum performance when playing discs, you should follow these recommendations.

❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media.

❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.

❑ Do not place your computer into the power saving mode while your computer is playing a disc.

❑ Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you

can play the disc. Unless the region code indicates "2" (Europe belongs to region "2"), "5" (Russia belongs to region "5"), or "all" (this means that you can play this disc in most regions of the world), you cannot play the disc on your computer.

If you change the region code while the WinDVD or WinDVD BD software is running, restart the software or eject the disc and re-insert it to make the new setting effective.

❑ Do not try to change the region code settings of the drive. Any difficulties caused by changing the region code settings of

the drive are not covered by the warranty.

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert a disc into the optical disc drive.

2 If nothing appears on the desktop, click Start, All Programs, and the desired CD software to play the CD.

If the Audio CD window appears, click to select an option.

Copying Files to CDs

To copy files to a disc

1 Insert a recordable disc into the optical disc drive.

If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder appears.

2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder.

3 Close the disc folder.

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all running software applications.

2 Insert a DVD into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired DVD software to play the DVD.

For instructions on how to use the software, see the help file included with your DVD software.

Copying Files to DVDs

To copy files to a disc

1 Close all running software applications.

2 Insert a recordable disc into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired DVD burning software to copy files to the

disc.

For instructions on how to use the software, see the help file included with your DVD burning software.

Using Your VAIO Computer

Using the Memory Stick

The Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.

Using Your VAIO Computer

Before You Use the Memory Stick

The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick PRO, Memory Stick PRO Duo, and Memory Stick PRO-HG Duo with high-speed data transfer and large data capacity capabilities.

✍

You can insert a Duo-size Memory Stick directly into the Memory Stick slot without using a Memory Stick Duo adaptor.

Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Standard-size adaptor or M2 Duo adaptor. If you insert the media directly into the Memory Stick slot without the adaptor, you may not be able to remove it from the slot.

For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/.

Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that are available as of September

2008. However, not all the Memory Stick that meet the same specifications as the compatible media are guaranteed of compatibility.

Inserting a Memory Stick with multiple conversion adaptors is not guaranteed of compatibility.

MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick with the MagicGate logo to use this feature.

Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective copyright holders. Accordingly, the Memory Stick with such copyrighted data can be used only within the law.

The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high-speed data transfer).

The Memory Stick Micro in an M2 Duo adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo adaptor.

Using Your VAIO Computer

Inserting a Memory Stick

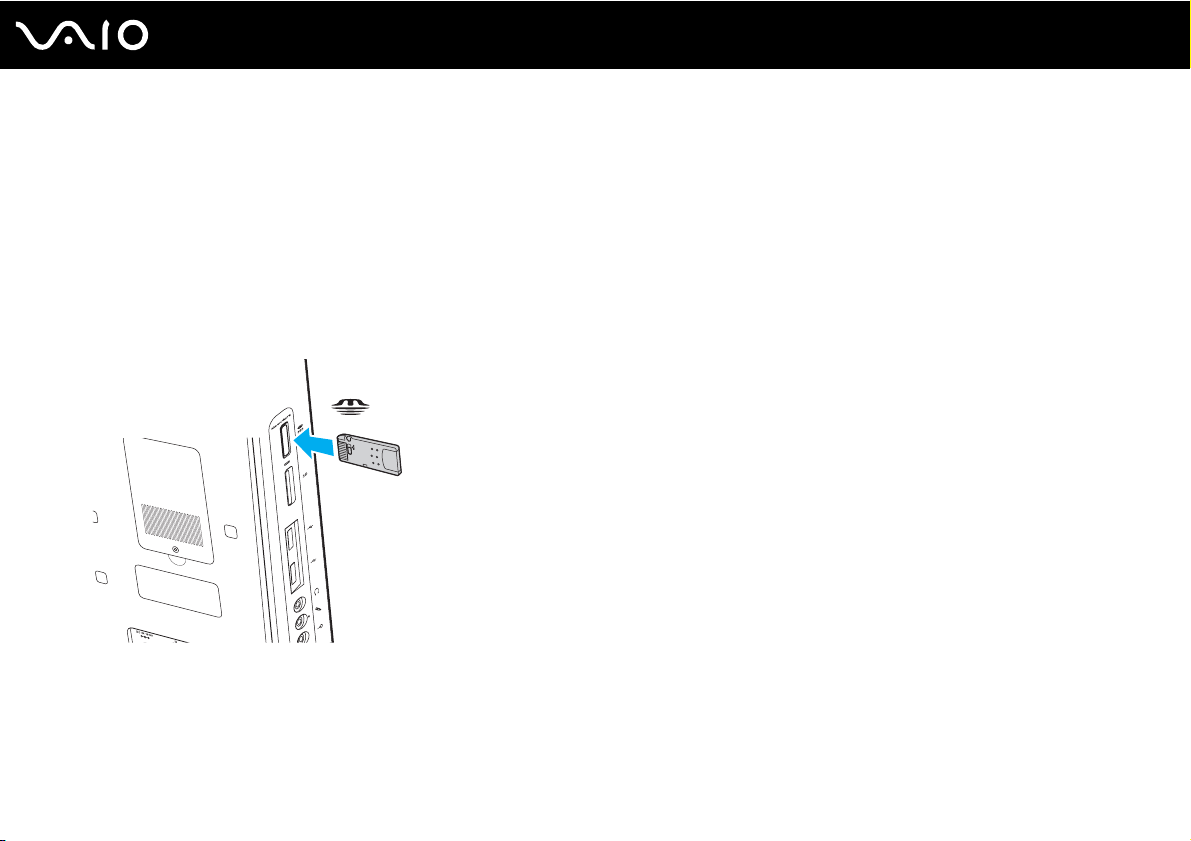

To insert a Memory Stick

1 Locate the Memory Stick slot (page 17).

2 Hold the Memory Stick with the arrow pointing toward the slot.

3 Carefully slide the Memory Stick into the slot until it clicks into place.

The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed. If nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick icon.

Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the media, do not force the Memory Stick into the slot if you cannot insert it smoothly.

Do not insert more than one Memory Stick into the slot. Improper insertion of the media may damage both your computer and the media.

Using Your VAIO Computer

To view the contents on the Memory Stick

1 Click Start and Computer to open the Computer window.

2 Double-click the Memory Stick icon to view the list of data files saved in the Memory Stick.

To format a Memory Stick

The Memory Stick has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports the Memory Stick when formatting the media.

Formatting the Memory Stick erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove the Memory Stick from the slot while formatting. This could cause a malfunction.

1 Carefully slide the Memory Stick into the slot until it clicks into place.

2 Click Start and Computer to open the Computer window.

3 Right-click the Memory Stick icon and select Format.

4 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

5 Click Start.

6 Follow the on-screen instructions.

It may take time to format the Memory Stick depending on the media type.

Using Your VAIO Computer

Removing a Memory Stick

Do not remove the Memory Stick while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load, so make sure the indicator is unlit before removing the Memory Stick.

To remove a Memory Stick

1 Check that the Media Access indicator light is unlit.

2 Push in the Memory Stick toward the computer and release.

The Memory Stick ejects.

3 Pull the Memory Stick out of the slot.

Always remove the Memory Stick gently, or it may pop out unexpectedly.

Using Your VAIO Computer

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Before You Use the SD Memory Card

The SD memory card slot on your computer supports the following memory cards:

❑ SD memory card

❑ SDHC memory card

❑ MultiMediaCard (MMC)

For the latest information on compatible memory cards, see Sony Support Information (page 136) to visit the appropriate support web site.

Your computer has been tested and found compatible only with major memory cards available as of September 2008. However, not all memory cards that meet the same specifications as the compatible media are guaranteed of compatibility.

Always insert the correct memory card into the SD memory card slot.

SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested and found compatible with your computer.

The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory card and the SDHC memory card.

Do not attempt to insert an SD memory card or SD memory card adaptor of a different type into the SD memory card slot. An incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage to your computer.

Use care when inserting or removing an SD memory card from the SD memory card slot. Do not force the SD memory card in or out of the slot.

Inserting an SD Memory Card

To insert an SD memory card

1 Locate the SD memory card slot (page 17).

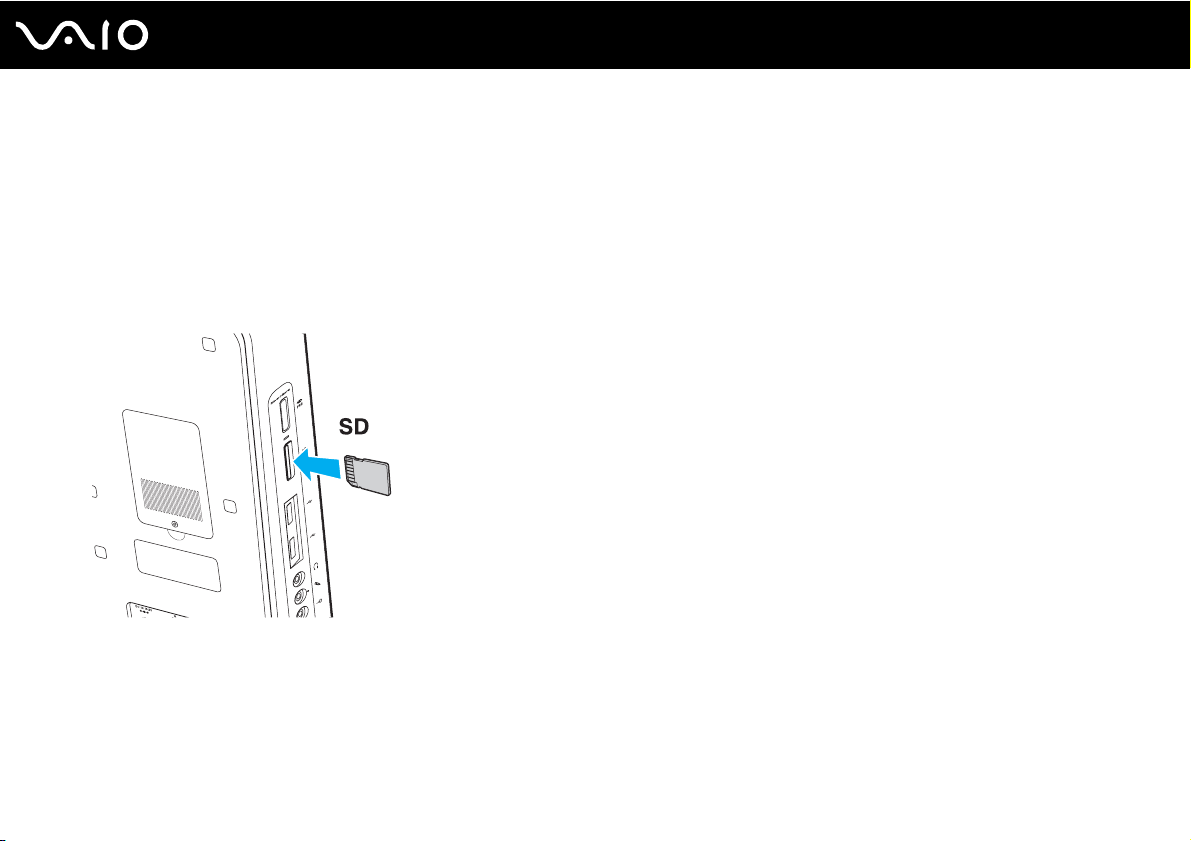

2 Hold the SD memory card with the arrow pointing toward the slot.

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

Using Your VAIO Computer

✍

If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Using Your VAIO Computer

Removing an SD Memory Card

Do not remove an SD memory card while the Media Access indicator light is lit. If you do, the card or its data may become damaged.

To remove an SD memory card

1 Check that the Media Access indicator light is unlit.

2 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

3 Pull the SD memory card out of the slot.

Using Your VAIO Computer

Using the Internet

Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for connecting your computer to the Internet.

The following types of Internet connection services may be available from your ISP:

❑ Fiber to the Home (FTTH)

❑ Digital Subscriber Line (DSL)

❑ Cable modem

❑ Satellite

❑ Dial-up

For detailed information on devices required for the Internet and how to connect your computer to the Internet, ask your ISP.

✍

To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN (WLAN) (page 49) for more information.

When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.

To connect to the Internet, you need to connect an external modem device, for example a USB telephone modem, a DSL modem, or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the manual that came with your modem.

Using Your VAIO Computer

Using the Network (LAN)

You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the back of the computer and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.

✍

Your computer can be connected to the network with the default settings.

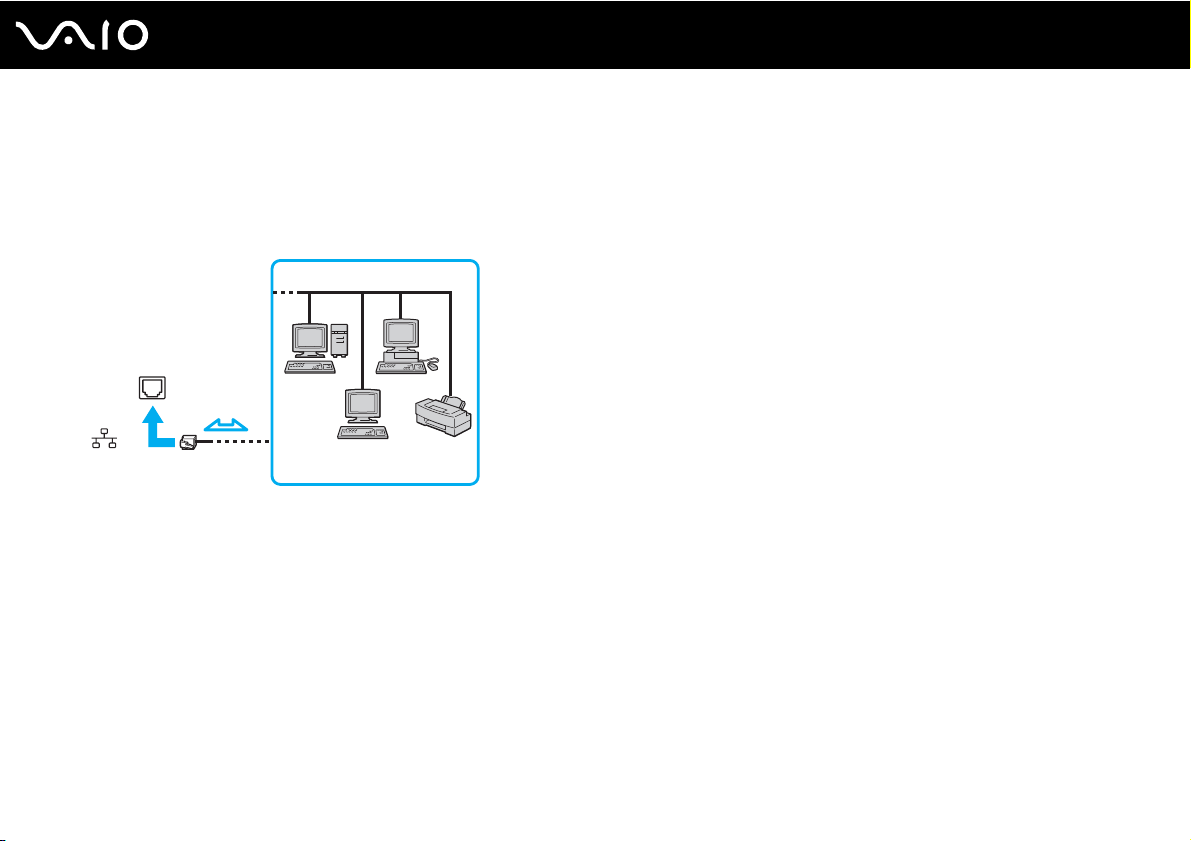

Do not plug a telephone cable into the network (Ethernet) port on your computer. If the network (Ethernet) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage, overheating, or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- PBX (private branch exchange)

Using Your VAIO Computer

Using the Wireless LAN (WLAN)

Using the Wireless LAN (WLAN), all your digital devices with the built-in WLAN function communicate freely with each other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio) connection. This eliminates the need to pull cables or wires through walls and ceilings.

You can communicate without an access point, which means that you can communicate with a limited number of computers (ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the WLAN function, read the wireless LAN regulations guide carefully.

WLAN uses the IEEE 802.11a encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access

(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multimode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.

* See the online specifications to find out whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.

/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the

The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz band. The IEEE 802.11g standard provides high-speed communications, faster than the IEEE 802.11b standard.

The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz band.

Using Your VAIO Computer

The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 GHz or 5 GHz band.

Wireless LAN devices using the 2.4 GHz band cannot communicate with devices using the 5 GHz band because the frequencies are different.

The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from other devices that use the same band are employed on wireless LAN compatible devices, such interference may cause lower communication speed,

narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Actual communication speed may not be as fast as the one displayed on your computer.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference. Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

Using Your VAIO Computer

Communicating without an Access Point (Ad-hoc)

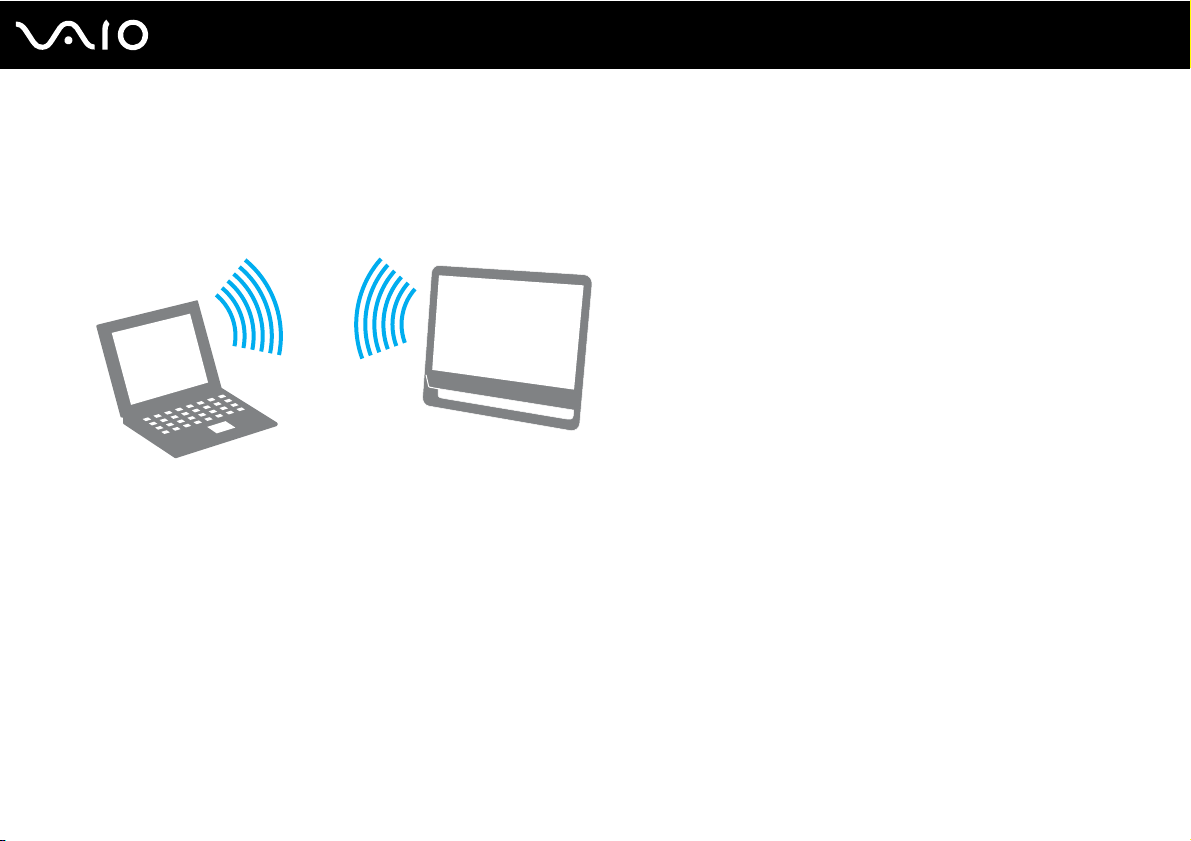

An ad-hoc network is a network in which a LAN is created only by wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.

To communicate without an access point (ad-hoc)

You cannot select the 5 GHz band, which is used for the IEEE 802.11a standard, on ad-hoc networks.

The IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, is not available on ad-hoc networks.

1 Turn on the WIRELESS switch.

2 Click Start, All Programs, and VAIO Control Center.

3 Click Network Connections and VAIO Smart Network.

4 Click Advanced in the right pane.

✍

For information on the VAIO Smart Network software, see the help file included with the software.

5 Click the button next to or above your desired wireless option(s).

Make sure the WIRELESS indicator light turns on.

6 Click Start and Control Panel.

7 Click View network status and tasks under Network and Internet.

8 Click Set up a connection or network in the left pane.

The Set up a connection or network window appears.

9 Select an option to specify the ad-hoc network settings and click Next.

10 Follow the on-screen instructions.

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

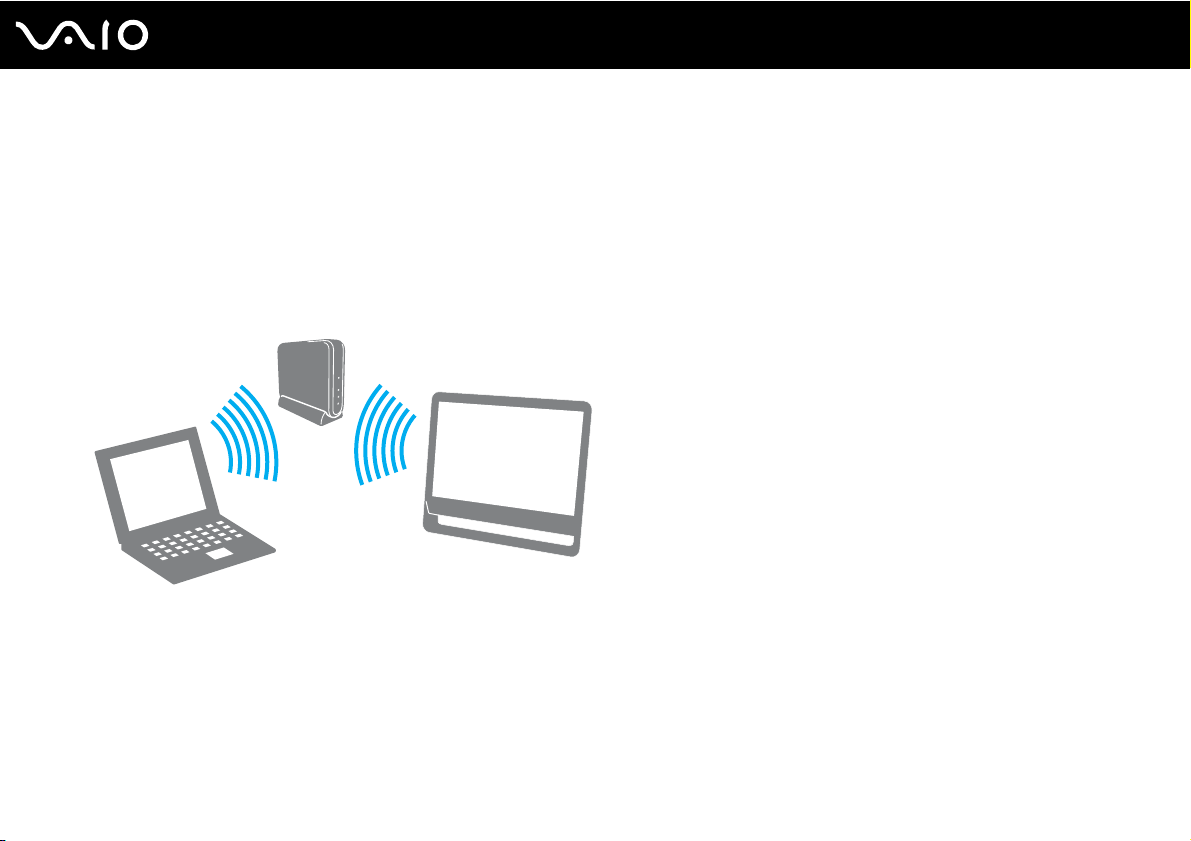

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied). The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN network. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

The access point will select which channel to use on an infrastructure network.

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Turn on the WIRELESS switch.

3 Click Start, All Programs, and VAIO Control Center.

4 Click Network Connections and VAIO Smart Network.

5 Click Advanced in the right pane.

✍

For information on the VAIO Smart Network software, see the help file included with the software.

6 Click the button next to or above your desired wireless option(s).

Make sure the WIRELESS indicator light turns on.

Wireless LAN communication (IEEE 802.11a standard) using only the 5 GHz band, available on selected models only, is disabled by default. To enable 5 GHz band communication, you need to select the option to use the 5 GHz band or both the 2.4 GHz and 5 GHz bands on the WLAN tab in the VAIO Smart Network settings window.

7 Right-click or on the taskbar and select Connect to a network.

8 Select the desired access point and click Connect.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and 63 characters in length or a hexadecimal string of 64 characters.

Stopping Wireless LAN Communications

To stop wireless LAN communications

Click the button next to or above the WLAN icon in the VAIO Smart Network window.

Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.

Using Your VAIO Computer

Using the Bluetooth Function

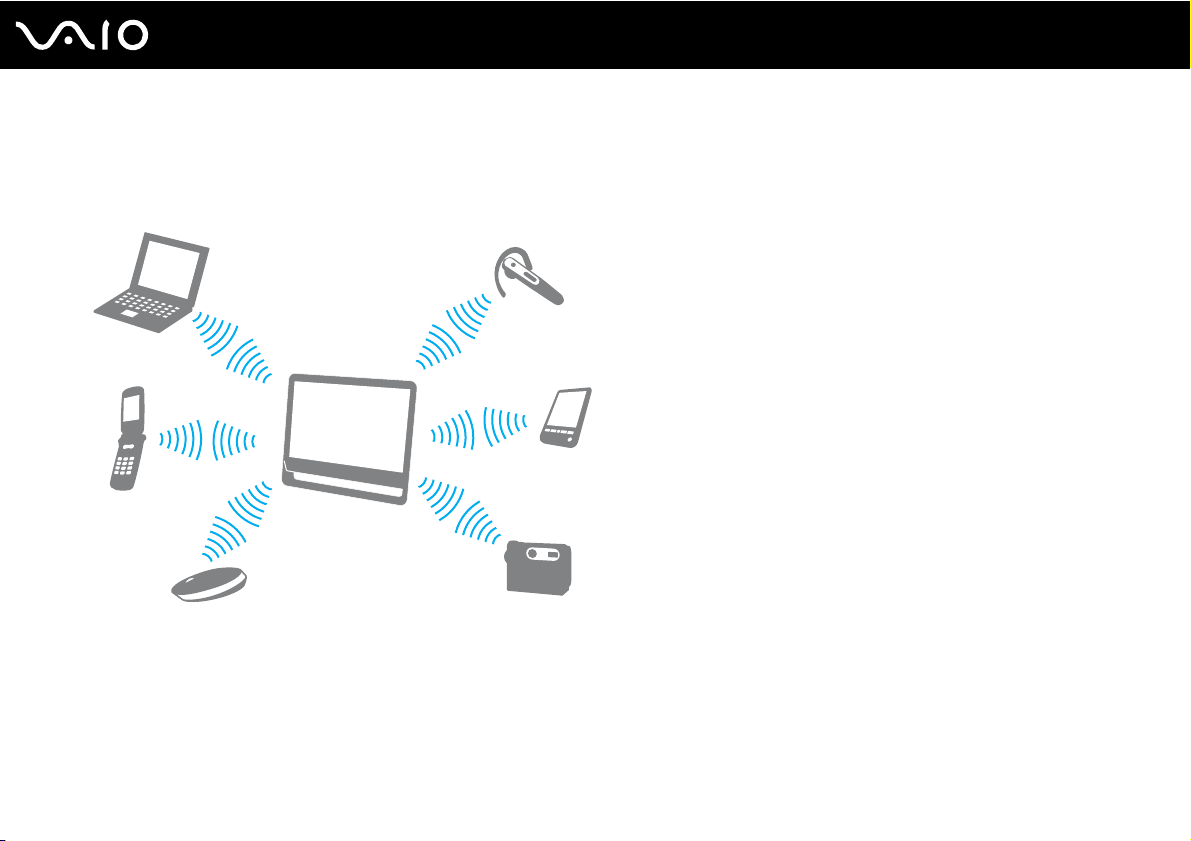

You can establish wireless communications between your computer and other Bluetooth devices such as another computer or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.

To start Bluetooth communications

1 Turn on the WIRELESS switch.

2 Click Start, All Programs, and VAIO Control Center.

3 Click Network Connections and VAIO Smart Network.

4 Click Advanced in the right pane.

✍

For information on the VAIO Smart Network software, see the help file included with the software.

5 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

Using Your VAIO Computer

Notes on using the Bluetooth function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Note that large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard

and electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may not be possible in all situations.

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.

Using Your VAIO Computer

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in reduced communication speeds and distances than the standard values.

✍

Read the Bluetooth regulations guide before using the Bluetooth function.

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and is not a malfunction.

Using Your VAIO Computer

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the Bluetooth function, search for Bluetooth information using Windows Help and Support. To open Windows Help and

Support, click Start and Help and Support.

Be sure to turn on the WIRELESS switch before starting the Bluetooth function.

Stopping Bluetooth Communications

To stop Bluetooth communications

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

Using Your VAIO Computer

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting External Speakers (page 63)

❑ Connecting a Universal Serial Bus (USB) Device (page 65)

❑ Connecting a Printer (page 67)

❑ Connecting an i.LINK Device (page 68)

Using Peripheral Devices

Connecting External Speakers

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

Since your computer is capable of outputting digital signals through the OPTICAL OUT port, you can connect an S/PDIF device such as digital headphones or an AV amplifier to the port and enhance the sound quality of your computer. For more information, see the manual that came with your S/PDIF device.

To hear sound from the S/PDIF device connected to the OPTICAL OUT port, you need to change the sound output device. For the detailed instructions, see How do I change the sound output device? (page 130).

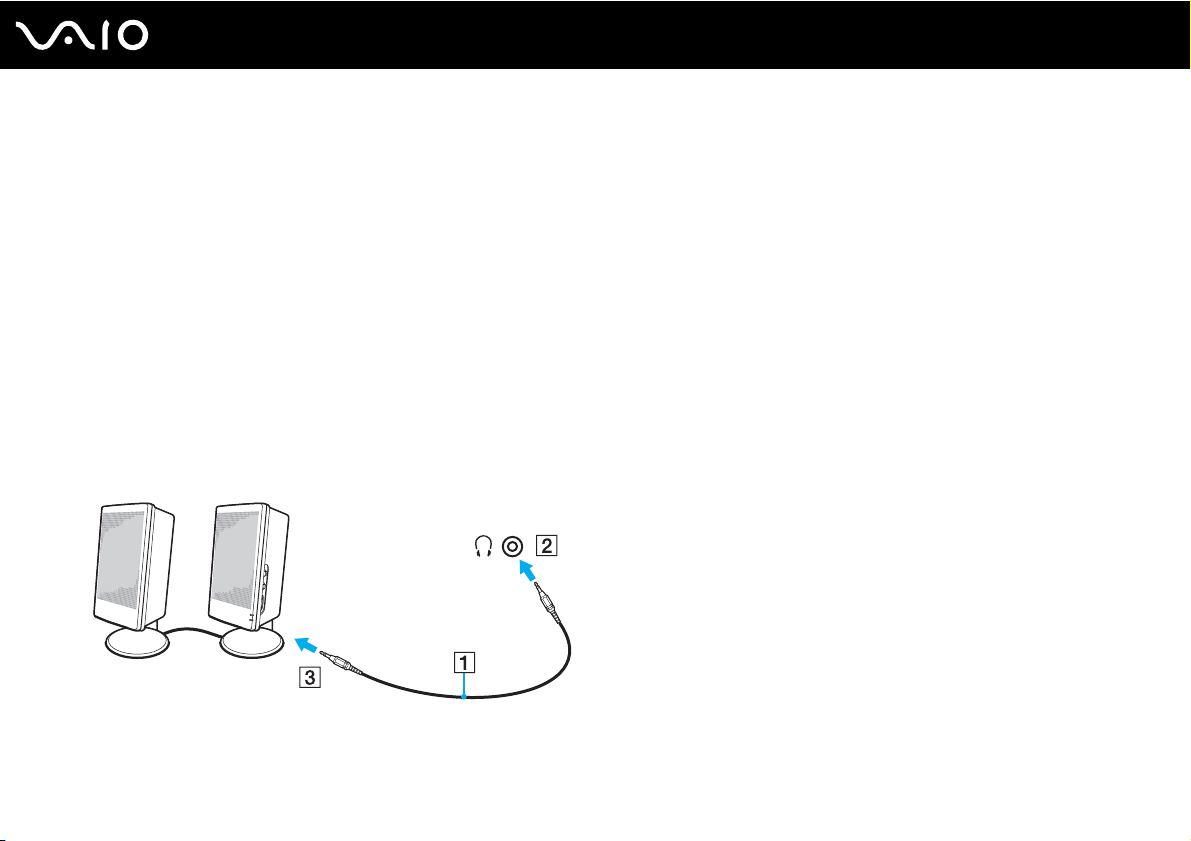

To connect external speakers

1 Plug the speaker cable (1) (not supplied) into the headphones jack (2) i.

2 Plug the other end of the speaker cable to the external speaker (3).

3 Turn down the volume of the speakers before you turn them on.

✍

Make sure your speakers are designed for computer use.

Do not place floppy disks on the speakers. Their magnetic field may damage the data on the disks.

Using Peripheral Devices

Connecting a Universal Serial Bus (USB) Device

To protect your computer and/or USB devices from damage, avoid exposing the USB ports to shock or impact when moving the computer with USB devices connected.

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

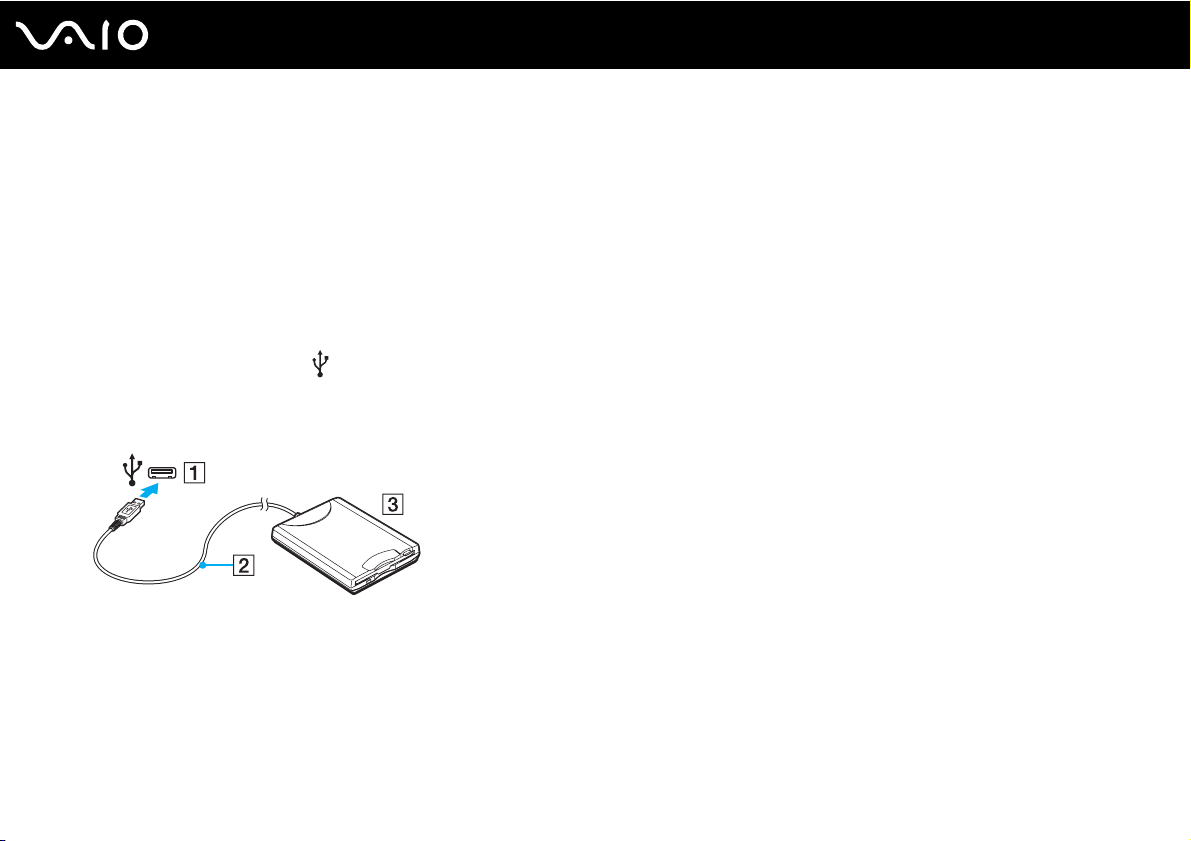

To connect a USB floppy disk drive

1 Choose the USB port (1) you prefer to use.

2 Plug the USB floppy disk drive cable (2) into the USB port.

Your USB floppy disk drive (3) is now ready for use.

When using a USB floppy disk drive, do not apply force to the USB port. This may cause a malfunction.

Using Peripheral Devices

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in Sleep mode may cause the computer to malfunction.

To disconnect a USB floppy disk drive

✍

To disconnect a USB floppy disk drive when your computer is off, skip steps 1 to 5.

1 Close all programs accessing the floppy disk drive.

2 Double-click the Safely Remove Hardware icon on the taskbar.

3 Select the floppy disk drive you want to unplug.

4 Click Stop.

5 Follow the on-screen instructions to remove the floppy disk drive.

6 Disconnect the floppy disk drive from the computer.

Using Peripheral Devices

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

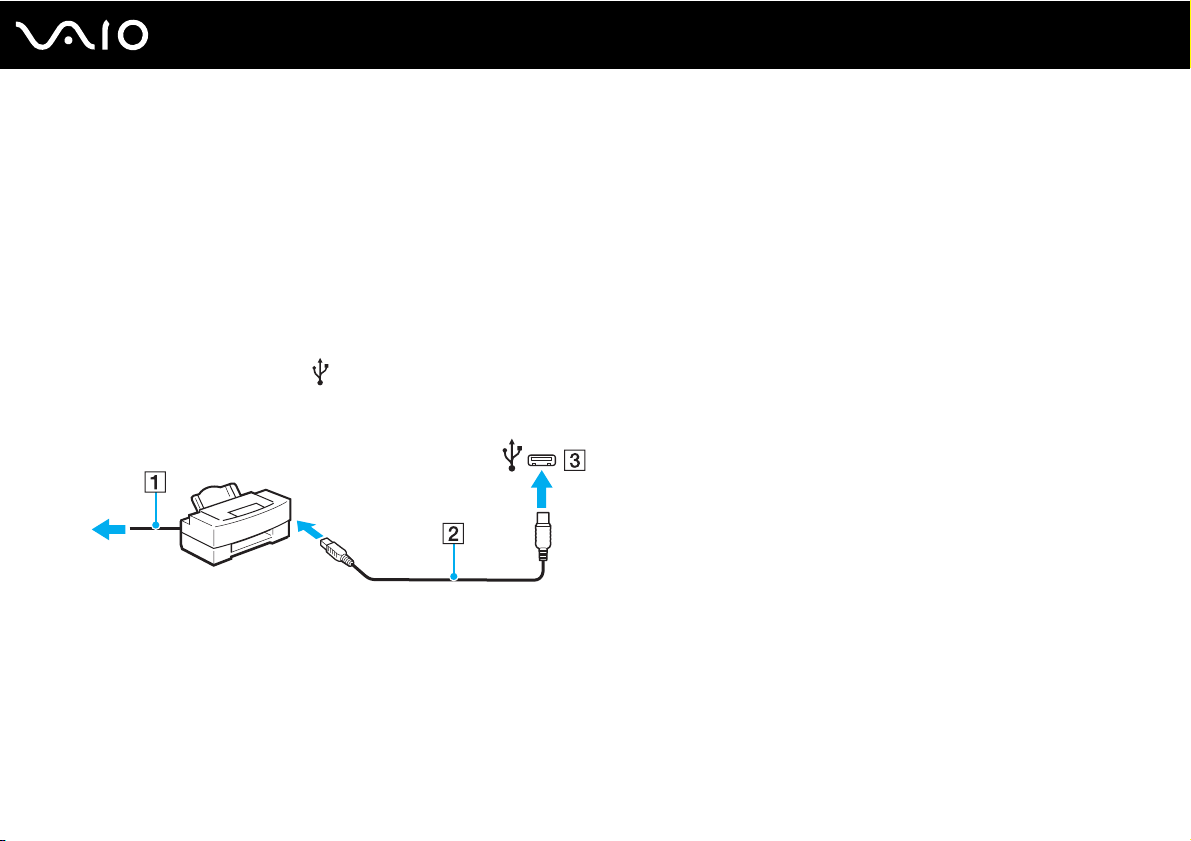

To connect a printer using the USB port

1 Plug the power cord (1) of your printer into an AC outlet.

2 Choose the USB port (3) you prefer to use.

3 Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.

Using Peripheral Devices

Connecting an i.LINK Device

Notes on connecting i.LINK devices

❑ Your computer is equipped with an i.LINK port, which you can use to connect an i.LINK device, such as a digital video

camcorder.

❑ The i.LINK port on your computer does not supply power to an external device. If the external device requires external

power, be sure to connect it to a power source.

❑ The i.LINK port supports transfer rates up to 400 Mbps. However, the actual transfer rate depends on the transfer rate of

the external device.

❑ The optional i.LINK cables may not be available in some countries or areas.

❑ An i.LINK connection with other compatible devices is not fully guaranteed.

❑ The i.LINK connection may not be available depending on the software applications, operating system, and i.LINK-

compatible devices you use. See the manual that came with your software for more information.

❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an

HDD or a CD-RW drive) before you connect them to your computer.

Using Peripheral Devices

Connecting a Digital Video Camcorder

To connect a digital video camcorder

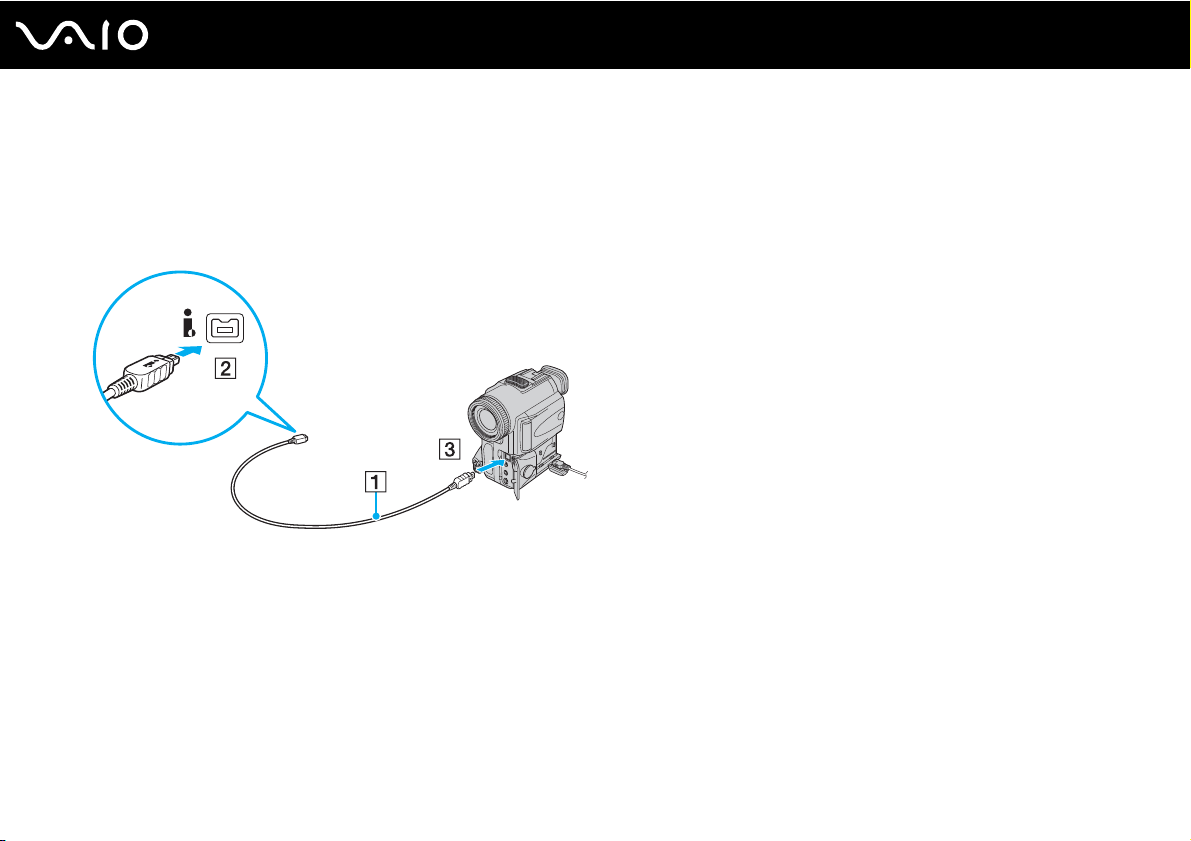

Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/ Out port (3) on the digital video camcorder.

✍

On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible.

The Sony digital video camcorder shown here is an example. Your digital video camcorder may need to be connected differently.

You cannot access the pictures stored on a Memory Stick when using an i.LINK connection.

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities.

❑ Setting the Password (page 71)

❑ Setting Up Your Computer with the VAIO Control Center (page 76)

❑ Using the Power Saving Mode (page 77)

Customizing Your VAIO Computer

Setting the Password

Use one of the BIOS functions to set the password.

Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your computer. The power-on password allows you to protect your computer from unauthorized access.

Adding the Power-on Password

The power-on password is provided to protect your computer from unauthorized access.

There are two types of the power-on passwords: the machine password and the user password. The machine password is provided for users with administrative rights on the computer to change all the setup options in the BIOS setup screen, as well as to start the computer. The user password is provided for the standard users to allow for changing some of the BIOS setup options, as well as starting the computer. To set the user password, you must first set the machine password.

Once you have set the power-on password, you cannot start your computer without entering the password. Be sure not to forget the password. Write down your password and keep it safe and private from other people.

If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in for service to reset the password.

Customizing Your VAIO Computer

To add the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

4 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters (including spaces) long.

5 Select Password when Power On under Security and press the Enter key.

6 Change the setting from Disabled to Enabled. 7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer

To add the power-on password (user password)

Make sure you set the machine password before setting the user password.

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the machine password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters (including spaces) long.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer

Changing/Removing the Power-on Password

To change or remove the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the machine password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer

To change or remove the power-on password (user password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the user password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer

Setting Up Your Computer with the VAIO Control Center

The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior.

To use the VAIO Control Center

1 Click Start, All Programs, and VAIO Control Center.

2 Select the desired control item and change the settings.

3 Once finished, click OK.

The setting of the desired item has been changed.

✍

For more information about each option, see the help file included with the VAIO Control Center.

Some of the control items will not be visible if you open the VAIO Control Center as a standard user.

Customizing Your VAIO Computer

Using the Power Saving Mode

In addition to the normal operating mode, your computer has a distinct power saving mode called Sleep mode.

Using Normal Mode

This is the normal state of the computer when it is in use. The green power indicator light is lit in this mode.

Customizing Your VAIO Computer

Using Sleep Mode

Sleep mode turns off the LCD screen and places the hard disk drive and the CPU into a low power consumption mode. The orange power indicator light illuminates in this mode.

Turn off your computer if you do not intend to use it for a long period of time.

To activate Sleep mode

Click Start, the arrow next to the Lock button, and Sleep.

✍

Alternatively, you can press the sleep button on the keyboard to place your computer in Sleep mode.

When your computer is in Sleep mode, you cannot insert a disc.

To return to Normal mode

❑ Press any key on the keyboard.

❑ Press the power button on your computer.

If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.

Customizing Your VAIO Computer

If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep mode settings.

To change the Sleep mode settings

1 Click Start, Control Panel, Hardware and Sound, and Power Options.

2 Click Change plan settings under the current power plan.

3 Change the time to place the computer into Sleep mode and click Save Changes.

Upgrading Your VAIO Computer

Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid invalidation of the warranty during your product warranty period, we recommend that:

❑ You should contact your dealer to install a new memory module.

❑ You should not install it yourself, if you are not familiar with upgrading memory on a computer.

❑ You should not touch the connectors or open the memory module compartment cover.

For the type of module and the amount of memory installed on your model, see the online specifications.

Contact VAIO-Link if you need assistance.

Upgrading Your VAIO Computer

Adding and Removing Memory

If you want to expand the functionality of your computer, you can increase the amount of memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages.

Notes on adding/removing memory modules

❑ Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This

damage may void your manufacturer's warranty.

❑ Only use memory modules that are compatible with your computer. If a memory module is not detected by the computer

or the Windows operating system becomes unstable, contact the sales dealer or the manufacturer of your memory module.

❑ Electrostatic discharge (ESD) can damage electronic components. Before touching a memory module, ensure the

following:

❑ The procedures described in this document assume user familiarity with the general terminology associated with

personal computers and with the safety practice and regulatory compliance requirements for using and modifying electronic equipment.

❑ Turn off your computer and disconnect it from the AC adapter and from any telecommunication links, networks, or

modems before you remove any cover or panel from the computer. Failure to do so may result in personal injury or equipment damage.

❑ ESD can damage memory modules and other components. Install the memory module only at an ESD workstation.

If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.

❑ Do not open the memory module package before you are ready to change the module. The package protects the

module from ESD.

Upgrading Your VAIO Computer

❑ Use the special bag supplied with the memory module or wrap the module in aluminum foil to protect it from ESD.

❑ Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your

computer will result in damage to the computer and any repair costs will not be covered by the warranty.

❑ Do not place the memory module in a location subject to:

❑ Heat sources such as radiators or air ducts

❑ Direct sunlight

❑ Excessive dust

❑ Mechanical vibration or shock

❑ Strong magnets or speakers that are not magnetically shielded

❑ Ambient temperature of more than 35°C or less than 5°C

❑ High humidity

❑ Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the

components and circuit boards inside your computer.

Upgrading Your VAIO Computer

Removing and Installing a Memory Module

To change or add a memory module

1 Shut down the computer, turn off all peripheral devices, and disconnect the AC adapter and the peripheral devices from

the power source.

2 Gently face down your computer on a flat surface and wait about an hour until the computer cools down.

When facing down your computer, be sure to place it on a soft cloth to avoid damage to the LCD screen.

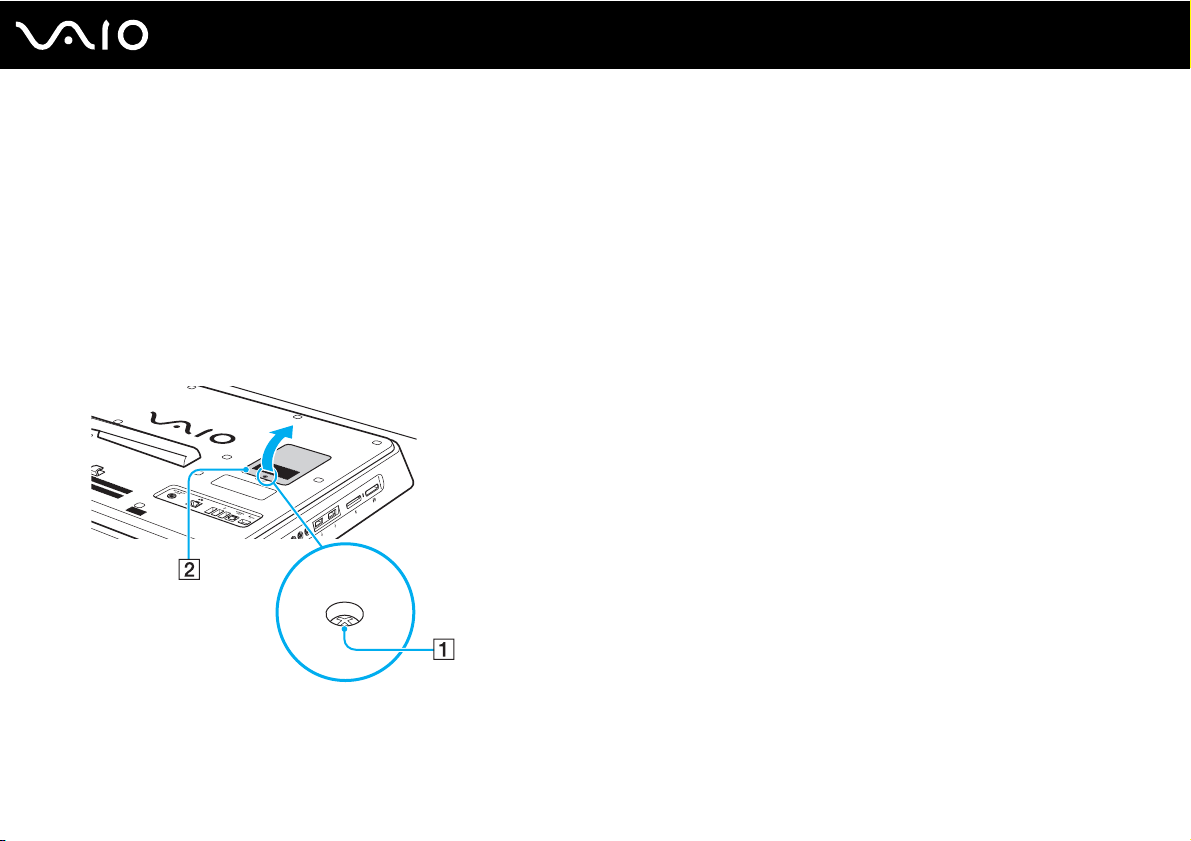

3 Unscrew the screw (1) and remove the memory module compartment cover (2).

4 Touch a metal object to discharge static electricity.

5 Remove the currently installed memory module as follows:

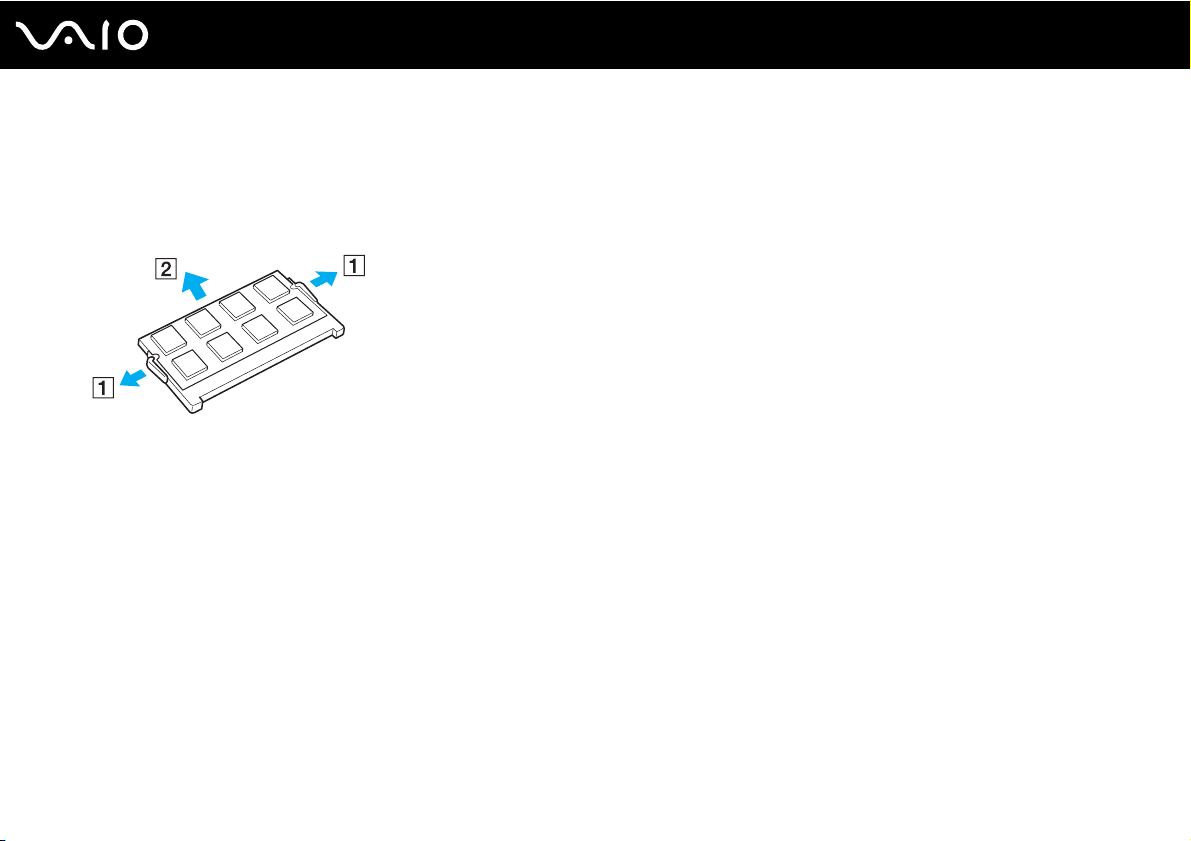

❑ Pull the latches in the direction of the arrows (1).

The memory module is released.

❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2).

6 Remove the new memory module from its packaging.

Upgrading Your VAIO Computer

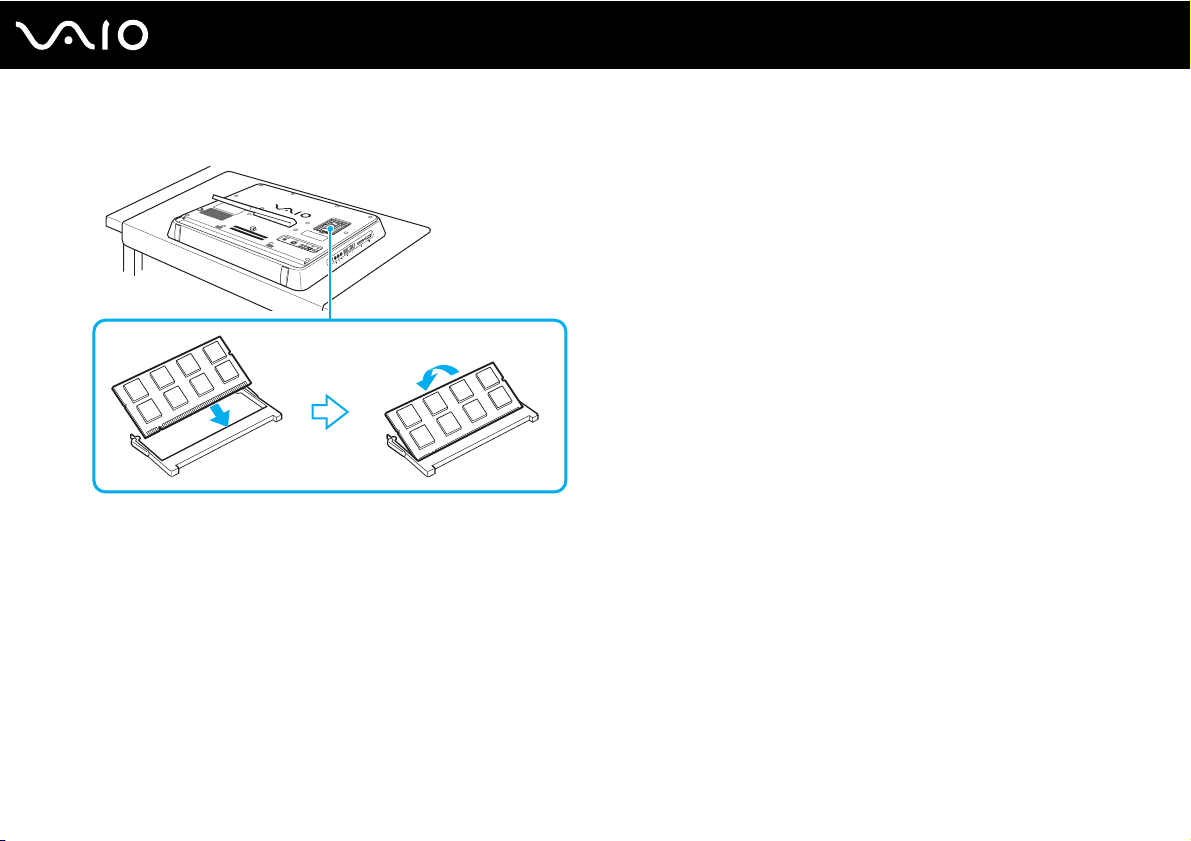

7 Slide the memory module into the memory module slot and push it in until it clicks into place.

Do not touch any other components on the motherboard.

If you want to install only one memory module, be sure to use the lower slot.

Upgrading Your VAIO Computer

Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open slot. Do not force the memory module into the slot in a wrong orientation, as it may cause damage to the slot and the module.

8 Replace the memory module compartment cover and tighten the screw.

9 Connect the AC adapter and the peripheral devices to the computer, and then plug them to the power source.

10 Turn on all peripheral devices and then the computer.

Upgrading Your VAIO Computer

Viewing the Amount of Memory

To view the amount of memory

1 Turn on the computer.

2 Click Start, All Programs, and VAIO Control Center.

3 Click System Information and System Information.

You can view the amount of system memory in the right pane. If the additional memory does not appear, repeat the installation procedure and restart the computer.

Precautions

This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage.

❑ Handling the LCD Screen (page 88)

❑ Using the Power Source (page 89)

❑ Handling Your Computer (page 90)

❑ Handling the Built-in MOTION EYE Camera (page 92)

❑ Handling Floppy Disks (page 93)

❑ Handling Discs (page 94)

❑ Using Headphones (page 95)

❑ Handling the Memory Stick (page 96)

❑ Handling the Hard Disk (page 97)

❑ Updating Your Computer (page 98)

Precautions

Handling the LCD Screen

❑ Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using your computer

near a window.

❑ Do not scratch the surface of the LCD screen or exert pressure on it. This could cause a malfunction.

❑ Using your computer in low temperature conditions may produce a residual image on the LCD screen. This is not a

malfunction. When the computer returns to normal temperature, the screen returns to normal.

❑ A residual image may appear on the LCD screen if the same image is displayed for a long period of time. The residual

image disappears after a while. You can use a screen saver to prevent residual images.

❑ The LCD screen becomes warm during operation. This is normal and does not indicate a malfunction.

❑ The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright

points (red, blue, or green) that continuously appear on the LCD screen. This is a normal result of the manufacturing process and does not indicate a malfunction.

❑ Avoid rubbing the LCD screen. This could damage the screen. Use a soft, dry cloth to wipe the surface of the LCD screen.

❑ Do not change the LCD screen orientation setting in the Tablet PC Settings window even when there are change options

available for selection, as this may make your computer unstable. Sony assumes no liability for any malfunctions arising from changes to the settings.

Precautions

Using the Power Source

❑ See the online specifications to check the power operation of your model.

❑ Do not share the AC outlet with other power-consuming equipment, such as a photocopier or a shredder.

❑ You can purchase a power strip with a surge protector. This device helps prevent damage to your computer caused by

sudden power surges, in an electrical storm, for example.

❑ Do not place heavy objects on the power cord.

❑ To disconnect the cord, pull it out by holding the plug. Never pull the cord itself.

❑ Unplug your computer from the AC outlet if you are not planning to use the computer for a long period of time.

❑ Make sure that the AC outlet is easily accessible.

❑ Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may

cause a malfunction.

Precautions

Handling Your Computer

❑ Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type

of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.

❑ If you drop a solid object or any liquid onto your computer, shut down the computer and then unplug it. You may want to

have the computer checked by qualified personnel before operating it again.

❑ Do not drop your computer.

❑ Do not place your computer in a location subject to:

❑ Heat sources, such as radiators or air ducts

❑ Direct sunlight

❑ Excessive dust

❑ Moisture or rain

❑ Mechanical vibration or shock

❑ Strong magnets or speakers that are not magnetically shielded

❑ Ambient temperature of more than 35°C or less than 5°C

❑ High humidity

❑ Do not place electronic equipment near your computer. The electromagnetic field of the equipment may cause the

computer to malfunction.

❑ Use your computer on a solid, stable surface.

❑ Do not place your computer near materials such as curtains or draperies that may block its air vents.

❑ Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,

relocate the computer a suitable distance away from the set.

Precautions

❑ Use only specified peripheral equipment and interface cables. Otherwise, problems may occur.

❑ Do not use cut or damaged connection cables.

❑ If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In

this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact VAIO-Link.

❑ Make sure you disconnect the AC adapter before cleaning your computer.

❑ To avoid losing data when your computer is damaged, back up your data regularly.

❑ Do not grasp the prop-up stand or the bottom chassis frame to lift your computer as the stand or the frame may break and

cause the main unit to fall, resulting in damage to the computer or personal injuries.

❑ To lift or move your computer, grasp the main unit on the sides with both hands from behind the computer to avoid any

damage to the LCD screen. There is a risk of scratching the LCD screen, for example with your waist belt buckle, if you hold your computer from its front.

Precautions

Handling the Built-in MOTION EYE Camera

❑ Do not touch the lens protection cover of the built-in MOTION EYE camera, as it may cause scratches on the cover and

such scratches will appear on the captured images.

❑ Do not let the direct sunlight get into the lens of the built-in MOTION EYE camera regardless of your computer's power

state, as it may cause the camera to malfunction.

❑ The built-in MOTION EYE camera is disabled while videos or still images are imported from an i.LINK-compatible device

connected to the i.LINK port.

❑ Clean the lens protection cover of the built-in MOTION EYE camera with a blower brush or a soft brush. If the cover is

extremely dirty, wipe it off with a soft dry cloth. Do not rub the cover, as it is sensitive to pressure.

Precautions

Handling Floppy Disks

❑ Do not open the shutter manually and touch the internal components of the floppy disk.

❑ Keep floppy disks away from magnets.

❑ Keep floppy disks away from direct sunlight and other sources of heat.

❑ Keep floppy disks away from any liquid. Do not let them get wet. When you are not using your floppy disk, always remove

it from the floppy disk drive and put it in a storage case.

❑ If the floppy disk comes with a label, make sure that the label is properly affixed. If the edge of the label is curled up, the

label may stick to the inside of the floppy disk drive and cause a malfunction or damage your floppy disk.

Precautions

Handling Discs

❑ Do not touch the surface of the disc.

❑ Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole,

as shown below:

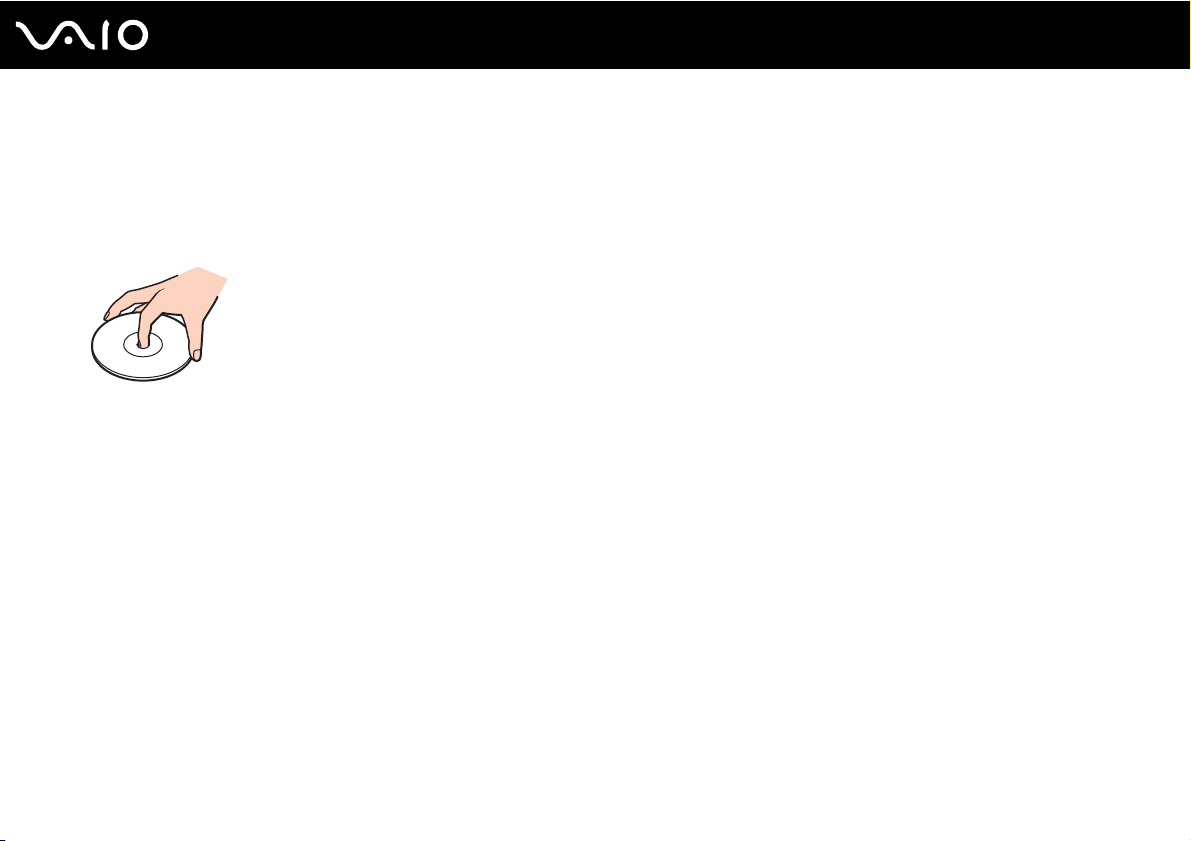

❑ Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol,

commercially available cleaners, or anti-static spray) which may cause damage to the disc.

❑ For normal cleaning, hold the disc by its edges and use a soft cloth to wipe the surface from the center out.

❑ If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from

the center out. Wipe off any remaining moisture with a dry soft cloth.

❑ Never affix an adhesive label to a disc. This will affect the use of the disc and may result in an irreparable problem.

Precautions

Using Headphones

Preventing hearing damage – Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use.

Precautions

Handling the Memory Stick

❑ Do not touch the Memory Stick connector with your finger or metallic objects.

❑ Use only the adhesive label supplied with the Memory Stick as a label.

❑ Do not bend, drop, or expose the Memory Stick.

❑ Do not disassemble or modify the Memory Stick.

❑ Do not let the Memory Stick get wet.

❑ Do not use or store the Memory Stick in a location subject to:

❑ Static electricity

❑ Electrical noise

❑ Extremely high temperatures, such as in a car parked in the sun

❑ Direct sunlight

❑ High humidity

❑ Corrosive substances

❑ Use the storage case supplied with the Memory Stick.

❑ Be sure to make a backup copy of your valuable data.

❑ Keep the Memory Stick and the Memory Stick adaptors out of reach of children. There is a risk of swallowing them.

❑ When using the Memory Stick Duo, do not use a fine-tipped pen to write on the label adhered to the Memory Stick Duo.

Exerting pressure on the media may damage internal components.

Precautions

Handling the Hard Disk

The hard disk drive has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock, or dust.

Although the hard disk drive has the internal safety device to prevent losing data due to mechanical vibration, shock, or dust, you should be careful when handling your computer.

To avoid damaging your hard disk drive

❑ Do not subject your computer to sudden movements.

❑ Keep your computer away from magnets.

❑ Do not place your computer in a location subject to mechanical vibration or in an unstable position.

❑ Do not move your computer while the power is on.

❑ Do not turn off the power or restart your computer while reading or writing data to the hard disk drive.

❑ Do not use your computer in a place subject to extreme changes in temperature.

✍

If the hard disk drive is damaged, the data cannot be restored.

Precautions

Updating Your Computer

Be sure to install the latest updates on your computer with the following software applications so that the computer can run more efficiently.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 4

Click Start, All Programs, VAIO Update 4, and VAIO Update Options and then follow the on-screen instructions.

Your computer must be connected to the Internet to download the updates.

Troubleshooting

This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before contacting VAIO-Link.

❑ Computer (page 100)

❑ System Security (page 105)

❑ Built-in MOTION EYE Camera (page 106)

❑ Networking (page 108)

❑ Bluetooth Technology (page 113)

❑ Optical Discs (page 117)

❑ Display (page 121)

❑ Printing (page 122)

❑ Microphone (page 123)

❑ Mouse (page 124)

❑ Speakers (page 125)

❑ Keyboard (page 127)

❑ Floppy Disks (page 128)

❑ Audio/Video (page 129)

❑ Memory Stick (page 133)

❑ Peripherals (page 134)

100

Troubleshooting

Computer

What should I do if my computer does not start?

❑ Make sure your computer is securely plugged into a power source and turned on and the power indicator light shows the

power is on.

❑ Disconnect all external USB devices, if any.

❑ If your computer is plugged into a power strip or an uninterruptible power supply (UPS), make sure the power strip or UPS

is plugged into a power source and turned on.

❑ Make sure the brightness and contrast controls are adjusted correctly.

❑ Unplug the AC adapter. Wait three to five minutes. Plug the AC adapter again and press the power button to turn on your

computer.

❑ Condensation may cause your computer to malfunction. If this occurs, do not use the computer for at least one hour.

❑ Remove any extra memory modules you may have installed since purchase.

❑ Check that you are using the supplied Sony AC adapter. For your safety, use only the genuine Sony AC adapter, which is

supplied by Sony for your VAIO computer.

❑ Make sure your computer is not in Sleep mode by pressing the power button on the computer or the sleep button on the

keyboard. If you press and hold the power button for more than four seconds, your computer will turn off automatically.

Sony VGC-JS2E/T, VAIO VGC-JS2E/S, VAIO VGC-JS2E/G, VAIO VGC-JS2E/P, VAIO VGC-JS2E/Q User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
