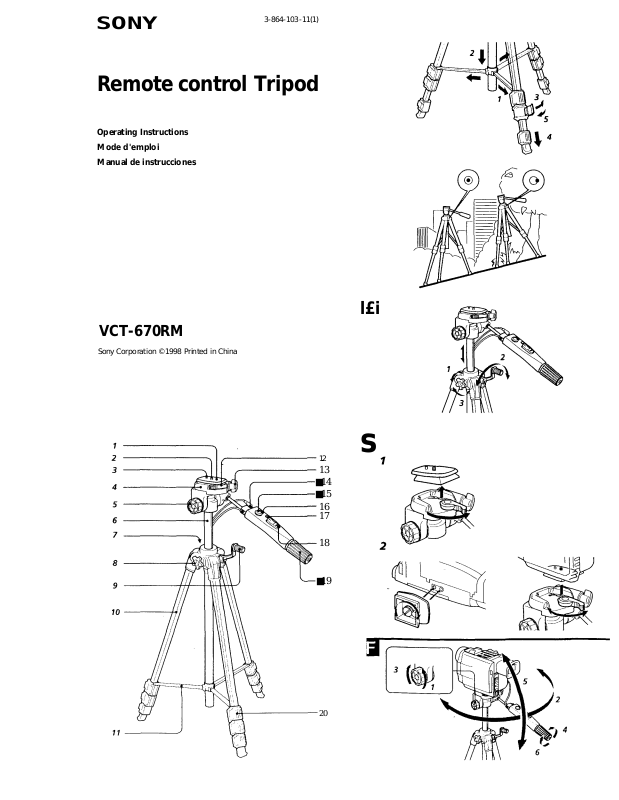

SONY

3-864-103-11(1)

Remote control Tripod

Operating Instructions Mode d'emploi Manual de instrucciones

l£i

VCT-670RM

■14

■15 16

■19

English

Français

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

- Reorient or relocate the

receiving antenna.

- Increase the separation between

the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Features

The VCT-670RM is a tripod

for video camera recorders. The Remote Commander built in the pan handle allows you to operate (zooming or

recording) the video camera

recorder with a remote C control jack.

Caution

•After using the tripod, remove the video camera recorder and close the legs and pan handle with facing out the control switch and button. Never carry the tripod with the video camera recorder attached.

•After the camera recording, slide the recording standby switch of pan handle to

LOCK. If you leave it to

STANDBY, the battery will

wear down.

Cleaning

Clean the tripod with a soft cloth lightly moistened with a mild detergent solution. After using the tripod at a location subject to sea breezes, be sure to wipe it clean with a dry cloth.

Identifying the Parts

□

1 Camera mounting shoe

2 Camera mounting screw

and knob

3 Pin 4 Tripod head

5 Pan lock knob

6 Elevator

7 Level

8 Elevator lock knob 9 Elevator height

adjustment crank

10 Leg 11 Stay 12 Camera mounting shoe

lock lever

13 Tripod head lock knob 14 Remote plug 15 Recording start/stop

button '

16 Recording standby switch 17 Photo mode button

18-ZooriT button

19 Pan handle

20 Leg length adjustment

lock lever

Using the Tripod

m Setting the Tripod

1 Spread the legs until the

tripod becomes stable.

2 Press down the stay. 3 Unlock the leg length

adjustment lock levers.

4 Adjust the length of the

legs.

5 Lock the leg length

adjustment lock levers.

B Adjusting the ievei

Adjust the length of the legs to move the air bubble of the level into the red circle.

B Adjusting the Height

of the Eievator

1 Loosen the elevator lock

knob.

2 Adjust the height by

turning the elevator height adjustment crank.

3 Tighten the elevator liKk

knob.

B Mounting the Video

Camera Recorder

Install the battery pack and a cassette in the video camera recorder before mounting to the tripod.

f While pressing the camera

mounting shoe lock lever fully to the right, slide out the camera mounting shoe from the tripod head.

2 Align the pin and the

camera mounting screw with the holes on the bottom of the video camera recorder, and tighten the screw firmly.

3 While turning the camera

mounting shoe lock lever fully to the right, replace the camera mounting shoe with the video camera recorder attached into the tripod head. Then, turn the camera mounting shoe lock lever to the left to lock.

Q Panning and Tilting

Before panning and tilting, make sure that the elevator lock knob is locked firmly. If it is unlocked, it will cause a camera shake while parming.

Panning

1 Loosen the pan lock knob

to the left.

2 Adjust the position of the

video camera recorder by moving the pan handle.

3 Tighten the pan lock knob

to the right.

Tilting

4 Turn the pan handle to

the left.

5 Adjust the position of the

video camera recorder by moving the pan handle.

6 Turn the pan handle to

the right.

Caractéristiques

Le VCT-670RM est un trépied pour caméscopes. La télécommande intégrée dans la poignée de panoramique vous permet de commander (zoom ou enregistrement) le caméscope au moyen d'une prise C de télécommande.

Attention

•Après avoir utilisé le trépied, détacher le caméscope et rabattre les pieds et ta poignée de panoramique au moyen du commutateur et de la touche de commande. Ne jamais transporter le trépied avec le caméscope attaché.

•Après l'enregistrement, faites glisser le commutateur de pause d'enregistrement de la poignee panoramique sur LOCK. Si vous le laissez sur STANDBY, la batterie va s'épuiser.

Nettoyage

Nettoyez le trépied avec un chiffon doux lejgèrement imbibé d'une solution de

détergent non agressif. Après

avoir utilisé le trépied dans

un endroit expose aux vents marins, frottez-le avec un chiffon sec.

Identification des

composantes

□

1 Sabot de montage de la

caméra

2 Vis et molette de montage

de la caméra

3 Broche

4 Tête du trépied

5 Molette de verrouillage

du panoramique

6 Elévateur

7 Niveau

8 Molette de verrouillage

d'élévateur

9 Manivelle de réglage de

l'élévateur

10 Pied

11 Plateforme

12 Levier de verrouillage du

sabot de montage de la caméra

13 Molette de verrouillage de

la tête du trépied

14 Fiche de télécommande

15 Touche de commande

d'enregistrement

16 Commutateur de pause

d'enregistrement

17 Bouton de mode photo

18 Commutateur de

commande de zoom

19 Poignée de panoramique

20 Levier de reglage de la

longueur des pieds

Utilisation du

trépied

03 Réglage du trépied

1 Déployez les pieds

_______________

jusqu'à ce que le trépied soit stable.
