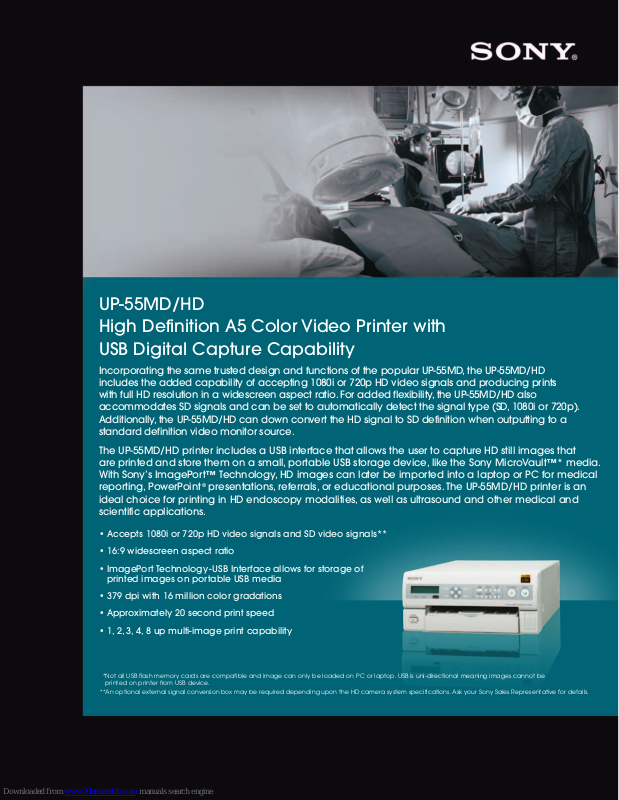

UP-55MD/HD
High Definition A5 Color Video Printer with
USB Digital Capture Capability
Incorporating the same trusted design and functions of the popular UP-55MD, the UP-55MD/HD
includes the added capability of accepting 1080i or 720p HD video signals and producing prints
with full HD resolution in a widescreen aspect ratio. For added flexibility, the UP-55MD/HD also
accommodates SD signals and can be set to automatically detect the signal type (SD, 1080i or 720p).
Additionally, the UP-55MD/HD can down convert the HD signal to SD definition when outputting to a
standard definition video monitor source.
The UP-55MD/HD printer includes a USB interface that allows the user to capture HD still images that
are printed and store them on a small, portable USB storage device, like the Sony MicroVault™* media.
With Sony’s ImagePort™ Technology, HD images can later be imported into a laptop or PC for medical
reporting, PowerPoint®presentations, referrals, or educational purposes. The UP-55MD/HD printer is an
ideal choice for printing in HD endoscopy modalities, as well as ultrasound and other medical and
scientific applications.
• Accepts 1080i or 720p HD video signals and SD video signals**
• 16:9 widescreen aspect ratio
• ImagePort Technology- USB Interface allows for storage of
printed images on portable USB media
• 379 dpi with 16 million color gradations
• Approximately 20 second print speed
• 1, 2, 3, 4, 8 up multi-image print capability
*Not all USB flash memory cards are compatible and image can only be loaded on PC or laptop. USB is uni-directional meaning images cannot be
printed on printer from USB device.
**An optional external signal conversion box may be required depending upon the HD camera system specifications. Ask your Sony Sales Representative for details.
Page 2
Specifications
Optional
Printing Method Dye Sublimation
Resolution 379 dpi
Printable Pixels 2528x1920 dots (SD 4:3 1up)
Total Gradation 256 gradations for yellow, magenta, cyan;
Printing Time High Speed: 20 seconds (approximate)
Max. Print Area 6 3/4" x 5 1/8" inches (169.4 x 128.6mm)
Paper Size UPC-55 — 7 1/8" x 6" inches (178 x 152mm)
Media Capacity 100 sheets
Power Requirements 100-120V AC, 50/60Hz
Max. Power Consumption 100-120V: 2.8A, 220-240V: 1.2A
I/O Interface RGB + Sync, YCbCr (SD), YPbPr (HD), Composite Video, S-Video
Control Connectors RS-232C (D-Sub 25 Pin Connector)
USB Host Port USB Flash Memory*
Image File Format JPEG only
Image File Size SD image: approx. 1440 x 1080 dots (square pixel);
Memory 8 Frame Memory
Dimensions 11 1/8 x 5 x 15 3/4 inches (w/h/d) (excluding projection parts)
Weight 19lb. 13oz. (Approx. 9 kg)
Compliance UL60601-1 listed, CSA C22.2 No. 601-1, FCC Class A, EN 60601-1, EN55022,
Supplied Accessories UPC-55 Color Media (100 sheet starter pack and 1 ribbon)
Optional Accessories UPC-55 Media Print Pack 200 sheets
* Not all USB flash memory cards are compatible and image can only be loaded on PC or laptop.
USB is uni-directional meaning images cannot be printed on printer from USB device.
** Sony Media Solutions Company offers many other USB MicroVault choices.
2528x1422 dots (HD 16:9 1up)
over 16.7 million colors per dot
220-240V AC, 50/60Hz
Infrared remote-control command
Remote 1 : SARCS, RM5500
Remote 2 : RM91/FS20/FS24
approx. 300 KB (varies)
At 1080i: approx. 1920 x 1080 dots; approx. 400KB (varies)
At 720p: approx. 1280 x 720 dots (square pixel);
approx. 250KB (varies)
280 x 125 x 398 mm (w/h/d)
EN 60601-1-2, GB4943, VCCI Class A
USB MicroVault storage media with 1 GB capacity, or larger Paper Tray,
Ribbon Holder, AC Power Cord, Owner’s Manual
(2 x 100 sheets and 2 x ribbons)
USB Flash Memory storage devices**
Accessories
UP-55MD/HD Media Tray
UP-55MD/HD Media Tray
Print Media
UPC-55 Media Print Pack
MicroVault –
©2008 Sony Electronics Inc. All rights reser ved. Reproduction in whole or in part without written permission is
prohibited. Features and specifications are subject to change without notice. All non-metric weights and measures
are approximate. Sony, ImagePort and MicroVault are trademarks of Sony. PowerPoint is a trademark of Microsoft.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician or other appropriately licensed
medical professional.
Caution: See product labeling for indications, contraindications, warnings, cautions and directions for use.
USB Storage Media
UP-55MD/HD Back Panel
