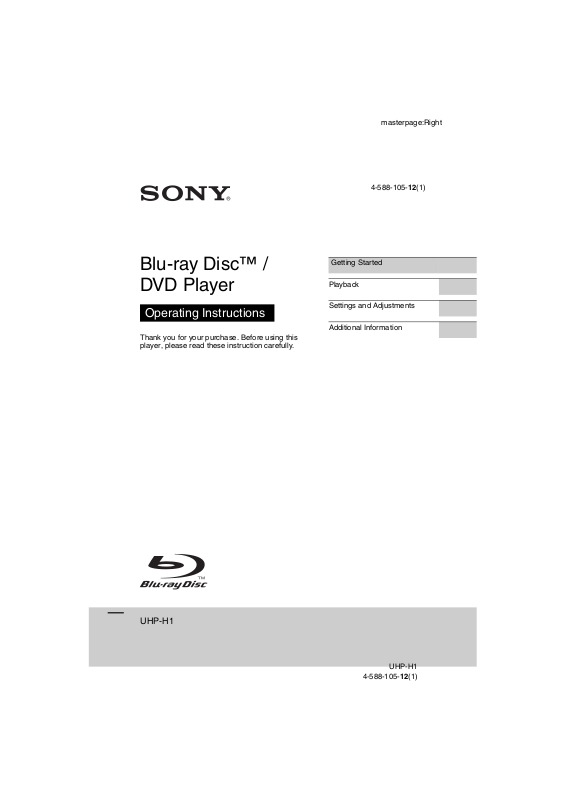

Page 1

4-588-105-12(1)

Blu-ray Disc™ / DVD Player

Operating Instructions

Thank you for your purchase. Before using this player, please read these instruction carefully.

Getting Started

Playback

Settings and Adjustments

Additional Information

UHP-H1

Page 2

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No.______________ Serial No.______________

If this product is not working properly, please call 1-800-222-SONY(7669).

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Precautions

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• Install this unit so that the AC power cord can be unplugged from the wall socket immediately in the event of trouble.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The shielded Interface cable (LAN cable) must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

Page 3

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/

TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

Contains FCC ID : MCLJ20H086

Compliance with FCC requirement

15.407©

Data transmision is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)On ly use attachments/accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13)Un plug this apparatus during lightning storms or when unused for long periods of time.

14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Frequency Tolerance : ± 20 ppm

Page 4

Precautions

This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection cable shorter than 3 metres.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.

• To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc.

• Do not expose the appliance to naked flame sources (for example, lighted candles).

• Do not install this player in a co nfined space, such as a bookshelf or similar unit.

• Do not place the player outdoors, in vehicles, on ships, or on other vessels.

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.

• Do not place metal objects in front of the front panel. It may limit reception of radio waves.

• Do not place the player in a place where medical equipment is in use. It may cause a malfunction of medical instruments.

• If you use a pacemaker or other medical device, consult your physician or the manufacturer of your medical device before using the wireless LAN function.

• Do not place heavy or unstable objects on the player.

• Do not place any objects other than discs on the disc tray. Doing so may cause damage to the player or the object.

• Take out any discs from the tray when you move the player. If you don’t, the disc may be damaged.

• Disconnect the AC power cord and all other cables from the player when you move the player.

On power sources

• The player is not disconnected from the AC power source as long as it is conne cted to the wall outlet, even if the player itself has been turned off.

• Disconnect the player from the wall outlet if you are not going to use the player for a long time. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

• Observe following points to prevent the AC power cord being damaged. Do not use the AC power cord if it is damaged, as doing so may result in an electric shock or fire. – Do not pinch the AC power cord between

the player and wall, shelf, etc.

– Do not put anything heavy on the AC

power cord or pull on the AC power cord itself.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. Your ears and the speakers may be damaged when the sound level reaches the peak.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth. Do not use any type of abra sive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the events that this player is repaired, repaired parts may be collected for reuse or recycling purposes.

Page 5

On connecting to the HDMI OUT jack

Observe the following as improper handling may damage the HDMI OUT jack and the connector.

• Carefully align the HDMI OUT jack on the rear of the player and the HDMI connector by checking their shapes. Make sure the connector is not upside down or tilted.

• Be sure to disconnect the HDMI cable when moving the player.

• Hold the HDMI connector straight when connecting or disconnecting the HDMI cable. Do not twist or force the HDMI connector into the HDMI OUT jack.

On watching 3D video images

Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images. Sony recomme nds that all viewers take regular breaks while watching 3D video images. The length and frequency of necessary breaks will vary from person to person. You must decide what wor ks best. If you experience any discomfort, you should stop watching the 3D video images until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual and/or the caution message of any other device used with, or Blu-ray Disc contents played with this product and (ii) our website (http://esupport.sony.com/) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult you r doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video

images. Adults should supervise young children to ensure they follow the recommendations listed above.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Copy Protection

Please be advised of the advanced content protection systems used in both Blu-ray Disc™ and DVD media. These systems, called AACS (Advanced Access Content System) and CSS (Content Scra mble System), may contain some restrictions on playback, analog output, and other similar features. The operation of this product and the restrictions placed may vary depending on the date of purchase, as the governing board of the AACS may adopt or change its restriction rules after the time of purchase.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

Page 6

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

Copyrights and Trademarks

• Java is a trademark of Oracle and/or its

affiliates.

• Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

•The terms HDMI® and HDMI High-

Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray Disc™, Blu-ray™, BD-LIVE™,

BONUSVIEW™, and the logos are trademarks of the Blu-ray Disc Association.

• Blu-ray 3D™ and Blu-ray 3D™ logo are

trademarks of the Blu-ray Disc Association.

• “DVD Logo” is a trademark of

DVD Format/Logo Licensing Corporation.

• “DVD+RW,” “DVD-RW,” “DVD+R,”

“DVD-R,” “DVD VIDEO,” “DVD AUDIO,” “Super Audio CD,” and “CD” logos are trademarks.

• “BRAVIA” is a trademark of Sony

Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

• This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReadyprotected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Page 7

• Gracenote, the Gracenote logo and logotype, “Powered by Gracenote”, Gracenote MusicID, Gracenote VideoID, and Gracenote Video Explore are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

•Wi-Fi®, Wi-Fi Protected Access®, Wi-Fi Alliance® and Miracast® are registered trademarks of Wi-Fi Alliance.

• Wi-Fi CERTIFIED™, WPA™, WPA2™, Wi-Fi Protected Setup™ and Wi-Fi CERTIFIED Miracast™ are trademarks of Wi-Fi Alliance.

• The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance.

• The Wi-Fi Protected Setup Identifier Mark is a certification mark of Wi-Fi Alliance.

• DLNA™, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• LDAC™ and LDAC logo are trademarks of Sony Corporation.

• “ ”, “PlayStation” and “DUALSHOCK” are trademarks of Sony Computer Entertainment Inc.

• “DSEE HX” is a trademark of Sony Corporation.

• SongPal Link and SongPal Link logo are trademarks of Sony Corporation.

• Google Play™ and the Google Play logo are trademarks of Google Inc.

• Apple® and the Apple logo, are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

• This product incorporates Spotify software which is subject to 3rd party licenses found here*: https://developer.spotify.com/esdk-thirdparty-licenses/ Spotify and Spotify logos are trademarks of the Spotify Group.* * This function may not be available in

some countries/regions.

• All other trademarks are trademarks of their respective owners.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

Page 8

Gracenote® End User License Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, Califor nia (“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this application or device to perform disc and/or file identification and obtain music- and/or video-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively, “Gr acenote Servers”), and to perform other functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device; the reception and display of the Gracenote Data on this application or device are not provided by Gracenote and falls solely within the responsibility and liability of the manufacturer hereof.

This application or device may contain content belonging to Gracenote’s providers. If so, all of the restrictions set forth herein with respect to Gracenote Data shall also apply to such content, and said content providers shall be entitled to all of the b enefits and protections that are available to Gracenote h ereunder. You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal, non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS EXCEPT AS EXPRESSLY PERMITTED HEREIN.

rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote may enforce its rights under this Agreement against you directly in its own name. Gracenote may amend or remove Gracenote Data with or without advance notice and may block or modify access to Gracenote Data; you do not have any claim against Gracenote arising out of such change, removal, blocking or modification.

PLEASE NOTE that in order to use the Gracenote Data, specific technical prerequisites, such as this application or device, software programs, methods of transfer, telecommunication services and other third party services, usually need to be used, for which additional cost, in particular connection charges, can be incurred, which you will have to pay for separately. Gracenote does not provide such applications or devices, software programs, methods of transfer, telecommunication services or other services, and does not accept any liability for services of third parties. Gracenote is not responsible for the proper setup, connection or (if applicable) equipment of this application or device so that Gracenote Data may be received; this lies within your sole responsibility.

,continued to page 10

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership

Page 9

Contents

2WARNING 4 Precautions

Getting Started

11 Guide to Parts and Controls 16 Step 1: Connecting the Player 18 Step 2: Preparing for Network Connection 18 Step 3: Easy Setup

Playback

20 Playing a Disc 21 Playing from a USB Device 22 Playing via a Network 24 Listening to Audio from a Bluetooth Device 25 Available Options

Settings and Adjustments

28 Using the Settings Displays 28 [Software Update] 28 [Accessibility Settings] 29 [Screen Settings] 31 [Audio Settings] 32 [Bluetooth Settings] 33 [BD/DVD Viewing Settings] 34 [Parental Control Settings] 34 [Music Settings] 34 [System Settings] 36 [Network Settings] 36 [Easy Network Settings] 37 [Resetting]

Additional Information

38 Troubleshooting 43 Specifications

Page 10

The Gracenote service uses a unique identifier to track queries for statistical purposes. The purpose of a randomly assigned numeric identifier is to allow the Gracenote service to count queries without knowi ng anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service. The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from the Gracenote Servers; the download or any other receipt of content, in particular the download of Gracenote Data, is also at y our own risk and you are solely responsible for any damage to this application or device or for any other damages, including loss of data, arising out of such actions. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sufficient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new, enhanced or additional data types or categories that Gracenote may provide in the future, and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE, GRACENOTE DATA OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

Software License Information

For EULA (End User License Agreement), please refer to [License agreement] in the option menu on each network service icon.

For details of the other software licenses, please select [Setup] and refer to [Software License Information] in [System Settings].

This product contains software that is subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). These licenses establish that customers have the right to acquire, modify, and redistribute the source code of said software in accordance with the terms of the GPL or the LGPL. The source code for the software used in this product is subject to the GPL and LGPL, and is available on the Web. To download, please visit the following website: http://oss.sony.net/Products/Linux Please note that Sony cannot respond to any inquiries regarding the content of this source code.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Page 11

Getting Started

Guide to Parts and Controls

Front panel

Getting Started

A Disc tray B Front panel display* C AUDIO DIRECT indicator*

“AUDIO DIRECT” will appear when AUDIO DIRECT button on the remote is pressed.

D Z (open/close) E 1 (on/standby)

Turns on the player, or sets to standby mode.

F (USB) jack cover

Lift the cover to connect a USB device to this jack.

G Remote sensor

* Front panel display and AUDIO DIRECT

indicator will not appear at the same time.

To lock the disc tray (Child Lock)

You can lock the disc tray to avoid accidental opening of the tray. While the player is turned on, press x STOP, HOME, and then TOP MENU button on the remote to lock or unlock the tray.

Page 12

Rear panel

A LAN (100) terminal B DIGITAL OUT (COAXIAL) jack C DIGITAL OUT (OPTICAL) jack D LINE OUT (R-AUDIO-L) jacks E HDMI OUT 1 jack F HDMI OUT 2 jack

Page 13

Remote

The available functions of the remote are different depending on the disc or the situation.

N PLAY, TV VOL +, and AUDIO buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

The player automatically returns to standby mode

If any button on the player or remote is not pressed for more than 20 minutes, the player automatically returns to standby mode.

A Z OPEN/CLOSE

Opens or closes the door tray.

TV 1 (on/standby)

Turns on the TV, or sets to standby mode.

1 (on/standby)

Turns on the player, or sets to standby mode.

AUDIO DIRECT

• Enables high quality audio output.

• Disables video output and front panel display.

TV INPUT

Switches between TV and other input sources.

BLUETOOTH (page 24)

• Scan device list will appear if this player has no paired Bluetooth device.

• Connect to the last connected device if this player has a paired Bluetooth device. If the connection fails, scan device list will appear.

• Disconnect the connected Bluetooth device.

B Color buttons (YELLOW/

BLUE/RED/GREEN)

Shortcut keys for interactive functions.

C FAVORITE (page 19)

Accesses the application registered as favorite.

Getting Started

Page 14

NETFLIX

Accesses the “NETFLIX” online service. For further NETFLIX online service details, visit the following website and check the FAQ: http://www.sony.com/ bluraysupport/

TOP MENU

Opens or closes the BD’s or DVD’s Top Menu.

POP UP/MENU

Opens or closes the BD-ROM’s Pop-up Menu, or the DVD’s menu.

OPTIONS

Displays the available options on the screen.

RETURN

Returns to the previous display.

</M/m/,

Moves the highlight to select a displayed item.

• M/m as a shortcut key to launch track

search window and input track number during music CD playback.

• M/m as a shortcut key to rotate photo

clockwise/counterclockwise by 90 degrees.

• </, as a shortcut key to perform

search functions during DLNA video playback.

• </, as a shortcut key to change still

image when it is enabled to change.

Center button (ENTER)

Enters the selected item.

HOME

Enters the player's home screen.

D m/M (fast reverse/fast

forward)

• Fast reverse/fast forward the disc when you press the button during playback. The search speed

changes each time you press the button during video playback.

• Plays in slow motion, when pressed for more than one second in pause mode.

• Plays one frame at a time, when you press for a short time in pause mode.

N PLAY

Starts or re-starts playback.

. PREV/NEXT >

Skips to the previous/next chapter, track, or file.

X PAUSE

Pauses or re-starts playback.

SUBTITLE (page 33)

Selects the subtitle language when multi-lingual subtitles are recorded on BD-ROMs/DVD VIDEOs/DVD AUDIOs.

x STOP

Stops playback and remembers the stop point (resume point). The resume point for a title/track is the last point you played or the last photo for a photo folder.

AUDIO

Selects the language track when multi-lingual tracks are recorded on BD-ROMs/DVD VIDEOs/DVD AUDIOs. Selects the sound track on CDs.

MUTING

Turns off the TV sound temporarily.

TV VOL +/–

Adjusts the TV volume.

DISPLAY (page 21)

Displays the playback information on the screen.

Page 15

Code numbers of controllable TVs

Hold down TV 1 and the TV manufacturer’s code using the remote buttons for 2 seconds.

Manufacturer Remote Button

Sony (Default) AUDIO DIRECT

Hitachi TV INPUT

LG/Goldstar/NEC BLUETOOTH

Toshiba Color button

(YELLOW)

RCA Color button

(BLUE)

Mitsubishi/MGA Color button

(RED)

Pioneer Color button

(GREEN)

Sharp FAVORITE

Panasonic NETFLIX

Samsung TOP MENU

Philips POP UP/MENU

Vizio 1 RETURN

Vizio 2 OPTIONS

Vizio 3 HOME

Getting Started

Page 16

Step 1: Connecting the Player

Do not connect the AC power cord until you have made all the connections.

Connecting to your TV

Connect the player to your TV with a High Speed HDMI Cable.

High Speed HDMI Cable (not supplied)

Connecting to your AV amplifier (receiver)

Select one of the following connection methods according to the input jacks on your AV amplifier (receiver).

* Not supplied.

High Speed HDMI Cable

High Speed

HDMI Cable

t Set [BD Audio MIX Setting] in [Audio Settings] (page 31).

High Speed HDMI Cable

Coaxial digital cable

Optical digital cable

Audio/video cable

Page 17

About AV Separation Mode

This mode allows you to output video signals via the HDMI OUT 1 jack and audio signals via the HDMI OUT 2 jack separately.

High Speed HDMI Cable

(not supplied)

Getting Started

Page 18

Step 2: Preparing for Network Connection

If you are not going to connect the player to a network, proceed to “Step 3: Easy Setup” (page 18).

Step 3: Easy Setup

When turned on for the first time

Wait for a short while before the player turns on and starts [Easy Initial Settings].

Wired Setup

Use a LAN cable to connect to the LAN (100) terminal on the player.

LAN cable (not supplied)

Broadband router

The use of a shielded and straight interface cable (LAN cable) is recommended.

ADSL modem/ Cable modem

Internet

Wireless Setup

Use the wireless LAN that is built into the player.

LAN cable (not supplied)

1 Insert two Size AAA (R03)

batteries by matching the 3 and # ends on the batteries to the markings inside the battery compartment of the remote.

2 Plug the player into the AC outlet.

to AC outlet

3 Press 1 to turn on the player.

Wireless LAN router

ADSL modem/ Cable modem

Internet

Page 19

4 Turn on the TV and set the input

selector on your TV by pressing TV INPUT button on the remote. This will show the signal from the player on your TV screen.

5 Perform [Easy Initial Settings].

Follow the on-screen instructions to make the basic settings using </M/m/, and ENTER on the remote.

</M/m/,

Home screen display

The home screen appears when you press HOME. Select an application using </M/m/,, and press ENTER.

Tools

You can add your favorite apps here.

Move or delete apps using the option menu.

All Apps

Setup

Audio & Video Player

You can enjoy many Apps with your BD player. Please

select here and press on your remote control.

Application

No Disc

Getting Started

ENTER

When [Easy Initial Settings] is complete, the player will automatically find the available network.

[My Apps]: Manages favorite application. You may add shortcuts for application from [All Apps]. [Featured Apps]: Displays recommended application.

[All Apps]: Shows all available applications. You can add applications to [My Apps] by pressing OPTIONS, and select [Add to My Apps].

[Setup]: Adjusts the player’s settings.

Available options

Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation.

[Move Application]: Arranges applications in [My Apps]. [Remove Application]: Deletes applications in [My Apps]. [Register as Favorite]: Registers 1 application into FAVORITE remote button. [Data Contents]: Displays the contents of the mixed disc.

Page 20

Playback

Playing a Disc

For “Playable discs”, see page 44.

1 Switch the input selector on your

TV so that the signal from the player appears on your TV screen.

2 Press Z OPEN/CLOSE, and place

a disc on the disc tray.

Playing side facing down

3 Press Z OPEN/CLOSE to close the

disc tray.

Playback starts. If playback does not start automatically, select [Video], [Music], or [Photo] category in

(Disc), and press ENTER.

Enjoying Blu-ray 3D

You can enjoy a Blu-ray 3D Disc with the “Blu-ray 3D” logo.

1 Prepare for Blu-ray 3D Disc

playback.

• Connect the player to your 3Dcompatible devices using a High Speed HDMI Cable.

• Set [3D Output Setting] and [TV Screen Size Setting for 3D] in [Screen Settings] (page 29).

2 Insert a Blu-ray 3D Disc.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

Refer also to the instruction manuals supplied with your TV and the connected device.

(Mixed disc) contains data contents. Press OPTIONS on the remote and select [Data Contents] to display any available contents.

Page 21

Displaying the play information

You can view the playback information, etc., by pressing DISPLAY. The displayed information differs depending on the disc type and player status. Example: when playing a BD-ROM

A Output resolution/Video frequency B Title number or name C The currently selected angle D The currently selected audio and

closed caption settings

E Available functions ( angle,

audio, subtitle,

closed caption)

F Playback information

Displays the Play mode, Playing status bar, Disc type, Video codec, Bitrate, Repeat type, Elapsed time, and Total playing time.

G Chapter number

Playing from a USB Device

For “Playable types of files”, see page 46.

1 Connect the USB device to the

USB jack on the player (page 11).

Refer to the instruction manual supplied with the USB device before connecting.

2 Select [USB device] using

</M/m/,, and press ENTER.

3 Select [Video], [Music], or

[Photo] category using M/m, and press ENTER.

Playback

Page 22

Playing via a Network

Playing files on a Home Network (DLNA)

A DLNA-compatible product can play video/music/photo files stored on another DLNA-compatible product via a network.

1 Prepare to use DLNA.

• Connect the player to a network (page 18).

• Prepare the other necessary DLNA-compatible products. Refer to the instruction manual supplied with the product.

To play a file from a DLNA server via another product (Renderer)

When you play files from a DLNA Server on this unit, you can use a DLNA Controller-compatible product (a phone, etc.), to control playback.

Server

Renderer

Controller

Control this unit using a DLNA controller. Refer to the instruction manual supplied with the DLNA controller.

To play a file from a DLNA server via this unit (DLNA player)

Server

Select [Video], [Music], or [Photo] category from [Media Server] in [All Apps], then choose the file you want to play.

Player

Using “Video & TV SideView”

“Video & TV SideView” is a free mobile application for remote devices (such as smartphone, etc.). By using “Video & TV SideView” with this player, you can easily enjoy the player by using the operation on your remote device. You can launch a service or application directly from the remote device and view the disc information during disc playback. “Video & TV SideView” also can be used as a remote control and software keyboard. Before you use the “Video & TV SideView” device with this player for the first time, be sure to register the “Video & TV SideView” device. Follow the on-screen instructions on the “Video & TV SideView” device for registration.

The registration can only be performed on the home screen.

Page 23

Using SongPal Link/SongPal

SongPal is a dedicated app for operating SongPal-compatible audio devices (e.g. wireless speaker) that are manufactured by Sony. You can listen to music stored on your audio CD (CD-DA) and USB device with this player from multiple places under the same network. For more information, please visit http://sony.net/ nasite/. You are required to use your mobile device (smartphone or tablet) and wireless router to use this app. Search for SongPal on Google Play™ or the App Store and download using your mobile device.

To use the SongPal feature, the player must be updated with software version M33.R.0300 or greater. This version is scheduled to release in May 2016 (subject to change). For [Software Update] instructions, see page 28.

Connecting to a mobile device

1 Connect the player to a network

(page 18).

2 Set [Auto Home Network Access

Permission] in [Network Settings] to [On].

3 Connect your mobile device to the

same SSID (network) by Wi-Fi.

4 Launch and follow the instructions

on SongPal app.

• For further SongPal apps details, visit http://songpal.sony.net/

• For SongPal Link/SongPal Help, visit http://info.songpal.sony.net/help/

Using Screen mirroring

“Screen mirroring” is a function to display the screen of a mobile device on the TV by Miracast technology. The player can be connected directly with a Screen mirroring compatible device (e.g. smartphone, tablet). You can enjoy the display screen of the device on your large TV screen. No wireless router (or access point) is required to use this feature.

• When using Screen mirroring, the quality of picture and sound may sometimes be deteriorated due to interference from other network. You may improve by adjusting [Screen mirroring RF Setting] (page 36).

• Some network functions may not be available during Screen mirroring.

• Make sure that the device is compatible with Miracast. Connectivity with all Miracast compatible devices is not guaranteed.

1 Select [Screen mirroring]

from home screen using </M/m/,, and press ENTER.

2 Follow the on-screen

instructions.

Playback

Page 24

Listening to Audio from a Bluetooth Device

To listen to an audio source from a Bluetooth device (e.g. headphone) via this player, you need to pair the Bluetooth device with this player.

Pairing with a Bluetooth device

Pairing is an operation where the Bluetooth devices are registered to each other before connection. Set [Bluetooth Mode] in [Bluetooth Settings] to [On] (page 32) before pairing a Bluetooth device with this player.

1 Place the Bluetooth device within

1 meter from the player.

2 Perform any of the following

steps:

– When connecting to a device for

the first time, press BLUETOOTH button on the remote.

– Select [Bluetooth Device] option

on the playback screen.

– Select [Device List] in [Bluetooth

Settings].

3 Set the Bluetooth device in

pairing mode.

For details on setting the Bluetooth device in pairing mode, refer to the instruction manual supplied with the device.

4 Press M/m repeatedly to select

the device you want, and press ENTER.

When the Bluetooth connection is established, the device name will appear on the TV screen.

5 Start playback content. 6 Adjust the volume.

Adjust the volume of the Bluetooth device first. If the volume level is still low, adjust the volume level by pressing OPTIONS on the remote during playback screen and select [Bluetooth Volume]. Then, press M/m to adjust the volume.

Some Bluetooth device does not support volume control.

To disconnect the Bluetooth device

Perform any of the following steps: – Press BLUETOOTH button on the

remote (page 13).

– Disable the Bluetooth function on the

Bluetooth device.

– Turn off the player or the Bluetooth

device.

Before you turn off your Bluetooth device, turn down the volume level of your TV to avoid sudden high volume outbursts.

Page 25

Available Options

Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation.

Common options

x [Repeat Setting]: Sets the repeat

mode.

x [3D Menu]:

– [Simulated 3D]: Adjusts the

simulated 3D effect.

– [3D Depth Adjustment]: Adjusts the

depth of 3D image.

– [2D Playback]: Sets playback to 2D

image.

x [Play]/[Stop]: Starts or stops the

playback.

x [Play from beginning]: Plays the

item from the beginning.

x [Bluetooth Device]

Bluetooth device list.

x [Bluetooth Volume]

Bluetooth volume control view. This option item is only available when the Bluetooth device is connected.

x [Accessibility]

– [Screen Reader] –[Enlarge] – [Closed Captions]

[Bluetooth Device] and [Bluetooth Volume] are not available during DLNA photo playback.

[Accessibility] is not available during photo or music playback.

[Closed Captions] is only available during video playback.

*1*2

: Displays

: Displays the

Video only

x [3D Output Setting]: Sets whether or

not to output 3D video automatically.

x [A/V SYNC]: Adjusts the gap between

picture and sound, by delaying the sound output in relation to the picture output (0 to 120 milliseconds).

x [Video Settings]:

– [Picture Quality Mode]: Selects the

picture settings for different lighting environments.

z [Direct] z [Brighter Room] z [Theater Room] z [Auto] z [Custom1]/[Custom2]

x [Texture Remaster]: Adjusts the

sharpness and detail of the edges.

x [Super Resolution]: Improves

the resolution.

x [Smoothing]: Reduces on-screen

banding by smoothing gradations on flat areas.

x [Contrast Remaster]:

Automatically arranges the black and white levels so that the screen is not too dark and the image is modulated.

x [Clear Black]: Adjusts the

display of the dark elements of the image. All shading is not suppressed; it allows beautifully reproduced black tones.

x [FNR]: Reduces the random

noise appearing in the picture.

x [BNR]: Reduces the mosaic-like

block noise in the picture.

x [MNR]: Reduces minor noise

around the picture outlines (mosquito noise).

Playback

Page 26

x [Contrast] x [Brightness] x [Color] x [Hue]

x [Pause]: Pauses the playback. x [Title Search]: Searches for a title on

BD-ROMs/DVD VIDEOs and starts playback from the beginning.

x [Chapter Search]: Searches for a

chapter and starts playback from the beginning.

x [Closed Captions]: Selects closed

caption format when available.

x [Video Search]: Displays

information on the BD-ROM/DVD-ROM based on Gracenote technology. Searches for related information using keywords from Gracenote when selecting [Cast] or [Related]. Displays a list of titles when selecting [Playback History] or [Search History].

Music only

x [Track Search]: Searches the track

number during music CD playback.

x [Add Slideshow BGM]: Registers

music files in the USB memory as slideshow background music (BGM).

x [Music Search]: Displays

information on the audio CD (CD-DA) based on Gracenote technology. Searches for related information using keywords from Gracenote when selecting [Track], [Artist] or [Related]. Displays a list of titles when selecting [Playback History] or [Search History].

x [Shuffle Setting]: Set to [On] to

playback music files in randomized order.

x [Group Search]: Searches for the

group number during DVD AUDIO playback.

Video and Music only

x [Top Menu]: Displays the BD’s or

DVD’s Top Menu.

x [Menu]/[Popup Menu]: Displays the

BD-ROM’s Pop-up Menu or DVD’s menu.

x [Audio]: Switches the language track

when multilingual tracks are recorded on BD-ROMs/DVD VIDEOs/DVD AUDIOs. Selects the sound track on CDs.

x [Subtitle]: Switches the subtitle

language when multilingual subtitles are recorded on BD-ROMs/DVD VIDEOs/DVD AUDIOs.

x [Angle]: Switches to other viewing

angles when multi-angles are recorded on BD-ROMs/DVD VIDEOs/DVD AUDIOs.

x [Number Entry]: Selects the number

by using </M/m/, key on the remote.

Photo only

x [Slideshow Speed]: Changes the

slideshow speed.

x [Slideshow Effect]: Sets the effect

for slideshows.

x [Slideshow BGM]:

– [Off]: Turns off the function. – [My Music from USB]: Sets the

music files registered in [Add Slideshow BGM].

– [Play from Music CD]: Sets the

tracks in CD-DAs.

x [Change Display]: Switches

between [Grid View] and [List View].

Page 27

x [View Image]: Displays the selected

photo.

x [Slideshow]: Plays a slideshow. x [Rotate Left]: Rotates the photo

counterclockwise by 90 degrees.

x [Rotate Right]: Rotates the photo

clockwise by 90 degrees.

[Slideshow BGM] is not available during DLNA photo playback.

Playback

Page 28

Settings and Adjustments

Using the Settings Displays

Select [Setup] on the home screen when you need to change the settings of the player. The default settings are underlined.

1 Select [Setup] on the home

screen using </M/m/,.

2 Select the setup category icon

using M/m, and press ENTER.

• We recommend performing the software

update every 2 months or so.

• If your network condition is poor, visit

http://www.sony.com/bluraysupport/ to download the latest software version and update via USB memory. You can also get information about update functions from the website.

[Accessibility

Settings]

x [Screen Reader Settings]

[Screen Reader]

[On]: Turns on the function.

: Turns off the function.

[Off]

[Software Update]

x [Update via Internet]

Updates the player’s software using available network. Make sure that the network is connected to the Internet. For details, see “Step 2: Preparing for Network Connection” (page 18).

x [Update via USB Memory]

Updates the player’s software using USB memory. Make sure that the Software Update Folder is correctly named as “UPDATE” and all the update files must be stored in this folder. The player can recognize up to 500 files/ folders in a single layer including the update files/folders.

[Speech Rate]

[Very Fast] / [Fast] / [Normal] / [Slow] / [Very Slow]: Sets the reading speed.

[Speech Volume]

[High] / [Medium] / [Low]: Sets the reading volume.

[Prioritize Speech Audio]

[On]: Lowers the background sound volume when the sound overlaps with the read-out speech or the auditory signal.

: Turns off the function.

[Off]

[Speech Verbosity]

[High]: Read-out in detailed style.

: Read-out in simplified style.

[Low]

This setting works with NETFLIX service only.

x [Enlarge]

[On]: Text is displayed in large size.

: Text is displayed in normal size.

[Off]

Page 29

x [Auto-Scroll Speed]

[Fast] / [Normal] / [Slow] / [Very Slow]: Sets the speed of automatic text scrolling.

x [Accessibility Shortcut]

[On]: Turns on the shortcut in [Options] window.

: Turns off the shortcut.

[Off]

[Screen Settings]

x [DVD Aspect Ratio]

[Letter Box]: Displays a wide picture with black bands on the top and bottom.

[Pan & Scan]: Displays a full-height picture on the entire screen, with trimmed sides.

x [3D Output Setting]

[Auto]: Normally select this. [Off]: Select this to display all content in 2D.

If you want to enjoy 4K output using 3D content, set to [Off].

x [TV Screen Size Setting for 3D]

Sets the screen size of your 3Dcompatible TV.

x [TV Type]

[16:9]: Select this when connecting to a wide-screen TV or a TV with a wide mode function. [4:3]: Select this when connecting to a 4:3 screen TV without a wide mode function.

x [Screen Format]

[Full]: Select this when connecting to a TV with a wide mode function. Displays a 4:3 screen picture in 16:9 aspect ratio even on a wide-screen TV. [Normal]: Changes the picture size to fit the screen size with the original picture aspect ratio.

Settings and Adjustments

x [Cinema Conversion Mode]

[Auto]: Normally select this. The player automatically detects whether the material is video-based or film-based, and switches to the appropriate conversion method. [Video]: The conversion method suited for video-based material will always be selected regardless of the material.

x [Output Video Resolution]

Normally select [Auto]. Select [Original Resolution] to output the resolution recorded on the disc. When the resolution is lower than the SD resolution, it is scaled up to the SD resolution.

Page 30

x [24p Output]

Outputs 24p video signals only when you connect a 24p-compatible TV via an HDMI connection and the [Output Video Resolution] is set to [Auto], [1080p] or [4K].

[BD-ROM 24p Output]

[Auto]: Outputs 24 Hz video signals only when connecting a 24p-compatible TV using the HDMI OUT jack. [On]: Turns on the function. [Off]: Select this when your TV is not compatible with 24p video signals.

[DVD-ROM 24p Output]

[Auto]: Outputs 24 Hz video signals only when connecting a 24p-compatible TV using the HDMI OUT jack. [Off]: Select this when your TV is not compatible with 24p video signals.

[Data content 24p Output]

This function is available for playback contents stored in USB memory or data disc. [Auto]: Outputs 24 Hz video signals only when connecting a 24p-compatible TV using the HDMI OUT jack. [Off]: Select this when your TV is not compatible with 24p video signals.

[Network content 24p Output]

This function is available for playback contents from other network, such as Home Network, Screen mirroring, etc. [Auto]: Outputs 24 Hz video signals only when connecting a 24p-compatible TV using the HDMI OUT jack. [

Off]: Select this when your TV is not

compatible with 24p video signals.

x [4K Output]

[Auto1]: Outputs 2K (1920 × 1080) video signals during video playback and 4K video signals during photo play when connecting to a Sony 4K-compatible equipment. Outputs 4K video signals when connecting to a non-Sony 4K-compatible equipment. This setting does not work for 3D video image playback. [Auto2]: Automatically outputs 4K video signals when you connect a 4K-compatible equipment. [Off]: Turns off the function.

If your Sony equipment is not detected when [Auto1] is selected, the setting will have the same effect as [Auto2] setting.

x [YCbCr/RGB (HDMI)]

[Auto]: Automatically detects the connected TV type, and switches to the matching color setting. [YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video signals. [YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video signals. [RGB]: Outputs RGB video signals.

Automatically outputs YCbCr 4:2:0 video signals during 4K/60p output.

x [HDMI Deep Color Output]

[Auto]: Normally select this. [12bit]/[10bit]: Outputs 12bit/10bit video signals when the connected TV is compatible with Deep Color. [Off]: Select this when the picture is unstable or colors appear unnatural.

Automatically outputs 8bit video signals during 4K output.

Page 31

x [SBM] (Super Bit Mapping)

[On]: Smooths the gradation of video signals output from the HDMI OUT jack. [Off]: Select this when outputting distorted video signals or unnatural color.

x [BD Audio MIX Setting]

[On]: Outputs the audio obtained by mixing the interactive and secondary audio to the primary audio. [Off]: Outputs the primary audio only. Select this to output HD audio signals to an AV amplifier (receiver).

x [IP Content NR Pro]

[Video - Strong]/[Video - Medium]/ [Video - Mild]/[Film - Mild]/ [Film - Medium] the picture quality for Internet content. [Off]: Turns off the function.

x [Pause Mode]

[Auto]: Normally select this. Dynamic moving pictures appear without blurring. [Frame]: Displays static pictures at high resolution.

/[Film - Strong]: Adjust

[Audio Settings]

x [Digital Audio Output]

[Auto]: Normally select this. Outputs audio signals according to the status of the connected devices. [PCM]: Outputs PCM signals from the DIGITAL OUT (OPTICAL/COAXIAL)/ HDMI OUT jack.

x [DSD Output Mode]

[Auto]: Outputs DSD signals from the HDMI OUT jack when playing a Super Audio CD and DSD format file. Outputs LPCM signals instead if the HDMI connected device not support DSD. [Off]

: Outputs PCM signals from the HDMI OUT jack when playing a Super Audio CD and DSD format file.

x [DTS Neo:6]

[Cinema]/[Music]: Outputs the simulated multi-channel sound from 2 channel sources via the HDMI OUT jack according to the capability of the connected device using [Cinema]/[Music] mode.

: Outputs the sound with its original

[Off] number of channels via the HDMI OUT jack.

When [DTS Neo:6] is set to [Cinema] or [Music], [DSEE HX] cannot be set to [On].

x [48kHz/96kHz/192kHz PCM]

[48kHz]/[96kHz]/[192kHz]: Sets the sampling frequency for the PCM signals output from the DIGITAL OUT (OPTICAL/COAXIAL) jack.

Some device does not support [96kHz] and [192kHz] sampling frequency.

x [DSEE HX]

[On]: Upscales the audio file to a HighResolution Audio file and reproduces the clear high-range sound which is often lost. [Off]

: Turns off the function.

Source must be 2ch and 44.1/48 kHz.

Settings and Adjustments

Page 32

x [Audio DRC]

[Auto]: Performs playback at the dynamic range specified by the disc (BD-ROM only). Other discs are played back at the [On] level. [On]: Performs playback at a standard compression level. [Off]: No compression works. A more dynamic sound is produced.

x [Downmix]

[Surround]: Outputs audio signals with surround effects. Select this when connecting an audio device that supports Dolby Surround (Pro Logic) or DTS Neo:6. [Stereo]

: Outputs audio signals without surround effects. Select this when connecting an audio device that does not support Dolby Surround (Pro Logic) or DTS Neo:6.

[Bluetooth Settings]

x [Bluetooth Mode]

[On]: Enables Bluetooth settings and functions. [Off]: Disables Bluetooth settings and functions.

x [Bluetooth Codec - AAC] /

[Bluetooth Codec - LDAC]

This function is enabled when [Bluetooth Mode] is set to [On]. [On]

: Enables AAC/LDAC codec.

[Off]: Disables AAC/LDAC codec.

This function is disabled during connection with a Bluetooth device.

LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a Bluetooth connection. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content*, and allows approximately three times more data** than those other technologies t o be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization. * Excluding DSD format contents. ** In comparison with SBC (Subband

Coding) when the bitrate of 990 kbps (96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected.

x [Device List]

Displays a list of paired and detected Bluetooth receivers when [Bluetooth Mode] is set to [On].

Page 33

x [Wireless Playback Quality]

This function is enabled when [Bluetooth Mode] and [Bluetooth Codec

- LDAC] is set to [On]. If sound output or network streaming is unstable, please select [Connection]. [Auto]: Sets the transmission data rate for LDAC automatically. [Sound Quality]: The highest data rate is used. Sound is sent at a higher quality, but audio playback may become unstable if the link quality is not sufficient. [Standard] This provides a balance between sound quality and playback stability. [Connection]: Stability is prioritized. The sound quality may be reasonable and the connection status will most likely be stable.

: A medium data rate is used.

x [Audio Language]

Selects the default audio language for BD-ROMs or DVD VIDEOs. When you select [Original], the language given priority in the disc is selected. Select [Select Language Code], and enter the code for your language, referring to “Language code list” (page 49).

x [Subtitle Language]

Selects the default subtitle language for BD-ROMs or DVD VIDEOs. Select [Select Language Code], and enter the code for your language, referring to “Language code list” (page 49).

x [BD Hybrid Disc Playback Layer]

[BD]: Plays BD layer. [DVD/CD]: Plays DVD or CD layer.

Settings and Adjustments

[BD/DVD Viewing

Settings]

x [BD/DVD Menu Language]

Selects the default menu language for BD-ROMs or DVD VIDEOs. Select [Select Language Code], and enter the code for your language, referring to “Language code list” (page 49).

x [BD Internet Connection]

[Allow]: Normally select this. [Do not allow] connection.

x [Delete BD Data]

Deletes data in the USB memory. All data stored in the buda folder will be erased.

x [DVD-Audio Playback]

[DVD-Audio]: Plays DVD AUDIO content. [DVD-Video]: Plays DVD VIDEO content only.

: Prohibits Internet

Page 34

[Parental Control Settings]

x [Password]

Sets or changes the password for the Parental Control function. A password allows you to set a restriction on BD-ROM or DVD VIDEO, and Internet video playback. If necessary, you can differentiate the restriction levels for BD-ROMs, DVD VIDEOs, and Internet videos.

x [Parental Control Area Code]

Playback of some BD-ROMs, DVD VIDEOs, or Internet videos can be limited according to the geographic area. Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

x [BD Parental Control] /

[DVD Parental Control] / [Internet Video Parental Control]

By setting Parental Control, scenes can be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

x [Internet Video Unrated]

[Allow]: Allows the playback of unrated Internet videos. [Block]: Blocks the playback of unrated Internet videos.

[Music Settings]

x [Super Audio CD Playback Layer]

[Super Audio CD]: Plays the Super Audio CD layer. [CD]: Plays the CD layer.

x [Super Audio CD Playback

Channel]

[DSD 2ch]: Plays the 2ch area. [DSD Multi] area.

: Plays the multi-channel

[System Settings]

x [OSD Language]

Selects on-screen display language for your player.

x [Closed Caption Settings]

Customizes the format of Closed Caption displayed. Select [Original] in [Text Settings] setting to disable.

x [Dimmer]

[Bright]: Bright lighting. [Dark]: Low lighting. [Off]: Turns off the lighting during playback. Low lighting other than during playback.

Page 35

x [HDMI Settings]

By connecting Sony components that are compatible with HDMI functions with a High Speed HDMI Cable, operation is simplified.

x [Quick Start Mode]

[On]: Shortens the startup time when turning on the player. [Off]

: Reduces standby power

consumption.

[Control for HDMI]

[On]: The following BRAVIA Sync features are available: – One-Touch Play – System Power-Off – Language Follow [Off]: Turns off the function.

For details, refer to the instruction manual supplied with the TV or components. To enable the BRAVIA Sync features, connect your TV via the HDMI OUT 1 jack.

[Linked to TV-off]

[Valid]: Automatically turns off the player when the connected TV enters standby mode (BRAVIA Sync). [Invalid]: Turns off the function.

x [AV Separation Output Mode]

[On]: Outputs video signals via the HDMI OUT 1 jack and audio signals via the HDMI OUT 2 jack separately. [Off]: Outputs video signals and audio signals simultaneously via both the HDMI OUT 1 jack and the HDMI OUT 2 jack.

x [DUALSHOCK(TM)4 wireless

controller]

You can register and manage your wireless controller here. Follow the onscreen instructions.

DUALSHOCK™4 wireless controller uses Bluetooth technology. Check that [Bluetooth Mode] in [Bluetooth Settings] is set to [On] (page 32).

x [Auto Display]

[On]: Automatically displays information on the screen when changing the viewing titles, picture modes, audio signals, etc. [Off]: Displays information only when you press DISPLAY.

x [Software Update Notification]

[On]: Sets the player to inform you of newer software version information (page 28). [Off]: Turns off the function.

x [Gracenote Settings]

[Auto]: Automatically downloads disc information when disc playback stops. Connect to the network for downloading. [Manual]

: Downloads the disc information when [Video Search] or [Music Search] is selected.

x [Device Name]

Displays the player’s name. The player’s name can be changed.

x [System Information]

Displays the player’s software version information and the MAC address.

x [Software License Information]

Displays information about the Software License.

Settings and Adjustments

Page 36

[Network Settings]

x [Internet Settings]

Connect the player to the network beforehand. For details, see “Step 2: Preparing for Network Connection” (page 18). [Wired Setup]: Select this when you connect to a broadband router using a LAN cable. [Wireless Setup] use the wireless LAN that is built into the player for wireless network connection.

For further details, visit the following website and check the FAQ contents: http://www.sony.com/bluraysupport/

x [Network Connection Status]

Displays the current network status.

: Select this when you

x [Auto Home Network Access

Permission]

[On]: Allows automatic access from newly detected DLNA controllercompatible product. [Off]: Turns off the function.

x [Home Network Access Control]

Displays a list of DLNA controllercompatible products and sets whether or not to accept commands from the controllers in the list.

x [Registered Remote Devices]

Displays a list of your registered remote devices.

x [External Control]

[On]: Allows the home automation controller to operate this player. [Off]: Turns off the function.

x [Network Connection

Diagnostics]

Checks for the proper network connection by running the network diagnostics.

x [Screen mirroring RF Setting]

[Auto]: Sets the RF (Radio Frequency) channel band automatically for Screen mirroring connection. [CH 1]/[CH 6]/[CH 11]: Sets CH 1/ CH 6/CH 11 as priority.

x [Connection Server Settings]

Sets whether or not to display the connected server.

x [Remote Start]

[On]: Allows you to turn on the player by a device linked via a network. [Off]

: Turns off the function.

[Easy Network

Settings]

Select [Easy Network Settings] to specify the network settings. Follow the on-screen instructions.

Page 37

[Resetting]

x [Reset to Factory Default Settings]

Resets the player settings to the factory default by selecting the group of settings. All the settings within the group will be reset.

x [Initialize Personal Information]

Erases your personal information stored in the player.

If you dispose, transfer or resell this unit, please delete all Personal Information for security purposes. Please take the appropriate measures such as logging out after using a network service.

Settings and Adjustments

Page 38

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

The display language on the screen switches automatically when connected to the HDMI OUT jack.

, When [Control for HDMI] in [HDMI

Settings] is set to [On] (page 35), the display language on the screen automatically switches according to the language setting of the connected TV (if you change the setting on your TV, etc.).

Sound


There is no picture or the picture is not output correctly.

, Check that all the connecting cables

are securely connected (page 16).

, Switch the input selector on your TV

to display the signal from the player.

, Reset the [Output Video Resolution] to

the lowest resolution by pressing x STOP, HOME, and then POP UP/ MENU button on the remote.

, Try the following:

off and on again. equipment off and on again.

3Disconnect and then reconnect the

HDMI cable.

, The HDMI OUT jack is connected to a

DVI device that does not support copyright protection technology.

, Check the [Output Video Resolution]

settings in [Screen Settings] (page 29).

, For BD-ROMs/DVD-ROMs/Data

content/Network content, check the [24p Output] settings in [Screen Settings] (page 30).

1Turn the player

2Turn the connected

There is no sound or the sound is not output correctly.

, Check that all the connecting cables

are securely connected (page 16).

, Switch the input selector on your AV

amplifier (receiver) so that the audio signals of the player are output from your AV amplifier (receiver).

, If the audio signal does not come

through the DIGITAL OUT (OPTICAL/COAXIAL)/HDMI OUT jack, check the audio settings (page 31).

, For HDMI connections, try the

following: on again. equipment off and on again.

3Disconnect and then reconnect the

HDMI cable.

, For HDMI connections, if the player is

connected to a TV through an AV amplifier (receiver), try connecting the HDMI cable directly to the TV. Refer also to the instruction manual supplied with the AV amplifier (receiver).

1Turn the player off and

2Turn the connected

Page 39

, There is no sound if you connect an

AV amplifier to the HDMI OUT 1 jack, and set [AV Separation Output Mode] in [System Settings] to [On] (page 35). Set [AV Separation Output Mode] in [System Settings] to [Off], or connect the AV amplifier to the HDMI OUT 2 jack. See “About AV Separation Mode” (page 17).

, The HDMI OUT jack is connected to a

DVI device (DVI jacks do not accept audio signals).

, The device connected to the HDMI

OUT jack does not support the audio format of the player. Check the audio settings (page 31).

The HD Audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio, and DTS-HD Master Audio) is not output by bitstream.

, Set [BD Audio MIX Setting] in [Audio

Settings] to [Off] (page 31).

, Check that the connected AV amplifier

(receiver) is compatible with each HD Audio format.

The interactive audio is not output.

, Set [BD Audio MIX Setting] in [Audio

Settings] to [On] (page 31).

Message Code 3 [Audio outputs temporarily muted. Do not adjust the playback volume. The content being played is protected by Cinavia and is not authorized for playback on this device. For more information, see http://www.cinavia.com. Message Code 3] appears on the screen when playing a disc.

, The audio track of the video that you

are playing contains a Cinavia code indicating that it is an unauthorized copy of professionally-produced content (page 5).

Additional Information

Disc

The disc does not play.

, The disc is dirty or skewed. , The disc is upside down. Insert the disc

with the playback side facing down.

, The disc has a format that cannot be

played back by this player (page 44).

, The player cannot play a recorded disc

that is not correctly finalized.

, The region code on the BD or DVD

does not match the player.

USB device

The player does not detect a USB device connected to the player.

, Make sure that the USB device is

securely connected to the USB jack.

, Check if the USB device or a cable is

damaged.

, Check if the USB device is on. , If the USB device is connected via a

USB hub, connect the USB device directly to the player.

Page 40

Internet streaming

The picture/sound is poor/certain programmes display a loss of detail, especially during fast-motion or dark scenes.

, Picture/sound quality may be

improved by changing the connection speed. Recommended connection speed is of at least 2.5 Mbps for standard definition video (10 Mbps for high definition video).

There is no options menu during Internet streaming.

, Options menu is not available during

Internet streaming.

Network connection

The player cannot connect to the network.

, Check the network connection

(page 18) and the network settings (page 36).

You cannot connect the player to the wireless LAN router.

, Check if the wireless LAN router is on. , Depending on the surrounding

environment, such as the wall material, radio wave receiving condition, or obstacles between the player and the wireless LAN router, the communication distance may be shortened. Move the player and the wireless LAN router closer to each other.

, Devices that use a 2.4 GHz frequency

band, such as a microwave, Bluetooth, or digital cordless device, may interrupt the communication. Move the player away from such devices, or turn off such devices.

The desired wireless router do not appear in the wireless network list.

, Press RETURN to return to the

previous screen, and try wireless setup again. If the desired wireless router is still not detected, select [New connection registration] to perform [Manual registration].

The PC cannot connect to the Internet after [Wi-Fi Protected Setup™ (WPS)] is performed.

, The wireless settings of the router may

change automatically if you use the Wi-Fi Protected Setup function before adjusting the settings of the router. In this case, change the wireless settings of your PC accordingly.

The message [A new software version is available. Please go to the “Setup” section of the menu and select “Software Update” to perform the update.] appears on the screen when turning the player on.

, See [Software Update] (page 28) to

update the player to a newer software version.

Page 41

Bluetooth connection Control for HDMI (BRAVIA

Sync)

Bluetooth connection cannot be done/ completed.

, Set [Bluetooth Mode] to [On]

(page 32).

, Make sure the Bluetooth device to be

connected is turned on and the Bluetooth function is enabled.

, Move the Bluetooth device closer to

the player.

, Connect this player and the Bluetooth

device again. You may need to cancel the connection with this player using your Bluetooth device first.

, Delete pairing information once from

the device list and connected device, before retrying connection.

, Connection may not be possible if

other Bluetooth devices are present around the player. In this case, turn off the other Bluetooth devices.

, The connection registration

information has been erased. Perform the connection operation again.

There is no sound, the sound skips or fluctuates, or the connection is lost.

, DVD AUDIO cannot be played via

Bluetooth device due to DRM.

, Move the Bluetooth device closer to

the player.

, Make sure the player is not receiving

any interference from a Wi-Fi network, other Bluetooth device, other

2.4 GHz wireless device, or microwave oven.

, Check that the Bluetooth connection is

properly made between this player and the Bluetooth device.

, Connect this player and the Bluetooth

device again.

, Keep the player away from metal

objects or surfaces.

The [Control for HDMI] function does not work (BRAVIA Sync).

, Check that your TV is connected via

the HDMI OUT 1 jack. If your TV is connected via the HDMI OUT 2 jack, BRAVIA Sync is disabled.

, Check that [Control for HDMI] in

[HDMI Settings] is set to [On] (page 35).

, If you change the HDMI connection,

turn the player off and on again.

, If power failure occurs, set [Control

for HDMI] in [HDMI Settings] to [Off], then set [Control for HDMI] in [HDMI Settings] to [On] (page 35).

, Check the following and refer to the

instruction manual supplied with the component. – the connected component is

compatible with the [Control for HDMI] function.

– the connected component’s setting

for the [Control for HDMI] function is correct.

, When you connect the player to a TV

through an AV amplifier (receiver), – if the AV amplifier (receiver) is not

compatible with the [Control for HDMI] function, you may be unable to control the TV from the player.

– if you change the HDMI

connection, disconnect and reconnect the AC power cord, or a power failure occurs, try the following: selector of the AV amplifier (receiver) so that the picture from the player appears on the TV screen.

2Set [Control for HDMI] in

[HDMI Settings] to [Off], then set [Control for HDMI] in [HDMI

1Switch the input

Additional Information

Page 42

Settings] to [On] (page 35). Refer to the instruction manual supplied with the AV amplifier (receiver).

The System Power-Off function does not work (BRAVIA Sync).

, Check that [Control for HDMI] and

[Linked to TV-off] in [HDMI Settings] are set to [On] and [Valid] (page 35).

Others

The disc tray does not open and “LOCK” or “D ON” appears on the front panel display.

, When “LOCK” appears, the player is

locked. To cancel the Child Lock, press x STOP, HOME, and then TOP MENU button on the remote until “UNLCK” appears on the front panel display (page 11).

, When “D ON” appears, contact your

Sony dealer or local authorized Sony service facility.

Playback does not start from the beginning of content.

, Press OPTIONS, and select [Play from

beginning].

Playback does not start from the resume point where you last stopped playing.

, The resume point may be cleared from

memory depending on the disc when – you open the disc tray. – you disconnect the USB device. – you play other content. – you turn off the player.

Message Code 1 [Playback stopped. The content being played is protected by Cinavia and is not authorized for playback on this device. For more information, see http://www.cinavia.com. Message Code 1] appears on the screen when playing a disc.

, The audio track of the video that you

are playing contains a Cinavia code indicating it was intended for presentation using professional equipment only and is not authorized for playback by consumers (page 5).

The disc tray does not open and you cannot remove the disc even after you press Z.

, While the player is turned on, press x

STOP, HOME, and then TOP MENU button on the remote to unlock the tray and disable the Child Lock (page 11).

, Try the following:

off, and disconnect the AC power cord.

2Reconnect the AC power cord while

pressing down Z on the player.

3Keep pressing down Z on the player

until the tray opens. disc.

5Disconnect and reconnect the

AC power cord again to recover the player.

1Turn the player

4Remove the

“Exxxx” or “TEMP” appears on the front panel display.

, When “Exxxx” appears, contact your

nearest Sony dealer or local authorized Sony service facility and give the error code.

, When “TEMP” appears, place the

player in a location with adequate ventilation to prevent heat build-up in the player. “TEMP” will appear for a short time.

Page 43

The message [[EJECT] Key is currently unavailable.] appears on the screen after Z is pressed.

, Contact your nearest Sony dealer or

local authorized Sony service facility.

The player does not respond to any button.

, Moisture has condensed inside the

player (page 4).

Specifications

Specifications and design are subject to change without notice.

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load impedance)

LINE OUT R-AUDIO-L:

Phono jack/2 Vrms/10 kilohms

DIGITAL OUT (OPTICAL):

Optical output jack/–18 dBm (wave length 660 nm)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT 1*/2:

HDMI 19-pin standard connector

* Only HDMI OUT 1 supports 4K

output.

LAN (100): 100BASE-TX Terminal USB:

USB jack Type A (For connecting a USB memory, memory card reader, digital still camera, and digital video camera)*

* Do not use for power charging

purposes.

Wireless

Wireless LAN standard:

Protocol IEEE802.11 a/b/g/n

Frequency range:

2.4 GHz, 5 GHz band Modulation: DSSS and OFDM Bluetooth Version: Bluetooth Version 4.1

Bluetooth

Communication system:

Bluetooth Specification v4.1

Output:

Bluetooth Specification Power Class 1

Maximum communication range:

Line of sight approx. 30 m

Frequency band: 2.4 GHz

Additional Information

Page 44

Modulation method: FHSS Compatible Bluetooth Profiles:

A2DP v1.2, AVRCP v1.3 Supported Codecs: SBC, AAC, LDAC Transmission range (A2DP):

• 20 Hz - 40,000 Hz (LDAC in sampling 96 kHz and transmit by 990 kbps)

• 20 Hz - 20,000 Hz (in sampling

44.1 kHz)

General

Power requirements:

Rating: Input 120 V AC, 60 Hz Power consumption: 14 W Dimensions (approx.):

360 mm × 250 mm × 50 mm

(14

/4in. × 10 in. × 2 in.) (width/depth/height) incl. projecting parts

Mass (approx.): 2.8 kg (6 lb 3 oz) Operating temperature:

5 ºC to 35 ºC (41 °F to 95 °F)

Operating humidity: 25 % to 80 %

Supplied accessories

• Remote commander (remote) (1)

• Size AAA (R03) batteries (2)

Playable discs

Blu-ray

Disc

DVD

Since the Blu-ray Disc specifications are new and evolving, some discs may not be playable depending on the disc type and the version. The audio output differs depending on the source, connected output jack, and selected audio settings.

BD-RE: Ver.2.1 BD-R: Ver.1.1, 1.2, 1.3 including organic pigment type BD-R (LTH type) The BD-Rs recorded on a PC cannot be played if postscripts are recordable.

A CD or DVD disc will not play if it has not been correctly finalized. For more information, refer to the instruction manual supplied with the recording device.

Some DVD AUDIO discs have hidden group and need password entry. Refer to the disc for the password.

Discs that cannot be played

• BDs with cartridge

•BDXLs

• DVD-RAMs

• HD DVDs

• PHOTO CDs

• Data part of CD-Extras

• Super VCDs

• Audio material side on DualDiscs

• A disc recorded in a color system other than NTSC, such as PAL (this player conforms to the NTSC color system).

BD-ROM BD-R

/BD-RE

DVD-ROM DVD-R/DVD-RW DVD+R/DVD+RW DVD AUDIO

CD-DA (Music CD) CD-ROM CD-R/CD-RW Super Audio CD

Page 45

Note on Discs

This product is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.

Note on playback operations of BDs/ DVDs

Some playback operations of BDs/ DVDs may be intentionally set by software producers. Since this player plays BDs/DVDs according to the disc contents the software producers designed, some playback features may not be available.

Note about double-layer BDs/DVDs

The playback pictures and sound may be momentarily interrupted when the layers switch.

Region code (BD-ROM/DVD VIDEO only)

Your player has a region code printed on the rear of the unit and will only play BD-ROMs/DVD VIDEOs labeled with identical region codes or .

UHP-XX

ALL

Region code

Additional Information

Page 46

Playable types of files

Video

Codec Container Extension With Audio

MPEG-1

Video

MPEG-2

Video

Xvid

MPEG4/AVC

VC1

*1*7

WMV9

Motion JPEG

PS .mpg, .mpeg Dolby Digital, DTS, LPCM, MPEG

MKV .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis

MKV

.mpg, .mpeg Dolby Digital, DTS, LPCM, MPEG

.m2ts, .mts Dolby Digital, DTS, LPCM, MPEG, AAC

.mkv Dolby Digital, LPCM, AAC, MP3, Vorbis

AVI .avi Dolby Digital, LPCM, WMA9, MP3

MKV .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis

MKV

MP4

Quick Time

FLV

3gpp/ 3gpp2

.mkv Dolby Digital, LPCM, AAC, MP3, Vorbis

.mp4, .m4v AAC

.m2ts, .mts Dolby Digital, DTS, LPCM, MPEG, AAC

.mov Dolby Digital, LPCM, AAC, MP3

.flv, .f4v LPCM, AAC, MP3

.3gp, .3g2, .3gpp, .3gp2

AAC

TS .m2ts, .mts Dolby Digital, DTS, LPCM, MPEG, AAC

MKV .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis

ASF .wmv, .asf WMA9, WMA 10 Pro

MKV .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis

Quick Time .mov Dolby Digital, LPCM, AAC, MP3

AVI .avi Dolby Digital, LPCM, AAC, MP3

AVCHD (Ver.2.0)

Format

*1*8*9*10

Page 47

Music

Codec Extension

MP3 (MPEG-1 Audio Layer III)

*11

AAC/HE-AAC

*1*11

.mp3

.m4a, .aac

WMA9 Standard*1.wma

WMA 10 Pro

LPCM

FLAC

Dolby Digital

DSF

DSDIFF

AIFF

ALAC

*12

*11

*6*11

.wma

.wav

.flac, .fla

.ac3

.dsf

*1*13

.dff

.aiff, .aif

.m4a

Vorbis .ogg

Monkey’s Audio .ape


Format Extension

JPEG .jpeg, .jpg, .jpe

PNG .png

GIF .gif

MPO .mpo

BMP .bmp

The player may not play thi s file format on a DLNA server.

The player can only play standard definition video on a DLNA server.

The player does not play DTS format files on a DLNA server.

The player can only play Dolby Digital format files on a DLNA server.

The player can support AVC up to Level

4.1.

The player does not play this file format on a DLNA server.

The player can support WMV9 up to Advance Profile.

*14

*6*15

*6*16

The player can support frame rate up to 60 fps.

The player plays AVCHD format files t hat are recorded on a digital video camera, etc. The AVCHD format disc will not play if it has not been correctly finalized.

*10

The player can play AVCHD 3D format.

*11

The player can play “.mka” files. This file cannot be played on a DLNA server.

*12

The player does not play coded file s uch as Lossless.

*13

The player does not play DST encoded files.

*14

The player does not play animated PNG or animated GIF files.

*15

For MPO files other than 3D, the key image or the first image is displayed.

*16

The player does not support 16bit BMP files.

• Some files may not play depending on the file format, file encoding, recording condition, or DLNA server condition.

• Some files edited on a PC may not play.

• Some files may not be able to perform fast forward or fast reverse function.

• The player does not play coded files such as DRM.

• The player can recognize the following files or folders in BDs, DVDs, CDs and USB devices: – up to folders in the 9th layer, including the

root folder.

– up to 500 files/folders in a single layer.

• The player can recognize the following files or folders stored in the DLNA server: – up to folders in the 19th layer. – up to 999 files/folders in a single layer.

• The player can support frame rate: – up to 60 fps for AVCHD (MPEG4/AVC)

only.

– up to 30 fps for other video codecs.

• The player can support video bit rate up to 40 Mbps.

• Some USB devices may not work with this player.

Additional Information

Page 48

• The player can recognize Mass Storage Class (MSC) devices (such as flash memory or an HDD), Still Image Capture Device (SICD) class devices and 101 keyboard.

• To avoid data corruption or damage to the USB memory or devices, turn off the player when connecting or removing the USB memory or devices.

• The player may not play high bit rate video files on DATA CDs smoothly. It is recommended to play such files using DATA DVDs or DATA BDs.

WPA-PSK (TKIP), WPA2-PSK (TKIP)

TKIP is a security technology developed to correct the deficiencies of WEP. TKIP assures a higher security level than WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an advanced security method that is distinct from WEP and TKIP. AES assures a higher security level than WEP or TKIP.

About wireless LAN security

Since communication via the wireless LAN function is established by radio waves, the wireless signal may be susceptible to interception. To protect wireless communication, this player supports various security functions. Be sure to correctly configure the security settings in accordance with your network environment.

No Security

Although you can easily make settings, anyone can intercept wireless communication or intrude into your wireless network, even without any sophisticated tools. Keep in mind that there is a risk of unauthorized access or interception of data.

WEP

WEP applies security to communications to prevent outsiders from intercepting communications or intruding into your wireless network. WEP is a legacy security technology that enables older devices, which do not support TKIP/AES, to be connected.

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface. Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available disc/ lens cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

• Do not use the following discs. – A lens cleaning disc. – A disc that has a non-standard shape

(e.g., card, heart).

Page 49

– A disc with a label or sticker on it. – A disc that has cellophane tape or

sticker adhesive on it.

• Do not resurface the playing side of a disc to remove surface scratches.

Language code list

For details, see [BD/DVD Viewing Settings] (page 33). The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani;

Dzongkha 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic;

1299 Cambodian;

Khmer 1301 Korean 1305 Kashmiri

1142 Greek

Kalaallisut

1300 Kannada

Code Language

1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian; Lao 1332 Lithuanian 1334 Latvian 1345 Malagasy 1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Malese;

1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 Oromo 1408 Oriya 1417 Punjabi;

Panjabi

1435 Pashto;

Pushto

1463 Quechua 1481 Rhaeto-

1482 Kirundi; Rundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho;

Sango

1503 Singhalese;

Sinhalese 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati; Swati 1514 Sesotho;

1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana;

Tswana 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu 1703 Not specified

Maltese

1428 Polish

1436 Portuguese

Romance

1502 Serbo-

Croatian

1505 Slovak

Sotho southern

1535 Tonga; Tonga

islands

Additional Information

Page 50

Parental control/area code

For details, see [Parental Control Area Code] (page 34).

Code Area

2044 Argentina 2047 Australia 2046 Austria 2057 Belgium 2070 Brazil 2090 Chile 2092 China 2093 Colombia 2115 Denmark 2165 Finland 2174 France 2109 Germany 2200 Greece 2219 Hong Kong 2248 India 2238 Indonesia 2239 Ireland 2254 Italy 2276 Japan 2304 Korea 2333 Luxembourg 2363 Malaysia 2362 Mexico 2376 Netherlands 2390 New Zealand 2379 Norway 2427 Pakistan 2424 Philippines 2428 Poland 2436 Portugal 2489 Russia 2501 Singapore 2149 Spain 2499 Sweden 2086 Switzerland 2543 Taiwan 2528 Thailand 2184 United

2586 Vietnam

Kingdom

Page 51

Page 52

The software of this player may be updated in the future. To download any available updates and the Operating Instructions with advanced features, please visit the following website:

http://www.sony.com/bluraysupport/

VIDEO/AUDIO

4-588-105-12(1)

Sony UHP-H1 Operating Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual

WARNING

Precautions

Getting Started

Guide to Parts and Controls

Step 1: Connecting the Player

Step 2: Preparing for Network Connection

Step 3: Easy Setup

Playback

Playing a Disc

Playing from a USB Device

Playing via a Network

Listening to Audio from a Bluetooth Device

Available Options

Settings and Adjustments

Using the Settings Displays

[Software Update]

[Screen Settings]

[Audio Settings]

[Bluetooth Settings]

[Parental Control Settings]

[Music Settings]

[System Settings]

[Network Settings]

[Resetting]

Additional Information

Troubleshooting

Specifications
